OPERATION MANUAL
DATA PROJECTOR
MODEL
PG-F267X
ii
IMPORTANT
• For your assistance in reporting the loss
or theft of your Projector, please record
the Model and Serial Number located on
the bottom of the projector and retain this
information.
• Before recycling the packag ing, please
ensure that you have checked the con-
tents of the carton thoroughly against the
list of “Supplied accessories” on page
11.
Model No.:
Serial No.:
iii
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fi tted with a non-rewireable (moulded) plug incorporating
a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse
marked
or and of the same rating as above, which is also indicated on the pin face
of the plug, must be used.
Always refi t the fuse cover after replacing the fuse. Never use the plug without the fuse
cover fi tted.
In the unlikely event of the socket outlet in your home not being compatible with the plug
supplied, cut off the mains plug and fi t an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immedi-
ately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket
outlet, as a serious electric shock may occur.
To fi t an appropriate plug to the mains lead, follow the instructions below:
WARNING:
THIS APPARATUS MUST BE EARTHED.
IMPORTANT:
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this apparatus may not correspond with
the coloured markings identifying the terminals in your plug proceed as follows:
•
The wire which is coloured green-and-yellow must be connected to the terminal in the
plug which is marked by the letter E or by the safety earth symbol
or coloured green
or green-and-yellow.
•
The wire which is coloured blue must be connected to the terminal which is marked
with the letter N or coloured black.
•
The wire which is coloured brown must be connected to the terminal which is marked
with the letter L or coloured red.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
iv
The supplied CD-ROM contains operation instructions in English, German, French,
Spanish, Italian, Dutch, Swedish, Portuguese, Chinese and Arabic. Carefully read through
the operation instructions before operating the projector.
Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch,
Spanisch, Italienisch, Niederländisch, Schwedisch, Portugiesisch, Chinesisch und Arabisch. Bitte
lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.
Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand,
français, espagnol, italien, néerlandais, suédois, portugais, chinois et arabe. Veuillez lire
attentivement ces instructions avant de faire fonctionner le projecteur.
El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés,
español, italiano, holandés, sueco, portugués, chino y árabe. Lea cuidadosamente las
instrucciones de operación antes de utilizar el proyector.
Il CD-ROM in dotazione contiene istruzioni per l'uso in inglese, tedesco, francese, spagnolo,
italiano, olandese, svedese, portoghese, cinese e arabo. Leggere attentamente le istruzioni
per l'uso prima di usare il proiettore.
De meegeleverde CD-ROM bevat handleidingen in het Engels, Duits, Frans, Spaans,
Italiaans, Nederlands, Zweeds, Portugees, Chinees en Arabisch. Lees de handleiding
zorgvuldig door voor u de projector in gebruik neemt.
Den medföljande CD-ROM-skivan innehåller bruksanvisningar på engelska, tyska, franska,
spanska, italienska, holländska, svenska, portugisiska, kinesiska och arabiska. Läs noga
igenom bruksanvisningen innan projektorn tas i bruk.
O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês,
Espanhol, Italiano, Holandês, Sueco, Português, Chinês e Árabe. Leia cuidadosamente
todas as instruções de operação antes de operar o projetor.
1
Introduction
Before using the projector, please read this operation manual carefully.
Introduction
ENGLISH
There are two important reasons for prompt warranty registration of your new
SHARP Projec tor, using the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefi t of the parts,
service and labor warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notifi cation of inspection,
modifi cation, or recall that SHARP may be required to give under the 1972
Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT
“LIMITED WARRANTY” CLAUSE.
U.S.A. ONLY
WARNING:
High brightness light source. Do not stare into the beam of light, or view
directly. Be especially careful that children do not stare directly into the
beam of light.
WARNING:
To reduce the risk of fi re or electric shock, do not
expose this product to rain or mois ture.
The lightning fl ash with arrowhead sym-
bol, within an equilateral triangle, is in-
tended to alert the user to the presence
of uninsulated “dangerous voltage”
within the product's enclosure that may
be of suffi cient magnitude to constitute
a risk or electric shock to persons.
The exclamation point within a triangle
is intended to alert the user to the pres-
ence of important operating and main-
tenance (servicing) instructions in the
literature accompanying the product.
See bottom of projector.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
WARNING:
FCC Regulations state that any unauthorized changes or modifi cations
to this equipment not expressly approved by the manufacturer could
void the user's authority to operate this equip ment.
U.S.A. ONLY
2
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the operation manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at
his own expense.
U.S.A. ONLY
The enclosed computer cable must be used with the device. The cable is
provided to ensure that the device complies with FCC Class A verifi cation.
U.S.A. ONLY
WARNING:
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
PRODUCT DISPOSAL
This product utilizes tin-lead solder, and lamp containing a small
amount of mercury. Disposal of these materials may be regulated due
to environmental considerations. For disposal or recycling information,
please contact your local authorities, the Electronics Industries Alliance:
www.eiae.org, the lamp recycling organization www.lamprecycle.org, or
Sharp at 1-800-BE-SHARP.
U.S.A. ONLY

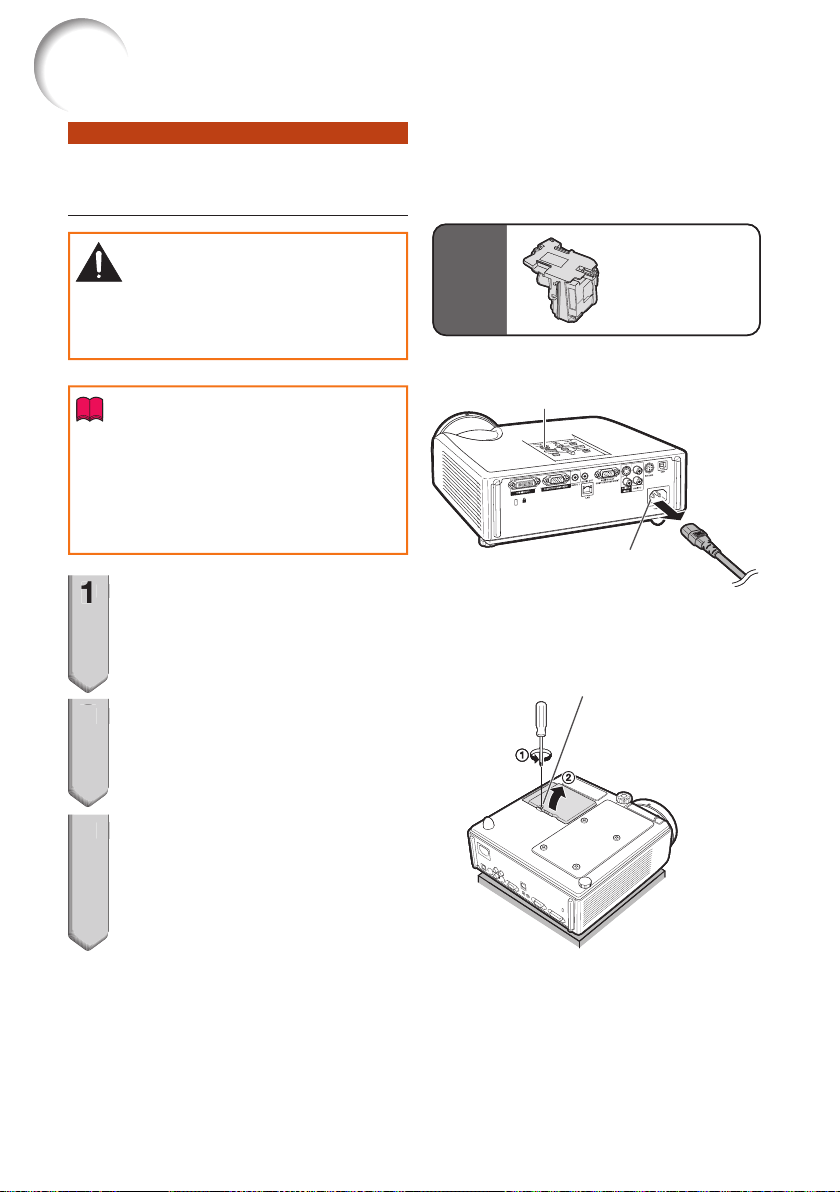

Caution Concerning Lamp Replacement
See “Replacing the Lamp” on page 55.
This SHARP projector uses a DLP
®
chip. This very sophisticated panel contains 786,432
pixels (micromirrors). As with any high technology electronic equipment such as large screen
TVs, video systems and video cameras, there are certain acceptable tolerances that the
equipment must conform to.
This unit has some inactive pixels within acceptable tolerances which may result in inactive dots
on the picture screen. This will not affect the picture quality or the life expectancy of the unit.
Authorized representative responsible for the European Union Community Market
SHARP ELECTRONICS (Europe) GmbH
Sonninstraße 3, D-20097 Hamburg
E.U. ONLY
3
Introduction
How to Read this Operation Manual
The specifi cations are slightly different, depending on the model. However, you can connect
and operate all models in the same manner.
In this operation manual, the illustration and the screen display are simplifi ed for explanation, and
may differ slightly from the actual display.
39
Useful
Features
Using the Menu Screen
Adjustment buttons
(P/R/O/Q)
ENTER button
RETURN button
Press RETURN to return
to the previous screen
when the menu is
displayed.
•
MENU/HELP button
Adjustment buttons (P/R/O/Q)
MENU/HELP button
ENTER button
Menu Selections (Adjustments)
Example: Adjusting “Bright”.
This operation can also be performed by using the buttons on the projector.•
1
Press MENU/HELP.
The “Picture” menu screen for the selected
input mode is displayed.
2
Press Q or O and select
“Picture” to adjust.
•
1
2
Example: “Picture” screen menu for
COMPUTER (RGB) input
Menu item
Picture Mode
Contrast 0
0
0
Bright
Standard
SEL./ADJ. ENTER END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Lamp Setting
0
1
On
Bright
DNR
Off
Reset
Picture SCR PRJ Net. Help
Buttons used in
this operation
On-screen
display
Button used in
this step
Info
.........Indicates safeguards for using the projector.
Note
.......
Indicates additional information for setting up and operating the
projector.
For Future Reference
Maintenance
P. 52
Troubleshooting
PP. 60 and 61
Index
P. 65
■
•
4
Contents
Preparing
Introduction
How to Read this Operation Manual ......3
Contents .................................................4
IMPORTANT SAFEGUARDS ..................6
How to Access the PDF Operation
Manuals ..............................................10
Accessories ..........................................11
Part Names and Functions ...................12
Projector................................................. 12
Rear View ............................................... 13

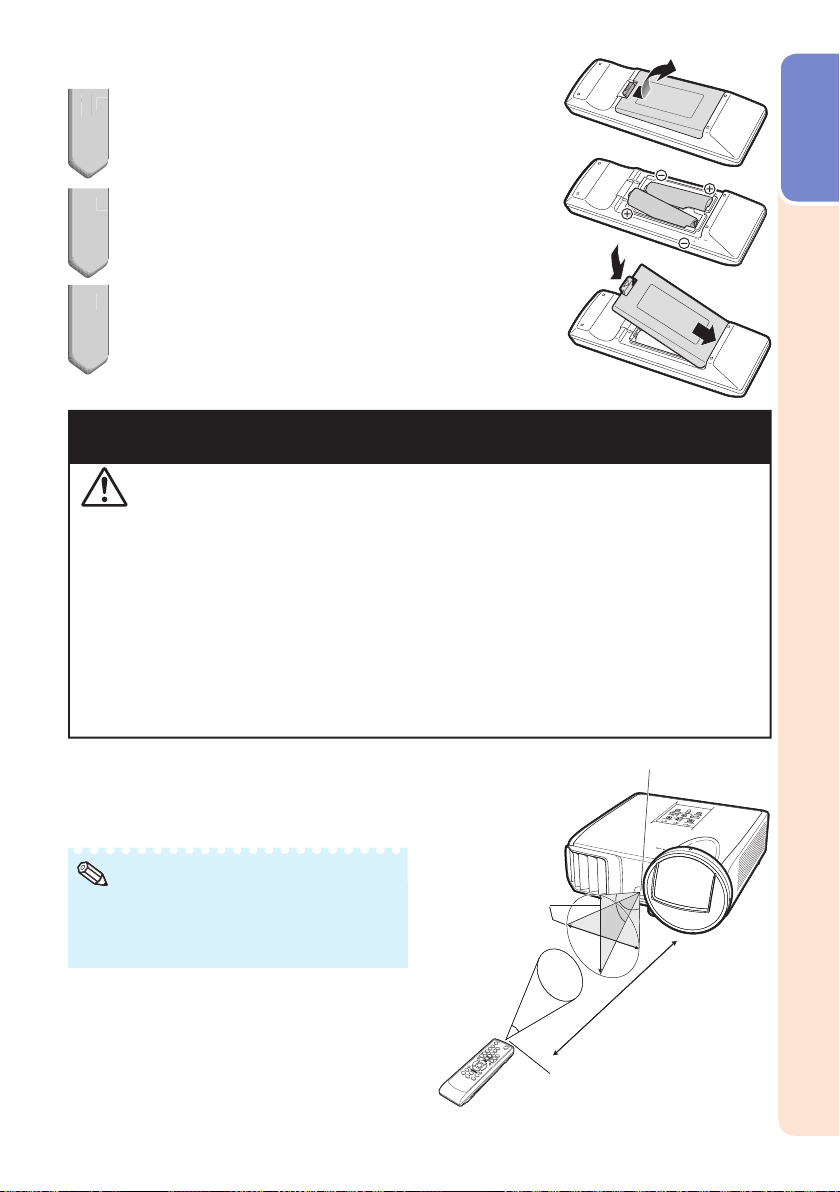

Inserting the Batteries ............................. 15
Usable Range ......................................... 15
Quick Start

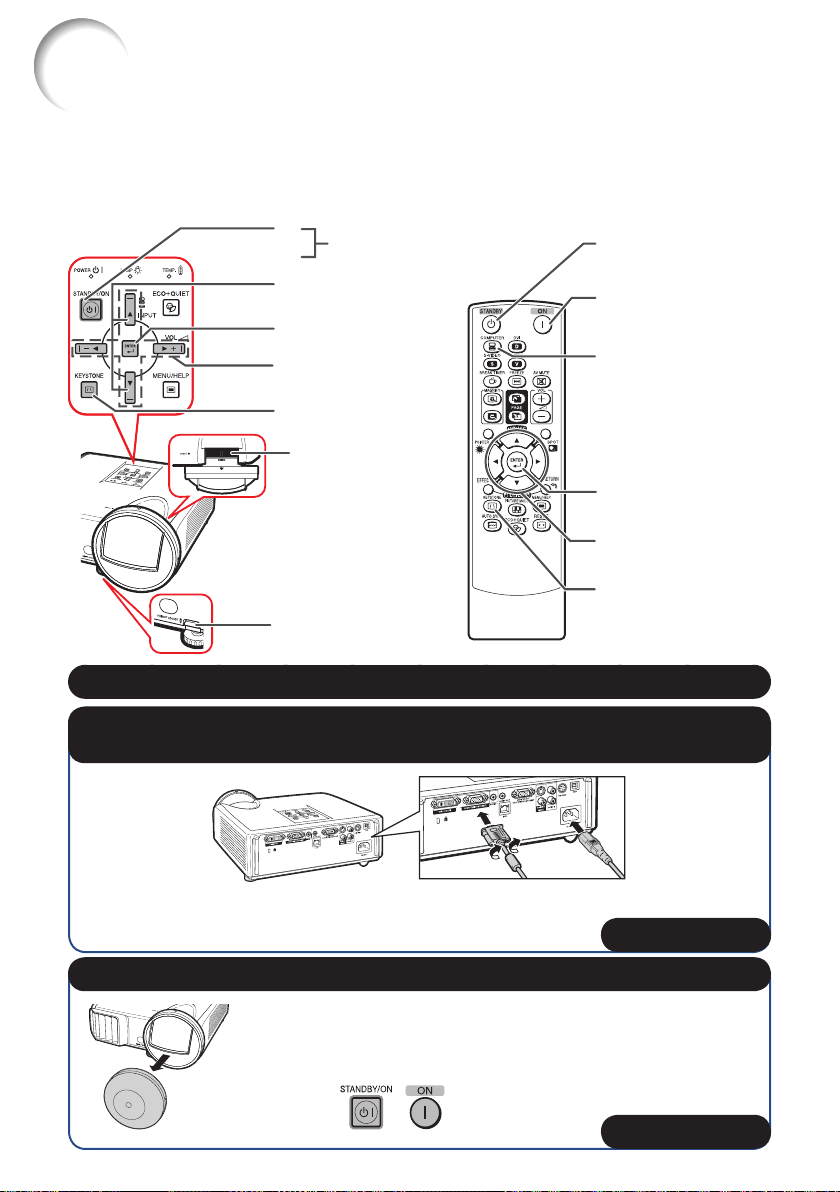

Quick Start ...........................................16
Setup and Projection .............................. 16
Setup
Setting up the Projector .......................18
Setting up the Projector .......................... 18

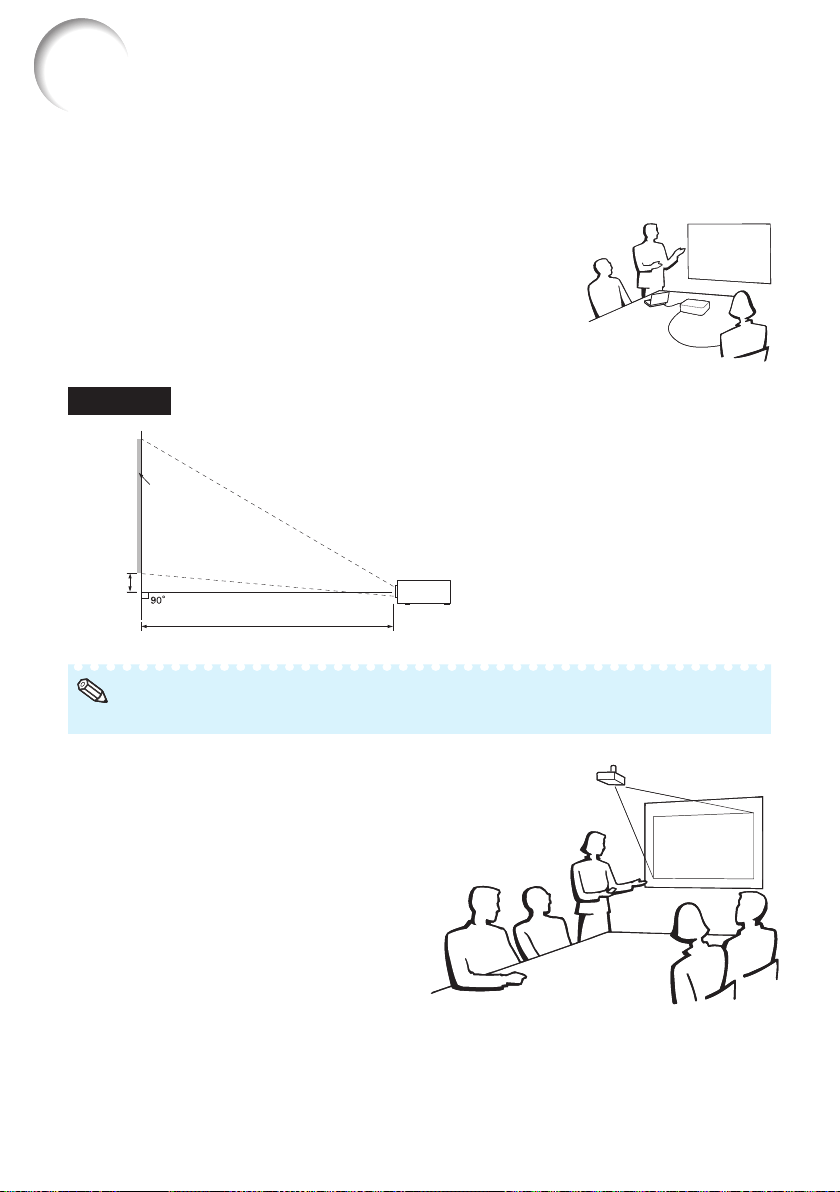

Standard Setup (Front Projection) ........... 18
Ceiling-mount Setup ............................... 18

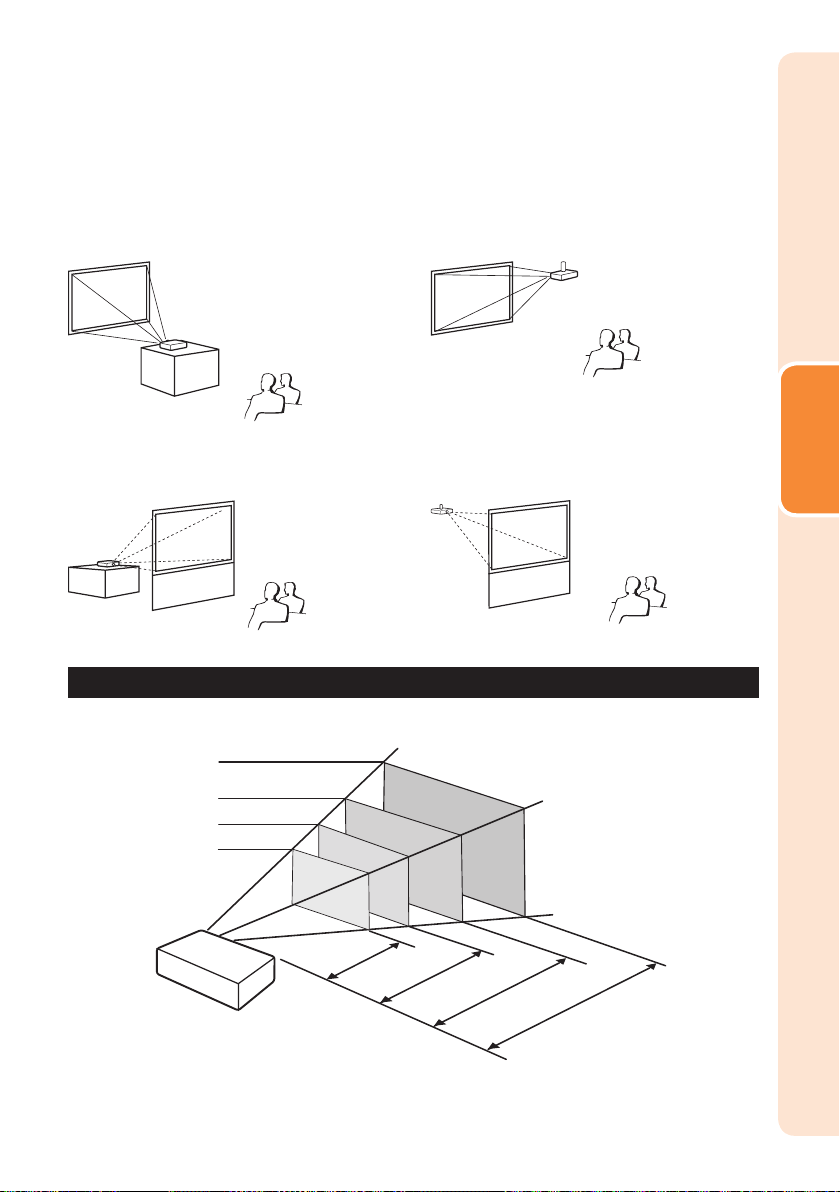

Projection (PRJ) Mode ............................ 19
Screen Size and Projection Distance ...... 20
Connections
Connecting the Projector to
Other Equipment ................................21
Controlling the Projector by
a Computer ........................................24
Connecting the Power Cord .................25
Useful Features
Operating with the Remote Control......33
Displaying and Setting the
Break Timer ......................................... 33
Displaying the Pointer ............................. 33
Using the Spot Function ......................... 33
Switching the Eco+Quiet Mode .............. 33
Auto Sync (Auto Sync Adjustment) ......... 34
Freezing a Moving Image ........................ 34
Selecting the Picture Mode ..................... 34
Displaying an Enlarged Portion of
an Image ............................................. 34
Using the Remote Control as the
Wireless Computer Mouse ................... 35
Menu Items ...........................................36
Using the Menu Screen ........................39
Menu Selections (Adjustments) ............... 39
Picture Adjustment (“Picture” Menu) ....41
Selecting the Picture Mode ..................... 41
Adjusting the Image ................................ 42
Adjusting the Color Temperature ............. 42
Adjusting the Colors ............................... 42
Progressive............................................. 43
Reducing Image Noise (DNR) ................. 43
Lamp Setting .......................................... 43
Adjusting the Projected Image
(“SCR - ADJ” Menu) ...........................44
Setting the Resize Mode ......................... 44
Adjusting the Image Position .................. 44
Keystone Correction ............................... 44
Setting the On-screen Display ................ 44
Selecting the Background Image ............ 45
Selecting the Setup Guide ...................... 45
Reversing/Inverting Projected
Images ................................................ 45
Selecting the On-screen Display
Language ............................................ 45
Adjusting the Projector Function
(“PRJ - ADJ” Menu) ...........................46
Auto Sync (Auto Sync Adjustment) ......... 46
Auto Power Off Function ........................ 46
Auto Restart Function ............................. 46
STANDBY Mode ..................................... 46
Setting the Confi rmation Sound
(System Sound) ................................... 46
Speaker Setting ...................................... 46
Audio Input ............................................. 47
Selecting the Transmission Speed
(RS-232C) ........................................... 47
Fan Mode Setting ................................... 47
System Lock Function ............................ 47
Checking the Lamp Life Status ............... 48
Keylock Function .................................... 48
Using
Basic Operation
Turning the Projector On/Off ................26
Turning the Projector On ......................... 26
Turning the Power Off (Putting the
Projector into Standby Mode) .............. 26
Image Projection ..................................27
About the Setup Guide ........................... 27

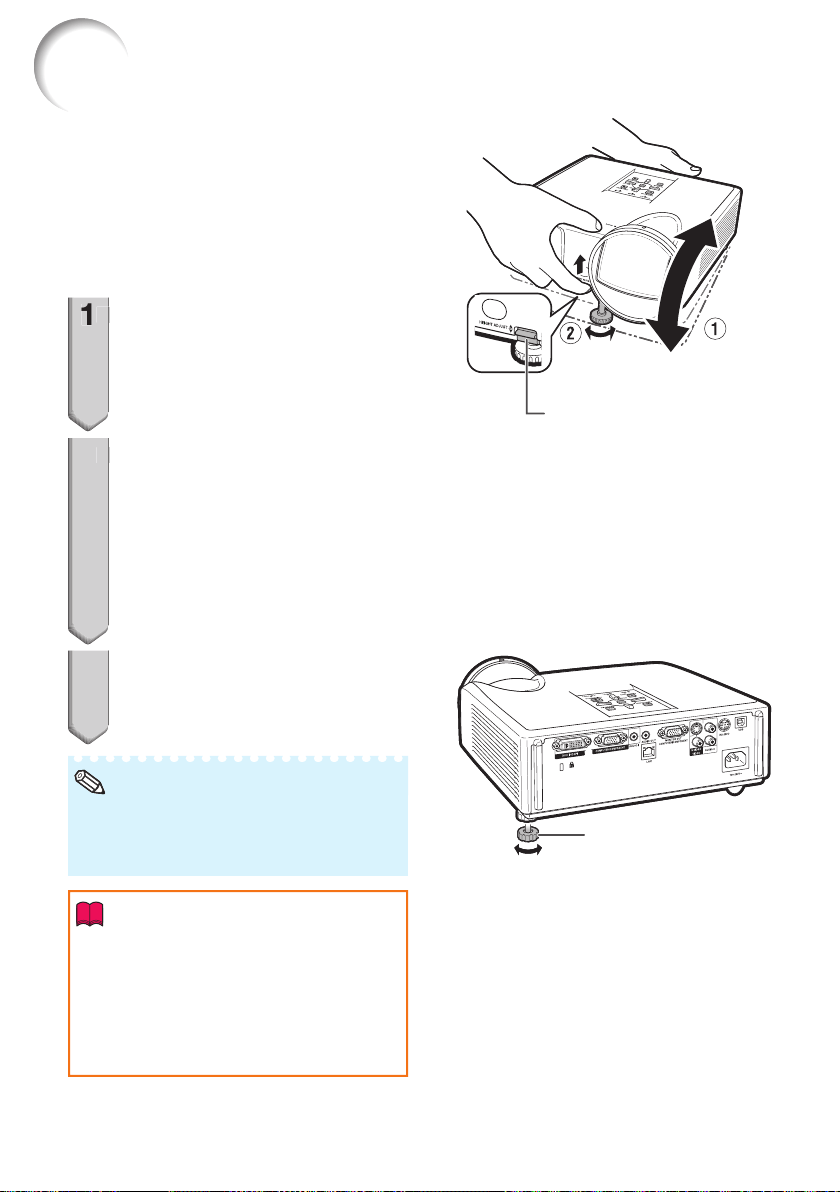

Adjusting the Projected Image ................ 27

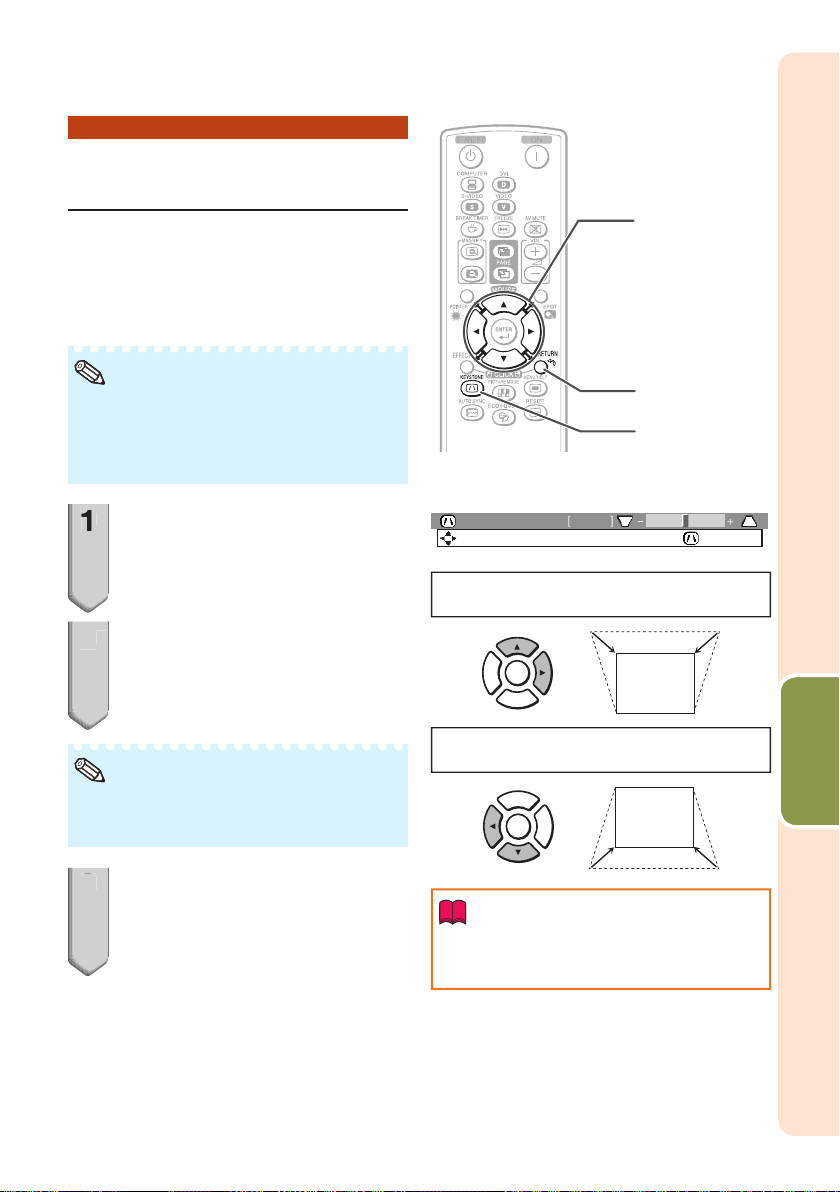

Correcting Trapezoidal Distortion ............ 29

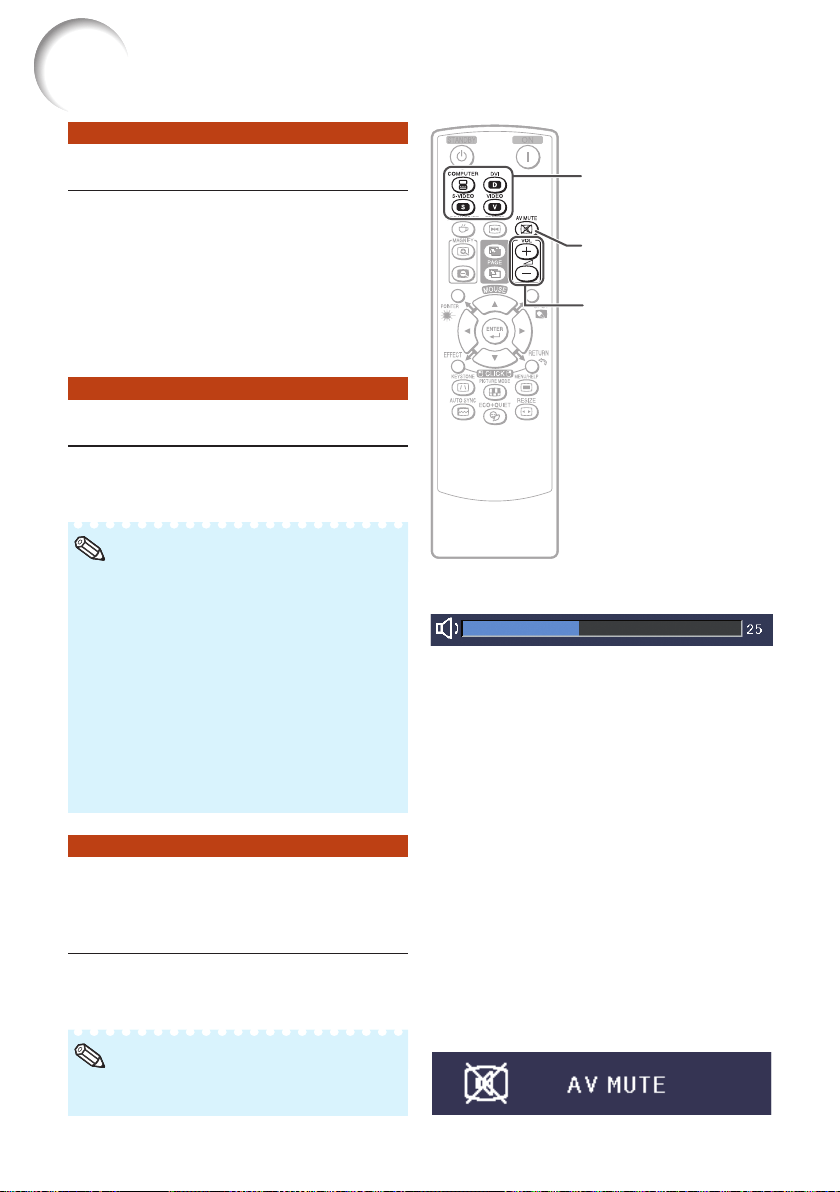

Switching the Input Mode ....................... 30
Adjusting the Volume .............................. 30
Displaying the Black Screen and
Turning Off the Sound Temporarily ....... 30

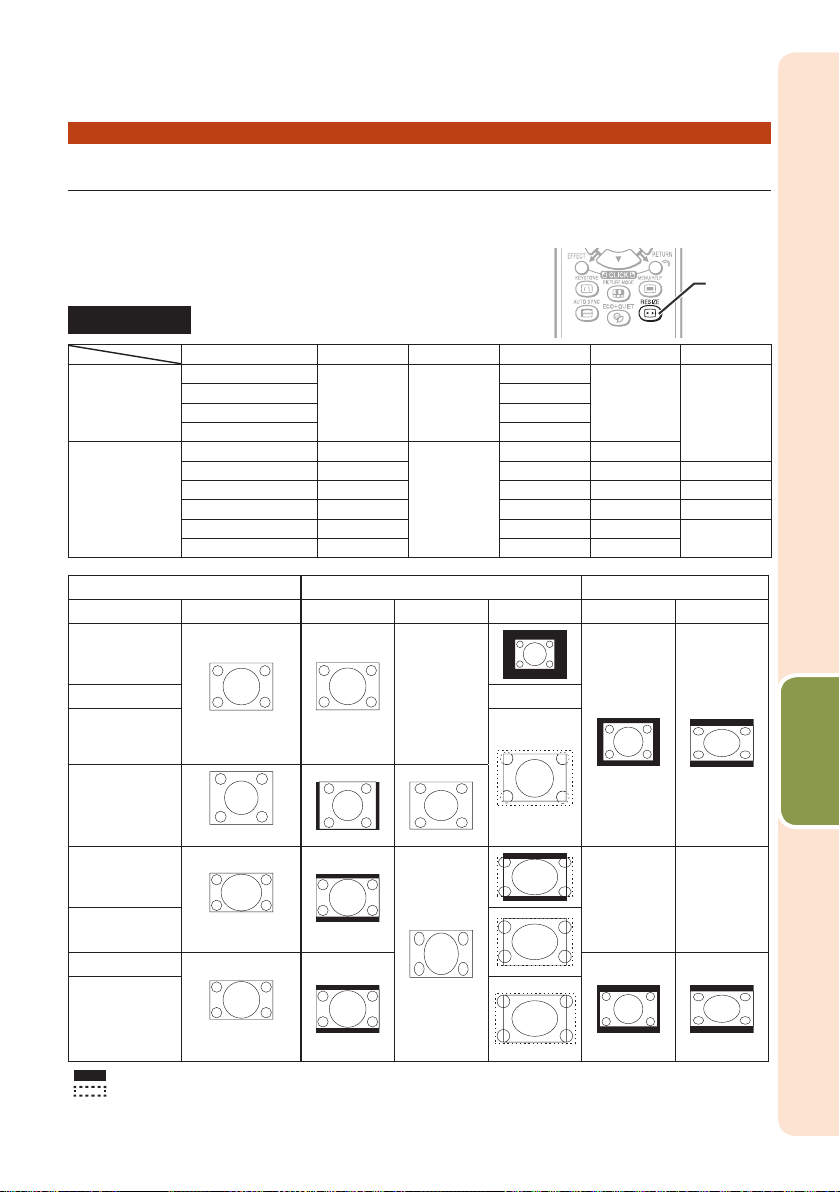

Resize Mode .......................................... 31
5
Introduction
Setting up the Projector Network
Environment (“Network” menu) ..........49
Setting a Password ................................ 49
DHCP Client Setting ............................... 50
TCP/IP Setting ........................................ 50
Confi rming the Projector Information ....... 50
Troubleshooting with the
“Help” Menu .......................................51
Utilizing the “Help” Menu Functions ........ 51
Appendix

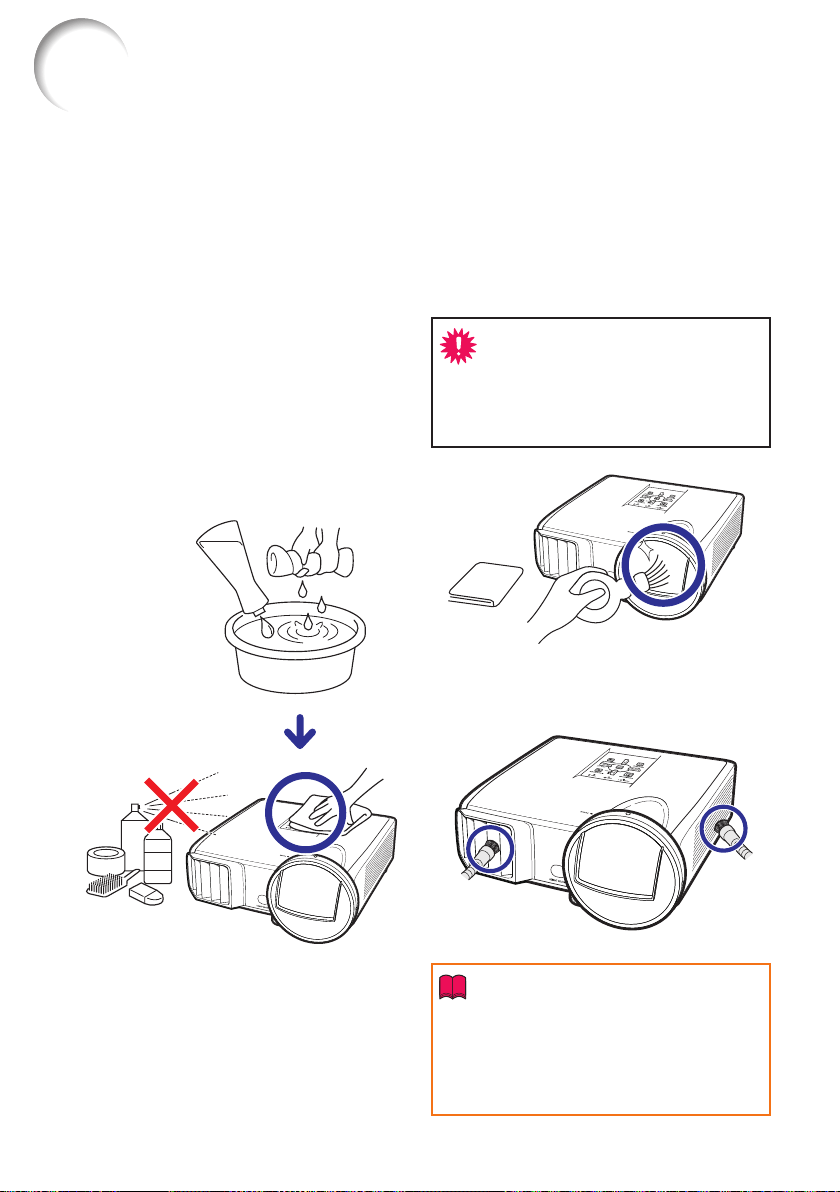

Maintenance .........................................52

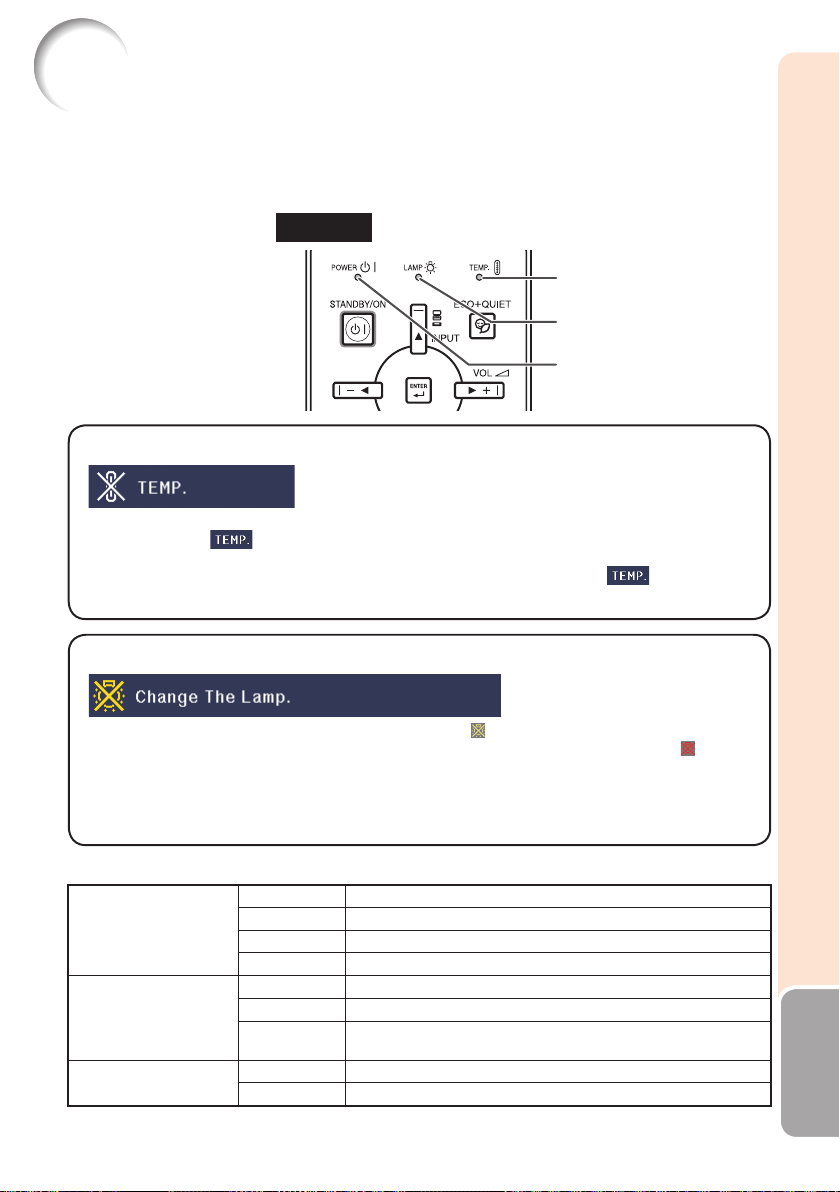

Maintenance Indicators ........................53
Regarding the Lamp .............................55
Lamp ...................................................... 55
Caution Concerning the Lamp ................ 55
Replacing the Lamp ............................... 55
Removing and Installing the
Lamp Unit ............................................ 56
Resetting the Lamp Timer ...................... 57
Storing the Projector ............................58
How to Use the Storage Case ................ 58
Computer Compatibility Chart .............59
Troubleshooting ....................................60
For SHARP Assistance .........................62
Specifi cations .......................................63
Dimensions ...........................................64
Index .....................................................65
Reference
6
IMPORTANT SAFEGUARDS
CAUTION: Please read all of these instructions before you operate this
product and save these instructions for later use.
Electrical energy can perform many useful functions. This product has been engineered
and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN
POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the
safeguards incorporated in this product, observe the following basic rules for its
installation, use and servicing.
1. Read Instructions
All the safety and operating instructions
should be read before the product is
operated.
2. Retain Instructions
The safety and operating instructions
should be retained for future reference.
3. Heed Warnings
All warnings on the product and in the
operating instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should
be followed.
5. Cleaning
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for
example, near a bath tub, wash bowl, kitchen
sink, or laundry tub; in a wet basement; or
near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable
cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a
child or adult, and serious damage to the
product. Use only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer, or sold with the product. Any
mounting of the product should follow the
manufacturer's instructions, and should use a
mounting accessory recom mended by the
manufacturer.
9. Transportation
A product and cart
combination should be
moved with care. Quick
stops, excessive force, and
uneven surfaces may
cause the product and cart
combination to overturn.
10. Ventilation
Slots and openings in the cabinet are provided
for ventilation to ensure reliable operation of
the product and to protect it from overheating,
and these openings must not be blocked or
covered. The open ings should never be
blocked by placing the product on a bed, sofa,
rug, or other similar surface. This prod uct
should not be placed in a built-in installation
such as a book case or rack unless proper
ventilation is provided or the manufacturer's
in struc tions have been adhered to.
11. Power Sources
This product should be operated only from
the type of power source indicated on the
marking label. If you are not sure of the
type of power supply to your home, consult
your product dealer or local power
com pany. For products intended to operate
from battery power, or other sources, refer
to the operating instructions.
12. Grounding or Polarization
This product is provided with one of the
following types of plugs. If the plug should
fail to fi t into the power outlet, please contact
your electrician.
Do not defeat the safety purpose of the plug.
a. Two-wire type (mains) plug.
b. Three-wire grounding type (mains) plug
with a grounding terminal.
This plug will only fi t into a grounding
type power outlet.
13. Power-Cord Protection
Power-supply cords should be routed so
that they are not likely to be walked on or
pinched by items placed upon or against
them, paying particular attention to cords
at plugs, convenience receptacles, and the
point where they exit from the product.
14. Lightning
For added protection for this product during
a lightning storm, or when it is left
unattended and unused for long periods of
time, unplug it from the wall outlet and
disconnect the cable system. This will
pre vent damage to the product due to
lightning and power-line surges.
7
Introduction
15. Overloading
Do not overload wall outlets, extension cords,
or integral convenience receptacles as this
can result in a risk of fi re or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this
product through openings as they may touch
dangerous voltage points or short-out parts
that could result in a fi re or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product
yourself as opening or removing covers
may expose you to dan ger ous voltage or
other hazards. Refer all servicing to
qualifi ed service personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet
and refer servicing to qualifi ed service
person nel under the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled, or objects
have fallen into the product.
c. If the product has been exposed to rain
or water.
d. If the product does not operate normally
by following the operating instructions.
Adjust only those con trols that are
covered by the operating instructions,
as an improper adjustment of other
controls may result in damage and will
often require extensive work by a
qualifi ed technician to restore the
product to normal operation.
e. If the product has been dropped or
damaged in any way.
f. When the product exhibits a distinct
change in performance, this indicates a
need for service.
19. Replacement Parts
When replacement parts are required, be
sure the service technician has used
replace ment parts specifi ed by the
manufacturer or have the same
characteristics as the original part.
Unauthorized substitutions may result in
fi re, electric shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs
to this product, ask the service technician
to per form safety checks to determine that
the product is in proper operating
condition.
21. Wall or Ceiling Mounting
This product should be mounted to a wall
or ceiling only as recommended by the
manufacturer.
22. Heat
This product should be situated away from
heat sources such as radiators, heat
registers, stoves, or other products
(including amplifi ers) that produce heat.
DLP
®
and the DLP logo are registered trademarks of Texas Instruments and
BrilliantColor
TM
is a trademark of Texas Instruments.
Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the
United States and/or other countries.
PC/AT is a registered trademark of International Business Machines Corporation in the
United States.
Adobe
®
Reader
®
is a trademark of Adobe Systems Incorporated.
Macintosh
®
is a registered trademark of Apple Computer, Inc. in the United States and/or
other countries.
PJLink is a registered trademark or an application trademark in Japan, the United States
and/or other countries/regions.
All other company or product names are trademarks or registered trademarks of their
respective companies.
Some IC chips in this product include confi dential and/or trade secret property belonging
to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute,
reverse engineer, reverse assemble or discompile the contents thereof.
•
•
•
•
•
•
•
•
8
Observe the following safeguards when setting up your
projector.
Caution concerning the lamp unit
Potential hazard of glass
particles if lamp ruptures.
In case of lamp rupture,
contact your nearest Sharp
Authorized Projector Dealer
or Service Center for
replacement.
See “Regarding the Lamp”
on page
55.
Caution concerning the setup of the
projector
For minimal servicing and to maintain high
image quality, SHARP recommends that
this projector be installed in an area free
from humidity, dust and cigarette smoke.
When the projector is subjected to these
environments, the vents and lens must be
cleaned more often. As long as the
projector is regularly cleaned, use in these
environments will not reduce the overall
operation life of the unit. Internal cleaning
should only be performed by a Sharp
Authorized Projector Dealer or Service
Center.
Do not set up the projector in places
exposed to direct sunlight or bright light.
Position the screen so that it is not in direct
sunlight or room light. Light falling directly
on the screen washes out the colors,
making viewing diffi cult. Close the curtains
and dim the lights when setting up the
screen in a sunny or bright room.
Caution regarding placing of the projector
Place the projector on a level site within the
adjustment range (9 degrees) of the
adjustment foot.
After the projector is purchased, a faint
smell from the vent may appear when the
power is fi rst turned on. This is normal and
is not a malfunction. It will disappear after
the projector is used for a while.
■
■
■
■
■
When using the projector in high-
altitude areas such as mountains (at
altitudes of approximately 1,500
meters (4,900 feet) or more)
When you use the projector in high-altitude
areas with thin air, set “Fan Mode” to
“High”. Neglecting this can affect the
longevity of the optical system.
Warning about placing the projector in
a high position
When placing the projector in a high
position, make certain it is carefully secure
to avoid personal injury caused by the
projector falling down.
Do not subject the projector to hard
impact and/or vibration.
Protect the lens so as not to hit or damage
the surface of the lens.
Rest your eyes occasionally.
Continuously watching the screen for long
hours will cause eye strain. Take regular
breaks to rest your eyes.
Avoid locations with extremes of
temperature.
The operating temperature of the projector
is from 41°F to 95°F (+5°C to +35°C).
The storage temperature of the projector is
from –4°F to 140°F (–20°C to +60°C).
Do not block the exhaust and intake
vents.
Allow at least 11
13
/
16
inches (30 cm) of
space between the exhaust vent and the
nearest wall or obstruction.
Ensure that the intake vent and the exhaust
vent are not obstructed.
If the cooling fan becomes obstructed, a
protection circuit will automatically put the
projector into standby mode to prevent
overheat damage. This does not indicate a
malfunction. (See pages 53 and 54.)
Remove the projector power cord from the
wall outlet and wait at least 10 minutes.
Place the projector where the intake and
exhaust vents are not blocked, plug the
power cord back in and turn on the
projector. This will return the projector to
the normal operating condition.
■
■
■
■
■
■
■
■
■
9
Introduction
Caution regarding usage of the projector
If you are not to use the projector for a long
time or before moving the projector, make
certain you unplug the power cord from the
wall outlet, and disconnect any other
cables connected to it.
Do not carry the projector by holding the
lens.
When storing the projector, ensure you
attach the lens cap to the projector. (See
page
12.)
Do not expose the projector to direct
sunlight or place next to heat sources.
Doing so may affect the cabinet color or
cause deformation of the plastic cover.
Other connected equipment
When connecting a computer or other
audio-visual equipment to the projector,
make the connections AFTER unplugging
the power cord of the projector from the
AC outlet and turning off the equipment to
be connected.
Please read the operation manuals of the
projector and the equipment to be
connected for instructions on how to make
the connections.
■
■
■
■
■
■
Using the projector in other countries
The power supply voltage and the shape of
the plug may vary depending on the region
or country you are using the projector in.
When using the projector overseas, make
sure you use an appropriate power cord for
the country you are in.
Temperature monitor function
If the projector starts to overheat due to
setup problems or blockage of the air
vents, “ ” and “ ” will illuminate in
the lower left corner of the picture. If the
temperature continues to rise, the lamp will
turn off, the temperature warning indicator
on the projector will blink, and after a 60-
second cooling-off period the projector will
enter standby mode. Refer to
“Maintenance Indicators” on page 53 for
details.
Info
The cooling fan regulates the internal
temperature, and its performance is automatically
controlled. The sound of the fan may change
during projector operation due to changes in the
fan speed. This does not indicate malfunction.
■
■
•
10
How to Access the PDF Operation Manuals
PDF operation manuals in several languages are included in the CD-ROM. To
utilize these manuals, you need to install Adobe
®
Reader
®
on your computer
(Windows
®
or Macintosh
®
).
Please download Adobe
®
Reader
®
from the Internet (http://www.adobe.com).
Accessing the PDF Manuals
For Windows
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “My Computer” icon.
3 Double click the “CD-ROM” drive.
4 When you want to view the operation
manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf fi le to access the
projector manuals.
When you want to view the SETUP
MANUAL
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf fi le to access the
SETUP MANUAL.
For Macintosh
®
:
1 Insert the CD-ROM in the CD-ROM drive.
2 Double click the “CD-ROM” icon.
3 When you want to view the operation
manual
1) Double click the “MANUALS” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf fi le to access the
projector manuals.
When you want to view the SETUP
MANUAL
1) Double click the “SETUP” folder.
2) Double click the language (name of the
folder) that you want to view.
3) Double click the pdf fi le to access the
SETUP MANUAL.
If the desired pdf fi le cannot be opened by double clicking the mouse, start Adobe
®
Reader
®
fi r s t ,
then specify the desired fi le using the “File”, “Open” menu.
•
Note
SETUP MANUAL
Refer to the “SETUP MANUAL” contained on the supplied CD-ROM for details.
Connecting Pin Assignments ······················································· 2
RS-232C Specifi cations and Commands ·····································4
Setting up the Projector Network Environment ····························9
Controlling the Projector via LAN ··············································· 15
Setting up the Projector Using RS-232C or Telnet ·····················20
Resetting the Lamp Timer of the Projector via LAN····················30
Troubleshooting ·········································································· 32
11
Introduction
Accessories
Supplied accessories
Remote control
<RRMCGA662WJSA>
Two R-6 batteries
(“AA” size, UM/SUM-3,
HP-7 or similar)
Power cord*
RGB cable
(10' (3.0 m))
<QCNWGA086WJPZ>
For U.S. and
Canada, etc.
(6' (1.8 m))
<QACCDA007WJPZ>
For Europe,
except U.K.
(6' (1.8 m))
<QACCVA011WJPZ>
For U.K. and
Singapore
(6' (1.8 m))
<QACCBA036WJPZ>
For Australia, New
Zealand and Oceania
(6' (1.8 m))
<QACCLA018WJPZ>
(1) (2) (3) (4)
* Which power cords are supplied along with your projector depends on the region. Use the power cord
that corresponds to the wall outlet in your country.
Operation manual (this manual <TINS-E105WJZZ> and CD-ROM <UDSKAA116WJZZ>)•
Lens cap (attached)
<PCAPHA029WJSA>
DIN-D-sub RS-232C adaptor
(5
57
/
64
" (15 cm))
<QCNWGA091WJPZ>
Storage case
<GCASNA014WJSA>
Codes in “< >” are Replacement parts codes.•
Note
Optional accessories
■ Lamp unit
■ Ceiling-mount adaptor
■ Ceiling-mount unit
■ Remote receiver
■ 3 RCA to mini D-sub 15 pin cable (10 n (3.0 m))
AN-F212LP
AN-60KT
AN-XRCM30 (for U.S.A. only)
AN-TK201 <for AN-60KT>
AN-TK202 <for AN-60KT>
AN-EP101B <for AN-XRCM30>
(for U.S.A. only)
AN-MR2
AN-C3CP2
Some of the optional accessories may not be available depending on the region. Please check with
your nearest Sharp Authorized Projector Dealer or Service Center.
•
Note
12
Part Names and Functions
Numbers in Z refer to the main pages in this operation manual where the
topic is explained.
Projector
29
39
53
30
30
28
15
52
52
27
46
33
26
26, 53
39, 51
26, 53
39
Top View
STANDBY/ON
button
For turning the
power on and
putting the
projector into
standby mode.
Lamp indicator
Temperature warning
indicator
Adjustment buttons
(P/R/O/Q)
For selecting menu items.
VOL (Volume) buttons
(–O/Q+)
For adjusting the speaker
sound level.
ENTER button
For setting items
selected or
adjusted on the
menu.
MENU/HELP button
For displaying
adjustment and
setting screens, and
help screen.
Focus ring
For adjusting
the focus.
INPUT buttons (P/R)
For switching input mode.
Remote control
sensor
HEIGHT
ADJUST lever
KEYSTONE
button
For entering the
Keystone
Correction mode.
Intake vent
Power
indicator
Attaching the lens cap
Push the lens cap straight.
Removing the lens cap
Pull the lens cap directly outward.
ECO+QUIET button
For lowering the noise
of the cooling fan and
extending the lamp life.
Front View
Exhaust vent
Speaker
13
Introduction
Numbers in Z refer to the main pages in this operation manual where the
topic is explained.
Rear View
28
35
22
22
21
22
23
25
23
23
24
25
21
22
23
Terminals
AUDIO 2 input
terminal
S-VIDEO input terminal
Terminal for connecting
video equipment with an
S-video terminal.
VIDEO input
terminal
Terminal for
connecting video
equipment.
Rear adjustment
foot
Kensington Security
Standard connector
AC socket
Connect the supplied
power cord.
AUDIO OUT terminal
Audio output terminal of
equipment connected to the
audio input terminal.
AUDIO 1 input terminal
DVI-I input
terminal
Terminal
for DVI digital,
computer RGB and
component signals.
LAN terminal
Terminal for
controlling the projector
using a computer via
network.
RS-232C terminal
Terminal for
controlling the
projector using a
computer.
COMPUTER/
COMPONENT input
terminal
Terminal for computer RGB
and component signals.
USB terminal
Terminal connecting
with the USB terminal
on the computer for
using the supplied
remote control as the
computer mouse.
MONITOR OUT terminal
(Output terminal for computer
RGB, component and DVI analog
signals. Shared for COMPUTER/
COMPONENT and DVI-I)
Terminal for connecting a monitor.
Using the Kensington Lock
This projector has a Kensington Security Standard connector for use with a Kensington
MicroSaver Security System. Refer to the information that came with the system for
instructions on how to use it to secure the projector.
•
14
Part Names and Functions (Continued)
30
33
34
35
39
33
33
26
35
29
34
33
26
34
30
33
35
39
39
51
31
39
30
34
35
STANDBY button
For putting the projector into
the standby mode.
BREAK TIMER button
For displaying the
break time.
COMPUTER, DVI,
S-VIDEO, VIDEO buttons
For switching to the
respective input modes.
PAGE UP/PAGE
DOWN buttons
Same as the [Page Down] and
[Page Up] keys on a computer
keyboard, when with the USB
connection (using a USB cable
or the optional remote receiver).
POINTER button
For displaying the
pointer.
MOUSE/Adjustment
buttons (P/R/O/Q)
For moving the
computer cursor when with the USB
connection (using a USB cable or the
optional remote receiver).
For selecting and adjusting menu
items.
•
•
L-CLICK/EFFECT
button
For the Left click
when with the USB connection
(using a USB cable or the optional
remote receiver).
For changing the pointer or spot
area.
•
•
KEYSTONE button
For entering the
Keystone Correction mode.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
ECO+QUIET button
For lowering the noise
of the cooling fan and
extending the lamp life.
AV MUTE button
For temporarily
displaying a black
screen and turning off
the sound.
FREEZE button
For freezing images.
VOL +/– (Volume)
buttons
For adjusting the
speaker sound level.
ON button
For turning the power
on.
SPOT button
For displaying the
spotlight.
R-CLICK/RETURN
button
For the Right click when
with the USB connection
(using a USB cable or
the optional remote
receiver).
For returning to the
previous menu screen
during menu
operations.
•
•
ENTER button
For setting items
selected or adjusted
on the menu.
MENU/HELP button
For displaying
adjustment and setting
screens, and help
screen.
PICTURE MODE
button
For selecting the
appropriate picture.
RESIZE button
For switching the
picture size (NORMAL,
BORDER, etc.).
MAGNIFY buttons
For enlarging/reducing
part of the image.
15
Introduction
Inserting the Batteries
1
Pull down the tab on the cover and remove the
cover towards the direction of the arrow.
2
Insert the batteries.
Insert the batteries making sure the polarities correctly match
the m and n marks inside the battery compartment.
3
Insert the lower tab of the cover into the opening,
and lower the cover until it clicks in place.
Incorrect use of the batteries may cause them to leak or explode.
Please follow the precautions below
Caution
Danger of explosion if battery is incorrectly replaced.
Replace only with alkaline or manganese batteries.
Insert the batteries making sure the polarities correctly match the m and n marks inside the battery
compartment.
Batteries of different types have different properties, therefore do not mix batteries of different types.
Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak.
Battery fl uid from leaked batteries is harmful to skin, therefore ensure you wipe them fi rst and then
remove them using a cloth.
The batteries included with this projector may run down in a short period, depending on how they are kept.
Be sure to replace them as soon as possible with new batteries.
Remove the batteries from the remote control if you will not be using the remote control for a long time.
Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.
•
•
•
•
•
•
•
•
•
1
2
3
Usable Range
The remote control can be used to control the
projector within the ranges shown in the
illustration.
The signal from the remote control can be
refl ected off a screen for easy operation.
However, the effective distance of the signal
may differ depending on the screen material.
•
Note
When using the remote control
Ensure that you do not drop it or expose it to
moisture or high temperature.
The remote control may malfunction under a
fl uorescent lamp. In this case, move the
projector away from the fl uorescent lamp.
•
•
Remote control sensor
Remote control signal
transmitters
Remote control
23n (7 m)
30°
30°
Remote control sensor
Remote control signal
transmitters
Remote control
23n (7 m)
30°
30°
16
Quick Start
This section shows the basic operation (projector connecting with the computer). For details,
see the page described below for each step.
Setup and Projection
In this section, connection of the projector and the computer is explained using one example.
KEYSTONE button
INPUT buttons
STANDBY/ON
button
HEIGHT
ADJUST lever
Focus ring
STANDBY button
ENTER button
ENTER button
6
4
3
5
8
3
5
6
8
KEYSTONE button
4
4
ON button
COMPUTER button
4
5
Adjustment buttons
(P/R/O/Q)
5
Adjustment buttons
(P/R/O/Q)
1. Place the projector facing a wall or a screen
_
P. 18
When connecting equipment other than a computer, see pages
22 and 23.
2. Connect the projector to the computer and plug the power
cord into the AC socket of the projector
_PP. 21, 24, 25
On the projector On the remote control
3. Remove the lens cap and turn the projector on
_P. 26
17
Quick Start
1 After the projector turns on, the Setup Guide appears.
(When “Setup Guide” is set to “On”. See page 45.)
2
Follow the steps in the Setup Guide and adjust the focus and height (angle).
3 After adjusting the focus and height (angle), press ENTER to fi nish the Setup Guide.
4. Adjust the projected image with the Setup Guide
_PP. 27, 28
Correcting trapezoidal distortion using Keystone Correction.
On the projector
On the remote control
Shrinks
upper side.
Shrinks
lower side.
5. Correct trapezoidal distortion
_P. 29
Select the “COMPUTER” using INPUT on the projector or COMPUTER on the remote
control.
On the
projector
On the remote
control
INPUT list
INPUT
COMPUTER
DVI-D Computer
D
DVI-D Video
D
On-screen display (RGB)
RGB
1024 × 768
COMPUTER
When you press INPUT on the projector, the INPUT list appears.
Press '/" to switch the INPUT mode.
•
6. Select the INPUT mode
_P. 30
7. Turn the computer on
Press STANDBY/ON on the projector or STANDBY on the remote control, and then press
the button again while the confi rmation message is displayed to put the projector into
standby mode.
On-screen display
On the
projector
On the remote
control
8. Turn the power off
_P. 26
18
Setting up the Projector
Setting up the Projector
For optimal image quality, position the projector perpendicular to the screen with the projector's
feet fl at and level. Doing so will eliminate the need for Keystone correction and provide the best
image quality. (See page 29.)
Standard Setup (Front Projection)
Place the projector at the required distance from the screen
according to the desired picture size. (See page 20.)
Example of standard setup
Side View
Screen
Lens center
H
L
Refer to page 20 for additional information concerning “Screen Size and Projection Distance”.•
Note
■
Ceiling-mount Setup
It is recommended that you use the
optional Sharp ceiling-mount adaptor and
unit for this installation. Before mounting
the projector, contact your nearest Sharp
Authorized Projector Dealer or Service
Center to obtain the recommended ceiling-
mount adaptor and unit (sold separately).
■
19
Setup
Projection (PRJ) Mode
The projector can use any of the 4 projection modes shown in the diagram below. Select the
mode most appropriate for the projection setting in use. (You can set the PRJ mode in “SCR-
ADJ” menu. See page 45.)
Table mounted, front projection
[Menu item ➞ “Front”]
Table mounted, rear projection
(with a translucent screen)
[Menu item ➞ “Rear”]
■
■
Ceiling mounted, front projection
[Menu item ➞ “Ceiling + Front”]
Ceiling mounted, rear projection
(with a translucent screen)
[Menu item ➞ “Ceiling + Rear”]
■
■
Indication of the Projection Image Size and Projection Distance
Example: 4:3 Signal Input (Normal Mode)
150"
100"
80"
60"
6'5
"
(2.0 m)
4'3
"
(1.3 m)
3'5
"
(1.0 m)
2'7
"
(0.8 m)
120"
×
90"
80"
×
60"
64"
×
48"
48"
×
36"
Picture Size
Projection
Distance
20
Setting up the Projector (Continued)
Screen Size and Projection Distance
4:3 Signal Input (Normal Mode)
Picture (Screen) size
Projection distance
Distance from the lens center
to the bottom of the image [H]
Diag. [
χ
] Width Height [L]
150" (381 cm)
305 cm (120
"
) 229 cm (90
"
)
2.0 m (6
'
5
"
)
10 cm (3
25
/
32
")
120" (305 cm)
244 cm (96
"
) 183 cm (72
"
)
1.6 m (5
'
1
"
)
8 cm (3
1
/
32
")
100" (254 cm)
203 cm (80
"
) 152 cm (60
"
)
1.3 m (4
'
3
"
)
6 cm (2
33
/
64
")
80" (203 cm)
163 cm (64
"
) 122 cm (48
"
)
1.0 m (3
'
5
"
)
5 cm (2
1
/
64
")
70" (178 cm)
142 cm (56
"
) 107 cm (42
"
)
0.9 m (3
'
0
"
)
4 cm (1
49
/
64
")
60" (152 cm)
122 cm (48
"
) 91 cm (36
"
)
0.8 m (2
'
7
"
)
4 cm (1
33
/
64
")
χ: Picture size (diag.) (in/cm)
L: Projection distance (m/ft)
H: Distance from the lens center to the bottom of the image (cm/in)
The formula for picture size and projection distance
[m/cm]
L (m) = 0.013
χ
H (cm) = 0.064
χ
[Feet/inches]
L (ft) = 0.013
χ
/ 0.3048
H (in) = 0.064
χ
/ 2.54
16:9 Signal Input (Stretch Mode)
Picture (Screen) size
Projection distance
Distance from the lens center
to the bottom of the image [H]
Adjustable range of
image position [S]
Diag. [
χ
] Width Height [L]
120
"
(305 cm)
266 cm
(105
"
)
149 cm
(59
"
)
1.7 m
(5' 7" ) 33 cm (13
3
/
32
")
±25 cm
(±9
13
/
16
"
)
100
"
(254 cm)
221 cm
(87
"
)
125 cm
(49
"
)
1.4 m
(4' 8" ) 28 cm (10
59
/
64
")
±21 cm
(±8
11
/
64
"
)
80
"
(203 cm)
177 cm
(70
"
)
100 cm
(39
"
)
1.1 m
(3' 9" ) 22 cm (8
47
/
64
")
±17 cm
(±6
17
/
32
"
)
60
"
(152 cm)
133 cm
(52
"
)
75 cm
(29
"
)
0.8 m
(2' 9" ) 17 cm (6
35
/
64
")
±12 cm
(±4
29
/
32
"
)
χ
: Picture size (diag.) (in/cm)
L: Projection distance (m/ft)
H: Distance from the lens center to the bottom of the image (cm/in)
S: Adjustable range of image position (cm/in) See page
44.
The formula for picture size and projection distance
[m/cm]
L (m) = 0.01416
χ
H (cm) = 0.27727
χ
S (cm) = ±0.20754
χ
[Feet/inches]
L (ft) = 0.01416
χ
/ 0.3048
H (in) = 0.27727
χ
/ 2.54
S (in) = ±0.20754
χ
/ 2.54
Refer to page 18 concerning “Projection distance [L]” and “Distance from the lens center to the
bottom of the image [H]”.
Allow a margin of error in the values in the diagrams above.
•
•
Note
21
Connections
Connecting the Projector to Other Equipment
Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet
and turn off the equipment to be connected. After making all connections, turn on the projector
and then the other pieces of equipment. When connecting a computer, ensure that it is the last
equipment to be turned on after all the connections are made.
IMPORTANT:
Ensure that the appropriate input mode has been selected on the projector before
you turn on the connected equipment.
For more details of connection and cables, refer to the operation manual of the connecting equipment.
You may need other cables or connectors not listed below.
Terminals on the Projector
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Computer
RGB
output
terminal
RGB cable (supplied) COMPUTER/
COMPONENT
RGB
output
terminal
mini D-sub 15 pin to DVI cable
(commercially available)
DVI-I
DVI digital
output
terminal
DVI Digital cable (commercially available)
See page 59 “Computer Compatibility Chart” for a list of computer signals compatible with the
projector. Use with computer signals other than those listed may cause some of the functions to not
work.
A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest
Macintosh Dealer.
Depending on the computer you are using, an image may not be projected unless the
computer's external output port is switched on (e.g. Press “Fn” and “F5” keys
simultaneously when using a SHARP notebook computer). Refer to the specifi c instructions in
your computer's operation manual to enable your computer's external output port.
•
•
•
Note
•
•
22

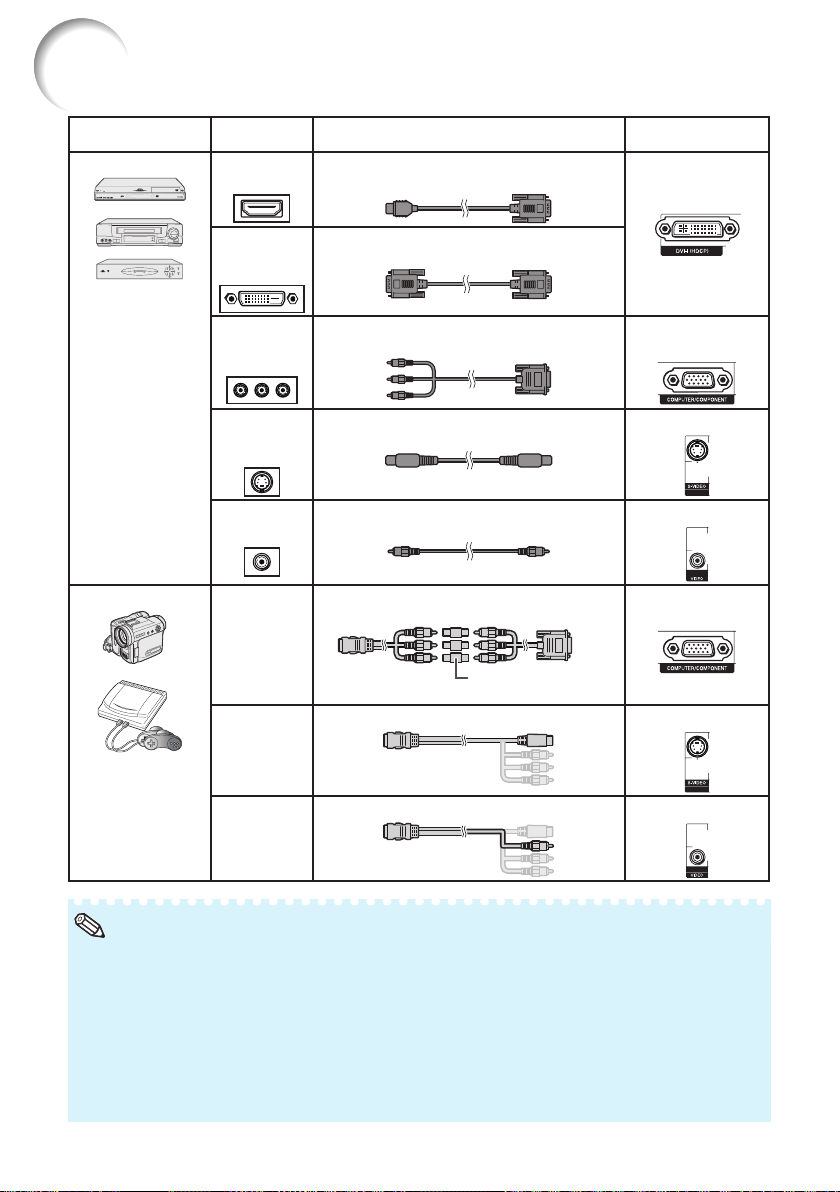

Connecting the Projector to Other Equipment (Continued)
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Video equipment
HDMI output
terminal
HDMI to DVI cable
(commercially available)
DVI-I
DVI digital
output
terminal
DVI Digital cable (commercially available)
Component
video output
terminal
3 RCA to mini D-sub 15 pin cable
(optional, AN-C3CP2)
COMPUTER/
COMPONENT
S-video
output
terminal
S-video cable (commercially available) S-VIDEO
Video output
terminal
Video cable (commercially available) VIDEO
Camera/Video game
Component
video
output
terminal
Cables for a camera or a video game/3 RCA to
mini D-sub 15 pin cable (optional, AN-C3CP2)
RCA adaptor plug
(commercially available)
COMPUTER/
COMPONENT
S-video
output
terminal
Cables for a camera or a video game
S-VIDEO
Video
output
terminal
Cables for a camera or a video game
VIDEO
While the projector is connected to video equipment that has an HDMI output terminal, only the video
signal can be input to the projector. (Connect the AUDIO input terminal for audio input.)
Depending on specifi cations of video equipment or HDMI to DVI digital cable, the signal transmission
may not work property. (The HDMI specifi cation does not support all connections to video equipment
that has HDMI digital output terminal using HDMI to DVI digital cable.)
For details on compatibility for connection, see support information on DVI connection provided by
the video equipment manufacturer.
When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a
commercially available cable that fi ts in the projector terminal you want to connect.
The projector does not support RGBC signals via the Euro-scart.
•
•
•
•
•
Note
23
Connections
Equipment
Terminal on
connected equipment
Cable
Terminal on the
projector
Audio equipment
ø3.5 mm
audio output
terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
AUDIO 1
RCA audio
output
terminal
RCA audio cable (commercially available)
AUDIO 2
Audio
output
terminal
Cables for a camera or a video game
Monitor RGB
input
terminal
RGB cable (supplied or commercially
available)
MONITOR OUT
Amplifi er
ø3.5 mm
audio input
terminal
ø3.5 mm stereo or mono audio cable
(commercially available or available
as Sharp service part QCNWGA038WJPZ)
AUDIO OUT
RCA audio
input
terminal
ø3.5 mm stereo minijack to RCA audio cable
(commercially available)
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
You can select “Audio 1” or “Audio 2” for “Audio Input” in the “PRJ-ADJ” menu. (See page
47.)
RGB signals and Component signals can be output to the monitor.
•
•
•
Note
24
Controlling the Projector by a Computer
When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS-
232C adaptor and an RS-232C serial control cable (cross type, commercially available), the
computer can be used to control the projector and check the status of the projector. Refer to
the “SETUP MANUAL” contained on the supplied CD-ROM for “RS-232C Specifi cations and
Commands”.
When connecting to a computer using an RS-232C serial control cable and a
DIN-D-sub RS-232C adaptor
To RS-232C terminal
DIN-D-sub RS-232C
adaptor (supplied)
RS-232C serial control cable (cross type, commercially available)
Computer
To RS-232C terminal
The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
Refer to pages 2 to 8 of the “SETUP MANUAL” contained on the supplied CD-ROM for “Connecting
Pin Assignments” and “RS-232C Specifi cations and Commands”.
•
•
Note
Info
Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This
may damage your computer or projector.
Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on.
This may damage your computer.
•
•
25
Connections
When connecting to the LAN terminal using a LAN cable
TX/RX LED (yellow)
Illuminates when transmitting/receiving data.
LINK LED (green)
Illuminates when linked.
* To ensure safety, do not connect the LAN terminal with any
cables that may cause excessive voltage such as a
telephone line.
Hub
or
Computer
LAN cable (Category 5 type,
commercially available)
To L AN terminal
When connecting to a hub, use a straight-through Category 5 (CAT.5) type cable (commercially
available).
When connecting to a computer, use a cross-over Category 5 (CAT.5) type cable (commercially
available).
•
•
Note
Connecting the Power Cord
Plug the supplied power cord into the
AC socket on the rear of the projector.
Then plug into AC outlet.
AC socket
To AC outlet
Power cord
(supplied)
AC socket
To AC outlet
Power cord
(supplied)
26
Turning the Projector On/Off
Turning the Projector On
Note that the connections to external
equipment and power outlet should be
done before performing the operations
written below. (See pages
21 to 25.)
Remove the lens cap and press
STANDBY/ON on the projector or ON
on the remote control.
The power indicator illuminates green.
After the lamp indicator illuminates, the projector
is ready to start operation.
About the Lamp Indicator
The lamp indicator illuminates to indicate the
status of the lamp.
Green: The lamp is on.
Blinking in green: The lamp is warming up.
Red: The lamp is shut down
abnormally or the lamp should be
replaced.
When switching on the projector, a slight
fl ickering of the image may be experienced
within the fi rst minute after the lamp has been
illuminated. This is normal operation as the
lamp's control circuitry is stabilising the lamp
output characteristics. It should not be
regarded as faulty operation.
If the projector is put into standby mode and
immediately turned on again, the lamp may
take some time to start projection.
When System Lock is set, the keycode input
box appears. To cancel the keycode setting,
input the keycode that you have already set.
See page
47 for details.
•
•
•
•
Note
Turning the Power Off (Putting
the Projector into Standby Mode)
Press STANDBY/ON on the projector
or STANDBY on the remote control,
then press that button again while the
confi rmation message is displayed, to
put the projector into standby mode.
The projector cannot be turned on while cooling.
•
•
•
Info
When “Auto Restart” is set to “On”:
If the power cord is unplugged from the outlet
or the breaker switch is turned off when the
projector is on, then the projector
automatically turns on when the power cord
is plugged into the AC outlet or the breaker
switch is turned on. (See page
46.)
English is the factory default language. If you
want to change the on-screen display to
another language, change the language
according to the procedure on page
45.
•
•
STANDBY/ON button
Lamp indicator
Power indicator
STANDBY
button
ON button
On-screen display (confi rmation message)
Info
Direct Power Off function:
You can unplug the power cord from the AC
outlet even if the cooling fan is still running.
•
27
Basic
Operation
Image Projection
About the Setup Guide
After turning on the projector, the Setup
Guide screen appears to assist you with
projector setup.
Guidance items
1 FOCUS
2 HEIGHT ADJUST
Press ENTER to exit the Setup Guide
screen.
The Setup Guide screen automatically
highlights the items in the following order:
1 FOCUS
3 ENTER
2 HEIGHT ADJUST
However, you can adjust the focus or height
(angle) regardless of the highlighted item.
If you do not want to display the Setup Guide
for the next time, set “Menu” - “SCR - ADJ” -
“Setup Guide” to “Off”. (See page
45.)
•
•
Note
Adjusting the Projected Image
1 Adjusting the Focus
You can adjust the focus with the focus
ring on the projector.
Rotate the focus ring to adjust the
focus while watching the projected
image.
Setup Guide screen
STANDBY/ON
button
ENTER button
Focus ring
28
Image Projection (Continued)
2 Adjusting the Height
The height of the projector can be
adjusted using the adjustment feet at the
front and rear of the projector.
When the screen is above the projector,
the projection image can be made higher
by adjusting the projector.
1
Lift the projector to adjust its
height while lifting the HEIGHT
ADJUST lever.
2
Remove your hands from the
HEIGHT ADJUST lever of the
projector after its height has
been fi nely adjusted.
The angle of projection is adjustable up to
9 degrees from the surface on which the
projector is placed.
3
Use the rear adjustment foot to
make the projector level.
The projector is adjustable ±2 degrees
from the standard position.
When adjusting the height of the projector,
trapezoidal distortion occurs. Follow the
procedures in Keystone Correction to correct
the distortion. (See pages
29 and 44.)
•
Note
Info
Do not apply too much pressure on the
projector when the front adjustment foot
comes out.
When lowering the projector, be careful not to
get your fi ngers caught in the area between
the adjustment foot and the projector.
Hold the projector fi rmly while lifting or carrying.
Do not hold by the lens area.
•
•
•
•
•
•
1
2
3
Rear adjustment footRear adjustment foot
HEIGHT ADJUST lever
Make small
adjustments.
29
Basic
Operation
Correcting Trapezoidal
Distortion
When the image is projected either from
the top or from the bottom towards the
screen at an angle, the image becomes
distorted trapezoidally. The function for
correcting trapezoidal distortion is called
Keystone Correction.
The Keystone Correction can be adjusted up
to an angle of approximately ±22 degrees and
the screen can also be set up to an angle of
approximately ±22 degrees (when the resize
mode is set to “NORMAL” (see page
31)).
•
Note
1
Press KEYSTONE to enter the
Keystone Correction mode.
You can also display the on-screen display
of the Keystone Correction mode with
KEYSTONE on the projector.
2
Press P/Q or O/R to adjust the
Keystone Correction.
You can also adjust the Keystone
Correction using the adjustment buttons
on the projector.
To return to the default setting, press
RETURN while the on-screen display of the
Keystone Correction mode is on the screen.
•
Note
3
Press KEYSTONE.
The on-screen display of the Keystone
Correction mode will disappear.
You can also use KEYSTONE on the
projector.
•
•
•
•
1
2
3
KEYSTONE button
Adjustment buttons
(P/R/O/Q)
RETURN button
On-screen display
(Keystone Correction mode)
0KEYSTONE
ADJUST END
Shrinks upper side.
(Move the slide bar in the + direction.)
Shrinks lower side.
(Move the slide bar in the - direction.)
Info
While adjusting the image using Keystone
Correction, straight lines and the edges of the
image may appear jagged.
•
30
Image Projection (Continued)
Switching the Input Mode
Select the appropriate input mode for the
connected equipment.
Press COMPUTER, DVI, S-VIDEO or
VIDEO on the remote control to select
the input mode.
When you press INPUT on the projector or DVI
on the remote control, the INPUT list appears.
Press P/R to switch the INPUT mode.
Adjusting the Volume
Press VOL +/– on the remote control
or –O/Q+ on the projector to adjust
the volume.
Pressing VOL–/–O will lower the volume.
Pressing VOL+/Q+ will raise the volume.
When the projector is connected to external
equipment, the volume level of the external
equipment changes in accordance with the
volume level of the projector. Set the projector's
volume to the lowest level when turning the
projector on/off or when changing the input
signal.
When you do not want to output the sound
from the projector's speaker while the
projector is connected to external equipment,
set “Speaker” in “PRJ-ADJ” menu to “Off”.
(See page
46.)
•
•
•
•
Note
Displaying the Black Screen
and Turning Off the Sound
Temporarily
Press AV MUTE on the remote control
to temporarily display a black screen
and turn off the sound.
Pressing AV MUTE again will turn the
projected image back on.
•
Note
•
VOL +/– (Volume)
buttons
COMPUTER, DVI,
S-VIDEO, VIDEO
buttons
AV MUTE button
VOL +/– (Volume)
buttons
COMPUTER, DVI,
S-VIDEO, VIDEO
buttons
AV MUTE button
On-screen displayOn-screen display
On-screen display
On-screen display
31
Basic
Operation
Resize Mode
This function allows you to modify or customize the resize mode to enhance the input
image. Depending on the input signal, you can choose a desired image.
Press RESIZE.
See page 44 for setting on menu screen.
COMPUTER
Main resolution NORMAL FULL DOT BY DOT BORDER STRETCH
4:3 aspect ratio
SVGA (800 × 600)
1024 × 768 —
800 × 600
768 × 576
1024 × 576
XGA (1024 × 768) —
SXGA (1152 × 864) 1152 × 864
UXGA (1600 × 1200) 1600 × 1200
Other aspect ratios
SXGA (1280 × 1024) 968 × 768
1024 × 768
1280 × 1024 720 × 576
1280 × 720 1024 × 576 1280 × 720 — —
1360 × 768 1024 × 578 1360 × 768 — —
1366 × 768 1024 × 576 1366 × 768 — —
1280 × 768 1024 × 614 1280 × 768 960 × 576
1024 × 576
1280 × 800 1024 × 640 1280 × 800 922 × 576
Input signal For 4:3 screen For 16:9 screen
Computer Image type NORMAL FULL DOT BY DOT BORDER STRETCH
Resolution
lower than
XGA
4:3 aspect ratio
—
*2
*1
*1
XGA
—
*2
Resolution
higher than
XGA
SXGA (1280 × 1024)
5:4 aspect ratio
1280 × 720
16:9 aspect ratio
*1
—
*2
—
*2
1360 × 768
1366 × 768
1280 × 768
16:10 aspect ratio
*1
*1
*1
1280 × 800
: Cutout area on which images cannot be projected
: Area where the signals are off screen
*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode
•
RESIZE
button
RESIZE
button
32
Image Projection (Continued)
VIDEO/DTV
Input signal For 4:3 screen For 16:9 screen
Video/DTV Image type NORMAL AREA ZOOM V-STRETCH BORDER STRETCH
480
I, 480P,
576
I, 576P,
NTSC, PAL,
SECAM
4:3 aspect ratio
*1
*1
Squeeze
*1
*1
Letter box
*1 *1
720P, 1035I,
1080
I, 1080P
16:9 aspect ratio
*1
—
*2
—
*2
540P
16:9 aspect ratio
(4:3 aspect ratio in 16:9)
*1
: Cutout area on which images cannot be projected
: Area on which the image is not included in the original signals
*1 The Image Shift function can be used for these images.
*2 Same as NORMAL mode.
About Copyrights
When using the RESIZE function to select an image size with a different aspect ratio to a TV
program or video image, the image will look different from its original appearance. Keep this
in mind while choosing an image size.
The use of the Resize or Keystone Correction function to compress or stretch the image for
commercial purposes/public displays in a café, hotel, etc. may be an infringement of
copyright protected by law for copyright holders. Please use caution.
•
•
33
Useful
Features
Operating with the Remote Control
POINTER button
ECO+QUIET button
Adjustment buttons
(P/R/O/Q)
BREAK TIMER button
SPOT button
AUTO SYNC button
FREEZE button
PICTURE MODE button
MAGNIFY buttons
EFFECT button
Displaying and Setting the
Break Timer
1
Press BREAK TIMER.
The timer starts to count down from 5
minutes.
On-screen display
2
Press P/R/O/Q to adjust the
length of the break time.
Increases with P or Q
5 minutes ➞ 6 minutes ➞ 60 minutes
Shortens with O or R
4 minutes ➞ 3 minutes ➞1 minute
The break time can be set in units of one
minute (up to 60 minutes).
Canceling the break timer display function
Press BREAK TIMER.
Break Timer does not function while the
projector is operating the “Auto Sync”,
“FREEZE” or “AV MUTE” functions.
•
Note
•
•
•
•
1
2
Displaying the Pointer
1
Press POINTER and press P/R/
O/Q on the remote control to
move the pointer.
Press EFFECT to change the pointer icon
(5 types).
Star
Finger1 Finger2 Heart Underline
2
Press POINTER again.
The pointer will disappear.
Using the Spot Function
1
Press SPOT and press P/R/O/Q
on the remote control to move
the spot area.
Press EFFECT to change the spot area
size (3 types).
1/9 1/25 1/8
2
Press SPOT again.
The spot area will disappear.
Switching the Eco+Quiet
Mode
Press ECO+QUIET to switch the
Eco+Quiet mode between on and off.
When the Eco+Quiet Mode is set to “ON”, the
sound of the cooling fan will turn down, the power
consumption will decrease, and the lamp life will
extend.
Refer to “Lamp Setting” on page 43 for details
of the Eco+Quiet mode.
•
Note
•
•
•
•
•
1
2
1
2
34
Operating with the Remote Control (Continued)
Auto Sync
(Auto Sync Adjustment)
Auto Sync function works when detecting
input signal after the projector turns on.
Press AUTO SYNC to manually adjust
with Auto Sync function.
When the optimum image cannot be achieved
with Auto Sync adjustment, use the help
menu for manual adjustments. (See page
51.)
•
Note
Freezing a Moving Image
1
Press FREEZE.
The projected image is frozen.
2
Press FREEZE again to return to
the moving image from the
currently connected device.
Selecting the Picture Mode
You can select the appropriate picture
mode for the projected image, such as
movie or video game.
Press PICTURE MODE.
When pressing PICTURE MODE, the picture
mode changes in the following order:
STANDARD PRESENTATION MOVIE GAME sRGB
*
See page 41 for details on the picture mode.•
Note
* “sRGB” is displayed only when RGB signal is input.
•
•
1
2
Displaying an Enlarged
Portion of an Image
Graphs, tables and other portions of
projected images can be enlarged. This
is helpful when providing more detailed
explanations.
1
Press MAGNIFY on the
remote control.
Enlarges the image.
Pressing
or MAGNIFY enlarges
or reduces the projected image.
×1 ×2 ×3 ×4
Press
.
Press
.
You can change the location of the
enlarged image using P, R, O and Q.
•
Note
2
Press RETURN on the remote
control to cancel the operation.
The magnifi cation then returns to ×1.
The selectable magnifi cations differ
depending on the input signal.
In the following cases, the image will
return to the normal size (×1).
- When switching the INPUT mode.
- When RETURN has been pressed.
- When the input signal is changed.
- When the input signal resolution and
refresh rate (vertical frequency)
change.
- When the Resize mode is changed.
- When the Picture mode is changed.
- When the Progressive mode is
changed.
•
•
Note
•
•
•
1
2
35
Useful
Features
Using the Remote Control as the Wireless Computer Mouse
When connecting the projector and the computer with a USB cable, you can use the
remote control as the computer mouse.
If the computer is placed too far away from the projector to be connected via the USB
cable, the remote receiver (optional, AN-MR2) makes it possible to operate the
projector with the remote control. For details, see the operation manual of the
receiver.
Connecting with a USB cable
or
R
emote receiver
(optional, AN-MR2)
To USB terminal
USB cable
(commercially available or available as
Sharp service part QCNWGA014WJPZ)
To USB terminal
Computer
The mouse pointer can be
operated in the following way
after it is connected.
When moving the cursor
Press MOUSE/Adjustment buttons (P/R/O/Q).
When left-clicking
Press L-CLICK.
When right-clicking
Press R-CLICK.
When your computer supports only a
one-click mouse (such as Macintosh)
Press L-CLICK or R-CLICK.
L-CLICK and R-CLICK have common function.
When using [Page Up] or [Page Down]
■
■
■
■
■
MOUSE/Adjustment
buttons (//?/_)
R-CLICK button
L-CLICK button
PAGE UP/
PAGE DOWN button
s
MOUSE/Adjustment
buttons (//?/_)
R-CLICK button
L-CLICK button
PAGE UP/
PAGE DOWN button
s
Same as the [Page Up] and [Page Down] keys on a computer keyboard.
Press PAGE UP or PAGE DOWN.
This function only works with the Microsoft
®
Windows
®
OS and Mac OS
®
. However, this function
does not work with the following operation systems that do not support USB.
Versions earlier than Windows
®
95
Versions earlier than Windows
®
NT4.0
Versions earlier than Mac OS
®
8.5
You cannot use this function when displaying the menu screen.
Confi rm that the computer recognizes the USB connection.
•
•
•
•
•
•
Note
36
Menu Items
The following shows the items that can be set in the projector.
“Picture” menu
Main menu Sub menu
Page 41 Page 41
Page 42
Page 42
Page 42
Page 42
Page 42
Page 43
Page 43
+30-30
Contrast
+30-30
+30-30
+30-30
1-1
20
+30-30
+30-30
+30-30
Tint
Color
Sharp
Bright
Progressive
Lamp Setting
Reset
2D Progressive
3D Progressive
Film Mode
CLR Temp
BrilliantColor™
C.M.S. Setting [On/Off]
C.M.S.
Standard
Presentation
Movie
Game
sRGB*1
Picture Mode
*2
*2
*2
Red
Blue
*2
Page 43
DNR Off
Level 1
Level 2
Bright
Eco + Quiet
C.M.S.-Hue
C.M.S.-Saturation
C.M.S.-Value
Page 42
Page 42
Page 42
Reset
+30-30
R
+30-30
+30-30
+30-30
+30-30
+30-30
C
G
B
Y
M
Reset
Main menu Sub menu
Page 41 Page 41
Page 42
Page 42
Page 42
Page 42
Page 42
Page 43
Page 43
+30-30
Contrast
+30-30
+30-30
+30-30
1-1
20
+30-30
+30-30
+30-30
Tint
Color
Sharp
Bright
Progressive
Lamp Setting
Reset
2D Progressive
3D Progressive
Film Mode
CLR Temp
BrilliantColor™
C.M.S. Setting [On/Off]
C.M.S.
Standard
Presentation
Movie
Game
sRGB*1
Picture Mode
*2
*2
*2
Red
Blue
*2
Page 43
DNR Off
Level 1
Level 2
Bright
Eco + Quiet
C.M.S.-Hue
C.M.S.-Saturation
C.M.S.-Value
Page 42
Page 42
Page 42
Reset
+30-30
R
+30-30
+30-30
+30-30
+30-30
+30-30
C
G
B
Y
M
Reset
Picture Mode
Contrast 0
0
0
0
Bright
Color
Tint
0Sharp
Standard
SEL./ADJ. ENTER END
0
0
Red
Blue
Picture SCR PRJ Net. Help
PAGE 1
Picture Mode
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Standard
SEL./ADJ. ENTER END
Progressive
Lamp Setting
0
1
On
3D Progressive
Bright
DNR
Off
Reset
Picture SCR PRJ Net. Help
PAGE 2
“C.M.S.”
SEL./ADJ.
Return
ENTER
END
C. M. S. - Hue
0
0
0
0
C. M. S. - Saturation
C. M. S. - Value
0
0
R
Y
G
C
B
M
C. M. S.
Reset
Reset
*
1
Items when inputting RGB signal through
COMPUTER or DVI.
*
2
Items when inputting component signal through
COMPUTER or DVI, or when selecting S-VIDEO or
VIDEO.
37
Useful
Features
“Screen adjustment (SCR-ADJ)” menu
SEL./ADJ. ENTER END
Resize
Image Shift 0
0
Keystone
OSD Display
Background
Setup Guide
PRJ Mode
Language
Front
English
On
Logo
On
Border
Pict. SCR-ADJ PRJ Net. Help
“Projector adjustment (PRJ-ADJ)” menu
SEL./ADJ. ENTER END
Auto Power Off
System Sound
System Lock
h
On
On
Auto Restart On
STANDBY Mode Standard
0 min0Lamp Timer(Life) 100%
Auto Sync On
Pict. SCR PRJ-ADJ Net. Help
Speaker On
Audio Input Audio 1
RS-232C 9600bps
Fan Mode Normal
Disable
Main menu Sub menu
SCR - ADJ
Page 44
Language
Image Shift
Resize
Page 44
Page 44
Page 44
Page 44
Page 45
Page 45
Page 45
Page 45
Keystone
OSD Display [On/Off]
Background
Setup Guide
[On/Off]
PRJ Mode
Logo
Blue
None
Front
Ceiling + Front
Rear
Ceiling + Rear
+45-45
+96-96
Normal
Full
Dot By Dot
Area Zoom
V-Stretch
Border
Stretch
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
polski
Magyar
Türkçe
Main menu Sub menu
SCR - ADJ
Page 44
Language
Image Shift
Resize
Page 44
Page 44
Page 44
Page 44
Page 45
Page 45
Page 45
Page 45
Keystone
OSD Display [On/Off]
Background
Setup Guide
[On/Off]
PRJ Mode
Logo
Blue
None
Front
Ceiling + Front
Rear
Ceiling + Rear
+45-45
+96-96
Normal
Full
Dot By Dot
Area Zoom
V-Stretch
Border
Stretch
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
polski
Magyar
Türkçe
Main menu Sub menu
PRJ - ADJ
Page 46
STANDBY Mode
System Sound [On/Off]
Speaker [On/Off]
System Lock
[Enable/Disable]
Lamp Timer(Life)
Page 46
Auto Restart [On/Off]
Page 46
Auto Power Off [On/Off]
Page 46
Page 46
Page 46
Page 47
Page 48
Fan Mode
Page 47
Normal
High
RS-232C
Page 47
9600bps
115200bps
Audio Input
Page 47
Audio 1
Audio 2
Standard
Eco
Auto Sync [On/Off]
Page 46
Main menu Sub menu
PRJ - ADJ
Page 46
STANDBY Mode
System Sound [On/Off]
Speaker [On/Off]
System Lock
[Enable/Disable]
Lamp Timer(Life)
Page 46
Auto Restart [On/Off]
Page 46
Auto Power Off [On/Off]
Page 46
Page 46
Page 46
Page 47
Page 48
Fan Mode
Page 47
Normal
High
RS-232C
Page 47
9600bps
115200bps
Audio Input
Page 47
Audio 1
Audio 2
Standard
Eco
Auto Sync [On/Off]
Page 46
38
Menu Items (Continued)
“Network” menu
SEL./ADJ. ENTER END
Pict. SCR PRJ Network Help
Password Disable
DHCP Client Off
TCP/IP
MAC Address
Projector
XX : XX : XX : XX : XX : XX
XX-XXXX
“Help” menu
SEL ENTER END
There is no picture or audio
Vertical stripes or flickering image appear
Data image is not centered
Color is faded or poor
Picture is dark
The image is distorted
Reset all adjustments to default settings
SEL.
Pict. SCR PRJ Net. Help
Main menu
Network
Page 49
Password [Enable/Disable]
DHCP Client
[On/Off]
TCP/IP
MAC Address
Projector
Page 49
Page 50
Page 50
Page 50
Page 50
Main menu
Network
Page 49
Password [Enable/Disable]
DHCP Client
[On/Off]
TCP/IP
MAC Address
Projector
Page 49
Page 50
Page 50
Page 50
Page 50
The items you can set with the
“Help” menu
“Help” menu n Page 51
Vertical stripes or fl ickering image appear
Auto Sync
Clock
Phase
Data image is not centered
Auto Sync
H-Pos
V-Pos
Color is faded or poor
COMPUTER/COMPONENT or DVI input
Signal type: Auto/RGB/Component
S-VIDEO or VIDEO input
Video System: Auto/PAL/SECAM/
NTSC3.58/NTSC4.43/
PAL-M/PAL-N/PAL-60
DVI (Digital) input
Dynamic range: Auto/Standard/Enhanced
* The selectable items vary depending on the input
signal and the selected input mode.
•
•
•
39
Useful
Features
Using the Menu Screen
Adjustment buttons
(P/R/O/Q)
ENTER button
RETURN button
Press RETURN to return
to the previous screen
when the menu is
displayed.
•
MENU/HELP button
Adjustment buttons (P/R/O/Q)
MENU/HELP button
ENTER button
Menu Selections (Adjustments)
Example: Adjusting “Bright”.
This operation can also be performed by using the buttons on the projector.•
1
Press MENU/HELP.
The “Picture” menu screen for the selected
input mode is displayed.
2
Press Q or O and select
“Picture” to adjust.
•
1
2
Example: “Picture” screen menu for
COMPUTER (RGB) input
Menu item
Picture Mode
Contrast 0
0
0
Bright
Standard
SEL./ADJ. ENTER END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Lamp Setting
0
1
On
Bright
DNR
Off
Reset
Picture SCR PRJ Net. Help
40
Using the Menu Screen (Continued)
3
Press P or R and select “Bright”
to adjust.
The selected item is highlighted.
To adjust the projected
image while watching it
Press ENTER.
The selected item (e.g. “Bright”) is
displayed by itself at the bottom of the
screen.
When pressing P or R, the following item
(“Red” after “Bright”) will be displayed.
Press ENTER again to return to the
previous screen.
•
Note
4
Press O or Q to adjust the item
selected.
The adjustment is stored.
5
Press MENU/HELP.
The menu screen will disappear.
•
•
•
•
•
3
0Bright
SEL./ADJ. Rtn. Menu END
Picture Mode
Standard
SEL./ADJ. Single ADJ END
Resize
Image Shift 0
0
Keystone
Border
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Lamp Setting
0
1
On
Bright
Reset
Bright 0
DNR
Off
Picture SCR PRJ Net. Help
Pict. SCR-ADJ PRJ Net. Help
Items to be adjusted
The item displayed by itself
Press ENTER.
0Bright
SEL./ADJ. Rtn. Menu END
Picture Mode
Standard
SEL./ADJ. Single ADJ END
Resize
Image Shift 0
0
Keystone
Border
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Lamp Setting
0
1
On
Bright
Reset
Bright 0
DNR
Off
Picture SCR PRJ Net. Help
Pict. SCR-ADJ PRJ Net. Help
Items to be adjusted
The item displayed by itself
Press ENTER.
4
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. Single ADJ END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Lamp Setting
0
1
On
Bright
Reset
15Bright
DNR
Off
Picture SCR PRJ Net. Help
Picture Mode
Contrast 0
0
Standard
SEL./ADJ. Single ADJ END
0
0
Red
Blue
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Lamp Setting
0
1
On
Bright
Reset
15Bright
DNR
Off
Picture SCR PRJ Net. Help
5
Menu buttons do not function while the projector is operating the “Auto Sync”, “Break Timer”,
“FREEZE”, or “AV MUTE” functions.
•
Note
41
Useful
Features
Picture Adjustment (“Picture” Menu)
Menu operation n Page 39
Q PAGE1 Q PAGE2
Picture Mode
Contrast 0
0
0
0
Bright
Color
Tint
0Sharp
Standard
SEL./ADJ. ENTER END
0
0
Red
Blue
Picture SCR PRJ Net. Help
1
2
Picture Mode
CLR Temp
BrilliantColor
TM
C.M.S. Setting
C.M.S.
Standard
SEL./ADJ. ENTER END
Progressive
Lamp Setting
0
1
On
3D Progressive
Bright
DNR
Off
Reset
Picture SCR PRJ Net. Help
7
6
5
4
2
3
1
Selecting the Picture Mode
Selectable
items
Description
The default settings of each item when selecting Picture Mode
CLR Temp BrilliantColor
TM
Lamp Setting
Standard For standard image 0 1 Bright
Presentation Brightens portions of image for
more enhanced presentations.
02Bright
Movie Gives natural tint to the
projected image.
–1 0 Eco + Quiet
Game Gives sharpness to the
projected image.
01Bright
*sRGB For high fi delity reproduction of
images from a computer.
––Bright
“sRGB” is displayed only when RGB signal is input.
You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are
retained in memory.
You can also press PICTURE MODE on the remote control to select the picture mode. (See page 34.)
*sRGB is an international standard of color reproduction regulated by the IEC (International
Electrotechnical Commission). As the fi xed color area has been decided by the IEC, the images are
displayed in a natural tint based on an original image, when “sRGB” is selected.
For additional information about the sRGB function, visit “http://www.srgb.com/”.
You cannot set the items, “Red”, “Blue”, “CLR Temp”, “BrilliantColor
TM
”, when “sRGB” is selected.
•
•
Note
Info
When “sRGB” is selected, the projected image may become dark, but this does not indicate a
malfunction.
•
•
•
42
Picture Adjustment (“Picture” Menu)
(Continued)
Menu operation n Page 39
2
Adjusting the Image
Adjustment
items
O button Q button
Contrast For less
contrast.
For more
contrast.
Bright For less
brightness.
For more
brightness.
Color*
1
For less color
intensity.
For more color
intensity.
Tint*
1
For making skin
tones purplish.
For making skin
tones greenish.
Sharp*
1
For less
sharpness.
For more
sharpness.
Red*
2
For weaker red. For stronger
red.
Blue*
2
For weaker
blue.
For stronger
blue.
BrilliantColor™*
2
*
3
For making the
effect weaker.
For making the
effect stronger.
*1 Not displayed in the RGB input mode.
*2 Not adjustable/selectable when selecting “sRGB”.
*3 BrilliantColor™ uses Texas Instruments'
BrilliantColor™ technology. As the BrilliantColor™
level is increased, the image becomes brighter
while the color reproduction is kept at a high level.
“Red”, “Blue”, “BrilliantColor
TM
” and “CLR
Temp” cannot be set when “sRGB” is
selected.
To reset all adjustment items, select “Reset”
and press ENTER.
•
•
Note
3
Adjusting the Color
Temperature
Selectable
items
Description
–1
0
1
For lower color temperature for
warmer, reddish incandescent-like
images.
For higher color temperature for
cooler, bluish, fl uorescent-like images.
Values on “CLR Temp” are only for general
standard purposes.
•
Note
4
Adjusting the Colors
This function adjusts each of the six main
colors that comprise the color wheel, altering
their “Hue”, “Saturation”, or “Value”.
Selectable items Description
C.M.S.-Hue Sets the hue of the main colors.
C.M.S.-Saturation Sets the saturation of the main
colors
C.M.S.-Value Sets the brightness of the main
colors.
Reset The adjustments of “Hue”,
“Saturation” and “Value” of all
colors are reset to the default
setting.
Adjusting “Hue”, “Saturation”, or “Value”.
1 Select “On” for “C.M.S. Setting” in the “Picture”
menu and then press ENTER.
2 Select “C.M.S.” in the “Picture” menu and then
press ENTER.
3 Press P or R to select either “Hue”, “Saturation”, or
“Value” and then press ENTER.
4 Select the color to be adjusted with P or R and
adjust it with O or Q.
Example of adjusting the “Hue”
Main colors O button Q button
R (Red)
Closer to magenta
Closer to yellow
Y (Yellow) Closer to red Closer to green
G (Green) Closer to yellow Closer to cyan
C (Cyan) Closer to green Closer to blue
B (Blue) Closer to cyan
Closer to magenta
M (Magenta) Closer to blue Closer to red
When “Saturation” is selected, the selected
color becomes
O: lighter. Q: thicker.
When “Value” is selected, the selected color
becomes
O: darker. Q: brighter.
To reset the adjustment values of each color to
the default settings, select “Reset” and press
ENTER.
•
•
•
43
Useful
Features
5
Progressive
Selectable
items
Description
2D
Progressive
Useful to display fast-moving images
such as sports.
3D
Progressive
Useful to display relatively slow-
moving images such as drama and
documentary more clearly.
Film Mode Reproduces the image of fi lm source*
clearly. Displays the optimized image
of fi lm transformed with three-two pull
down (NTSC and PAL60Hz) or two-
two pull down (PAL50Hz and SECAM)
enhancement to progressive mode
images.
* The fi lm source is a digital video recording with the
original encoded as is at 24 frames/second. The
projector can convert this fi lm source to
progressive video at 60 frames/second with NTSC
and PAL60Hz or at 50 frames/second with
PAL50Hz and SECAM to play back a high-
defi nition image.
In NTSC or PAL60Hz, even if the 3D
Progressive mode has been set, the three-two
pull down enhancement will be enabled
automatically when the fi lm source has been
entered.
When the image is blurred or noisy, switch to
the optimal mode.
•
•
Note
Info
This function is available for 480I and 576I
signals using COMPUTER/COMPONENT or
DVI input.
This function is available for all signals with
S-VIDEO and VIDEO input.
•
•
Menu operation n Page 39
6
Reducing Image Noise (DNR)
Video digital noise reduction (DNR) provides
high quality images with minimal dot crawl
and cross color noise.
Selectable
items
Description
Off The DNR function is not activated.
Level 1
Sets the DNR level for viewing a
clearer picture.
Level 2
Set “DNR” to “Off” in the following cases:
When the image is blurry.
When the contours and colors of moving
images drag.
When TV broadcasts with weak signals are
projected.
•
•
•
Note
7
Lamp Setting
Selectable
items
Brightness and Power consumption
Eco + Quiet Approx. 60%
Bright 100%
In the Eco + Quiet mode, the fan sound and
power consumption are lower than those in
the Bright mode. (Projection brightness
decreases as shown in the chart.)
•
Note
44
Adjusting the Projected Image
(“SCR - ADJ” Menu)
Menu operation n Page 39
SEL./ADJ. ENTER END
Resize
Image Shift 0
0
Keystone
OSD Display
Background
Setup Guide
PRJ Mode
Language
Front
English
On
Logo
On
Border
Pict. SCR-ADJ PRJ Net. Help
8
7
6
4
3
2
1
5
1
Setting the Resize Mode
For details of the Resize mode, see pages
31 and 32.
You can also press RESIZE on the remote
control to set the resize mode. (See page
31.)
•
•
Note
2
Adjusting the Image
Position
You can move the projected image vertically.
Q buttonO button
This function only works in some RESIZE
modes. (See pages
31 and 32.)
•
Note
3
Keystone Correction
When the image is projected either from the top
or from the bottom towards the screen at an
angle, the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion
is called Keystone Correction.
Select “Keystone” on the “SCR-ADJ”
menu and adjust with the slide bar.
See page 29 for details of Keystone Correction.
O buttonQ button
The Keystone Correction can be adjusted up
to an angle of approximately ±22 degrees
(when “Resize” is set to “Normal”).
You can also press KEYSTONE on the
remote control or on the projector to adjust
Keystone Correction.
•
•
Note
4
Setting the On-screen
Display
Selectable
items
Description
On All on-screen displays are displayed.
Off INPUT/VOLUME/AV MUTE/FREEZE/
AUTO SYNC/RESIZE/PICTURE
MODE/ECO+QUIET/MAGNIFY/ “An
invalid button has been pressed.” are
not displayed.
45
Useful
Features
Menu operation n Page 39
5
Selecting the Background
Selectable items Description
Logo Sharp logo screen
Blue Blue screen
None —
6
Selecting the Setup Guide
Selectable items Description
On Displaying the Setup Guide
when turning the projector on.
Off Not displaying the Setup Guide.
7
Reversing/Inverting
Projected Images
Selectable items Description
Front Normal image (Projected from
the front of the screen)
Ceiling + Front Inverted image (Projected from
the front of the screen with an
inverted projector)
Rear Reversed image (Projected from
the rear of the screen or with a
mirror)
Ceiling + Rear Reversed and inverted image
(Projected with a mirror)
See page
19 for details of Projection (PRJ) Mode.
8
Selecting the On-screen
Display Language
The projector can switch the on-screen
display language among 17 languages.
English
Deutsch
Español
Nederlands
Français
Italiano
Svenska
Português
polski
Magyar
Türkçe
46
Adjusting the Projector Function (“PRJ - ADJ” Menu)
Menu operation n Page 39
SEL./ADJ. ENTER END
Auto Power Off
System Sound
System Lock
h
On
On
Auto Restart On
STANDBY Mode Standard
0 min0Lamp Timer(Life) 100%
Speaker On
Audio Input Audio 1
RS-232C 9600bps
Fan Mode Normal
Disable
Auto Sync On
Pict. SCR PRJ-ADJ Net. Help
1
2
3
4
5
6
7
8
9
0
1
Auto Sync (Auto Sync
Adjustment)
Selectable
items
Description
On Auto Sync adjustment will occur when
the projector is turned on or when the
input signals are switched, when
connected to a computer.
Off Auto Sync adjustment is not
automatically performed.
Auto Sync adjustment is also performed by
pressing AUTO SYNC on the remote control.
The Auto Sync adjustment may take some
time to complete, depending on the image of
the computer connected to the projector.
When the optimum image cannot be achieved
with Auto Sync adjustment, use manual
adjustments. (See page
51.)
•
•
•
Note
2
Auto Power Off Function
Selectable
items
Description
On When no input signal is detected for
more than 15 minutes, the projector will
automatically enter standby mode.
Off The Auto Power Off function will be
disabled.
When the Auto Power Off function is set to
“On”, 5 minutes before the projector enters
standby mode, the message “Enter STANDBY
mode in X min.” will appear on the screen to
indicate the remaining minutes.
•
Note
3
Auto Restart Function
Selectable
items
Description
On
If the power cord is unplugged from the
outlet or the breaker switch is turned off
when the projector is on, then the
projector automatically turns on when
the power cord is plugged into the AC
outlet or the breaker switch is turned on.
Off The projector does not turn on
automatically when the power cord is
plugged into the AC outlet or the
breaker switch is turned on.
4
STANDBY Mode
When set to “Eco”, power consumption is
reduced in standby mode.
Selectable
items
Description
Eco The monitor output, RS-232C and
Network functions are switched off in
standby mode.
Standard The monitor output, RS-232C and
Network functions are activated even if
the projector is in standby mode.
5
Setting the Confi rmation
Sound (System Sound)
Selectable
items
Description
On A confi rmation sound is made when
the projector turns on/off.
Off No confi rmation sound is made.
6
Speaker Setting
Selectable
items
Description
On The audio signal is output from the
internal speaker.
Off The audio signal is not output from the
internal speaker.
47
Useful
Features
Menu operation n Page 39
7
Audio Input
This function allows you to select an
appropriate combination of audio input
terminals for each input mode.
Selectable
items
Description
Audio 1 The AUDIO 1 input terminal is used as
an audio input terminal.
Audio 2 The AUDIO 2 input terminal is used as
an audio input terminal.
8
Selecting the Transmission
Speed (RS-
232C)
Make sure that both the projector and
computer are set for the same baud rate.
Selectable
items
Description
9600bps
115200bps
Transmission speed is slow.
Transmission speed is rapid.
9
Fan Mode Setting
This function changes the fan rotation speed.
Selectable
items
Description
Normal Suitable for normal environments.
High Select this when using the projector at
altitudes of approximately 1,500 meters
(4,900 feet) or more.
When “Fan Mode” is set to “High”, the fan rotation
speeds up, and the fan noise becomes louder.
0
System Lock Function
This function prevents unauthorized use of the
projector. Once this function is activated,
users must enter the correct keycode each
time the projector is turned on. We suggest
you record the keycode in a safe place
where only authorized users have access.
Info
If you lose or forget your keycode, contact
your nearest Sharp Authorized Projector
Dealer or Service Center (see page
62). Even
if the product warranty is valid, the keycode
reset will incur a charge.
•
a
Setting/Changing the keycode
1
Select “System Lock”, then press
ENTER or Q.
2
Select “Next”, then press ENTER.
The screen for entering the keycode
appears.
3
Press the 4 buttons on the remote
control or on the projector to enter
the preset keycode in “Old Code”.
When setting the keycode for the fi rst time,
press R on the projector for four times.
Setting the System Lock
PRJ - ADJ
Old Code
New Code
Reconfirm
––––
––––
––––
If you input a wrong keycode, the cursor
returns to the fi rst point of the “Old Code”.
The preset keycode is 4 R buttons on
the projector. When you press the R
button four times, the keycord input
screen disappears.
•
•
Note
4
Press the 4 buttons on the remote
control or on the projector to enter
the new keycode in “New Code”.
You cannot use the following buttons
for keycode: STANDBY/ON, ON,
STANDBY, ENTER, L-CLICK, R-
CLICK/RETURN and MENU/HELP
System lock function recognizes
each button on the remote control
or on the projector as an individual
button, even if they share the same
button name. If you used the buttons
on the projector in setting your
keycode, the keycode cannot be
canceled with the remote control.
•
•
Note
Setting the System Lock
PRJ - ADJ
Old Code
New Code
Reconfirm
****
– –––
––––
•
•
1
2
3
4
48
Adjusting the Projector Function (“PRJ - ADJ” Menu)
(Continued)
5
Enter the same keycode in “Re-
confi rm”.
To cancel the keycode that you have
already set
Press R on the projector for four times in
steps 4 and 5 above.
When the System Lock is set
When System Lock is set, the keycode input
screen appears after the power is turned on.
When it appears, enter the right keycode to
start projection.
Input screen for keycode
System Lock
––––
•
•
Note
Checking the Lamp
Life Status
You can confi rm the cumulative lamp usage
time and the remaining lamp life (percentage).
Lamp usage condition Remaining lamp life
“Life” 100% 5%
Operated exclusively with
Lamp Setting set to
“Eco +Quiet”
Approx.
4,000
hours
Approx.
200 hours
Operated exclusively with
Lamp Setting set to
“Bright”
Approx.
2,000
hours
Approx.
100 hours
It is recommended that the lamp be changed
when the remaining lamp life becomes 5%.
The lamp life may vary depending on the
usage condition.
•
•
Note
5
Keylock Function
Locking the Operation
Buttons on the Projector
Use this function to lock the operation buttons
on the projector.
Locking the Operation Buttons
Hold down ENTER on the projector for about
5 seconds while the projector is being turned
on.
On-screen display
The keylock function does not affect the
operation with the remote control buttons.
You cannot use the keylock function while the
projector is warming up.
Taking the Keylock off
Hold down ENTER on the projector for about
5 seconds.
On-screen display
When the projector is in standby mode, you can
release the keylock by holding down ENTER
and STANDBY/ON on the projector
simultaneously for about 5 seconds.
Info
Keylock cannot be set while the projector is:
displaying the “Setup Guide” or “Menu”
screens, in standby mode, warming up,
changing input signals, operating “Auto Sync”
function, in “FREEZE” mode or on the
“System Lock” screen during warming up.
•
■
•
•
■
•
49
Useful
Features
Setting up the Projector Network Environment (“Network” menu)
Menu operation n Page 39
SEL./ADJ. ENTER END
Pict. SCR PRJ Network Help
Password Disable
DHCP Client Off
TCP/IP
MAC Address
Projector
XX : XX : XX : XX : XX : XX
XX-XXXX
4
2
3
1
1
Setting a Password
If you do not want others to change the setting
for the “Network” menu, set a password.
a
Setting a Password
1
Select “Password”, then press
ENTER or Q.
The screen for entering the password
appears.
Setting the Password
Old Password
New Password
Reconfirm
–
––––
–––
––––
Network
2
Press P or R to set the fi rst digit
in “New Password”, then press Q.
3
Enter the remaining 3 digits, then
press ENTER.
To return to the previous digit, press O.
4
Enter the same password in
“Reconfi rm”, then press ENTER.
The status for “Password” changes to
“Enable”.
Once the password is set, you must enter the
password to change the “Network” menu
settings.
•
Note
a
Changing the Password
1
Select “Password”, then press
ENTER or Q.
The screen for entering the password
appears.
•
•
•
•
1
2
3
4
1
2
Enter the password in “Old
Password” using P, R, Q and O,
then press ENTER.
3
Enter the password in “New
Password” using P, R, Q and O,
then press ENTER.
4
Enter the same password again
in “Reconfi rm” using P, R, Q and
O, then press ENTER.
If you do not need the password protection
for the “Network” menu settings anymore,
press ENTER without entering the new
password in steps 3 and 4.
To cancel the password settings, press
RETURN.
•
•
Note
If you forget the password
If you forget the password, perform the
following procedure to delete it, then set a
new password.
On the projector, press
.
If ENTER is held down for more than 5
seconds, the operation buttons on the
projector will be locked. (See page
48.)
You cannot use the buttons on the
remote control to delete the password.
•
•
Note
2
3
4
50
Setting up the Projector Network Environment (“Network” menu)
(Continued)
Menu operation n Page 39
2
DHCP Client Setting
Connect the LAN cable before turning the
projector on. If not, the DHCP Client function
does not work.
Selectable items Description
On Obtains confi guration
parameters for TCP/IP network
automatically.
Off Sets the TCP/IP manually.
Select “On” for “DHCP Client”. “Obtaining IP
Address...” appears, then the menu screen
appears. Confi rm the parameters of IP
Address, Subnet Mask and Gateway on the
TCP/IP screen.
If the DHCP server is not available, “Could not
obtain IP Address.” appears.
In this case, set the TCP/IP manually. (See the
item 3.)
3
TCP/IP Setting
Set the TCP/IP manually.
1
Select “Off” for “DHCP Client”,
then press ENTER.
2
Select “TCP/IP”, then press
ENTER.
3
Enter “IP Address” using P, R, Q
and O, then press ENTER.
Setting the TCP/IP
Subnet Mask
IP Address
Gateway
1
55 .2
92 .
000 .
1
55 .2
68 .
000 .
1
55 .2
50 .
000 .
0
000
02
000
Network
4
Enter “Subnet Mask” using P, R,
Q and O, then press ENTER.
5
Enter “Gateway” using P, R, Q
and O, then press ENTER.
1
2
3
4
5
Selectable items Description
IP Address Factory default setting:
192.168.150.002
Enter an IP address
appropriate for the network.
Subnet Mask Factory default setting:
255.255.255.000
Set the subnet mask to the
same as that of the computer
and equipment on the
network.
Gateway Factory default setting:
000. 000. 000. 000
* When not in use, set to “000.
000. 000. 000”.
Confi rm the existing network's segment (IP
address group) to avoid setting an IP address
that duplicates the IP addresses of other
network equipment or computers. If
“192.168.150.002” is not used in a network
with an IP address of “192.168.150.XXX”, you
don't have to change the projector IP address.
For details about each setting, consult your
network administrator.
•
•
Note
4
Confi rming the
Projector Information
You can confi rm the MAC address and
projector name.
Selectable items Description
MAC Address The MAC address of the
projector is displayed.
Projector The projector name is
displayed.
For information on how to change the
projector name, see “SETUP MANUAL”
contained in the supplied CD-ROM.
•
Note
51
Useful
Features
Troubleshooting with the “Help” Menu
This function advises you to solve the problems during usage.
Utilizing the “Help” Menu
Functions
Example: When image fl ickering appears
Operation to solve image fl ickering when
projecting the computer RGB signal.
1
Press MENU/HELP.
2
Press O or Q to select “Help”,
then press ENTER.
3
Press P or R to select “Vertical
stripes or fl ickering image
appears” on Help menu, then
press ENTER.
If there is no change after performing "Auto Sync"
adjustments, adjust the following items.
Initiate “Auto Sync” Adjustments.
Vertical stripes or flickering image appear
Adjust vertical noise
Adjust horizontal noise
Reset the 2 items above
Return
Signal Info 1024 768
H 48.3 kHz / V 59.9 Hz
SEL. ENTER END
There is no picture or audio
Vertical stripes or flickering image appear
Data image is not centered
Color is faded or poor
Picture is dark
The image is distorted
Reset all adjustments to default settings
SEL. ENTER END
Vertical stripes or flickering image appear
Pict. SCR PRJ Net. Help
Help
Press ENTER.
Adjustment buttons
(P/R/O/Q)
ENTER button
MENU/HELP
button
Adjustment buttons
(P/R/O/Q)
ENTER button
MENU/HELP
button
1
2
3
4
Select “Initiate “Auto Sync”
Adjustments”, then press ENTER.
5
If the image is not improved,
select “Adjust horizontal noise”,
then press ENTER.
6
Press O or Q to adjust.
0Phase
SEL./ADJ. Rtn. Menu END
Help
You can adjust the items with check marks (✔).
The items in the “Help” menu change,
depending on the input signal or setting that
you have selected.
If the problem is not solved, refer to
“Troubleshooting” (see pages
60 and 61).
When selecting “sRGB” in “Picture Mode”, the
item “Color is faded or poor” is not displayed.
This means you cannot change input signal
types.
•
•
•
•
Note
4
5
6
52
Maintenance
Cleaning the projector
Ensure that you have unplugged the power
cord before cleaning the projector.
The cabinet as well as the operation panel is
made of plastic. Avoid using benzene or
thinner, as these can damage the fi nish on
the cabinet.
Do not use volatile agents such as
insecticides on the projector.
Do not attach rubber or plastic items to the
projector for long periods.
The effects of some of the agents in the
plastic may cause damage to the quality or
fi nish of the projector.
Wipe off dirt gently with a soft fl annel cloth.
When the dirt is hard to remove, soak a cloth
in a mild detergent diluted with water, wring
the cloth well and then wipe the projector.
Strong cleaning detergents may discolor,
warp or damage the coating on the projector.
Make sure to test on a small, inconspicuous
area on the projector before use.
Mild detergent
Mild detergent diluted
with water
Thinner
Wax
■
■
■
■
■
Cleaning the lens
Use a commercially available blower to
remove dust. If necessary, gently wipe the
lens surface with lens cleaning paper (for
plastic lens only). Do not use any liquid type
cleaning agents, as they may wear off the
coating fi lm on the surface of the lens.
As the surface of the lens can easily get
damaged, be careful not to scrape or hit the
lens.
Caution
Do not use any glass cleaner to clean the lens.
Avoid touching the lens with your hands to
prevent fi ngerprints on or damage to the lens
surface.
•
•
Cleaning the exhaust and intake vents
Use a vacuum cleaner to clean dust from the
exhaust vent and the intake vent.
Info
If you want to clean the air vents during
projector operation, ensure you press
STANDBY/ON on the projector or
STANDBY on the remote control and put the
projector into standby mode. After the
cooling fan has stopped, clean the vents.
•
■
■
■
53
Appendix
Maintenance Indicators
The warning lights (power indicator, lamp indicator and temperature warning indicator) on the
projector indicate problems inside the projector.
If a problem occurs, either the temperature warning indicator or the lamp indicator will
illuminate red, and the projector will enter standby mode. After the projector has entered
standby mode, follow the procedures given below.
Top View
Lamp indicator
Temperature warning
indicator
Power indicator
About the temperature warning indicator
If the temperature inside the projector increases, due to blockage of the air vents, or the
setting location, “ ” will illuminate in the lower left corner of the picture. If the temperature
keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the
cooling fan will run, and then the projector will enter standby mode. After “ ” appears,
ensure you perform the measures described on page 54.
About the lamp indicator
When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp” will
be displayed on the screen. When the percentage becomes 0%, it will change to (red),
the lamp will automatically turn off and then the projector will automatically enter standby
mode. At this time, the lamp indicator will illuminate in red.
If you try to turn on the projector a fourth time without replacing the lamp, the
projector will not turn on.
■
■
Indicators on the Projector
Power indicator Red on Normal (Standby)
Green on Normal (Power on)
Red blinks Abnormal (See page
54.)
Green blinks Normal (Cooling)
Lamp indicator Green on Normal
Green blinks The lamp is warming up.
Red on The lamp is shut down abnormally or requires to be
changed. (See page
54.)
Temperature warning
indicator
Off Normal
Red on The internal temperature is abnormally high. (See page
54.)
■
■
54
Maintenance Indicators (Continued)
Maintenance indicator
Problem Cause Possible Solution
Normal Abnormal
Temperature
warning
indicator
Off Red on
(Standby)
The internal
temperature is
abnormally high.
Blocked air intake• Relocate the projector to
an area with proper
ventilation. (See page
8.)
•
Cooling fan
breakdown
Internal circuit failure
Clogged air intake
•
•
•
Take the projector to your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page
62) for
repair.
•
Lamp
indicator
Green on
(Green
blinks
when the
lamp is
warming
up.)
Red on The lamp does
not illuminate.
The lamp is shut
down abnormally.
• Disconnect the power cord
from the AC outlet, and
then connect it again.
•
Time to change
the lamp.
Remaining lamp life
becomes 5% or less.
• Carefully replace the lamp.
(See page
55.)
Take the projector to your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page
62) for
repair.
Please exercise care when
replacing the lamp.
Securely install the cover.
•
•
•
•
Red on
(Standby)
The lamp does
not illuminate.
Burnt-out lamp
Lamp circuit failure
•
•
Power
indicator
Green on/
Red on
Green
blinks
(Cooling)
Red blinks The power
indicator blinks in
red when the
projector is on.
The lamp unit cover
is open.
• If the power indicator blinks
in red even when the lamp
unit cover are securely
installed, contact your
nearest Sharp Authorized
Projector Dealer or Service
Center (see page
62) for
advice.
•
Info
If the temperature warning indicator illuminates, and the projector enters standby mode, follow the
possible solutions above and then wait until the projector has cooled down completely before
plugging in the power cord and turning the power back on. (At least 10 minutes.)
If the power is turned off for a brief moment due to power outage or some other cause while using
the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate
in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace
the power cord in the AC outlet and then turn the power on again.
The cooling fan keeps the internal temperature of the projector constant and this function is
controlled automatically. The sound of the cooling fan may change during operation because the fan
speed may change and this is not a malfunction.
•
•
•
55
Appendix
Regarding the Lamp
Lamp
It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes
5% or less, or when you notice a signifi cant deterioration in the picture and color quality. The lamp life
(percentage) can be checked with the on-screen display. (See page
48.)
Purchase a replacement lamp of type AN-F212LP from your place of purchase, nearest Sharp
Authorized Projector Dealer or Service Center.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited
warranty. All service of this projector under warranty, including lamp replacement,
must be obtained through a Sharp Authorized Projector Dealer or Service Center.
For the name of the nearest Sharp Authorized Projector Dealer or Service Center,
please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal
Information
www.lamprecycle.org or 1-800-BE-SHARP
U.S.A ONLY
Caution Concerning the Lamp
This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure
can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches
or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition and
the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
Should the lamp break, there is also a possibility that glass particles may spread inside of the projector.
In such a case, it is recommended you contact your nearest Sharp Authorized Projector Dealer or
Service Center to assure safe operation.
Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of
exposure to the gas, consult a doctor as soon as possible.
Replacing the Lamp
Caution
Do not use any glass cleaner to clean the lens.
Avoid touching the lens with your hands to prevent fi ngerprints on or damage to the lens surface.
Carefully change the lamp by following the instructions described in this section. * If you
wish, you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or
Service Center.
* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Projector
Dealer or Service Center for repair.
■
■
■
■
■
■
•
•
■
56
Regarding the Lamp (Continued)
Removing and Installing the
Lamp Unit
Warning!
Do not remove the lamp unit from the
projector right after use. The lamp and parts
around the lamp will be very hot and may
cause burns or injury.
•
Info
Do not touch the glass surface of the lamp
unit or the inside of the projector.
To avoid injury to yourself and damage to the
lamp, make sure you carefully follow the
steps below.
Do not loosen other screws except for the
lamp unit cover and lamp unit.
•
•
•
1
Press STANDBY/ON on the
projector or STANDBY on the
remote control to put the
projector into standby mode.
Wait until the cooling fan stops.
2
Disconnect the power cord.
Unplug the power cord from the AC
socket.
Leave the lamp until it has fully cooled
down (about 1 hour).
3
Remove the lamp unit cover.
Turn over the projector and place it on a
board or other raised surface on a table so
as not to allow the lens to come in contact
with the table. Loosen the user service
screw (1) that secures the lamp unit
cover. Remove the lamp unit cover (2).
•
•
•
•
STANDBY/ON button
AC socket
Lamp unit
AN-F212LP
Optional
accessory
User service screw
(for lamp unit cover)
STANDBY/ON button
AC socket
Lamp unit
AN-F212LP
Optional
accessory
User service screw
(for lamp unit cover)
1
2
3
57
Appendix
4
Remove the lamp unit.
Loosen the securing screws from the lamp
unit. Hold the lamp unit and pull it in the
direction of the arrow. At this time, keep
the lamp unit horizontal and do not tilt it.
5
Insert the new lamp unit.
Press the lamp unit fi rmly into the lamp unit
compartment. Fasten the securing screws.
6
Replace the lamp unit cover.
Align the tab on the lamp unit cover
(1) and place it while pressing the tab (2)
to close it. Then tighten the user service
screw (3) to secure the lamp unit cover.
Info
If the lamp unit and lamp unit cover
are not correctly installed, the power
will not turn on, even if the power
cord is connected to the projector.
•
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Info
Make sure to reset the lamp timer only when
replacing the lamp. If you reset the lamp timer
and continue to use the same lamp, this may
cause the lamp to become damaged or
explode.
•
1
Connect the power cord.
Plug the power cord into the AC socket of
the projector.
2
Reset the lamp timer.
While simultaneously holding down
MENU/HELP, ENTER and R on the
projector, press STANDBY/ON on the
projector.
“LAMP 0000H” is displayed, indicating
that the lamp timer is reset.
•
•
•
•
•
•
4
Securing screwsSecuring screws
5
6
1
AC socketAC socket
2
ENTER button
MENU/HELP
button
R button
STANDBY/ON
button
ENTER button
MENU/HELP
button
R button
STANDBY/ON
button
58
Storing the Projector
How to Use the Storage Case
When storing the projector, attach the lens
cap to the lens, and place it in the supplied
storage case.
1
Open the cover of the storage
case.
2
Place the projector into the
storage case.
Info
Ensure the projector has cooled down
suffi ciently before placing it in the
case.
When you place the projector into the
storage case, make sure that the
cooling fan has stopped.
Ensure the lens cap is attached to the
lens for protection.
Place the projector into the
storage case with the lens facing
the handle.
Ensure the projector is held in place
by using the fi xing band.
Do not expose the storage case to
direct sunlight or near heat sources.
The storage case may change color or
become deformed.
•
•
•
•
•
•
3
Close the cover of the storage
case.
4
Place the accessories in the front
pocket of the storage case.
1
2
3
Supplied accessories
(Remote control, etc.)
Supplied accessories
(Remote control, etc.)
4
Lens cap
Fixing band
59
Appendix
Computer Compatibility Chart
Computer
• Multiple signal support
Horizontal Frequency: 15-110 kHz,
Vertical Frequency: 45-85 Hz,
Pixel Clock: 12-170 MHz
Sync signal: Compatible with TTL level
• Compatible with sync on green signal
The following is a list of modes that conform to VESA. However, this projector supports other signals that
are not VESA standards.
PC/MAC Resolution
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
VESA Standard
DVI-D
Support
Display
PC
VGA
640 × 350
27.0 60
Upscale
31.5 70
37.5 85
✔
640 × 400
27.0 60
✔
31.5 70
37.9 85
✔
720 × 350
27.0 60
31.5 70
720 × 400
27.0 60
✔
31.5 70
37.9 85
✔
640 × 480
26.2 50
31.5 60
✔
34.7 70
37.9 72
✔
37.5 75
✔
43.3 85
✔
SVGA 800 × 600
31.4 50
35.2 56
✔
37.9 60
✔
46.6 70
48.1 72
✔
46.9 75
✔
53.7 85
✔
XGA 1024 × 768
40.3 50
True
48.4 60
✔
56.5 70
✔
60.0 75
✔
68.7 85
✔
WXGA
1280 × 720 45.0 60
Intelligent
Compression
1280 × 768 47.8 60
✔
1280 × 800 49.7 60
✔
1280 × 800 62.8 75
✔
1360 × 768 47.7 60
✔
1366 × 768 47.8 60
SXGA
1152 × 864
55.0 60
66.2 70
67.5 75
✔
1280 × 1024 64.0 60
✔
1280 × 1024 80.0 75
✔
SXGA+ 1400 × 1050
64.0 60
65.3 60
✔
UXGA 1600 × 1200 75.0 60
✔
MAC 13" VGA 640 × 480 34.9 67
Upscale
MAC 16" SVGA 832 × 624 49.7 75
MAC 19" XGA 1024 × 768 60.2 75
True
MAC 21" SXGA 1152 × 870 68.7 75
Intelligent Compression
When this projector receives 640K350 VESA format VGA signals, “640 × 400” appears on the screen.
Optimum image quality will be achieved by matching your computer's output resolution to the
resolution that corresponds to “True” in the “Display” column shown above.
When “Screen resolution” of the computer is different from the resolution displayed on the projected
image, follow the procedures shown below.
– Refer to “Select the resolution” for “Data image is not centered” on the Help menu and select the
same resolution as the resolution in “Screen resolution” of the computer.
–
Depending on the computer you are using, the output signal may not be faithful to the “Screen resolution”
adjustment. Check the settings of the computer's signal output. If the settings cannot be changed, it is
recommended that the resolution be set to the one that corresponds to “True” in the “Display” column.
•
•
•
Note
DTV
Signal
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
DVI-D Support
(Compatible with HDCP)
Signal
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
DVI-D Support
(Compatible with HDCP)
480
I
15.7 60 720P 45.0 60
✔
480P 31.5 60
✔
1035
I
33.8 60
✔
540P 33.8 60
1080
I
28.1 50
✔
576
I
15.6 50
1080I
33.8 60
✔
576P 31.3 50
✔
1080P 56.3 50
✔
720P 37.5 50
✔
1080P 67.5 60
✔
60
Troubleshooting
Problem Check Page
No picture and no sound
or projector does not
start.
Projector power cord is not plugged into the wall outlet.•
25
Power to the external connected devices is off.• –
The selected input mode is wrong.•
30
Cables are incorrectly connected to the projector.• 21–25
Remote control battery has run out.• 15
External output has not been set when connecting notebook computer.
• 21
The lamp unit cover is not installed correctly.• 56, 57
If the connected DVI digital equipment is turned on before the “DVI-D”
input mode is selected on the projector, the image may not be projected
properly or may not be displayed at all. Ensure that the appropriate input
mode has been selected on the projector before you turn on the
connected equipment.
• 21
Sound is heard but no
picture appears
(or picture is dark).
Cables are incorrectly connected to the projector.•
21–25
“Bright” is set to minimum position.• 42
Depending on the computer you are using, an image may not be
projected unless the signal output setting of the computer is switched
to the external output. Refer to the computer's operation manual for
how to switch its signal output settings.
• –
Color is faded or poor.
Image adjustments are incorrectly set.
Make adjustments of “Color” and “Tint” in “Picture Mode” and lower the
“BrilliantColor
TM
” value.
•
•
42
(Video Input only)
Video input system is incorrectly set.•
51
Picture is blurred;
noise appears.
Adjust the focus.•
27
The projection distance exceeds the focus range.• 20
There is fog on the lens. If the projector is carried from a cold room into a
warm room, or if it is suddenly heated, condensation may form on the surface
of the lens and the image will become blurred. Set up the projector at least
one hour before it is to be used. If condensation should form, remove the
power cord from the wall outlet and wait for it to clear.
• –
(Computer Input only)
Perform Synchronization Adjustments (“Clock” and “Phase”
Adjustment)
Noise may appear depending on the computer.
•
•
51
–
Picture appears but no
sound is heard.
Cables are incorrectly connected to the projector.•
21–25
Volume is set to minimum.
When the projector is connected to an external device and the volume
is set to minimum, the sound is not output even if you turn up the
volume of the external device.
•
•
30
“Speaker” is set to “Off”.• 46
Data image is not
centered.
Select “Data image is not centered” in the “Help” menu and make the
necessary adjustments.
•
51
Depending on the computer you are using, the output resolution signal
may be different from the one you have set. For details, refer to the
operation manual of the computer.
• –
61
Appendix
Problem Check Page
An unusual sound is
occasionally heard from
the cabinet.
If the picture is normal, the sound is due to cabinet shrinkage caused
by room temperature changes. This will not affect operation or
performance.
• –
Maintenance indicator on
the projector illuminates
or blinks in red.
See “Maintenance Indicators”.•
53
The projector cannot
be turned on or put into
the standby mode
using STANDBY/ON on
the projector.
The keylock is set.
If the keylock is set to “ON”, all the buttons are locked.
•
•
48
Picture is green on
COMPUTER
(Component)/
DVI (Component).
Change the input signal type setting.
When you cannot select an input signal type, select “Color is faded or
poor” in the “Help” menu, after selecting an item other than “sRGB” in
“Picture Mode”, and then select an input signal type.
•
•
51
41, 51
Picture is pink
(no green) on
COMPUTER (RGB)/
DVI (RGB).
Picture is too bright and
whitish.
Image adjustments are incorrectly set.•
42
The cooling fan becomes
noisy.
When temperature inside the projector increases, the cooling fan runs
faster.
•
8, 9
52, 53, 5
4
The lamp does not light
up even after the
projector turns on.
The lamp indicator is illuminating in red.
Replace the lamp.
•
53, 56
The lamp suddenly turns
off during projection.
The image sometimes
fl i c k e r s .
Cables are incorrectly connected to the projector or the connected
equipment works improperly.
Select “Vertical stripes or fl ickering image appear” in the “Help” menu
and make the necessary adjustments.
If this happens frequently, replace the lamp.
•
•
•
21–25
51
56
The lamp needs much
time to turn on.
The lamp will eventually need to be changed.
While the remaining lamp life draws to a close, replace the lamp.
•
56
Picture is dark.
The remote control
cannot be used.
Operate the remote control while pointing it at the projector's remote
control sensor.
The remote control may be too far away from the projector.
If direct sunlight or a strong fl uorescent lamp is shining on the
projector's remote control sensor, place the projector where it will not
be affected by strong light.
•
•
•
15
The batteries may be depleted or inserted incorrectly. Make sure the
batteries are inserted correctly or insert new ones.
• 15
This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect
operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5
minutes.
62
For SHARP Assistance
If you encounter any problems during setup or operation of this projector, fi rst
refer to the “Troubleshooting” section on pages
60 and 61. If this operation
manual does not answer your question, please contact the SHARP Service
departments listed below.
U.S.A. Sharp Electronics Corporation
1-888-GO-SHARP (1-888-467-4277)
http://www.sharpusa.com
Canada Sharp Electronics of Canada Ltd.
(905) 568-7140
http://www.sharp.ca
Mexico Sharp Electronics Corporation
Mexico Branch
(525) 716-9000
http://www.sharp.com.mx
Latin America Sharp Electronics Corp. Latin
American Group
(305) 264-2277
http://www.siempresharp.com
Germany Sharp Electronics (Europe) GMBH
01805-234675
http://www.sharp.de
U.K. Sharp Electronics (U.K.) Ltd.
08705 274277
http://www.sharp.co.uk/customersupport
Italy Sharp Electronics (Italy) S.P.A.
(39) 02-89595-1
http://www.sharp.it
France Sharp Electronics France
01 49 90 35 40
http://www.sharp.fr
Spain Sharp Electronica Espana, S.A.
93 5819700
http://www.sharp.es
Switzerland Sharp Electronics (Schweiz) AG
0041 1 846 63 11
http://www.sharp.ch
Sweden Sharp Electronics ( Nordic ) AB
(46) 8 6343600
http://www.sharp.se
Austria Sharp Electronics (Europe) GMBH
Branch Offi ce Austria
0043 1 727 19 123
http://www.sharp.at
Benelux SHARP Electronics Benelux BV
0900-SHARPCE (0900-7427723)
Nederland
9900-0159 Belgium
http://www.sharp.nl
http://www.sharp.be
http://www.sharp.lu
Australia Sharp Corporation of Australia Pty.
Ltd.
1300-135-022
http://www.sharp.net.au
New Zealand Sharp Corporation of New Zealand
Phone: (09) 573-0111
Fax: (09) 573-0112
http://www.sharp.net.nz
Singapore Sharp-Roxy Sales (S) Pte. Ltd.
65-226-6556
http://www.sharp.com.sg
Hong Kong Sharp-Roxy (HK) Ltd.
(852) 2410-2623
http://www.sharp.com.hk
Taiwan Sharp Corporation (Taiwan)
0800-025111
http://www.sharp-scot.com.tw
Malaysia Sharp-Roxy Sales & Service Co.
(60) 3-5125678
U.A.E. Sharp Middle East Fze
971-4-81-5311
Thailand Sharp Thebnakorn Co. Ltd.
02-236-0170
http://www.sharp-th.com
Korea Sharp Electronics Incorporated of
Korea
(82) 2-3660-2002
http://www.sharpkorea.co.kr
India Sharp Business Systems (India)
Limited
(91) 11- 6431313
63
Appendix
Specifi cations
Model PG-F267X
Display devices 0.55" DLP
®
Chip
Resolution XGA (1024 × 768)
Lens F number F 2.5
Focus Manual
Input terminals DVI-I (Compatible with HDCP) ×1
Computer/Component
(mini D-sub 15 pin)
×1
S-Video (mini DIN 4 pin) ×1
Video (RCA) ×1
Audio (ø3.5 mm stereo minijack) ×1
Audio (RCA) ×1 (L/R)
Output
terminals
Computer/Component
(mini D-sub 15 pin)
×1
Audio (ø3.5 mm stereo minijack) ×1 (variable audio output)
Control and
communication
terminals
LAN (RJ-45) ×1
USB (Type B) ×1
RS-232C (mini DIN 9 pin) ×1
Speakers 2 W (Mono)
Projection lamp 250 W
Rated voltage AC 100 – 240 V
Rated frequency 50/60 Hz
Input current 3.4 A
Power consumption (Standby*) 326 W (10.5 W) with AC 100 V
316 W (11.0 W) with AC 240 V
Operation temperature 41ºF to 95ºF (+5ºC to +35ºC)
Cabinet Plastic
Dimensions (main body only) [W × H × D] 10
41
/
64
" × 3
33
/
64
" × 10
7
/
16
"
(270 × 89 × 265 mm)
Weight (approx.) 7.5 lbs. (3.4 kg)
*STANDBY Mode: Standard
As a part of policy of continuous improvement, SHARP reserves the right to make design and
specifi cation changes for product improvement without prior notice. The performance specifi cation
fi gures indicated are nominal values of production units. There may be some deviations from these
values in individual units.
64
Dimensions
Units: inches (mm)
1
/4 (6)10
7
/16 (265)
13
/32
(10)
1
5
/8
(41.2)
4
7
/64 (104)1
15
/16
(49)
(Ø110.6)
1
31
/64
(37.65)
2
45
/64
(68.35)
2
3
/8 (60)2
61
/64 (75)
10
41
/64 (270)
3
33
/64 (89)
1
3
/16
(30)
13
/32 (10)
M4
M4
M4
M4
13
/32 (10)
2
61
/64 (75)
1
27
/64
(36)
65
Appendix
Accessories ······························································· 11
AC socket ··································································25
Adjustment buttons ··················································· 39
AREA ZOOM ·····························································32
Aspect ratio ·······························································31
Audio Input ································································ 47
AUDIO 1, 2 terminal ··················································· 23
AUDIO OUT terminal ·················································23
Auto Power Off ··························································46
Auto Restart ······························································46
Auto Sync (Auto Sync adjustment) ········· 34, 38, 46, 51
AUTO SYNC button···················································34
AV MUTE button ························································ 30
Background ······························································· 45
Batteries ····································································15
Blue ···········································································42
BORDER ······························································31, 32
BREAK TIMER button ···············································33
Bright ········································································· 42
BrilliantColor
TM
··························································42
CLR Temp (Color Temperature) ································· 42
C.M.S. ·······································································42
Color ·········································································· 42
COMPUTER button ··················································· 30
COMPUTER/COMPONENT input terminal ········21, 22
Contrast ·····································································42
DHCP Client ······························································ 50
DIN-D-sub RS-232C adaptor ····································24
DNR ··········································································· 43
DOT BY DOT ·····························································31
DVI button ·································································30
DVI-I input terminal ··············································21, 22
ECO+QUIET button ···················································33
ENTER button ···························································· 39
Exhaust vent ························································ 12, 52
Fan Mode ·································································· 47
Focus ring ··································································27
FREEZE button ·························································· 34
Front adjustment foot ················································28
FULL ·········································································· 31
HEIGHT ADJUST lever ··············································28
Help ···········································································51
H-Pos ··································································38, 51
Image shift ·································································44
INPUT modes ····························································30
Intake vent ···························································12, 52
Kensington Security Standard connector ················· 13
Keycode ···································································47
Keylock ····································································· 48
KEYSTONE button ··················································· 29
Keystone Correction ············································ 29, 44
Lamp ·········································································55
Lamp indicator ··························································53
Lamp Setting ····························································· 43
Lamp Timer (Life) ·······················································48
Lamp unit ··································································56
Language (on-screen display language) ··················· 45
LAN terminal ······························································ 25
L-CLICK/EFFECT button ····································· 33, 35
Lens Cap ··································································· 12
MAC Address ····························································50
MAGNIFY buttons ·····················································34
MENU/HELP button ············································ 39, 51
MONITOR OUT terminal ············································23
MOUSE/Adjustment buttons ······························· 35, 39
Network ····································································· 49
NORMAL ·····························································31, 32
ON button ·································································· 26
Optional accessories ·················································11
OSD Display ·····························································44
PAGE DOWN button ··················································35
PAGE UP button ························································ 35
Password ··································································· 49
PDF ············································································ 10
Picture Adjustment ···················································41
Picture Mode ······················································· 34, 41
PICTURE MODE button ············································34
POINTER button ························································ 33
Power cord ································································ 25
Power indicator ·························································53
PRJ - ADJ ·································································· 46
PRJ Mode ···························································· 19, 45
Progressive ································································ 43
R-CLICK/RETURN button ··································· 35, 39
Rear adjustment foot ················································· 28
Red ············································································ 42
Remote control ·························································· 14
Remote control sensor ·············································· 15
Replacing the lamp··············································55, 56
Resize ·································································· 31, 44
RESIZE button ··························································· 31
RGB cable ·································································21
RS-232C terminal ······················································24
SCR - ADJ ································································· 44
Screen Size and Projection Distance ························ 20
Setup Guide ························································27, 45
Sharp ········································································· 42
Speaker ·····································································46
SPOT button ······························································ 33
STANDBY button ······················································· 26
STANDBY Mode ························································ 46
STANDBY/ON button ················································ 26
Storage case ·····························································58
STRETCH ····························································31, 32
Supplied accessories ················································11
S-VIDEO button ························································· 30
S-VIDEO terminal ······················································22
System Lock ······························································ 47
System Sound ··························································· 46
TCP/IP ·······································································50
Temperature warning indicator ··································53
Tint ············································································· 42
USB terminal ·····························································35
VIDEO button ····························································30
VIDEO terminal ·························································· 22
VOL (Volume) buttons ················································ 30
V-Pos ··································································· 38, 51
V-STRETCH ······························································· 32
Index
