ETAM29.66X
BEAN TO CUP ESPRESSO
AND CAPPUCCINO
MACHINE
Instruction for Use
2
EN
page 6
B1
B5
B4
B6
B7
B3
B8B9B10
B11
B
C
D
C1
C2
C5
C6
C4*
C3
C7
D1
D2
D3
D4
D5
D6
B2
3
A14
A1
A
A4
A17
A5
A6
A2
B
A21
A9
A10
A8
A3
A7
A11 A12
A18
A13
A19
A20
A16
A15
4
3
45
2
1
6
11
14 15
13
16 17
12
7
8
9
10
5
27
29
31
34
18 19
25
26
28
30
32
PUSH
PUSH
20 21
2422 23
6
CONTENTS
FUNDAMENTAL SAFETY WARNINGS ....................7
IMPORTANT SAFEGUARDS ................................. 8
Symbols used in these instructions ..........................8
Designated use ........................................................8
Instruction for Use....................................................8
INTRODUCTION ................................................8
Letters in brackets ....................................................8
Troubleshooting and repairs ....................................8
DESCRIPTION ...................................................9
Description of the appliance ....................................9
Description of the touch screen ................................9
Description of the accessories ..................................9
Description of the milk container .............................9
BEFORE USE .....................................................9
Checking the appliance ............................................9
Installing the appliance ...........................................9
Connecting the appliance ........................................9
Setting up the appliance ........................................10
TURNING THE APPLIANCE ON .......................... 10
TURNING THE APPLIANCE OFF ......................... 10
MENU SETTINGS ............................................. 10
Rinsing ................................................................... 11
Descaling ...............................................................11
Install lter ............................................................11
Replacing the limescale lter (if installed) .............11
Adjust time ............................................................11
Auto-start ..............................................................11
Auto-o (standby) .................................................11
Energy saving .........................................................11
Setting the temperature ........................................12
Setting water hardness ..........................................12
Setting the language .............................................12
Beep ......................................................................12
Default values (reset) .............................................12
Statistics function ..................................................12
MAKING COFFEE ............................................. 12
Selecting the coee taste .......................................12
Selecting the quantity of coee in the cup .............13
Customising the “my coee” quantity ....................13
Adjusting the coee mill ........................................13
Tips for a hotter coee ...........................................13
Making coee using coee beans ..........................13
Making coee using pre-ground coee .................14
Making DOPPIO+ coee using coee beans ..........14
Customising the DOPPIO+ coee quantity ............14
Making LONG coee using coee beans .................14
Making LONG coee using pre-ground coee ........14
Customising the “LONG coee” quantity .................14
MAKING CAPPUCCINOS AND MILK BASED
COFFEES ........................................................15
Filling and attaching the milk container ................15
Adjusting the amount of froth ...............................15
Making cappuccino ................................................15
Preparing “MILK MENU” drinks ...............................15
Cleaning the milk container after use ....................15
Programming the quantity of coee and milk in the
cup for the CAPPUCCINO icon .................................16
Programming the quantity of coee and milk in the
cup for MILK MENU icon drinks ..............................16
DELIVERING HOT WATER ................................. 16
Changing the quantity of water delivered
automatically. ........................................................16
CLEANING ...................................................... 16
Cleaning the machine ............................................16
Cleaning the coee grounds container ...................17
Cleaning the drip tray and condensate tray ............17
Cleaning the inside of the coee machine .............17
Cleaning the water tank .........................................17
Cleaning the coee spouts .....................................17
Cleaning the pre-ground coee funnel ..................17
Cleaning the infuser ...............................................17
Cleaning the milk container ...................................18
Cleaning the hot water/steam connection nozzle ..18
DESCALING ..................................................... 18
SETTING WATER HARDNESS ............................. 19
Measuring water hardness .....................................19
Setting water hardness ..........................................20
WATER SOFTENER FILTER (*CERTAIN MODELS
ONLY) ............................................................. 20
Installing the lter .................................................20
Replacing the lter ................................................20
Removing the lter ................................................21
TECHNICAL DATA............................................. 21
DISPOSAL ....................................................... 21
DISPLAYED MESSAGES .................................... 21
TROUBLESHOOTING ........................................ 23
ELECTRICAL REQUIREMENTS ........................... 24
7
FUNDAMENTAL SAFETY WARNINGS
• This appliance can be used by persons with reduced physical, sensory or mental ca-
pabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards
involved.
• Children shall not play with the appliance.
• Never clean by immersing the appliance in water.
• This is an household appliance only. It is not intended to be used in: sta kitchen
areas in shops, oces and other working environments; farm houses; by clients in
hotels, motels and other residential type environments; bed and breakfast type
environments.
• If the plug or cord is damaged, it must be replaced by Customer Services only to avoid
all risk.
FOR EUROPEAN MARKETS ONLY:
• Always unplug the appliance when left unattended and before assembly, taking apart
or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of
reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and if they understand the
hazards involved.
• Children shall not play with the appliance.
Surfaces marked with this symbol become hot during use (the symbol is present in
certain models only).
8
IMPORTANT SAFEGUARDS
Symbols used in these instructions
Important warnings are identied by these symbols. It is vital to
respect these warnings.
Danger!
Failure to observe the warning may result in life threatening
injury by electric shock.
Important!
Failure to observe the warning could result in injury or damage
to the appliance.
Danger of burns!
Failure to observe the warning could result in scalds or burns.
Please note:
This symbol identies important advice or information for the
user.
Danger!
This is an electrical appliance and may cause electric shock.
You should therefore follow these safety warnings:
• Never touch the appliance with damp hands or feet.
• Never touch the plug with damp hands.
• Make sure the socket used is freely accessible at all times,
enabling the appliance to be unplugged when necessary.
• Unplug directly from the plug only. Never pull the cord as
you could damage it.
• To disconnect the appliance completely you must unplug it
from the mains socket.
• If the appliance is faulty, do not attempt to repair. Turn it
o, unplug from the mains socket and contact Customer
Services.
• Before cleaning the appliance, turn it o, unplug from the
mains socket and allow to cool.
Important:
Keep all packaging (plastic bags, polystyrene foam) away from
children.
Danger of burns!
This appliance produces hot water and steam may form while
it is in operation.
Avoid contact with splashes of water or hot steam.
When the appliance is in operation, the cup shelf (A6) could
become very hot.
Designated use
This appliance is designed and made to prepare coee and heat
drinks.
Any other use is considered improper and thus dangerous. The
manufacturer is not liable for damage deriving from improper
use of the appliance.
Instruction for Use
Read this Instruction for Use carefully before using the appli-
ance. Failure to follow this Instruction for Use may result in
burns or damage to the appliance.
The manufacturer is not liable for damage deriving from failure
to respect this Instruction for Use.
Please note:
Keep this Instruction for Use. If the appliance is passed to other
persons, they must also be provided with this Instruction for
Use.
INTRODUCTION
Thank you for choosing this bean to cup espresso and cappuc-
cino machine.
We hope you enjoy using your new appliance. Take a few min-
utes to read this Instruction for Use. This will avoid all risks and
damage to the appliance.
Letters in brackets
The letters in brackets refer to the legend in the description of
the appliance on page 2-3.
Troubleshooting and repairs
In the event of problems, rst try and resolve them following
the information given in the sections “Displayed messages” on
page 21 and “Troubleshooting” on page 23.
If this does not resolve the problem or you require further in-
formation, you should consult Customer Services by calling the
number given on the annexed “Customer Service” sheet.
If your country is not among those listed on the sheet, call the
number given in the guarantee. If repairs are required, contact
De’Longhi Customer Services only. The addresses are given in
the guarantee certicate provided with the machine.
9
DESCRIPTION
Description of the appliance
(page 3 - A )
A1. Beans container lid
A2. Pre-ground coee funnel lid
A3. Beans container
A4. Pre-ground coee funnel
A5.
button: turns the appliance on and o (standby)
A6. Cup shelf
A7. Hot water and steam connection nozzle
A8. Coee spout (adjustable height)
A9. Condensate tray
A10. Cup tray
A11. Drip tray water level indicator
A12. Drip tray
A13. Coee grounds container
A14. Main switch (ON/OFF)
A15. Socket for power cable connector
A16. Infuser door
A17. Infuser
A18. Water tank
A19. Water softener lter housing
A20. Water tank lid
A21. Grinding adjustment dial
Description of the touch screen
(page 2 - B )
A number of icons on the touch screen have a double function. This
is indicated in brackets in the description.
B1. icon: to deliver hot water (When in the settings menu,
press to conrm the selection)
B2.
icon: to access or exit the settings menu.
B3. Display
B4.
icon: to select the coee quantity (When in the set-
tings menu, press to scroll through the menu items)
B5.
aroma selection icon: to select the coee taste
(When in the settings menu, press to scroll through the menu
items)
B6.
icon: to make 2 cups of coee with the settings
displayed
B7.
icon: to make 1 cup of coee with the settings
displayed
B8.
MILK MENU icon: to select one of the available milk
based drinks (CAFFELATTE, MACCHIATO, FLAT WHITE, MILK)
B9.
CAPPUCCINO icon: to deliver a cappuccino
B10.
icon: to make one LONG coee
B11.
icon: to make one DOPPIO+ coee
Description of the accessories
(page 2 - C )
C1. Pre-ground coee measure
C2. Cleaning brush
C3. Hot water spout
C4. Water softener lter (*certain models only)
C5. “Total Hardness Test” indicator paper
C6. Descaler
C7. Power cord
Description of the milk container
(page 2 - D )
D1. Milk container lid
D2. Froth adjustment and CLEAN dial
D3. Milk container
D4. Lid extraction button
D5. Frothed milk spout (adjustable)
D6. Milk intake tube
BEFORE USE
Checking the appliance
After removing the packaging, make sure the product is com-
plete and undamaged and that all accessories are present. Do
not use the appliance if it is visibly damaged. Contact De’Longhi
Customer Services.
Installing the appliance
Important!
When you install the appliance, you should respect the follow-
ing safety warnings:
• The appliance gives o heat. After positioning the appli-
ance on the worktop, leave a space of at least 3 cm be-
tween the surfaces of the appliance and the side and rear
walls and at least 15 cm above the appliance.
• Water penetrating the coee machine could cause dam-
age. Do not place the appliance near taps or sinks.
• The appliance could be damaged if the water it contains
freezes. Do not install the appliance in a room where the
temperature could drop below freezing point.
• Arrange the cord in such a way that it cannot be damaged
by sharp edges or contact with hot surfaces (e.g. electric
hot plates).
Connecting the appliance
Important!
Check that the mains power supply voltage corresponds to
the value indicated on the rating plate on the bottom of the
appliance.
10
Connect the appliance to an eciently earthed and correctly
installed socket with a minimum current rating of 10A only.
If the power socket does not match the plug on the appliance,
have the socket replaced with a suitable type by a qualied
professional.
Setting up the appliance
Please note :
• Coee has been used to factory test the appliance and it is
therefore completely normal for there to be traces of cof-
fee in the mill. The machine is, however, guaranteed to be
new.
• You should customise water hardness as soon as possible
following the instructions in the section “Setting water
hardness” on page 19.
1. Insert the power cable connector into the socket at the back
of the appliance and connect the appliance to the mains
electricity supply (g. 1). Make sure the main switch is
pressed (g. 2).
2. Remove the water tank (g. 3), open the lid (g. 4), ll to
the MAX line with fresh water, replace the lid and put the
tank back in the appliance.
You must rst choose the language by moving backwards and
forwards with the
or arrows (g. 5), or waiting
until the languages scroll through on the display at intervals of
about 3 seconds:
3. When “English” appears, press and hold the icon (g.
6) for a few seconds until “ENGLISH set” is displayed.
Follow the instructions indicated on the appliance display:
4. “INSERT WATER SPOUT”: Check that the hot water spout
is inserted on the connection nozzle and place a container
holding a minimum of 100 ml underneath (g. 7).
5. “HOT WATER Press OK” is displayed;
6. Press the
icon to conrm (g. 6). The appliance deliv-
ers water from the spout then goes o automatically.
The coee machine is now ready for normal use.
Please note :
• When setting up the appliance, you need to make 4-5 cups
of coee or 4-5 cappuccinos before the appliance starts to
give satisfactory results.
• When making the rst 5-6 cappuccinos, it is normal to hear
the noise of boiling water. After this, the noise becomes
less.
• To enjoy your coee even more and improve the perfor-
mance of your appliance, we recommend installing a water
softener lter as described in the section “Water softener
lter” (page 20). If your model is not provided with a l-
ter, you can request one from De’Longhi Customer Services.
TURNING THE APPLIANCE ON
Please note!
• Before turning the appliance on, make sure the main
switch is pressed (g. 2).
• Each time the appliance is turned on, it performs an auto-
matic preheat and rinse cycle which cannot be interrupted.
The appliance is ready for use only after completion of this
cycle.
Danger of burns!
During rinsing, a little hot water comes out of the coee spouts
and is collected in the drip tray underneath. Avoid contact with
splashes of water.
• To turn the appliance on, press the
button (g. 8).
The message “Heating up, Please wait” is displayed.
When heating is complete, the message changes to “Rinsing”. As
well as heating the boiler, this also heats the internal circuits by
circulating hot water.
The appliance is at temperature when the message indicating
the taste and quantity of coee appears.
TURNING THE APPLIANCE OFF
Whenever the coee machine is turned o after being used to
make coee, it performs an automatic rinse cycle.
Danger of burns!
During rinsing, a little hot water ows from the coee spouts.
Avoid contact with splashes of water.
• To turn the appliance o, press the
button (g. 8).
• The appliance performs a rinse cycle, then the message
“Turning o Please wait” is displayed and the appliance
goes o (standby).
Please note!
If you will not be using the appliance for some time, unplug
from the mains socket:
• rst turn the appliance o by pressing the
button
(g. 8);
• press the main switch on the side of the appliance (g. 2).
Important!
Never press the main switch while the appliance is on.
MENU SETTINGS
To access the settings menu, press the
icon (B2). Scroll
through the menu by pressing
or
(g. 5).
11
Rinsing
Use this function to deliver hot water from the coee spout (A8)
and from the hot water spout (C3), if inserted, to clean and heat
the appliance’s internal circuit. Place a container with a mini-
mum capacity of 100ml under the coee and hot water spout.
To enable the function, proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Rinsing” is displayed;
3.
Press the icon (g.6), “Conrm?” is displayed;
Important! Danger of burns.
Do not leave the appliance unattended while hot water is being
delivered.
4. Press the
icon: after a few seconds, hot water is deliv-
ered rst from the coee spout and then from the hot water
spout (if inserted) which cleans and heats the appliance’s
internal circuit.
Please note!
• To stop delivery at any time, press any icon.
• If the appliance is not used for more than 3-4 days, we strong-
ly recommend, when switching on the appliance, performing
2/3 rinses before using it.
Descaling
For instructions on descaling, see page 18.
Install lter
For Instruction for use on how to install the lter, see the section
“Water softener lter” (page 20).
Replacing the limescale lter (if installed)
For Instruction for use on how to replace the lter, see the sec-
tion “Replacing the lter” (page 20).
Adjust time
To adjust the time on the display, proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Adjust time” is displayed;
3. Press the
icon (g. 3). The hours ash on the display;
4. Press
or to change the hour;
5. Press the
icon to conrm. The minutes ash;
6. Press or to change the minutes;
7. Press the
icon to conrm.
This sets the time. Press the
icon to exit the menu.
Auto-start
You can set the auto-start time in order to have the appliance
ready at a certain time (for example in the morning) so you can
make coee immediately.
Please note!
To enable this function, the time must already be set correctly.
To enable auto-start, proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Auto-start” is displayed;
3. Press the
button (g. 3). “Enable?” is displayed;
4. Press the icon to conrm;
5.
Press
or
to choose the hour;
6. Press the
icon to conrm;
7. Press or to change the minutes;
8. Press the
icon to conrm;
9. Press the
icon to exit the menu.
Once the time has been conrmed, activation of auto-start is
indicated by the
symbol displayed alongside the time.
To disable the function:
1. Select auto-start from the menu;
2. Press the
icon. “Disable?” is displayed;
3. Press the icon to conrm.
The
symbol is no longer displayed.
Auto-o (standby)
Auto-o can be set so that the appliance goes o after 15 or
30 minutes, or 1, 2 or 3 hours. To programme Auto-o, proceed
as follows:
1. Press the
(B2) icon (B2) to enter the menu;
2. Press
or (g. 5) until “Auto-o” is displayed;
3. Press the
icon (g. 6);
4. Press
or until the required operating time (15
or 30 minutes, or 1, 2 or 3 hours) is displayed;
5. Press the
icon to conrm;
6. Press the
icon to exit the menu.
Auto-o is programmed.
Energy saving
Use this function to enable or disable energy saving. When en-
abled, the function reduces energy consumption in compliance
with European regulations.
To disable (or enable) energy saving, proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Energy Saving” is
displayed;
12
3. Press the
icon (g. 6). “Disable?” is displayed (or “Ena-
ble?” if the function has been disabled);
4. Press the
icon to disable (or enable) energy saving
mode;
5. Press the
icon to exit the menu.
When the function is active, if the machine is not used for some
time, “Energy saving” is displayed.
Please note!
• When in energy saving mode, a few seconds elapse before
the rst coee, cappuccino or milk based coee is delivered
as the appliance must heat up again.
• To prepare any drink, press any icon to exit energy saving,
then press the icon corresponding to the drink you want to
make.
• If the milk container is inserted, “Energy saving” is not
activated.
Setting the temperature
To modify the temperature of the water used to make the coee,
proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Set temperature” is
displayed;
3. Press the
icon (g. 6);
4. Press
or until the required temperature is dis-
played (O=low; OOOO=maximum);
5. Press the
icon to conrm;
6. Press the
icon to exit the menu.
Setting water hardness
For instructions on setting water hardness, see page 19.
Setting the language
To modify the language of the display, proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Set language” is
displayed;
3. Press the
icon (g. 6);
4. Press the
or button until the required lan-
guage is displayed ;
5. Press the
icon to conrm;
6. A message conrming the language installed is displayed;
7. Press the
icon to exit the menu.
Beep
This enables or disables the buzzer emitted by the machine each
time an icon or button is pressed or an accessory is inserted/
removed. To disable or re-enable the beep, proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Beep” is displayed;
3. Press the
icon (g.6), “Disable?” is displayed; (or “Ena-
ble?” if the function has been disabled);
4. Press the
icon to enable or disable the beep;
5. Press the
icon to exit the menu.
Default values (reset)
This resets all menu settings and programmed quantities back
to the default values (with the exception of the language which
remains as set).
To reset the default values, proceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Default values” is
displayed;
3. Press the
icon (g. 6);
4. The message “Conrm?” is now displayed;
5. Press the
icon to conrm and exit.
Statistics function
This displays statistics relating to the machine. To display, pro-
ceed as follows:
1. Press the
icon (B2) to enter the menu;
2. Press
or (g. 5) until “Statistics” is displayed;
3. Press the
icon (g. 6);
4. By pressing
or you can check:
- how many coees have been made;
- the total number of cappuccinos and milk based coees
made;
- the total number of litres of water delivered;
- how many times the machine has been descaled;
- how many times the water softener lter has been
replaced.
5. Press the
icon twice to exit the menu.
MAKING COFFEE
Selecting the coee taste
The appliance is set by default to make coee with a standard
taste.
You can also choose one of these tastes:
Extra-mild taste
Mild taste
Standard taste
13
Strong taste
Extra-strong taste
To change the taste, press the
icon (g. 9) repeatedly until
the required taste is displayed.
Selecting the quantity of coee in the cup
The appliance is set by default to make a standard quantity of
coee. To select the quantity of coee, press the
icon
(g. 10) until the message corresponding to the required quan-
tity of coee is displayed:
Coee selected Quantity in cup (ml)
MY COFFEE Programmable:
from 㲒20 to 㲒180
SHORT
㲒40
STANDARD
㲒60
LONG
㲒90
EXTRA LONG COFFEE
㲒120
Customising the “my coee” quantity
The appliance is set by default to automatically deliver 30 ml of
“MY COFFEE”. To modify this quantity, proceed as follows:
1. Place a cup under the coee spouts ( g. 13).
2. Press the icon (g. 10) until “MY COFFEE” is
displayed.
3. Keep the
icon (B7) pressed until the message “1 MY
COFFEE Program quantity” is displayed and coee delivery
begins. Release the icon.
4. As soon as the coee in the cup reaches the required level,
press the
icon again.
The quantity of coee in the cup has now been programmed.
Adjusting the coee mill
The coee mill is set by default to prepare coee correctly and
should not require regulating initially.
However, if after making the rst few coees you nd that the
coee is either too weak and not creamy enough or delivery is
too slow (a drop at a time), this can be corrected by adjusting
the grinding adjustment dial (g. 11).
Please note!
The grinding adjustment dial must only be turned when the
coee mill is in operation.
If the coee is delivered too slowly or
not at all, turn one click clockwise to-
wards “7”.
For fuller bodied creamier coee, turn
one click anticlockwise towards “1” (do
not turn more than one click at a time
otherwise the coee could be delivered
a drop at a time). These adjustments will only be evident after
at least 2 cups of coee have been delivered. If this adjustment
does not obtain the desired result, turn the dial another click.
Tips for a hotter coee
For hotter coee, you should:
• perform a rinse cycle by selecting the “Rinsing” function in
the settings menu (page 10).
• warm the cups with hot water (using the hot water
function);
• increase the coee temperature in the settings menu
(page 12).
Making coee using coee beans
Important!
Do not use caramelised or candied coee beans as they could
stick to the coee mill and make it unusable.
1. Fill the container with coee beans (g. 12).
2. Place under the coee spouts:
- 1 cup, if you want to make 1 coee (g. 13);
- 2 cups, if you want 2 coees (g. 14).
3. Lower the spouts as near as possible to the cup. This makes
a creamier coee (g. 15).
4. Press the icon corresponding to the number of coees re-
quired (one cup
or two cups ).
5. Preparation begins. The amount of coee selected is dis-
played together with a progress bar which gradually lls as
preparation progresses.
Please note:
• While the machine is making coee, delivery can be inter-
rupted at any moment by pressing any icon.
• At the end of delivery, to increase the quantity of coee in
the cup, just press one of the coee icons (B6 or B7) (within
3 seconds).
Once the coee has been made, the appliance is ready to make
the next drink.
Important!
• Various alarm messages could be displayed while using
the machine (FILL TANK, EMPTY GROUNDS CONTAINER,
14
etc.). Their meaning is explained in the section “Displayed
messages” (page 23).
• For hotter coee, see the section “Tips for a hotter coee”
(page 13).
• If the coee is delivered a drop at a time, too weak and not
creamy enough or too cold, read the tips in the “Trouble-
shooting” section (page 23).
Making coee using pre-ground coee
Important!
• Never place coee beans in the pre-ground coee funnel
as this could damage the appliance.
• Never add pre-ground coee when the machine is o or it
could spread through the inside of the machine and dirty
it. This could damage the appliance.
• Never use more than 1 level measure or it could dirty the
inside of the coee machine or block the funnel.
Please note!
When you use pre-ground coee, you can only make one cup of
coee at a time.
1. Press the
icon repeatedly (g. 9) until “Pre-ground” is
displayed.
2. Open the pre-ground coee funnel lid (A2).
3. Make sure the funnel is not blocked, then add one level
measure of pre-ground coee (g. 16).
4. Place a cup under the coee spouts (g. 13).
5. Press the 1 cup coee icon
(B7).
6. Preparation begins. The amount of coee selected is dis-
played together with a progress bar which gradually lls as
preparation progresses.
Please note!
If “Energy Saving” mode is active, you may have to wait a few
seconds before the rst coee is delivered.
Making DOPPIO+ coee using coee beans
Prepare the appliance following the instructions in the section
“Making coee using coee beans”, then press the
icon
(B11).
Customising the DOPPIO+ coee quantity
The appliance is set by default to deliver about 120 ml of
DOPPIO+ coee. To modify these settings, proceed as follows:
1. Place a suciently large cup or glass under the coee
spouts (g. 13);
2. Press and hold the
icon (B11) until “Program quanti-
ty” is displayed;
3. Release the
icon. The appliance starts delivering
coee;
4. As soon as the coee in the cup reaches the required level,
press the
icon again.
The quantity of coee in the cup has now been programmed.
Please note!
You can programme a minimum quantity of about 80ml.
You can programme a maximum quantity of about 160ml.
Making LONG coee using coee beans
Prepare the appliance following the instructions in the section
“Making coee using coee beans”, then press the
icon
(B10).
Making LONG coee using pre-ground coee
1. Follow the instructions in points 1, 2, 3 and 4 of the section
“Making coee using pre-ground coee”, then press the
icon (B10).
2. The appliance starts making coee and displays a progress
bar. Halfway through preparation, the message “ADD PRE-
GROUND COFFEE, Press OK” appears.
3. Add one level measure of pre-ground coee and press
(g. 6).
4. Preparation resumes and the appliance displays a progress
bar which lls gradually as preparation proceeds.
Customising the “LONG coee” quantity
The appliance is set by default to automatically deliver about
200ml of LONG coee. To modify these settings, proceed as
follows:
1. Place a suciently large cup or glass under the coee
spouts (g. 13).
2. Press and hold the
icon (B10) until “Program quanti-
ty” is displayed.
3. Release the
icon. The appliance starts delivering
coee.
4. As soon as the coee in the cup reaches the required level,
press the
icon again.
The quantity of coee in the cup has now been programmed.
Please note!
If the programme uses pre-ground coee, the appliance will
prompt you to add a second level measure of coee.
15
MAKING CAPPUCCINOS AND MILK BASED COFFEES
Please note!
• To avoid producing milk with poor froth or large bubbles,
always clean the milk container lid and hot water nozzle as
described in the section “Cleaning the milk container” on
pages 15 and 18.
Filling and attaching the milk container

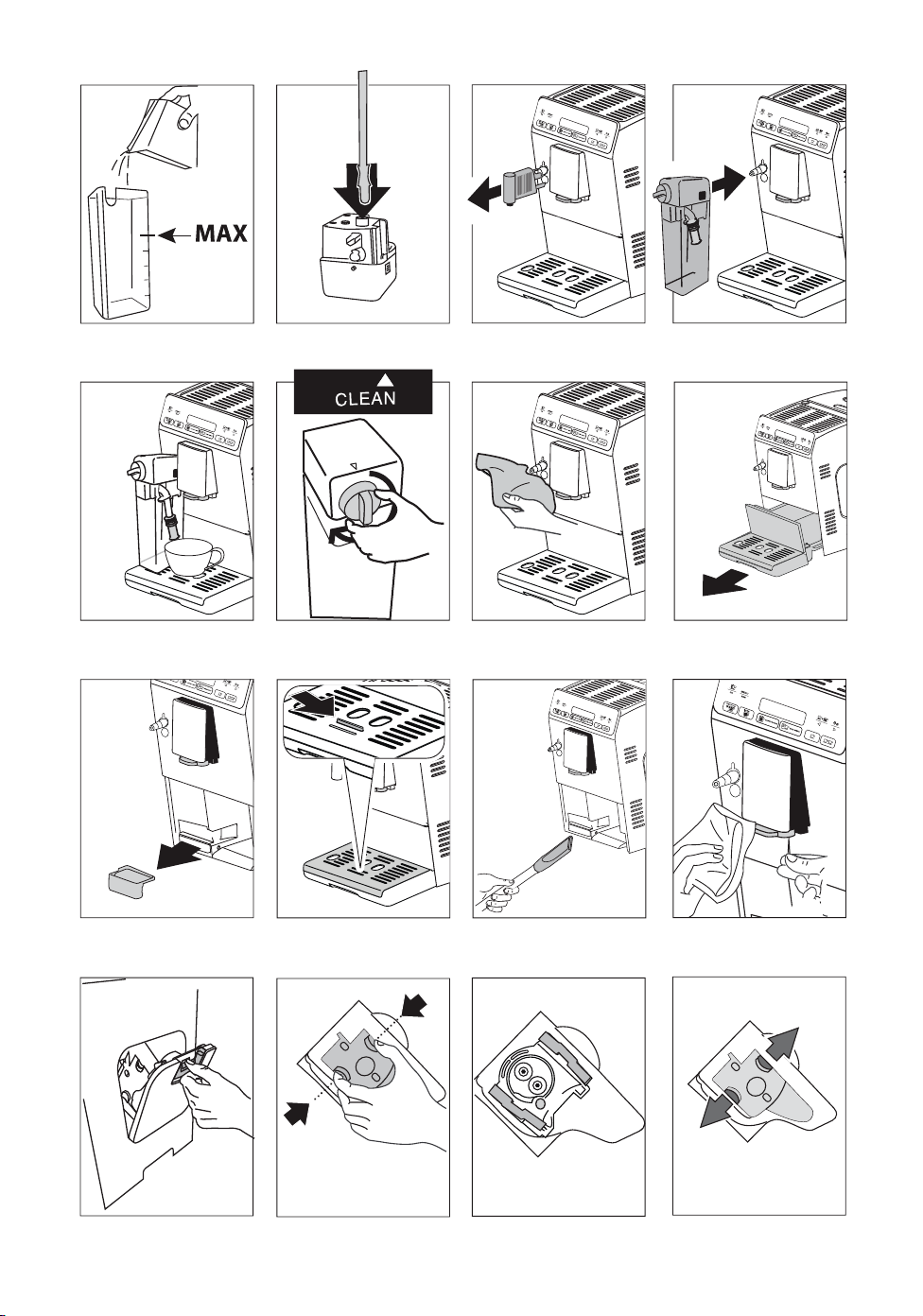

1. Remove the lid (g. 17);
2. Fill the milk container with a sucient quantity of milk,
not exceeding the MAX level marked on the handle (g.
18). Each mark on the side of the container corresponds to
about 100 ml of milk.
Please note!
• For a denser more even froth, you must use skimmed or
partially skimmed milk at refrigerator temperature (about
5°C).
• If “Energy saving” mode is enabled, you may have to wait a
few seconds before the drink is delivered.
3. Make sure the milk intake tube is correctly inserted in the
bottom of the milk container lid (g. 19).
4. Place the lid back on the milk container.
5. Remove the hot water spout (C3) (g. 20).
6. Attach the milk container to the connection nozzle and
push as far as it will go (g. 21). The machine emits a beep
(if the beep function is enabled).
7. Place a suciently large cup under the coee spouts
and the frothed milk spout. Adjust the length of the milk
spout (g. 22). To move it nearer the cup, simply pull it
downwards.
8. Follow the Instruction for use below for each function.
Adjusting the amount of froth
Turn the froth adjustment dial (D2) to adjust the amount of froth
on the milk delivered while making cappuccino and milk based
coees.
Dial
position
Description Recommended for...
No froth CAFFELATTE /
MILK (hot milk)
Min. froth
LATTE MACCHIATO/
FLAT WHITE
Max. froth CAPPUCCINO /
MILK (frothed milk)
Making cappuccino
The icon (B9) on the control panel enables CAPPUCCINO to be
prepared automatically. Proceed as follows:
1. Fill the milk container and attach it as described above.
2. Turn the froth adjustment dial on the milk container lid to
the position corresponding to the required froth (see previ-
ous table).
3. Press the
CAPPUCCINO icon (B9). The name of the
drink selected is displayed together with a progress bar
which gradually lls as preparation progresses.
4. After a few seconds, frothed milk is delivered from the milk
spout into the cup below. Then the machine automatically
makes the coee after delivering the milk.
Preparing “MILK MENU” drinks
Besides the drinks described above, the appliance automatically
prepares CAFFELATTE, MACCHIATO, FLAT WHITE and MILK.
To prepare one of these drinks, simply proceed as follows:
1. Fill the milk container and attach it as described above.
2. Turn the froth adjustment dial on the milk container lid to
the position corresponding to the required froth.
3. Press the
MILK MENU icon (B8).
4. Press
or (g. 5) until the required drink is dis-
played (CAFFELATTE, MACCHIATO, FLAT WHITE, MILK).
5. Press the
icon (g. 6) to start delivery.
6. After a few seconds, frothed milk is delivered from the milk
spout into the cup below. For drinks with coee, the ma-
chine automatically makes the coee after delivering the
milk.
Please note: general indications when preparing all
milk based drinks
• If you want to interrupt preparation during delivery, press
the corresponding icon.
• At the end of delivery, to increase the quantity of milk or
coee in the cup, just press and hold (within 3 seconds) the
icon corresponding to the drink being made.
• Do not leave the milk container out of the refrigerator for
long periods. The warmer the milk (5°C is ideal), the poorer
the quality of froth produced.
Cleaning the milk container after use
Important! Danger of burns
When cleaning the internal tubes of the milk container, a little
hot water and steam leak out of the frothed milk spout. Avoid
contact with splashes of water.
“SET DIAL TO CLEAN” ashes on the display each time you use a
milk function. To eliminate all milk residues, proceed as follows:
1. Leave the milk container in the machine (you do not need
to empty it);
16
2. Place a cup or other recipient under the milk spout (g.
22).
3. Turn the froth adjustment dial to “CLEAN” (g. 23). A pro-
gress bar appears and gradually lls as the operation pro-
ceeds together with “Cleaning underway”. Cleaning stops
automatically.
4. Turn the dial back to one of the froth selections.
5. Remove the milk container and always clean the steam
connection nozzle with a sponge (g. 24).
Please note!
• To prepare a number of cappuccinos or milk based coees,
clean the milk container after you have prepared the last
drink only.
• The milk container can be kept in the refrigerator.
• In some cases, to clean you must wait for the appliance to
heat up.
Programming the quantity of coee and milk in
the cup for the CAPPUCCINO icon
The appliance is set by default to automatically deliver standard
quantities. To change these quantities, proceed as follows:
1. Place a cup under the coee spouts and milk spout (g.
22).
2. Press and hold the
CAPPUCCINO icon (B9) until and the
name of the drink and “PROGRAM MILK” are displayed.
3. Release the icon. The appliance starts delivering milk.
4. Once the required quantity of milk has been delivered into
the cup, press the icon again.
5. The appliance stops delivering milk and, if required for the
drink being prepared, after a few seconds the coee is de-
livered into the cup. The name of the drink and “PROGRAM
COFFEE” are displayed.
6. As soon as the coee in the cup reaches the required level,
press the icon again. Coee delivery stops.
The machine is now reprogrammed with the new milk and cof-
fee quantities.
Programming the quantity of coee and milk in
the cup for MILK MENU icon drinks
The appliance is set by default to automatically deliver standard
quantities. To change these quantities, proceed as follows:
1. Press the
MILK MENU icon (B8).
2. Press
or (g. 5) until the required drink is dis-
played (CAFFELATTE, MACCHIATO, FLAT WHITE, MILK).
3. Press and hold the icon (g. 6) until and the name of
the drink and “PROGRAM MILK” are displayed.
4. Release the icon. The appliance starts delivering milk.
5. When the required quantity of milk has been delivered into
the cup, press the
icon
.
6. The appliance stops delivering milk and, if required for the
drink being prepared, after a few seconds the coee is de-
livered into the cup. The name of the drink and “PROGRAM
COFFEE” are displayed.
7. As soon as the coee in the cup reaches the required level,
press the
icon again. Coee delivery stops.
The machine is now reprogrammed with the new milk and cof-
fee quantities.
DELIVERING HOT WATER
Important! Danger of burns.
Do not leave the appliance unattended while hot water is being
delivered.
Please note!
If “energy saving” mode is active, you may have to wait a few
seconds before the hot water is delivered.
1. Make sure the hot water spout is attached correctly (g. 7).
2. Place a container under the spout (as close as possible to
avoid splashes).
3. Press the
icon (B1). “HOT WATER” is displayed, togeth-
er with a progress bar which lls gradually as preparation
proceeds.
4. The machine delivers about 250 ml of hot water, then de-
livery stops automatically. To interrupt delivery of the hot
water manually, press the
icon again.
Changing the quantity of water delivered
automatically.
The machine is set by default to automatically deliver 250 ml of
hot water. To modify these quantities, proceed as follows:
1. Position a container under the spout (g. 7).
2. Press the
icon (B1) again until “HOT WATER Program
Quantity” is displayed, then release the icon.
3. When the hot water in the cup reaches the required level,
press the
icon again.
The machine is now reprogrammed with the new quantity.
CLEANING
Cleaning the machine
The following parts of the machine must be cleaned regularly:
- coee grounds container (A13),
- drip tray (A12),
- water tank (A18),
- coee spouts (A8),
- pre-ground coee funnel (A2),
- infuser (A17), accessible after opening the service door (A16),
- touch screen (B)
- milk container (D)
17
Important!
• Do not use solvents, abrasive detergents or alcohol to clean
the coee machine. With De’Longhi superautomatic coee
machines, you need not use chemical products to clean the
machine.
• None of the components of the appliance can be washed in
a dishwasher with the exception of the milk container (D).
• Do not use metal objects to remove encrustations or coee
deposits as they could scratch metal or plastic surfaces.
Cleaning the coee grounds container
When “EMPTY GROUNDS CONTAINER” is displayed, the grounds
container must be emptied and cleaned. The appliance cannot
be used to make coee until you have cleaned the grounds con-
tainer. Even if not full, the empty grounds container message is
displayed 72 hours after the rst coee has been prepared. For
the 72 hours to be calculated correctly, the machine must never
be turned o with the main switch.
Important! Danger of burns
If you make a number of cappuccinos one after the other, the
metal cup tray becomes hot. Wait for it to cool down before
touching it and handle it from the front only.
To clean (with the machine on):
• Remove the drip tray (g. 25), empty and clean.
• Empty the grounds container (A13) and clean thoroughly
to remove all residues left on the bottom. This can be done
using the spatula on the brush (C2) provided.
• Check the condensate tray (A9) and empty if necessary
(g. 26).
Important!
When removing the drip tray, the grounds container must be
emptied, even if it contains few grounds. If this is not done,
when you make the next coees, the grounds container may ll
up more than expected and clog the machine.
Cleaning the drip tray and condensate tray
Important!
The drip tray (A12) is tted with a level indicator (red) (A11)
showing the level of water it contains (g. 27). Before the indi-
cator protrudes from the cup tray, the drip tray must be emptied
and cleaned, otherwise the water may overow the edge and
damage the appliance, the surface it rests on or the surrounding
area.
To remove the drip tray:
1. Remove the drip tray and the grounds container (g. 25);
2. Empty and wash the drip tray (A12) and grounds container
(A13);
3. Check the condensate tray (A9) and empty if necessary;
4. Replace the drip tray and grounds container.
Cleaning the inside of the coee machine
Danger of electric shock!
Before cleaning internal parts, the machine must be turned
o (see “Turning o”, page 10) and unplugged from the mains
power supply. Never immerse the coee machine in water.
1. Check regularly (about once a week) that the inside of the
appliance (accessible after removing the drip tray (A12))
is not dirty. If necessary, remove coee deposits with the
brush (C2) supplied and a sponge.
2. Remove the residues with a vacuum cleaner (g. 28).
Cleaning the water tank
1. Clean the water tank (A18) regularly (about once a month
and whenever you replace the water softener lter (C4) (if
provided) with a damp cloth and a little mild washing up
liquid.
2. Remove the lter (if present) and rinse with running water.
3. Replace the lter (if present), ll the tank with fresh water
and replace the tank.
4. (Models with water softener lter only) Deliver about
100ml of hot water to reactivate the lter.
Cleaning the coee spouts
1. Clean the coee spouts regularly with a sponge or cloth
(g. 29).
2. Check the holes in the coee spout are not blocked. If nec-
essary, remove coee deposits with a toothpick (g. 29).
Cleaning the pre-ground coee funnel
Check regularly (about once a month ) that the pre-ground
coee funnel (A4) is not blocked. If necessary, remove coee
deposits with the brush (C2) supplied.
Cleaning the infuser
The infuser (A17) must be cleaned at least once a month.
Important!
The infuser may not be extracted when the machine is on.
1. Make sure the machine is correctly turned o (see “Turning
o”, page 10).
2. Open the infuser door (g. 30) on the right side of the
appliance.
3. Press the two red release buttons inwards and at the same
time pull the infuser outwards (g. 31).
4. Soak the infuser in water for about 5 minutes, then rinse
under the tap.
18
Important!
RINSE WITH WATER ONLY
NO WASHING UP LIQUID - NO DISH WASHER
Clean the infuser without using washing up liquid as it
could be damaged.
5. Use the brush (C2) to remove any coee residues left in the
infuser housing, visible through the infuser door.
6. After cleaning, replace the infuser by sliding it onto the
internal support (g. 32), then push the PUSH symbol fully
in until it clicks into place.
Please note!
If the infuser is dicult to insert, before insertion, adapt it to the
right size by pressing the two levers shown in g. 33.
33
.
7. Once inserted, make sure the two red buttons have
snapped out (g. 34).
8. Close the infuser door (A16).
Cleaning the milk container
To keep the frother ecient, clean the milk container as de-
scribed below, every two days:
1. Remove the lid (g. 17).
2. Remove the milk spout and intake tube (g. 35).
3. Turn anticlockwise the froth regulator to the “INSERT” posi-
tion (g. 35) and pull it o outwards.
35
4. Wash all the components thoroughly with hot water and
mild washing-up liquid. All components are dishwasher
safe, placing them in the top basket of the dishwasher.
Make sure there are no milk residues on the hollow and
groove under the dial (g. 36). If necessary, scrape the
groove with a toothpick.
36 37
5. Rinse inside the froth adjustment dial seat with running
water (g. 37).
6. Check that the intake tube and spout are not clogged with
milk residues.
7. Replace the dial (in correspondence to the word “INSERT”),
spout and milk intake tube.
8. Place the lid back on the milk container.
Cleaning the hot water/steam connection nozzle
Each time you prepare milk, clean the connection nozzle with a
sponge to remove milk residues from the gaskets (g. 24).
DESCALING
Descale the machine when the message “DESCALE” ashes on
the display.
Important!
• Descaler contains acids which may irritate the skin and
eyes. It is vital to respect the manufacturer’s safety warn-
ings given on the descaler pack and the warnings relating
to the procedure to follow in the event of contact with the
skin and eyes.
• You should use De’Longhi descaler only. Using unsuitable
descaler and/or performing descaling incorrectly may re-
sult in faults not covered by the manufacturer’s guarantee.
1. Turn the coee machine on.
2. Press the
icon (B2)to enter the menu.
3. Press
or (g. 5) until “Descaling” is displayed.
4. Press the
icon (g.6), “Conrm?” is displayed. Press the
icon to conrm.
19
5. EMPTY DRIP TRAY” is displayed, alternating with “REMOVE
FILTER” (if the lter is present) and “Add descaler Press OK”.
6. Empty the water tank (A18) completely and remove the
water softener lter (C4) (if present). Empty the drip tray
(g. 25) and grounds container (A13), then put them back
in the appliance.
38
B
A
7. Pour the descaler into the
tank up to level A (corre-
sponding to a 100 ml
pack) marked on the back
of the tank (g. 38), then
add water (1 litre) up to
level B (g. 38) and put
the water tank back.
8. Place an empty container
with a minimum capacity
of 1.5 litres under the hot
water spout (g. 7).
Important! Danger of burns
Hot water containing acid ows out of the hot water spout.
Avoid contact with splashes of water.
9. Press the
icon to conrm that you have added the
solution. The descale programme automatically performs
a series of rinses and pauses to remove limescale deposits
from inside the machine. The message “Descale underway”
is displayed. The descale programme starts and the descal-
er liquid comes out of the water spout.
After about 30 minutes, the messages “RINSING” and “FILL
TANK” alternate on the display.
10. The appliance is now ready for rinsing through with clean
water. Remove the water tank, empty, rinse under running
water, ll with fresh water up to the MAX level and put
back in the appliance: the message “RINSING, Press OK” is
displayed.
11. Empty the container used to collect the descaler solution
and replace it empty under the hot water spout.
12. Press the
icon to start rinsing. Hot water ows out
of the spout and the message “RINSING, Please wait” is
displayed.
13. When the water tank is completely empty, the messages
“RINSING”, “REPLACE FILTER” (if previously removed) and
“FILL TANK” alternate on the display.
14. Remove the water tank, replace the lter (if previously re-
moved), ll the tank up to the MAX level with fresh water
and insert it in the appliance: the display will show “RINSE
Press OK”.
15. Empty the container used to collect the rinsing water and
replace it, empty, under the hot water spout;
16. Press the icon to restart rinsing: the message ”RINS-
ING Please wait” appears on the display, water is delivered
from the hot water spout and the rinsing cycle nishes
when water is delivered from the coee spout (A8).
Important! Danger of burns.
Do not leave the appliance unattended while hot water is being
delivered.
17. When the water tank is completely empty, the message
“Rinsing Complete, Press OK” is displayed.
18. Press the
icon.
19. The message “FILL TANK” appears on the display; when the
tank is lled and replaced the message “Heating please
wait” appears on the display, after which the machine is
ready to use.
Please note!
If the descaling cycle is not completed correctly (e.g. lack of elec-
tricity) we recommend repeating the cycle.
SETTING WATER HARDNESS
The DESCALE message is displayed after a period of time estab-
lished according to water hardness.
The machine is set by default for a hardness value of 4. The ma-
chine can also be programmed according to the hardness of the
mains water in the various regions so that the machine needs to
be descaled less often.
Measuring water hardness
1. Remove the “TOTAL HARDNESS TEST” indicator paper from
its pack (attached to the English instructions).
2. Immerse the paper completely in a glass of water for one
second.
3. Remove the paper from the water and shake lightly. After
about a minute, 1, 2, 3, or 4 red squares form, depending
on the hardness of the water. Each square corresponds to
one level.
soft water
slightly hard
water
hard water
very hard
water
O
OO
OOO
OOOO
20
Setting water hardness
1. Press the
icon (B2) to enter the menu;
2. Press or (g. 5) and select “Water hardness”.
3. Conrm the selection by pressing the
icon (g. 6).
4. Press
or repeatedly to set the level as meas-
ured by the indicator paper (see previous section).
5. Press the icon to conrm the setting.
6. Press the
icon to exit the menu.
The machine is now reprogrammed with the new water
hardness setting.
WATER SOFTENER FILTER (*CERTAIN MODELS
ONLY)
Certain models are tted with a water softener lter (C4). If this
is not the case with your model, you are recommended to pur-
chase one from De’Longhi Customer Services. To use the lter
correctly, follow the instructions below.
Installing the lter
39
1. Remove the lter (C4) from
the packaging.
2. Turn the date indicator
disk (see g. 39) until the
next two months of use are
displayed.
Please note
The lter lasts about two
months if the appliance is used
normally. If the coee machine
is left unused with the lter installed, it will last a maximum
of three weeks.
3. To activate the lter, run tap water through the hole in the
lter as shown in the gure until water comes out of the
openings at the side for more than a minute (g. 40).
40 41
0,5 L
4. Extract the tank from the appliance and ll with water.
5. Insert the lter in the water tank and immerse it complete-
ly for about ten seconds, sloping it and pressing it lightly to
enable the air bubbles to escape (g. 41).
6. Insert the lter in the lter housing (g. 42) and press as
far as it will go.
7. Close the tank with the lid (g. 43), then replace the tank
in the machine.
42
43
When you install the lter, you must notify the appliance of its
presence.
8. Press the
icon (B2) to enter the menu;
9. Press
or (g. 5) until “Install lter” is
displayed.
10. Press the icon (g. 6).
11. “Enable?” is displayed.
12. Press the icon to conrm the selection. “HOT WATER
Press OK” is displayed.
13. Position a container under the hot water spout (min. ca-
pacity: 500 ml) (g. 7).
14. Press the
icon to conrm the selection. The appliance
begins hot water delivery and the message “Please wait” is
displayed.
15. After the ow of hot water stops, the appliance automatically
resets to “Ready for coee” status.
The lter is now active and you can use the coee machine.
Replacing the lter
When “REPLACE FILTER” is displayed, after two months (see date
indicator) or when the appliance has not been used for 3 weeks,
you should replace the lter:
1. Extract the tank (A18) and exhausted lter (C4);
2. Take the new lter out of its packet and proceed as illus-
trated in points 2, 3, 4, 5, 6 and 7 in the previous section.
3. Position a container with a minimum capacity of 500ml
under the hot water spout.
4. Press the
icon (B2) to enter the menu;
5. Press or (g. 5) until “Replace lter” is
displayed.
21
6. Press the
icon (g. 6);
7. The message “Conrm?” is now displayed;
8. Press the icon to conrm the selection;
9. “HOT WATER Press OK” is displayed;
10. Press the
icon to conrm the selection. The appliance
begins hot water delivery and the message “Please wait” is
displayed;
11. After the ow of hot water stops, the appliance automatically
resets to “Ready for coee” status.
The new lter is now active and you can use the coee machine.
Removing the lter
If you want to use the appliance without the lter, you must
remove it and notify the appliance of its removal. Proceed as
follows:
1. Remove the tank, remove the lter and put the tank back
in the appliance;
2. Press the
(B2) icon to enter the menu;
3. Press
or (g. 5) until “Install lter Enable” is
displayed;
4. Press the icon (g. 6);
5. “Disable?” is displayed;
6. Press the
icon to conrm and the
icon to exit
the menu.
TECHNICAL DATA
Voltage: 220-240 V~ 50/60 Hz max. 10A
Absorbed power: 1450W
Pressure: 1,5MPa (15 bar)
Max. water tank capacity: 1,4 l
Size: LxDxH: 195x480x340 mm
Cord length: 1660 mm
Weight: 9,7 kg
Max. beans container capacity: 150 g
The appliance complies with the following EC
directives:
• Low Voltage Directive 2006/95/EC and subsequent
amendments;
• EMC Directive 2004/108/EC and subsequent amendments;
• European Standby Regulation 1275/2008
• Materials and accessories coming into contact with food
conform to EEC regulation 1935/2004.
DISPOSAL
In compliance with European directive 2002/96/EC,
the appliance must not be disposed of with house-
hold waste, but taken to an authorised waste separa-
tion and recycling centre.
DISPLAYED MESSAGES
DISPLAYED MESSAGE POSSIBLE CAUSE SOLUTION
FILL TANK Insucien
t water in the tank (A18). Fill the tank with water and/or insert it cor-
rectly, pushing it as far as it will go until it
clicks into place.
EMPTY GROUNDS CONTAINER The grounds container (A13) is full.
Empty the grounds container and drip tray,
clean and replace. Important: when removing
the drip tray, the grounds container MUST be
emptied, even if it contains few grounds. If this
is not done, when you make the next coees,
the grounds container may ll up more than
expected and clog the machine.
INSERADD PRE-GROUND
COFFEE
After cleaning, the grounds container has not
been replaced (A13).
Remove the drip tray and insert the grounds
container.
ADD PRE-GROUND COFFEE With the “pre-ground coee” function selected,
pre-ground coee has not been poured into the
funnel (A4).
Place pre-ground coee in the funnel or dese-
lect the “pre-ground” function (g. 16).
22
GROUND TOO FINE ADJUST
MILL
The grinding is too ne and the coee is delive-
red too slowly or not at all.
Repeat coee delivery and turn the grinding
adjustment dial (g. 13) one click clockwise to-
wards “7” while the coee mill is in operation.
If after making at least 2 coees delivery is
still too slow, repeat the correction procedure,
turning the grinding adjustment dial another
click until delivery is correct (see the section:
“Adjusting the coee mill on page 13). If the
problem persists, make sure the water tank is
fully inserted.
If the water softener lter is present, an air
bubble may have been released inside the cir-
cuit, obstructing delivery.
Insert the hot water spout (C3) in the appliance
and deliver a little water until the ow beco-
mes regular.
DESCALE The machine must be desc
aled. The descaling procedure described in the section
“Descaling” needs to be performed as soon as
possible
(page 18)
.
REDUCE COFFEE AMOUNT Too much coee has been used.
Select a milder taste by pressing the
icon
(g. 11) or reduce the quantity of pre-ground
coee.
FILL BEANS CONTAINER The coee beans have run out. Fill the beans container (g. 12).
The pre-ground coee funnel (A4) is clogged. Empty the funnel with the help of a brush as
described in the section “Cleaning the pre-
ground coee funnel”
(page 17)
.
INSERT INFUSER ASSEMBLY The infuser has not been replaced after clea-
ning (A17).
Insert the infuser as described in the para-
graph “Cleaning the infuser”
(page 17)
.
GENERAL ALARM The inside of the appliance is very dirty. Clean the inside of the appliance thoroughly,
as described in the section “Cleaning” (page
16). If the message is still displayed after
cleaning, contact a service centre.
EMPTY CIRCUIT FILL CIRCUIT
HOT WATER
Press OK
The water circuit is empty
Press
(B1) to deliver water from the spout
(C3) until it ows out normally. If the problem
persists, make sure the water tank is fully
inserted.
REPLACE FILTER The water softener lter is exhausted. Replace the lter or remove it as described in
the section “Water softener lter” (page 20).
SET DIAL TO CLEAN Milk has been delivered recently and the tubes
inside the milk container must be cleaned.
Turn the froth adjustment dial to CLEAN (g. 23).
INSERT WATER SPOUT The water spout is not inserted or is inserted
incorrectly.
Insert the water spout (C3) as far as it will go.
INSERT MILK CONTAINER The milk container is not inserted correctly. Insert the milk container as far as it will go.
23
PROBLEM POSSIBLE CAUSE SOLUTION
The coee is not hot. The cups were not preheated. Warm the cups by rinsing them with hot
water (Please note: you can use the hot water
function).
The infuser has cooled down because
2/3 minutes have elapsed since the last
coee was made.
Before making the coee, heat the infuser by
rinsing using the rinse function
(page 10)
.
A low coee temperature is set.
Set a higher coee temperature in the menu
(page 12).
The coee is weak or not creamy
enough.
The coee is ground too coarsely. Turn the grinding adjustment dial one click
anticlockwise towards “1” while the coee mill
is in operation (g. 11). Continue one click at
a time until coee delivery is satisfactory. The
eect is only visible after delivering 2 coees
(see the section: “Adjusting the coee mill” on
page 13).
The coee is unsuitable. Use pre-ground coee for espresso machines.
The coee is delivered too slowly or a
drop at a time.
The coee is ground too nely. Turn the grinding adjustment dial one click
clockwise towards “7” while the coee mill is
in operation (g. 11). Continue one click at a
time until coee delivery is satisfactory. The
eect is only visible after delivering 2 coees
(see the section: “Adjusting the coee mill” on
page 13).
Coee does not come out of one or
both of the spouts.
The spouts are blocked. Clean the spouts with a toothpick (g. 29).
The appliance does not come on The connector is not inserted correctly. Insert the connector as far as it will go in the
socket at the back of the appliance (g. 1).
It is not plugged into the mains socket. Plug into the mains socket.
The main switch (A14) is not turned on. Press the main switch (g. 2).
The infuser cannot be extracted The appliance has not been turned o
correctly
Turn the appliance o by pressing the
(but-
ton (page 10).
The milk does not come out of the
milk spout.
The milk container lid is dirty. Clean the milk container lid as described in the
section “Cleaning the milk container” (page
18).
TROUBLESHOOTING
Below is a list of some of the possible malfunctions.
If the problem cannot be resolved as described, contact Customer Services.
24
The milk contains large bubbles and
squirts out of the milk spout or there
is little froth.
The milk is not cold enough or is not
semi-skimmed.
Use skimmed or semi-skimmed milk at refrige-
rator temperature (about 5° C). If the result is
not as you wished, try changing brand of milk.
The froth adjustment dial is incorrectly
adjusted.
Adjust following the instructions in the section
“Making cappuccinos and milk based coees”
(page 15)
.
The milk container lid or froth
adjustment dial are dirty
Clean the milk container lid and control knob as
described in the section “Cleaning the milk con-
tainer” (page 18)
.
The hot water/steam connection noz-
zle is dirty
Clean the connection nozzle as described in
the section “Cleaning the hot water/steam
connection nozzle”
(page 18)
.
Before using this appliance ensure that the voltage indicated on the product corresponds with the main voltage in your home, if you
are in any doubt about your supply contact your local electricity company.
The exible mains lead is supplied connected to a B.S. 1363 fused plug having a fuse of 13 amp capacity.
Should this plug not t the socket outlets in your home, it should be cut o and replaced with a suitable plug, following the proce-
dure outlined below.
Note: Such a plug cannot be used for any other appliance and should therefore be properly disposed of and not left where children
might nd it and plug it into a supply socket - with the obvious consequent danger.
Please note: We recommend the use of good quality plugs and wall sockets that can be switched o when the machine is not in use.
IMPORTANT: The wires in the mains lead tted to this appliance are coloured in accordance with the following code:
GREEN AND YELLOW EARTH
BLUE NEUTRAL
BROWN LIVE
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
- The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or
by the earth symbol
or coloured green or green and yellow.
- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
- The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
When wiring the plug, ensure that all strands of wire are securely retained in each terminal. Do not forget to tighten the mains
lead clamp on the plug. If your electricity supply point has only two pin socket outlets, or if you are in doubt, consult a qualied
electrician.
Should the mains lead ever require replacement, it is essential that this operation be carried out by a qualied electrician and should
only be replaced with a exible cord of the same size.
After replacement of a fuse in the plug, the fuse cover must be retted. If the fuse cover is lost, the plug must not be used until a
replacement cover is obtained. The colour of the correct replacement fuse cover is that of the coloured insert in the base of the fuse
recess or elsewhere on the plug. Always state this colour when ordering a replacement fuse cover.
Only 13amp replacement fuses which are asta approved to B.S. 1362 should be tted.
This appliance conforms to the Norms EN 55014 regarding the suppression of radio interference.
Warning - this appliance must be earthed
Green and Yellow to Earth
13 amp Fuse
Brown to live
Cord Clamp
Blue to
neutral
ELECTRICAL REQUIREMENTS
De’Longhi Appliances via Seitz, 47 31100 Treviso Italia www.delonghi.com
5713223481/07.14
