Model No.:BC-90U-E
1022002400
1022002500
1022002600
1
2
4
5
3

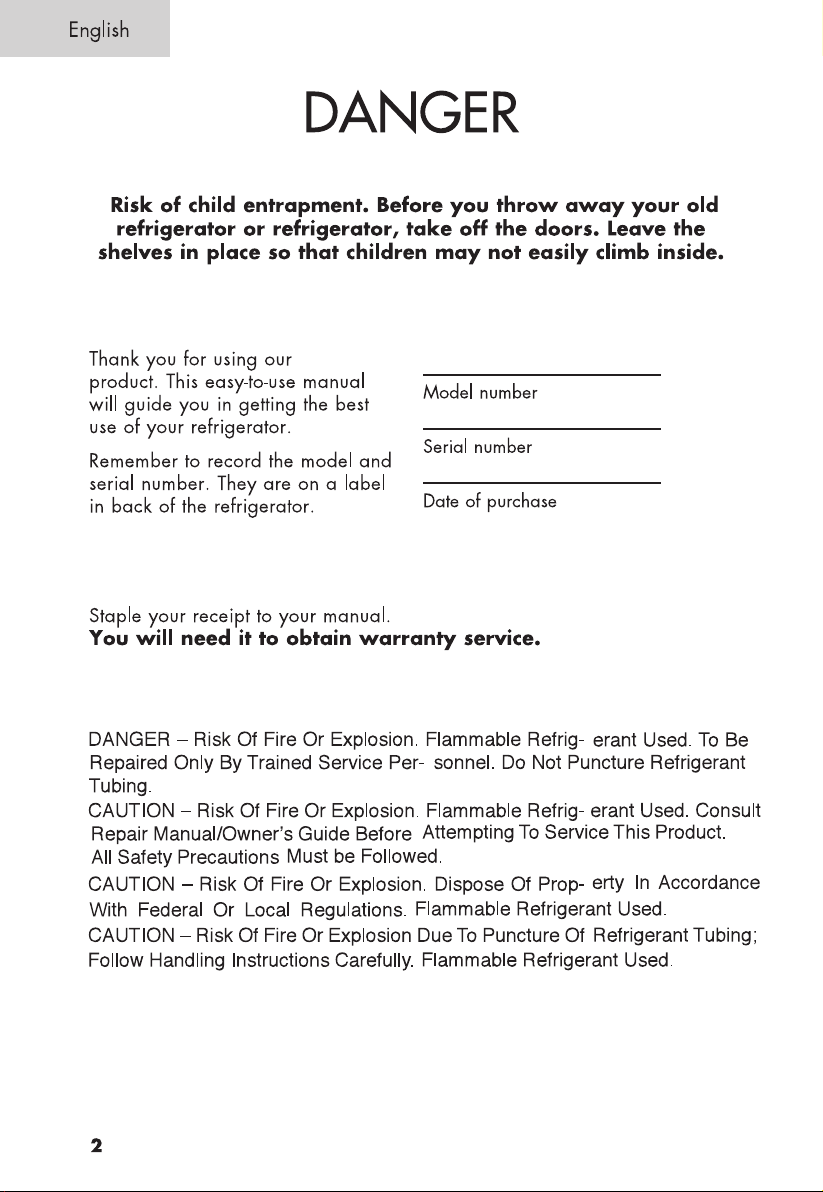

DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be
Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant
Tubing
CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used.
Consult Repair Manual/Owner’s Guide Before Attempting To Service This
Product. All Safety Precautions Must be Followed
CAUTION – Risk Of Fire Or Explosion. Dispose Of Property In Accordance
With Federal Or Local Regulations. Flammable Refrigerant Used
CAUTION – Risk Of Fire Or Explosion Due To Puncture Of Refrigerant
Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant
Used
• Avoid the use of an extension cord because of potential safety haz-
ards under certain conditions. If it is necessary to use an extension
cord, use only a 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot outlet that will accept the plug. The marked rating
of the extension cord must be equal to or greater than the electrical
rating of the appliance.
• Do
not install your refrigerator in any location not properly
insulated
or
heated e.g. garage etc. Your refrigerator was not designed to
operate in temperature settings below 55˚ Fahrenheit.
• Select
a suitable location for the refrigerator on a hard even
surface
away
from direct sunlight or heat source e.g. radiators,
baseboard
heaters,
cooking appliances etc.
Install Limitations
English
6
Use of Extension Cord
Reversing the Door Hinge
1. Remove the top hinge cover.
2. Using
Phillips Head Screwdriver, loosen and remove the screws holding
the
top hinge in place.
3. Remove
top hinge and carefully lift off the door.
4. Remove
the screw hole plugs from the opposite side and insert the plugs
in
the
screw hole openings of the just removed screws.
5.
Remove
any loose items in the refrigerator and carefully turn refrigerator
on
its
back and place in a secure area.
6. Loosen
the screws holding the lower hinge bracket to the refrigerator
and
remove
screws and bracket.
7. Remove
(2) screws from the other side and insert in the previously
removed
screw holes.
8. Remove
door pin by turning counter clockwise and reinsert to the
underside
of the bracket and tighten.
9. Align
bracket and insert (2) remaining screws into the holes provided .
10. Align
hole in the door with the door pin and washer and gently push
down
until
rm.
11.
Align
upper hinge bracket with screw holes insert screws and
partially
secure,
check that door and cabinet are properly aligned and then
secure
tightly.
12. Replace
hinge cap.
Make sure the refrigerator is not in direct contact with sunlight.
Place a level on top of the refrigerator. If the refrigerator is not level,
adjust the front leveling legs.
