Safety Instructions . . . . . . .2–8
Operating Instructions
Convection Oven . . . . . .19–23
Roasting Guide . . . . . . . . . .22
Timed Convection Baking . .23
Gas Surface Burners . . . . .9, 11
Griddle . . . . . . . . . . . . . . . . . .10
Lower Oven Drawer . . . . . . .28
Thermostat . . . . . . . . . . . . . .27
Upper Oven . . . . . . . . . .12–27
Aluminum Foil . . . . . . . . . .14
Baking or Roasting . . . . . . .14
Broiling Guide . . . . . . . . . .15
Clock and Timer . . . . . . . . .16

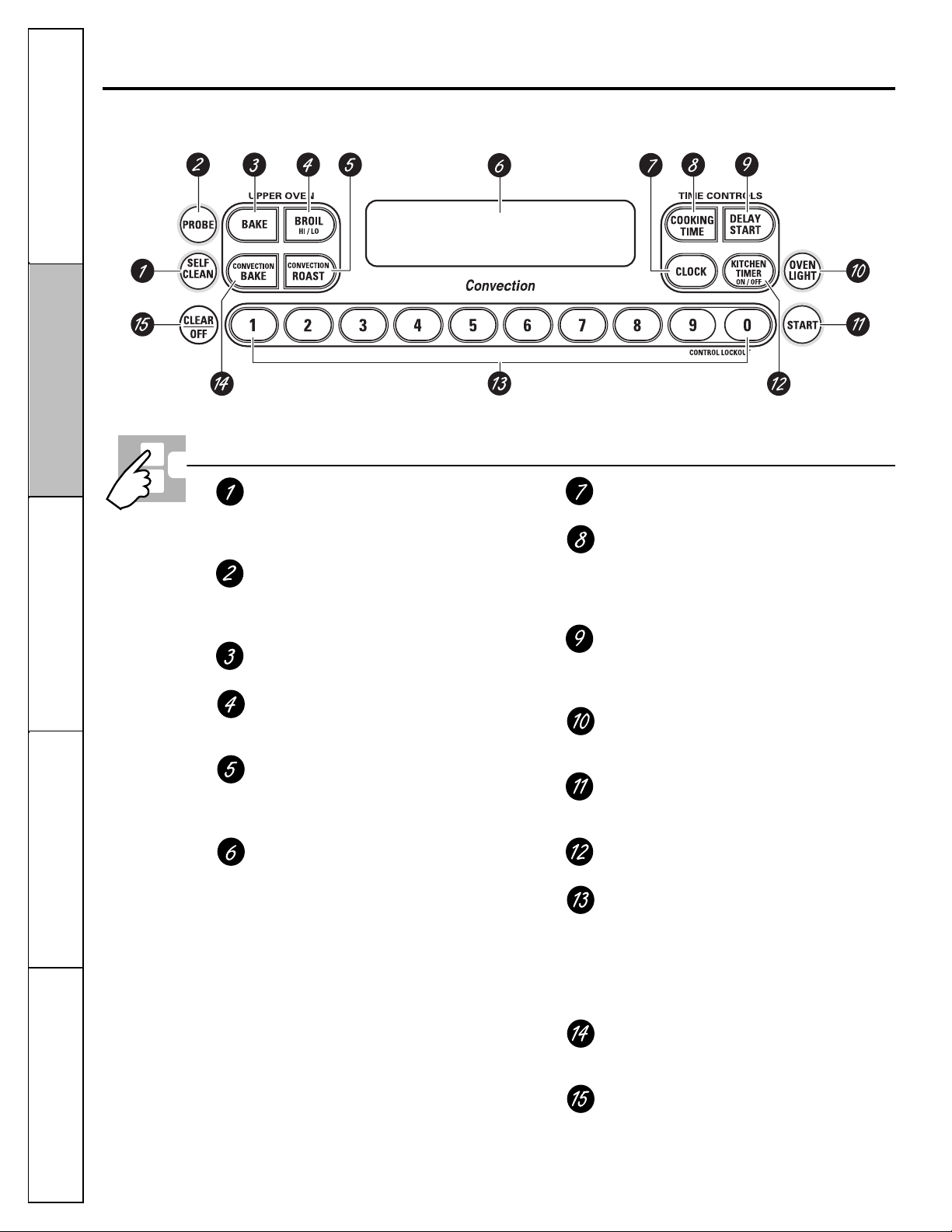

Oven Controls . . . . . . . . . . .12
Preheating . . . . . . . . . . . . . .14
Probe . . . . . . . . . . . . . . .18, 21
Sabbath Feature . . . . . . . . .26
Self-Cleaning . . . . . . . . .29, 30
Special Features . . . . . .24, 25
Timed Baking and
Roasting Features . . . . . . . .17
Care and Cleaning

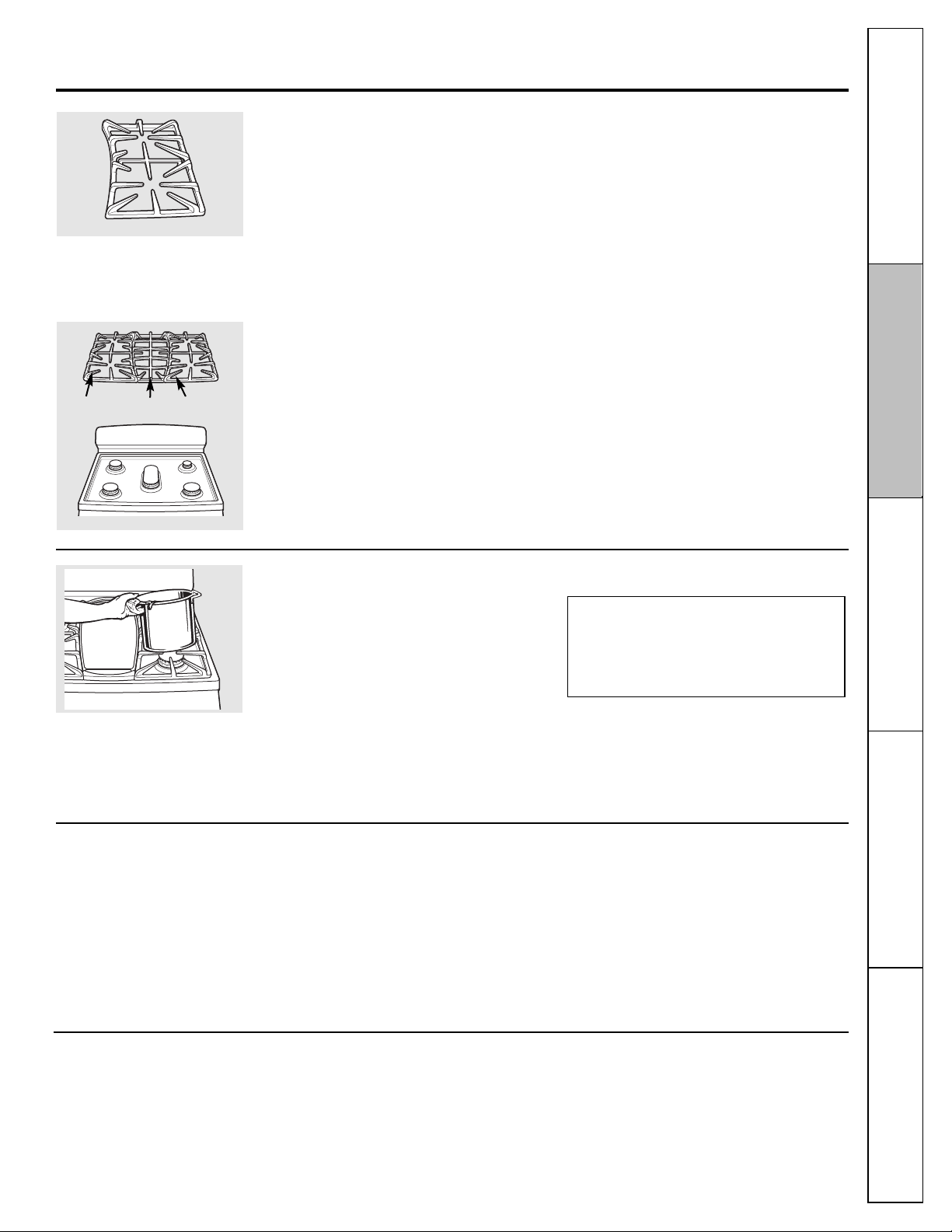

Burner Grates . . . . . . . . . . . .33
Burner Caps and Heads . . . .32
Control Panel and Knobs . . .37
Cooktop Surface . . . . . . . . . .33
Griddle . . . . . . . . . . . . . . . . . .34

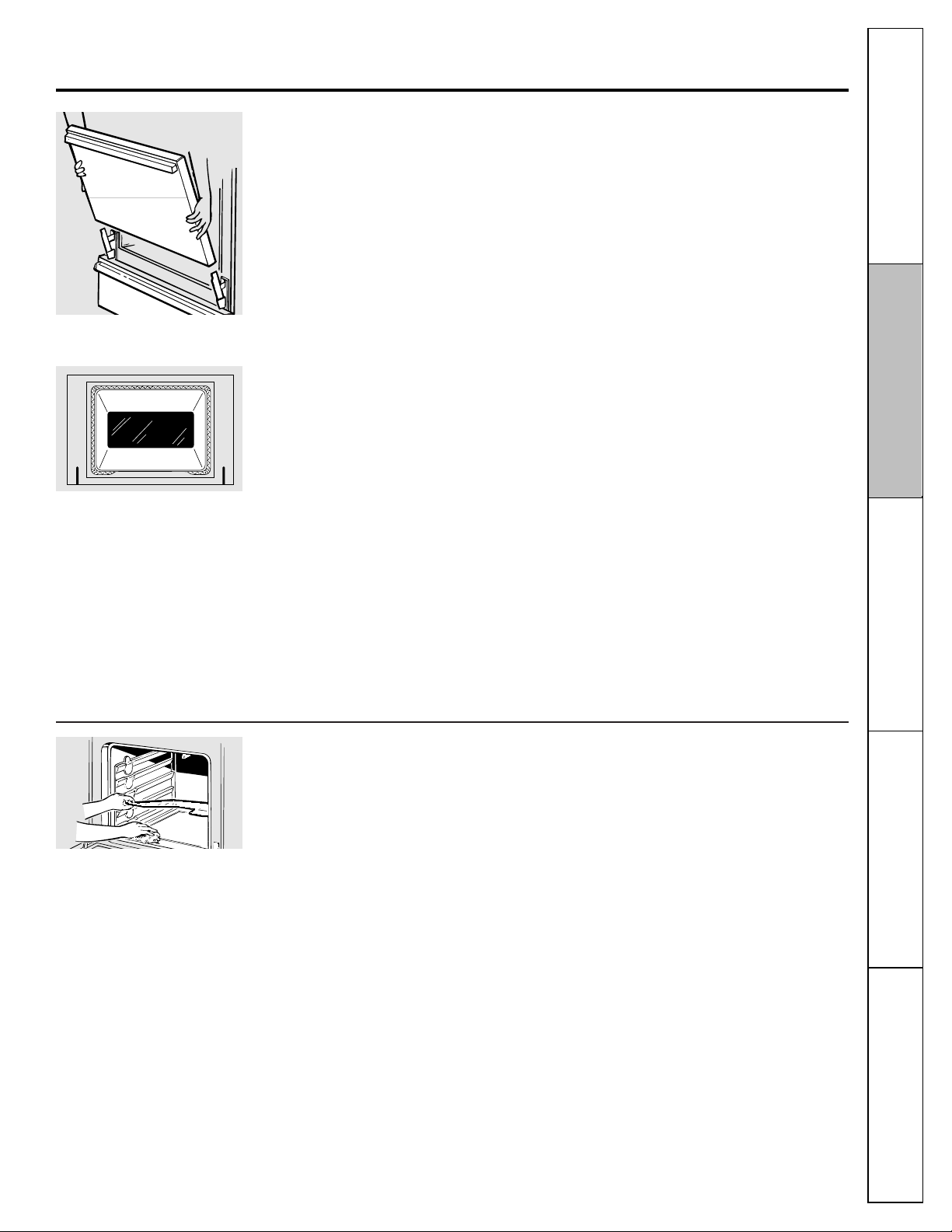

Lift-Off Oven Door . . . . . . . .35
Lower Oven Drawer . . . . . . .36
Oven Air Vents . . . . . . . . . . .37
Oven Heating Elements . . . .35
Oven Light Replacement . . .38
Oven Shelves . . . . . . . . . . . . .38
Sealed Burner Assemblies . .31
Self-Cleaning . . . . . . . . . .29, 30
Stainless Steel Surfaces . . . . .33
Installation
Instructions . . . . . . . . . . .39–52
Anti-Tip Device . . . . . . . . . . .52
Check Ignition of
Surface Burners . . . . . . .50, 51
Connect Range
to Electric . . . . . . . . . . . .44, 46
Connect Range to Gas . . .43, 45
Dimensions and
Clearances . . . . . . . . . . . . . . .41
Electrical Connections . . .47–49
Level the Range . . . . . . . . . .51
Location Guidelines . . . . . . .42
LP . . . . . . . . . . . . . . . . . . . . . .52
Safety Instructions . . . . . .39, 40
Accessories . . . . . . . . . . . . . . . .57
Troubleshooting Tips . .53–56
Consumer Support
Consumer
Support . . . . . . . . . .Back Cover
Product Registration . . . .61, 62
Warranty . . . . . . . . . . . . . . . .63
Ranges
183D5580P212 49-85128 03-07 JR
J2B918
Owner’s Manual
& Installation
Instructions
ge.com
Self-Cleaning Dual Fuel Convection
Write the model and serial
numbers here:
Model #______________________
Serial # ______________________
You can find them on a label on
the front of the range behind the
lower oven drawer.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
—
WHAT TO DO IF YOU
SMELL GAS
■ Do not try to light any appliance.
■ Do not touch any electrical switch;
do not use any phone in your building.
■ Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
■ If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
WARNING: If the information
in this manual is not followed exactly,
a fire or explosion may result causing
property damage, personal injury
or death.
WARNING!
ANTI-TIP DEVICE
■ ALL RANGES CAN TIP
■ INJURY TO PERSONS
COULD RESULT
■ INSTALL ANTI-TIP
DEVICES PACKED WITH
RANGE
■ SEE INSTALLATION
INSTRUCTIONS
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
3
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, personal injury, or loss of life.
All ranges can tip and injury could result.
To prevent accidental tipping of the range, attach it to the wall by installing the Anti-Tip device supplied.
If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip
device WB2X7909.
To check if the device is installed and engaged properly, carefully tip the range forward. The Anti-Tip
device should engage and prevent the range from tipping over.
If you pull the range out from the wall for any reason, make sure the device is properly engaged
when you push the range back against the wall. If it is not, there is a possible risk of the range
tipping over and causing injury if you or a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information in this manual. Failure to take this precaution
could result in tipping of the range and injury.
ANTI-TIP DEVICE
ge.com
Operating Instructions
4
Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Have the installer show you the location of the range gas shut-off valve and how to shut it off if necessary.
■ Have your range installed and properly
grounded by a qualified installer, in
accordance with the Installation Instructions.
Any adjustment and service should be
performed only by qualified gas range
installers or service technicians.
■ Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
service should be referred to a qualified
technician.
SAFETY PRECAUTIONS
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause birth defects or other reproductive harm, and
requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or
LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize
incomplete combustion. Exposure to these substances can be minimized by venting with an open
window or using a ventilation fan or hood.
When using electrical appliances, basic safety precautions should be followed, including the following:
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■ Be sure your appliance is properly installed
and grounded by a qualified technician in
accordance with the provided installation
instructions.
■ Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
■ Before performing any service, disconnect
the range power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker.
■ Do not leave children alone---children
should not be left alone or unattended in
an area where an appliance is in use. They
should never be allowed to sit or stand on
any part of the appliance.
■ Do not allow anyone to climb, stand or hang
on the door, storage drawer, or cooktop.
They could damage the range and even tip
it over, causing severe personal injury.
■ Do not store flammable materials in an oven
or near the cooktop.
CAUTION: Items of interest to children
should not be stored in cabinets above a range or
on the backsplash of a range—children climbing on
the range to reach items could be seriously injured.
SAFETY PRECAUTIONS
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
5
■ Locate the range out of kitchen traffic path
and out of drafty locations to prevent poor
air circulation.
■ Be sure all packaging materials are
removed from the range before operating it
to prevent fire or smoke damage should the
packaging material ignite.
■ Be sure your range is correctly adjusted by
a qualified service technician or installer for
the type of gas (natural or LP) that is to be
used. Your range can be converted for use
with either type of gas. See the Installation of
the range section.
WARNING: These adjustments
must be made by a qualified service technician
in accordance with the manufacturer’s instructions
and all codes and requirements of the authority
having jurisdiction. Failure to follow these
instructions could result in serious injury or property
damage. The qualified agency performing this
work assumes responsibility for the conversion.
■ After prolonged use of a range, high floor
temperatures may result and many floor
coverings will not withstand this kind of use.
Never install the range over vinyl tile or
linoleum that cannot withstand such type
of use. Never install it directly over interior
kitchen carpeting.
■ Do not leave children alone or unattended
where a range is hot or in operation. They
could be seriously burned.
■ Do not allow anyone to climb, stand or hang
on the oven door, drawer or cooktop. They
could damage the range and even tip it over,
causing severe personal injury.
CAUTION: Items of interest to children
should not be stored in cabinets above a range or
on the backsplash of a range—children climbing on
the range to reach items could be seriously injured.
■ For your safety, never use your appliance
for warming or heating the room.
■ Large scratches or impacts to glass doors
can lead to broken or shattered glass.
■ Never wear loose-fitting or hanging garments
while using the appliance. Be careful when
reaching for items stored in cabinets over the
range. Flammable material could be ignited
if brought in contact with flame or hot oven
surfaces and may cause severe burns.
■ Do not store flammable materials in an
oven, a range drawer or near a cooktop.
■ Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
■ Do not let cooking grease or other
flammable materials accumulate in or
near the range.
■ Do not use water on grease fires. Never
pick up a flaming pan. Turn the controls off.
Smother a flaming pan on a surface burner
by covering the pan completely with a
well-fitting lid, cookie sheet or flat tray.
Use a multi-purpose dry chemical or
foam-type fire extinguisher.
■ Flaming grease outside a pan can be put
out by covering it with baking soda or,
if available, by using a multi-purpose dry
chemical or foam-type fire extinguisher.
■ Flame in the upper oven or lower oven
drawer can be smothered completely by
closing the oven door or drawer and turning
the control to off, or by using a multi-
purpose dry chemical or foam-type fire
extinguisher.
■ Let the burner grates and other surfaces
cool before touching them or leaving them
where children can reach them.
■ Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly with correct combustion. Air
openings are located at the rear of the
cooktop, at the top and bottom of the oven
door, and at the bottom of the range under
the lower oven drawer or kick panel.
■ Do not lift the cooktop. Lifting the cooktop
can lead to damage and improper operation
of the range.
SAFETY PRECAUTIONS
ge.com
SURFACE BURNERS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Operating Instructions
6
Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms
large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough to contain
the food properly. This will both save cleaning time and prevent hazardous accumulations of food, since
heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped
and remain cool.
■ Always use the LITE position when igniting
the top burners and make sure the burners
have ignited.
■ Never leave the surface burners unattended
at high flame settings. Boilovers cause
smoking and greasy spillovers that may
catch on fire.
■ Adjust the top burner flame size so it does
not extend beyond the edge of the
cookware. Excessive flame is hazardous.
■ Use only dry pot holders—moist or damp
pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
come near open flames when lifting
cookware. Do not use a towel or other bulky
cloth in place of a pot holder.
■ When using glass cookware, make sure it
is designed for top-of-range cooking.
■ To minimize the possibility of burns, ignition
of flammable materials and spillage, turn
cookware handles toward the side or back
of the range without extending over
adjacent burners.
■ Carefully watch foods being fried at a high
flame setting.
■ Always heat fat slowly, and watch as it heats.
■ Do not leave any items on the cooktop. The
hot air from the vent may ignite flammable
items and will increase pressure in closed
containers, which may cause them to burst.
■ If a combination of oils or fats will be used
in frying, stir together before heating or
as fats melt slowly.
■ Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
■ Use the least possible amount of fat for
effective shallow or deep-fat frying. Filling
the pan too full of fat can cause spillovers
when food is added.
■ Do not flame foods on the cooktop. If you do
flame foods under the hood, turn the fan on.
■ Do not use a wok on the cooking surface
if the wok has a round metal ring that is
placed over the burner grate to support the
wok. This ring acts as a heat trap, which may
damage the burner grate and burner head.
Also, it may cause the burner to work
improperly. This may cause a carbon
monoxide level above that allowed by current
standards, resulting in a health hazard.
■ Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and
over the sides of the pan.
■ Never try to move a pan of hot fat, especially
a deep fat fryer. Wait until the fat is cool.
■ Do not leave plastic items on the cooktop—
they may melt if left too close to the vent.
■ Keep all plastics away from the surface
burners.
■ To avoid the possibility of a burn, always be
certain that the controls for all burners are
at the OFF position and all grates are cool
before attempting to remove them.
■ If range is located near a window, do not
hang long curtains that could blow over the
surface burners and create a fire hazard.
■ If you smell gas, turn off the gas to the range
and call a qualified service technician. Never
use an open flame to locate a leak.
■ Always turn the surface burner controls off
before removing cookware.
WARNING!
■ The purpose of the warming drawer and
WARM ZONE setting of the lower oven
drawer is to hold hot cooked foods at
serving temperature. Always start with hot
food; cold food cannot be heated or cooked
in the warming drawer or the WARM ZONE
setting of the lower oven drawer.
■ Do not use the lower oven drawer to dry
newspapers. If overheated, they can catch
on fire.
■ Do not leave paper products, plastics,
canned food or combustible materials in
the drawer.
■ Never leave jars or cans of fat drippings in
or near your lower oven drawer.
■ Do not warm food in the lower oven drawer
for more than two hours.
■ Do not touch the heating element or the
interior surface of the lower oven drawer.
These surfaces may be hot enough to burn.
REMEMBER: The inside surface of the lower
oven drawer may be hot when the drawer
is opened.
■ Use care when opening the lower oven
drawer. Open the drawer a crack and let
hot air or steam escape before removing
or replacing food. Hot air or steam which
escapes can cause burns to hands, face
and/or eyes.
■ Do not use aluminum foil to line the lower
oven drawer. Foil is an excellent heat
insulator and will trap heat beneath it. This
will upset the performance of the drawer
and it could damage the interior finish.
■ Never place, use or self-clean the lower oven
drawer pan in the upper oven.
ELECTRIC WARMING DRAWER AND LOWER OVEN DRAWER
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
7
ge.com
8
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
■ Be sure to wipe up excess spillage before
self-cleaning operation.
■ Before self-cleaning the oven, remove
the shelves, any broiler pan, grid and
other cookware.
■ Never place, use or self-clean the lower oven
drawer pan in the upper oven.
■ Do not clean the door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage or
move the gasket.
■ Clean only parts listed in this Owner’s
Manual.
■ If the self-cleaning mode malfunctions,
turn the oven off and disconnect the power
supply. Have it serviced by a qualified
technician.
■ Do not use oven cleaners. No commercial
oven cleaner or oven liner of any kind
should be used in or around any part of
the oven. Residue from oven cleaners will
damage the inside of the oven when the
self-clean cycle is used.
SELF-CLEANING UPPER OVEN
■ Do not use the oven for a storage area.
Items stored in the oven can ignite.
■ Keep the oven free from grease buildup.
■ Place the oven shelves in the desired
position while the oven is cool. If shelves
must be handled when hot, do not let
pot holder contact the heating elements.
■ Pulling out the shelf to the stop-lock is a
convenience in lifting heavy foods. It is also
a precaution against burns from touching
hot surfaces of the door or oven walls. The
lowest position “R” is not designed to slide.
■ Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■ When using cooking or roasting bags in the
oven, follow the manufacturer’s directions.
■ Do not use your oven to dry newspapers.
If overheated, they can catch fire.
■ Do not leave paper products, cooking
utensils or food in the oven when not in use.
■ Keep the oven vent unobstructed.
■ Make sure any broiler pan is in place
correctly to reduce the possibility of
grease fires.
■ If you should have a grease fire in a broiler
pan, press the CLEAR/OFF pad and keep
the oven door closed to contain fire until
it burns out.
■ Never place, use or self-clean the lower oven
drawer pan in the upper oven.
Stand away from the range when opening the door of a hot oven. The hot air and steam that escape can
cause burns to hands, face and eyes.
UPPER OVEN
COOK MEAT AND POULTRY THOROUGHLY…
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to
at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against
foodborne illness.
How to Select Flame Size
For safe handling of cookware, never let the flames
extend up the sides of the cookware.
Watch the flame, not the knob, as you
reduce heat. When fast heating is desired,
the flame size on a gas burner should
match the cookware you are using.
Flames larger than the bottom of the
cookware will not result in faster heating of
the cookware and could be hazardous.
9
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Throughout this manual, features and appearance may vary from your model.
How to Light a Gas Surface Burner
Make sure all the surface burners are
placed in their respective positions.
Push the control knob in and turn it to
the LITE position.
You will hear a little clicking noise—
the sound of the electric spark igniting
the burner.
Turn the knob to adjust the flame size.
If the knob stays at LITE, it will continue
to click.
When one burner is turned to LITE, all
the burners spark. Do not attempt to
disassemble or clean around any burner
while another burner is on. An electric
shock may result, which could cause you
to knock over hot cookware.
Push the control knob in and turn it
to the LITE position.
Before Lighting a Gas Burner
■ Make sure all burners are in place.
■ Make sure all grates on the range are
properly placed before using any burner.
After Lighting a Gas Burner
■ Do not operate the burner for an
extended period of time without
cookware on the grate. The finish on
the grate may chip without cookware
to absorb the heat.
■ Be sure the burners and grates are cool
before you place your hand, a pot holder,
cleaning cloths or other materials on
them.
Sealed Gas Burners
Your gas range cooktop has five sealed
gas burners. They offer convenience,
cleanability and flexibility to be used in
a wide range of cooking applications.
The smallest burner in the right rear
position is the simmer burner. This burner
can be turned down to LO for a very low
simmer setting. It provides precise cooking
performance for delicate foods such as
sauces or foods that require low heat for a
long cooking time.
The medium (left rear) and the large (left
front) burners are the primary burners for
most cooking. These general-purpose
burners can be turned down from HI to LO
to suit a wide range of cooking needs.
The extra large burner (right front) is the
maximum output burner. Like the other
four burners, it can be turned down from
HI to LO for a wide range of cooking
applications; however, this burner is
designed to quickly bring large amounts of
liquid to a boil. It has a special POWER BOIL
™
setting designed to be used with cookware
10 inches or larger in diameter.
The center oval burner is the largest in
size and is for large oval pots/pans, round
pots/pans 10″ or greater in diameter or
to be used with the griddle.
Using the gas surface burners. ge.com
Medium
Small
Large
Extra Large
Extra-large burners only
Oval
Most griddled foods require cooking
on a preheated surface. Preheat griddle
according to the guide below, then switch
to the desired cook setting.
IMPORTANT NOTES:
■ Avoid cooking extremely greasy foods and be
careful of grease spillover while cooking.
■ Do not use oil on the griddle for extended lengths
of time. Permanent staining and/or craze lines on
the surface could result.
■ Never place or store any items on the griddle,
even when it is not in use. The griddle can
become heated when using the surrounding
burners.
■ Do not overheat the griddle. Leaving the
griddle burner on at HI for an extended amount
of time without food can damage the non-stick
coating
.
■ Avoid using metal utensils with sharp points
or rough, sharp edges that might damage the
griddle surface.
■ Do not cut foods on the griddle.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
10
Your non-stick coated griddle provides
an extra-large cooking surface for meats,
pancakes or other food usually prepared
in a frying pan or skillet.
NOTE: Your griddle will discolor over time as it
becomes seasoned with use.
How to Insert the Griddle
Using the griddle.
CAUTION: Place and remove the
griddle only when all grates and griddle are cool
and all surface units are turned OFF.
The griddle can only be used with the
center burner. To insert the griddle,
remove center grate and replace with
griddle.
Using the Griddle
Type of Food Preheat Cook Setting
Conditions
Warming none 3 (MED-LOW)
Tortillas
Pancakes 8 (MED-HI) 4 (MED-LOW)
5 min
Hamburgers 7 (MED-HI) 7 (MED-HI)
5 min
Fried Eggs HI 4 (MED)
5 min
Bacon None 5 (MED)
Breakfast HI 5 (MED)
Sausage Links 5 min
Hot Sandwiches HI HI
(such as 4 min
Grilled Cheese)
NOTE: Griddle settings may need to be adjusted if griddle is
used for an extended time.
11
In Case of Power Failure
In case of a power failure, you can light the
gas surface burners on your range with a
match. Hold a lit match to the burner, then
push in and turn the control knob to the
LITE position. Use extreme caution when
lighting burners this way.
Surface burners in use when an electrical
power failure occurs will continue to
operate normally.
Using the gas surface burners.
ge.com
Wok This Way
We recommend that you use a 14-inch or smaller
flat-bottomed wok. Make sure the wok bottom sits
flat on the grate. They are available at your local
retail store.
Only a flat-bottomed wok should be used.
Do not use a wok support ring. Placing the
ring over the burner or grate may cause the
burner to work improperly, resulting in
carbon monoxide levels above allowable
standards. This could be dangerous to
your health.
Use a flat-bottomed wok.
Stove Top Grills
Do not use stove top grills on your sealed
gas burners. If you use the stove top grill
on the sealed gas burner, it will cause
incomplete combustion and can result
in exposure to carbon monoxide levels
above allowable current standards.
This can be hazardous to your health.
Top-of-Range Cookware
Aluminum: Medium-weight cookware is
recommended because it heats quickly
and evenly. Most foods brown evenly in an
aluminum skillet. Use saucepans with tight-
fitting lids when cooking with minimum
amounts of water.
Cast-Iron: If heated slowly, most skillets will
give satisfactory results.
Enamelware: Under some conditions,
the enamel of some cookware may melt.
Follow cookware manufacturer’s
recommendations for cooking methods.
Glass: There are two types of glass
cookware—those for oven use only and
those for top-of-range cooking (saucepans,
coffee and teapots). Glass conducts heat
very slowly.
Heatproof Glass Ceramic: Can be used for
either surface or oven cooking. It conducts
heat very slowly and cools very slowly. Check
cookware manufacturer’s directions to be
sure it can be used on gas ranges.
Stainless Steel: This metal alone has poor
heating properties and is usually combined
with copper, aluminum or other metals for
improved heat distribution. Combination
metal skillets usually work satisfactorily if
they are used with medium heat as the
manufacturer recommends.
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
12
Using the oven controls.
Throughout this manual, features and appearance may vary from your model.
Oven Control, Clock and Timer Features and Settings
SELF CLEAN Pad
Touch this pad to select the self-cleaning
function. See the Using the self-cleaning
oven section.
PROBE Pad (on some models)
Touch this pad when using the probe
to cook food to the desired internal
temperature.
BAKE Pad
Touch this pad to select the bake function.
BROIL HI/LO Pad
Touch this pad to select the broil function.
Oven door must be closed during broiling.
CONVECTION ROAST Pad
Touch this pad to select roasting with the
convection function. Oven door must be
closed during convection roasting.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil,
convection, or self-cleaning mode and
the times set for the timer or automatic
oven operations.
If “F– and a number or letter” flash in the display and the
oven control signals, this indicates a function error code.
If your oven was set for a timed oven operation and
a power outage occurred, the clock and all programmed
functions must be reset.
The time of day will flash in the display when there has been
a power outage.
If “Err” appears in the display, you have tried to set a time or
temperature outside of the control’s limits. Press CLEAR/OFF
and enter a new setting.
CLOCK Pad
Touch this pad before setting the clock.
COOKING TIME Pad
Touch this pad and then touch the number
pads to set the amount of time you want
your food to cook. The oven will shut off
when the cooking time has run out.
DELAY START Pad
Use along with COOKING TIME or SELF
CLEAN pads to set the oven to start and
stop automatically at a time you set.
OVEN LIGHT Pad
Touch this pad to turn the oven light on
or off.
START Pad
Must be touched to start any cooking or
cleaning function.
KITCHEN TIMER ON/OFF Pad
Touch this pad to select the timer feature.
Number Pads
Use to set any function requiring numbers
such as the time of day on the clock, the
timer, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
CONVECTION BAKE Pad
Touch this pad to select baking with the
convection function.
CLEAR/OFF Pad
Touch this pad to cancel ALL oven
operations except the clock and timer.
13
To avoid possible burns, place the shelves in the desired position before you turn the oven on.
Before you begin…
The shelves have stop-locks, so that when
placed correctly on the supports, they will
stop before coming completely out, and
will not tilt.
When placing and removing cookware,
pull the shelf out to the bump on the
shelf support.
To remove a shelf, pull it toward you, tilt the
front end up and pull it out.
To replace, place the end of the shelf
(stop-locks) on the support, tilt up the
front and push the shelf in.
NOTE: The shelf is not designed to slide out at the
special low shelf (R) position.
Upper Oven Vent
Your oven is vented through ducts at the
rear of the range. Do not block these ducts
when cooking in the oven—it is important
that the flow of hot air from the oven
and fresh air to the oven burner be
uninterrupted. Avoid touching the vent
openings or nearby surfaces during oven or
broiler operation—they may become hot.
■ Handles of pots and pans on the cooktop may
become hot if left too close to the vent.
■ Do not leave plastic items on the cooktop—
they may melt if left too close to the vent.
■ Do not leave any items on the cooktop. The hot
air from the vent may ignite flammable items
and will increase pressure in closed containers,
which may cause them to burst.
■ Metal items will become very hot if they are
left on the cooktop, and could cause burns.
Using the upper oven.
ge.com
The oven has 5 shelf positions.
It also has a special low shelf
position (R) for extra large items,
such as a large turkey.
Plastic items on the cooktop may
melt if left too close to the vent.
Vent appearance and location vary.
Upper Oven Light
Touch the OVEN LIGHT pad on the upper
control panel to turn the light on or off.
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
14
How to Set the Upper Oven for Baking or Roasting
Touch the BAKE pad.
Touch the number pads to set the
desired temperature.
Touch the START pad.
The word ON and 100° will be displayed.
As the oven heats up, the display will show
the changing temperature. When the oven
reaches the temperature you set, a tone
will sound.
To change the oven temperature during BAKE cycle,
press the BAKE pad and then the number pads to
get the new temperature.
Check food for doneness at minimum
time on recipe. Cook longer if
necessary.
Touch the CLEAR/OFF pad when
cooking is complete.
Type of Food Shelf Position
Frozen pies (on cookie sheet) C
Angel food cake, B or C
bundt or pound cakes
Biscuits, muffins, brownies, B or C
cookies, cupcakes,
layer cakes, pies
Casseroles B or C
Turkey R or A
Roasting A or B
The oven has a special low shelf (R)
position just above the oven bottom.
Use it when extra cooking space is
needed, for example, when cooking
a large turkey. The shelf is not
designed to slide out at this position.
Using the upper oven.
Preheating and Pan Placement
Preheat the oven if the recipe calls for it.
To preheat, set the oven at the correct
temperature. Preheating is necessary when
baking cakes, cookies, pastry and breads.
For ovens without a preheat indicator light or tone,
preheat 10 minutes.
Baking results will be better if baking pans
are centered in the oven as much as
possible. Pans should not touch each other
or the walls of the oven. If you need to
use two shelves, stagger the pans so one
is not directly above the other, and leave
approximately 1
1
⁄2″ between pans, from
the front, back and sides of the wall.
Aluminum Foil
Do not use aluminum foil on the bottom of the oven.
Do not use aluminum foil to catch spillovers
when using the CircuWave fan. The foil
will be sucked toward the convection fan.
Never entirely cover a shelf with aluminum
foil. This will disturb the heat circulation
and result in poor baking.
A smaller sheet of foil may be used to catch
a spillover by placing it on a lower shelf
several inches below the food.
Oven Moisture
As your oven heats up, the temperature
change of the air in the oven may cause
water droplets to form on the door glass.
These droplets are harmless and will
evaporate as the oven continues to heat up.
15
ge.com
How to Set the Upper Oven for Broiling—Close the oven door
Place the meat or fish on a broiler grid
in a broiler pan.
Follow suggested shelf positions in
the Broiling Guide.
The oven door must be closed during
broiling.
Touch the BROIL HI/LO pad once for
HI Broil.
To change to LO Broil, touch the
BROIL HI/LO pad again.
Touch the START pad.
When broiling is finished, touch the
CLEAR/OFF pad.
Serve the food immediately, and leave the
pan outside the oven to cool during the
meal for easiest cleaning.
Use LO Broil to cook foods such as poultry
or thick cuts of meat thoroughly without
over-browning them.
The size, weight, thickness,
starting temperature and
your preference of doneness
will affect broiling times.
This guide is based on meats
at refrigerator temperature.
†The U.S. Department of Agriculture
says “Rare beef is popular, but you
should know that cooking it to only
140°F means some food poisoning
organisms may survive.” (Source:
Safe Food Book, Your Kitchen Guide,
USDA Rev. June 1985.)
Quantity and/ Shelf First Side Second Side
Food or Thickness Position Time (min.) Time (min.) Comments
Ground Beef 1 lb. (4 patties) C 13 8 Space evenly.
1
⁄2 to
3
⁄4″ thick
4 lbs. (16 patties) C 15 11
Beef Steaks
Rare†
3
⁄4 to 1″ thick E 6 4 Steaks less than
3
⁄4″ thick
Medium 1 to 1
1
⁄2 lbs. D 8 6 are difficult to cook rare.
Well Done D 10 8 Slash fat.
Rare† 1
1
⁄2″ thick C 10 8
Medium 2 to 2
1
⁄2 lbs. C 15 10–12
Well Done D 20 20
Chicken 1 whole cut up B 25 25 Brush each side with
2 to 2
1
⁄
2 lbs., melted butter.
split lengthwise Broil skin-side-down first.
Breast B 25 15
Bakery Product
Bread (toast) 2 to 4 slices D 3 1 Space evenly. Place English
English Muffin 2 (split) E 3–4 muffins cut-side-up and
brush with butter if desired.
Lobster Tails 2–4 B 18–20 Do not Cut through back of shell.
turn Spread open. Brush with
over. melted butter before
broiling and after half of
broiling time.
Fish Fillets 1 lb. (
1
⁄4 to
1
⁄2″ thick) D 5 5 Handle and turn very
carefully. Brush with
lemon butter before
and during cooking,
if desired.
Salmon
Steaks 2 (1″ thick) D 10 5 Turn carefully. Do not
Fillets 2 (
1
⁄2 to
3
⁄4″ thick) D 10 turn skin side down.
Ham Slices
1
⁄2″ thick C 6 6
(precooked) 1″ thick C 8 8
Pork Chops 2 (
1
⁄2″ thick) C 10 10 Slash fat.
Well Done 2 (1″ thick) about 1 lb. C 15 15
Lamb Chops
Medium 2 (1″ thick) about 10 D 7 4 Slash fat.
Well Done to 12 oz. D 10 9
Medium 2 (1
1
⁄2″ thick) about 1 lb. D 9 6
Well Done D 14 10
Broiling Guide
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Close the door. Always broil with
the door closed.
NOTE: Broil will not work if the
temperature probe is plugged in.
If a flashing time is in the display, you have
experienced a power failure. Reset the clock.
To reset the clock, touch the CLOCK pad.
Enter the correct time of day by touching
the appropriate number pads. Touch the
START pad.
16
Make sure the clock is set to the
correct time of day.
The timer is a minute timer only.
The CLEAR/OFF pad does not affect
the timer.
Not all features are on all models.
To Set the Clock
The clock must be set to the correct time
of day for the automatic oven timing
functions to work properly. The time of day
cannot be changed during a timed baking
or self-cleaning cycle.
Touch the CLOCK pad.
Touch the number pads.
Touch the number pads the same way you
read them. For example, to set 12:34, touch
the number pads 1, 2, 3 and 4 in that order.
If number pads are not touched within one
minute after you touch the CLOCK pad, the
display reverts to the original setting. If this
happens, touch the CLOCK pad and reenter
the time of day.
Touch the START pad until the time
of day shows in the display. This enters
the time and starts the clock.
To check the time of day when the display is
showing other information, simply touch the
CLOCK pad. The time of day shows until another
pad is touched.
To Set the Timer
The timer does not control oven operations.
The maximum setting on the timer is 9 hours
and 59 minutes.
Touch the KITCHEN TIMER ON/OFF
pad.
Touch the number pads until the
amount of time you want shows in
the display. The maximum number
of minutes that can be entered is 60.
To set additional time, you will need
to set it by hours and minutes.
For example, to enter 1 hour and
30 minutes, touch 1, 3 and 0 in
that order.
If you make a mistake, press the KITCHEN TIMER
ON/OFF pad and begin again.
Touch the START pad. After pressing
the START pad, SET disappears; this
tells you the time is counting down,
although the display does not change
until one minute has passed.
When the timer reaches :00, the
control will beep 3 times followed by
one beep every 6 seconds until the
KITCHEN TIMER ON/OFF pad is touched.
The 6 second tone can be canceled by following
the steps in the Special features of your oven
control section under Tones at the End of a Timed
Cycle.
Using the clock and timer.
To Reset the Timer
If the display is still showing the time
remaining, you may change it by touching
the KITCHEN TIMER ON/OFF pad; then touch
the number pads until the time you want
appears in the display.
If the remaining time is not in the display
(clock, delay start or cooking time are in
the display), recall the remaining time by
touching the KITCHEN TIMER ON/OFF pad
and then touching the number pads to
enter the new time you want.
To Cancel the Timer
Touch the KITCHEN TIMER ON/OFF pad twice.
Power Outage
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
17
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more
than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven
light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
The upper oven will turn on immediately and cook for
a selected length of time. At the end of the cooking
time, the oven will turn off automatically.
Touch the BAKE pad.
Using the number pads, enter the
desired temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Using the number pads, enter the
desired baking time. The oven
temperature and the cooking time
that you entered will be displayed.
Touch the START pad.
The word ON and 100° will be displayed.
The cook time will begin to count down.
As the oven heats up, the display will show
the changing temperature. When the oven
reaches the temperature you set, 3 beeps
will sound.
At the end of timed baking, the oven will
turn off. The end of cycle tone will sound.
Touch the CLEAR/OFF pad to clear the
display.
How to Set a Delayed Start and Automatic Stop
You can set the upper oven control to delay-start the
oven, cook for a specific length of time and then turn
off automatically.
Make sure the clock shows the correct
time of day.
Touch the BAKE pad.
Using the number pads, enter the
desired temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Using the number pads, enter the
desired baking time.
Touch the DELAY START pad.
Using the number pads, enter the
time of day you want the oven to
turn on and start cooking.
Touch the START pad.
NOTE: An attention tone will sound if you are using
timed baking and do not touch the START pad after
entering the baking temperature.
If you would like to check the times you
have set, touch the DELAY START pad to
check the start time you have set or touch
the COOKING TIME pad to check the length
of cooking time you have set.
The oven will turn on automatically.
The word ON and 100° will be displayed.
The cook time will begin to count down.
As the oven heats up, the display will show
the changing temperature. The oven will
cook for the programmed cooking time and
shut off automatically.
At the end of timed baking, the oven will
turn off. The end of cycle tone will sound.
Touch the CLEAR/OFF pad to clear the
display.
Using the timed baking and
roasting features (upper oven only).
ge.com
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
18
Use of probes other than the one provided
with this product may result in damage to
the probe.
Use the handles of the probe and plug
when inserting and removing them from
the food and outlet.
■ To avoid damaging your probe, do not use tongs
to pull on the cable when removing it.
■ To avoid breaking the probe, make sure food is
completely defrosted before inserting.
■ To prevent possible burns, do not unplug the
probe from the outlet until the oven has cooled.
■ Never leave your probe inside the oven during
a self-cleaning cycle.
■ Do not store the probe in the oven.
The temperature probe has a
skewer-like probe at one end and
a plug at the other end that goes
into the outlet in the oven.
Plug
Probe
Cable
Handles
For many foods, especially roasts and poultry, internal food temperature is the best test for doneness.
The temperature probe takes the guesswork out of roasting by cooking foods to the exact doneness you want.
After preparing the meat and placing
it on a trivet or on a broiler pan grid,
follow these directions for proper probe
placement.
Insert the probe completely into the meat.
It should not touch the bone, fat or gristle.
For roasts with no bone, insert the probe
into the meatiest part of the roast. For
bone-in ham or lamb, insert the probe into
the center of the lowest large muscle.
Insert the probe into the center of dishes
such as meat loaf or casseroles.
Insert the probe into the meatiest part of
the inner thigh from below and parallel to
the leg of a whole turkey.
Using the probe. (on some models)
How to Set the Upper Oven For Roasting When Using the Probe
Insert the probe into the food.
Plug the probe into the outlet in the
oven. Make sure it’s pushed all the
way in. Close the oven door.
Touch the PROBE pad.
Touch the number pads to set the
desired internal food or meat
temperature.
Touch the BAKE pad.
Touch the number pads to set the
desired oven temperature.
Touch the START pad.
The display will flash if the probe is inserted into the
outlet and you have not set a probe temperature
and touched the START pad.
After the internal temperature of the food
reaches 100°F, the changing internal
temperature will be shown in the display.
When the internal temperature of the
food reaches the number you have set,
the probe and the oven turn off and
the oven control signals. To stop the
signal, touch the CLEAR/OFF pad. Use
hot pads to remove the probe from
the food. Do not use tongs to pull
on it—they might damage it.
To change the oven temperature during
the Roast cycle, touch the BAKE pad and
then the number pads to set the new
temperature.
■ If the probe is removed from the food before the
final temperature is reached, a tone will sound
and the display will flash until the probe is
removed from the oven.
■ You can use the timer even though you cannot
use timed oven operations while using the probe.
19
The convection oven fan shuts off when the oven door is opened. DO NOT leave the door open for long periods
of time while using convection cooking.
Adapting Recipes…
You can use your favorite recipes in the
convection oven.
When baking or roasting, reduce baking
temperature by 25°F.
No need to preheat when cooking longer
than 15 minutes.
■ Use pan size recommended.
■ Some package instructions for frozen casseroles
or main dishes have been developed using
commercial convection ovens. For best results
in this oven, preheat the oven and use the
temperature on the package.
Using the convection oven.
ge.com
To help you understand the difference
between convection bake and roast and
traditional bake and roast, here are some
general guidelines.
Convection Bake
■ Preheat the oven. See the Using the Oven–
Preheating and Pan Placement section.
■ Ideal for foods cooked on multiple shelves.
■ Good for large quantities of baked foods.
■ Good results with cookies, biscuits, brownies,
cupcakes, cream puffs, sweet rolls, angel food
cake and bread.
The convection fan circulates the heated
air evenly over and around the food.
Convection Roast
■ Good for large tender cuts of meat, uncovered.
■ Oven door must be closed for convection roasting.
The convection fan circulates the heated air
evenly over and around the food. Heated
air will be circulated over and around the
food being roasted. The heated air seals
in juices quickly for a moist and tender
product while, at the same time, creating
a rich golden brown exterior.
Roasts or poultry should be cooked on shelf
position (A).
When you are convection roasting, it is
important that you use a broiler pan and
grid for best convection roasting results.
The pan is used to catch grease spills and
the grid is used to prevent grease spatters.
■ Place the shelf in shelf position (A).
In a convection oven, a fan
circulates hot air over, under and
around the food. This circulating
hot air is evenly distributed
throughout the oven cavity.
As a result, foods are evenly
cooked and browned—often in
less time than with regular heat.
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
20
or
When convection baking with only
1 shelf, follow the shelf positions
recommended in the Using the
Oven section.
Using the convection oven.
Multi-Shelf Baking
Because heated air is circulated evenly
throughout the oven, foods can be baked
with excellent results using multiple shelves.
Multi-shelf baking may increase cook times
slightly for some foods but the overall result
is time saved. Cookies, muffins, biscuits, and
other quick breads give very good results
with multi-shelf baking.
When baking larger foods on 3 shelves,
place one shelf in the 2nd (A) position,
one on the 4th (C) position and the third
shelf in the 6th (E) position.
When baking cookies, place the shelves in
the 4th (C), 5th (D), and 6th (E) positions.
How to Set the Upper Oven for Convection Baking or Roasting
Touch the CONVECTION BAKE or
CONVECTION ROAST pad.
Touch the number pads to set
the desired oven temperature.
Remember to adjust baking
temperature accordingly. See the
Adapting Recipes section.
Touch the START pad.
To change the oven temperature, touch the
CONVECTION BAKE or CONVECTION ROAST
pad and then the number pads to set the
new temperature.
When the oven starts to heat the changing
temperature, starting at 100°F, will be
displayed. When the oven reaches the
temperature you set, 3 beeps will sound.
Touch the CLEAR/OFF pad when
finished.
NOTE: You will hear a fan while cooking with
convection. The fan will stop when the door is
opened but the heat will not turn off.
The fan will not start until the preheat temperature
is reached.
Cookware for Convection Cooking
Before using your convection oven, check
to see if your cookware leaves room for air
circulation in the oven. If you are baking
with several pans, leave space between
them. Also, be sure the pans do not touch
each other or the walls of the oven.
Paper and Plastic
Heat-resistant paper and plastic containers
that are recommended for use in regular
ovens can be used in convection ovens.
Plastic cookware that is heat-resistant to
temperatures of 400°F can also be used,
when oven is below 400°F.
Metal and Glass
Any type of cookware will work in your
convection oven. However, metal pans heat
the fastest and are recommended for
convection baking.
■ Darkened or matte-finished pans will bake faster
than shiny pans.
■ Glass or ceramic pans cook more slowly.
When baking cookies, you will get the best
results if you use a flat cookie sheet instead
of a pan with low sides.
For recipes like oven-baked chicken, use a
pan with low sides. Hot air cannot circulate
well around food in a pan with high sides.
21
ge.com
How to Set the Upper Oven for Convection Roasting when Using the Probe
(on some models)
The display will flash PROBE and the oven
control will signal if the probe is inserted
into the outlet, and you have not set
a probe temperature and touched the
START pad.
Place the shelf in the shelf position
(A). Insert the probe completely
into the food.
Plug the probe into the outlet in the
oven. Make sure it is pushed all the
way in. Close the oven door.
Touch the CONVECTION ROAST pad.
Touch the number pads to set the
desired oven temperature.
Touch the PROBE pad.
Touch the number pads to set the
desired internal food temperature.
To change the oven temperature during
the Convection Roast cycle, touch the
CONVECTION ROAST pad and then touch
the number pads to set the new desired
temperature.
Touch the START pad.
When the oven starts to heat, the word
LO will be in the display.
After the internal temperature of the food
reaches 100°F, the changing internal
temperature will be shown in the display.
When the internal temperature of the
food reaches the number you have
set, the probe and the oven turn off
and the oven control signals. To stop
the signal, touch the CLEAR/OFF pad.
Use hot pads to remove the probe
from the food. Do not use tongs to
pull on it—they might damage it.
CAUTION: To prevent possible
burns, do not unplug the probe from the oven
outlet until the oven has cooled. Do not store
the probe in the oven.
NOTE:
■ If the probe is removed from the food before the
final temperature is reached, a tone will sound
and the display will flash until the probe is
removed from the oven.
■ You will hear a fan while cooking with this
feature. The fan will stop when the door is
opened but the heat will not turn off.
■ You can use the timer even though you cannot
use timed oven operations while using the probe.
For best results when roasting large
turkeys and roasts, we recommend
using the probe included in the
convection oven.
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
22
Using the convection oven.
Meats Minutes/Lb. Oven Temp. Internal Temp.
Beef Rib (3 to 5 lbs.) Rare
†
20–24 300°F 140°F
Medium 24–28 300°F 160°F
Well 28–32 300°F 170°F
Boneless Rib, Top Sirloin Rare
†
20–24 300°F 140°F
Medium 24–28 300°F 160°F
Well 28–32 300°F 170°F
Beef Tenderloin Rare
†
10–14 300°F 140°F
Medium 14–18 300°F 160°F
Pot Roast (2
1
⁄2 to 3 lbs.) chuck, rump 35–45 275°F 170°F
Pork Bone-in (3 to 5 lbs.) 23–27 300°F 170°F
Boneless (3 to 5 lbs.) 23–27 300°F 170°F
Pork Chops (
1
⁄2 to 1″ thick) 2 chops 30–35 total 300°F 170°F
4 chops 35–40 total 300°F 170°F
6 chops 40–45 total 300°F 170°F
Ham Canned (3 lbs. fully cooked) 14–18 300°F 140°F
Butt (5 lbs. fully cooked) 14–18 300°F 140°F
Shank (5 lbs. fully cooked) 14–18 300°F 140°F
Lamb Bone-in (3 to 5 lbs.) Medium 17–20 300°F 160°F
Well 20–24 300°F 170°F
Boneless (3 to 5 lbs.) Medium 17–20 300°F 160°F
Well 20–24 300°F 170°F
Seafood Fish, whole (3 to 5 lbs.) 30–40 total 375°F
Lobster Tails (6 to 8 oz. each) 20–25 total 325°F
Poultry Whole Chicken (2
1
⁄2 to 3
1
⁄2 lbs.) 24–26 325°F 180°–185°F
Cornish Hens Unstuffed (1 to 1
1
⁄2 lbs.) 50–55 total 325°F 180°–185°F
Cornish Hens Stuffed (1 to 1
1
⁄2 lbs.) 55–60 total 325°F 180°–185°F
Duckling (4 to 5 lbs.) 24–26 300°F 180°–185°F
Turkey, whole*
Unstuffed (10 to 16 lbs.) 8–11 300°F 180°–185°F
Unstuffed (18 to 24 lbs.) 7–10 300°F 180°–185°F
Turkey Breast (4 to 6 lbs.) 16–19 300°F 170°F
Convection Roasting Guide—Suggested Settings
* Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent
overbrowning and drying of skin.
† The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to
only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide,
USDA Rev. June 1985.)
23
You will hear a fan while cooking with this feature. The fan will stop when the door is opened but the heat
will not turn off.
NOTE: Foods that spoil easily–such as milk, eggs, fish, stuffings, poultry and pork–should not be allowed to
sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria.
Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
The upper oven will turn on immediately and cook for
a selected length of time. At the end of the cooking
time, the oven will turn off automatically.
Touch the CONVECTION BAKE pad.
Touch the number pads to set the
desired oven temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired length of cooking time.
The minimum cooking time you
can set is 1 minute.
The oven temperature that you set and
the cooking time that you entered will be
in the display.
Touch the START pad.
The display shows the oven temperature
that you set and the cooking time
countdown. The display starts changing
once the temperature reaches 100°F.
At the end of timed convection bake
the oven will turn off. The end of cycle
tone will sound. Touch the CLEAR/OFF
pad to clear the display if necessary.
Remove the food from the oven.
Remember, foods that are left in the
oven continue cooking after the
controls are off.
How to Set a Delayed Start and Automatic Stop
You can set the upper oven control to delay-start the
oven, cook for a specific length of time and then turn
off automatically.
Make sure the clock shows the correct
time of day.
Touch the CONVECTION BAKE pad.
Touch the number pads to set the
desired oven temperature.
Touch the COOKING TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired cooking time.
Touch the DELAY START pad.
Touch the number pads to set the
time of day you want the oven to
turn on and start cooking.
If you would like to check the times you
have set, touch the DELAY START pad to
check the start time you have set or touch
the COOKING TIME pad to check the length
of cooking time you have set.
Touch the START pad.
NOTE: An attention tone will sound if you are using
timed baking and do not touch the START pad after
entering the baking temperature.
When the oven turns on at the time of
day you have set, the display will show
the changing temperature (starting at
100°F) and the cooking time countdown.
At the end of timed convection bake the
oven will turn off. The end of cycle tone
will sound.
Touch the CLEAR/OFF pad to clear the
display if necessary. When baking is
finished, remove the food from the
oven. Remember, even though the
oven shuts off automatically, foods
continue cooking after the controls
are off.
Using the timed convection
baking features (upper oven only).
ge.com
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
24
Your new touch pad control has additional features that you may choose to use. The following are the features and
how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain in the
control’s memory until the steps are repeated.
When the display shows your choice, touch the START pad. The special features will remain in memory after
a power failure.
12 Hour Shut-Off
With this feature, should you forget and leave the
oven on, the control will automatically turn off the
oven after 12 hours during baking functions or after
3 hours during a broil function.
If you wish to turn OFF this feature, follow
the steps below.
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the DELAY START pad. The
display will show 12 shdn (12 hour
shut-off). Touch the DELAY START pad
again and the display will show no shdn
(no shut-off).
Touch the START pad to activate the
no shut-off and leave the control set in
this special features mode.
+
Fahrenheit or Celsius Temperature Selection
Your oven control is set to use the Fahrenheit
temperature selections but you may change this
to use the Celsius selections.
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the BROIL HI/LO pad. The
display will show F (Fahrenheit).
Touch the BROIL HI/LO pad again.
The display will show C (Celsius).
Touch the START pad.
+
Tones at the End of a Timed Cycle
At the end of a timed cycle, 3 short beeps will sound
followed by one beep every 6 seconds until the
CLEAR/OFF pad is touched. This continual
6 second beep may be canceled.
To cancel the 6 second beep:
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the KITCHEN TIMER ON/OFF
pad. The display shows CON BEEP
(continual beep). Touch the KITCHEN
TIMER ON/OFF pad again. The display
shows BEEP. (This cancels the one
beep every 6 seconds.)
Touch the START pad.
+
Special features of your upper oven control.
25
ge.com
12 Hour, 24 Hour or Clock Black-Out
Your control is set to use a 12 hour clock.
If you would prefer to have a 24 hour
military time clock or black-out the clock
display, follow the steps below.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the CLOCK pad once.
The display will show 12 hr.
If this is the choice you want,
touch the START pad.
Touch the CLOCK pad again to change
to the 24 hour military time clock. The
display will show 24 hr. If this is the choice
you want, touch the START pad.
Touch the CLOCK pad again to black-out
the clock display. The display will show OFF.
If this is the choice you want, touch the
START pad.
NOTE: If the clock is in the black-out mode you
will not be able to use the Delay Start function.
+
Control Lockout (on some models)
Your control will allow you to lock out the touch
pads so they cannot be activated when touched
or cleaning the panel.
To lock the controls:
Touch the 9 and 0 touch pads at the
same time for 3 seconds until the
control beeps twice. The display will
show LOC continuously and the time
of day if not blacked out.
NOTE: All cooking and timing functions will be
cancelled when locking out the control.
To unlock the control, touch the
9 and 0 touch pads at the same time
for 3 seconds until the control beeps
twice, and LOC will be removed from
the display.
Cook and Hold
Your new control has a cook and hold feature that
keeps cooked foods warm for up to 3 hours after
the cooking function is finished.
This feature can only be used when
timed cooking.
To activate this feature, follow the steps
below.
Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.
Touch the COOKING TIME pad. The
display will show Hld OFF.
Touch the COOKING TIME pad again
to activate the feature. The display
will show Hld ON.
Touch the START pad to activate the
cook and hold feature and leave the
control set in this special features
mode.
+
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
26
Using the Sabbath Feature.
(on some models)
(Designed for use on the Jewish Sabbath and Holidays)
The Sabbath feature can be used for baking/roasting in the upper oven only. It cannot be used for convection,
broiling, self-cleaning, or Delay Start cooking.
NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the
door is closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch
on the control panel, the oven light may be turned on and left on.
+
+
+
When the display shows ⊃ the
oven is set in Sabbath. When the
display shows ⊃ the oven is
baking/roasting.
⊃
When the display shows ⊃ the
oven is set in Sabbath. When the
display shows ⊃ the oven is
baking/roasting.
⊃
How to Set for Regular Baking/Roasting
Make sure the clock shows the correct time of day and
the oven is off.
Press and hold both the BAKE and BROIL
HI/LO pads, at the same time, until the
display shows SF.
Tap the DELAY START pad until SAb bAtH
appears in the display.
Touch the START pad and ⊃ will appear
in the display.
Touch the BAKE pad. No signal will be
given.
Using the number pads, enter the desired
temperature between 170° and 550°.
No signal or temperature will be given.
Touch the START pad.
After a random delay period of
approximately 30 seconds to 1 minute,
⊃ will appear in the display indicating
that the oven is
baking/roasting.
If ⊃
doesn’t appear in the display, start again
at Step 4.
To adjust the oven temperature, touch the
BAKE pad, enter the new temperature using
the number pads, and touch the START pad.
NOTE: The CLEAR/OFF and COOKING TIME pads
are active during the Sabbath feature.
⊃
⊃
How to Exit the Sabbath Feature
Touch the CLEAR/OFF pad.
If the oven is cooking, wait for a random
delay period of approximately 30 seconds
to 1 minute, until only ⊃ is in the display.
Press and hold both the BAKE and BROIL
HI/LO pads, at the same time, until the
display shows SF.
Tap the DELAY START pad until 12 shdn
or no shdn appears in the display.
12 shdn indicates that the oven will
automatically turn off after 12 hours.
no shdn indicates that the oven will not
automatically turn off.
Touch the START pad.
NOTE: If a power outage occurred while the oven was
in Sabbath, the oven will automatically turn off and stay
off even when the power returns. The oven control must
be reset.
How to Set for Timed Baking/Roasting—Immediate Start and Automatic Stop
Make sure the clock shows the correct time of day and
the oven is off.
Press and hold both the BAKE and BROIL
HI/LO pads, at the same time, until the
display shows SF.
Tap the DELAY START pad until SAb bAtH
appears in the display.
Touch the START pad and ⊃ will appear in
the display.
Touch the COOKING TIME pad.
Touch the number pads to set the desired
length of cooking time between 1 minute
and 9 hours and 99 minutes. The cooking
time that you entered will be displayed.
Touch the START pad.
Touch the BAKE pad. No signal will be
given.
Using the number pads, enter the desired
temperature. No signal or temperature will
be given.
Touch the START pad.
After a random delay period of
approximately 30 seconds to 1 minute,
⊃ will appear in the display indicating
that the oven is
baking/roasting.
If ⊃
doesn’t appear in the display, start again
at Step 7.
To adjust the oven temperature, touch the
BAKE pad, enter the new temperature using
the number pads, and touch the START pad.
When cooking is finished, the display will change
from ⊃ to ⊃ and 0:00 will appear, indicating
that the oven has turned OFF but is still set in
Sabbath. Remove the cooked food.
⊃
⊃
⊃
27
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks
to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the
thermostat yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary 20–40 degrees.
NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be
retained in memory after a power failure.
To Adjust the Thermostat
Touch the BAKE and BROIL HI/LO pads
at the same time for 3 seconds until
the display shows SF.
Touch the BAKE pad. A two digit
number shows in the display.
Touch BAKE once to decrease (-)
the oven temperature, or twice to
increase (+).
The oven temperature can be adjusted
up as much as 35°F or down as much
as 35°F. Touch the number pads the
same way you read them. For example,
to change the oven temperature 15°F,
touch 1 and 5.
When you have made the adjustment,
touch the START pad to go back to the
time of day display. Use your oven as
you would normally.
NOTE: The thermostat adjustment for Baking
will also affect Convection Baking or Convection
Roasting.
+
Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat).
If you decrease the fat, the recipe may not give the same results as with a higher fat product.
Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low-fat spreads. The lower
the fat content of a spread product, the more noticeable these differences become.
Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low-fat spreads, on the
other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor
of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least
70% vegetable oil.
Adjust the upper oven thermostat—Do it yourself!
ge.com
The type of margarine will affect baking performance!
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
28
Using the lower oven drawer. (on some models)
To Use the Lower Oven Drawer
Push in and turn the lower oven
drawer knob to any desired setting.
Allow the lower oven drawer to
preheat.
■ The ON signal light is located on the
upper right side of the knob and glows
when the knob is in the ON position. It
remains ON until the knob is moved to
the OFF position.
■ The “Heating” signal light is located
below the ON signal light and glows
when the heating elements are active.
Preheat is complete after the “Heating”
signal has turned off for the first time
with each use.
NOTES:
■ Always use the included drawer rack when using
the Lower Oven Drawer.
■ The lower oven drawer cannot be used during
a self-clean cycle of the upper oven.
■ Do not put food, foil or cookware directly on the
bottom of the lower oven drawer. Always use the
included drawer rack.
■ If foods require a cover, use only foil or lids able
to withstand baking temperatures. Do not use
plastic.
■ Maximum height of foods that can be placed
in the lower oven drawer is 4″.
■ Do not put liquid or water in the lower oven
drawer.
■ Never place plastics, paper, canned foods or
combustible material in the lower oven drawer.
The lower oven drawer may be used to bake foods using the same times and temperatures as a standard oven. Foods
ideal for baking in the lower oven drawer include pizza, frozen foods, casseroles, biscuits, rolls and many desserts.
Push in and turn the lower oven
drawer knob to any desired setting.
When Using the Lower Oven Drawer Warm Zone
The WARM ZONE of the lower oven drawer will
keep hot cooked foods at serving temperatures.
Always start with hot food. Do not use the WARM
ZONE to heat cold food other than crisping crackers,
chips or dry cereal.
Push in and turn the control knob
to the desired setting within the warm
zone (indicated by the red line).
LO . . . . . . . . . . . . . . . . . . . . . . . Pies
MEDIUM
(mid-position on the line) . . . .Casseroles
HI . . . . . . . . . . . . . . . . . . . . . . . .Meats
The lower oven drawer uses less energy than the upper oven.
Allow the following approximate times for preheating:
Desired Lower Preheat
Oven Temperature Time
WARM 10 minutes
350°F 20 minutes
425°F 30 minutes
29
Consumer Support
Installation Instructions Troubleshooting TipsOperating Instructions
Safety Instructions
The oven door must be closed and all controls set correctly for the cycle to work properly.
Before a Clean Cycle
For the first self-clean cycle, we recommend
venting your kitchen with an open window
or using a ventilation fan or hood.
Remove the shelves, any broiler pan,
broiler grid, probe, all cookware and
any aluminum foil from the oven.
The oven shelves can be self-cleaned,
but they will darken, lose their luster
and become hard to slide.
Soil on the front frame of the range and
outside the gasket on the door will need
to be cleaned by hand. Clean these areas
with hot water, soap-filled scouring pads or
cleansers such as Soft Scrub
®
. Rinse well
with clean water and dry.
Do not clean the gasket. The fiberglass
material of the oven door gasket cannot
withstand abrasion. It is essential for the
gasket to remain intact. If you notice it
becoming worn or frayed, replace it.
Wipe up any heavy spillovers on the oven
bottom.
Make sure the oven light bulb cover is
in place and the oven light is off.
IMPORTANT: The health of some birds is
extremely sensitive to the fumes given off
during the self-cleaning cycle of any range.
Move birds to another well-ventilated room.
NOTE: Use caution when opening the
upper oven after the self-clean cycle has
ended. The oven may still be hot.
How to Set the Upper Oven for Cleaning
Touch the SELF CLEAN pad.
Using the number pads, enter the
desired clean time, if a time other
than 4 hours is needed.
Clean cycle time is normally 4 hours.
You can change the clean time to any time
between 3 hours and 5 hours, depending
on how dirty your oven is.
Touch the START pad.
The door locks automatically. The display
will show the clean time remaining. It will
not be possible to open the oven door
until the temperature drops below the
lock temperature and the LOCKED DOOR
light goes off.
When the LOCKED DOOR light is off, open
the door.
The oven shuts off automatically when the
clean cycle is complete.
■ The words LOCK DOOR will flash and
the oven control will signal if you set
the clean cycle and forget to close the
oven door.
■ To stop a clean cycle, touch the
CLEAR/OFF pad. When the LOCKED DOOR
light goes off indicating the oven has
cooled below the locking temperature,
open the door.
■ Do not use the warming drawer during
a self-clean cycle.
Using the self-cleaning upper oven.
ge.com
Wipe up heavy soil on the oven
bottom.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
30
The oven door must be closed and all controls set correctly for the cycle to work properly.
How to Delay the Start of Cleaning
Make sure the clock shows the correct
time of day.
Touch the SELF CLEAN pad.
Using the number pads, enter the
desired clean time.
Touch the DELAY START pad. The
earliest start time you can set will
appear in the display.
Using the number pads, enter the
time of day you want the clean cycle
to start.
Touch the START pad.
The door locks automatically. The display
will show the start time. It will not be
possible to open the oven door until the
temperature drops below the lock
temperature and the LOCKED DOOR light
goes off.
When the LOCKED DOOR light is off, open
the door.
After a Clean Cycle
You may notice some white ash in the
oven. Wipe it up with a damp cloth after
the oven cools.
If white spots remain, remove them with a
soap-filled scouring pad and rinse thoroughly
with a vinegar and water mixture.
These deposits are usually a salt residue
that cannot be removed by the clean cycle.
If the oven is not clean after one clean
cycle, repeat the cycle.
■ You cannot set the oven for cooking until
the oven is cool enough for the door to
unlock.
■ While the oven is self-cleaning, you can
touch the CLOCK pad to display the time
of day. To return to the clean countdown,
touch the COOKING TIME pad.
■ If the shelves become hard to slide,
apply a small amount of vegetable oil or
cooking oil to a paper towel and wipe
the edges of the oven shelves with the
paper towel.
Using the self-cleaning upper oven.
31
Consumer Support
Installation Instructions Troubleshooting TipsOperating Instructions
Safety Instructions
Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.
If your range is removed for cleaning, servicing or any reason, be sure the anti-tip
device is re-engaged properly when the range is replaced. Failure to take this
precaution could result in tipping of the range and cause injury.
Care and cleaning of the range.
ge.com
Sealed Burner Assemblies
Turn all controls OFF before removing the
burner parts.
The round side burner caps and burner
heads can be lifted off, making them easy to
clean. The electrodes are not removable.
The oval center burner head and cap
assembly can be lifted off, making it easy
to clean. The burner electrode is not
removable.
CAUTION: Do not operate the
cooktop without all burner parts and grates in place.
The electrode of the spark igniter
is exposed when the burner head is
removed. When one burner is turned
to LITE, all the burners spark. Do not
attempt to disassemble or clean
around any burner while another
burner is on. An electric shock may
result, which could cause you to
knock over hot cookware.
Side grate
Burner head
Burner cap
Electrode
Electrode
Cooktop
Burner head
and cap
assembly
Center
griddle
Electrode
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
32
Care and cleaning of the range.
Burner Caps and Heads
Before removing the burner caps and heads,
remember their size and location. Replace them in
the same location after cleaning.
NOTE: Do not use steel wool or scouring powders to
clean the burner parts.
Burner caps
Lift off when cool. Wash burner caps in hot,
soapy water and rinse with clean water. You
may scour with a plastic scouring pad to
remove burned-on food particles.
Burner Heads and Oval (Center) Burner
Head/Cap Assembly
The burner heads and the oval burner head/cap
assembly are removable. Simply lift them off the
range for cleaning.
For proper ignition, make sure the
small hole in the section that fits over the
electrode is kept open. A sewing needle
or wire twist-tie works well to unclog it.
The slits in the burner heads must be kept clean
at all times for an even, unhampered flame.
Clogged or dirty burner ports or
electrodes will not allow the burner to
operate properly.
Any spill on or around an electrode must
be carefully cleaned. Take care to not hit an
electrode with anything hard or it could be
damaged.
Clean the burner heads routinely, especially
after bad spillovers, which could clog the
openings. Lift off when cool.
To remove burned-on food, soak the
burner heads in a solution of mild liquid
detergent and hot water for 20–30 minutes.
For more stubborn stains, use a toothbrush.
After cleaning
Before putting the burner caps, heads and
oval head/cap assembly back, shake out
excess water and then dry them thoroughly
by setting in a warm oven for 30 minutes.
Replacement
Burner Heads
Replace burner heads over the electrodes
on the cooktop, in the correct locations
according to their size. There is one small,
one medium, one large and one extra large
burner head.
Make sure the slot in the burner head is
positioned over the electrode.
Oval (Center) Burner Head/Cap Assembly
Replace the oval (center) head/cap
assembly over the electrode on the cooktop.
Caps
Replace the matching size caps onto the
burner bases or heads.
Make sure that the heads and caps are
replaced in the correct locations.
The oval burner head/cap assembly is
removable. Simply lift it off the range
for cleaning. Use a sewing needle or
twist-tie to unclog the small hole in
the burner heads.
Electrode
Slot
Front of range
Oval head and cap
assembly
Medium head
Front of range
Large head
Small head
Extra large head
Medium cap
Front of range
Large cap
Small cap
Extra large cap
Slot
Electrode
The burner heads are removable.
Simply lift them off the range for
cleaning.
Make sure the slot in the
burner head is positioned
over the electrode.
Burner heads
Hole in
burner
head
Slot
Electrode
To clean the outside glass finish, use a glass
cleaner. Rinse and polish with a dry cloth.
Consumer Support
Installation Instructions Troubleshooting TipsOperating InstructionsSafety Instructions
33
Glass Window
ge.com
Cooktop Surface
To avoid damaging the porcelain enamel
surface of the cooktop and to prevent it from
becoming dull, clean up spills right away.
Foods with a lot of acid (tomatoes, sauerkraut,
fruit juices, etc.) or foods with high sugar
content could cause a dull spot if allowed
to set.
When the surface has cooled, wash and rinse.
For other spills such as fat spatterings, etc.,
wash with soap and water once the surface
has cooled. Then rinse and polish with a
dry cloth.
NOTE: Do not lift the cooktop. Lifting the cooktop can
lead to damage and improper operation of the range.
NOTE: Do not store flammable materials in
an oven, drawer or near the cooktop. Do not
store or use combustible materials, gasoline or
other flammable vapors and liquids in the vicinity
of this or any other appliance.
Stainless Steel Surfaces (on some models)
Do not use a steel wool pad; it will scratch
the surface.
To clean the stainless steel surface,
use warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface in
the direction of the grain. Follow the cleaner
instructions for cleaning the stainless steel
surface.
To inquire about purchasing stainless steel
appliance cleaner or polish, or to find the
location of a dealer nearest you, please call
our toll-free number:
National Parts Center 1.800.626.2002
ge.com
Burner Grates
Your range has three professional-style double
grates. These grates are position-specific. For
maximum stability, these grates should only be
used in their proper position; they cannot be
interchanged left to right or front to back. For
convenience, the undersides of the left and
right grates are marked “LEFT FRONT” and
“RIGHT FRONT.” Make sure the front
portion of both grates is in front. The middle
grate has a bow in front. Make sure the bowed
portion is toward the front of the range.
Cleaning
Lift out when cool. Grates should be washed
regularly and, of course, after spillovers. Wash
them in hot, soapy water and rinse with clean
water. When replacing the grates, be sure they
are positioned securely over the burners.
Replace the grates so that continuous arcs are
formed with the center ribs of all three grates.
Do not operate a burner for an extended
period of time without cookware on the grate.
The finish on the grate may chip without
cookware to absorb the heat.
To get rid of burned-on food, place the grates
in a covered container. Add 1/4 cup ammonia
and let them soak several hours or overnight.
Wash, rinse well and dry.
Although they are durable, the grates
will gradually lose their shine, regardless
of the best care you can give them. This
is due to their continual exposure to high
temperatures. You will notice this sooner
with lighter color grates.
NOTE: Do not clean the grates in a self-cleaning oven.
The grates may be cleaned in a
dishwasher.
Appearance may vary.
Left Front
Right Front
Center
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
Care and cleaning of the range.
Griddle
NOTES:
■ The griddle is to be used over the center
burner only.
■ Do not clean the griddle in a dishwasher.
■ Wash with hot, soapy water after each use
while using a sponge or dishcloth.
■ If oil or food residue is left on the griddle,
further cooking will harden the residue and cause
sticking over time. In this case, use a non-abrasive
cleanser such as Bon Ami
®
or one of the soft
scrub cleansers. Apply with a sponge, Scrunge
®
or other cleaning pad labeled safe for non-
stick pans.
■ Use only plastic, nylon or wooden utensils or
SilverStone
®
kitchen tools to prevent marring
of the coating.
■ Never use knives or cut food on the griddle.
Wash with hot, soapy water after each use.
Store carefully to prevent scratching.
Griddle Precautions:
■ If something has spilled under the griddle, it
should be cleaned up as soon as possible to
prevent “baked on” food soil.
■ Do not allow grease to accumulate under the
griddle as it can be a fire hazard. Clean under the
griddle as soon as it is cool. Clean with hot soapy
water.
■ Do not place your griddle in the microwave.
■ Always turn off all surface burners before
removing the griddle. Use caution when handling
a hot griddle.
34
35
Oven Heating Elements
Do not clean the bake element or the broil element.
Any soil will burn off when the elements are heated.
To clean the oven floor, gently lift the bake
element. Clean with warm soapy water.
Lift-Off Oven Door
The oven door is removable, but it is heavy. You may
need help removing and replacing the door.
Do not lift the door by the handle. Make sure the
oven is completely cool.
To remove the door, open it a few inches to
the special stop position that will hold the
door open. Grasp firmly on each side and
lift the door straight up and off the hinges.
NOTE: Be careful not to place hands between the
hinge and the oven door frame as the hinge could
snap back and pinch fingers.
To replace the door, make sure the hinges
are in the special stop position. Position the
slots in the bottom of the door squarely
over the hinges. Then lower the door slowly
and evenly over both hinges at the same
time. If the hinges snap back against the
oven frame, pull them back out.
To clean the inside of the door:
■ Do not allow excess water to run into
any holes or slots in the door.
■ Because the area inside the gasket is
cleaned during the self-clean cycle, you
do not need to clean this by hand. Any
soap left on the liner causes additional
stains when the oven is heated.
■ The area outside the gasket can
be cleaned with a soap-filled plastic
scouring pad.
Do not allow food spills with a high sugar or acid
content (such as milk, tomatoes, sauerkraut, fruit
juices or pie filling) to remain on the surface.
They may cause a dull spot even after cleaning.
To clean the outside of the door:
■ Use soap and water to thoroughly clean
the top, sides and front of the oven door.
Rinse well. You may also use a glass
cleaner to clean the glass on the outside
of the door.
■ Spillage of marinades, fruit juices, tomato
sauces and basting materials containing
acids may cause discoloration and should
be wiped up immediately. When the
surface is cool, clean and rinse.
■ Do not use oven cleaners, cleansing
powders or harsh abrasives on the
outside of the door.
Lift the door straight up and off the
hinges.
The gasket is designed with a gap
at the bottom to allow for proper
air circulation.
Do not rub or clean the door
gasket—it has an extremely low
resistance to abrasion.
If you notice the gasket becoming
worn, frayed or damaged in any way
or if it has become displaced on the
door, you should have it replaced.
ge.com
Consumer Support
Installation Instructions Troubleshooting TipsOperating Instructions
Safety Instructions
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
36
Care and cleaning of the range.
Removable Lower Oven Drawer (on some models)
Most cleaning can be done with the drawer
in place. However, the drawer may be
removed if further cleaning is needed. Use
soap and warm water to thoroughly clean.
To remove the drawer:
Pull the drawer straight out until
it stops.
Press the tabs on both sides in, while
pulling the drawer forward and free.
To replace the drawer:
Place the left drawer rail around the
inner left rail guide and slide it in
slightly to hook it.
Place the right drawer rail around the
inner right rail guide and slide it in
slightly to hook it.
Slide the drawer all the way in.
NOTE: Before performing any adjustments,
cleaning or service, disconnect the range electrical
power supply at the household distribution panel
by removing the fuse or switching off the circuit
breaker. Make sure the drawer heating element
is cool.
Removable Lower Oven Drawer Pan
NOTE: Allow lower oven drawer to cool before
removing pan.
NOTE: Wipe spills promptly after each use.
■ Never place, use or self-clean the lower
oven drawer pan in the upper oven.
■ Lower oven drawer has a removable pan
for easy cleaning. Clean with hot, soapy
water and a sponge or dish towel. Dry
with a clean cloth. An oven cleaner, such
as Easy-Off
®
, may also be used. Be sure to
follow the directions on the oven cleaner.
Replace the pan in the lower oven
drawer.
NOTE: Before performing any adjustments,
cleaning or service, disconnect the range electrical
power supply at the household distribution panel
by removing the fuse or switching off the circuit
breaker. Make sure the drawer heating element
is cool.
37
ge.com
Upper Control Panel
Lock out the touch pads before cleaning.
See the Control Lockout information in the
Special features of your oven control section
in this manual.
Clean up splatters with a damp cloth.
You may also use a glass cleaner.
Remove heavier soil with warm soapy water.
Do not use abrasives of any kind.
Unlock the touch pads after cleaning.
See the Control Lockout information in the
Special features of your oven control section
in this manual.
Oven Air Vents
Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly with correct combustion.
Air openings are located at the rear of
the cooktop, at the top and bottom of the
oven door, and at the bottom of the range,
under the lower oven drawer.
Lower Control Panel and Knobs
It’s a good idea to wipe the control panel
after each use of the oven. Clean with
mild soap and water or vinegar and water,
rinse with clean water and polish dry with
a soft cloth.
Do not use abrasive cleansers, strong liquid
cleaners, plastic scouring pads or oven
cleaners on the control panel—they will
damage the finish. A 50/50 solution of
vinegar and hot water works well.
The control knobs may be removed for easier
cleaning.
Make sure the knobs are in the OFF
positions and pull them straight off the
stems for cleaning.
The knobs can be cleaned in a dishwasher
or they may also be washed with soap and
water. Make sure the insides of the knobs are
dry before replacing.
Replace the knobs in the OFF position
to ensure proper placement.
Metal parts can be cleaned with soap and
water. Do not use steel wool, abrasives,
ammonia, acids or commercial oven
cleaners. Dry with a soft cloth.
NOTE: The lower oven drawer control knob is not
interchangeable with the surface burner knobs. Be
sure to reinstall the lower oven drawer knob to the
original location. The lower oven drawer knob may
be identified by the red line. Surface burner knobs
have a white line.
Vent appearance and location vary.
Consumer Support
Installation Instructions Troubleshooting TipsOperating Instructions
Safety Instructions
Surface burner knob
Lower oven drawer knob
Red line
38
Care and cleaning of the range.
Oven Light Replacement
CAUTION: Before replacing your
oven light bulb, disconnect the electrical power
to the range at the main fuse or circuit breaker
panel. Be sure to let the light cover and bulb
cool completely.
The oven light bulb is covered with a
removable glass cover that is held in place
with a bail-shaped wire. Remove the oven
door, if desired, to reach cover easily.
To remove:
Hold a hand under the cover so it
doesn’t fall when released. With
fingers of the same hand, firmly push
back the wire cover holder. Lift off
the cover.
Do not remove any screws to remove
the cover.
Do not touch hot bulb with a wet
cloth. Replace bulb with a 40-watt
household appliance bulb.
To replace cover:
Place it into the groove of the light
receptacle. Pull the wire forward to
the center of the cover until it snaps
into place. When in place, the wire
holds the cover firmly. Be certain the
wire is in the depression in the center
of the cover.
Connect electrical power to the range.
Oven Shelves and Drawer Racks
Clean the shelves with an abrasive cleanser.
The oven shelves may be cleaned in the
self-cleaning oven. However, the shelves
will darken in color, lose their luster and
become hard to slide if cleaned during
the self-cleaning cycle.
To make the shelves slide more easily, apply
a small amount of vegetable oil or cooking
oil to a paper towel and wipe the edges of
the oven shelves with the paper towel.
Wire cover holder.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
39
Read these instructions completely and carefully.
Installation of the range.
BEFORE YOU BEGIN
Installation of this range must conform with local codes, or in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. This range has been
design-certified by CSA International according to ANSI Z21.1, latest edition.
As with any appliance using gas and generating
heat, there are certain safety precautions you
should follow. You will find these precautions in
the Important Safety Information section in the
front of this manual. Read them carefully.
IMPORTANT: OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
NOTE: This appliance must be properly grounded.
IMPORTANT: Save these instructions for the local electrical
inspector’s use.
NOTE TO INSTALLER: Leave these instructions with the
appliance after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual and
Installation Instructions for future use.
SERVICER: The electrical diagram is in an envelope attached
to the back of the range.
FOR YOUR SAFETY
Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
If you smell gas:
Open windows.
Don’t touch electrical switches.
Extinguish any open flame.
Immediately call your gas supplier.
CAUTION: FOR PERSONAL SAFETY,
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE. REMOVE HOUSE FUSE OR OPEN CIRCUIT
BREAKER BEFORE BEGINNING INSTALLATION.
This appliance must be supplied with the proper
voltage and frequency, and connected to an
individual, properly grounded circuit, protected
by a circuit breaker or time-delay fuse, as noted
on the rating plate.
Wiring must conform to National Electric Codes.
If the electric service provided does not meet the
above specifications, have a licensed electrician
install an approved outlet.
Because range terminals are not accessible after
range is in position, flexible service conduit or cord
must be used.
ELECTRICAL REQUIREMENTS
■ This product must be installed by a licensed
plumber or gas fitter.
■ When using ball type gas shut-off valves, they
shall be the T-handle type.
■ A flexible gas connector, when used, must not
exceed 3 feet.
IN THE COMMONWEALTH OF MASSACHUSETTS
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
40
Installation of the range.
WARNING! INSTALLATION SAFETY INSTRUCTIONS
Improper installation, adjustment, alteration, service or maintenance can cause injury or property
damage. Refer to this manual. For assistance or additional information, consult a qualified installer,
service agency, manufacturer (dealer) or the gas supplier.
Never reuse old flexible connectors. The use
of old flexible connectors can cause gas leaks
and personal injury. Always use NEW flexible
connectors when installing a gas appliance.
IMPORTANT: Remove all packing material and
literature from oven before connecting gas
and electrical supply to range.
■ Have your range installed by a qualified
installer.
■ Your range must be electrically grounded
in accordance with local codes or, in the
absence of local codes, in accordance with
the National Electrical Code (ANSI/NFPA
70, latest edition).
■ Before installing your range on linoleum
or any other synthetic floor covering, make
sure the floor covering can withstand 180°F
without shrinking, warping or discoloring.
Do not install the range over carpeting
unless a sheet of 1/4″ thick plywood or
similar insulator is placed between the
range and carpeting.
■ Make sure the wall coverings around the
range can withstand heat generated by
the range up to 200°F.
■ Avoid placing cabinets above the range.
To reduce the hazard caused by reaching
over the open flames of operating burners,
install a ventilation hood over the range
that projects forward at least 5″ beyond
the front of the cabinets.
■ The ventilating hood must be constructed
of sheet metal not less than 0.0122″ thick.
Install above the cooktop with a clearance of
not less than 1/4″ between the hood and the
underside of the combustible material or
metal cabinet. The hood must be at least as
wide as the appliance and centered over the
appliance. Clearance between the cooking
surface and the ventilation hood surface
MUST NEVER BE LESS THAN 24 INCHES.
EXCEPTION: Installation of a listed microwave
oven or cooking appliance over the cooktop
shall conform to the installation instructions
packed with that appliance.
■ If cabinets are placed above the range,
allow a minimum clearance of 30″ between
the cooking surface and the bottom of
unprotected cabinets.
■ If a 30″ clearance between cooking surface
and overhead combustible material or metal
cabinets cannot be maintained, protect the
underside of the cabinets above the cooktop
with not less than 1/4″ insulating millboard
covered with sheet metal not less than
0.0122″ thick.
■ Clearance between the cooking surface
and protected cabinets MUST NEVER BE
LESS THAN 24 INCHES. The vertical distance
from the plane of the cooking surface to
the bottom of adjacent overhead cabinets
extending closer than 1″ to the plane of
the range sides must not be less than 18″.
(See the Dimensions and Clearances
illustration in this section.)
CAUTION: Items of interest to children
should not be stored in cabinets above a range or
on the backsplash of a range—children climbing on
the range to reach items could be seriously injured.
41
Read these instructions completely and carefully.
DIMENSIONS AND CLEARANCES
Provide adequate clearances between the range and adjacent combustible surfaces. These
dimensions must be met for safe use of your range. The location of the electrical outlet and pipe
opening (see Gas Pipe and Electric Outlet Locations) may be adjusted to meet specific requirements.
28
1
⁄4” to 29”
Depth with door closed (includes door handle)
Depth varies depending on model.
See specifications sheet for your model.
30”
36
1
⁄4” ±
1
⁄4”
To cabinets below
cooktop and at
the range back
30”
30”
6”
Minimum
13”
Minimum clearance
to right wallMinimum
clearance
to left wall
Maximum depth
for cabinets above
countertops
Front edge of
the range side
panel forward
from cabinet
18”
0”
1/4”
3”
Minimum to
cabinets on
either side of
the range
36”
47
3
⁄4”
Depth with door open:
46
3
⁄8”
Height
To cabinets
below cooktop
and at the
range back
0”
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
42
Installation of the range.
IMPORTANT!
Remove all tape and packaging. Make sure the burners are properly seated and level.
Take the accessory pack out of the oven.
Check to be sure that no range parts have come loose during shipping.
LOCATION GUIDELINES
Do not locate the range where it may be subject to strong drafts. Any openings in the floor or wall
behind the range should be sealed. Make sure the openings around the base of the range that
supply fresh air for combustion and ventilation are not obstructed by carpeting or woodwork.
Your range, like many other household items,
is heavy and can settle into soft floor coverings
such as cushioned vinyl or carpeting. Use care
when moving the range on this type of flooring.
It is recommended that the following simple and
inexpensive instructions be followed to protect
your floor.
The range should be installed on a sheet of
plywood (or similar material). When the floor
covering ends at the front of the range, the area
that the range will rest on should be built up
with plywood to the same level or higher than
the floor covering.
This will allow the range to be moved for cleaning
or servicing. Also, make sure your floor covering
will withstand 180°F. (See the Installation Safety
Instructions section.)
Make sure the wall coverings around your range
can withstand the heat generated (up to 200°F)
by the range. (See the Installation Safety Instructions
section.)
TOOLS YOU WILL NEED
■ Phillips and flat-blade screwdrivers
■ Pencil and ruler
■ Two pipe wrenches (one for backup)
■ Open-end or adjustable wrench
■ Nut driver or wrench: 1/4 ″
■ Drill
ADDITIONAL MATERIALS YOU MAY NEED:
■ Gas line shut-off valve
■ Pipe joint sealant or UL-approved pipe thread tape with
Teflon* that resists action of natural and LP gases.
*Teflon: Registered trademark of DuPont
■ Flexible metal appliance connector (1/2 ″ I.D.). A 5-foot
length is recommended for ease of installation but other
lengths are acceptable. Never use an old connector when
installing a new range.
■ Flare union adapter for connection to gas supply line
(3/4 ″ or 1/2 ″ NPT x 1/2 ″ I.D.)
■ Flare union adapter for connection to pressure regulator
on range (1/2 ″ NPT x 1/2 ″ I.D.)
■ Liquid leak detector or soapy water.
■ Lag bolt or 1/2 ″ O.D. Sleeve anchor (for concrete
floors only).
■ Squeeze Connector matching the size of the bracket
opening (on the range back behind the wiring cover) and the
house conduit. Obtain only if replacing the power cord with
conduit.
43
Read these instructions completely and carefully.
7
1
⁄2”
9”
3”
30
”
3”
Gas Supply Requirements
Recommended Gas Pipe Outlet Locations
Recommended area for
through-the-wall connection
of pipe stub/shut-off valve.
Recommended area for
through-the-floor connection
of pipe stub/shut-off valve.
Provide Adequate Gas Supply
Make sure you are supplying your range with
the type of gas for which it is designed.
This range is convertible for use on natural or
propane gas. If you decide to use this range on
LP gas, conversion must be made by a qualified
LP installer before attempting to operate the
range on that gas.
For proper operation, the pressure of natural
gas supplied to the regulator must be between
5″ and 13″ of water column.
For LP gas, the pressure supplied must be
between 10″ and 13″ of water column.
When checking for proper operation of the
regulator, the inlet pressure must be at least 1″
greater than the operating (manifold) pressure
as given above.
The pressure regulator located at the inlet of
the range manifold must remain in the supply
line regardless of whether natural or LP gas is
being used.
A flexible metal appliance connector used to
connect the range to the gas supply line should
have an I.D. of 1/2″ and be 5 feet in length for
ease of installation.
Your range is designed to operate at a pressure of 5″ of water column on natural gas or,
if designed for LP gas (propane or butane), 10″ of water column.
2”
This area allows
flush installation to
rear wall.
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
NOTE: Make gas connections on
the left side of the cutout opening.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
44
Installation of the range.
Electrical Power Supply Requirements
Recommended Electrical Outlet Locations
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
Provide Proper Electrical Supply
These ranges must be supplied with 208/240 volt,
60 Hz., and connected to an individual, properly
grounded circuit protected by a circuit breaker
or time-delay fuse (40 amp). The receptacle must
be NEMA 14-50R to accept the 4-prong plug
supplied with the range.
If the electrical service provided does not meet
the above specifications, it is recommended that
a licensed electrician install an approved outlet.
■ Locate the electric supply as illustrated.
7
1
⁄2”
8”
4”
30”
3”
Product is shipped with 4-prong
plug. Recommended outlet is a
NEMA 14-50R receptacle.
2
1
⁄4”
Wall Mounted
NOTE: Make electrical connections
on the right side of the cutout opening.
45
Read these instructions completely and carefully.
Connect the Range to the Gas Supply
Because hard piping restricts movement of the
range, the use of a CSA International-certified
flexible metal appliance connector is recommended
unless local codes require a hard-piped connection.
Never use an old connector when installing a
new range. If the hard piping method is used,
you must carefully align the pipe; the range
cannot be moved after the connection is made.
To prevent gas leaks, put pipe joint compound
on, or wrap pipe thread tape with Teflon*
around, all male (external) pipe threads.
Install a manual gas line shut-off valve in the
gas line in an easily accessed location outside
of the range. Make sure everyone operating
the range knows where and how to shut off
the gas supply to the range.
Install male 1/2″ flare union adapter to
the 1/2″ NPT internal thread elbow at inlet
of regulator. Use a backup wrench on the
regulator fitting to avoid damage.
When installing the range from the front,
remove the 90° elbow for easier installation.
Install male 1/2″ or 3/4″ flare union
adapter to the NPT internal thread of the
manual shut-off valve, taking care to backup
the shut-off valve to keep it from turning.
Connect flexible metal appliance connector
to the adapter on the range. Position range
to permit connection at the shut-off valve.
When all connections have been made, make
sure all range controls are in the off position
and turn on the main gas supply valve. Use
a liquid leak detector at all joints and
connections to check for leaks in the system.
When using test pressures greater than 1/2 psig
to pressure test the gas supply system of the
residence, disconnect the range and individual
shut-off valve from the gas supply piping. When
using test pressures of 1/2 psig or less to test the
gas supply system, simply isolate the range from
the gas supply system by closing the individual
shut-off valve.
*Teflon: Registered trademark of DuPont
CAUTION: DO NOT USE A
FLAME TO CHECK FOR GAS LEAKS.
Shut off the main gas supply valve before disconnecting the old range and leave it off until the
new hookup has been completed. Don’t forget to relight the pilot on other gas appliances when
you turn the gas back on.
Flexible Connector Hookup Rigid Pipe Hookup Options
Pressure
regulator
Gas Flow into Range
Flex
connector
(6 ft. max.)
Adapter
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
1/2″ or 3/4″
Gas pipe
Adapter
Gas
shut-off
valve
Pressure
regulator
45° Elbow
Nipple
Union
90° Elbow
Black
iron pipe
Union
Nipple
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Gas Flow into Range
Installer: Inform the consumer of the
location of the gas shut-off valve.
Gas Flow into Range
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Pressure
regulator
Nipple
90° Elbow
90° Elbow
Adapter
Adapter
90° Elbow
Quick connect
or union
Installer: Inform the consumer of the
location of the gas shut-off valve.
Alternate Hookup
Nipple
Nipple
90°
Elbow
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Remove the wire cover (on the back of
the range) by removing two (2) screws
using a 1/4” nut driver.
Do not discard these screws.
Remove the 3 lower power cord terminal
screws from the terminal block and the
ground screw and plate.
Place the terminal screws and ground
screw in safe location for later use.
Loosen the strain relief screws and
remove the power cord.
NOTE: The replacement power cord must be a
3-conductor or a 4-conductor UL-listed range cord
or conduit. Cords may be provided with ring terminals
on wire and a strain relief device.
Follow the 3-wire power cord (option 5A),
3-wire conduit (option 5B) or 4-wire
conduit (option 5C) sections as
appropriate for your application.
46
Connect the Range to the Electrical Supply
Installation of the range.
Using an Existing NEMA 14-50R Receptacle
■ Plug the range power cord into a properly
grounded wall receptacle. Skip to Step 6 if
the range power cord matches the wall
receptacle.
NOTE: Your range is shipped with a 4-prong plug to be
used in a NEMA 14-50R receptacle. Should you choose
to change your plug, use only a 3-wire power cord,
3-wire conduit or 4-wire conduit. Follow the appropriate
instructions below, in Step 5, for your application.
Effective January 1, 1996, the National Electric Code
requires that new construction (not existing) utilize
a 4-conductor connection to an electric range.
A range cord rated at 40 amps with 125/250
minimum volt range is required. A 50-amp
range cord is not recommended but if used,
it should be marked for use with nominal 1
3
⁄8″
diameter connection openings. Care should
be taken to center the cable and strain relief
within the knockout hole to keep the edge
from damaging the cable.
NOTE: A 4-conductor cord is to be used when the
appliance is installed in a mobile home or when local
codes do not permit grounding through the neutral.
Skip to Step 5 if the power cord shipped on the range does not match your wall
receptacle.
Wire cover
2 screws to
remove wire
cover
Retaining tab
Back of range
Replace the Power Cord (Optional)
Terminal
block
Neutral
terminal
Ground plate
(grounding to
range)
Ground
screw
Perform this step only if the power cord shipped on the range does not match your wall receptacle.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
WARNING: The neutral or ground wire
of the power cord must be connected to the neutral
terminal located in the center of the terminal block.
The power leads must be connected to the lower left
and the lower right terminals of the terminal block.
Locate the copper ground strap on the
lower back of the range.
Loosen the upper center screw on the
terminal block.
Slide the open slotted end of the ground
strap under the upper center screw on the
terminal block. Make sure the ground strap
is all the way against the upper center screw
and tighten it in place.
Place the ground plate (removed earlier)
over the bottom of the ground strap, press
them against the range frame and attach
them with the ground screw (removed
earlier).
Insert the new power cord through the
strain relief. Allow enough slack to easily
attach the wires to the terminal block.
Insert the 3 terminal screws (removed
earlier) through each power cord terminal
ring and into the lower terminals of the
terminal block. Be certain that the center
wire (white/neutral) is connected to the
center lower position of the terminal block.
Tighten screws securely (approximately 20
inch-lbs.) into the terminal block.
Secure the strain relief in place in the
bracket by tightening the strain relief screws.
47
Read these instructions completely and carefully.
Ground strap
Terminal block
(appearance
may vary)
Neutral
terminal
Power cord
Ground
plate
Replace the Power Cord (Optional) Continued
Perform this step only if the power cord shipped on the range does not match your wall receptacle.
Ground strap
Open slotted end
3-Wire Power Cord Installation Option
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Installation of the range.
Locate the copper ground strap on the
lower back of the range.
Loosen the upper center screw on the
terminal block.
Slide the open slotted end of the ground
strap under the upper center screw on the
terminal block. Make sure the ground strap
is all the way against the upper center screw
and tighten it in place.
Place the ground plate (removed earlier)
over the bottom of the ground strap, press
them against the range frame and attach
them with the ground screw (removed
earlier).
Remove the strain relief clamp from the
bracket.
Assemble the squeeze connector (obtained
locally), matching the diameter of your
conduit, in the bracket hole. Insert the
conduit through the squeeze connector.
Allow enough slack to easily attach the wires
to the terminal block.
NOTE: Do not install the conduit without a
squeeze connector.
Insert the center bare wire (white/neutral)
tip through the bottom center terminal
block opening. On certain models, the wire
will need to be inserted through the ground
strap opening and then into the bottom
center block opening. Insert the two side
bare wire tips into the lower left and the
lower right terminal block openings.
Tighten the screws until the wire is firmly
secure (approximately 20 inch-lbs.).
NOTE: Make sure the wire is completely
inserted into the terminal block and a
secure connection is made.
Secure the squeeze connector in place in
the bracket by tightening the squeeze
connector screws.
NOTE: ALUMINUM WIRING:
Aluminum building wire may be used but it must
be rated for the correct amperage and voltage to
make connection.
Replace the Power Cord (Optional) Continued
3-Wire Conduit Installation Option
Perform this step only if the power cord shipped on the range does not match your wall receptacle.
Wire tips
Terminal
block
Conduit
Bracket
Conduit
Squeeze connector
Bracket
Ground strap
Open slotted end
48
Wire used, location and enclosure of splices, etc.,
must conform to good wiring practices and local
codes.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
4-Wire Conduit Installation Option
Replace the Power Cord (Optional) Continued
Perform this step only if the power cord shipped on the range does not match your wall receptacle.
Replace the wire cover on the range back by
sliding its right edge under the retaining tab and
replacing the two screws removed earlier. Make
sure that no wires are pinched between the cover
and the range back.
49
Remove the strain relief clamp from the
bracket.
Assemble the squeeze connector (obtained
locally), matching the diameter of your
conduit, in the bracket hole. Insert the
conduit through the squeeze connector.
Allow enough slack to easily attach the wires
to the terminal block.
NOTE: Do not install the conduit without a
squeeze connector.
Insert the ground bare wire tip between the
range frame and the ground plate (removed
earlier) and secure it in place with the
ground screw (removed earlier). Insert the
bare wire (white/neutral) tip through the
bottom center of the terminal block
opening. Insert the two side bare wire tips
into the lower left and the lower right
terminal block openings. Tighten the screws
until the wire is firmly secure (approximately
20 inch-lbs.).
NOTE: Make sure the wire is completely
inserted into the terminal block and a
secure connection is made.
Secure the squeeze connector in place in
the bracket by tightening the squeeze
connector screws.
NOTE: ALUMINUM WIRING:
Aluminum building wire may be used but it must
be rated for the correct amperage and voltage to
make connection.
Wire used, location and enclosure
of splices, etc., must conform to good wiring
practices and local codes.
Read these instructions completely and carefully.
Wire
cover
2 screws to
replace
wire cover
Retaining tab
Back of range
Replace the Wire Cover
Conduit
Squeeze connector
Bracket
Terminal
block
Ground plate
(grounding to
range)
Bracket
Wire tips
Ground
screw
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
Burner Heads (on some models)
Place burner heads over the electrodes
on the cooktop, in the correct locations
according to their size. There is one small,
one medium, one large and one extra large
burner head.
Oval (Center) Burner Head/Cap Assembly
Place the oval (center) head/cap assembly
over the electrode on the cooktop.
Caps
Place the matching size caps onto the burner
bases or heads.
Make sure that the heads and caps are
replaced in the correct locations.
Grates
Place the left, right and center grates on the
cooktop. These grates are position specific.
The undersides of the left and right grates
are marked “LEFT FRONT” and “RIGHT
FRONT.” Place the middle grate with its
bowed front toward the front of the range.
CAUTION: Do not operate the burner
without all burner parts in place.
Check Ignition of Surface Burners
Operation of all cooktop burners should be
checked after the range and gas supply lines
have been carefully checked for leaks.
Electric Ignition
Select a top burner knob and simultaneously
push in and turn to LITE position. You will hear
a clicking sound indicating proper operation of
the spark module. Once the air has been purged
from the supply lines, burners should light within
4 seconds. After burner lights, rotate knob out of
the LITE position. Try each burner in succession
until all burners have been checked.
50
Installation of the range.
Seal the Openings
Seal any openings in the wall behind the range
and in the floor under the range when hookups
are completed.
Assemble Surface Burners
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
Medium head
Front of range
Large head
Small head
Extra large head
Electrode
Slot
Front of range
Oval head and cap
assembly
Medium cap
Front of range
Large cap
Small cap
Extra large cap
Make sure the slot in the
burner head is positioned
over the electrode.
Left Front
Right Front
Center
Make sure the slot
in the burner head is
positioned over the
electrode.
Electrode
Slot
51
Read these instructions completely and carefully.

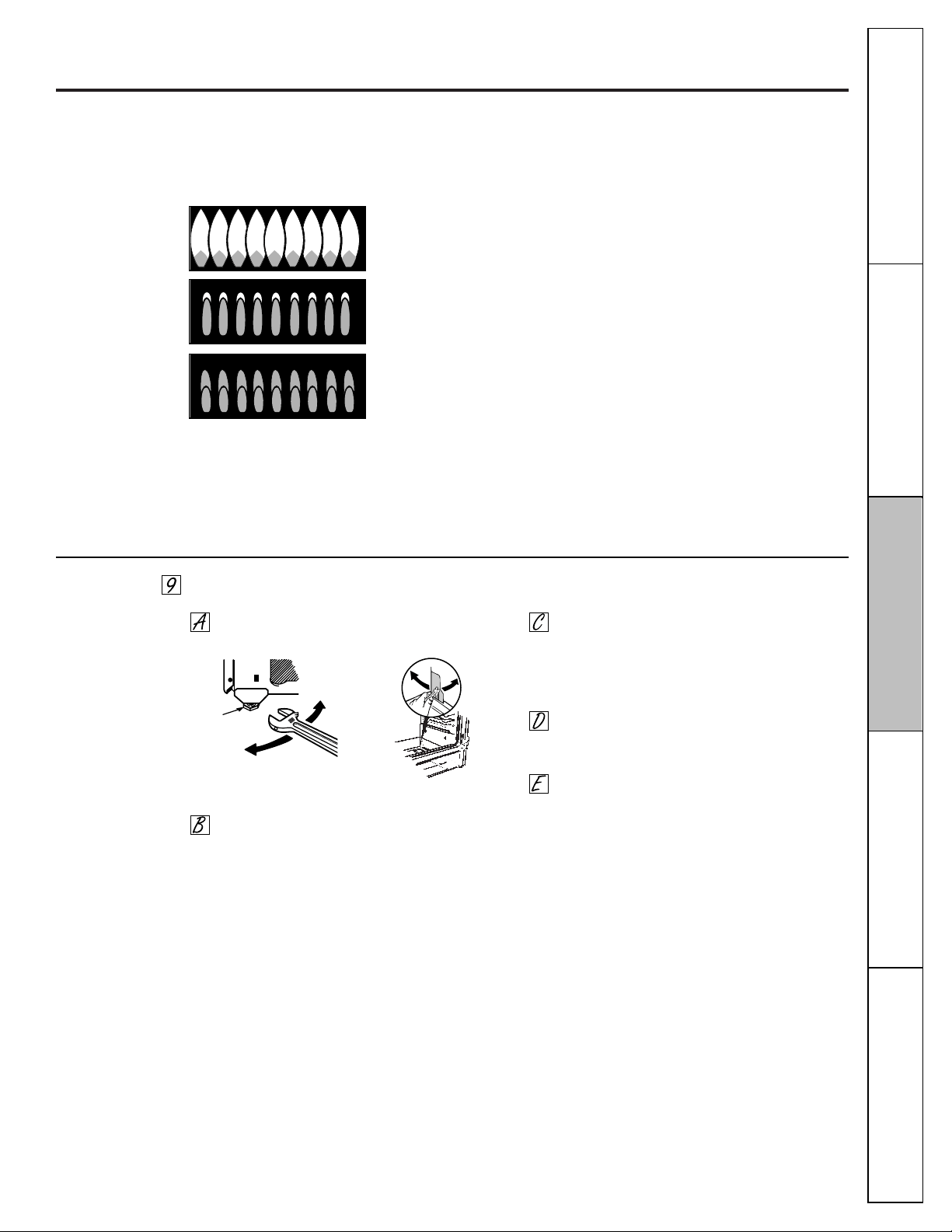

Level the Range
Install the oven shelves in the oven and
position the range where it will be installed.
Check for levelness by placing a spirit level
or a cup, partially filled with water, on one
of the oven shelves. If using a spirit level,
take two readings—with the level placed
diagonally first in one direction and then
the other.
Remove the warming drawer. See the Care
and cleaning of the range section. The front
leveling legs can be adjusted from the
bottom and the rear legs can be adjusted
from the top or the bottom.
Use an open-end or adjustable wrench to
adjust the leveling legs until the range is
level.
After the range is level, slide the range away
from the wall so that the Anti-Tip device can
be installed.
Leg
leveler
Lower
range
Raise
range
(on some models)
Raise
range
Lower
range
(on some models)
Quality of Flames
The combustion quality of burner flames needs
to be determined visually.
If burner flames look like (A), call for service. Normal burner
flames should look like (B) or (C), depending on the type of
gas you use.
With LP gas, some yellow tipping on outer cones
is normal.
(A) Yellow flames—
Call for service
(B) Yellow tips on
outer cones—
Normal for LP gas
(C) Soft blue
flames—Normal
for natural gas
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
52
Install the Anti-Tip Device
An Anti-Tip bracket is supplied with
instructions for installation in a variety
of locations. The instructions include
all necessary information to complete the
installation. Read the Safety Instructions
and the instructions that fit your situation
before beginning installation.
WARNING:
■ Range must be secured by Anti-Tip bracket
supplied.
■ If the Anti-Tip device supplied with the range
does not fit this application, use the universal
Anti-Tip device WB2X7909.
■ See instructions to install (supplied with
bracket).
■ Unless properly installed, the range could
be tipped by stepping or sitting on the door.
Injury might result from spilled hot liquids
or from the range itself.
Typical installation of anti-tip bracket attachment to wall.
Bracket
Screw must
enter wood
or metal
Wall plate
When All Hookups Are Completed:
MAKE SURE ALL CONTROLS ARE LEFT IN THE
OFF POSITION.
MAKE SURE THE FLOW OF COMBUSTION
AND VENTILATION AIR TO THE RANGE IS
UNOBSTRUCTED.
Converting to LP Gas (or converting back to natural gas from LP)
This range leaves the factory set for use with natural gas.
If you want to convert to LP gas, the conversion must be
performed by a qualified LP gas installer.
The conversion instructions and LP orifices can
be found attached to the range next to the
pressure regulator.
Keep these instructions and the orifices in case
you want to convert back to natural gas.
Installation of the range.
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
53
Before you call for service…
ge.com
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Top burners do not light Plug on range is not completely • Make sure electrical plug is plugged into a live, properly
or do not burn evenly inserted in the electrical outlet. grounded outlet.
Burner hole or slits on the side • Remove the burner caps and clean them. Check and
of the burner may be clogged. clean the electrode area for burned-on food or grease.
See the Care and cleaning of the range section.
Improper burner assembly. • Make sure the burner parts are installed correctly.
See the Care and cleaning of the range section.
Surface burners light The oven gas shut-off valve • To check the oven gas shut-off valve, remove the
but oven does not may have accidentally been drawer (see the Care and cleaning of the range section)
moved during cleaning or For lower oven drawer models, remove the rear access
moving. panel by unscrewing the thumb screws in the upper left
and right corner. Look for the gas shut-off lever at the
back of the range.
Burner flames very Improper air to gas ratio. • If range is connected to LP gas, contact the person
large or yellow who installed your range or made the conversion.
Control signals after You forgot to enter a bake • Touch the BAKE pad and desired temperature or the
entering cooking time temperature or cleaning time. SELF CLEAN pad and desired clean time.
or start time
Food does not bake Oven controls improperly set. • See the Using the upper oven section.
or roast properly
Shelf position is incorrect. • See the Using the upper oven section.
in the upper oven
Incorrect cookware or cookware • See the Using the upper oven section.
of improper size being used.
Oven thermostat needs • See the Adjust the upper oven thermostat—
adjustment. Do it yourself! section.
Clock not set correctly. • See the Using the clock and timer section.
Aluminum foil used improperly • See the Care and cleaning of the range section.
in the oven.
Oven bottom not securely • See the Installation of the range section.
seated in position.
Lever is
shown closed.
PULL TO OPEN.
Thumb screws
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
54
Problem Possible Causes What To Do
Food does not Oven controls improperly set. • Make sure you touch the BROIL HI/LO pad.
broil properly
Oven door not closed. • See the Using the upper oven section.
in the upper oven
Improper shelf position • See the Broiling Guide.
being used.
Food being cooked in • For best results, use a pan designed for broiling.
a hot pan. Make sure it is cool.
Cookware not suited • For best results, use a pan designed for broiling.
for broiling.
Oven bottom not securely • See the Installation of the range section.
seated in position.
Upper oven temperature Oven thermostat • See the Adjust the oven thermostat—Do it yourself!
too hot or too cold needs adjustment. section.
Clock and timer Plug on range is not completely • Make sure electrical plug is plugged into a live,
do not work inserted in the electrical outlet. properly grounded outlet.
A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
Oven controls improperly set. • See the Using the clock and timer section.
Upper oven light Light bulb is loose or defective. • Tighten or replace the bulb.
does not work
Plug on range is not completely • Make sure electrical plug is plugged into a live,
inserted in the electrical outlet. properly grounded outlet.
Upper oven will not The oven temperature is too • Allow the range to cool to room temperature and
self-clean high to set a self-clean operation. reset the controls.
Oven controls improperly set. • See the Using the self-cleaning upper oven section.
“Crackling” or This is the sound of the • This is normal.
“popping” sound metal heating and cooling
during both the cooking
and cleaning functions.
Excessive smoking Excessive soil. • Touch the CLEAR/OFF pad. Open the windows to
rid the room of smoke. Wait until the LOCKED DOOR
light goes off. Wipe up the excess soil and reset the
clean cycle.
Oven door will not open Oven too hot. • Allow the oven to cool below locking temperature.
after a clean cycle
Before you call for service…
55
ge.com
Problem Possible Causes What To Do
Oven not clean after Oven controls not properly set. • See the Using the self-cleaning oven section.
a clean cycle
Oven was heavily soiled. • Clean up heavy spillovers before starting the clean cycle.
Heavily soiled ovens may need to self-clean again or
for a longer period of time.
“LOCK DOOR” flashes The self-clean cycle has been • Close the oven door.
in the display selected but the door is not
closed.
LOCKED DOOR light The oven door is locked • Touch the CLEAR/OFF pad. Allow the oven to cool.
is on when you want because the temperature
to cook inside the oven has not
dropped below the
locking temperature.
“F—and a number or You have a function error code. • Touch the CLEAR/OFF pad. Allow the oven to cool for
letter” flash in the display one hour. Put the oven back into operation.
If the function code repeats. • Disconnect all power to the range for 5 minutes and
then reconnect power. If the function error code
repeats, call for service.
“Probe” appears in This is reminding you to enter • Enter a probe temperature.
the display a probe temperature after
plugging in the probe.
Display goes blank A fuse in your home may be • Replace the fuse or reset the circuit breaker.
blown or the circuit breaker
tripped.
The clock is in the • See the Special features of your oven control section.
black-out mode.
Display flashes Power failure. • Reset the clock.
Unable to get the Oven control pads were • The BAKE and BROIL HI/LO pads must be touched at
display to show “SF” not pressed properly. the same time and held for 3 seconds.
Power outage, Power outage or surge. • Reset the clock. If the oven was in use, you must reset
clock flashes it by touching the CLEAR/OFF pad, setting the clock
and resetting any cooking function.
“Burning” or “oily” This is normal in a new oven • To speed the process, set a self-clean cycle for a
odor emitting from and will disappear in time. minimum of 3 hours. See the Using the self-cleaning
the vent oven section.
Strong odor An odor from the insulation • This is temporary.
around the inside of the oven
is normal for the first few times
the oven is used.
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
56
Before you call for service…
Problem Possible Causes What To Do
Fan noise The convection fan may turn on • This is normal. The convection fan will run until the
and off automatically. function is over or the door is opened.
Convection fan Preheat temperature • Fan will start automatically once the preheat
not working not reached. temperature is reached.
Drawer does not slide The drawer is out of alignment. • Fully extend the drawer and push it all the way in.
smoothly or drags See the Care and cleaning of the range section.
Drawer is overloaded or load • Reduce weight. Redistribute drawer contents.
is unbalanced.
Lower oven drawer or A fuse in your home may be • Replace the fuse or reset the circuit breaker.
warming drawer will blown or the circuit breaker
not work tripped.
The upper oven is self-cleaning. • Wait for the self-clean cycle to finish and the oven
to cool.
Controls improperly set. • See the Lower oven drawer section.
Excessive condensation Liquid in drawer. • Remove liquid.
in the drawer
Uncovered foods. • Cover food with lid or aluminum foil.
Temperature setting too high. • Reduce temperature setting.
Food dries out in the Moisture escaping. • Cover food with lid or aluminum foil.
lower oven drawer or
Oven drawer not fully closed. • Push drawer in until latch engages.
warming drawer
Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
57
Accessories.
Looking For Something More?
You can find these accessories and many more at ge.com (U.S.) or www.GEAppliances.ca
(Canada), or call 800.626.2002 (U.S.) or 888.261.3055 (Canada) (during normal business
hours). Have your model number ready.
Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?
NOW AVAILABLE for your range:
GE’
s innovative, self-cleanable porcelain-coated oven racks!
• Heavy Duty
• Durable
• Able to be cleaned in a self-cleaning oven
Visit ge.com (U.S.) or www.GEAppliances.ca (Canada) for more
information.
Grates
Broiler Pan
Light Bulbs Knobs
Cleaner
Surface Burner Caps
Oven and Drawer Racks
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
Notes.
58
59
Notes.
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Troubleshooting Tips
Consumer Support
Notes.
60
61
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
GE Service Protection Plus
™
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus
™
—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁
Cut here
Consumer Product Ownership Registration
Im
p
o
rta
n
t
M
ail
T
o
d
a
y!
First
Name
Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■
Street
Address
City
State
Date Placed
In Use
Month
Day
Year
Zip
Code
Apt. #
Last
Name
Phone
Number
_
_
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at ge.com.
1
23
Model Number Serial Number
✁
Cut here
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in
the unlikely event of
a
safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800.GE.CARES
(800.432.2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number Serial Number
E-mail Address*
62
GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KY 40225
ge.com
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other
important communications from GE Appliances (GEA).
■■ Check here if you do not want to receive communications from GEA’s carefully selected
partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR
WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy
Policy” or call 800.626.2224.
63
Consumer Support
Operating Instructions
Safety Instructions
Installation Instructions Troubleshooting Tips
■ Service trips to your home to teach you how to use
the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused,
or used for other than the intended purpose or
used commercially.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service
Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
For The Period Of: GE Will Replace:
One Year Any part of the range which fails due to a defect in materials or workmanship. During this
From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and in-home service
original purchase to replace the defective part.
GE Dual Fuel Range Warranty.
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
®
technician. To schedule service,
on-line, 24 hours a day, visit us at ge.com, or call 800.GE.CARES
(800.432.2737). Please have serial number and model number
available when calling for service.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided
in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability
or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
Printed in Mexico
This book is printed on recycled paper.
GE Appliances Website ge.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts or even schedule service on-line.
Schedule Service ge.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal
business hours.
Real Life Design Studio ge.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties ge.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories ge.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Contact Us ge.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance ge.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the preprinted registration card included in the packing material.
Consumer Support.
