Operating and Installation Instructions
Wine Conditioning Unit
To prevent accidents and machine damage, read these instructions
before installation or use.
en-US M.-Nr. 11 347 500
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 5
Caring for the environment ................................................................................ 12
Saving energy ...................................................................................................... 13
Guide to the appliance........................................................................................ 14
Control panel......................................................................................................... 14
Explanation of symbols ......................................................................................... 15
Accessories ......................................................................................................... 17
Accessories supplied ............................................................................................ 17
Optional accessories............................................................................................. 17
Stainless steel door panel ................................................................................ 17
Switching the wine conditioning unit on and off .............................................. 18
Operating the wine conditioning unit .................................................................... 18
Switching the wine conditioning unit on .......................................................... 18
Switching the wine conditioning unit off .......................................................... 19
Switching off for longer periods of time ................................................................ 20
Selecting additional settings.............................................................................. 21
Safety lock ........................................................................................................ 21
Temperature unit (Celsius or Fahrenheit)............................................................... 22
Acoustic signals............................................................................................... 24
Display brightness ............................................................................................ 25
Sabbath mode ................................................................................................... 26
Optimum temperature and air quality ............................................................... 28
Temperature .......................................................................................................... 28
Setting the temperature.................................................................................... 29
Temperature range ........................................................................................... 30
Temperature display ......................................................................................... 30
Air quality and humidity......................................................................................... 31
Using DynaCool (constant humidity) .......................................................... 31
Air filtration with the Active AirClean filter ........................................................ 32
Temperature and door alarm.............................................................................. 33
Feature lighting.................................................................................................... 35
Switching the feature lighting on and off.............................................................. 35
Setting the brightness of the feature lighting ................................................... 35
Lighting duration of the feature lighting ........................................................... 36
Contents
3
Storing wine bottles ............................................................................................ 38
Wooden shelves.................................................................................................... 39
Moving the wooden shelves............................................................................. 39
Adjusting the wooden shelves ......................................................................... 40
Labeling the wooden racks .............................................................................. 41
Setting up the 3D bottle presenter ................................................................... 41

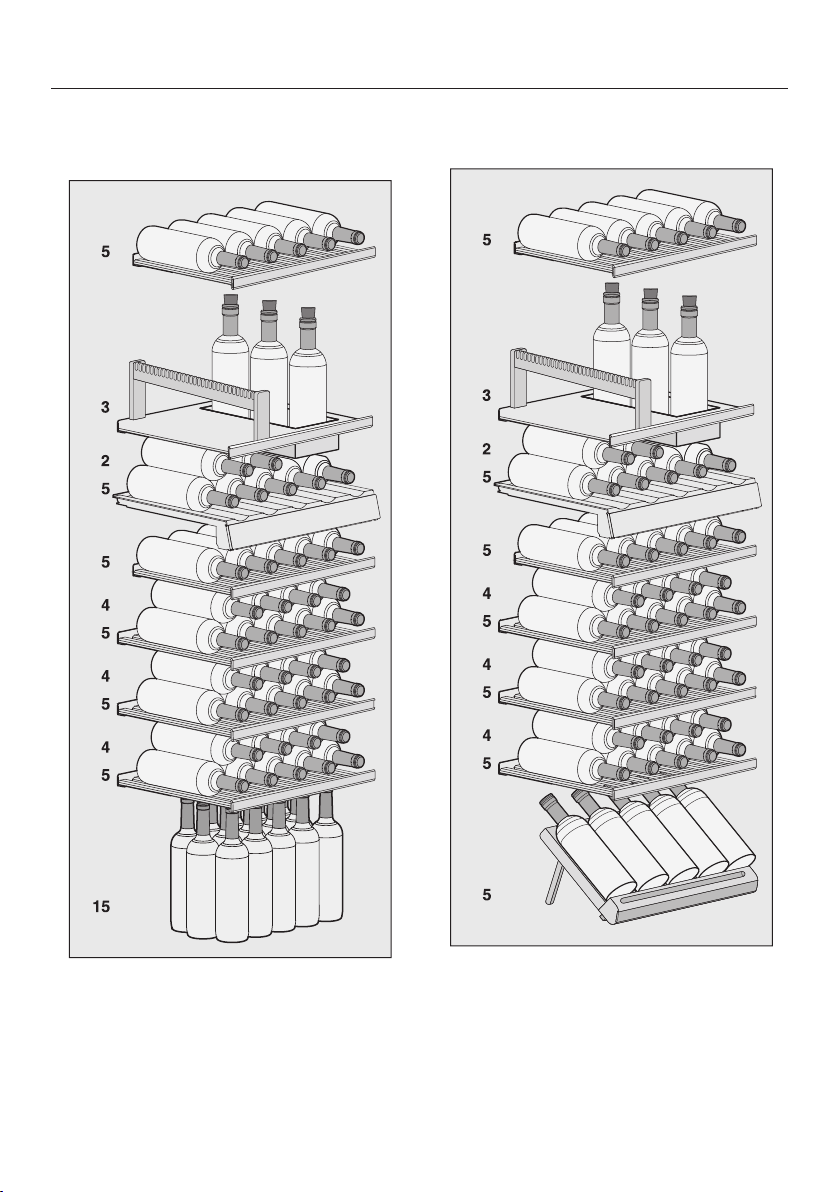

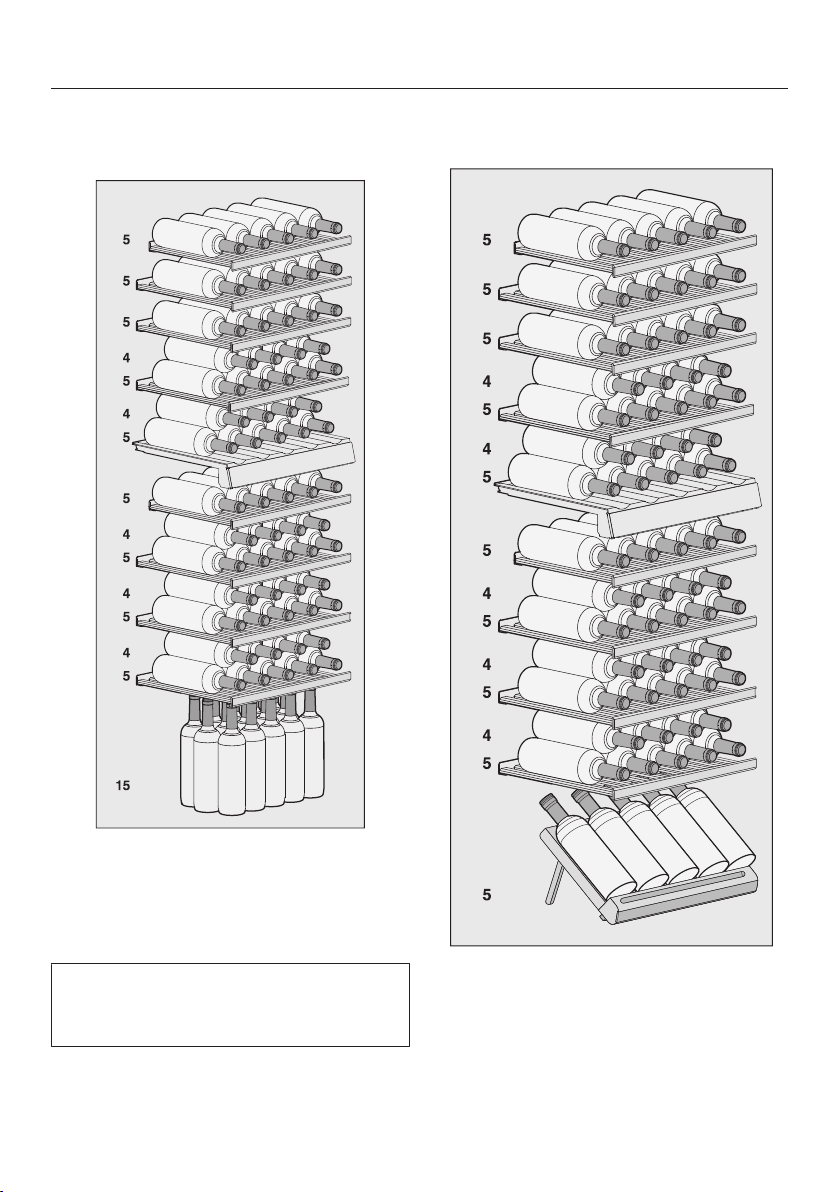

Maximum capacity ................................................................................................ 42

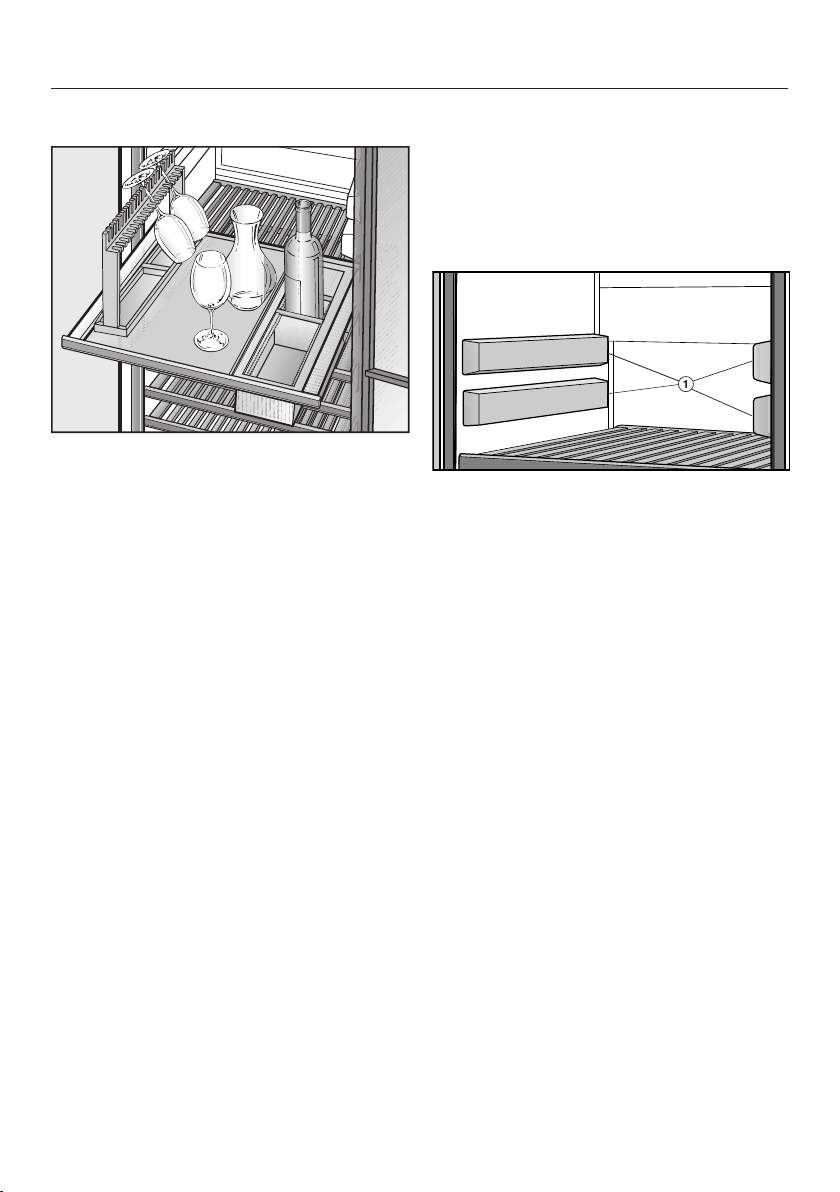

SommelierSet ...................................................................................................... 45
Setting up the SommelierSet ................................................................................ 45
Fitting the runner covers .................................................................................. 45

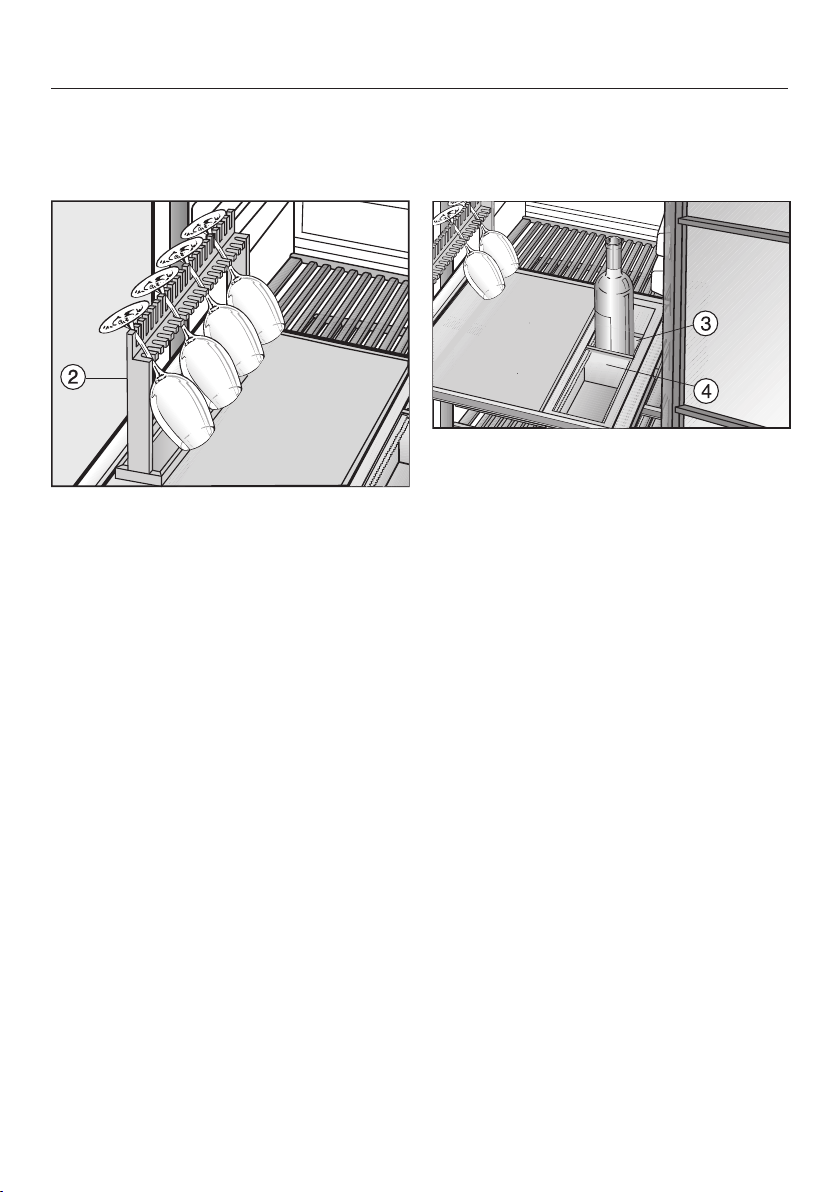

Inserting the glass holder ................................................................................. 46
Inserting the bottle holder ................................................................................ 46
Automatic defrosting .......................................................................................... 47
Cleaning and care ............................................................................................... 48
Cleaning agents..................................................................................................... 48
Before cleaning the wine conditioning unit ........................................................... 49
Interior, accessories, and appliance door ............................................................. 49
Cleaning the ventilation grilles............................................................................... 50
Cleaning the door seal .......................................................................................... 50
After cleaning ........................................................................................................ 50
Active AirClean filter ........................................................................................... 51

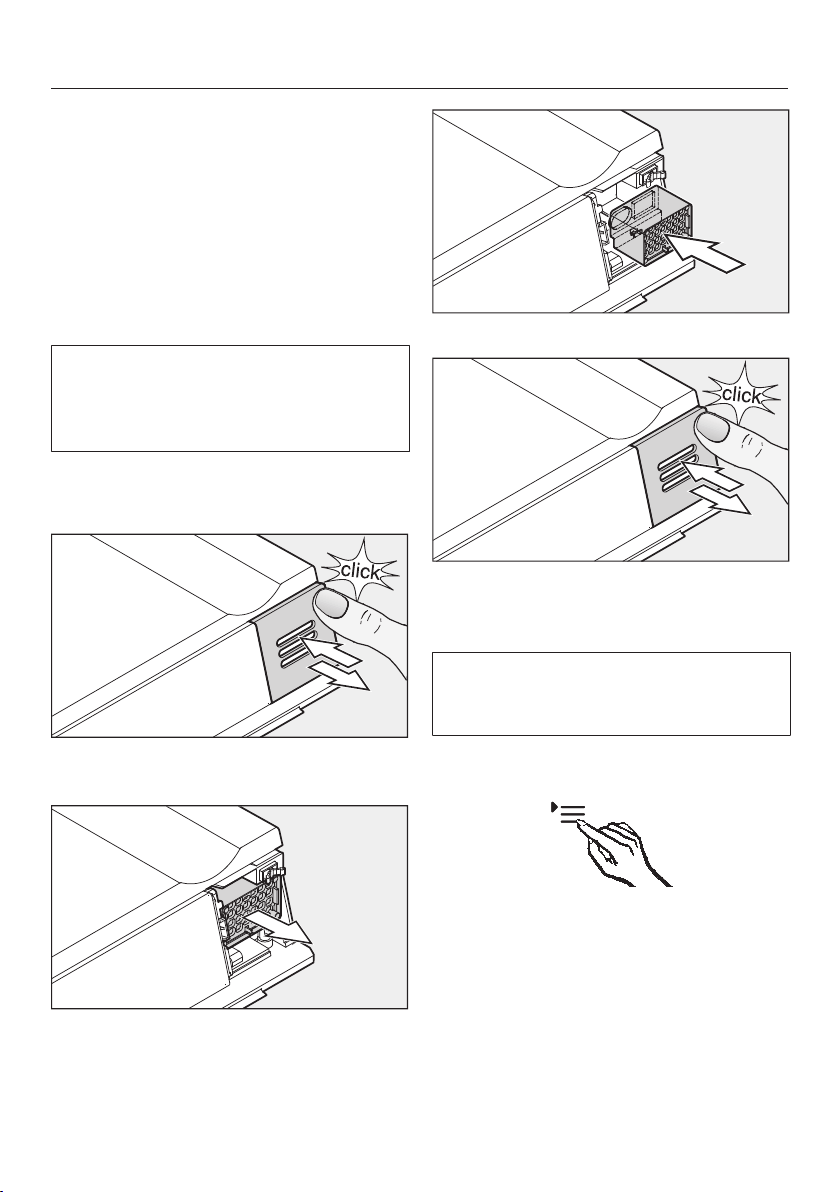

Replacing the Active AirClean filters ..................................................................... 51
Frequently Asked Questions .............................................................................. 53
Causes of noises ................................................................................................. 58
Technical Service................................................................................................. 59
Contact in case of fault ......................................................................................... 59
Warranty ................................................................................................................ 59
Installation............................................................................................................ 60
Installation location ............................................................................................... 60
Load-bearing capacity of the niche floor .............................................................. 61
Climate class ......................................................................................................... 62
Side-by-side.......................................................................................................... 62

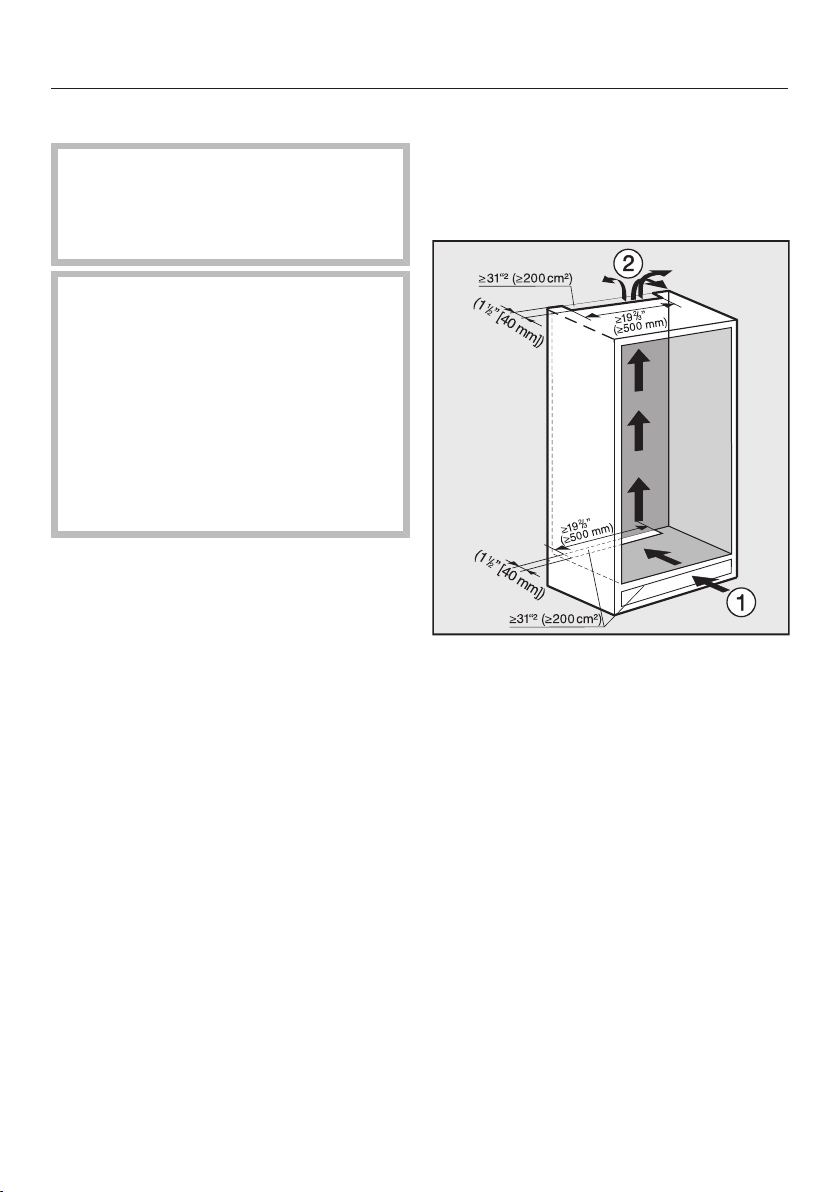

Ventilation.............................................................................................................. 63
Contents
4
Custom door panel................................................................................................ 64
Horizontal and vertical gaps............................................................................. 64
Weight of the custom door panel ..................................................................... 65
Installation dimensions..................................................................................... 66
Custom door panel dimensions ....................................................................... 67

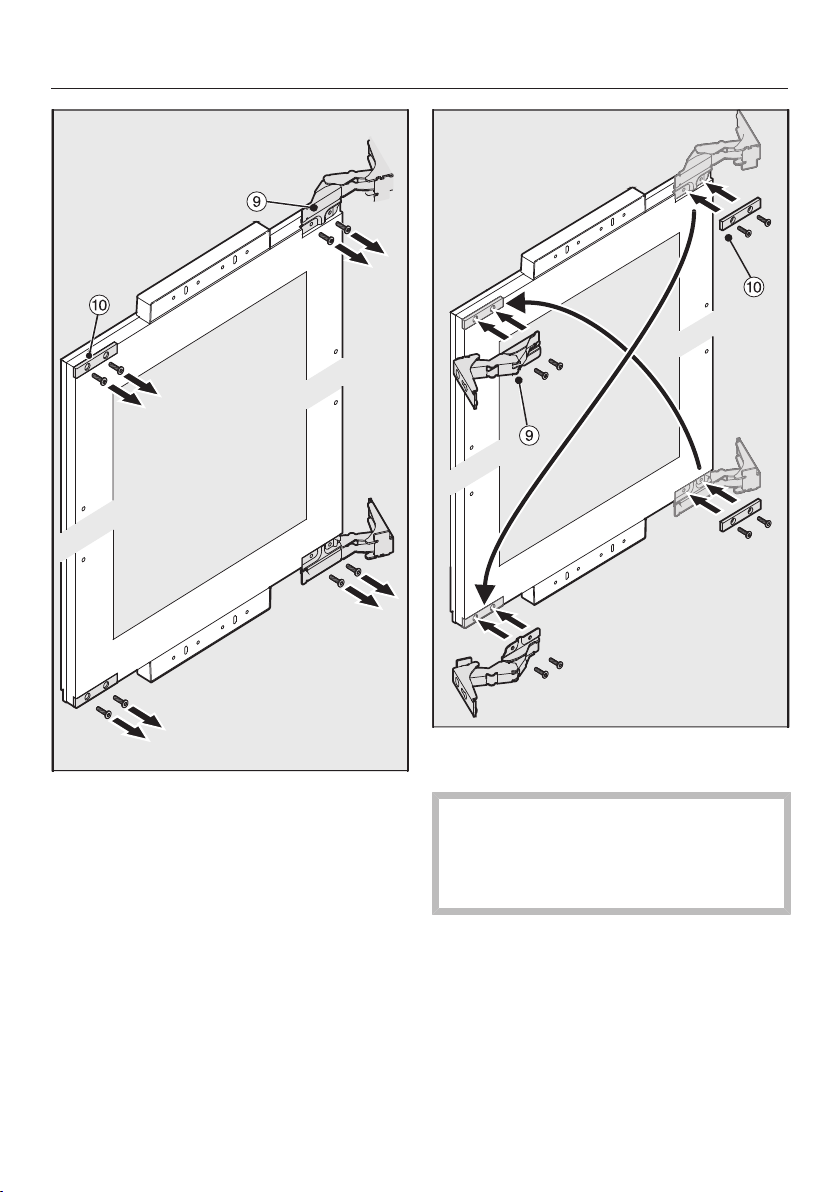

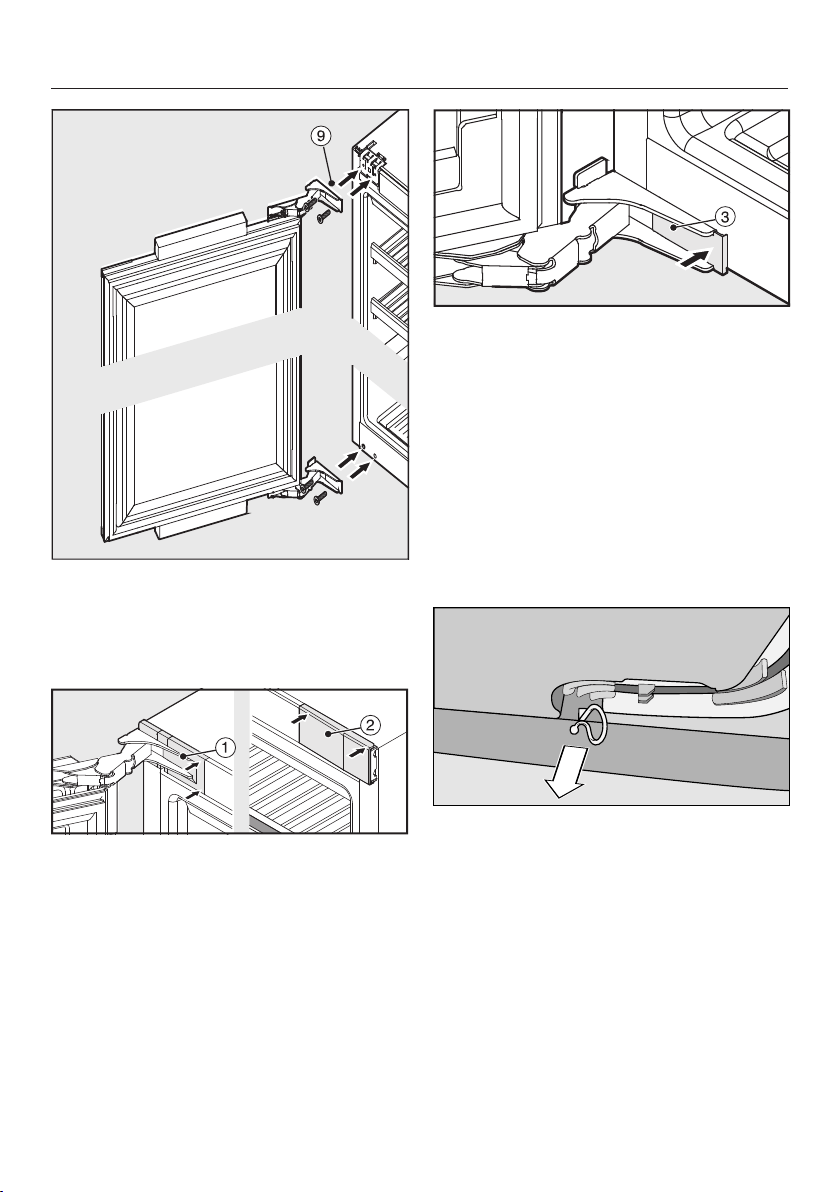

Reversing the door hinge ...................................................................................... 67
Before installing the wine conditioning unit........................................................... 71
Installing the wine conditioning unit ...................................................................... 72
Preparing the wine conditioning unit................................................................ 73
Electrical connection ............................................................................................. 85
Information for dealers ....................................................................................... 87
Demo mode........................................................................................................ 87
IMPORTANT SAFETY INSTRUCTIONS
5
When using the appliance, follow basic safety precautions, including the fol-
lowing:
Read all instructions before installation and use to prevent accidents and ma-
chine damage.
This wine conditioning unit complies with all current local and na-
tional safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the wine conditioning unit. They contain important informa-
tion on safety, installation, use, and maintenance. This is to protect
yourself from injury, and from damaging your wine conditioning
unit.
Please read and follow the instructions in the chapter on installing
the wine conditioning unit, as well as the safety instructions and
warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Risk of injury from broken glass.
If installed at altitudes above 4920 ft. (1,500m), there is a risk of
the glass in the door breaking because of changes in air pressure.
Shards of glass can cause severe injury.
IMPORTANT SAFETY INSTRUCTIONS
6
Use
This wine conditioning unit is intended for use in domestic house-
holds and similar residential environments such as
– staff kitchen areas in shops, offices and other working environ-
ments
– farm houses and by clients in hotels, motels and other residential
type environments
– bed and breakfast type environments
– catering and similar non-retail applications.
This wine conditioning is not intended for use outdoors, in damp en-
vironments or in places exposed to rain.
The wine conditioning unit is intended for domestic use only for
storing wine.
It must not be used for any other purpose.
The wine conditioning unit is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations or other such
materials or products. Incorrect use of the wine conditioning unit for
such purposes can cause deterioration of the items stored. The wine
conditioning unit is not suitable for use in areas where there is a risk
of explosion.
Miele cannot be held liable for damage resulting from improper or in-
correct use of the appliance.
Children
Children near the wine conditioning unit must be supervised. Do
not let children play with the wine conditioning unit.
Ensure that any packing material is disposed of safely and kept
out of the reach of children. DANGER of suffocation!
IMPORTANT SAFETY INSTRUCTIONS
7
Technical safety
The refrigerant circuit has been checked for leaks. The wine con-
ditioning unit complies with statutory safety requirements and the
appropriate EU directives.
This wine conditioning unit contains the coolant Isobutane
(R600a), a natural gas which is environmentally friendly. The coolant
does not damage the ozone layer and does not contribute to the
greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the compres-
sor, you might be able to hear the coolant flowing around the cooling
circuit. Unfortunately, this cannot be avoided, but it does not affect
the performance of the wine conditioning unit.
When transporting and installing the wine conditioning unit, ensure
that no parts of the cooling circuit are damaged. Splashes of coolant
can damage the eyes.
In the event of damage:
– Avoid open flames or anything which creates a spark.
– Disconnect the wine conditioning unit from the electricity supply.
– Ventilate the room where the wine conditioning unit is located for
several minutes.
– Contact Miele Technical Service.
The more coolant there is in a wine conditioning unit, the larger
the room it should be installed in. In the event of a leakage, if the
wine conditioning is in a small room, there is the danger of com-
bustible gases building up. For every 0.38oz (11g) of coolant at
least 35.3 cubic feet (1m
3
) of room space is required. The amount of
coolant in the wine conditioning unit is stated on the data plate in-
side the wine conditioning unit.
IMPORTANT SAFETY INSTRUCTIONS
8
To avoid the risk of damage to the wine conditioning unit, make
sure that the connection data (fuse rating, frequency and voltage) on
the data plate corresponds to the household supply.
Check that this is the case before connecting the wine conditioning
unit. Consult a qualified electrician if in any doubt.
The electrical safety of the wine conditioning unit can only be
guaranteed when correctly grounded. It is essential that this stan-
dard safety requirement is met. If in any doubt please have the elec-
trical installation tested by a qualified electrician.
Reliable and safe operation of the wine conditioning unit can only
be guaranteed if it is connected to the power supply.
If the power cord is damaged, it must be replaced by a Miele au-
thorized technician in order to protect the user from harm.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
If moisture gets into electrical components or into the power cord,
it could cause a short circuit. Therefore, do not operate the wine
conditioning in areas where there may be moisture or splashing wa-
ter (e.g., garages, laundry rooms).
This wine conditioning unit must not be used in a non-stationary
location (e.g. on a ship).
Before installation and use check the wine conditioning unit for
any visible damage. Do not operate or install a damaged appliance.
To ensure safe operation, use the wine conditioning unit only
when it has been installed.
The wine conditioning unit must be disconnected from the power
supply during installation, side-by-side heater installation, mainte-
nance and repair work. The appliance is only disconnected from the
power supply if:
– the circuit breaker has been tripped, or
IMPORTANT SAFETY INSTRUCTIONS
9
– the circuit breaker has been tripped, or
– the power cord has been unplugged. Pull on the plug and not on
the cord when removing it from the outlet.
Installation, repair, and maintenance work should only be per-
formed by a Miele-authorized service technician.
Work by unqualified persons could be dangerous and may void the
warranty.
Repairs and other work performed by unauthorized persons could
be dangerous and may void the warranty.
Defective components should only be replaced by Miele original
parts. Only with these parts can the manufacturer guarantee the
safety of the appliance.
Proper use
The wine conditioning unit is designed for use within a certain cli-
mate range (ambient temperatures) and should not be used outside
this range. The climate range for your wine conditioning unit is stated
on the data plate inside the appliance. Installing it in a room with too
low an ambient temperature will cause the compressor to shut down
for longer periods of time so that the unit cannot maintain the re-
quired temperature.
Do not cover or block the air vents. This can impair the efficiency
of the appliance, increase the power consumption and cause dam-
age to the appliance.
If the wine conditioning unit is used for storing food which con-
tains fat or oil, make sure that it does not come into contact with
plastic components. Any spillages of oil or fat could cause stress
cracks to the plastic and cause it to break or split.
Risk of fire and explosion. Do not store explosive materials in the
wine conditioning unit or any products containing propellants (e.g.,
spray cans). Electrical components can cause flammable mixes of
gases to ignite.
IMPORTANT SAFETY INSTRUCTIONS
10
Risk of explosion. Do not operate any electrical appliances inside
the wine conditioning unit. Risk of sparking and explosion.
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
Cleaning and care
Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
Do not use a steam cleaning appliance to clean this wine condi-
tioning unit.
The steam could reach electrical components and cause a short cir-
cuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the wine conditioning unit. Do not use
sharp edged or pointed objects to
– remove frost and ice,
– remove labels, stickers etc.
IMPORTANT SAFETY INSTRUCTIONS
11
Transport
Always transport the wine conditioning unit in an upright position
and in its original transport packaging to avoid damage in transit.
Risk of injury and damage. The wine conditioning unit is very
heavy and must be transported by two people.
Disposing of your old appliance
If your old wine conditioning unit or refrigerator has a door lock,
destroy it.
This will prevent the risk of children playing accidentally locking
themselves in and endangering their lives.
Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
– puncturing the coolant channels in the evaporator,
– kinking any pipework,
– scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. There is no risk during normal oper-
ation.
The oil in the compressor can be fatal if swallowed or if it pene-
trates the airways.
SAVE THESE INSTRUCTIONS AND PASS THEM ON TO ANY FUTURE USER
Caring for the environment
12
Disposal of packaging material
The packaging is designed to protect
the wine conditioning unit from damage
during transportation. The packaging
materials used are selected from mate-
rials which are environmentally friendly
for disposal and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Return
the packaging to your dealer.
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed.
Take care not to damage the pipework
at the back of your wine conditioning
unit before or during transportation to
an authorized, environmentally friendly
collection depot.
This way, coolant in the pipework and
oil in the compressor will be contained,
and will not leak into the environment.
Please ensure that your old appliance
does not pose a danger to children
while being stored prior to disposal.
See “IMPORTANT SAFETY INSTRUC-
TIONS” for more information.
Saving energy
13
Normal
energy consumption
Increased
energy consumption
Installation/Main-
tenance
In a well-ventilated room. In an enclosed, poorly venti-
lated room.
Protected from direct sun-
light.
In direct sunlight.
Away from heat sources (ra-
diator, range/oven).
Near a heat source (radiator,
oven).
Where the ideal room tem-
perature is approx. 68°F
(20°C).
Where the ambient room
temperature is above 77°F
(25°C).
Ventilation gaps unob-
structed and dusted regu-
larly.
Where the ventilation gaps
are blocked and full of dust.
Temperature
setting
50° to 54°F / 10° to 12°C The lower the temperature in
the appliance, the higher the
energy consumption.
Use Wooden shelves arranged
as they were when the appli-
ance was delivered.
Only open the door when
necessary and for as short a
time as possible. Store wine
bottles in an organized way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The wine conditioning unit
works harder to cool down
and the compressor runs for
longer periods.
Do not overfill the appliance
in order to allow the air to
circulate.
Poor air circulation will
cause a loss of coldness.
Guide to the appliance
14
Control panel
a
On/Off of the entire appliance
b
Optical interface
(for Miele Technical Service only)
c
For selecting the upper or lower wine conditioning zone
d
For switching the DynaCool function
(constant humidity) on and off
e
For switching the feature lighting on and off
f
For setting the temperature
( for colder)
g
For confirming your selection (OK sensor)
h
For setting the temperature
( for warmer)
i
For selecting and deselecting settings mode
j
For switching the temperature or door alarm off
k
Display with temperature display and symbols
(Symbols only visible in settings mode; see chart for an explanation of the sym-
bols)
Guide to the appliance
15
Explanation of symbols
Symbol Meaning Function
Safety lock To prevent inadvertent switching off and al-
tering of settings
°C
°F
Celsius (°C) or Fahren-
heit (°F)
For selecting the temperature unit
Acoustic signals Choice of sensor tone and door alarm tone
Miele@home (if avail-
able)
Only visible when the Miele@home commu-
nication module or communication stick is
used (see “Miele@home”)
Demo mode
(only visible when
Demo mode is active)
For turning off Demo mode
Display Brightness
Settings
For adjusting the brightness of the display
Active AirClean filter Lights up when the filter needs changing
Sabbath Mode For turning Sabbath mode on and off
Power connection
(only visible when wine
conditioning unit is
switched off)
Confirms that the wine conditioning unit is
connected to the electricity supply; flashes
in the event of a power failure
Alarm
(only visible when the
door or temperature
alarm sounds)
Lights up when there is a door alarm;
flashes when there is a temperature alarm,
power outtage or other fault
Guide to the appliance
16
a
Lighting strip
(in both wine conditioning zones)
b
Wooden shelves with labels
(FlexiFrames with Noteboard)
c
Glass holder*
d
Bottle holder* (ConvinoBox)
e
Control panel for the upper and
lower wine conditioning zones/
isolation plate for thermal separation
of the zones
f
Active AirClean filter
g
Isolation strips for thermal
separation of the conditioning zones
h
Safety glass door with
UV filter
i
3D bottle presenter
* The SommelierSet consists of:
A glass holder, a bottle holder, and 4
covers for the runners.
Accessories
17
Accessories supplied
Chalk
Use the chalk supplied to write on the
magnetic strips on the wooden shelves
for easy identification of the wines in
storage.
Optional accessories
A range of useful Miele accessories and
care products are available for your
wine conditioning unit.
Active AirClean filter
The Active AirClean filter ensures opti-
mum air exchange and therefore excel-
lent air quality in the wine conditioning
unit.
WiFi stick (Miele@home)
The WiFi stick enables your wine condi-
tioning unit to communicate, so that
you can access appliance data at any
time.
Stainless steel door panel
Stainless steel door panels give your
wine conditioning unit a high-quality ap-
pearance.
Optional accessories are available
from Miele, your Miele dealer or online
via the Miele website.
Switching the wine conditioning unit on and off
18
Before first use
Packaging material
Remove all packaging material from
the inside of the appliance.
Cleaning
Please refer to the relevant instruc-
tions in “Cleaning and care”.
Clean the inside of the wine condi-
tioning unit and the accessories.
Operating the wine condition-
ing unit
A light touch of the finger on the sen-
sors is all that is required to operate this
wine conditioning unit.
Every touch of a sensor is confirmed
with an audible keypad tone. This key-
pad tone can be switched off (see
“Acoustic signals” under “Selecting
additional settings”).
Switching the wine conditioning unit
on
When the wine conditioning unit is con-
nected to the electricity supply, the
power connection symbol will ap-
pear on the display after a short while.
Touch the On/Off sensor.
The power connection symbol will
go out and the wine conditioning unit
will start to cool.
The selected wine conditioning zone
will be highlighted yellow and the tem-
perature of the selected zone will show
on the display.
The first time the appliance is switched
on, the sensors for the wine condition-
ing zones and the alarm symbol will
flash until the selected temperature has
been reached in the zones.
As soon as the set temperature has
been reached, the sensor for the re-
spective wine conditioning zone will
light up constantly and the alarm sym-
bol will go out.
Switching the wine conditioning unit on and off
19
The interior lighting will come on when
the appliance door is opened.
Selecting settings
A different setting can be set for each
wine conditioning zone.
To do this, touch the sensor for the
wine conditioning zone for which you
want to adjust the settings.
The sensor that has been selected is
highlighted in yellow. Now you can:
– set the temperature
– switch on the DynaCool function
Tip: Please refer to the relevant sec-
tions for more information.
If you then select a different wine con-
ditioning zone, the settings for the pre-
viously selected zone will remain un-
changed.
Switching the wine conditioning unit
off
Touch the On/Off sensor.
If this does not work, the safety
lock is activated.
The sensors for the 2 wine conditioning
zones will go out in the control panel.
The temperature shown on the display
will go out and the power connection
symbol appears.
The interior lighting goes out and cool-
ing is switched off.
Switching the wine conditioning unit on and off
20
Switching off for longer peri-
ods of time
If the wine conditioning unit is not going
to be used for a longer period of time:
Switch the wine conditioning unit off.
Unplug the appliance or switch off
the breaker.
Clean the wine conditioning unit.
Leave the door to the wine condition-
ing unit ajar to enable air to circulate
and to avoid odors building up inside
it.
If, during a long absence, the wine
conditioning unit is switched off but
not cleaned and the door left shut,
there is a risk of bacteria building up
inside the appliance.
Selecting additional settings
21
Certain settings on the wine condition-
ing unit can only be selected in settings
mode.
The door alarm is automatically dis-
abled when the appliance is in set-
tings mode.
Safety lock
The safety lock can be activated to pre-
vent:
– the appliance being turned off by
mistake,
– the temperature being changed by
mistake,
– DynaCool being turned on by mis-
take,
– the feature lighting being turned on
by mistake.
Activating and deactivating the safety
lock
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Touch the OK sensor to confirm your
selection.
The last selected setting flashes and
the symbol lights up in the display.
By touching theorsensor, you
can now select whether the safety
lock is activated or deactivated:
0: the safety lock is deactivated
1: the safety lock is activated.
Touch the OK sensor to confirm your
selection.
The selected setting will be adopted
and thesymbol will flash.
Touch the settings sensor to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after ap-
proximately one minute.
Thesymbol will appear in the display
when the safety lock is activated.
Selecting additional settings
22
Temperature unit (Celsius or
Fahrenheit)
The temperature can be displayed in ei-
ther Fahrenheit °F or Celsius °C. De-
grees Fahrenheit °F is the factory set-
ting.
Setting the temperature display to
Celsius
Touch the settings sensor.
All symbols available for selection will
appear on the display and the sym-
bol will flash.
Touch the sensors for setting the
temperature (or) repeatedly until
°C and °F flash on the display.
Touch the OK sensor to confirm the
selection.
°F will flash on the display.
You can now select °C by touching
the or sensors.
Touch the OK sensor to confirm the
selection.
The selected setting is saved.
Touch the settings sensor to exit set-
tings mode.
If you do not do this, the appliance
electronics will exit settings mode au-
tomatically after approximately
1minute.
The temperature will now be displayed
in Celsius.
Selecting additional settings
23
Setting the temperature display to
Fahrenheit
Touch the settings sensor.
All symbols available for selection will
appear on the display and the sym-
bol will flash.
Touch the sensors for setting the
temperature (or) repeatedly until
°C and °F flash on the display.
Touch the OK sensor to confirm the
selection.
°C will flash on the display.
You can now select °F by touching
the or sensors.
Touch the OK sensor to confirm the
selection.
The selected setting is saved.
Touch the settings sensor to exit set-
tings mode.
If you do not do this, the appliance
electronics will exit settings mode au-
tomatically after approximately
1minute.
The temperature will now be displayed
in Fahrenheit.
Selecting additional settings
24
Acoustic signals
The wine conditioning unit has audible
tones such as the sensor tone and the
door and temperature alarms.
You can turn the sensor tone or the
acoustic door alarm on or off, but you
cannot turn off the temperature alarm.
There are four settings to choose from.
Option3is set at the factory, this
means that the sensor tone and the
door alarm are turned on.
Switching acoustic signals on/off
Touch the settings sensor.
All symbols available for selection will
appear on the display and the sym-
bol will flash.
Touch the sensors for setting the
temperature (or) repeatedly until
the symbol flashes on the display.
Touch the OK sensor to confirm the
selection.
The most recently selected setting
flashes and the symbol lights up on
the display.
Now touch the or sensors to se-
lect:
0:keypad tone off; door alarm off
1:keypad tone off; door alarm on
(after 4minutes)
2:keypad tone off; door alarm on
(after 2minutes)
3:keypad tone on; door alarm on
(after 2minutes)
Touch the OK sensor to confirm the
selection.
The selected setting is applied; the
symbol flashes.
Touch the settings sensor to exit set-
tings mode.
If you do not do this, the appliance
electronics will exit settings mode au-
tomatically after approximately
1minute.
Selecting additional settings
25
Display brightness
You can adjust the brightness of the
display to suit the ambient light condi-
tions in the room.
The display brightness can be adjusted
incrementally from1to3. The factory
default setting is 3(maximum bright-
ness).
Changing the brightness of the dis-
play
Touch the settings sensor.
All symbols available for selection will
appear in the display and the sym-
bol flashes.
Touch the sensors for setting the
temperature ( or ) repeatedly until
the symbol flashes in the display.
Touch the OK sensor to confirm your
selection.
The last selected setting flashes and
the symbol lights up in the display.
By touching the orsensor, you
can now alter the brightness of the
display:
1: Dimmest setting
2: Medium setting
3: Brightest setting.
Touch the OK sensor to confirm your
selection.
The selected setting will be adopted
and thesymbol will flash.
Touch the settings sensor to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after ap-
proximately one minute.
Selecting additional settings
26
Sabbath mode
The Sabbath mode supports the obser-
vance of religious customs.
The following are turned off:
– the interior lighting when the door is
opened,
– all acoustic and optical signals
– the temperature display,
– the DynaCool function (if previously
activated),
The following can be selected:
– the Settings sensor for turning off
Sabbath mode
– and the On/Off sensor
The Sabbath mode function will turn it-
self off automatically after approx. 120
hours.
Ensure that the wine unit door is prop-
erly closed as visual and audible
alarms are turned off.
Any interruption to the power supply
during this time will not be shown in
the display. After a power cut, the ap-
pliance restarts in Sabbath mode.
Turning on Sabbath mode
Touch the Settings sensor.
All symbols available for selection will
appear in the display and the sym-
bol flashes.
Touch the sensors for setting the
temperature ( or ) repeatedly until
the symbol flashes in the display.
Touch the OK sensor to confirm your
selection.
The last selected setting flashes and
the symbol lights up in the display.
By touching the or sensor you
can now switch on Sabbath mode. To
do this, select the 1setting.
Touch the OK sensor to confirm your
selection.
The selected setting is applied, the
symbol lights up.
Selecting additional settings
27
As soon as the symbol goes out in
the display after 3 seconds, Sabbath
mode is switched on.
Turn off Sabbath mode after the Sab-
bath has passed.
Turning off Sabbath mode
Touch the Settings sensor to leave
Sabbath mode.
The temperature will appear in the dis-
play and the interior lighting will come
on.
Optimum temperature and air quality
28
Wine continues to mature depending on
the surrounding conditions. The length
of time for which wine can be kept in
good condition will therefore depend
not only on the temperature but also on
the air quality.
The wine conditioning unit with its con-
stant ideal temperature, increased air
humidity and odor-free atmosphere of-
fers the perfect conditions for storing
your wine.
The wine conditioning unit also guaran-
tees a vibration-free environment (in
contrast to a refrigerator) so that the
maturing process is not disturbed.
Temperature
Wine can be stored at a temperature
between 42° and 64°F (6° and 18°C). If
you are storing white and red wines to-
gether, select a temperature between
53° and 57°F (12° and 14°C). This is
suitable for both white and red wines.
Red wine should be taken out of the
wine conditioning unit and opened at
least two hours before drinking to allow
it to breathe and develop its aroma.
At too high a temperature (over 72°F /
22°C), wine matures too quickly, which
prevents the aromas from developing
further. Wine cannot mature fully at too
low a temperature (below 41°F / 5°C).
Fluctuations in temperature put wine
under stress and interrupt the maturing
process. It is therefore very important to
maintain a constant temperature.
Type of wine Recommended
drinking temper-
ature
Light, fruity red
wines:
57° to 61°F (14°
to 16°C)
Full-bodied
red wines:
64°F (18°C)
Rosé wines: 46° to 50°F (8° to
10°C)
Delicate, aromatic
white wines:
46° to 54°F (8° to
12°C)
Full-bodied or
sweet white
wines:
46° to +57°F (12°
to 14°C)
Champagne,
sparkling white
wines:
43° to 50°F (6° to
10°C)
Tip: Store the wine 1° or 2° cooler than
the recommended drinking temperature
as it warms up a little when poured into
the glass.
Tip: Full-bodied reds should be opened
for 2-3 hours before drinking to allow it
to breathe and develop its aroma.
Optimum temperature and air quality
29
Safety device in case of low ambient
temperatures
The appliance is equipped with a safety
thermostat to protect your wine against
a sharp drop in temperature. If the ex-
ternal temperature should drop below
this level, a heater element turns on au-
tomatically to keep the temperature in-
side as constant as possible. If the am-
bient temperature continues to fall, the
appliance switches itself off automati-
cally.
Isolation plate for thermal separation
The wine unit comes with a fixed isola-
tion plate that divides the interior of the
unit into two separate temperature
zones. This allows you to store different
types of wine at the same time, e.g., red
wine and Champagne.
The isolation strips inside the glass
door prevent the exchange of heat be-
tween the individual zones.
Setting the temperature
The temperatures in the wine condition-
ing zones can be set independently of
one another.
Touch the sensor for the zone for
which you wish to change the tem-
perature so that it is highlighted in
yellow.
The current temperature for the se-
lected zone appears in the display.
Use the two sensors underneath the
display to set the temperature.
By touching the sensor:
– The temperature decreases.
– The temperature increases.
Touch the OK sensor to confirm your
selection
or
Wait approximately 5 seconds after
the last touch of a sensor.
The temperature being set will flash in
the display.
Optimum temperature and air quality
30
When you touch the sensors, you will
see the following changes in the dis-
play:
– With the first touch:
The last temperature set flashes.
– Each subsequent touch:
The temperature changes in 1° incre-
ments.
– Keeping your finger on the sensor:
The temperature changes continu-
ously.
A negative tone will sound (if the sen-
sor tone is switched on) when the
lowest or highest possible tempera-
ture is reached.
Approximately 5seconds after a sensor
has last been touched, the current
temperature inside the wine condition-
ing zone is shown automatically.
When the temperature is altered, there
is a short delay until the temperature
selected is set.
The temperature display in the control
panel always shows the actual tem-
perature.
Temperature range
In both zones, it is possible to set the
temperature between 41°F and 68°F
(5°C and 20°C).
A room temperature above 90°F
(32°C) may cause the temperature in
the lower section of the appliance to
increase slightly so that the tempera-
ture is approx. 2° above the tempera-
ture set for this section.
Wines which may not be stored un-
der these slightly raised temperature
conditions should preferably not be
placed on the 3D bottle presenter,
but instead should be placed on one
of the wooden shelves above it.
Temperature display
In normal operation, the temperature
display shows the actual temperature in
the zone.
If the temperature in one of the zones is
not within the range that the appliance
is able to display, dashes will light up in
the temperature display.
Depending on the ambient temperature
and the temperature setting, it can take
the appliance a few hours to reach the
temperature required and for this tem-
perature to then be shown as a con-
stant temperature in the display.
Optimum temperature and air quality
31
Air quality and humidity
In most refrigerators, the humidity is too
low for wine and therefore a refrigerator
is not suitable for wine storage. High
humidity levels are necessary when
storing wine to moisturize corks from
the outside. When the humidity is too
low the corks dry out and the bottle is
no longer tightly sealed. For this reason
wine bottles should always be stored
horizontally to ensure that corks are
also moisturized from the inside. If air
gets into the bottle, this will have a neg-
ative impact on the wine.
Risk of damage caused by ex-
cess moisture.
This will lead to condensation on the
interior walls, which can cause corro-
sion damage.
Do not introduce additional moisture
into the air, e.g., by placing a dish of
water inside the wine conditioning
unit.
Using
DynaCool (constant humidity)
DynaCool raises the relative humidity
inside the whole of the wine condition-
ing unit. It also distributes the humidity
and the temperature evenly around the
interior so that you can store all your
wine under the same excellent condi-
tions.
This will create a stable climate in the
unit which imitates that of a wine cel-
lar.
Switching on DynaCool
If you would like to use the wine condi-
tioning unit to store wine over the long
term, we recommend that you keep the
DynaCool function switched on.
Touch the sensor to switch the Dyna-
Cool function on/off. The sensor will
be highlighted in yellow.
Even if DynaCool has not been
switched on, the fans in the wine con-
ditioning unit will come on automati-
cally as soon as the cooling system
switches on. This ensures the opti-
mum climate for your wine is main-
tained.
The fans automatically switch off
when the appliance door is open.
Optimum temperature and air quality
32
Switching off DynaCool
The wine conditioning unit uses
slightly more energy and is a little
noisier when the DynaCool function is
switched on. You can switch it off now
and then if you wish.
Touch the On/Off sensor of the Dyna-
Cool function so that it is no longer
highlighted in yellow.
Air filtration with the Active AirClean
filter
The Active AirClean filter achieves opti-
mum air quality by filtering the incoming
air.
Fresh air from the room enters the ap-
pliance via the Active AirClean filter.
The fans (DynaCool function) then dis-
tribute the air evenly throughout the
wine conditioning unit.
Filtering the incoming air through the
Active AirClean filter ensures that all air
entering the appliance is fresh and free
from dust and odors.
This also ensures your wine does not
absorb any unwanted odors through
the corks.
Replace the Active AirClean filter regu-
larly. Thesymbol will appear in the
display to remind you (see “Active Air-
Clean filter”).
Temperature and door alarm
33
The appliance is equipped with an
alarm system so that the temperature
cannot rise or fall unnoticed, which
could possibly damage the wine.
Temperature alarm
If the temperature in one of the wine
conditioning zones rises or falls by a
certain amount, the sensor for that zone
will flash in the control panel and at the
same time the alarm symbol will
flash in the display. An alarm will also
sound.
The audio and visual signals are trig-
gered, for example:
– when the wine unit is switched on
and the temperature in one of the
temperature zones differs greatly
from the set temperature,
– when too much warm ambient air en-
ters the cabinet when bottles are be-
ing rearranged or taken out;
– when a large number of bottles are
stored for the first time,
– after a power outage.
The alarm will stop and the alarm sym-
bolgoes out as soon as the temper-
ature has dropped to the correct level
again. The sensor for the relevant zone
will light up constantly again.
Switching the temperature alarm off
early
If the acoustic alarm disturbs you, it can
be switched off.
Touch the sensor to turn off the tem-
perature alarm.
The alarm will stop.
The relevant wine conditioning zone will
continue to flash in the control panel
and the alarm symbol will continue
to flash in the display until the cause of
the alarm has been rectified.
Temperature and door alarm
34
Door alarm
An alarm will sound if the appliance
door has been left open for longer than
approx. 2minutes. The sensors for the
two wine conditioning zones will flash in
the control panel. The alarm symbol
lights up on the display.
As soon as the appliance door is
closed, the alarm will stop. The sensors
for the two wine conditioning zones and
the alarm symbol will go out in the
control panel.
If the alarm does not sound in the
event of a door alarm, then the alarm
has been switched off in settings
mode (see “Acoustic signals” un-
der “Selecting additional settings”).
Turning the door alarm off early
If the alarm disturbs you, it can be
turned off early.
Touch the sensor to turn off the door
alarm.
The alarm will stop.
The wine conditioning zone sensors will
continue to flash and the alarm sym-
bol will remain lit up until you close
the door.
Feature lighting
35
The interior lighting can be set to re-
main on when the door is closed so
your wines can be on display at all
times.
Each wine conditioning zone has its
own lighting strip so all zones are illumi-
nated.
Switching the feature lighting
on and
off
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
The interior lighting is now switched on,
even when the appliance door is
closed.
To switch the feature lighting off
again:
Touch the On/Off sensor for the fea-
ture lighting so that it is no longer
highlighted in yellow.
The interior lighting is now switched off
when the appliance door is closed.
Setting the brightness of the feature
lighting
The brightness of the feature lighting
can be adjusted.
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
Touch the sensor for the feature light-
ing again for approximately 4sec-
onds until flashes in the display (af-
ter 2seconds, will flash).
Use the sensors for altering the tem-
perature to set the feature lighting
brightness(and). To do this,
touch and hold the sensors. The
brightness is adjusted directly and is
infinitely variable. The results are not
visible in the display.
By touching the sensor:
– The lighting becomes dimmer.
– The lighting becomes brighter.
Feature lighting
36
Touch the OK sensor to confirm your
choice.
The set brightness is saved to memory.
The temperature display then appears
again.
As soon as the appliance door is
closed, the set brightness for the fea-
ture lighting takes effect. When the ap-
pliance door is opened, the interior
lighting returns to its normal level.
Lighting duration of the feature light-
ing
The lighting duration for the feature
lighting is set to 30minutes at the fac-
tory.
The lighting duration can be set to 30,
60, 90minutes, up to 00 (unlimited). The
feature lighting will have the brightness
setting you have selected previously.
Open the appliance door.
Touch the On/Off sensor for the fea-
ture lighting so that it is highlighted in
yellow.
Touch the sensor for the feature light-
ing again (approx. two seconds), until
theflashes in the display.
Use the sensors for altering the tem-
perature (and) to set the feature
lighting duration.
The times (in minutes) will flash in the
display.
Feature lighting
37
By touching the sensors
– the lighting duration is reduced by
30minutes
– the lighting duration is increased by
30minutes.
Touch the OK sensor to confirm your
choice.
The selected lighting duration is saved.
The temperature reappears in the dis-
play.
The set lighting duration starts again
whenever the appliance door is opened
and closed.
Thanks to the use of LED lighting, the
wine will not be adversely affected by
heat or UV light.
Risk of injury from LED lighting.
This lighting corresponds to risk
group RG2. If the cover is defective,
there is a risk of eye injury.
If the lighting cover is defective, do
not look from a close range directly
into the lighting with optical instru-
ments (e.g., magnifying glass or simi-
lar).
Storing wine bottles
38
Vibration and movement have a nega-
tive effect on the maturing process
which can in turn affect the taste of the
wine.
To avoid disturbing other bottles when
removing a bottle of wine, store bottles
of the same type beside each other on
the same shelf. Avoid stacking bottles
on top of one another on the wooden
shelves.
Always place the bottles in a horizontal
position so that the natural corks can
be kept moist on the inside and air is
prevented from getting into the bottles.
Tip: We also recommend increasing the
humidity level inside the wine condition-
ing unit for wine bottles with natural
corks (see “Using DynaCool (con-
stant humidity)” under “Optimum tem-
perature and air quality”).
Risk of injury from falling wine
bottles.
Wine bottles may become wedged in
the wooden shelves above and fall
out of the wine conditioning unit
when the shelves are pulled out.
Always pull out the wooden shelves
slowly and carefully.
Risk of damage and injury from
broken glass.
If wooden shelves and bottles pro-
trude too far forwards, they will dam-
age the glass door when it is closed.
Please ensure that the wooden
shelves and wine bottles do not pro-
trude.
Do not cover the vents in the rear
wall, as they are essential for keeping
the appliance cool.
Storing wine bottles
39
Wooden shelves
The wooden shelves are mounted on
telescopic runners which can be pulled
out to make it easier to store and re-
move bottles.
Moving the wooden shelves
The wooden shelves can be removed
and replaced again if required.
Pull the wooden shelf out until it
stops .
Release the wooden shelf at the
back, lifting the shelf on the left and
right at the same time .
Lift the wooden shelf forwards to re-
move it.
If you require more room, cover the
runners at the top on both sides
which are now not needed with the
covers supplied. The thicker side of
the cover should point forwards. The
covers are held in position with mag-
nets.
Storing wine bottles
40
To replace the wooden shelf, position
it on the extended runners. The
notches in the wooden shelf fit over
the retaining pins. The magnetic strip
should be pointing forwards.
Slide the wooden shelf back into the
appliance as far as it will go.
Push the wooden shelf right back so
that it clicks into place at the front.
Press down on the back of the
wooden shelf so that it clicks into
place at the back.
Adjusting the wooden shelves
The slats in the wooden shelves can be
individually adjusted to suit, so that ev-
ery bottle is stored in perfect safety re-
gardless of shape or size.
Simply lift individual slats to move or
remove them from the wooden
shelves. This makes it easy to adjust
the wooden shelf for any size of your
wine bottle.
Storing wine bottles
41
Labeling the wooden racks
For quick and easy identification of the
wines stored, you can write on the
blackboard-painted surface on the
magnetic strips on the wooden shelves.
Use the chalk supplied. You can write
directly on the magnetic strip or remove
it from the wooden shelf. To do so:
Hold the magnetic strip by the sides
and pull it forwards. The magnetic
strip is held on the wooden shelf by
magnets.
The magnetic strip can be wiped
clean with a damp cloth.
Risk of damage from unsuitable
cleaning methods.
Cleaning the magnetic strips with a
cleaning agent may damage the
blackboard surface on them.
Use clean water only to wipe the
magnetic strips.
Annotate the magnetic strip with the
chalk supplied and replace it on the
front of the wooden shelf.
Setting up the 3D bottle presenter
Set up the 3D bottle presenter in the
bottom of the wine conditioning unit:
Fold out the rear legs of the 3D
bottle presenter.
Simply lift individual slats on the
shelf forwards to move or remove
them from the wooden shelves. This
will adapt the 3D bottle presenter
perfectly to the size of the wine bot-
tles.
Carefully place the wine bottles on
the 3D bottle presenter.
Tip: You can place your chalk in the
chalk rest on the 3D bottle presenter
to prevent it from getting lost.
Storing wine bottles
42
If you do not wish to use the 3D bot-
tle presenter for presentation pur-
poses, simply fold down the rear
legs.
Place the 3D bottle presenter flat on
the floor of the wine conditioning unit
and push it back carefully until it
touches the back wall of the appli-
ance.
Important! The 3D bottle presenter
can only take bottles up to a maxi-
mum bottle height of
105/8" (270mm) (e.g., Piccolo bot-
tles) when laid flat in the wine condi-
tioning unit.
Risk of damage and injury.
If wooden shelves and bottles pro-
trude too far forwards, they will dam-
age the glass door when it is closed.
Please ensure that the wooden
shelves and wine bottles do not pro-
trude.
The 3D bottle presenter can only
take bottles up to a maximum bottle
height of 10 5/8" (270mm) (e.g.,
Piccolo bottles) when laid flat in the
wine conditioning unit. If you wish to
stack taller bottles, please use one of
the other shelves.
Maximum capacity
Risk of damage.
Do not exceed the maximum load-
bearing capacity of 55lb (25kg) for
each wooden shelf.
Do not stack bottles on the wooden
shelves in more than two layers.
Storing wine bottles
43
Without SommelierSet
– Without 3D bottle presenter
With the 3D bottle presenter removed,
up to 80 Bordeaux-type bottles
(0.75l) can be stored in the wine condi-
tioning unit, with 33 bottles in the upper
zone and 47 bottles in the lower zone.
The maximum capacity of 80 bottles
can only be reached if the 3D bottle
presenter is removed.
– With 3D bottle
presenter set up
With the 3D bottle presenter set up, up
to 70Bordeaux-type bottles (0.75l)
can be stored in the wine conditioning
unit, with 33 bottles in the upper zone
and 37 bottles in the lower zone.
Storing wine bottles
44
With SommelierSet
– Without 3D bottle presenter
Up to 62 Bordeaux-type bottles
(0.75l) can be stored in the wine condi-
tioning unit, with 15 bottles in the upper
zone and 47 bottles in the lower zone.
– With 3D bottle
presenter set up
With the 3D bottle presenter set up, up
to 52Bordeaux-type bottles (0.75l)
can be stored in the wine conditioning
unit, with 15 bottles in the upper zone
and 37 bottles in the lower zone.
SommelierSet
45
Setting up the SommelierSet
The SommelierSet can be used to have
your wine ready for drinking. You can
store wine glasses and accessories, de-
cant your wine, and store open bottles
in the wine conditioning unit.
You can place the SommelierSet in the
upper or lower wine conditioning zone.
Simply remove the two wooden shelves
at the top of these zones.
Fitting the runner covers
Remove both wooden shelves above
the SommelierSet by pulling them out
as far as they will go and lifting them
off the rails. To do this, hold them by
the frame.
Place the four covers supplied
over the runners which are now visi-
ble. The thicker side of the cover
should be pointing forwards.
SommelierSet
46
Inserting the glass holder
This can be used for storing and chilling
wine glasses.
To fit the glass holder, remove the
necessary number of slats from the
wooden shelf.
Place the glass holder on the
wooden shelf.
Tip: There are two compartments un-
derneath the glass rail for accessories
such as corkscrews, knives, and chalk.
Inserting the bottle holder
You can store opened wine bottles in
the bottle holder.
Remove the necessary number of
slats on the wooden shelf and place
bottle holderon it.
Position the dividersin the bottle
holder to suit the size of bottles being
held. They should be held securely
and not rattle against each other.
Tip: For wine which has been opened,
we recommend removing the oxygen
from the bottle. Otherwise, the wine will
lose its aroma and taste, and spoil more
quickly. Special devices (a wine pump
with bottle stopper, for example) create
a vacuum by extracting the air.
Automatic defrosting
47
The wine conditioning unit defrosts au-
tomatically.
Cleaning and care
48
WARNING! DANGER of electric
shock!
Unplug the appliance or trip the cir-
cuit breaker.
WARNING! Fire hazard!
Do not damage the coolant
pipework.
Do not let water get into the elec-
tronic unit or the lighting.
Do not use a steam cleaning appli-
ance to clean this wine conditioning
unit. The steam could reach electrical
components and cause a short cir-
cuit.
Do not remove the data plate located
inside the wine conditioning. It con-
tains information which is required in
the event of a service call.
Cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
– cleaning agents containing soda, am-
monia, acids, or chloride
– cleaning agents containing lime scale
remover
– abrasive cleaning agents, such as
scouring powder, scouring liquid, or
pumice stones
– cleaning agents containing solvents
– stainless-steel cleaning agents
– dishwasher cleaner
– oven sprays
– glass cleaner (except on the glass in
the appliance door)
– hard, abrasive sponges and brushes,
such as pot scrubbers
– eraser sponges
– sharp metal scrapers
Cleaning and conditioning agents
used inside the wine conditioning
unit must be food safe.
We recommend using lukewarm water
and a little liquid dish soap for cleaning.
Cleaning and care
49
Before cleaning the wine con-
ditioning unit
Switch off the appliance.
Unplug the appliance or trip the cir-
cuit breaker.
Take any wine bottles out of the wine
conditioning unit and store them in a
cool place.
Take out all other removable parts for
cleaning.
Remove the magnetic strips from the
wooden shelves before cleaning them
(see “Labeling wooden shelves”).
Interior, accessories, and ap-
pliance door
Clean the wine conditioning unit reg-
ularly, or at least once a month.
Clean up any spills, stains, or food
immediately. Do not allow them to
dry and stick to the appliance.
Clean the interior with a solution of
lukewarm water and liquid dish soap.
The wooden parts should only be
wiped with a well wrung-out damp
cloth. They must not be allowed to
get wet.
Risk of damage due to incorrect
cleaning.
The blackboard coating on the mag-
netic strips may be damaged.
Use clean water only to wipe the
magnetic strips at the front of the
wooden shelves. Do not use a clean-
ing agent.
After cleaning, wipe the interior and
accessories with a damp cloth and
dry with a soft cloth. Leave the door
open to air the wine conditioning unit
for a short while.
Clean the glass panes in the appli-
ance door with a proprietary glass
cleaner.
Cleaning and care
50
Cleaning the ventilation grilles
A build-up of dust will increase the en-
ergy consumption of the appliance.
The air vents should be cleaned on a
regular basis with a brush or vacuum
cleaner (you could use a Miele vac-
uum cleaner dusting brush, for exam-
ple).
Cleaning the door seal
Risk of damage as a result of in-
correct cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seals should be cleaned
regularly with clean water, and then
wiped dry with a soft cloth.
After cleaning
Replace all parts in the wine condi-
tioning unit.
Reconnect to the electricity supply
and switch the wine conditioning unit
back on.
Place the wine bottles back in the
wine conditioning unit and close the
appliance door.
Active AirClean filter
51
Fresh air from the room enters the wine
conditioning unit through the Active Air-
Clean filter. Filtering the incoming air
through the Active AirClean filter en-
sures that all air entering the appliance
is fresh and free from dust and odors.
The reminder to change the Active Air-
Clean filter will be displayed at the lat-
est every 12 months.
When the Change Active AirClean filter
symbol lights up in the display, the
Active AirClean filter must be
changed.
Replacing the Active AirClean
filters
Press the top right-hand cover in until
you hear it click and then release it.
Remove the filter.
Insert the new filter.
Press the top right-hand cover into
position until you hear it click and
then release it.
Active AirClean filters can be obtained
from Miele Technical Service, your lo-
cal dealer, or via the Miele website.
To confirm the filters have been
changed,
Touch the settings sensor.
All symbols available for selection will
appear in the display and the symbol
flashes.
Active AirClean filter
52
Touch the sensors for setting the
temperature ( or ) repeatedly until
the symbol flashes in the display.
Touch the OK sensor to confirm your
selection.
Thesymbol flashes in the display
(meaning: Active AirClean filter is in-
stalled in your wine conditioning unit),
the symbol lights up.
Touch the sensors for setting the
temperature (or) until the sym-
bol is displayed (meaning: the
counter has been reset).
Touch the OK sensor to confirm your
selection.
The selected setting will be adopted
and thesymbol will flash.
Touch the settings sensor to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after ap-
proximately one minute.
Thein the display goes out.
Frequently Asked Questions
53
With the help of the following guide minor faults in the performance of the ma-
chine, some of which may result from incorrect operation, can be remedied with-
out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
To prevent cold from escaping, open the appliance doors as little as possible un-
til the fault has been corrected.
Problem Possible cause and solution
The wine conditioning
unit is not getting cold,
the interior lighting
does not come on when
the door is opened, and
the display is not lit up.
The wine conditioning unit is not switched on and the
power connection symbol is lit up in the display.
Switch on the wine conditioning unit.
The plug is not properly plugged into the electrical
outlet.
Insert the plug correctly into the outlet. The power
connection symbol appears in the display
when the wine conditioning unit is switched off.
Check whether the fuse has tripped. If it has there
could be a fault with the appliance, the household
electrical wiring or another electrical appliance.
Contact a qualified electrician or Miele Technical
Service for assistance.
The symbol is dis-
played, the wine condi-
tioning unit is not get-
ting cold. However, the
appliance and the inte-
rior lighting are working
fine.
Demo mode is turned on and the symbol is illumi-
nated in the display.
Turn off Demo mode (see “Information for dealers -
Demo mode”).
Frequently Asked Questions
54
Problem Possible cause and solution
The compressor is
switching on more fre-
quently and for longer
periods of time, the
temperature in the wine
conditioning unit is fall-
ing.
The temperature in the wine conditioning unit is set
too low.
Correct the temperature setting.
The appliance door is not properly closed.
Check whether the appliance door is properly
closed.
The appliance door was opened too frequently.
Only open the door when necessary and for as
short a time as possible.
The air vents are covered over or are dusty.
Do not cover the air vents and dust them regularly.
The ambient temperature is too warm.
Decrease the ambient temperature.
The compressor comes
on less and less often
and for shorter periods
of time. The tempera-
ture inside the Wine
Storage Unit rises.
This is not a fault. The temperature setting is too
high.
Correct the temperature setting.
Check the temperature again after 24hours.
The fan runs continu-
ously although the Dy-
naCool function is not
turned on.
This is not a fault. The fan turns itself on automati-
cally at times depending on set temperature and
ambient temperature.
Frequently Asked Questions
55
Messages in the display
Message Possible cause and solution
The alarm symbol is
lit up in the display and
both wine conditioning
zone sensors flash in
the control panel. An
audible alarm is also
sounding.
The door alarm has been activated.
Close the wine unit door. Both wine conditioning
zone sensors and the alarm symbol will go out
and the acoustic alarm will stop.
The alarm symbol is
flashing in the display,
and the sensor for one
of the wine conditioning
zones is also flashing.
An alarm also sounds.
The temperature in the zone concerned has risen
higher or fallen lower than the temperature set.
Possible reasons for this include:
– The appliance door was opened too frequently.
– The ventilation gaps have been blocked.
– A prolonged power failure has occurred.
Rectify the cause of the alarm. The alarm sym-
bol goes out and the sensor for the affected
wine conditioning zone lights up again constantly.
The alarm stops.
The Change Active Air-
Clean filter symbolis
lit up.
This is the reminder to change the Active AirClean fil-
ter.
Replace the Active AirClean filter and then confirm
the filter change in settings mode (see “Active Air-
Clean Filter”).
A dash is lit up up/flash-
ing in the display.
Only temperatures within the range of the appliance
temperature will be displayed.
“F0”, “F1” or“E1” to “E8”
appears in the display.
There is a fault.
Contact the Service department.
Frequently Asked Questions
56
The interior lighting is not working.
Problem Possible cause and solution
The LED interior lighting
is not working.
The wine conditioning unit is not switched on.
Switch the wine conditioning unit on.
To avoid overheating, the LED lighting switches itself
off automatically after approx. 15minutes if the appli-
ance door is left open.
If this is not the cause, then there is a fault.
Risk of electric shock.
There are live electrical components under the light-
ing cover.
The LED lighting may only be repaired or replaced
by Technical Service.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the
cover is defective, there is a risk of eye injury.
If the lighting cover is defective, do not look from a
close range directly into the lighting with optical in-
struments (e.g., magnifying glass or similar).
Contact T
echnical Service.
The LED interior lighting
is on even when the
door is closed.
The feature lighting is turned on.
Turn the feature lighting off (see “Feature lighting”.)
Frequently Asked Questions
57
General problems with the wine conditioning unit
Problem Possible cause and solution
The door seal is dam-
aged or needs to be re-
placed.
No tools are required to change the door seal.
Change the door seal. A replacement is available
from Technical Service.
An alarm does not
sound even though the
appliance door has
been open for a long
time.
This is not a fault. The alarm tone has been
switched off in settings mode (see “Acoustic sig-
nals” under “Selecting additional settings”).
The wine conditioning
unit cannot be switched
off.
The safety lock has been activated.
Completely deactivate the safety lock (see “Acti-
vating and deactivating the safety lock” under
“Selecting additional settings”).
The slats on the
wooden shelves are
warping.
Volume change due to moisture absorption or drying
out is a typical characteristic of wood. An increase in
humidity will cause wooden components to warp,
which can lead to cracking. Knots and wavy grain are
characteristic for wood and cannot be avoided.
Bacteria has begun to
form on the wine bottle
labels.
Bacteria may form on the labels, depending on the
type of label adhesive used.
Clean the wine bottles and remove any adhesive
residue.
A white deposit has
formed on the wine bot-
tle corks.
The corks have oxidized due to contact with the air.
Use a dry cloth to wipe off the deposit. The de-
posit will not affect the quality of the wine.
Causes of noises
58
Normal noises Cause
Brrrrr... A humming noise is made by the motor (compressor). This
noise can get louder for brief periods when the motor switches
on.
Blub, blub.... A gurgling noise can be heard when the coolant circulates
through the pipes.
Click.... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Sssrrrrr.... On multi-zone wine conditioning units you can sometimes just
hear the sound of the fan inside the appliance.
Crack... A cracking sound can be heard when material inside the wine
conditioning unit expands.
Please bear in mind that a certain amount of noise is unavoidable (from the com-
pressor and the coolant circulating through the system).
Noises that you
can easily elimi-
nate
Possible cause Solution
Rattling, clinking The wine conditioning unit is
uneven.
Realign the wine condition-
ing unit using a spirit level,
by raising or lowering the
screw feet underneath the
appliance.
Shelves are unstable or stick-
ing.
Check all removable items
and refit them correctly.
Bottles or containers are
touching.
Separate them.
The transport cord clip is still
hanging on the back of the
appliance.
Remove the clip.
Technical Service
59
Contact in case of fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Technical Service.
Contact information for Miele Techni-
cal Service can be found at the end of
this document.
Please quote the model and serial num-
ber of your appliance when contacting
Miele. Both pieces of information can
be found on the data plate.
You will find the data plate inside your
appliance.
Warranty
For more information about warranty
conditions, please contact Miele Tech-
nical Service.
Installation
*INSTALLATION*
60
Installation location
Risk of injury and damage.
A wine conditioning unit that has not
been installed properly can tip up.
Keep the appliance door shut until
the wine conditioning unit has been
built in and secured in its building-in
niche in accordance with these oper-
ating and installation instructions.
Fire hazard and risk of damage.
This wine conditioning unit must not
be installed underneath a cooktop.
Fire hazard and risk of damage.
Do not install a warming drawer un-
der the wine conditioning unit.
Risk of damage.
Do not install a vacuum sealing
drawer under the wine conditioning
unit.
Risk of tipping over.
Risk of injury and damage.
If you install the wine conditioning
unit by itself in a separate housing
unit, this housing unit must be se-
curely fixed to the wall.
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your
wine conditioning unit, please bear in
mind that it will use more energy if in-
stalled near to a heater, a range, or an-
other appliance that gives off heat. Di-
rect sunlight should also be avoided.
The higher the room temperature, the
longer the compressor has to run and
the higher the energy consumption is.
When installing the wine conditioning
unit, please note:
– The electrical socket must be easily
accessible in an emergency and not
concealed behind the appliance.
– The plug and power cord must not
touch the back of the wine condition-
ing unit as they could be damaged by
vibrations from the appliance.
– Do not plug in other appliances be-
hind the wine conditioning unit.
Installation
*INSTALLATION*
61
Load-bearing capacity of the
niche floor
To ensure the safe installation of the
wine conditioning unit and to guarantee
its correct functioning, the floor of the
niche where the appliance is to be in-
stalled must be smooth and even.
It must be made from strong, rigid ma-
terial.
Because the appliance is extremely
heavy when fully loaded, it is essential
that the floor it stands on is able to bear
its weight.
When fully loaded, the weight of the
wine conditioning unit is approx.
440 lb (200kg).
Danger from broken glass!
Danger of injury due to broken glass!
If installed at altitudes above 4,900ft
(1,500m) there is a risk of the glass
in the door breaking because of
changes in air pressure. Shards of
glass can cause severe injury if not
handled with care.
Risk of damage due to high hu-
midity.
In environments with high humidity,
condensation can build up on the ex-
ternal wine conditioning unit panels,
which can cause corrosion.
Install the wine conditioning unit with
sufficient ventilation in a dry and/or
air-conditioned room.
After installation, make sure that the
appliance door closes properly, the
ventilation gaps are not covered, and
the wine conditioning unit has been
installed in accordance with these
operating and installation instruc-
tions.
Installation
*INSTALLATION*
62
Climate class
The wine conditioning unit is designed
for use within a certain climate range
(ambient temperatures) and should not
be used outside this range. The climate
range of the wine conditioning unit is
stated on the data plate inside it.
Climate class Room tempera-
ture
SN 50° to 90°F
(10° to 32°C)
N 61° to 90°F
(16° to 32°C)
ST 61° to 100°F
(16° to 38°C)
T 61° to 109°F
(16° to 43°C)
Operating in a room which is too cold
will cause the compressor to turn off for
too long, causing the internal tempera-
ture in the appliance to rise, resulting in
damage.
Side-by-side
This wine conditioning unit can be in-
stalled side-by-side with another wine
conditioning unit or refrigerator.
Your dealer will be able to advise you
which combination of models is possi-
ble with your wine conditioning unit.
Installation
*INSTALLATION*
63
Ventilation
WARNING! Fire hazard!
Operation of the wine conditioning
unit is limited. Keep the ventilation
slits free from obstruction.
If the ventilation slits are not kept
free and unobstructed the compres-
sor will switch on more often and will
run for longer.
This can cause higher energy con-
sumption and to an increased com-
pressor operating temperature,
which can result in damage to the
compressor.
Do not block the ventilation slits.
The air at the back wall of the wine con-
ditioning warms up. Therefore the cabi-
net must be constructed in such a way
that ensures unhindered ventilation (see
“Built-in dimensions”).
– The air influx enters via the plinth
and the air outlet is at the top at
the rear of the cabinet.
– To ensure ventilation an air channel of
a minimum 9/16" (40mm) depth
must be provided at the back of the
wine conditioning.
– The ventilation slits in the plinth, in
the cabinet and under the top of the
cabinet must provide a total passage
volume of at least 31 square inches
to allow the warm air to dissipate
unimpeded.
Installation
*INSTALLATION*
64
If you wish to fit a grille in the ventila-
tion openings, the ventilation open-
ings must be larger than 31 square
inches. The passage volume of 31
square inches is the total area of the
opening slits in the grille.
– Important! The larger the ventilation
slits, the more economically the wine
conditioning will work.
The ventilation slits must not be
blocked or obstructed in any way.
Clean the ventilation slits on a regu-
lar basis.
Custom door panel
Horizontal and vertical gaps
Depending on the style of kitchen cabi-
netry, the thickness and edge radius of
the custom door panel and the gap that
runs around the door, vertically and hor-
izontally, are specified.
It is essential to pay attention to the
following:
– Horizontal gap
The gap between the custom door
panel and the housing unit door above
or below it must be at least 1/8" (3mm).
– Vertical gap
If the gap between the custom door
panel and the adjoining housing unit
door or wall on the hinged side is too
small, the appliance door could col-
lide with the adjoining housing unit
door or wall when opened.
It may be necessary to adjust the
size of this gap to suit the thickness
and edge radius of the custom door
panel.
This must be taken into consideration
when planning your kitchen and when
replacing an old wine conditioning unit
with a new one to ensure the installation
conditions required are met.
Installation
*INSTALLATION*
65
Custom
door
panel
thickness
A
Gap X
for different
edge radii B
R0 R1.2 R2 R3
≥ 5/8"
-3/4"
(16-19
mm)
min. 1/8" (3 mm)
3/4"
(20 mm)
3/16"
(5
mm)
3/16"
(4
mm)
3/16"
(4
mm)
1/8"
(3.5
mm)
3/4"
(20 mm)
3/16"
(5.5
mm)
3/16"
(5
mm)
3/16"
(4.5
mm)
3/16"
(4
mm)
7/8"
(22 mm)
1/4"
(6.5
mm)
1/4"
(6
mm)
3/16"
(5.5
mm)
3/16"
(5
mm)
1 5/8"
(42 mm)
1/16"
(2 mm)
Adjoining housing unit door
A=Door panel thickness
B=Edge radius
X=Gap
1 5/8"
(42 mm)
1/16"
(2 mm)
Adjoining side wall
A=Door panel thickness
B=Edge radius
X=Gap
Tip: Fit a spacer between the housing
unit body and the side wall. This way
you will get a sufficiently wide gap.
Weight of the custom door panel
Before installing the custom door panel,
ensure that the weight of the door does
not exceed the maximum permitted
weight.
Wine condition-
ing unit
Maximum weight of
custom door pan-
elin
KWT6x22i(S) 44 lb (20 kg)
Fitting a custom door panel which is
heavier than the maximum permitted
weight could damage the hinges.
Installation
*INSTALLATION*
66
Installation dimensions
The power cord is
1101/4" (2,800mm) long.
The electrical socket must be easily
accessible in an emergency and not
concealed behind the appliance.
≥ 31"
2
≥ 21 5/8"
22 1/16"*
≥ 1 9/16"
≤ 82 11/16"
≥ 19 11/16"
22 1/16"
≥ 1 9/16"
69 3/4" + 5/8
≥ 19 11/16"
≥ 440 lb
≤ 7/8"
≤ 60 3/8"
≤ 15 1/2"
≥ 31"
2
The power cord is
1101/4" (2,800mm) long.
The electrical socket must be easily
accessible in an emergency and not
concealed behind the appliance.
Installation
*INSTALLATION*
67
Custom door panel dimensions
15 1/2" (393 mm)
60 3/8" (1533 mm)
4 5/8" (117.2 mm)
Risk of damage.
Never fit a custom door panel in front
of the glass door as this can lead to
a build up of moisture and cause
corrosion of the wine conditioning
unit.
Reversing the door hinge
The wine conditioning unit is supplied
right-hinged. If left-hand hinging is re-
quired, the hinges must be changed.
To change the door hinging, you will
need the following tools:
Risk of injury and damage.
The glass door is breakable.
The glass door is heavy (approx.
68 lb/31kg). Always change the door
hinging with the assistance of an-
other person.
Risk of injury and damage.
The glass door can drop.
When changing the door hinging,
make sure that all fixing parts are se-
curely screwed into position.
Tip: Place a suitable cover on the floor
in front of the wine conditioning unit to
protect the glass door and your floor
from damage when changing the hing-
ing.
Be careful not to damage the door
seal. If the door seal is damaged, the
appliance door may not close prop-
erly and cooling will be insufficient.
Installation
*INSTALLATION*
68
Open the appliance door and remove
covers and on the left and right
of the wine conditioning unit.
Remove cover from the bottom of
the appliance.
Unscrew the transport safety de-
vice.
Tip: Keep this device in a safe place for
refitting should the appliance need to
be moved in the future.
Risk of injury and damage.
The appliance door is not secure
once the screws in the hinges have
been removed.
The second person must support the
appliance door.
Risk of injury.
If the hinges close, there is a risk of
injury.
Leave the hinges open.
Slightly unscrew the bottom and top
screws from the hinges. The appli-
ance door must be held by a second
person while you do this.
Remove the appliance door.
Carefully place the appliance door on
a soft surface.
Now undo the screws completely.
Risk of injury.
Do not close the hinges.
Installation
*INSTALLATION*
69
6
Take off the upper retaining
bracket and replace it on the op-
posite side.
Remove the stopper from the ap-
pliance door.
Remove the spacer from the appli-
ance door, rotate it 180° and fit it on
the opposite side.
Refit the stopper on the opposite
side of the door.
Installation
*INSTALLATION*
70
Unscrew the hinges and covers
from the appliance door.
Fit the hinges and covers diago-
nally on the opposite side.
Risk of injury.
The second person must support the
appliance door during the following
steps.
Installation
*INSTALLATION*
71
Fit the screws through the hinges
at the top and bottom.
Tighten the bottom screws followed
by the top screws.
Replace top covers and and
click them into place.
Replace bottom cover and click it
into place.
Check that the wine conditioning unit
is standing securely in the building-in
niche and that the appliance door
closes properly.
Before installing the wine con-
ditioning unit
Take any accessories out of the appli-
ance.
Remove the cable clip from the back
of the appliance (depending on
model).
Installation
*INSTALLATION*
72
The door hinges on the wine condition-
ing unit are set at the factory to enable
the appliance door to be opened wide.
However, if the opening angle of the ap-
pliance door needs to be limited for any
reason, the hinge can be adjusted to
accommodate this.
If, for example, the appliance door hits
an adjacent wall when it is opened, you
should limit the opening angle of the
appliance door to 90°.
The locking pins for limiting the door
opening must be fitted before the ap-
pliance is installed.
Insert the locking pins supplied for
limiting the door opening into the
hinges from above.
The appliance door opening angle is
now limited to approx. 90°.
Installing the wine conditioning
unit
Risk of damage and injury from
the wine conditioning unit tipping
over.
There is an increased risk of injury
and damage if the wine conditioning
unit is installed by a single person.
Two people are required for installing
the wine conditioning unit.
Install the wine conditioning unit in a
stable, solid housing unit, positioned
on an even and level floor.
The building-in niche must be hori-
zontally and vertically aligned.
The required ventilation gaps must be
provided (see “Ventilation” and “In-
stallation dimensions” under “Installa-
tion”).
The following parts are supplied with
the wine conditioning unit:
All installation parts are number coded.
This coding is also used in the installa-
tion instructions.
– Required for installing the wine con-
ditioning unit in its niche:
Installation
*INSTALLATION*
73
All fitting instructions given are for a
right-hand hinged appliance. If you
have converted the appliance to left-
hand hinging, you will need to adapt
these instructions accordingly.
Preparing the wine conditioning unit
Unscrew the transport safety de-
vices from both sides on the back
of the wine conditioning unit and re-
move them upwards.
Feed the power cord through to the
electrical socket.
Risk of fire due to short circuit.
When pushing the wine conditioning
unit into its niche, make sure that the
power cord does not get trapped.
Never operate a wine conditioning
unit with a faulty power cord.
Installation
*INSTALLATION*
74
Push the wine conditioning unit two
thirds of the way into the building-in
niche.
Turn the front adjustable feet all the
way in using the wrench supplied.
Slide the filler panel supplied from
the front into the holders on the wine
conditioning unit as shown.
If the wine conditioning unit is left-
hinged, allow for the position of the
lug (see illustration above).
If the wine conditioning unit is right-
hinged, allow for the position of the
lug (see illustration above).
Installation
*INSTALLATION*
75
Unscrew the transport safety de-
vice from the front of the wine con-
ditioning unit, if you have not already
done so.
Tip: Keep this device in a safe place for
refitting should the appliance need to
be moved in the future.
With 5/8" (16mm) thick housing unit
walls only:
5
6
Clip the spacers and supplied
on the right-hand side of the hinges.
Open the appliance door.
Remove the top cover.
Screw the supplied fixing bracket
loosely with the screws supplied
into the top left of the wine condition-
ing unit (1st and 3rd hole from the
left). Do not tighten the screws so
that you can adjust the position of the
bracket later on.
Installation
*INSTALLATION*
76
Fit the stopper supplied onto the
fixing bracket also supplied.
Screw the supplied fixing bracket
loosely with the screws supplied
into the bottom of the appliance. Do
not tighten the screws so that you
can adjust the position of this part.
Push the wine conditioning unit two
thirds of the way into the building-in
niche.
Carefully remove the protective foil
from the supplied sealing strip.
Stick the sealing strip onto the
side of the appliance on which the
door will open, flush with the front.
1. Position the sealing strip flush with
the lower edge of the top fixing
bracket.
2. Stick it down along its entire length.
If necessary, insert the locking pins
supplied for limiting the door opening
into the hinges from above (see “Ad-
justing the hinges”).
Installation
*INSTALLATION*
77
Installing the wine conditioning unit
If the wine conditioning unit is
pushed too far into the building-in
niche, the appliance door will not
close properly. This can cause ice to
build up and condensate to accumu-
late, and cause the appliance to mal-
function. These issues can all lead to
increased energy consumption.
Push the wine conditioning unit into
the niche, making sure a gap of
15/8" (42mm) is maintained all
round between the appliance and the
front of the housing unit side walls.
Push the wine conditioning unit into
the niche until the fixing brackets at
the top and bottom touch the front
edge of the housing unit side wall.
– With 5/8" (16mm) thick housing unit
walls:
The spacers should touch the front
edge of the housing unit side wall at
the top and bottom.
– With 3/4" (19mm) thick housing unit
walls:
The front edges of the top and bot-
tom hinges should be flush with the
front edge of the housing unit side
wall.
Check again that securing brackets at
the top and bottom are flush with the
front edge of the housing unit side
wall.
This ensures a distance of
15/8" (42mm) to the front edges of
the housing unit side walls all the way
round.
Close the appliance door and align
the wine conditioning unit with adja-
cent cabinetry.
Align the height of the wine condi-
tioning unit as necessary on both
sides with the adjacent cabinetry by
altering the adjustable feet using the
wrench supplied.
Installation
*INSTALLATION*
78
1.
2.
Push the hinged side of the appliance
to the housing unit wall.
To secure the wine conditioning unit
to the housing unit, screw the sup-
plied particle board screws
through the hinge plates at the top
and bottom (1. + 2.).
Push the fixing brackets and
against the housing unit wall.
3
.
4.
Now secure the wine conditioning
unit to the other side of the housing
unit by screwing the supplied particle
Installation
*INSTALLATION*
79
board screws and through the
hinge plates at the top and bottom (3.
+ 4.).
Now tighten screws and.
Snap off any protruding ends from
securing brackets and. They are
no longer required and can be dis-
posed of in the household garbage.
16
Fit the cover to the top fixing
bracket.
Fit the cover supplied to the bot-
tom fixing bracket.
For additional stability of the wine con-
ditioning unit in the housing unit, push
the stabilizing rods supplied in under-
neath the appliance between it and
the floor of the housing unit:
17
17
18
18
Then secure the handle to one of
the stabilizing rods.
18
Use the handle to push the stabilizing
rod into the guide as far as it will
go. Remove the handle and fit it to
the other stabilizing rod supplied and
push this into its guide as far as it will
go.
Tip: Important! Keep the handle
somewhere safe in case you ever need
to fit the wine conditioning unit into new
cabinetry.
Installation
*INSTALLATION*
80
Check that the wine conditioning unit
is standing securely in the building-in
niche and that the appliance door
closes properly.
Installing the custom door panel
If installed in a run of units, make sure
that the top edge of the custom door
panel is at the same height as adjoin-
ing unit doors.
The door panel must be installed level,
and not under tension.
Please use the screws for the custom
door panel as well as the gap cover
included in the accessories supplied.
Open the appliance door.
Remove the covers from the top
and bottom of the appliance door.
Measure the distance X between the
top edge of the housing unit wall
above and the middle of the vertical
slots in the mounting frame.
Place the custom door panel on a
firm surface, with the external side
facing downwards (place on a blanket
or similar to avoid it becoming
scratched).
X
Y
Mark the distance X on the inner side
of the custom door panel.
Similarly, locate and mark the vertical
midpoint Y on the custom door panel.
Installation
*INSTALLATION*
81
Unscrew the nuts and remove the
mounting frame from the appliance
door.
X
Y
Position the mounting frame on the
custom door panel according to the
markings and screw it tightly using
the two screws supplied.
Open the appliance door and hang
the custom door panel from its
mounting frame onto the threaded
bolts from above.
Installation
*INSTALLATION*
82
max. 1/8" (2.5 mm)
Screw the nuts loosely onto the
threaded bolts. Do not tighten the
nuts yet.
Close the appliance door carefully
and check the distance between the
door and adjoining unit doors. The
distance should be the same.
Align the sides of the appliance door
X and the height Y using the threaded
bolts.
Installation
*INSTALLATION*
83
Close the appliance door again and
check the distance between the door
and adjoining unit doors.
Now screw on the top nuts. The
appliance door is now secured.
Secure the custom door panel to the
appliance door at the bottom using
the screws supplied.
Resecure the custom door panel at
the top using the screws supplied.
Carefully move the seal on the ap-
pliance door to one side and secure
the custom door panel to the appli-
ance door at 3 points on both sides
using the screws supplied.
Installation
*INSTALLATION*
84
Replace the covers at the top and
bottom on the appliance door.
Insert the gap cover supplied into
the gap between the custom door
panel and the appliance door.
The following confirms that the appli-
ance is correctly installed:
– The appliance door closes properly.
– The door does not touch the cabinet.
– The seal on the top corner of the
handle side is firmly seated.
To double check place a torch in the
appliance and close the door.
Turn the lights out in the room. If you
can see any light shining out from the
sides double check the installation.
Installation
*INSTALLATION*
85
Electrical connection
Danger of electric shock!
The wine conditioning unit must only
be switched on when it has been in-
stalled in accordance with the instal-
lation instructions.
Ground the wine conditioning unit.
The wine conditioning must not be
grounded via a gas pipe.
If in doubt, have a suitably qualified
and experienced electrician check
that the installation complies with rel-
evant regulations.
Do not install a fuse into neutral cur-
rent or grounding electrical circuit.
Do not use extension cords or un-
grounded (two prong) adapters.
Do not use a frayed or damaged
power cord.
Danger of electric shock!
For protection against electric shock
this wine conditioning is equipped
with a pole-free plug which is pro-
tected against reverse polarity. The
plug must be grounded in the usual
way.
Do not remove the round grounding
connector pin from the plug.
Use only a grounded plug adapter.
Wait for 1hour after installation before
plugging the wine conditioning into the
power supply. This allows coolant and
refrigerator oil to settle in accordance
with regulations.
Ensure that the voltage of the main
power supply corresponds with the
connection voltage of the wine condi-
tioning. A power supply of 110 - 120 V,
60 Hz and 15 Amp (20 Amp for side-by-
side installation) with a NEMA 5-15
molded plug, which is protected by a
main switch or a fuse, is required to op-
erate the wine conditioning unit.
The manufacturer recommends operat-
ing the wine conditioning on a separate
circuit to avoid overloading the electri-
cal circuit.
All relevant legal electrical, fire and
building regulations must be observed
when installing the socket and/or the
wine conditioning.
In certain countries wine conditioning
are required to be connected to the
electrical supply via a wall-mounted
ON/OFF switch.
To avoid the risk of fire, electric shock
or other injuries installation and connec-
tion of the appliance must be carried
out by a suitably qualified electrician in
accordance with all relevant local and
national regulations and standards, in-
cluding fire prevention.
Installation
*INSTALLATION*
86
The outlet must be easily accessible in
an emergency so that the wine condi-
tioning unit can be quickly discon-
nected from the electrical supply in
case of an emergency.
If the outlet is no longer accessible
once the appliance has been installed,
an all-pole disconnect device with a
contact opening of at least 1/8" (3mm)
must be present on site. The discon-
nect device may be circuit breaker, a
fuse, or a contactor (compliant with lo-
cal regulations).
The plug and power cord must not
come into contact with the back of the
appliance as vibrations can cause dam-
age to these components. This, in turn,
could result in a short circuit.
Do not plug in other devices behind this
wine conditioning unit.
Do not connect the wine conditioning
unit to an inverter such as those used
with an autonomous energy source e.g.
solar power. When switched on, peak
loads in the system can cause the
safety switch-off mechanism to be trig-
gered. This can damage the electronic
unit.
The wine conditioning unit must not be
used with so-called energy-saving de-
vices either. These reduce the amount
of energy supplied to the wine condi-
tioning unit, causing it to overheat.
If the power cord needs to be replaced,
this must be done by a qualified techni-
cian.
Information for dealers
87
Demo mode
The appliance can be demonstrated in
the showroom or at exhibitions in
“Demo mode”. In this mode the control
panel and interior lighting are active but
the compressor remains turned off, so
that the appliance does not cool down.
Turning on Demo mode
Switch the wine conditioning unit off
by touching the On/Off sensor.
The temperature shown in the display
will go out and the power connection
symbol appears.
Touch and hold thesensor.
At the same time, briefly touch the
On/Off sensor (without letting go of
thesensor).
Keep your finger on thesensor un-
til thesymbol appears in the dis-
play.
Then release thesensor.
Demo mode is turned on and
thesymbol is illuminated in the dis-
play.
Turning off Demo mode
Thesymbol is illuminated in the dis-
play.
Touch the settings sensor.
All symbols available for selection will
appear in the display and thesymbol
flashes.
Touch the sensors for setting the
temperature (or) repeatedly un-
til thesymbol flashes in the display.
Touch the OK sensor to confirm your
selection.
The1 symbol flashes in the display
(meaning: Demo mode is active) and
thesymbol is illuminated.
Information for dealers
88
Touch theorsensor so that the
symbol0appears in the display
(meaning: Demo mode is inactive).
Touch the OK sensor to confirm your
selection.
The selected setting will be adopted
and thesymbol will flash.
Touch the settings sensor to leave the
settings mode.
Otherwise the appliance will exit the
settings mode automatically after ap-
proximately one minute.
Demo mode is turned off and
thesymbol disappears.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Technical Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 347 500 / 00en-US
KWT 6722 iS
