User Manual Dyson 213552-01 Small Ball Allergy Compact Upright Vacuum Cleaner

• Owner's manual - (English)

Table of contents

• ASSEMBLY
• OPERATION

Owner's Guide Vacuum Cleaner

ASSEMBLY

• Lie the appliance on its back.
• Attach the cleaner head by sliding it on to the connections on the lower front part of the ball. Ensure the electrical plug on the cleaner head fits into the twin - block connection on the body of the appliance, which is directly above the airway. Push firmly: the cleaner head will click into place.
• Stand the appliance up straight.
• Slide wand into the hose.
• Push handle down until the red button clicks into the appliance.
• To fit the tool holder, first remove the cyclone and clear bin assembly: release it by pressing the red button at the top of the cyclone.
• Slide the tool holder onto the back of the appliance, just above the ball, as shown. Press the tool holder on with your thumbs, while holding the front of the appliance with your fingers. The fitting is tight, so use a constant, firm pressure. (Please note: The tool holder is not designed to be removed.)
• Refit the cyclone and clear bin unit.
• Attach the tools.
• Wind the cable around the cable hooks. Secure with the clip.

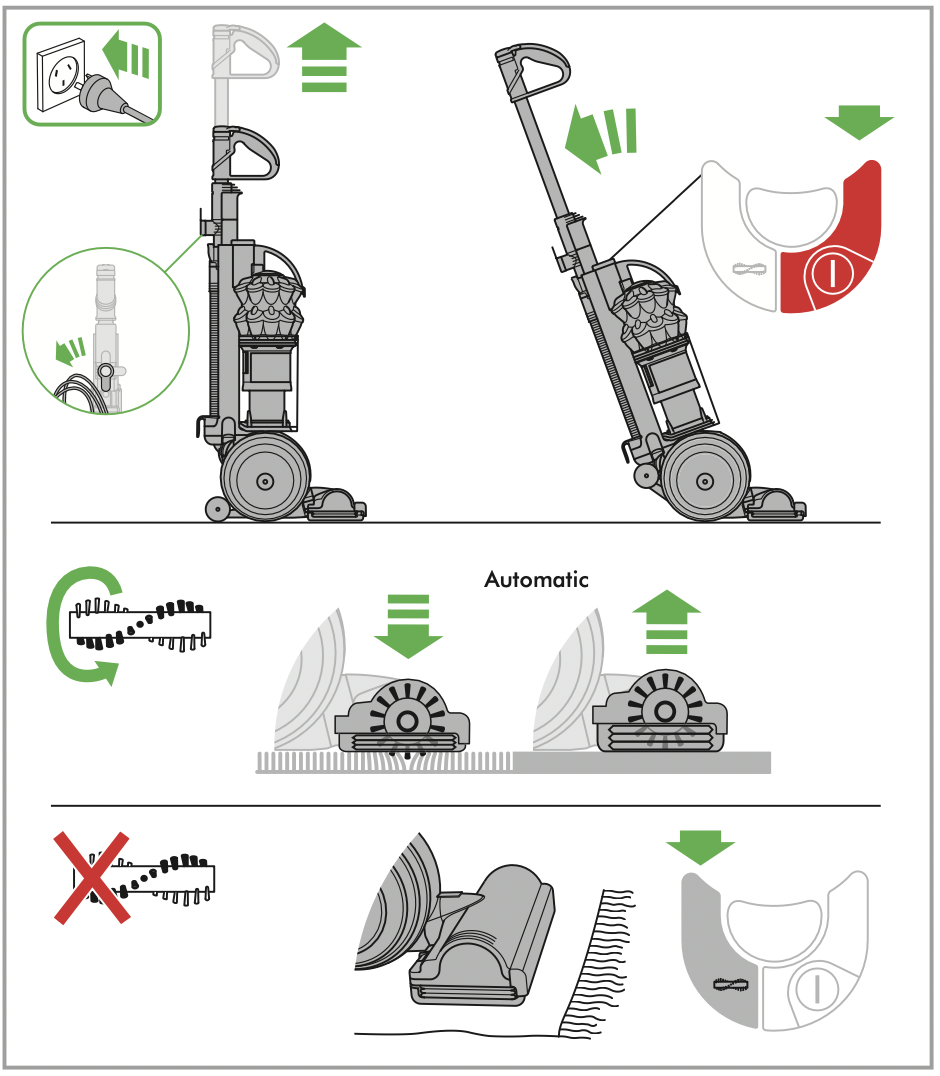

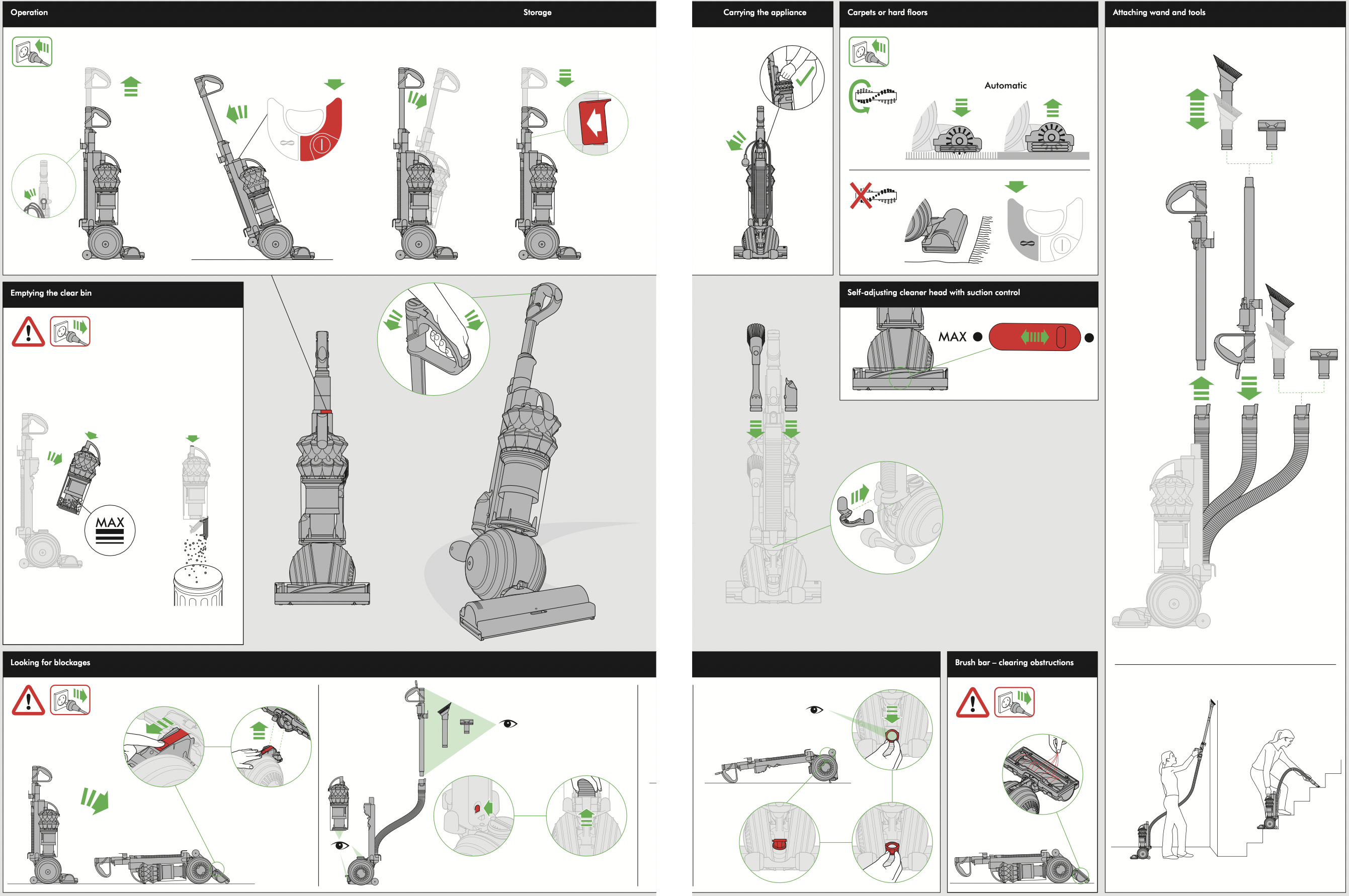

OPERATION

• Unwind the cable.
• Plug the appliance into the mains electricity supply.
• To switch ‘ON’ or ‘OFF’ press the red power button, located as shown.
• To use, recline the handle. The stabiliser stand will automatically lift up.
• The brush bar will not rotate when the vacuum is in an upright position.
• To release the wand, open the wand cap, press the red button and lift up.
• Rotate the wand and clip handle into hose. Tools can be attached to either the hose or wand.
• After use, return the appliance to the upright position, pushing it firmly into place. The stabiliser wheels will automatically lower.
• Then unplug the appliance, coil the cable safely and put the appliance away. Switch 'OFF' the appliance, unplug and ensure it is upright before:
  • Changing or using tools.
  • Removing the hose or airway inspection parts.
• Use the cyclone carry handle to carry the appliance.

SELF-ADJUSTING CLEANER HEAD WITH SUCTION CONTROL

EASY MODE

Reduced push force for effortless cleaning.

• For vacuuming of lightly soiled carpets, rugs and hard flooring.
• Your appliance is pre-set to this level of suction when you take it out of the box.

MAX MODE

Maximum suction for powerful dust and dirt removal.

• For vacuuming durable floor coverings, hard floors and heavily soiled carpets and rugs.
• To switch to this setting, move the suction control slider on top of the cleaner head as shown.
• CAUTION: The suction of this mode can damage delicate flooring.

Before vacuuming, check the flooring manufacturer’s cleaning recommendations.

• If the suction power of Max mode prevents easy maneuverability, switch to Easy mode.

CARPETS OR HARD FLOORS

• The brush bar will always default to ‘ON’ (spinning) each time you switch the appliance ‘ON’ and recline it for cleaning.
• The brush bar will not rotate when the appliance is upright.
• To switch the brush bar 'OFF' (e.g. for delicate rugs and delicate flooring):
  • Switch the appliance ‘ON’.
  • Recline the appliance.
  • Press the brush bar ‘ON/OFF’ button – the brush bar will stop spinning. The brush bar will automatically stop if it becomes obstructed. See ‘Brush bar – clearing obstructions’.
• Before vacuuming your flooring, rugs and carpets, check the manufacturer's recommended cleaning instructions.
• Some carpets may fuzz if a rotating brush bar is used when vacuuming. If this happens, we recommend vacuuming with the brush bar switched 'OFF' and consulting with the flooring manufacturer.
• The brush bar on the appliance may damage some carpet types. If you are unsure, turn ‘OFF’ the brush bar.

LOOKING AFTER YOUR DYSON APPLIANCE

• Do not carry out any maintenance or repair work other than that shown in this Dyson Operating Manual, or advised by the Dyson Customer Care Helpline. Only use parts recommended by Dyson. If you do not this could invalidate your Dyson guarantee.
• Store the appliance indoors. Do not use or store it below 3°C (37.4°F).
• Ensure the appliance is at room temperature before operating.
• Clean the appliance only with a dry cloth. Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the appliance.
• If used in a garage, always wipe the base plate and ball with a dry cloth after vacuuming to clean off any sand, dirt, or pebbles that could damage delicate floors.

VACUUMING

• Do not use without the clear bin and filters in place.
• Fine dirt such as flour should only be vacuumed in very small amounts.
• Do not use the appliance to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the appliance.
• When vacuuming, certain carpets may generate small static charges in the clear bin or wand. These are harmless and are not associated with the mains electricity supply. To minimise any effect from this, do not put your hand or insert any object into the clear bin unless you have first emptied it and rinsed it out with cold water (see ‘Cleaning the clear bin’).
• Powerful suction can cause the hose to ‘pull back’ – please take care.
• Do not work with the appliance above you on the stairs. When cleaning stairs it is recommended that the handle is not extended and that you use a tool on the end of the hose rather than the wand.
• Do not put the appliance on chairs, tables, etc.
• Before vacuuming highly polished floors, such as wood or lino, first check that the underside of the floor tool and its brushes are free from foreign objects that could cause marking.
• Do not leave the cleaner head in one place on delicate floors.

EMPTYING THE CLEAR BIN

• Empty as soon as the dirt reaches the level of the MAX mark – do not overfill. Switch ‘OFF’ and unplug before emptying the clear bin.
• To remove the cyclone and clear bin unit, press down on the red button on the top of the carrying handle on the cyclone.
• To release the dirt, press all the way down on the same red button on the top of the carrying handle on the cyclone.
• To minimise dust/allergen contact when emptying, encase the clear bin tightly in a plastic bag and empty.
• Remove the clear bin carefully from the bag.
• Seal the bag tightly, dispose as normal.
• To refit:
  • Ensure the airway in the bin base is clear of dust and dirt.
  • Close the clear bin base so it clicks into place.
  • Push the cyclone and clear bin unit into the main body of the appliance; it will click into place.
  • Ensure the cyclone and clear bin unit is secure.

CLEANING THE CLEAR BIN

• Remove cyclone and clear bin (see 'Emptying the clear bin').
• To separate the cyclone unit from the clear bin press the red button to open the clear bin base. This exposes a small silver button behind the red opening mechanism. Press the silver button (on its ribbed area) and separate the cyclone unit from the clear bin.
• Clean the clear bin with cold water only.
• Do not use detergents, polishes or air fresheners to clean the clear bin.
• Do not put the clear bin in a dishwasher.
• Do not immerse the cyclone in water or pour water into the cyclones.
• Clean the cyclone shroud with a dry cloth or dry brush to remove lint and dust. Ensure the clear bin is completely dry before replacing.
• To refit:
  • Fit the cyclone shroud into the clear bin so that the silver button clicks and engages.
  • Close the clear bin base so it clicks into place.
  • Push the cyclone and clear bin unit into the main body of the appliance; it will click into place.
  • Ensure the cyclone and clear bin unit is secure.

WASHING YOUR FILTERS

• Your appliance has two washable filters, located as shown.
• Check and wash the filters regularly according to instructions to maintain performance.
• Switch ‘OFF’ and unplug before checking or removing the filters.
• The filters may require more frequent washing if vacuuming fine dust. Wash with cold water only. Do not use detergents.
• Do not put the filters in a dishwasher, washing machine, tumble dryer, oven, microwave or near a naked flame.

Filter A

• Remove the cyclone and clear bin (instructions above).
• Release the catch on the front of the cyclone handle. Swing the handle back.
• Lift out the filter.
• Wash the filter with cold water only. Do not use detergents. Hold under a tap and run water through the open end until the water runs clear. Turn upside down and tap out.
• Squeeze and twist with both hands to make sure the excess water is removed. Run water over the outside of the filter until the water runs clear.
• Squeeze and twist with both hands to make sure the excess water is removed.
• Stand the filter on its wide, open end to dry. Leave to dry completely for a minimum of 24 hours.
• Replace the filter into the cyclone. Swing the handle back into place. Ensure the latch clicks to engage and is secure. Fit the cyclone and clear bin unit onto the appliance (instructions above).

Filter B

This machine has a baffle that helps to reduce noise emissions. It is important to remove the baffle before washing the filter.

• Lie the appliance on its side.
• To remove filter B:
  • Turn the blue central locking dial on the outer cover of the ball anti-clockwise until the cover is released.
  • Lift off the cover.
  • Turn the filter one-quarter anti-clockwise to release.
• Remove the baffle by pressing down firmly on each of the release clips and push from underneath to release filter B as shown in the " WASHING YOUR FILTERS" section.
• To avoid damage; do not use sharp tools to remove baffle.
• Wash the filter with cold water only.
• Filter B should be rinsed and tapped out until the water runs clear, then tapped out again to ensure all excess water is removed. (Tap on the plastic rim, not the filter material.) Leave to dry completely for a minimum of 24 hours.
• It is normal for the filter in the ball to turn grey in colour.
• To refit filter B:
  • align the arrow on the baffle with the arrow on the filter, press firmly until all three clips click into place
  • refit the filter on to the ball
  • secure the filter by turning it clockwise so the arrows align.
• When refitting the outer cover of the ball, keep turning the central locking dial clockwise. When it starts to click it is locked.

BLOCKAGES - THERMAL CUT-OUT

• This appliance is fitted with an automatically resetting thermal cut-out.
• Large items may block the tools or wand inlet. If any part becomes blocked the appliance may overheat and automatically cut-out.
• If this happens, follow the instructions below in 'Looking for blockages'.

LOOKING FOR BLOCKAGES

• Switch ‘OFF’ and unplug before looking for blockages. Failure to do so could result in personal injury.
• Leave to cool down for 1-2 hours before checking the filters or for blockages. Clear any blockage before restarting.
• Look for blockages in the wand, airways and cleaner head.
• To release the hose from the machine, you will need to remove the wand.
• Open the wand release cap.
• Pull the wand up and away from the handle.
• Press the red release button in the connecting collar and remove the wand from the hose.
• Remove the clear bin and cyclone unit. Then release the hose from the appliance by pressing the red tab on the base of the hose – you can see it from the front of the appliance.
• Check for blockages in the hose.
• Beware of sharp objects when checking for blockages.
• To refit the hose, align the guides on the base of the hose with the channels in the neck of the airway. Ensure the red tab faces the front of the appliance.
• Push the hose on. It will click into place. To refit the wand follow the instructions above in the 'Operation' section.
• To remove the base plate to access an obstruction, see ‘Base plate disassembly/reassembly’.
• To look for blockages in the front airway between the ball and the cleaner head you will need to remove the cleaner head: see ‘Base plate – disassembly/ reassembly’ below on how to do this.
• To look for blockages in the rear airway between the ball and the cleaner head you will need to release the elasticated rear connection. Pull the plastic connector towards you to release from the upper airway. To replace it, pull it a little way out on the horizontal so that it aligns with the upper airway.
• Gently release it so it pulls itself back into place.
• Beware of sharp objects when checking for blockages.
• Refit all parts securely before using.
• Clearing blockages is not covered by your Dyson guarantee.

BRUSH BAR – CLEARING OBSTRUCTIONS

• If your brush bar is obstructed, it may shut 'OFF'. If this happens, you will need to remove the blockage.
• Switch ‘OFF’ and unplug before proceeding. Failure to do so could result in personal injury.
• Beware of sharp objects when clearing obstructions.
• If you still cannot clear the obstruction, please follow the instructions below to remove the base plate. This gives more access to the obstruction. Alternatively, contact a Dyson expert on the Dyson Customer Care Helpline or visit the website. Clearing brush bar obstructions is not covered by your guarantee.

IMPORTANT! WASH FILTERS

Wash filters with cold water regularly or as required.

The filters may require more frequent washing if vacuuming fine dust.

BASE PLATE – DISASSEMBLY/REASSEMBLY

• Switch ‘OFF’ and unplug before proceeding. Failure to do so could result in personal injury.
• Lay the appliance on its front.
• There is a red latch on the connection between the ball and cleaner head. Slide it towards the ball, supporting the appliance as you do so.
• Pull the cleaner head away from the appliance. Use a constant, firm pressure. At each end of the cleaner head there are two red levers:
  • pivot the levers up and out towards the end of the cleaner head until they click
  • swing the base plate open.
• Beware of sharp objects when clearing obstructions. To refit the base plate:
  • fit the lugs on the lower edge of the base plate behind the lip on the base of the cleaner head
  • swing the base plate down, ensuring it fits correctly; it will click into place. To secure the base plate pivot both levers back into position so they are flush with the surface of the cleaner head.
• Lay the appliance on its back.
• Attach the cleaner head by sliding it on to the connections on the lower front part of the ball. Ensure the electrical plug on the cleaner head fits into the twin-block connection on the body of the appliance, which is directly above the airway. Push firmly: the cleaner head will click into place.

BRUSH BAR – TROUBLESHOOTING

• If the brush bar has stopped spinning, follow the instructions above on clearing obstructions. Alternatively, contact a Dyson expert on the Dyson Helpline or visit the website.
