OPEL Movano
Owner's Manual
Introduction .................................... 2
In brief ............................................ 6
Keys, doors and windows ............ 19
Seats, restraints ........................... 37
Storage ........................................ 62
Instruments and controls ............. 70
Lighting ........................................ 90
Climate control ............................. 97
Driving and operating ................. 109
Vehicle care ............................... 139
Service and maintenance .......... 179
Technical data ........................... 183
Customer information ................ 205
Index .......................................... 208
Contents
2 Introduction
Introduction
Introduction 3

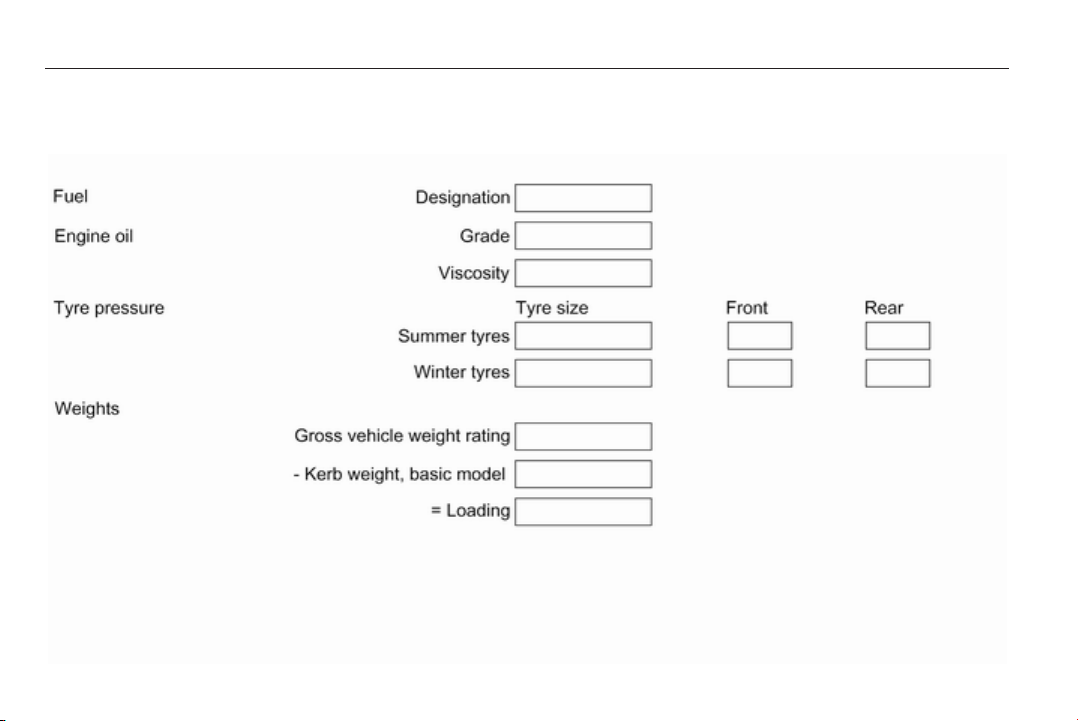

Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology,
safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this
Owner's Manual.
When this Owner's Manual refers to a
workshop visit, we recommend your
Opel Service Partner.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual
■ This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The "In brief" section will give you
an initial overview.
■ The table of contents at the
beginning of this manual and within
each section shows where the
information is located.
■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left-
hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the
factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ The vehicle display screens may
not support your specific language.
■ Display messages and interior
labelling are written in bold letters.
Danger, Warnings and
Cautions
9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
4 Introduction
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
We wish you many hours of
pleasurable driving.
Adam Opel AG
Introduction 5
6 In brief
In brief
Initial drive information

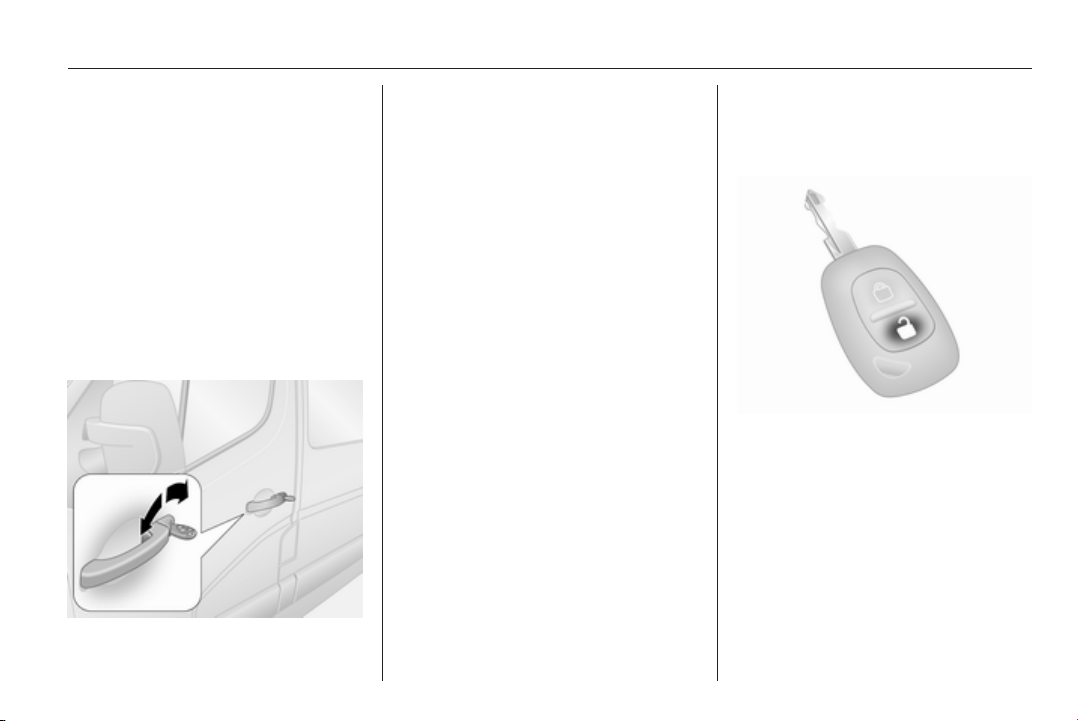

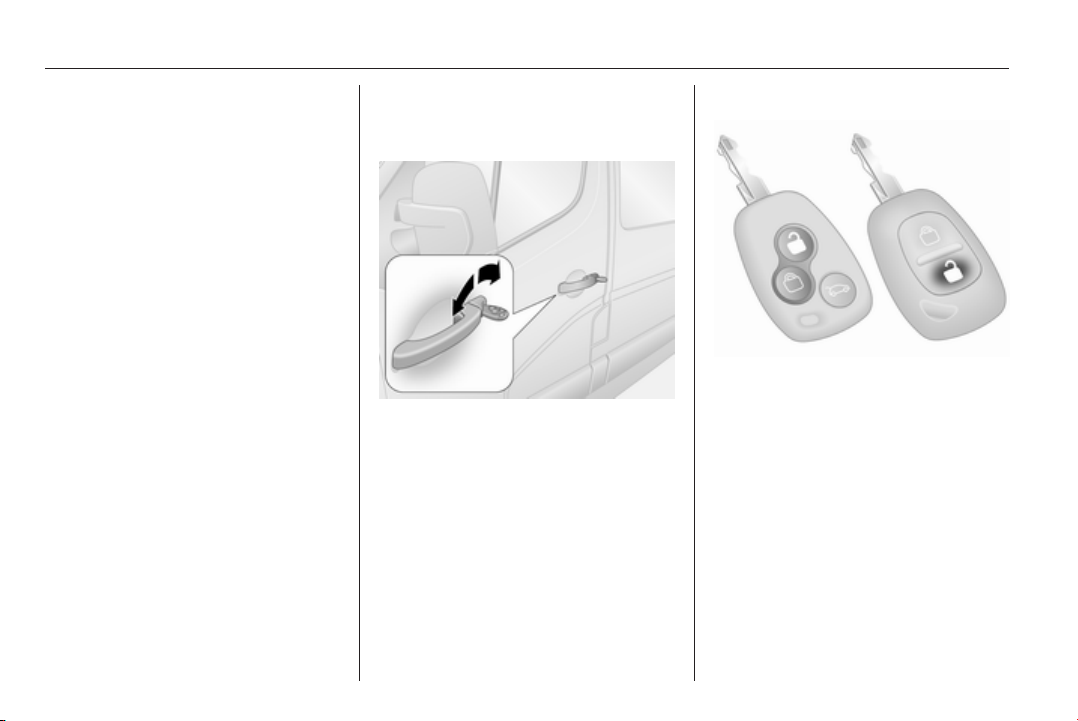

Vehicle unlocking
Unlocking with key
Turn the key in the driver's door lock.
Open the doors by pulling the
handles.
Unlocking with remote control
Press button c to unlock the front
doors. Press again to unlock entire
vehicle.
Open the doors by pulling the
handles.
Press button G; only the load
compartment and sliding side doors
are unlocked.
Radio remote control 3 19, Central
locking system 3 21, Anti-theft
alarm system 3 29.
In brief 7

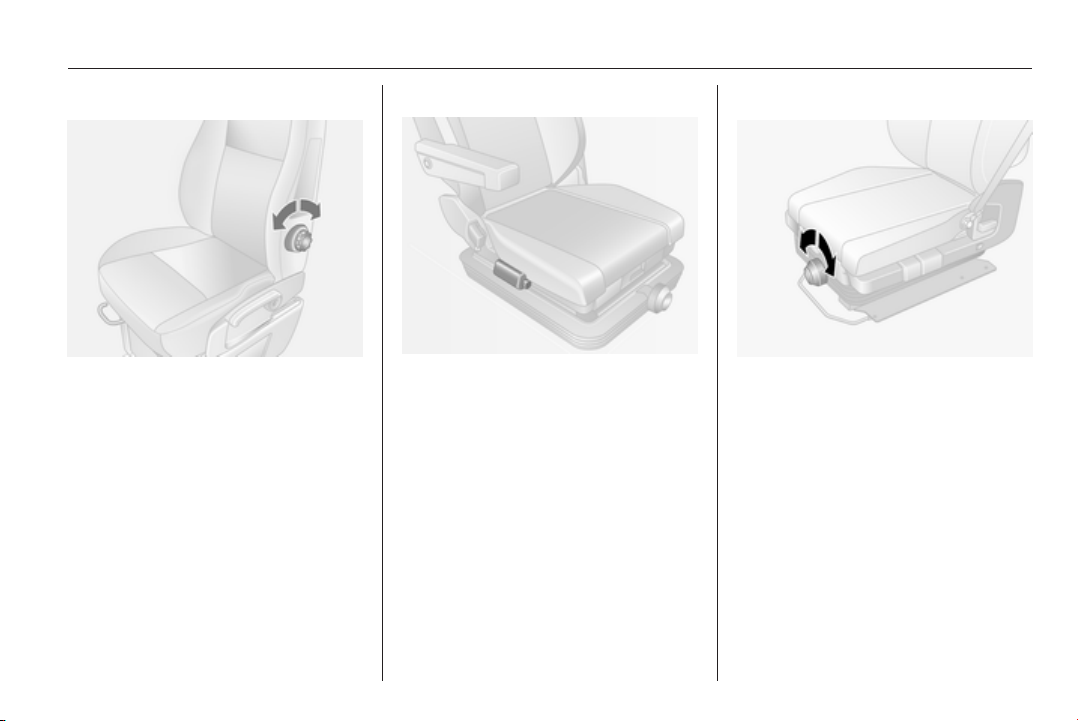

Seat adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Seat position 3 38, Seat adjustment
3 39.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 38, Seat adjustment
3 39.
Seat height
Lever motion
up = seat higher
down = seat lower
Seat position 3 38, Seat adjustment
3 39.
8 In brief

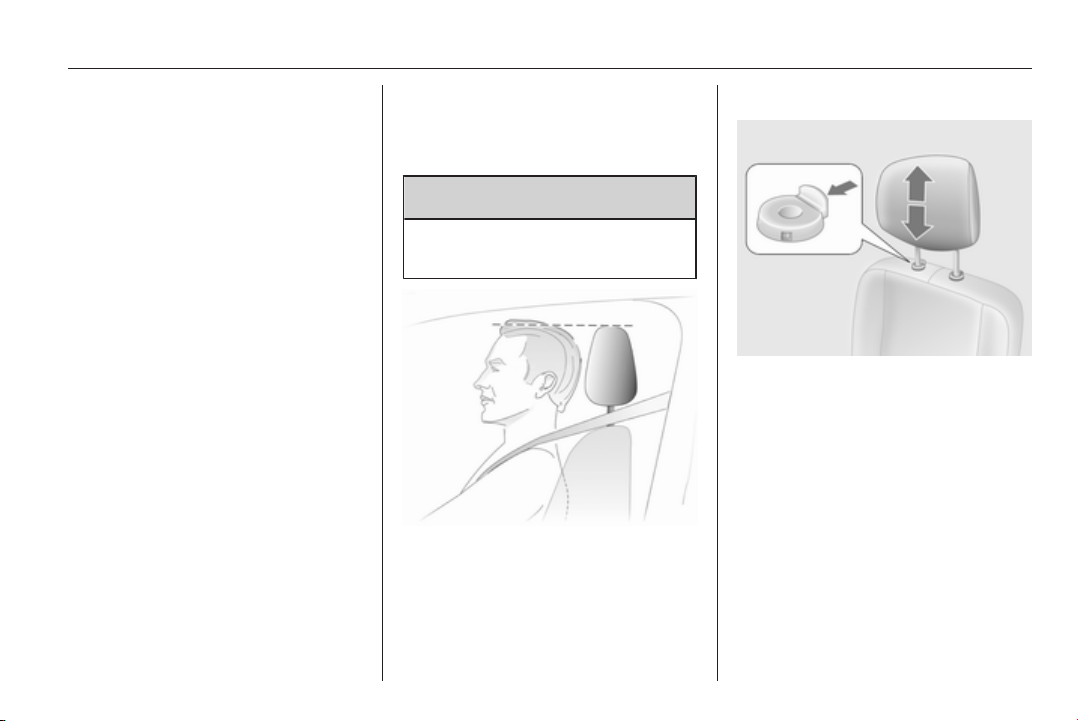

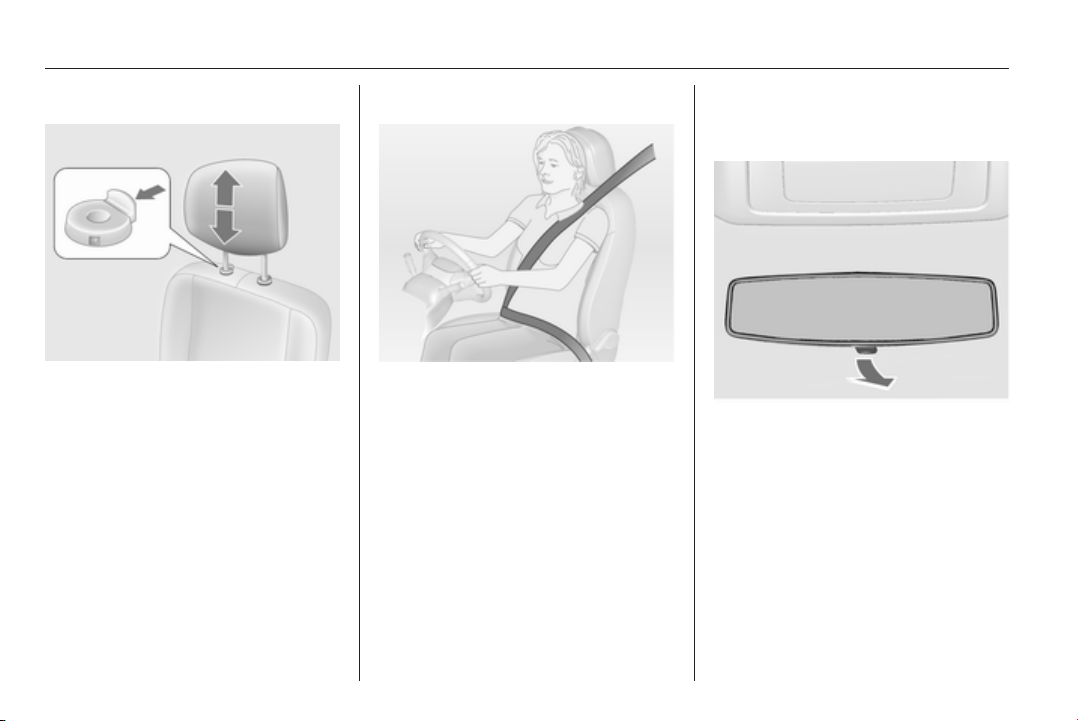

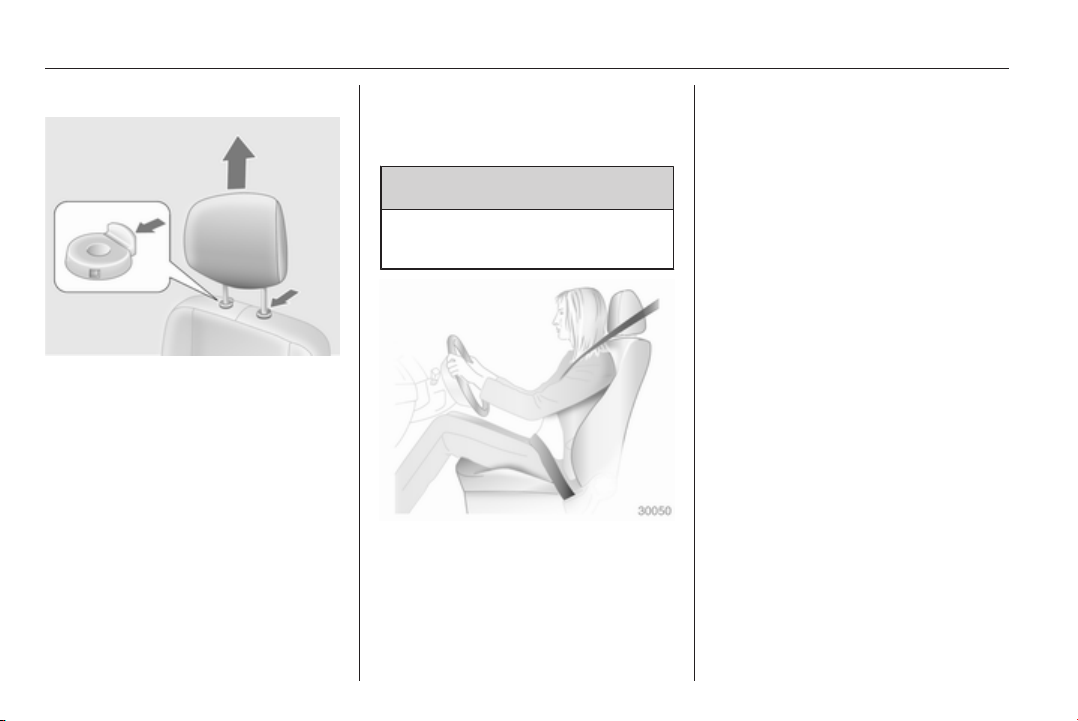

Head restraint adjustment
Press release catch, adjust height,
engage.
Head restraints 3 37.

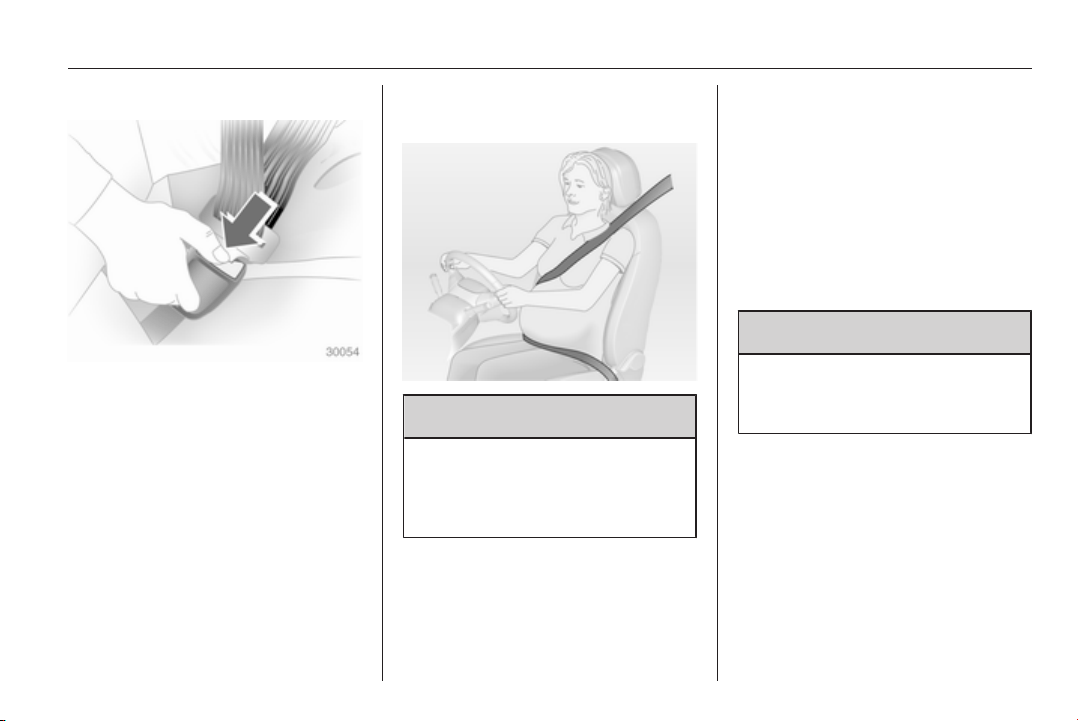

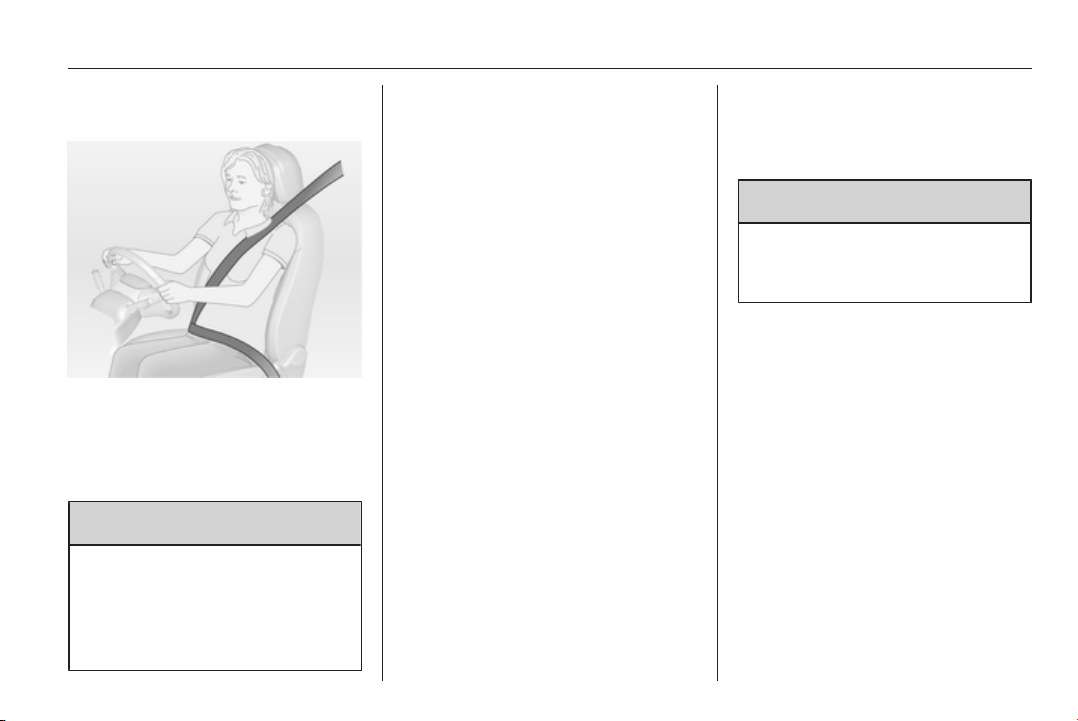

Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).
To release belt, press red button on
belt buckle.
Seat position 3 38, Seat belts
3 45, Airbag system 3 47.

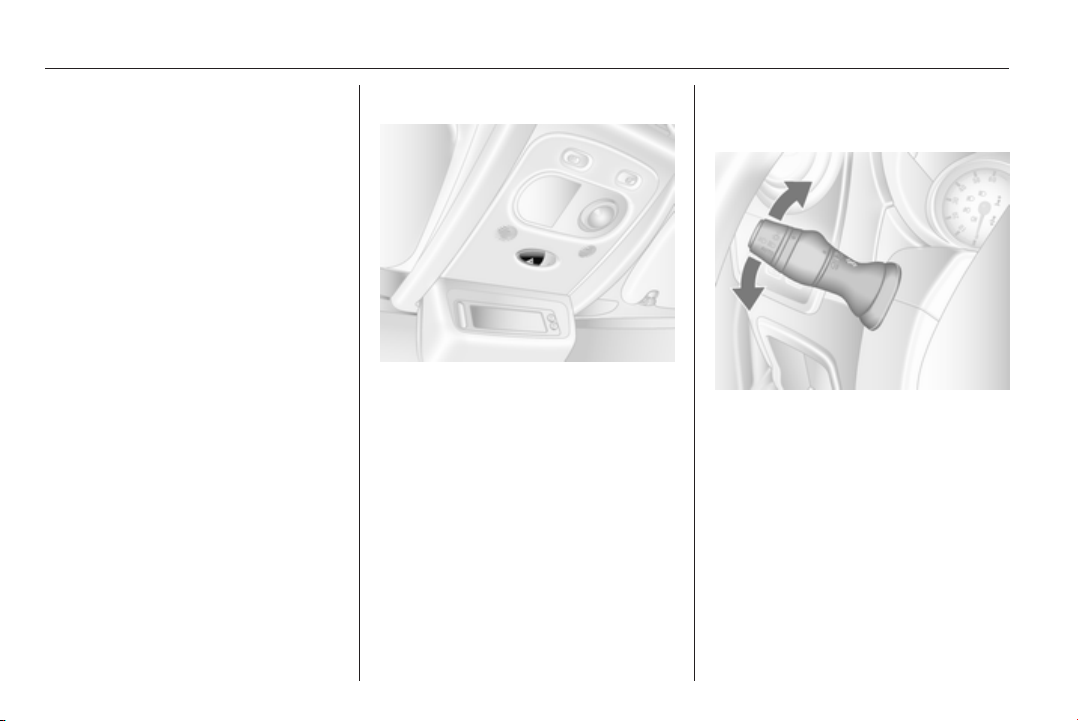

Mirror adjustment
Interior mirror
To reduce dazzle, adjust the lever on
the underside of the mirror housing.
Interior mirror, Wide view mirror
3 33.
In brief 9
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 31.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 31,
Electric adjustment 3 32, Folding
exterior mirrors 3 32, Heated
exterior mirrors 3 32.

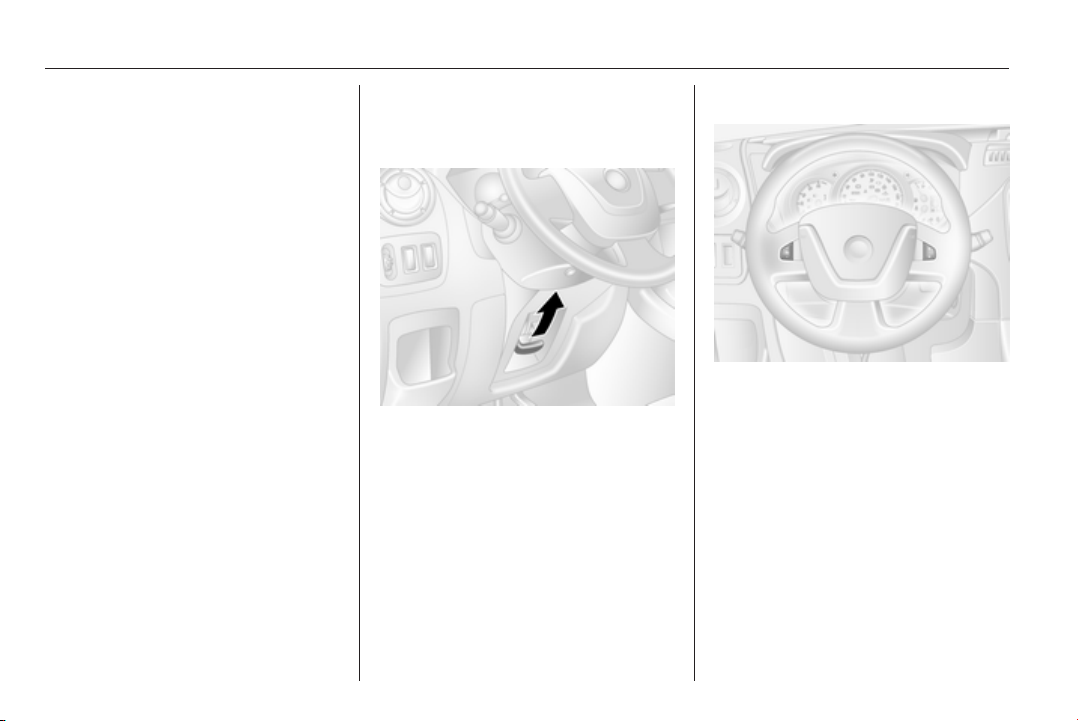

Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 47, Ignition
positions 3 111.
10 In brief
Instrument panel overview
In brief 11
1 Fixed air vents .................... 108
2 Headlight range
adjustment ........................... 91
Ultrasonic parking assist ..... 131
Traction control system ...... 125
Electronic stability program 126
3 Side air vents ..................... 107
4 Light switch .......................... 90
Turn and lane-change
signals .................................. 92
High beam and low beam,
headlight flash ...................... 91
Sidelights .............................. 90
Automatic light control .......... 90
Exit lighting ........................... 96
Front fog lights ..................... 93
Rear fog light ........................ 93
5 Instruments .......................... 75
Transmission display ............ 78
Driver Information Centre ...... 85
6 Horn ..................................... 71
Driver airbag ........................ 51
7 Remote control on
steering wheel ....................... 70
Cruise control ..................... 127
8 Windscreen wiper,
windscreen washer system .. 71
Trip computer ........................ 87
9 Coin tray ............................... 62
10 Power outlet ......................... 73
11 Centre air vents .................. 107
12 Storage compartment ........... 62
13 Front passenger airbag ......... 51
Storage compartment .......... 62
14 Glovebox .............................. 63
15 Cupholders ........................... 63
16 Climate control system ......... 97
17 Cigarette lighter .................... 74
Power outlet ......................... 73
18 Gear lever, Manual
transmission ........................ 118
Manual transmission
automated ........................... 119
19 Cruise control and speed
limiter ................................. 127
Manual transmission
automated,
Winter and Laden modes .... 121
Idle speed control ............... 112
Stop-start system ................ 112
20 Ignition switch with
steering wheel lock ............ 111
21 Steering column controls ..... 71
22 Steering wheel adjustment ..70
23 Bonnet release lever .......... 141
24 Auxiliary heater ................... 103
25 Storage compartment .......... 62
Fuse box ............................ 157
12 In brief
In brief 13
Exterior lighting
Turn outer light switch:
7
= Off
0
= Sidelights
9 P
= Headlights
AUTO = Automatic light control:
Headlights are switched on
and off automatically.
Lighting 3 90, Automatic light
control 3 90, Headlight warning
device 3 87, Adaptive forward
lighting 3 92.
Front and rear fog lights
Turn inner light switch:
>
= Front fog lights
r
= Rear fog lights
Front and rear fog lights 3 93,
3 93.
Headlight flash, high beam and
low beam
Pull lever.
High beam 3 91, Headlight flash
3 91.
In brief 15

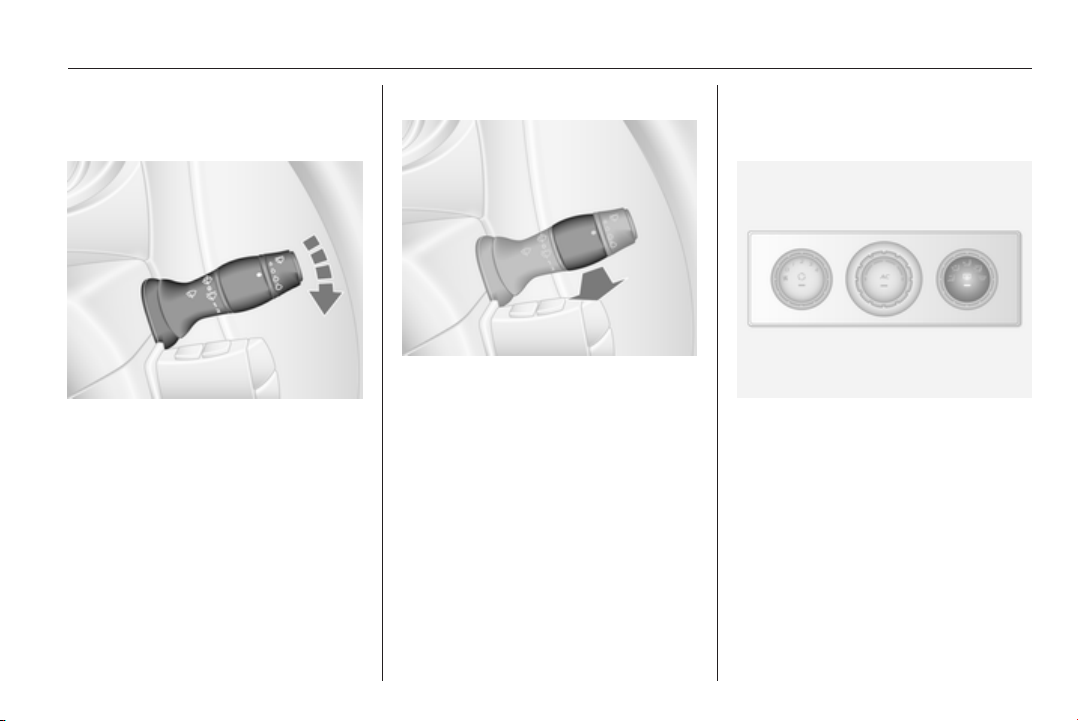

Washer and wiper systems
Windscreen wiper
0 = off
P
= timed interval wiping or
automatic wiping with rain
sensor
1 = slow
2 = fast
Windscreen wiper 3 71, Wiper
blade replacement 3 147.
Windscreen washer
Pull lever.
short pull = wiper swipes once
and washer fluid is
sprayed onto the
windscreen
long pull = wiper swipes for a
few strokes and
washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 71, Washer
fluid 3 144.

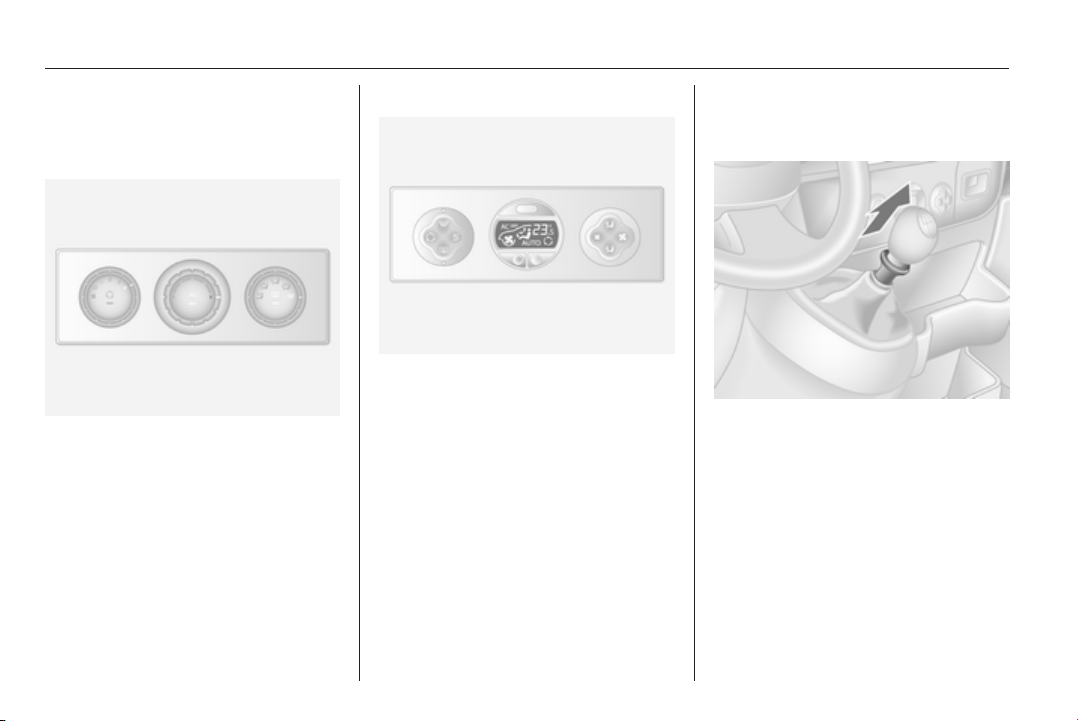

Climate control
Heated rear window
Heating is operated by pressing the
Ü button.
Heated rear window 3 35.
Heated exterior mirrors
Pressing the Ü button also activates
the heated exterior mirrors.
Heated exterior mirrors 3 32.
16 In brief
Demisting and defrosting the
windows
Climate control system
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■
Set air distribution control to V.
■
Switch on heated rear window Ü.
■ Switch cooling AC on.
■ Open side air vents as required and
direct them towards door windows.
Climate control system 3 97.

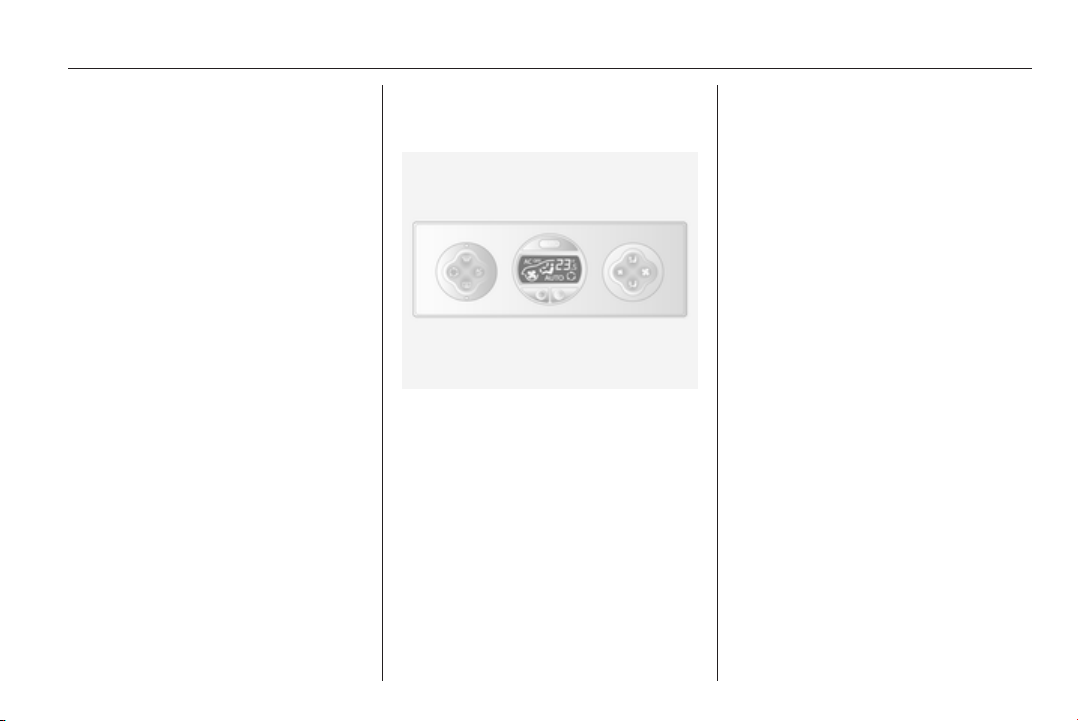

Electronic climate control system
Press button V.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
Electronic climate control system
3 99.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and then pull up
the collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 118.
In brief 17

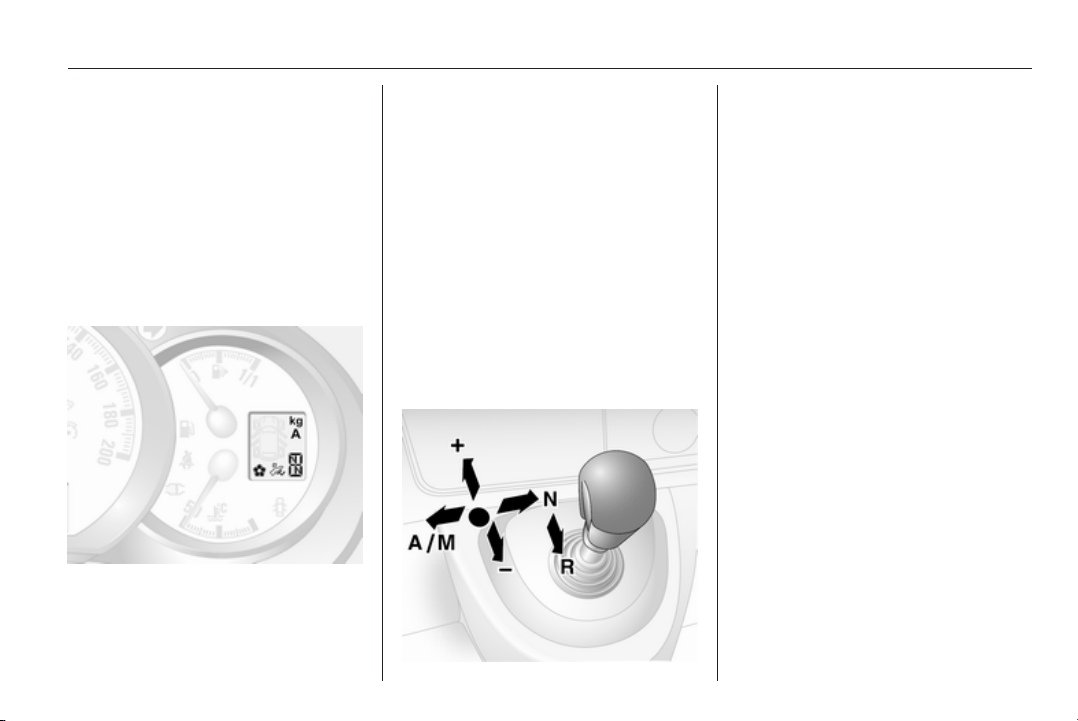

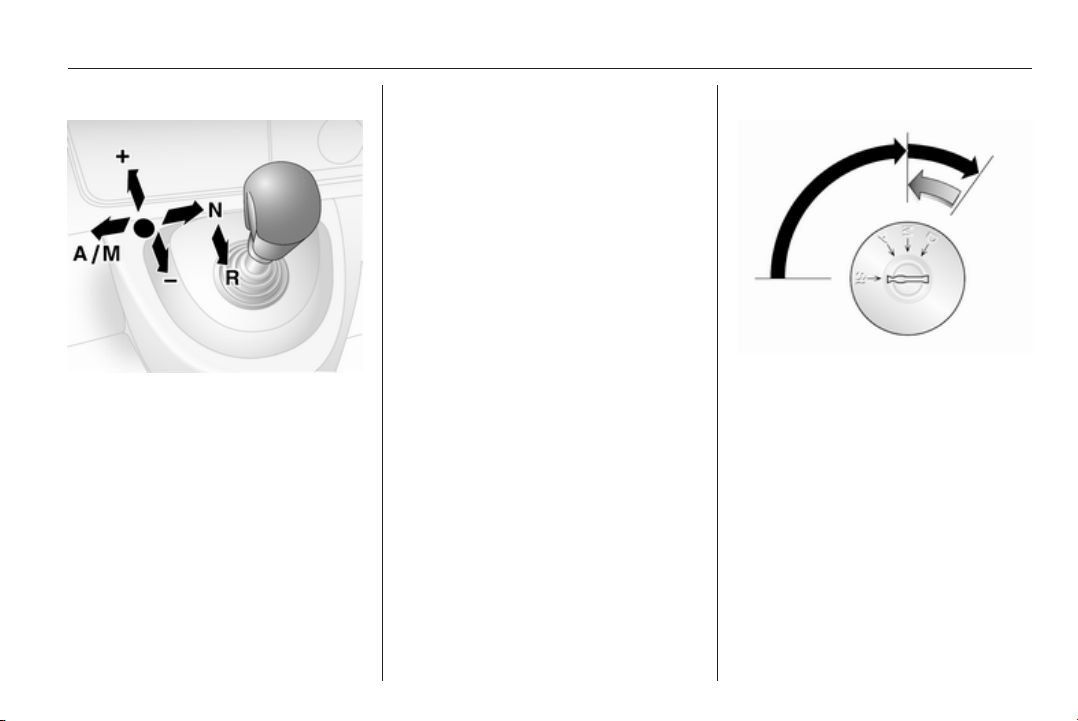

Manual transmission automated
N = Neutral
o
= Drive position
+ = Higher gear
- = Lower gear
A/M = Switch between automatic and
manual mode
R = reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 119.
Starting off
Check before starting off
■ Tyre pressure and condition 3 160,
3 203.
■ Engine oil level and fluid levels
3 141.
■ All windows, mirrors, exterior
lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats
and seat belts 3 32, 3 38,
3 46.
■ Brake function at low speed,
particularly if the brakes are wet.
Starting the engine
■ Turn key to position A
■ move the steering wheel slightly to
release the steering wheel lock
■ operate clutch and brake
■ do not operate accelerator pedal
■ turn the key to position M for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre
■ turn key to position D and release
Starting the engine 3 111.
18 In brief
Stop-start system
If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ move the selector lever to N
■ release the clutch pedal
An Autostop is indicated when control
indicator Ï illuminates green in the

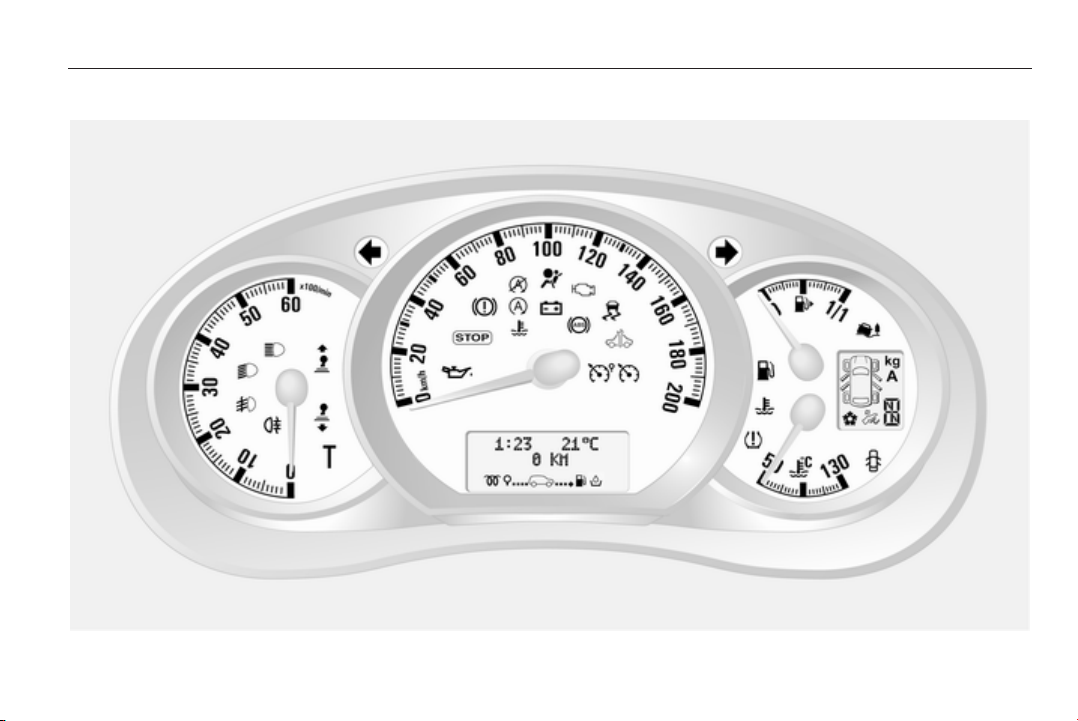

instrument cluster.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 112.
Parking
9 Warning
■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust
system could ignite the surface.
■ Always apply parking brake
without pressing release button.
Apply as firmly as possible on a
downhill slope or uphill slope.
Depress foot brake at the same
time to reduce operating force.
■ Switch off the engine.
■ If the vehicle is on a level
surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards
the kerb.
■ Remove the ignition key. Turn the
steering wheel until the steering
wheel lock is felt to engage.
■ Close the windows.
■
Lock the vehicle with button e on
the radio remote control 3 21.
■ Activate the anti-theft alarm system
3 29.
■ The engine cooling fans may run
after the engine has been switched
off 3 140.
■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for approx.
30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 19, Laying the vehicle
up for a long period of time 3 139.
Keys, doors and windows 19
Keys, doors and
windows
Keys, locks ................................... 19
Doors ........................................... 25
Vehicle security ............................ 29
Exterior mirrors ............................ 31
Interior mirrors ............................. 33
Windows ...................................... 34
Roof ............................................. 36
Keys, locks
Keys
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 176.
Car Pass
The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.
Radio remote control
Used to operate:
■ Central locking system
■ Anti-theft locking system
■ Anti-theft alarm system
Depending on model, the vehicle may
use a 2-button or 3-button remote
control.
The remote control has a range of
approx. 5 metres. It can be affected
by external influences. The hazard
warning flashers confirm operation.
20 Keys, doors and windows
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
■ Range exceeded.
■ Battery voltage too low.
■ Frequent, repeated operation of the
remote control while not in range,
which will require reprogramming
by a workshop.
■ Interference from higher-power
radio waves from other sources.
Unlocking 3 21.
Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach both halves of cover
ensuring it engages correctly.
Replace screw and tighten.
Door locks
Anti-theft security lock
To prevent the front door from being
opened from the outside, open the
door and engage the anti-theft
security lock.
Keys, doors and windows 21
Using a suitable tool, turn the lock
switch on the door to the locked
position. The door cannot be opened
from outside.
The anti-theft security lock remains
engaged even after unlocking the
vehicle with the remote control. The
door can only be opened from inside
or by using the manual key.
To disengage, turn the switch to the
unlocked position.
Manual door locks
Turn the key in the driver's door lock.
Open the doors by pulling the
handles.
Central locking system
Unlocks and locks the front doors,
sliding side doors and load
compartment.
With the 3-button remote control, the
front doors and sliding side doors/
load compartment can be unlocked
and locked separately.
For safety reasons, the vehicle
cannot be locked if the key is in the
ignition switch.
Note
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.
Unlocking the vehicle
Unlocking with 2-button remote
control
Press button
c to unlock the front
doors. Press again to unlock entire
vehicle.
22 Keys, doors and windows
Unlocking with 3-button remote
control
Depending on vehicle configuration:
■
Press button c: Front doors are
unlocked.
Press c again: Sliding side doors
and the load compartment are also
unlocked.
■
Press button c: All doors and the
load compartment are unlocked.
Locking the vehicle
Close all doors and load
compartment. If the doors are not
closed properly, the central locking
system will not work.
Locking with 2-button remote control
Press button e: All doors and the load
compartment are locked.
Locking with 3-button remote control
Press button e: All doors and the load
compartment are locked.
Note
Where fitted, alarm monitoring of the
passenger compartment 3 29 is
switched off by pressing and holding
button e (which is confirmed by an
audible signal).
If this was done unintentionally,
unlock the doors again and press
button e briefly to lock the vehicle.
Keys, doors and windows 23
Load compartment
Locking and unlocking load
compartment with 2-button remote
control
After unlocking the front doors with
button c, press c again: Load
compartment is unlocked.
Press button e once: Load
compartment is locked.
Locking and unlocking load
compartment with 3-button remote
control
Depending on vehicle configuration:
■ Press button G: Load
compartment is locked or unlocked.
■ Press button G: Load
compartment and sliding side doors
are locked or unlocked.
Central locking switch
Locks or unlocks the doors and load
compartment from inside the
passenger compartment.
Press the e switch to lock or unlock.
LED in switch illuminates when the
vehicle is locked.
Automatic locking when exiting the
vehicle
The e switch can also be used to lock
all doors and the tailgate
automatically when closing the front
door and exiting the vehicle:
Remove key from ignition switch then
press and hold the e switch for more
than 5 seconds; vehicle is locked
when the front door is closed.
24 Keys, doors and windows
Fault in remote control system
Unlocking
Manually unlock the front door by
turning the key in the lock.
Switch on the ignition and press the
central locking switch e to open all
doors and the load compartment.
Locking
Manually lock the front door by
turning the key in the lock.
Fault in central locking system
Unlocking
Manually unlock the front door by
turning the key in the lock. The other
doors can be opened by pulling the
interior handles.
Locking
Push inside locking knob of all doors
except driver's door. Then close the
driver's door and lock it from the
outside with the key.
Power door locks
Bus
For safety, it is possible for the driver
to operate the passenger door locks
remotely.
All doors must be fully closed and
automatic locking deactivated 3 25.
To lock, press l side of switch; the
warning light will flash once and a
beep will be heard.
Warning lights in the appropriate
doors remain illuminated.
To unlock, press 0 side of switch.
Fault
In the event of a fault in the system,
the warning light alongside the switch
remains illuminated and an audible
warning will sound.
Check the doors are manually
unlocked (interior door lock switches).
If necessary, have the cause of the
fault remedied by a workshop.
Keys, doors and windows 25
Automatic locking
Automatic locking after driving
off
This security feature can be
configured to automatically lock all
doors and the load compartment as
soon as the vehicle is driven.
Activation
With the ignition switched on, press
and hold e on the central locking
switch for approx. 5 seconds. An
audible signal confirms activation.
LED in switch illuminates when the
vehicle is locked.
Deactivation
With the ignition switched on, press
and hold e for approx. 5 seconds. An
audible signal confirms deactivation.
Child locks
9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Press down the child lock, door
cannot be opened from the inside.
Raise to deactivate.
Doors
Sliding door
Open and close the sliding side door
only when the vehicle is at a standstill
with the parking brake applied (on
certain models, a warning chime will
sound when the sliding side door is
open and the parking brake is
released).
The sliding side door can be locked
from inside the vehicle with the
interior lock switch.
Ensure the side door is fully closed
and secure before driving the vehicle.
26 Keys, doors and windows
9 Warning
Take care when operating the
sliding side door. Risk of injury.
Ensure that nothing becomes
trapped during operation and no-
one is standing within the moving
area.
If the vehicle is parked on a slope,
open sliding doors may move
accidentally on account of their
weight.
Close the sliding doors before
driving off.

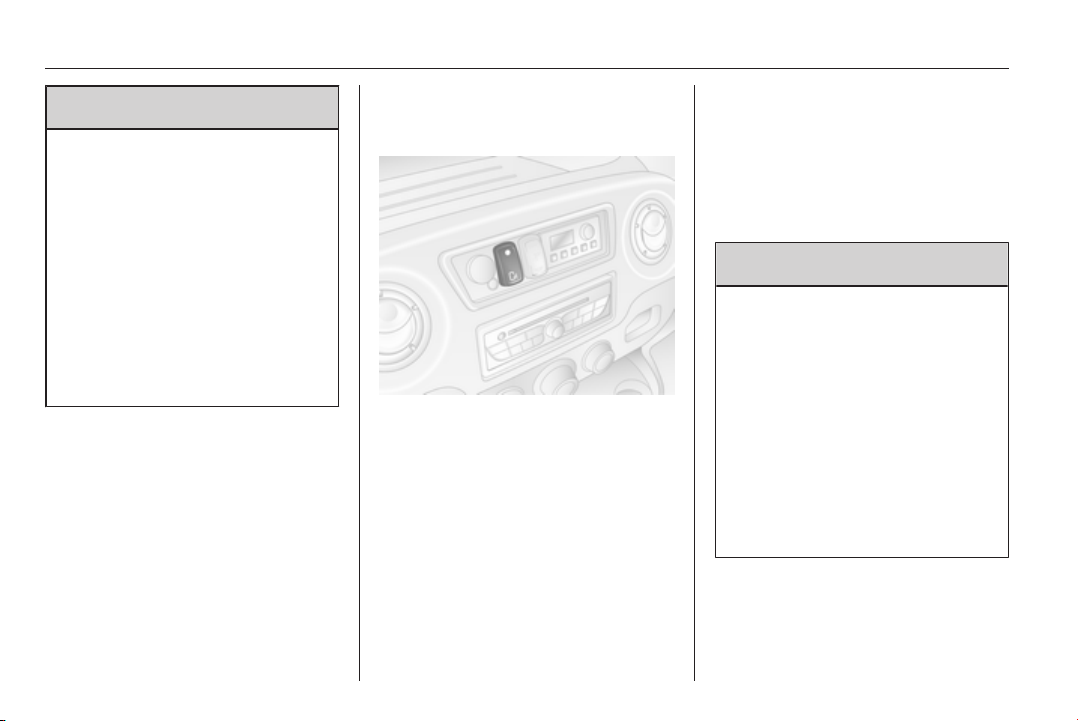

Power sliding door
Opening
With vehicle at a standstill and the
parking brake applied, press switch
on instrument panel to open the
power sliding door automatically; the
LED in the switch flashes during
operation.
To stop movement at any time, press
the switch again. Press once more to
continue power sliding door
movement.
Closing
Press switch again; the LED flashes
and a chime sounds during operation.
In the event of opening or closing
difficulties, e.g. due to frost, press and
hold the switch to increase power to
the sliding door.
9 Warning
Take care when operating the
power sliding door. Risk of injury,
particularly to children.
Take particular care when the
vehicle is parked on a slope: open
or close the door fully until it
latches into its locking position.
Keep a close watch on the moving
door when operating. Ensure that
nothing becomes trapped during
operation and no-one is standing
within the moving area.
Note
Do not operate power sliding door
too often without engine running as
this will discharge the vehicle
battery.
Keys, doors and windows 27
Emergency exit
In an emergency, the door can be
opened manually after releasing the
interior handle.
Reset
If the door has been opened
manually, the power sliding door
system must be reset: Open the door
halfway, return the handle to its
original position, then press and hold
the switch to fully open and fully close
the door.
Maintenance
It is the owner's responsibility to have
the drive belt replaced after every
15,000 cycles, and for this purpose a
counter is incorporated in the lower B-
pillar. Seek the assistance of a
workshop.
If the drive belt should fail, the door
may still be opened and closed
manually.
Power side step
The power side step operates
automatically when the power sliding
door is opened or closed.
9 Warning
Ensure there is adequate
clearance to allow the power side
step to fully extend and retract
without obstruction.
28 Keys, doors and windows
The indicator illuminates during
operation of the power side step. If it
remains illuminated with the door
closed, the step has not retracted. In

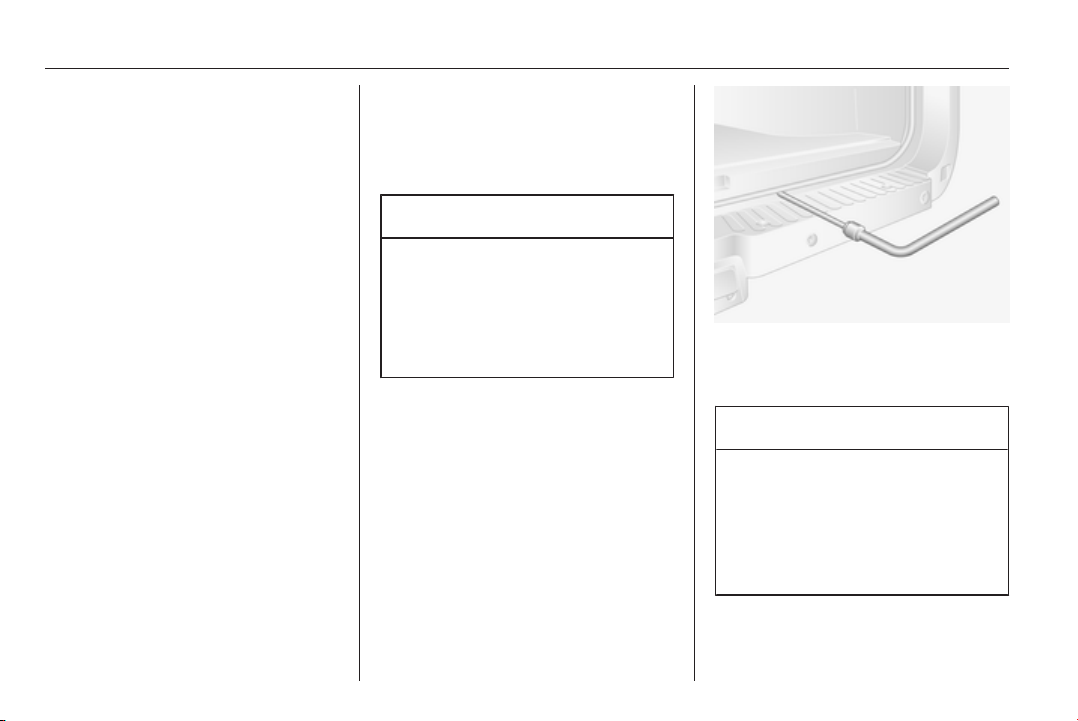

this event, manually retract the power
side step by pulling the declutching
mechanism located behind the step.
Seek the assistance of a workshop.
Rear doors
To open the right-hand rear door, pull
the outside handle.
The door is opened from inside the
vehicle by pulling the interior handle.
The left-hand rear door is released
using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of
the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays.
To open the doors to 180º or further,
release locking stays from the
catches on the door frames and swing
doors open to the desired position.
Keys, doors and windows 29
When opening the doors to 270º, the
doors are retained in the fully open
position by magnets on the body side.
9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed
due to the force of the wind!
When closing the doors, secure each
locking stay to the catch on the door
frame.
The rear doors can be locked from
inside the vehicle with the interior lock
switch.
Close the left-hand door before the
right-hand door.
Vehicle security
Anti-theft locking system
9 Warning
Do not use the system if there are
people in the vehicle! The doors
cannot be unlocked from the
inside.
The system deadlocks the doors. All
doors must be closed or the system
cannot be activated.
Note
The anti-theft locking system cannot
be activated when the hazard
warning lights or sidelights are
switched on.
Activation and deactivation are not
possible with the central locking
switch.
Activation
Press button e twice.
Hazard warning lights flash
five times as confirmation.
Deactivation
Unlock the doors with button c on the
remote control.
Anti-theft alarm system
The anti-theft alarm system is
operated in conjunction with the
central locking system.
30 Keys, doors and windows
It monitors:
■ Doors, tailgate, bonnet
■ Passenger compartment
■ Load compartment
■ Ignition
■ Interruption of alarm siren power
supply
Activation
All doors and the bonnet must be
closed.
Press button e to activate anti-theft
alarm system. Hazard warning lights
flash twice to confirm activation.
If the hazard warning lights do not
flash upon activation, a door or the
bonnet is not fully closed.
Note
Changes to the vehicle interior, e.g.
the use of seat covers, and open
windows, could impair the function
of passenger compartment
monitoring.
Deactivation
Unlocking the vehicle or switching on
the ignition deactivates the anti-theft
alarm system. Hazard warning lights
flash once to confirm deactivation.
Note
If the alarm has been triggered,
unlocking the vehicle with the key
will not stop the alarm siren. To stop
the siren, switch on the ignition. The
hazard warning lights will not flash
upon deactivation if the alarm has
been triggered.
Activation without monitoring of
passenger compartment
Switch off monitoring of the
passenger compartment when
people or animals are being left in the
vehicle, or if the auxiliary heater
3 103 is set for a timed or remote
controlled start.
Depending on vehicle configuration:
■
press and hold button e, or
■ switch ignition on and off twice
quickly, then close doors and
activate the anti-theft alarm system.
An audible signal will sound as
confirmation.
The status will remain until the doors
are unlocked.
Keys, doors and windows 31
Alarm
When triggered, the alarm sounds via
a separate battery-backed power
sounder, and the hazard warning
lights flash simultaneously. The
number and duration of alarm signals
are stipulated by legislation.
If the vehicle battery is disconnected
or its power supply is interrupted, the
alarm siren will be triggered. First
deactivate the anti-theft alarm system
if the vehicle battery must be
disconnected.
To silence the alarm siren (if
triggered) and therefore deactivate
the anti-theft alarm system, reconnect
vehicle battery and unlock vehicle
with remote control button c (or
switch on the ignition).
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been
removed from the ignition switch and
also if the key is left in the ignition
switch when the engine is turned off.
If the engine cannot be started, switch
off the ignition and remove key, wait
approx. 2 seconds and then repeat
the start attempt. If start attempt is
unsuccessful, attempt to start the
engine using the spare key and seek
the assistance of a workshop.
Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it and switch on
the anti-theft alarm system 3 21,
3 29.
Exterior mirrors
Convex shape
The convex exterior mirror contains
an aspherical area and reduces blind
spots. The shape of the mirror makes
objects appear smaller, which will
affect the ability to estimate
distances.
Manual adjustment
Adjust mirrors by swivelling in
required direction.
The lower mirrors are not adjustable.
32 Keys, doors and windows

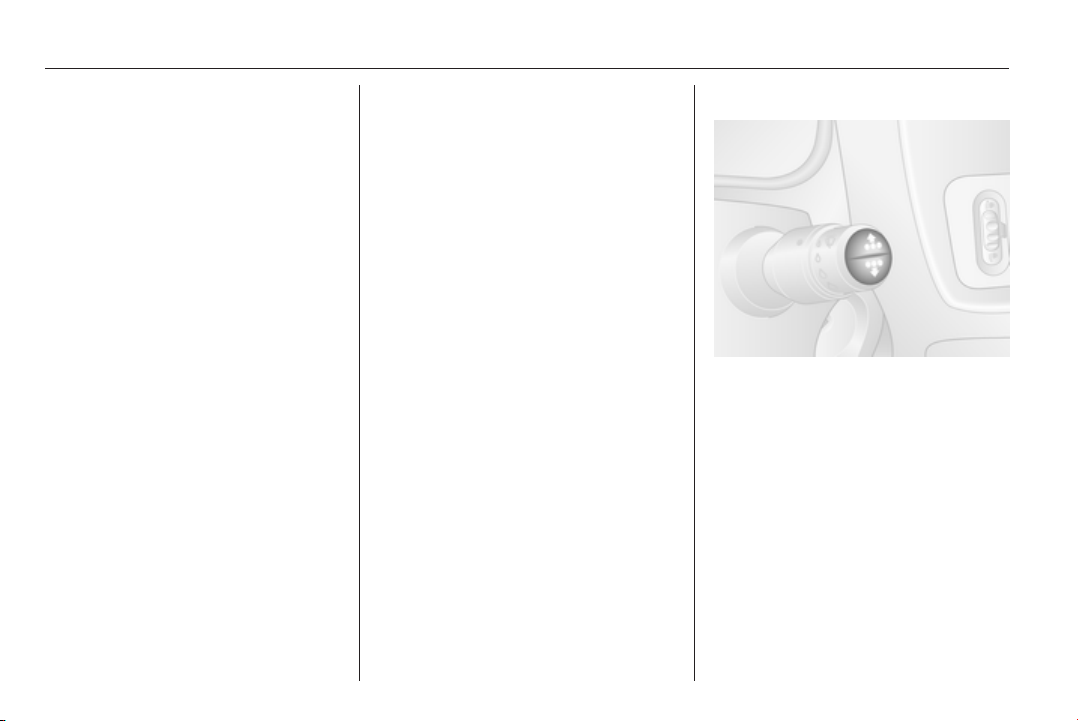

Electric adjustment
Select the relevant exterior mirror by
switching the control to the left or
right, then swivel the control to adjust
the mirror.
No mirror is selected when the control
is in the centre position.
The lower mirrors are not adjustable.
Folding mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.
Parking position
The exterior mirrors can be folded in
by pressing gently on the outer edge
of the housing, e.g. when in a
confined parking situation.
Heated mirrors
Operated by pressing the Ü button
on either system. LED illuminates in
button during operation.
Keys, doors and windows 33
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 97.
Electronic climate control system
3 99.
Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on
the underside of the mirror housing.
Wide view mirror
Depending on vehicle, a large convex
mirror is located in the front
passenger sun visor which helps to
increase visibility and reduce blind
spots.
34 Keys, doors and windows
Windows
Windscreen
Windscreen stickers
Do not attach stickers, e.g. toll road
stickers or similar, on the windscreen
in the area of the interior mirror.
Otherwise the detection zone of the
sensor in the mirror housing could be
restricted.
Manual windows
The door windows can be opened or
closed with the window cranks.
Power windows
9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Switch on ignition to operate power
windows.
Operate the switch for the respective
window by pushing to open or pulling
to close.
For vehicles with automatic opening
feature for the driver's door window;
when opening, operate the switch
again to stop window movement.
In the event of closing difficulties due
to frost or the like, operate the switch
several times to close the window in
stages.
Overload
If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.

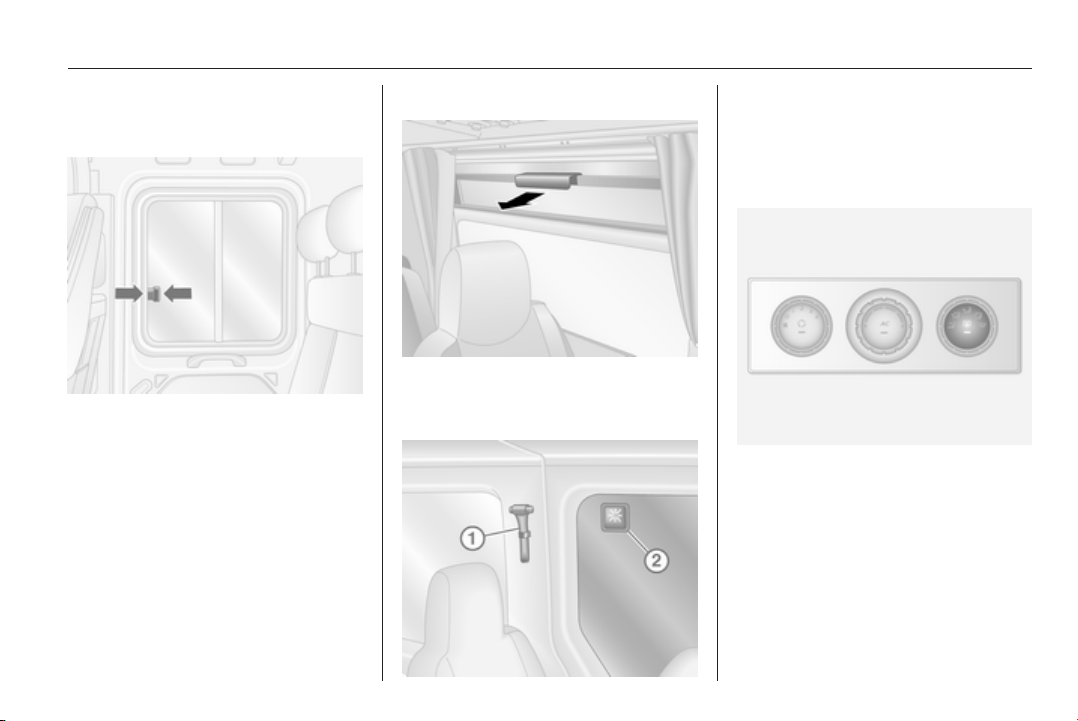

Rear windows
Sliding side windows
Keys, doors and windows 35
Press catch and slide window to
open. Ensure catch engages when
closing.
Press catch and slide window to
open. Ensure catch engages when
closing.
Opening side windows
Pull handle to open window.
Emergency exit
To provide an emergency exit from
the vehicle, use hammer 1 to strike
glass 2.
Heated rear window
Operated by pressing the Ü button
on either system. LED illuminates in
button during operation.
36 Keys, doors and windows
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 97.
Electronic climate control system
3 99.
Sun visors
The sun visors can be folded down or
swivelled to the side to prevent
dazzling.
If the sun visors have integral mirrors,
the mirror covers should be closed
when driving.
Sun visors also feature a holder for
parking tickets etc.
Wide view mirror 3 33.
Roof
Glass panel
Emergency exit
In an emergency, the glass can be
broken. Use the hammer to break the
glass panel 3 34.
Seats, restraints 37
Seats, restraints
Head restraints ............................ 37
Front seats ................................... 38
Rear seats ................................... 43
Seat belts ..................................... 45
Airbag system .............................. 47
Child restraints ............................. 53
Head restraints
Position
9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Height adjustment
Pull up to raise or press the catch and
lower head restraint. Ensure the head
restraint engages.
Note
Approved accessories may only be
attached to the front passenger seat
head restraint if the seat is not in use.
38 Seats, restraints
Removal
Press both catches, pull the head
restraint upwards and remove.
Stow head restraints securely in load
compartment. Do not drive with head
restraints removed if the seat is
occupied.
Front seats
Seat position
9 Warning
Only drive with the seat correctly
adjusted.
■
Sit with buttocks as far back against
the backrest as possible. Adjust the
distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We
recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 70.
■ Set seat height high enough to
have a clear field of vision on all
sides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 37.
■ Adjust the height of the seat belt
3 46.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine 3 39.
Seats, restraints 39
Seat adjustment
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.

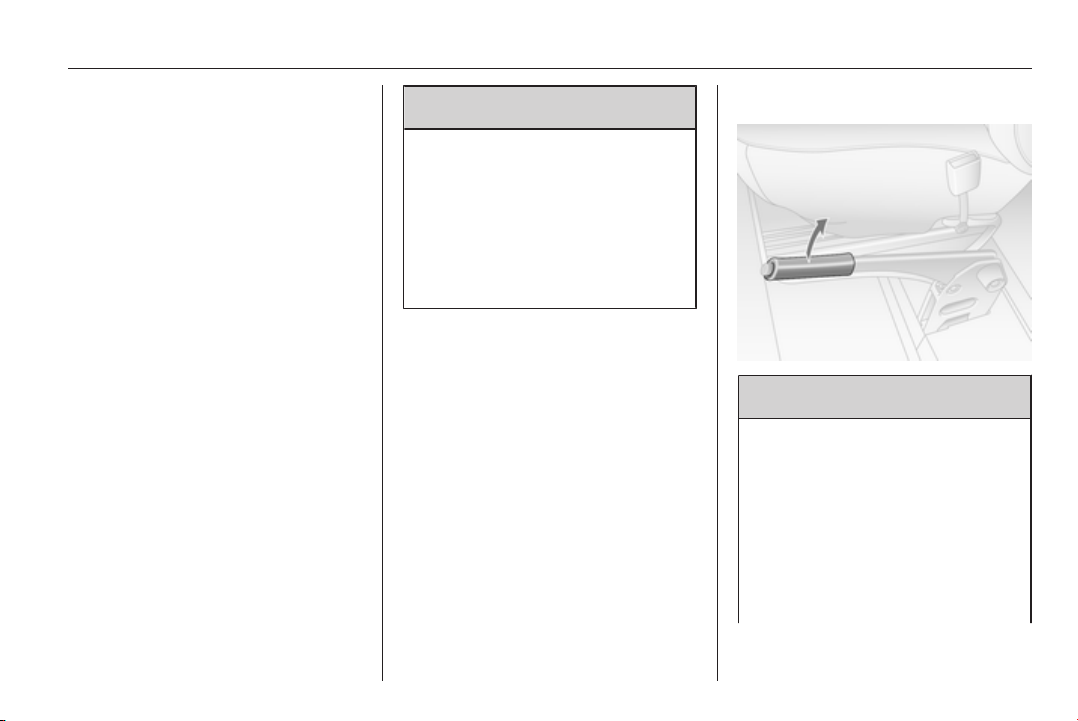

Seat positioning
Pull handle, slide seat, release
handle.
Suspension seat positioning
Pull handle, slide seat, release
handle.
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
40 Seats, restraints
Suspension seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat height
Lever pumping motion
up = seat higher
down = seat lower
Suspension seat height
Pull up front release lever up to adjust
height of front part of seat.
Pull up rear release lever to adjust
height of rear part of seat.
Seats, restraints 41
Lumbar support
Adjust lumbar support to suit personal
requirements.
Increasing and decreasing support:
turn the handwheel while relieving the
load on the backrest.
Suspension seat lumbar support
Adjust lumbar support to suit personal
requirements.
Operate hand pump repeatedly
(located on underside of unit) to
increase firmness.
Press release button (located at front
of unit) to decrease firmness.
Suspension seat sensitivity
Rotate knob to adjust the sensitivity of
the suspension seat.
Turn right = More stiff
Turn left = Less stiff
42 Seats, restraints
Armrest
Armrest can be folded up when not
required.

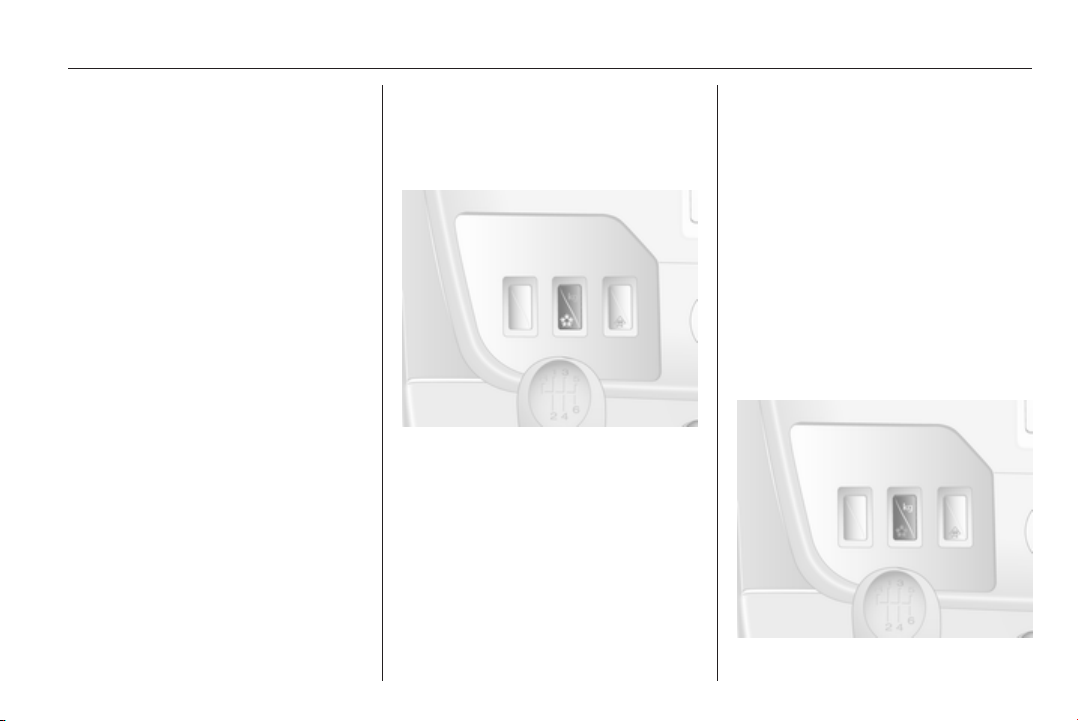

Heating

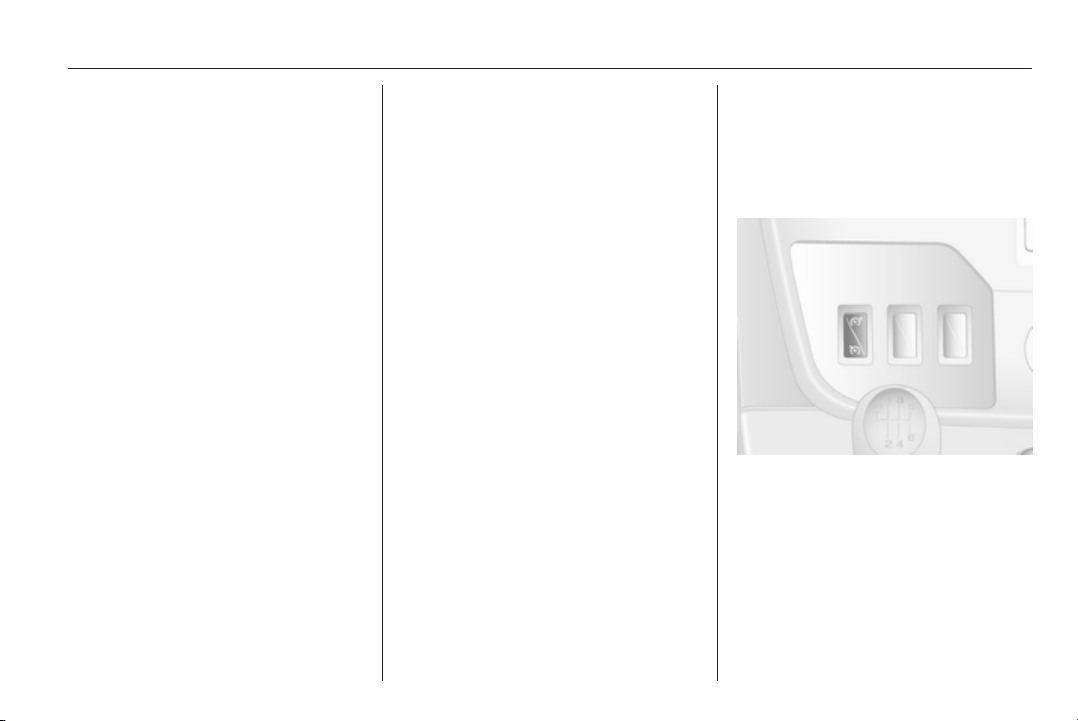

Press the ß button for the respective
seat. Press the ß button again to
switch off.
Seat heating is thermostatically
controlled and switches off
automatically when seat temperature
is sufficient.
Control indicator in the button
illuminates when the system is on, not
just when heating is active.
Prolonged use of the highest setting
for people with sensitive skin is not
recommended.
Seat heating is operational when the
engine is running.
Seats, restraints 43
Rear seats

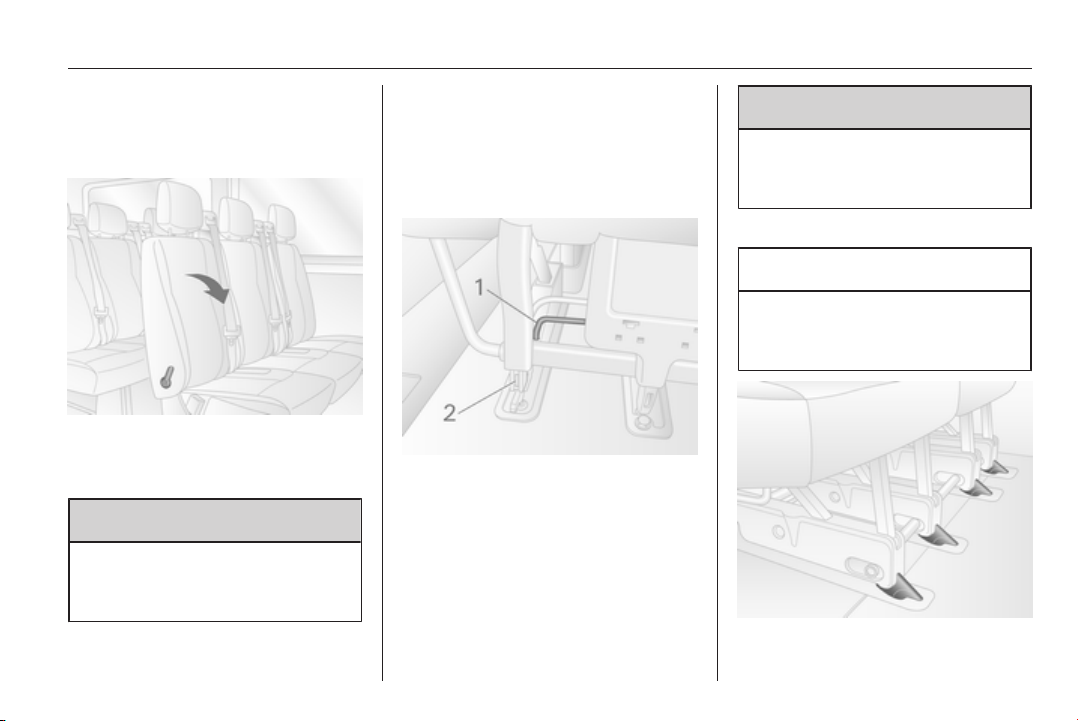

Rear seat access
To facilitate access to the rear seats,
pull release lever and fold the seat
backrest forwards.
9 Warning
Ensure that the backrest returns to
its correct position and the seat
belt buckles engage securely.
Fitting seat belt 3 46.
Removable rear seats
Removal
On some variants, the cargo area can
be increased by removing the rear
seats.
■ Raise lever 1 on both sides of the
seat; the pins 2 visibly protrude to
indicate that the seat is unlocked.
■ Move the seat towards the rear to
release from the floor anchor
points.
■ Lift seat to remove.
9 Warning
Removable rear seats are heavy!
Do not attempt to remove without
assistance.
Installation
Caution
The rear seats are not
interchangeable and must be fitted
back into their original position.
44 Seats, restraints

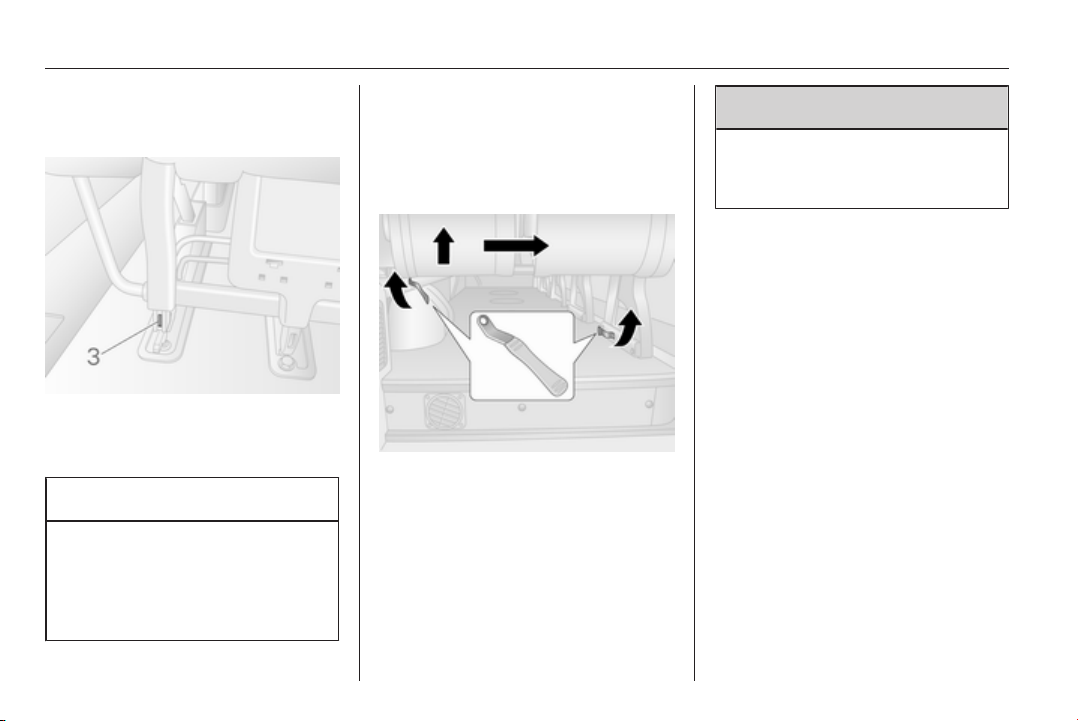

Position the seat guides immediately
behind the front floor anchor points,
and slide forwards to engage.
The seat locks automatically and the
pins 3 will no longer be visible, to
indicate that the seat is locked.
Caution
When installing the rear seats,
ensure they are properly located
on the floor anchor points and that
the locking catches are fully
engaged.
Bus
Removal
Using the tool from the tool kit located
in the glovebox, turn levers to unlock
the seat.
1. Release the outboard fixing.
2. Release the inboard fixing.
3. Lift the seat from the outboard
side and move the seat towards
the centre of the vehicle.
9 Warning
Removable rear seats are heavy!
Do not attempt to remove without
assistance.
Installation
1. Position the seat over the anchor
points.
2. Lower the seat until it engages.
3. Ensure the seat is locked securely
in position.
Seats, restraints 45
Seat belts
The seat belts are locked during
heavy acceleration or deceleration of
the vehicle, holding the occupants in
the sitting position. Therefore, the risk
of injury is considerably reduced.
9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger
their fellow occupants and
themselves.
Seat belts are designed to be used by
only one person at a time. Child
restraint system 3 53.
Periodically check all parts of the belt
system for damage and proper
functionality.
Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners
replaced by a workshop.
Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.
Seat belt reminder
Front seats are equipped with a seat
belt reminder, indicated by control
indicator X in the roof console 3 78,
3 80.
Belt force limiters
On the front seats, stress on the body
is reduced by the gradual release of
the belt during a collision.
Belt pretensioners
In the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.
9 Warning
Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.
Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 80.
Triggered belt pretensioners must be
replaced by a workshop. Belt
pretensioners can only be triggered
once.
Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.
46 Seats, restraints
Three-point seat belt
Fastening
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the shoulder
belt.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your
body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Seat belt reminder X 3 80.
Height adjustment
1. Pull belt out slightly.
2. Press button.
3. Adjust height and engage.
Adjust the height so that the belt lies
across the shoulder. It must not lie
across the throat or upper arm.
9 Warning
Do not adjust while driving.
Seats, restraints 47
Removing
To release belt, press red button on
belt buckle.
Using the seat belt while
pregnant
9 Warning
The lap belt must be positioned as
low as possible across the pelvis
to prevent pressure on the
abdomen.
Airbag system
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered the airbags inflate
within milliseconds. They also deflate
so quickly that it is often unnoticeable
during the collision.
9 Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not fix any objects onto the airbag
covers and do not cover them with
other materials.
48 Seats, restraints
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it may be
necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
When the airbags inflate escaping hot
gases may cause burns.
Control indicator v for airbag systems
3 80.

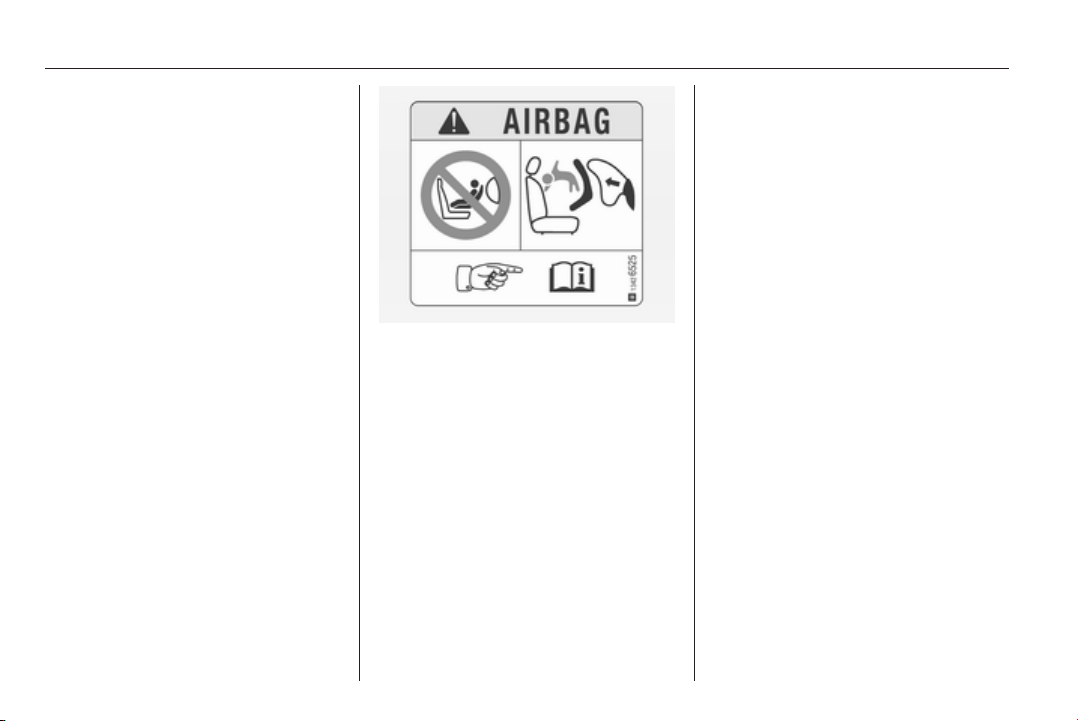

Child restraint systems on front
passenger seat with airbag
systems
Warning according to ECE R94.02:
EN: NEVER use a rear-facing child
restraint system on a seat protected
by an ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG
geschützt ist, da dies den TOD oder
SCHWERE VERLETZUNGEN DES
KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant lui,
sous peine d'infliger des
BLESSURES GRAVES, voire
MORTELLES à l'ENFANT.
ES: NUNCA utilice un sistema de
retención infantil orientado hacia
atrás en un asiento protegido por un
AIRBAG FRONTAL ACTIVO. Peligro
de MUERTE o LESIONES GRAVES
para el NIÑO.
RU: ЗАПРЕЩАЕТСЯ
устанавливать детское
удерживающее устройство лицом
назад на сиденье автомобиля,
оборудованном фронтальной
подушкой безопасности, если
ПОДУШКА НЕ ОТКЛЮЧЕНА! Это
может привести к СМЕРТИ или
СЕРЬЕЗНЫМ ТРАВМАМ
РЕБЕНКА.
NL: Gebruik NOOIT een achterwaarts
gericht kinderzitje op een stoel met
een ACTIEVE AIRBAG ervoor, om
DODELIJK of ERNSTIG LETSEL van
het KIND te voorkomen.
Seats, restraints 49
DA: Brug ALDRIG en bagudvendt
autostol på et forsæde med AKTIV
AIRBAG, BARNET kan komme I
LIVSFARE eller komme ALVORLIGT
TIL SKADE.
SV: Använd ALDRIG en bakåtvänd
barnstol på ett säte som skyddas med
en framförvarande AKTIV AIRBAG.
DÖDSFALL eller ALLVARLIGA
SKADOR kan drabba BARNET.
FI: ÄLÄ KOSKAAN sijoita taaksepäin
suunnattua lasten turvaistuinta
istuimelle, jonka edessä on
AKTIIVINEN TURVATYYNY, LAPSI
VOI KUOLLA tai VAMMAUTUA
VAKAVASTI.
NO: Bakovervendt
barnesikringsutstyr må ALDRI brukes
på et sete med AKTIV
KOLLISJONSPUTE foran, da det kan
føre til at BARNET utsettes for
LIVSFARE og fare for ALVORLIGE
SKADER.
PT: NUNCA use um sistema de
retenção para crianças voltado para
trás num banco protegido com um
AIRBAG ACTIVO na frente do
mesmo, poderá ocorrer a PERDA DE
VIDA ou FERIMENTOS GRAVES na
CRIANÇA.
IT: Non usare mai un sistema di
sicurezza per bambini rivolto
all'indietro su un sedile protetto da
AIRBAG ATTIVO di fronte ad esso:
pericolo di MORTE o LESIONI
GRAVI per il BAMBINO!
EL: ΠΟΤΕ μη χρησιμοποιείτε παιδικό
κάθισμα ασφαλείας με φορά προς τα
πίσω σε κάθισμα που προστατεύεται
από μετωπικό ΕΝΕΡΓΟ ΑΕΡΟΣΑΚΟ,
διότι το παιδί μπορεί να υποστεί
ΘΑΝΑΣΙΜΟ ή ΣΟΒΑΡΟ
ΤΡΑΥΜΑΤΙΣΜΟ.
PL: NIE WOLNO montować fotelika
dziecięcego zwróconego tyłem do
kierunku jazdy na fotelu, przed
którym znajduje się WŁĄCZONA
PODUSZKA POWIETRZNA.
Niezastosowanie się do tego
zalecenia może być przyczyną
ŚMIERCI lub POWAŻNYCH
OBRAŻEŃ u DZIECKA.
TR: Arkaya bakan bir çocuk emniyet
sistemini KESİNLİKLE önünde bir
AKTİF HAVA YASTIĞI ile
korunmakta olan bir koltukta
kullanmayınız. ÇOCUK ÖLEBİLİR
veya AĞIR ŞEKİLDE
YARALANABİLİR.
UK: НІКОЛИ не використовуйте
систему безпеки для дітей, що
встановлюється обличчям назад,
на сидінні з УВІМКНЕНОЮ
ПОДУШКОЮ БЕЗПЕКИ, інакше це
може призвести до СМЕРТІ чи
СЕРЙОЗНОГО ТРАВМУВАННЯ
ДИТИНИ.
HU: SOHA ne használjon hátrafelé
néző biztonsági gyerekülést előlről
AKTÍV LÉGZSÁKKAL védett ülésen,
mert a GYERMEK HALÁLÁT vagy
KOMOLY SÉRÜLÉSÉT okozhatja.
HR: NIKADA nemojte koristiti sustav
zadržavanja za djecu okrenut prema
natrag na sjedalu s AKTIVNIM
ZRAČNIM JASTUKOM ispred njega,
to bi moglo dovesti do SMRTI ili
OZBILJNJIH OZLJEDA za DIJETE.
SL: NIKOLI ne nameščajte otroškega
varnostnega sedeža, obrnjenega v
nasprotni smeri vožnje, na sedež z
AKTIVNO ČELNO ZRAČNO
50 Seats, restraints
BLAZINO, saj pri tem obstaja
nevarnost RESNIH ali SMRTNIH
POŠKODB za OTROKA.
SR: NIKADA ne koristiti bezbednosni
sistem za decu u kome su deca
okrenuta unazad na sedištu sa
AKTIVNIM VAZDUŠNIM
JASTUKOM ispred sedišta zato što
DETE može da NASTRADA ili da se
TEŠKO POVREDI.
MK: НИКОГАШ не користете детско
седиште свртено наназад на
седиште заштитено со АКТИВНО
ВОЗДУШНО ПЕРНИЧЕ пред него,
затоа што детето може ДА ЗАГИНЕ
или да биде ТЕШКО ПОВРЕДЕНО.
BG: НИКОГА не използвайте
детска седалка, гледаща назад,
върху седалка, която е защитена
чрез АКТИВНА ВЪЗДУШНА
ВЪЗГЛАВНИЦА пред нея - може да
се стигне до СМЪРТ или
СЕРИОЗНО НАРАНЯВАНЕ на
ДЕТЕТО.
RO: Nu utilizaţi NICIODATĂ un scaun
pentru copil îndreptat spre partea din
spate a maşinii pe un scaun protejat
de un AIRBAG ACTIV în faţa sa;
acest lucru poate duce la DECESUL
sau VĂTĂMAREA GRAVĂ a
COPILULUI.
CS: NIKDY nepoužívejte dětský
zádržný systém instalovaný proti
směru jízdy na sedadle, které je
chráněno před sedadlem AKTIVNÍM
AIRBAGEM. Mohlo by dojít k
VÁŽNÉMU PORANĚNÍ nebo ÚMRTÍ
DÍTĚTE.
SK: NIKDY nepoužívajte detskú
sedačku otočenú vzad na sedadle
chránenom AKTÍVNYM AIRBAGOM,
pretože môže dôjsť k SMRTI alebo
VÁŽNYM ZRANENIAM DIEŤAŤA.
LT: JOKIU BŪDU nemontuokite atgal
atgręžtos vaiko tvirtinimo sistemos
sėdynėje, prieš kurią įrengta AKTYVI
ORO PAGALVĖ, nes VAIKAS GALI
ŽŪTI arba RIMTAI SUSIŽALOTI.
LV: NEKĀDĀ GADĪJUMĀ
neizmantojiet uz aizmuguri vērstu
bērnu sēdeklīti sēdvietā, kas tiek
aizsargāta ar tās priekšā uzstādītu
AKTĪVU DROŠĪBAS SPILVENU, jo
pretējā gadījumā BĒRNS var gūt
SMAGAS TRAUMAS vai IET BOJĀ.
ET: ÄRGE kasutage tahapoole
suunatud lapseturvaistet istmel, mille
ees on AKTIIVSE TURVAPADJAGA
kaitstud iste, sest see võib
põhjustada LAPSE SURMA või
TÕSISE VIGASTUSE.
MT: QATT tuża trażżin għat-tfal li
jħares lejn in-naħa ta’ wara fuq sit
protett b’AIRBAG ATTIV quddiemu;
dan jista’ jikkawża l-MEWT jew
ĠRIEĦI SERJI lit-TFAL.
Beyond the warning required by
ECE R94.02, for safety reasons a
forward-facing child restraint system
must only be used subject to the
instructions and restrictions in the
table 3 55.
The airbag label may be located on
both sides of the front passenger sun
visor.
9 Danger
Do not use a child restraint system
on the passenger seat with active
front airbag.
Airbag deactivation 3 52.
Seats, restraints 51
Front airbag system
The front airbag system consists of
one airbag in the steering wheel and
one in the instrument panel on the
front passenger side. These can be
identified by the word AIRBAG.
Additionally there is a warning label
on the side of the instrument panel,
visible when the front passenger door
is open.
The front airbag system is triggered in
the event of an accident of a certain
severity. The ignition must be
switched on.
The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and head of
the front seat occupants
considerably.
9 Warning
Optimum protection is only
provided when the seat is in the
proper position 3 38.
Keep the area in which the airbag
inflates clear of obstructions.
Fit the seat belt correctly and
engage securely. Only then the
airbag is able to protect.
Side airbag system
The side airbag system consists of an
airbag in each front seat backrest.
This can be identified by the word
AIRBAG.
The side airbag system is triggered in
the event of an accident of a certain
severity. The ignition must be
switched on.
The inflated airbags cushion the
impact, thereby reducing the risk of
injury to the upper body and pelvis in
the event of a side-on collision
considerably.
52 Seats, restraints
9 Warning
Keep the area in which the airbag
inflates clear of obstructions.
Note
Only use protective seat covers that
have been approved for the vehicle.
Be careful not to cover the airbags.
Airbag deactivation
Front airbag and side airbag systems
for the front passenger seat must be
deactivated if a child restraint system
is to be fitted on this seat, in
accordance with the instructions in
the child restraint installation location
tables 3 55.
The belt pretensioners and all driver
airbag systems will remain active.
The front passenger airbag system
can be deactivated via a switch on the
side of the instrument panel.
With the ignition off, open the front
door, push switch in and rotate anti-
clockwise to the OFF position.
Front passenger seat airbags are
deactivated and will not inflate in the
event of a collision. Control indicator
W 3 80 illuminates continuously
and a corresponding message
appears in the Driver Information
Centre 3 85.
A child restraint system can be
installed in accordance with the
installation locations chart 3 55. An
adult must not occupy the front
passenger seat.
Seats, restraints 53
9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
As long as control indicator W is not
illuminated, the airbag systems for
the front passenger seat will inflate in
the event of a collision.
If control indicator A remains
illuminated together with v, this
indicates a fault within the system.
The switch position may have been
changed inadvertently with the
ignition on. Turn ignition off and on
again and reset the switch position. If
A and v still remain illuminated,
seek the assistance of a workshop.
Change status only when the vehicle
is stopped with the ignition off. Status
remains until the next change.
Control indicator W for airbag
deactivation 3 80.
Child restraints
Child restraint systems
We recommend the Opel child
restraint system which is tailored
specifically to the vehicle.
When a child restraint system is being
used, pay attention to the following
usage and installation instructions
and also those supplied with the child
restraint system.
Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.
9 Warning
When using a child restraint
system on the front passenger
seat, the airbag systems for the
front passenger seat must be
54 Seats, restraints
deactivated; if not, the triggering of
the airbags poses a risk of fatal
injury to the child.
This is especially the case if rear-
facing child restraint systems are
used on the front passenger seat.
Airbag deactivation 3 52.
Airbag label 3 47.
The rear seats are the most
convenient location to fasten a child
restraint system.
Children should travel facing
rearwards in the vehicle as long as
possible. This makes sure that the
child's backbone, which is still very
weak, is under less strain in the event
of an accident.
Child locks 3 25.
Selecting the right system
Suitable are restraint systems that
comply with valid UN ECE
regulations. Check local laws and
regulations for mandatory use of child
restraint systems.
Ensure that the child restraint system
to be installed is compatible with the
vehicle type.
Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.
Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.
When the child restraint system is not
in use, secure the seat with a seat belt
or remove it from the vehicle.
Child restraint systems could be
fastened with ISOFIX mounting
brackets, Top-tether if available, and/
or a three-point seat belt. Refer to the
following tables.
Note
Do not affix anything on the child
restraint systems and do not cover
them with any other materials.
A child restraint system which has
been subjected to stress in an
accident must be replaced.
Seats, restraints 55
Child restraint installation locations
Permissible options for fitting a child restraint system
Front seats - All variants
Weight and age class
Single seat - front passenger side
1)
Bench seat - front passenger side
without airbag with airbag without airbag with airbag
centre outer centre outer
Group 0: up to 10 kg
or approx. 10 months
Group 0+: up to 13 kg
or approx. 2 years
U
U
2)
U U
U
2)
U
2)
Group I: 9 to 18 kg
or approx. 8 months to 4 years
U
U
2)
U U
U
2)
U
2)
Group II: 15 to 25 kg
or approx. 3 to 7 years
Group III: 22 to 36 kg
or approx. 6 to 12 years
U
U
2)
U U
U
2)
U
2)
1)
If adjustable, ensure seat is in its rearmost position. Make sure vehicle seat belt is as straight as possible between shoulder and upper anchorage point.
2)
Ensure the front passenger airbag system is deactivated when installing a child restraint in this position.
56 Seats, restraints
Crew cab - rear seats
Weight and age class 2nd row seats
Outer Centre
Group 0: up to 10 kg
or approx. 10 months
Group 0+: up to 13 kg
or approx. 2 years
U X
Group I: 9 to 18 kg
or approx. 8 months to 4 years
U X
Group II: 15 to 25 kg
or approx. 3 to 7 years
Group III: 22 to 36 kg
or approx. 6 to 12 years
U X
Seats, restraints 57
Combi - rear seats
Weight and age class 2nd row seats 3rd row seats
Driver side
outer seat Centre seat
Passenger side
outer seat
Group 0: up to 10 kg
or approx. 10 months
Group 0+: up to 13 kg
or approx. 2 years
U
3)
, <
X X X
Group I: 9 to 18 kg
or approx. 8 months to 4 years
U
4)
, < UF
4)
, < UF
4)
X
Group II: 15 to 25 kg
or approx. 3 to 7 years
Group III: 22 to 36 kg
or approx. 6 to 12 years
U
4)
UF
4)
UF
4)
X
3)
Move the front seat as far forward as possible to install a rear facing child seat, then move back the seat in front in accordance with the child seat instructions.
4)
Forward facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the height of the headrest or
remove it if necessary; do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback more than 25°.
58 Seats, restraints
Bus - rear seats
Weight and age class Rear seats
Group 0: up to 10 kg
or approx. 10 months
Group 0+: up to 13 kg
or approx. 2 years
X
Group I: 9 to 18 kg
or approx. 8 months to 4 years
X
Group II: 15 to 25 kg
or approx. 3 to 7 years
Group III: 22 to 36 kg
or approx. 6 to 12 years
X
U = Suitable for universal category restraint systems for use in this weight and age class, in conjunction with three-point
seat belt.
UF = Suitable for universal category forward-facing restraint systems for use in this weight and age class, in conjunction
with three-point seat belt.
<
= Suitable for ISOFIX child restraint system with mounting brackets and anchorage points, where fitted. When mounting
an ISOFIX child restraint system, only systems that have been approved for the vehicle may be used. Refer to
"Permissible options for fitting an ISOFIX child restraint system".
X = Seat position not suitable for children in this weight and age class.
Seats, restraints 59
Permissible options for fitting an ISOFIX child restraint system
Combi
Weight class Size class Fixture Front seats 2nd row seats 3rd row seats
Driver side
outer seat Centre seat
Passenger side
outer seat
Group 0: up to 10 kg
or approx. 10 months
E ISO/R1 X IL X X X
Group 0+: up to 13 kg
or approx. 2 years
E ISO/R1 X IL X X X
D ISO/R2 X IL X X X
C ISO/R3 X IL X X X
Group I: 9 to 18 kg
or approx. 8 months to 4 years
D ISO/R2 X IL X X X
C ISO/R3 X IL X X X
B ISO/F2 X IL, IUF IL, IUF X X
B1 ISO/F2X X IL, IUF IL, IUF X X
A ISO/F3 X IL, IUF IL, IUF X X
IL = Suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal" categories.
The ISOFIX restraint system must be approved for the specific vehicle type.
IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.
X = No ISOFIX child restraint system approved in this weight class.
60 Seats, restraints
ISOFIX size class and seat device
A - ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.
B - ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
B1 - ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
C - ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.
D - ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 18 kg.
E - ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.
Seats, restraints 61
ISOFIX child restraint
systems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets.
When using ISOFIX mounting
brackets for seat mounting,
universally approved child restraint
systems for ISOFIX may be used.
Permissible mounting location
positions for ISOFIX child restraint
systems are marked in the tables by
<, IL and IUF.
Top-tether fastening eyes
Top-Tether fastening eyes are
located on the back of the seat.
In addition to the ISOFIX mounting,
fasten the Top-Tether strap to the
Top-Tether fastening eyes. The strap
must run between the two guide rods
of the head restraint.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.
62 Storage
Storage
Storage compartments ................ 62
Load compartment ....................... 65
Roof rack system ......................... 68
Loading information ..................... 69
Storage compartments
9 Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could
be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Instrument panel storage
Storage compartments, pockets and
trays are located in the instrument
panel.
A phone holder and/or a coin holder
with a clip for holding tickets is located
on the top of the instrument panel.
The tray located centrally on top of the
instrument panel has a lid.
Document holder
Withdraw the document holder from
the instrument panel by pulling the
base towards you and then swivelling
it downwards.
Storage 63
To fold away, raise the base until the
document holder is horizontal, then
push fully in.

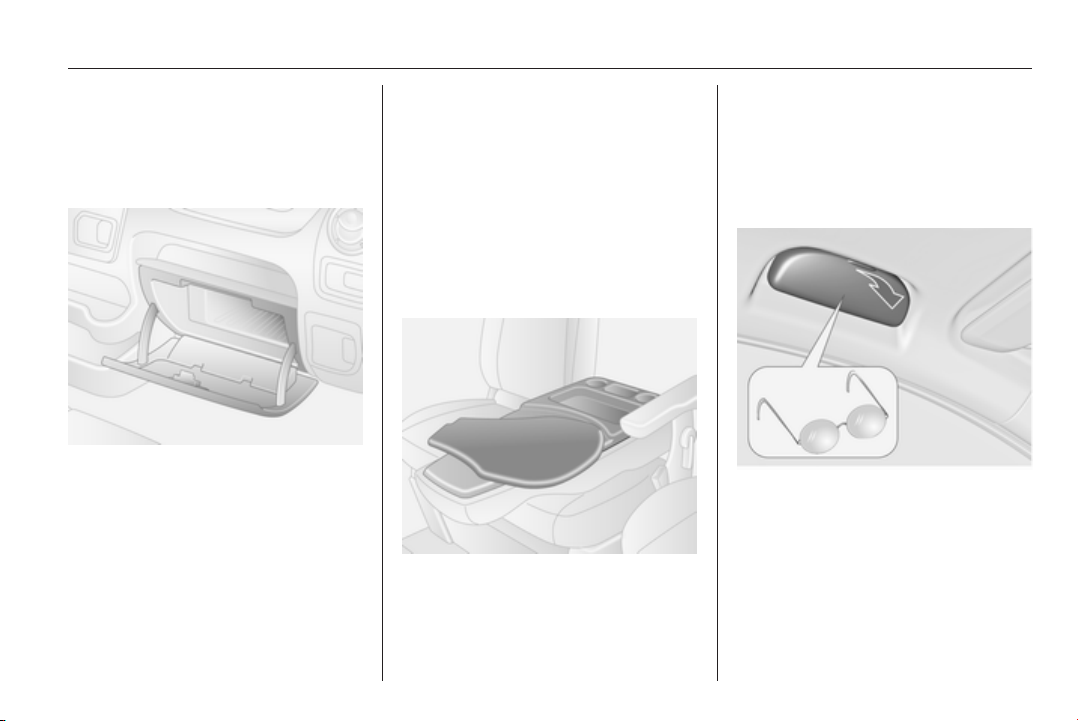

Glovebox
The glovebox should be closed whilst
driving.
Glovebox cooler 3 108.
Cupholders
Cupholders are located at either end
of the instrument panel and centrally
in the lower instrument panel.
The cupholders can also be used to
hold the portable ashtray unit 3 74.
Front storage
Three coat hooks are located on the
cabin bulkhead
The front door pockets contain bottle
holders.
Folding passenger seatback
The passenger seat backrest, when
folded fully forwards, features storage
compartments and drink holders.
The swivelling shelf, which can be
used for writing or documents, must
be returned to its original position
before raising the seat backrest.
Sunglasses storage
Fold down to open.
Do not use for storing heavy objects.
64 Storage

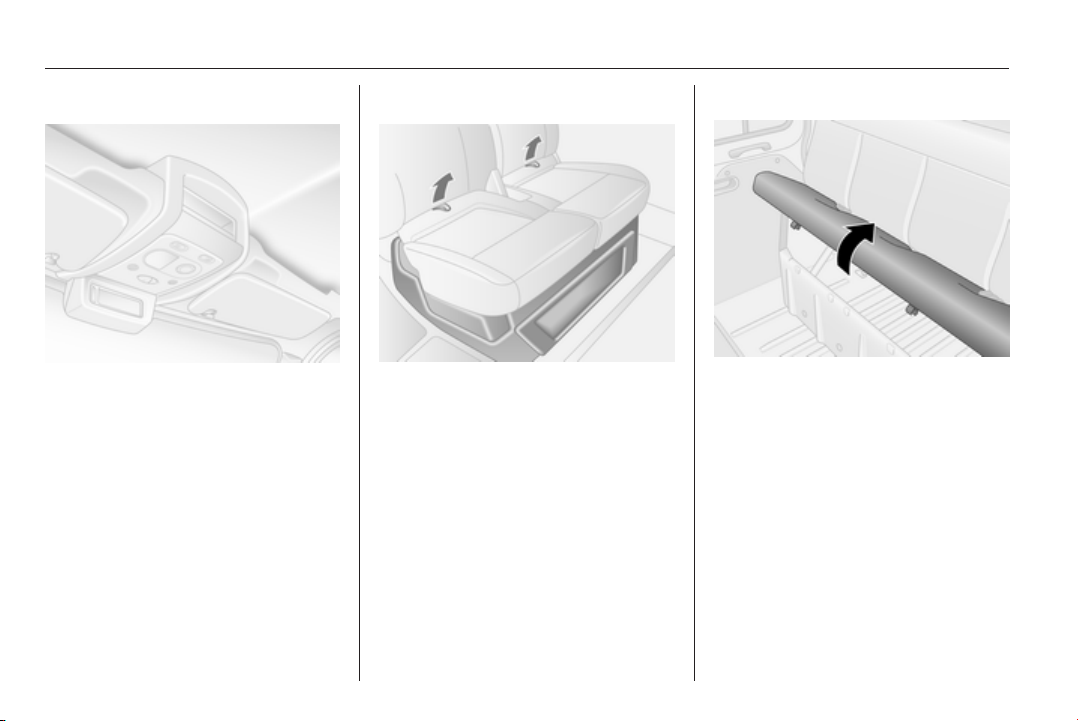

Overhead console
The total weight in these
compartments must not exceed 5 kg.

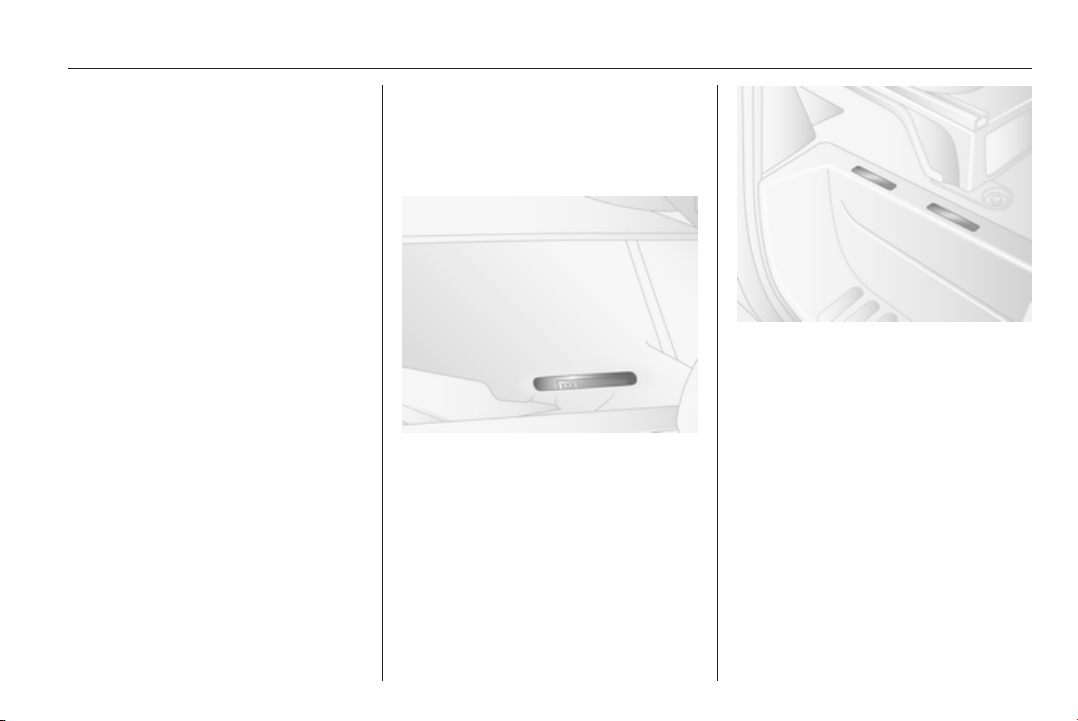

Underseat storage
Using the two loops on the passenger
seat cushion, pull the cushion
forwards to gain access to the storage
under the seat.
Rear bench seat
Raise seat base to gain access to
storage compartment under the
bench seat.
Storage 65
Overcab storage
The total weight in this compartment
must not exceed 35 kg.
Rear storage
Bus
Objects can be stored in the overhead
storage racks above the rear
passenger seating.
The total weight in each storage rack
must not exceed 35 kg.
Load compartment
Lashing eyes
Lashing eyes are mounted in the load
compartment to enable cargo to be
secured in position using lashing
straps or a luggage floor net.
The maximum force applied to the
lashing eyes should not exceed
5000 N at 30°.
Removable lashing eyes
To reposition, press down on the
centre cap and slide to the desired
position. Ensure the lashing eye
engages correctly in the recess.
Loading information 3 69.
Cargo management
system
Moveable partition wall
The moveable partition wall can be
used between the floor and roof rails.
66 Storage
To move, pull down on the latch to
release and position the wall as
required. Ensure the latch engages
fully and the partition wall is upright.
Store the partition wall to one side of
the load compartment when not in
use.
Telescopic blocking bars
The telescope blocking bars can be
used in a vertical or horizontal
position.
Ensure the blocking bars are fully
engaged in the load rails before
loading.
To release, press down on the lock
and slide the bar at the same time.
Maximum loading 100 daN/700mm.
Ratchet straps
Using the appropriate ratchet straps,
objects can be secured to the
removable lashing eyes in the side or
floor load rails.
The maximum loading for the floor
rails is 500 daN/700mm.
Storage 67
The maximum loading for the side
rails is 100 daN/700mm.
Removable lashing eyes 3 65,
Loading information 3 69.
Safety net
Lower the safety net from the roof
area and attach to the lashing eyes
3 65.
Adjust the tension on the straps to
ensure the load is secure.
When not in use the safety net should
be stored in the roof area.
Loading information 3 69.
Warning triangle
The warning triangle can be
accommodated in the space under
the front seats.
Underseat storage 3 64.
First aid kit
The first aid kit can be accommodated
in the space under the front seats or
in the overhead console.
A label is located on the overhead
console should the first aid kit be
stored there.
Underseat storage 3 64.
Overhead console 3 64.
Fire extinguisher
The fire extinguisher can be
accommodated in the space under
the front seats.
68 Storage
Using the two loops on the seat
cushion, pull the cushion forwards to
gain access.
An additional extinguisher may be
located in the front door panel.
As a visible indication of this, a label
is located on the overhead console.
Roof rack system
Roof rack
For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended.
Follow the installation instructions
and remove the roof rack when not in
use.
Storage 69
Loading information
■ Heavy objects in the load
compartment should be evenly
distributed and placed as far
forward as possible. If objects can
be stacked, the heavier objects
should be placed at the bottom.
■ Secure objects with lashing straps
attached to lashing eyes 3 65.
■ Secure loose objects in load
compartment to prevent them from
sliding.
■ The load must not obstruct the
operation of the pedals, parking
brake and gear selector lever, or
hinder the freedom of movement of
the driver. Do not place any
unsecured objects in the interior.
■ Do not drive with an open load
compartment. In addition, the
number plate is only
distinguishable and illuminated
correctly if the doors are closed.
9 Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or vehicle.
■ The payload is the difference
between the permitted gross
vehicle weight (see identification
plate 3 184) and the EC kerb
weight.
To calculate the payload, enter the
data for your vehicle in the Weights
table at the front of this manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (tank
90% full).
Optional equipment and
accessories increase the kerb
weight.
■ Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a detrimental
effect on vehicle handling due to
the vehicle's higher centre of
gravity. Distribute the load evenly
and secure it properly with retaining
straps. Adjust the tyre pressure and
vehicle speed according to the load
conditions. Check and retighten the
straps frequently.
Do not drive faster than 120 km/h.
■ The permissible roof load (which
includes the weight of the roof rack)
is 200 kg for standard roof variants.
The roof load is the combined
weight of the roof rack and the load.
70 Instruments and controls
Instruments and
controls
Controls ....................................... 70
Warning lights, gauges and indi‐
cators ........................................... 75
Information displays ..................... 85
Vehicle messages ........................ 86
Trip computer ............................... 87
Tachograph .................................. 89
Controls
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
The cruise control and speed limiter
can be operated via the controls on
the steering wheel.
Cruise control and speed limiter
3 127.
Instruments and controls 71
Horn
Press j.
The horn will sound regardless of
ignition switch position.
Steering column controls
The Infotainment system can also be
operated via the controls on the
steering column.
Further information is available in the
Infotainment system manual.
Windscreen wiper/washer
Windscreen wiper
0 = off
P
= timed interval wiping or
automatic wiping with rain
sensor
1 = slow
2 = fast
Do not use if the windscreen is frozen.
Switch off in car washes.
Automatic wiping with rain sensor
P
= Automatic wiping with rain
sensor
The rain sensor detects the amount of
water on the windscreen and
automatically regulates the frequency
of the windscreen wipers.
Automatic wiping will need to be
reselected whenever the ignition has
been switched off.
72 Instruments and controls

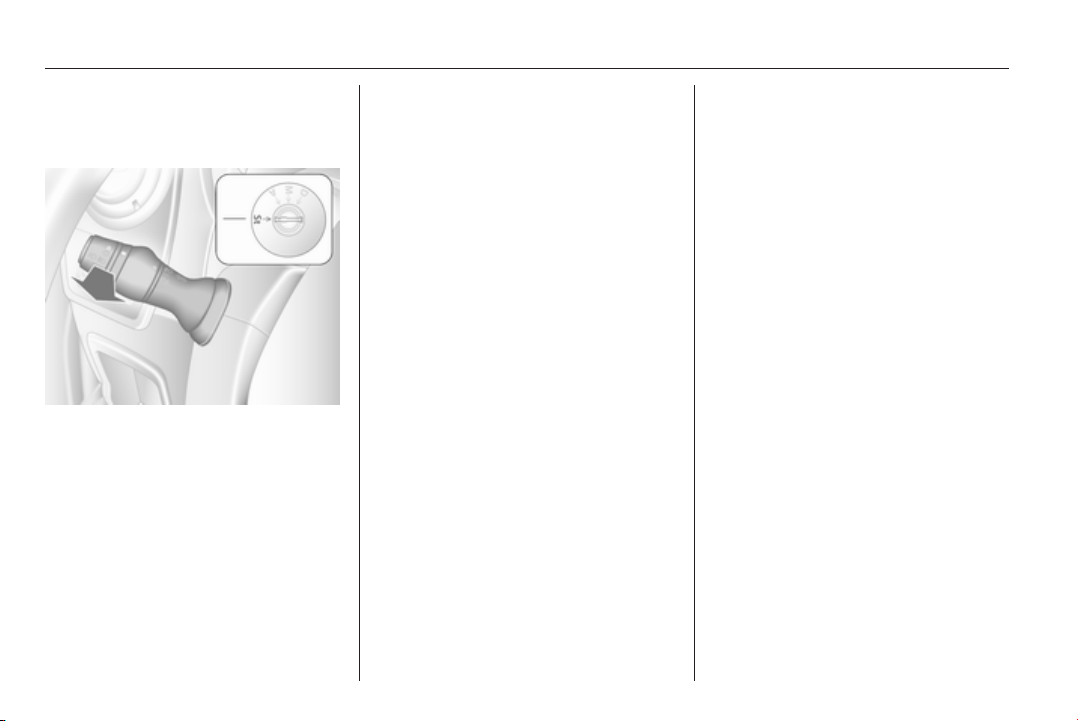

Adjustable sensitivity of the rain
sensor
Turn the adjuster wheel to adjust the
sensitivity:
Low sensitivity = turn adjuster
wheel downwards
High sensitivity = turn adjuster
wheel upwards
Keep the sensor free from dust, dirt
and ice.
Windscreen washer
Pull lever. Washer fluid is sprayed
onto the windscreen.
short pull = wiper swipes once
long pull = wiper swipes for a
few strokes
Outside temperature
A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.
If outside temperatures drop to 3 °C,
the °C flashes in the information
display as a warning for icy road
conditions. This will continue to flash
until temperatures rise above 3 °C.

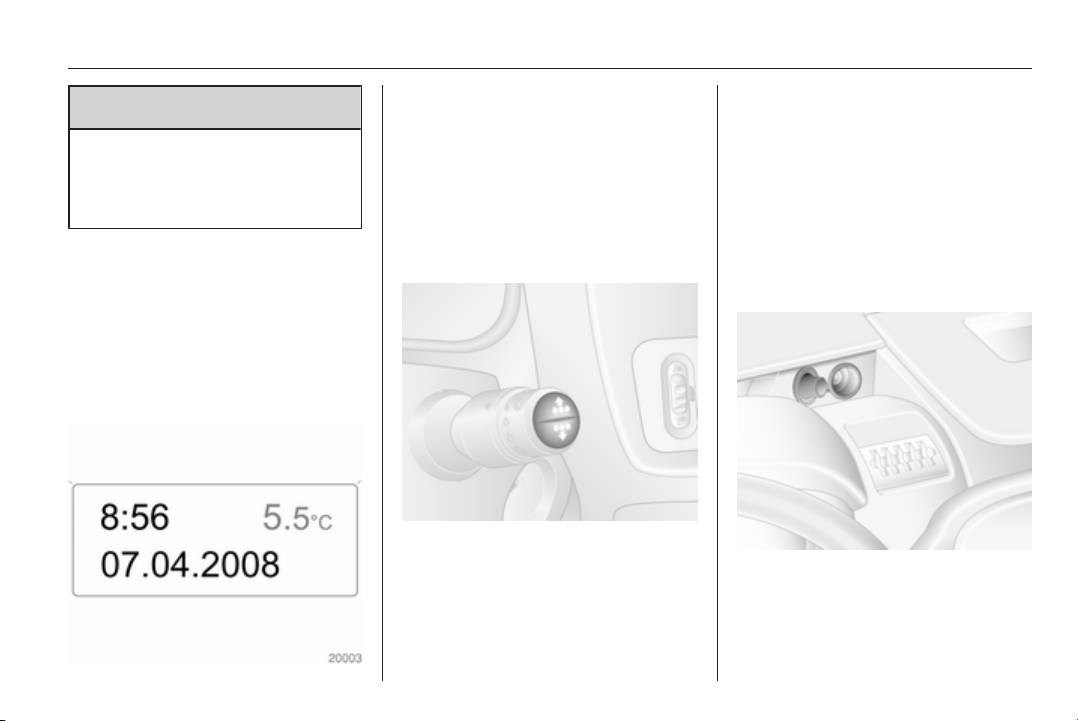

Instruments and controls 73
9 Warning
The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.
Clock
Depending on vehicle, the current
time and/or date may appear in the
information display 3 86 or the
Driver Information Centre 3 85.
Set time and date in information
display
Hours and minutes can be adjusted
by pressing the appropriate buttons
by the display or with the Infotainment
system controls.
Further information is available in the
Infotainment system manual.
Set time in Driver Information
Centre
Display the clock function by pressing
button repeatedly on end of wiper
lever. When the time flashes (after
approx. 2 seconds):
■ Press and hold the bottom button
■ Hours flash
■ Press top button to change hours
■ Press and hold bottom button to set
hours
■ Minutes flash
■ Press top button to change minutes
■ Press and hold bottom button to set
minutes and exit setting mode.

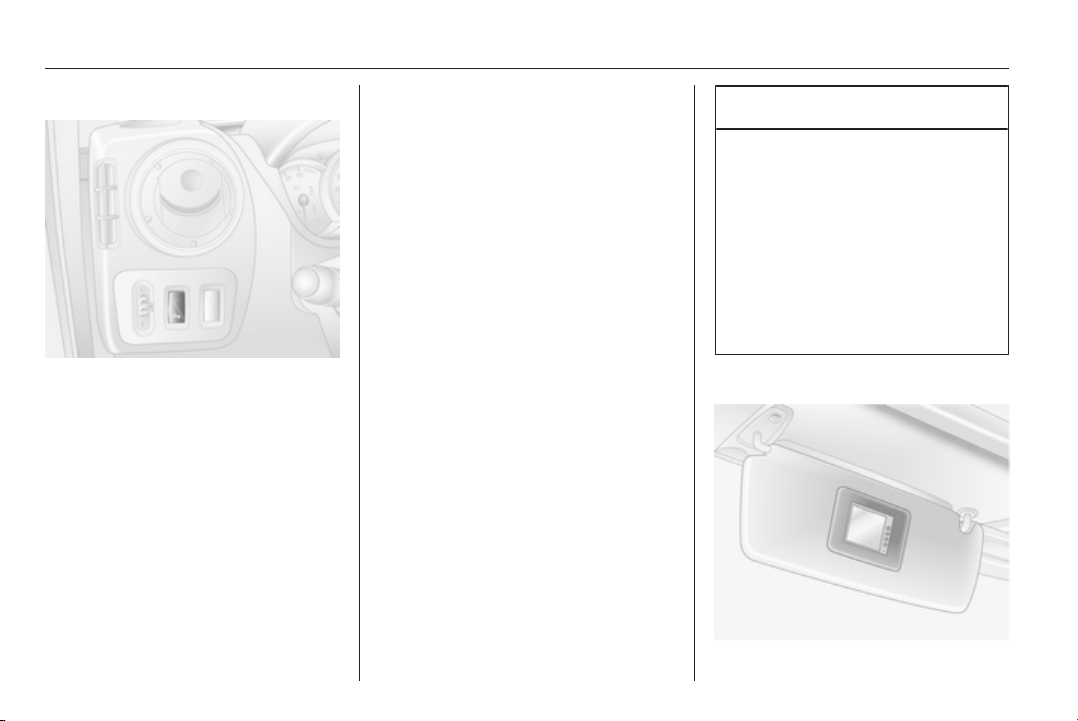

Power outlets
12 V power outlets are located in the
instrument panel and in the rear of the
vehicle.
74 Instruments and controls
Connecting electrical accessories
while the engine is off will discharge
the vehicle battery.
Do not exceed the maximum power
consumption of 120 watts.
With ignition off the power outlet is
deactivated.
Additionally the power outlet may be
deactivated in case of low battery
voltage.
Electrical accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.
Caution
Do not connect any current-
delivering accessories, e.g.
electrical charging devices or
batteries.
Do not damage the outlet by using
unsuitable plugs.
Cigarette lighter
Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out lighter.
Ashtrays
Caution
To be used only for ash and not for
combustible rubbish.
Portable ashtray
Ashtray container for mobile use in
the vehicle. To use, open cover.

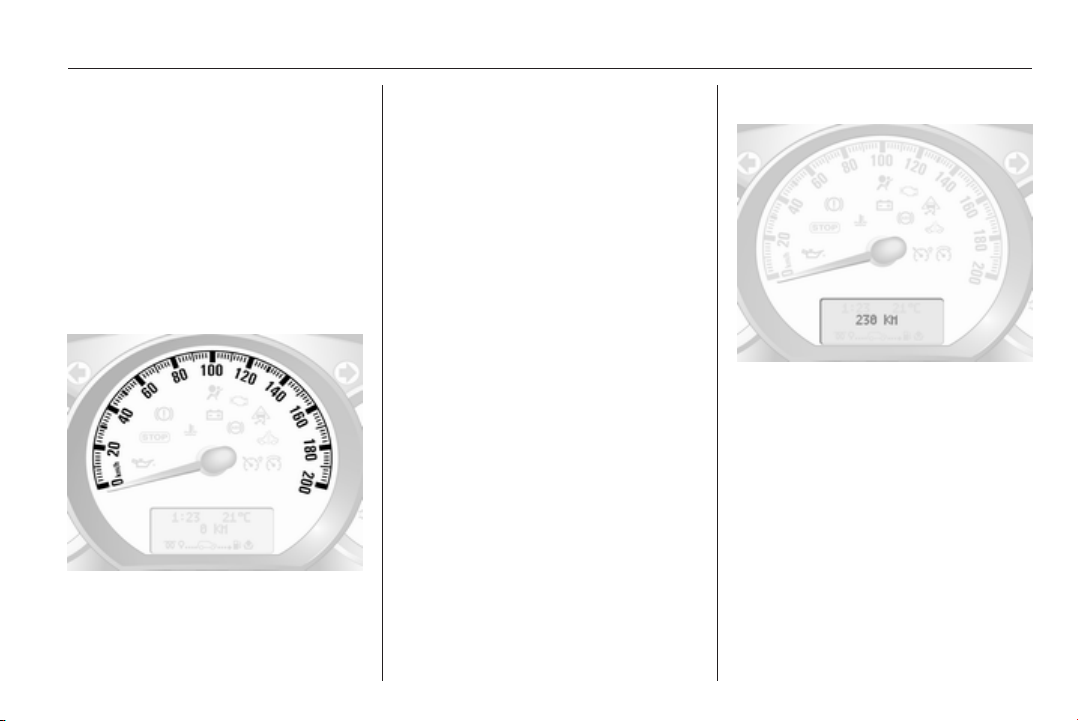

Instruments and controls 75
Warning lights, gauges
and indicators
Instrument cluster
In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched
on.
Speedometer
Indicates vehicle speed.
Speed limiter
Maximum speed may be restricted by
a speed limiter. As a visible indication
of this, a warning label is located on
the instrument panel.
A warning buzzer will sound for
10 seconds if the vehicle briefly
exceeds the set limit.
Note
Under certain conditions (e.g. steep
inclines) the vehicle speed may
exceed the set limit.
Speed limiter 3 130, cruise control
speed limiter 3 127.
Odometer
Displays the recorded distance in km.
Trip odometer
The trip odometer displays the
distance travelled since the last reset.
Press button once on end of
windscreen wiper lever to display the
trip odometer.
To reset, with the trip odometer
displayed, press and hold button for a
few seconds with the ignition on. The
display will flash and the value will
reset to zero.
76 Instruments and controls
Tachograph 3 89.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for
each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine
at risk.
Fuel gauge
Displays fuel level in the tank.
Control indicator Y illuminates if the
level in the tank is low. Refuel
immediately 3 134.
Never run the tank dry. Diesel fuel
system, bleeding 3 147.
Because of the fuel remaining in the
tank, the top-up quantity may be less
than the specified tank capacity.
Engine coolant
temperature gauge
Displays the coolant temperature.
left area = engine operating
temperature not
yet reached
central area = normal operating
temperature
right area = temperature too
high
Control indicator W illuminates if the
temperature is too high 3 81,
3 83.
Instruments and controls 77
Caution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
For physical reasons, the coolant
temperature gauge shows the coolant
temperature only if the coolant level is
adequate.
Engine oil level monitor
The engine oil level monitor is correct
only if the vehicle is parked on a level
surface with a cold engine.
If the engine oil level is correct when
the ignition is switched on OIL LEVEL
CORRECT appears briefly in the
Driver Information Centre.
If the engine oil is above the minimum
level, press the trip computer button
on the end of the wiper lever within
30 seconds of switching on the
ignition. The message OIL LEVEL is
displayed in combination with the
squares that correspond to the oil
level.
As the oil level diminishes, the
squares in the display are replaced
with dashes.
▢▢▢▢▢▢ = Maximum level
▢▢▢- - - = Intermediate level
- - - - - - = Minimum level
If the minimum engine oil level is
reached TOP-UP OIL LEVEL is
displayed in combination with control
indicator A after the ignition is
switched on for 30 seconds. Check
and top up engine oil 3 141.
To exit the oil level monitor display,
press either trip computer button.
Trip computer 3 87.
Service display
When the ignition is switched on, the
remaining distance before the next
service is due may be shown briefly in
the Driver Information Centre. Based
on driving conditions, the interval at
which a service will be indicated can
vary considerably.
When the remaining distance before
the next service is less than
3000 km or 2 months, SERVICE IN
appears in the Driver Information
Centre.
When the distance reaches 0 km or
the service date is due, control
indicators o and A illuminate in the
instrument cluster and SERVICE
DUE appears in the Driver
Information Centre.
The vehicle needs a service. Seek the
assistance of a workshop.
Resetting the service display
After a service, the service display
must be reset: if available, select the
distance before service display in the
Driver Information Centre, then press
and hold button on end of wiper lever
for approx. 10 seconds until the
distance before service is displayed
continuously.
Trip computer 3 87.
Driver Information Centre 3 85.
78 Instruments and controls
Service information 3 179.
Transmission display
The mode or selected gear of the
manual transmission automated is
shown in the transmission display.
R = Reverse gear
N = Neutral
A = Automatic mode
kg = Laden mode
V
= Winter mode
T
= Apply footbrake
W
= Transmission electronics
Manual transmission automated
3 119.
Control indicators
The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control
indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as a
functionality test.
The control indicator colours mean:
red = danger, important reminder
yellow = warning, information, fault
green = confirmation of activation
blue = confirmation of activation
white = confirmation of activation
Instruments and controls 79
Control indicators in the instrument cluster
80 Instruments and controls
Control indicators in the roof
console
Turn signal
O flashes green.
Flashes if a turn signal or the hazard
warning flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse.
An audible warning can be heard
when the turn signals are on. When
towing a trailer, the pitch of the
audible warning changes.
Bulb replacement 3 148.
Fuses 3 156.
Turn signals 3 92.
Seat belt reminder
X illuminates red.
If the seat belt is not fastened, X will
flash when vehicle speed exceeds
approx. 16 km/h. An audible warning
also sounds for approx. 90 seconds.
If the seat belt is buckled, the indicator
light extinguishes.
Three-point seat belts 3 46.
Airbag and belt tensioners
v illuminates yellow.
When the ignition is switched on, the
control indicator illuminates briefly. If
it does not illuminate or illuminates
whilst driving, there is a fault in the
airbag system. Seek the assistance
of a workshop. The airbags and belt
pretensioners may fail to trigger in the
event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.
9
Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners, airbag system
3 45, 3 47.
Airbag deactivation
W illuminates yellow when the
ignition is switched on and remains
illuminated when the front passenger
airbag has been deactivated 3 52.
9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Airbag system 3 47, belt tensioners
3 45, airbag deactivation 3 52.
Instruments and controls 81
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates briefly when the ignition is
switched on.
Illuminates when the engine is
running
Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.
If Z illuminates in combination with
A, stop vehicle and switch off engine
as soon as possible.
9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of a
workshop.
Service vehicle soon
A illuminates yellow.
Illuminates briefly when the ignition is
switched on.
The vehicle needs a service.
May illuminate in combination with
another control indicator or a
message in the Driver Information
Centre 3 85.
Illuminates if cleaning of the diesel
particle filter is required and
automatic cleaning does not occur
3 117.
9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Service display
Control indicator o also illuminates in
the Driver Information Centre when
the remaining distance before the
next service reaches 0 km or the
service date is due.
The message SERVICE DUE also
appears in the Driver Information
Centre.
Service display 3 77.
Stop engine
C illuminates red.
Illuminates briefly when the ignition is
switched on.
82 Instruments and controls
If C illuminates (possibly in
combination with W and/or R), stop
vehicle and switch off engine as soon
as possible.
9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Depending on the type of fault, a
warning message may also appear in
the Driver Information Centre 3 85.
Brake system
R illuminates red.
Illuminates briefly when the ignition is
switched on.
Control indicator R remains
illuminated after the ignition is
switched on if the parking brake is
applied 3 123.
When the parking brake is released,
R illuminates (possibly in
combination with C) if the brake fluid
level is too low 3 145.
9
Warning
Stop. Do not continue your
journey. Consult a workshop.
Brake system 3 122.
Antilock brake system
(ABS)
u illuminates yellow.
Illuminates briefly when the ignition is
switched on. The system is ready for
operation when u extinguishes.
If control indicators u and A
illuminate with the messages CHECK
ABS and CHECK ESP in the Driver
Information Centre 3 85, there is a
fault in the ABS. The brake system
remains operational but without ABS
regulation.
If control indicators u, A, R and
C illuminate, the ABS and ESP are
deactivated and the message
BRAKING FAULT is displayed. Seek
the assistance of a workshop.
Antilock brake system 3 122.
Upshift
k or j illuminates yellow.
Illuminates when gearshifting is
recommended for fuel saving
reasons.
ECO mode 3 109.
Electronic Stability
Program
b flashes or illuminates yellow.
Illuminates for a few seconds when
the ignition is switched on.
Flashing during driving
The system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree
3 126.
Illuminates during driving
The system is unavailable.
May illuminate together with control
indicator A 3 81. A corresponding
message also appears in the Driver
Information Centre 3 85.
Instruments and controls 83
ESP®
Plus
3 126, Traction Control
system 3 125.
Electronic Stability
Program off
Ø illuminates yellow.
If ESP®
Plus
has been deactivated with
button Ø on the instrument panel,
control indicator Ø illuminates and a
corresponding message appears in
the Driver Information Centre 3 85.
ESP®
Plus
3 126, Traction Control
system 3 125.
Engine coolant
temperature
W illuminates red.
Illuminates when the engine is
running
If W illuminates (possibly in
combination with control indicator
C), stop vehicle and switch off
engine.
Caution
Coolant temperature too high.
Check coolant level 3 142.
If there is sufficient coolant, consult a
workshop.
Preheating
! illuminates yellow.
Preheating is activated. Only
activates when outside temperature
is low.
Tyre pressure monitoring
system
w illuminates or flashes.
Illuminates
Tyre pressure loss. Stop immediately
and check tyre pressure.
Control indicator w illuminates
together with C 3 81 and a
corresponding message appears in
the Driver Information Centre when a
puncture or severely under-inflated
tyre is detected.
Flashes
Fault in system. After a delay the
control indicator illuminates
continuously. Consult a workshop.
Control indicator w illuminates
together with A 3 81 and a
corresponding message appears in
the Driver Information Centre when a
tyre without a pressure sensor is
mounted (e.g. spare wheel).
Tyre pressure monitoring system
3 161.
Engine oil pressure
I illuminates red.
Illuminates briefly when the ignition is
switched on.
84 Instruments and controls
Illuminates when the engine is
running
Caution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress clutch.
2. Select neutral gear, set selector
lever to N.
3. Move out of the flow of traffic as
quickly as possible without
impeding other vehicles.
4. Switch off ignition.
9 Warning
When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will
still be operational.
Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.
Check oil level before seeking
assistance of a workshop 3 141.
Low fuel
Y illuminates yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Fuel level in the tank is too low. Refuel
immediately.
Never run the tank dry.
Refuelling 3 134.
Catalytic converter 3 117.
Bleeding the diesel fuel system
3 147.
Stop-start system
\
Illuminates when an Autostop is
inhibited when certain conditions are
not fulfilled.
Ï illuminates or flashes yellow /
green.
Illuminates
Illuminates green during an Autostop.
If Ï illuminates yellow there is a fault
in the stop-start system. Seek the
assistance of a workshop.
Flashes
Flashes green during an automatic
restart.
Stop-start system 3 112.
Exterior light
9 illuminates green.
Illuminated when the exterior lights
are on 3 90.
Instruments and controls 85
High beam
P illuminates blue.
Illuminated when high beam is on and
during headlight flash 3 91.
Fog light
> illuminates green.
Illuminated when the front fog lights
are on 3 93.
Rear fog light
r illuminates yellow.
Illuminated when the rear fog light is
on 3 93.
Cruise control
m, U illuminates green or yellow.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Speed limiter
U illuminates yellow.
U
illuminates yellow when the
system is on.
Cruise control, Speed limiter 3 127.
Tachograph
& illuminates when there is a fault
3 89.
Door open
y illuminates red.
Illuminates with the ignition switched
on when a door or the tailgate is open.
Vehicles with manual transmission
automated; control indicator
illuminates in transmission display
indicating relevant open door.
Information displays
Driver Information Centre
The Driver Information Centre (DIC)
is located in the instrument cluster
below the speedometer.
Depending on vehicle configuration,
the following items appear in the
display:
■ Outside temperature 3 72
■ Clock 3 73
■ Odometer, trip odometer 3 75
■ Engine oil level monitor 3 77
■ Service display 3 77
86 Instruments and controls
■ Vehicle messages 3 86
■ Trip computer 3 87
Some of the displayed functions differ
when the vehicle is being driven or at
a standstill. Some functions are only
available when the vehicle is being
driven.
Triple-Info-Display
Displays time, outside temperature
and date when the ignition is on.
Vehicle messages
Messages appear in the Driver
Information Centre, in combination
with control indicator A or C.
Information messages
Information messages
BATTERY MODE: ECONOMY
ESP OFF
AUTO LIGHTS DEACTIVATED
OIL LEVEL CORRECT
Fault messages
Displayed in combination with control
indicator A. Drive with caution and
seek the assistance of a workshop.
To remove fault message, press
button on end of wiper lever. After a
few seconds the message may
disappear automatically and A
remains illuminated. The fault will
then be stored in the on board
system.
Fault messages
CHECK ESP
CHECK FUEL FILTER
CHECK GEARBOX
CHECK AUTO LIGHTS
Warning messages
These may appear with control
indicator C or in combination with
other warning messages, control
indicators or an audible warning. Stop
engine immediately and seek the
assistance of a workshop.
Instruments and controls 87
Warning messages
INJECTION FAULT
ENGINE OVERHEATING
GEARBOX OVERHEATING
Warning chimes
When starting the engine or
whilst driving
Only one warning chime will sound at
a time.
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
■ If seat belt is not fastened 3 46.
■ If a certain speed is exceeded with
the parking brake applied 3 123.
■ If the parking assist detects an
object 3 131.
■ If the vehicle has manual
transmission automated and the
clutch temperature is too high
3 119.
■ If the vehicle speed briefly exceeds
a set limit 3 75.
■ During closing of the power sliding
door 3 25.
■ If the sliding door is open and the
parking brake is released 3 25.
■ During activation and deactivation
of alarm monitoring of vehicle
inclination 3 29.
When the vehicle is parked and/
or the driver's door is opened
■ When the key is in the ignition
switch.
■ With exterior lights on.
■ If the vehicle has manual
transmission automated 3 119; the
parking brake has not been
applied, neutral is not selected or
the foot brake has not been
depressed. A corresponding
message may also appear in the
Driver Information Centre 3 85.
■ If the engine is in an Autostop but
not switched off. Stop-start system
3 112.
Trip computer
The trip computer provides
information on driving data, which is
continually recorded and evaluated
electronically.
Depending on vehicle, the following
functions can be selected by pressing
button repeatedly on end of wiper
lever:
■ Fuel used
■ Average consumption
■ Instantaneous consumption
■ Range
88 Instruments and controls
■ Distance travelled
■ Average speed
■ Distance before service 3 77
■ Clock 3 73
■ Cruise control and speed limiter
stored speed 3 127
■ Tyre pressures 3 161
■ Fault and information messages
Fuel used
Displays the amount of fuel
consumed since the last reset.
The measurement can be restarted at
any time by pressing and holding the
button on the end of the wiper lever.
Average consumption
The value is displayed after driving a
distance of 400 metres.
Average consumption is displayed,
taking into consideration the distance
travelled and the fuel used since the
last reset.
The measurement can be restarted at
any time.
Instantaneous consumption
The value is displayed after reaching
a speed of 30 km/h.
Range
The value is displayed after driving a
distance of 400 metres.
The range is calculated from the
current contents of the fuel tank and
the average consumption since the
last reset.
The range will not display if control
indicator Y is illuminated in the
instrument cluster 3 84.
The measurement can be restarted at
any time.
Distance travelled
Displays the distance driven since the
last reset.
The measurement can be restarted at
any time.
Average speed
The value is displayed after driving a
distance of 400 metres.
The average speed since the last
reset is displayed.
The measurement can be restarted at
any time.
Interruptions in the journey with the
ignition off are not included in the
calculations.
Reset trip computer information
To reset the trip computer, select one
of its functions then press and hold
button on end of wiper lever.
The following trip computer
information will be reset:
■ Fuel used
■ Average consumption
■ Range
■ Distance travelled
■ Average speed
The trip computer will reset
automatically when the maximum
value of any of the parameters is
exceeded.
Instruments and controls 89
Interruption of power supply
If the power supply has been
interrupted or if the vehicle battery
voltage has dropped too low, the
values stored in the trip computer will
be lost.

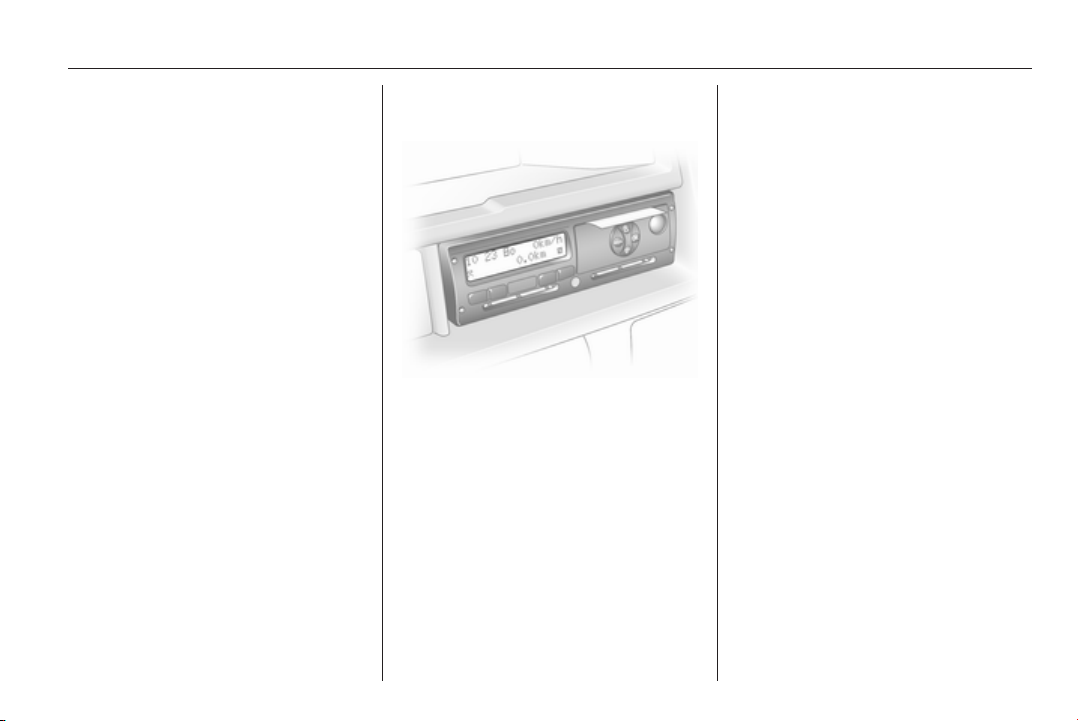

Tachograph
The tachograph is operated as
described in the operating
instructions supplied. Observe
regulations regarding use.
Control indicator & illuminates in the
instrument cluster in the event of a
fault. Seek the assistance of a
workshop.
When a tachograph is fitted, the total
distance travelled is shown only on
the tachograph and not in the
odometer 3 75.
90 Lighting
Lighting
Exterior lighting ............................ 90
Interior lighting ............................. 94
Lighting features .......................... 96
Exterior lighting
Light switch
Turn outer light switch:
7
= Off
0
= Sidelights
9 P
= Headlights
AUTO = Automatic light control:
Headlights are switched on
and off automatically.
Turn inner light switch:
>
= Front fog lights
r
= Rear fog lights
High beam control indicator P 3 85.
Low beam control indicator 9 3 84.
Tail lights
Tail lights are illuminated together
with low beam and sidelights.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights (where fitted) and headlights,
depending on the lighting conditions.
Lighting 91
For reasons of safety, the light switch
should always remain in the AUTO
position.
Daytime running lights 3 91.
Automatic headlight activation
During poor lighting conditions the
headlights are switched on.

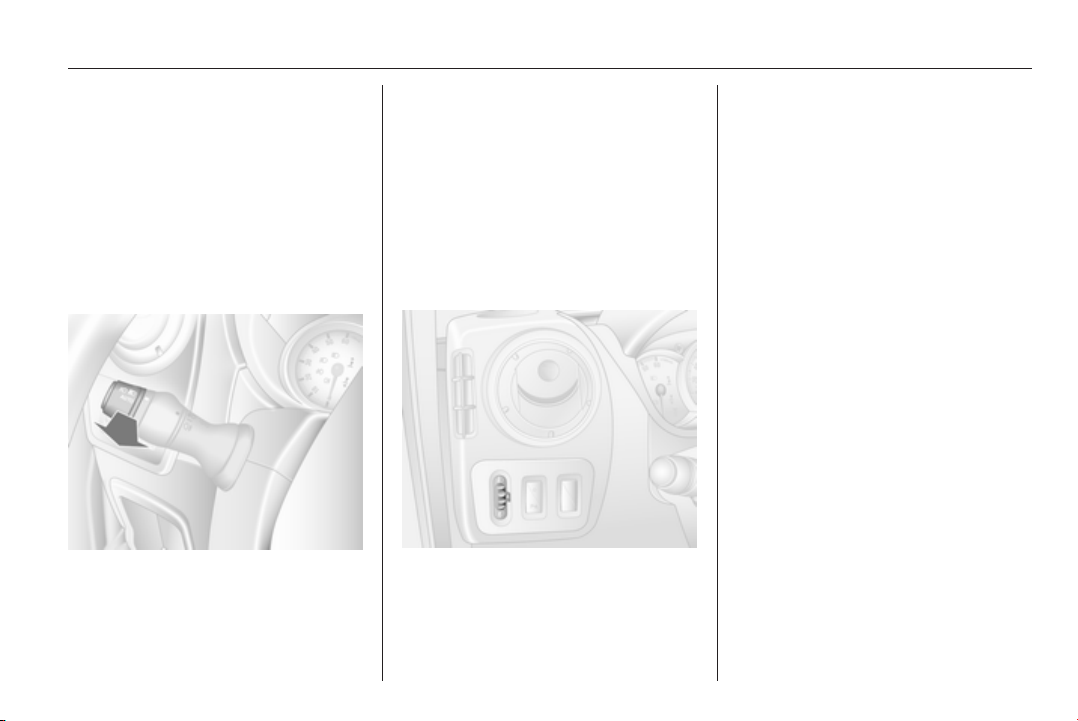

High beam
To change between low and high
beam, pull lever until a click is felt.
Headlight flash
To activate the headlight flash, pull
lever.
Headlight range
adjustment
Manual headlight range
adjustment
With low beam switched on, adapt the
headlight range to suit the vehicle
load to prevent dazzling of oncoming
traffic.
Turn knurled wheel to required
position:
0 = Front seat occupied
4 = Loaded up to permissible
maximum weight
Headlights when driving
abroad
The asymmetrical headlight beam
extends visibility at the edge of the
road at the passenger side.
However, when driving in countries
where traffic drives on the opposite
side of the road, adjust the headlights
to prevent dazzling of oncoming
traffic.
Have the headlights adjusted by a
workshop.
Daytime running lights
Daytime running lights increase
visibility of the vehicle during daylight.
The lights operate automatically
when the ignition is switched on.
92 Lighting
If the vehicle is equipped with the
automatic light control function, the
system switches between daytime
running lights and headlights
automatically depending on the
lighting conditions. Automatic light
control 3 90.
Adaptive forward lighting
Cornering light
Depending on the steering angle,
vehicle speed and gear selected
when cornering, an additional light
will illuminate the corner of the road
on the respective side.
The cornering light is switched off
automatically after prolonged use and
at vehicle speeds above 40 km/h.
Hazard warning flashers
Operated with the ¨ button.
In the event of hard braking, the
hazard warning flashers may turn on
automatically. Switch off by pressing
the ¨ button.
Turn and lane-change
signals
Lever up = right turn signal
Lever down = left turn signal
When the steering wheel is turned
back, the lever automatically returns
to its original position and the
indicator is deactivated. This will not
happen when making a minor
steering manoeuvre such as lane
changing.
Lighting 93
For three flashes, e.g. when changing
lanes, move lever part way to first
stop. When released, lever will spring
back.
If the lever is moved past the first stop,
the indicator is switched on
constantly. Switch the indicator off
manually by moving the lever to its
original position.
Front fog lights
Turn inner switch to position > and
release.
Front fog lights will only operate when
the ignition and headlights are
switched on.
Rear fog lights
Turn inner switch to position r and
release.
Rear fog lights will only operate when
the ignition and headlights are
switched on.
The vehicle rear fog lights are
deactivated when towing a trailer.
Reversing lights
The reversing lights come on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light covers may mist
up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help, switch on the
headlights.
94 Lighting
Interior lighting
Interior lights
With the switch in its central position,
the light functions as a courtesy light
and illuminates when the vehicle is
unlocked with the remote control or
the front doors are opened.
Front courtesy light
Operated with the
c button:
■ On constantly
■ On when the doors are opened
■ Off constantly
When the doors are closed, the
courtesy light extinguishes after a
delay or immediately after the ignition
is switched on.
Rear courtesy lights
Bus
Low level and overhead courtesy
lights are located in the rear
passenger compartment.
Operate rocker switch on the
instrument panel:
Press c
= on
Press OFF = off
Load compartment lighting
Load compartment lighting can be set
to illuminate when the side and rear
doors are opened, or switched on
constantly.
Operated by pressing the switch:
■ On constantly
■ On when the doors are opened
■ Off constantly
When the doors are closed, the
courtesy light extinguishes after a
delay or immediately after the ignition
is switched on.

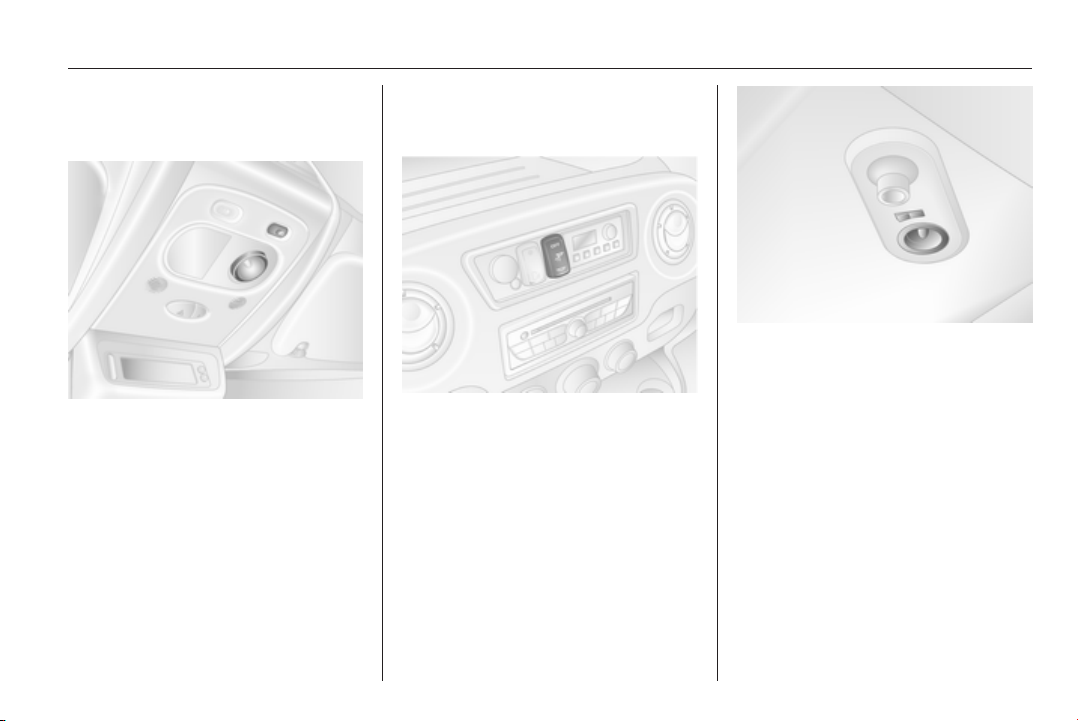

Lighting 95
Reading lights
Front reading light
Operated with the l button.
The reading light can be directed as
required.
Rear reading lights
Bus
Operate rocker switch on the
instrument panel:
press l = on.
press OFF = off.
Each reading light can then be
operated individually and directed as
required.
96 Lighting
Lighting features
Exit lighting
Headlights come on for approx.
1 minute after the vehicle is parked
and the system is activated.
Activating
1. Switch off ignition.
2. Remove ignition key.
3. Pull turn signal lever towards
steering wheel.
This action can be repeated up to
four times.
The headlights are turned off
immediately by turning the light switch
to any position and returning to 7.
Battery discharge
protection
To prevent discharge of the vehicle
battery when the ignition is switched
off, some interior lights may be
switched off automatically after some
time.
Climate control 97
Climate control
Climate control systems ............... 97
Air vents ..................................... 107
Maintenance .............................. 108
Climate control systems
Heating and ventilation
system
Controls for:
■ Temperature
■ Fan speed
■ Air distribution
■ Demisting and defrosting
Heated rear window Ü 3 35, Heated
seats ß 3 42.
Temperature
red = warm
blue = cold
Heating will not be fully effective until
the engine has reached normal
operating temperature.
Fan speed
Adjust the air flow by switching the fan
to the desired speed.
Air distribution
M
= to head area
L
= to head area and foot well
K
= to foot well
J
= to windscreen, front door
windows and foot well
V
= to windscreen and front door
windows
Intermediate settings are possible.
Demisting and defrosting the
windows
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■
Set air distribution control to V.
98 Climate control
■
Switch on heated rear window Ü.
■ Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the
foot well, set air distribution control
to J.
Air conditioning system
Additional to the heating and
ventilation system, the air
conditioning system has controls for:
AC = cooling
u
= air recirculation
Heated rear window Ü 3 35, Heated
seats ß 3 42.
Cooling (AC)
Operated with the AC button and
functional only when the engine and
fan are running.
The air conditioning system cools and
dehumidifies (dries) the air when
outside temperature is a little above
the freezing point. Therefore
condensation may form and drip from
under the vehicle.
If no cooling or drying is required,
switch the cooling system off to save
fuel.
Note
If the climate control is set to
maximum cooling while the ambient
temperature is high, an Autostop
may be inhibited until the required
temperature in the passenger
compartment has been reached.
If the climate control is set to
maximum cooling while the engine is
in an Autostop, the engine may
restart automatically.
Stop-start system 3 112.
Air recirculation system
Operated with the u button.
9 Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air
humidity increases, so the
windows may mist up. The quality
of the passenger compartment air
deteriorates, which may cause the
vehicle occupants to feel drowsy.
Maximum cooling
Briefly open the windows so that hot
air can disperse quickly.
■ Cooling AC on.
■ Air recirculation system u on.
■
Set air distribution control to M.
■ Set temperature control to coldest
level.
■ Set fan speed to highest level.
■ Open all air vents.
Climate control 99
Demisting and defrosting the
windows
■ Switch cooling AC on.
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■
Set air distribution control to V.
■
Switch on heated rear window Ü.
■ Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the
foot well, set air distribution control
to J.
Note
If the V button is pressed while the
engine is running, an Autostop will
be inhibited until the V button is
pressed again.
If the V button is pressed while the
engine is in an Autostop, the engine
will restart automatically.
Electronic climate control
system
Controls for:
■ Temperature
■
Air distribution (s or K) and menu
selection
■
Fan speed x
AUTO = Automatic mode
u
= air recirculation
V
= demisting and defrosting
Ü
= heated rear window,
heated exterior mirrors
AC OFF = switch off air conditioning
Heated rear window, heated exterior
mirrors Ü 3 35, 3 32, Heated seats ß
3 42.
The preselected temperature is
automatically regulated. In automatic
mode, the fan speed and air
distribution automatically regulate the
air flow.
The system can be manually adapted
by use of air distribution and air flow
controls.
The electronic climate control system
is only fully operational when the
engine is running.
For correct operation do not cover the
sensor on the instrument panel.
Automatic mode
Basic setting for maximum comfort:
■ Press AUTO button ("AUTO"
appears in the display).
■ Set desired temperature (the
temperature appears in the
display).
■ Open all air vents.
100 Climate control
During automatic mode, the settings
for fan speed, air distribution, air
conditioning and air recirculation are
automatically regulated by the system
and are not shown on the display.
Temperature preselection
Temperatures can be set to the
desired value with the 2 buttons
below the display.
For reasons of comfort, change
temperature only in small increments.
red = warm
blue = cold
Heating will not be fully effective until
the engine has reached normal
operating temperature.
If the minimum temperature of 15 ℃
is set, the electronic climate control
system runs at maximum cooling.
If the maximum temperature of 27 ℃
is set, the electronic climate control
system runs at maximum heating.
Note
If the temperature is to be reduced
for climate comfort reasons, an
Autostop can be inhibited or the
engine will restart automatically
when cooling is switched on.
Stop-start system 3 112.
Fan speed
Fan speed can be increased or
decreased with the x buttons.
The selected fan speed is indicated
with x in the display.
If the fan is switched off the air
conditioning is also deactivated.
To return to automatic mode: Press
AUTO button.
Demisting and defrosting the
windows
Press the V button. LED illuminates.
Temperature and air distribution are
set automatically, air conditioning is
switched on and the fan runs at a high
speed.
To return to automatic mode: press
button V or AUTO.
Note
If the V button is pressed while the
engine is running, an Autostop will
be inhibited until the V button is
pressed again.
If the V button is pressed while the
engine is in an Autostop, the engine
will restart automatically.
Air distribution
Press s or K repeatedly.
Arrows shown in the display indicate
the distribution settings:
s
= to windscreen and front door
windows
9
= to windscreen, front door
windows and foot well
M
= to head area
L
= to head area and foot well
K
= to foot well
To return to automatic mode: Press
AUTO button.
Climate control 101
Cooling
The air conditioning system cools and
dehumidifies (dries) when outside
temperature is above a specific level.
Therefore condensation may form
and drip from under the vehicle.
If no cooling or drying is required
press the AC OFF button to switch the
cooling system off, thus saving fuel.
"AC OFF" appears in the display.
Manual air recirculation mode
Press the u button. LED illuminates
and u appears in the display.
9 Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air
humidity increases, so the
windows may mist up. The quality
of the passenger compartment air
deteriorates, which may cause the
vehicle occupants to feel drowsy.
To return to automatic mode: press
button u or AUTO.
Rear heating system
If the engine is switched off, the rear
compartment can be heated by the
additional heating, through low level
vents.
By programming values using the
control panel, the user can adjust the
time, day and temperature settings.
Heating will cease to operate if the
vehicle fuel level drops too low.
During operation, power from the
vehicle battery is used. For short
journey times, check the vehicle
battery regularly and recharge if
necessary.
To ensure efficient performance, the
low level air vents in the rear
passenger compartment must not be
obstructed.
9 Warning
Do not operate the system when
refuelling, when dust or
combustible vapours are present
or in enclosed spaces (e.g.
garage).
Setting the time and day
Press button Ö until the time display
flashes.
If the vehicle battery supply has been
interrupted prior to its use press the
m or n button briefly to make the
time display flash.
Adjust the time using the m or n
buttons.
The time is set when the displayed
time stops flashing.
The display for the day will then flash:
adjust the day using the m or n
buttons.
102 Climate control
The day is set when the display stops
flashing.
The display will remain illuminated for
approx. 15 seconds after the ignition
is switched off.
Operating the rear compartment
additional heating
Press button Y to operate heating. Y
will appear in the display to indicate
that the heating is operating.
Changing the period for which
heating is operating
With the heating switched off ( Y
extinguished in display), press m
button for briefly until the period for
which heating is provided flashes in
the display.
Use the m or n buttons to adjust
the heating duration. The duration is
set when the display extinguishes.
Programming the heating mode
It is possible to store up to three
programmes which allow the heating
to be switched on.
Press P button the appropriate
number of times to select the desired
stored programme.
Press the m or n buttons briefly;
the programming time flashes in the
display.
Using the m or n buttons adjust to
the desired time, then, as soon as the
time display stops flashing, adjust the
day using the m or n buttons.
The time and day are set when the
display stops flashing.
Recalling a programming mode
To activate a stored programme,
press P button the appropriate
number of times until the
corresponding number appears on
the display.
Neutral position or no stored
programme activated
Press P button until their is no stored
programme number visible in the
display.
Adjusting the temperature
To adjust the temperature of the
heating, turn the rotary knob located
on the control panel.
Turn clockwise = increase
temperature
Turn anti-clock‐
wise
= decrease
temperature
Rear air conditioning
system
The rear air conditioning system is
actuated in conjunction with the front
passenger compartment air
conditioning system.
Climate control 103
Bus
Rear air vents
Additional air conditioning is supplied
to the rear passenger compartment
via the overhead air vents.
Fan speed
Adjust the air flow to select the
desired speed.
turn clockwise = increase air flow
turn anti-clock‐
wise
= decrease air flow
Combi
Additional air conditioning is supplied
to the rear passenger compartment
via the air vents located above the
driver and front passenger
compartment.
With the front passenger
compartment air conditioning system
switched on, adjust the air flow to
select the desired speed.
Ensure the air vents are open when in
use, to prevent ice forming in the
system due to lack of air movement.
Auxiliary heater
Coolant heater
The Eberspächer engine-
independent, fuel-powered coolant
heater provides rapid heating of the
engine coolant to enable heating of
the vehicle interior without the engine
running.
9 Warning
Do not operate the system when
refuelling, when dust or
combustible vapours are present
or in enclosed spaces (e.g.
garage).
104 Climate control
Before starting or programming the
system to start, turn the vehicle's
climate control system to heat and the
air distribution to V.
Switch off when not required. Heating
stops automatically after the
programmed runtime. It will also
cease to operate if the vehicle fuel
level drops too low.
During operation, power from the
vehicle battery is used. The driving
time should therefore be at least as
long as the heating time. For short
journey times, check the vehicle
battery regularly and recharge if
necessary.
To ensure efficient performance,
briefly operate the auxiliary heater
once a month.
Control units
The timer or remote control unit turns
the system on and off, and is used to
programme specific departure times.
Timer
1 X
Activation
button
= Switches the control
unit on/off and
changes displayed
information
2 q Back
button
= Selects functions in
the menu bar and
adjusts values
3 Menu bar = Displays the
selectable functions
Y, x, P, Ö and Y
4 r Next
button
= Selects functions in
the menu bar and
adjusts values
5 OK button = Confirms selection
Remote control
The control buttons operate
identically to the timer unit described
previously.
To activate the remote control, press
activation button X and release it
when the menu bar appears in the
display. The signal indicator and
SENd appear briefly in the display,
followed by the temperature.
Climate control 105
9 Warning
When refuelling, switch off the
remote control unit as well as the
heater!
To switch off, press and hold
activation button X to prevent
inadvertent operation.
The remote control has a maximum
range of 600 metres. The range may
be reduced due to environmental
conditions and as the battery
becomes weaker.
In addition to the remote control unit,
the heating can also be switched on
for 30 minutes, or off, using the button
on the instrument panel.
Battery replacement
Replace the battery when the range
of the remote control is reduced or
when the battery charge symbol
flashes.
Open the cover using a coin and
replace the battery (CR 2430 or
equivalent), ensuring the new battery
is correctly installed with the positive
(<) side facing the positive terminals.
Replace the cover securely.
Dispose of old batteries in
accordance with environmental
regulations.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remote control fault displays
cobA = Poor signal –
adjust position
conP = No signal – move closer
bALo = Battery low –
change battery
Err = System error –
consult workshop
Add,
AddE
= System in learning mode
Teach remote control
If the vehicle battery is reconnected,
the LED in the instrument panel
button illuminates and the system
configures the remote control menu
automatically. If the LED flashes,
press OK button on remote control,
select Add or AddE and confirm.
Additional remote control units may
also be configured. Press the button
until LED flashes, switch on the
remote control, select Add and
confirm.
106 Climate control
AddE teaches the current remote
control unit exclusively and blocks all
previously configured units. Add
teaches up to 4 remote control units,
but only one unit can operate the
system at any one time.
Operation
Heating Y
Select Y in the menu bar and confirm.
The predetermined heating duration,
e.g. L 30, flashes in the display. The
factory setting is 30 minutes.
To temporarily adjust the heating
duration, adjust with the q or r
button and confirm. The value can be
set from 10 to 120 minutes. Due to the
power consumption, note the heating
duration.
To switch off, select Y in the menu bar
again and confirm.
Ventilation x
Select x in the menu bar and confirm.
The ventilation duration can be
accepted or adjusted. The duration
shown is accepted without
confirmation.
To switch off, select x in the menu bar
again and confirm.
Programming P
Up to 3 preset departure times can be
programmed, either during one day or
over one week.
■ Select P in the menu bar and
confirm
■ Select desired preset memory
number 1, 2 or 3 and confirm
■ Select day and confirm
■ Select hour and confirm
■ Select minutes and confirm
■
Select Y or x and confirm
■ If necessary, adjust the runtime
duration prior to departure and
confirm
The next preset memory number to
be activated is underlined and the
weekday is displayed. Repeat the
procedure to programme the other
preset memory numbers.
Pressing button X during the
procedure will exit without storing
programme adjustments.
To delete a preset departure time,
follow the steps for programming until
heating symbol Y flashes. Press
button q or r until oFF appears in
the display and confirm.
Heating stops automatically
5 minutes after the programmed
departure time.
Note
The remote control system features
a temperature sensor which
calculates the runtime according to
the ambient temperature and the
desired heating level (ECO or
HIGH). The system starts
automatically between 5 and
60 minutes prior to the programmed
departure time.
Set weekday, time and heating
duration Ö
If the vehicle battery is disconnected
or its voltage is too low, the unit will
need to be reset.
■
Select Ö and confirm
■ Select weekday and confirm
■ Change hours and confirm
Climate control 107
■ Change minutes and confirm
■ Change the default heating
duration and confirm
Heating level Y
The preferred heating level for
programmed departure times can be
set to either ECO or HIGH.
Select Y and confirm. ECO or HIGH
flashes in the display. Adjust using
the q or r button and confirm.
Air vents
Adjustable air vents
At least one air vent must be open
while cooling is on in order to prevent
the evaporator from icing up due to
lack of air movement.
Centre air vents
Press the vent to open.
Direct the flow of air by swivelling the
vent.
Push vent to close.
Side air vents
Press the vent to open.
Direct the flow of air by swivelling the
vent.
Depending upon the position of the
temperature control, air will be
directed into the vehicle via the side
air vents.
9 Warning
Do not attach any objects to the
slats of the air vents. Risk of
damage and injury in the event of
an accident.
108 Climate control
Fixed air vents
Additional air vents are located
beneath the windscreen and door
windows and in the foot wells.
Glovebox cooler
The air conditioning system can also
keep the contents of the glovebox
cool.
Maintenance
Air intake
The air intake in front of the
windscreen in the engine
compartment must be kept clear to
allow air intake. Remove any leaves,
dirt or snow.
Pollen filter
The pollen filter cleans dust, soot,
pollen and spores from the air
entering the vehicle through the air
intake.
Air conditioning regular
operation
In order to ensure continuously
efficient performance, cooling must
be operated for a few minutes once a
month, irrespective of the weather
and time of year. Operation with
cooling is not possible when outside
temperature is too low.
Service
For optimal cooling performance, it is
recommended that the climate control
system be checked annually, starting
three years after initial vehicle
registration, including:
■ Functionality and pressure test
■ Heating functionality
■ Leakage check
■ Check of drive belts
■ Cleaning of condenser and
evaporator drainage
■ Performance check
Driving and operating 109
Driving and operating
Driving hints ............................... 109
Starting and operating ............... 110
Engine exhaust .......................... 117
Manual transmission .................. 118
Manual transmission automa‐
ted .............................................. 119
Brakes ........................................ 122
Ride control systems ................. 125
Driver assistance systems ......... 127
Fuel ............................................ 133
Trailer hitch ................................ 135
Auxiliary features ....................... 137
Driving hints
Driving economically
ECO mode
ECO mode is a function that
optimises fuel consumption. It affects
engine power and torque,
acceleration, gear shift indication,
heating, air conditioning and electrical
consumers.
Activation
Press the ECO button. Control
indicator illuminates when activated
and a corresponding message
appears in the Driver Information
Centre 3 85.
During driving, it is possible to
temporarily disable ECO mode, e.g.
to increase engine performance, by
depressing the accelerator pedal
firmly.
ECO mode is reactivated when
pressure is reduced on the
accelerator pedal.
Deactivation
Press the ECO button again. Control
indicator extinguishes.
Control of the vehicle
Never coast with engine not
running (except during
Autostop)
Many systems will not function in this
situation (e.g. brake servo unit, power
steering). Driving in this manner is a
danger to yourself and others. All
110 Driving and operating
systems function during an Autostop,
but there will be a controlled reduction
in power steering assist and vehicle
speed is reduced.
Stop-start system 3 112.
Pedals
To ensure the pedal travel is
uninhibited, there must be no mats in
the area of the pedals.
Steering
If power steering assist is lost
because the engine stops or due to a
system malfunction, the vehicle can
be steered but may require increased
effort.
Caution
Vehicles equipped with hydraulic
power steering:
If the steering wheel is turned until
it reaches the end of its travel, and
is held in that position for more
than 15 seconds, damage may
occur to the power steering
system and there may be loss of
power steering assist.
Starting and operating
New vehicle running-in
Do not brake unnecessarily hard for
the first few journeys and after new
disc brake pads have been fitted.
During the first drive, smoke may
occur because of wax and oil
evaporating off the exhaust system.
Park the vehicle in the open for a
while after the first drive and avoid
inhaling the fumes.
During the running-in period fuel and
engine oil consumption may be
higher and the cleaning process of
the diesel particle filter may take
place more often. Autostop may be
inhibited to allow for charging the
vehicle battery.
Stop-start system 3 112.
Diesel particle filter 3 117.
Driving and operating 111
Ignition switch positions
St = Ignition off
A = Steering wheel lock released,
ignition off
M = Ignition on, for diesel engine:
preheating
D = Starting
Starting the engine
Manual transmission: operate clutch.
Manual transmission automated:
operate brake; transmission
automatically shifts to N.
Do not accelerate.
Turn the key to position M for
preheating, and hold until control
indicator N extinguishes from the
Driver Information Centre.
Turn key to position D and release.
The increased engine speed
automatically returns to normal idling
speed as the engine temperature
rises.
Start attempts should not last longer
than 15 seconds. If engine does not
start, wait 15 seconds before
repeating starting procedure. If
necessary, depress accelerator
before repeating starting procedure.
Before restarting or to switch off the
engine, turn key back to St.
During an Autostop, the engine can
be started by depressing the clutch
pedal. Stop-start system 3 112.
Turbo engine warm-up
Upon start-up, engine available
torque may be limited for a short time,
especially when the engine
temperature is cold. The limitation is
to allow the lubrication system to fully
protect the engine.
112 Driving and operating
Idle speed control
To increase the idle speed press the
switch. After a few seconds the
function will be activated.
The function will be deactivated
when:
■ The clutch pedal is depressed
■ The accelerator pedal is depressed
■ MTA is not in N (neutral)
■ Vehicle speed is above 0 km/h
■
Control indicator A, W or C
illuminate in the instrument cluster
To increase or decrease the fast idle
speed rate, consult a workshop.
Overrun cut-off
The fuel supply is automatically cut off
during overrun, i.e. when the vehicle
is driven with a gear engaged but
accelerator is released.
Stop-start system
The stop-start system helps to save
fuel and to reduce the exhaust
emission. When conditions allow, it
switches off the engine as soon as the
vehicle is at a low speed or at a
standstill, e.g. at a traffic light or in a
traffic jam. It starts the engine
automatically as soon as the clutch is
depressed. A vehicle battery sensor
ensures that an Autostop is only
performed if the vehicle battery is
sufficiently charged for a restart.
Activation
The stop-start system is available as
soon as the engine is started, the
vehicle starts-off and the conditions
as stated below in this section are
fulfilled.
Deactivation
Deactivate the stop-start system
manually by pressing the stop-start
Î button. Deactivation is indicated
when the LED in the button
illuminates.
Driving and operating 113
Autostop
If the vehicle is at low speed or
standstill, activate an Autostop as
follows:
■ depress the clutch pedal
■ shift the selector lever to neutral
(manual transmission) or N
(manual transmission automated)
■ release the clutch pedal
The engine will be switched off while
the ignition stays on if the required
conditions are met.
An Autostop is indicated when Ï
illuminates green in the instrument
cluster.
During an Autostop, the heating
performance, power steering and
brake performance will be
maintained. Brake assist, however, is
not available 3 124.
Conditions for an Autostop
The stop-start system checks if each
of the following conditions is fulfilled,
otherwise an Autostop will be
inhibited and control indicator \ will
illuminate in the instrument cluster.
■ The stop-start system is not
manually deactivated
■ the bonnet is fully closed
■ the driver's door is closed or the
driver's seat belt is fastened
■ the vehicle battery is sufficiently
charged and in good condition
■ the engine is warmed up
■ the engine coolant temperature is
not too high
■ the ambient temperature is not too
low
■ the defrosting function is not
activated
■ the climate control system does not
inhibit an Autostop
■ the brake vacuum is sufficient
■ the self-cleaning function of the
diesel particle filter is not active
■ the vehicle has moved since the
last Autostop
Otherwise an Autostop will be
inhibited.
An Autostop may become
unavailable as the ambient
temperature approaches freezing
point.
Certain settings of the climate control
system may also inhibit an Autostop.
See Climate control chapter for
further information 3 97.
Immediately after motorway driving
an Autostop may be inhibited.
Autostop may also be inhibited
temporarily if the vehicle battery has
been recharged by an external
source.
New vehicle running-in 3 110.
114 Driving and operating
Vehicle battery discharge protection
To ensure reliable engine restarts,
several vehicle battery discharge
protection features are implemented
as part of the stop-start system.
Restart of the engine by the
driver
Depress the clutch pedal to restart the
engine.
If the selector lever has been shifted
out of neutral (manual transmission)
or N (manual transmission
automated) or other conditions are
not met, start using the ignition key.
The green control indicator Ï will
extinguish in the instrument cluster
when the engine is restarted.
If the selector lever is shifted out of
neutral (manual transmission) or N
(manual transmission automated)
before depressing the clutch first, a
restart will not take place.
Restart of the engine by the
stop-start system
The selector lever must be in neutral
(manual transmission) or N (manual
transmission automated) to enable an
automatic restart.
If one of the following conditions
occurs during an Autostop, the
engine will be restarted automatically
by the stop-start system. Control
indicator Ï will flash green in the
instrument cluster during an
automatic engine restart.
■ The stop-start system is manually
deactivated
■ the bonnet is opened
■ the driver's seat belt is unfastened
and the driver's door is opened
■ the engine temperature is too low
■ the vehicle battery is discharged
■ the brake vacuum is not sufficient
■ the vehicle starts to move
■ the defrosting function is activated
■ the climate control system requests
an engine start
■ the predetermined timing has been
exceeded
If an electrical accessory, e.g. a
portable CD player, is connected to
the power outlet, a brief power drop
during restart might be noticeable.
If the Infotainment system is active,
audio sound may briefly be reduced
or interrupted during the restart.
Warning chimes 3 87.
Fault
If control indicator Ï illuminates
yellow, there is a fault in the stop-start
system 3 84. A corresponding
message also appears in the Driver
Information Centre 3 85. Seek the
assistance of a workshop.
Driving and operating 115
Parking
9 Warning
■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust
system could ignite the surface.
■ Always apply parking brake
without pressing release button.
Apply as firmly as possible on a
downhill slope or uphill slope.
Depress foot brake at the same
time to reduce operating force.
■ Switch off the engine.
■ If the vehicle is on a level
surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards
the kerb.
Lock the vehicle 3 21 and activate the
anti-theft locking system 3 29 and
anti-theft alarm system 3 29.
Air suspension
Operates automatically when the
vehicle is driven. The air suspension
system constantly adjusts the ride
height according to the vehicle load.
For further information on the air
suspension system, refer to the
operating instructions supplied.
Master switch
Caution
The air suspension system must
be switched off when the vehicle is
being towed, jump‐started, raised
off the ground or transported.
Do not switch off the air
suspension system when driving.
Jump starting 3 172, Towing the
vehicle 3 174.
The master switch is located on the
door pillar.
Remote control
116 Driving and operating
When increased ground clearance or
improved vehicle access is required,
the suspension can be raised or
lowered using the remote control.
The remote control unit is magnetic
and can be fixed to any metal part of
the vehicle.
With the ignition switched on, press
the appropriate button for 2 seconds
to adjust the suspension height.
Indicator light will flash intermittently
while height adjustment is in progress
and illuminates when complete.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Pre-programmed settings
Adjusts the suspension height to one
of three pre-programmed positions.
The buttons are only functional when
the engine is running.
l
= lowered position
k
= normal position
j
= raised position
Manual settings
Manual adjustment can only be
performed when the vehicle is
stationary.
Select by pressing button h for 2
seconds, then button R to raise, or
button S to lower.
To exit, press any of the pre-
programmed buttons.
When the vehicle is moving, manual
adjustment will exit automatically. If
the ignition is switched off, the vehicle
will return to normal ride height when
the ignition is switched back on.
Service mode
Press button i for 5 seconds to put
the vehicle into service mode. The
indicator light will illuminate. When
service mode has been activated, the
air suspension master switch must be
turned off.
To exit service mode, press button
i again for 5 seconds.
Fault
If a fault is detected, i button will
flash intermittently. If the service
mode has been activated and there is
a fault h, S and R buttons will flash
simultaneously.
Have the cause of the fault remedied
by a workshop.
Driving and operating 117
Engine exhaust
9 Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless
and could be fatal if inhaled.
If exhaust gases enter the interior
of the vehicle, open the windows.
Have the cause of the fault
rectified by a workshop.
Avoid driving with an open load
compartment, otherwise exhaust
gases could enter the vehicle.
Diesel particle filter
The diesel particle filter system filters
harmful soot particles out of the
exhaust gases. The system includes
a self-cleaning function that runs
automatically during driving without
any notification.
The filter is cleaned by periodically
burning off the soot particles at high
temperature. This process takes
place automatically under set driving
conditions. Autostop is not available
and fuel consumption may be higher
during this period. The emission of
smells and smoke during this process
is normal.
Under certain driving conditions, e.g.
short distances, the system cannot
clean itself automatically.
If cleaning of the filter is required and
if previous driving conditions did not
enable automatic cleaning, it will be
indicated by illumination of control
indicator A 3 81. Seek the
assistance of a workshop
immediately.
Caution
If the cleaning process is
interrupted, there is a risk of
provoking severe engine damage.
Cleaning takes place quickest at high
engine speeds and loads.
Catalytic converter
The catalytic converter reduces the
amount of harmful substances in the
exhaust gases.
Caution
Fuel grades other than those listed
on page 3 133, 3 187 could
damage the catalytic converter or
electronic components.
Unburnt petrol will overheat and
damage the catalytic converter.
Therefore avoid excessive use of
the starter, running the fuel tank
dry and starting the engine by
pushing or towing.
In the event of misfiring, uneven
engine running, a reduction in engine
performance or other unusual
problems, have the cause of the fault
rectified by a workshop as soon as
possible. In an emergency, driving
can be continued for a short period,
keeping vehicle speed and engine
speed low.
118 Driving and operating
If control indicator Z flashes, the
permitted emission limits may be
exceeded. Lift your foot off the
accelerator until Z stops flashing and
is steadily illuminated. Contact a
workshop immediately.
Malfunction indicator light 3 81.
Manual transmission
To engage reverse, with the vehicle
stationary depress the clutch pedal,
pull up the collar on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Do not slip the clutch unnecessarily.
When operating, depress the clutch
pedal completely. Do not use the
pedal as a foot rest.
Caution
It is inadvisable to drive with hand
resting on the selector lever.
Driving and operating 119
Manual transmission
automated
The manual transmission automated
(MTA) permits manual (manual
mode) or automatic gear shifting
(automatic mode), both with
automatic clutch control.
Transmission display
Shows the mode and current gear.
Starting the engine
Depress the foot brake when starting
the engine. If the foot brake is not
depressed, T illuminates in the
transmission display and the engine
cannot be started.
When the foot brake is depressed, the
transmission automatically shifts to
N (neutral); "N" appears in the
transmission display and the engine
can be started. There may be a slight
delay.
Selector lever
Always move the selector lever in the
appropriate direction as far as it will
go. Upon release, it automatically
returns to the centre position.
N = Neutral.
A/M = Switch between automatic and
manual mode.
The transmission display
shows "A" when in automatic
mode.
R = Reverse gear.
Engage only when vehicle is
stationary. The transmission
display shows "R" when
reverse gear is engaged.
+ = Shift to a higher gear.
- = Shift to a lower gear.
Starting off
When the engine is started, the
transmission is in automatic mode.
Depress the foot brake and move the
selector lever towards + to engage
first gear.
If R is selected, reverse gear is
engaged. The vehicle starts to move
when the foot brake is released. To
120 Driving and operating
start off quickly, release the foot brake
and accelerate immediately after
engaging a gear.
In automatic mode the transmission
shifts to other gears automatically,
dependent on driving conditions.
To engage manual mode, move the
selector lever towards A/M. The
current gear will appear in the
transmission display.
To engage first gear, depress foot
brake and move selector lever
towards + or -. Shift to a higher or
lower gear by moving selector lever to
+ or -. Gears can be skipped by
moving the selector lever repeatedly
at short intervals.
Stopping the vehicle
In automatic or manual mode,
first gear is engaged and the clutch is
released when the vehicle is stopped.
In R, reverse gear remains engaged.
When stopping on gradients, engage
parking brake or depress the foot
brake. To prevent overheating of the
clutch, an intermittent audible
warning may sound as a signal to
depress the foot brake or apply the
parking brake.
Switch off engine if stopping for a
lengthy period, e.g. in traffic jams.
When the vehicle is parked and the
driver's door is opened, a warning
chime will sound if neutral is not
selected or the foot brake has not
been depressed.
Engine braking
Automatic mode
When driving downhill, the manual
transmission automated does not
shift into higher gears until a fairly
high engine speed has been reached.
It shifts down in good time when
braking.
Manual mode
To utilise the engine braking effect,
select a lower gear in good time when
driving downhill.
Rocking the vehicle
Rocking the vehicle is only
permissible if the vehicle is stuck in
sand, mud, snow or a hole. Move the
selector lever between R and A/M (or
between + and -) in a repeat pattern,
while applying light pressure to the
accelerator pedal. Do not race the
engine and avoid sudden
acceleration.
Parking
Apply the parking brake. The most
recently engaged gear (see
transmission display) remains
engaged. With N, no gear is engaged.
When the ignition is switched off, the
transmission no longer responds to
movement of the selector lever.
If the ignition is not switched off, or the
parking brake has not been applied, a
warning chime will sound upon
opening the driver's door.
Driving and operating 121
Manual mode
If a higher gear is selected when the
engine speed is too low, or a lower
gear when the speed is too high, the
shift is not executed. This prevents
the engine from running at too low or
too high an engine speed.
If engine speed is too low, the
transmission automatically shifts to a
lower gear.
If engine speed is too high, the
transmission only switches to a higher
gear via kickdown.
Electronic driving
programmes
Winter mode V
Activate the Winter mode if you have
problems starting off on a slippery
road surface.
Activation
Press the V button. Control indicator
V is shown in the transmission
display. The transmission switches to
automatic mode and the vehicle
starts off in a suitable gear.
Deactivation
The Winter mode is switched off by:
■
pressing the V button again,
■ turning off the ignition,
■ switching to manual mode.
In order to protect the transmission at
extremely high clutch temperatures,
an intermittent audible warning may
sound. In such cases, depress the
foot brake, select "N" and apply the
parking brake to allow the clutch to
cool down.
Laden mode kg
122 Driving and operating
It is possible to use the Laden mode
in both manual and automatic modes.
In both cases, the gearshifting
patterns are adapted automatically
for carrying an increased payload.
Activation
Press the kg button. Control indicator
kg is shown in the transmission
display. The transmission will then
select optimized gearshift patterns.
Deactivation
The Laden mode is switched off by:
■ pressing the kg button again,
■ turning off the ignition.
Kickdown
If the accelerator pedal is pressed
past the pressure point, the
transmission shifts to a lower gear
depending on engine speed. Full
engine power is available for
acceleration.
If engine speed is too high the
transmission switches to a higher
gear, even in manual mode. Without
kickdown this automatic shift is not
effected in manual mode.
Fault
In the event of a fault, control indicator
W is shown in the transmission
display. Continued driving is possible
provided the vehicle is driven with
care and anticipation.
Have the cause of the fault remedied
by a workshop.
Interruption of power
supply
The clutch is not disengaged if there
is an interruption of the power supply
when a gear is engaged. The vehicle
cannot move.
If the vehicle battery is discharged,
start the vehicle using jump leads
3 172.
If the cause of the fault is not a
discharged vehicle battery, seek the
assistance of a workshop.
If neutral cannot be selected, the
vehicle must only be towed with the
drive wheels raised off the ground
3 174.
Towing the vehicle 3 174.
Brakes
The brake system comprises two
independent brake circuits.
If a brake circuit fails, the vehicle can
still be braked using the other brake
circuit. However, braking effect is
achieved only when you depress the
brake pedal firmly. You need to use
considerably more force for this. The
braking distance is extended. Seek
the assistance of a workshop before
continuing your journey.
When the engine is not running, the
support of the brake servo unit
disappears once the brake pedal has
been depressed once or twice.
Braking effect is not reduced, but
braking requires significantly greater
force. It is especially important to bear
this in mind when being towed.
Control indicator R 3 82.
Antilock brake system
Antilock brake system (ABS)
prevents the wheels from locking.
Driving and operating 123
ABS starts to regulate brake pressure
as soon as a wheel shows a tendency
to lock. The vehicle remains
steerable, even during hard braking.
ABS control is made apparent
through a pulse in the brake pedal
and the noise of the regulation
process.
For optimum braking, keep the brake
pedal fully depressed throughout the
braking process, despite the fact that
the pedal is pulsating. Do not reduce
the pressure on the pedal.
Control indicator u 3 82.
Fault
If control indicators u and A
illuminate with the messages CHECK
ABS and CHECK ESP in the Driver
Information Centre, there is a fault in
the ABS. The brake system remains
operational but without ABS
regulation.
9 Warning
If there is a fault in the ABS, the
wheels may be liable to lock due
to braking that is heavier than
normal. The advantages of ABS
are no longer available. During
hard braking, the vehicle can no
longer be steered and may
swerve.
If control indicators u, A, R and
C illuminate, the ABS and ESP are
deactivated and the message
BRAKING FAULT is shown in the
Driver Information Centre. Seek the
assistance of a workshop.
Have the cause of the fault remedied
by a workshop.
Parking brake
9 Warning
Always apply parking brake firmly
without operating the release
button, and apply as firmly as
possible on a downhill or uphill
slope.
To release the parking brake, pull
the lever up slightly, press the
release button and fully lower the
lever.
124 Driving and operating
To reduce the operating forces of
the parking brake, depress the
foot brake at the same time.
Control indicator R 3 82.
Parking 3 115.
Retractable parking brake
Depending on vehicle, the parking
brake lever retracts to the horizontal
position even with the parking brake
applied.
To release the parking brake, pull the
lever up slightly, press the release
button and return the lever to the
horizontal position.
To apply the parking brake, pull the
lever up and release it. The lever rests
in a horizontal position.
Brake assist
If the brake pedal is depressed
quickly and forcefully, maximum
brake force is automatically applied
(full braking).
Maintain steady pressure on the
brake pedal for as long as full braking
is required. Maximum brake force is
automatically reduced when the
brake pedal is released.
Brake assist is not available during an
Autostop. Stop-start system 3 112.
Hill start assist
The system helps prevent unintended
movement when driving away on
inclines.
When releasing the foot brake after
stopping on an incline (with the
selector lever in a forward gear or
reverse gear), the brakes remain on
for a further 2 seconds. The brakes
release automatically as soon as the
vehicle begins to accelerate.
Caution
The Hill start assist cannot
completely prevent vehicle
movement in all situations
(extremely steep gradients, etc.).
If necessary, depress the foot
brake to prevent the vehicle from
rolling forwards or backwards.
The Hill start assist is not active
during an Autostop. Stop-start system
3 112.
Driving and operating 125
Ride control systems
Traction Control system
The Traction Control system (TC) is a
component part of the Electronic
Stability Program (ESP®
Plus
) which
improves driving stability when
necessary, regardless of the type of
road surface or tyre grip, by
preventing the drive wheels from
spinning.
As soon as the drive wheels starts to
spin, engine output is reduced and
the wheel spinning the most is braked
individually. This considerably
improves the driving stability of the
vehicle on slippery road surfaces.
TC is operational as soon as the
ignition is switched on and control
indicator b extinguishes in the
instrument cluster. A corresponding
message also appears in the Driver
Information Centre 3 85.
When TC is active b flashes.
9 Warning
Do not let this special safety
feature tempt you into taking risks
when driving.
Adapt speed to the road
conditions.
Control indicator b 3 82.
Trailer stability assist (TSA) 3 137.
Enhanced Traction function
If necessary, in the event of soft
ground, mud or snow-covered road
surfaces, the Traction control system
(TC) can be deactivated to enhance
traction:
Press the Ø button on the
instrument panel.
Control indicator Ø illuminates in the
instrument cluster and a
corresponding message appears in
the Driver Information Centre 3 85.
When vehicle speed reaches
50 km/h, the system switches
automatically from Enhanced
126 Driving and operating
Traction function to TC operation.
Control indicator Ø extinguishes in
the instrument cluster.
TC is reactivated by pressing the Ø
button again. Control indicator Ø
extinguishes.
TC is also reactivated the next time
the ignition is switched on.
Fault
If the system detects a fault, control
indicator b 3 82 illuminates together
with A 3 81 in the instrument cluster
and a corresponding message
appears in the Driver Information
Centre 3 85.
The Traction control system (TC) is
not operational. Have the cause of the
fault remedied by a workshop.
Vehicle messages 3 86.
Electronic stability
program
The Electronic Stability Program
(ESP®
Plus
) improves driving stability
when necessary, regardless of the
type of road surface or tyre grip. It also
prevents the drive wheels from
spinning.
As soon as the vehicle starts to
swerve (understeer/oversteer),
engine output is reduced and the
wheels are braked individually. This
considerably improves the driving
stability of the vehicle on slippery road
surfaces.
ESP®
Plus
is operational as soon as
the ignition is switched on and control
indicator b extinguishes in the
instrument cluster. A corresponding
message also appears in the Driver
Information Centre 3 85.
When ESP®
Plus
comes into action b
flashes.
9 Warning
Do not let this special safety
feature tempt you into taking risks
when driving.
Adapt speed to the road
conditions.
Control indicator b 3 82.
Trailer stability assist (TSA) 3 137.
Enhanced Traction function
If necessary, in the event of soft
ground, mud or snow-covered road
surfaces, ESP®
Plus
can be
deactivated to enhance traction:
Press the Ø button on the
instrument panel.
Driving and operating 127
Control indicator Ø illuminates in the
instrument cluster and a
corresponding message appears in
the Driver Information Centre 3 85.
When vehicle speed reaches
50 km/h, the system switches
automatically from Enhanced
Traction function to ESP®
Plus
operation. Control indicator Ø
extinguishes in the instrument cluster.
ESP®
Plus
is reactivated by pressing
the Ø button again. Control indicator
Ø extinguishes.
ESP®
Plus
is also reactivated the next
time the ignition is switched on.
Fault
If the system detects a fault, control
indicator b 3 82 illuminates together
with A 3 81 in the instrument cluster
and a corresponding message
appears in the Driver Information
Centre 3 85.
The Electronic stability program
(ESP®
Plus
) is not operational. Have
the cause of the fault remedied by a
workshop.
Vehicle messages 3 86.
Driver assistance
systems
9 Warning
Driver assistance systems are
developed to support the driver
and not to replace the driver's
attention.
The driver accepts full
responsibility when driving the
vehicle.
When using driver assistance
systems, always take care
regarding the current traffic
situation.

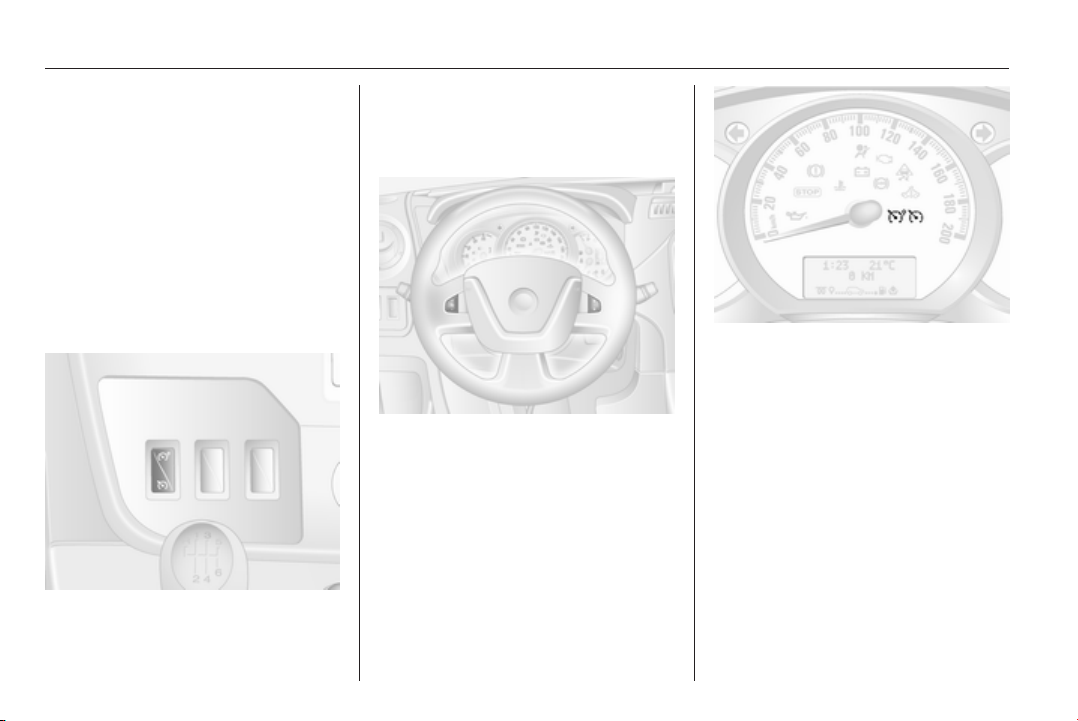

Cruise control
The cruise control can store and
maintain speeds of 30 km/h and
above. Deviations from the stored
speeds may occur when driving uphill
or downhill. The stored speed will
flash in the Driver Information Centre
3 85.
128 Driving and operating
For safety reasons the cruise control
cannot be activated until the foot
brake has been operated once.
Do not use the cruise control if it is not
advisable to maintain a constant
speed.
With manual transmission
automated, only activate cruise
control in automatic mode.
Control indicators m and U 3 85.
Activation
Press switch m, control indicator U
illuminates green in the instrument
cluster.
Cruise control is now in standby mode
and a corresponding message
appears in the Driver Information
Centre.
Accelerate to the desired speed and
press switch < or ]. The current
speed is now stored and maintained
and the accelerator pedal can be
released.
Control indicator m illuminates green
in the instrument cluster together with
U and a corresponding message
appears in the Driver Information
Centre.
Vehicle speed can be increased by
depressing the accelerator pedal.
The stored speed flashes in the
instrument cluster. When the
accelerator pedal is released, the
previously stored speed is resumed.
Cruise control remains activated
while gearshifting.
The speed is saved until the ignition
is switched off.
Driving and operating 129
Increase speed
With cruise control active, the vehicle
speed can be increased continuously
or in small increments by holding
down or tapping switch < repeatedly.
When the switch is released the
current speed is stored and
maintained.
Alternatively, accelerate to the
desired speed and store by pressing
switch <.
Reduce speed
With cruise control active, the vehicle
speed can be decreased
continuously or in small increments
by holding down or tapping switch ]
repeatedly.
When the switch is released the
current speed is stored and
maintained.
Deactivation
Press switch §: cruise control is
deactivated and the green control
indicator m extinguishes in the
instrument cluster.
Automatic deactivation:
■ Vehicle speed drops below
30 km/h,
■ The brake pedal is depressed,
■ The clutch pedal is depressed,
■ Selector lever in N.
The speed is stored and a
corresponding message appears in
the Driver Information Centre.
Reactivation
Press switch R at a speed above
30 km/h.
If the stored speed is much higher
than the current speed, the vehicle
will accelerate powerfully until the
stored speed is obtained.
Pressing switch < will also reactivate
the cruise control function, but at the
current vehicle speed only, not the
stored speed.
Deleting the stored speed
Press switch m: Green control
indicators U and m extinguish in the
instrument cluster.
Cruise control speed limiter
The speed limiter prevents the
vehicle exceeding a preset maximum
speed above 30 km/h.
Activation
Press switch U, control indicator U
illuminates yellow in the instrument
cluster.
Cruise control speed limiter function
is now in standby mode and a
corresponding message appears in
the Driver Information Centre.
130 Driving and operating
Accelerate to the desired speed and
press switch < or ]. The current
speed is recorded.
The vehicle can be driven normally
but it will not be possible to exceed the
programmed speed limit except in an
emergency.
Where the limit speed cannot be
maintained, e.g. when driving on a
steep decline, the limit speed will
flash in the Driver Information Centre.
Increase limit speed
The limit speed can be increased
continuously or in small increments
by holding down or tapping switch <
repeatedly.
Reduce limit speed
The limit speed can be decreased
continuously or in small increments
by holding down or tapping switch ]
repeatedly.
Exceeding the limit speed
In the event of an emergency it is
possible to exceed the limit speed by
depressing the accelerator pedal
firmly beyond the point of resistance.
The limit speed will flash in the Driver
Information Centre during this period.
Release the accelerator pedal and
the speed limiter function is
reactivated once a speed lower than
the limit speed is obtained.
Note
In vehicles fitted with a Speed
limiter, fully depressing the
accelerator pedal will not allow you
to exceed the set maximum vehicle
speed. Speed limiter 3 130.
Deactivation
Press switch §: speed limiter is
deactivated and the vehicle can be
driven normally.
The limit speed is stored and a
corresponding message appears in
the Driver Information Centre.
Reactivation
Press switch R. The speed limiter
function is reactivated.
Pressing switch < will also reactivate
the speed limiter function, but at the
current vehicle speed only, not the
stored speed.
Deleting the limit speed
Press switch U.
Yellow control indicator U
extinguishes in the instrument cluster.
Speed limiter
Maximum speed limiter
In accordance with local or national
regulations, the vehicle may be
equipped with a fixed maximum
speed limiter that cannot be disabled.
If equipped, a warning label indicating
the fixed maximum speed limit (90 to
130 km/h) is located on the
instrument panel.
Deviations from the maximum speed
limit may occur briefly when driving
downhill, for physical reasons.
A warning buzzer will sound for
10 seconds if the vehicle briefly
exceeds the set limit.
Vehicles also equipped with cruise
control speed limiter: the maximum
speed cannot be exceeded by
depressing the accelerator pedal
firmly beyond the point of resistance.
Driving and operating 131
Cruise control speed limiter 3 127.
Parking assist
The parking assist makes reverse
parking easier by measuring the
distance between the rear of the
vehicle and obstacles. It is the driver,
however, who bears full responsibility
for the parking manoeuvre.
The system consists of four ultrasonic
parking sensors in the rear bumper.
Note
Attached parts in the detection area
cause system malfunction.
Activation
When reverse gear is engaged, the
system switches itself on
automatically. Readiness for
operation is indicated by a brief
acoustic alarm.
An obstacle is indicated by buzzers.
The interval between the buzzers
becomes shorter as the vehicle gets
closer to the obstacle. When the
distance is less than 30 cm, the
buzzer is continuous.
9 Warning
Under certain circumstances,
various reflective surfaces on
objects or clothing as well as
external noise sources may cause
the system to fail to detect
obstacles.
Special attention must be paid to
low obstacles which can damage
the lower part of the bumper.
Caution
Performance of the sensor can be
reduced when sensors are
covered, e.g. by ice or snow.
Performance of the parking assist
system can be reduced due to
heavy loading.
Special conditions apply if there
are taller vehicles involved (e.g.
off-road vehicles, mini vans,
vans). Object identification in the
upper part of these vehicles
cannot be guaranteed.
Objects with a very small reflection
cross section, like objects of
narrow size or soft materials, may
not be detected by the system.
Parking assist will not detect
objects out of the detection range.
132 Driving and operating
Deactivation
It is possible to deactivate or
temporarily deactivate the system.
Temporary deactivation
Temporarily deactivate the system by
pressing the r button on the
instrument panel with the ignition on
and reverse gear engaged. Control
indicator in the button illuminates.
When reverse gear is selected no
acoustic signal will sound, indicating
deactivation.
The function is reactivated by
pressing button r again or the next
time the ignition is switched on.
Permanent deactivation
Permanently deactivate the system
by pressing and holding the r
button on the instrument panel for
approx. 3 seconds with the ignition on
and reverse gear engaged. Control
indicator in the button illuminates
continuously.
The system is deactivated and will not
operate. When reverse gear is
selected no acoustic signal will
sound, indicating deactivation.
The function is reactivated by
pressing and holding button r for
approx. 3 seconds.
Fault
If the system detects an operating
fault, a continuous acoustic alarm will
sound for approx. 5 seconds when
selecting reverse gear. Consult a
workshop to have the cause of the
fault remedied.
Caution
When reversing, the area should
be free from obstacles which could
impact on the underside of the
vehicle.
Impact to the rear axle, which may
not be visible, could lead to
uncharacteristic changes in the
vehicle handling. In the event of
such an impact, consult a
workshop.
Rear view camera
Driving and operating 133
The camera is typically installed
under the number plate moulding with
a display monitor fitted to the driver's
sun visor.
Functionality
The rear view camera system
enables the driver to view the rear of
the vehicle in the display monitor
whilst reversing.
The system can be activated or
deactivated by selecting the
Start/Stop button located on the right-
hand side of the display monitor.
The remaining buttons on the monitor
enable the user to select source
AV1 or AV2 and adjust the brightness
and contrast of the display monitor.
To achieve the optimum visibility, the
rear view camera must not be
obscured by dirt, snow or ice.
9 Warning
The system is intended as a
reversing aid and does not replace
driver vision.
Do not let this feature tempt you
into take risks when reversing.
Failure to use proper care when
reversing may result in damage to
the vehicle, injury, or death.
Always check the outside,
rearview mirrors and glance over
your shoulder before reversing.
The driver assistance systems do
not relieve the driver from full
responsibility for vehicle
operation.
Fuel
Fuel for diesel engines
Only use diesel fuel that complies
with EN 590. The fuel must have low
sulphur content (max. 10 ppm).
Equivalent standardised fuels with a
biodiesel (= FAME according to
EN14214) content of max. 7% by
volume (like DIN 51628 or equivalent
standards) may be used.
In countries outside the European
Union use Euro-Diesel fuel with a
sulphur concentration below 50 ppm.
Caution
Use of fuel that does not comply to
EN 590 or similar can lead to
engine powerloss, increased wear
or engine damage and may affect
your warranty.
Do not use marine diesel oils, heating
oils or entirely plant-based diesel
fuels, such as rape seed oil or bio
diesel, Aquazole and similar diesel-
134 Driving and operating

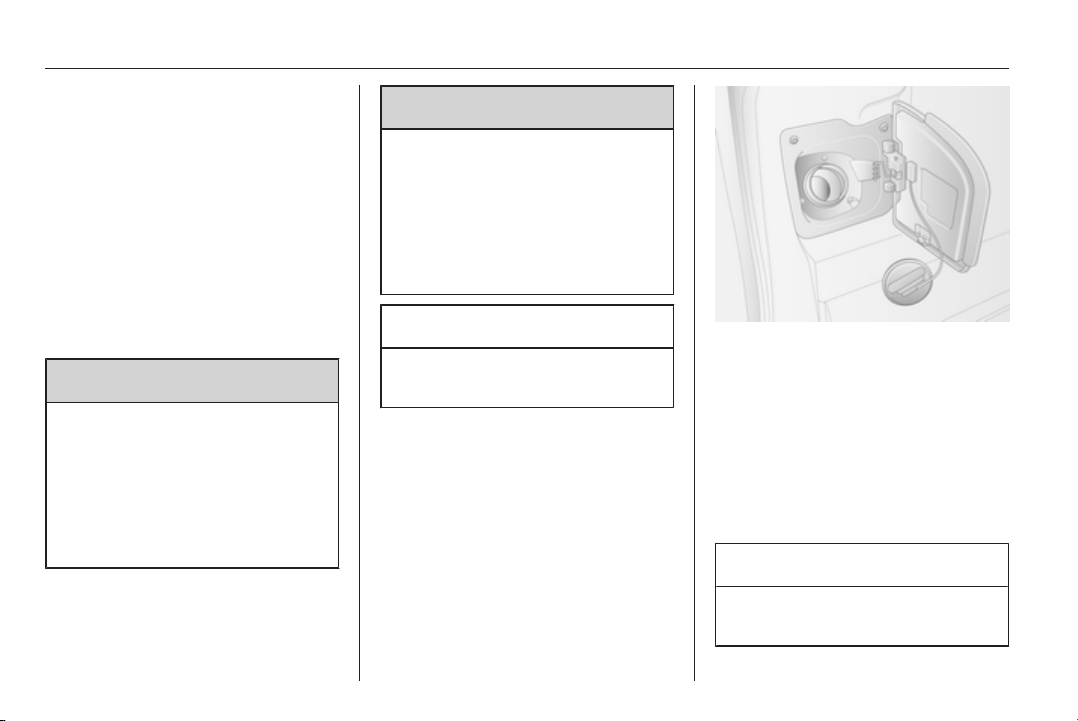

water emulsions. Diesel fuels must
not be diluted with fuels for petrol
engines.
The flow and filterability of diesel fuels
are temperature-dependent. When
temperatures are low, refuel with
diesel fuel with guaranteed winter
properties.
Diesel fuel filter 3 146, diesel fuel
system bleeding 3 147.
Refuelling
9 Danger
Before refuelling, switch off engine
and any external heaters with
combustion chambers. Switch off
any mobile phones.
Follow the operating and safety
instructions of the filling station
when refuelling.
9 Danger
Fuel is flammable and explosive.
No smoking. No naked flames or
sparks.
If you can smell fuel in your
vehicle, have the cause of this
remedied immediately by a
workshop.
Caution
In case of misfuelling, do not
switch on ignition.
The fuel tank filler neck with bayonet
cap is located on the left front side of
the vehicle.
The fuel filler flap can only be opened
if the vehicle is unlocked and the door
is opened. Open the fuel filler flap by
hand.
Remove the fuel filler cap by turning
it anti-clockwise.
The fuel filler cap can be hung on the
lower hook of the fuel filler flap.
For refuelling, fully insert the pump
nozzle and switch it on.
After automatic cut-off, it can be
topped-up with max. two doses of
fuel.
Caution
Wipe off any overflowing fuel
immediately.
Driving and operating 135
When refuelling is complete, replace
the fuel filler cap and turn it clockwise.
Close the fuel filler flap.
Fuel filler cap
Only use genuine fuel filler caps.
Diesel-engined vehicles have special
fuel filler caps.
Fuel consumption - CO
2
-
Emissions
For the values specific to your
vehicle, refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
General information
The official fuel consumption and
specific CO
2
emission figures quoted
relate to the EU base model with
standard equipment.
Fuel consumption data and CO
2
emission data are determined
according to regulation
715/2007 692/2008 A, taking into
consideration the vehicle weight in
running order, as specified by the
regulation.
The figures must not be taken as a
guarantee for the actual fuel
consumption of a particular vehicle.
Additional equipment may result in
slightly higher results than the stated
consumption and CO
2
figures.
Furthermore, fuel consumption is
dependent on personal driving style
as well as road and traffic conditions.
Trailer hitch
General information
Only use towing equipment that has
been approved for your vehicle.
Entrust fitting of towing equipment at
a later date to a workshop. It may be
necessary to make changes that
affect the cooling system, heat
shields or other equipment.
Driving characteristics and
towing tips
In the case of trailers with brakes,
attach the breakaway stopping cable.
Before attaching a trailer, lubricate
the coupling ball. However, do not do
so if a stabiliser, which acts on the
coupling ball, is being used to reduce
snaking movements. For trailers with
low driving stability the use of a
stabiliser is recommended.
A maximum speed of 80 km/h must
not be exceeded, even in countries
where higher speeds are permitted.
136 Driving and operating
If the trailer starts snaking, drive more
slowly, do not attempt to correct the
steering and brake sharply if
necessary.
When driving downhill, drive in the
same gear as if driving uphill and
drive at a similar speed.
Adjust tyre pressure to the value
specified for full load 3 203.
Trailer towing
Trailer loads
The permissible trailer loads are
vehicle-dependent and engine-
dependent maximum values which
must not be exceeded. The actual
trailer load is the difference between
the actual gross weight of the trailer
and the actual coupling socket load
with the trailer coupled.
The permissible trailer loads are
specified in the vehicle documents. In
general, they are valid for gradients
up to max. 12 %.
The permitted trailer load applies up
to the specified incline and up to an
altitude of 1000 metres above sea
level. Since engine power decreases
as altitude increases due to the air
becoming thinner, therefore reducing
climbing ability, the permissible gross
train weight also decreases by 10 %
for every 1000 metres of additional
altitude. The gross train weight does
not have to be reduced when driving
on roads with slight inclines (less than
8 %, e.g. motorways).
The permissible gross train weight
must not be exceeded. This weight is
specified on the identification plate
3 184.
Vertical coupling load
The vertical coupling load is the load
exerted by the trailer on the coupling
ball. It can be varied by changing the
weight distribution when loading the
trailer.
The maximum permissible vertical
coupling load is specified on the
towing equipment identification plate
and in the vehicle documents. Always
aim for the maximum load, especially
in the case of heavy trailers. The
vertical coupling load should never
fall below 25 kg.
In the case of trailer loads of
1200 kg or more, the vertical coupling
load should not be less than 50 kg.
Rear axle load
When the trailer is coupled and the
towing vehicle fully loaded (including
all occupants), the permissible rear
axle load (see identification plate or
vehicle documents) must not be
exceeded.
Towing equipment
Caution
When operating without a trailer,
remove the coupling ball bar.
Towing equipment audible
warning
For vehicles fitted with towing
equipment, when connected to a
trailer the pitch of the audible warning
changes upon operation of the turn
signals.
Driving and operating 137
The pitch of the audible warning will
change if a turn signal light on the
trailer or the towing vehicle fails.
Trailer stability assist
If the system detects snaking
movements, engine power is reduced
and the vehicle/trailer combination is
selectively braked until the snaking
ceases. While the system is working,
keep steering wheel as still as
possible.
Trailer stability assist (TSA) is a
function of the Electronic stability
program (ESP) 3 126.
Auxiliary features
Power take-off
Activation
To activate the power take-off, with
the vehicle stationary and the engine
idling:
■ Set the gearshift lever to neutral
(vehicles with manual transmission
automated: selector lever in
position N).
■ Depress the clutch pedal.
■ Press switch on the instrument
panel; LED in switch illuminates
after approx. 2 seconds.
■ Release the clutch pedal.
The engine idle speed increases to
1,200 rpm.
Caution
During operation of the power
take-off, never move the selector
lever out of neutral (vehicles with
manual transmission automated:
selector lever in position N), to
avoid damage to the transmission.
If a gear change becomes
necessary, i.e. to adjust the driving
speed, the power take-off must
always be deactivated first.
Deactivation
To deactivate the power take-off:
■ Depress the clutch pedal.
■ Press switch on the instrument
panel; LED in switch extinguishes
after approx. 2 seconds.
■ Release the clutch pedal.
138 Driving and operating
Fault
If the LED in the switch does not
illuminate when attempting to activate
the power take-off and/or the system
does not operate:
Gradually release the clutch pedal.
- or -
■ Set the gearshift lever to neutral
(vehicles with manual transmission
automated: selector lever in
position N).
■ Depress the clutch pedal.
■ Press switch on the instrument
panel; LED in switch illuminates
after approx. 2 seconds.
■ Release the clutch pedal.
Then repeat the above procedure.
Note
The power take-off function is not
available when control indicator A
3 81, C 3 81 or W 3 83 is
illuminated.
Vehicle care 139
Vehicle care
General Information ................... 139
Vehicle checks ........................... 140
Bulb replacement ....................... 148
Electrical system ........................ 156
Vehicle tools .............................. 158
Wheels and tyres ....................... 159
Jump starting ............................. 172
Towing ....................................... 174
Appearance care ....................... 176
General Information
Accessories and vehicle
modifications
We recommend the use of genuine
parts and accessories and factory
approved parts specific for your
vehicle type. We cannot assess or
guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Do not make any modifications to the
electrical system, e.g. changes of
electronic control units (chip tuning).
Caution
When transporting the vehicle on
a train or on a recovery vehicle, the
mud flaps might be damaged.
Vehicle storage
Storage for a long period of time
If the vehicle is to be stored for several
months:
■ Wash and wax the vehicle.
■ Have the wax in the engine
compartment and underbody
checked.
■ Clean and preserve rubber seals.
■ Change engine oil.
■ Drain washer fluid reservoir.
■ Check coolant antifreeze and
corrosion protection.
■ Adjust tyre pressure to the value
specified for full load.
■ Park vehicle in a dry, well ventilated
place. Engage first or reverse gear.
Prevent the vehicle from rolling.
■ Do not apply parking brake.
140 Vehicle care
■ Open bonnet, close all doors and
lock the vehicle.
■ Disconnect the clamp from the
negative terminal of the vehicle
battery. Beware that all systems are
not functional, e.g. anti-theft alarm
system.
Putting back into operation
When the vehicle is to be put back into
operation:
■ Connect the clamp to the negative
terminal of the vehicle battery.
Activate the electronics of the
power windows.
■ Check tyre pressure.
■ Fill up the washer fluid reservoir.
■ Check the engine oil level.
■ Check the coolant level.
■ Fit the number plate, if necessary.
End-of-life vehicle
recovery
Information on end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our
website, where legally required. Only
entrust this work to an authorised
recycling centre.
Vehicle checks
Performing work
9 Warning
Only perform engine compartment
checks when the ignition is off.
The cooling fan may start
operating even if the ignition is off.
9 Danger
The ignition system generates
extremely high voltages. Do not
touch.
The caps for topping up the engine oil,
the coolant, the washer fluid and the
oil dipstick handle are yellow for ease
of identification.
Vehicle care 141

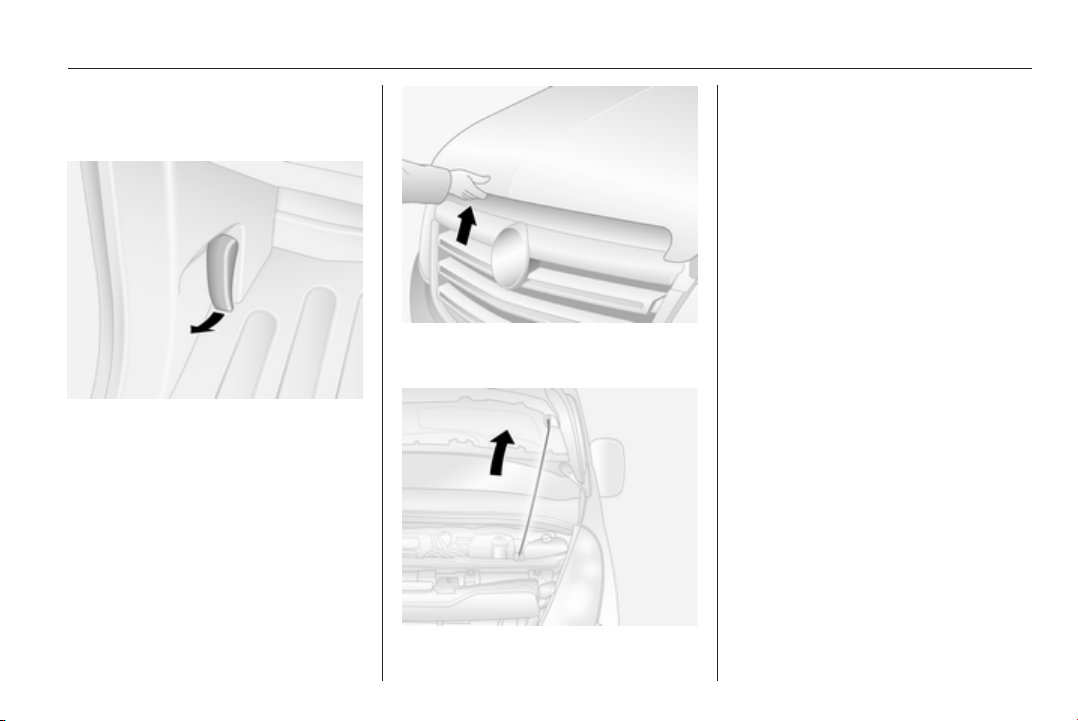

Bonnet
Opening
Pull the release lever and return it to
its original position.
Pull the safety catch, located slightly
left of centre, and open the bonnet.
Pull up the support rod from its holder,
then secure it in the right side hook on
the underside of the bonnet.
If the bonnet is opened during an
Autostop, the engine will be restarted
automatically for safety reasons.
Closing
Before closing the bonnet, press the
support into the holder.
Lower the bonnet and allow it to drop
into the catch from a low height
(20-25 cm). Check that the bonnet is
engaged.
Engine oil
Check the engine oil level manually
on a regular basis to prevent damage
to the engine.
Ensure that the correct specification
of oil is used. Recommended fluids
and lubricants 3 181.
Check with the vehicle on a level
surface. The engine must be at
operating temperature and switched
off for at least 10 minutes.
142 Vehicle care
Pull out the dipstick, wipe it clean,
insert it to the stop on the handle, pull
out and read the engine oil level.
When the engine oil level has
dropped to the MIN mark, top-up
engine oil.
Caution
Do not allow the engine oil level to
drop below the minimum level!
We recommend the use of the same
type of engine oil that was used at the
last change.
The engine oil level must not exceed
the maximum mark MAX on the
dipstick.
Caution
Overfilled engine oil must be
drained or suctioned out.
To prevent spillage when
replenishing the engine oil, we
recommend using a funnel. Ensure
funnel is securely located onto the
filler pipe.
A stabilization of the engine oil
consumption will not take place until
the vehicle has been driven several
thousand kilometres. Only then can
the actual degree of consumption be
established.
If consumption exceeds more than
0.5 litres every 1000 km after this
running-in period, consult a
workshop.
Capacities 3 202, Engine oil level
monitor 3 77.
Fit the cap on straight and tighten it.
Engine coolant
The coolant provides freeze
protection down to approx. -28 °C.
Caution
Only use approved antifreeze.
Vehicle care 143
Coolant level
Caution
Too low a coolant level can cause
engine damage.
If the cooling system is cold, the
coolant level should be just above the
MINI mark. Top up if the level is low.
9 Warning
Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
Top up with antifreeze. If no
antifreeze is available, use clean tap
water or distilled water. Install the cap
tightly. Have the antifreeze
concentration checked and have the
cause of the coolant loss remedied by
a workshop.
If a substantial amount of coolant is
required, it will be necessary to bleed
any trapped air from the cooling
system. Seek the assistance of a
workshop.
Power steering fluid
Caution
Extremely small amounts of
contamination can cause steering
system damage and cause it to not
work properly. Do not allow
contaminates to contact the fluid
side of the reservoir cap or from
entering the reservoir.
The fluid level normally does not need
to be checked. If an unusual noise is
heard during steering or if the power
steering reacts conspicuously, seek
the assistance of a workshop.
Depending on vehicle, the power
steering fluid reservoir may be
located in the engine compartment
(Type A) or below the front wheel
arch, behind a trim panel (Type B).
144 Vehicle care
Type A
If the fluid level in the reservoir falls
below the MINI mark, consult a
workshop.
Type B
If the fluid level in the reservoir falls
below the MIN mark, consult a
workshop.
Washer fluid
Fill with clean water mixed with a
suitable quantity of windscreen
washer fluid which contains
antifreeze.
Caution
Only washer fluid with a sufficient
antifreeze concentration provides
protection at low temperatures or
a sudden drop in temperature.
Vehicle care 145
Brakes
In the event of minimum thickness of
the brake lining, a squealing noise
sounds during braking.
Continued driving is possible but
have the brake linings replaced as
soon as possible.
Once new brake linings are installed,
do not brake unnecessarily hard for
the first few journeys.
Brake fluid
9 Warning
Brake fluid is poisonous and
corrosive. Avoid contact with eyes,
skin, fabrics and painted surfaces.
The brake fluid level must be between
the MIN and MAX marks.
When topping up, ensure maximum
cleanliness as contamination of the
brake fluid can lead to brake system
malfunctions. Have the cause of the
loss of brake fluid remedied by a
workshop.
Only use brake fluid approved for
your vehicle.
Brake and clutch fluid 3 181.
Vehicle battery
The vehicle battery is maintenance-
free provided that the driving profile
allows sufficient charging of the
battery. Short-distance-driving and
frequent engine starts can discharge
the battery. Avoid the use of
unnecessary electrical consumers.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Laying up the vehicle for more than
4 weeks can lead to battery
discharge. Disconnect the clamp from
the negative terminal of the vehicle
battery.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
146 Vehicle care
Battery access
The battery is located behind a panel
in the front left-hand door step.
Remove the panel to access the
battery.
Charging the vehicle battery
9 Danger
Ensure adequate ventilation when
charging the battery. There is a
risk of explosion if gases
generated during charging are
allowed to accumulate!
Jump starting 3 172.
Warning label
Meaning of symbols:
■ No sparks, naked flames or
smoking.
■ Always shield eyes. Explosive
gases can cause blindness or
injury.
■ Keep the vehicle battery out of
reach of children.
■ The vehicle battery contains
sulfuric acid which could cause
blindness or serious burn injuries.
■ See the Owner's Manual for further
information.
■ Explosive gas may be present in
the vicinity of the battery.
Additional battery
Depending on the vehicle's auxiliary
equipment, certain models may have
an additional battery mounted under
the front seat.
Diesel fuel filter
Drain diesel fuel filter of residual
water at every engine oil change.
Vehicle care 147
Place a container underneath the
filter housing. Loosen the knurled
screws on the filter cover and on the
lower part of the filter by approx. one
turn, to drain off the water.
The filter is drained as soon as diesel
fuel emerges from the knurled screw
at the bottom. Retighten the two
screws.
Check diesel fuel filter at shorter
intervals if the vehicle is subjected to
extreme operating conditions.
Diesel fuel system
bleeding
If the fuel tank has been run dry, it will
be necessary to air vent or bleed the
diesel fuel system.
Fill the tank with fuel and proceed as
follows:
1. Place a suitable container
underneath the fuel filter vent
screw to collect fuel.
2. Loosen the vent screw (arrowed)
by one turn.
3. Manually operate the in-line
supply pump slowly and steadily
until fuel discharging from the
loosened vent screw is free of air
bubbles.
4. Retighten the vent screw.
If the engine cannot be started after
several attempts to bleed the diesel
fuel system, seek the assistance of a
workshop.
Wiper blade replacement
Wiper blades on the windscreen
Lift wiper arm, press retaining clip
towards wiper arm and detach wiper
blade.
Attach the wiper blade slightly angled
to the wiper arm and push until it
engages.
Lower wiper arm carefully.
148 Vehicle care
Bulb replacement
Switch off the ignition and turn off the
relevant switch or close the doors.
Only hold a new bulb at the base. Do
not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Bulb check
After a bulb replacement, switch on
the ignition, operate and check the
lights.
Headlights
Headlights have separate systems for
high beam 1 and low beam 2.
High beam
1. Remove headlamp protective
cover.
2. Detach wiring connector from
bulb.
Vehicle care 149
3. Release spring clip.
4. Withdraw bulb from reflector
housing.
5. Renew bulb and secure with
spring clip.
6. Reattach wiring connector to bulb.
7. Replace headlamp protective
cover.
Low beam
1. Remove headlamp protective
cover.
2. Detach wiring connector from
bulb.
3. Rotate bulb holder anti-clockwise
to disengage.
4. Withdraw bulb holder from
reflector housing.
5. Detach bulb from bulb holder and
renew the bulb.
6. Insert the bulb holder, engaging
the two lugs in the reflector
housing and rotate clockwise to
secure.
7. Reattach wiring connector to bulb.
8. Replace headlamp protective
cover.
150 Vehicle care
Sidelights
1. Remove protective cover.
2. Detach wiring connector from
bulb.
3. Rotate bulb holder anti-clockwise
to disengage.
4. Withdraw bulb holder from
reflector housing.
5. Detach bulb from bulb holder and
renew the bulb.
6. Insert the bulb holder, engaging
the two lugs in the reflector
housing and rotate clockwise to
secure.
7. Reattach wiring connector to bulb.
8. Replace protective cover.
Adaptive forward lighting
Cornering light
Headlights have separate systems for
high beam 1 and low beam 2. The
cornering light 3 is located between
the headlights.
1. Remove protective cover.
2. Detach wiring connector from
bulb.
3. Rotate bulb holder anti-clockwise
to disengage.
4. Withdraw bulb holder from
reflector housing.
Vehicle care 151
5. Detach bulb from bulb holder and
renew the bulb.
6. Insert the bulb holder, engaging
the two lugs in the reflector
housing and rotate clockwise to
secure.
7. Reattach wiring connector to bulb.
8. Replace protective cover.
Fog lights
Have bulbs replaced by a workshop.
Front turn signal lights
1. Remove protective cover.
2. Detach wiring connector from
bulb.
3. Rotate bulb holder anti-clockwise
to disengage.
4. Withdraw bulb holder from
reflector housing.
5. Detach bulb from bulb holder and
renew the bulb.
6. Insert the bulb holder, engaging
the two lugs in the reflector
housing and rotate clockwise to
secure.
7. Reattach wiring connector to bulb.
8. Replace protective cover.
152 Vehicle care
Tail lights
Rear brake, tail, turn signal,
reverse and fog tail lights
1. Remove the upper and lower trim
panels from the rear pillar.
2. Unscrew the two nuts from the
locating pins on the rear of the
lamp assembly.
3. Withdraw the lamp assembly
rearwards from the outer side.
4. Detach wiring connector from
lamp assembly.
5. Remove the three screws from
the rear of the lamp assembly.
6. Remove bulb holder from the
lamp assembly.
7. Push bulb into socket slightly,
rotate anti-clockwise, remove and
renew bulb.
Turn signal light (1)
Tail and brake light (2)
Reverse light (3)
Rear fog light, may be on one side
only (4)
8. Replace bulb holder in lamp
assembly.
9. Replace the three screws on the
rear of the lamp assembly.
10. Reattach wiring connector to lamp
assembly.
11. Replace lamp assembly from the
outer side into original position,
ensuring that it is seated correctly.
12. Replace the two nuts onto the
locating pins on the rear of the
lamp assembly.
13. Install the upper and lower trim
panels to the rear pillar.
Vehicle care 153

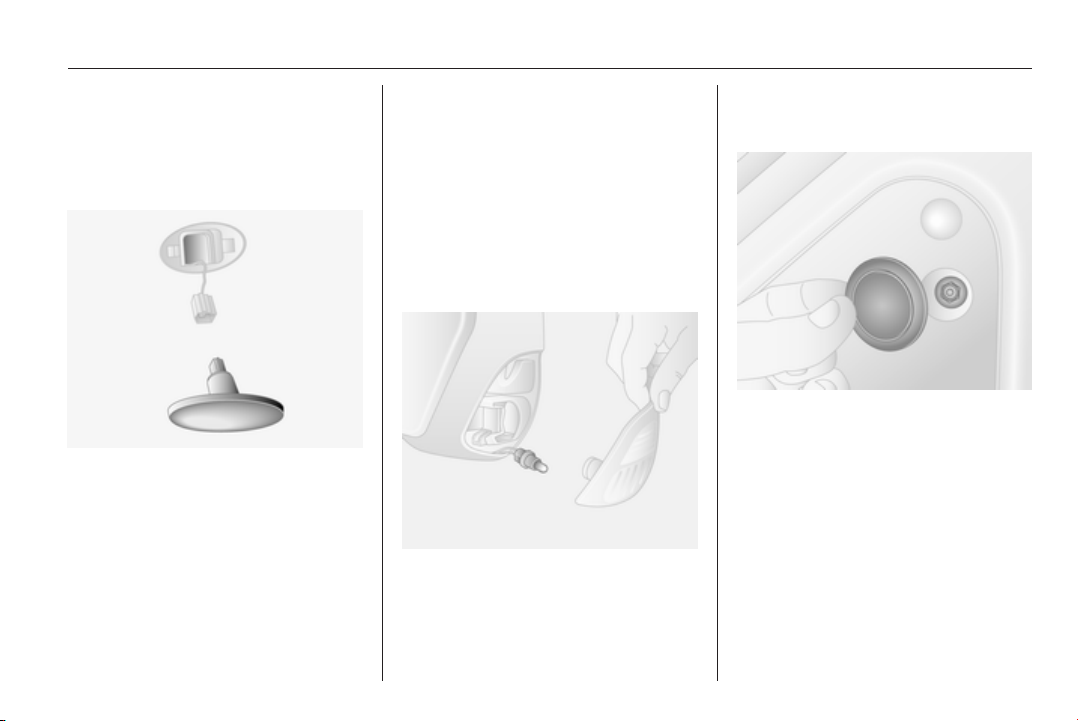

Side turn signal lights
1. Push the lamp assembly to the
right and pull at the left-hand side
of the lamp assembly to release
from the aperture.
2. Detach wiring connector from
lamp assembly.
3. Remove bulb holder from lamp
assembly by rotating 90° and
renew bulb.
4. Install bulb holder in lamp
assembly.
5. Reattach wiring connector.
6. Install lamp assembly into
aperture and push to the left to
secure.
Mirror turn signal lights
1. Move the lower mirror assembly
from the front to access the screw.
2. Remove the screw using a torx
screwdriver.
3. Remove bulb holder from the rear
of the lower mirror assembly.
4. Renew bulb.
5. Replace bulb holder.
6. Replace the screw.
Centre high-mounted
brake light
1. Remove cover from the inside of
the rear door.
2. Unscrew the nut from the locating
pin at the rear of the lamp
assembly.

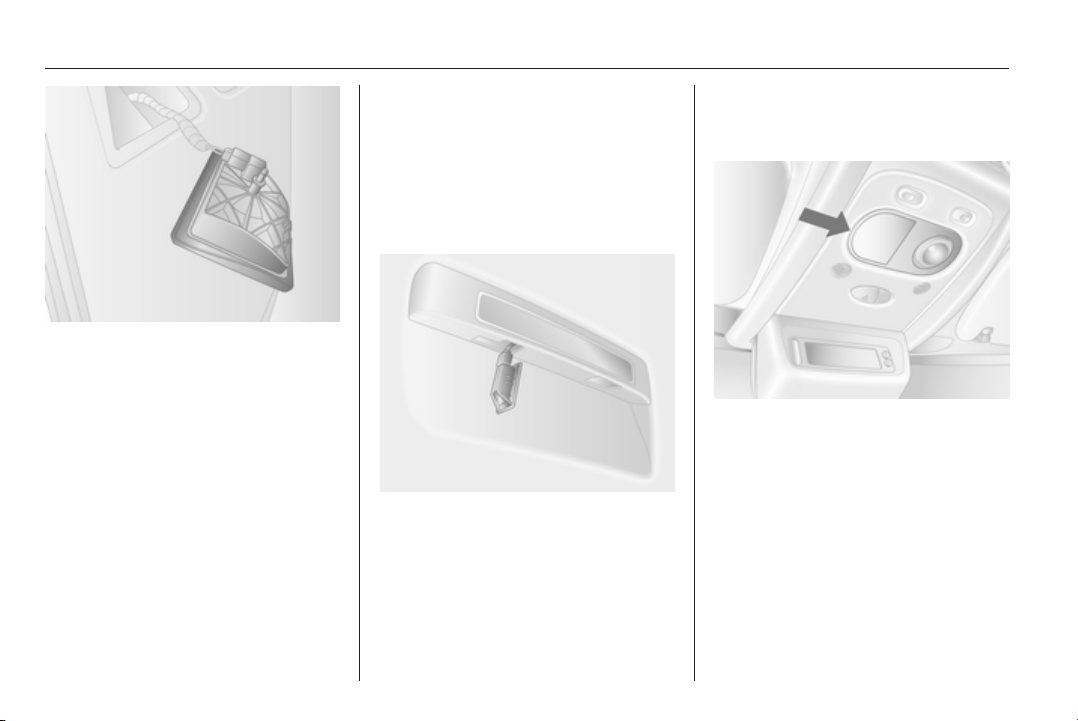

154 Vehicle care
3. Remove the lamp assembly from
the aperture on the outer side.
4. Detach wiring connector from
lamp assembly.
5. Remove bulb holder from lamp
assembly and renew bulb.
6. Install bulb holder in lamp
assembly and reattach wiring
connector to lamp assembly.
7. Replace lamp assembly into
aperture, ensuring that it is seated
correctly.
8. Replace the nut onto the locating
pin on the rear of the lamp
assembly.
9. Install cover on the inside of the
rear door.
Number plate light
1. Unclip lens using a flat blade
screwdriver.
2. Remove cover and renew bulb.
3. Reinstall lens.
Interior lights
Front courtesy light
1. Remove lens using a flat blade
screwdriver.
2. Renew bulb.
3. Reinstall lens.
Vehicle care 155

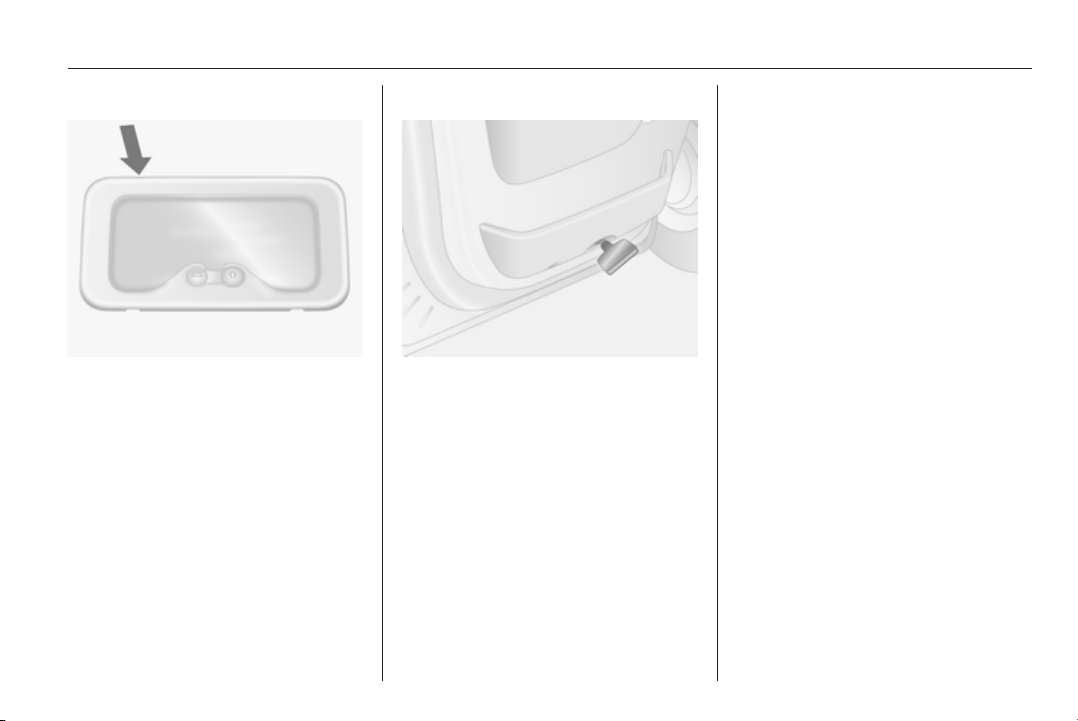

Load compartment light
1. Remove lamp assembly using a
flat blade screwdriver.
2. Detach wiring connector from
lamp assembly.
3. Remove lens cover and renew
bulb.
4. Reattach wiring connector and
reinstall lamp assembly.
Front door panel light
1. Remove lamp assembly using a
flat blade screwdriver.
2. Remove lens on lamp assembly.
3. Renew bulb and install lens.
4. Reinstall lamp assembly.
Rear courtesy lights
Have bulbs replaced by a workshop.
Glovebox light
Have bulbs replaced by a workshop.
Instrument panel
illumination
Have bulbs replaced by a workshop.
156 Vehicle care
Electrical system

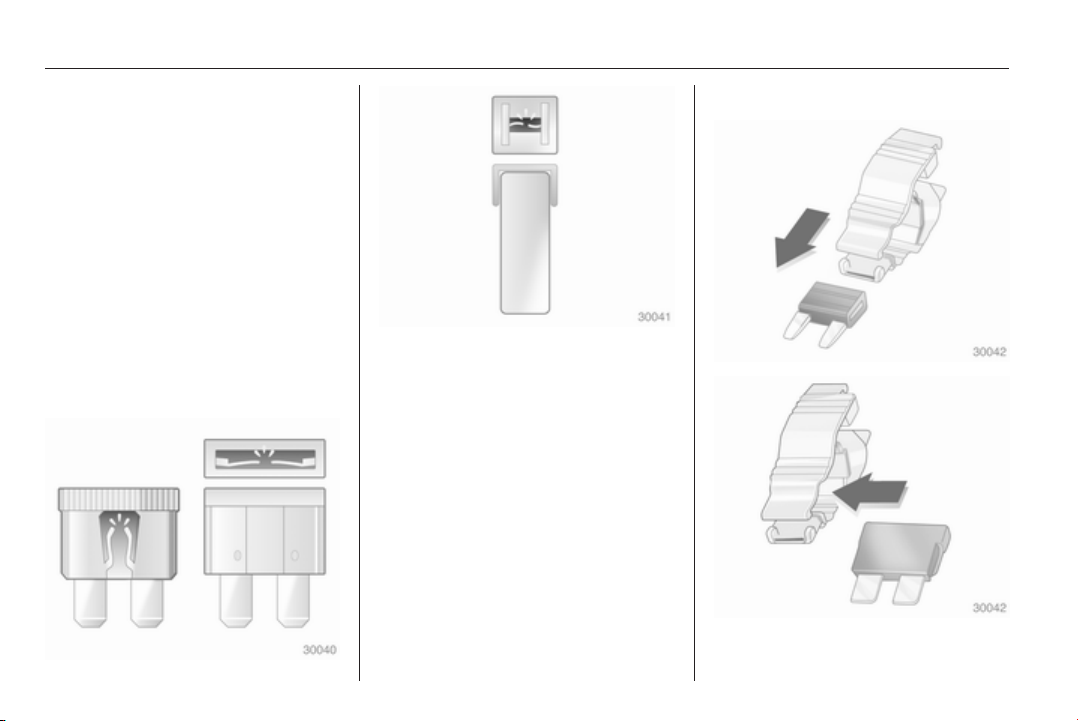

Fuses
Data on the replacement fuse must
match the data on the defective fuse.
There are two fuse boxes in the
vehicle:
■ on the left-hand side of the
instrument panel, behind the trim
panel.
■ in the engine compartment located
below the coolant expansion tank.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its
melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
It is advisable to carry a full set of
fuses. Consult a workshop.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
Note
Not all fuse box descriptions in this
manual may apply to your vehicle.
When inspecting the fuse box, refer
to the fuse box label.
Fuse extractor
Vehicle care 157

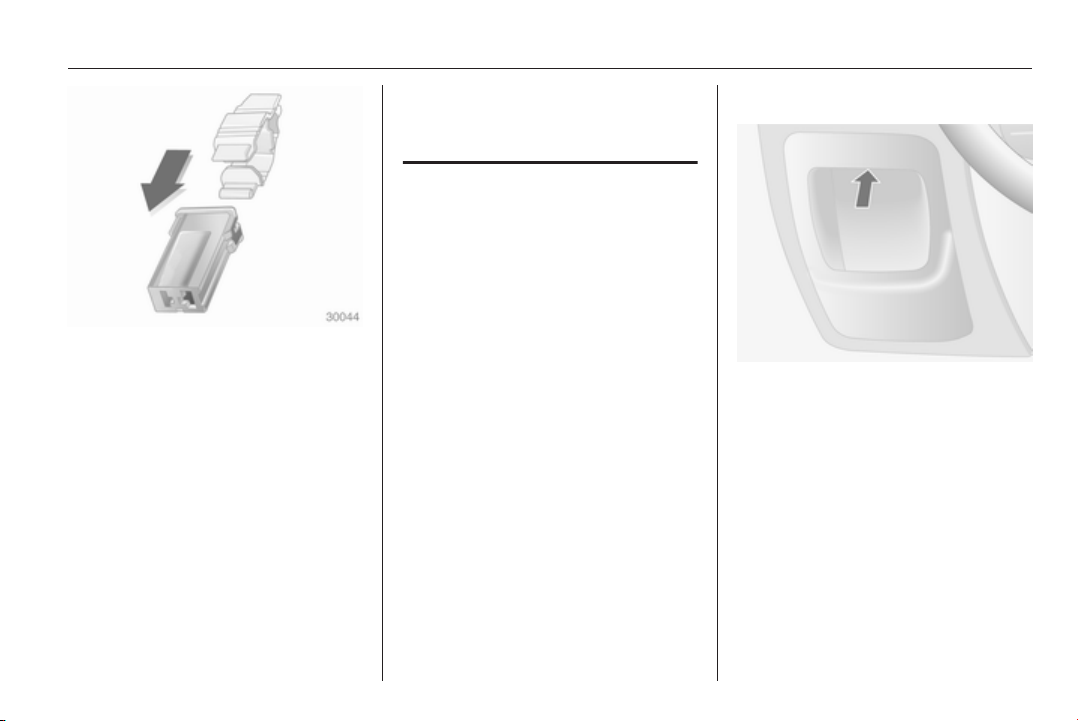

To help in replacing fuses, a fuse
extractor is located in the instrument
panel fuse box.
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fuse
box
Located below the coolant expansion
tank.
Some circuits may be protected by
several fuses.
Due to restricted accessibility, have
fuses replaced by a workshop.
Symbol Circuit
S
Right side lights
T
Left side lights
W
Right low beam
a
Left low beam
>
Front fog light
L
Left high beam
N
Right high beam
u
ABS
K
Windscreen wiper
n
Heating and ventilation
system, air conditioning
V
Heated windscreen
Instrument panel fuse box
Located behind the trim panel on the
left-hand side of the instrument panel.
Pull upper part of trim panel to
remove.
Do not store any objects behind this
panel.
Some circuits may be protected by
several fuses.
158 Vehicle care
Symbol Circuit
Z
Infotainment system, seat
heating, vehicle display
screen, audio connections,
alarm
?
Power outlet
Ì
Cigarette lighter
e
Instrument panel
U
Central locking
O
Turn signals, rear fog lights,
body control module
DIAG Diagnostic connector
u
ABS, Electronic stability
program
d
Interior lights, brake lights
Z
Body control module
STOP Brake light
I
Body control module, power
windows, heating and venti‐
lation system, air condi‐
tioning
Symbol Circuit
m
Left heated rear window
n
Right heated rear window
R
Windscreen washer
M
Electronic immobiliser
U
Heated seats
FBL Cornering light
l
Hands-free connection
&
Tachograph
PTO Power take-off
j
Horn
Í
Preheating, diesel fuel filter
x
Climate control fan
ADP Additional adaptations
,
Power windows, body
control module

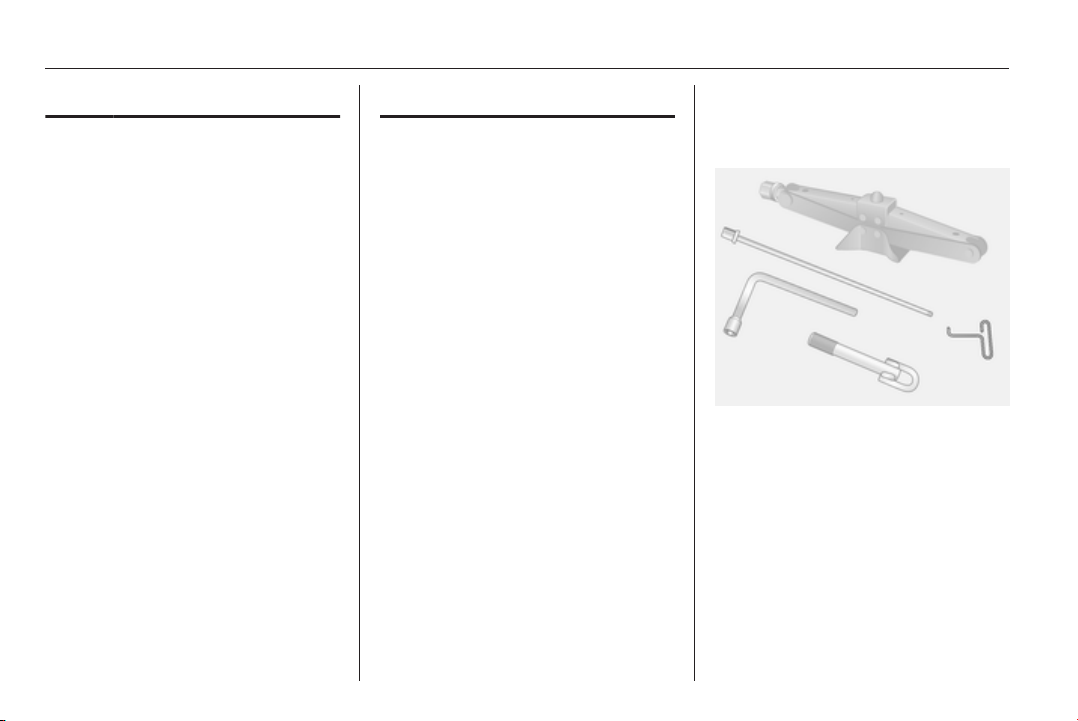

Vehicle tools
Tools
The jack, wheel wrench, adapters (for
spare wheel removal), hub cap hook
and towing eye are contained in a
unit, stowed under the front seat.
Vehicle care 159
Vehicles with Rear-wheel drive: A
hydraulic jack and a set of extension
pieces for use with the jack are also
included.
To access this unit, slide the seat fully
forwards and fold down the backrest.
Tyre repair kit 3 164.
Wheel changing 3 168.
Spare wheel 3 170.
Wheels and tyres
Tyre condition, wheel condition
Drive over edges slowly and at right
angles if possible. Driving over sharp
edges can cause tyre and wheel
damage. Do not trap tyres on the kerb
when parking.
Regularly check the wheels for
damage. Seek the assistance of a
workshop in the event of damage or
unusual wear.
We recommend not swapping the
front wheels with the rear wheels and
vice versa, as this can affect vehicle
stability. Always use less worn tyres
on the rear axle.
Tyres
Factory-fitted tyres are matched to
the chassis and offer optimum driving
comfort and safety.
160 Vehicle care
Winter tyres
Winter tyres improve driving safety at
temperatures below 7 °C and should
therefore be fitted on all wheels.
In accordance with country-specific
regulations, affix the maximum speed
sticker in the driver's field of view.
Tyre designations
E.g. 215/65 R 16 C 109 R
215 = Tyre width, mm
65 = Cross-section ratio (tyre height
to tyre width), %
R = Belt type: Radial
RF = Type: RunFlat
16 = Wheel diameter, inches
C = Cargo or commercial use
88 = Load index e.g. 109 is
equivalent to approx. 1030 kg
R = Speed code letter
Speed code letter:
Q = up to 160 km/h
S = up to 180 km/h
T = up to 190 km/h
H = up to 210 km/h
V = up to 240 km/h
W = up to 270 km/h
Directional tyres
Fit directional tyres such that they roll
in the direction of travel. The rolling
direction is indicated by a symbol
(e.g. an arrow) on the sidewall.
Tyre pressure
Check the pressure of cold tyres at
least every 14 days and before any
long journey. Do not forget the spare
wheel. This also applies to vehicles
with tyre pressure monitoring system.
Tyre pressures 3 203. Always inflate
tyres to the pressures shown on the
label on the driver's door frame.
The tyre pressure data refers to cold
tyres. It applies to summer and winter
tyres.
Always inflate the spare tyre to the
pressure specified for full load.
Incorrect tyre pressures will impair
safety, vehicle handling, comfort and
fuel economy and will increase tyre
wear.
Tyre pressures differ depending on
various options. For the correct tyre
pressure value, follow the procedure
below:
1. Identify the engine identifier code.
Engine data 3 187.
2. Identify the respective tyre.
The tyre pressure tables show all
possible tyre combinations 3 203.
For the tyres approved for your
vehicle, refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.
The driver is responsible for correct
adjustment of tyre pressure.
9 Warning
If the pressure is too low, this can
result in considerable tyre warm-
up and internal damage, leading to
tread separation and even to tyre
blow-out at high speeds.
Vehicle care 161
Rear-wheel drive, with twin rear
wheels
When inflating the outer tyre, the
inflation tube should be passed
between the two wheels.

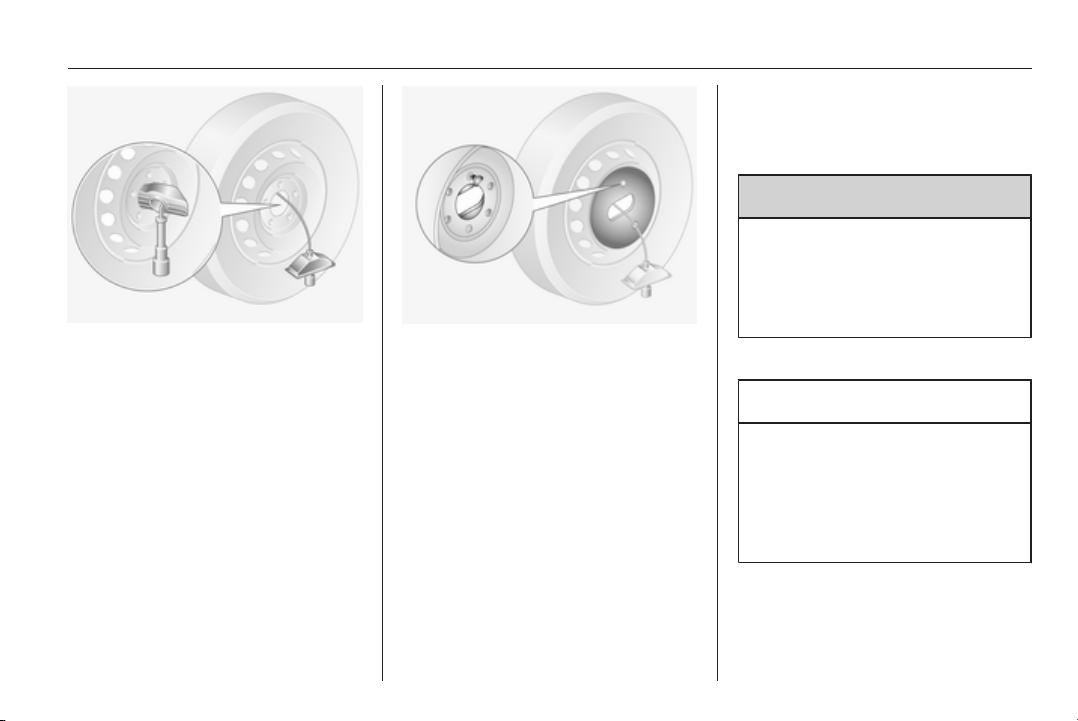

Tyre pressure monitoring
system
The Tyre Pressure Monitoring
System (TPMS) uses radio and
sensor technology to check tyre
pressure levels.
Caution
Tyre pressure monitoring system
warns only about low tyre pressure
condition and does not replace
regular tyre maintenance by the
driver.
All wheels must be equipped with
pressure sensors and the tyres must
have the prescribed pressure.
Note
In countries where the tyre pressure
monitoring system is legally
required, the use of wheels without
pressure sensors will invalidate the
vehicle type approval.
The TPMS sensors monitor the air
pressure in the tyres and transmit tyre
pressure readings to a receiver
located in the vehicle.
Tyre pressures in display
The current tyre pressures can be
shown in the Driver Information
Centre 3 85.
With the vehicle stationary, press
button on end of wiper lever
repeatedly until the tyre pressure
menu is displayed.
Low tyre pressure condition
A detected low tyre pressure
condition is indicated by illumination
of control indicator w 3 83 and a
corresponding message appears in
the Driver Information Centre.
If w illuminates, stop as soon as
possible and inflate the tyres as
recommended 3 203.
162 Vehicle care
After inflating, some driving may be
required to update the tyre pressure
values in the Driver Information
Centre. During this time w may
illuminate.
If w illuminates at lower temperatures
and extinguishes after some driving,
this could be an indicator for getting
low pressure. Check tyre pressure.
If the tyre pressure must be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and w flashes for
several seconds then illuminates
continuously together with control
indicator A 3 81 and a
corresponding message appears in
the Driver Information Centre.
A spare wheel or temporary spare
wheel is not equipped with pressure
sensors. TPMS is not operational for
these wheels. For the further three
wheels, TPMS remains operational.
Control indicator w and the
corresponding message appears at
each ignition cycle until the tyres are
inflated to the correct tyre pressure.
Driver Information Centre 3 85.
Vehicle messages 3 86.
Puncture
A puncture or severely under-inflated
tyre is indicated by illumination of
control indicator w together with C
3 81 and a corresponding message
appears in the Driver Information
Centre. Stop vehicle and switch off
engine.
Tyre pressure 3 203, Tyre repair kit
3 164, Spare wheel 3 170, Wheel
changing 3 168.
Temperature dependency
Tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase.
The tyre pressure value displayed in
the Driver Information Centre shows
the actual tyre pressure. Therefore it
is important to check tyre pressure
with cold tyres.
Relearn function
After changing the wheels, TPMS
needs to recalculate.
With the vehicle stationary, select the
tyre pressure menu in the Driver
Information Centre by pressing button
on end of wiper lever. Press and hold
button for approx. 4 seconds to
initialise recalculation. A
corresponding message appears in
the Driver Information Centre.
Vehicle care 163
The relearn process is completed
after driving approx. 10 km or
10 minutes. The system can only
provide limited information during this
time.
If problems occur during the relearn
process, control indicator w remains
illuminated and a warning message is
displayed in the Driver Information
Centre.
Driver Information Centre 3 85.
Vehicle messages 3 86.
General information
The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory-
approved tyre repair kits can be used.
Tyre repair kit 3 164.
External high-power radio equipment
could disrupt the TPMS.
Each time the tyres are replaced,
TPMS sensors must be dismounted
and serviced by a workshop.

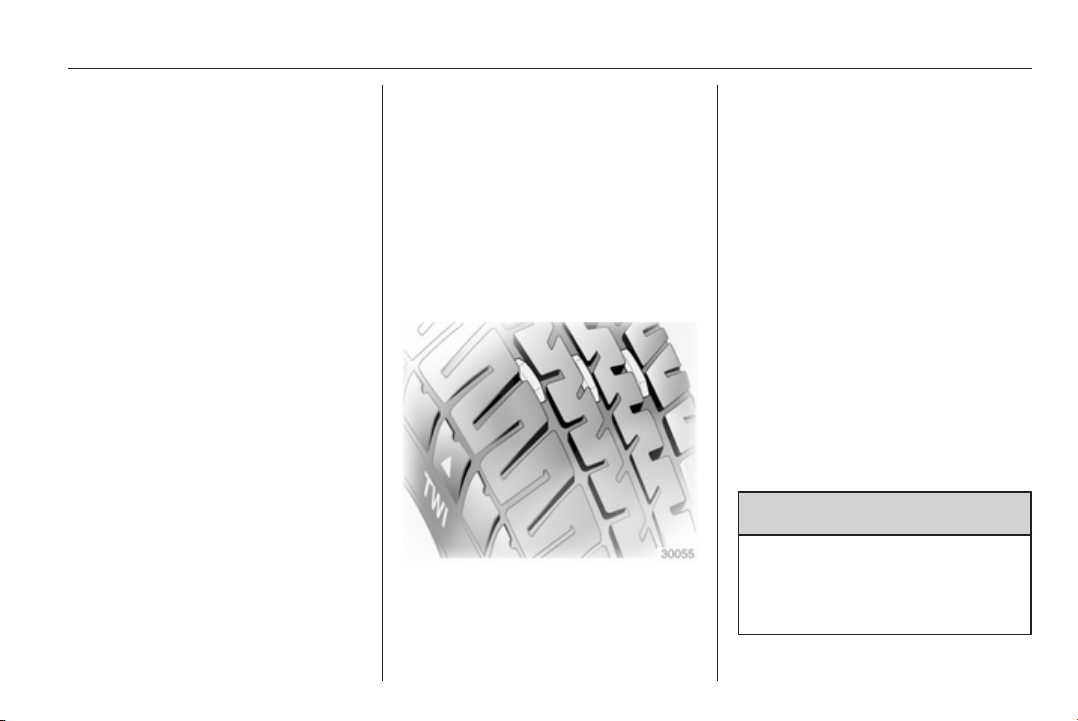

Tread depth
Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons it is recommended
that the tread depth of the tyres on
one axle should not vary by more than
2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread wear
indicators (TWI). Their position is
indicated by markings on the
sidewall.
Tyres age, even if they are not used.
We recommend tyre replacement
every 6 years.
Changing tyre and wheel
size
If tyres of a different size than those
fitted at the factory are used, it may be
necessary to reprogramme the
speedometer as well as the nominal
tyre pressure and make other vehicle
modifications.
After converting to a different tyre
size, have the label with tyre
pressures replaced.
9 Warning
Use of unsuitable tyres or wheels
may lead to accidents and will
invalidate the vehicle type
approval.
164 Vehicle care
Wheel covers
Wheel covers and tyres that are
factory approved for the respective
vehicle and comply with all of the
relevant wheel and tyre combination
requirements must be used.
If the wheel covers and tyres used are
not factory approved, the tyres must
not have a rim protection ridge.
Wheel covers must not impair brake
cooling.
9 Warning
Use of unsuitable tyres or wheel
covers could lead to sudden
pressure loss and thereby
accidents.
Tyre chains
Tyre chains are only permitted on the
drive wheels.
On vehicles with twin rear wheels,
tyre chains are only permitted on the
outer wheels.
Always use fine mesh chains that add
no more than 15 mm to the tyre tread
and the inboard sides (including chain
lock).
9 Warning
Damage may lead to tyre blowout.
Wheel covers on steel wheels may
come into contact with parts of the
chains. In such cases, remove the
wheel covers.
Tyre chains may only be used at
speeds up to 50 km/h and, when
travelling on roads that are free of
snow, they may only be used for brief
periods since they are subject to rapid
wear on a hard road and may snap.
The use of tyre chains is not permitted
on the temporary spare wheel.
Tyre repair kit
Minor damage to the tyre tread can be
repaired with the tyre repair kit.
Do not remove foreign bodies from
the tyres.
Tyre damage exceeding 4 mm or that
is at the tyre's sidewall near the rim
cannot be repaired with the tyre repair
kit.
Vehicle care 165
9 Warning
Do not drive faster than 80 km/h.
Do not use for a lengthy period.
Steering and handling may be
affected.
If the vehicle has a flat tyre:
Apply the parking brake and engage
neutral (manual transmission) or N
(manual transmission automated).
The tyre repair kit is located under the
front seat. Slide seat forwards fully
and fold backrest down to access kit.
1. Take the tyre repair kit out from
under the front seat.
2. Remove the compressor.
3. Remove the power supply lead(s)
and air hose from the stowage
compartments on the underside
of the compressor.
4. Screw the compressor air hose to
the connection on the sealant
bottle.
5. Fit the sealant bottle into the
retainer on the compressor.
Set the compressor near the tyre
in such a way that the sealant
bottle is upright.
6. Unscrew valve cap from defective
tyre.
7. Screw the sealant filler hose to the
tyre valve.
8. The rocker switch on the
compressor must be set to
position O.
166 Vehicle care
9.
Connect the red < power supply
lead on the compressor to the
jump start terminal 3 172.
Note
Depending on model, the jump start
terminal may be located at the left-
hand or right-hand side of the engine
compartment.
10.
Connect the black ] power
supply lead to a vehicle grounding
point, e.g. the engine block or an
engine mounting bolt.
Note
Depending on tyre repair kit type, it
may be necessary to connect the
single power supply lead to the
power outlet or cigarette lighter
socket.
For this type, the red < and
black ] power supply leads will not
be present.
To avoid discharging the battery,
we recommend running the
engine.
11. Set the rocker switch on the
compressor to position I. The tyre
is filled with sealant.
12. The compressor pressure gauge
briefly indicates up to 6 bar. Then
the pressure starts to drop.
13. All of the sealant is pumped into
the tyre. Then the tyre is inflated.
Vehicle care 167
14. The prescribed tyre pressure
should be obtained within
10 minutes. Tyre pressure
3 203. When the correct pressure
is obtained, turn off the
compressor by setting rocker
switch to position O.
If the prescribed tyre pressure is
not obtained within 10 minutes,
remove the tyre repair kit. Move
the vehicle one tyre rotation
(approx. 2 metres). Reattach the
tyre repair kit and continue the
filling procedure for 10 minutes. If
the prescribed tyre pressure is still
not obtained, the tyre is too badly
damaged. Seek the assistance of
a workshop.
Drain excess tyre pressure with
the button beside the pressure
indicator.
Do not run the compressor for
longer than 10 minutes.
15. Detach the tyre repair kit.
16. Remove any excess sealant
using a cloth.
17. Take the label indicating
maximum permitted speed from
the tyre repair kit and affix in the
driver's field of view.
18. Screw the sealant filler hose to the
free connection on the sealant
bottle. This prevents sealant from
escaping. Store the sealant bottle
in the plastic bag. Stow tyre repair
kit under the front seat.
19. Continue driving immediately so
that the sealant is evenly
distributed throughout the tyre.
After driving approx. 10 km, but no
more than 10 minutes, stop and
check tyre pressure using the
compressor. Screw compressor
air hose directly onto tyre valve
and compressor when doing this.
20. If the tyre pressure is more than
3.1 bar, set it to the correct value.
Repeat the procedure until there
is no more loss of pressure.
If the tyre pressure has fallen
below 3.1 bar, the vehicle must
168 Vehicle care
not be driven. Seek the
assistance of a workshop.
21. Stow tyre repair kit under the front
seat.
Note
The driving characteristics of the
repaired tyre are severely affected,
therefore have this tyre replaced.
If unusual noise is heard or the
compressor becomes hot, turn
compressor off for at least
30 minutes.
The built-in safety valve opens at a
pressure of 7 bar.
Note the expiry date of the kit. After
this date its sealing capability is no
longer guaranteed. Pay attention to
storage information on sealant
bottle.
Replace the used sealant bottle.
Dispose of the bottle as prescribed
by applicable laws.
The compressor and sealant can be
used from approx. -30 °C.
Wheel changing
Some vehicles are equipped with a
tyre repair kit instead of a spare wheel
3 164.
Make the following preparations and
observe the following information:
■ Park the vehicle on a level, firm and
non-slippery surface. The front
wheels must be in the straight-
ahead position.
■ Apply the parking brake and
engage first gear or reverse gear
(manual transmission) or N
(manual transmission automated).
■ Switch off the air suspension
system 3 115.
■ Remove the spare wheel 3 170.
■ Never change more than one wheel
at a time.
■ Use the jack only to change wheels
in case of puncture, not for
seasonal winter or summer tyre
change.
■ The jack is maintenance-free.
■ If the ground on which the vehicle
is standing is soft, a solid board
(max. 1 cm thick) should be placed
under the jack.
■ No people or animals may be in the
vehicle when it is jacked-up.
■ Never crawl under a jacked-up
vehicle.
■ Do not start the engine when the
vehicle is raised on the jack.
■ Clean wheel bolts/nuts and their
threads before mounting the wheel.
9 Warning
Do not grease wheel bolt, wheel
nut and wheel nut cone.
1. Remove the wheel cover using
the hook supplied. Vehicle tools
3 158.
2. Install the wheel wrench ensuring
that it locates securely and loosen
each wheel bolt/nut by half a turn.
Vehicle care 169
3. Vehicles with Front-wheel drive:
Raise vehicle by placing lifting
pad spigot of the jack under the
jacking hole located nearest the
wheel concerned.
Ensure the jack is positioned
correctly. The jack base must be
on the ground directly below the
jacking hole in a manner that
prevents it from slipping.
Attach wheel wrench onto the jack
and raise the vehicle by turning
the wrench until the wheel is clear
of the ground.
Vehicles with Rear-wheel drive:
Pay attention to the operating
instructions supplied with the
hydraulic jack and assemble the
parts required as specified.
Position the adapter at the jacking
hole located nearest the wheel
concerned.
Ensure the jack is positioned
correctly. The jack head must be
level with the jacking hole. Pump
the jack by pressing the wheel
wrench, to position the base plate
correctly.
Raise the vehicle by pressing the
wheel wrench until the wheel is
clear of the ground.
4. Unscrew wheel bolts/nuts
completely and wipe clean with a
cloth.
Put wheel bolts/nuts somewhere
where the threads will not be
soiled.
5. Change the wheel.
6. Screw in the wheel bolts/nuts.
7. Lower vehicle.
8. Install the wheel wrench ensuring
that it locates securely and tighten
each wheel bolt/nut in a crosswise
sequence. Tightening torque is:
172 Nm (Front-wheel drive),
235 Nm (Rear-wheel drive with
170 Vehicle care
twin rear wheels), 264 Nm (Rear-
wheel drive with single rear
wheels).
9. Refit wheel cover.
Note
If applicable, fit anti-theft bolts
nearest the tyre valve (otherwise it
may not be possible to refit the wheel
cover).
10. Stow the replaced wheel 3 170
and the vehicle tools 3 158.
11. Have the new wheel balanced on
the vehicle. Check the tyre
pressure of the installed tyre
3 203 and also the wheel bolt/nut
torque as soon as possible.
Have the defective tyre renewed or
repaired.
Spare wheel
Some vehicles are equipped with a
tyre repair kit instead of a spare wheel
3 164.
If mounting a spare wheel which is
different from the other wheels, this
wheel might be classified as a
temporary spare wheel and the
corresponding speed limits apply,
even though no label indicates this.
Seek the assistance of a workshop to
check the applicable speed limit.
Caution
The use of a spare wheel that is
smaller than the other wheels or in
combination with winter tyres
could affect driveability. Have the
defective tyre replaced as soon as
possible.
The spare wheel is held under the
vehicle frame using a winch and
secured by tightening a cable using
the wheel wrench and adapter.
It may be necessary to jack the
vehicle up to gain access to the spare
wheel on a fully loaded vehicle with a
flat rear tyre.
To release the spare wheel, loosen
cable using the wheel wrench and
adapters and lower the wheel fully.
Caution
Only use the wheel wrench and
adapter to lower the spare wheel.
The use of pneumatic tools is
prohibited. This may result in
damage to the winch cable and
equipment.
Vehicle care 171
Place wheel upright, remove pin from
retainer and release the wheel from
the cable.
Twin rear wheel vehicles have an
additional mounting plate attached to
the spare wheel. Before using the
wheel, undo the nut and remove the
mounting plate.
When reinstalling a spare wheel, first
attach the mounting plate (twin rear
wheel vehicles) and secure with the
nut.
Place wheel upright, then route the
cable from the back of the wheel (side
without tyre valve) and through the
centre of the wheel. Attach the
retainer and pin, ensuring it is
correctly positioned and that the front
of the wheel (side with tyre valve) will
be facing downwards when
reinstalled.
Place wheel below the vehicle frame,
then tighten cable using the wheel
wrench and adapters until the wheel
is secured in the fully raised position.
9 Warning
Ensure the front of the wheel (side
with tyre valve) is facing
downwards when the spare wheel
is reinstalled below the vehicle
frame.
Temporary spare wheel
Caution
The use of a spare wheel that is
smaller than the other wheels or in
combination with winter tyres
could affect driveability. Have the
defective tyre replaced as soon as
possible.
Only mount one temporary spare
wheel. Do not drive faster than
80 km/h. Take curves slowly. Do not
use for a long period of time.
172 Vehicle care
If your vehicle gets a flat tyre on the
rear while towing another vehicle,
mount the temporary spare wheel in
the front and the full tyre in the rear.
Tyre chains 3 164.
Summer and winter tyres
If you use winter tyres, the spare
wheel may still be fitted with a
summer tyre.
If you use the spare wheel when it is
fitted with a summer tyre the vehicle's
driveability may be affected,
especially on slippery road surfaces.
Directional tyres
Fit directional tyres such that they roll
in the direction of travel. The rolling
direction is indicated by a symbol
(e.g. an arrow) on the sidewall.
The following applies to tyres fitted
opposing the rolling direction:
■ Driveability may be affected. Have
the defective tyre renewed or
repaired as soon as possible.
■ Do not drive faster than 80 km/h.
■ Drive particularly carefully on wet
and snow-covered road surfaces.
Jump starting
Do not start with a quick charger.
A vehicle with a discharged battery
can be started using jump leads and
the battery of another vehicle.
9 Warning
Be extremely careful when starting
with jump leads. Any deviation
from the following instructions can
lead to injuries or damage caused
by battery explosion or damage to
the electrical systems of both
vehicles.
9 Warning
Avoid contact with eyes, skin,
fabrics, and painted surfaces. The
fluid contains sulphuric acid which
can cause injuries and damage in
the event of direct contact.
Caution
The air suspension system must
be switched off prior to jump
starting.
9 Warning
Avoid contact of the battery with
eyes, skin, fabrics and painted
surfaces. The fluid contains
sulphuric acid which can cause
injuries and damage in the event
of direct contact.
■ Never expose the vehicle battery to
naked flames or sparks.
■ A discharged vehicle battery can
already freeze at a temperature of
0 °C. Defrost the frozen vehicle
battery before connecting jump
leads.
■ Wear eye protection and protective
clothing when handling a vehicle
battery.
Vehicle care 173
■ Use a booster battery with the
same voltage (12 volts). Its capacity
(Ah) must not be much less than
that of the discharged vehicle
battery.
■ Use jump leads with insulated
terminals and a cross section of at
least 25 mm
2
.
■ Do not disconnect the discharged
battery from the vehicle.
■ Switch off all unnecessary electrical
consumers.
■ Switch off the air suspension
system 3 115.
■ Do not lean over the vehicle battery
during jump starting.
■ Do not allow the terminals of one
lead to touch those of the other
lead.
■ The vehicles must not come into
contact with each other during the
jump starting process.
■ Apply the parking brake and
engage neutral (manual
transmission) or N (manual
transmission automated).
Jump start terminal
In the event of a discharged vehicle
battery, the jump start terminal
enables the vehicle to be started
without the need to access the battery
inside the vehicle.
The jump start terminal is located in
the engine compartment and
identified by a "<" sign on the red
insulating cover. Lift the red insulating
cover to access the terminal
connector.
Ensure the red insulating cover is
latched back into position when not in
use.
Jump starting procedure
Depending on model, the jump start
terminal may be located at the left-
hand or right-hand side of the engine
compartment.
174 Vehicle care
Lead connection order:
1. Connect the red lead to the
positive terminal of the booster
battery.
2. Connect the other end of the red
lead to the jump start terminal of
the vehicle with the discharged
vehicle battery.
3. Connect the black lead to the
negative terminal of the booster
battery.
4. Connect the other end of the black
lead to a vehicle grounding point,
such as the engine block or an
engine mounting bolt. Connect as
far away from the discharged
vehicle battery as possible,
however at least 60 cm.
Route the leads so that they cannot
catch on rotating parts in the engine
compartment.
To start the engine:
1. Start the engine of the vehicle
providing the jump start.
2. After 5 minutes, start the other
engine. Start attempts should be
made for no longer than
15 seconds at an interval of
1 minute.
3. Allow both engines to idle for
approx. 3 minutes with the leads
connected.
4. Switch on electrical consumers
(e.g. headlights, heated rear
window) of the vehicle receiving
the jump start.
5. Reverse above sequence exactly
when removing leads.
Towing
Towing the vehicle
The towing eye is stowed with the
vehicle tools 3 158.
Disengage the cover using a suitable
tool and remove.
Screw the towing eye clockwise into
the front towing point and tighten fully
using the wheel wrench.
Attach a tow rope - or better still a tow
rod - to the towing eye, never to the
bumper or front suspension units.
Vehicle care 175
Caution
Do not tow the vehicle from the
rear. The front towing eye must
only be used for towing and not
recovering a vehicle.
Switch on ignition to permit operation
of brake lights, horn and windscreen
wipers, and move the steering wheel
slightly to release the steering wheel
lock.
Switch off the air suspension system
3 115.
Transmission in neutral.
Caution
Vehicles with manual
transmission automated: If neutral
cannot be selected, the vehicle
must only be towed with the drive
wheels raised off the ground.
The vehicle should always be
towed with the ignition switched
off.
Manual transmission automated
3 119.
Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.
When the engine is not running,
considerably more force is needed to
brake and steer.
To prevent the entry of exhaust fumes
from the towing vehicle, switch on the
air recirculation system 3 98 and
close the windows.
Seek the assistance of a workshop.
After towing, unscrew the towing eye
and refit the cover.
Towing another vehicle
Attach a tow rope - or better still a tow
rod - to the rear towing eye, never to
the rear axle and suspension units.
The rear towing eye must only be
used for towing and not recovering a
vehicle.
Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.
176 Vehicle care
Appearance care
Exterior care
Locks
The locks are lubricated at the factory
using a high quality lock cylinder
grease. Use de-icing agent only when
absolutely necessary, as this has a
degreasing effect and impairs lock
function. After using a de-icing agent,
have the locks regreased by a
workshop.
Washing
The paintwork of your vehicle is
exposed to environmental influences.
Wash and wax your vehicle regularly.
When using automatic vehicle
washes, select a programme that
includes waxing. Restrictions for
filmed or matt painted body parts or
decor tapes, see "Polishing and
waxing".
Bird droppings, dead insects, resin,
pollen and the like should be cleaned
off immediately, as they contain
aggressive constituents which can
cause paint damage.
If using a vehicle wash, comply with
the vehicle wash manufacturer's
instructions. The windscreen wipers
must be switched off. Remove
antenna and external accessories
such as roof racks etc..
If you wash your vehicle by hand,
make sure that the insides of the
wheel housings are also thoroughly
rinsed out.
Clean edges and folds on opened
doors and the bonnet as well as the
areas they cover.
Caution
Always use a cleaning agent with
a pH value of 4 to 9.
Do not use cleaning agents on hot
surfaces.
Have the door hinges of all doors
greased by a workshop.
Do not clean the engine compartment
with a steam-jet or high-pressure jet
cleaner.
Thoroughly rinse and leather-off the
vehicle. Rinse leather frequently. Use
separate leathers for painted and
glass surfaces: remnants of wax on
the windows will impair vision.
Do not use hard objects to remove
spots of tar. Use tar removal spray on
painted surfaces.
Exterior lights
Headlight and other light covers are
made of plastic. Do not use any
abrasive or caustic agents, do not use
an ice scraper, and do not clean them
dry.
Polishing and waxing
Wax the vehicle regularly (at the
latest when water no longer beads).
Otherwise, the paintwork will dry out.
Polishing is necessary only if the paint
has become dull or if solid deposits
have become attached to it.
Vehicle care 177
Paintwork polish with silicone forms a
protective film, making waxing
unnecessary.
Unpainted plastic body parts must not
be treated with wax or polishing
agents.
Matt filmed body parts or decor tapes
must not be polished, to avoid
gleaming. Do not use hot wax
programmes in automatic car washes
if the vehicle is equipped with these
parts.
Matt painted decor parts, e.g. mirror
housing cover, must not be polished.
Otherwise these parts would become
agleam or the colour would be
dissolved.
Windows and windscreen wiper
blades
Use a soft lint-free cloth or chamois
leather together with window cleaner
and insect remover.
When cleaning the rear window from
inside, always wipe in parallel to the
heating element to prevent damage.
For mechanical removal of ice, use a
sharp-edged ice scraper. Press the
scraper firmly against the glass so
that no dirt can get under it and
scratch the glass.
Clean smearing wiper blades with a
soft cloth and window cleaner.
Wheels and tyres
Do not use high-pressure jet
cleaners.
Clean rims with a pH-neutral wheel
cleaner.
Rims are painted and can be treated
with the same agents as the body.
Paintwork damage
Rectify minor paintwork damage with
a touch-up pen before rust forms.
Have more extensive damage or rust
areas repaired by a workshop.
Underbody
Some areas of the vehicle underbody
have a PVC undercoating while other
critical areas have a durable
protective wax coating.
After the underbody is washed, check
the underbody and have it waxed if
necessary.
Bitumen/rubber materials could
damage the PVC coating. Have
underbody work carried out by a
workshop.
Before and after winter, wash the
underbody and have the protective
wax coating checked.
Towing equipment
Do not clean the coupling ball bar with
a steam-jet or high-pressure jet
cleaner.
Interior care
Interior and upholstery
Only clean the vehicle interior,
including the instrument panel fascia
and panelling, with a dry cloth or
interior cleaner.
Clean leather upholstery with clear
water and a soft cloth. In case of
heavy soiling, use leather care.
178 Vehicle care
The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light-
coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water
or interior cleaner.
Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could
damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior
cleaner if necessary. Do not use any
other agent. Avoid solvents and petrol
in particular. Do not use high-
pressure jet cleaners.
Service and maintenance 179
Service and
maintenance
General information ................... 179
Recommended fluids, lubricants
and parts .................................... 181
General information
Service information
In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the
proper intervals as specified.
The detailed, up-to-date service
schedule for the vehicle is available at
the workshop.
Service display 3 77.
Engine identification 3 184.
European service intervals -
except Bus
Maintenance of your vehicle is
required every 40,000 km or after
2 years, whichever occurs first,
unless otherwise indicated by the
service display.
A shorter service interval can be valid
for severe driving behaviour, e.g. for
taxis and police vehicles.
European service intervals - Bus
only
Maintenance of your vehicle is
required every 30,000 km or after
1 year, whichever occurs first, unless
otherwise indicated by the service
display.
The European service intervals are
valid for the following countries:
Andorra, Austria, Belgium, Croatia,
Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy,
Latvia, Liechtenstein, Lithuania,
Luxembourg, Netherlands, Norway,
Poland, Portugal, Slovakia, Slovenia,
Spain, Sweden, Switzerland, United
Kingdom.
International service intervals
Israel:
Maintenance of your vehicle is
required every 40,000 km or after
1 year, whichever occurs first, unless
otherwise indicated by the service
display.
180 Service and maintenance
Romania, Bulgaria:
Maintenance of your vehicle is
required every 30,000 km or after
2 years, whichever occurs first,
unless otherwise indicated by the
service display.
Australia:
Maintenance of your vehicle is
required every 30,000 km or after
2 years, whichever occurs first,
unless otherwise indicated by the
service display.
Turkey:
Maintenance of your vehicle is
required every 20,000 km or after
1 year, whichever occurs first, unless
otherwise indicated by the service
display.
Russia, Ukraine, Belarus,
Kazakhstan:
Maintenance of your vehicle is
required every 15,000 km or after
1 year, whichever occurs first, unless
otherwise indicated by the service
display.
International:
Maintenance of your vehicle is
required every 15,000 km or after
1 year, whichever occurs first, unless
otherwise indicated by the service
display.
International countries include:
Albania, Bosnia-Herzegovina,
Cyprus, Kosovo, Macedonia, Malta,
Montenegro, New Zealand, Serbia,
Singapore.
International +:
Maintenance of your vehicle is
required every 10,000 km or after
1 year, whichever occurs first, unless
otherwise indicated by the service
display.
International + countries include:
Moldova.
International ++:
Maintenance of your vehicle is
required every 8,000 km or after
1 year, whichever occurs first, unless
otherwise indicated by the service
display.
International ++ countries include:
Hong Kong.
Confirmations
Confirmation of service is recorded in
the Service and Warranty Booklet.
The date and mileage is completed
with the stamp and signature of the
servicing workshop.
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty or
goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service display
The service interval is based on
several parameters depending on
usage.
The service display, located in the
Driver Information Centre, indicates
when the next service is due. Seek
the assistance of a workshop.
Service display 3 77.
Engine oil lever monitor 3 77.
Service and maintenance 181
Recommended fluids,
lubricants and parts
Recommended fluids and
lubricants
Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not in line with these
specifications will not be covered by
the warranty.
9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The
oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for
diesel engines. If it is unavailable,
engine oils of other listed qualities
must be used.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 186.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 186.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of the oil.
Multigrade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates the
low temperature viscosity and the
second figure the high temperature
viscosity.
Select the appropriate viscosity grade
depending on the minimum ambient
temperature 3 186.
All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only silicate-free long life coolant
(LLC) antifreeze approved for the
vehicle. Consult a workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
182 Service and maintenance
protection down to approx. -28 °C.
This concentration should be
maintained all year round. The use of
additional coolant additives that
intend to give additional corrosion
protection or seal against minor leaks
can cause function problems. Liability
for consequences resulting from the
use of additional coolant additives will
be rejected.
Brake fluid
Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified
interval.
Technical data 183
Technical data
Vehicle identification .................. 183
Vehicle data ............................... 186
Vehicle identification
Vehicle Identification
Number
The Vehicle Identification Number
(VIN) is visible through the
windscreen.
The VIN is also displayed behind a
removable plastic cover on the front
right hand door step. Unclip the
covers using a flat blade screwdriver
to access.
184 Technical data
Identification plate
The identification plate is located on
the right hand door pillar.
Information on identification plate
1)
:
1 = Vehicle identification number
2 = Permissible gross vehicle
weight rating in kg
3 = Permissible gross train weight
in kg
4 = Maximum permissible front axle
load in kg
5 = Maximum permissible rear axle
load in kg
6 = Trim code
7 = Technical specifications of
vehicle, including: Vehicle paint
code, equipment level and
vehicle type
8 = Additional equipment
specification
9 = Fabrication number
10 = Interior trim code
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the
front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identifier code and
engine number
Stamped on the engine cylinder block
and on a label attached to the timing
chain cover, depending on variant.
1)
The identification plate on your vehicle may differ from the illustration shown.
186 Technical data
Vehicle data
Recommended fluids and lubricants
Required engine oil quality
Engine oil quality
dexos 2 ✔
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.
In case dexos quality is unavailable in International countries you may use the oil qualities listed below:
Engine oil quality
GM-LL-A/B-025 ✔
ACEA A3/B4
diesel engines without DPF
✔
ACEA C3
diesel engines with DPF
✔
Engine oil viscosity grades
Ambient temperature
down to -25 °C SAE 5W-30 or SAE 5W-40
below -25 °C SAE 0W-30 or SAE 0W-40
Technical data 187
Engine data
Sales designation 2.3 CDTI 2.3 CDTI
Engine identifier code M9T M9T
Number of cylinders 4 4
Piston displacement [cm
3
]
2299 2299
Engine power [kW] (brake horse power) 92 (125) 107 (146)
at rpm 3500 3500
Torque [Nm] 310 350
at rpm 1250 - 2500 1500 - 2750
Fuel type Diesel Diesel
Sales designation 2.3 CDTI 2.3 CDTI 2.3 CDTI
Engine identifier code M9T M9T M9T
Number of cylinders 4 4 4
Piston displacement [cm
3
]
2299 2299 2299
Engine power [kW] (brake horse power) 81 (110) 100 (135) 120 (165)
at rpm 3500 3500 3500
188 Technical data
Sales designation 2.3 CDTI 2.3 CDTI 2.3 CDTI
Engine identifier code M9T M9T M9T
Torque [Nm] 285 340 360
at rpm
-
2)
1500 - 2750 1500 - 2750
Fuel type Diesel Diesel Diesel
2)
Figure not available at time of printing.
Technical data 189
Vehicle weight
Kerb weight, basic model without any optional equipment
Optional equipment and accessories increase the kerb weight.
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Van Front-wheel drive L1 H1 2800 1806
3300 1811
3500 1816
H2 2800 1834
3300 1839
3500 1844
L2 H2 3300 1885
3500 1890
H3 3300 1921
3500 1931
L3 H2 3500 1970
H3 3500 2010
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
190 Technical data
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Van Rear-wheel drive L3 H2
3500
5)
2110
3500
6)
2246
4500 2246
H3
3500
5)
2148
3500
6)
2279
4500 2279
L4 H2
3500
5)
-
7)
3500
6)
2324
4500 2324
H3
3500
5)
-
7)
3500
6)
2366
4500 2366
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
5)
With Single rear wheels.
6)
With Twin rear wheels.
7)
Figure not available at time of printing. Refer to identification plate on the right hand door pillar.
Technical data 191
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Platform Cab Front-wheel drive L1 H1 3500 1570
L2 H1 3500 1578
H2 3500 1593
L3 H1 3500 1599
H2 3500 1613
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Chassis Cab Front-wheel drive L2 H1 3500 1686
L3 H1 3500 1707
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
192 Technical data
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Chassis Cab Rear-wheel drive L2 H1
3500
5)
1835
L3 H1
3500
5)
1860
3500
6)
1975
4500
6)
1975
L4 H1
3500
6)
2005
4500
6)
2005
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
5)
With Single rear wheels.
6)
With Twin rear wheels.
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Crew Cab Front-wheel drive L2 H1 3500 1887
L3 H1 3500 1915
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
Technical data 193
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Crew Cab Rear-wheel drive L2 H1
3500
5)
2037
L3 H1
3500
5)
2068
3500
6)
2154
4500
6)
2154
L4 H1
3500
6)
2223
4500
6)
2223
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
5)
With Single rear wheels.
6)
With Twin rear wheels.
Model Drive wheels Length Roof height Gross vehicle weight Kerb weight
3)4)
Bus Front-wheel drive L3 H2 3900 2493
3)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4)
Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
Loading information 3 69.
194 Technical data
Vehicle dimensions
Van, Doublecab Front-wheel drive
Gross vehicle weight
2800,
3300,
3500
3300,
3500 3500
Size L1 L2 L3
Length [mm] 5048 5548 6198
Width without mirrors [mm] 2070 2070 2070
Width with mirrors [mm] 2470 2470 2470
Height - unladen (without antenna) [mm]
H1
2303 - -
H2
2496/2500
8)
2496/2499
8)
2488
H3 -
2745/2749
8)
2744
Wheelbase [mm] 3182 3682 4332
Track width [mm]
Front
1750 1750 1750
Rear 1730 1730 1730
8)
3500 GVW.
Technical data 195
Van, Doublecab Rear-wheel drive
Gross vehicle weight
3500,
4500
3500,
4500
Size L3 L4
Length [mm] 6198 6848
Width without mirrors [mm] 2070 2070
Width with mirrors [mm] 2470 2470
Height - unladen (without antenna) [mm]
H2
2527
9)
/2549
10)
-
9)11)
/2557
10)
H3
2786
9)
/2815
10)
-
9)11)
/2808
10)
Wheelbase [mm] 3682 4332
Track width [mm]
Front
1750 1750
Rear
1730
9)
/1612
10)
1612
9)
With Single rear wheels.
10)
With Twin rear wheels.
11)
Figure not available at time of printing.
196 Technical data
Combi Front-wheel drive
Gross vehicle weight
2800,
3500
2800,
3500
Size L1 L2
Length [mm] 5048 5548
Width without exterior mirrors [mm] 2020 2020
Width with mirrors [mm] 2470 2470
Height - unladen (without antenna) [mm]
H1
2303 -
H2 - 2502
Wheelbase [mm] 3182 3682
Track width [mm]
Front
1750 1750
Rear 1730 1730
Technical data 197
Chassis Cab Front-wheel drive Rear-wheel drive
Gross vehicle weight 3500 3500 3500
12)
3500
12)
3500
13)
,
4500
3500
13)
,
4500
3500
13)
,
4500
Size L2 L3 L2 L3 L2 L3 L4
Length [mm] 5643 6293 5643 6293 5819 6192 6842
Width without mirrors [mm] 2070 2070 2070 2070 2070 2070 2070
Width with mirrors [mm] 2470 2470 2470 2470 2470 2470 2470
Height - unladen (without antenna) [mm]
H1
2265 2258 2284 2276 2400 2283 2273
Wheelbase [mm] 3682 4332 3682 4332 3682 3682 4332
Track width [mm]
Front
1750 1750 1750 1750 1750 1750 1750
Rear 1730 1730 1730 1730 1612 1612 1612
12)
With Single rear wheels.
13)
With Twin rear wheels.
198 Technical data
Crew Cab Front-wheel drive Rear-wheel drive
Gross vehicle weight 3500 3500 3500
14)
3500
14)
3500
15)
,
4500
3500
15)
,
4500
Size L2 L3 L2 L3 L3 L4
Length [mm] 5643 6293 5643 6293 6192 6842
Width without mirrors [mm] 2070 2070 2070 2070 2070 2070
Width with mirrors [mm] 2470 2470 2470 2470 2470 2470
Height - unladen (without antenna) [mm]
H1
2272 2263 2295 2285 2283 2273
Wheelbase [mm] 3682 4332 3682 4332 3682 4332
Track width [mm]
Front
1750 1750 1750 1750 1750 1750
Rear 1730 1730 1730 1730 1612 1612
14)
With Single rear wheels.
15)
With Twin rear wheels.
Technical data 199
Platform Cab Front-wheel drive
Gross vehicle weight 3500 3500
Size L2 L3
Length [mm] 5530 6180
Width without mirrors [mm] 2070 2070
Width with mirrors [mm] 2470 2470
Height - unladen (without antenna) [mm]
H1
2270 2264
H2 2463 2457
Wheelbase [mm] 3682 4332
Track width [mm]
Front
1750 1750
Rear 1730 1730
200 Technical data
Bus Front-wheel drive Rear-wheel drive
Gross vehicle weight 3900 4500
Size L3 L4
Length [mm] 6198 6848
Width without mirrors [mm] 2070 2070
Width with mirrors [mm] 2470 2470
Wheelbase [mm] 4332 4332
Height - unladen (without antenna) [mm]
H2
2488 -
H3 - 2808
Track width [mm]
Front
1750 1750
Rear 1730 1612
Technical data 201
Loadspace dimensions
Van Front-wheel drive
Length L2 L3
Roof height H2 H3 H2 H3
Gross vehicle weight
3300,
3500 3500 3500 3500
Maximum rear door aperture height [mm] 1820 1820 1820 1820
Rear door aperture width (at floor) [mm] 1580 1580 1580 1580
Maximum load area height [mm] 1894 2144 1894 2144
Maximum load area width [mm] 1765 1765 1765 1765
Width between wheel arches [mm] 1380 1380 1380 1380
Maximum load floor length [mm] 3083 3083 3733 3733
202 Technical data
Van Rear-wheel drive
Length L3 L4
Roof height H2 H3 H2 H3
Gross vehicle weight 3500 4500 3500 4500 4500 4500
Maximum rear door aperture height [mm] 1724 1724 1724 1724 1724 1724
Rear door aperture width (at floor) [mm] 1580 1580 1580 1580 1580 1580
Maximum load area height [mm] 1798 1798 2048 2048 1798 2048
Maximum load area width [mm] 1765 1765 1765 1765 1765 1765
Width between wheel arches [mm] 1380 1080 1380 1080 1080 1080
Maximum load floor length [mm] 3733 3733 3733 3733 4383 4383
Capacities
Engine M9T
Engine oil including filter [l] Front-wheel drive 8.0
Rear-wheel drive 8.9
between MIN and MAX [l] 1.5 - 2.0
Fuel tank, nominal capacity [l] 80 or 105
Technical data 203
Tyre pressures
Front-wheel drive
Tyre pressure with full load
16)
Engine Gross Vehicle Weight Tyre Front
[kPa/bar] (psi)
Rear
[kPa/bar] (psi)
M9T 2800 215/65 R16 C 340/3.4 (49) 360/3.6 (52)
3300 215/65 R16 C 360/3.6 (52) 430/4.3 (62)
3500 225/65 R16 C 380/3.8 (55) 460/4.6 (68)
3900 225/65 R16 C 380/3.8 (55) 460/4.6 (68)
16)
The spare wheel should be set to the highest applicable pressure shown in the table.
Rear-wheel drive, with single rear wheels
Tyre pressure with full load
16)
Engine Gross Vehicle Weight Tyre Front
[kPa/bar] (psi)
Rear
[kPa/bar] (psi)
M9T 3500 235/65 R16 C 360/3.6 (52) 450/4.5 (65)
16)
The spare wheel should be set to the highest applicable pressure shown in the table.
204 Technical data
Rear-wheel drive, with twin rear wheels
Tyre pressure with full load
16)
Engine Gross Vehicle Weight Tyre Front
[kPa/bar] (psi)
Rear
[kPa/bar] (psi)
M9T 3500 195/75 R16 C 420/4.2 (61) 420/4.2 (61)
4500 195/75 R16 C 420/4.2 (61) 420/4.2 (61)
16)
The spare wheel should be set to the highest applicable pressure shown in the table.
Customer information 205
Customer information
Customer information ................ 205
Vehicle data recording and pri‐
vacy ........................................... 205
Customer information
Declaration of conformity
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance
with the essential requirements and
other relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.
Vehicle data recording
and privacy
Event data recorders
Data storage modules in the
vehicle
A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
■ Operating conditions of system
components (e.g. filling levels)
■ Status messages of the vehicle and
its single components (e.g. number
of wheel revolutions / rotational
speed, deceleration, lateral
acceleration)
■ Dysfunctions and defects in
important system components
206 Customer information
■ Vehicle reactions in particular
driving situations (e.g. inflation of
an airbag, activation of the stability
regulation system)
■ Environmental conditions (e.g.
temperature)
These data are exclusively technical
and help identifying and correcting
errors as well as optimizing vehicle
functions.
Motion profiles indicating travelled
routes cannot be created with these
data.
If services are used (e.g. repair
works, service processes, warranty
cases, quality assurance),
employees of the service network
(manufacturer included) are able to
read out this technical information
from the event and error data storage
modules applying special diagnostic
devices. If required, you will receive
further information at these
workshops. After an error has been
corrected, the data are deleted from
the error storage module or they are
constantly overwritten.
When using the vehicle, situations
may occur in which these technical
data related to other information
(accident report, damages on the
vehicle, witness statements etc.) may
be associated with a specific person -
possibly, with the assistance of an
expert.
Additional functions contractually
agreed upon with the client (e.g.
vehicle location in emergency cases)
allow the transmission of particular
vehicle data from the vehicle.
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and ignition
system security. It is also used in
connection with conveniences such
as radio remote controls for door
locking/unlocking and starting, and in-
vehicle transmitters for garage door
openers. RFID technology in Opel
vehicles does not use or record
personal information or link with any
other Opel system containing
personal information.
Customer information 207
208
Index
A
Accessories and vehicle
modifications .......................... 139
Adaptive forward lighting ..... 92, 150
Adjustable air vents ................... 107
Airbag and belt tensioners ........... 80
Airbag deactivation ................ 52, 80
Airbag label................................... 47
Airbag system .............................. 47
Air conditioning regular
operation ................................ 108
Air conditioning system ................ 98
Air intake .................................... 108
Air suspension ........................... 115
Air suspension system................ 174
Air vents...................................... 107
Antifreeze................................... 142
Antilock brake system ................ 122
Antilock brake system (ABS) ....... 82
Anti-theft alarm system ................ 29
Anti-theft bolts............................. 168
Anti-theft locking system .............. 29
Anti-theft security lock.................. 20
Appearance care........................ 176
Armrest ........................................ 42
Ashtrays ....................................... 74
Automatic light control ................. 90
Automatic locking................... 21, 25
Autostop..................................... 111
Auxiliary heater........................... 103
B
Battery discharge protection ........ 96
Battery, jump starting.................. 172
Belts.............................................. 45
Bonnet ....................................... 141
Brake assist ............................... 124
Brake fluid .......................... 145, 181
Brakes ............................... 122, 145
Brake system ............................... 82
Breakdown.................................. 174
Bulb replacement ....................... 148
C
Capacities .................................. 202
Cargo management system ........ 65
Car Pass ...................................... 19
Catalytic converter ..................... 117
Central locking system ................ 21
Centre high-mounted brake light 153
Changing tyre and wheel size ...163
Charging system .......................... 81
Child locks ................................... 25
Child restraint installation
locations ................................... 55
Child restraints.............................. 53
Child restraint systems ................ 53
Cigarette lighter ........................... 74
209
Cleaning the vehicle................... 176
Climate control ............................. 15
Climate control systems............... 97
Clock ............................................ 73
Control indicators.......................... 78
Control of the vehicle ................. 109
Controls........................................ 70
Convex shape .............................. 31
Coolant....................................... 142
Coolant and antifreeze............... 181
Coolant heater............................ 103
Cornering light...................... 92, 150
Coupling ball bar........................ 136
Cruise control ...................... 85, 127
Cupholders .................................. 63
D
Danger, Warnings and Cautions ...3
Dashboard.................................... 10
Daytime running lights ................. 91
Declaration of conformity............ 205
Demisting and defrosting.............. 15
Diesel fuel................................... 133
Diesel fuel filter .......................... 146
Diesel fuel system bleeding ....... 147
Diesel particle filter .................... 117
Door locks..................................... 20
Door open .................................... 85
Doors............................................ 25
DPF (diesel particle filter)........... 117
Driver assistance systems.......... 127
Driver Information Centre............. 85
Driving characteristics and
towing tips .............................. 135
Driving economically................... 109
Driving hints................................ 109
E
ECO mode.................................. 109
Electric adjustment ...................... 32
Electrical system......................... 156
Electronic climate control system 99
Electronic driving programmes ..121
Electronic Stability Program .....
.................................. 82, 126, 137
Electronic Stability Program off ...83
Emergency exit............................. 36
End-of-life vehicle recovery ....... 140
Engine compartment fuse box ... 157
Engine coolant ........................... 142
Engine coolant temperature ........ 83
Engine coolant temperature
gauge ....................................... 76
Engine data ............................... 187
Engine exhaust .......................... 117
Engine identification........... 184, 185
Engine oil ................... 141, 181, 186
Engine oil additives.................... 181
Engine oil level monitor................ 77
Engine oil pressure ...................... 83
Engine oil viscosity grades......... 181
Enhanced Traction function 125, 126
Event data recorders.................. 205
Exhaust gases............................ 117
Exit lighting .................................. 96
Exterior care .............................. 176
Exterior light ................................. 84
Exterior lighting ...................... 13, 90
Exterior mirrors............................. 31
F
Fault ........................................... 122
Fire extinguisher........................... 67
First aid......................................... 67
First aid kit ................................... 67
Fixed air vents ........................... 108
Fog light ....................................... 85
Fog lights.............................. 93, 151
Folding mirrors ............................. 32
Front airbag system ..................... 51
Front fog lights........................ 90, 93
Front seats.................................... 38
Front storage................................ 63
Front turn signal lights ............... 151
Fuel consumption - CO
2
-
Emissions ............................... 135
Fuel for diesel engines .............. 133
Fuel gauge ................................... 76
Fuse box..................................... 157
Fuses ......................................... 156
210
G
Gauges......................................... 75
General information ................... 135
Glass panel .................................. 36
Glovebox ..................................... 63
Glovebox cooler ......................... 108
Ground clearance....................... 115
H
Hand brake - see Parking brake. 123
Hazard warning flashers .............. 92
Headlight flash ............................. 91
Headlight range adjustment ........ 91
Headlights...................... 90, 91, 148
Headlights when driving abroad ..91
Head restraint adjustment ............. 8
Head restraints ............................ 37
Heated exterior mirrors................. 15
Heated mirrors ............................. 32
Heated rear window............... 15, 35
Heating ........................................ 42
Heating and ventilation system ...97
High beam ............................. 85, 91
Hill start assist ........................... 124
Horn ....................................... 14, 71
Hub cap hook............................. 158
I
Identification plate ..................... 184
Idle speed control....................... 112
Ignition switch positions ............. 111
Immobiliser .................................. 31
Indicators...................................... 75
Information displays...................... 85
Initial drive information.................... 6
Instrument cluster ........................ 75
Instrument panel fuse box ......... 157
Instrument panel illumination ..... 155
Instrument panel overview ........... 10
Instrument panel storage.............. 62
Interior care ............................... 177
Interior lighting.............................. 94
Interior lights ........................ 94, 154
Interior mirrors.............................. 33
Interruption of power supply ...... 122
Introduction .................................... 3
ISOFIX child restraint systems .... 61
J
Jack............................................ 158
Jump starting ............................. 172
K
Keys ............................................. 19
Keys, locks................................... 19
L
Lashing eyes ............................... 65
Light covers, misted...................... 93
Lighting......................................... 90
Lighting features........................... 96
Light switch .................................. 90
Load compartment........................ 21
Load compartment lighting........... 94
Loading information ..................... 69
Low fuel ....................................... 84
M
Malfunction indicator light ............ 81
Manual adjustment ...................... 31
Manual anti-dazzle ...................... 33
Manual door locks........................ 21
Manual mode ............................. 121
Manual transmission............. 16, 118
Manual transmission
automated......................... 16, 119
Manual windows .......................... 34
Messages..................................... 86
Mirror adjustment ........................... 8
Mirrors.................................... 31, 33
Misted light covers ....................... 93
N
New vehicle running-in .............. 110
Number plate light ..................... 154
O
Object detection systems........... 131
Octane rating.............................. 187
Odometer ..................................... 75
211
Oil............................................... 141
Oil, engine.......................... 181, 186
Oil level......................................... 77
Oil pressure.................................. 83
Outside temperature .................... 72
Overcab storage .......................... 65
Overhead console ....................... 64
Overrun cut-off ........................... 112
P
Parking ................................ 18, 115
Parking assist ............................ 131
Parking brake ............................ 123
Parking ticket holder..................... 36
Particulate filter........................... 117
Performing work ........................ 140
Pollen filter ................................. 108
Power door locks.......................... 24
Power outlets ............................... 73
Power side step............................ 25
Power sliding door........................ 25
Power steering fluid.................... 143
Power take-off............................ 137
Power windows ............................ 34
Preheating ........................... 83, 111
Puncture............................. 164, 168
R
Radio Frequency Identification
(RFID)..................................... 206
Radio remote control ................... 19
Rain sensor.................................. 71
Reading lights .............................. 95
Rear air conditioning system ..... 102
Rear bench seat storage.............. 64
Rear doors ................................... 28
Rear fog light ............................... 85
Rear fog lights........................ 90, 93
Rear heating system .................. 101
Rear seats.................................... 43
Rear view camera ...................... 132
Rear windows .............................. 34
Recommended fluids and
lubricants ........................ 181, 186
Refuelling ................................... 134
Remote control............................. 19
Retractable parking brake.......... 123
Reversing lights ........................... 93
Ride control systems.................. 125
Ride height................................. 115
Roof.............................................. 36
Roof load...................................... 69
Roof rack ..................................... 68
S
Safety belts................................... 45
Safety net .................................... 67
Seat adjustment ....................... 7, 39
Seat belt ........................................ 8
Seat belt reminder ....................... 80
Seat belts ..................................... 45
Seat heating................................. 42
Seat position ................................ 38
Selector lever ............................. 119
Service ............................... 108, 179
Service display ...................... 77, 81
Service information .................... 179
Service vehicle soon .................... 81
Side airbag system ...................... 51
Sidelights...................................... 90
Side turn signal lights ................ 153
Sliding door .................................. 25
Spare wheel ............................... 170
Speed limiter......................... 75, 130
Speedometer ............................... 75
Starting and operating................ 110
Starting off ................................... 17
Starting the engine....... 17, 111, 119
Steering...................................... 110
Steering column controls.............. 71
Steering wheel adjustment ...... 9, 70
Steering wheel controls ............... 70
Stop engine.................................. 81
212
Stop-start system............ 17, 84, 112
Storage......................................... 62
Storage compartments................. 62
Sunglasses storage ..................... 63
Sun visors .................................... 36
Suspension height...................... 115
Suspension seat........................... 39
Symbols ......................................... 4
T
Tachograph............................ 85, 89
Tachometer ................................. 76
Tail lights ................................... 152
Technical data............................ 187
Three-point seat belt .................... 46
Tools .......................................... 158
Top-tether fastening eyes ............ 61
Tow bar....................................... 135
Towing........................................ 135
Towing another vehicle ............. 175
Towing a trailer........................... 136
Towing equipment ..................... 136
Towing eye................................. 174
Towing the vehicle ..................... 174
Traction Control system ............. 125
Trailer coupling........................... 135
Trailer stability assist ................. 137
Trailer towing ............................. 136
Transmission ............................... 16
Transmission display ........... 78, 119
Tread depth ............................... 163
Trip computer .............................. 87
Triple-Info-Display ....................... 86
Trip odometer .............................. 75
Turbo engine warm-up............... 111
Turn and lane-change signals ..... 92
Turn signal ................................... 80
Tyre chains ................................ 164
Tyre changing............................. 168
Tyre designations ...................... 160
Tyre pressure ............................ 160
Tyre pressure monitoring
system............................... 83, 161
Tyre pressures ........................... 203
Tyre repair kit ............................. 164
Tyres .......................................... 159
Tyres and wheel size, changing. 163
U
Ultrasonic parking assist............. 131
Underseat storage ....................... 64
Upholstery.................................. 177
Upshift.......................................... 82
Using this manual .......................... 3
V
Vehicle battery ........................... 145
Vehicle checks............................ 140
Vehicle data................................ 186
Vehicle data recording and
privacy..................................... 205
Vehicle dimensions .................... 194
Vehicle Identification Number .... 183
Vehicle jack................................ 158
Vehicle messages ....................... 86
Vehicle security............................ 29
Vehicle specific data ...................... 3
Vehicle storage........................... 139
Vehicle tools............................... 158
Vehicle unlocking ........................... 6
Vehicle weight ........................... 189
Ventilation..................................... 97
W
Warning chimes ........................... 87
Warning lights............................... 75
Warning triangle .......................... 67
Washer and wiper systems ......... 15
Washer fluid ............................... 144
Washing the vehicle................... 176
Wheel changing ......................... 168
Wheel covers ............................. 164
Wheels and tyres ....................... 159
Wheel wrench............................. 158
Wide view mirror..................... 33, 36
Windows....................................... 34
Windscreen................................... 34
Windscreen wiper/washer ........... 71
214
www.opel.com
Copyright by ADAM OPEL AG, Rüsselsheim, Germany.
The information contained in this publication is effective as of the date indicated below. Adam Opel AG reserves the right to make changes to the technical specifications, features and
design of the vehicles relative to the information in this publication as well as changes to the publication itself.
Edition: October 2014, ADAM OPEL AG, Rüsselsheim.
Printed on chlorine-free bleached paper.
10/2014
*KTA-2683/8-EN*
KTA-2683/8-en
