Summit TNL05P User Manual
User Manual Summit TNL05P 30" Wide 4-Burner Gas Cooktop
Documents for Summit TNL05P
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Other Documents
BROCHURE - (English)
Download
Photos
Photos:
View Photos
User Manual
For TNL05P.
Page 1/8
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Contents
Table of Contents
Previous
Next
Bookmarks
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Summit TNL05P:
Cabinet Opening
1
Check Local Codes Before Making Connections
1
Caution
1
Installation
1

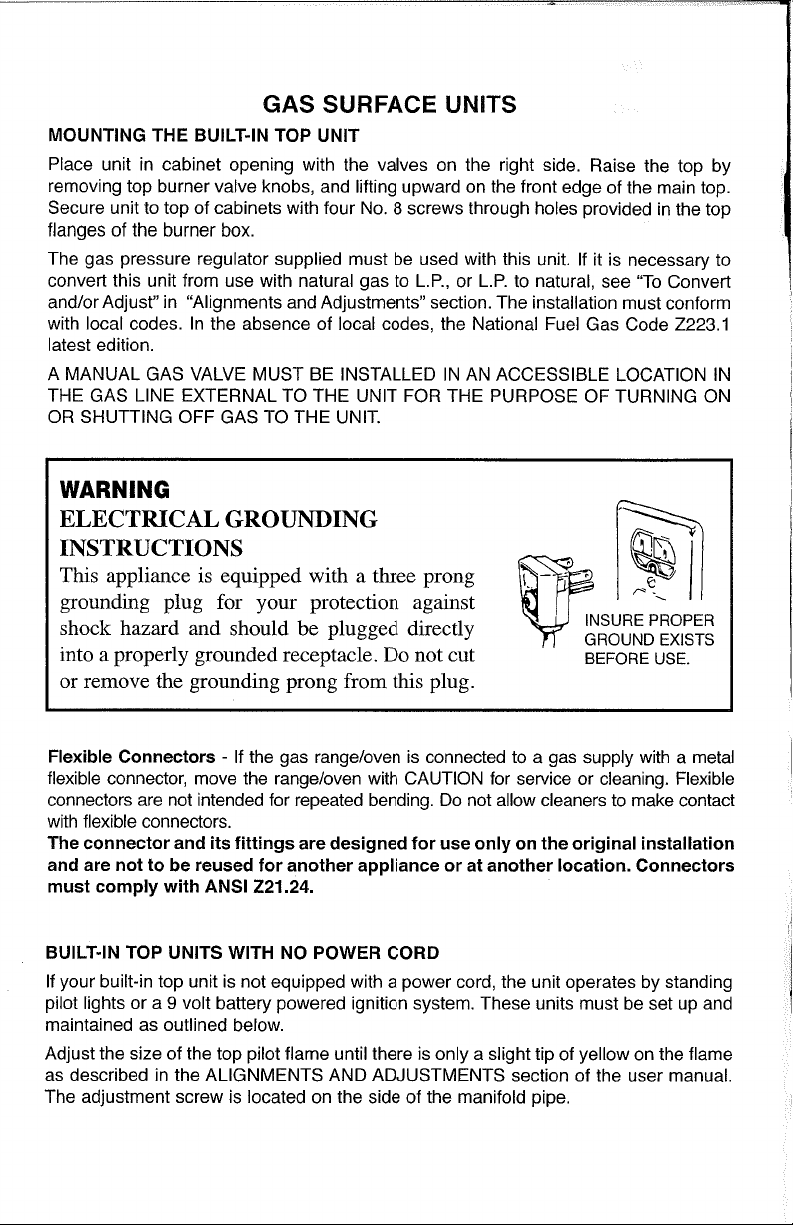

Gas Surface Units
2
Mounting The Built In Top Unit
2
Electrical Grounding Instructions
2
Built In Top Units With No Power Cord
2

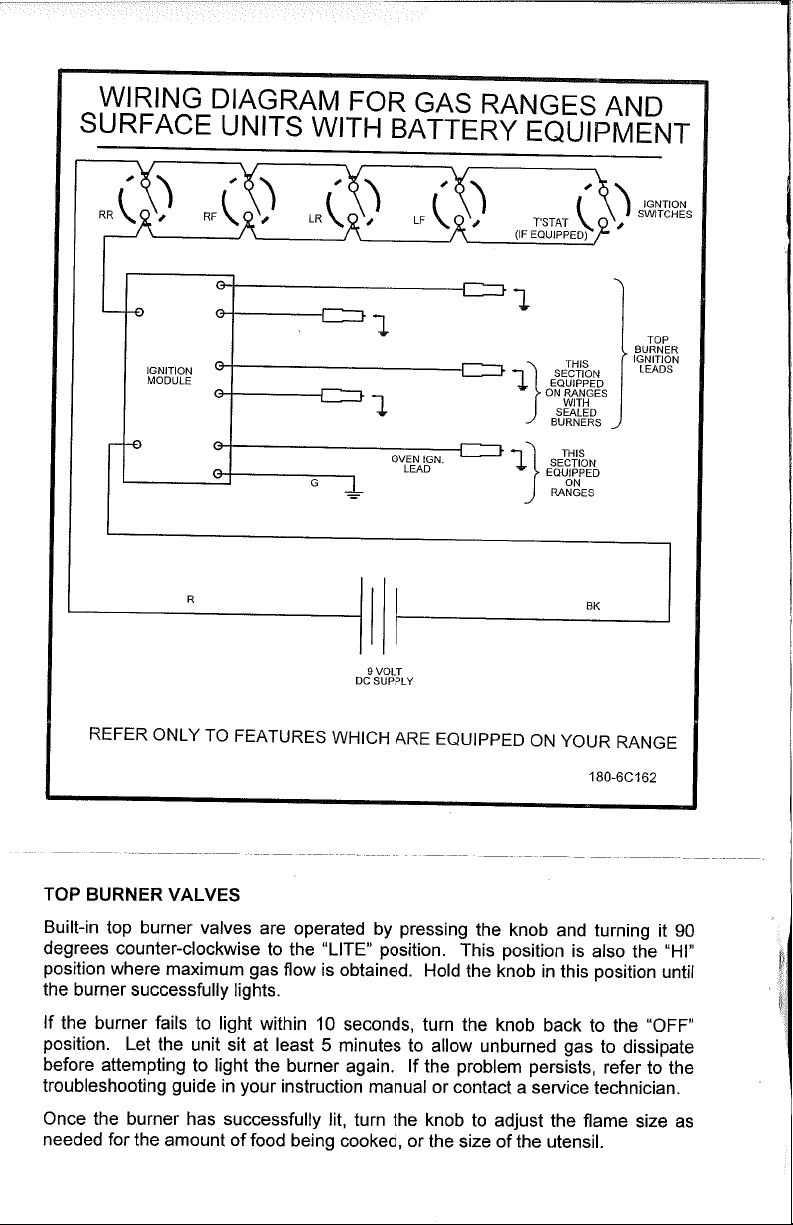

Wiring Diagram For Gas Ranges And Surface Units With Battery Equipment
4

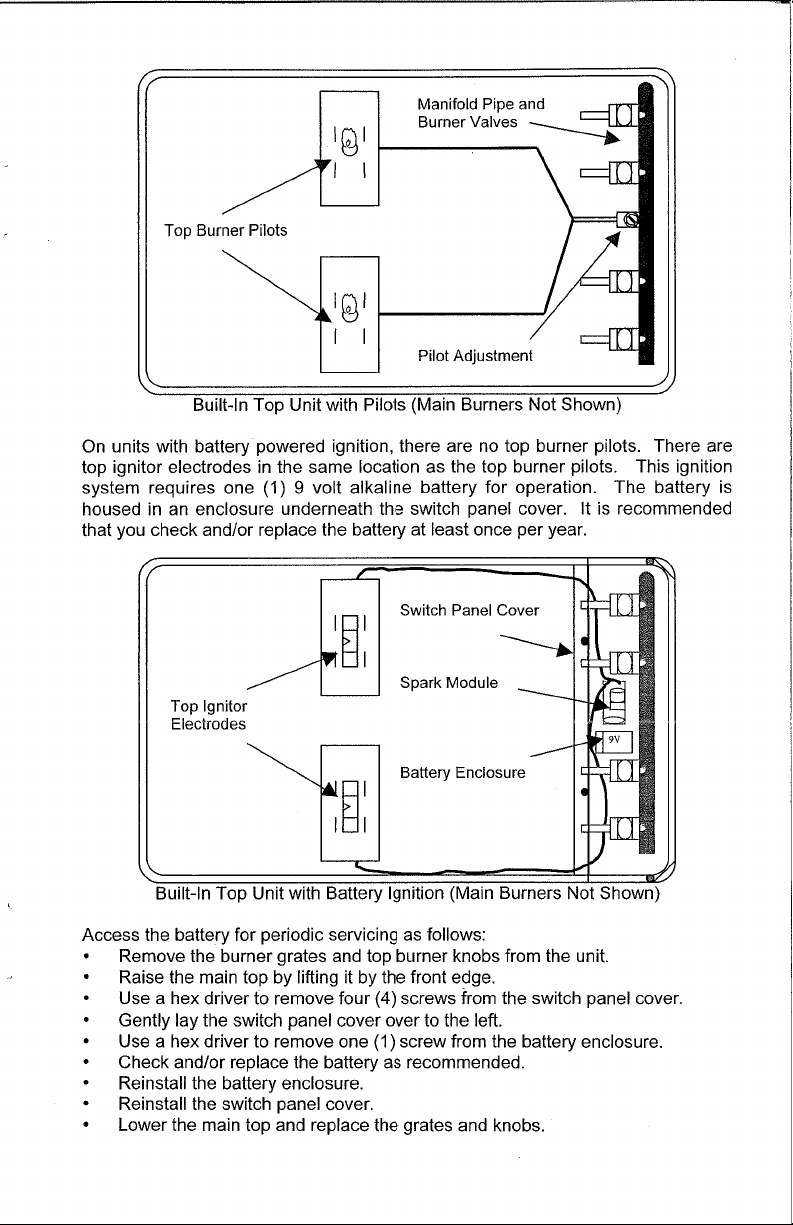

Top Burner Valves
4

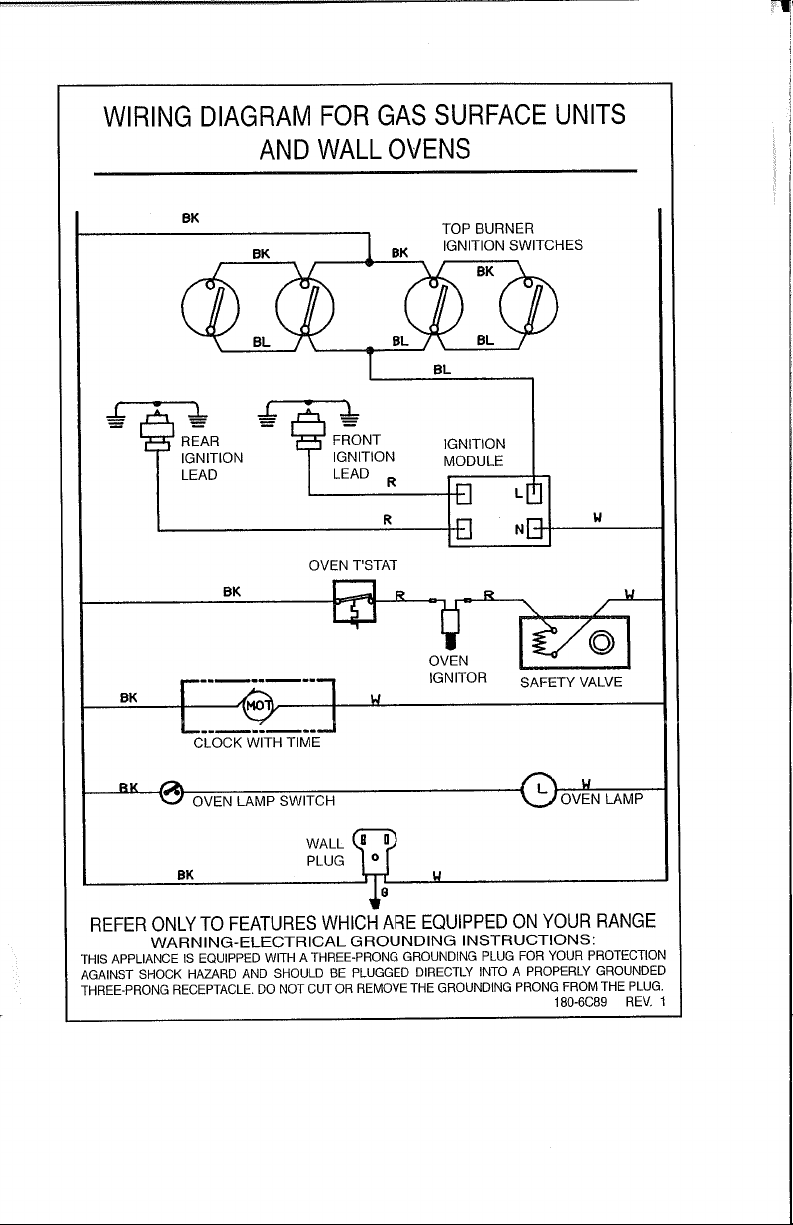

Wiring Diagram For Gas Surface Units And Wall Ovens
5

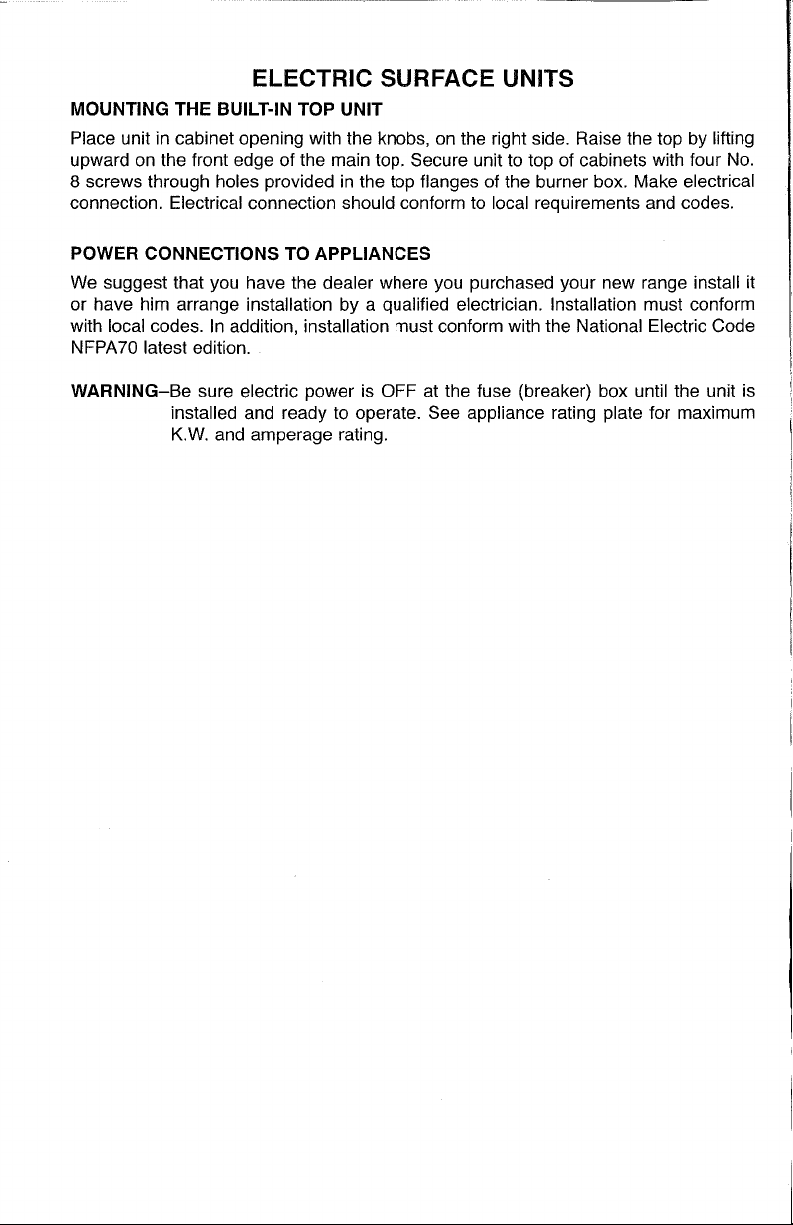

Electric Surface Units
6
Mounting The Built In Top Unit
6
Power Connections To Appliances
6

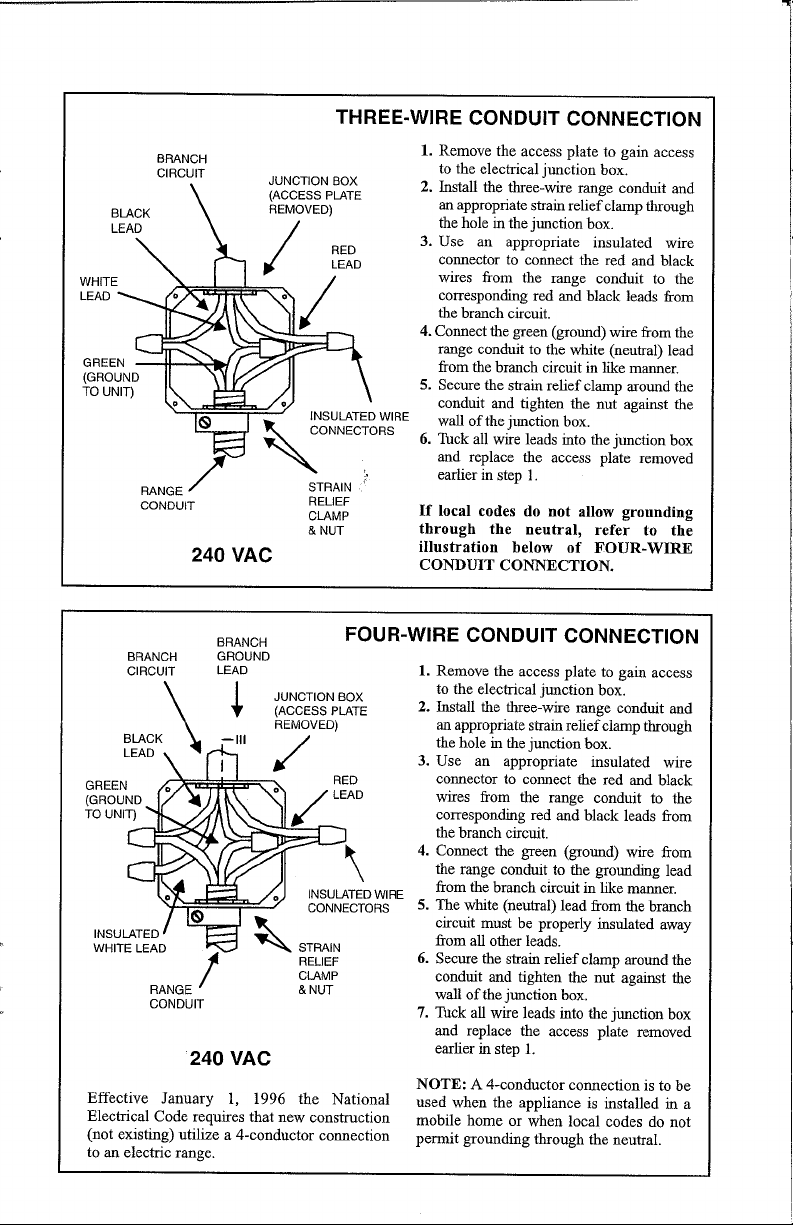

Three Wire Conduit Connection
