Whirlpool 3O33 SupremeClean WIO DEL Built-In Dishwasher

INSTRUCTION FOR USE - Transcript

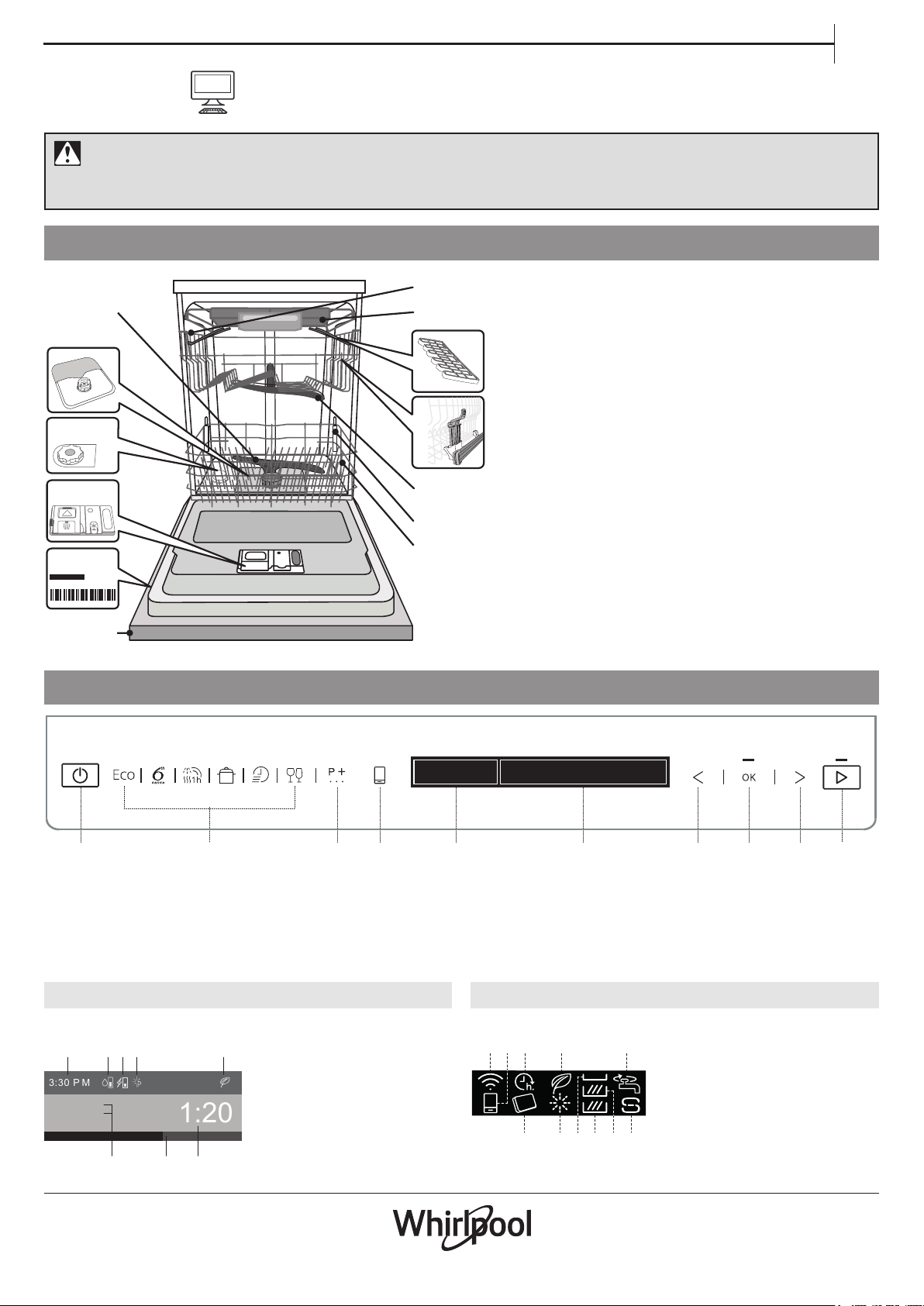

• Page 3 - English - : EN THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT To receive more comprehensive help and support please register your product at wwwwhirlpooleuregister 1 2 3 4 5 6 7 8 9 10 1 Upper rack 2 Cutlery rack 3 Foldable aps 4 Upper rack height adjuster 5 Upper sprayer arm 6 Power Clean support 7 Lower rack 8 Lower sprayer arm 9 Filter Assembly 10 Salt reservoir 11 Detergent and Rinse Aid dispensers 12 Rating plate 13 Control panel 1 ONOFF button 2 CYCLES 6 buttons for direct acces popular cycles 3 EXTRA CYCLES button Access to other cycles 4 CONNECTIVITY Remote Control button 5 DISPLAY Indicators area 6 DISPLAY Information area 7 PREVIOUS button for optionssettings 8 OK button Selectchange options and settings 9 NEXT button for optionssettings 10 START button PRODUCT DESCRIPTION Before using the appliance carefully read Health and Safety guide The control panel of this dishwasher activates pushing by ONOFF button For energy saving the control panel deactivates automatically after 10 minutes if no cycle has started CONTROL PANEL DISPLAY Indicators 0000 000 00000 Service A WiFi connection status B CONNECTIVITY C START DELAY D ECO CYCLE STANDBY E CLOSED WATER TAP F ADD SALT G MULTIZONE Upper Rack H MULTIZONE Lower Rack I MULTIZONE Cutlery rack J ADD RINSE AID K TABLET A B C I H G F D ED JK DISPLAY on the front of the control panel 330 P M 120 A B C D E H G F A Current Time B Energy consumption C Water consumption D Available option E Cycle F Time to end of the cycle G Phase of the cycle as bar H Cycle name Phase of the cycle Eco Cycle WASHING Cykle ends in
• Page 4 - English - : EN After connecting the appliance to the power supply for the rst time the display will guide you to set up the appliance for rst use 1 The language selection To select preferred language please press button lt or gt Conrm by pressing OK button After language conrmation the appliance will go through the rst time use conguration menu 2 Setting the water hardness The water hardness is by default set to level 3 To change water hardness level press button lt or gt repeatedly To conrm your choice press OK button The level must be set according to the table below To allow the water softener to work in a perfect way it is essential that the water hardness setting is based on the actual water hardness in your house This information can be obtained from your local water supplier 3 Filling the water softener When water hardness is set it is required to ll water softener with water and special regeneration salt Remove the lower rack and unscrew the reservoir cap anticlockwise As a rst step it is needed to ll reservoir with water 15 litres Once done proceed to the next step by pressing OK button Position the funnel see gure and ll the salt reservoir right up to its edge approximately 1 kg it is not unusual for some water will spill out Remove the funnel and wipe any salt residue away from the opening Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash program this could damage the water softener beyond repair Once done proceed to the next step by pressing OK button Only use salt that has been specically designed for dishwashers 4 Setting the brightness level The brightness level is by default set to level 5 To change brightness level press button lt or gt repeatedly To conrm Uour choice press OK button 5 Detergent type operation In this step it is very important to choose what type of detergent will be used tabletcapsule or gelpowder If you prefer to use Allinone detergent in tablet or capsule for washing press OK then go to step 7 Open tap operation on the next page The symbol on display will be lit If you prefer to use gel or powder detergent for washing press lt or gt then go to step 6 Rinse aid operation 6 Rinse aid operation If Allinone detergent was chosen in the previous step this step will be skipped by the appliance LANGUAGE ENGLISH ltgt CHANGE OK YES ENGLISH SELECTED WATER HARDNESS 3 ltgt CHANGE OK YES WATER HARDNESS 1MIN 5MAX POUR WATER OPERATION INSERT 15 LITER OF OK DONE WATER IN THE OK DONE WATER SOFTENER OK DONE INSERT SALT OPERATION ADD 1KG OF SALT OK DONE IN THE SALT DISPENSER OK DONE ADJUST BRIGHTNESS 1MIN 5MAX BRIGHTNESS 5 ltgt CHANGE OK YES DETERGENT TYPE OPERATION DO YOU USE ltgt NO OK YES DETERGENT ltgt NO OK YES ALL IN ONE ltgt NO OK YES RINSE AID OPERATION INSERT RINSE AID OK DONE IN THE DISPENSER OK DONE M A X A B Water Hardness Table Level German degrees dH French degrees fH 1 Soft 0 6 0 10 2 Medium 7 11 11 20 3 Average 12 17 21 30 4 Hard 18 34 31 60 5 Very hard 35 50 61 90 FIRST TIME USE Whenever you need to add salt it is mandatory to complete theprocedure before the beginning of the washing cycle Residual saline solution or grains of salt can lead to corrosion irreparably damaging the stainless steel components The guarantee is not applicable if faults are caused by such circumstances If the salt container is not lled the water softener and the heating element may be damaged as a result
• Page 5 - English - : EN 1 Open the dispenser B by pressing and pulling up the tab on the lid 2 Carefully introduce the rinse aid as far as the maximum 110 ml re ference notch of the lling space A avoid spilling it If this happens clean the spill immediately with a dry cloth 3 Press the lid down until you hear a click to close it 4 Conrm operation by pressing OK button NEVER pour the rinse aid directly into the tub Setting rinse aid level not necessary when using tabletscapsules The rinse aid dosage can be adjusted to the detergent used The lower the setting the less rinse aid is dispensed The factory setting is for 5 level To change follow instructions in section SETTINGS MENU 7 Open tap operation Check water tap is open If closed open it then conrm by pressing OK button 8 First cycle operation Before normal use of appliance it is recommended to run Intensive cyc le rst to calibrate the appliance Insert a detergent into dispenser chamber B see below then press OK button Intensive cycle will be selected automaticly Press START button and close the appliance door This rst cycle can be up to 20 minutes longer as a result of the automatic calibration process After this process the appliance is ready for normal use On the front of the control panel will be shown information Download the 6th Sense Live App from iTunes or Google Play The App will guide you through the set up process to connect your smart appliance When the setup has NOT been completed because the the door was closed during the setup infor mation is shown on the dispay to remind to complete the setup OPEN TAP OPERATION OPEN THE OK DONE WATER TAP OK DONE FIRST CYCLE OPERATION REMEMBER TO RUN THE OK EXIT INTENSIVE CYCLE OK EXIT WITH EMPTY BASKETS OK EXIT TO COMPLETE OK EXIT THE FIRST SET UP OK EXIT ADDING A DETERGENT To achieve the best washing and drying results the combined use of detergent rinse aid liquid and rened salt is required We recommend using detergents that do not contain phosphates or chlorine as these products are harmful to the environment Good washing results also depend on the correct amount of deter gent being used Exceeding the stated amount does not result in a more eective wash and increases environmental pollution The amount can be adjusted to the soil level In the case of normally soiled items use approximately either 35g powder detergent or 35ml liquid detergent and additional tea spoon of detergent directly inside the tub If tablets are used one tablet will be enough If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher reduce the amount of deter gent used accordingly minimum 25 gml eg skip the powdergel putted inside the tub To open the detergent dispenser press button A Introduce the deter gent into the dry dispenser B only Place the amount of detergent for prewashing directly inside the tub 1 When measuring out the deter gent refer to the mentioned ear lier information to add the proper quantity Inside the dispenser B there are indications to help the detergent dosing 2 Remove detergent residues from the edges of the dispenser and close the cover until it clicks 3 Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place The detergent dispenser automatically opens up at the right time according to the program If you are using a Allinone detergents we recommend that you add salt in any case especially if the water is hard or very hard follow the instructions given on the packaging A B Only use detergent which has been specically designed for dishwashers Setup complete Your Dishwasher is ready for use To enjoy added features launch Whirlpool App using your smart device Setup incomplete Youre just a few steps away from setting up your Dishwasher Please use the control panel to complete the setup
• Page 6 - English - : EN ADVICE AND TIPS LOADING THE RACKS TIPS Before loading the baskets remove all food residues from the crockery and empty the glasses You do not need to rinse beforehand under running water Arrange the crockery so that it is held in place rmly and does not tip over and arrange the containers with the openings facing downwards and the concaveconvex parts placed obliquely thus allowing the water to reach every surface and ow freely Warning lids handles trays and frying pans do not prevent the spray er arms from rotating Place any small items in the cutlery basket Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance After loading the appliance make sure that the sprayer arms can cotate freely HYGIENE To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least once a month Use a tea spoon of detergent and run it without the loading to clean your appliance UNSUITABLE CROCKERY Wooden crockery and cutlery Delicate decorated glasses artistic handicraft and antique crockery Their decorations are not resistant Parts in synthetic material which do not withstand high temperatures Copper and tin crockery Crockery soiled with ash wax lubricating grease or ink The colours of glass decorations and aluminiumsilver pieces can change and fade during the washing process Some types of glass eg crystal objects can become opaque after a number of wash cycles too DAMAGE TO GLASS AND CROCKERY Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe Use a delicate detergent suitable for crockery Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over CUTLERY RACK The third rack was designed tohouse the cutlery Arrange the cutlery as shown in the gure A separate arrangement of the cutlery makes collection easier after washing and improves washing and drying performance Knives and other utensils with sharp edges must be positioned with the blades facing downwards The geometry of the rack makes it possible to place such small items as coee cups in the area in the middle The cutlery basket is equipped with two sliding side trays to make the most of the height of the space below and enable the loading of high items into upper rack

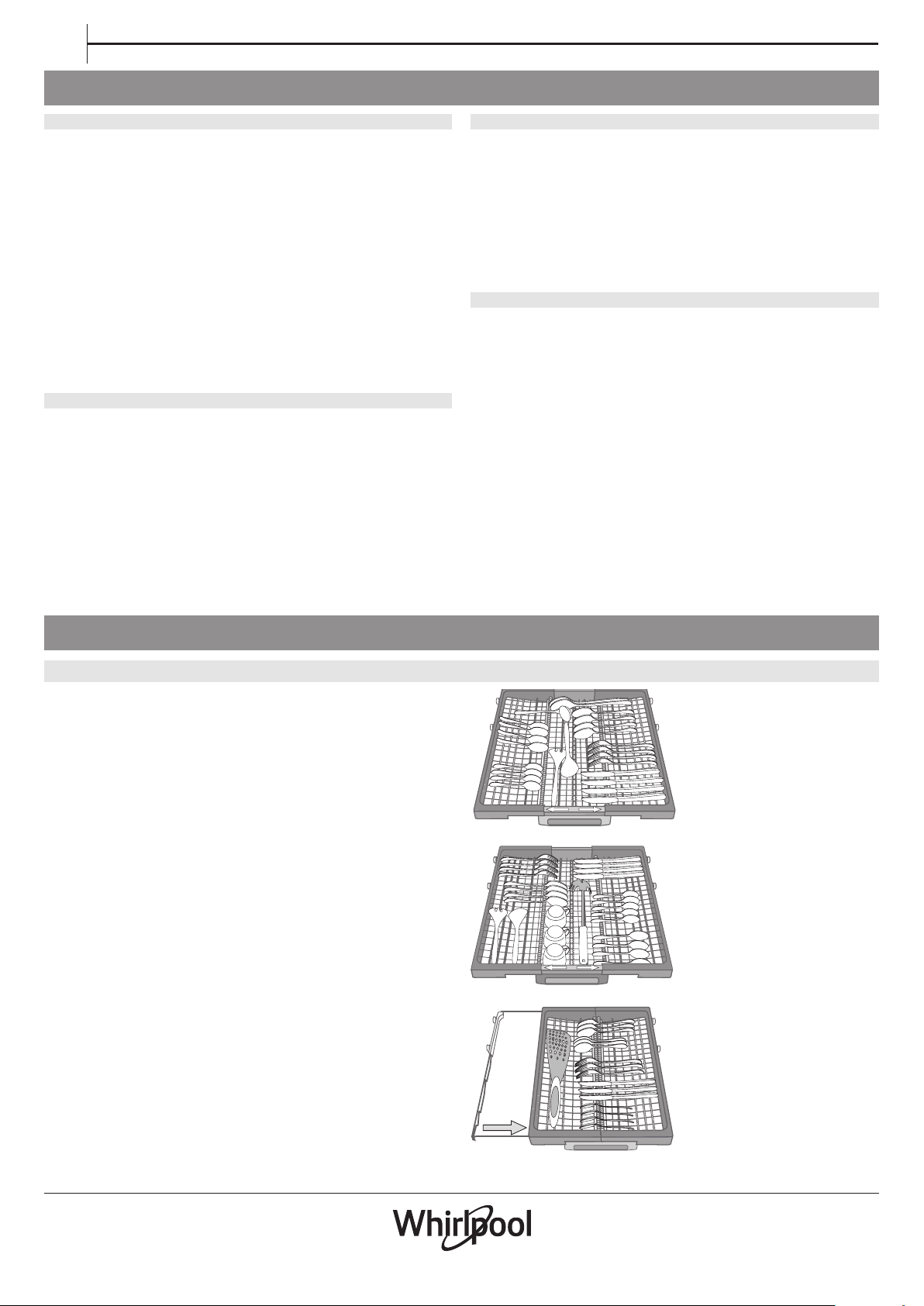

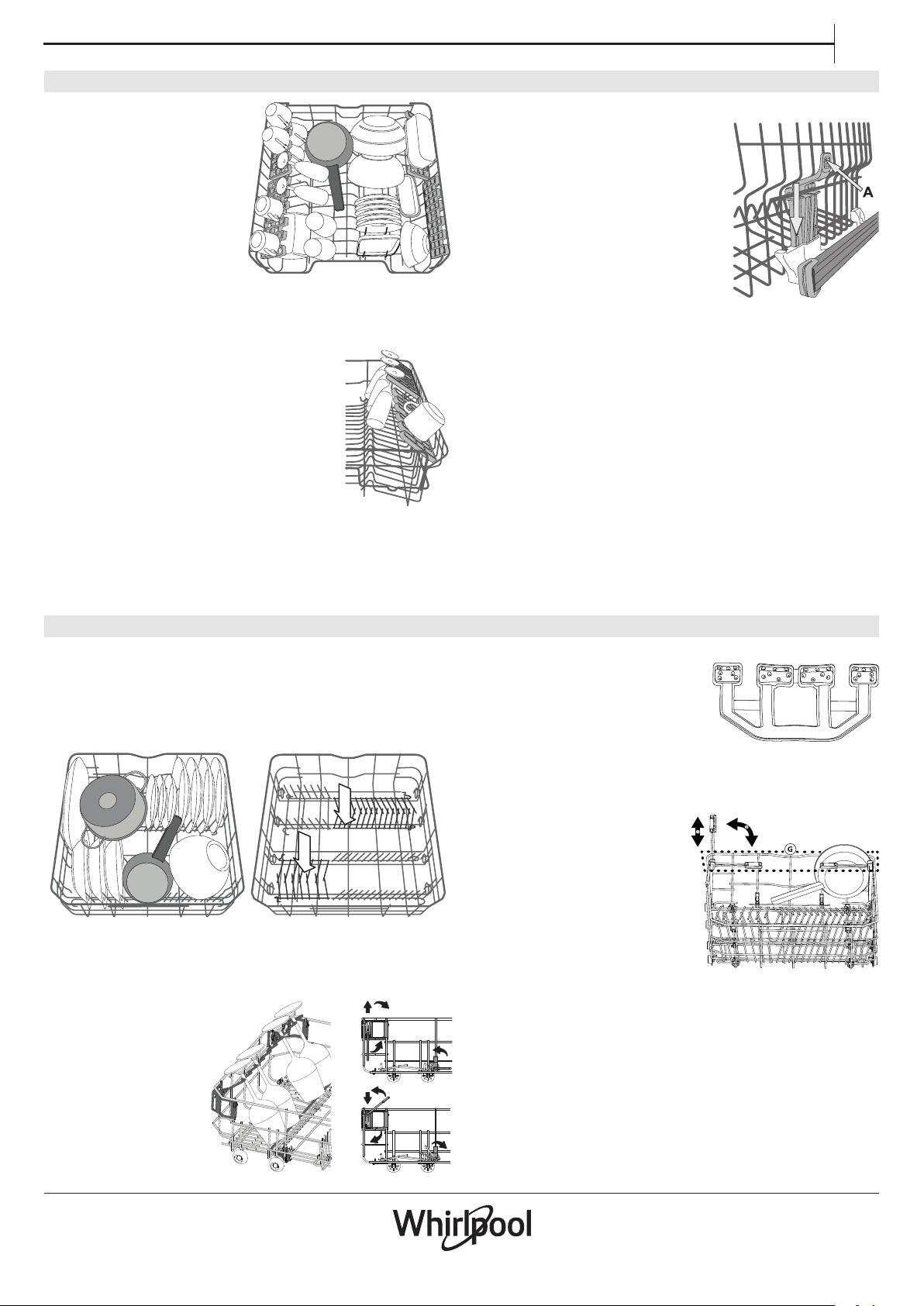

• Page 7 - English - : EN UPPER RACK Load delicate and light dishes glasses cups saucers low salad bowls The upper rack has tipup supports which can be used in a vertical position when arranging tea dessert saucers or in a lower position to load bowls and food containers loading example for the upper rack FOLDABLE FLAPS WITH ADJUSTABLE POSITION The side foldable aps can be positioned at three dierent heights to optimize the arrangement of crockery inside the rack Wine glasses can be placed safely in the foldable aps by inserting the stem of each glass into the corresponding slots For optimum drying results incline the foldable aps more To change the inclination pull up the foldable ap slide it slightly and position it as you wish ADJUSTING THE HEIGHT OF THE UPPER RACK The height of the upper rack can be adju sted high position to place bulky crockery in the lower basket and low position to make the most of the tipup supports by creating more space upwards and avoid collision with the items loaded into lower rack The upper rack is equipped with a Upper Rack height adjuster see gure witho ut pressing the levers lift it up by simply holding the rack sides as soon as the rack is stable in its upper position To restore to the lower position press the levers A at the sides of the rack and move the basket downwards We strongly recommend that you do not adjust the height of the rack when it is loaded NEVER raise or lower the basket on one side only LOWER RACK For pots lids plates salad bowls cutlery etc Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm The lower rack has tipup supports which can be used in a vertical position when arranging plates or in a horizontal position lower to load pans and salad bowls easily loading example for the lower rack GLASS CARE Dedicated accessory that allows you to safely store dierent types of stem glasses in the lower rack It enables cleaning amp drying results by allowing an optimised and stable positioning of the glasses POWER CLEAN IN LOWER RACK Power Clean uses the special water jets in the rear of cavity to wash more inten sively the high dirty items Placing the potscasseroles faced to the Power Clean component please activa te the POWER CLEAN on the panel The lower rack has a Power Clean a special pullout support in the rear of the rack that can be used to support frying pans or baking pans in upright position thus taking up less space How to use Power Clean 1 Adjust the Power Clean area G folding down the rear plate holders to load pots 2 Load pots and casseroles inclined vertically in Power Clean area Pots have to be inclined towards the power water jets A B
• Page 8 - English - : EN SELECTING A CYCLE AND OPTIONS The list of available cycles and options can be found in Cycles Table on next page Eco cycle is selected by default If you want to have Last Used cycle selected by default you can change it in Settings Menu It is possible to select a cycle by pressing 1 of 6 cycles direct access buttons or by pressing Extra Cycles button repeatedly When the last one is reached a further press goes back to the rst Press cycle button to choose cycle in accordance with the level of soiling of the dishes and with Cycles Table Information will be shown on the display 1 Indicators 2 Name of the selected cycle 3 Vertical bar showing the position of the extra cycle list only 4 Energy consumption of the selected cycle 5 Water consumption of the selected cycle Three seconds after selecting a cycle its time and temperature will be displayed if available Additional options are available for most cycles see Options and Settings section When any option is selected its name is shown on the display on the right If more than one option is selected one bullet point for each option is displayed Each option name is displayed for 3 sec with its bullet point fulled When the cycle and option selection is complete press START button and close the door within 4 seconds to start chosen cycle During the cycle the progress is shown on the display on the front of the control panel as bar as well as phase of cycle and time to the end of the cycle Depending at the selected cycle the display may provide additional information 6TH SENSE sensor is adjusting time and energy and water consumption to the level of soil amount on the dishes Present only in 6 th Sense cycle PREWASH extra items can be added WASHING main washing ACTIVE DRY drying using PowerDry technology DRYING drying phase of cycle After the cycle nishes there is an acustic signal and the dispaly shows Display on the front of the control panel is shown On the display additional information can be shown ADD SALT rell salt reservoir ADD RINSE AID rell rinse aid DEGREASE AND CLEAN MACHINE WE RECOMMEND WPRO every 50 cycle will be recommended to use the WPRO cleaner according to instruction on the consumable After 10 minutes the appliance switches o POWER CLEAN 50 400h 330 P M 120 500 P M 120 MODIFYING A RUNNING PROGRAM If a wrong program was selected it is possible to change it provided that it has only just begun open the door press and hold the ONOFF button the machine will switch o Switch the machine back on using the ONOFF button and select the new wash cycle and any desired options start the cycle by pressing the START button and closing the door TO PAUSE THE CYCLE ADDING EXTRA ITEMS Open the door and place the crockery inside the dishwasher beware of HOT steam Press START button and close the door within 4 sec to resume the cycle from the point at which it was interrupted ACCIDENTAL INTERRUPTIONS If the door is opened during the wash cycle or if there is a power cut the cycle stops To resume the cycle from where it was interrup ted press the START button and close the door within 4 sec CYCLE FINISHED POWER CLEAN 50 400h ECO CYCLE 1 2 3 Open appliance door beware of hot steam and unload the racks starting from the lower rack rst If it is needed to rell salt reservoir or rinse aid dispenser it is recom mended to do this operations right before start of the next cycle Eco Cycle WASHING Cykle ends in YOUR DISHES ARE READY Cycle ended at 500

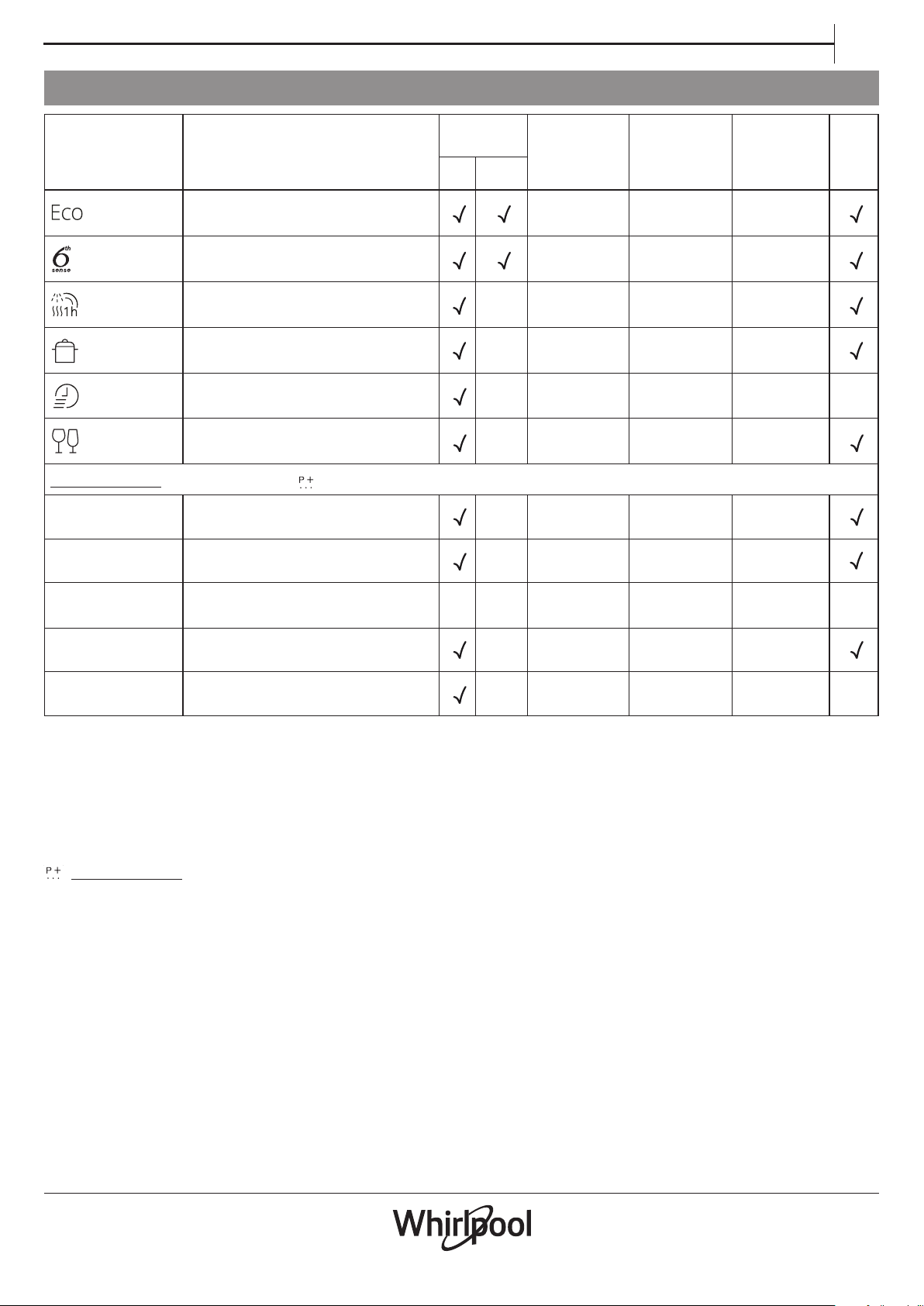

• Page 9 - English - : EN CYCLES TABLE CYCLE Available options Detergent dispenser Duration of wash cycle hmin Water consumption lcycle Energy cosumption kWhcycle Drying phase B TUB ECO 50 TABLET START DELAY POWER CLEAN 400 95 083 6TH SENSE 5060 TABLET START DELAY MULTIZONE POWER CLEAN TURBO 125 300 70 140 090 140 1H WASH amp DRY 55 TABLET START DELAY MULTIZONE 100 105 120 INTENSIVE 65 TABLET START DELAY MULTIZONE POWER CLEAN TURBO 250 160 160 RAPID 30 50 TABLET START DELAY MULTIZONE 030 90 055 CRISTALS 45 TABLET START DELAY MULTIZONE 140 115 120 EXTRA CYCLES available by pressing button DAILY 50 TABLET START DELAY MULTIZONE 135 130 115 SILENT 50 TABLET START DELAY 330 150 115 PREWASH cold START DELAY MULTIZONE 012 45 001 SANITIZING 65 START DELAY 140 100 130 SELF CLEAN 65 START DELAY 050 80 085 1 ECO Normally soiled crockery Standard program the most ecient in terms of its combined energy and water consumption 2 6TH SENSE For normally soiled dishes with dried food residues Senses the level of soiling on the dishes and adjusts the program accordingly 3 1H WASH amp DRY Light to normally soiled crockery Everyday program suitable for nondried and fresh soiling assuring clean and dried dishes in just 60 min of time 4 INTENSIVE Program recommended for heavily soiled crockery especially suitable for pans and saucepans not to be used for delicate items 5 RAPID 30 Program to be used for lightlysoiled dishes with no dried food residues 6 CRISTALS Program for delicate items which are more sensitive to high temperatures for example glasses and cups EXTRA CYCLES 7 DAILY Normally soiled crockery everyday cycle that ensures optimal cleaning performance in shorter time 8 SILENT Suitable for nighttime operation of the appliance Optimum performance ensured 9 PREWASH Crockery to be washed later No detergent to be used with this program 10 SANITIZING Normally or heavily soiled crockery with additional antibacterial wash 11 SELF CLEAN Program to be used to perform maintenance of the dishwasher It cleans the interior of the appliance using hot water Notes To reduce consumption even further only run the dishwasher when it is full Please note that programs like Rapid or Fast are most eective for lightly soiled dishes ECO program data is measured under laboratory conditions according to European Standard EN 50242 Note for Test Laboratories for information on comparative EN testing conditions please send an email to the following address dwtestsupportwhirlpoolcom Pretreatment of the dishes is not needed before any of the programs Not all options can be used simultaneously The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions The actual time may vary depending on many factors such as temperature and pressure of the incoming water room temperature amount of detergent quantity and type of load load balancing additional selected options and sensor calibration The sensor calibration can increase program duration up to 20 min Standby consumption Lefton mode consumption 7 W O mode consumption 063 W
• Page 10 - English - : EN OPTIONS AND SETTINGS TABLET Allinone This setting allows you to optimise the performance of the cycle according to the type of detergent used Enable it if you use combined detergents in tablet form rinse aid salt and detergent in 1 dose To set the Tablet enter in the setting menu by pressing OK button and navigate with lt gt until TABLET is shown then press OK button START DELAY The start of the cycle may be delayed for a selected period of time To set a delay enter in the setting menu by pressing OK button and na vigate with lt gt until START DELAY is shown then press OK button With each press of the button gt or lt the delay start increases by every 030 if selection below 4 hours every 100 if selection is below 12 hours every 2 hours if selection is above 12 hours Default value is OFF If delay is selected the is lit Once OK button is pressed the delay is conrmed and the machine comes back to the cycle selection screen with delay value visible Press START button and close the door within 4 sec to start the delay To remove the delay press lt or gt button until OFF is displayed MULTIZONE If there are not many dishes to be washed it can be loaded in one rack only Using this option you can select which rack you want to wash To set the Multizone enter in the setting menu by pressing OK button and navigate with lt gt until MULTIZONE is shown then press OK button By default the MULTIZONE is not active and all racks icons are lit The multizone icon becomes lit The multizone icon becomes lit The multizone icon becomes lit POWER CLEAN Thanks to additional water jets this option provides a more intensive and powerful wash in the specic area of lower rack Default value is OFF To set the Power Clean enter in the setting menu by pressing OK button and navigate with lt gt until POWER CLEAN is shown then press OK button TURBO This option can be used to reduce the duration of the main cycles while maintaining washing and drying performance levels To set the Turbo enter in the setting menu by pressing OK button and navigate with lt gt until TURBO is shown then press OK button With each press of the button gt or lt option will be ON or OFF Conrm by pressing OK button KEYLOCK The KEYLOCK function blocks the control panel except the ONOFF button To activate the Keylock enter in the setting menu by pressing OK button and navigate with lt gt until KEYLOCK is shown then press OK Once set to deactivate it keep pressing OK button for a few seconds TUB LIGHT When the feature is active the LEDs in the tub are automatically switched ono as soon as the user openclose the door respectively If the door remains opened for more than 10 min the LEDs in the tub switch o to turn them on again the door has to be closed and opened againThis feature is active by default but it is possible to deactivate it in the SETTINGS MENU CONNECTIVITY Remote Control When the Remote Control function is activated you can control the dishwasher through your Tablet Smartphone For more information see section CONNECTIVITY Remote Control MENU TABLET OFF TABLET ON TABLET ON START DELAY OFF ltSTARTS IN hgt OFF ltSTARTS IN hgt 400 ltSTARTS IN hgt 400 MULTIZONE OK ltCUTLERY ONLYgt ltALL RACKSgt ltgt ltLOW ONLYgt ltgt ltCUTLERY ONLYgt ltgt ltHIGH ONLYgt ltgt POWER CLEAN OFF POWER CLEAN ON POWER CLEAN ON TURBO OFF TURBO ON TURBO ON KEYLOCK ACTIVATED PRESS quotOK FOR 3 SEC KEYLOCK DEACTIVATED KEEP PRESSED With each cycle additional options can be used A full list of available options working with specic cycles can be found in the Cycles Table on the previous page All active options are shown on the display To set an option press OK button SET OPTIONS message is shown for a few seconds Then use lt or gt button to navigate through the option list Press OK to select the option in the setting menu the LED above OK button is lit If the option is not available it will be still visible in its position but with
• Page 11 - English - : EN CONNECTIVITY Remote Control MENU WiFi connectivity allows your Smart dishwasher to connect to the Internet and interact with the 6th Sense Live application from your Tablet Smartphone This connection opens up several Smart options to you LIVE APPLICATION REMOTE CONTROL SET UP PROCEDURE The 6th Sense Live application feature allows to operate and supervise the appliance remotely by external device To enable the appliance to be remotely controlled you rst have to complete successfully the connectivity set up process This process is necessary to register your appliance and connect to your home network The set up procedure has to be carried out only once You have to carry it out again if you change your router set up properties network name or password or data provider BEFORE STARTING THE SET UP PROCESS 1 To use this feature You need to own a smart phone running Android 43 or higher with a 1280x720 or higher screen or a tablet or a smart phone running iOS 8 or higher a wireless router 24Ghz WiFi bgn connected to internet verify with your smart device that the signal strength of your home wireless network close to the appliance is good 2 Download amp Install the free 6th Sense Live application on your Android smartphone or iPADiPhone from the store The App will guide you step by step through the installation process 3 If You do not have an account already create one and subscribe legal terms to service to be able to benet the features provided through the appliccation 4 Register your appliance following the App instructions For the registration process You will need the Smart Appliance IDentier SAID number in Connectivity Menu of HMI The SAID is composed by numbers and letters 10 chars You can take a note of your appliance SAID here SAID PROVISIONING Before starting the installation process turn on your router and verify that the wireless signal of your home router is reaching the appliance To verify the WiFi strength signal use a Tablet Smartphone connected only to the WiFi router disable any other data connections and place the device close to the appliance Open any internet web page in a browser and check that it is downloaded fast correctly If the internet connection of your home is working correctly but the page is not downloaded you may need to install a WiFi extender device not provided with the appliance If your router supports WPS 20 or gather follow the automatic set up procedure to connect your appliance to router If your router is not supported by WPS follow the scan to connect setup procedure Follow the instructions on your 6th Sense Live application on your Tablet Smartphone to connect the appliance to your wi network Otherwise read the next section for Scan to Connect or WPS methods SETUP INSTRUCTION rst time use scan to connect method This procedure uses the Easy connect technology and is always applicable in particular if your router does not support WPS 1 Install in your smart device the 6th Sense Live application 2 Assure that you smart device is connected to same WiFi network where you want to join the appliance 3 On internal UI select Connectivity menu and active pressing OK the scan to connect item 4 On APP select to add a new appliance selecting dishwasher and Easy connectscan to connect method 5 The SAID code may be scanned from label on the inner door or displayed on internal UI and manually inputted on APP 6 Proceed following the App suggestions provisioning wizard AUTOMATIC SETUP INSTRUCTION WPS This procedure is applicable only if your router supports WiFi Protected Setup WPS20 or greater 1 On your appliance activate the WPS provisioning process The appliance is being set to a search mode for a local network The Connectivity icon on the appliance starts blinking fast 2 On wireless router press the WPS button to establish a connection between the two products An indicator light on your router will begin blinking 3 When the appliance successfully connects to the local router the WiFi icon switches from fast to slow blinking supported not in all appliances 4 The appliance try to connect to Backend system Connectivity icon be comes steady If the WiFi icon does not stop blinking after few minutes then the appliance has failed to nd the connections to home network using WPS Try the procedure again and if not successful QUICK IDENTIFICATION OF APPLIANCE CONNECTION STATE WiFi Connection State indicator Connection description blinks fast Appliance is searching connection to router blinks slowly Appliance is connected to router but it is not able to connect to internet for example ADSL not working solid ON Appliance is connected to internet and to the Whirlpools cloud system SAID 0123456789 MAC ID 88E712XXYYZZ QR code Contains FCC ID A5UWICHIN01 Contains ID 10248A WICHIN01
• Page 12 - English - : EN SWITCH OFF ON WiFi feature To switch o the connection of the appliance to the wi network press the item Radio OnO on internal UI in connectivity menu The WiFi icon on the appliance display should turn o To turn on again the WiFi connection on the appliance press again the item Radio OnO on internal UI in connectivity menu When appliance is provisioned user can disengage this function and disconnect it from the WiFi network by reset WiFi option To connect the appliance again to the home WiFi network follow the procedure on section Provisioning REMOTE CONTROL DAILY USE 1 Make sure the Your router is ON and connected to the Internet 2 Make sure the WiFi Connection State indicator status on the products display is solid 3 Act on internal UI in connectivity menu to enable remote control mode and appliance is ready to be operated via App 4 Use the Whirpool App to control the appliance by remote so You can check your appliance and activate options also when you are out of home access additional functions for instance the smart energy mode optimize energy consumptions leveraging for example the best energy tari access further information on best use of your appliance receive feedback about appliance status in case of alarms The Manufacturer Whirlpool EMEA SpA declares that this WFF 4O33 DLTG UK model of household appliance with radio equipment Indigo is compliant with directive 201453UE The complete text of the declaration of conformity is present at the following website httpswwwwhirlpooleu The radio equipment operates in the 24 GHz ISM frequency band the maximum radiofrequency power transmitted does not exceed 20 dBm eirp DECLARATION OF CONFORMITY State Control panel Description Delay scheduled The appliance is scheduled to start Check the application to get more information Cycle in progress The machine has started the cycle Check the application to get more information Cycle paused The machine was put in pause from remote controler smartphone tablet The cycle will be restarted automatically Cycle nished The display will then be switched o to save energy When the door is opened the Remote Control is temporarily disabled To keep the Remote Control enabled should be pressed the button before closing the door within few seconds The machine inform you by playing beeps and in the dispay shows PRESS REMOTE CONTROL to reenabled the Remote Control REMOTE CONTROL CYCLE IN DELAY REMOTE CONTROL CYCLE IN RUN REMOTE CONTROL CYCLE IN PAUSE REMOTE CONTROL CYCLE FINISHED
• Page 13 - English - : EN SETTINGS MENU Language To change language enter in the setting menu by pressing OK button and navigate with lt gt until LANGUAGE is shown then press OK button First cycle You can choose which cycle is selected by default when switching on the appliance ECO or the LAST USED one To change rst cycle enter in the setting menu by pressing OK but ton and navigate with lt gt until FIRST CYCLE is shown then press OK button Sounds To change sounds enter in the setting menu by pressing OK button and navigate with lt gt until SOUNDS is shown then press OK button Choose between 2 levels High Low Can be also OFF Water Hardness To change water hardness level enter in the setting menu by pressing OK button and navigate with lt gt until WATER HARDNESS is shown then press OK button To setup correct level according to water hardness see table on page 4 Screen Brightness To change screen brightness level enter in the setting menu by pressing OK button and navigate with lt gt until SCREEN BRIGHT is shown then press OK button Choose between ve levels 1 2 3 4 and 5 Tub Light To change tub light enter in the setting menu by pressing OK button and navigate with lt gt until TUB LIGHT is shown then press OK button Rinse Aid level To change rinse aid level enter in the setting menu by pressing OK button and navigate with lt gt until RINSE AID LEV is shown then press OK button Choose between ve levels 1 2 3 4 and 5 If the rinse aid level is set to 1 no rinse aid will be supplied The LOW RINSE AID indicator light will not be lit if you run out of rinse aid The factory setting is for 5 level If you see bluish streaks on the dishes set a low number 23 If there are drops of water or limescale marks on the dishes set a high number 45 Demo mode To see to demo mode enter in the setting menu by pressing OK button and navigate with lt gt until DEMO MODE is shown then press OK button Reset to factory default To reset to factory default enter in the setting menu by pressing OK button and navigate with lt gt until RESET TO DEF is shown then press OK button Exit To exit the setting menu press any cycle button or press lt gt button untill EXIT is shown then press OK button 1LANGUAGE OK 1ENGLISH 1ITALIANO ltgt 2FIRST CYCLE OK 2ltECOgt ltgt 3SOUNDS OK 3ltOFFgt 3ltHIGHTgt ltgt 4WATER HARDNESS 3 4WATER HARDNESS 4 5SCREEN BRIGHT 5 5SCREEN BRIGHT 3 6TUB LIGHT ON 6TUB LIGHT OFF 7RINSE AID LEV 5 7RINSE AID LEV 4 8DEMO MODE ON 8DEMO MODE OFF 9RESET TO DEF OK 9OFF 9ON ltgt 10EXIT ltgt To change machne settings you need to enter into the Settins Menu Press OK button and navigate with lt gt until SETTINGS is shown then press OK button To exit the setting menu press any cycle button or press lt gt button untill EXIT is shown then press OK button 2ltLAST USEDgt

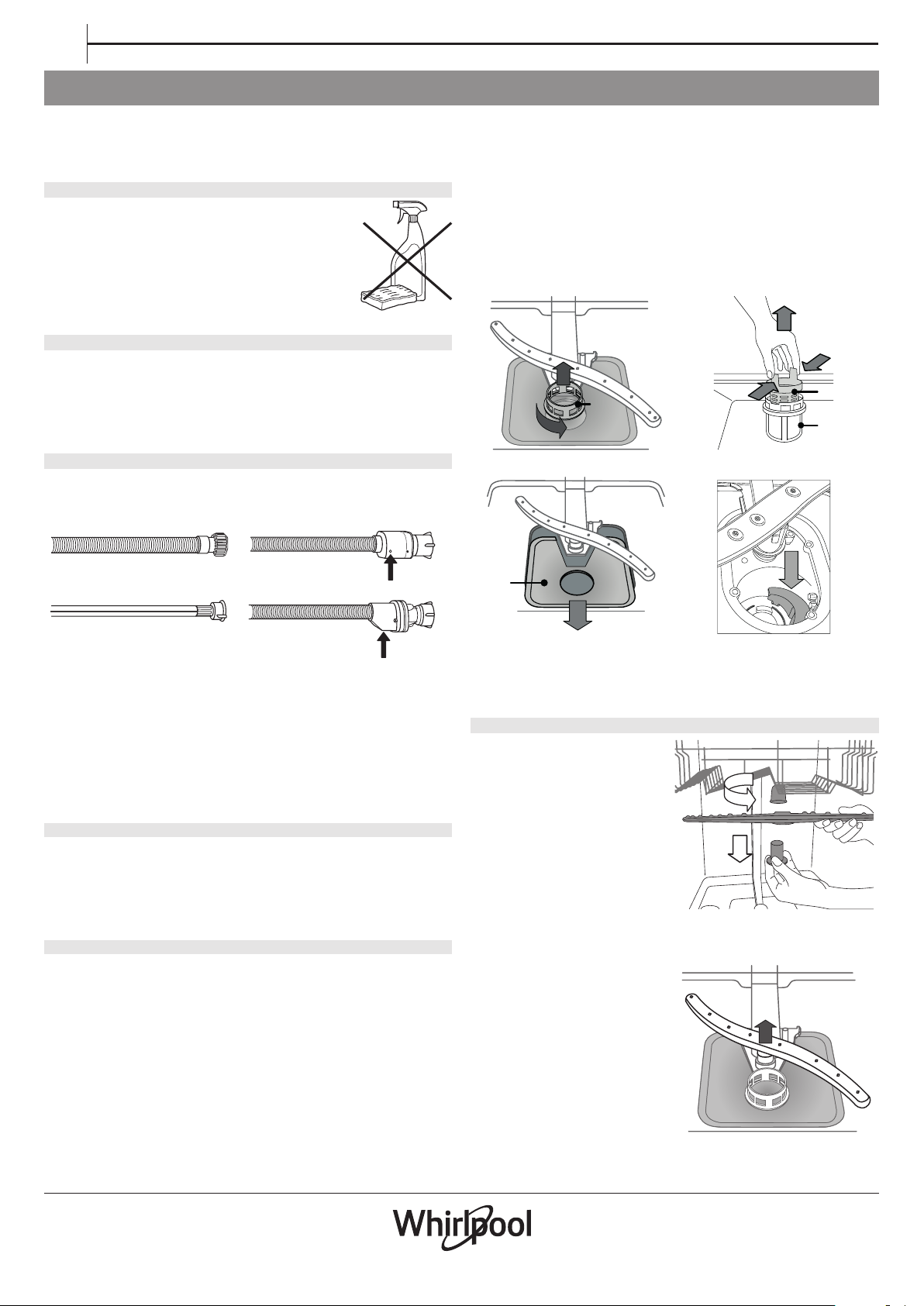

• Page 14 - English - : EN CARE AND MAINTENANCE ATTENTION Always unplug the appliance when cleaning it and when performing maintenance workDo not use ammable liquids to clean the machine CLEANING THE DISHWASHER Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar The external surfaces of the machine and the control panel can be cleaned using a nonabrasive cloth which has been dampened with water Do not use solvents or abrasive products PREVENTING UNPLEASANT ODOURS Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine Clean the seals around the door and detergent dispensers regularly using a damp sponge This will avoid food becoming trapped in the se als which is the main cause behind the formation of unpleasant odours CHEKING THE WATER SUPPLY HOSE Check the inlet hose regularly for brittleness and cracks If damaged replace it by a new hose available through our AfterSales Service or your specialist dealer Depending on the hose type If the inlet hose has a transparent coating periodically check if the colour intensies locally If yes the hose may have a leak and should be replaced For water stop hoses check the small safety valve inspection window see arrow If it is red the water stop function was triggered and the hose must be replaced by a new one For unscrewing this hose press the release button while unscrewing the hose CLEANING THE WATER INLET HOSE If the water hoses are new or have not been used for an extended period of time let the water run to make sure it is clear and free of im purities before performing the necessary connections If this precau tion is not taken the water inlet could become blocked and damage the dishwasher CLEANING THE FILTER ASSEMBLY Regularly clean the lter assembly so that the lters do not clog and that the waste water ows away correctly The lter assembly consists of three lters which remove food residues from the washing water and then recirculate the water to obtain the best washing results you need to keep them clean The dishwasher must not be used without lters or if the lter is loose After several washes check the lter assembly and if necessary clean it thoroughly under running water using a nonmetallic brush and following the instructions below 1 1 Turn the cylindrical lter A in an anticlockwise direction and pull it out Fig 1 2 Remove the cup lter B by exerting a slight pressure on the side aps Fig 2 3 Slide out the stainlesssteel plate lter C Fig 3 4 Inspect the trap and remove any food residues NEVER REMOVE the washcycle pump protection black detail Fig 4 After cleaning the lters replace the lter assembly and x it in po sition correctly this is essential for maintaining the ecient operation of the dishwasher CLEANING THE SPRAY ARMS On occasions food residue may become encrusted onto the spray arms and block the holes used to spray the water It is therefore recommended that you check the arms from time to time and clean them with a small nonmetallic brush To remove the upper spray arm turn the plastic locking ring in an anticlockwise direction The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards The lower spray arm may be remo ved by pulling it upwards A A B C

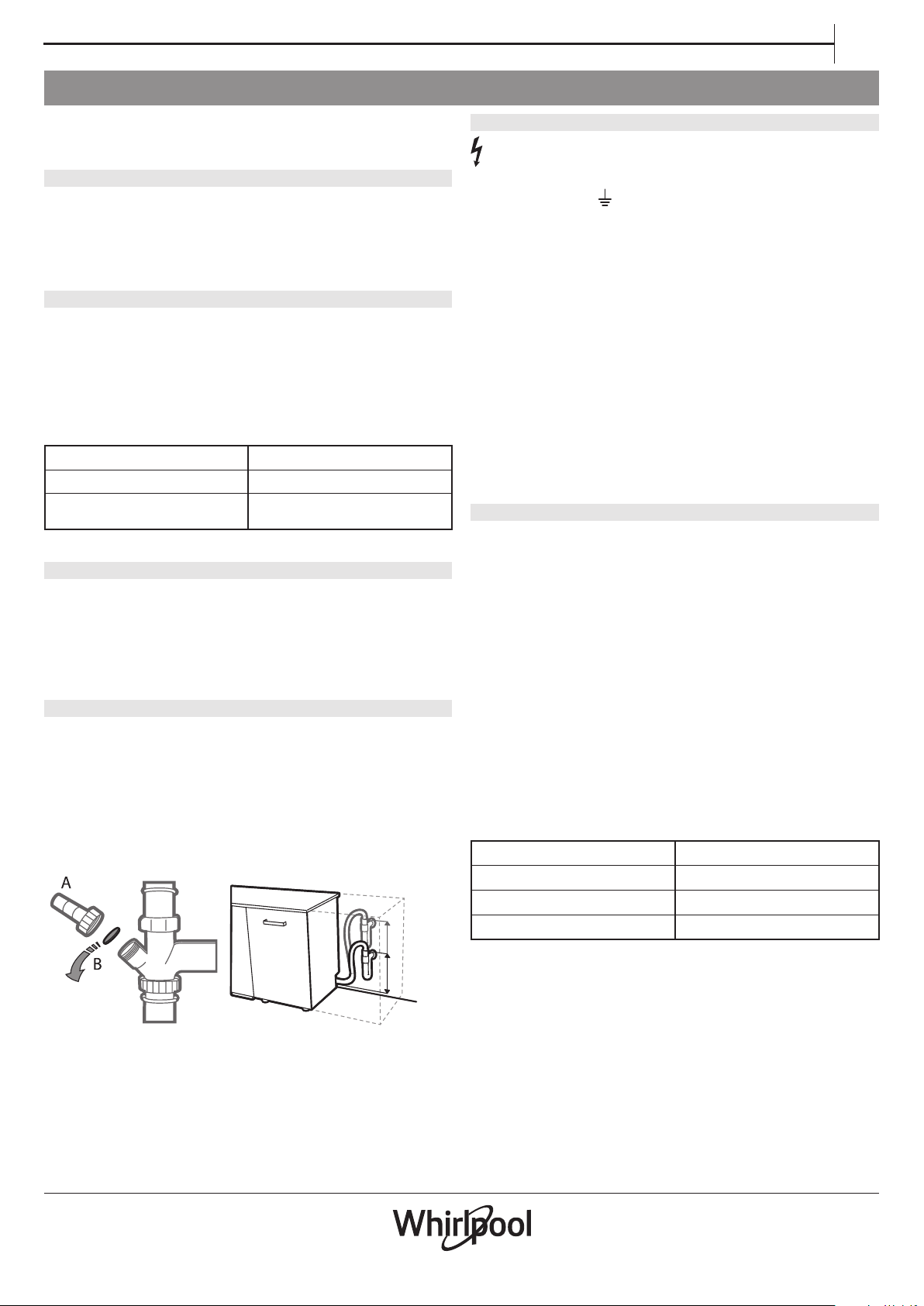

• Page 15 - English - : EN INSTALLATION ATTENTION If the appliance must be moved at any time keep it in an upright position if absolutely necessary it may be tilted onto its back CONNECTING THE WATER SUPPLY Adaptation of the water supply for installation should only be perfor med by a qualied technician The water inlet and outlet hoses may be positioned towards the right or the left in order to achieve the best possible installation Make sure the dishwasher does not bend or squash the hoses CONNECTING THE WATER INLET HOSE Run the water until it is perfectly clear Screw the inlet hose tightly into position and turn on the tap If the inlet hose is not long enough contact a specialist store or an authorised technician The water pressure must be within the values indicated in the Techni cal Data table otherwise the dishwasher may be function properly Make sure the hose is not bent or compressed SPECIFICATIONS FOR THE CONNECTION OF THE WATER SUPPLY HOSE CONNECTING THE WATER OUTLET HOSE Connect the outlet hose to a drain duct with a minimum diameter of 2 cm A The outlet hose connection must be at a height ranging from 40 to 80 cm from the oor or surface where the dishwasher rests Before connecting the water outlet hose to the sink drain remove the plastic plug B ANTIFLOODING PROTECTION Antiooding protection To ensure oods do not occur the dishwasher is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance Some models are also equipped with the supplementary safety device New Aqua Stop which guarantees antiooding protection even in the event of a supply hose rupture Under no circumstances should the water inlet hose be cut as it conta ins live electrical parts ELECTRICAL CONNECTION WARNING Under no circumstances should the water inlet hose be cut as it contains live electrical parts Before inserting the plug into the electrical socket make sure that The socket is earth and complies with current regulations The socket can withstand the maximum load of the appliance as shown on the data plate located on the inside of the door see PRODUCT DESCRIPTION The power supply voltage falls within the values indicated on the data plate on the inside of the door The socket is compatible with the plug of the appliance If this is not the case ask an authorised technician to replace the plug see AFTERSALES SERVICE Do not use extension cables or multiple sockets Once the appliance has been installed the power supply cable and the electrical socket should be easily accessible The cable should not be bent or compressed If the power supply cable is damaged have it replaced by the ma nufacturer or its authorised Technical Assistance Service in order to prevent all potential hazards The Company shall not be held responsible for any incidents if these regulations are not observed POSITIONING AND LEVELLING 1 Position the dishwasher on a level sturdy oor If the oor is uneven the front feet of the appliance may be adjusted until it reaches a horizontal position If the appliance is levelled correctly it will be more stable and much less likely to move or cause vibrations and noise while it is operating 2 Before recessing the dishwasher stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form 3 Place the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall This appliance can also be recessed under a single worktop 4 To adjust the height of the rear foot turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it DIMENSIONS AND CAPACITY MIN 40 cm MAX 80 cm WATER SUPPLY cold or hot max 60C WATER INTAKE 34 POWER OF WATER PRESSURE 005 1 MPa 05 10 bar 725 145 psi WIDTH 600 mm HEIGHT 850 mm DEPTH 590 mm CAPACITY 14 standard placesettings
• Page 16 - English - : EN Are there any dierences between using a smart phone or a tablet with Android or iOS You can use the operating system you prefer there are no dierences Which WiFi protocols are supported WiFi radio installed supports WiFi bgn for European countries Which Version of WPS is supported Appliance supports from WPS 20 or greater please check the router documentation What settingsconguration has to be set on router software Main router settings all requested 24 GHz enabled WiFi bgn DHCP and NAT activated Is there the possibility to use Tethering over a mobile 3G instead of a router Yes but cloud services are designed for continuous connected devices How can I verify that my home Internet connection works and that wireless functionality is on You can search for your network either with your tablet or with your smartphone Remember to disable any other data connections ie the one of your mobile phone before trying How can I nd out my wireless NETWORK name and password See Customer Router documentation Suggestions Sometime using httpIP number of the router the customer can access to the router setup from a connected device A router label usually reports login information to reach the device setup page using a connected device iPad or tablet What to do if the WiFi canal is used from the neighborhood The router decides the channel used for home WiFi see Router manual and force router to use the wished channel How do I verify that wireless functionali ty on the appliance is on Verify the status light is stable ON Using your smart device check out the Live app if the appliance network is visible and connected to the cloud How much is the distance from router to the appl one room two room Normally the coverage is for few rooms but WiFi signal is strongly dependent to wall materials If appliance wi is o customer can check connection strength with iPAD or other Wireless HAN devicesclose to appliance for example specic software tools downloadable from internet to check signal strength How can I change my whirlpool account preserving my connectivity appliances You can make a new account but remember to unclaim your appliances from the old account before to move them to new one Is there anything that can prevent the signal to reach the appliance Verify not having connected some devices using together all the internet bandwidth and make sure that all the internet home devices dont overcame the router max limit device connected What can I do if my wireless connections does not reach the appliance You can use specic devices to extend the home WIFi coverage as Access Point WiFi repeaters and Powerline bridge not provided with appliance I changed the router what do I have to do You can either maintain the same set up properties network name and password or erase the previous set up from the appliance reset process and carry out the setup again see LiveRe mote ControlSetup procedure What can I verify that my appliance is connected to home wireless network Enter in router conguration see router manual and check if the appliance MAC address is listed in wireless connected devices page Where do I nd the MAC address of the appliance On your Smart Appliance there is sticker label with SAID amp MAC addressThe MAC address is made by 6 combination of numbers and letters starting with 88 E7 What can I do if the Connection State indicator continues to blink slowly and never lits solid on or unable to make a stable provision to home router If the wi Connection State indicator doesnt lit up solidly the appliance has been successfully connected to the router but it is not able to connect the Internet In order to get the appliance connected to the Internet you have to check the router andor the bearer settings Correct ro uter settings NAT must be on Firewall and DHCP must be properly set Password cryptography supported WEP WPAWPA2 to try dierent cryptography please refer to router manual Bearer settings if Your Internet service provider has established the numbers of MAC address able to connect to the Internet you may not be able to connect appliance to the cloud The MAC address is the unique identier of device eg the one of your computer Please ask your Internet service provider about the procedures to connect a new device other then a com puter eg a dryer washer to the Internet How to set up the wireless connection on your appliance See detailed literature and application wizard on your Smartphone iPad there are alternative approachs on each appliance How to check if data is being transmitted After network setup power o wait 20 sec and power on the appliance verify that the App shows the UI status of the appliance Set a cycle or another option and verify on the App the status NOTE some settings take several seconds before it is delivered to the App TROUBLESHOOTING CONNECTIVITY
• Page 17 - English - : EN TROUBLESHOOTING Your dishwasher may not work properly Before contacting the Aftersales Service check if the problem can be solved by going through the following list PROBLEMS POSSIBLE CAUSES SOLUTIONS Display shows CHECK SALT or ADD SALT Salt reservoir is empty Rell reservoir with salt see page 4 Adjust water hardness see page 4 Display shows CHECK RINSE AID or ADD RINSE AID Rinse aid dispenser is empty Rell dispenser with rinse aid see page 4 is not working will not start The appliance must be switched on Check the household circuit fuse if there is no power supply The appliance door doesnt close Check if the appliance door is closed Start Delay option is ON Check whether the Start Delay option has been selected If it has the appliance will start once the set time has elapsed If necessary Reset the current cycle by switching OFF the dishwasher then switch it on again select a new cycle press START and close the door Display shows F6 symbol on the display indicators Water pressure is too low The water tap must be fully open during water inlet minimum capaci ty 05 litres per minute Kinked water inlet hose or cloged inlet lters The water inlet hose must not be kinked and the inlet lter in the water tap connector must not be dirty or clogged Display shows F3 Dirty lters Clean the lters Kinked drain hose The drain hose must not be kinked Syphon hose connection closed The closure disk of the syphon hose connection must be removed Display shows F2 Dirty lters or spray arms Clean lters and spray arms Too little water in the appliance system Concave items eg bowls cups must be arranged facing downwards in the rack Drain hose incorrectly tted The drain hose must be tted correctly for high mounted appliances leave min 200 400mm from the lower edge of the appliance see Installation High level of foam inside Repeat without detergent or wait until foam disappears Water pressure is too low The water tap must be fully open during water inlet minimum capaci ty 05 litres per minute Kinked water inlet hose or cloged inlet lters The water inlet hose must not be kinked and the inlet lter in the water tap connector must not be dirty or clogged Display shows PRESS START AND CLOSE THE DOOR Door is not closed within 4 seconds of button press Press again and close the appliance door within 4 seconds Display shows OPEN AND CLOSE THE DOOR The door was not open between cycles Unload appliance if not unloaded before open and close the door Display shows Fx Appliance has technical defect Call customer service state fault displayed Close the water tap
• Page 18 - English - : EN PROBLEMS POSSIBLE CAUSES SOLUTIONS The door doesnt lock Racks are not t to the end Verify that racks are t to the end The door is not lock Vigorously push the door until you hear the clack sound The dishwasher makes excessive noise The dishes are rattling against each Arrange the crockery correctly see Loading the Racks An excessive amount of foam has been produced The detergent has not been measured out correctly or it is not suitable for use in dishwashers see Filling the Detergent Dispenser Reset the current cycle by switching OFF the dishwasher then switch it on again select a new program press START and close the door Please do not add any detergent The dishes have not been dried The selected program hasnt any drying phase Verify on the programs table if the selected program has the drying phase The rinse aid has run out or the resolution is not adequate Add the rinse aid or adjust the dosage levels higher see Filling the Rinse Aid Dispenser The dishes are made of nonstick or plastic It is normal the presence of drops of water see Tips The dishes are not clean The crockery has not been arranged properly Arrange the crockery correctly see Loading the Racks The spray arms cannot rotate freely being hindered by the dishes Arrange the crockery correctly see Loading the Racks The wash cycle is too gentle andor deter gent eciency is low Select an appropriate wash cycle see Programs Table An excessive amount of foam has been produced see AFTERSALES SERVICE The detergent has not been measured out correctly or it is not suitable for use in dishwashers see Filling the Detergent Dispenser Reset the current cycle by switching OFF the dishwasher then switch it on again select a new program press START and close the door Please do not add any detergent The cap on the rinse aid compartment has not been shut correctly Make sure the cap of the rinse aid dispenser is closed The lter is soiled or clogged Clean the lter assembly see Care and Maintenance There is no salt Fill the salt reservoir see Filling the Salt Reservoir The dishes and glas ses show calcination or a whitish lm The salt level is too low Fill the salt reservoir see Filling the Salt Reservoir The adjustment of the water hardness is not adequate Increase the values see Water Hardness Table The cap of the salt reservoir is not proper ly closed Check to have properly closed the salt reservoir cap The rinse aid is used up or the dosage is insucient Add the rinse aid or adjust the dosage levels higher The dishes and glasses are blue streaked or have a bluish tinge The rinse aid dosage is excessive Adjust the dosage rates below PRODUCT FISCHE The technical data containing the energy consumption data can be downloaded from the website docs whirlpooleu IEC 436 CONTACTING AFTERSALES SERVICE You can nd our contact details in the war ranty manual When contacting our Client Aftersales Service please state the codes provided on your products rating plate
