P/No. MFL37933559
Please read this guide
thoroughly before
operating and keep it handy
for reference at all times.
Lea detenidamente estas
instrucciones antes utilizar
el frigorífico y guárdelas como
referencia para el futuro.
Veuillez lire ce guide attentivement
avant la mise en service de l’appareil
et gardez-le à portée de main
pour le consulter en cas de besoin.
LFC21770**, LFC25770**
To contact LG Electronics, 24 hours a day,
7 days a week:
1-800-243-0000
Or visit us on the Web at: us.lge.com
Para comunicarse con LG Electronics,
24 horas al día, 7 días a la semana:
1-800-243-0000
O visítenos en la Web en: us.lge.com
Pour contacter LG Electronics, 24 heures par
jour, 7 jours par semaine:
1-800-243-0000
Ou visitez notre site Web à l’adresse: us.lge.com
2
IMPORTANT SAFETY INFORMATION
Basic Safety Precautions ........................................5
CFC Disposal ..........................................................5
Grounding Requirements ........................................6
PARTS AND FEATURES
Parts And Features ...............................................11
REFRIGERATOR INSTALLATION
Unpacking Your Refrigerator ................................12
Installation ............................................................12
Base Cover ..........................................................12
Removing And Replacing
Your Refrigerator Handles And Doors .................13
Leveling And Door Alignment ...............................19
USING YOUR REFRIGERATOR
Ensuring Proper Air Circulation ............................20
Multi-Flow .............................................................20
Setting The Controls ............................................20
Adjusting Control Settings ....................................21
Food Storage Guide .............................................21
Storing Frozen Food ............................................22
Refrigerator Shelves ............................................23
Crisper Humidity Control ......................................24
Removing Crisper ................................................24
Glide‘N’Serve .......................................................24
Modular Door Bin .................................................25
Dairy Bin ...............................................................25
Ice Bin ..................................................................25
Tilt-Out Door Basket .............................................26
Durabase ..............................................................26
Durabase Divider .................................................26
Pull out Drawer .....................................................26
CARE AND CLEANING
General Cleaning Tips .........................................27
Outside .................................................................27
Inside Walls ..........................................................27
Door Liner And Gaskets .......................................27
Plastic Parts .........................................................27
Condenser Coils ...................................................27
Light Bulb Replacement .......................................27
Power Interruptions ..............................................28
When You Go On Vacation ..................................28
When You Move ...................................................28
TROUBLESHOOTING
Understanding sounds you may hear
……………………37
WARRANTY
Product Registration Information ............................3
THANK YOU!
Congratulations on your purchase
and welcome to the LG family.
Your new LG Bottom-Freezer
Refrigerator combines the most
advanced cooling technology
with simple operation and high
efficiency. By following the
operating and care instructions in
this manual, your refrigerator will
provide you with many years of
reliable service.
3
LG ELECTRONICS U.S.A., INC.
LG REFRIGERATOR LIMITED WARRANTY - U.S.A.
Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during the warranty period
set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the
product and applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is
required to obtain warranty service under this limited warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is
greater.
Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED
WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER
THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT,
SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR
ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or
limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation
may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product; instruct the
customer on operation of the product; repair or replace fuses or correct
wiring or plumbing, or correction of unauthorized repairs/installation.
2. Failure of product to perform during power failures and interruptions or
inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes,
restricted drain lines, inadequate or interrupted water supply or
inadequate supply of air.
4. Damage resulting from operating the product in a corrosive atmosphere
or contrary to the instructions outlined in the product owner’s manual.
5. Damage to the product caused by accidents, pests and vermin,
lightning, wind, fire, floods, or acts of God.
6. Damage resulting from misuse, abuse, improper installation, repair, or
maintenance. Improper repair includes use of parts not approved or
specified by LG.
7. Damage or failure caused by unauthorized modification or alteration, or
if it is used for other than the intended purpose, or any water leakage
where the unit was not properly installed.
8. Damage or failure caused by incorrect electrical current, voltage, or
plumbing codes, commercial or industrial use, or use of accessories,
components, or consumable cleaning products that are not approved
by LG.
9. Damage caused by transportation and handling, including scratches,
dents, chips, and/or other damage to the finish of your product, unless
such damage results from defects in materials or workmanship and is
reported within one (1) week of delivery (Call: 1-800-243-0000).
10. Damage or missing items to any display, open box, discounted, or
refurbished product.
11. Products with original serial numbers that have been removed, altered,
or can not be readily determined. Model and Serial numbers, along with
original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your product is used in other than normal and usual
household use (e.g. commercial use, offices, and recreational facilities)
or contrary to the instructions outlined in the product owner’s manual.
15. Costs associated with removal of your product from your home for
repairs.
16. The removal and reinstallation of the product if it is installed in an
inaccessible location or is not installed in accordance with published
installation instructions, including LG’s owner’s and installation manuals.
17. Shelves, door bins, drawers, handles, accessories, and other parts
besidesÄthose that were originally included with this particular model.
Refrigerator Sealed System (Compressor, Condenser, Dryer, Connecting Tube and Evaporator)
One (1) year from the date of original
retail purchase
Parts and Labor
(internal/functional parts only)
One (1) year from the date of original
retail purchase
Parts and Labor
Seven (7) years from the date of original
retail purchase
Parts only
(Consumer will be charged for labor)
WARRANTY PERIOD
For complete warranty details and customer assistance,
please call or visit our website:
Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate
option from the menu, or visit our website at http://us.lgservice.com
Or by mail: LG Customer Information Center:
P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813
ATTN: CIC
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
4
LG ELECTRONICS CANADA, INC.
LG REFRIGERATOR LIMITED WARRANTY - Canada
WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during the
warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase.
This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or
an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG
CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE
ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE
PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY
PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,
SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER
DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR
FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary
from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty
under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty’s terms.
All costs associated with the above excluded circumstances shall be borne by the consumer.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on
operation of the product; repair or replacement of fuses or correction of wiring or
plumbing, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or
inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted
drain lines, inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or
contrary to the instructions outlined in the Product owner’s manual.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind,
fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or
maintenance of the Product. Improper repair includes use of parts not approved
or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or
use for other than its intended purpose, or resulting from any water leakage due
to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, or
plumbing codes, commercial or industrial use, or use of accessories,
components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents,
chips, and/or other damage to the finish of your product, unless such damage
results from defects in materials or workmanship and is reported within one (1)
week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished
Product.
11. Products with original serial numbers that have been removed, altered, or
cannot be readily determined. Model and Serial numbers, along with original
retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household
use (including, without limitation, commercial use, in offices or recreational
facilities) or contrary to the instructions outlined in the Product owner’s manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible
location or is not installed in accordance with published installation instructions,
including the Product owner’s and installation manuals.
17. Shelves, door bins, drawers, handles, and accessories to the Product. Also
excluded are parts besides those that were originally included with the Product.
Refrigerator/Freezer Sealed System (Compressor, Condenser, Dryer, Connecting Tube and Evaporator)
One (1) year from the date of original
retail purchase
Parts and Labor
(internal/functional parts only)
One (1) year from the date of original
retail purchase
Parts and Labor
Seven (7) years from the date of original
retail purchase
Parts only
(Consumer will be charged for labor)
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
For complete warranty details and
customer assistance, please call or visit
our website: Call 1-888-542-2623 (24 hours
a day, 365 days a year) and select the
appropriate option from the menu, or visit our
website at http://www.lg.ca
Write your warranty information below:
Product Registration Information:
Model: Serial Number:
Date of Purchase:
IMPORTANT SAFETY INSTRUCTIONS
5
This guide contains many important safety messages. Always read and obey all safety messages.
BASIC SAFETY PRECAUTIONS
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, CAUTION. These words mean:
You will be killed or seriously injured if you don’t follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
DANGER
WARNING
CAUTION
DANGER: RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of the
past. Junked or abandoned refrigerators are still
dangerous…even if they will sit for just a few days. If you
are getting rid of your old refrigerator, please follow the
instructions at right to help prevent accidents.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
Your old refrigerator may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric ozone.
If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
CFC DISPOSAL

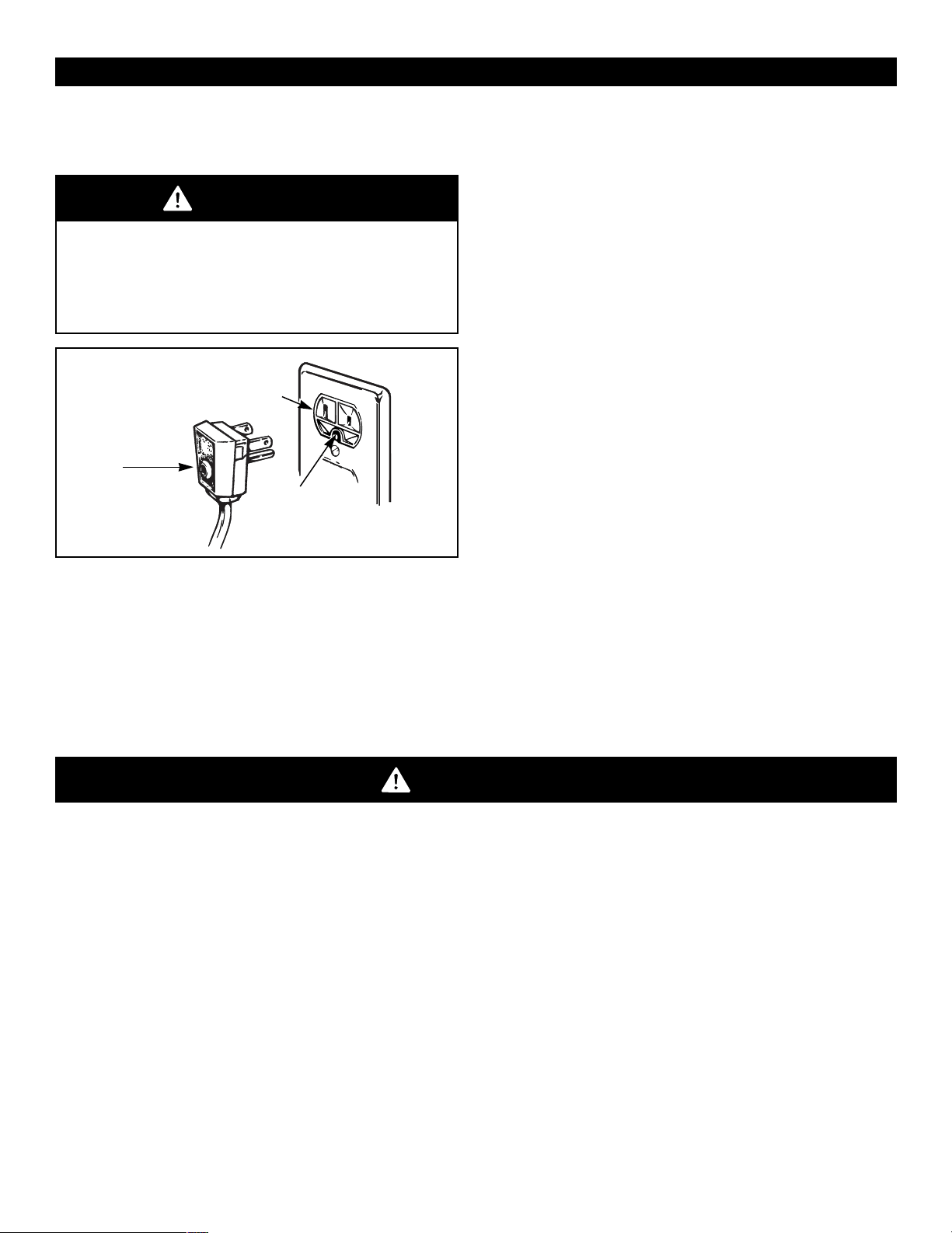

GROUNDING REQUIREMENTS
6
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the
refrigerator from the electrical source. When you are
finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator Control or
Freezer Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it be a
UL-listed (USA), 3-wire grounding type appliance
extension cord having a grounding type plug and outlet,
and that the electrical rating of the cord be 15 amperes
(minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the
outlet is properly grounded.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Ensure proper
ground exists
before use.
SAVE THESE INSTRUCTIONS
WARNING
• Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its length
or at either the plug or connector end.
• When moving your refrigerator away from the wall, be
careful not to roll over or damage the power cord.
• Keep fingers out of pinch point areas; clearances between
the doors and cabinet are necessarily small. Be careful
closing doors when children are in the area.
• This refrigerator must be properly installed in accordance
with the Attention Installer Instructions that were taped to
the front of the refrigerator.
• Don’t touch the lamp, in case of light on the long time,
Because it can be very hot.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of Agriculture in
Home and Garden Bulletin No. 69 says:
…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold—below
40°F (4°C).
…Thawed ground meats, poultry or fish that have any off-
odor or off-color should not be refrozen and should not be
eaten. Thawed ice cream should be discarded. If the odor
or color of any food is poor or questionable, get rid of it.
The food may be dangerous to eat.
Even partial thawing and refreezing reduces the eating
quality of foods, particularly fruits, vegetables and prepared
foods. The eating quality of red meats is affected less than
that of many other foods. Use refrozen foods as soon as
possible to save as much of their quality as you can.
WARNING
7
1. When connecting the power
The dedicated outlet should be used.
• Using several devices at one outlet may cause fire.
• The electric leakage breaker
may damage food and the
dispenser may be leaked.
Do not extend or modify the length
of the power plug.
It causes electric shock or fire by the
electric damage of the power cord or
others.
Do not pull out the cord or touch
the power plug with wet hands.
It may cause electric shock or injury.
Unplug the power cord from the power outlet for
cleaning or other requirements.
It may cause electric shock or injury.
Do not allow the power plug to face upward or to be
squeezed at the back of the
refrigerator.
Water may be flown into or the plug
may be damaged, which causes fire
or electric shock.
Unplug the power plug when cleaning, handling or
replacing the interior lamp of the refrigerator.
• It may cause electric shock or injury.
• When replacing the interior lamp of
the refrigerator, make sure that the
rubber ring for preventing the
electric spark within the socket is
not taken off.
Remove water or dust from the power plug and insert
it with the ends of the pins
securely connected.
Dust, water or unstable
connection may fire or electric
shock.
Pull out the power plug not by grasping
the cord but the plug of its end.
It may cause electric shock or short circuit
to fire.
To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety
precautions should be followed, including the following. Read all instructions before using this appliance.
Prevent the power cord from being squeezed or
imprinted if the refrigerator is pushed in after the
power plug is extracted during the installation.
When moving your appliance away from the wall, be
careful not to roll over the power cord or to damage it
in any way. Do not crush or damage the water line.
It becomes the cause of fire or electric shock.
Do not allow the power cord bent or pressed by the
heavy object to be damaged.
It may damage the power cord to
cause fire or electric shock.
Make sure of grounding.
Consult a qualified electrician or service person if the
grounding instructions are not
completely understood, or if
you have doubts on whether
the appliance is properly
grounded.
The incorrect grounding may
cause breakdown and electric
shock.
Be sure to use grounded exclusive proper voltage
consent for the power plug.
Be sure to use grounded extension consents when
extension consents are used.
It becomes the cause of fire.
Grounding
Conductor
Copper
flat
More than
75cm
IMPORTANT SAFETY INSTRUCTIONS
8
2. When using the refrigerator
Do not use the combustible spray
near the refrigerator.
It may cause fire.
Install in places away from the
fire such as the place where
flammable gas is leaked.
It may cause fire.
When the power cord or the power
plug is damaged or the holes of the
outlet are loosed, do not use them.
It may cause electric shock or short
circuit to make fire.
Do not place the heavy object or
the dangerous object (container
with liquid) on the refrigerator.
It may be dropped to cause injury, fire
or electric shock when opening or
closing the door.
Do not cling to the door or the shelves of the door or
the home bar of the freezer or the
cool chamber.
It may make the refrigerator fallen
down or damage the hands.
Especially, do not allow the children
to do the above.
Opening and closing the door of the refrigerator
vigorously may cause the stored food in the
refrigerator basket to fall by shock and hurt the foot,
so take precautions.
Wait for 5 minutes or longer when
reconnecting the plug.
It may cause the operation of the freezer
to fail.
Do not install the refrigerator in
the wet place or the place which
water or rain splashes.
Deterioration of insulation of electric
parts may cause electric leakage.
Prevent children from entering the
product.
It may endanger the life of a child if
the child enters the refrigerator.
Do not use or store inflammable materials ether,
benzene, alcohol, medicine,
LP gas, spray or cosmetics
near or in the refrigerator.
It may cause explosion or fire.
Do not use drier to dry the inside,
nor light a candle to remove odor.
It may cause explosion or fire.
Benzene
Ether
Thinner
Do not store the medicine or the academic materials
at the refrigerator.
When the material with the strict
temperature control is stored, it
may be deteriorated or it may make
an unexpected reaction to cause
any risk.
The Academic
Medicine
The Medicine
After
5minutes
IMPORTANT SAFETY INSTRUCTIONS
9
Do not place flower vase, cup,
cosmetics, medicine or any container
with water on the refrigerator.
It may cause fire, electric shock or injury
by dropping down.
Use the submerged refrigerator
after checking it.
It may cause electric shock or fire.
When any strange smell or
smoke is detected from the
refrigerator, disconnect the
power plug immediately and
contact to the service center.
It may cause fire.
In case of thunder and lightning, or
not in use for a long period of time,
detach the power plug.
There is a danger of electric shock or fire.
Do not spray water at the outside or
the inside of the refrigerator or do
not clean it with benzene or thinner.
Deterioration of insulation of electric
parts may cause electric shock or fire.
Do not allow any person
except the qualified engineer
to disassemble, repair or
alter the refrigerator.
It may cause injury, electric
shock or fire.
Service
center
ThinnerThinner
Do not use the refrigerator for non-domestic purpose
(storing medicine or testing
material, using at the ship, etc.).
It may cause an unexpected risk such
as fire, electric shock, deterioration of
stored material or chemical reaction.
When disposing the refrigerator,
remove the packing materials
from the door or take off the
doors but leave the shelves in
place so that children may not
easily climb inside.
It may cause to lock out the child.
Install the refrigerator on the solid
and level floor.
Installing it on the unstable place may
cause death by falling down the
refrigerator when opening or closing
the door.
Do not insert the hands or the metal stick into the exit
of cool air, the cover, the
bottom of the refrigerator,
the heatproof grill (exhaust
hole) at the backside.
It may cause electric shock or
injury.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
CAUTION
10
Do not place the food in disorder inside the
refrigerator.
The food may fall during opening and closing the door of
the refrigerator and hurt people.
Do not insert the hands into the
bottom of the refrigerator.
The iron plate of the bottom may
cause injury.
Do not put bottle in the freezer.
It may freeze the contents to break the
bottle to cause injury.
Carry the refrigerator with the handle bar at the
bottom of the front and the top
of the rear.
Otherwise, your hands may be
slipped to cause injury.
Because the product is heavy,
carrying it alone may hurt people
or accidents may occur.
Because opening or closing the door of the
refrigerator may cause injury to the person around it,
be careful, please.
Opening or closing the door may
cause feet or hands to be caught
in the chink in door or the child to
be get hurt by the corner.
Do not put any living animal in
the refrigerator.
Violating this direction may cause injury or damage house or furniture. Always be careful, please.
Do not insert the hands into the ice
bucket or the ice dispenser.
Operating the ice maker may cause
injury.
Do not touch food or containers
at the freezer with wet hands.
It may cause frostbite.
Do not put ice in thin crystal cup
or ceramic ware.
It may break cup or ceramic ware to
cause injury.
Supply the automatic ice maker
with drinkable water only (only
for the model with the
dispenser).
Otherwise, it may cause any risk.
Drinkable
water

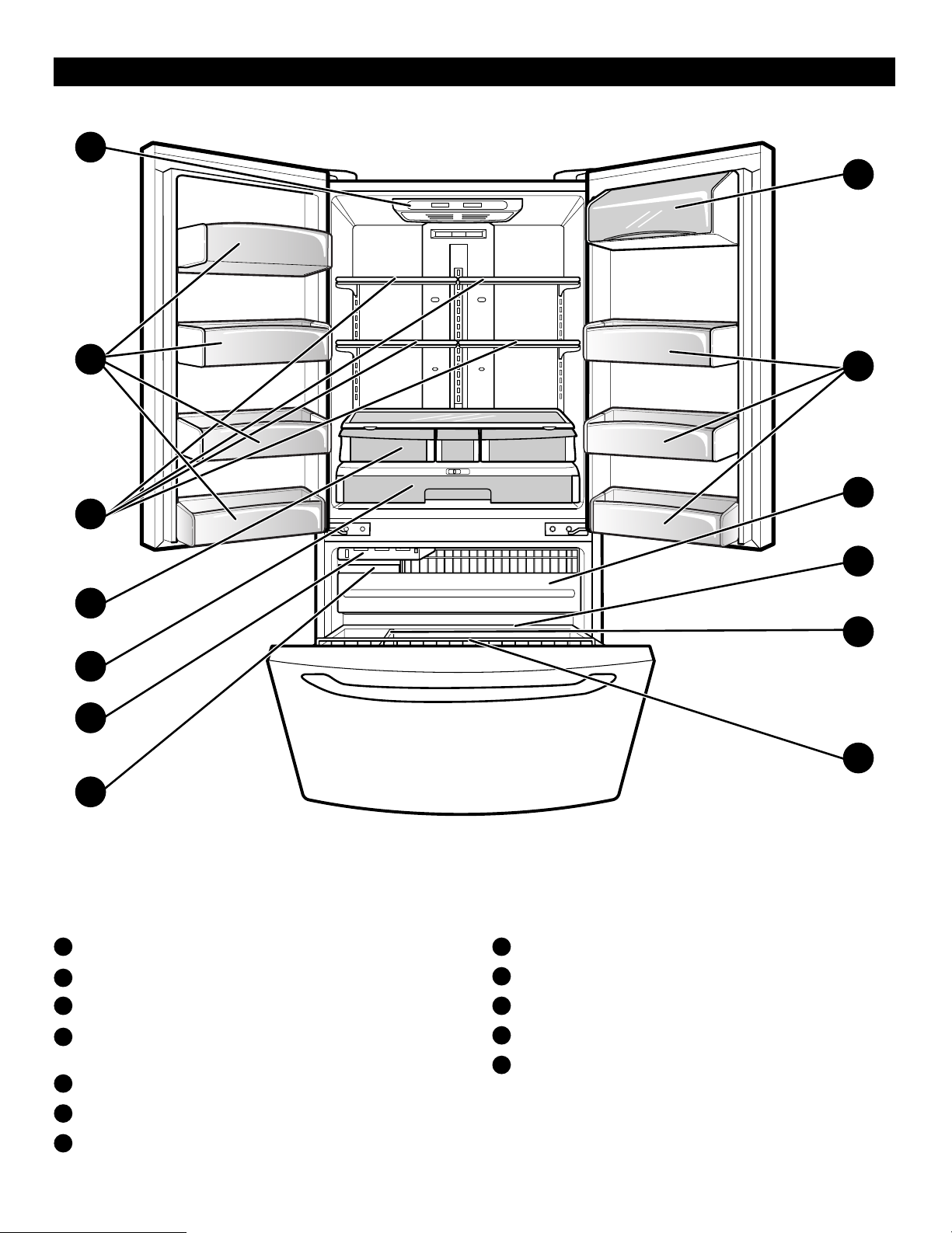

PARTS AND FEATURES
11
Digital Sensor Control
Modular Door Bins (p. 25)
Shelves (p. 23)
Crisper (p. 24)
(Keeps fruits and vegetable fresh and crisper)
Glide’N’Serve (p. 24)
Automatic Icemaker (p. 29)
Ice Bin (p. 25)
A
B
C
D
E
F
G
L
B
H
I
K
J
Use this page to become more familiar with the parts and features. Page references are included for your convenience.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of
the items listed below. The locations of the features shown below may not match your model.
A
B
C
D
E
F
G
Pull out Drawer (p. 26)
Durabase (p. 26)
Divider (p. 26)
Tilt-Out Door Basket (Tilting-LFC 25770
**
only) (p. 26)
Dairy Bin (p. 25)
H
I
J
K
L
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-type
labels, the model and serial number label, or the
TechSheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
• To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
• Select a place where a water supply can be easily
connected for the automatic icemaker.
ww
CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
INSTALLATION
• To minimize noise and vibration, the refrigerator MUST
be installed on a solidly constructed floor.
• Carpeting and soft tile surfaces are not recommended.
• Never install the refrigerator on a platform or weakly
supported structure.
1. To avoid vibration, the unit must be leveled. If required,
adjust the leveling legs to compensate for unevenness of
the floor. The front should be slightly higher than the rear
to aid in door closing. Leveling legs can be turned easily
by tipping the cabinet slightly. Turn the leveling legs
clockwise ( ) to raise the unit, counterclockwise ( )
to lower it.
2. Install this appliance in an area where the temperature is
between 55°F (13°C) and 110°F (43°C.) If the temperature
around the appliance is too low or high, cooling ability may
be adversely affected.
3. Too small a distance from adjacent items may result in
lowered freezing capability and increased electricity
consumption charges. Allow at least 24 in. (61 cm) in front
of the refrigerator to open the doors.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers, shelves,
etc., in their proper places. They are packed together to
prevent possible damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours before
putting food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator is
now ready for use.
BASE COVER
To remove the base cover
1. Open the Freezer Drawer. (Drawer not shown for clarity.)
2. Once drawer is open there is sufficient clearance to
remove screws on top of cover.
To replace base cover:
• Place cover into position
and insert and tighten screws.
REFRIGERATOR INSTALLATION
12
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
WARNING
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out
when moving it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage could occur.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
1" (2.54 cm)
REFRIGERATOR INSTALLATION
13
HOW TO REMOVE DOOR HANDLES
To move refrigerator through a house door, it maybe necessary to remove refrigerator and freezer door handles.
NOTE: Handle appearance may vary from
illustrations on this page.
1. Removing Refrigerator Handle
• Loosen the set screws with the 3/32” Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4”
Allen wrench.
2. Removing Freezer Drawer Handle
• Loosen the set screws located on the lower
side of the handle with the 1/8” Allen wrench
and remove the handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a 1/4”
Allen wrench.
Set Screw
Allen Wrench
Mounting
Fasteners
REFRIGERATOR INSTALLATION
14
HOW TO REPLACE DOOR HANDLES
NOTE: Handle appearance may vary from illustrations on this page.
1. Replacing Refrigerator Door Handle
• Place the handle on the door by adjusting handle
footprints to fit mounting fastners and tighten the set
screws with the 3/32” Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed use a 1/4” Allen wrench.
2. Replacing Freezer Drawer Handle
• Place the handle on the door by adjusting handle
footprints to fit mounting fastners and tighten the set
screws on the bottom of the handle with a 1/8” Allen
wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed use a 1/4” Allen wrench.
Mounting
Fasteners
REFRIGERATOR INSTALLATION
15
HOW TO REMOVE REFRIGERATOR DOOR
1. Removing Refrigerator Door
NOTE: Handle appearance may vary.
IMPORTANT: Before you begin, turn the refrigerator OFF and unplug it. Remove food and any bins from doors.
❿ Left Door
• Loosen the cover screw (1).
• Disconnect wire harness (2).
• Remove the ground screw (3).
• Rotate the lever hinge (4) counter clockwise and lift off the top hinge (5).
• Raising it up enough to clear the middle hinge pins.
• Place the door on a non-scratching surface with the inside up.
❿ Right Door
• Remove the right door followed by the same way described above.
• Rotate the lever hinge (4) clockwise at this time, removing the top hinge (5).
: When removing top hinge, be careful that the door does not fall forward.
1
1
2
2
3
3
4
5
5
4
CAUTION
REFRIGERATOR INSTALLATION
16
2. Replacing Refrigerator Door
❿ Right Door
• Lower the door onto the middle hinge pin (6).
• Make sure the door is aligned with the
cabinet.
• Replace the top hinge (5) by rotating the lever
hinge (4) counter clockwise to secure it.
• Make sure the gasket on the door is flush
against the cabinet and is not folded.
• Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even
across the front.
• Install the ground screw (3) and connect the
wire harness (2).
• Tighten the cover screw (1).
❿ Left Door
• Replace the left door followed by the same
way described above.
• When replacing the top hinge (5), rotate the
lever hinge (4) clockwise at this time.
: Be careful of missing the
washer [part(7)]. Because it can be easily
taken off.
6
6
7
7
CAUTION
1
2
REFRIGERATOR INSTALLATION
17

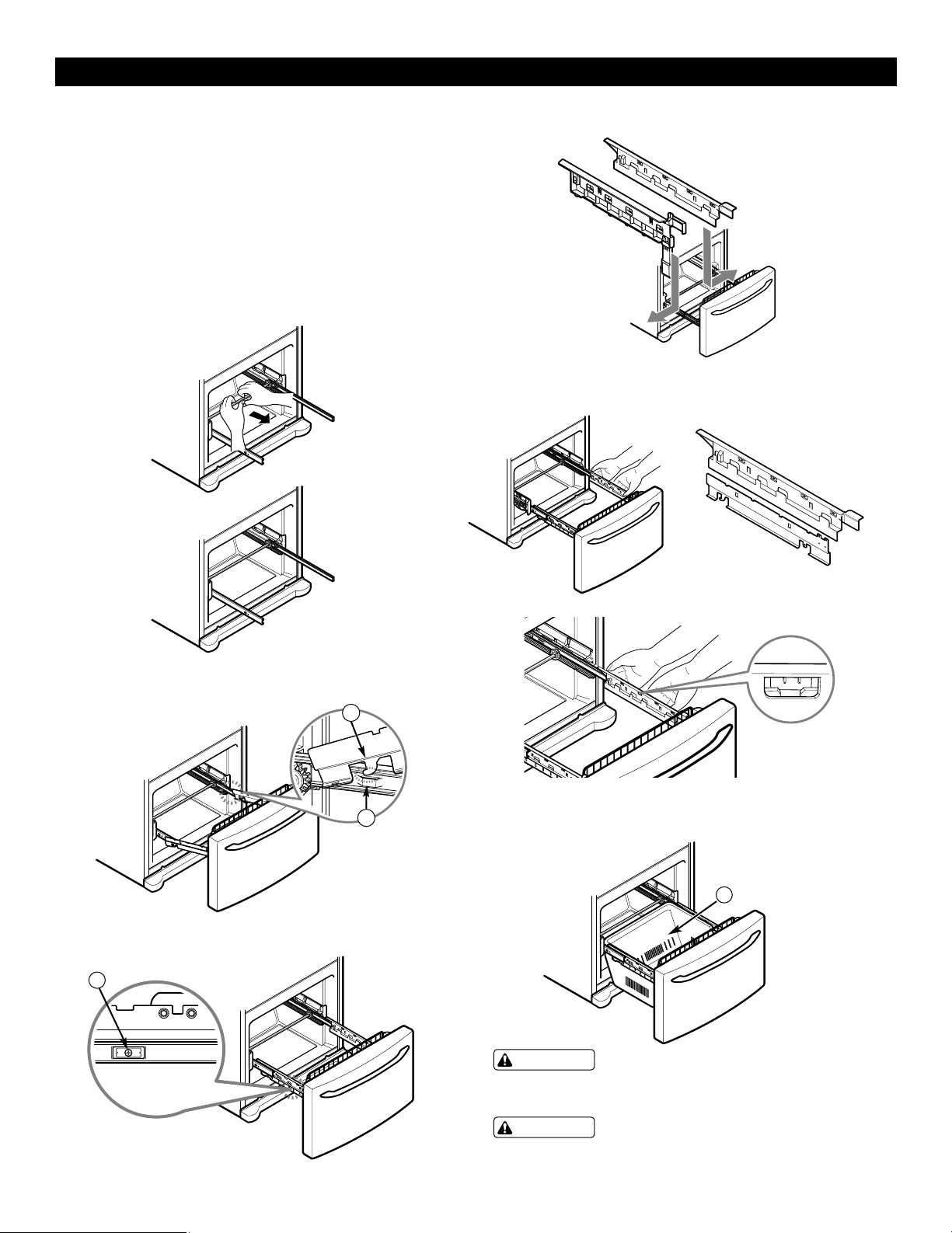

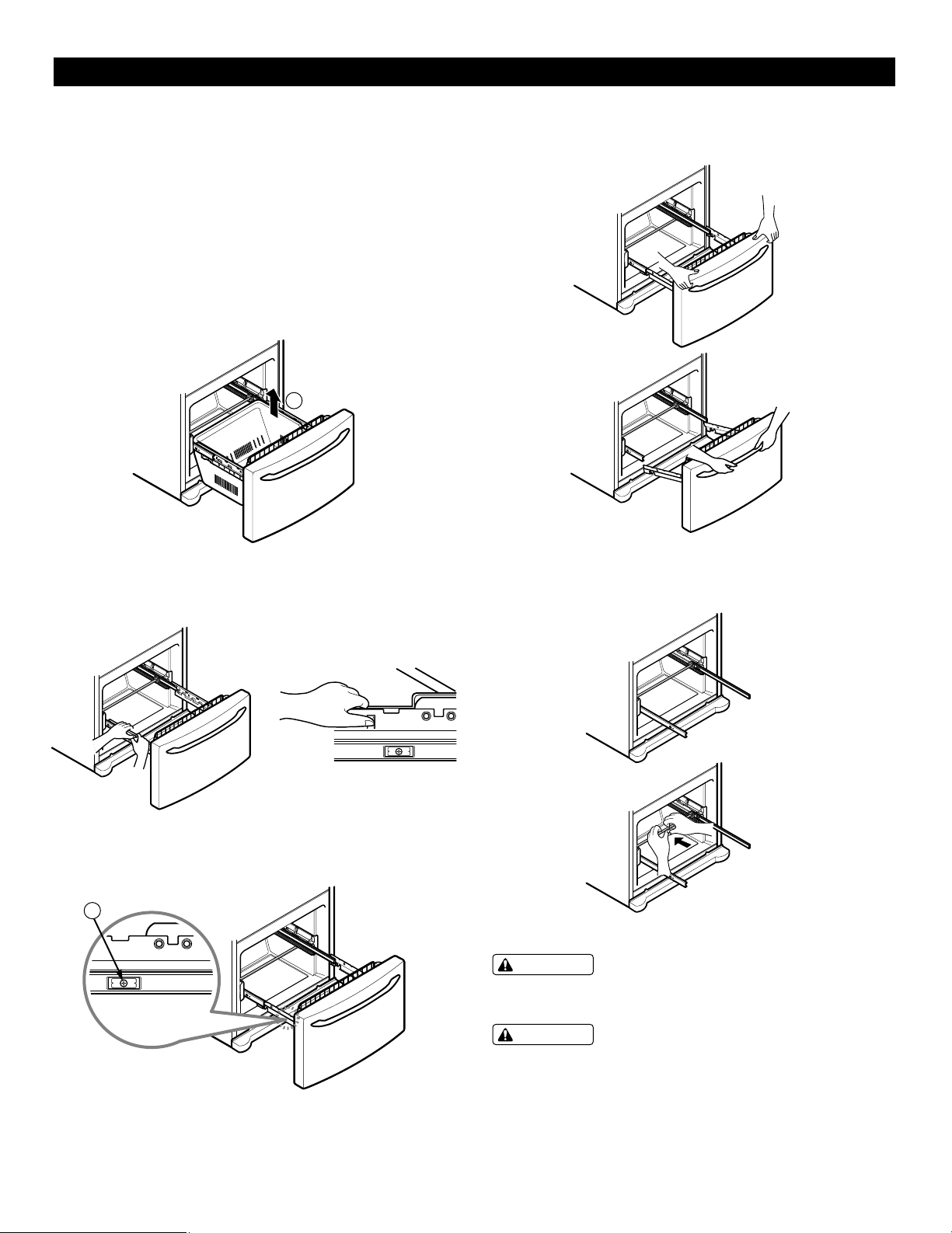

HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury or product or
property damage, you will need two people to perform the
following instructions.
1. Removing Pullout Drawer
• Pull the drawer open to full extension. Remove the
lower basket (1) by lifting basket from rail system.
(If you tilt the door, it will be easier.)
• Press both hangers with your thumbs to lift it up.
• Separate the left and right rail cover.
• Remove the screws(2) of the rail on both sides.
• With both hands, hold both sides of the door and pull it
up to separate it from the rails.
• With both hands, hold the center bar and push it in to let
both rails fitted simultaneously.
: When you remove the drawer, do not
hold the handle. If it may come off and it could cause
personal injury.
: When laying the drawer down, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.
CAUTION
CAUTION
3
2
1
4
REFRIGERATOR INSTALLATION
18
HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury or product or
property damage, you will need two people to perform the
following instructions.
2. Installing Pullout Drawer
• With both hands, hold the center bar and push it out to
let both rails out to full extension simultaneously.
• Hook door supports (1) into rail tabs (2).
• Lower door into final position and tighten the screws (3).
• Make sure you have a right rail cover for each side.
• Align the top holes of the rail cover with the top holes of
the door supports to assemble the rail covers.
• With the drawer pulled out to full extension, insert the
lower basket (4) in the rail assembly.
: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
: DO NOT step or sit down on freezer
door.
Right
Rail Cover
Assembly Hole
Left
Rail Cover
WARNING
WARNING
REFRIGERATOR INSTALLATION
19
LEVELING AND DOOR ALIGNMENT
Leveling
After installing, secure the product with the LEG not to
move left or right.
Your refrigerator has two front leveling legs—one on the
right and one on the left. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator’s tilt using the instructions below:
1. Plug the refrigerator’s power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position.
2. Turn the leveling leg clockwise to raise that side of the
refrigerator or counterclockwise to lower it. It may take
several turns of the leveling leg to adjust the tilt of the
refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling legs.
This makes it easier to adjust the legs.
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling legs clockwise. It
may take several more turns, and you should turn both
leveling legs the same amount.
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have to
exert slight pressure on doors to get them to close
completely.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as
shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with unit.)
USING YOUR REFRIGERATOR
20

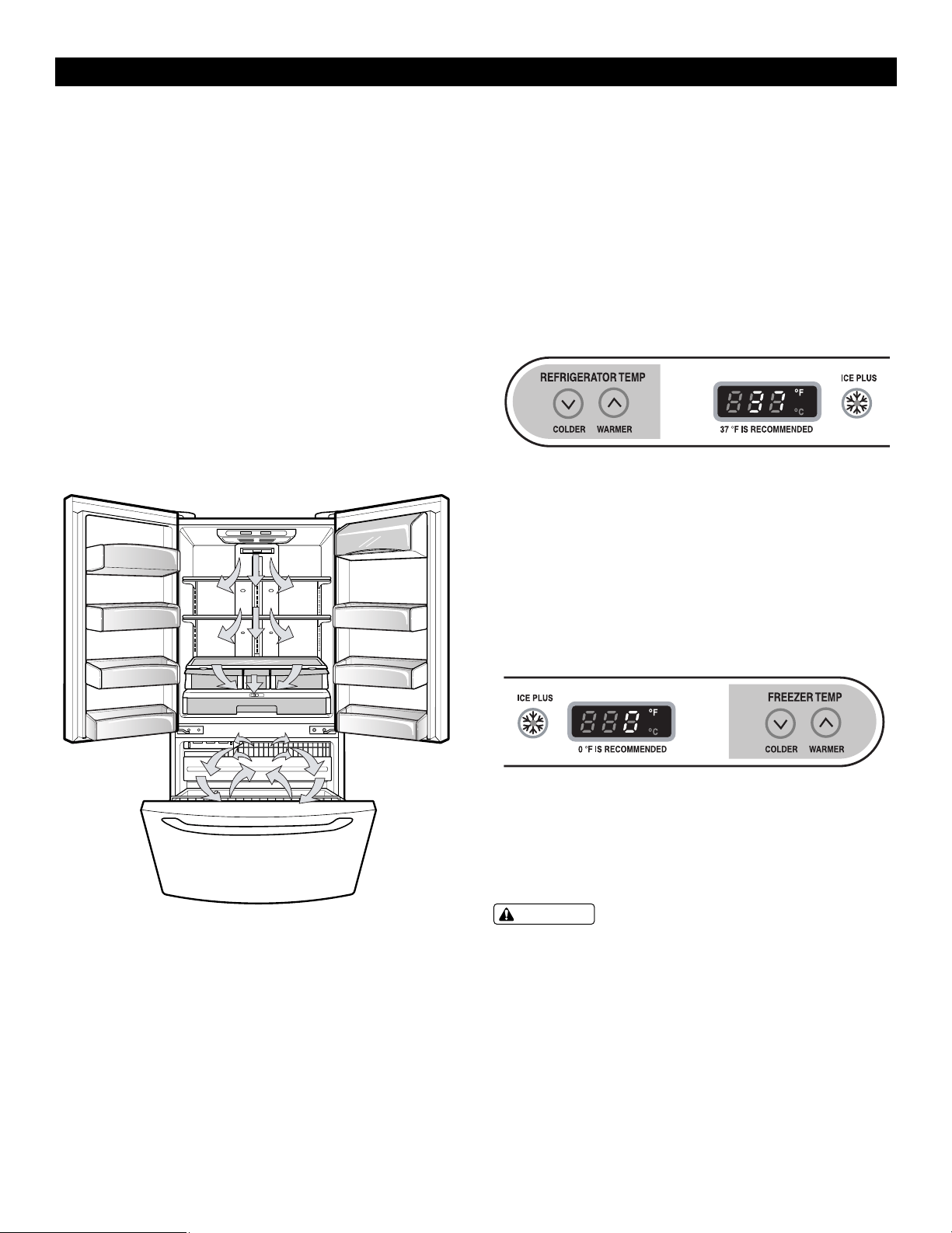

ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, air enters at top of the freezer and
circulates down. From the bottom of the freezer, air is
forced up to the top of the refrigerator. Air enters
refrigerator through the top vent, then circulates and
exists at the bottom, where it returns to the freezer.
MULTI-FLOW
• Multi-Flow means powerful and effective cooling
operation. This is especially noticeable when new food is
placed in the refrigerator compartment.
• If water or foreign substances enter the cool air vent
while cleaning, efficiency will be lowered. In addition, if
gasket is damaged, efficiency may be lowered because
of escaping cool air.
Do not block any of cool air vents with food packages.
If the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT: Because air circulates between both
sections, any odors formed in one section will transfer to
the other. You must thoroughly clean both sections to
eliminate odors. To prevent odor transfer and drying out of
food, wrap or cover foods tightly. (See the Food Storage
Guide section for details.)
SETTING THE CONTROLS
• Your refrigerator has two controls that let you regulate
the temperature in the freezer and refrigerator
compartments.
• Initially set the REFRIGERATOR CONTROL at 37°F
(3°C) and the FREEZER CONTROL at 0°F (–18°C).
Leave it at this setting for 24 hours (one day) to stabilize.
Then adjust the compartment temperature as desired.
• Refrigerator control: 33°F to 46°F (0°C to 8°C)
The lower the number setting, the colder the refrigerator
compartment will become.
• Freezer control: –6°F to 8°F (–21°C to –13°C)
When the setting is at a lower number, the freezer
compartment becomes colder. But the refrigerator
compartment becomes warmer because less cold air
flows into the refrigerator.
• ICE PLUS:
Press the ICE PLUS key and the LED will turn on. This
function will remain activated for 24 hours and intensify
the cooling speed of freezer and increase the amount of
ice.
NOTE: If you want to change °F to °C, press and hold
COLDER key of freezer and COLDER key of refrigerator
over 5 seconds at the same time. and if you want to
change °C to °F, hold them for 5 seconds again.
Display mode setting and its cancellation
• To enter this mode, raise either the Refrigerator or
Freezer temperature to its highest setting. Then, press
and hold WARMER Key for 5 seconds.
• Perform the same way again to cancel the display mode.
CAUTION
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
making final adjustments. It is best to wait 24 hours
before doing this. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is as cold as you like and when ice cream
is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator. Then wait 24
hours before checking the freezer temperature. If it is too
warm or too cold, then adjust the freezer control.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
USING YOUR REFRIGERATOR
21
CONDITION/
REASON:
RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section
too warm
– Door opened often
– Large amount of food added
–
Room temperature very warm
FREEZER section too
warm/ice not made fast
enough
– Door opened often
– Large amount of food added
– Very cold room temperature
(can’t cycle often enough)
– Heavy ice usage
– Air vents blocked by items
REFRIGERATOR section
too cold
– Controls not set correctly for
your conditions
FREEZER section too cold
– Controls not set correctly for
your conditions
Set REFRIGERATOR
control to next lower
number, wait 24 hours,
then re-check
Set FREEZER control
to next lower number,
wait 24 hours, then re-
check
Move items out of
airstream
Set REFRIGERATOR
control to next higher
number, wait 24
hours, then re-check
Set FREEZER control
to next higher number,
wait 24 hours, then re-
check
Items How to
Butter or
margarine
Cheese
Milk
Eggs
Fruit
Leafy vegetables
Vegetables with
skins (carrots,
peppers)
Fish
Leftovers
❿ Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
❿ Store in the original wrapping until
you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
❿ Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
❿ Store in original carton on interior
shelf, not on door shelf.
❿ Wash, let dry, and store in
refrigerator in plastic bags or in
the crisper. Do not wash or hull
berries until you are ready to use
them. Sort and keep berries in
their original container in a
crisper, or store in a sloosely
closed paper bag on a refrigerator
shelf.
❿ Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
❿ Place in plastic bags or plastic
container and store in crisper.
❿ Use fresh fish and shellfish the
same day purchased.
❿ Cover leftovers with plastic wrap
or aluminum foil. Plastic
containers with tight lids can
also be used.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If it does, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
: Do not keep beverage cans or plastic
food containers in the freezer compartment. They may be
break if they freezer.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 lbs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at the front so the door can close
tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
USING YOUR REFRIGERATOR
22
CAUTION
USING YOUR REFRIGERATOR
23
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. Your model may have
glass or wire shelves.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebble-
sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and replace
shelves in the position you want.
• To remove a shelf—Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
• To reinstall a shelf—Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired height.
Then lower the front of the shelf so that the hooks drop
into the slots.
: Make sure that shelves are level from
one side to the other. Failure to do so may result in the
shelf falling or spilling food.
Sliding Out Shelves
You can slide glass shelves in and out of your refrigerator
as follows.
• To slide the shelf out, carefully pull front of shelf
toward you.
• To slide shelf in, push shelf in until it stops.
CAUTION

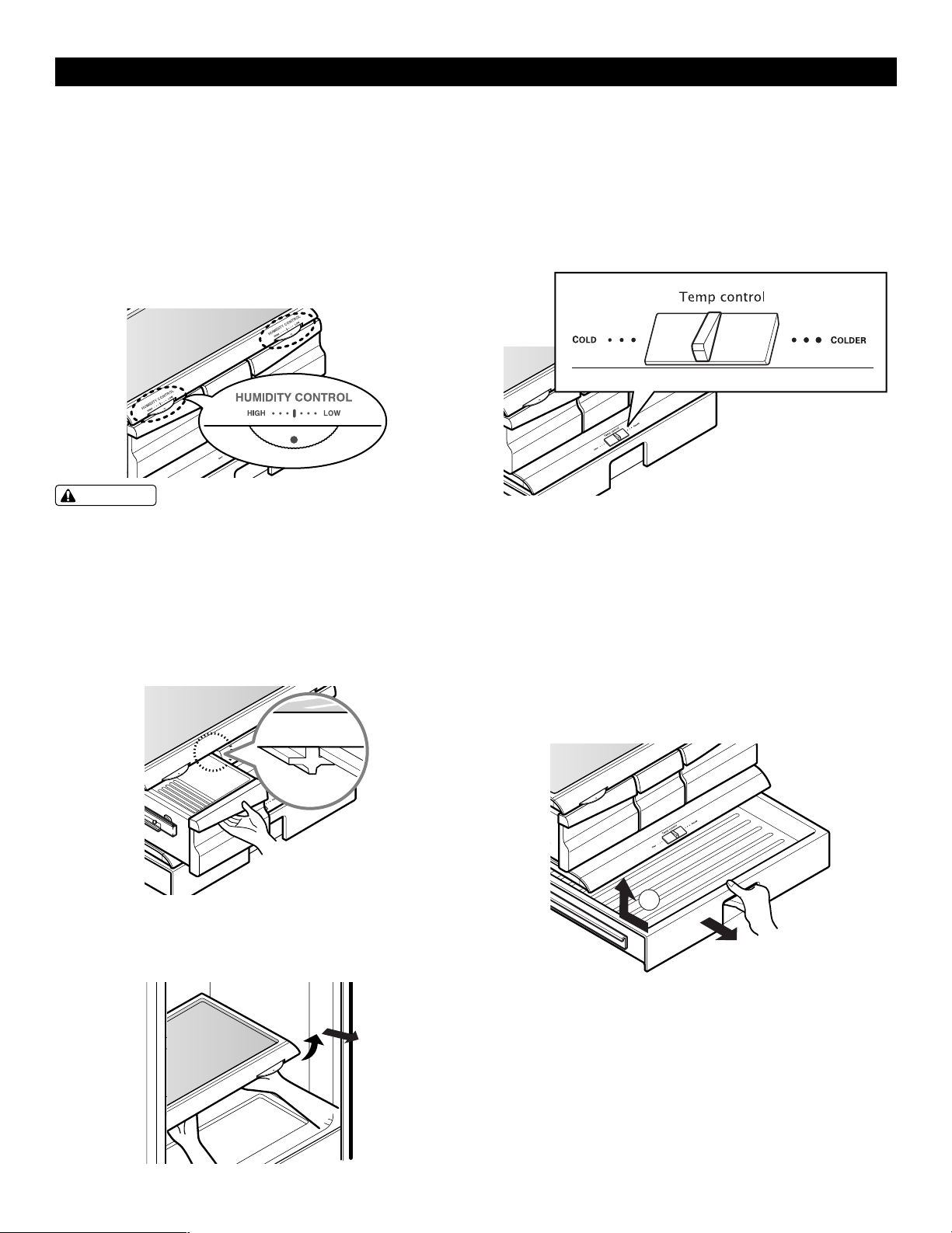

CRISPER HUMIDITY CONTROL
You can control the amount of humidity in the moisture-
sealed crispers. Store vegetables or fruits requiring more
or less humidity in separate crispers. Adjust the control to
any setting between HIGH and LOW.
• LOW lets moist air out of the crisper for best storage of
fruits.
• HIGH keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
: The glass shelf over the crisper is not
firmly secured. Be careful when tilting.
REMOVING CRISPER
1. To remove, pull the drawer out to full extension.
2. Lift the front of the crisper up, then pull it straight out.
3. To install, slightly tilt up the front and insert the drawer
into the frame and push it back into place.
To remove the glass
1. Lift up the glass under the crisper cover.
2. Pull the glass up and out.
GLIDE‘N’SERVE
The Glide‘N’Serve provides storage space with a variable
temperature control that keeps the compartment colder
than refrigerator.
This drawer can be used for large party trays, deli items,
or beverages. (but this drawer can't be used for
vegetable.)
Controls
The control regulates the air temperature in the drawer.
Set control level to COLD (print on surface) to provide
normal refrigerator temperature. Use the COLDER
(print on surface) setting for meats or other deli items.
NOTE: Cold air directed to the Glide‘N’Serve can
decrease refrigerator temperature. Refrigerator control
may need to be adjusted.
To replace Glide‘N’Serve
1. To remove, pull the drawer out to full extension.
2. Lift the front of the drawer up, then pull it straight out.
3. To install, slightly tilt up the front and insert the drawer
into the frame and push it back into place.
USING YOUR REFRIGERATOR
24
CAUTION
1

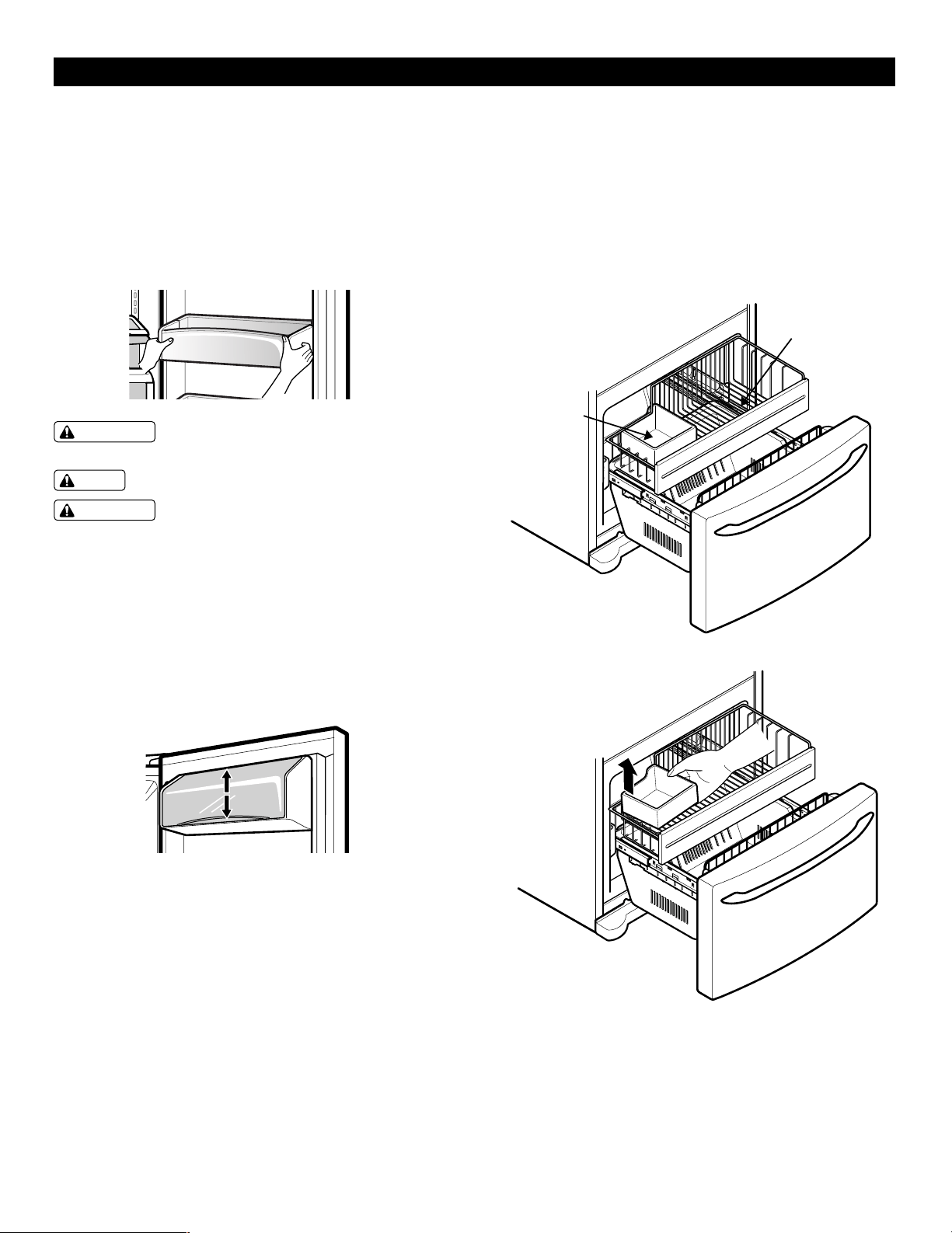

MODULAR DOOR BIN
The door bins are removable for easy cleaning and
adjusting.
1. To remove the bin, simply lift the bin up and pull
straight out.
2. To replace the bin, slide it in above the desired support
button and push down until it stops.
: Somebody can be hurt if door bins are
not firmly assembled.
: DO NOT adjust a bin that is loaded with food.
: DO NOT allow children to play with
baskets. Sharp corners on baskets could cause injury.
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull straight
out.
2. To replace the dairy bin, slide it in above the desired
location and push down until it stops.
FREEZER SECTION
ICE BIN
1. To separate the ice bin, pull out the drawer as much as
possible.
2. Gently lift and pull out the ice bin.
3. To install, pull out the drawer as much as possible and
set the ice bin in its correct position, then push in the
drawer.
USING YOUR REFRIGERATOR
25
ICE BIN
DRAWER
CAUTION
WARNING
NOTE
USING YOUR REFRIGERATOR
26
TILT-OUT DOOR BASKET (LFC 25770** only)
You can remove foods easily by tilting out the wire basket
in the freezer compartment.
1. To remove, pull the bracket upward until you hear a
clicking sound and remove the wire rack.
2. To replace, hook the end of the rack in the bracket, and
push down until it locks into place.
DURABASE
1. To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
2. To install, insert the Durabase in rail assembly.
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections.
ww
WARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suffocation risk, DO NOT allow them to play inside of
drawer.
PULL OUT DRAWER
To separate the drawer, push the front left and right hooks
in direction to pull up and remove.
Then gently lift the gear part of rear left and right side of
the drawer and pull it out in direction.
To install, reposition the gear part of rear left and right
side of the drawer after pulling out both rails as much as
possible, and gently push down both left and right side
while checking the hook on the front part.
1
2
1
2
2
3
1
Hook
CARE AND CLEANING
27
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once
a month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or
auto paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
INSIDE WALLS (allow freezer to warm up so
cloth won’t stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water.) Be sure the baking soda is
completely dissolved so does it not scratch the surfaces of
the refrigerator.
: While cleaning the inside, do not spray water.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergents,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
PLASTIC PARTS (covers and panels)
Do not use window sprays, abrasive cleansers, or flammable
fluids. These can scratch or damage the material.
CONDENSER COILS
Remove Back cover.
Use a vacuum cleaner with an
extended attachment to clean
condenser coils. Vacuum coils
when dusty or dirty. Coils may
need to be cleaned as often as
every other month.
LIGHT BULB REPLACEMENT
NOTE:
• Not all appliance bulbs will fit your refrigerator. Be sure to
replace the bulb with one of the same size, shape and
wattage.
• The light bulbs will turn off if door is left open for seven
continuous minutes. Shutting door for one second will light
bulbs to come back on.
• There is a safety thermal protector in the "fresh food"
compartments interior lights to prevent over heating if the
door is left open too long. If the lights go off because the
thermal protector is activated, close the doors and allow 10
minutes for the thermal protector to reset.
To change Refrigerator Light Bulbs
1. Unplug Refrigerator, or disconnect power at the circuit
breaker.
2. If necessary, remove top shelf or shelves.
3. Using a flat instrument, gently pry the lamp cover loose in
the front as shown. Rotate downward to remove rear tabs.
4. Make sure the bulbs are cool to the touch. Turn bulbs
counterclockwise to remove. Insert new bulb(s).
5. Replace with a new 60-watt appliance bulb.
6. Assemble in reverse order by snapping the Lamp Cover in,
engaging the rear tabs followed by the front tabs.
WARNING
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug the
refrigerator or turn off power at the circuit breaker or fuse box.
NOTE: Moving the control to the OFF position
does not remove power to the light circuit.
WARNING
Explosion Hazard
Use non-flammable cleaner.
Failure to do so can result in death, explosion, or fire.
CAUTION
CARE AND CLEANING
28
To change freezer light
1. Unplug refrigerator power cord form outlet.
2. Using a flat instrument, gently pry the lamp cover loose
in the front as shown. Rotate downward to remove the
rear tabs.
3. Make sure the bulb is cool to the touch. Turn the bulb
counterclockwise to remove.
4. Replace with a new 60-watt appliance bulb.
5. Insert tabs on back of cover into slots in freezer ceiling.
Push cover up to snap front into place.
: DO NOT place fingers inside of cover.
Lamp may be hot.
POWER INTERRUPTIONS
1. If the power will be out for 24 hours or less, keep
all refrigerator doors closed to help foods
stay cold and frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you
are away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
If you choose to turn the refrigerator off before you
leave, follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Clean refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Depending on your model, turn the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Unplug the refrigerator.
4. Clean, wipe and dry thoroughly.
5. Take out all removable parts, wrap them well and tape
them together so they don’t shift and rattle during the
move. Refer to sections in Using your Refrigerator for
removal instructions.
6. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they don’t scrape the floor.
See the Door Closing section.
7. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Installing Your Refrigerator section for
preparation instructions.
CAUTION
ABOUT THE AUTOMATIC ICEMAKER
29
OPERATION INSTRUCTIONS
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
The icemaker will produce 12 cubes per cycle—
approximately 90–130 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions.
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to O (off).
When the refrigerator has been connected to the water
supply, set the power switch to I (on).
The icemaker will fill with water when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the water
line to clear.
Be sure nothing interferes with the sweep of the
Automatic Shut off Arm.
When the bin fills to the level of the Automatic Shut off
Arm, the icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
NOTE: If the cube size is smaller or larger than you
expected, you can regulate the size with the cube size
button.
Every time you press the cube size button, the indicator
moves up one light. The higher the light position, the
larger the cubes will be. Pressing at the highest position
returns the indicator to the lowest position.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO O (OFF)
• When the water supply will be shut off for several hours.
• When the ice storage bin is removed for more than a
minute or two.
• When the refrigerator will not be used for several days.
NORMAL SOUNDS YOU MAY HEAR
• The icemaker water valve will buzz as the icemaker fills
with water. If the power switch is in the I (on) position, it
will buzz even if it has not yet been hooked up to water.
To stop the buzzing, move the power switch to O (off).
NOTE: Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
• You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
Set the icemaker power switch to O (off) and shut off the
water supply to the refrigerator.
If the ambient temperature will drop below freezing, have
a qualified servicer drain the water supply system to
prevent serious property damage due to flooding from
ruptured water lines or connections.
WARNING
Personal Injury Hazard
DO NOT insert your hands in to the Icemaker in
operation. It may cause to injure you.
Power Switch
Automatic
Shut off Arm
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations must be in accordance with local plumbing
code requirements.
NOTE: Wear eye protection.
WHAT YOU WILL NEED
• Copper Tubing, 1/4" outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about
8 feet [2.4 m] coiled into 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.
• A cold water supply. The water pressure must be
between 20 and 120 p.s.i. on models without a water
filter and between 40 and 120 p.s.i. on models with a
water filter.
• Power drill.
• 1/2" or adjustable
wrench.
• Straight- and Phillips-
blade screwdriver.
• Two 1/4" outer diameter
compression nuts and
2 ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
• If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can
cut off the flared fitting with a tube cutter and then use
a compression fitting.
• Shutoff valve to connect to
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32" at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your local
plumbing codes.
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve that
is easily accessible. It is best to
connect into the side of a vertical
water pipe. When it is necessary to
connect into a horizontal water pipe,
make the connection to the top or
side, rather than at the bottom, to
avoid drawing off any sediment from
the water pipe.
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water
pipe (even if using a self-
piercing valve) using a sharp
bit. Remove any burrs resulting
from drilling the hole in the
pipe. Take care not to allow
water to drain into the drill.
Failure to drill a 1/4" hole may result in reduced ice
production or smaller cubes.
CONNECTING THE WATER LINE
30
INSTALLATION INSTRUCTIONS
(CONTINUED)
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the tubing.
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about 8
feet coiled into 3 turns of about 10" diameter) to allow
the refrigerator to move out from the wall after
installation.
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the compression
nut securely.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
CONNECTING THE WATER LINE
31
Pipe Clamp
Vertical Cold
Water Pipe
Saddle-Type
Shutoff Valve
Saddle-Type
Shutoff Valve
Ferrule (sleeve)
Compression Nut
Packing Nut
Outlet Valve
Pipe Clamp
Inlet End
Washer
Clamp Screw
CONNECTING THE WATER LINE
32
9. CONNECT THE TUBING TO THE
REFRIGERATOR
Removing and Replacing Valve Cover.
NOTE:
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
1. Remove the plastic flexible cap from the water valve.
2. Place the compression nut and ferrule (sleeve) onto
the end of the tubing as shown.
3. lnsert the end of the copper tubing into the
connection as far as possible. While holding the
tubing, tighten the fitting.
: Check to see if water dripping occurs
at water line connections.
10. TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections that leak.
Reattach the compressor compartment access cover.
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the
wall. Push the refrigerator back to the wall.
12. START THE ICEMAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (–9°C) or below.
It will then begin operation automatically if the
icemaker power switch is in the I (on) position.
1/4 " Tubing
Tubing Clamp
1/4 "
Compression
Nut
Ferrule
(sleeve)
Refrigerator
Connection
CAUTION
TROUBLESHOOTING GUIDE
33
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old one
didn’t make. Because the sounds are new to you, you might
be concerned about them. Most of the new sounds are
normal. Hard surfaces, like the floor, walls and cabinets, can
make the sounds seem louder than they actually are. The
following describes the kinds of sounds and what may be
making them.
• The defrost timer will click when the automatic defrost cycle
begins and ends. The thermostat control (or refrigerator
control, depending on the model) will also click when
cycling on and off.
• Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
• Your refrigerator is designed to run more efficiently to keep
your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and you may
hear a pulsating or high-pitched sound.
• You may hear the evaporator fan motor circulating the air
through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound due to
the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may cause a
popping noise.
• Water dripping on the defrost heater during a defrost cycle
may cause a sizzling sound.
• You may hear air being forced over the condenser by the
condenser fan.
• You may hear water running into the drain pan during the
defrost cycle.
REFRIGERATOR
DOES NOT
OPERATE
VIBRATION OR
RATTLING NOISE
LIGHTS DO NOT
WORK
The power supply cord is unplugged.
A household fuse has blown or circuit
breaker tripped.
The refrigerator control is set to the OFF position.
Refrigerator is in the defrost cycle.
The refrigerator is not resting solidly on the floor.
The power supply cord is unplugged.
Light bulb is loose in the socket.
Light bulb has burned out.
Door is left open for seven continuous minutes.
❿ Firmly plug the cord into a live outlet with proper
voltage.
❿ Replace the fuse or reset the circuit breaker.
❿ Refer to the Setting the Controls section on
page 20.
❿ Wait about 30 minutes for defrost cycle to end.
❿ Floor is weak or uneven or leveling legs need
adjusting. See Installation section on page 12.
❿ Firmly plug the cord into a live outlet with proper
voltage.
❿ Turn the refrigerator control to the OFF position
and unplug the refrigerator. Gently remove the
bulb and reinsert. Then plug in refrigerator and
reset the refrigerator control.
❿ Replace with an appliance bulb of the same
wattage, size and shape available at your local
hardware store. (See the Changing the Light
Bulb(s) section on pages 27-28.) Turn the
temperature control to the OFF position and
unplug the refrigerator prior to replacement.
❿ Shutting door for one second will light bulbs to
come back on.
Check if… Then…
TROUBLESHOOTING GUIDE
34
COMPRESSOR
MOTOR SEEMS
TO RUN TOO
MUCH
DOORS WILL
NOT CLOSE
COMPLETELY
FROST OR ICE
CRYSTALS ON
FROZEN FOOD
The refrigerator that was replaced was an
older model.
The room temperature is hotter than normal.
The door is opened often or a large amount of
food has just been added.
The refrigerator was recently plugged in and
the refrigerator control was set correctly.
The refrigerator control is not set correctly for
the surrounding conditions.
The doors are not closed completely.
The condenser coils are dirty.
The refrigerator is not level.
Food packages are blocking the door open.
The ice bin, crisper cover, pans, shelves,
door bins or baskets are out of position.
The gaskets are sticking.
The refrigerator wobbles or seems unstable.
The doors were removed during product
installation and not properly replaced.
The door is not closing properly.
The door is opened often.
❿ Modern refrigerators with more storage
space require more operating time.
❿ The motor will run longer under warm
conditions. At normal room temperatures,
expect your motor to run about 40% to 80%
of the time. Under warmer conditions,
expect it to run even more often.
❿ Adding food and opening the door warms
the refrigerator.
It is normal for the refrigerator to run longer
in order to cool the refrigerator back down.
Adding a large amount of food warms the
refrigerator. See the Food Storage Guide
section on page 21. In order to conserve
energy, try to get everything you need out of
the refrigerator at once, keep food organized
so it is easy to find and close the door as
soon as the food is removed.
❿ The refrigerator will take up to 24 hours to
cool completely.
❿ See the Adjusting Control Settings section
on page 21.
❿ Push the doors firmly shut. If they will not
shut all the way, see Doors will not close
completely below.
❿ This prevents air transfer and makes the
motor work harder.
Clean the condenser coils. Refer to the
Care and Cleaning section on pages 27-28.
❿ See Leveling and Door Alignment on
page 19.
❿ Rearrange food containers to clear door and
door shelves.
❿ Push bins all the way in and put crisper
cover, pans, shelves and baskets into their
correct positions. See the Using Your
Refrigerator section on pages 20-26.
❿ Clean gaskets and the surface that they
touch. Rub a thin coat of paraffin wax on the
gaskets after cleaning.
❿ Level the refrigerator. Refer to the Leveling
and Door Alignment section on page 19.
❿ Remove and replace the doors according to
the Removing and Replacing Refrigerator
handles and doors section on pages 13-18,
or call a qualified service technician.
❿ See Doors will not close completely above.
❿ When the door is opened, warm, humid air is
allowed in the freezer, resulting in frost.
Check if… Then…
TROUBLESHOOTING GUIDE
35
ICE HAS OFF-
TASTE OR ODOR
THERE IS
WATER IN THE
DEFROST DRAIN
PAN
THE
REFRIGERATOR
SEEMS TO
MAKE TOO
MUCH NOISE
THE ICEMAKER
IS NOT
PRODUCING ICE
OR ICE CUBES
ARE FREEZING
TOO SLOWLY
CUBES
PRODUCED BY
ICEMAKER ARE
TOO SMALL
THE DOORS ARE
DIFFICULT TO
OPEN
The icemaker was recently installed.
The ice has been stored for too long.
The food has not been wrapped tightly in
either compartment.
The water supply contains minerals such as
sulfur.
The interior of refrigerator needs cleaning.
Ice storage bin needs cleaning.
The refrigerator is defrosting.
It is more humid than normal.
The sounds may be normal for your
refrigerator.
The freezer temperature is cold enough to
produce ice.
Door left open.
Smaller cube size level is selected.
Water shutoff valve connecting refrigerator to
water line may be clogged.
The gaskets are dirty or sticky.
The door is reopened within a short time after
having been opened.
❿ Discard first few batches of ice to avoid
discolored or off-flavored ice.
❿ Throw away old ice and make new supply.
❿ Rewrap foods since odors may migrate to
the ice if food is not wrapped properly.
❿ A filter may need to be installed (or
replaced) to eliminate taste and odor
problems.
❿ See Care and Cleaning section on pages
27-28.
❿ Empty and wash bin. Discard old cubes.
❿ The water will evaporate. It is normal for
water to drip into the defrost pan.
❿ Expect that the water in the defrost pan will
take longer to evaporate. This is normal
when it is hot or humid.
❿ Refer to the Understanding Sounds You
May Hear section on page 33.
❿ Wait 24 hours after hook-up for ice
production. See the Setting the Controls
section on page 20.
❿ Check to see if something is holding the
door open.
❿ Select larger cube size using cube size
selector.
❿ Call a plumber to clear the valve.
❿ Clean gaskets and the surfaces that they
touch. Rub a thin coat of appliance polish or
kitchen wax on the gaskets after cleaning.
❿ When you open the door, warmer air enters
the refrigerator. As the warm air cools, it can
create a vacuum. If the door is hard to open,
wait 5 minutes to allow the air pressure to
equalize, then see if it opens more easily.
Check if… Then…
TROUBLESHOOTING GUIDE
36
TEMPERATURE
IS TOO WARM
OR THERE IS
INTERIOR
MOISTURE
BUILDUP
The air vents are blocked. Cold air circulates
from the freezer to the fresh food section and
back again through air vents in the wall
dividing the two sections.
The doors are opened often.
The control is not set correctly for the
surrounding conditions.
A large amount of food has just been added to
the refrigerator or freezer.
The food is not packaged correctly.
The doors are not closing completely.
The weather is humid.
A self-defrost cycle was completed.
❿ Locate air vents by using your hand to
sense airflow and move all packages that
block vents and restrict airflow. Refer to
Multi-Flow on page 20 for the location of air
vents.
❿ When the door is opened, warm humid air is
allowed into the refrigerator. The more the
door is opened, the faster the humidity
builds up, and the more warm air the
refrigerator must cool. In order to keep the
refrigerator cool, try to get everything you
need out of the refrigerator at once, keep
food organized so it is easy to find and close
the door as soon as the food is removed.
❿ Refer to the Setting the Controls section
on page 20.
Wait 24 hours for temperatures to stabilize
or even out. If the temperature is too cold or
too warm, move the dial one number at a
time.
❿ Adding food warms the refrigerator. It can
take a few hours for the refrigerator to return
to normal temperature.
❿ Wrap food tightly and wipe off damp
containers prior to storing in the refrigerator
to avoid moisture accumulation.
If necessary, repackage food according to the
guidelines in the Food Storage Guide
section on page 21.
❿ See Doors will not close completely on
page 34.
❿ In humid weather, air carries moisture into
refrigerator when doors are opened.
❿ It is normal for droplets to form on the back
wall after the refrigerator self-defrosts.
Check if… Then…
P/No. MFL37933559
