User Manual
TABLE OF CONTENTS
1. INTRODUCTION
2. ATTENTION
3. WHERE AND HOW TO USE
4. HOW TO CHANGE ATTRACTANT
5. BULB REPLACEMENT
6. TECHNICAL INFORMATION
7. TROUBLESHOOTING
8. CUSTOMER CARE SERVICE
1. INTRODUCTION
Thanks for purchasing our product. Please check the condition of
the device before use. If the device is damaged, do not use it.
The device is environmentally safe and hygienic, smoke-free and
non-toxic. It does not include pesticides.The built-in lamp is
harmless to people, pets or plants.
The highly efficient fitting tube emits special ultraviolet waves
and attracts insects. Insects fly into ultraviolet light and get an
electric shock when they come in contact with an electrified
grid.The device is highly efficient and energy-saving. It is
designed for continuous use and is ready to provide you with a
long mosquito-free pastime for many years.
For optimal performance, please read this manual carefully
before use.
2. ATTENTION
- Do not use in inflammable and/or explosive locales and alike.
- Check the local voltage codes before installing.
- Do not intend to touch internal high voltage grids because of
electric shock danger. Never put metal objects inside the net
during use.
- Hang or place the appliance out of the reach of children.
- Never remove any fixed part of the appliance to make
internal adjustments to avoid electric shock.
- If the lamp starters or other parts of appliance are damaged,
the manufacturer, its service agent or similarly qualified
person must replace it in order to avoid a hazard.
- Clean metal gridat frequent intervals. Unplug the appliance
before cleaning. Use suitable brush to clean the highvoltage
grids and throw away the insects debrisfrom the collection
tray every week. Do not wash with water.
- Do not place in the rain.
- Avoid rough shaking that could damage the tube or its
components.
Make
3. WHERE AND HOW TO USE
INDOOR:
The product can be used in the bedroom, living room, hotel,
restaurant, office, etc. The product has an energy-saving design
and soft lighting, so it should not be used in high light conditions;
otherwise, it will affect the destruction of mosquitoes.
The right methods for using the device are below: for example,
keep the house lighting off and use device before sleeping, or
turn off all strong lighting for 10-20 minutes, or keep the productin
the dark place while working.
Suggested suspension height: keep the product hanged at a
height of 1.2 m at a distance of 0.3 m from the wall.
OUTDOOR:
1. Hang the insect killer at a height of 6 to 8 feet above the
ground.
2. Place the unit 25 feet away from the area intended for human
activity.
3. Position the insect killer between the source of insects (woods,
lowlands, etc.) and the area to be protected.
4. Plug cord into a compatible extension corddesigned for
outdoor use. The bulb(s) will emit a bluish glow within a
fewseconds.
To increase the killing rate, please clean mosquitoes stuck in the
grid. Please keep the power off, open the base, and use the
metal bar with insulation to discharge the net, and after that,
use soft brush to clean it.
4. HOW TO CHANGE ATTRACTANT
Open the device base. Remove the attractant cartridge from the
sealed pouch and remove the protective cover from the face of
the cartridge. Avoid touching the openings in the cartridge and
always wash your hands thoroughly after contact. For best results
replace the cartridge every 30 days.

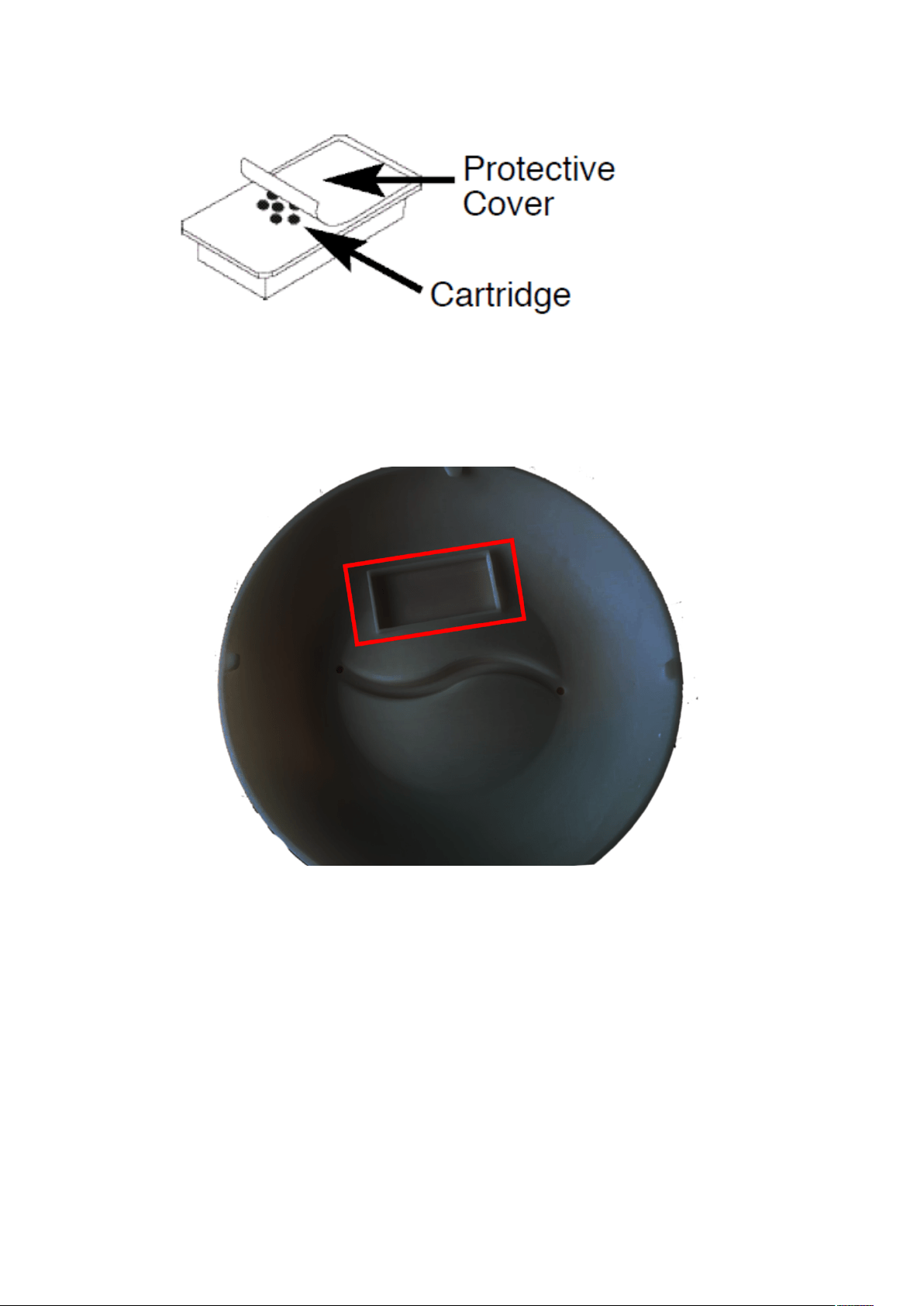

Place the attractant at the spot marked in red on the picture
below. Wash hands thoroughly after handling.
After skin contact: Wash with plenty of soap and water. If skin
irritation occurs: consult a doctor.
After eye contact: Rinse thoroughly with water for several
minutes. Remove contact lenses if present and it is easy to do.
Continue rinsing. Immediately call a POISON CENTER or
doctor/physician.
After swallowing: Rinse out mouth with water. Call a POISON
CENTER/doctor if you feel unwell.
5. BULB REPLACEMENT
1. Disconnect the unit from the electric source.
2. Open the lamp by twisting the bottom tray in accordance with
the arrows on it.
3. Use a screwdriver to remove the screw that holds the plastic
gate.
4. Now the bulb can be pulled out of its socket.
5. Insert the replacement bulb into the socket.
6. Mount all parts back.
Notice: Ultraviolet or "black light" is invisible to the eye, and its
ability to attract insects diminishes over time. Therefore, although
the bulb appears to be functioning, it should be replaced every
season to maintain optimal “black light” efficiency.
6. TECHNICAL INFORMATION
Input voltage:110V AC,60Hz
Light source: 20W UV tube.
High voltage metal grid:3800-4200V
7. TROUBLESHOOTING
Caution: unplug unit before servicing
Problem
Possible Cause
Correction
A. The light is off and
there is no high voltage
on the grid
1. There is no
electricity.
2. The lamp is not
installed correctly
3. The starter is faulty.
4. The burnt out bulb.
1. Check fuse or circuit
breaker. Check
extension cord.
2. Check all sockets for
proper fit and
alignment.
3. Starter replacement
by manufacturer is
required.
4. Replace the light
bulb.
B. The light is on, but
there is no high voltage
on the grid.
1. Shorted grids.
2. The transformer is
defective.
1. Examine the grid
and clean it using an
air blower.
2. Replacement by
manufacturer is
required.
C. Intermittent or
continuous sparking
between grid rods.
1. The gap between
grid rods is too small.
2. The grid is clogged
with foreign material.
1. Unplug the unit and
adjust grids by bending
them back into
alignment.
2. Clean the grid using
an air blower.
D. The light is on, but
no longer attracts
insects.
1. The invisible power
of blacklight is reduced
due to the age of the
lamp.
2 Attractantbait is no
longer effective.
1. Replace the bulb.
See bulb replacement
section in the user
manual.
2. Replace the
attractant cartridge.
