User Manual Bosch SHX865YN5N 500 Series 24 Inch Built In Fully Integrated Dishwasher

Documents for Bosch SHX865YN5N

User Manual

For SHX865YN5N. Series: 500 Series
Also, The document are for others Bosch models: SHPM65Z***, SHP865Z***, SHXM65Z***, SHXM63W5**, SHX863W***

• Table of contents3
  • en-us Operating instructions3
    • ( Safety Definitions 53
    • ( IMPORTANT SAFETY INSTRUCTIONS 63
    • ƒ Causes of Damage 93
    • * Getting Started 103
    • , Rinse Aid 133
    • - Loading the Dishwasher 153
    • . Detergent 273
    • / Dishwasher Cycles 293
    • 0 Dishwasher Cycle Options 303
    • 1 Operating the Dishwasher 333
    • 2 Care and Maintenance 383
    • 3 Troubleshooting 433
    • 4 Customer Service 483
    • ‡ Statement of Limited Product Warranty 493
    • ( Safety Definitions5
      • Safety Definitions5
      • 9 WARNING5
      • 9 CAUTION5
        • NOTICE5
          • Note:5
• ( IMPORTANT SAFETY INSTRUCTIONS6
  • IMPORTANT SAFETY INSTRUCTIONS6
  • READ AND SAVE THESE INSTRUCTIONS6
    • To reduce the risk of fire, electrical shock, or serious injury, observe the following:6
      • Risk of fire, electrical shock, or serious injury6
    • 9 WARNING6
      • Risk of injury or death!6
    • 9 WARNING6
      • Risk of injury!6
    • 9 WARNING6
      • Risk of electrical shock or fire!6
    • 9 WARNING6
      • RIsk of explosion!6
    • 9 WARNING7
      • Health hazard!7
      • GROUNDING INSTRUCTIONS7
    • 9 WARNING7
      • Risk of electric shock!7
      • Safe Operation7
    • 9 CAUTION7
      • 9 WARNING8
        • Risk of injury!8
      • 9 WARNING8
        • CHILD SAFETY!8
        • Proper Care and Maintenance8
          • Note:8
          • NOTICE8
        • Proposition 65 Warning:8
    • ƒ Causes of Damage9
      • Causes of Damage9
      • NOTICES9
    • * Getting Started10
      • Getting Started10
      • Appliance overview10
      • Operating panel11
        • Note:11
      • Dishwasher interior components11
      • Display indicators11
      • Menu overview12
        • Setting12
        • Factory setting12
        • Description12
    • , Rinse Aid13
      • Rinse Aid13
      • Note:13
      • Adding rinse aid13
        • NOTICE13

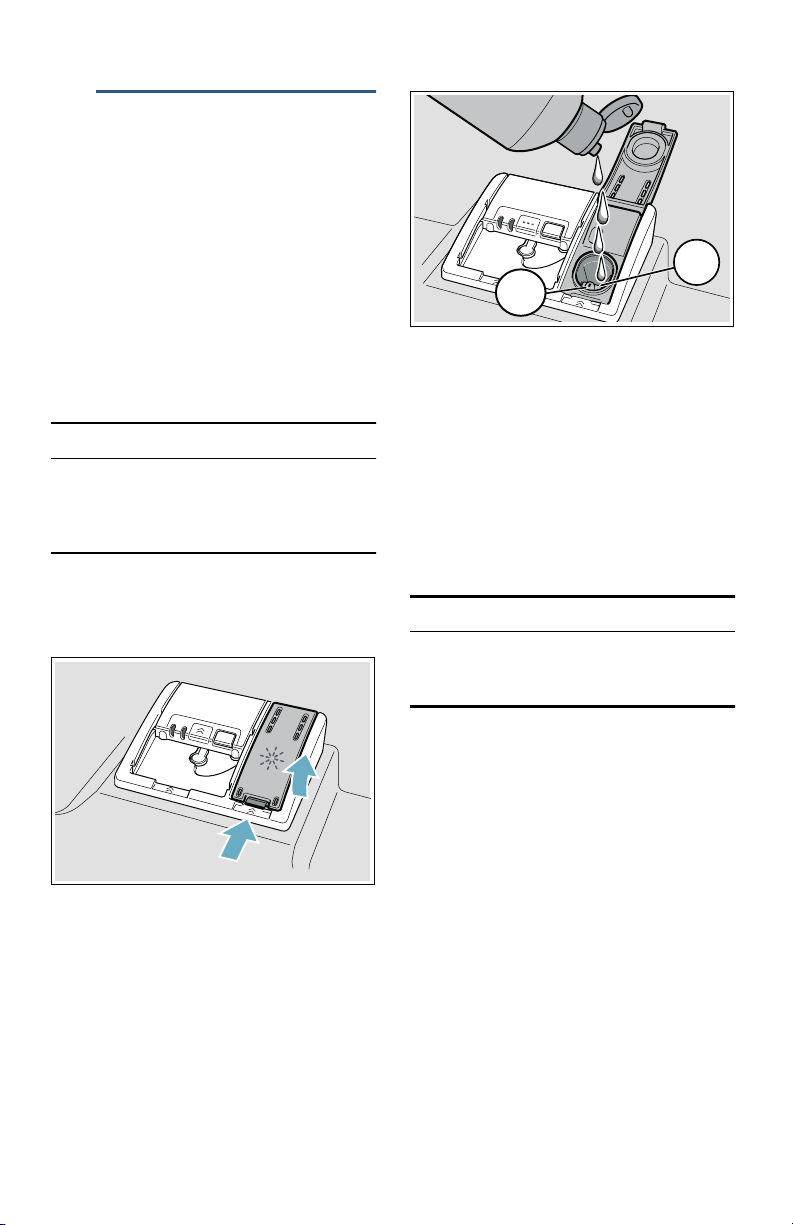

          • 1. Open the rinse aid dispenser 9* by pressing on the latch of the lid and pull it open.13
          • 2. Add liquid rinse aid to the dispenser 9* until it is full. Do not overfill. Avoid spilling into air vent hole.13
          • 3. Close the lid. Lid must be fully closed until it clicks in order to seal.13
          • 4. Wipe up any excess rinse aid that may have puddled when the dispenser reservoir is full.13
        • Tip:13
          • NOTICE13
      • Setting the amount of rinse aid used14
        • Setting14
        • Amount14
          • 1. Press the On/Off button (.14
          • 2. Hold down the function key # and press the Start button P until the display 8 indicates •:‹x or š:‹x (x can be any number). Release both buttons.14
          • 3. Press the function key # until the display 8 shows §:‹†.14
          • 4. Press the function key 3 to select the desired setting.14
          • 5. Press the Start button P to save the setting.14
      • Turning off rinse aid indicator14
        • NOTICE14
    • - Loading the Dishwasher15
      • Loading the Dishwasher15
      • Dishware material15
        • Note:15
        • Recommended15
        • Not Recommended15
      • Loading the racks16
        • For best dishwashing results, observe the following when loading the dishwasher:16
          • NOTICE16
        • Loading the upper rack16
          • Note:16
        • Loading the lower rack16

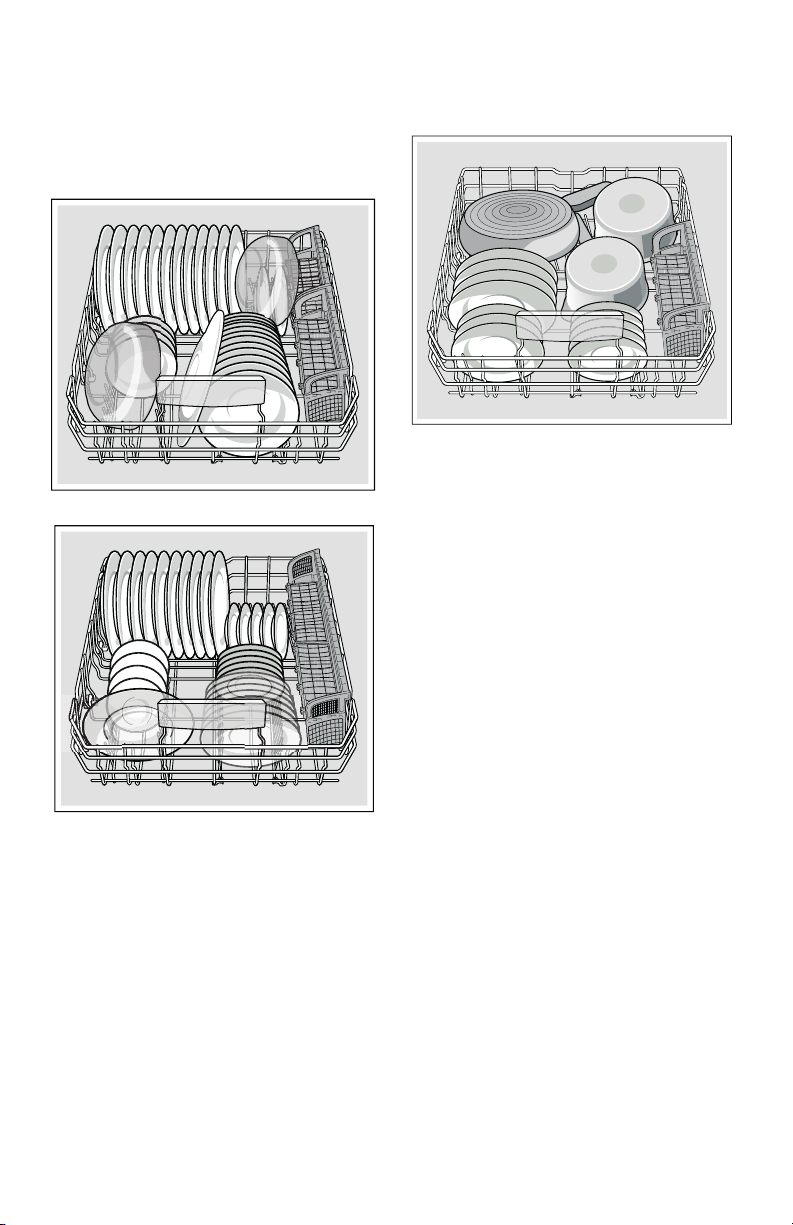

      • Loading patterns for lower rack17
        • 12 place setting suggested loading pattern17
        • Alternate loading pattern17
        • Alternate loading pattern with pots and pans17

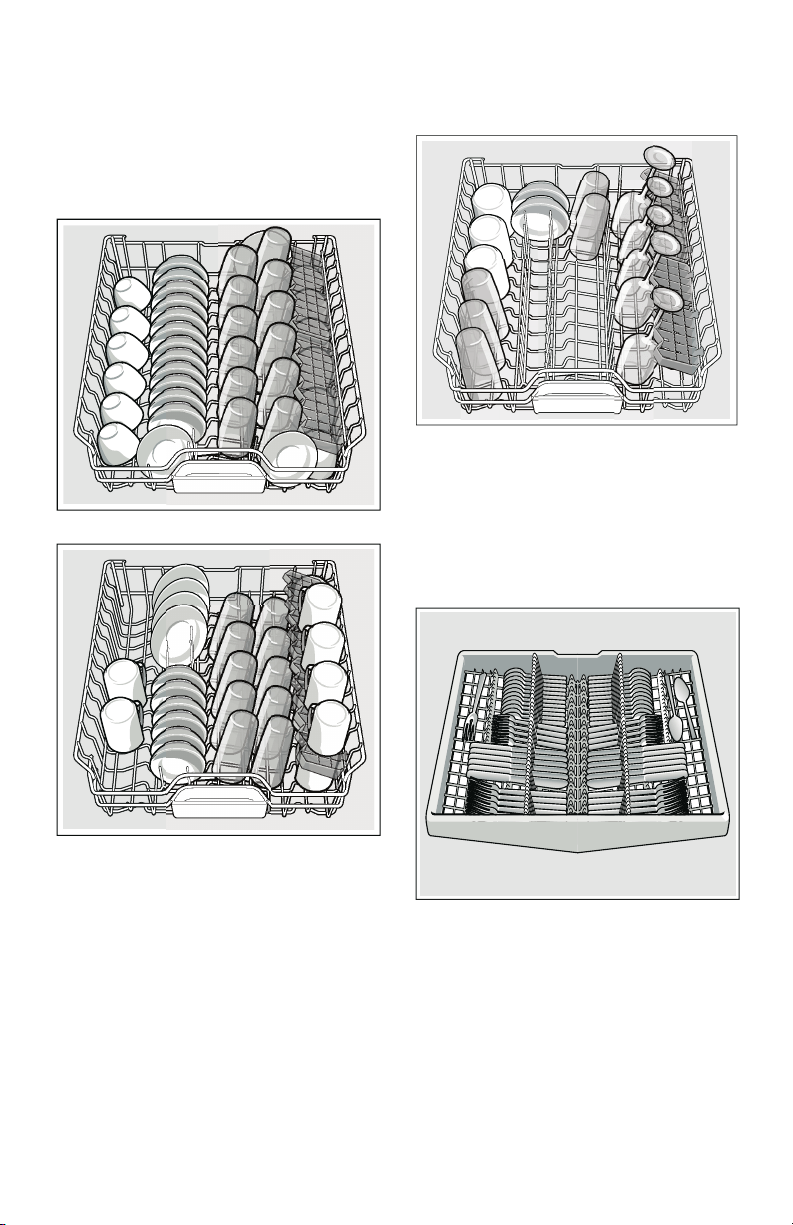

      • Loading patterns for upper rack18
        • 12 place setting suggested loading pattern, with third rack cutlery drawer *18
        • Alternate loading pattern18
        • Alternate loading pattern with stemware18
      • Loading patterns for third rack *18
        • 12 place setting suggested loading pattern18
      • Loading the silverware basket19
        • 9 WARNING19
          • Risk of injury!19
          • Silverware basket *19
            • Note:19

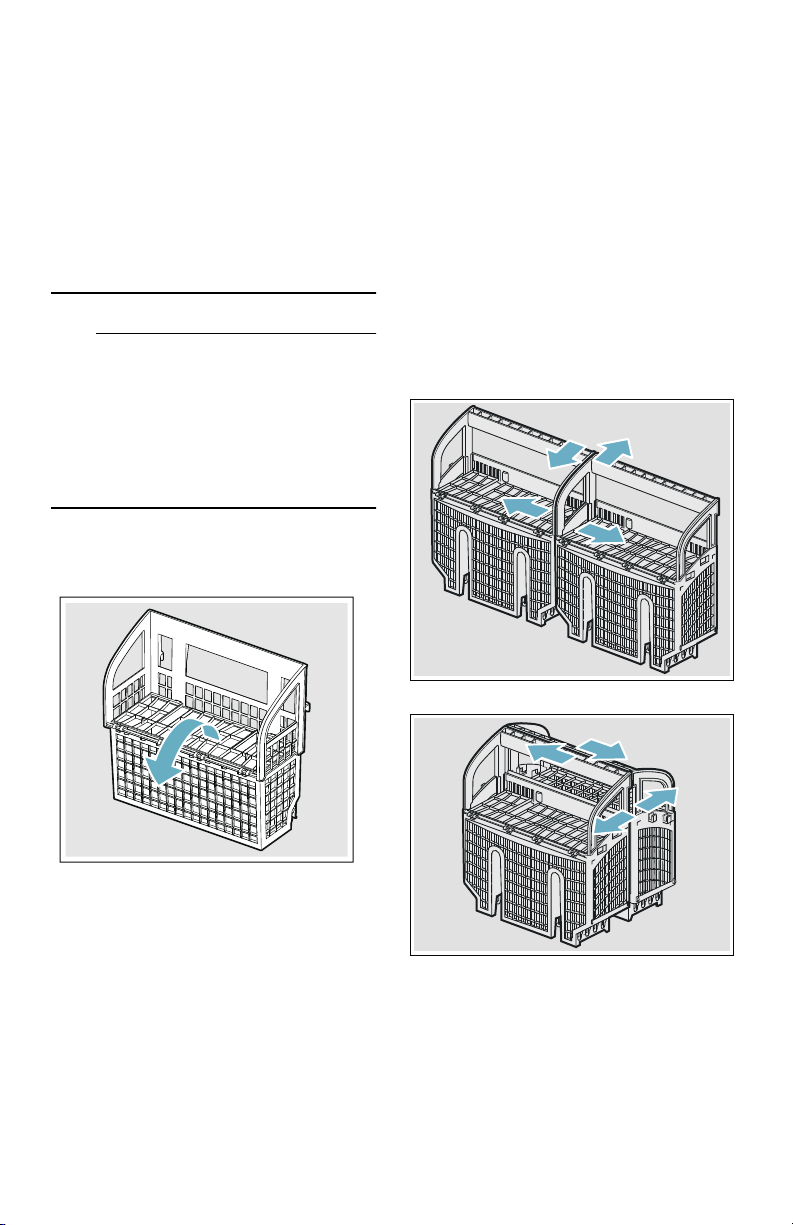

          • The Double Flex silverware basket *19
          • Side by side19
          • Back to back19
            • Note:20

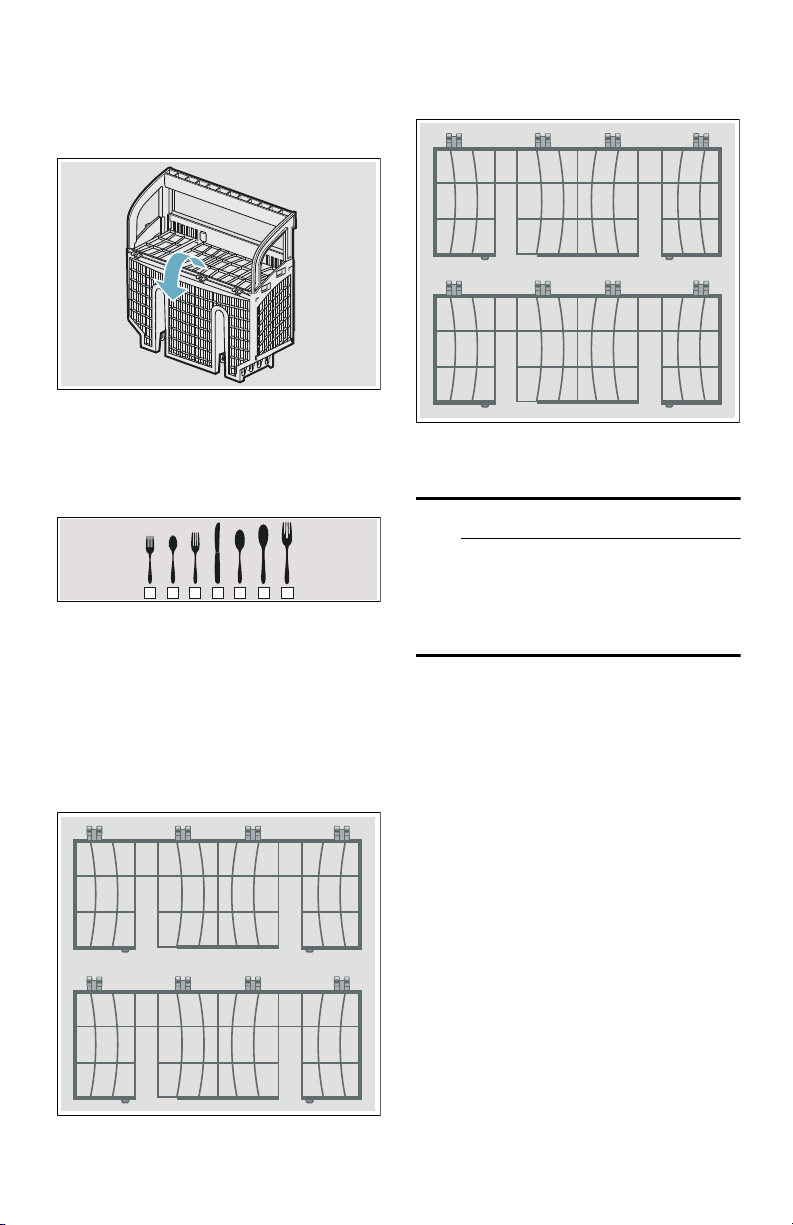

          • Suggested loading patterns20
          • Silverware basket20
          • Double Flex silverware basket20
      • Unloading the dishwasher20
      • 9 CAUTION20
        • Note:20

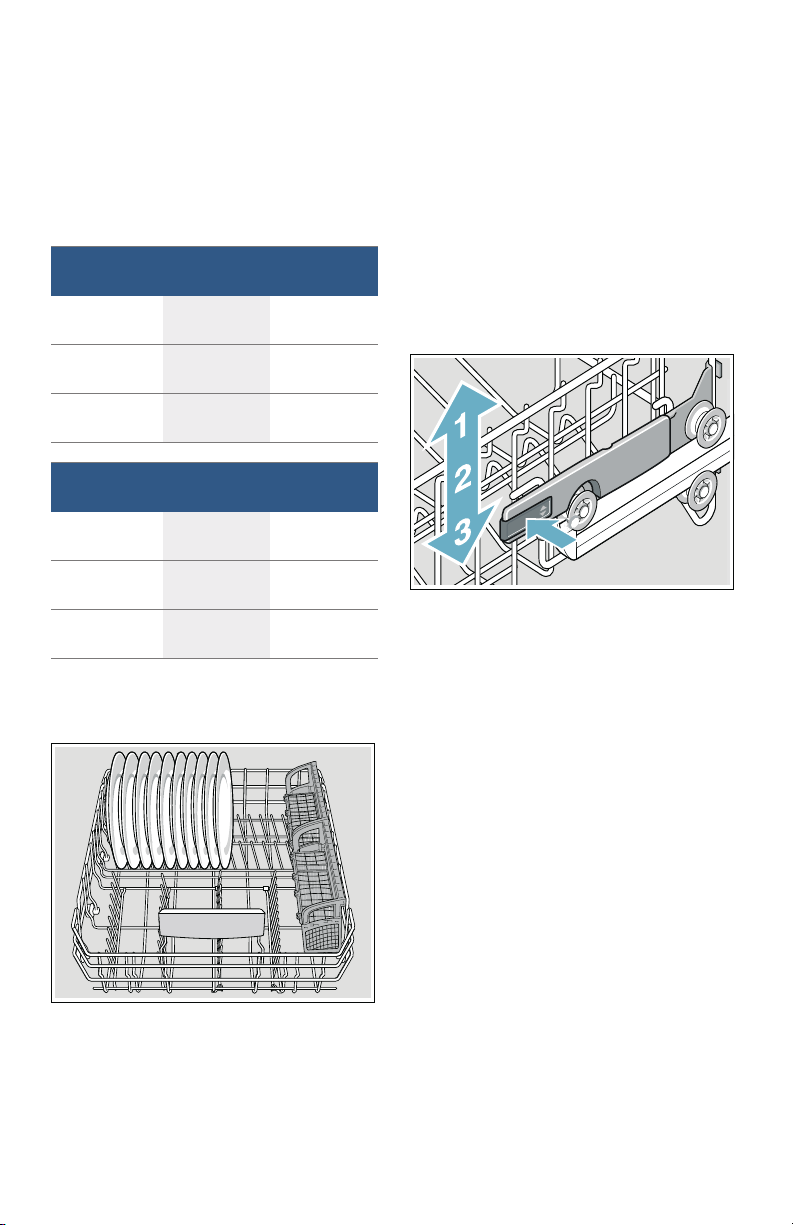

      • Adjusting the height of the rack21
        • With silverware basket21
        • Upper rack21
        • Lower rack21
    • 9.4 in (24 cm)21
    • 12.6 in (32 cm)21
    • 10.4 in (26.5 cm)21
    • 11.8 in (30 cm)21
    • 11.4 in (29 cm)21
    • 10.6 in (27 cm)21
      • With third rack21
      • Upper rack21
      • Lower rack21
    • 7 in (18 cm)21
    • 12.6 in (32 cm)21
    • 8 in (20.5 cm)21
    • 11.8 in (30 cm)21
    • 9 in (23 cm)21
    • 10.6 in (27 cm)21
      • RackMatic®21
        • 1. Pull the upper rack out of the dishwasher until it stops.21
        • 2. To lower the rack, push the RackMatic® lever inward.21
        • 3. To raise the rack, hold the basket on the sides of the upper rack and lift it up.21
        • Note:21

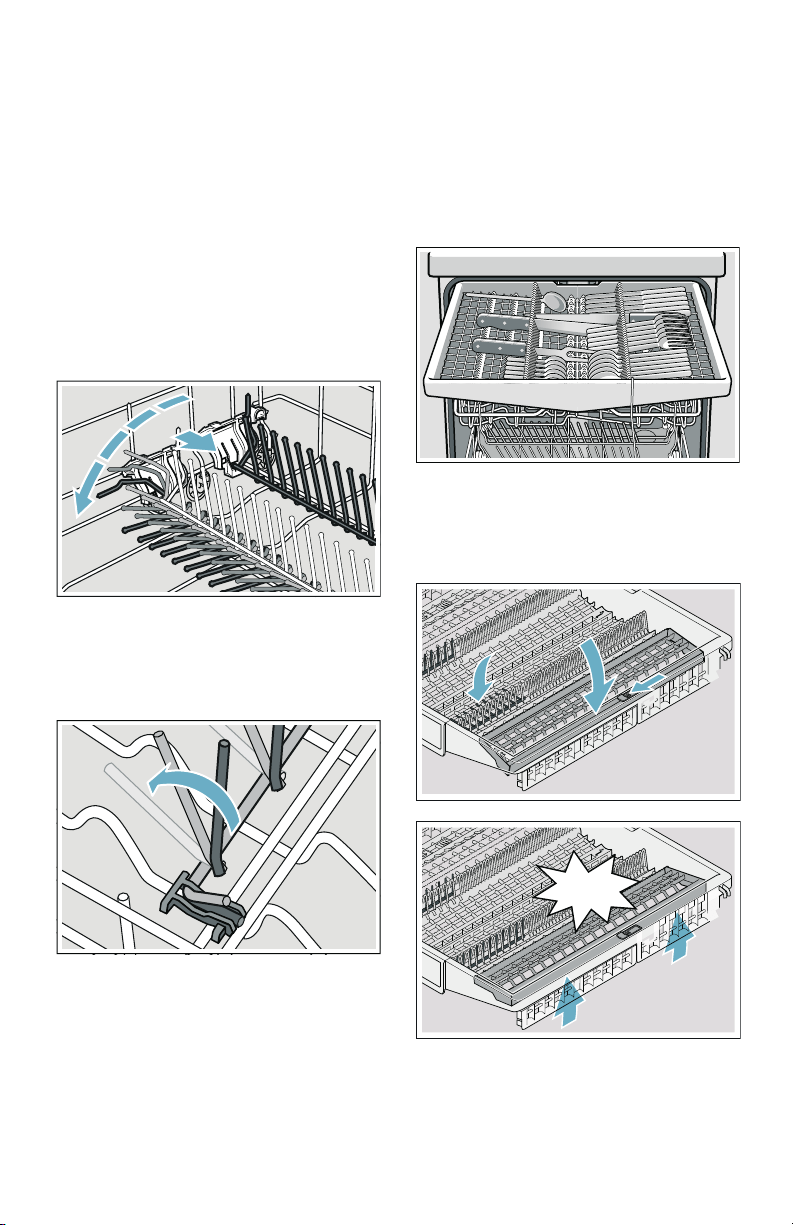

      • Rack accessories22
        • Flip tines22
        • Third rack22
        • Cup shelves23

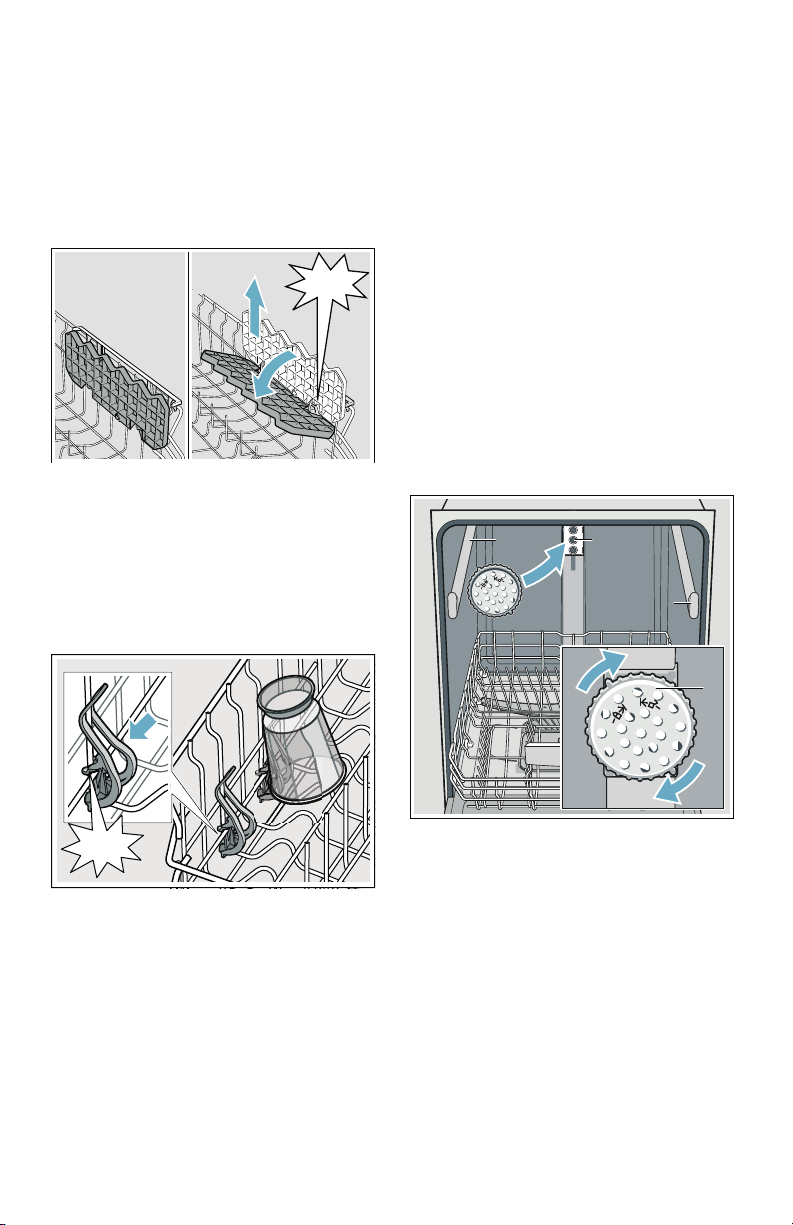

        • Plastic item clips*23
        • Extra tall item sprinkler*23
          • Note:24
          • NOTICE24
      • Removing/Installing third rack24
        • Removing third rack 1*24
          • 1. Pull out third rack all the way (1).24
          • 2. Lift upper rollers over the stopper hooks of both rails (2).24
          • 3. Pull third rack out forward and upward so that the holding hooks and the lower rollers of the rack slide over the stopper hooks of both rails (3).24

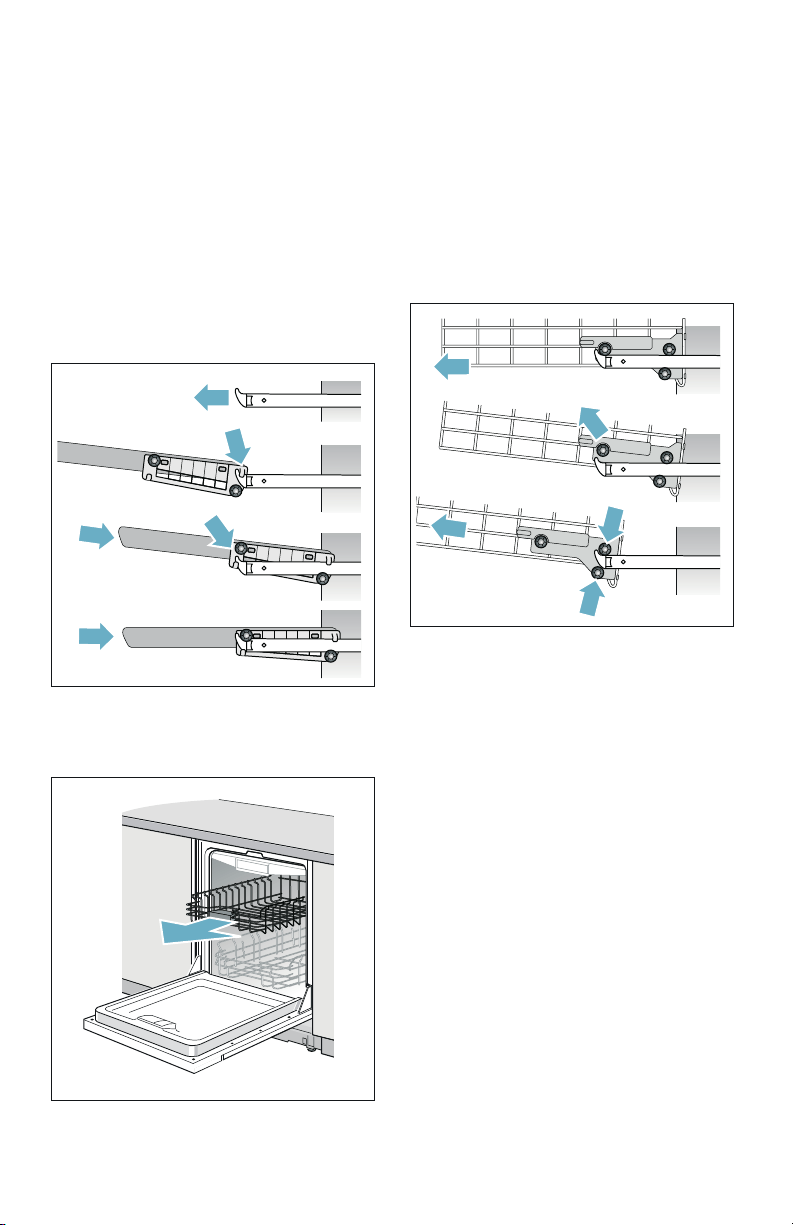

        • Installing third rack 1*25
          • 1. Pull out third rack rails all the way (1).25
          • 2. Insert third rack at an angle. Make sure that the stopper hooks of both rails slide in between the holding hooks and the lower rollers of the third rack (2).25
          • 3. Slide third rack in and lift the upper rollers over the front stopper hooks of both rails (3).25
          • 4. Push in third rack (4).25

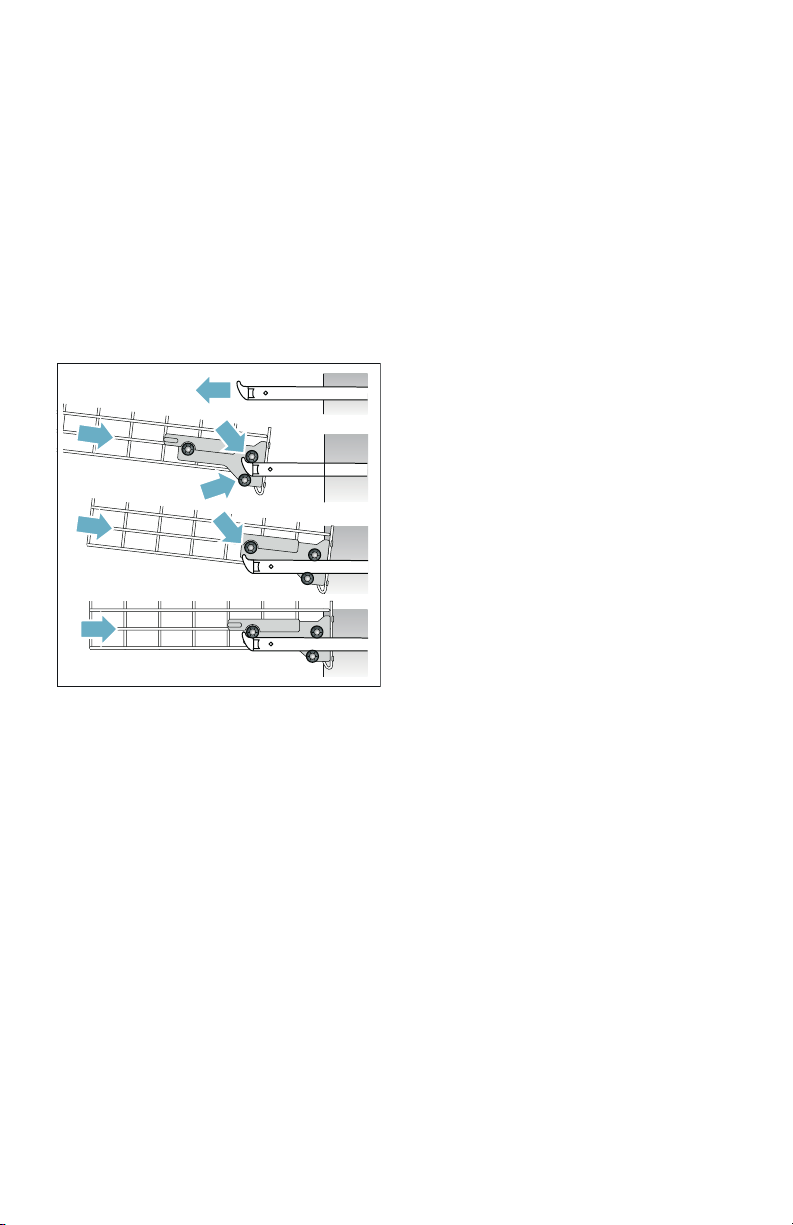

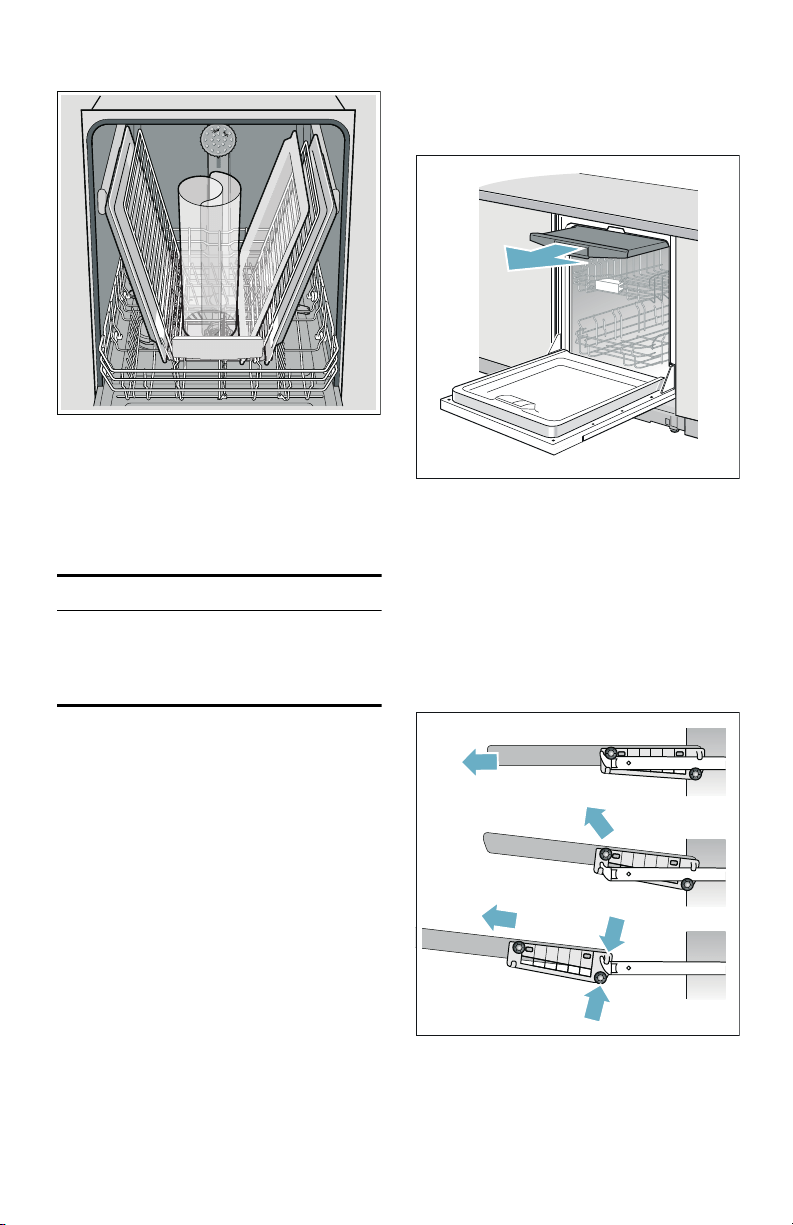

      • Removing/Installing upper rack with Rackmatic®25
        • Removing upper rack 1225
          • 1. Pull out upper rack all the way (1).25
          • 2. Lift front rollers over the stopper hook of the rail (2).25
          • 3. Pull out upper rack forwards and upwards so that the upper and lower rollers of the rack slide over the stopper hooks of both rails (3).25
        • Installing upper rack 1226
          • 1. Pull out upper rack rails all the way (1).26
          • 2. Insert upper rack at an angle. Make sure that the stopper hooks of both rails slide in between the upper and lower rollers on the rear side of the rack (2).26
          • 3. Slide upper rack in and lift the upper rollers over the front stopper hooks of both rails (3).26
          • 4. Push in upper rack (4).26
      • . Detergent27
        • Detergent27
        • NOTICE27
          • Note:27
        • Wash Cycle27
        • Hard Water/ Heavy Soil27
        • Medium Water/ Medium Soil27
        • Soft Water/ Little Soil27

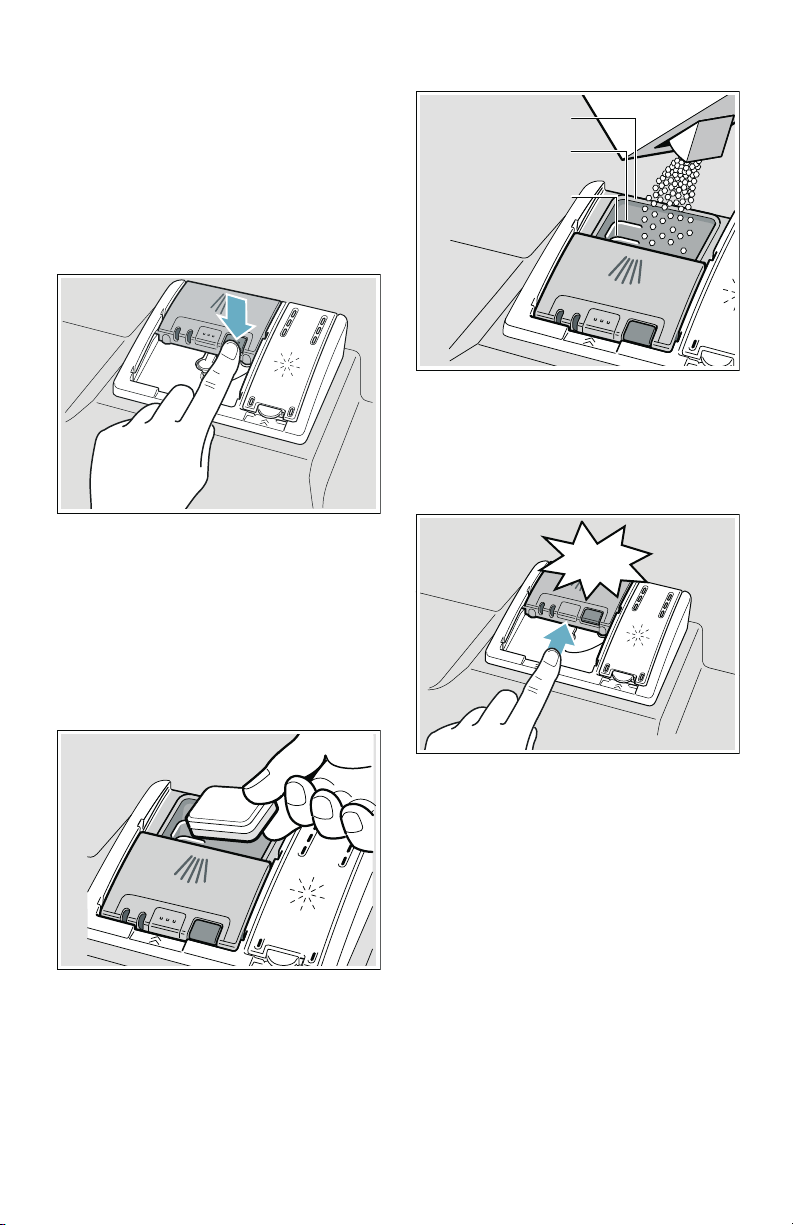

        • Adding detergent28
          • 1. If the detergent dispenser 92 is still closed, push the button 9: to open it.28
          • Note:28
            • 2. When using detergent tabs, lay them such that they do not come in contact with the cover, insert a detergent tab flat, not on its side.28
          • Note:28
            • 3. Close the lid by placing the finger on the lid as shown. Slide the lid closed until it clicks.28
            • Tip:28
      • / Dishwasher Cycles29
        • Dishwasher Cycles29
        • Wash cycle29
        • Recommended use29
        • Possible wash cycle option29
        • Note:29
          • Note:29
  • The Energy Guide label was based on the Normal soil sensing cycle as follows: The unit was tested without any rinse aid (liquid) in the rinse aid dispenser 9*. A single dose of detergent was inserted into the detergent dispenser 92, with no detergent...29
    • 0 Dishwasher Cycle Options30
      • Dishwasher Cycle Options30
      • Delay30
      • SpeedPerfect®30
      • Half Load30
      • Delicate30
      • Sanitize30
      • AutoAir™30
      • ExtraScrub®30
      • Wash Cycle Information31
        • Note:32
  • Only sanitizing cycles have been designed to meet the requirements of Section 6 of the NSF/ANSI Standard for Residential Equipment for soil removal and sanitization efficacy. There is no intention, either directly or indirectly, to imply that all cyc...32
    • 1 Operating the Dishwasher33
      • Operating the Dishwasher33
      • Note:33
      • 9 WARNING33
        • Risk of injury!33
      • Protection against unintentional operation33
        • This function will be activated when:33
          • Note:33
      • AquaSensor33
      • Switching the appliance on33
        • 1. Turn the water supply on fully.33
        • 2. Open the door.33
        • 3. Press the On/Off button (.33
        • 4. Press Start button P.33
        • Note:33
      • Time display34
      • Delay Start34
        • To set Delay start:34
          • 1. Open the door and press the On/Off button (. Select a cycle.34
          • 2. Press the Delay button from the wash cycle options H until the displayed time corresponds with your requirements.34
          • 3. Press the Start button P to activate Delay start.34
        • To cancel Delay start:34
          • 1. Open the door and press the Delay button until œ:‹‹ is indicated on the digital display 8.34
          • 2. Press the Start button P to save setting.34
          • Note:34
      • Wash cycle end34
        • To change the signal volume:34
          • 1. Open the door.34
          • 2. Press the On/Off button (.34
          • 3. Hold down function key # and press Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.34
          • 4. Press function key # until the display shows ›:‹ƒ.34
          • 5. Press function key 3. Each time the button is pressed the set value increases by one level; when it reaches the value ›:‹„, the display jumps back to ›:‹‹ (off).34
          • 6. Press Start button P to save the setting.34
      • Auto power off35
        • To change the setting:35
          • 1. Press the On/Off button (.35
          • 2. Hold down the function key # and press the Start button P until the display 8 indicates š:‹x (x can be any number).35
          • 3. Release both buttons.35
          • 4. Press the function key # until the display 8 indicates ˜:‹x.35
          • 5. Press the function key 3 until the display corresponds with your requirements.35
          • 6. Press the Start button P.35
      • Switching off the appliance35
        • Short time after the end of the wash cycle:35
          • 1. Press On/Off button (.35
          • 2. Remove the dishes when they have cooled down.35
        • 9 WARNING35
          • Risk of injury!35
      • Interrupting the wash cycle35
      • 9 CAUTION35
        • 1. Open the door.35
        • 2. Switch off On/Off switch (.35
        • 3. To continue the wash cycle, switch on the On/Off switch ( again.35
        • 4. Close the door.35
        • Note:35
      • Terminating the wash cycle (Reset)36
        • Terminating the wash cycle36
        • 1. Press and hold Start button P for approximately 3 seconds until the display reads ‹:‹‚.36
        • 2. Wait about 1 minute while the dishwasher drains.36
        • 3. Press On/Off button (.36
      • Changing the wash cycle36
      • InfoLight® *36
        • To change the setting:36
          • 1. Open the door.36
          • 2. Press the On/Off button (.36
          • 3. Hold down function key # and press Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.36
          • 4. Press function key # until the display shows ‚:‹‚.36
          • 5. Press the function key 3 to switch the InfoLight® feature on ‚:‹‚ or off ‚:‹‹.36
          • 6. Press Start button P to save the setting.36
      • Intensive drying36
        • 1. Open the door.36
        • 2. Press the On/Off button (.36
        • 3. Hold down function key # and press Start button P until the display 8 indicates š:x (x can be any number).36
        • 4. Release both buttons.36
        • 5. Press function key # until the display 8 indicates the factory set value š:‹‹.36
        • 6. Press function key 3 to switch the Extra dry feature on š:‹‚ or off š:‹‹.36
        • 7. Press Start button P to save setting.36
      • AutoAir™37
        • 1. Open the door.37
        • 2. Press the On/Off button (.37
        • 3. Hold down function key # and press Start button P until the display 8 indicates š:x (x can be any number).37
        • 4. Release both buttons.37
        • 5. Press function key # until the display 8 indicates the factory set value ©:‹‹.37
        • 6. Press function key 3 to switch the AutoAir™ feature on ©:‹‚ or off ©:‹‹.37
        • 7. Press Start button P to save setting.37
      • 9 CAUTION37
    • 2 Care and Maintenance38
      • Care and Maintenance38
      • Cleaning the dishwasher38
        • NOTICE38
        • 9 WARNING38
          • RIsk of explosion!38
        • 9 WARNING38
      • Filters38

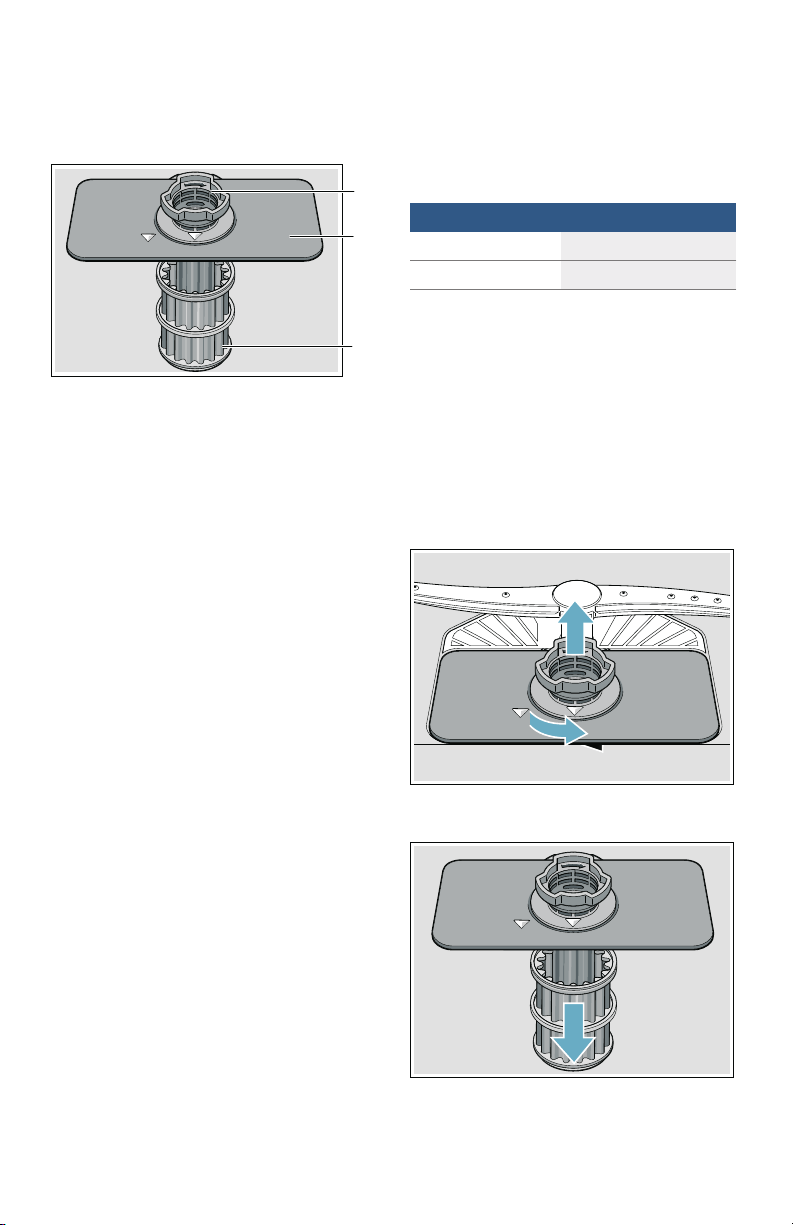

        • Filter components39
        • The filter system 1b consists of three parts.39
        • Cleaning intervals39
          • Your filter system may need to be cleaned when:39
        • Cleaning interval39
        • Usage39
          • Note:39
        • To check or clean the filter system:39

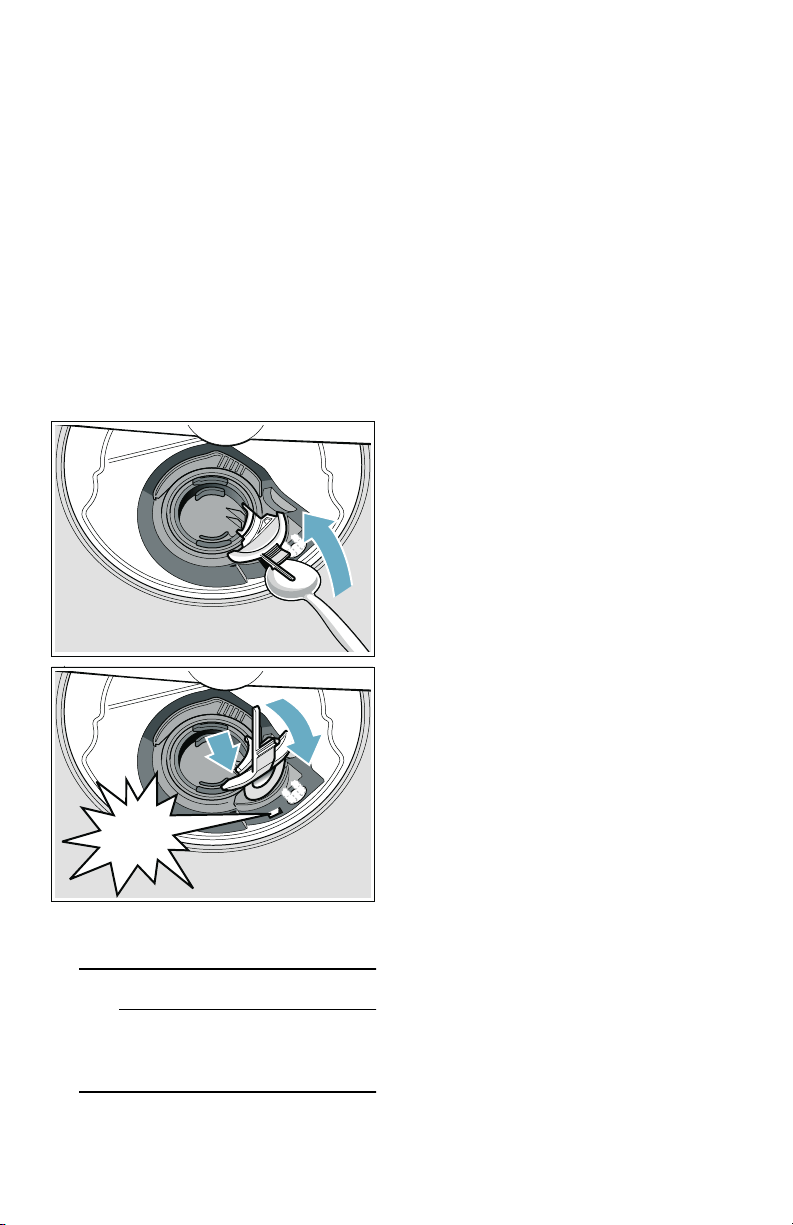

          • 1. Unscrew the Large Object Trap as illustrated and remove the entire filter system.39
          • 2. Remove the microfilter from the fine filter for easier cleaning.39
          • 3. Rinse the filters under running water and use a soft brush to clean.40
        • Note:40
          • 4. Reinstall the filter system in reverse sequence and lock into place by screwing the Large Object Trap until the marking arrows align.40
      • Spray arms40

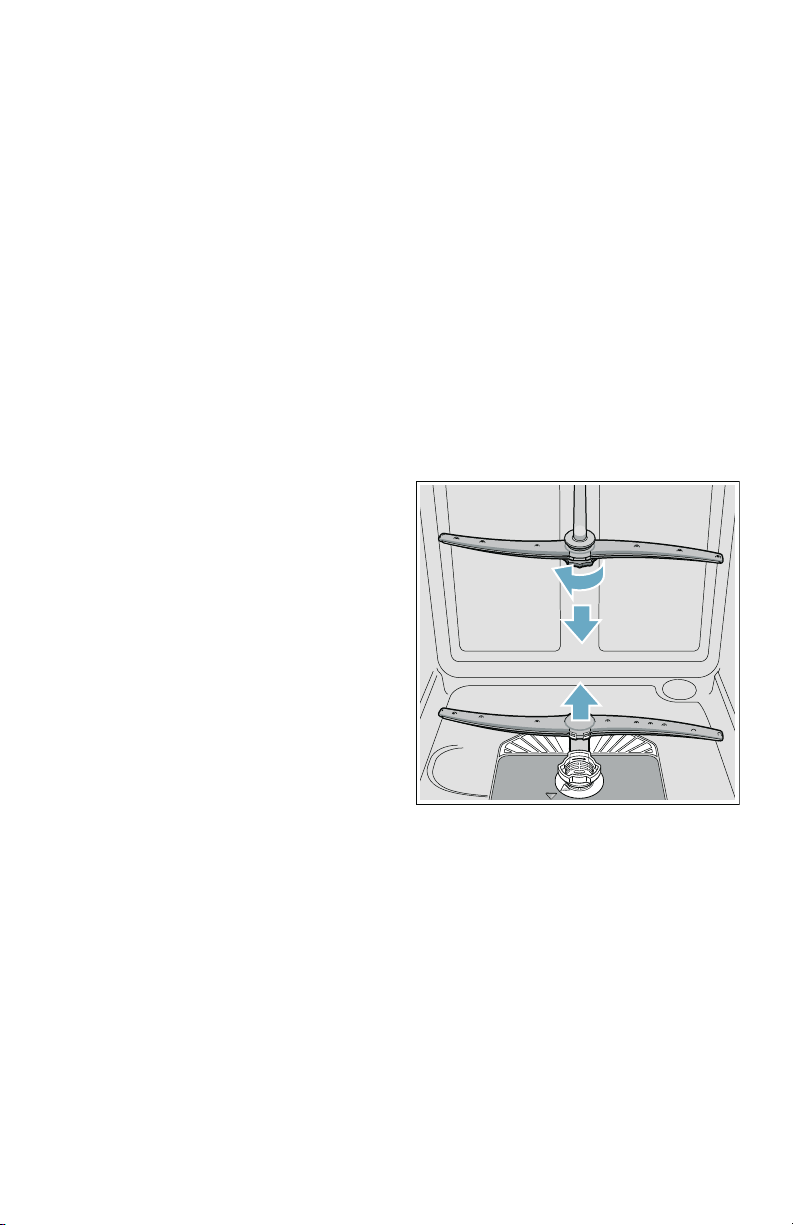

        • Check spray arms 1:, 1R for grease and limescale deposits. If you find such deposits:40
      • Drain pump41
        • Large food remnants in the rinsing water not retained by the filters may block the waste water pump. In this case:41
          • Note:41
      • Preparing your unit for vacation42
        • NOTICE42
      • Winterizing your unit42
        • NOTICE42
    • 3 Troubleshooting43
      • Troubleshooting43
      • Problem43
      • Cause43
      • Action43
      • Note:44
      • Note:46
      • Note:46
    • --------47
      • 4 Customer Service48
        • Customer Service48
        • 1. Call us at 1-800-944-290448
        • 2. Contact Customer Service from our web site: www.bosch-home.com/us or www.bosch-home.ca48
        • 3. Contact your installer or the Bosch Authorized Service Contractor in your area.48
        • 4. Write us:48
      • ‡ Statement of Limited Product Warranty49
        • Statement of Limited Product Warranty49
        • What this Warranty Covers & Who it Applies to:49
        • How Long the Warranty Lasts49
        • Extended Limited Warranty49
          • BSH also provides these additional limited warranties:49
        • Repair/Replace as Your Exclusive Remedy50
        • Out of Warranty Product50
        • Warranty Exclusions50
        • Obtaining Warranty Service:52
