ES330 Control, Self-Cleaning Oven
with Sealed Gas Burners
Gas
READ AND SAVE THESE INSTRUCTIONS
Welcome..........................................2
Important Safety Instructions .....3-5
Features at a Glance ......................6
Before Setting Oven Controls .......7
Setting Surface Controls ...............8
Oven Control Functions ................9
Setting Oven Controls............ 10-14
Self Cleaning........................... 15-16
General Care & Cleaning ....... 17-19
Adjusting Oven Temperature.......19
Before You Call
Solutions to Common Problems ................ 20-21
Warranty ......................... Back Page
Visit the Frigidaire Web Site at: http://www.frigidaire.com
Questions or for Service Call:
1-800-944-9044 (U.S.)
1-800-668-4606 (Canada)
2
This Use & Care Manual contains general operating instructions for your range and
feature information for several models. Your range may not have all the described
features. The graphics shown are representational. The graphics on your range may
not look exactly like those shown.
© 2006 Electrolux Home Products, Inc.
All rights reserved.
Welcome & Congratulations
Congratulations on your purchase of a new range! At Electrolux Home Products,
we are very proud of our product and are completely committed to providing you
with the best service possible. Your satisfaction is our number one priority.
We know you’ll enjoy your new range and Thank You for choosing our product.
We hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model.
Use your range only as instructed in this manual. These instructions are not
meant to cover every possible condition and situation that may occur. Common
sense and caution must be practiced when installing, operating and maintaining
any appliance.
Please record your model and serial numbers below for future reference.
Model Number:
Serial Number:
Purchase Date:
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in
completely, signed and returned to Electrolux Home Products.
Product Registration
Serial plate location;
Open storage drawer (some models)
or remove outer lower panel (some models).
3
Important Safety Instructions
Read all instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.
This symbol will help alert you to situations that may cause bodily injury or property damage.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
• Proper Installation—Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Fuel Gas Code ANSI
Z223.- latest edition, or in Canada CAN/CGA B149.1, and
CAN/CGA B149.2, and the the National Electrical Code
ANSI/NFPA No.70-latest edition, or in Canada CSA
Standard C22.1, Canadian Electrical Code, Part 1, and
local code requirements. Install only per installation
instructions provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing—Do not repair or replace any part of the
appliance unless specifically recommended in the
manuals. All other servicing should be done only by a
qualified technician, This may reduce the risk of personal
injury and damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and
also cause damage to the range. Do not allow children to
climb or play around the range. The weight of a child on an
open door may cause the range to tip, resulting in serious
burns or other injury.
Do not use the oven or warmer drawer (if
equipped) for storage.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could be
seriously injured.
Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on Appliance—Flammable materials
should not be stored in an oven, warmer drawer, near
surface burners or in the storage drawer. This includes
paper, plastic and cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the range.
If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a
qualified installer, servicer or the gas supplier.
4
Important Safety Instructions
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hot use extreme caution. Use potholders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan and
its insert allow dripping fat to drain and be kept away from the high
heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed fat
and grease could ignite.
• Cold temperatures can damage the electronic control. When
using the appliance for the first time, or when the appliance has
not been used for an extended period of time, be certain the unit
has been in temperatures above 32°F (0°C) for at least 3 hours
before turning on the power to the appliance.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease that
could catch fire. Pay particular attention to the area underneath
each surface element. Do not allow grease to accumulate. Refer
to the range manufacturer’s instructions for cleaning.
• Kitchen cleaners and aerosols—Always follow the
manufacturer’s recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this
Owner’s Guide. Before self cleaning the oven, remove the broiler
pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners—No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket—The door gasket is essential for a
good seal. Care should be taken not to rub, damage or move the
gasket.
• Do Not Leave Children Alone—Children should not be left
alone or unattended in the area where appliance is in use. They
should never be allowed to sit or stand on any part of the
appliance.
• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR THESE
BURNERS, OVEN BURNERS OR INTERIOR SURFACES OF
THE OVEN. Both surface and oven burners may be hot even
though flames are not visible. Areas near surface burners may
become hot enough to cause burns. During and after use, do not
touch, or let clothing or other flammable materials touch these
areas until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the oven vent
openings and surfaces near these openings, oven door and
window.
• Wear Proper Apparel—Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires—Smother the fire
with a pan lid, or use baking soda, a dry chemical or foam-type
extinguisher.
• When heating fat or grease, watch it closely. Fat or grease may
catch fire if allowed to become too hot.
• Use Only Dry Potholders—Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let potholders
touch hot heating burners. Do not use a towel or other bulky cloth
instead of a potholder.
• Do Not Heat Unopened Food Containers—Buildup of pressure
may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT—ELECTRIC IGNITION MODELS ONLY: Do not
attempt to operate the oven during a power failure. If the power fails,
always turn off the oven. If the oven is not turned off and the power
resumes, the oven will begin to operate again. Once the power
resumes, reset the clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
Use Proper Flame Size—Adjust flame size so it
does not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner flame to
direct contact and may result in ignition of clothing. Proper
relationship of utensil to flame will also improve efficiency.
• Know which knob controls each surface burner. Place a pan of
food on the burner before turning it on, and turn the burner off
before removing the pan.
•Always turn knob to the full LITE position when igniting top
burners. Visually check that burner has lit. Then adjust the flame
so it does not extend beyond the edge of the utensil.
• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Burners—To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
burners.
• Never Leave Surface Burners Unattended at High Heat
Settings—Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Protective Liners—Do not use aluminum foil to line surface
burner pans, or oven bottom, except as suggested in this manual.
Improper installation of these liners may result in risk of electric
shock, or fire.
• Glazed Cooking Utensils—Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop service without breaking due to the sudden
change in temperature. Check the manufacturer’s
recommendations for cooktop use.
IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN
• Use Care When Opening Oven Door or Warmer Drawer—
Stand to the side of the range when opening the door of a hot oven.
Let hot air or steam escape before you remove or replace food in
the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is located
below the backguard. Touching the surfaces in this area when the
oven is operating may cause severe burns. Also, do not place
plastic or heat-sensitive items on or near the oven vent. These
items could melt or ignite.
5
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn
customers of potential exposure to such substances.
See the INSTALLATION INSTRUCTIONS packaged with this range
for complete installation and grounding instructions.
GROUNDING INSTRUCTIONS
(electric ignition models only)
Avoid fire hazard or electrical shock. Do not use
an adapter plug, an extension cord, or remove grounding prong
from electrical power cord. Failure to follow this warning can cause
serious injury, fire or death.
This appliance is equipped with a 3-prong
grounding plug for your protection against shock hazard and
should be plugged directly into a properly grounded receptacle.
DO NOT cut or remove the grounding prong from this plug.
For personal safety, the range must be properly grounded. For
maximum safety, the power cord must be plugged into an electrical
outlet that is correctly polarized and properly grounded.
If a 2-prong wall receptacle is the only available outlet, it is the
personal responsibility of the consumer to have it replaced with a
properly grounded 3-prong wall receptacle installed by a qualified
electrician.
Important Safety Instructions
The natural gas range is designed to allow for conversion to
Liquefied Petroleum (L.P.) Gas.
If L.P. conversion is needed, contact your local appliance
dealer for assistance. The L.P. Conversion Kit may be
obtained from your appliance dealer and should be installed
by a qualified service technician. Before installing the kit be
sure to follow the L.P. Installation Instructions carefully.
Personal injury or death from electrical
shock may occur if the range is not installed by a
qualified installer or electrician.
Any additions, changes or conversions
required in order for this appliance to satisfactorily meet
the application needs must be made by a qualified
technician.
Conversion to Liquefied Petroleum Gas (or L.P. Gas)
Features At A Glance
Your Gas Range Features Include:
1. Electronic Oven Control with Kitchen Timer.
2. Speed Bake™ Cooking System Control Switch & Indicator
Light (some models).
3. Left Front Burner Valve & Knob.
4. Left Rear Burner Valve & Knob.
5. Right Rear Burner Valve & Knob.
6. Right Front Burner Valve & Knob.
7. Easy to clean Upswept Cooktop
8. Dishwasher safe Burner Grates (colors vary).
9. Dishwasher safe center Burner Grate (not shown)
10. Self-Clean Oven Door Latch.
11. Automatic Oven Door Light Switch (some models).
12. Oven Interior Light with Shield (some models).
13. Self-Cleaning Oven interior.
14. Adjustable Oven Rack(s).
15. Speed Bake™ Cooking System Fan (some models).
16. Large 1 piece Oven Door Handle.
17. Full width Oven Door (styles vary with model).
18. Storage Drawer with integrated Handle (some models), Storage
Drawer with Handle (some models) or lower cover panel (some
models).
19. 5,000 BTU Simmer Burner (some models).
20. 9,500 BTU Burner (some models).
21. 12,000 BTU Power Plus Burner (some models).
22. 14,000 BTU Power Plus Burner (some models).
23. Burner Drip pans (some models).
24. Broil Pan (some models).
25. Broil Pan Insert (some models).
26. Leveling Legs and Anti-tip Bracket (included).
NOTE: The features of your range may
vary according to model type & color.
20
8
1
6
7
5
4
3
2
23
23
23
23
8
8
8
16
23
8
13
12
14
15
7
11
17
18
19
20
20
21
21
22
21
20
24
25
9
10
6
Before Setting Oven Controls
For best air circulation and baking
results allow 2-4" (5-10 cm) around
the cookware for proper air circulation
and be sure pans and cookware do not
touch each other, the oven door, sides
or back of the oven cavity. The hot air
must be able to circulate around the
pans and cookware in the oven for
even heat to reach around the food.
Air Circulation in the Oven
Fig. 4
Fig. 5
Oven Racks
Your range is equipped with one or more Flat Oven Rack(s). Place the rack(s)
into the positions shown in Fig. 2. See the Recommended Rack Positions in the
chart above.
Fig. 1
Recommended Rack Positions for Broiling, Baking & Roasting:
Food Rack Position
Broiling hamburgers & steaks See Broil
Broiling meats, chicken or fish See Broil
Cookies, cakes, pies, biscuits 2 or 3
& Muffins
Frozen pies, angel food cake, 1 or Roasting Shelf
yeast, bread, casseroles, small
cuts of meat or poultry
Turkey, roast or ham 1 or Roasting Shelf
Fig. 2
Flat Oven Rack
Fig. 3
Oven Vent Location
The oven vent is located below the backguard (See Fig. 1). When the oven is
on, warm air is released through this vent. This venting is necessary for proper air
circulation in the oven and good baking results. DO NOT BLOCK THE VENT.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN).
Always use oven mitts when using the oven.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and slide out.
To replace, fit the rack onto the guides on the oven walls. Tilt the front of the rack
upward and slide the rack back into place.
Baking Layer Cakes with 1 or 2 Oven Racks
For best results when baking cakes using 2 oven racks, place cookware on rack
positions 1 & 4 (See Figs. 2 & 4). For best results when using a single oven Flat Rack,
place cookware on rack position 2 or 3 (See Figs. 2 & 5).
Roasting
Shelf
5
4
3
2
1
7
8
Setting Surface Controls
Do not place plastic
items such as salt and pepper shakers,
spoon holders or plastic wrappings
on top of the range when it is in use.
These items could melt or ignite.
Potholders, towels or wood spoons could
catch fire if placed too close to a flame.
In the event of an electrical power outage,
the surface burners can be lit manually.
To light a surface burner, hold a lit match
to the burner head, then slowly turn the
surface control knob to LITE. After burner
lights push in and turn knob to desired
setting. Use caution when lighting surface
burners manually.
Setting Proper Surface Burner Flame Size
For most cooking
, start on the highest control setting and then turn to a lower
one to complete the process. Use the recommendations below as a guide for
determining proper flame size for various types of cooking. The size and type of
utensil used and the amount of food being cooked will influence the setting
needed for cooking.
*Flame Size Type of Cooking
High Flame Start most foods; bring water to a boil; pan broiling.
Medium Flame Maintain a slow boil; thicken sauces, gravies; steaming.
Low Flame Keep foods cooking; poach; stewing.
For deep fat frying,
use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If
the fat is too hot, the food will brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the food
will neither brown nor cook properly.
Never extend the flame beyond the outer
edge of the utensil. A higher flame simply
wastes heat and energy, and increases
your risk of being burned by the flame.
*These settings are based on using medium-weight metal or aluminum pans with lids. Settings may vary when using
other types of pans. The color of the flame is the key to proper burner adjustment. A good flame is clear, blue and hardly visible
in a well-lighted room. Each cone of flame should be steady and sharp. Adjust or clean burner if flame is yellow-orange.
Setting Surface Controls
Your range may be equipped with different sized surface burners. The ability to heat
food quicker and in larger volumes increases as the burner size increases.
The SIMMER burner (some models) is best used for simmering delicate sauces,
etc.
The standard burners can be used for most surface cooking needs.
The POWER PLUS burner(s) (some models) are best used for bringing large
quantities of liquid to temperature and when preparing larger quantities of food.
Regardless of size, always select cookware that is suitable for the amount and
type of food being prepared. Select a burner and flame size appropriate to the pan.
Never allow flames to extend beyond the outer edge of the pan.
Operating the Gas Surface Burners:
1. Place cooking utensil on surface burner.
2. Push the surface control knob in and turn counterclockwise out of the OFF
position.
3. Release the knob and rotate to the LITE position. Note: All four electronic
surface ignitors will spark at the same time. However, only the burner you are
turning on will ignite.
3. Visually check that the burner has lit.
4. Push the control knob in and turn counterclockwise to the desired flame size.
The control knobs do not have to be set at a particular setting. Use the guides
and adjust the flame as needed. DO NOT cook with the surface control knob
in the LITE position. (The electronic ignitor will continue to spark if the knob is
left in the LITE position.)
CORRECT
INCORRECT
Oven Control Functions
9
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with
the various pad functions of the oven as described below.
*Note: The OVEN indicator light on the electronic display will turn ON and OFF when using the Bake feature and during
preheat. This is normal and indicates that the oven is cycling to maintain the selected baking temperature. When the
preheat indicator light turns OFF, your oven is ready.
For a silent control panel
When choosing a function, a beep will be heard each time a pad is pressed. If desired, the control can be programmed for
silent operation. Press and hold . After 7 seconds, the control will beep once. This will block the controls from sounding
when a pad is pressed. To return the sound, press and hold again for 7 seconds until the control beeps once.
Temperature conversion
The electronic oven control is set to operate in °F (Fahrenheit) when shipped from the factory. The oven can be programmed
for any temperature from 170°F to 550°F (77°C to 287°C).
To change the temperature to °C (Celsius) or from °C to °F (control should not be in a Bake or Clean mode):
1. Press . "— —" appears in the display.
2. Press and hold the until "HI" appears in the display.
3. Press and hold until °F or °C appears in the display.
4. Press the or to change °F to °C or °C to °F.
5. Press any control pad to return to normal operating mode.
BROIL PAD— Used to
select the variable broil
function.
UP and DOWN ARROW PADS— Used along
with the function pads to select oven
temperature, cook time, start time (when
programming an automatic start time), time of
day, clean time and minute timer.
BAKE PAD—Used
to select the bake
function.
START TIME
PAD— Used to set
the desired start
time for baking &
Self-Clean. May be
used with BAKE
TIME to program a
delayed bake cycle.
BAKE TIME
PAD— Used to
enter the length of
the baking time.
SELF-CLEAN PAD—
Used to select the
Self-Cleaning cycle. A
2 or 3 hour Self-Clean
time may be selected.
OVEN, PREHEAT & DOOR LOCKED LIGHTS* — The "OVEN" light
will glow each time the oven turns on to maintain the set oven
temperature. The "PREHEAT" light will glow when the oven is first
set to operate, or if the desired temperature is reset higher than the
actual oven temperature. The "DOOR LOCKED" light will flash
when the oven door locks and unlocks or when using the Self-
Clean cycle or the oven door lockout is activated.
FEATURE INDICATOR
LIGHTS— These light to
show which feature is in
use.
CLOCK
PAD— Used
to set the
time of day.
CLEAR/OFF PAD— Used
to clear any function
previously entered
except the time of day
and minute timer. Press
CLEAR/OFF to stop
cooking.
TIMER ON/OFF PAD—
Used to set or cancel the
minute timer. The minute
timer does not start or stop
cooking. Also,
TIMER ON/OFF pad is used
to set the Continuous Bake
feature.
INTERIOR OVEN
LIGHT PAD— Used to
turn oven interior light
ON or OFF. This pad is
also used to activate
the Cooktop Lockout
feature (some models)
OVEN LOCK PAD— Used
to set the Oven Lockout
function.
10
Setting Oven Controls
Note: The time of day must first be set in order to operate the oven.

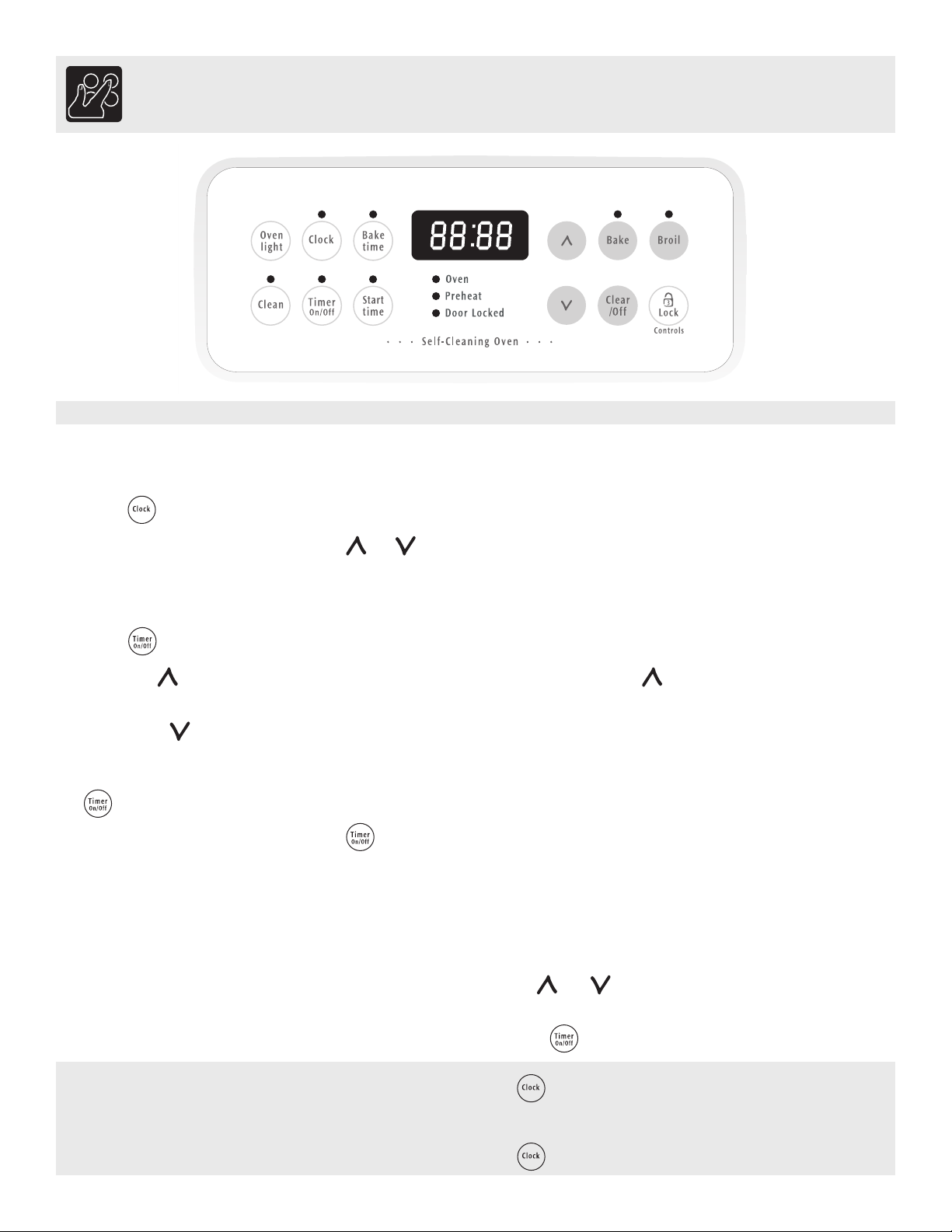

To Set the Clock
When the range is first plugged in, or when the power supply to the range has been interrupted, the display will flash
"12:00".
1. Press once (do not hold pad down).
2. Within 5 seconds, press and hold the or until the correct time of day appears in the display.
Note: The clock cannot be changed during any timed bake or Self-Clean cycle.
To Set the Minute Timer:
Note: To turn the time of day display OFF or ON in the display press and hold for 15 seconds (the control will beep once)
and then release. This feature does not remove the set time of day from the memory of the control. When the display is turned
OFF the time of day will re-appear for a few seconds any time the pad is touched.
1. Press .
2. Press the to increase the time in one minute increments. Press and hold the to increase the time in 10 minute
increments. The timer can be set for any amount of time from 1 minute to 11 hours and 59 minutes.
Note: If the pad is pressed first, the timer will advance to 11 hours and 59 minutes.
3. The display shows the timer countdown in minutes until 1 minute remains. Then the display will countdown in seconds.
4. When the set time has run out, the timer will beep 3 times. it will then continue to beep 3 times every 60 seconds until
is pressed.
Note: The indicator light located above the pad will glow while the minute timer is active.
Note: The minute timer does not start or stop cooking. It serves as an extra timer in the kitchen that will beep when the set
time has run out. The minute timer can be used alone or during any of the other oven functions. When the minute timer is in
use with any other function, the minute timer will be shown in the display. To view other functions, press the pad for that
function.
To Change the Minute Timer while it is in use:
While the timer is active and shows in the display, press and hold the or to increase or decrease the time.
To Cancel the Minute Timer before the set time has run out: Press .
11
Setting Oven Controls
To Set or Change the Temperature for Baking
The oven can be programmed to bake at any temperature from 170°F to 550°F (77°C to 287°C).
To Set the Controls for Baking:
1. Press
. "— — —" appears in the display.
2. Within 5 seconds, press the
or . The display will show "350°F (177°C)." By pressing and holding the or
, the temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
3. As soon as the or pad is released, the oven will begin heating to the selected temperature. When the
displayed temperature reaches the desired baking temperature, the preheat indicator light will turn OFF and the control
will beep 3 times.
4. To cancel baking, press .
To Change the Oven Temperature after Baking has Started:
1. Press and make sure the bake temperature is displayed.
2. Press the or pad to increase or decrease the set temperature.
To Set Control for Continuous Bake or 12 Hour Energy Saving
The oven control has a built-in 12 Hour Energy Saving feature that will shut off the oven if the control is left on for more than
11 hours and 59 minutes. The oven can be programmed to override this feature for continuous baking.
To set control for continuous baking:
1. Press and hold down for 5 seconds until tone is heard, " — — hr" will appear in display for continuous cooking.
The current time of day will return to the display.
2. To cancel the Continuous Bake function, press and hold for 5 seconds until tone is heard. "12hr" will appear in
display indicating that the control has returned to the 12 Hour Energy Saving feature.
To Set Control for Oven Lockout
The control can be programmed to lock the oven door and lockout the oven control pads.
To set Control for Oven Lockout feature:
1. Press and hold for 3 seconds. “Loc” will appear in display, the “Door Locked” indicator light will flash and the
motor driven door lock will begin to close automatically. DO NOT open oven door while the indicator light is flashing.
Allow about 15 seconds for the oven door to lock. Once the oven door is locked, the current time of day will appear in
the display.
2. To cancel the Oven Lockout feature, press and hold for 3 seconds. The control will unlock the oven door and
resume normal operation.
Note: If any control pad is pressed while in the Oven Lockout mode, “Loc” will appear in the display until the
control pad is released.
12
Setting Oven Controls
Use caution with the Timed Bake and Delayed Start (Delayed Timed Bake) features. Foods that can easily
spoil such as milk, eggs, fish, meat or poultry, should be chilled in the refrigerator first. Even when chilled, they should not
stand in the oven for more than 1 hour before cooking begins, and should be removed promptly when cooking is completed.
To Set the Timed Bake and Delay Start (Delayed Timed Bake) Features
The BAKE TIME and START TIME pads operate the features that will turn the oven ON and OFF at the times you
select in advance. The oven can be programmed to start immediately and shut off automatically (Timed Bake) or to begin
baking at a later time with a delayed start time (Delay Start).
To Program the Oven to Begin Baking Immediately and To Shut Off Automatically (Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press
. " — — — ° " appears in the display.
4. Within 5 seconds, press the or . The display will show "350°F (177°C)." By holding the or , the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. Press . "0:00" will flash in the display (HR:MIN).
6. Press the or until the desired baking time appears in the display.
7. The oven will turn ON and begin heating.
To Program Oven for a Delayed Start Time and to Shut-Off Automatically (Delayed Timed Bake):
1. Be sure that the clock shows the correct time of day.
2. Place the food in the oven.
3. Press . " — — — ° " appears in the display.
4. Within 5 seconds, press the or . The display will show "350°F (177°C)." By holding the or , the
temperature can then be adjusted in 5°F increments (1°C if the control is set to display Celsius).
5. Press . "0:00" will flash in the display (HR:MIN).
6. Press the or until the desired baking time appears.
7. Press . The earliest possible start time will appear in the display.
8. Press the or until the desired start time appears in the display.
9. Once the controls are set, the control calculates the time when baking will stop in order to start at the time you have
set.
10. The oven will turn ON at the delayed start time and begin heating.
When the Set Bake Time Runs Out:
a. "END" will appear in the display window and the oven will shut-off automatically.
b. The control will beep 3 times every 60 seconds until is pressed.
To Change the Oven Temperature or Bake Time after Baking has Started:
1. Press the function pad you want to change.
2. Press the or to adjust the setting.
Note: During Timed Bake the preheat indicator light will not function.
13
Setting Oven Controls
Benefits of Speed Bake™ Cooking
System:
—Foods cook up to 25 to 30% faster,
saving time and energy.
—Multiple rack baking.
—No special pans or bakeware needed.
General Cooking Instructions:
For Baking:
1. For optimum cooking results it is recommended to preheat the oven when baking foods such as cookies, biscuits and breads.
2. Reduce oven temperature 25° F from recipe’s recommended oven temperature. Follow the remainder of the recipe’s
instructions using the minimum recommended cook time.
3. When using 2 oven racks at the same time, place in oven rack positions 1 & 4 for best results (See Fig. 2)
Note: Layer cakes will have better results using the normal Bake feature.
For Roasting:
1. Preheating is not necessary when roasting foods with Speed Bake™ Cooking System.
2. Since Speed Bake™ cooks food faster, reduce the cook time by 25% from the recommended cook time of your recipe.
Increase the time until the desired doneness is obtained.
Note: Cook time reductions will vary depending on the amount and type of food being cooked.
How the Speed Bake™ Cooking System works (some
models)
Speed Bake™ Cooking System uses a fan to circulate the oven's heat
uniformly and continuously around the oven. This improved heat distribution
allows for fast, even cooking and browning results. It also gives better baking
results when using two racks at the same time (See Fig. 1).
Heated air flows around the food from all sides, sealing in juices and flavors.
Meats cooked with Speed Bake™ Cooking System are juicer. Poultry is
crisp on the outside while staying tender and moist on the inside. Breads and
pastry brown more evenly. Most foods baked in a standard oven can be
cooked faster and more evenly with Speed Bake™ Cooking System.
To Set Speed Bake™ Cooking System:
1. Program the oven as you normally would to bake. Speed Bake™ may be used
with Bake, Timed Bake and Delayed Time Bake features.
2. Press and release Speed Bake™ switch. The indicator light located above the
Speed Bake™ switch will glow and the fan will come on. The fan stays on when the
oven door is closed and shuts off while the oven door is opened. The fan will
continue to operate until cooking is complete.
3. To cancel Speed Bake™, press on the oven control as you would to stop
any baking function.
Fig. 2
Speed Bake™ Cooking System
Fig. 1
IMPORTANT NOTES: The Speed Bake™ fan will take 6 minutes to begin rotating
once the Speed Bake™ switch has been turned ON. The Speed Bake™ feature will not
activate during a Self-Clean cycle.
Roasting
Shelf
2
1
5
4
3
14
Setting Oven Controls
To Set for Broiling:
1. Arrange the oven rack while oven is still cool. Position the rack as
suggested in the Broil Rack Position Table below.
Should an oven fire occur, close the oven door and turn the oven OFF. If the fire continues, use a fire
extinguisher. DO NOT put water or flour on the fire. Flour may be explosive.
Fig.1 (some models)
Fig. 2
Broil Rack Position Table (Refer to Fig. 2)
Rack Position Food category
5th Medium steaks & hamburgers
4th Fish, medium-well steaks, hamburgers & pork chops
3rd Well-done foods such as chicken & lobster
2. Press . " — — "will appear in display.
3. Press and hold the or until the desired broil setting level appears in
the display. Press the for HI broil or the for LO broil. Most foods
may be broiled at the HI broil setting. Select the LO broil setting to avoid
excess browning or drying of foods that should be cooked to the well-done
stage.
4. For optimum browning, preheat broil burner for 3 - 4 minutes before
adding food.
5. Place the insert on the broil pan (if equipped), then place the food on the
insert (if equipped; See Fig. 1).
6. Place the broiler pan and insert on the oven rack (if equipped). Close the
oven door.
7. Broil on one side until food is browned. Turn and broil food on 2nd side.
Note: Always pull the oven rack out to the stop position before turning or
removing the food.
8. When broiling is finished press .
The broiler pan and the insert allows grease to drain and be kept away from the high heat of the broiler. DO NOT use the
pan without the insert. DO NOT cover the insert with foil; the exposed grease could ignite. DO NOT use the broil pan
without the insert or cover the insert with aluminum foil. The exposed fat could ignite.
To insure proper results when broiling use ONLY Electrolux Home
Products, Inc. approved Broil Pan & Insert.
To Operate the Oven Light
The interior oven light will automatically turn ON when the oven door is opened. Press to turn the interior oven light ON and
OFF whenever the oven door is closed.
The interior oven light is located at the upper left rear wall of the oven interior and is covered with a glass shield held by a wire
holder. The glass shield must be in place whenever the oven is in use. To change the interior oven light, see "Changing the Oven
Light" in the General Care & Cleaning section.
5
4
3
15

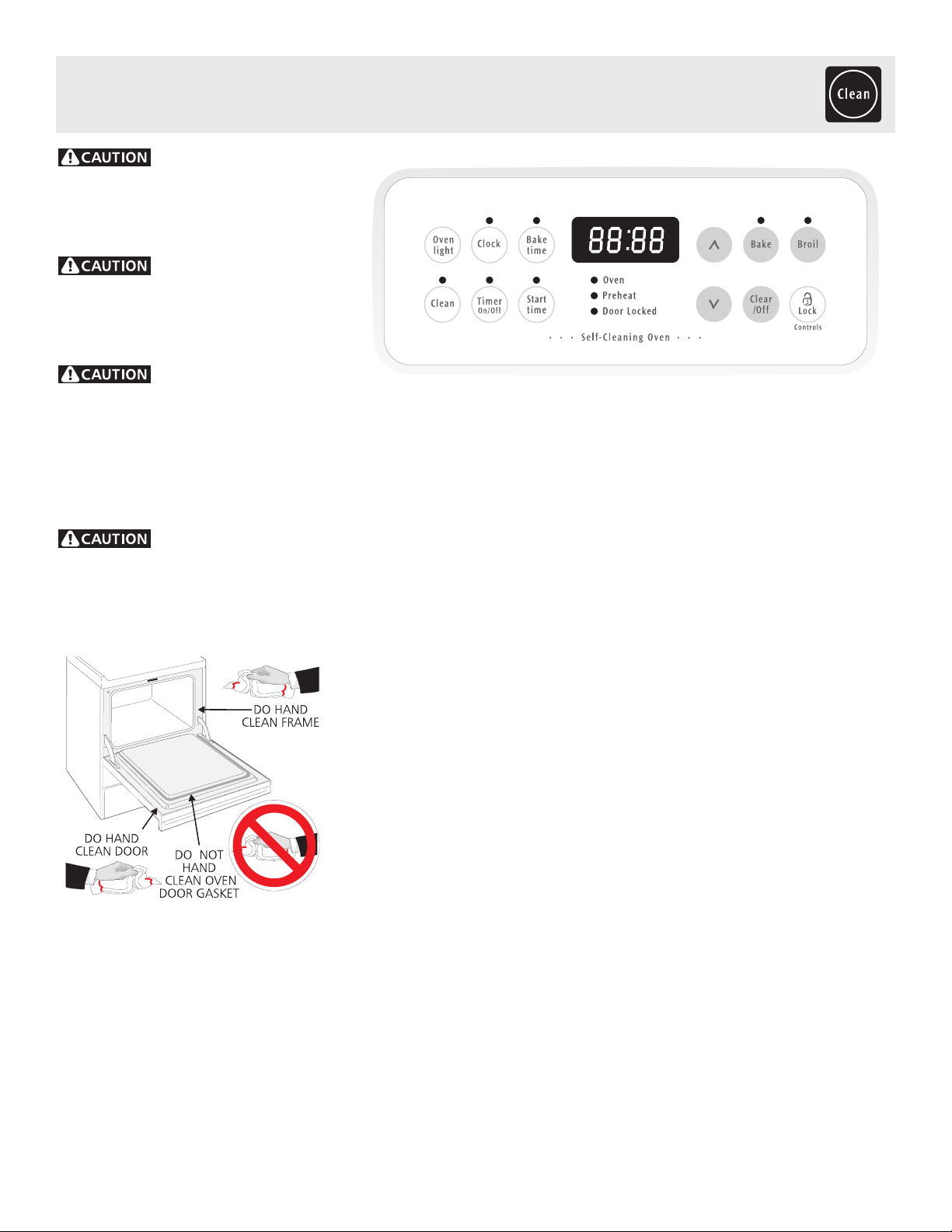

Self-Cleaning
During the Self-Cleaning
cycle, the outside of the range can
become very hot to the touch. DO NOT
leave small children unattended near the
appliance.
The health of some birds
is extremely sensitive to the fumes given
off during the Self-Cleaning cycle of any
range. Move birds to another well-
ventilated room.
DO NOT line the oven
walls, racks, bottom or any other part of
the range with aluminum foil. Doing so
will destroy heat distribution, produce
poor baking results and cause
permanent damage to the oven interior
(aluminum foil will melt to the interior
surface of the oven).
DO NOT force the oven
door open. This can damage the
automatic door locking system. Use
caution when opening the door after the
Self-Cleaning cycle is completed. The
oven may still be VERY HOT.
Self-Cleaning Oven
A Self-Cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soils completely or reduces them to a fine
powdered ash you can wipe away with a damp cloth.
Adhere to the following cleaning precautions:
• DO NOT use oven cleaners or oven protective coatings in or around any
part of the Self-Cleaning oven.
• DO NOT clean the oven door gasket. The woven material of the oven door
gasket is essential for a good seal. Care should be taken not to rub,
damage or remove the gasket.
• DO NOT use any cleaning materials on the oven door gasket. Doing so
could cause damage.
• Remove the broiler pan and insert, all utensils and any aluminum
foil. These items cannot withstand high cleaning temperatures.
• Remove oven racks. If they are not removed during the Self-Clean cycle
their color will turn slightly blue and the finish will be dull. After the cycle is
complete and the oven has cooled, rub the sides of the oven racks with
wax paper or a cloth containing a small amount of salad oil (this will make
the racks glide easier into the rack position).
• Remove any excessive spillovers in the oven cavity before starting the
Self-Cleaning cycle. To clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when subjected to high
temperatures. DO NOT allow food spills with a high sugar or acid content
(such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may leave a dull spot even after cleaning.
• Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. These
areas heat sufficiently to burn soil on. Clean with soap and water.
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven
bottom should be removed.
Note: See additional cleaning information
for the oven door in the General Care &
Cleaning section.
16
Self-Cleaning
To avoid possible burns use care when opening the oven door after the Self-Cleaning cycle. Stand to the side of
the oven when opening the door to allow hot air or steam to escape.
DO NOT force the oven door open. This can damage the automatic door locking system. Use caution and avoid
possible burns when opening the door after the Self-Cleaning cycle has completed. The oven may still be VERY HOT.
Starting the Self-Clean Cycle or a Delayed Start Self-Clean Cycle
For satisfactory results, use a 2 hour Self-Clean cycle for light soils and a 3 hour cycle for heavier soils. NOTE: The
kitchen area should be well ventilated using an open window, ventitlation fan or exhaust hood during the 1st Self-Clean
cycle. This will help eliminate the normal odors associated with the 1st Self-Clean cycle.
To Set the Controls for a Self-Clean Cycle or a Delayed Start Self-Clean Cycle:
(Note: If you do not want to start a Delayed Self-Clean Cycle, skips steps 2 & 3.)
1. Be sure the clock shows the correct time of day.
2. Press
. The " : " in the time of day will flash.
3. Press and hold the pad to scroll to the time to start the delayed Self-Clean cycle. Release the pad when the desired
time is displayed.
4. Press . "— — —" appears in the display.
5. Press the or once. "3:00" appears in the display for a 3 hour cycle. To change to a 2 hour cycle press .
"2:00" appears in the display.
As soon as the controls are set, the motor driven lock will begin to close automatically and the “LOCK” indicator light
will flash. DO NOT open the oven door while the light is flashing (it takes about 15 seconds for the oven door to lock).
6. "CLn" will appear in the display during the Self-Clean cycle and the "LOCK" light will glow until the Self-Cleaning cycle
is complete or cancelled and the oven temperature has cooled.
When the Self-Clean Cycle has Completed:
1. The time of day or "End" will appear in the display window and the “Clean” and "LOCK" light will continue to glow.
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened.
3. If “End” is in the display and the Clean indicator light remains ON, press . The time of day will appear in the
display.
NOTE: When the oven is cool, wipe away any residue or powdered ash with a damp cloth or paper towel.
Stopping or Interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a Self-Cleaning cycle:
1. Press .
2. Once the oven has cooled down for about 1 HOUR and the "LOCK" light has gone out, the oven door can be opened.
3. Restart the Self-Clean cycle once all conditions have been corrected.
17
General Care & Cleaning
(Cleaning Table)
Use caution when replacing the burner cap so the electrode is not damaged. This may cause a delayed ignition
or prevent the burner from igniting.
THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
The cooktop is designed to make cleaning easier. Because the burners are sealed, cleanups are easy
when spillovers are cleaned up immediately. To clean, wipe with a clean, damp cloth and wipe dry.
For more information about cleaning the gas burners see Cleaning the Contoured Cooktop Well
Areas, Burner Cap, Burner Head and Burner Drip Pans in the General Care & Cleaning section.
For general cleaning
, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution of
vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Glass
cleaners may be used if sprayed on a soft cloth 1st. DO NOT spray liquids directly on the control pad
and display areas. DO NOT use large amounts of water on the control panel - excess water on the
control area may cause damage to the appliance. DO NOT use other liquid cleaners, abrasive
cleaners, scouring pads, or some paper towels - they will damage the finish.
Before cleaning the control panel,
turn all controls to OFF & remove the control knobs. To remove,
pull each knob straight off the shaft. Use the
general cleaning
instructions provided in the paragraph
above.
Clean burner grates, broiler pan & insert in the dishwasher and dry upon removal. If soils are not
removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clean
water & ammonia.
If necessary,
cover difficult spots with an ammonia-soaked paper towel for 30 to
40 minutes. Rinse with clean water and a damp cloth, then scrub with a soap-filled scouring pad.
Rinse & wipe dry with a clean cloth. Remove all cleaners or the porcelain may become damaged
during future heating. DO NOT use spray oven cleaners on the range top.
Glass, Painted Plastic
Body Parts & Control
Knobs
Painted Control
Panels & Display
areas
Porcelain Enamel
Burner Grates,
Cooktop Surface,
Below Cooktop,
Broiler Pan & Insert
(some models),
Broiler Drawer (some
models), Door Liner &
Oven Bottom
How to Clean
Surfaces
Oven Racks
Oven Door
Remove racks. See "Removing & Replacing Oven Racks" under Before Setting Oven Controls. Use
a mild, abrasive cleaner, following the cleaner’s recommendations. Rinse with clean water & let dry.
After cleaning the racks, rub the sides of the racks with wax paper or a cloth containing a small amount
of salad oil (this will make the racks glide easier into the oven rack positions).
Use soap & water to thoroughly clean the top, sides & front of the oven door. Rinse well. You may
use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO
NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven
cleaners, cleaning powders or any harsh abrasive cleaning materials on the outside of the oven door.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven material, on Self-
Cleaning models, which is essential for a good seal. Care should be taken not to rub, damage or
remove this gasket.
Gas Cooktop and
Surface Burners
Easy Care™ Stainless
Steel (some models)
Your appliance finish may be made with Easy Care ™ Stainless Steel (some models). Clean
the stainless with warm soapy water using a clean sponge or cloth. Rinse with clean water and
dry with a soft clean cloth. DO NOT use ANY store bought cleaners like Stainless Steel cleaners
or any other type of cleaners containing any abrasives, chlorides, chlorines or ammonia. It is
recommended to use mild dish soap and water or a 50/50 solution of water and vinegar.
18
General Care & Cleaning
Fig. 3
Removing and Replacing the Lift-Off Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with the
inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor - See Fig. 1).
2. Pull the door hinge locks on both left and right door hinges down from the oven frame
completely towards the oven door (See Fig. 2). A tool such as a small flat-blade
screwdriver may be required.
3. Firmly grasp both sides of oven door along the door sides (Do not use the oven door
handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will stop into this position
just before fully closing).
5. With the oven door in the broil stop position, lift the oven door hinge arms over the
roller pins located on each side of the oven frame (See Fig. 4).
To Replace Oven Door:
1. Firmly grasp both sides of oven door along the door sides (Do not use the oven door
handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal position, seat the hook of
the hinge arm over the roller pins located on each side of the oven door frame (See
Fig. 4). The hook of the hinge arms must be fully seated onto the roller pins.
3. Fully open the oven door (horizontal with floor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame on both left and right
oven door hinges (See Fig. 2) to the locked position.
5. Close the oven door.
Door Hinge
locations
with oven door
fully open
Fig. 1
Fig. 2
Fig. 4
Special Door Care Instructions - Most oven doors contain glass that can break.
Read the following recommendations:
1. Do not close the oven door until all the oven racks are fully in place.
2. Do not hit the glass with pots, pans, or any other object.
3. Scratching, hitting, jarring or stressing the glass may weaken its structure causing
an increased risk of breakage at a later time.
For models equipped with the interior oven light, the light bulb is located at the
rear of the oven and is covered with a glass shield held by a wire holder (See Fig.
5). The glass shield must be in place whenever the oven is in use.
To replace the oven light bulb:
1. Turn electrical power off at the main source or unplug the range.
2. Press wire holder to one side to release the glass shield.
3. Replace bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug the range back in).
6. The clock will then need to be reset. To reset, see Setting the Clock and
Minute Timer in this Use & Care Guide.
Be sure the range is unplugged and all parts are COOL before replacing
oven light. Wear a leather-faced glove for protection against possible broken glass.
Changing the Oven Light (some models)
Fig. 5
19
General Care & Cleaning
Adjusting Your Oven Temperature
Note: Oven temperature adjustments made will not change the Self-Cleaning feature temperature.
Your oven control has been precisely set at the factory. This setting may differ from your previous oven however, so your recipe
times may not give you the results you expect. If you think that the oven is cooking too hot or too cool for your recipe times,
you can adjust the control so that the oven cooks hotter or cooler than the temperature displayed.
To Adjust Oven Temperature:
1. Press .
2. Set the temperature to 550°F (287°C) by pressing and holding the .
3. Within 2 seconds, press and hold until the 2 digit display appears. Release . The display now indicates the amount
of degrees offset between the original factory temperature setting and the current temperature setting. If the oven control
has the original factory calibration, the display will read "0."
4. The temperature can now be adjusted up or down 35°F (17°C), in 5°F steps by pressing and holding the or . Adjust
until the desired amount of offset appears in the display. When lowering the oven temperature, a minus sign (-) will appear
before the number to indicate that the oven will be cooler by the displayed amount of degrees.
5. When you have made the desired adjustment, press to go back to the time of day display.
To Clean the Recessed and Contoured Areas of the Cooktop - If a spill
occurs on or in the recessed or contoured areas, blot up spill with an absorbent
cloth. Rinse with a clean, damp cloth and wipe dry.
To Remove and Replace the Surface Burner Caps and Surface Burner
Heads - Remove in the following order: (1st) surface burner grate, (2nd)
surface burner cap, (3rd) surface burner head and (4th) surface burner drip pan
(if equipped).
Reverse the procedure above to replace the surface burner cap, surface burner
head and surface burner drip pans (if equipped). Do not remove any parts
from the cooktop until they have completely cooled and are safe to
handle. Do not operate the surface burners without the surface burner
cap and surface burner head properly in place.
To Clean the Surface Burner Cap, Surface Burner Head and Surface
Burner Drip Pan (if equipped) - Use a soap-filled scouring pad or a mild
abrasive cleanser to clean the surface burner caps, surface burner heads and
surface burner drip pans (if equipped). The ports (or slots) around the burner
head must be routinely cleaned. If residue still remains in these ports, use a
small-gauge wire or needle to clean the slots or holes. For proper flow of gas
and ignition of the burner—DO NOT ALLOW SPILLS, FOOD, CLEANING
AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE
HOLDER OPENING. ALWAYS keep the surface burner cap and surface burner
head in place whenever a surface burner is in use.
Cleaning the Contoured Well Areas, Burner Cap, Burner Head and Burner Drip Pans (some models)
The contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned.
Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions:
Note: The burner grate style shown
above may be a different depending
on your model.
20
Before you call for service,
review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.
Before You Call
Solutions to Common Problems
POSSIBLE CAUSE/SOLUTION
Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the rack is level. When range is level, cooktop may
appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range. Contact
a carpenter to correct sagging or sloping floor.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets
are square and have sufficient room for range clearance.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct the
problem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over
carpet.
Gas line is hard-plumbed. Have a flexible C.S.A. International approved metal appliance
connector installed.
Surface Control knob has not been completely turned to LITE. Push in and turn the
Surface Control knob to LITE until burner ignites and then turn control knob to desired
flame size.
Burner ports are clogged. With the burner off, use a small-gauge wire or needle to clean
ports. See "Surface Burners" in the General Care & Cleaning table for additional
cleaning instructions.
Range power cord is disconnected from outlet (electric ignition models only). Be sure
cord is securely plugged into the outlet.
Electrical power outage (electric ignition models only). Burners can be lit manually. See
Setting Surface Controls.
Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire
or needle.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until
flame is full. Dry the burners thoroughly following instructions in the General Care &
Cleaning section.
Dust particles in main line. Allow the burner to operate a few minutes until flame turns
blue.
In coastal areas, a slightly orange flame is unavoidable due to salt air.
Be sure the oven controls are set correctly for the desired function. See Setting Oven
Controls or Entire Appliance Does Not Operate (see below).
Be sure regulator gas valve is "ON". See installation instructions.
Check house circuit breakers.The time of day must be set in order to operate the oven.
Make sure electrical cord/plug is plugged tightly into outlet (electric ignition models
only).
Service wiring not complete. Contact your dealer or authorized service agent.
Electrical power outage (electric ignition models only). Check house lights to be sure.
Call your local electric company for service. Surface burners can be lit manually. See
Setting Surface Controls.
Be sure gas supply is turned on.
Burned-out or loose bulb. See Changing the Oven Light (some models) to replace or
tighten the bulb.
OCCURRENCE
Range is not level.
Cannot move appliance easily. Appliance
must be accessible for service.
Surface burners do not light.
Surface burner flame burns half way around.
Surface burner flame is orange.
Oven does not operate.
Entire appliance does not operate.
Oven light does not work.
21
Before You Call
Solutions to Common Problems
POSSIBLE CAUSE/SOLUTION
Meat is too close to the broil burner. Reposition the oven rack to provide more clearance
between the meat and the broiler.
Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty edges
to prevent curling, but do not cut into the lean.
Broiler pan used without insert or insert covered with foil. DO NOT use the broiler pan
without the insert or cover the insert with foil.
Broiler pan & insert needs to be cleaned. Excessive smoking is caused by a build-up
of grease or food spatters. If broiling often, clean on a regular basis.
Oven door is open. Oven door should be closed when broiling.
Electronic control has detected a fault condition. Press CLEAR/OFF to clear the display
and stop beeping. Reprogram oven. If fault recurs, record fault number. Press CLEAR/
OFF and call your dealer or authorized service agent for assistance.
Many factors affect baking results. Make sure the proper rack position is used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to
the set temperature before placing food in the oven. Try adjusting the recipe's
recommended temperature or baking time. If you feel the oven is cooking too hot or cool,
see Adjusting Your Oven Temperature.
Controls are not set properly. Follow instructions in Self-Cleaning section.
Self-Cleaning cycle was interrupted. Stop time must be set 2 to 4 hours past the start
time. Follow steps under "Stopping or Interrupting a Self-Clean Cycle" under Self
Cleaning.
Failure to clean bottom front, top of oven or door areas outside oven seal. These areas
are not in the self-cleaning area, but get hot enough to burn on residue. Clean these
areas before starting the self-clean cycle. Burned-on residue may be cleaned with a stiff
nylon brush and water or a nylon scrubber. Be careful not to damage the oven gasket.
Excessive spillovers in oven. Set Self-Clean cycle for a longer cleaning time.
Excessive spillovers in oven. This is normal, especially for pie spillovers or large
amounts of grease on the oven bottom. Wipe up excessive spillovers before starting
the self-clean cycle. If flames or excessive smoke are present, stop the Self-Clean cycle
and follow the steps under "Stopping or Interrupting the Self-Clean Cycle" in the Self
Cleaning section.
OCCURRENCE
Oven smokes excessively during broiling.
Oven control beeps and displays any F code
error (for example F11).
Poor baking results.
Self-Cleaning cycle does not work.
Soil is not completely removed.
Flames inside oven or smoking from vent.
22
Notes
23
Notes
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be
defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
Exclusions
If You Need
Service
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Major Appliance Warranty Information
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
