LG Electronics HE902SB-R1 5-Disc Home Theater System (1000 User Manual

5-DVD Changer

Home Theater System

OWNER’S MANUAL

MODEL: LHT764

LHT764

SH92SB-S, SH92SB-C, SH92SB-W

HE902SB-R1_NA1ULL7_ENG_5846

Before connecting, operating or adjusting this product,

please read this instruction booklet carefully and completely.

For service/

support Call:

Toll Free Number

1-800-243-0000

(http://us.lgservice.com)

This lightning flash with arrowhead symbol within

an equilateral triangle is intended to alert the user

to the presence of uninsulated dangerous voltage

within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the product.

WARNING: Do not install this equipment in a confined space

such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation

and to ensure reliable operation of the product and to protect

it from overheating.

The openings should never be blocked by placing the

product on a bed, sofa, rug or other similar surface. This

product should not be placed in a built-in installation such as

a bookcase or rack unless proper ventilation is provided or

the manufacturer's instruction have been adhered to.

CAUTION:

This product employs a Laser System.

To ensure proper use of this product, please read this

owner’s manual carefully and retain it for future reference.

Should the unit require maintenance, contact an authorized

service center.

Use of controls, adjustments or the performance of

procedures other than those specified herein may result in

hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open

the enclosure. Visible laser radiation when open. DO NOT

STARE INTO BEAM.

NOTE TO CABLE/TV INSTALLER: This reminder is provided to

call the cable TV system installer’s attention to Article 820-40 of

the National Electric Code (U.S.A.). The code provides

guidelines for proper grounding and, in particular, specifies that

the cable ground shall be connected to the grounding system of

the building, as close to the point of the cable entry as practical.

CAUTION: The apparatus should not be exposed to water

(dripping or splashing) and no objects filled with liquids, such as

vases, should be placed on the apparatus.

CAUTION concerning the Power Cord

Most appliances should be placed on a dedicated circuit;

That is, a single outlet circuit which powers only that appliance

and has no additional outlets or branch circuits. Check the

specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or

damaged wall outlets, extension cords, frayed power cords, or

damaged or cracked wire insulation are dangerous. Any of these

conditions could result in electric shock or fire. Periodically

examine the cord of your appliance, and if its appearance

indicates damage or deterioration, unplug it, discontinue use of

the appliance, and have the cord replaced with an exact

replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such

as being twisted, kinked, pinched, closed in a door, or walked

upon. Pay particular attention to plugs, wall outlets, and the

point where the cord exits the appliance.

To disconnect power from the unit, unplug the unit from the

outlet. When installing the product, ensure that the plug is easily

accessible.

FCC WARNING: This equipment may generate or use radio

frequency energy. Changes or modifications to this equipment

may cause harmful interference unless the modifications are

expressly approved in the instruction manual. The user could

lose the authority to operate this equipment if an unauthorized

change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This epuipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the product is

operated in a residential installation. This product generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this product does cause harmful

interference to radio or television reception, which can be

determined by turning the product off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

•Reorient or relocate the receiving antenna.

• Increase the separation between the product and receiver.

•Connect the product into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

FCC COMPLIANCE: The responsible party for this product’s

compliance is:

Marketed and Distributed by LG Electronics U.S.A., Inc.,

1000 Sylvan Avenue, Englewood Cliffs, NJ.

Phone: 1-201-816-2000.

CLASS 1 LASER PRODUCT

KLASSE 1

LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1

LASER APPARAT

CLASSE 1

PRODUIT

LASER

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK

OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

Introduction

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions. - All these safety and

operating instructions should be read before the

product is operated.

2. Keep these instructions. - The safety, operating and

use instructions should be retained for future

reference.

3. Heed all warnings. - All warnings on the product and

in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use

instructions should be followed.

5. Do not use this apparatus near water. – For

example: near a bath tub, wash bowl, kitchen sink,

laundry tub, in a wet basement; or near a swimming

pool; and other areas located near water.

6. Clean only with dry cloth. – Unplug this product

from the wall outlet before cleaning. Do not use liquid

cleaners.

Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions. -

Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the

product and to protect it from over-heating. The

openings should never be blocked by placing the

product on a bed, sofa, rug or other similar surface.

This product should not be placed in a built-in

installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer’s

instructions have been adhered to.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding

type plug has two blades and a third grounding

prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

11. Only use attachments/accessories specified by

the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture,

does not operate normally, or has been dropped.

CAUTION:

PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S

MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE

REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric

shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following

procedures for installation, use, and servicing.

This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

Contents

Introduction

Symbol Used in this Manual . . . . . . . . . . . . . . . .5

About the Symbol Display . . . . . . . . . . . . . . .5

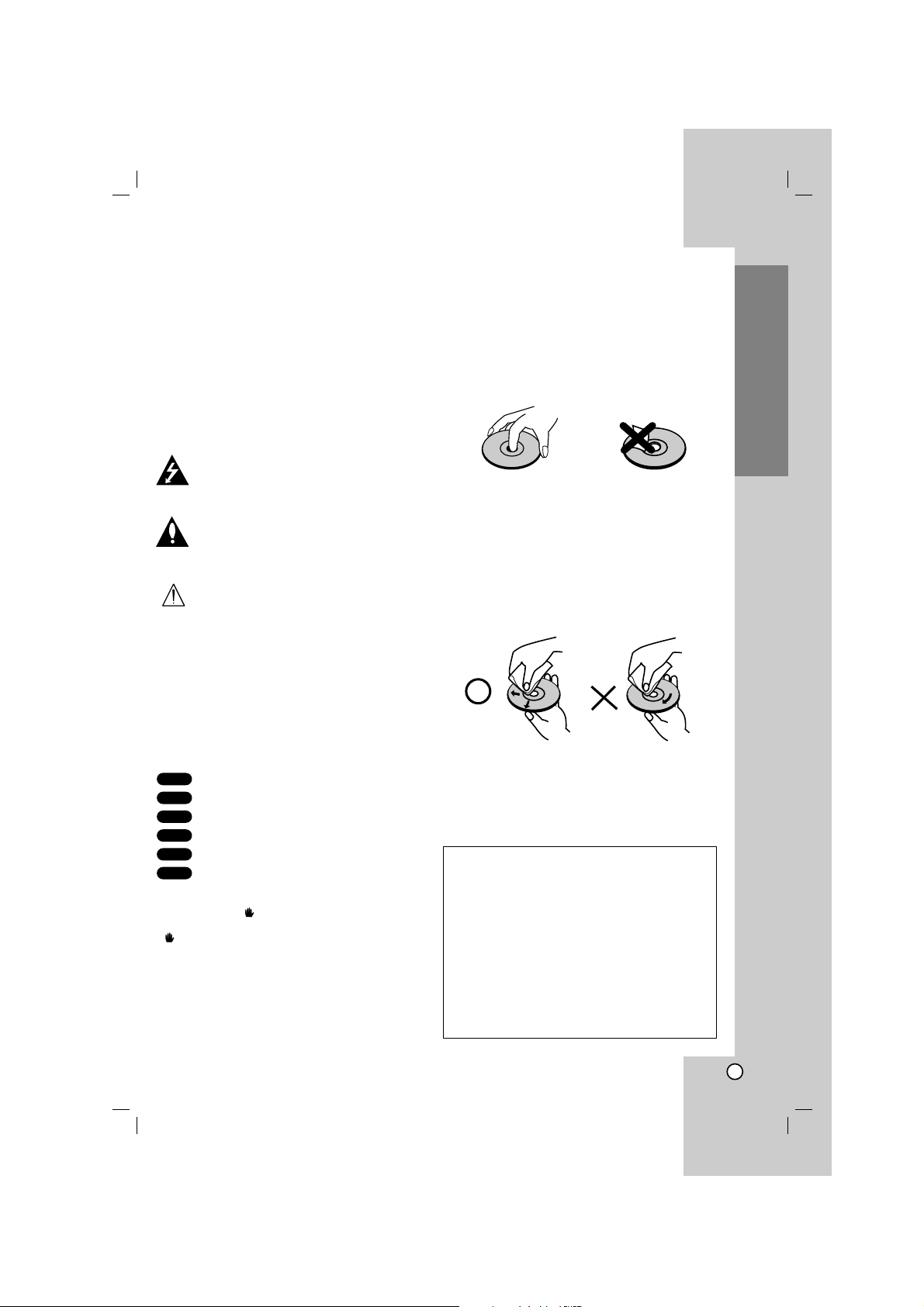

Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . .5

Types of Playable Discs . . . . . . . . . . . . . . . . . . .6

Disc-related terms . . . . . . . . . . . . . . . . . . . . . . .7

Remote Control Operation Range . . . . . . . . . . . .7

Remote Control battery installation . . . . . . . . . . .7

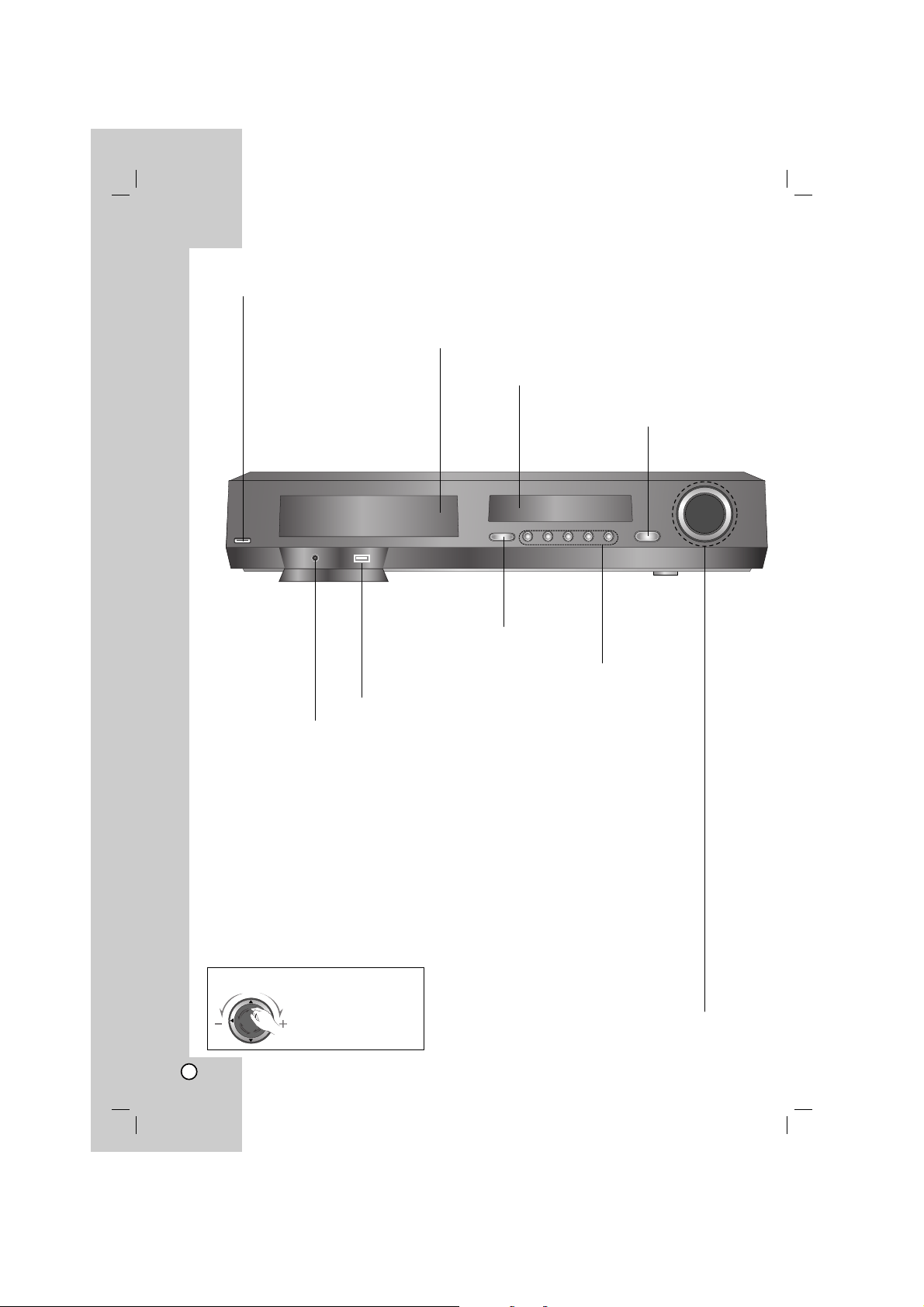

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

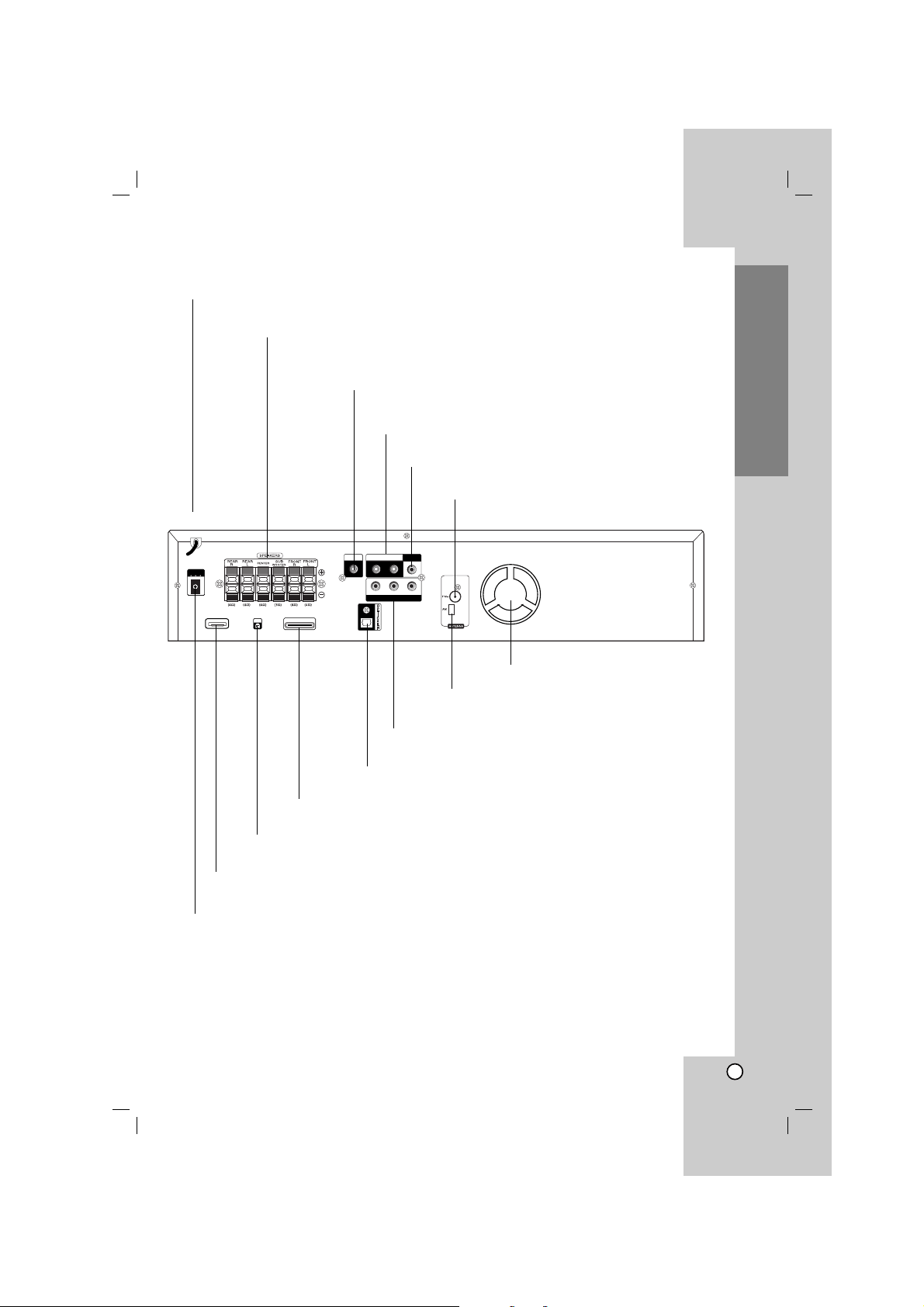

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Remote Control . . . . . . . . . . . . . . . . . . . . . . . .10

Installation and Setup

Setting up the unit . . . . . . . . . . . . . . . . . . . . . . .11

The unit Connection . . . . . . . . . . . . . . . . . . . . .11

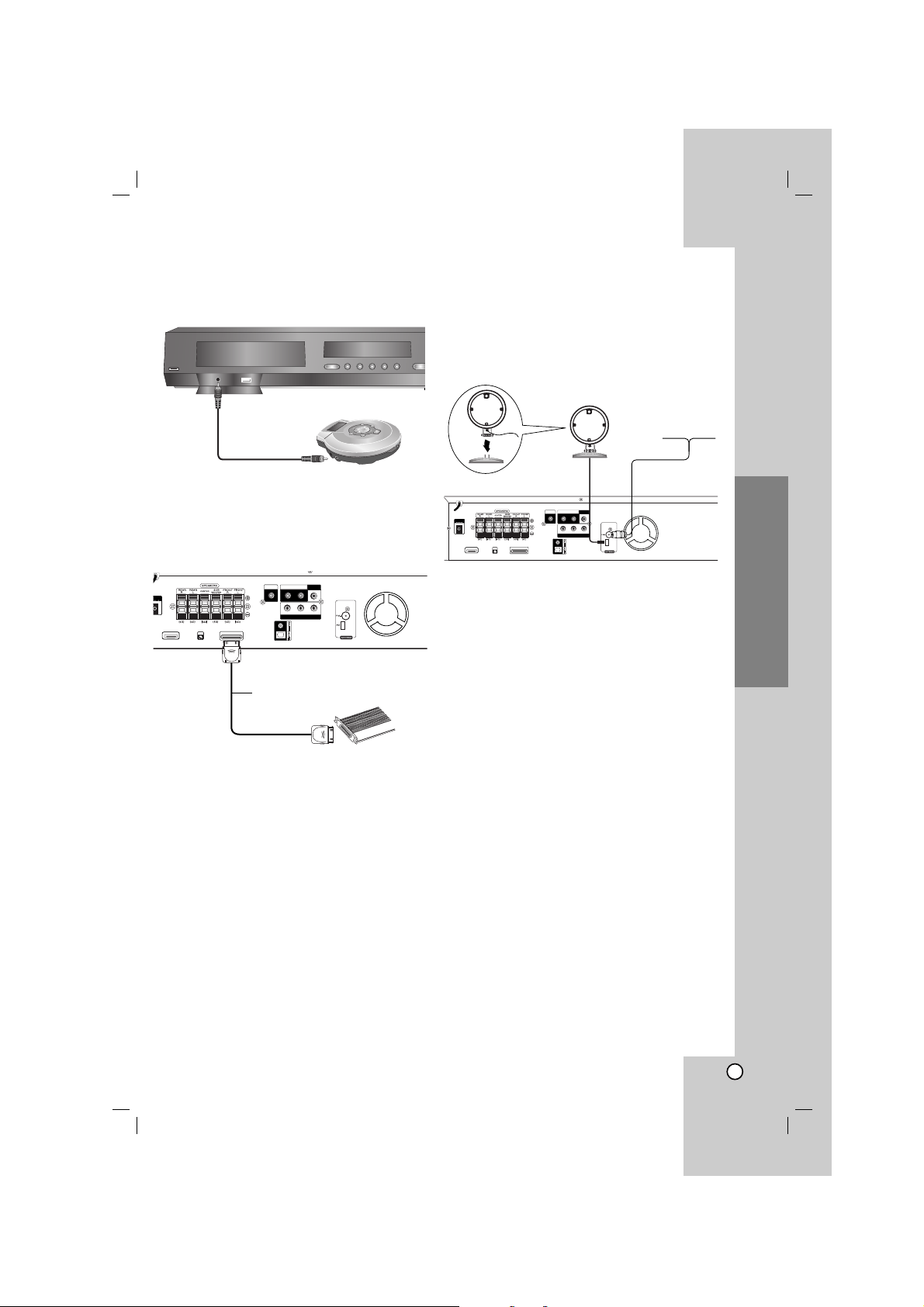

Optional Equipment Connection . . . . . . . . . .12-13

USB connection . . . . . . . . . . . . . . . . . . . . . . . . . . .12

AUX IN connection . . . . . . . . . . . . . . . . . . . . . . . . .12

OPTICAL IN connection . . . . . . . . . . . . . . . . . . . . .12

COAXIAL IN connection . . . . . . . . . . . . . . . . . . . . .12

AUDIO IN connection . . . . . . . . . . . . . . . . . . . . . . .13

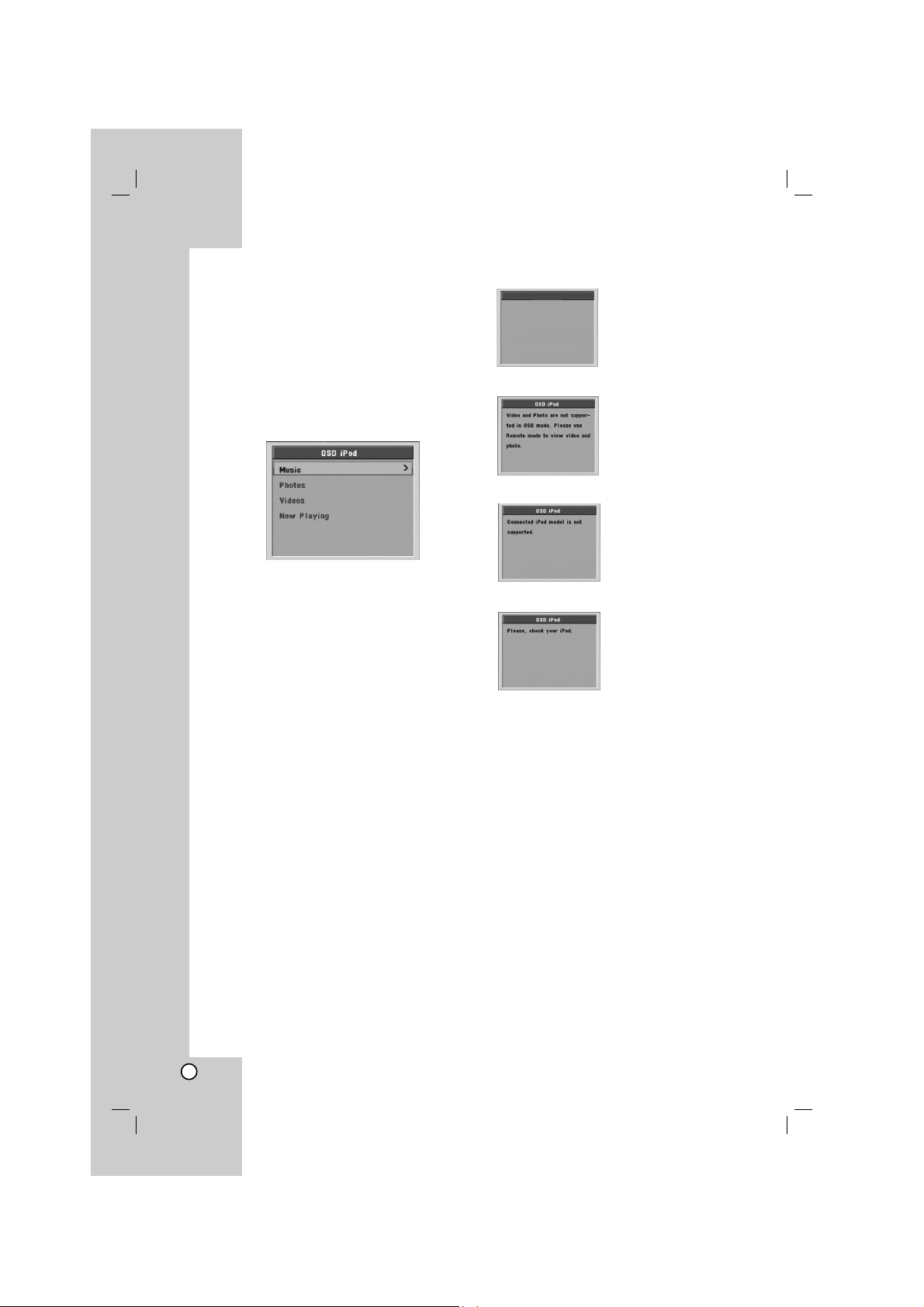

iPod connection . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Antenna Connection . . . . . . . . . . . . . . . . . . . . .13

HDMI Connection . . . . . . . . . . . . . . . . . . . . . . .14

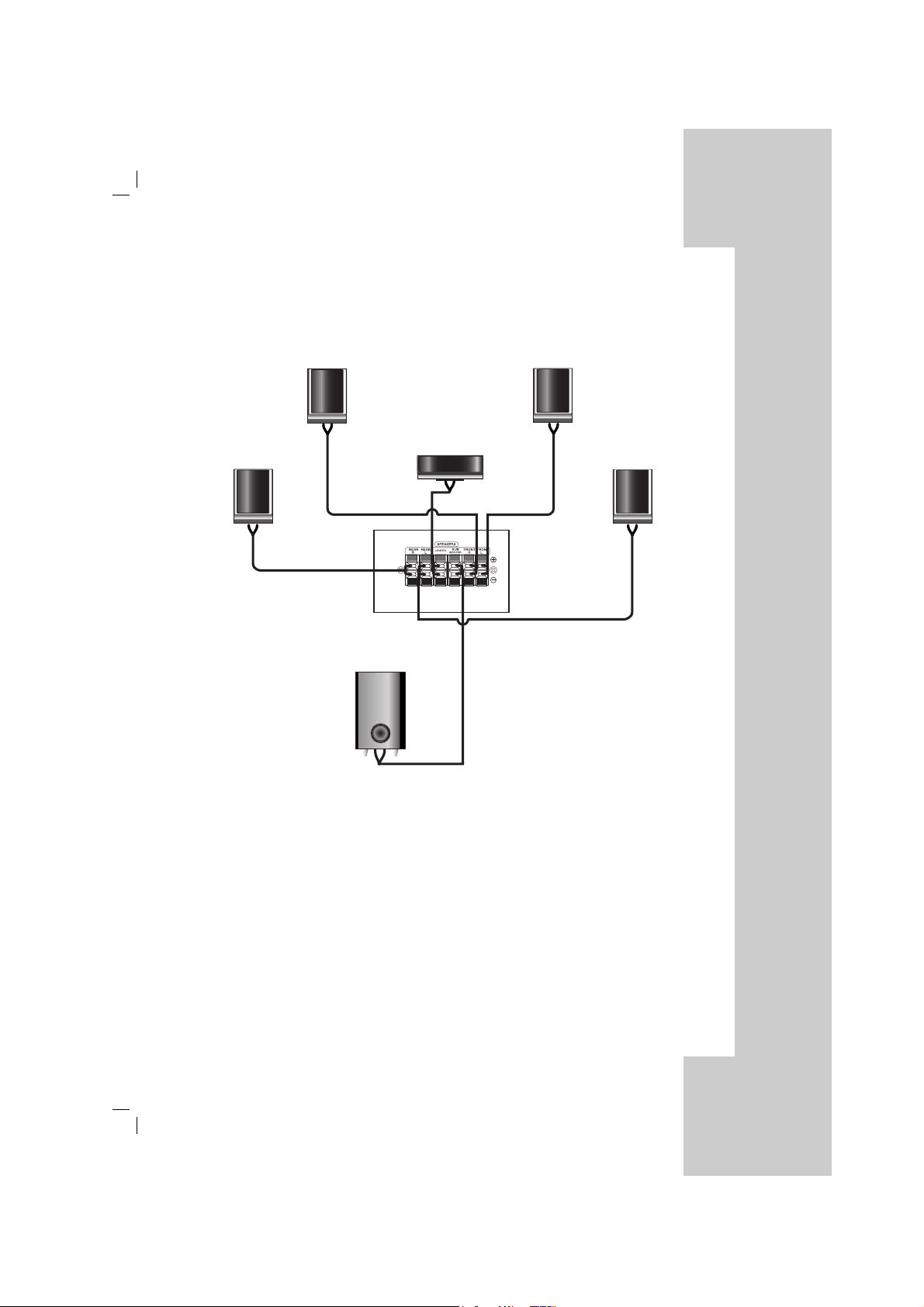

Speaker System Connection . . . . . . . . . . . . . . .15

Speaker Positioning . . . . . . . . . . . . . . . . . . . . .16

Selecting the Input/Output Source . . . . . . . . . . .17

Mini Glossary for Audio Stream & Surround

Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .18

VIRTUAL sound . . . . . . . . . . . . . . . . . . . . . . . .18

XTS/XTS pro . . . . . . . . . . . . . . . . . . . . . . . . . .19

Displaying Disc Information On-screen . . . . . . .19

Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

General Operation . . . . . . . . . . . . . . . . . . . . . . . . .19

LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

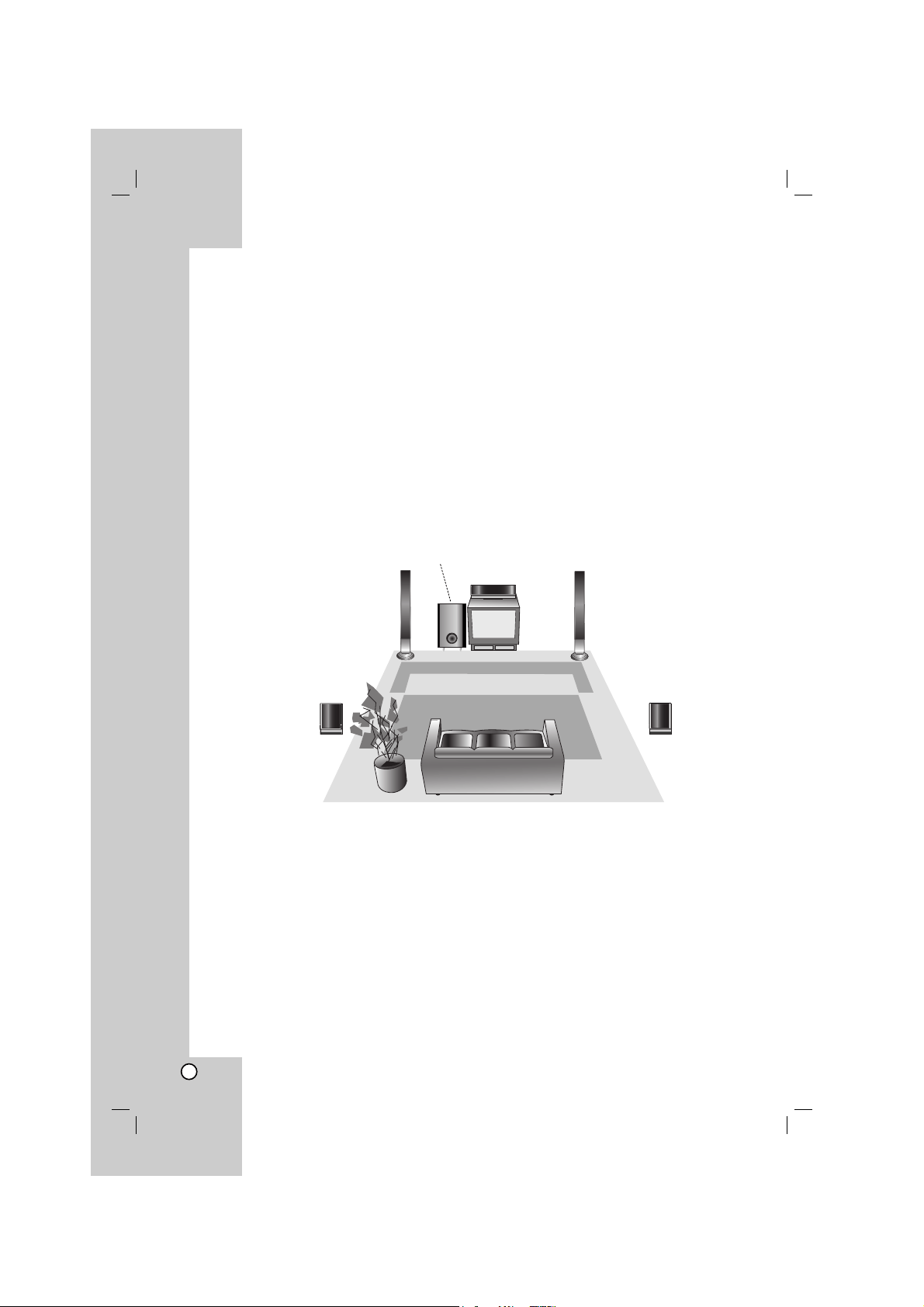

5.1 Speaker Setup . . . . . . . . . . . . . . . . . . . . . . . . .21

LOCK (Parental Control) . . . . . . . . . . . . . . . . . . . . .22

OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Operation

General features . . . . . . . . . . . . . . . . . . . . . . . .23

Playback Setup . . . . . . . . . . . . . . . . . . . . . . . . .24

To open all discs . . . . . . . . . . . . . . . . . . . . . .24

To select a playback disc . . . . . . . . . . . . . . . .24

To play all discs on the disc trays . . . . . . . . . .24

Special DVD Features . . . . . . . . . . . . . . . . . . .24

Checking the contents of DVD discs: Menus .24

Camera Angle . . . . . . . . . . . . . . . . . . . . . . .24

Additional features . . . . . . . . . . . . . . . . . . . . . .25

1.5 times speed playback . . . . . . . . . . . . . . .25

Time Search . . . . . . . . . . . . . . . . . . . . . . . . .25

Marker Search . . . . . . . . . . . . . . . . . . . . . . . .25

Screen Saver . . . . . . . . . . . . . . . . . . . . . . . .25

Last Scene Memory . . . . . . . . . . . . . . . . . . . .25

Sleep Timer Setting . . . . . . . . . . . . . . . . . . . .25

Dimmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Playing an Audio CD or MP3/WMA file . . . . . . .26

Programmed Playback . . . . . . . . . . . . . . . . . . .26

Viewing a JPEG file . . . . . . . . . . . . . . . . . . . . .27

Playing a DivX Movie file . . . . . . . . . . . . . . . . .28

Using iPod . . . . . . . . . . . . . . . . . . . . . . . . . .29-30

DVD Audio Discs . . . . . . . . . . . . . . . . . . . . . . .31

Presetting the Radio Stations . . . . . . . . . . . . . .32

Listening to the Radio . . . . . . . . . . . . . . . . . . . .32

XM Satellite Radio Operation . . . . . . . . . . . .33-34

What is XM Satellite Radio? . . . . . . . . . . . . . . . . . .33

What is XM Ready? . . . . . . . . . . . . . . . . . . . . . . . .33

XM Satellite Radio connections . . . . . . . . . . . . . . . .33

Activating Your Service . . . . . . . . . . . . . . . . . . . . . .33

Selecting the XM Satellite Radio . . . . . . . . . . . . . . .33

XM information . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Presetting the XM Satellite Radio Stations . . . . . . .34

Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . .34

Advisory Message . . . . . . . . . . . . . . . . . . . . . . . . .34

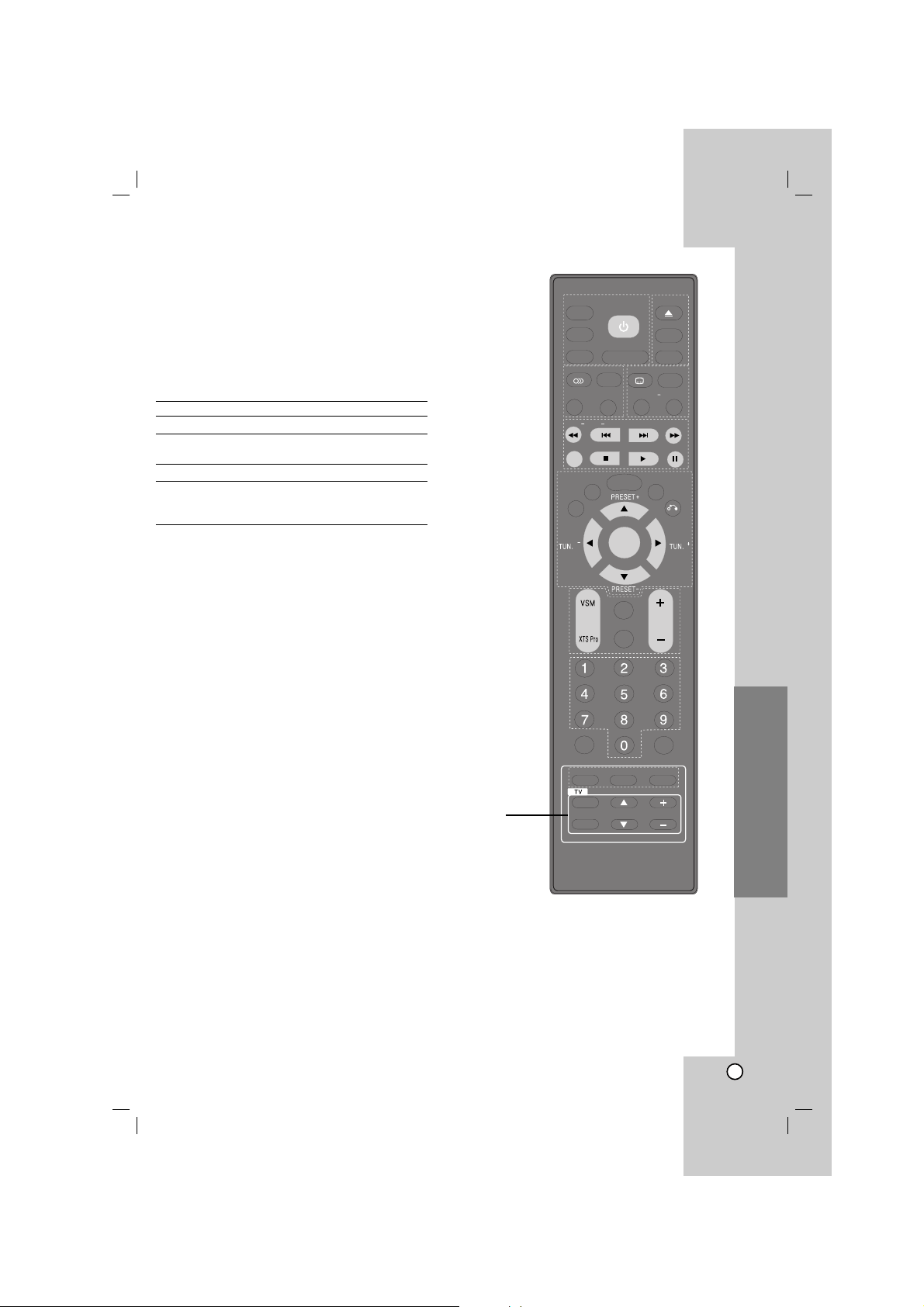

Controlling

your

TVs with the Supplied

Remote Control . . . . . . . . . . . . . . . . . . . . . . . .35

Controlling

other

TV with the Suppllied

Remote Control . . . . . . . . . . . . . . . . . . . . . . .

35-36

Reference

Language Codes . . . . . . . . . . . . . . . . . . . . . . .37

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Troubleshooting . . . . . . . . . . . . . . . . . . . . . .38-39

Maintenance and Service . . . . . . . . . . . . . . . . .39

Handling the Unit . . . . . . . . . . . . . . . . . . . . . . . . . .39

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .40

To ensure proper use of this product, please read this

owner’s manual carefully and retain it for future

reference.

This manual provides information on the operation

and maintenance of your unit. Should the unit require

service, contact an authorized service location.

Symbol Used in this Manual

The lightning flash symbol alerts you to the

presence of dangerous voltage within the

product enclosure that may constitute a risk of

electric shock.

The exclamation point alerts you to the

presence of important operating and

maintenance / servicing instructions.

Indicates hazards likely to cause harm to the

unit itself or other material damage.

Note:

Indicates special notes and operating features.

Tip:

Indicates tips and hints for making the task easier.

A section whose title has one of the following symbols

is applicable only to the disc represented by the

symbol.

DVD

Audio CDs

MP3 files

WMA files

JPEG files

DivX files

About the Symbol Display

“ ” may appear on your TV display during

operation and indicates that the function explained in

this owner’s manual is not available on that specific

DVD video disc.

Notes on Discs

HANDLING DISCS

Do not touch the playback side of the disc. Hold the

disc by the edges so that fingerprints do not get on

the surface. Never stick paper or tape on the disc.

STORING DISCS

After playing, store the disc in its case. Do not expose

the disc to direct sunlight or sources of heat and never

leave it in a parked car exposed to direct sunlight.

CLEANING DISCS

Fingerprints and dust on the disc can cause poor

picture quality and sound distortion. Before playing,

clean the disc with a clean cloth. Wipe the disc from

the center out.

Do not use strong solvents such as alcohol, benzine,

thinner, commercially available cleaners, or anti-static

spray intended for older vinyl records.

DivX

JPEG

WMA

MP3

ACD

DVD

Introduction

Precautions in using the touch buttons

•Use the touch buttons with clean and dry hands.

- In a humid environment, wipe out any

moisture on the touch buttons before using.

•Do not press the touch buttons hard to make it work.

- If you apply too much strength, it can

damage the sensor of the touch buttons.

•Touch the button that you want to work in order to

operate the function correctly.

•Be careful not to have any conductive material such

as metallic object on the touch buttons, and it can

cause malfunctions.

Types of Playable Discs

DVD

(8 cm / 12 cm disc)

Audio CD

(8 cm / 12 cm disc)

In addition, this unit plays DVD ±R, DVD +RW, DVD -

RW(video mode) and CD-R / CD-RW that contains

audio titles, MP3, WMA, JPEG and/or DivX files.

Notes:

• Depending on the conditions of the recording

equipment or the CD-R/RW (or DVD±R, DVD±RW)

disc itself, some CD-R/RW (or DVD±R, DVD±RW)

discs may not be played on the unit.

• Do not attach any seal or label to either side (the

labeled side or the recorded side) of a disc.

• Do not use irregularly shaped CDs (e.g., heart-

shaped or octagonal) since they may result in

malfunctions.

Notes on DVDs

Some playback operations of DVDs may be

intentionally programmed by software manufacturers.

This unit plays DVDs according to disc content

some playback features may not be available or other

functions may be added.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are

trademarks of Dolby Laboratories. Confidential

Manufactured under license from Digital Theater

Systems, Inc. US Pat. No’s. 5,451,942; 5,956,674;

5,974,380; 5,978,762; 6,487,535 and other US and

world-wide patents issued and pending. “DTS” and

“DTS Digital Surround” are registered trademarks of

Note on DTS-encoded CDs

When playing DTS-encoded CDs, excessive noise

may be exhibited from the analog stereo output. To

avoid possible damage to the audio system, turn down

the volume before playing back such discs, adjust the

volume gradually, and keep the volume level low. To

enjoy DTS Digital Surround

playback, an external 5.1

channel DTS Digital Surround

decoder system must

be connected to the digital output of the unit.

Regional code

This unit has a regional code printed on the rear of the

unit. This unit can play only DVD discs labelled as the

same as the rear of the unit or “ALL”.

Notes on Regional Codes

• Most DVD discs have a globe with one or more

numbers in it clearly visible on the cover. This

number must match your unit’s regional code or the

disc cannot play.

• If you try to play a DVD with a different region code

from your player, the message “Check Regional

Code” appears on the TV screen.

Notes on copyright

The unauthorized recording, use, distribution, or

revision of television programs, videotapes, DVDs and

other materials, is prohibited under the Copyright

Laws of the United States and other countries, and

may subject you to civil and/or criminal liability.

What is SIMPLINK?

Some functions of this unit are controlled by TV’s

remote control when this unit and LG TV with

SIMPLINK are connected through HDMI

connection.

• Controllable functions by LG TV’s remote control;

Play, Pause, Scan, Skip, Stop, Power Off, etc.

• Refer to the TV owner’s manual for the details of

SIMPLINK function.

• LG TV with SIMPLINK function has the logo as

shown above.

Introduction

Disc-related terms

MP3

MP3 is a popular compression format used for digital

audio files that yields very high near-CD quality.

WMA

Windows Media

audio file. A type of coding / decoding

developed by Microsoft Corp.

JPEG

Joint Pictures Expert Group. JPEG is a compressed file

format that allows you to save images with no limit on

the number of colors.

Note on Windows Media

Windows Media is either a registered trademarkor

trademark of Microsoft Corporation in the United States

and/or other countries.

Title (DVD video discs only)

A title is generally a distinct section of a DVD disc. For

example the main feature could be title 1, a

documentary describing how the film was made could

be title 2, and cast interviews could be title 3. Each title

is assigned a reference number enabling you to locate it

easily.

Chapter (DVD video discs only)

A chapter is a segment of a title such as a scene in a

film or one interview in a series. Each chapter is

assigned a chapter number, enabling you to locate the

chapter you want. Depending on the disc, chapters

may not be recorded.

Track

A distinct element of audiovisual information, such as

the picture or sound track for a specific language

(DVD), or a musical piece on audio CD. Each track is

assigned a track number, enabling you to locate the

track you want. DVD discs allow one track of video

(with multiple angles) and several tracks of audio.

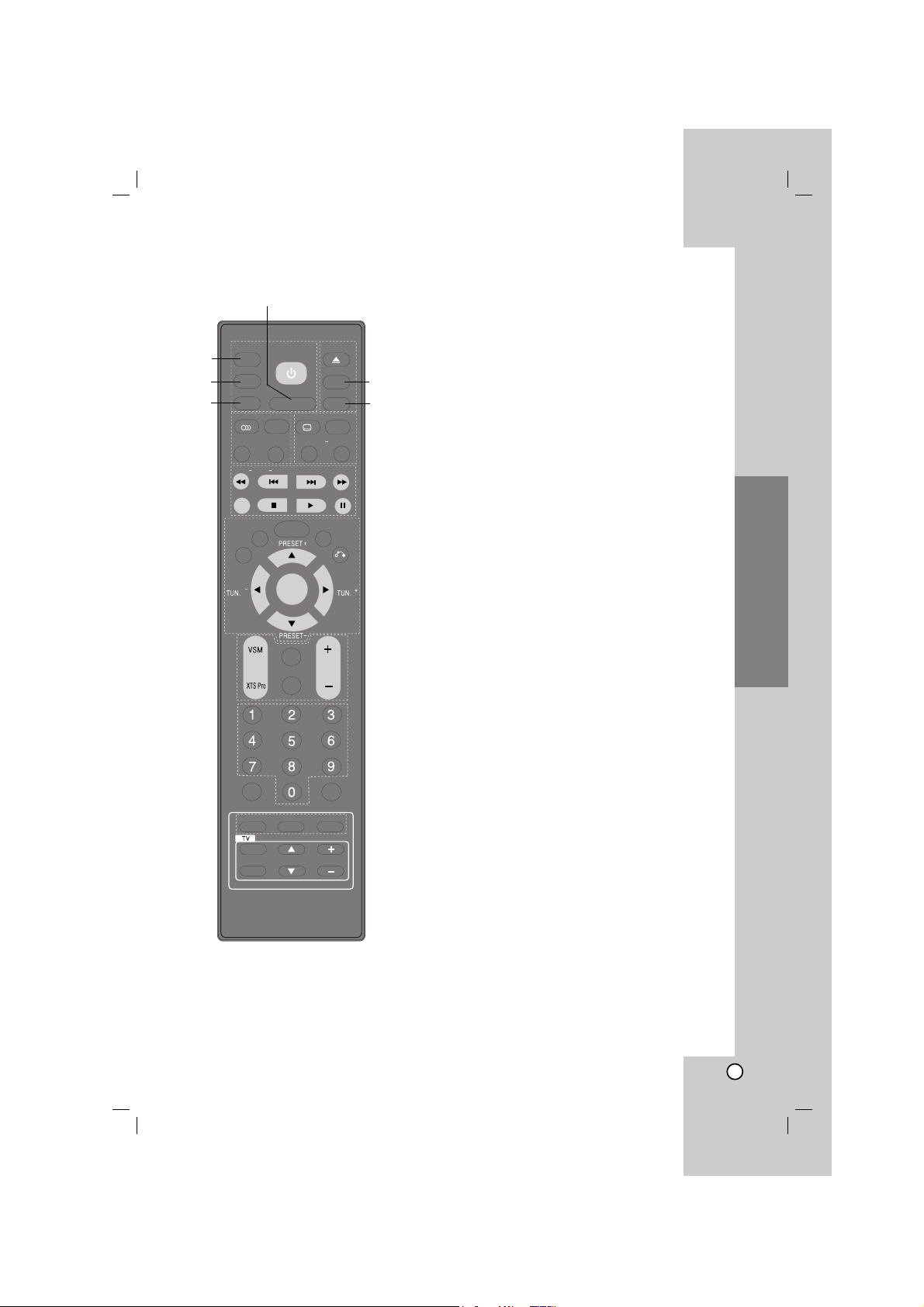

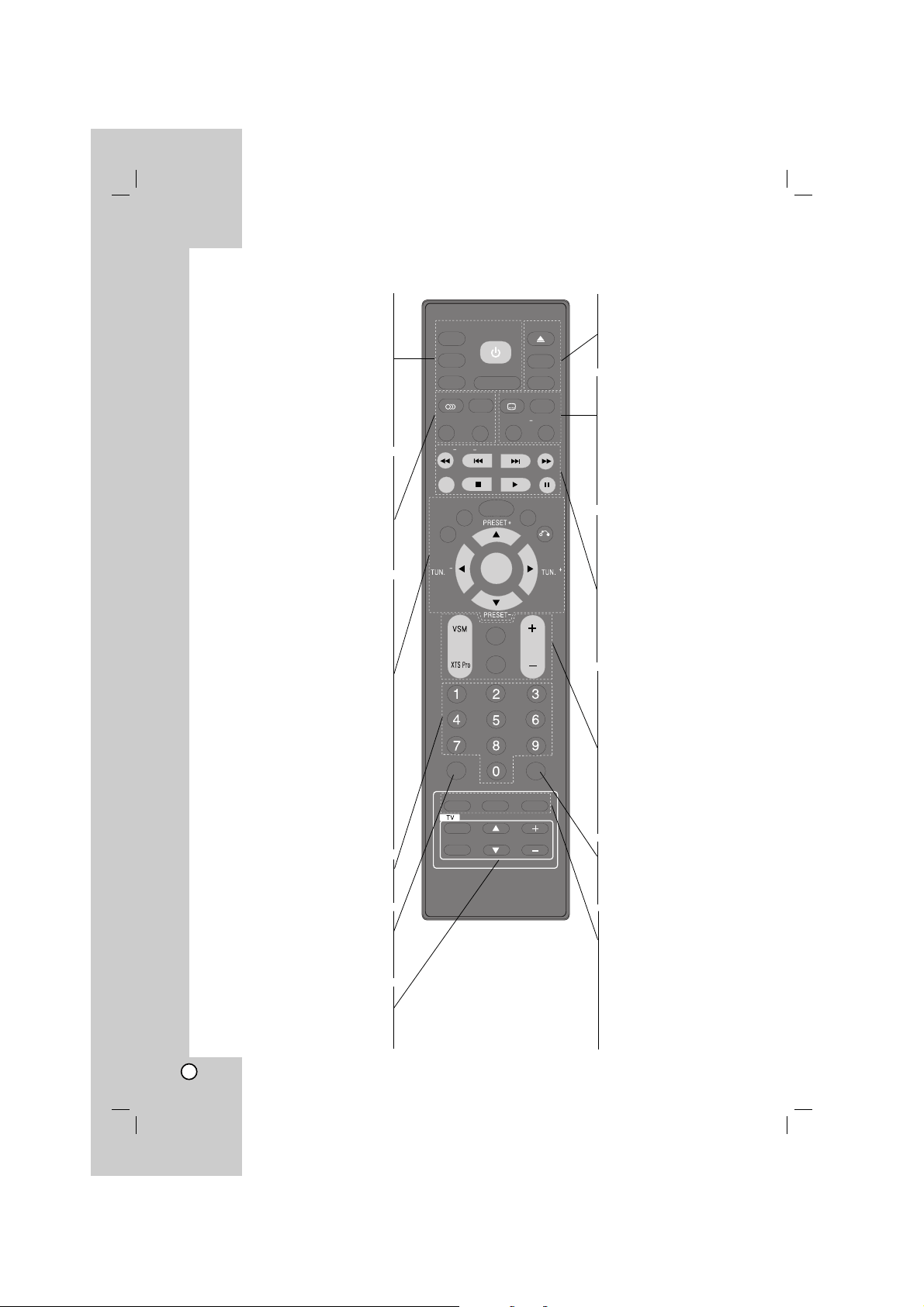

Remote Control Operation Range

Point the Remote Control at the remote sensor and

press the buttons.



Distance: About 7m (23ft) from the front of the

remote sensor



Angle: About 30° in each direction of the front of the

remote sensor

Remote Control battery installation

Detach the battery cover on the rear

of the Remote Control, and insert two

R06 (size AA) batteries with and

aligned correctly.

Notes:

•

Never throw batteries into a fire.

• Be sure to use AA size batteries.

• Dispose of batteries in a designated disposal area.

• Batteries should always be disposed of with the

environment in mind. Always dispose of batteries in

accordance with applicable laws and regulations.

• If the Remote Control does not operate correctly, or if the

operating range becomes reduced, replace batteries with

new ones.

• When necessary to replace batteries in the Remote

Control, always replace both batteries with new ones.

Never mix battery types or use new and used batteries in

combination.

• Always remove batteries from Remote Control if they are

dead or if the Remote Control is not to be used for an

extended period of time. This will prevent battery acid from

leaking into the battery compartment.

Front Panel

Drawer (DVD deck)

Insert discs here.

POWER button and indicator

Switches the Home Theater System ON and OFF.

Lights red when the Home Theater System is turned off.

Display window

Shows the current status of the Unit.

Disc buttons (DISC 1 - DISC 5)

Press to select the disc directly.

USB port

Connect to a USB port of a multimedia device or USB Memory.

DISC VIEW

Press to open all disc

trays.

AUDIO IN connector

Connect to a portable device (MP3 player, PMP etc).

B (PLAY)

Plays a disc.

PAUSE(

)

Pauses playback of a disc in the DVD deck temporarily.

Press repeatedly for frame-by-frame playback.

x (STOP)

Stops playback.

MONO/STEREO (ST.)

Forward SKIP/SCAN (

)/TUNING (+)

Goes to NEXT chapter/track. Press and hold for more than two seconds for a fast forward

search.

Reverse SKIP/SCAN (

)/TUNING (-)

Goes to the beginning of current chapter/track or to the previous chapter/track.

Press and hold for more than two seconds for a fast reverse search.

* VOLUME Control

Keep pressing and turn clockwise to increase sound

level, counterclockwise to decrease sound level.

FUNC.

Press repeatedly to

select other function.

*VOLUME Adjustment

Move your finger around the

touch wheel.

Introduction

Rear Panel

HDMI

1080i

FOR WIRELESS

DC 7V OUT

XM IN

i Pod

YPB PR

COMPONENT

VIDEO OUT

AUX IN

MONIT

OUT

R - AUX - L

COAXIAL IN



Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause

permanent damage to the unit.



Wireless transmitter receiver kit not supplied. We urge you to purchase such a kit to avoid

cumbersome wires running front to back on the floor.

AC Power Cord

Plug into the power source.

FM ANTENNACONNECTORS

Connect the FM antenna to this terminal.

COMPONENT VIDEO OUT (Y P

B PR )

Connect to a TV with Y P

B PR inputs.

XM IN Connector

Connect an XM Passport System to this terminal.(Sold separately.)

HDMI OUT

HDMI output providing a high quality interface for digital audio and video.

SPEAKER CONNECTORS

Connect the six supplied speakers

to these terminals.

OPTICAL IN Connector

Connect an optical output of Digital Device.

MONITOR OUT

Connect to a TV with video inputs.

Cooling fan

COAXIAL IN Connector

Connect an coaxial output of Digital Device.

TRANSMITTER (DC 7V OUT) Connector

Connect a wireless transmitter. (Sold separately.)

AM Loop Antenna connectors

iPod Connector

Connect a dock connector of iPod. (Sold separately.)

AUX AUDIO Input (L/R) connector

Remote Control

OPEN/CLOSE (

)

Opens and closes the disc tray.

DVD

Selects the output source (CD/DVD).

iPod

Selects the iPod source.

S-TITLE

Selects a subtitle language (DVD).

CLEAR

Removes a track number on the

program menu or a mark on the

MARKER SEARCH menu.

MARKER

Marks a point during playback.

Displays MARKER SEARCH menu.

SCAN/SLOW(bb/BB)

Searches backward or forward.

Reverse/Forward slow playback.

SKIP (

)

Moves to the previous or next

chapter or track.

TITLE

Displays the disc’s Title menu, if

available.

STOP (

), PLAY (B)

PAUSE/STEP (

)

VSM

XTS pro

Supplies more natural and realistic

sound.

Supplies great sound effect.

MUTE

Turns the sound on and off

temporarily.

D. SEL.

To select a desired disc.

VOLUME (-/+)

Adjusts speaker volume.

XM MODE

Selects a XM display mode.

RESOL.

Changes the resolution depending on

your TV.

PROG./MEMO.

Accesses or removes Program menu.

Enter a radio station’s frequency into

the tuner.

DIMMER

Changes brightness of the display

window on the front panel during in

power-on status.

SLEEP

Sets the System to turn off

automatically at a specified time.

TUNER

AUX

USB

AUDIO

OPEN/CLOSE

SOUND S-TITLE CLEAR

MUTE

XM CH

D.SEL.

POWER

INPUT

CHANNEL

DIMMER

VOL

CAT/HDMI

XM MODE/RESOL.

ZOOM

SETUP

ENTER

DISPLAY

RETURN

VOL

SCAN +

SKIP

SCAN +

TITLE

STOP PLAY

REPEAT

REPEAT A-B

MARKER SEARCH

DVD

iPod

POWER

D.INPUT

PAUSE/STEP

SLEEP

PROG./MEMO.

POWER

TUNER

Selects the System’s tuner (FM, AM and

XM bands).

AUX

Selects input source.

USB

Plays the multimedia files.

D.INPUT

To listen to an audio source connected

to the DIGITAL AUDIO IN (OPTICAL or

COAXIAL) jack.

AUDIO

Selects an audio language (DVD) or an

audio channel (CD).

SOUND

Selects the sound mode.

REPEAT

Repeats chapter, track, title, all.

REPEAT A-B

Repeats sequence.

Accesses the menu on a DVD disc.

ZOOM

Enlargres video image.

SETUP

Accesses or removes setup menu.

DISPLAY

Accesses On-Screen display.

RETURN

Removes the menu.

b/B/v/V (left/right/up/down)

Selects an option in the menu.

ENTER

Acknowledges the menu selection.

PRESET (-/+)

Selects programme of Radio.

XM CH (-/+)

Tunes in the desired XM station.

TUN. (-/+)

Tunes in the desired radio station.

0-9 numerical buttons

Selects a service, program number

directly or selects numbered options in

a menu.

CAT

Selects the Category Search.

HDMI

Switches the HDMI mode to HDMI

(active) and OFF (inactive).

TV Control Buttons

- POWER: Switches TV ON and OFF.

CHANNEL v/V: Selects TV’s channel.

- VOLUME +/–: Adjusts TV’s volume.

- INPUT: Selects the TV’s source.

Installation and Setup

Setting up the unit

The picture and sound of a nearby TV, VCR, or radio

may be distorted during playback. If this occurs,

position the unit away from the TV, VCR, or radio, or

turn off the unit after removing the disc.

The unit Connection

Depending on your TV and other equipment there are

various ways you can connect the unit. Please refer to

the manuals of your TV, stereo system or other

devices as necessary for additional connection

information.

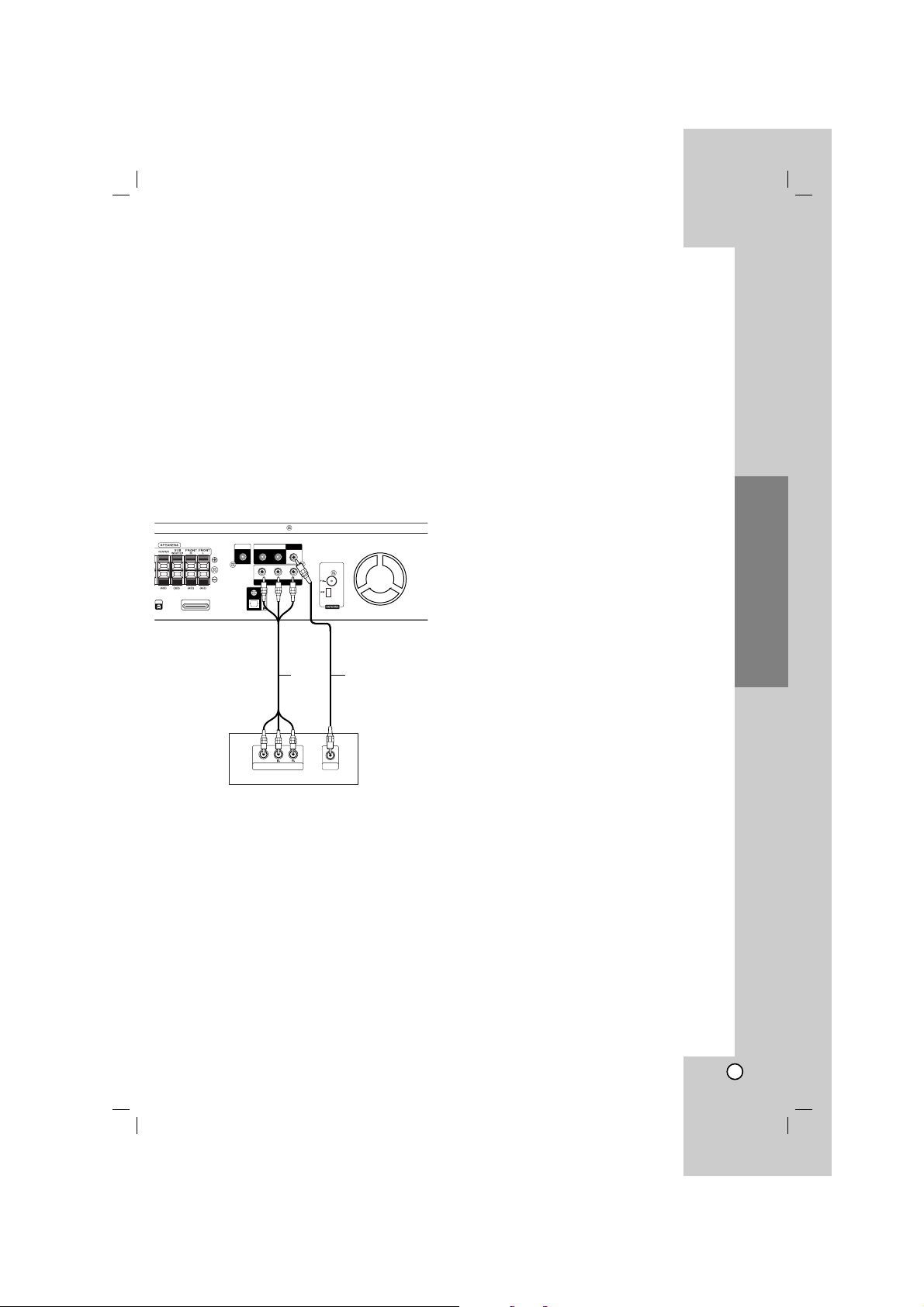

Video Connections to Your TV

Make sure the unit is connected directly to the TV and

not to a VCR, otherwise the DVD image could be

distorted by the copy protection system.

Connect the MONITOR OUT jack on the unit to the

video in jack on the TV using the video cable (V).

Notes:

• For MONITOR OUT jack connection, resolution

must be set to 480i or 480p by pressing RESOL. on

the Remote Control, however MONITOR OUT is

always at 480i standard resolution.

• HDMI mode must be set to OFF for VIDEO OUT

jack connection.

Component Video (ColorStream

) connection

Connect the COMPONENT VIDEO OUT jacks on

the unit to the corresponding jacks on the TV

using a Y P

B PR cable (C).

• If your television is a high-definition or “digital

ready” television, you may take advantage of the

unit’s progressive scan output for the highest

video resolution.

• If your TV does not accept your resolution

setting, abnormal picture appears on the screen.

Please read owner’s manual for TV then set the

resolution that your TV can accept.

Notes:

•You can change the resolution (480i, 480p, 720p,

1080i) for the COMPONENT VIDEO OUT by

pressing RESOL. on the Remote Control.

• For 720p and 1080i resolution, only non-copy

protected discs can be played back. If the disc is

copy protected, it will be displayed at the 480p

resolution.

The resolution (720p, 1080i) is for the component

and HDMI outputs only.

•

The

HDMI mode must be set to OFF for Component

video connections.

• The resolution (720p, 1080i) does not work with the

analog video connections (VIDEO OUT).

XM IN

i Pod

YPB PR

COMPONENTCOMPONENT VIDEO OUT VIDEO OUT

AUX IN

MONITMONITOROR

OUTOUT

R - R - AUX - LAUX - L

COAXIAL IN

COMPONENT VIDEO /

PROGRESSIVE SCAN INPUT

VIDEO

INPUT

Installation and Setup

Rear of TV

Optional Equipment

Connection

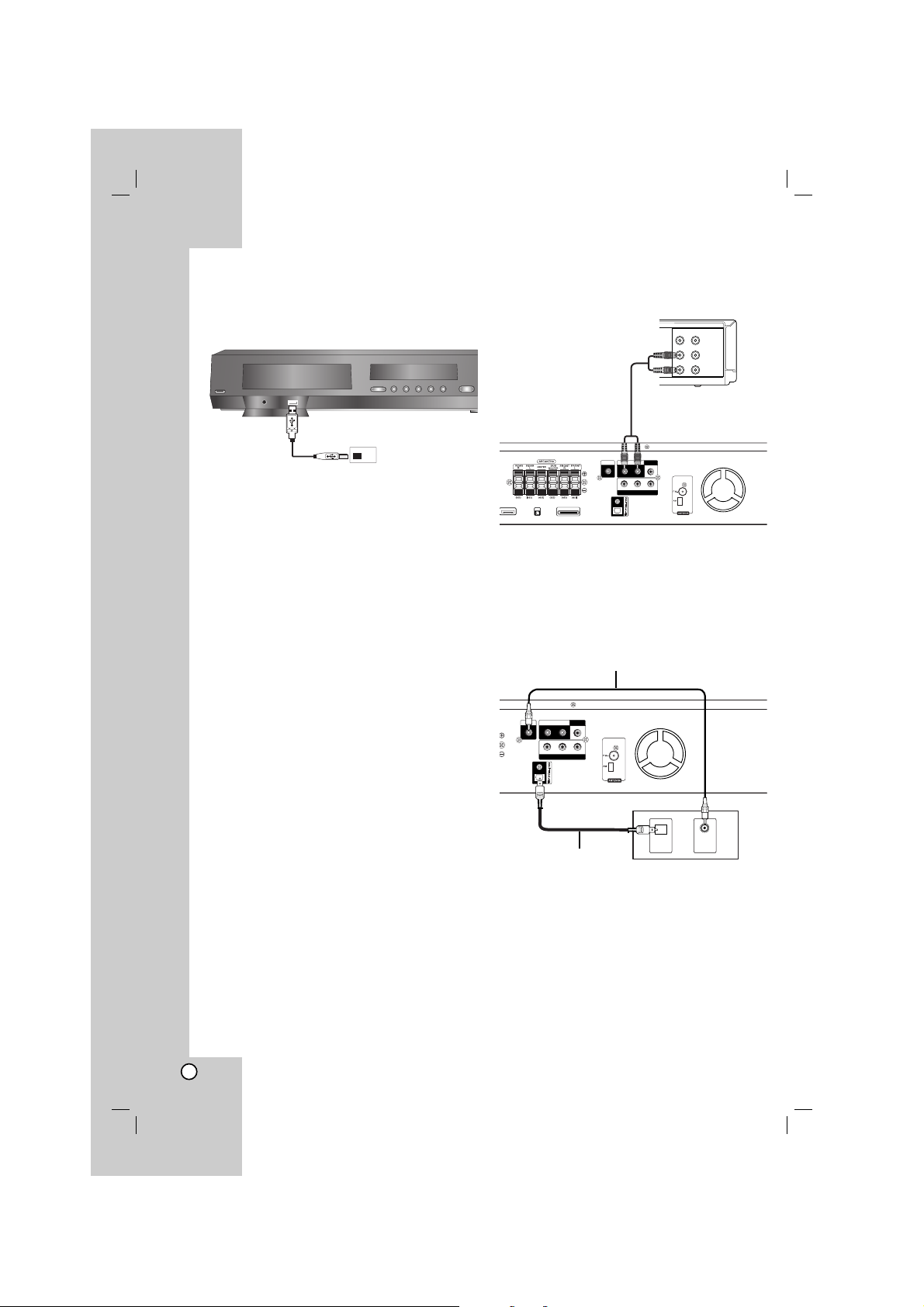

USB connection

Connect the USB port of USB Memory (or MP3

player, etc.) to the USB port on the front of the unit.

Removing the USB Device from the unit

1. Choose a different function mode or press STOP

(x) twice in a row.

2. Remove the USB device from the unit.

Notes:



Don’t extract the USB device while operating.



Music files (MP3/WMA), image files (JPEG) and

video files can be played.



This unit cannot use a USB HUB.



Recommended Memory Cards.

Compact Flash Card (CFC), Micro Drive (MD), Smart

Media Card (SMC), Memory Stick (MS), Secure Digital

Card (SD), Multimedia Card (MMC), Memory Stick Pro

(MS-Pro)

- Compatible with: FAT16, FAT32

- Only use the memory cards recommended.



Devices which require additional program

installation when you have connected the unit to a

computer are not supported.



In case of a USB HDD, make sure to connect an

auxiliary power cord to the USB HDD for proper

operation. Up to four primary partitions of a drive are

supported. If there is an extension partition, it will not

be supported.



If the drive of USB device is two or more, a drive

folder is displayed on the screen. If you want to

move to the initial menu after you select a folder,

press RETURN.



Digital cameras and mobile phones are not

supported.

AUX IN connection

Connect a Output of auxiliary device to the AUX

AUDIO Input (L/R) Connector.

OPTICAL IN connection (O)

Connect an optical output of Set Top Box (or Digital

Device etc) to the OPTICAL IN connector.

COAXIAL IN connection (C)

Connect an coaxial output of Set Top Box (or Digital

Device etc) to the COAXIAL IN connector.

Note:

If the audio format of the digital output does not match

the capabilities of your unit, the receiver will produce a

strong, distorted sound or no sound at all.

DMI

80i

XM IN

i Pod

YPB PR

COMPONENTCOMPONENT VIDEO OUT VIDEO OUT

AUX INAUX IN

MONITMONITOROR

OUTOUT

R - R - AUX - LAUX - L

COAXIALCOAXIAL IN IN

VIDEO

OUT

AUDIO (L)

AUDIO (R)

Auxiliary device

USB Memory, MP3

Player (or Memory Card

Reader, etc.)

To AUDIO OUT (L/R)

To AUDIO IN (L/R)

YPB PR

COMPONENTCOMPONENT VIDEO OUT VIDEO OUT

AUX INAUX IN

MONITMONITOROR

OUTOUT

R - R - AUX - LAUX - L

COAXIALCOAXIAL IN IN

OPTICAL

OUT

COAXIAL

OUT

Set Top Box (or Digital

Device, etc)

AUDIO IN connection

Connect a output of portable device (MP3 or PMP etc)

to the AUDIO input connector.

iPod connection

Connect the iPod connector on the rear of the DVD/

CD Receiver to the dock connector of iPod using an

iPod cable (I).

Notes:



Depending on the type of iPod, you may need to

insert one of the dock adapters into the dock slot

before you station your iPod.



Adjust the volume to a moderate level before you

connect your iPod and this unit.

Antenna Connection

Connect the supplied BAND antenna for listening to

the radio.



Connect he FM Wire antenna to the FM antenna

connector.



Connect the AM Loop antenna to the AM antenna

connector.

Notes:



Be sure to fully extend the FM wire antenna.



After connecting the FM Wire antenna, keep it as

horizontal as possible.



To prevent noise pickup, keep the AM Loop antenna away

from the DVD/CD Receiver and other components.

Installation and Setup

HDMI

1080i

WIRELESS

7V OUT

XM IN

i Pod

YPB PR

COMPONENT

VIDEO OUT

AUX IN

MONIT

OUT

R -

AUX - L

COAXIAL

iPod

HDMI

1080i

FOR WIRELESS

DC 7V OUT

XM IN

i Pod

YPB PR

COMPONENT

VIDEO OUT

AUX IN

MONIT

OUT

R -

AUX - L

COAXIAL

AM Loop Antenna

(supplied)

FM Wire Antenna

(supplied)

Portable device

To AUDIO OUT

To AUDIO IN

HDMI Connection

About HDMI

HDMI (High Definition Multimedia Interface) supports

both video and audio on a single digital connection for an

easy all- digital output to an HDMI or DI-equipped TV.

Connection to an HDMI TV requires an HDMI cable

while connection to a DVI-equipped TV requires a DVI

adapter besides a HDMI cable.

HDMI has the capability to support standard,

enhanced, or high-definition video plus standard to

multi-channel surround-sound audio, HDMI features

include uncompressed digital video, a bandwidth of up

to 5 gigabytes per second, one connector (instead of

several cables and connector), and communication

between the AV source and AV devices such as DTVs.

HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of

HDMI licensing LLC.

If you have a HDMI TV or monitor, you can connect

it to this DVD/CD Receiver using a HDMI cable.

1. Connect the HDMI OUT jack on the DVD/CD

Receiver to the HDMI jack on a HDMI compatible

TV or monitor (H).

2. Set the TV’s source to HDMI (refer to owner’s

manual for TV).

3. In the stop mode, select HDMI mode by pressing

HDMI. Press RESOL. repeatedly to select the

resolution you wish to change.

Notes:



The arrow on the cable connector body should face

up for correct alignment with the connector on the

DVD/CD Receiver.



If HDMI cable is not connected, the HDMI button

does not operate.



If there is noise or there are lines

on the screen, please check

the HDMI cable.



Not all HDCP-compatible

DVI devices will work with

this DVD/CD Receiver.



If TV does not support HDCP, snow noise appears

on the screen, or picture may be vibrated.

Tip :

When you use HDMI connection, you can change the

resolution (480p, 720p, 1080i) for the HDMI output by

pressing RESOL. on the Remote Control.

Resolution setting

You can change the resolution for the COMPONENT

VIDEO OUT by pressing RESOL. on the Remote

Control. Available resolution settings are as shown

below.

OUTPUT

Available Resolution

CONNECTION

HDMI 920 x 1080i

VIDEO OUT 1280 x 720p

720 x 480p

COMPONENT 1920 x 1080i

VIDEO OUT 1280 x 720p

720 x 480p

720 x 480i

MONITOR OUT 720 x 480i

Notes:



If the picture does not appear on the screen with

the analog video connections, change the

resolution to 480i.



For 720p and 1080i resolution on the component

video out, only non-copy protected discs can be

played back. If the disc is copy protected, it will be

displayed at the 480p resolution.



1080i, 720p, and 480p does not work with the

analog video connections (MONITOR OUT).



The component (Y/PB/PR) will output to black

picture in the RGB mode.



If you change the resolution, the display MENU

(MP3/JPEG/DivX) size is changed.



If your TV does not accept your resolution setting,

abnormal picture appears on the screen.

Please read owner’s manual for TV, and then set

the resolution that your TV can accept.

Caution:

Changing the resolution when the DVD/CD Receiver

is connected with HDMI connector may result in

malfunctions. To solve the problem, turn off the

DVD/CD Receiver and then turn it on again.

HDMI

1080i

FOR WIRELESS

DC 7V OUT

XM IN

i Pod

YPB PR

COMPONENTCOMPONENT VIDEO OUT VIDEO OUT

AUX INAUX IN

MONITMONITOROR

OUTOUT

R - R - AUX - LAUX - L

COAXIALCOAXIAL IN IN

HDMI

HDMI compatible TV

(Not supplied)

Installation and Setup

Speaker System Connection

Connect the speakers using the supplied speaker wires.

To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.).

Notes:

• Be sure to match the speaker wire to the appropriate terminal on the components: + to + and – to –. If the

cables are reversed, the sound will be distorted and will lack bass.

• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output

on the speakers.

Front speaker

(Right)

Rear speaker

(Right surround)

Subwoofer

Center speaker

Front speaker

(Left)

Rear speaker

(Left surround)

Center Speaker

Front Speaker

(Left)

Speaker Positioning Example

Rear Speaker

(Left)

Rear Speaker

(Right)

Front Speaker

(Right)

Subwoofer

Speaker Positioning

In the case of normal position use the 6 speakers (2 front speakers, center speaker, 2 rear speakers and

subwoofer).

If you want to play the excellent bass sound, DTS digital surround or Dolby Digital surround, you should connect a

subwoofer.

• Front speakers

According to your listening position set up the speakers for equal distance. For best results, place the speakers at a 45 degree

angle from your listening position as illustrated below.

• Center speaker

It is deal to place the center speaker and front speakers at a same height level. However, you can place the center speaker

above or below the television as shown below.

• Rear speakers

Place left and right behind the listening area. These speakers recreate sound motion and atmosphere required for surround

sound playback. For best results, do not install the rear speakers too far behind the listening position and install them at or

above the level of the listener’s ears. It is also effective to direct the rear speakers towards a wall or ceiling to further disperse

the sound.

In the case of a smaller room size, if the audience is near to the rear wall set the rear speakers opposite each other, and set the

rear speakers above 60 - 90 cm than the listener’s ears.

• Subwoofer

This can be placed in any front position.

Selecting the Input/Output Source

Follow these guidelines to select and switch among

the various unit input and output sources:

• DVD/CD

To view output from the DVD:

Press DVD on the Remote Control or FUNC. on

the front panel until the DVD/CD indicator on the

front panel lights and output from the DVD deck is

viewed on the TV screen.

• FM/AM/XM

To listen to FM/AM/XM radio broadcasts:

Press TUNER on the Remote Control to toggle

among FM, AM and XM radio. The selected

frequency appears on the front panel display

window.

• AUX

To listen to a audio source connected to an

Auxiliary device:

Press AUX on the Remote Control to toggle the

desired input source.

The selected input source (AUX/AUDIO IN)

appears on the front panel display window.

• D.INPUT

To select the digital signal connected to from

the DIGITAL AUDIO IN (OPTICAL or COAXIAL)

connector:

When “AUX” indicator appears in the display

window, press D.INPUT on the Remote Control

once. “AUX OPT” will appear in the display window.

Audio will come from an external source connected

to the DIGITAL AUDIO IN (OPTICAL) jack.

When “AUX” indicator appears in the display

window, press D.INPUT on the Remote Control

twice. “AUX COAX” will appear in the display

window. Audio will come from an external source

connected to the DIGITAL AUDIO IN (COAXICAL)

jack.

• USB

Press USB on the Remote Control or FUNC. on the

front panel until “USB” appears in the display

window.

•iPod

Press iPod on the Remote Control or FUNC. on the

front panel until “OSD IPOD” appears in the display

window.

Installation and Setup

TUNER

AUX

USB

AUDIO

OPEN/CLOSE

SOUND S-TITLE CLEAR

MUTE

XM CH

D.SEL.

POWER

INPUT

CHANNEL

DIMMER

VOL

CAT/HDMI

XM MODE/RESOL.

ZOOM

SETUP

ENTER

DISPLAY

RETURN

VOL

SCAN +

SKIP

SCAN +

TITLE

STOP PLAY

REPEAT

REPEAT A-B

MARKER SEARCH

DVD

iPod

POWER

D.INPUT

PAUSE/STEP

SLEEP

PROG./MEMO.

D.INPUT

TUNER

DVDAUX

USB

iPod

Mini Glossary for Audio Stream

& Surround Mode

Allows you to enjoy 5.1(or 6) discrete channels of high quality

digital audio from DTS program sources such as discs, DVD

and compact discs, etc.bearing the trademark. DTS Digital

Surround delivers up to 6 channels of transparent audio(which

means identical to the original masters) and results in

exceptional clarity throughout a true 360 degree sound field.

“DTS” and DTS Digital Surround” are registered trademarks of

Digital Theater Systems, Inc. Manufactured under license from

Digital Theater Systems, Inc.

The Dolby Digital surround format lets you enjoy up to 5.1

channels of digital surround sound from a Dolby Digital

program source. If you play DVDs with “ ” mark, you can

enjoy even better sound quality, greater spatial accuracy, and

improved dynamic range.

Use this mode when playing movie or Dolby Digital 2 channel

which carries the “ ” mark. This mode provides the

effect of being in a movie theatre or live concert house-an

effect with an intensity which can only be obtained through

DOLBY PRO LOGIC SURROUND. The effect of the

front/back/left/right movement of the sound image, as well as

the sense of fixed position in the sound image, is much

clearer and more dynamic than before.

(II)

Dolby Pro Logic II creates five full-bandwidth output channels

from two-channel sources. This is done using an advanced,

high-purity matrix surround decoder that extracts the spatial

properties of the original recording without adding any new

sounds or tonal colorations.

MOVIE mode:

The Movie mode is for use with stereo television shows and all

programs encoded in Dolby Surround. The result is enhanced

soundfield directionality that approaches the quality of discrete

5.1-channel sound.

MUSIC mode:

The Music mode is for use with any stereo music recordings.

MATRIX mode:

The Matrix mode is the same as the Music mode except that

the directional enhancement logic is turned off. It may be used

to enhance mono signals by making them seem “larger.” The

Matrix mode may also find use in auto systems, where the

fluctuations from poor FM stereo reception can otherwise

cause disturbing surround signals from a logic decoder. The

ultimate “cure” for poor FM stereo reception may be simply to

force the audio to mono.

3D SURROUND

This unit can produce a 3D Surround effect, using 3D

Surround Sound technology, which simulates multi-channel

audio playback from two conventional stereo speakers

instead of the five or more speakers normally required to

listen to multi-channel audio from a home theatre. This

feature works with DVD discs encoded with Dolby Pro Logic

and Dolby Digital audio tracks.

BYPASS

Software with multichannel surround audio signals is played

according to the way it was recorded.

Sound Mode

You can enjoy surround sound simply by selecting

one of the pre-programmed sound fields according to

the program you want to listen to.

Press SOUND button repeatedly.

The sound mode is changed in the display window in

the following order.

BYPASS

→ ON STAGE → STUDIO → CLUB → HALL

→ THEATER 1 → CHURCH → PL ll MOVIE →

PL ll MUSIC → PL ll MTRX → BYPASS...

(This function available 2-channel mode only)

When DVD is inserted.

You can change the audio mode of DVD (Dolby Digital, DTS,

PRO LOGIC, etc) by pressing the AUDIO button on the

remote during playback.Although the DVD contents differ

from disc to disc, the following explains the basic operation

when this feature is used.

Each time you press AUDIO button, the audio mode of DVD

is changed as the following order;

→→

For your reference

•

Initial sound mode is BYPASS.

•

You can identify the encoding format of program

software by looking at its packaging.

- Dolby Digital discs are labeled with the logo.

- Dolby Surround encoded programs are labeled

with the logo.

- DTS Digital Surround discs are marked with DTS.

Note:

Depending on the disc, some of the DVD audio mode may

not be availabe.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are

trademarks of Dolby Laboratories.

VIRTUAL sound

Press VSM the setting VIRTUAL sound.



3D STEREO

Realtime 3D positioned sound rendering

technology with stereo sources, optimized for

stereo speakers. Listeners may experience

amazing virtual surround effects with their own

multimedia players.



Multichannel sound

The Multichannel sound changes the sound in 5.1

ch into a virtual one in the 10.1 ch so that it

provides such a feeling that you listen to the sound

simultaneously from the right and left speakers and

center speaker.

Source Display Effect

2.1 ch. VIRTUAL 3D STEREO

5.1 ch VIRTUAL Multichannel sound

XTS/XTS pro

Each time you press XTS pro the setting changes in

the following order.

XTS ON → NORMAL → XTS-P ON...



XTS-P ON

The unique sound quality of the LG Technology

creates the optimum sound for you to play the

perfect playback of the original sound and to feel

the living sound source.



XTS ON

When playing a movie with weak bass relative to

the general music, it forces sound to the woofer.

In the mode of 2 CH BYPASS, It creates the high

display effect by playing the sound source via the

rear speakers same as the front speakers.

Note:

The XTS mode is temporarily disabled when changing

from 2.1 CH to 5.1 CH and it is enabled when changing it

to 2.1 CH.

Displaying Disc Information

On - screen

You can display various information about the disc

loaded on-screen.

1. Press DISPLAY to show various playback

information.

Thedisplayed items differ depending on the disc

type or playing status.

2. You can select an item by pressing v / V and

change or select the setting by pressing b / B.



Title (Track) –Current title (or track) number/

total number of titles (or tracks).



Chapter – Current chapter number/total number

of chapters.



Time – Elapsed playing time.



Audio – Selected audio language or channel.



Subtitle – Selected subtitle.



Angle – Selected angle/total number of angles.



Sound – Selected sound mode.

Note:

If any button is not pressed for a few seconds, the on-

screen display disappears.

Initial Settings

By using the Setup menu, you can make various

adjustments to items such as picture and sound. You

can also set a language for the subtitles and the

Setup menu, among other things. For details on each

Setup menu item, see the pages 19 to 22.

To display and exit the Menu:

Press SETUP to display the menu. A second press of

SETUP will take you back to initial screen.

To go to the next level:

Press B on the Remote Control.

To go back to the previous level:

Press b on the Remote Control.

GENERAL OPERATION

1. Press SETUP. The Setup menu appears.

2. Use v / V to select the desired option then press

B to move to the second level. The screen shows

the current setting for the selected item, as well as

alternate setting(s).

3. Use v / V to select the second desired option and

then press B to move to the third level.

Use v / V to select the desired setting then press

ENTER to confirm your selection. Some items

require additional steps.

5. Press SETUP or PLAY to exit the Setup menu.

Installation and Setup

LANGUAGE

OSD

Select a language for the Setup menu and then on-

screen display.

Disc Audio / Subtitle / Menu

Select the language you prefer for the audio track

(disc audio), subtitles, and the disc menu.

Original – Refers to the original language in which

the disc was recorded.

Other – To select another language, press

numeric buttons and then ENTER to enter the

corresponding 4-digit number according to the

language code list on the page 37. If you enter the

wrong language code, press CLEAR.

DISPLAY

TV Aspect

4:3 – Select when a standard 4:3 TV is connected.

16:9 – Select when a 16:9 wide TV is connected.

Display Mode

The display Mode setting works only when the TV

Aspect mode is set to “4:3”.

Letterbox – Displays a wide picture with bands on

the upper and lower portions of the screen.

Panscan – Automatically displays the wide picture

on the entire screen and cuts off the portions that

do not fit.

Simplay HD

On – The resolution of this unit is automatically set

to TV’s best possibie one.

Off – You can set the resolution manually.

DISPLAY

TV Aspect

Display Mode

Move

Select

Widescreen

16 : 9

Simplay HD

OSD

Original

English

Off

Original

Disc Audio

Disc Subtitle

Disc Menu

Move

Select

LANGUAGE

AUDIO

Each DVD disc has a variety of audio output options.

Set the receiver’s AUDIO options according to the

type of audio system you use.

Dynamic Range Control (DRC)

With the DVD*

format, you can hear a program’s

soundtrack in the most accurate and realistic

presentation, thanks to digital audio technology.

However, you may wish to compress the dynamic

range of the audio output (the difference between the

loudest sounds and the quietest ones). Then, you may

listen to a movie at a lower volume without losing

clarity of sound. Set DRC to On for this effect.

*1:Dolby Digital only

Vocal

Set Vocal to On only when a multi-channel karaoke

DVD is playing. The karaoke channels on the disc will

mix into normal stereo sound.

HD AV Sync

When using Digital TV.

Sometimes AV signal could not be transmitted

simultaneously because of later transmission of video

signal compared to audio signal.

Because it takes some time to convert analog video

signal to digital one in the Digital TV.

And It means that you may not enjoy picture on the

screen and sound from speaker at the same time

even though it is one scene.

In the HD AV Sync menu, you could adjust delay time

to audio signal for simultaneous AV signal

transmission



Delay time could be set up with 10msec unit.

(0 ~ 300ms)



Delay time is different according to each TV Brand.

So you need to adjust optimal delay time complying

with your TV.

5.1 Speaker Setup

Make the following settings for the built-in 5.1 channel

surround decoder.

1. Press ENTER, and the 5.1 Speaker Setup menu

appears.

2. Use b / B to select the desired speaker.

3. Adjust options using v / V / b / B buttons.

4. Press ENTER to confirm your selection. Returns to

the previous menu.

Speaker selection

Select a speaker that you want to adjust. [Front

speaker (Front L), Front speaker (Front R), Center

Speaker (Center), Subwoofer (SubWoofer), Rear

speaker (Rear L), Rear speaker (Rear R)]

Note:

Certain speaker settings are prohibited by the Dolby

Digital licensing agreement.

Size

Since the speaker settings are fixed, you cannot

change the settings.

Volume

Press b / B to adjust the output level of the selected

speaker. (-5dB ~ 5dB)

Distance

If you connected speakers to your unit, setting the

Distance lets the speakers know how far the sound

has to travel to reach your set listening point. This

allows the sound from each speaker to reach the

listener at the same time.

Press b / B to adjust the Distance of the selected

speaker. (You can’t adjust front / Woofer speakers)

Test

Press b / B to test the signals of each speaker. Adjust

the volume to match the volume of test signals

memorized in the system.

Front Left (Front L) → Center → Front Right (Front R)

→ Rear Right (Rear R) → Rear Left (Rear L) →

SubWoofer

Installation and Setup

Select5.1 Speaker Setup

OnDRC

OnVocal

Move

Select

AUDIO

0 msHD AV Sync

AUDIO

Speaker

Volume

Distance

Test

Move Return

Select

Size

Front L

Small

Off

Enter

LOCK (Parental Control)

Rating

Blocks playback of rated DVDs based on their

contents. Not all discs are rated.

1. Select “Rating” on the LOCK menu then

press B.

2. To access the LOCK options, you must input the

password you have created. If you have not yet

entered password, you are prompted to do so.

Input a password and press ENTER. Enter it again

and press ENTER to verify. If you make a mistake

before pressing ENTER, press CLEAR.

3. Select a rating from 1 to 8 using the v / V buttons.

Rating 1-8: Rating one (1) has the most

restrictions and rating eight (8) is the least

restrictive.

Unlock: If you select unlock, parental control is

not active and the disc plays in full.

4. Press ENTER to confirm your rating selection, then

press SETUP to exit the menu.

Password

You can enter or change password.

1. Select Password on the LOCK menu and then

press B.

2. Follow the step 2 as shown above (Rating).

To change the password, press ENTER when the

“Change” option is highlighted. Input a password

and press ENTER. Input a new password and

press ENTER.Enter it again and press ENTER to

verify.

3. Press SETUP to exit the menu.

If you forget your password

If you forget your password, you can clear it using the

following steps:

1. Press SETUP to display the Setup menu.

2. Input the 6-digit number “210499” and press

ENTER. The password is cleared.

Area Code

Enter the code of the area whose standards were

used to rate the DVD video disc, based on the list on

page 37.

1. Select “Area Code” on the LOCK menu then

press B.

2. Follow the step 2 as shown previous paragraph

(Rating).

3. Select the first character using v / V buttons.

4. Press B and select the second character using

v / V buttons.

5. Press ENTER to confirm your Area code selection.

OTHERS

DivX(R) Registration

We provide you the DivX

VOD (Video On Demand)

registration code that allows you to rent and purchase

videos based on the DivX

VOD service. For more

information, visit www.divx.com/vod.

1. Select “DivX(R) Registration” option and then

press B.

2. Press ENTER while “Select” is selected and the

registration code will appear.

Use the registration code to purchase or rent the

videos from DivX

VOD service at

www.divx.com/vod. Follow the instructions and

download the video onto a disc for playback on

this unit.

3. Press ENTER to exit.

Note:

All the downloaded videos from DivX

VOD can only

be played back on this unit.

LOCK

Rating

****

Unlock

Password

Area Code US

Move

Select

DivX(R) Registration

Move

OTHERS

Select

Operation

General features

Buttons Operations

Z (OPEN / CLOSE) Opens or closes the disc tray.

X (PAUSE) During playback, press X to pause playback.

Press X repeatedly to play Frame-by-Frame.

SKIP (. / >) During playback, press SKIP (. or >) to go to the next

chapter/track or to return to the beginning of the current

chapter/track.

Press SKIP . twice briefly to step back to the previous

chapter/track.

SCAN (m / M) During playback, press SCAN (m or M) repeatedly to

select the required scan speed.

DVD : bb, bbb, bbbb, bbbbb, bbbbbb

BB, BBB, BBBB, BBBBB, BBBBBB

DivX disc : bb, bbb, bbbb, bbbbb

BB, BBB, BBBB, BBBBB

WMA/MP3, Audio CD : m (X2, X4, X8) or M (X2, X4, X8)

REPEAT During playback, press REPEAT repeatedly to select a

desired repeat mode.

DVD Video discs: Chapter/Title/Off

Audio CD, DivX/MP3/WMA discs: Track/All/Off

REPEAT A-B During playback, press REPEAT A-B to select a point A and

a point B and repeats a sequence from point A (Starting

point) to point B (End point).

Press REPEAT A-B to exit.

ZOOM During playback or in the pause mode, press ZOOM to

enlarge the video image (3 steps).

You can move through the zoomed picture using bBvV

buttons.

TITLE If the current DVD title has a menu, the title menu appears

on the screen. Otherwise, the disc menu may appear.

MENU The disc menu appears on the screen.

(SUBTITLE) During playback, press S-TITLE repeatedly to select a

desired subtitle language.

(AUDIO language) During playback, press AUDIO repeatedly to hear a different

audio language or audio track.

SLOW

In the pause mode, press SCAN (m or M) to select the

required speed.

DVD : t (1/2, 1/4, 1/8, 1/16) or T (1/2, 1/4, 1/8, 1/16)

Discs

DVD

DivXDVD

DVD

ALL

WMA

MP3ACD

DivXDVD

ALL

DivXDVD

ALL

Playback Setup

Turn on the TV and select the video input source

connected to the unit.

To open all discs

Press DISC VIEW on the unit or OPEN/CLOSE on the

Remote Control to open all disc trays in the drawer

during stop.

“OPEN” will appear in the display window.

You can check a disc in the disc tray.

Notes:

If you press OPEN/CLOSE of the active disc tray, the disc

tray will not slide out. Current disc is continuously playback.

To select a playback disc

Press D.SEL. and press desired disc button (DISC 1-

5) on the Remote Control.

Press desired disc button (DISC 1-5) on the unit.

Tip:

• You can also use the disc number play buttons on

the unit.

• If you want to skip disc, select again “DISC” on

SIMPLINK menu.

Notes:

•To ensure good system performance, wait until the disc

tray completely read the disc(s) before proceeding.

• The unit is only able to read the status of the current

selected disc tray.

To play all discs on the disc trays

Press PLAY(

) on the Remote Control or on the unit.

All the available discs will play once.

Tip:

During playback, track number and elapsed playing

time of the current track will appear in the display

window.

Note:

• If on the disc trays have inserted only MP3 disc, WMA disc

and Audio disc, all discs will repeat playback.

• This function is not available during Repeat playback or

Programmed playback mode.

• If the discs that contain its own menu has inserted, you

can not use this function properly.

Special DVD Features

Checking the contents of DVD discs:

Menus

DVDs may offer menus that allow you to access

special features. To use the disc menu, press MENU.

Input the corresponding number or use the bB v V

buttons to highlight your selection.

Then press ENTER.

Camera Angle

If the disc contains scenes recorded at different

camera angles, you can change to a different camera

angle during playback.

1. Press DISPLAY during playback.

2. Use 3 or 4 to select the angle option.

The angle option will be highlighted.

3. Use 1 or 2 to to select angle.

Tip:

The angle indicator will appear on the front display during

scenes recorded at different angles as an indication that

angle switching is possible.

DVD

Notes on general features:



Zoom may not work on some DVDs.



The A-B repeat function is available only in the

current title.

Additional features

1.5 times speed playback

You can play at 1.5 times speed.

The 1.5 speed allows you to watch the pictures and

listen to the sound quicker than playing at a normal

speed on the disc.

1. During playback, press PLAY(B) to play at 1.5

times speed. “BX1.5” appears on the screen.

2. Press PLAY(B) again to exit.

Time Search

To start playing at any chosen time on the disc:

1. Press DISPLAY during playback.

2. Press v / V to select the time clock icon and

“--:--:--” appears.

3. Input the required start time in hours, minutes, and

seconds from left to right. If you enter the wrong

numbers, press CLEAR to remove the numbers

you entered. Then input the correct numbers.

4. Press ENTER to confirm. Playback starts from the

selected time.

Marker Search

To enter a Marker

You can start playback from up to nine memorized

points. To enter a marker, press MARKER at the

desired point on the disc. The Marker icon appears on

the TV screen briefly. Repeat to enter up to nine

markers.

To Recall or Clear a Marked Scene

1. During disc playback, press SEARCH. The marker

search menu appears on the screen.

2. Within 10 seconds, press b / B to select a marker

number that you want to recall or clear.

3. Press ENTER and playback starts from the

marked scene. Or press CLEAR and the marker

number is erased from the list.

4. You can play any marker by inputting its number

on the marker search menu.

Screen Saver

The screen saver appears when you leave the unit in

Stop mode for about five minutes.

Last Scene Memory

This receiver memorizes the last scene from the last

disc that is viewed. The last scene remains in the

memory even if you remove the disc from the receiver

or switch off the receiver. If you load a disc that has

the scene memorized, the scene is automatically

recalled.

Note:

This receiver does not memorize the scene of a disc if you

switch off the receiver before commencing to play the disc.

Sleep Timer Setting

You can set the unit to turn off automatically at a

specified time.

1. Press SLEEP to set the desired sleep time.

The SLEEP indicator and the sleep time appears in the

display window.

2. Each time you press SLEEP the setting

changes in the following order.

SLEEP 180 →150 →120→90 →80 →70 → 60→50 →40 →

30 → 20 →10 →OFF

Note:

You can check the remaining time before the unit

turns off.

Press SLEEP. The remaining time appears in the

display window.

Dimmer

This function will change the brightness of the display

window on the front panel during in power-on status.

Press the DIMMER repeatedly.

Button’s light turn off

→

Display window make din

→

Display window and Button’s light are on.

Mute

Press MUTE to mute your unit.

You can mute your unit in order, for example, to

answer the telephone, the “MUTE” indicator flashes in

the display window.

Press MUTE again or adjust the volum to release it.

DVD

DivXDVD

WMA

MP3ACDDVD

Operation

Playing an Audio CD or MP3/WMA file

This unit can play Audio CDs or MP3/WMA files

recorded media.

MP3/ WMA/ Audio CD

Once you insert a CD with MP3/WMA files or Audio,

a menu appears on the TV screen.

Press v / V to select a track/file and then press PLAY

or ENTER and playback starts. You can use variable

playback functions. Refer to the page 23.

ID3 TAG

When playing a file containing information such as

track titles, you can see the information by pressing

DISPLAY. (Song, Artist, Album, Genre, Comment)

Tips:



Press MENU to move to the next page.



On a CD with MP3/WMA and JPEG, you can switch

MP3/WMA and JPEG. Press TITLE, and MUSIC or

PHOTO word on top of the menu is highlighted.

Programmed Playback

The program function enables you to store your

favorite tracks from any disc in the receiver memory. A

program can contain 300 tracks.

1. Insert a disc.

Audio CD and MP3/WMA Discs:

2. Select a track on the “List” and then press PROG.

or select “ (Add)” icon and then press ENTER

to place the selected track on the “Program” list.

Repeat to place additional tracks on the list.

Note:

You can add all tracks in the disc. Select “

(

Add All)” icon

then press ENTER.

3. Select the track you want to start playing on the

“Program” list. Press MENU to move to the next

page.

4. Press PLAY or ENTER to start. Playback begins in

the order in which you programmed the tracks.

Playback stops after all of the tracks on the

“Program” list have played once.

5. To resume normal playback from programmed

playback, select a track of AUDIO CD (or

MP3/WMA) list and then press PLAY.

Repeat Programmed Tracks

1. Press REPEAT when playing a disc. The repeat

icon appears.

2. Press REPEAT to select a desired repeat mode.

• TRACK: repeats the current track

• ALL: repeats all the tracks on programmed list.

• Off(No display): does not play repeatedly.

Erasing a Track from “Program” List

1. Use vVto select the track that you wish to erase

from the Program list.

2. Press CLEAR. Alternatively, select “ (Delete)”

icon then press ENTER to place the selected track

on the Program list. Repeat to erase additional

tracks on the list.

Erasing the Complete Program List

Use v / V to select “ (Del all)” and then press

ENTER.

Note:

The programs are also cleared when the disc is removed or

others disc was played.

MP3 / WMA disc compatibility with this player is

limited as follows:

• Sampling frequency: within 32 - 48 kHz (MP3),

within 24 - 48kHz (WMA)

• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)

• The DVD/CD Receiver cannot read an MP3/WMA file

that has a file extension other than “.mp3” / “.wma”.

• CD-R physical format should be ISO 9660

• If you record MP3 / WMA files using software that

cannot create a file system (eg. Direct-CD) it is

impossible to playback MP3 / WMA files.We recommend

that you use Easy-CD Creator, which creates an ISO

9660 file system.

• File names should have a maximum of 8 letters and

must incorporate an .mp3 or .wma extension.

• They should not contain special letters such as / ? * : “

< > l etc.

• The total number of files on the disc should be less than

999.

This DVD/CD Receiver requires discs and recordings to

meet certain technical standards in order to achieve

optimal playback quality. Pre-recorded DVDs are

automatically set to these standards. There are many

different types of recordable disc formats (including CD-R

containing MP3 or WMA files) and these require certain

pre-existing conditions (see above) to ensure compatible

playback.

Customers should note that permission is required in

order to download MP3 / WMA files and music from

the Internet. Our company has no right to grant such

permission. Permission should always be sought from

the copyright owner.

Viewing a JPEG

file

This unit can play discs with JPEG files.

Before playing JPEG recordings, read the notes on

JPEG Recordings on the right.

1. Insert a disc and close the tray.

The PHOTO menu appears on the TV screen.

2. Press v / V to select a folder, and then press

ENTER. A list of files in the folder appears.

If you are in a file list and want to return to the

previous Folder list, use the v / V buttons on the

remote to highlight and press ENTER.

3. If you want to view a particular file, press v / V to

highlight a file and press ENTER or PLAY. While

viewing a file, you can press STOP to move to the

previous menu (JPEG menu).

Notes:



When viewing a JPEG file, the resolution is changed 480p

if the resolution set to 1080i. You can change the

resolution for 720p or 480p.

Tips:



There are four Slide Speed options :

> (Slow), >> (Normal), >>> (Fast) and II (off).

Use v /V /b /B to highlight the Speed. Then, use b / B to

select the option you want to use and then press ENTER.



If you set Speed option to Off, the slide is not active.

Slide Show

Use vVbBto highlight the (Slide Show) then

press ENTER. (You can not change resolution)

Still Picture

1. Press PAUSE/STEP during the slide show.

The unit will now go into the PAUSE mode.

2. To return to the slide show, press PLAY or press

PAUSE/STEP again.

Moving to another File

Press SKIP (. or >) once during viewing a

picture to advance to the next or previous file.

Rotating the picture

Press

b / B / 3 / 4during showing a picture to rotate

the picture clockwise or counter-clockwise.

JPEG

Operation

Preview

List

JPEG Folder 1

JPEG Folder 2

JPEG Folder 3

JPEG Folder 4

JPEG Folder 5

JPEG Folder 6

JPEG Folder 7

JPEG Folder 8


JPEG disc compatibility with this player is

limited as follows:

• Depending upon the size and the number of

JPEG files, it could take a long time for the unit to

read the disc’s contents. If you don’t see an on-

screen display after several minutes, some of the

files may be too large — reduce the resolution of

the JPEG files to less than 2M pixels as 2760 x

2048 pixels and burn another disc.

• The total number of files and folders on the disc

should be less than 999.

• Some discs may not operate due to a different

recording format or the condition of disc.

• Ensure that all the selected files have the “.jpg”

extensions when copying into the CD layout.

• If the files have “.jpe” or “.jpeg” extensions,

please rename them as “.jpg” file.

• File names without “.jpg” extension will not be

able to be read by this unit. Even though the files

are shown as JPEG image files in Windows

Explorer.

Playing a DivX Movie file

Using this unit you can play DivX disc.

1. Insert a disc and close the tray. The MOVIE menu

appears on the TV screen.

2. Press v / V to select a folder and then press

ENTER. A list of files in the folder appears. If you

are in a file list and want to return to the Folder

list, use the v / V buttons on the remote to

highlight and press ENTER.

3. If you want to view a particular file, press

v / V to highlight a file and press ENTER or PLAY.

4. Press STOP to exit.

Notice for displaying the Divx subtitle

If the subtitle does not display properly during playback,

press and hold S-TITLE for about 3 seconds then press

S-TITLE to select another language code until the

subtitle is displayed properly

Tips:



Press MENU to move to the next page.



On a CD with MP3/WMA, JPEG and MOVIE file, you can

switch MUSIC, PHOTO and MOVIE menu. Press

TITLE,

and

MUSIC, PHOTO and MOVIE word on top of the

menu is highlighted.



You can select the desired title using the b / B.

Notes:



Be sure to select “SUBTITLE ON” mode by pressing the

subtitle file every time before playing a DivX file .



When the subtile has more than two languages in the file,

original subtile is only available.



The DivX files in your memory card can not be played.



You can not adjust sound mode and VIRTUAL sound

during the DivX file playing.

List

Movie Folder 1

Movie Folder 2

Movie Folder 3

Movie Folder 4

Movie Folder 5

Movie Folder 6

Movie Folder 7

Movie Folder 8

MOVIE

0:00:00

DivX disc compatibility with this player is limited

as follows:

•Available resolution size of the DivX file is under

800x600 (W x H) pixel.

• The file name of the DivX subtitle is available by

45 characters.

• If there is impossible code to express in the DivX

file, it may be displayed as " _ " mark on the

display.

• If the number of the screen frame is over 30

per 1 second, this unit may not operate

normally.

• If the video and audio structure of recorded

files are not interleaved, either video or audio

is outputted.

Playable DivX file

• ".avi ", ".mpg ", ".mpeg ", ".divx"

Playable Subtitle format

• SubRip(*.srt/*.txt)

SAMI(*.smi)

SubStation Alpha(*.ssa/*.txt)

MicroDVD(*.sub/*.txt)

SubViewer 2.0(*.sub/*.txt)

VobSub(*.sub)

Playable Codec format

• "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ",

"MP43 ", "3IVX ".

Playable Audio format

"AC3 ", "DTS ", "PCM ", "MP3 ", "WMA ".

• Sampling frequency: within 32 - 48 kHz (MP3),

within 24 - 48kHz (WMA)

• Bit rate: within 32 - 320kbps (MP3),

40 - 192kbps (WMA)

Operation

Using iPod

You can enjoy playback of your iPod using the

supplied remote control.

iPod is a trademark of Apple Computer, Inc, registered

in the U.S. and other countries.

General operation

1. Connect your iPod and the unit with iPod cable.

Refer to the page 13.

2. Turn the unit on.

Your iPod is automatically turned on.

3. Press iPod on the remote control to enter the iPod

mode.

The iPod menu appears on the TV screen.

The initial screen of iPod menu is the OSD iPod

mode.

4. Use v / V and ENTER on the Remote Control to

display the list of menu.

5. Press ENTER to play.

General features

Notes:

• It works with all iPod models that have a dock

connector.

• Compatibility with your iPod may vary depending

on the type of your iPod.

• Depending on your iPod’s software version, it may

not be possible to control your iPod from the unit.

We recommend installing the latest software

version.

• Adjust the volume to a moderate level before you

connect your iPod and this unit.

Playing the iPod in the Remote iPod

mode

You can operate your iPod by using the supplied

remote control and controls on your iPod.

1. Press iPod on the Remote Control until “IPOD”

appears in the display window.

Note:

You can select the Remote iPod mode or OSD

iPod mode by pressing repeatedly iPod on the

remote control.

2. Use v / V and ENTER on the Remote Control or

controls on your iPod to display the list of menu by

viewing your iPod.

3. Press ENTER to play.

Notes:

• When you connect the unit and TV to MONITOR

IN/OUT, TV screen is turned off temporarily.

•

Connect the MONITOR OUT jack on the rear of the

unit to the VIDEO IN jack on the TV using the video

cable if you want to view the video or photo file.

The images of video or photo files are outputted

only when you connect the unit to the MONITOR

OUT connector.

Operations

During pause, press B to

resume playback.

During playback, press X

to pause playback.

During playback, press

to stop playback. Press

ENTER to resume

playback.

During playback, press

SKIP (. or >) to go to

the next track or to return

to the beginning of the

current track. Press SKIP

. twice briefly to step

back to the previous track.

Music file: During playback,

press and hold SCAN (m or

M) and then release at a

point you want.

Video file: During playback,

press and hold

SKIP (.

or >)

and then release at

a point you want.

During playback, press

REPEAT repeatedly to

select a desired repeat

mode. (Track/All/Off)

Moves to the previous

menu.

Remote Control

buttons

B (PLAY)

X (PAUSE)

(STOP)

SKIP

(./>)

SCAN

(m / M)

REPEAT

iPod

buttons

B X

./>

REPEAT

Playing the iPod in the OSD iPod

mode

You can operate your iPod by controlling OSD menu

on the TV screen with the supplied remote control.

The controls on your iPod are not operational in the

OSD iPod mode.

1. Press iPod on the Remote Control until “OSD

IPOD” appears in the display window.

2. Use v / V and ENTER on the Remote Control to

display the list of menu.

3. Press ENTER to play.

Music

Classifies and plays the files by Playlists, Artists,

Albums, Genres, Songs, and Composers.

Photos / Videos

The video or photo file is not played in the OSD iPod

mode.

If you want to play the video or photo file, change to

the Remote iPod mode.

Now Playing

Displays and plays the last played music file.

iPod message

Remote iPod

Please use Monitor output

for viewing Video and photo

from iPod.

When you connect the unit and

TV to COMPONENT VIDEO

IN/OUT or HDMI IN/OUT in the

Remote iPod mode, the screen

on the left appears.

Connect the unit and TV to

MONITOR

IN/OUT

When you select the Photos or

Videos menu in the

OSD iPod

mode, the screen on the left

appears. Change the unit to the

Remote iPod mode.

When you connect the iPod that

is not supported on this unit, the

screen on the left appears.

If the power of your iPod is

insufficient or the iPod is

misconnected or unknown

device, the screen on the left

appears.

DVD Audio Discs

DVD Audio is a new disc format building on the

success of DVD to provide high quality,

uncompressed, multi-channel audio for a new

experience in audio quality. A DVD Audio disc can be

identified by the DVD audio logo on the disc jacket or

on the disc itself.

DVD Audio can provide higher quality stereo than

Audio CDs with a sampling rate of up to 192kHz

(compared to 44.1kHz for CDs). DVD Audio digital

sound can be delivered with up to 24 bits of data

(compared to 16 bits for a standard CD).

A typical DVD Audio disc contains up to seven times

the data capacity of a CD. This additional space is

used for music, either Advanced Resolution multi-

channel sound quality that is closer to the artist’s

master recording or for longer recordings. Many DVD

Audio discs contain on-screen text, such as artist

biographies, playlists, or lyrics. Some DVD Audio

discs contain photo galleries or video clips.

Note:

To enjoy maximum sound quality and surround effect

of DVD Audio, you must use 5.1 channel analog audio

output (5.1CH AUDIO OUT jacks on the DVD/CD

Receiver).

Moving to another GROUP

Some DVD Audio discs divide content into different

groups. Your player enables you to quickly access

different groups during playback via the on-screen

display.

1. Press DISPLAY during playback on in stop mode.

2. Press

to select Group icon.

3. Press 1/2 or the numbered buttons (0-9) to select

a group number.

Note:

Sometimes the author of the disc creates hidden

content that can only be accessed by entering a

password. If the lock icon appears on the TV screen,

enter the password (sometimes you’ll find it on the

disc’s jacket cover or on a web site). This password

control isn’t dictated by your DVD/CD Receiver — it is

a function of the disc.

Since the authoring of DVD Audio Discs varies, some

of the on-screen display choices might not be

available for the disc you’re playing.

Viewing another PAGE

Since DVD Audio discs can hold a lot of content, there

are various ways to see what’s available on the disc.

1. Press DISPLAY during playback.

2. Press

to select Page icon.

3. Press 1/2 to select a page number.

What appears on the screen will vary from disc to

disc because the information available depends

upon the way the disc was created.

Note:

Since the authoring of DVD Audio Discs varies, some

of the on-screen display choices might not be

available for the disc you’re playing.

Operation

Presetting the Radio Stations

You can preset 50 stations for FM and AM. Before

tuning, make sure that you have turned down the

volume.

1. Press TUNER on the Remote Control until FM or

AM appears in the display window.

2. Press and hold TUN.(-/+) for about two seconds

until the frequency indication starts to change,

then release.

Scanning stops when the unit tunes in a station.

3. Press PROG./MEMO. on the Remote Control.

A preset number will flash in the display window.

4. Press PRESET (+/-) on the Remote Control to

select the preset number you want.

5. Press PROG./MEMO. on the Remote Control

again.

The station is stored.

6. Repeat steps 3 to 6 to store other stations.

To tune in a station with a weak signal

Press TUN.(-/+) repeatedly in step 3 to tune in the

station manually.

To clear all the stored stations

Press and hold PROG./MEMO. for about two seconds

and “ERASE ALL” is appeared in the display window

and then press PROG./MEMO. again, the stations are

cleared.



If you have accidentally entered into the "ERASE

ALL" mode and you do not wish to clear the

memory, do not press any key. After a few seconds,

the "ERASE ALL" will go off by itself and change to

normal mode.

Note:

If all stations have already been entered, the FULL

message will appear in the display window for a

moment and then a preset number will flash.

To change the preset number, follow the steps 5-6 as

above.

Listening to the Radio

Preset radio stations in the unit memory first (see

“Presetting radio stations” on the left).

1. Press TUNER until FM or AM appears in the

display window.

The last received station is tuned in.

2. Press PRESET (+/-) repeatedly on the Remote

Control to select the preset station you want.

Each time you press the button, the DVD/CD Receiver

tunes in one preset station at a time.

3. Adjust the volume by rotating VOLUME on the

front panel or by pressing VOLUME + or - on the

Remote Control repeatedly.

To turn off the radio

Press POWER to turn the DVD/CD Receiver off or

select another function mode (DVD/CD, AV 1, etc.,).

To listen to non-preset radio stations



Use manual or automatic tuning in the step 2.



For manual tuning, press TUN.(-/+) repeatedly.



For automatic tuning, press and hold TUN.(-/+) for

about two seconds on the front panel.

To select a preset radio station directly

You can use the number buttons on the Remote

Control to select a preset radio station directly.

For example, to listen to the preset station 4, press 4

on the Remote Control. To listen to the preset station

19, press 1 and then 9 (within 3 seconds).

For your reference



If an FM program is noisy

Press MONO/ST. on the front panel to make

“STEREO” disappear in the display window. There

will be no stereo effect, but the reception will

improve. Press the button again to restore the

stereo effect.



To improve reception

Reorient the supplied antennas.

XM Satellite Radio Operation

What is XM Satellite Radio?

XM Radio is the satellite radio service with millions of

listeners across the U.S.

Broadcasting live daily. XM Radio offers 160 digital

radio channels offering music, news, sports, comedy,

talk, entertainment, traffic and weather reports, with

high quality digital sound.

XM service subscription sold separately. XM Passport

System required to receive XM service (sold

separately). Installation costs and other fees and

taxes, including a one-time activation fee may apply.

XM service only available in the 48 contiguous United

States. Residents in Canada please see information

about Canadian Satellite Radio at the following

webpage: (www.cdnsatrad.com). XM Connect-and-

What is XM Ready?

An audio system labeled “XM Ready” means that the

system with the addition of an XM Passport Antenna

has everyting you need to play XM. Everything else is

built inside.

XM Satellite Radio connections

Connect the XM Digital Antenna to the XM passport

system on the unit.

Activating Your Service

A one-time activation fee is required to establish an

account and activate service with XM Satellite Radio.

Applicable activation changers will be added to your

first bill.

1. Before activating XM service, make sure your XM

equipment is tuned to the XM Preview Channel

(Channel 1).

2. Determine your eight-character XM Satellite Radio

ID number by referencing the label on your XM

Passport System packaging, rear cover, or by

selecting channel 0. The ID number will appear on

the display.

Note:

Carefully check your XM Satellite Radio ID. The letter

I, O, S, and F are not used

3. Activate your XM Satellite Radio service. Make

sure you have a major credit card and your XM

Satellite Radio ID number handy.

To activate via the internet: Visit

http://www.xmradio.com/activation

To activate via phone: Call 1-800-XM-RADIO (967-2346)

A one-time activation fee will apply.

Selecting the XM Satellite Radio

Press TUNER on the Remote Control until

“ANTENNA” appears in the display window.

XM information

When receiving the XM Satellite Radio containing, you

can see the information in the display window.

Press XM MODE to change XM display mode.

Channel Number → Channel Label →

Song Name/Artist Name → Signal Strength →

Channel Number → ...

• Channel Number :

Display current XM Channel Number

Channel Number shows 3 seconds regardless its

display mode when channel is changed.

When user edits or change preset, it works on

channel number display mode.

• Channel Label

Display name of current channel.

• Song Name & Artist Name

Display song name & artist name as scroll.

• Signal Strength

Signal Strength is showed by 3 bars with antenna

shape.

No Bar: No Signal.

One Bar: Weak Signal

Two Bar: Marginal Signal

Three Bar: Good Signal

Operation

HDMI

1080i

FOR WIRELESS

DC 7V OUT

XM IN

i Pod

YPB PR

COMPONENTCOMPONENT VIDEO OUT VIDEO OUT

AUX INAUX IN

MONITMONITOROR

OUTOUT

R - R - AUX - LAUX - L

COAXIALCOAXIAL IN IN

XM passport system

Presetting the

XM Satellite Radio

Stations

You can preset 50 stations for XM. Before tuning,

make sure that you have turned down the volume.

1. Press TUNER to select XM band.

2. Use XM CH (-/+) on the Remote Control to select

the desired channel.

3. Press PROG/MEMO. on the Remote Control.

4. Press PRESET (-/+) on the Remote Control to

select the preset number you want.

5. Press PROG/MEMO. on the Remote Control

again.

The station is stored.

6. Repeat steps 2 to 5 to store other stations.

To clear all the stored stations

Press and hold PROG/MEMO. for about two seconds

and “ERASE XM” is shown in the display window and

then press PROG/MEMO. again, the stations are

cleared.



If you have accidentally entered into the "ERASE

XM" mode and you do not wish to clear the

memory, do not press any key. After a few seconds,

the "ERASE XM" display will go off by itself and

change to normal mode.

Channel Selection

Preset Search

Use PRESET (-/+) on the Remote Control repeatedly

to select the preset station you want.

Direct Tuning

1. Using Numeric button on Remote Control, select

channel number directly.

2. Press ENTER after more than one numeric key

input, system moves to new channel immediately.

Channel up/down

Use XM CH (-/+) repeatedly to select the channel you

want.

Category Search

1. Select the Category Search mode using the CAT

key on the Remote Control.

(CAT Icon Blinking in Category Search mode.)

2. PRESET (-/+) changes target of category for

search, XM CH - or XM CH + selects next channel

of selected category in category search mode.

Note:

Category type of current channel displays for 3

seconds when category key is inputted in not category

display mode

Category search mode is released below case.

• CAT is inputted in Category search mode.

• No input of PRESET (-/+), XM CH - or XM CH + key

for 15 seconds.

Advisory Message

XM Passport System is not

connected

• Check the connection of XM

Passport System

XM Passport System does not

work properly

• Need service of XM Passport

System

XM Passport System is not

activated, or User does not have

authorization for specific channel

• Subscribe activation of XM

Passport System

Receiving signal is too weak

• XM Passport System to south

window for best reception

Selected channel is not

broadcasting currently.

• Check programming list, select

another channel.

XM Passport System is now

decoding channel.

• Wait completion of decoding

process

Selected channel is not available.

• Check programming list, select

another channel.

Channel label or Song name/Artist

name or Category name is not

available

ANTENNA

SVC ANT

UPDATING

NO SIGNAL

OFF AIR

XM---

--------

----/----

--------

Controlling your TV with the

Suppllied Remote Control

You can control the sound level, input source, and

power switch of your LG TV with the supplied Remote

Control.

You can control your TV using the buttons below.

By pressing You can

TV POWER Turn the TV on or off.

CHANNEL(v / V) Scans up or down through

memorized channels.

VOLUME +/– Adjust the volume of the TV.

TV INPUT Switch the TV’s input source

between the TV and other input

sources.

Note:

Depending on the unit being connected, you may not

be able to control your TV using some of the buttons.

Controlling other TVs with the

Supplied Remote Control

You can control the sound level, input source, and

power switch of non-LG TVs as well. If your TV is

listed in the table below, set the appropriate

manufacturer code. (refer to page 36)

1. While holding down TV POWER button, press the

number buttons to select the manufacturer code

for your TV (Refer to table on the right column).

2. Release TV POWER button.

Operation

TUNER

AUX

USB

AUDIO

OPEN/CLOSE

SOUND S-TITLE CLEAR

MUTE

XM CH

D.SEL.

POWER

INPUT

CHANNEL

DIMMER

VOL

CAT/HDMI

XM MODE/RESOL.

ZOOM

SETUP

ENTER

DISPLAY

RETURN

VOL

SCAN +

SKIP

SCAN +

TITLE

STOP PLAY

REPEAT

REPEAT A-B

MARKER SEARCH

DVD

iPod

POWER

D.INPUT

PAUSE/STEP

SLEEP

PROG./MEMO.

TV Control

Buttons

Manufacturer Code Number

ADMIRAL 16,33,37,44,45

AIWA 70

AKAI 01

AMARK 09

AOC 01

BELL & HOWELL 33

BROKSONIC 18,19

CANDLE 51

CCE 07

CENTURION 08

CINERAL 43

CITIZEN 49,50,51,52,53,54,55

CORONADO 09

CROWN 09

CURTIS MATHES 01,03,08,33,35,37,44

DAEWOO 16,38,39,40,41,42,43

DAYTRON 01,08

EMERSON 01,09,16,17,18,19

FISHER 28,29

FUNAI 46,47

GENERAL ELECTRIC 03,10,11,13,37,44

GRADIENTE 01,56,57,63,67

HITACHI 09,14,15,43

JC PENNEY 01,08,10,27,35

JVC 20,21,63,67

KIOTE 43

KMC 09

KTV 01,08,09,31

LG (GOLDSTAR) 01,07,08,09,35,39,40

LODGENET 33

LOGIK 33

LXI 09,24,25,26,27,28,29

MAGNAVOX 01,02,04,05,06,

07,08,09,20,

34,35,43,51,61,62,65

MAJESTIC 33

MARANTZ 01,32

MEMOREX 33

MGA/MITSUBISHI 01,08,32,34

Manufacturer Code Number

MONTGOMERY

01,06,08,09

WARD

23,24,32,33,34

NEC 01,08

NOBLEX 07

PACKARD BELL 43

PANASONIC 07,11,13,25,35,36

PHILCO 01,06,07,08,09,

15,38,43,58

PHILIPS 06,07,43,61,62,65

PIONEER 30

PORTLAND 09

PROSCAN 03,37,44

QUASAR 11,13

RADIO SHACK 16,17,23

RCA 01,03,37,44,69

REALISTIC 16,17,23

SAMPO 08

SAMSUNG 01,08,09,25,68

SANYO 28,29

SCOTT 01,08

SEARS 09,25,26,27,28,29

SEMP 64

SHARP 09,22,23,24,60,66

SIGNATURE 2000 01,06,08,09,10,

23,24,33,34

SONY 12,62

SOUNDESIGN 51

SYLVANIA 01,04,05,06,07,

08,35,51

SYMPHONIC 46,47

TATUNG 11

TEKNIKA 07,09,16,33,51

TELERENT 09,33

THOMSON 69

YORX 08

TOSHIBA 01,25,26,27,64

WARDS 01,06,08,09,10,33,34

XR1000 48

ZENITH 01, 02,33,59

Controlling other TVs with the Supplied Remote Control (Continued)

If more than one code number is listed, try entering them one at a time until you find the one that works with

your TV.

Notes:

• Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code.

• If you enter a new code number, the code number previously entered will be erased.

• When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the

appropriate code number again.

Reference

Country Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

China CN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Country Code

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Islands HM

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Country Code

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Netherlands Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Country Code

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Area Codes

Choose a country code from this list.

Language Code

Abkhazian 6566

Afar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Azerbaijani 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bihari 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Cambodian 7577

Catalan 6765

Chinese 9072

Corsican 6779

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroese 7079

Language Code

Fiji 7074

Finnish 7073

French 7082

Galician 7176

Georgian 7565

German 6869

Greek 6976

Greenlandic 7576

Guarani 7178

Gujarati 7185

Hausa 7265

Hebrew 7387

Hindi 7273

Hungarian 7285

Icelandic 7383

Indonesian 7378

Interlingua 7365

Irish 7165

Italian 7384

Japanese 7465

Javanese 7487

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kirghiz 7589

Korean 7579

Kurdish 7585

Laothian 7679

Latin 7665

Latvian, Lettish 7686

Language Code

Lingala 7678

Lithuanian 7684

Macedonian 7775

Malagasy 7771

Malay 7783

Malayalam 7776

Maltese 7784

Maori 7773

Marathi 7782

Moldavian 7779

Mongolian 7778

Nauru 7865

Nepali 7869

Norwegian 7879

Oriya 7982

Panjabi 8065

Pashto, Pushto 8083

Persian 7065

Polish 8076

Portuguese 8084

Quechua 8185

Rhaeto-Romance 8277

Rumanian 8279

Russian 8285

Samoan 8377

Sanskrit 8365

Scots Gaelic 7168

Serbian 8382

Serbo-Croatian 8372

Shona 8378

Sindhi 8368

Language Code

Singhalese 8373

Slovak 8375

Slovenian 8376

Somali 8379

Spanish 6983

Sudanese 8385

Swahili 8387

Swedish 8386

Tagalog 8476

Tajik 8471

Tamil 8465

Tatar 8484

Telugu 8469

Thai 8472

Tibetan 6679

Tigrinya 8473

Tonga 8479

Turkish 8482

Turkmen 8475

Twi 8487

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapük 8679

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 7473

Yoruba 8979

Zulu 9085

Language Codes

Use this list to input your desired language for the following initial settings:

Disc Audio, Disc Subtitle, Disc Menu.

Reference

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service.

Symptom

No power.

The power is on, but

the DVD/CD Receiver

does not work.

No picture.

The resolution (720p, 1080i)

does not work with the

analog

video connections (VIDEO

OUT)

There is no sound or

only a very low-level

sound is heard.

The playback picture is

poor.

The DVD/CD Receiver

does not start playback.

Loud hum or noise is

heard.

Cause

• The power cord is disconnected.

• No disc is inserted.

• The TV is not set to receive DVD signal

output.

• The video cable is not connected

securely.

• The connected TV power is turned off.

• The equipment connected with the

audio cable is not set to receive DVD

signal output.

• The audio cables are not connected

securely.

• The power of the equipment connected

with the audio cable is turned off.

• The audio connecting cable is damaged.

• The disc is dirty.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

•Amenu is on the TV screen.

• The Rating level is set.

• The disc is dirty.

• The speakers and components are

connected poorly.

• The DVD/CD Receiver is located too

close to the TV.

Correction

• Plug the power cord securely into the

wall outlet.

• Insert a disc. (Check that the DVD or,

audio CD indicator in the DVD display

is lit.)

• Select the appropriate video input

mode on the TV so the picture from

the DVD/CD Receiver appears on the

TV screen.

• Connect the video cable into the

jacks securely.

•Turn on the TV.

• Select the correct input mode of the

audio receiver so you can hear the

sound from the DVD/CD Receiver.

• Connect the audio cable into the

jacks securely.

•Turn on the equipment connected

with the audio cable.

• Replace it with new one.

• Clean the disc.

• Insert a disc. (Check that the DVD, or

audio CD indicator in the DVD display

is lit.)

• Insert a playable disc. (Check the

disc type, colour system and Regional

code.)

• Place the disc with the playback side

down.

• Place the disc on the disc tray

correctly inside the guide.

• Clean the disc.

• Press the SETUP button to turn off

the menu screen.

• Cancel the Rating function or change

the rating level.

• Clean the disc.

• Connect the speakers and

components securely.

• Move your TV away from the audio

components.

Reference

Symptom

Radio stations cannot

be tuned in.

The Remote Control

does not work

properly.

The front panel

display is too dim.

Cause

• The antenna is positioned or connected

poorly.

• The signal strength of the stations is too

weak (when tuning in with automatic

tuning).

• No stations have been preset or preset

stations have been cleared (when

tuning by scanning preset stations).

• The Remote Control is not pointed at

the remote sensor of the unit.

• The Remote Control is too far from the

unit.

• There is an obstacle in the path of the

Remote Control and the unit.

• The batteries in the Remote Control are

flat.

• Nothing is displayed on the front panel

display.

Correction

• Connect the antenna securely.

• Adjust the antennas and connect an

external antenna if necessary.

•Tune in the station manually.

• Preset the stations (page 32).

• Point the Remote Control at the remote

sensor of the unit.

• Use the Remote Control within about 20

ft (6 m).

• Remove the obstacle.

• Replace the batteries with new ones.

• Press DIMMER on the Remote Control.

Maintenance and Service

Refer to the information in this chapter before

contacting a service technician.

HANDLING THE UNIT

When shipping the unit

Please save the original shipping carton and packing

materials. If you need to ship the unit, for maximum

protection, re-pack the unit as it was originally packed

at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide

spray near the unit.

• Do not leave rubber or plastic products in contact

with the unit for a long period of time. since they

leave marks on the surface.

Cleaning the unit

To clean the unit, use a soft, dry cloth. If the surfaces

are extremely dirty, use a soft cloth lightly moistened

with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine,

or thinner, as these might damage the surface of the

unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical

pick-up lens and disc drive parts are dirty or worn, the

picture quality could be diminished.

Depending on the operating environment, regular

inspection and maintenance are recommended after

every 1,000 hours of use.

For details, please contact your nearest authorized

service center.

❋

This model complies with the above specifications.

❋

Design and specifications are subject to change without notice.

❋

This model may not be compatible with features and/or specifications that may be added in the future.

Specifications

GeneralCD/DVDVideo

Amplifier

Speakers

Tuner

Power supply Refer to main label

Power consumption Refer to main label

Mass 5.6 kg

External dimensions (W x H x D) 430 x 93.3 x 351.6 mm

Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal

Operating humidity 5% to 85%

Laser Semiconductor laser, wavelength 650 nm

Signal system NTSC 525/60

Frequency response (audio) 150 Hz to 18 kHz

Signal-to-noise ratio (audio) More than 75 dB (1 kHz, NOP -6 dB, 20 kHz LPF/A-Filter)

Dynamic range (audio) More than 70 dB

Harmonic distortion (audio) 0.5 % (1 kHz, at 1W position) (20 kHz LPF)

Video input 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 2

Video output 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1

COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2

Tuning Range 87.5 - 108.0 MHz

Intermediate Frequency 10.7 MHz

Signal-to Noise Ratio 60 dB (Mono)

Frequency Response 150 - 8000 Hz

Tuning Range 520 - 1720 kHz

Intermediate Frequency 450 kHz

Stereo mode 155W + 155W (4Ω at 1 kHz, THD ±10 %)

Surround mode Front: 155W + 155W (THD ±10 %)

Centre*: 155W

Surround*: 155W + 155W (4Ω at 1 kHz, THD ±10 %)

Subwoofer*: 225W ( 3Ω at 30 Hz, THD ±10 %)

Inputs AUX, AUDIO IN, OPTICAL IN, COAXIAL IN

Outputs MONITOR OUT, HDMI OUT, COMPONENT VIDEO OUT

Front/Rear Speaker Center speaker Passive Subwoofer

(SH92SB-S) (SH92SB-C) (SH92SB-W)

Type 1 Way 1 Speaker 2 Way 3 Speaker 1 Way 1 Speaker

Impedance 4 Ω 4 Ω 3 Ω

Frequency Response 120 - 20000 Hz 80 -20000 Hz 40 - 1500 Hz

Sound Pressure Level 83 dB/W (1m) 83 dB/W (1m) 82 dB/W (1m)

Rated Input Power 155 W 155 W 225 W

Max. Input Power 310 W 310 W 450 W

Net Dimensions (W x H x D) 113 x 209 x 83 mm 450 x 161 x 102 mm 212 x 395 x 341 mm

Net Weight 0.78 kg 0.9 kg 6.5 kg

Depending on the sound mode

settings and the source, there

may be no sound output.)

This LG Electronics product, will be repaired or replaced, at LG’s option, if it proves to be defective in material or

workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date

(“Date of Purchase”) of original consumer purchase of the product. This warranty is good only to the original

purchaser of the product and effective only when used in the United States, excluding U.S. Territories.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED

WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG

ELECTRONICS WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE

DAMAGES OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, INCLUDING WITHOUT

LIMITATION, LOST REVENUES OR PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER

DAMAGE WHETHER BASED IN CONTRACT, TORT OR OTHERWISE. Some states do not allow the exclusion or limitation of

incidental or consequential damages or limitation on how long an implied warranty lasts, so the above exclusion or limitation may

not apply to you. This warranty gives you specific legal rights and you may also have other rights that may vary from state to state.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

z Damages or operating problems that result from shipping, installation, adjustment of user controls, calibration,

maintenance or failure to maintain, or separate system components; and

z Damages or operating problems that result from normal wear and tear, misuse, abuse, operation outside

environmental specifications or contrary to the requirements or precautions in the Operating Guide, accident,

lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electrical current or

voltage, reception problem caused by inadequate home antenna or faulty antenna connections, computer

software, institutional or commercial use, or other causes not arising out of defect in material or workmanship.

Therefore, the cost of repair or replacement of such defective product shall be borne by the consumer.

CUSTOMER INTER-ACTIVE CENTER NUMBERS:

WARRANTY PERIOD:

LABOR: 90 days from the Date of Purchase.

PARTS: One Year from the Date of Purchase.

* Parts replaced are warranted for the remaining portion

of the original warranty period.

HOW SER

VICE IS HANDLED:

Call 1-800-243-0000 for instructions on getting the

defective unit repaired or replaced.

Please retain dated sales receipt and your box to

return the unit to LG for repair or replacement.

Shipping both ways will be paid by LG during the first 90

days of the Warranty Period. During the remainder of the

Warranty Period (91-365 days), you pay inbound shipping

charges and LG pays return shipping charges.

Visit our website at: http://us.lgservice.com

For nearest Authorized Service Center, Where to buy,

Product Assistance, or Customer Assistance

Call 1-800-243-0000 (24 hours a day, 365 days per year)

and select appropriate options from the menu.

Or visit our website at http://us.lgservice.com

LG Electronics, Inc.

Limited Warranty - USA

LG ELECTRONICS U.S.A., INC. P/NO : MFL40275846

1000 SYLVAN AVENUE Issue O

ENGLEWOOD CLIFFS, NJ. Printed in Indonesia
