Instructions for the Use and Care and Installation of
BIC63
BIC64
BIC84
Ceran Touch Control Cook Top.
Induction Cooktops.
EN
2
As part of our commitment to constantly improving our products, we reserve the right to make
changes to them based on technological advances to their technical, functional and/or aes-
thetic properties.
Attention
BBeeffoorree iinnssttaalllliinngg aanndd uussiinngg yyoouurr aapppplliiaannccee,, pplleeaassee ccaarreeffuullllyy rreeaadd tthhiiss GGuuiiddee ttoo
IInnssttaallllaattiioonn aanndd UUssee,, wwhhiicchh wwiillll aallllooww yyoouu ttoo qquuiicckkllyy ffaammiilliiaarriissee yyoouurrsseellff wwiitthh iittss ooppeerraattiioonn..
Dear Customer
You will find that the clean lines and modern look of your Blanco cooktop
blends in perfectly with your kitchen décor. It is easy to use and performs to a
high standard.
Blanco also makes a range of products that will enhance your kitchen – such
as ovens, rangehoods, dishwashers, microwaves, sinks and taps. There are
models to complement your new Blanco cooktop. Blanco now has a range of
laundry products to choose from.
Of course, we make every effort to ensure that our products meet all your
requirements, and our Customer Relations Department is at your disposal, to
answer all your questions and to listen to all your suggestions.
Please complete the warranty section of this manual and keep your receipt as
proof of purchase. Retain all documents relating to the purchase of Blanco
product.
Blanco is committed to providing increasingly efficient products that are easy
to use, respect the environment and are attractive and reliable.
BBLLAANNCCOO
EN
3
TABLE OF CONTENTS
• Safety Guidelines
____________________________________________________
4
• Disposing of Waste ___________________________________________________ 4
• Description of Your Appliance
_________________________________________
6
• Proper positioning
___________________________________________________
6
1 / INSTALLING YOUR APPLIANCE
• Building in
__________________________________________________________
7
• Hook-up
___________________________________________________________
8
2 / USING YOUR APPLIANCE
• Description of the top
_________________________________________________
9
• Cookware for induction
_______________________________________________
10
• Which cooking zone should you use based on your cookware?
_____________
10
• Description of control panel
___________________________________________
11
• Powering on
________________________________________________________
11
• Stop
_______________________________________________________________
11
• Adjusting the power
_________________________________________________
11
• Keypad beep
_________________________________________________________
11
• Bringing upto temperatur quickly
________________________________________
11
• Setting the timers
____________________________________________________
12
• Using the "child safety device"
_________________________________________
12
• Safeties during operation
_____________________________________________
13
3 / DAILY CARE OF YOUR APPLIANCE
• Protecting your appliance
_____________________________________________
14
• Maintaining your appliance
____________________________________________
14
4 / SPECIAL MESSAGES, DIFFICULTIES
• During initial use
____________________________________________________
15
• When powering on
___________________________________________________
15
• During operation
____________________________________________________
15
5 / COOKING CHART
• Cooking chart for food types
__________________________________________
16
• BLANCO CONTACT INFORMATION
____________________________________
18
• WARRANTY
________________________________________________________
19
EN
This appliance's packaging material
is recyclable. Help recycle it and
protect the environment by drop-
ping it off in the municipal recepta-
cles provided for this purpose.
Your appliance also contains a great amount
of recyclable material. It is marked with this
label to indicate the used appliances that
should not be mixed with other waste. When
disposing of your appliance contact your local
council in relation to disposal locations.
We thank you doing your part to protect the
environment.
••
DISPOSING OF WASTE
SAFETY GUIDELINES
We have designed this cooking hob for use by
private persons in their homes.
These cooking hobs are meant to be used
exclusively for cooking beverages and foods-
tuffs and do not contain any asbestos-based
materials.
••
Residual heat
A cooking zone can remain hot for several
minutes after use.
An
""HH""
is displayed during this period.
Avoid touching the hot areas during this time.
••
Child safety device
Your hob is equipped with a child safety
device that locks its operation after use or
during cooking (See "Using the Child Safety
Device" section).
Do not forget to unlock it before using the
hob again.
••
For users of pacemakers and
active implants
The functioning of the hob conforms to current
electromagnetic interference standards and
thus is in total compliance with legal require-
ments (89/336/CEE directives).
In order to avoid interference between your coo-
king hob and a pacemaker, your pacemaker
must be designed and programmed in com-
pliance with the regulations that apply to it.
Consequently, we can only guarantee that our
own product is compliant.
With regard to the compliance of the pacema-
ker or any potential incompatibility, you can
obtain information from the manufacturer or
your attending physician.
Electrical Danger
Ensure that the power cables of any
electrical appliances plugged in close to
the hob are not in contact with the cooking
zones.
If a crack appears in the glass worktop,
immediately disconnect your appliance to
avoid the risk of electric shock.
To do this, remove the fuses or use the cir-
cuit breaker.
Do not use your hob until you have repla-
ced the glass worktop.
••
4
EN
· Read the following carefully to avoid an electric shock or fire.
· It is most important that this instruction book should be retained with the appliance for
future reference.
· Should the appliance be sold or transferred, always ensure that the book is left with the
appliance in order that the new owner can get to know the functions of the appliance and the
relevant warnings.
· These warnings are provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
· All operations related to electrical wiring and installation must be carried out by qualified per-
sons, in accordance with safety regulations.
· This appliance is not intended for use by young children or infirm persons unless they have
been adequately supervised by a responsible person to ensure that they can use the
appliance safely.
· Young children should be supervised to ensure that they do not play with the appliance.
WWAARRNNIINNGG
: If the surface is cracked, switch off the appliance to avoid the possibility of an
electric shock.
· Do not use a steam cleaner to clean this appliance.
· Metallic objects such as knives, forks, spoons and lids should not be placed on the hob sur-
face since they can get hot.
· Do not spray aerosols in the vicinity of the appliance when it is in operation.
· Do not store or use flammable liquids or items in the vicinity of this appliance, e.g. aerosols.
· WARNING: Accessible parts will become hot when in use. To avoid burns and scalds chil-
dren should be kept away.
· Do not allow large cookware to overhang the hob onto the adjacent benchtop. This will
cause scorching to the benchtop surface.
· If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or similarly qualified person in order to avoid a hazard.
5
TEXTEEN
6
DESCRIPTION OF YOUR APPLIANCE
••
B
C
B
A
A
D
Air intake
Air outlet
Vitroceramic glass
Power cord
A
B
C
D
4 cm
4 cm
4 cm
4 cm
A
ventilation
space
5511
5588//7777
66..44
4499
5566//7755
Your appliance should be positioned so that the plug-in unit is accessible.
The distance between the edge of your appliance and the side and rear walls (or partitions)
must be at least four centimetres (area A).
Glue the foam seal underneath your appliance by following the outline of the worktop upon
which your appliance will rest. This will allow you to achieve an airtight seal with the worktop.
Attach the clips to the hob
((
depending on the model)
PROPER POSITIONING
EN
7
11
/ INSTALLING YOUR APPLIANCE
Tip
If your oven is located below your hob,
the hob's thermal safety measures forbid
the simultaneous use of the hob and the
pyrolysis program of your oven.
Your hob is equipped with an anti-overhea-
ting safety device.
This safety can be activated, for example,
when the hob is installed over an oven that
is not sufficiently insulated. If this occurs, a
series of small lines appear in the control
panel. In this case, we recommend that you
increase the ventilation of your hob by crea-
ting an opening in the side of your cabinet
(8 cm x 5 cm) and/or that you install the
oven insulation kit (reference 75X1652) that
is available from the Post-Sales Service
Department.
Warning
You must ensure that the air intakes
located under your cooking appliance
remain clear at all times.
••
4 cm mini
ventilation space
MINI 4 mm
BUILD-IN
ABOVE A CUPBOARD OR DRAWER UNIT
The positioning must allow a fresh air intake
and air outlet.
ABOVEANOVEN
The positioning must allow a fresh air intake
and an air outlet of 4 mm minimum
Your appliance can be easily integrated above
a cabinet, an oven or a build-in-ready house-
hold appliance.
For all types of installation, your induction
hob needs proper ventilation.
EN
8
11
/ INSTALLING YOUR APPLIANCE
•
400 V 2N triphase hook-up
1166
-amp fuse.
Separate the two phase wires (L1 and L2)
before hooking up.
NNeeuuttrraall
GGrroouunndd
PPhhaassee
NN
LL
Green/yellow
Blue
Brown
NNeeuuttrraall
GGrroouunndd
PPhhaassee 22
PPhhaassee 11
NN
LL11
LL22
Blue
Green/yellow
Brown
•
220-240 V monophase hook-up
3322
- amp fuse.
Warning
If the power cable is damaged, it
should be replaced by the manufacturer, its
after-sales service department or by a per-
son with similar qualifications to avoid dan-
ger.
For a 400 V 2N triphase hook-up, if your hob
malfunctions, check that the neutral conduc-
tor is properly connected.
These hobs must be connected to the power
grid via an electrical outlet that complies with
EIC publication 60083 or an all-pole cut-off
device that complies with installation regula-
tions in effect.
When power is first supplied to your hob, or
after an extended power outage, an indicator
light will appear on the control panel. It auto-
matically disappears after approximately 30
seconds, or as soon as any touch control on
the control panel is pressed. This display is
normal and, if needed, serves as an indication
to the after-sales service staff. In all cases, the
user of the hob should disregard it.
HOOK-UP
••
Black or grey
Black or grey
EN
9
22
/ USING YOUR APPLIANCE

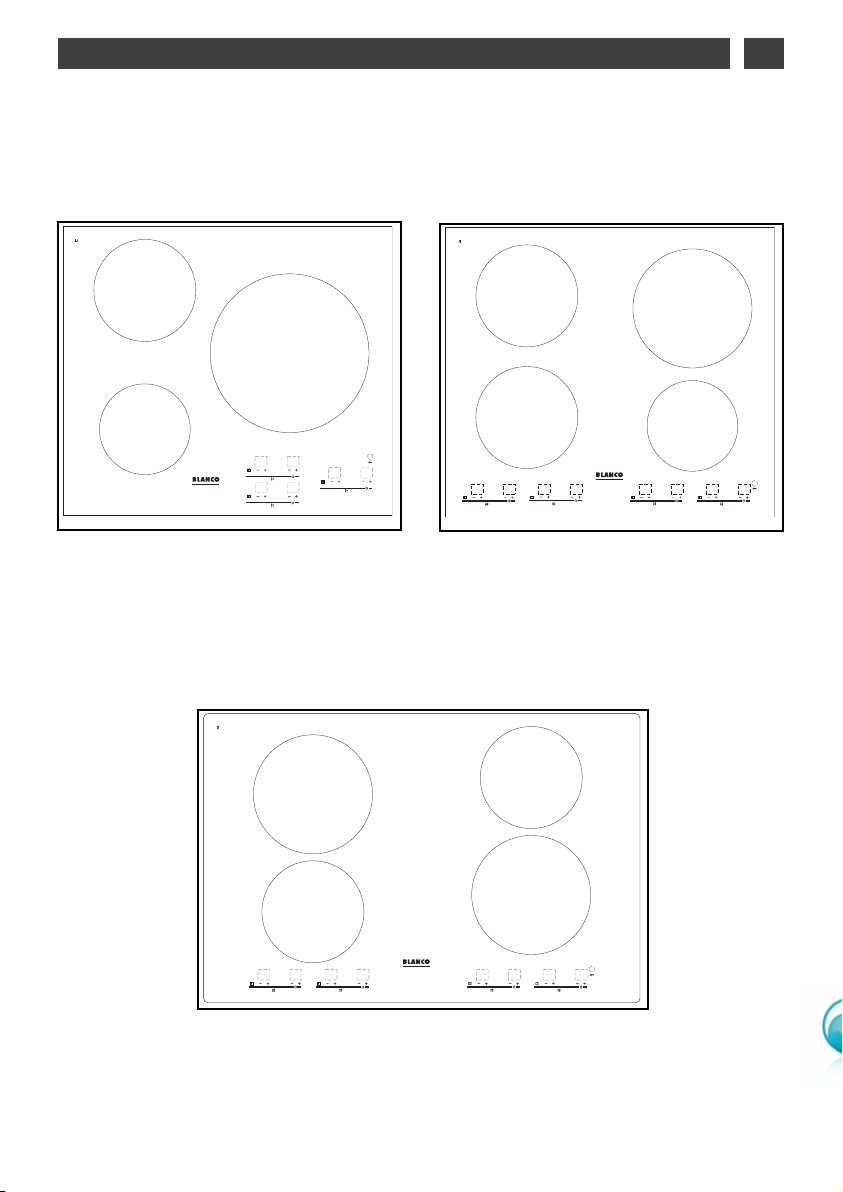

DESCRIPTION OF THE TOP
••
BIC63
7844
9932
INDUCTION
1188 ccmm
50 W to 2000 W
2211 ccmm
50 W to 3
11
00 W
7837
9932
INDUCTION
7841
9932
INDUCTION
BIC64
BIC84
1188 ccmm
50 Wto 2800 W
1166 ccmm
50 W to 2000 W
2288 ccmm
50 W to 2800 W
1188 ccmm
50 W to 2800 W
1188 ccmm
50 W to 2800 W
1166 ccmm
50 W to 2000 W
2211 ccmm
50 W to 3
11
00 W
1188 ccmm
50 W to 2000 W
2211 ccmm
50 W to 3
11
00 W
EN
10
22
/ USING YOUR APPLIANCE
Tip
To check the suitability of your cook-
ware:
Place the vessel on a cooking zone at
power level 4.
If the display remains on, your cookware is
compatible.
If the display flashes, your cookware cannot
be used with induction cooking.
You can also use a magnet to test the cook-
ware.
If a magnet "sticks" to the bottom of the
cookware, it is compatible with induction.
••
WHICH COOKING ZONE
SHOULD YOU USE BASED ON
YOUR COOKWARE?
••
COOKWARE FOR INDUCTION
••
The induction principle
The principle of induction is based on a
magnetic phenomenon.
When you place your cookware on a cooking
zone and you turn it on, the electronic boards
in your cooking hob produce "induced" cur-
rents in the bottom of the cookware and ins-
tantly raise its température. This heat is then
transferred to the food, which is simmered or
seared depending on your settings.
••
Cookware
Most cookware is compatible with induction.
Only glass, terra cotta, aluminium without a
special finish on the bottom, copper and
some non-magnetic stainless steels do not
work with induction cooking.
We recommend that you select cookware
with a thick, flat bottom. The heat will be dis-
tributed better and cooking will be more uni-
form.
By choosing cookware that displays this logo
on its bottom or on its packaging, you can be
certain that it is perfectly compatible with
your hob under normal operating conditions.
To help you choose, a list of cookware is pro-
vided with this guide.
+
-
C
B
A
Inductor
Electronic board
Induced electric current
A
B
C
Cooking Cookware to use
zone
1166 ccmm 1100 .......... 1188 ccmm
1188 ccmm 1122 .......... 2222 ccmm
2211 ccmm 1188 .......... 2244 ccmm
2288 ccmm 1122 .......... 3322 ccmm
EN
11
22
/ USING YOUR APPLIANCE
••
KEYPAD BEEP
The beep of “+” and “-” keys may be turned on
or turned off when the hob isn’t in use.
- To turn off the beep keep simultaneously the
"+" power button and the + timmer button
pressed on the right front cooking zone key-
pad until the display “bEEp” desappears on
the display.
- To turn on the beep keep simultaneously the
"+" power button and the + timmer button
pressed on the right front cooking zone key-
pad until the display “bEEp” appears on the
display.
BRINGING UP TO TEMPERA-
TURE QUICKLY
This function can be used to go to the cook-
ing temperature you want, quickly.
To use press “-“ button "P" will indicate. Push
“+” button, “P.” will indicate. Push “-“ button to
set the cooking power you require. After a
few seconds “P.” displays again confirming
that you are in "bring up to temperature quick-
ly" mode.
After a few moments, the hob displays the
cooking power; the quick increase phase has
finished, you are in conventional cooking
mode and you can then change the settings.
WWAARRNNIINNGG
-- HHaavviinngg pprreesssseedd ""PP.."" iiff yyoouu aarree nnoott aaddjjuussttiinngg aa
ccooookkiinngg ppoowweerr,, tthhee ccooookkiinngg zzoonnee wwiillll aauuttoo--
mmaattiiccaallllyy ttuurrnn iittsseellff ooffff..
-- WWhheenn tthhee ddiissppllaayy sshhoowwss ""PP.."" pprreessssiinngg tthhee
ppoowweerr bbuuttttoonnss wwiillll ccaanncceell tthhee ""qquuiicckk tteemmppeerraa--
ttuurree iinnccrreeaassee"" aanndd yyoouu wwiillll rreettuurrnn ttoo ccoonnvveenn--
ttiioonnaall ppoowweerr sseettttiinngg mmooddee..
POWERING ON
Press the start/stop button for the cooking
zone you want to use. A flashing 0 and a beep
indicate that the cooking zone is on. You can
then choose the desired power level.
If you do not select a power level, the cooking
zone will automatically turn itself off.
STOP
Press the start/stop button for the cooking
zone used or the power "
--
" button until
00
is
displayed.
ADJUSTING THE POWER
Press the + or - power button to adjust the
power level from 1 to P (maximum power).
When it is switched on you can move directly
to maximum power "P" by pressing the "
--
" but-
ton.
DESCRIPTION OF THE
CONTROL PANEL
••
Start/stop touch control.
Power - + touch controls.
Timer - + touch controls.
A
B
C
A B C
Tip
For simultaneous use, favour the use
of cooking zones located on opposite
sides of the hob.
On the same side, the use of a cooking
zone at maximum power results in an auto-
matic limitation of the other cooking zone
on that side, which is indicated in the power
level display.
••
••
••
USING THE "CHILD SAFETY DEVICE"
Your cooking hob is equipped
with a child safety device that
locks its operation after use
(e.g. so the hob can be cleaned)
or during cooking (e.g. to guard
your settings).
For safety reasons, the "off" touch control is
always active and allows you to shut off a hea-
ting zone, even if it is locked.
••
How do you lock the hob?
Keep the lock button pressed until the LED
above lights up and a “BIP” is heard .
- hob locked in use
the led above the key lights up
The symbol is displayed when you press
power or timer buttons on the cooking zone in
use .
The symbol
is displayed when you press
on ON/OFF button on a unused cooking zone.
- unused hob locked
The symbol
is displayed when you press
on ON/OFF button on a unused cooking zone.
••
How do you unlock?
Press the lock button until the LED goes out
and dobble beep is heard.
Warning
Remember to unlock your hob before
using it again (See the "Using the Child
Safety Device" section).
SETTING THE TIMER
The timer functions when the cooking zone in
question is in use.
To switch it on, press the "
++
" button on the
timer (to set 1,2,3,..min.) or "
-
" (to set from
99,98,97,...min).
To change this, press
-
or + to increase or
decrease the time.
To stop the timer manually, keep simultane-
ously pressed "
++
" and "
-
" or return to 0 using
the "
-
" button.
When cooking is finished, the display shows
00
and a
bbeeeepp
sounds; to stop this happening,
press any control button for the cooking zone
in question.
Otherwise, these will automatically turn them-
selves off after about 1 minute.
The timer only operates if there is something
on the cooking zone.
Note !
At the 1 minute interval the timer counts down
at 1 second interval.
12
••
••
EN
13
22
/ USING YOUR APPLIANCE
SAFETY DURING OPERATION
•Residual heat
After intensive use, the cooking zone that you
have just used can remain hot for several min-
utes.
An
""HH""
is displayed during this period.
Avoid touching the hot areas during this time.
•Temperature limiter
Each cooking zone is equipped with a safety
sensor that constantly monitors the tempera-
ture of the bottom of the cookware. In the
event that an empty vessel is left on a cooking
zone that is on, this sensor automatically
adjusts the power output of the hob, thereby
avoiding any risk of damage to the cookware
or the hob.
•"Small Items" safety
A small object (such as a fork, a spoon, a ring,
etc.) left alone on the hob is not detected as a
piece of cookware.
The display flashes and no heat is produced.
Warning
Several small objects together on a cook-
ing zone may be detected as cookware.
If the display remains on: power may be
supplied and the objects may be heated.
•Protection against overflows
The hob may shut down (with
the adjacent symbol in the
display) automatically in any
of these three situations:
--
Overflow that spills onto the touch controls.
- Damp towel placed over the touch controls.
- Metallic object placed on the touch con-
trols.
Clean the hob or remove the object, then
begin cooking again.
•Auto-Stop system
If you forget to switch off a cooking zone,
your hob has an "
AAuuttoo--SSttoopp ssyysstteemm
" safety
function which automaticallty cuts off the
power to the cooking zone, after a predefined
period (between 1 and 10 hours depending
on the power used).
If this safety system is used, the cutoff to the
cooking zone is displayed as "
AASS
" or "
AA
" on
the control panel and a "beep" sounds for
about 2 minutes. Simply press any of the con-
trol buttons to stop this.
A double beep will confirm your action.
••
EN
14
33
/ DAILY CARE OF YOUR APPLIANCE
PROTECTING YOUR APPLIANCE
Avoid hard shocks from cookware:
The vitroceramic glass worktop is very sturdy;
however, it is not unbreakable.
Do not place any hot lids flat on your cooking
hob. A suction effect may damage the vitroce-
ramic surface.
Avoid dragging cookware across the surface,
which may in the long-term result in the
degradation of the decorative finish of the
vitroceramic top.
Avoid placing cookware on the frame or cover
(depending on the model).
Avoid using cookware with rough or bumpy
bottoms: they can capture and transfer parti-
cles that may produce stains or scratches on
your hob.
These defects that do not result in
appliance malfunction or do not make it
unsuitable for use are not covered by the
warranty.
MAINTAINING YOUR APPLIANCE
Do not store cleaning products or flammable
products in the cabinet underneath your coo-
king hob.
Do not heat unopened canned goods; they
may burst.
Of course, this precaution applies to all types
of cooking.
Never use a sheet of aluminium for cooking.
Never place items wrapped in aluminium foil
or packaged in aluminium dishes on your coo-
king hob.
The aluminium will melt and permanently
damage your cooking appliance.
Objects not intended for cooking should
never be placed on the hob (risk of powering
on, scratches, etc.).
Steam cleaning should never be used. The
steam jet could damage your hob.
TTYYPPEE OOFF SSTTAAIINNSS//SSPPOOTTSS
Light.
Accumulation of baked-
on soil.
Overflow of sugary pre-
parations, melted plastic.
Rings and hard water
residue.
Shiny metallic streaks.
Weekly maintenance.
WWHHAATT TTOO DDOO
Thoroughly moisten the zone to be clea-
ned with hot water, then wipe off.
Thoroughly moisten the zone to be clea-
ned with hot water. Use a scraper for
glass to remove the large bits, follow with
the rough side of a disinfectant sponge,
and then wipe off.
Apply warm white vinegar to the stain, let
stand, then wipe with a soft cloth.
Apply a cleaning agent for vitroceramic
glass (preferable one with silicone for its
protective properties) to the surface.
UUSSEE
Disinfectant spon-
ges.
Disinfectant spon-
ges.
Scraper for glass.
White spirit vinegar.
Cleaning agent for
vitroceramic glass.
Cream
Special disinfectant sponge
for delicate dishes
Scouring sponge
Powder
••
••
EN
15
44
/ SPECIAL MESSAGES, DIFFICULTIES
Warning
In the event that there is a break, crack or opening--even minor--in the vitroceramic
glass, immediately disconnect your appliance to avoid the risk of electric shock.
Contact the After-Sales Service Department.
YOU OBSERVE THAT: POSSIBLE CAUSES: WHAT SHOULD YOU DO:
An indicator light appears.
Your installation blows a fuse.
Only one side works.
The hob produces an odour
during the first cooking ses-
sions.
Working normally.
The electrical hook-up of your
hob is incorrect.
New appliance.
Nothing.
Verify the connections.
See the "Hook-Up" sec-
tion.
Operate each cooking
zone for 30 minutes with a
saucepan full of water.
The hob stops working and it
emits a beep approximately
every 10 seconds and a or
"F7" is displayed.
A series of small or "F7" is
displayed.
After turning on a heating zone,
the indicator lights on the
control panel continue to flash.
The saucepans make noise
during cooking.
Your hob makes a clicking
sound during cooking.
The fan continues to function a
few minutes after your hob is
turned off.
There was an overflow or an
object is in contact with the
control panel.
The electronic boards heated
up.
The cookware used is not sui-
table for induction or is less
than 12 cm in diameter (10 cm
for the 16-cm cooking zone).
This is normal with some types
of cookware. This is caused by
the transfer of energy from the
hob to the cookware.
Cooling of the electronic com-
ponents.
Working normally.
Clean the hob or remove
the object, then begin
cooking again.
See "Built-In" section.
See section on cookware
for induction.
Nothing. There is no risk,
neither to your hob nor to
your cookware.
Nothing.
•During operation
•During initial use
YOU OBSERVE THAT: POSSIBLE CAUSES: WHAT SHOULD YOU DO:
The hob is not working and the
indicator lights on the control
panel are not on.
The table is not working and
another message is displayed.
The hob does not function, the
information
is displayed.
The appliance is not receiving
electricity. The electrical sup-
ply is defective or the hook-up
is incorrect.
The electronic board is func-
tioning poorly.
The hob is locked.
Inspect the electrical cir-
cuit breaker and fuses.
Call the After-Sales
Service Department.
See chapter on using the
child safety system.
•When powering on
YOU OBSERVE THAT: POSSIBLE CAUSES: WHAT SHOULD YOU DO:
EN
16
66
/ COOKING CHART
COOKING CHART
••
BROTHS
THICK SOUPS
COURT BOUILLON
FROZEN FOODS
THICK, FLOUR-BASED
BUTTER-BASED WITH EGGS
(BEARNAISE, HOLLANDAISE)
PREPARED SAUCES
ENDIVES, SPINACH
DRIED BEANS
BOILED POTATOES
GOLDEN BROWN POTATOES
SAUTEED POTATOES
DEFROSTING VEGETABLES
MEAT, NOT TOO THICK
STEAKS, IN SKILLET
GRILLED MEATS (CAST IRON GRILL)
FROZEN FRENCH FRIES
FRESH FRENCH FRIES
PRESSURE COOKER
(ONCE IT STARTS WHISTLING)
COMPOTES
CRÊPES
CRÈME ANGLAISE
MELTED CHOCOLATE
JAMS
MILK
EGGS, FRIED
PASTA
JARS OF BABY FOOD
(DOUBLE BOILER)
MEAT STEW
SPANISH RICE
RICE PUDDING
FFRRYY CCOOOOKK//BBRROOWWNN CCOOOOKK//SSIIMMMMEERR KKEEEEPP
BRING TO RETURN TO BOILING
WWAARRMM
A BOIL BOILING LIGHT BROTHS
SOUPS
FISH
SAUCE
VEGETABLES
MEAT
FRYING
MISCELLA-
NEOUS
PP 1111 1100 99 88 77 66 55 44 33 22 11
PP 1111 1100 99 88 77 66 55 44 33 22 11
PP 1111 1100 99 88 77 66 55 44 33 22 11
