LG Electronics LFD21870ST Lg 3-door French Door User Manual

P/No. MFL37933517

Please read this guide

thoroughly before

operating and keep it handy

for reference at all times.

Lea detenidamente estas

instrucciones antes utilizar

el frigorífico y guárdelas como

referencia para el futuro.

Veuillez lire ce guide attentivement

avant la mise en service de l’appareil

et gardez-le à portée de main

pour le consulter en cas de besoin.

LFD21870**, LFD25870**

FOR LG CUSTOMER SERVICE:

1-888-LGCANADA

Or visit us on the Web at: http://www.lg.ca

EL SERVICIO DE ATENCIÒN AL CLIENTE DE LG:

1-888-LGCANADA

Ou visitez notre site Web à l’adresse:

http://www.lg.ca

POUR SERVICE À LA CLIENTÈLE DE LG:

1-888-LGCANADA

O visítenos en la Web en: http://www.lg.ca

IMPORTANT SAFETY INFORMATION

Basic Safety Precautions ........................................5

CFC Disposal ..........................................................5

Grounding Requirements ........................................6

PARTS AND FEATURES

Parts And Features ...............................................11

REFRIGERATOR INSTALLATION

Unpacking Your Refrigerator ................................12

Installation ............................................................12

Base Cover ..........................................................12

Removing And Replacing

Your Refrigerator Handles And Doors .................13

Leveling And Door Alignment ...............................19

USING YOUR REFRIGERATOR

Ensuring Proper Air Circulation ............................20

Multi-Flow .............................................................20

Setting The Controls ............................................20

Adjusting Control Settings ....................................21

Food Storage Guide .............................................21

Storing Frozen Food ............................................22

Water Dispenser ...................................................22

Refrigerator Shelves ............................................23

Crisper Humidity Control ......................................24

Removing Crisper ................................................24

Glide‘N’Serve .......................................................24

Modular Door Bin .................................................25

Dairy Bin ...............................................................25

Tilting Door............................................................25

Ice Bin ..................................................................25

Tilt-Out Door Basket .............................................26

Durabase ..............................................................26

Durabase Divider .................................................26

Pull out Drawer .....................................................26

Filter ......................................................................27

CARE AND CLEANING

General Cleaning Tips .........................................28

Outside .................................................................28

Inside Walls ..........................................................28

Door Liner And Gaskets .......................................28

Plastic Parts .........................................................28

Condenser Coils ...................................................28

Light Bulb Replacement .......................................28

Power Interruptions ..............................................29

When You Go On Vacation ..................................29

When You Move ...................................................29

TROUBLESHOOTING

Understanding sounds you may hear ..................34

WARRANTY

Product Registration Information ............................3

THANK YOU!

Congratulations on your purchase

and welcome to the LG family.

Your new LG French Door

Refrigerator combines

advanced cooling technology

with simple operation and high

efficiency. Follow the operating

and care instructions in this

manual and your refrigerator

will provide you with many years

of reliable service.

LG ELECTRONICS, INC.

LG REFRIGERATOR LIMITED WARRANTY - USA

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during the warranty period

set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the

product and applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is

required to obtain warranty service under this limited warranty.

 Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is

greater.

 Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED

WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER

THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT,

SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR

ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or

limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation

may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the

customer on operation of the product; repair or replace fuses or correct

wiring or plumbing, or correction of unauthorized repairs/installation.

2. Failure of product to perform during power failures and interruptions or

inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes,

restricted drain lines, inadequate or interrupted water supply or

inadequate supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere

or contrary to the instructions outlined in the product owner’s manual.

5. Damage to the product caused by accidents, pests and vermin,

lightning, wind, fire, floods, or acts of God.

6. Damage resulting from misuse, abuse, improper installation, repair, or

maintenance. Improper repair includes use of parts not approved or

specified by LG.

7. Damage or failure caused by unauthorized modification or alteration, or

if it is used for other than the intended purpose, or any water leakage

where the unit was not properly installed.

8. Damage or failure caused by incorrect electrical current, voltage, or

plumbing codes, commercial or industrial use, or use of accessories,

components, or consumable cleaning products that are not approved

by LG.

9. Damage caused by transportation and handling, including scratches,

dents, chips, and/or other damage to the finish of your product, unless

such damage results from defects in materials or workmanship and is

reported within one (1) week of delivery (Call: 1-800-243-0000).

10. Damage or missing items to any display, open box, discounted, or

refurbished product.

11. Products with original serial numbers that have been removed, altered,

or can not be readily determined. Model and Serial numbers, along with

original retail sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your product is used in other than normal and usual

household use (e.g. commercial use, offices, and recreational facilities)

or contrary to the instructions outlined in the product owner’s manual.

15. Costs associated with removal of your product from your home for

repairs.

16. The removal and reinstallation of the product if it is installed in an

inaccessible location or is not installed in accordance with published

installation instructions, including LG’s owner’s and installation manuals.

17. Shelves, door bins, drawers, handles, accessories, and other parts

besidesÄthose that were originally included with this particular model.

Refrigerator Sealed System (Compressor, Condenser, and Evaporator only)

One (1) year from the date of original

retail purchase

Parts and Labor

(internal/functional parts only)

One (1) year from the date of original

retail purchase

Parts and Labor

Seven (7) years from the date of original

retail purchase

Parts only

(Consumer will be charged for labor)

WARRANTY PERIOD

For complete warranty details and customer assistance,

please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate

option from the menu, or visit our website at http://us.lgservice.com

Or by mail: LG Customer Information Center:

P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813

ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

LG ELECTRONICS CANADA, INC.

LG REFRIGERATOR LIMITED WARRANTY - Canada

WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during the

warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase.

This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or

an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

 Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

 Replacement products and parts may be new or remanufactured.

 LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG

CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER

EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE

ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE

PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY

PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,

SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER

DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR

FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary

from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty

under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty’s terms.

All costs associated with the above excluded circumstances shall be borne by the consumer.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on

operation of the product; repair or replacement of fuses or correction of wiring or

plumbing, or correction of unauthorized repairs/installation.

2. Failure of the product to perform during power failures and interruptions or

inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted

drain lines, inadequate or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the Product in a corrosive atmosphere or

contrary to the instructions outlined in the Product owner’s manual.

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind,

fire, floods, or acts of God.

6. Damage resulting from the misuse, abuse, improper installation, repair, or

maintenance of the Product. Improper repair includes use of parts not approved

or specified by LG Canada.

7. Damage or product failure caused by unauthorized modification or alteration, or

use for other than its intended purpose, or resulting from any water leakage due

to improper installation.

8. Damage or Product failure caused by incorrect electrical current, voltage, or

plumbing codes, commercial or industrial use, or use of accessories,

components, or cleaning products that are not approved by LG Canada.

9. Damage caused by transportation and handling, including scratches, dents,

chips, and/or other damage to the finish of your product, unless such damage

results from defects in materials or workmanship and is reported within one (1)

week of delivery.

10. Damage or missing items to any display, open box, discounted, or refurbished

Product.

11. Products with original serial numbers that have been removed, altered, or

cannot be readily determined. Model and Serial numbers, along with original

retail sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your Product is used in other than normal and usual household

use (including, without limitation, commercial use, in offices or recreational

facilities) or contrary to the instructions outlined in the Product owner’s manual.

15. Costs associated with removal of the Product from your home for repairs.

16. The removal and reinstallation of the Product if it is installed in an inaccessible

location or is not installed in accordance with published installation instructions,

including the Product owner’s and installation manuals.

17. Shelves, door bins, drawers, handles, and accessories to the Product. Also

excluded are parts besides those that were originally included with the Product.

Refrigerator/Freezer Sealed System (Compressor, Condenser, and Evaporator only)

One (1) year from the date of original

retail purchase

Parts and Labor

(internal/functional parts only)

One (1) year from the date of original

retail purchase

Parts and Labor

Seven (7) years from the date of original

retail purchase

Parts only

(Consumer will be charged for labor)

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty will begin sixty (60) days from the date of manufacture)

For complete warranty details and

customer assistance, please call or visit

our website: Call 1-888-542-2623 (24 hours

a day, 365 days a year) and select the

appropriate option from the menu, or visit our

website at http://www.lg.ca

Write your warranty information below:

Product Registration Information:

Model: Serial Number:

Date of Purchase:

IMPORTANT SAFETY INSTRUCTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

BASIC SAFETY PRECAUTIONS

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if

the instructions are not followed.

This is the safety alert symbol. It alerts you to safety messages that inform you

of hazards that can kill or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING, CAUTION. These words mean:

You will be killed or seriously injured if you don’t follow instructions.

You can be killed or seriously injured if you don’t follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage only.

DANGER

WARNING

CAUTION

DANGER: RISK OF CHILD ENTRAPMENT

Child entrapment and suffocation are not problems of the

past. Junked or abandoned refrigerators are still

dangerous…even if they will sit for just a few days. If you

are getting rid of your old refrigerator, please follow the

instructions at right to help prevent accidents.

BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER

• Take off the doors.

• Leave the shelves in place so that

children may not easily climb inside.

Your old refrigerator may have a cooling system that used

CFCs (chlorofluorocarbons). CFCs are believed to harm

stratospheric ozone.

If you are throwing away your old refrigerator, make sure

the CFC refrigerant is removed for proper disposal by a

qualified servicer. If you intentionally release this CFC

refrigerant, you can be subject to fines and imprisonment

under provisions of environmental legislation.

CFC DISPOSAL

GROUNDING REQUIREMENTS

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have it

replaced with a properly grounded three-prong wall outlet.

Do not, under any circumstances, cut or remove the

third (ground) prong from the power cord.

NOTE: Before performing any type of installation,

cleaning, or removing a light bulb, turn the control

(Thermostat, Refrigerator Control or Freezer Control,

depending on the model) to OFF and then disconnect the

refrigerator from the electrical source. When you are

finished, reconnect the refrigerator to the electrical source

and reset the control (Thermostat, Refrigerator Control or

Freezer Control, depending on the model) to the desired

setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, we strongly recommend against the use

of an extension cord. However, if you still elect to use

an extension cord, it is absolutely necessary that it be a

UL-listed (USA), 3-wire grounding type appliance

extension cord having a grounding type plug and outlet,

and that the electrical rating of the cord be 15 amperes

(minimum) and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

WARNING

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit

checked by a qualified electrician to make sure the

outlet is properly grounded.

3-prong

grounding

plug

3-prong

grounding type

wall receptacle

Ensure proper

ground exists

before use.

SAVE THESE INSTRUCTIONS

WARNING

• Repair or replace immediately all electric service cords that

have become frayed or otherwise damaged. Do not use a

cord that shows cracks or abrasion damage along its length

or at either the plug or connector end.

• When moving your refrigerator away from the wall, be

careful not to roll over or damage the power cord.

• Keep fingers out of pinch point areas; clearances between

the doors and cabinet are necessarily small. Be careful

closing doors when children are in the area.

• This refrigerator must be properly installed in accordance

with the Attention Installer Instructions that were taped to

the front of the refrigerator.

• Don’t touch the lamp, in case of light on the long time,

Because it can be very hot.

• DO NOT refreeze frozen foods which have thawed

completely. The United States Department of Agriculture in

Home and Garden Bulletin No. 69 says:

…You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold—below

40°F (4°C).

…Thawed ground meats, poultry or fish that have any off-

odor or off-color should not be refrozen and should not be

eaten. Thawed ice cream should be discarded. If the odor

or color of any food is poor or questionable, get rid of it.

The food may be dangerous to eat.

Even partial thawing and refreezing reduces the eating

quality of foods, particularly fruits, vegetables and prepared

foods. The eating quality of red meats is affected less than

that of many other foods. Use refrozen foods as soon as

possible to save as much of their quality as you can.

WARNING

1. When connecting the power

The dedicated outlet should be used.

• Using several devices at one

outlet may cause fire.

• The electric leakage breaker

may damage food and the

dispenser may be leaked.

Do not allow the power cord bent or pressed by the

heavy object to be damaged.

It may damage the power

cord to cause fire or electric

shock.

Unplug the power plug when cleaning, handling or

replacing the interior lamp of the refrigerator.

• It may cause electric shock or

injury.

• When replacing the interior lamp

of the refrigerator, make sure

that the rubber ring for

preventing the electric spark

within the socket is not taken off.

Remove water or dust from the power plug and insert

it with the ends of the pins securely connected.

Dust, water or unstable

connection may fire or electric

shock.

When the power cord or the power plug is damaged

or the holes of the outlet are loosed, do not use them.

It may cause electric shock or

short circuit to make fire.

Do not allow the power plug to face upward or to be

squeezed at the back of the

refrigerator.

Water may be flown into or

the plug may be damaged,

which causes fire or electric

shock.

Do not extend or modify the length of the power plug.

It causes electric shock or fire

by the electric damage of the

power cord or others.

Do not pull out the cord or touch the power plug with

wet hands.

• It may cause electric shock or

injury.

Make sure of grounding.

The incorrect grounding may

cause breakdown and electric

shock.

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety

precautions should be followed, including the following. Read all instructions before using this appliance.

Grounding

Conductor

Copper

flat

More than

75cm

IMPORTANT SAFETY INSTRUCTIONS

2. When using the refrigerator

Do not place the heavy object or

the dangerous object (container

with liquid) on the refrigerator.

It may be dropped to cause

injury, fire or electric shock

when opening or closing the

door.

Do not cling to the door or the shelves of the door or

the home bar of the freezer or the cool chamber.

It may make the refrigerator

fallen down or damage the

hands. Especially, do not allow

the children to do the above.

Do not place the lit candle within

the refrigerator to deodorize.

It may cause explosion or fire.

Do not store the medicine or the academic

materials at the refrigerator.

When the material with the strict

temperature control is stored, it

may be deteriorated or it may

make an unexpected reaction to

cause any risk.

Avoid the heating devices.

It may cause fire.

Do not install the refrigerator in the wet place or the

place which water or rain splashes.

Deterioration of insulation of

electric parts may cause

electric leakage.

Do not use or store inflammable materials ether,

benzene, alcohol, medicine,

LP gas, spray or cosmetics

near or in the refrigerator.

It may cause explosion or

fire.

Do not insert the hands into

the ice bucket or the ice dispenser.

Operating the ice maker may

cause injury.

Do not use the combustible

spray near the refrigerator.

It may cause fire.

Do not place flower vase, cup,

cosmetics, medicine or any

container with water on

the refrigerator.

It may cause fire, electric shock

or injury by dropping down.

Use the submerged refrigerator after checking it.

It may cause electric shock

or fire.

The Academic

Medicine

The Medicine

Benzene

Ether

Thinner

IMPORTANT SAFETY INSTRUCTIONS

2. When using the refrigerator

Do not spray water at the outside or the inside of the

refrigerator or do not clean it

with benzene or thinner.

Deterioration of insulation of

electric parts may cause electric

shock or fire.

Do not allow any person except the qualified engineer

to disassemble, repair or alter

the refrigerator.

It may cause injury, electric

shock or fire.

When disposing the refrigerator, remove the packing

materials from the door.

It may cause to lock out the

child.

Do not insert the hands or the metal stick into the exit

of cool air, the cover, the

bottom of the refrigerator, the

heatproof grill (exhaust hole)

at the backside.

It may cause electric shock

or injury.

When any strange smell or smoke is detected from

the refrigerator, disconnect

the power plug immediately

and contact to the service

center.

It may cause fire.

CAUTION

Violating this direction may cause injury or damage house or furniture. Always be careful, please.

Do not touch food or containers at the freezer with

wet hands.

It may cause frostbite.

Do not put ice in thin crystal cup or ceramic ware.

It may break cup or ceramic

ware to cause injury.

Do not use the refrigerator for non-domestic purpose

(storing medicine or testing

material, using at the ship, etc.).

It may cause an unexpected

risk such as fire, electric shock,

deterioration of stored material

or chemical reaction.

Install the refrigerator on the solid and level floor.

Installing it on the unstable

place may cause death by

falling down the refrigerator

when opening or closing the

door.

When you want to dispose the refrigerator, contact to

the down-block office.

When you want to dispose the

large living waste such as

electric home appliance and

furniture, you’d better contact

the local down-block office.

Thinner

Down-block

office

Service

center

CAUTION

Wait for 5 minutes or longer when reconnecting the

plug.

It may cause the operation of

the freezer to fail.

Pull out the power plug not by grasping

the cord but the plug of its end.

It may cause electric shock or

short circuit to fire.

Do not insert the hands into

the bottom of the refrigerator.

The iron plate of the bottom

may cause injury.

Because opening or closing the door of the

refrigerator may cause injury

to the person around it, be

careful, please.

Opening or closing the door

may cause feet or hands to be

caught in the chink in door or

the child to be get hurt by the

corner.

Do not put any living animal

in the refrigerator.

Supply the automatic ice maker with drinkable water

only (only for the model

with the dispenser).

Otherwise, it may cause any

risk.

Do not put bottle in the freezer.

It may freeze the contents to

break the bottle to cause injury.

Do not install the refrigerator in

the wet place or the place which

water or rain splashes.

Deterioration of insulation of

electric parts may cause

electric leakage.

Carry the refrigerator with the handle bar at the

bottom of the front and the

top of the rear.

Otherwise, your hands may be

slipped to cause injury.

After

5minutes

Drinkable

water

PARTS AND FEATURES

Refrigerator Light

Filter (Inside) (p. 27)

Modular Door Bins (p. 25)

Shelves (p. 23)

Crisper (p. 24)

(Keeps fruits and vegetable fresh and crisper)

Glide’N’Serve (p. 24)

Customcube Icemaker (p. 30)

Use this page to become more familiar with the parts and features. Page references are included for your convenience.

NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of

the items listed below. The locations of the features shown below may not match your model.

Ice Bin (p. 25)

Pull out Drawer (p. 26)

Durabase (p. 26)

Divider (p. 26)

Tilt-Out Door Basket (p. 26)

Dairy Bin (p. 25)

Water Tank Cover

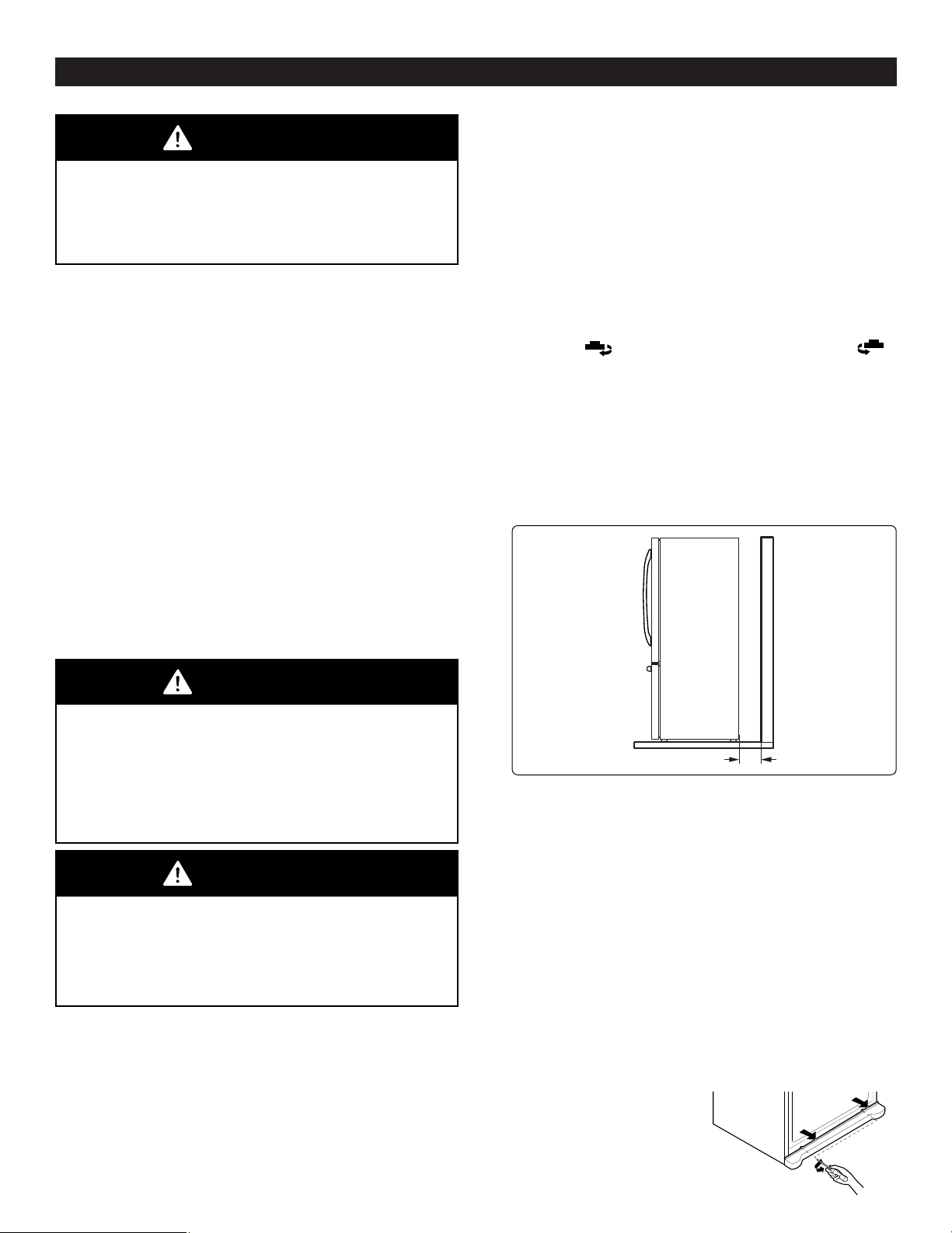

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-type

labels, the model and serial number label, or the

TechSheet that is attached to back wall of the refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator. For

more information, see the Important Safety Instructions

section.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

• To reduce the risk of electric shock, do not install the

refrigerator in a wet or damp area.

• Select a place where a water supply can be easily

connected for the automatic icemaker.

CAUTION: Avoid placing the unit near heat sources,

direct sunlight or moisture.

INSTALLATION

• To minimize noise and vibration, the refrigerator MUST

be installed on a solidly constructed floor.

• Carpeting and soft tile surfaces are not recommended.

• Never install the refrigerator on a platform or weakly

supported structure.

1. To avoid vibration, the unit must be leveled. If required,

adjust the leveling legs to compensate for unevenness of

the floor. The front should be slightly higher than the rear

to aid in door closing. Leveling legs can be turned easily

by tipping the cabinet slightly. Turn the leveling legs

clockwise ( ) to raise the unit, counterclockwise ( )

to lower it.

2. Install this appliance in an area where the temperature is

between 55°F (13°C) and 110°F (43°C.) If the temperature

around the appliance is too low or high, cooling ability may

be adversely affected.

3. Too small a distance from adjacent items may result in

lowered freezing capability and increased electricity

consumption charges. Allow at least 24 in. (61 cm) in front

of the refrigerator to open the doors.

1. Clean your refrigerator thoroughly and wipe off all dust

accumulated during shipping.

2. Install accessories such as ice cube bin, drawers, shelves,

etc., in their proper places. They are packed together to

prevent possible damage during shipment.

3. Let your refrigerator run for at least 2 or 3 hours before

putting food in it. Check the flow of cold air in the freezer

compartment to ensure proper cooling. Your refrigerator is

now ready for use.

BASE COVER

To remove the base cover

1. Open the Freezer Drawer. (Drawer not shown for clarity.)

2. Once drawer is open there is sufficient clearance to

remove screws on top of cover.

To replace base cover:

• Place cover into position

and insert and tighten screws.

REFRIGERATOR INSTALLATION

WARNING

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

WARNING

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out

when moving it. Do not wiggle or walk the refrigerator

when trying to move it, as floor damage could occur.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

1" (2.54 cm)

REFRIGERATOR INSTALLATION

HOW TO REMOVE DOOR HANDLES

To move refrigerator through a house door, it maybe necessary to remove refrigerator and freezer door handles.

NOTE: Handle appearance may vary from

illustrations on this page.

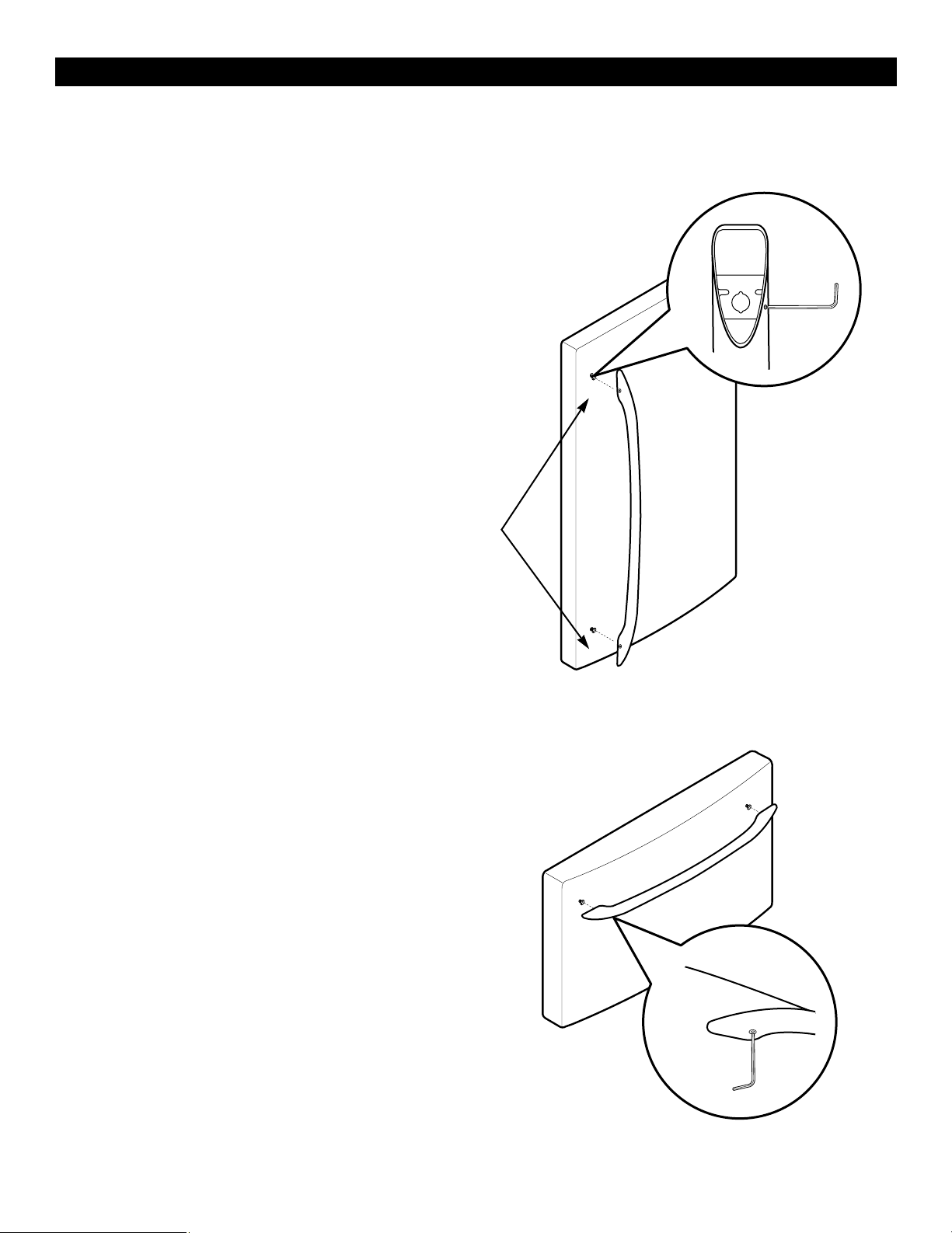

1. Removing Refrigerator Handle

• Loosen the set screws with the 3/32” Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a 1/4”

Allen wrench.

2. Removing Freezer Drawer Handle

• Loosen the set screws located on the lower

side of the handle with the 3/32” Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners

need to be tightened or removed, use a 1/4”

Allen wrench.

Set Screw

Allen Wrench

Mounting

Fasteners

REFRIGERATOR INSTALLATION

HOW TO REPLACE DOOR HANDLES

NOTE: Handle appearance may vary from illustrations on this page.

1. Replacing Refrigerator Door Handle

• Place the handle on the door by adjusting handle

footprints to fit mounting fastners and tighten the set

screws with the 3/32” Allen wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed use a 1/4” Allen wrench.

2. Replacing Freezer Drawer Handle

• Place the handle on the door by adjusting handle

footprints to fit mounting fastners and tighten the set

screws on the bottom of the handle with a 3/32” Allen

wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed use a 1/4” Allen wrench.

Mounting

Fasteners

REFRIGERATOR INSTALLATION

REMOVING AND REPLACING

REFRIGERATOR DOORS

To remove the left refrigerator door:

Pull the water tube out of the fitting while pressing the

release ring on the fitting. When you pull out the tube, first

you have to push the collet by opposite direction of arrow

in the upper picture and tube pull out by direction of arrow.

: Before you begin, remove food and bins

from the doors.

• Open the door. Remove the top hinge cover screw (1).

• Use a flat-head screwdriver to pry back the hooks

(not shown) on the front underside of the cover (2).

Lift up the cover.

• Remove the cover. Pull out the tube (3).

• Disconnect all the wire harnesses (4).

• Remove the grounding screw(5)

• Rotate hinge lever (6) counterclockwise.

Lift the top hinge (7) free of the hinge lever latch (8).

IMPORTANT: When lifting the hinge free of the latch, be

careful that the door does not fall forward.

• Lift the door from the middle hinge pin and remove the

door.

• Place the door, inside facing up, on a nonscratching

surface.

To remove the right refrigerator door:

• Open door.Loosen top hinge cover screw (1).

Lift up cover (2).

• Remove cover.

• Disconnect wire harness (4).Remove the grounding

screw (5).

• Rotate hinge lever (6) clockwise.

Lift top hinge (7)free of hinge lever latch (8).

IMPORTANT: When lifting the hinge free of the latch, be

careful that the door does not fall forward.

CAUTION

REFRIGERATOR INSTALLATION

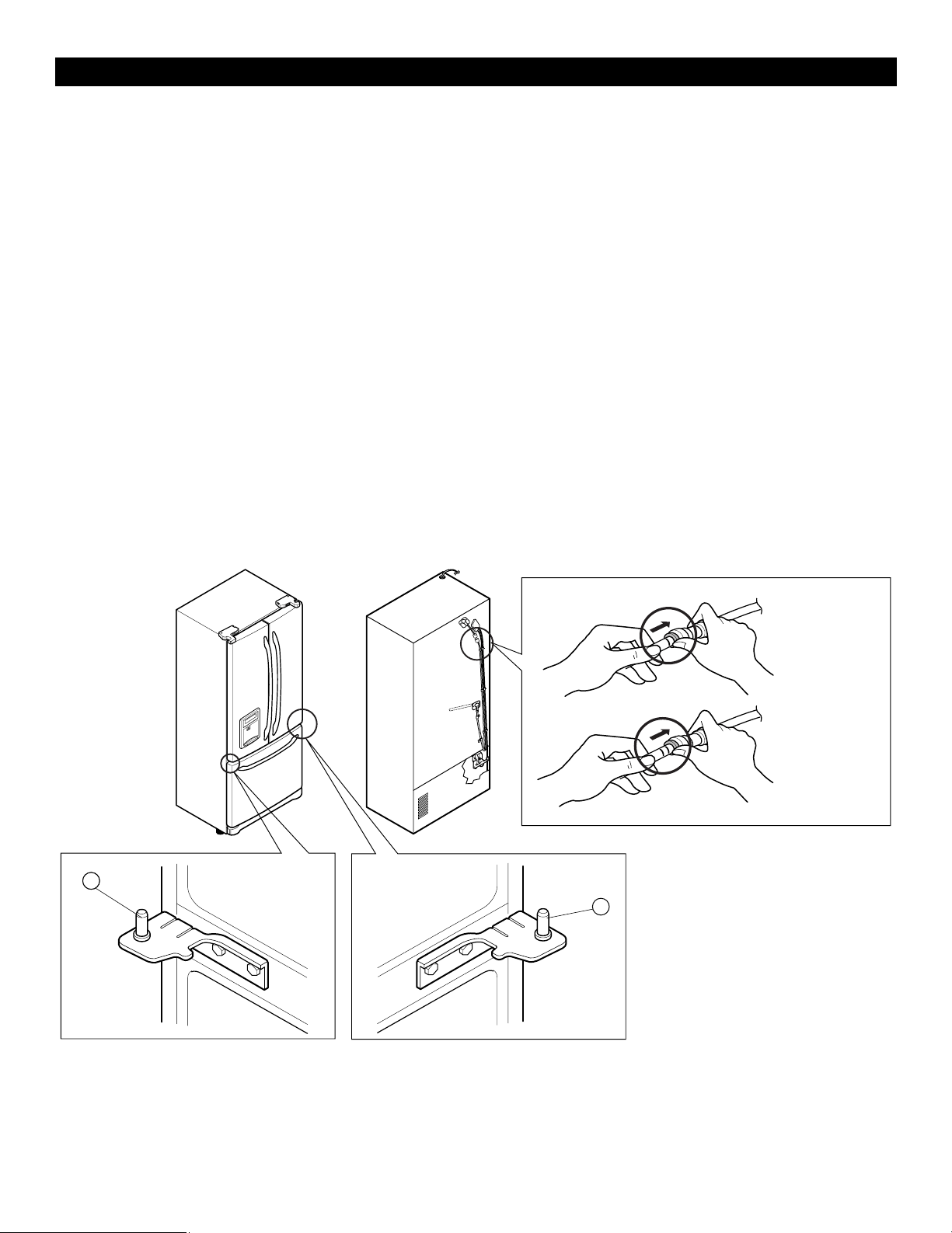

Replacing Refrigerator Door:

❿ Right Door

• Lower the door onto middle hinge pin (9).

• Fit top hinge (7) over hinge lever latch (8) and into place. Rotate lever (6) counterclockwise to secure hinge.

• Install the grounding screw (5) and connect wire harnesses (4).

• Hook tab on door switch side of cover under edge of wire opening in cabinet top.

Position cover (2) into place. lnsert and tighten cover screw (1).

❿ Left Door

• Lower the door onto middle hinge pin (9).

• Fit top hinge (7) over hinge lever latch (8) and into place. Rotate lever (6) clockwise to secure hinge.

• Install the grounding screw (5) and connect the three wire harnesses (4).

• Push the water supply tube into the hole on the top case and pull it out on the backplate.

• Insert the water supply tube (3) into the connector tube until you see only one scale mark.

(Fully insert the tube over 5/8”(15mm)).

• Hook tab on door switch side of cover (2) under edge of wire opening in cabinet top.

Position cover into place. Insert and tighten cover screw (1).

Correct

Incorrect

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE

PULLOUT DRAWER

IMPORTANT: To avoid possible injury or product or

property damage, you will need two people to perform the

following instructions.

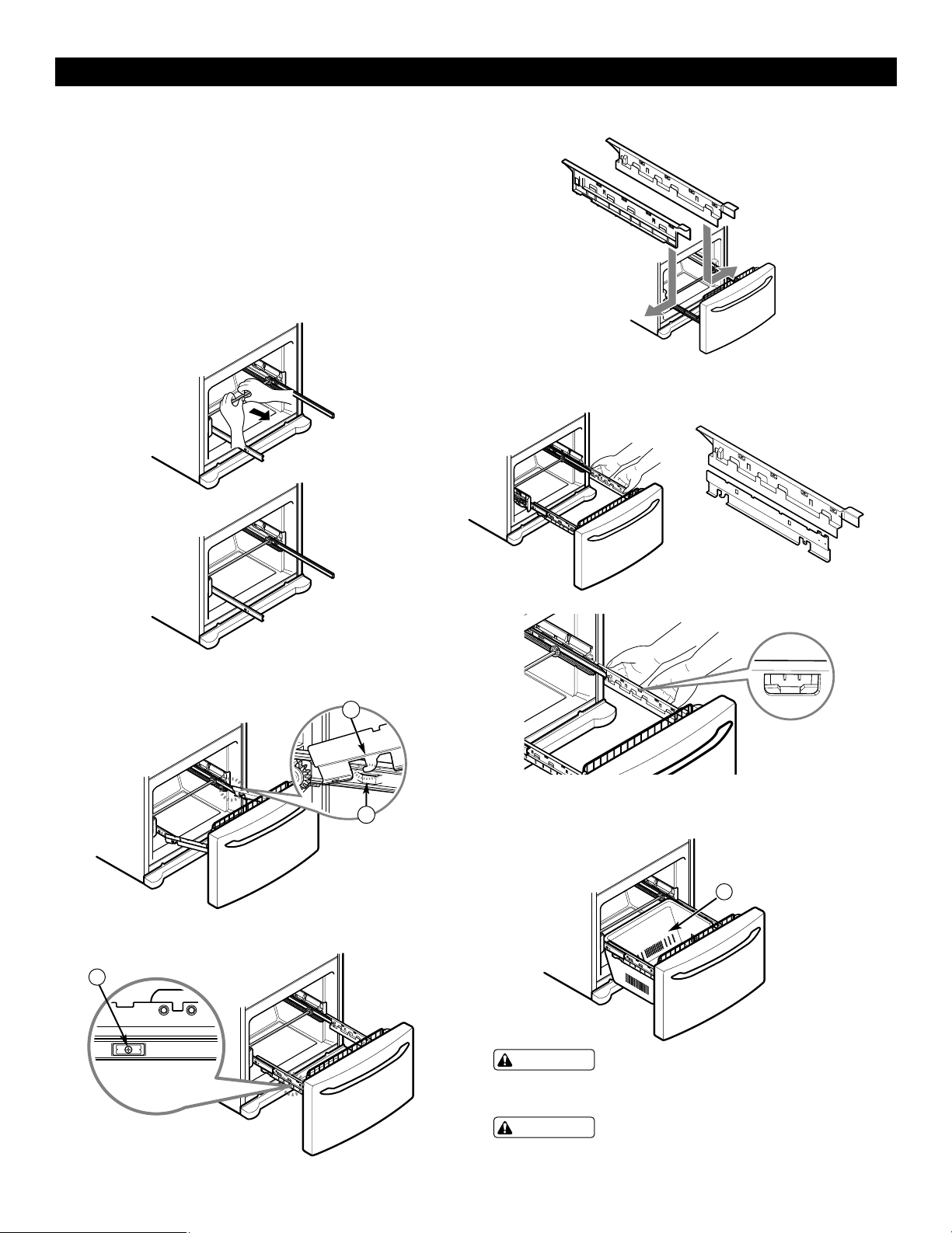

1. Removing Pullout Drawer

• Pull the drawer open to full extension. Remove the

lower basket (1) by lifting basket from rail system.

(If you tilt the door, it will be easier.)

• Press both hangers with your thumbs to lift it up.

• Separate the left and right rail cover.

• Remove the screws(2) of the rail on both sides.

• With both hands, hold both sides of the door and pull it

up to separate it from the rails.

• With both hands, hold the center bar and push it in to let

both rails fitted simultaneously.

: When you remove the drawer, do not

hold the handle. If it may come off and it could cause

personal injury.

: When laying the drawer down, be careful

not to damage the floor or hurt your feet by the sharp

edges on hinge side.

CAUTION

REFRIGERATOR INSTALLATION

HOW TO REMOVE AND INSTALL THE

PULLOUT DRAWER

IMPORTANT: To avoid possible injury or product or

property damage, you will need two people to perform the

following instructions.

2. Installing Pullout Drawer

• With both hands, hold the center bar and push it out to

let both rails out to full extension simultaneously.

• Hook door supports (1) into rail tabs (2).

• Lower door into final position and tighten the screws (3).

• Make sure you have a right rail cover for each side.

• Align the top holes of the rail cover with the top holes of

the door supports to assemble the rail covers.

• With the drawer pulled out to full extension, insert the

lower basket (4) in the rail assembly.

: To prevent accidental child and pet

entrapment or suffocation risk. DO NOT allow them to

play inside of drawer.

: DO NOT step or sit down on freezer

door.

Right

Rail Cover

Assembly Hole

Left

Rail Cover

WARNING

REFRIGERATOR INSTALLATION

LEVELING AND DOOR ALIGNMENT

Leveling

After installing, secure the product with the LEG not to

move left or right.

Your refrigerator has two front leveling legs—one on the

right and one on the left. If your refrigerator seems

unsteady or you want the doors to close easier, adjust the

refrigerator’s tilt using the instructions below:

1. Plug the refrigerator’s power cord into a 3-prong

grounded outlet. Move the refrigerator into its final

position.

2. Turn the leveling leg clockwise to raise that side of the

refrigerator or counterclockwise to lower it. It may take

several turns of the leveling leg to adjust the tilt of the

refrigerator.

NOTE: Having someone push against the top of the

refrigerator takes some weight off the leveling legs.

This makes it easier to adjust the legs.

3. Open both doors again and check to make sure that

they close easily. If not, tilt the refrigerator slightly more

to the rear by turning both leveling legs clockwise. It

may take several more turns, and you should turn both

leveling legs the same amount.

4. Re-adjust if necessary.

5. Replace the base cover.

NOTE: Your new refrigerator is uniquely designed with

two fresh food doors. Either door can be opened or

closed independently of one another. You may have to

exert slight pressure on doors to get them to close

completely.

Door Alignment

If the space between your doors is uneven, follow the

instructions below to align the doors:

1. With one hand, lift up the door you want to raise at

middle hinge.

2. With other hand, use pliers to insert snap ring as

shown.

3. Insert additional snap rings until the doors are aligned.

(Three snap rings are provided with unit.)

USING YOUR REFRIGERATOR

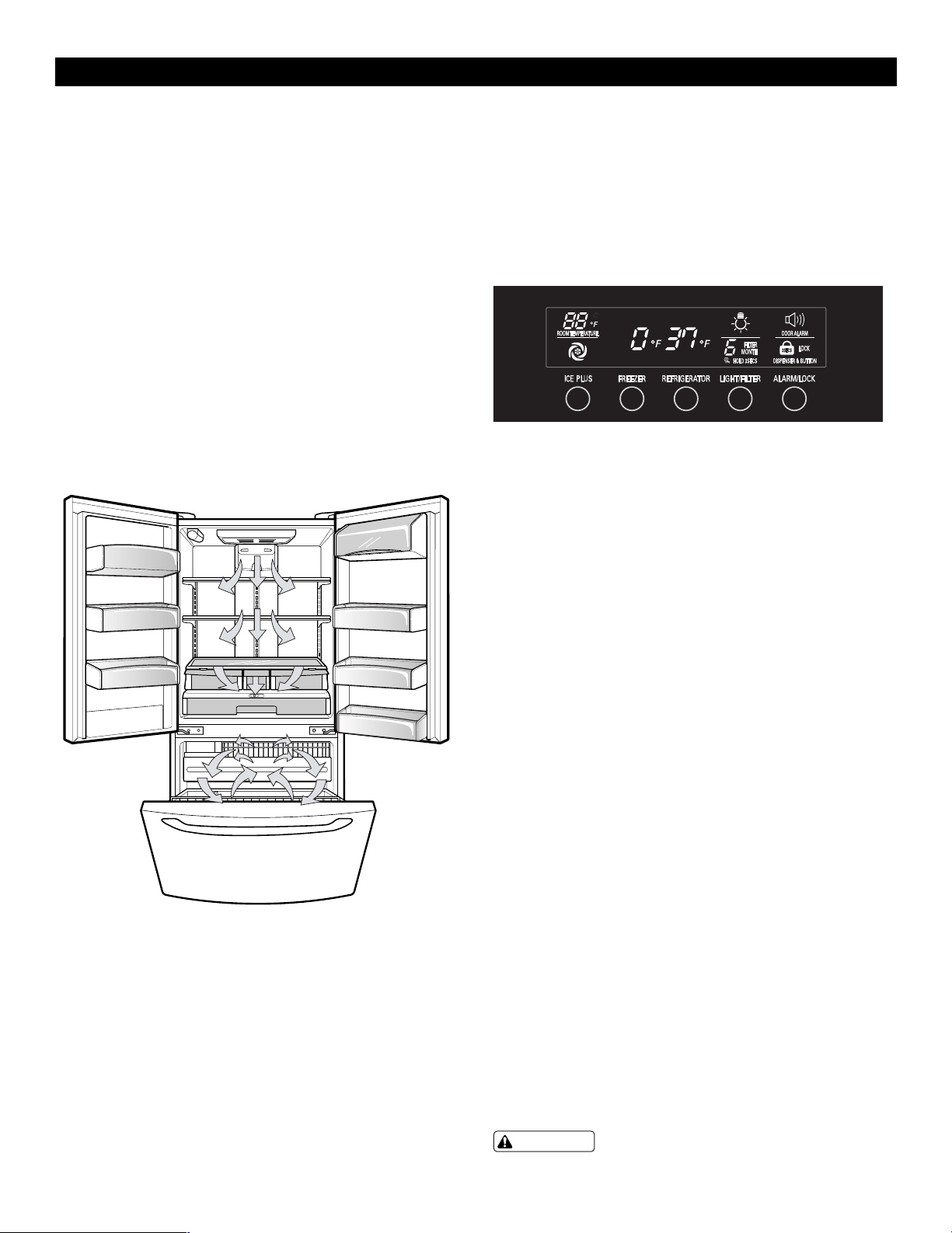

ENSURING PROPER AIR CIRCULATION

In order to ensure proper temperatures, air must flow

between the refrigerator and freezer sections. As shown

in the illustration below, air enters at top of the freezer and

circulates down. From the bottom of the freezer, air is

forced up to the top of the refrigerator. Air enters

refrigerator through the top vent, then circulates and

exists at the bottom, where it returns to the freezer.

MULTI-FLOW

• Multi-Flow means powerful and effective cooling

operation. This is especially noticeable when new food is

placed in the refrigerator compartment.

• If water or foreign substances enter the cool air vent

while cleaning, efficiency will be lowered. In addition, if

gasket is damaged, efficiency may be lowered because

of escaping cool air.

Do not block any of cool air vents with food packages.

If the vents are blocked, airflow will be interrupted and

temperature and moisture problems may occur.

IMPORTANT: Because air circulates between both

sections, any odors formed in one section will transfer to

the other. You must thoroughly clean both sections to

eliminate odors. To prevent odor transfer and drying out of

food, wrap or cover foods tightly. (See the Food Storage

Guide section for details.)

SETTING THE CONTROLS

• Your refrigerator has a control pad on the dispenser that

lets you regulate the temperature in the freezer and

refrigerator compartments.

• Initially set the REFRIGERATOR CONTROL at 37°F

(3°C) and the FREEZER CONTROL at 0°F (–18°C).

Leave it at this setting for 24 hours (one day) to stabilize.

Then adjust the compartment temperature as desired.

• Refrigerator Temp Control: 33°F to 46°F (0°C to 8°C)

The lower the number setting, the colder the refrigerator

compartment will become.

• Freezer Temp Control: -6°F to 8°F (-21°C to -13°C)

When the setting is at a lower number, the freezer

compartment becomes colder. The refrigerator

compartment becomes warmer because less cold air

flows into the refrigerator.

NOTE: If you want to change °F to °C or the reverse,

press and hold FREEZER key and REFRIGERATOR key

simultaneously for 5 seconds or more.

NOTE: If you want to off display, press and hold ICE

PLUS key and FREEZER key over 5 seconds at the same

time.

NOTE: Touch display once to activate, then touch again

to change the settings or activate a function. If 10 seconds

has passed since the display has been touched, it will be

necessary to touch “once” again to reactivate.

☞ This is to prevent accidental display setting changes.

• ICE PLUS : Press the ICE PLUS button and the LED will

turn on. This function will remain activated for 24 hours

and increase the cooling speed of the freezer and the

amount of ice produced.

• Dispenser Lock : Press and hold the LOCK button for 3

seconds to lock the dispenser. When it is locked, the

dispenser will not operate. To unlock, press and hold the

LOCK button for 3 seconds.

• Filter Reset : It displays in months the number of months

left to exchange the filter from the moment power is

connected to the refrigerator. If you have changed the

filter after 6 months of use, press and hold the FILTER

button 3 seconds or more and the filter display will be

initialized with a buzzing sound.

NOTE: The average life of the filter is 6 months.

: If a door is open, the dispenser does not

work.

WARNING

ADJUSTING CONTROL SETTINGS

Give the refrigerator time to cool down completely before

making final adjustments. It is best to wait 24 hours

before doing this. The mid-settings indicated in the

previous section should be correct for normal household

refrigerator usage. The controls are set correctly when

milk or juice is as cold as you like and when ice cream

is firm.

The refrigerator control functions as the thermostat for the

entire appliance (refrigerator and freezer sections). The

higher the number setting, the longer the compressor will

run to keep the temperature colder. The freezer control

adjusts the cold air flow from the freezer to the

refrigerator. Setting the freezer control to a lower

temperature keeps more cold air in the Freezer

compartment to make it colder.

If you need to adjust temperatures in the refrigerator or

freezer, start by adjusting the refrigerator. Then wait 24

hours before checking the freezer temperature. If it is too

warm or too cold, then adjust the freezer control.

Use the settings listed in the chart below as a guide.

Always remember to wait at least 24 hours between

adjustments.

FOOD STORAGE GUIDE

Wrap or store food in the refrigerator in airtight and

moisture-proof material unless otherwise noted. This

prevents food odor and taste transfer throughout the

refrigerator. For dated products, check date code to

ensure freshness.

USING YOUR REFRIGERATOR

CONDITION/

REASON:

RECOMMENDED

ADJUSTMENT:

 REFRIGERATOR section

too warm

– Door opened often

– Large amount of food added

–

Room temperature very warm

 FREEZER section too

warm/ice not made fast

enough

– Door opened often

– Large amount of food added

– Very cold room temperature

(can’t cycle often enough)

– Heavy ice usage

– Air vents blocked by items

 REFRIGERATOR section

too cold

– Controls not set correctly for

your conditions

 FREEZER section too cold

– Controls not set correctly for

your conditions

Set REFRIGERATOR

control to next lower

number, wait 24 hours,

then re-check

Set FREEZER control

to next lower number,

wait 24 hours, then re-

check

Move items out of

airstream

Set REFRIGERATOR

control to next higher

number, wait 24

hours, then re-check

Set FREEZER control

to next higher number,

wait 24 hours, then re-

check

Items How to

Butter or

margarine

Cheese

Milk

Eggs

Fruit

Leafy vegetables

Vegetables with

skins (carrots,

peppers)

Fish

Leftovers

❿ Keep opened butter in a covered

dish or closed compartment.

When storing an extra supply,

wrap in freezer packaging and

freeze.

❿ Store in the original wrapping until

you are ready to use it. Once

opened, rewrap tightly in plastic

wrap or aluminum foil.

❿ Wipe milk cartons. For best

storage, place milk on interior

shelf, not on door shelf.

❿ Store in original carton on interior

shelf, not on door shelf.

❿ Wash, let dry, and store in

refrigerator in plastic bags or in

the crisper. Do not wash or hull

berries until you are ready to use

them. Sort and keep berries in

their original container in a

crisper, or store in a sloosely

closed paper bag on a refrigerator

shelf.

❿ Remove store wrapping and trim

or tear off bruised and discolored

areas. Wash in cold water and

drain. Place in plastic bag or

plastic container and store in

crisper.

❿ Place in plastic bags or plastic

container and store in crisper.

❿ Use fresh fish and shellfish the

same day purchased.

❿ Cover leftovers with plastic wrap

or aluminum foil. Plastic

containers with tight lids can

also be used.

STORING FROZEN FOOD

NOTE: For further information about preparing food for

freezing or food storage times, check a freezer guide or a

reliable cookbook.

Packaging

Successful freezing depends on correct packaging. When

you close and seal the package, it must not allow air or

moisture in or out. If it does, you could have food odor

and taste transfer throughout the refrigerator and also dry

out frozen food.

Packaging recommendations:

• Rigid plastic containers with tight-fitting lids

• Straight-sided canning/freezing jars

• Heavy-duty aluminum foil

• Plastic-coated paper

• Non-permeable plastic wraps

• Specified freezer-grade self-sealing plastic bags

Follow package or container instructions for proper

freezing methods.

Do not use

• Bread wrappers

• Non-polyethylene plastic containers

• Containers without tight lids

• Wax paper or wax-coated freezer wrap

• Thin, semi-permeable wrap

: Do not keep beverage cans or plastic

food containers in the freezer compartment. They may be

break if they freezer.

Freezing

Your freezer will not quick-freeze any large quantity of

food. Do not put more unfrozen food into the freezer than

will freeze within 24 hours (no more than 2 to 3 lbs of food

per cubic foot of freezer space). Leave enough space in

the freezer for air to circulate around packages. Be careful

to leave enough room at the front so the door can close

tightly.

Storage times will vary according to the quality and type

of food, the type of packaging or wrap used (airtight and

moisture-proof) and the storage temperature. Ice crystals

inside a sealed package are normal. This simply means

that moisture in the food and air inside the package have

condensed, creating ice crystals.

NOTE: Allow hot foods to cool at room temperature for

30 minutes, then package and freeze. Cooling hot foods

before freezing saves energy.

REFRIGERATOR SECTION

WATER DISPENSER

Push the dispenser pad with a glass until you hear a click

to get cold water.

Tray can be easily removed by pressing and pulling it.

Tilt up the front of tray slightly and snap the ribs into the

holes to replace the tray.

USING YOUR REFRIGERATOR

CAUTION

Dispenser Switch

Push

Ribs

Holes

USING YOUR REFRIGERATOR

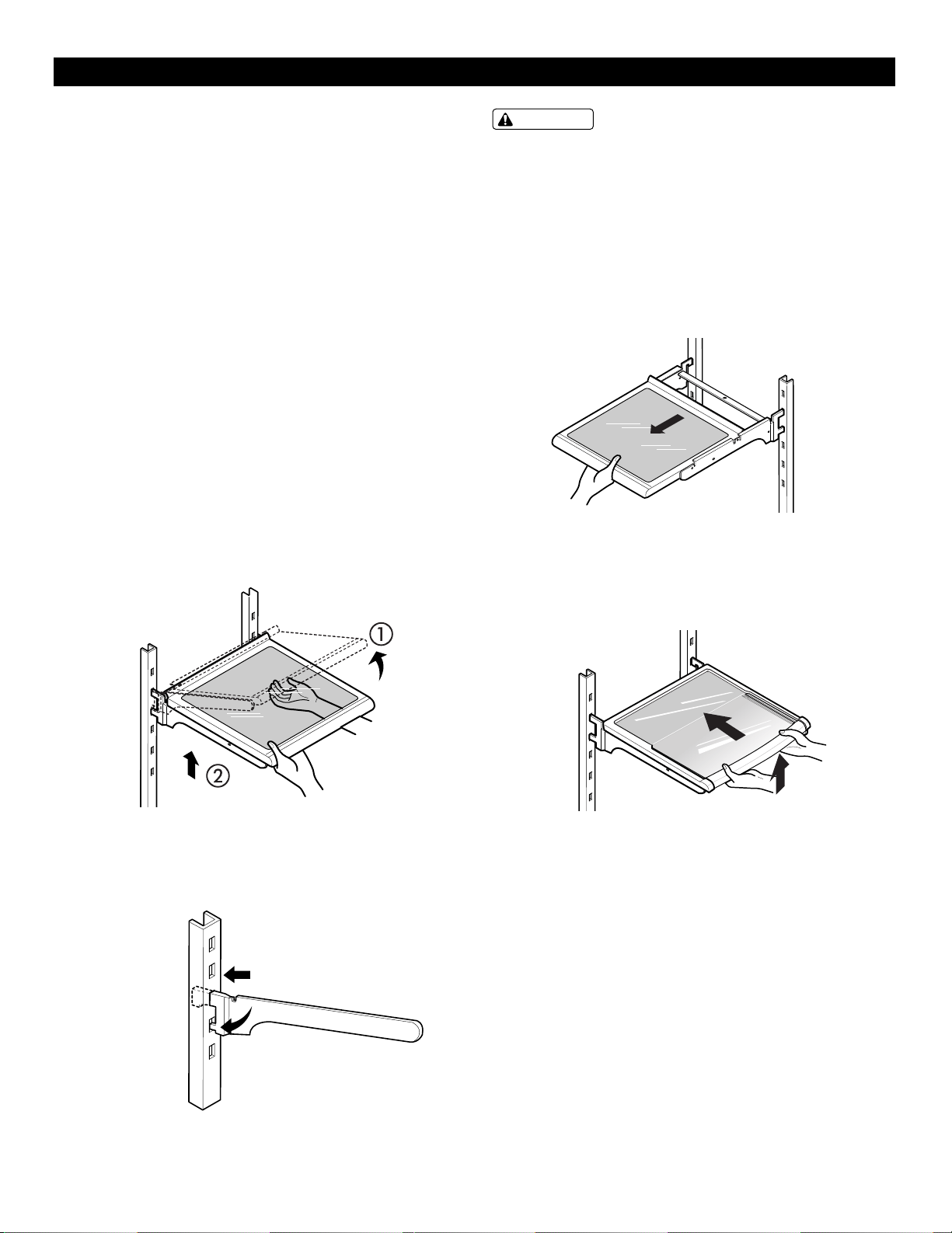

REFRIGERATOR SHELVES

The shelves in your refrigerator are adjustable to meet

your individual storage needs. Your model may have

glass or wire shelves.

Storing similar food items together in your refrigerator and

adjusting the shelves to fit different heights of items will

make finding the exact item you want easier; it will also

reduce the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if exposed

to sudden temperature changes or impact, such as

bumping. For your protection, glass shelves are made

with tempered glass, which will shatter into small pebble-

sized pieces.

NOTE: Glass shelves are heavy. Use special care when

removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and replace

shelves in the position you want.

• To remove a shelf—Tilt up the front of the shelf in the

direction of (1) and lift it in the direction of (2). Pull the

shelf out.

• To reinstall a shelf—Tilt the front of the shelf up and

guide the shelf hooks into the slots at a desired height.

Then lower the front of the shelf so that the hooks drop

into the slots.

: Make sure that shelves are level from

one side to the other. Failure to do so may result in the

shelf falling or spilling food.

Sliding Out Shelves

You can slide glass shelves in and out of your refrigerator

as follows.

• To slide the shelf out, carefully pull front of shelf

toward you.

• To slide shelf in, push shelf in until it stops.

Folding Shelf

You can store taller items such as a gallon container or

bottles by simply push in front half of shelf underneath

back half of shelf. Pull toward you to returm to a full shelf.

CAUTION

CRISPER HUMIDITY CONTROL

You can control the amount of humidity in the moisture-

sealed crispers. Store vegetables or fruits requiring more

or less humidity in separate crispers. Adjust the control to

any setting between HIGH and LOW.

• LOW lets moist air out of the crisper for best storage of

fruits.

• HIGH keeps moist air in the crisper for best storage of

fresh, leafy vegetables.

: The glass shelf over the crisper is not

firmly secured. Be careful when tilting.

REMOVING CRISPER

1. To remove, pull the drawer out to full extension.

2. Lift the front of the crisper up, then pull it straight out.

3. To install, slightly tilt up the front and insert the drawer

into the frame and push it back into place.

To remove the glass

1. Lift up the glass under the crisper cover.

2. Pull the glass up and out.

GLIDE‘N’SERVE

The Glide‘N’Serve provides storage space with a variable

temperature control that keeps the compartment colder

than refrigerator.

This drawer can be used for large party trays, deli items,

or beverages. (but this drawer can't be used for

vegetable.)

Controls

The control regulates the air temperature in the drawer.

Set control level to COLD (print on surface) to provide

normal refrigerator temperature. Use the COLDER

(print on surface) setting for meats or other deli items.

NOTE: Cold air directed to the Glide‘N’Serve can

decrease refrigerator temperature. Refrigerator control

may need to be adjusted.

To replace Glide‘N’Serve

1. To remove, pull the drawer out to full extension.

2. Lift the front of the drawer up, then pull it straight out.

3. To install, slightly tilt up the front and insert the drawer

into the frame and push it back into place.

USING YOUR REFRIGERATOR

CAUTION

MODULAR DOOR BIN

The door bins are removable for easy cleaning and

adjusting.

1. To remove the bin, simply lift the bin up and pull

straight out.

2. To replace the bin, slide it in above the desired support

button and push down until it stops.

: Somebody can be hurt if door bins are

not firmly assembled.

: DO NOT adjust a bin that is loaded with food.

: DO NOT allow children to play with

baskets. Sharp corners on baskets could cause injury.

DAIRY BIN

1. To remove the dairy bin, simply lift it and pull straight

out.

2. To replace the dairy bin, slide it in above the desired

location and push down until it stops.

FREEZER SECTION

TILTING DOOR

The tilting door provides easy access for stored foods.

How to use

Tilt the door down and pull it out.

: Be careful when you open tilting door so

that you do not injure your foot!

ICE BIN

1. To separate the ice bin, pull out the drawer as much as

possible.

2. Gently lift and pull out the ice bin.

3. To install, pull out the drawer as much as possible and

set the ice bin in its correct position, then push in the

drawer.

USING YOUR REFRIGERATOR

ICE BIN

DRAWER

CAUTION

WARNING

NOTE

Hook

USING YOUR REFRIGERATOR

TILT-OUT DOOR BASKET

To remove basket

1. Pull one of the brackets upward.

2. Remove basket from both brackets.

To replace basket

1. Insert bracket into one side. Hook end of basket into

bracket.

2. Hook other basket end into other bracket. Push bracket

down into place.

3. Be sure back of basket goes behind retention tab on

each bracket.

DURABASE

1. To remove the Durabase, push it back to the end as

much as possible. Tilt up the front of the Durabase and

pull straight out.

2. To install, insert the Durabase in rail assembly.

DURABASE DIVIDER

The Durabase divider allows you to organize the

Durabase area into sections.

WARNING: If the Durabase divider is removed, there is

enough open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or

suffocation risk, DO NOT allow them to play inside of

drawer.

PULL OUT DRAWER

To separate the drawer, push the front left and right hooks

in  direction to pull up and remove.

Then gently lift the gear part of rear left and right side of

the drawer and pull it out in  direction.

To install, reposition the gear part of rear left and right

side of the drawer after pulling out both rails as much as

possible, and gently push down both left and right side

while checking the hook on the front part.

USING YOUR REFRIGERATOR

FILTER

It is recommended that you replace the filter when the

water filter indicator icon turns on or your water dispenser

or ice maker performance decreases noticeably.

After changing the water filter cartridge, reset the water

filter status display and indicator icon by pressing and

holding the Filter Reset button for 3 seconds.

1. Remove the old cartridge.

Place a container under

the hole of filter holder.

NOTE: When filter is being removed, the water drains

through the hole.

Rotate the knob of the

cartridge counter

clockwise.

Pull out the filter cartridge.

2. Replace with a new cartridge.

Take the new cartridge out of its packaging and

remove protective cover from the o-rings.

With cartridge knob in the vertical position, push the

new filter cartridge into the cover until it stops.

If you can’t turn the filter from side to side, it isn’t fully

inserted. Push it in firmly and twist it into place. You will

hear the snap when it clicks into place.

Using its handle, twist the cartridge clockwise about 1/4

turn. You will hear the snap when it clicks into place.

3. Flushing the Water System After Replacing Filter

Dispense water through the water dispenser for 3

minutes to purge the system.

NOTE: To purchase replacement water filter cartridges,

visit your local appliance dealer or part distributor.

You can also visit our website: www.lg.ca

or 1-888-542-2623 (1-888-LG-CANADA)

The replacement water filter cartridge’s part number is

5231JA2006A.

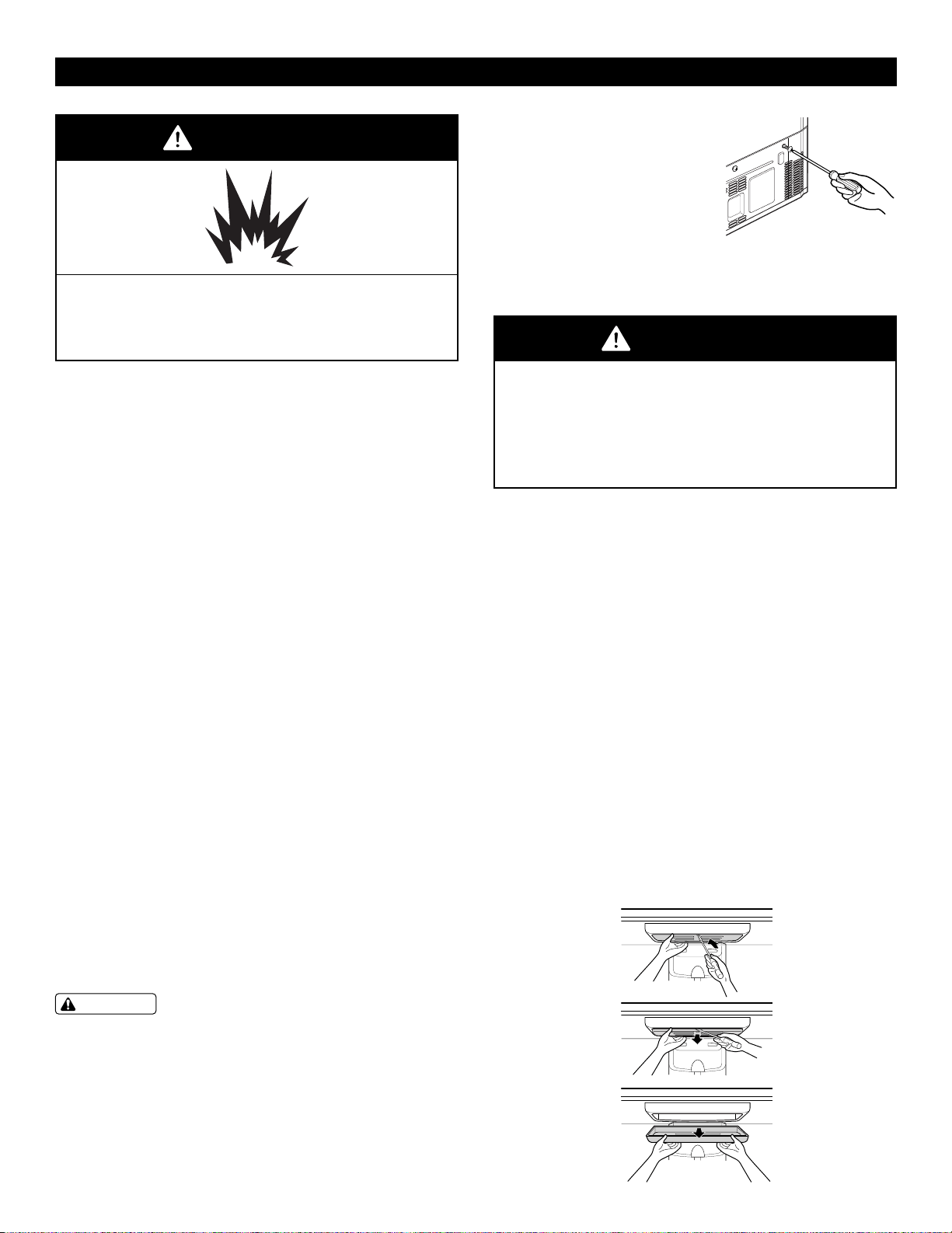

CARE AND CLEANING

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about once

a month to prevent odors. Wipe up spills immediately.

GENERAL CLEANING TIPS

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves,

crispers, etc. Refer to sections in Using Your

Refrigerator for removal instructions.

• Use a clean sponge or soft cloth and a mild detergent in

warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly.

• Plug in refrigerator or reconnect power.

OUTSIDE

Waxing external painted metal surfaces helps provide rust

protection. Do not wax plastic parts. Wax painted metal

surfaces at least twice a year using appliance wax (or

auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean

sponge or soft cloth and a mild detergent in warm water.

Do not use abrasive or harsh cleaners. Dry thoroughly

with a soft cloth.

INSIDE WALLS (allow freezer to warm up so

cloth won’t stick)

To help remove odors, you can wash the inside of the

refrigerator with a mixture of baking soda and warm water.

Mix 2 tablespoons baking soda to 1 quart of water (26 g

soda to 1 liter water.) Be sure the baking soda is

completely dissolved so does it not scratch the surfaces of

the refrigerator.

: While cleaning the inside, do not spray water.

DOOR LINERS AND GASKETS

Do not use cleaning waxes, concentrated detergents,

bleaches, or cleaners containing petroleum on plastic

refrigerator parts.

PLASTIC PARTS (covers and panels)

Do not use window sprays, abrasive cleansers, or flammable

fluids. These can scratch or damage the material.

CONDENSER COILS

Remove Back cover.

Use a vacuum cleaner with an

extended attachment to clean

condenser coils. Vacuum coils

when dusty or dirty. Coils may

need to be cleaned as often as

every other month.

LIGHT BULB REPLACEMENT

NOTE:

• Not all appliance bulbs will fit your refrigerator. Be sure to

replace the bulb with one of the same size, shape and wattage.

• The light bulbs will turn off if door is left open for seven

continuous minutes. Shutting door for one second will light

bulbs to come back on.

• There is a safety thermal protector in the "fresh food"

compartments interior lights to prevent over heating if the

door is left open too long. If the lights go off because the

thermal protector is activated, close the doors and allow 10

minutes for the thermal protector to reset.

To change Refrigerator Light Bulbs

1. Unplug Refrigerator, or disconnect power at the circuit breaker.

2. If necessary, remove top shelf or shelves.

3. Using a flat instrument, gently pry the lamp cover loose in the

front as shown. Rotate downward to remove rear tabs.

4. Make sure the bulbs are cool to the touch.

Turn bulbs counterclockwise to remove. Insert new bulb(s).

5. Replace with a new 60-watt appliance bulb.

6. Assemble in reverse order by snapping the Lamp Cover in,

engaging the rear tabs followed by the front tabs.

WARNING

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug the

refrigerator or turn off power at the circuit breaker or fuse box.

NOTE: Moving the control to the OFF position

does not remove power to the light circuit.

WARNING

Explosion Hazard

Use non-flammable cleaner.

Failure to do so can result in death, explosion, or fire.

CAUTION

CARE AND CLEANING

To change freezer light

1. Unplug refrigerator power cord form outlet.

2. Using a flat instrument, gently pry the lamp cover loose

in the front as shown. Rotate downward to remove the

rear tabs.

3. Make sure the bulb is cool to the touch. Turn the bulb

counterclockwise to remove.

4. Replace with a new 60-watt appliance bulb.

5. Insert tabs on back of cover into slots in freezer ceiling.

Push cover up to snap front into place.

: DO NOT place fingers inside of cover.

Lamp may be hot.

POWER INTERRUPTIONS

1. If the power will be out for 24 hours or less, keep

all refrigerator doors closed to help foods

stay cold and frozen.

2. If the power will be out for more than 24 hours:

a) Remove all frozen food and store it in a frozen

food locker.

WHEN YOU GO ON VACATION

If you choose to leave the refrigerator on while you

are away, follow these steps to prepare your refrigerator

before you leave.

1. Use up any perishables and freeze other items.

2. Empty the ice bin.

If you choose to turn the refrigerator off before you

leave, follow these steps.

1. Remove all food from the refrigerator.

2. Depending on your model, set the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Clean refrigerator, wipe it and dry well.

4. Tape rubber or wood blocks to the tops of both doors to

prop them open far enough for air to get in. This stops

odor and mold from building up.

WHEN YOU MOVE

When you are moving your refrigerator to a new home,

follow these steps to prepare it for the move.

1. Remove all food from the refrigerator and pack all

frozen food in dry ice.

2. Depending on your model, turn the thermostat control

(refrigerator control) to OFF. See the Setting the

Controls section.

3. Unplug the refrigerator.

4. Clean, wipe and dry thoroughly.

5. Take out all removable parts, wrap them well and tape

them together so they don’t shift and rattle during the

move. Refer to sections in Using your Refrigerator for

removal instructions.

6. Depending on the model, raise the front of the

refrigerator so it rolls more easily OR screw in the

leveling legs all the way so they don’t scrape the floor.

See the Door Closing section.

7. Tape the doors shut and tape the power cord to the

refrigerator cabinet.

When you get to your new home, put everything back

and refer to the Installing Your Refrigerator section for

preparation instructions.

CAUTION

ABOUT THE AUTOMATIC ICEMAKER

OPERATION INSTRUCTIONS

A newly-installed refrigerator may take

12 to 24 hours to begin making ice.

The icemaker will produce 8 cubes per cycle—

approximately 100–130 cubes in a 24-hour period,

depending on freezer compartment temperature, room

temperature, number of door openings and other

operating conditions.

If the refrigerator is used before the water connection is

made to the icemaker, set the power switch to O (off).

When the refrigerator has been connected to the water

supply, set the power switch to I (on).

The icemaker will fill with water when it cools to freezing.

A newly-installed refrigerator may take 12 to 24 hours to

begin making ice cubes.

Throw away the first few batches of ice to allow the water

line to clear.

Be sure nothing interferes with the sweep of the

Automatic Shut off Arm.

When the bin fills to the level of the Automatic Shut off

Arm, the icemaker will stop producing ice.

It is normal for several cubes to be stuck together.

If ice is not used frequently, old ice cubes will become

cloudy, taste stale, and shrink.

NOTE: If the cube size is smaller or larger than you

expected, you can regulate the size with the cube size

button.

Every time you press the cube size button, the indicator

moves up one light. The higher the light position, the

larger the cubes will be. Pressing at the highest position

returns the indicator to the lowest position.

WHEN YOU SHOULD SET THE ICEMAKER

POWER SWITCH TO O (OFF)

• When the water supply will be shut off for several hours.

• When the ice storage bin is removed for more than a

minute or two.

• When the refrigerator will not be used for several days.

NORMAL SOUNDS YOU MAY HEAR

• The icemaker water valve will buzz as the icemaker fills

with water. If the power switch is in the I (on) position, it

will buzz even if it has not yet been hooked up to water.

To stop the buzzing, move the power switch to O (off).

NOTE: Keeping the power switch in the I (on) position

before the water line is connected can damage the

icemaker.

• You will hear the sound of cubes dropping into the bin

and water running in the pipes as the icemaker refills.

PREPARING FOR VACATION

Set the icemaker power switch to O (off) and shut off the

water supply to the refrigerator.

If the ambient temperature will drop below freezing, have

a qualified servicer drain the water supply system to

prevent serious property damage due to flooding from

ruptured water lines or connections.

Icemaker

Cube Size

Indicator Light

Cube Size

Select Button

Power Switch

Automatic

Shut off Arm

WARNING

Personal Injury Hazard

Avoid contact with the moving parts of the ejector

mechanism, or with the heating element that releases

the cubes. DO NOT place fingers or hands on the

automatic icemaking mechanism while the refrigerator

is plugged in.

BEFORE YOU BEGIN

This water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

instructions carefully to minimize the risk of expensive

water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and lead

to water leakage or flooding. Call a qualified plumber to

correct water hammer before installing the water supply

line to the refrigerator.

To prevent burns and product damage, do not hook up

the water line to the hot water line.

If you use your refrigerator before connecting the water

line, make sure the icemaker power switch is in the O

(off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power

drill) during installation, be sure the device is double-

insulated or grounded in a manner to prevent the hazard

of electric shock, or is battery-powered.

All installations must be in accordance with local plumbing

code requirements.

NOTE: Wear eye protection.

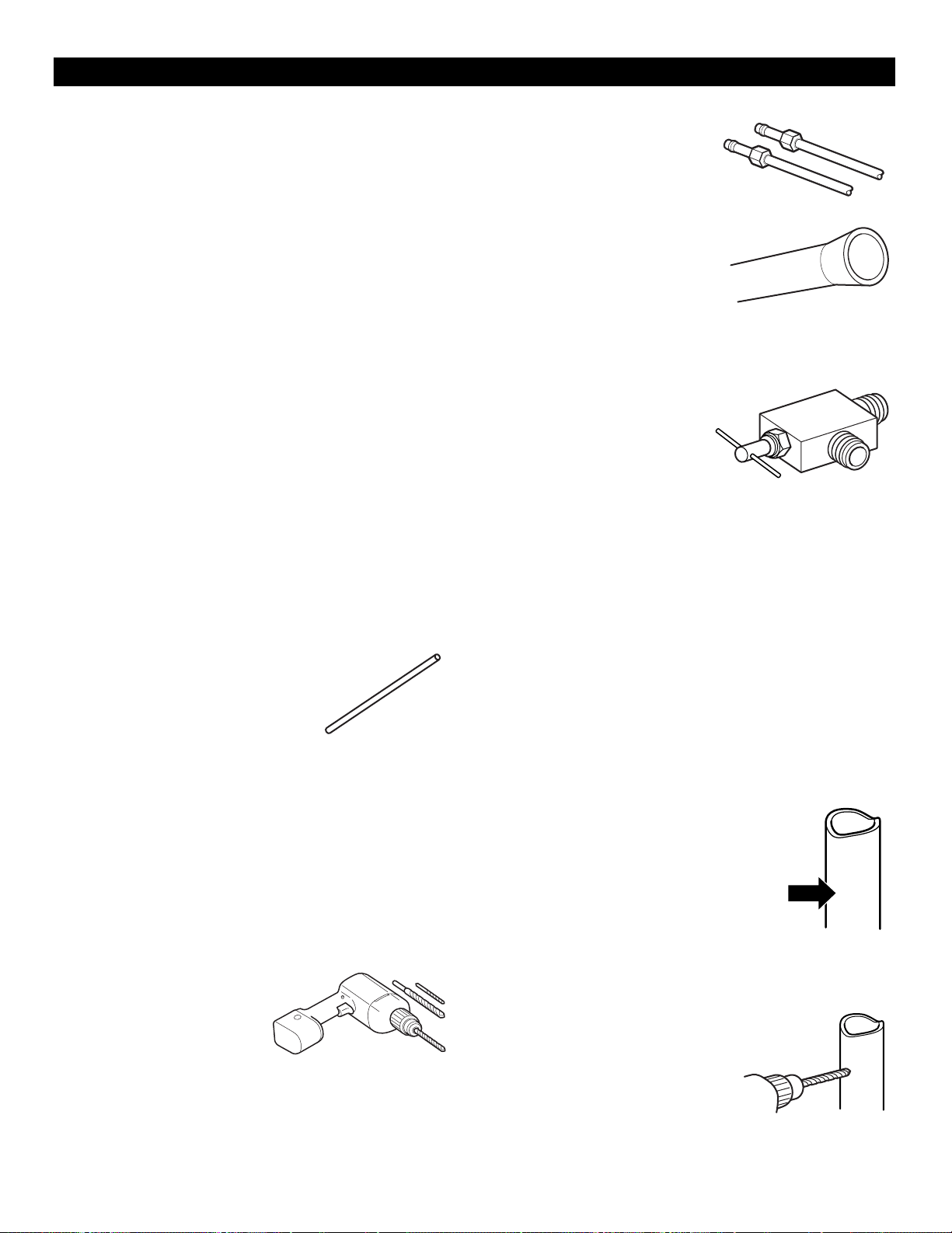

WHAT YOU WILL NEED

• Copper Tubing, 1/4" outer

diameter to connect the refrigerator

to the water supply. Be sure both

ends of the tubing are cut square.

To determine how much tubing you need: measure

the distance from the water valve on the back of the

refrigerator to the water supply pipe. Then add 8 feet

(2.4 m). Be sure there is sufficient extra tubing (about

8 feet [2.4 m] coiled into 3 turns of about 10" [25 cm]

diameter) to allow the refrigerator to move out from the

wall after installation.

• A cold water supply. The water pressure must be

between 20 and 120 p.s.i. on models without a water

filter and between 40 and 120 p.s.i. on models with a

water filter.

• Power drill.

• 1/2" or adjustable

wrench.

• Straight- and Phillips-

blade screwdriver.

• Two 1/4" outer diameter

compression nuts and

2 ferrules (sleeves) to

connect the copper tubing to

the shutoff valve and the

refrigerator water valve.

• If your existing copper water

line has a flared fitting at the

end, you will need an

adapter (available at

plumbing supply stores) to

connect the water line to the refrigerator OR you can

cut off the flared fitting with a tube cutter and then use

a compression fitting.

• Shutoff valve to connect to

the cold water line. The

shutoff valve should have a

water inlet with a minimum

inside diameter of 5/32" at

the point of connection to the

COLD WATER LINE. Saddle-type shutoff valves are

included in many water supply kits. Before purchasing,

make sure a saddle-type valve complies with your local

plumbing codes.

INSTALLATION INSTRUCTIONS

Install the shutoff valve on the nearest frequently used

drinking water line.

1. SHUT OFF THE MAIN WATER SUPPLY

Turn on the nearest faucet to relieve the pressure on

the line.

2. CHOOSE THE VALVE LOCATION

Choose a location for the valve that

is easily accessible. It is best to

connect into the side of a vertical

water pipe. When it is necessary to

connect into a horizontal water pipe,

make the connection to the top or

side, rather than at the bottom, to

avoid drawing off any sediment from

the water pipe.

3. DRILL THE HOLE FOR THE VALVE

Drill a 1/4" hole in the water

pipe (even if using a self-

piercing valve) using a sharp

bit. Remove any burrs resulting

from drilling the hole in the

pipe. Take care not to allow

water to drain into the drill.

Failure to drill a 1/4" hole may result in reduced ice

production or smaller cubes.

CONNECTING THE WATER LINE

INSTALLATION INSTRUCTIONS

(CONTINUED)

4. FASTEN THE SHUTOFF VALVE

Fasten the shutoff valve to the cold water pipe with

the pipe clamp.

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

5. TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer

begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

6. ROUTE THE TUBING

Route the tubing between the cold water line and the

refrigerator.

Route the tubing through a hole drilled in the wall or

floor (behind the refrigerator or adjacent base cabinet)

as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing (about 8

feet coiled into 3 turns of about 10" diameter) to allow

the refrigerator to move out from the wall after

installation.

7. CONNECT THE TUBING TO THE VALVE

Place the compression nut and ferrule (sleeve)

for copper tubing onto the end of the tubing and

connect it to the shutoff valve. Make sure the tubing is

fully inserted into the valve. Tighten the compression

nut securely.

NOTE: Commonwealth of Massachusetts Plumbing

Codes 248CMR shall be adhered to. Saddle valves

are illegal and use is not permitted in Massachusetts.

Consult with your licensed plumber.

8. FLUSH OUT THE TUBING

Turn the main water supply on

and flush out the tubing until the

water is clear.

Shut the water off at the water

valve after about one quart of

water has been flushed through

the tubing.

CONNECTING THE WATER LINE

Pipe Clamp

Vertical Cold

Water Pipe

Saddle-Type

Shutoff Valve

Saddle-Type

Shutoff Valve

Ferrule (sleeve)

Compression Nut

Packing Nut

Outlet Valve

Pipe Clamp

Inlet End

Washer

Clamp Screw

CONNECTING THE WATER LINE

9. CONNECT THE TUBING TO THE

REFRIGERATOR

Removing and Replacing Valve Cover.

NOTE:

• Before making the connection to the refrigerator, be

sure the refrigerator power cord is not plugged into

the wall outlet.

1. Remove the plastic flexible cap from the water valve.

2. Place the compression nut and ferrule (sleeve) onto

the end of the tubing as shown.

3. lnsert the end of the copper tubing into the

connection as far as possible. While holding the

tubing, tighten the fitting.

: Check to see if water dripping occurs

at water line connections.

10. TURN THE WATER ON AT THE

SHUTOFF VALVE

Tighten any connections that leak.

Reattach the compressor compartment access cover.

11. PLUG IN THE REFRIGERATOR

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the

wall. Push the refrigerator back to the wall.

12. START THE ICEMAKER

Set the icemaker power switch to the ON position.

The icemaker will not begin to operate until it reaches

its operating temperature of 15°F (–9°C) or below.

It will then begin operation automatically if the

icemaker power switch is in the I (on) position.

1/4 " Tubing

Tubing Clamp

1/4 "

Compression

Nut

Ferrule

(sleeve)

Refrigerator

Connection

CAUTION

TROUBLESHOOTING GUIDE

UNDERSTANDING SOUNDS YOU MAY HEAR

Your new refrigerator may make sounds that your old one

didn’t make. Because the sounds are new to you, you might

be concerned about them. Most of the new sounds are

normal. Hard surfaces, like the floor, walls and cabinets, can

make the sounds seem louder than they actually are. The

following describes the kinds of sounds and what may be

making them.

• The defrost timer will click when the automatic defrost

cycle begins and ends. The thermostat control (or

refrigerator control, depending on the model) will also

click when cycling on and off.

• Rattling noises may come from the flow of refrigerant,

the water line, or items stored on top of the refrigerator.

• Your refrigerator is designed to run more efficiently to

keep your food items at the desired temperature.

The high efficiency compressor may cause your new

refrigerator to run longer than your old one, and you may

hear a pulsating or high-pitched sound.

• You may hear the evaporator fan motor circulating the

air through the refrigerator and freezer compartments.

• As each cycle ends, you may hear a gurgling sound due

to the refrigerant flowing in your refrigerator.

• Contraction and expansion of the inside walls may cause

a popping noise.

• Water dripping on the defrost heater during a defrost

cycle may cause a sizzling sound.

• You may hear air being forced over the condenser by

the condenser fan.

• You may hear water running into the drain pan during

the defrost cycle.

REFRIGERATOR

DOES NOT

OPERATE

VIBRATION OR

RATTLING NOISE

LIGHTS DO NOT

WORK

The power supply cord is unplugged.

A household fuse has blown or circuit

breaker tripped.

The refrigerator control is set to the OFF

position.

Refrigerator is in the defrost cycle.

The refrigerator is not resting solidly on the

floor.

The power supply cord is unplugged.

Light bulb is loose in the socket.

Light bulb has burned out.

Door is left open for seven continuous minutes.

❿ Firmly plug the cord into a live outlet with

proper voltage.

❿ Replace the fuse or reset the circuit breaker.

❿ Refer to the Setting the Controls section on

page 20.

❿ Wait about 30 minutes for defrost cycle to end.

❿ Floor is weak or uneven or leveling legs need

adjusting.

See Installation section on page 12.

❿ Firmly plug the cord into a live outlet with

proper voltage.

❿ Turn the refrigerator control to the OFF

position and unplug the refrigerator. Gently

remove the bulb and reinsert. Then plug in

refrigerator and reset the refrigerator control.

❿ Replace with an appliance bulb of the same

wattage, size and shape available at your

local hardware store. (See the Changing

the Light Bulb(s) section on pages 28-29.)

Turn the temperature control to the OFF

position and unplug the refrigerator prior to

replacement.

❿ Shutting door for one second will light bulbs to

come back on.

Check if… Then…

TROUBLESHOOTING GUIDE

COMPRESSOR

MOTOR SEEMS

TO RUN TOO

MUCH

DOORS WILL

NOT CLOSE

COMPLETELY

FROST OR ICE

CRYSTALS ON

FROZEN FOOD

The refrigerator that was replaced was an

older model.

The room temperature is hotter than normal.

The door is opened often or a large amount of

food has just been added.

The refrigerator was recently plugged in and

the refrigerator control was set correctly.

The refrigerator control is not set correctly for

the surrounding conditions.

The doors are not closed completely.

The condenser coils are dirty.

The refrigerator is not level.

Food packages are blocking the door open.

The ice bin, crisper cover, pans, shelves,

door bins or baskets are out of position.

The gaskets are sticking.

The refrigerator wobbles or seems unstable.

The doors were removed during product

installation and not properly replaced.

The door is not closing properly.

The door is opened often.

❿ Modern refrigerators with more storage

space require more operating time.

❿ The motor will run longer under warm

conditions. At normal room temperatures,

expect your motor to run about 40% to 80%

of the time. Under warmer conditions,

expect it to run even more often.

❿ Adding food and opening the door warms

the refrigerator.

It is normal for the refrigerator to run longer

in order to cool the refrigerator back down.

Adding a large amount of food warms the

refrigerator. See the Food Storage Guide

section on page 21. In order to conserve

energy, try to get everything you need out of

the refrigerator at once, keep food organized

so it is easy to find and close the door as

soon as the food is removed.

❿ The refrigerator will take up to 24 hours to

cool completely.

❿ See the Adjusting Control Settings section

on page 21.

❿ Push the doors firmly shut. If they will not

shut all the way, see Doors will not close

completely below.

❿ This prevents air transfer and makes the

motor work harder.

Clean the condenser coils. Refer to the

Care and Cleaning section on pages 28-29.

❿ See Leveling and Door Alignment on

page 19.

❿ Rearrange food containers to clear door and

door shelves.

❿ Push bins all the way in and put crisper

cover, pans, shelves and baskets into their

correct positions. See the Using Your

Refrigerator section on pages 20-27.

❿ Clean gaskets and the surface that they

touch. Rub a thin coat of paraffin wax on the

gaskets after cleaning.

❿ Level the refrigerator. Refer to the Leveling

and Door Alignment section on page 19.

❿ Remove and replace the doors according to

the Removing and Replacing Refrigerator

handles and doors section on pages 13-18,

or call a qualified service technician.

❿ See Doors will not close completely above.

❿ When the door is opened, warm, humid air is

allowed in the freezer, resulting in frost.

Check if… Then…

TROUBLESHOOTING GUIDE

ICE HAS OFF-

TASTE OR ODOR

THERE IS

WATER IN THE

DEFROST DRAIN

PAN

THE

REFRIGERATOR

SEEMS TO

MAKE TOO

MUCH NOISE

THE ICEMAKER

IS NOT

PRODUCING ICE

OR ICE CUBES

ARE FREEZING

TOO SLOWLY

CUBES

PRODUCED BY

ICEMAKER ARE

TOO SMALL

THE DOORS ARE

DIFFICULT TO

OPEN

The icemaker was recently installed.

The ice has been stored for too long.

The food has not been wrapped tightly in

either compartment.

The water supply contains minerals such as

sulfur.

The interior of refrigerator needs cleaning.

Ice storage bin needs cleaning.

The refrigerator is defrosting.

It is more humid than normal.

The sounds may be normal for your

refrigerator.

The freezer temperature is cold enough to

produce ice.

Door left open.

Smaller cube size level is selected.

Water shutoff valve connecting refrigerator to

water line may be clogged.

The gaskets are dirty or sticky.

The door is reopened within a short time after

having been opened.

❿ Discard first few batches of ice to avoid

discolored or off-flavored ice.

❿ Throw away old ice and make new supply.

❿ Rewrap foods since odors may migrate to

the ice if food is not wrapped properly.

❿ A filter may need to be installed (or

replaced) to eliminate taste and odor

problems.

❿ See Care and Cleaning section on pages

28-29.

❿ Empty and wash bin. Discard old cubes.

❿ The water will evaporate. It is normal for

water to drip into the defrost pan.

❿ Expect that the water in the defrost pan will

take longer to evaporate. This is normal

when it is hot or humid.

❿ Refer to the Understanding Sounds You

May Hear section on page 34.

❿ Wait 24 hours after hook-up for ice

production. See the Setting the Controls

section on page 20.

❿ Check to see if something is holding the

door open.

❿ Select larger cube size using cube size

selector.

❿ Call a plumber to clear the valve.

❿ Clean gaskets and the surfaces that they

touch. Rub a thin coat of appliance polish or

kitchen wax on the gaskets after cleaning.

❿ When you open the door, warmer air enters

the refrigerator. As the warm air cools, it can

create a vacuum. If the door is hard to open,

wait 5 minutes to allow the air pressure to

equalize, then see if it opens more easily.

Check if… Then…

TROUBLESHOOTING GUIDE

TEMPERATURE

IS TOO WARM

OR THERE IS

INTERIOR

MOISTURE

BUILDUP

The air vents are blocked. Cold air circulates

from the freezer to the fresh food section and

back again through air vents in the wall

dividing the two sections.

The doors are opened often.

The control is not set correctly for the

surrounding conditions.

A large amount of food has just been added to

the refrigerator or freezer.

The food is not packaged correctly.

The doors are not closing completely.

The weather is humid.

A self-defrost cycle was completed.

❿ Locate air vents by using your hand to

sense airflow and move all packages that

block vents and restrict airflow. Refer to

Multi-Flow on page 20 for the location of air

vents.

❿ When the door is opened, warm humid air is

allowed into the refrigerator. The more the

door is opened, the faster the humidity

builds up, and the more warm air the

refrigerator must cool. In order to keep the

refrigerator cool, try to get everything you

need out of the refrigerator at once, keep

food organized so it is easy to find and close

the door as soon as the food is removed.

❿ Refer to the Setting the Controls section

on page 20.

Wait 24 hours for temperatures to stabilize

or even out. If the temperature is too cold or

too warm, move the dial one number at a

time.

❿ Adding food warms the refrigerator. It can

take a few hours for the refrigerator to return

to normal temperature.

❿ Wrap food tightly and wipe off damp

containers prior to storing in the refrigerator

to avoid moisture accumulation.

If necessary, repackage food according to the

guidelines in the Food Storage Guide

section on page 21.

❿ See Doors will not close completely on

page 35.

❿ In humid weather, air carries moisture into

refrigerator when doors are opened.

❿ It is normal for droplets to form on the back

wall after the refrigerator self-defrosts.

Check if… Then…

P/No. MFL37933517

LG Electronics LFD21870ST Lg 3-door French Door Refrigerator With External Water Dispenser 20.5 Cu.ft.

Product's Documents

User Manual

Specifications

LG Electronics LFD21870ST Questions and Answers

Related Products

LFD23860SW Lg Refrigerators - 3-door French Door Refrigerator With External Water Dispenser 22.7 Cu.ft. - Lg Electronics Ca_en

LG Electronics LFD25870ST Lg 3-door French Door Refrigerator With External Water Dispenser 24.7 Cu.ft.

LG Electronics LRFCS25D3SS LG Refrigerator French Door 25 Cu Ft in PrintProof

LG Electronics LRFXS3106SS LG French Door Refrigerator 30.7 Cu. Ft. Smart Standard-Depth MAX in Stainless Steel Finish

GR-L218STSL French Door Refrigerator - Refrigerators - - Lg Electronics Australia

GM-B208BVS French Door Refrigerator - Refrigerators - - Lg Electronics Australia
