DH3120S (DH3120S, SH35SD-S/W)
Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
DVD Home Cinema
System
FOR THE WARRANTY TERMS & CONDITIONS,
PLEASE REFER TO BACK COVER OF THIS MANUAL.
DH3120S-D0_BGBRLLK_ENG_6163.indd 1 2012-02-13 �� 12:22:15
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sucient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION : This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
Safe way to remove the battery or the battery
from the equipment: Remove the old battery
pack, follow the steps in reverse order than
the assembly. To prevent contamination of the
environment and bring on possible threat to
human and animal health, the old battery or
the battery put in the appropriate container at
designated collection points. Do not dispose of
batteries or battery together with other waste. It is
recommended that you use local, free reimburse
ment system batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, re or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/ Live File System : Disc format system for
Windows Vista)
DH3120S-D0_BGBRLLK_ENG_6163.indd 2 2012-02-13 �� 12:22:16
Getting Started 3
Getting Started
1
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it
means the product is covered by the
European Directive 2002/96/EC.
2. All electrical and electronic products
should be disposed of separately
from the municipal waste stream
via designated collection facilities
appointed by the government or the
local authorities.
3. The correct disposal of your old
appliance will help prevent potential
negative consequences for the
environment and human health.
4. For more detailed information about
disposal of your old appliance, please
contact your city oce, waste disposal
service or the shop where you
purchased the product.
Disposal of waste batteries/accumulators
1. When this crossed-out wheeled
bin symbol is attached to batteries/
accumulators of Your product it means
they are covered by European Directive
2006/66/EC.
2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the battery
Contains more that 0.0005% of
mercury,0.002% of cadmium or 0.004%
of lead.
3. All batteries/accumulators should be
disposed separately from the municipal
waste stream via designated collection
facilities appointed by the government
or the local authorities.
4. The correct disposal of Your old
batteries/accumulators will help
to prevent potential negative
consequences for the environment,
animal and human health.
5. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your city
oce, waste disposal service or the
shop where You purchased the product.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and
other relevant provisions of Directive
2004/108/EC, 2006/95/EC, and
2009/125/EC.
European Standards Centre:
Krijgsman 1, 1186 DM Amstelveen
The Netherlands
y
Please note that this is NOT a
Customer Service contact point. For
Customer Service Information, see
Warranty Card or contact the dealer
that you purchased this product.
POWER: This unit operates on a mains supply of
200-240V~, 50/60Hz.
WIRING: This unit is supplied with a BSI 1363
approved 13 amp mains plug, fused at 5 amp.
When replacing the fuse always use a 5 amp BS
1362, BSI or ASTA approved type. Never use this
plug with the fuse cover omitted. To obtain a
replacement fuse cover contact your dealer. If the
type of plug supplied is not suitable for the mains
sockets in your home, then the plug should be
removed and a suitable type tted. Please refer to
the wiring instructions below:
WIRING: A mains plug removed from the mains
lead of this unit must be destroyed. A mains plug
with bared wires is hazardous if inserted in a
mains socket. Do not connect either wire to the
earth pin, marked with the letter E or with the
earth symbol
or coloured green or green and
yellow. If any other plug is tted, use a 5 amp fuse,
either in the plug, or at the distribution board.
IMPORTANT: The wires in this mains lead are
coloured in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours
of the wires in the mains lead of this unit may not
correspond with the coloured marking identifying
the terminals in your plug, proceed as follows: The
wire which is coloured blue must be connected
to the terminal which is marked with the letter
N or coloured black. The wire which is coloured
brown must be connected to the terminal which
is marked with the letter L or coloured red.
DH3120S-D0_BGBRLLK_ENG_6163.indd 3 2012-02-13 �� 12:22:16
Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
6 – Portable In
6 – USB Direct Recording
6 Accessories
7 Introduction
7 – Playable Discs
7 – About the & Symbol Display
7 – Symbol Used in this Manual
7 – Regional Codes
8 – Playable file Requirement
10 Front panel
10 Rear panel

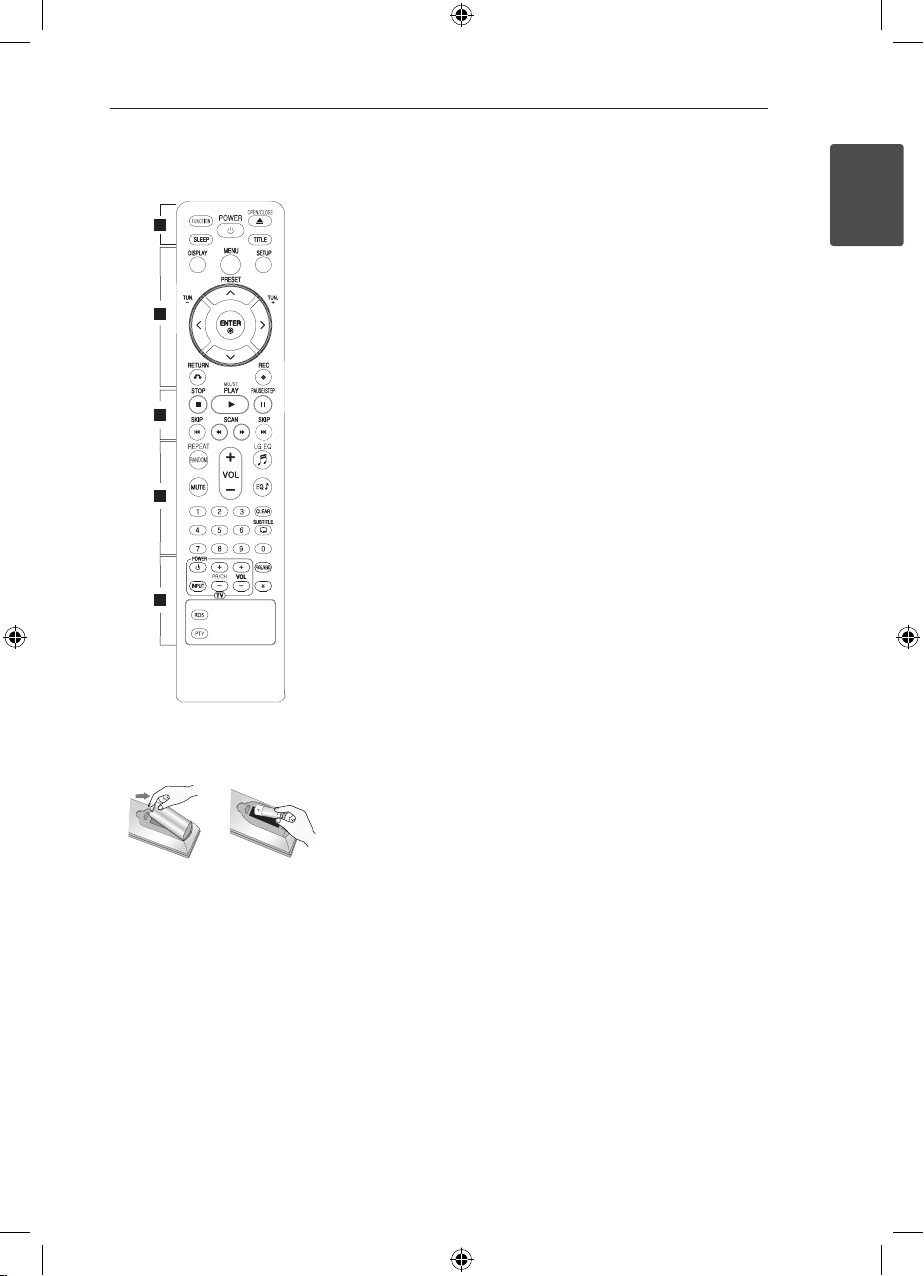

11 Remote control
2 Connecting

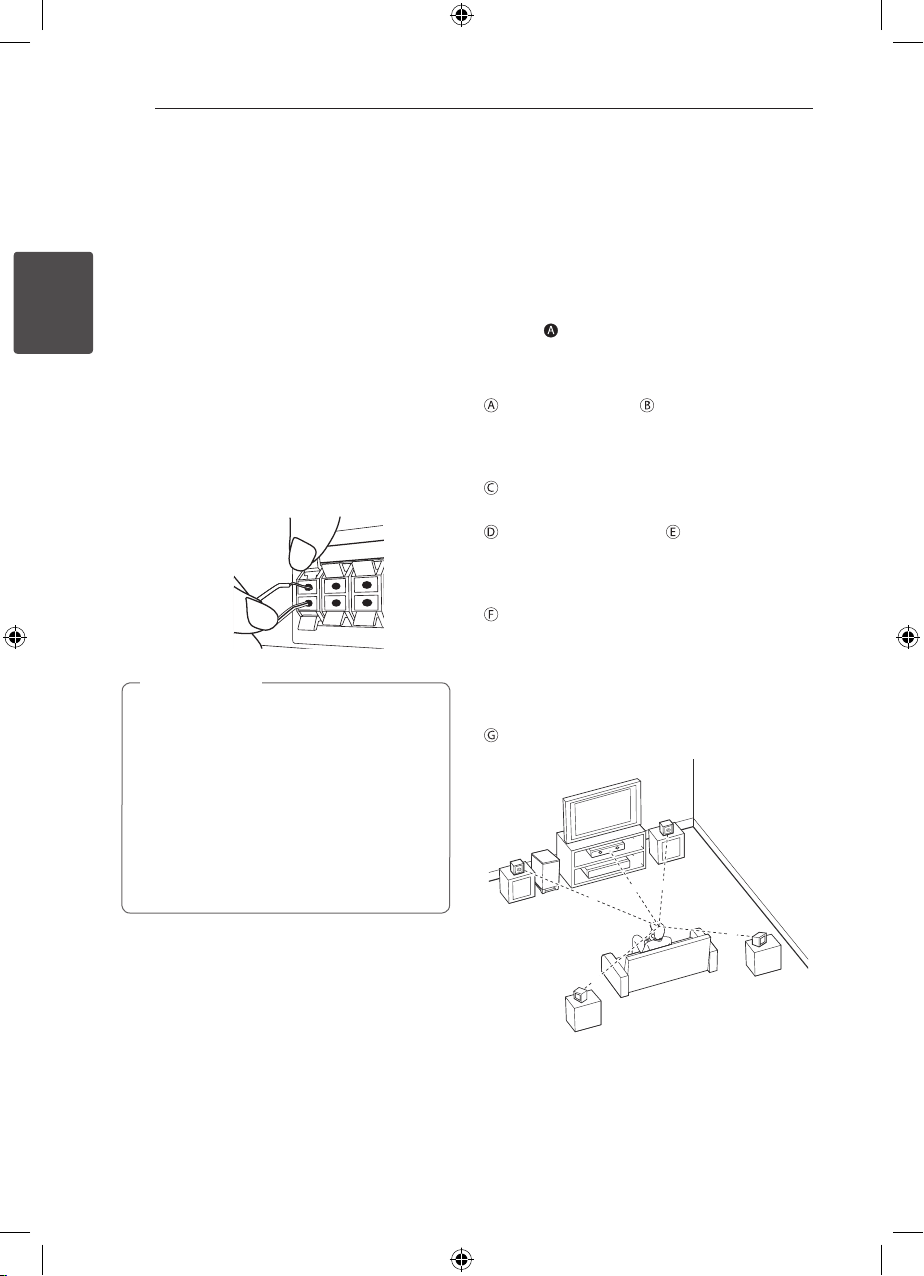

12 Connecting the speakers
12 – Attaching the speakers to the unit
12 – Positioning the System

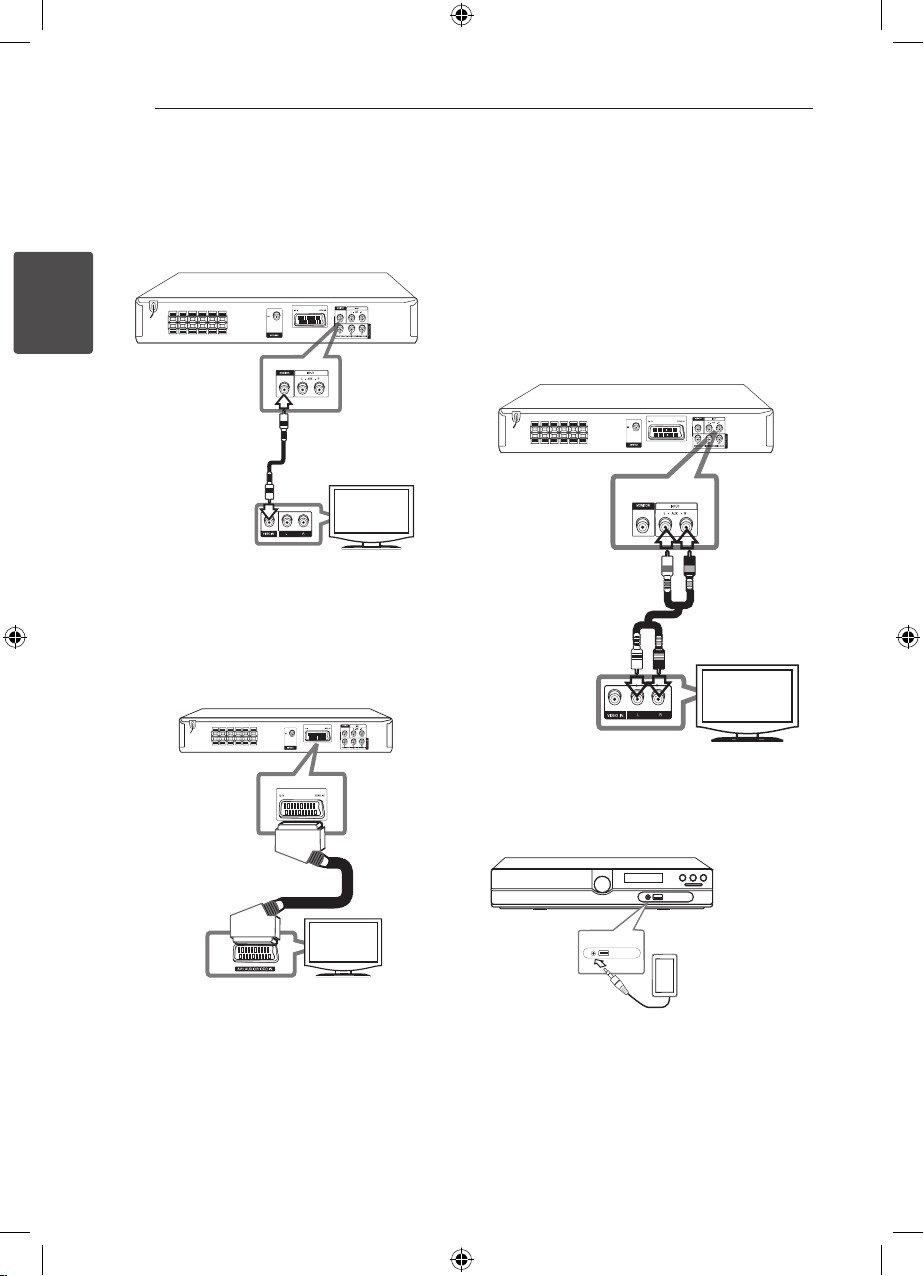

13 Connections to Your TV

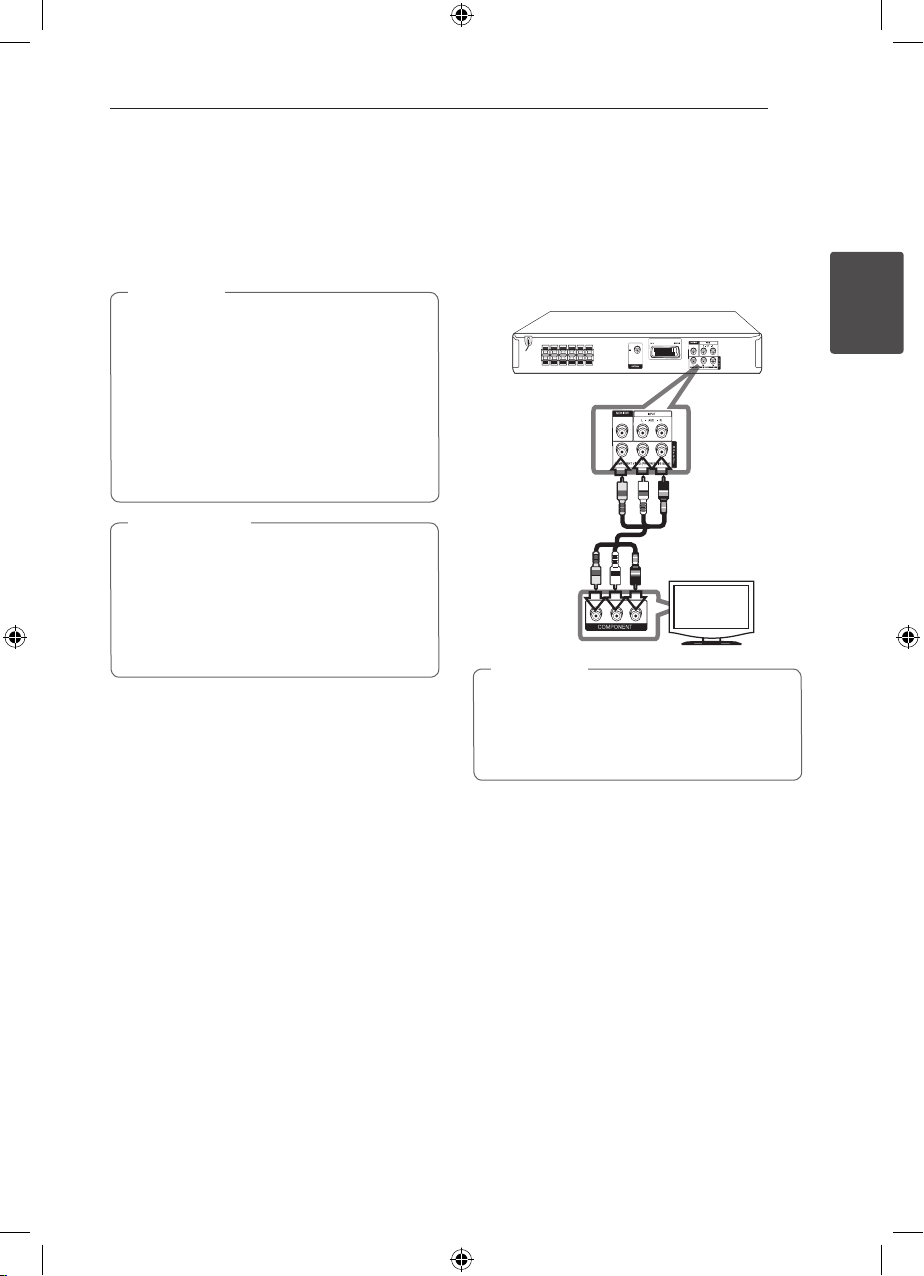

13 – Component Video Connection
14 – Video Connection
14 – SCART Connection
14 Optional Equipment Connection
14 – AUX IN Connection
14 – AUDIO IN (P. IN) Connection
15 – USB Connection
15 – Antenna Connection
3 System Setting
16 Adjust the Setup settings
16 – OSD Initial language settings -
Optional
16 – To display and exit the Setup Menu
16 – To display and exit the Setup Menu
16 – LANGUAGE
17 – DISPLAY

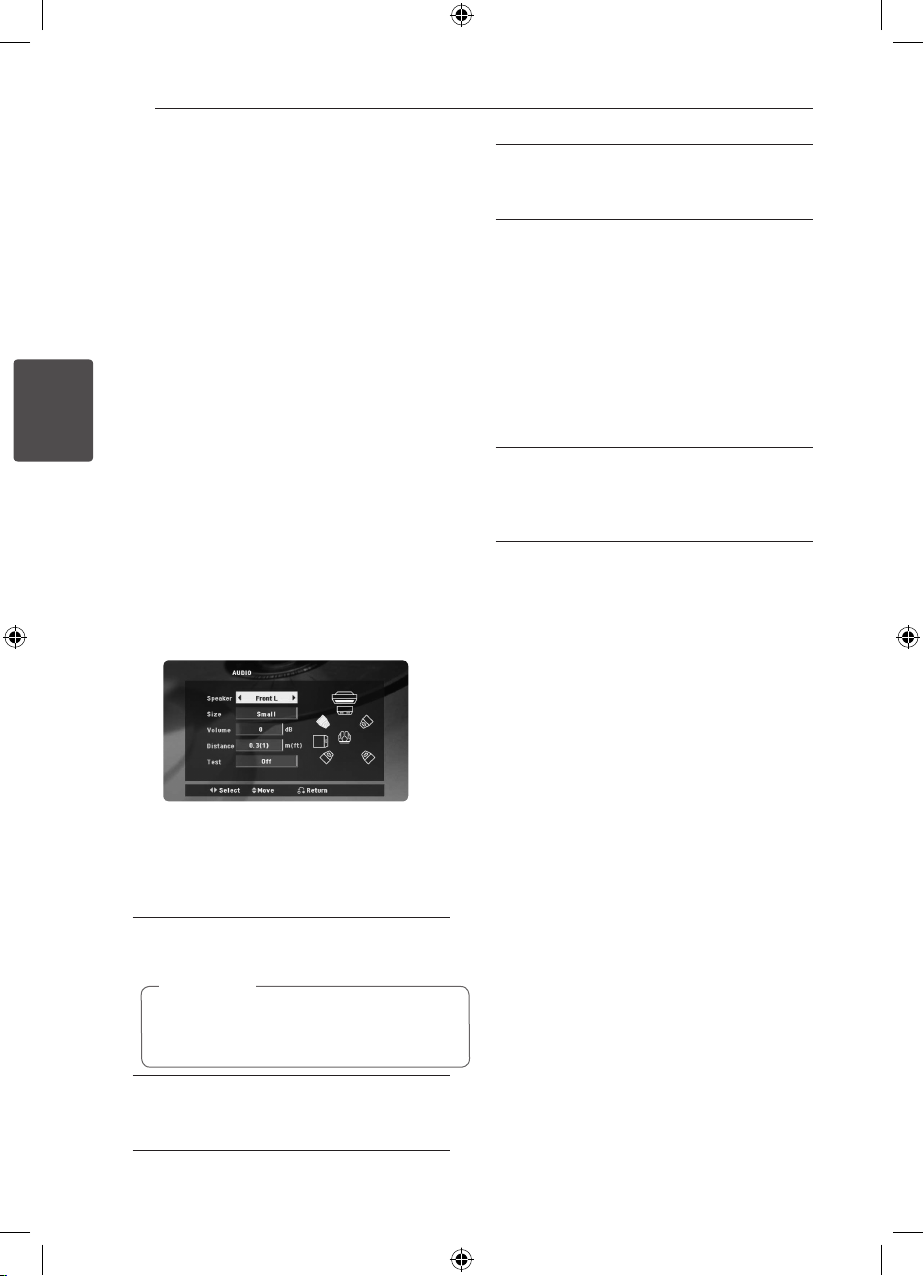

18 – AUDIO
18 – LOCK (Parental Control)
19 – OTHERS
4 Operating
20 Basic Operations
21 Other Operations
21 – Displaying Disc Information on-screen
21 – To display the DVD Menu
21 – To display the DVD Title
21 – Selecting a subtitle language
21 – 1.5 times speed playback
22 – Starting play from selected time
22 – Last Scene Memory
22 – Changing the character set to display
DivX® subtitle correctly
22 – Programmed Playback
23 – Viewing a PHOTO file
23 – Viewing photo files as a slide show
23 – Listening to music during slide show
23 – Sleep Timer Setting
23 – Dimmer
23 – Turn off the sound temporarily
24 – Screen Saver
24 – System Select - Optional
24 – Displaying file information
(ID3 TAG )
24 Radio Operations
24 – Listening to the Radio
24 – Presetting the Radio Stations
24 – Deleting all the saved stations
24 – Improving poor FM reception
24 – Seeing information about a radio
station
25 Sound adjustment
25 – Setting the surround mode
26 Advanced Operations
DH3120S-D0_BGBRLLK_ENG_6163.indd 4 2012-02-13 �� 12:22:16
Table of Contents 5
1
2
3
4
5
6
7
26 – Listening to music from your portable
player or external device
26 – Recording to USB
5 Troubleshooting
27 Troubleshooting
6 Appendix
28 Maintenance
28 – Handling the Unit
28 – Notes on Discs
29 Area Code List
30 Language Code List
31 Trademarks and Licenses
32 Specifications
7 Warranty
34 Warranty
DH3120S-D0_BGBRLLK_ENG_6163.indd 5 2012-02-13 �� 12:22:16
Getting Started6
Getting Started
1
Unique Features
Portable In
Listen to music from your portable device.
(MP3, Notebook, etc)
USB Direct Recording
Records music from CD to your USB device.
Accessories
Please check and identify the supplied accessories.
FM Antenna (1)
Remote Control (1)/
Battery (1)
Video Cable (1)
DH3120S-D0_BGBRLLK_ENG_6163.indd 6 2012-02-13 �� 12:22:17
Getting Started 7
Getting Started
1
Introduction
Playable Discs
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, DivX, MP3, WMA and/or
JPEG les. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the
recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.
DVD-VIDEO (8 cm / 12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm / 12 cm disc)
Video mode and nalized only.
DVD-RW (8 cm / 12 cm disc)
Video mode and nalized only.
DVD VR format that have been
nalized can not be played in this
unit.
DVD+R: Video mode only.
Supports the double layer disc also.
DVD+RW (8 cm / 12 cm disc)
Video mode and nalized only.
Audio CD: Music CDs or CD-R/CD-
RW in music CD format that can be
purchased.
About the
&
Symbol Display
“
&
” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that disc.
Symbol Used in this Manual
r
DVD-Video, DVD±R/RW in Video
mode or VR mode and nalized
t
Audio CDs
y
Video les contained in the
USB/Disc
u
Audio les contained in the
USB/Disc
i
Photo les
,
Note
Indicates special notes and operating features.
>
Caution
Indicates cautions for preventing possible damages
from abuse.
Regional Codes
This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.
y
Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code; or
the disc cannot play.
y
If you try to play a DVD with a dierent regional
code from your unit, the message “Check
Regional Code” appears on the TV screen.
DH3120S-D0_BGBRLLK_ENG_6163.indd 7 2012-02-13 �� 12:22:17
Getting Started8
Getting Started
1
Playable file Requirement
MP3/ WMA music file requirement
MP3/ WMA le compatibility with this unit is limited
as follows :
y
Sampling frequency : within 32 kHz to
48 kHz (MP3), within 32 kHz to 48 kHz (WMA)
y
Bit rate : within 32 kbps to 320 kbps (MP3), 40
kbps to 192 kbps (WMA)
y
Support Version : v2, v7, v8, v9
y
Maximum les : Under 650
y
File extensions : “.mp3”/ “.wma”
y
CD-ROM le format : ISO 9660/ JOLIET
y
We recommend that you use Easy-CD Creator,
which creates an ISO 9660 le system.
Photo file requirement
JPEG disc compatibility with this unit is limited as
follows :
y
Max pixel in width : 2 760 x 2 048 pixel
y
Maximum les : Under 650
y
Some discs may not operate due to a dierent
recording format or the condition of disc.
y
File extensions: “.jpg”
y
CD-ROM le format : ISO 9660/ JOLIET
Compatible USB Devices
y
MP3 Player : Flash type MP3 player.
y
USB Flash Drive : Devices that support USB2.0
or USB1.1.
y
The USB function of this unit does not support
some USB devices.
USB device requirement
y
Devices which require additional program
installation connected to a computer, are not
supported.
y
Do not extract the USB device while in operation.
y
For a large capacity USB, it may take longer than
a few minute to be searched.
y
To prevent data loss, back up all data.
y
If you use a USB extension cable or USB hub, the
USB device is not recognized.
y
Using NTFS le system is not supported. (Only
FAT(16/32) le system is supported.)
y
This unit is not supported when the total
number of les is 1 000 or more.
y
External HDD, Card readers, Locked devices,
or hard type USB devices are not supported.
y
USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
DH3120S-D0_BGBRLLK_ENG_6163.indd 8 2012-02-13 �� 12:22:17
Getting Started 9
Getting Started
1
DivX file requirement
DivX le compatibility with this unit is limited as
follows :
y
Available resolution:
within 720 x 576 (W x H) pixels.
y
The le name of the DivX subtitle should be
entered within 45 characters.
y
If there is impossible code to express in the
DivX le, it may be displayed as “ _ “ mark on the
display.
y
Frame rate : less than 30 fps.
y
If the video and audio structure of recorded
les is not interleaved, either video or audio is
outputted.
y
Playable DivX le : “.avi”, “.mpg”, “.mpeg”, “.divx”
y
Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
y
Playable Codec format : “DIVX3.xx”, “DIVX4.xx”,
“DIVX5.xx”, “MP4V3”, “3IVX”.
y
Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.
y
Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y
Bit rate : within 32 kbps to 320 kbps (MP3), 40
kbps to 192 kbps (WMA)
y
For Discs formatted in Live le system, you can
not it on this unit.
y
If the name of movie le is dierent from that of
the subtitle le, during playback of a DivX le,
subtitle may not be display.
y
If you play a DivX le dierent from the DivXspec,
it may not operate normally.
DH3120S-D0_BGBRLLK_ENG_6163.indd 9 2012-02-13 �� 12:22:17
Getting Started10
Getting Started
1
Front panel
7
1 3 4 6
9 8
2
5
1011
a
DVD/CD Disc Drawer
b
Power (
1
/
!
)
c
Open/Close (
B
)
d
Display window
e
Play/Pause (
d
/
M
), MONO/ ST.
f
Stop (
Z
)
g
Function (F)
Selects the function or input source.
h
TUNING (-/+)(
C/V
), Skip/Search
You can search chapter/ track/ le by pressing
and holding
C/V
.
i
USB port
You can play video, image and sound les by
connecting the USB device.
j
P.(Portable) IN port
You can enjoy music from portable device on
your unit.
k
Volume (VOL.)
Rear panel
1
3
4
6
2
5
7
a
Power cord
b
Speaker terminal
c
ANTENNA connector (FM)
d
SCART connector
e
MONITOR (VIDEO OUT) connector
Connect to a TV with video inputs.
f
AUX (L/ R) INPUT connector
g
COMPONENT VIDEO (PROGRESS
I
VE
SCAN)
OUTPUT (Y P
B
P
R
)
Connect to a TV with Y P
B
P
R
inputs.
DH3120S-D0_BGBRLLK_ENG_6163.indd 10 2012-02-13 �� 12:22:18
Getting Started 11
Getting Started
1
Remote control
1
3
4
2
5
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert one (size AAA) battery with
4
and
5
matched correctly.
• • • • • •
a
• • • • •
FUNCTION : Selects the function
and input source.
SLEEP : Sets the system to turn o
automatically at a specied time.
(Dimmer : The display window will
be darken by half.)
POWER : Switches the unit ON or
OFF.
OPEN/CLOSE : Opens and closes
the disc Drawer.
TITLE : If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
• • • • • •
b
• • • • •
DISPLAY : Accesses On-Screen
Display.
MENU : Accesses the menu on a
DVD disc.
SETUP : Accesses or removes
setup menu.
PRESET (
WS
) : Selects
programme of Radio.
TUN. (-/+) : Tunes in the desired
radio station.
W/S/A/D
(up/ down/ left/
right): Used to navigate on-screen
displays.
ENTER (
b
) : Acknowledges menu
selection.
RETURN (
x
) : Moves backwards
in the menu or exits the setup
menu.
REC (
X
) : USB Direct Recording.
• • • • • •
c
• • • • •
STOP (
Z
) : Stops playback or
recording.
PLAY (
d
), MO./ST. : Starts
playback. Selects Mono/ Stereo.
PAUSE/STEP (
M
) : Pauses
playback.
SKIP (
C/V
) : Goes to next
or previous chapter/ track/ le.
SCAN (
c/v
) : Searches
backward or forward.
• • • • • •
d
• • • • •
REPEAT/RANDOM : Selects a play
mode.(Random, repeat)
MUTE : Mutes the sound.
VOL (Volume) (+/-) : Adjusts
speaker volume.
LG EQ (
9
) : Selects a NAT PLUS
or Local Specialization equalizer
eect by using LG EQ.
EQ
$
(EQUALIZER eect) :
Chooses sound impressions.
CLEAR : Removes a track number
on the Program List.
SUBTITLE : During playback, press
SUBTITLE repeatedly to select a
desired subtitle language .
0 to 9 numerical buttons :
Selects numbered options in a
menu.
• • • • • •
e
• • • • •
TV Control buttons : Controls the
TV. (LG TV only)
-
You can control the sound
level, input source, and power
switching of LG TVs as well.
Hold POWER (TV) and press
PR/CH (+/–) button repeatedly
until the TV turns on or o.
PROG./MEMO. : Accesses or
removes Program menu.
?
: This button is not available.
RDS : Radio Data System.
PTY : Views the various displays of
the RDS.
DH3120S-D0_BGBRLLK_ENG_6163.indd 11 2012-02-13 �� 12:22:18
2 Connecting
Connecting12
Connecting
2
Connecting the
speakers
Attaching the speakers to the
unit
To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Speaker connection
y
Be careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so
color irregularity may occur on the TV
screen or PC monitor screen. Please use the
speakers far away from either TV screen or
PC monitor.
>
Caution
Positioning the System
The following illustration shows an example of
positioning the system.
Note that the illustrations in these instructions dier
from the actual unit for explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position ( ).
Speaker Positioning
Front left speaker (L)/ Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as ush with the screen
surface as possible.
Center speaker: Place the center speaker above
or below the monitor or screen.
Surround left speaker (L)/ Surround right
speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
Subwoofer: The position of the subwoofer is
not so critical, because low bass sounds are not
highly directional. But it is better to place the
subwoofer near the front speakers. Turn it slightly
toward the center of the room to reduce the wall
reections.
Unit
A
B
D
E
F
A
A
A
A
A
G
C
DH3120S-D0_BGBRLLK_ENG_6163.indd 12 2012-02-13 �� 12:22:19
Connecting 13
Connecting
2
Connections to Your
TV
Make one of the following connections, depending
on the capabilities of your existing equipment.
y
Depending on your TV and other
equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.
y
Please refer to the manuals of your TV,
Stereo System or other devices as necessary
to make the best connections.
,
Note
y
Make sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel
y
Do not connect your player via your VCR.
The image could be distorted by the copy
protection system.
>
Caution
Component Video Connection
Connect the COMPONENT VIDEO (PROGRESSIVE
SCAN) OUTPUT jacks on the unit to the
corresponding input jacks on the TV using Y P
B
P
R
cables.
You can hear the sound through the system’s
speakers.
If your TV accepts progressive format signals,
you must use this connection and set
[Progressive Scan] in [Display] setup to [On]
(See page 17).
,
Note
DH3120S-D0_BGBRLLK_ENG_6163.indd 13 2012-02-13 �� 12:22:20
Connecting14
Connecting
2
Video Connection
Connect the MONITOR jack on the unit to the video
in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
SCART Connection
Connect the SCART jack on the unit to the SCART in
jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
Optional Equipment
Connection
AUX IN Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
If your TV has only one output for audio (mono),
connect it to the left (white) audio jack on the unit.
AUDIO IN (P. IN) Connection
Connect an OUTPUT of portable device (MP3 or
PMP etc) to the P. IN connector.
MP3 player, etc...
DH3120S-D0_BGBRLLK_ENG_6163.indd 14 2012-02-13 �� 12:22:20
Connecting 15
Connecting
2
USB Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Removing the USB Device from the unit
1. Choose a dierent function mode or
press STOP (
Z
) twice in a row.
2. Remove the USB device from the unit.
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
Connect the FM Wire antenna to the FM antenna
connector.
Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it
as horizontal as possible.
,
Note
DH3120S-D0_BGBRLLK_ENG_6163.indd 15 2012-02-13 �� 12:22:21
3 System Setting
System Setting16
System Setting
3
Adjust the Setup
settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
You can also set a language for the subtitles and
the Setup menu, among other things. For details on
each Setup menu item, see pages 16 to 19.

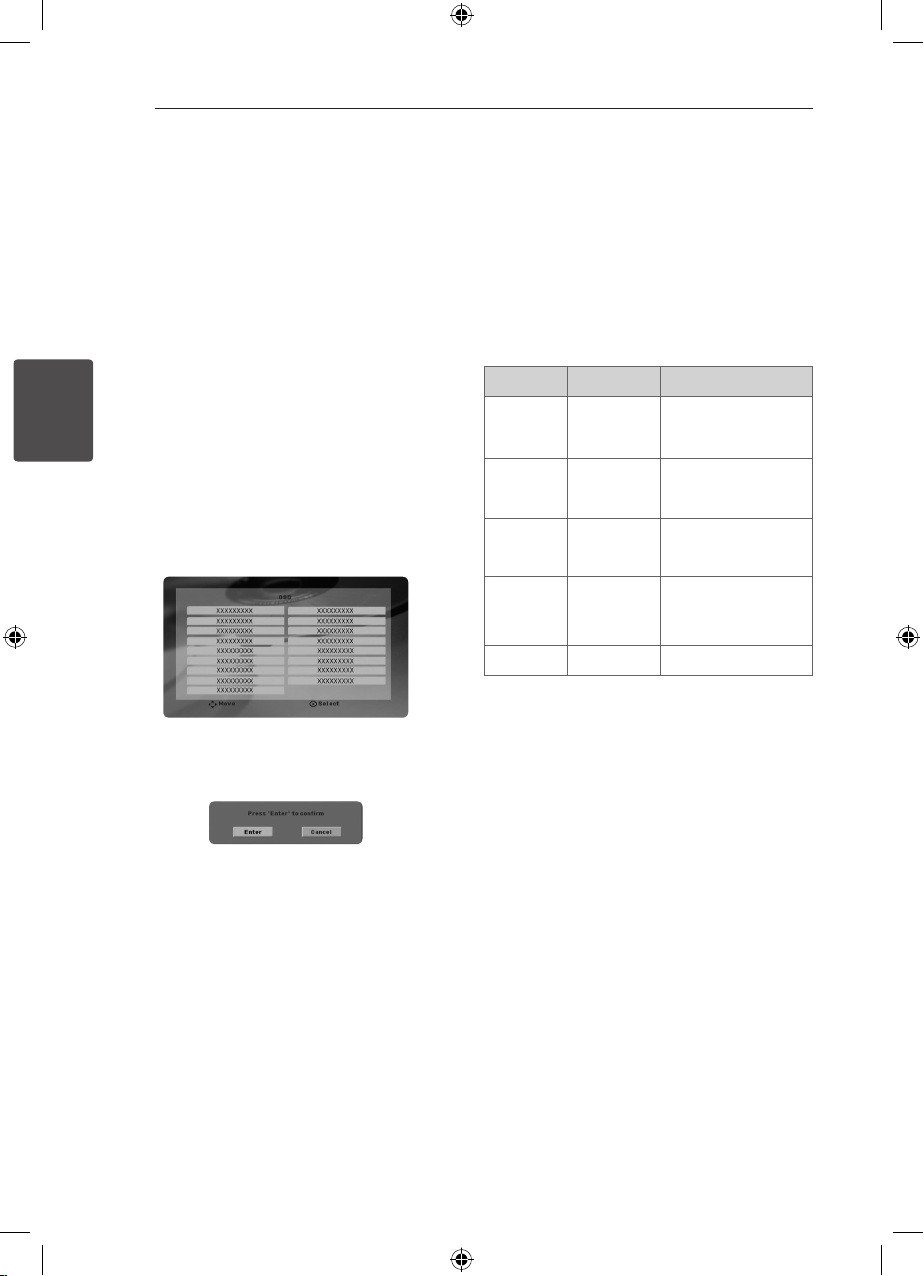

OSD Initial language settings
- Optional
During the rst use of this unit, the initial language
setup menu appears on your TV screen. You must
complete initial language selection before using
the unit. English will be selected as the initial
language.
1. Press POWER to turn the unit on. The language
setup menu will appear on the screen.
2. Use
WSAD
to select a language then press
ENTER.
The conrm menu will appear.
3. Use
AD
to select the [Enter] then press ENTER
to nish the language setup.
To display and exit the Setup
Menu
1. Select the DVD/CD or USB function by pressing
FUNCTION.
2. Press SETUP.
Displays the [Setup] Menu.
3. Press SETUP or RETURN to exit in the [Setup]
Menu.
To display and exit the Setup
Menu
1. Select the DVD/CD or USB function by pressing
FUNCTION.
2. Press SETUP.
Displays the [Setup] Menu.
3. Press SETUP or RETURN to exit in the [Setup]
Menu.
About help menu for Setup
Menu Buttons Operation
w/s
Move
WS
Moving to another
menu.
a
Prev.
A
Moving to previous
level.
d
Select
D
Moving to next level
or selecting menu.
x
RETURN
To exit the [Setup]
menu or [ 5.1 Speaker
Setup].
b
ENTER To conrm menu.
LANGUAGE
Menu Language
Select a language for the Setup menu and then on
screen display.
Disc Audio / Disc Subtitle / Disc
Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
DH3120S-D0_BGBRLLK_ENG_6163.indd 16 2012-02-13 �� 12:22:21
System Setting 17
System Setting
3
[Original]
Refers to the original language in which the
disc was recorded.
[Other]
To select another language, press numeric
buttons and then ENTER to enter the
corresponding 4-digit number according to
the language code list on the page 30. If you
enter the wrong language code, press CLEAR.
[O (for Disc Subtitle)]
Turn o Subtitle.
DISPLAY
TV Aspect
Select which screen aspect to use based on the
shape of your TV screen.
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the
upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on the
entire screen and cuts o the portions that do
not t. (If the disc/le is not compatible with
Pan Scan, the picture is displayed at Letterbox
ratio.)
TV Output Select
Select an option according to the TV connection
type.
[RGB]
When your TV is connected with the SCART
jack.
[YP
B
P
R
]
When your TV is connected with the
COMPONENT/ PROGRESSIVE SCAN jacks on the
unit.
If you change TV Output Select to RGB from
YPbPr on the setup menu especially when
connecting the unit in the way of component
video connection, the screen turns black.
In that case, connect the video cable to
MONITOR jack and select YPbPr on the setup
menu again.
,
Note
Progressive Scan (For Component
Video connections)
Selects whether the COMPONENT
VIDEO(PROGRESSIVE SCAN) OUTPUT jacks output
progressive signal. If your TV accepts progressive
format signals, you will enjoy accurate color
reproduction and high quality image by selecting
[On]. If your TV does not accept progressive format
signals, select [O ].
If you set Progressive Scan to [On] in error, you must
reset the unit. First, remove the disc in the unit.
Next, press and hold STOP (
Z
) for ve seconds.
The video output will be restored to the standard
setting, and a picture will be visible on your TV.
DH3120S-D0_BGBRLLK_ENG_6163.indd 17 2012-02-13 �� 12:22:21
System Setting18
System Setting
3
AUDIO
DRC (Dynamic Range Control)
Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this eect.
Vocal
Select [On] to mix karaoke channels into normal
stereo.
This function is eective for multi-channel karaoke
DVDs only.
5.1 Speaker Setup
Make the following settings for the built-in 5.1
channel surrounds decoder.
1. Press SETUP.
2. Use
WS
to select AUDIO menu and then press
D
.
3. Use
WS
to select [5.1 Speaker setup] menu
and then press
D
.
4. Press ENTER
The [5.1 Speaker setup] appears.
5. Use
AD
to select the desired speaker.
6. Adjust options using
WSAD
buttons.
7. Press RETURN to conrm your selection. Return
to the previous menu.
[Speaker]
Select a speaker that you want to adjust.
Certain speaker settings are prohibited by the
Dolby Digital licensing agreement.
,
Note
[Size]
Since the speaker settings are xed, you cannot
change the settings.
[Volume]
Press
AD
to adjust the output level of the
selected speaker.
[Distance]
After you connected speakers to your unit,
set the Distance between the speakers and
your listening point if the distance of Center
or Rear speakers is bigger than the distance
of Front speakers. This allows the sound from
each speaker to reach the listener at the same
time. Press
AD
to adjust the Distance of the
selected speaker. This distance is equivalent to
a dierence of the distance between Center or
Rear speaker and Front speakers.
[Test]
Press
AD
to test the signals of each speaker.
Adjust the volume to match the volume of test
signals memorized in the system.
LOCK (Parental Control)
Initial Setting of the Area Code:
When you use this unit for the rst time, you have
to set the Area Code.
1. Select the [Lock] menu and then press
D
.
2. Press
D
.
To access the [Lock] options, you must input the
password you have created. Input a password
and press ENTER. Enter it again and press
ENTER to verify. If you make a mistake before
pressing ENTER, press CLEAR.
3. Select the rst character using
WS
buttons.
4. Press ENTER and select the second character
using
WS
buttons.
5. Press ENTER to conrm your Area code
selection.
DH3120S-D0_BGBRLLK_ENG_6163.indd 18 2012-02-13 �� 12:22:21
System Setting 19
System Setting
3
Rating
Blocks playback of rated DVDs based on their
contents. Not all discs are rated.
1. Select [Rating] on the [Lock] menu then press
D
.
2. Input a password and press ENTER.
3. Select a rating from 1 to 8 using the
WS
buttons.
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not
active and the disc plays in full.
4. Press ENTER to conrm your rating selection.
Password
You can enter or change password.
1. Select [Password] on the [Lock] menu and then
press
D
.
2. Input a password and press ENTER.
To change the password, press ENTER when
the [Change] option is highlighted. Input a
password and press ENTER. Enter it again and
press ENTER to verify.
3. Press SETUP to exit the menu.
If you forget your password, you can clear
it using the following steps:
1. Press SETUP to display the Setup menu.
2. Input the 6-digit number “210499” and
press ENTER. The password is cleared.
,
Note
Area Code
Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list
on page 29.
1. Select [Area Code] on the [Lock] menu then
press
D
.
2. Input a password and press ENTER.
3. Select the rst character using
WS
buttons.
4. Press ENTER and select the second character
using
WS
buttons.
5. Press ENTER to conrm your Area code
selection.
OTHERS
DivX(R) VOD
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an ocial DivX Certied® device
that plays DivX video. Visit divx.com for more
information and software tools to convert your les
into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certied® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
your registration.
[Register]
Displays the registration code of your unit.
[Deregister]
Deactivate your unit and display the deactivation
code.
All the downloaded videos from DivX VOD
can only be played back on this unit.
,
Note
DH3120S-D0_BGBRLLK_ENG_6163.indd 19 2012-02-13 �� 12:22:21
4 Operating
Operating20
Operating
4
Basic Operations
1. Insert the disc by pressing OPEN/CLOSE or
connect the USB device to the USB port.
2. Select the DVD/ CD or USB function by pressing
FUNCTION.
3. Select a le (or track/ title) you want to play by
pressing
WSAD
.
When playing a disc or USB Flash Drive
containing with DivX, MP3/ WMA and JPEG
les together, you can select menu of les
which you would like to play by pressing
MENU. If “This le has non-supported type
on the unit” pops up, select an appropriate le
by pressing MENU.
,
Note
To Do this
Stop Press
Z
Playback Press
d
Pause Press
M
Frame-by-Frame
playback
Press
M
repeatedly to play
title Frame-by-Frame.
Skipping to the
next/previous
chapter/track/
le
During playback, press
C
or
V
to go to the next
chapter/track or to return to
the beginning of the current
chapter/track.
Press
C
twice briey to step
back to the previous chapter/
track.
Locating a
point quickly by
playing a le in
fast forward or
fast reverse
During playback, press
c
or
v
repeatedly to select the
required scan speed.
To return to normal speed,
press PLAY.
Playing
repeatedly or
randomly
Press REPEAT/RANDOM
repeatedly, and the current
title, chapter or track will be
played back repeatedly or
randomly.
- Random play mode : only
music les.
Slowing down
the playing
speed
In the pause mode, press
SCAN (
c
or
v
) to
select the required speed.
(The reverse playback is not
supported on DivX les.)
DH3120S-D0_BGBRLLK_ENG_6163.indd 20 2012-02-13 �� 12:22:21
Operating 21
Operating
4
Other Operations
Displaying Disc Information
on-screen
You can display various information about the disc
loaded on-screen.
1. Press DISPLAY to show various playback
information.
The displayed items dier depending on the
disc type or playing status.
2. You can select an item by pressing
WS
and
change or select the setting by pressing
AD
.
Title – Current title number/ total number of titles.
Chapter – Current chapter number/total number of
chapters.
Time – Elapsed playing time.
Audio – Selected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/total number of angles.
Sound – Selected sound mode.
If any button is not pressed for a few seconds,
the onscreen display disappears.
,
Note
To display the DVD Menu
r
When you play a DVD which contains several
menus, you can select the menu you want using
the menu.
1. Press MENU.
The disc’s menu appears.
2. Select the menu by using
WSAD
.
3. Press PLAY to conrm.
To display the DVD Title
r
When you play a DVD which contains several titles,
you can select the title you want using the menu.
1. Press TITLE.
The disc’s title appears.
2. Select the menu by pressing
WSAD
.
3. Press PLAY to conrm.
Selecting a subtitle language
ry
During playback, press SUBTITLE(
]
) repeatedly
to select a desired subtitle language.
1.5 times speed playback
r
The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed.
1. During playback, press PLAY(
d
) to play at 1.5
times speed. “
d
X1.5” appears on the screen.
2. Press PLAY(
d
) again to exit.
DH3120S-D0_BGBRLLK_ENG_6163.indd 21 2012-02-13 �� 12:22:21
Operating22
Operating
4
Starting play from selected
time
ry
To start playing at any chosen time on the le or
title.
1. Press DISPLAY during playback.
2. Press
WS
to select the time clock icon and
“--:--:--” appears.
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
numbers you entered. Then input the correct
numbers.
For example, to nd a scene at 1 hour, 10
minutes, and 20 seconds, enter “11020” by using
numerical buttons.
4. Press ENTER to conrm. Playback starts from
the selected time.
Last Scene Memory
r
This unit memorizes the last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the player or
switch o (Stand-by mode) the unit. If you load a
disc that has the scene memorized, the scene is
automatically recalled.
Changing the character set to
display DivX® subtitle correctly
y
If the subtitle does not display properly during
playback press and hold SUBTITLE for about 3
seconds then press
AD
or SUBTITLE to select
another language code until the subtitle is
displayed properly and then press ENTER.
Programmed Playback
tu
The program function enables you to store your
favourite les from any disc or USB device.
A program can contain 30 tracks/ les.
1. Select the DVD/CD or USB function by pressing
FUNCTION.
2. To add a music(s) on the program list, press
PROG./MEMO. to enter the program edit mode
(
{
mark appears on the menu).
3. Select a desired music on the [List] by using the
WS
then press ENTER to add the music to
the program list.
4. Select music from the program list then press
ENTER to start programmed playback.
5. Press PROG./MEMO. to exit the program edit
mode (
{
mark disappears on the menu).
Erasing a file from Program List
1. Press PROG./MEMO. to enter the program edit
mode (
{
mark appears on the menu).
2. Use
WS
to select the track that you wish to
erase from the Program list.
3. Press CLEAR.
Erasing the Complete Program List
Use
WSAD
to select [Clear All] then press ENTER.
The programs are also cleared when the disc
or USB device is removed, the unit is switched
to power o or the function is switched to
others.
,
Note
DH3120S-D0_BGBRLLK_ENG_6163.indd 22 2012-02-13 �� 12:22:21
Operating 23
Operating
4
Viewing a PHOTO file
i
This unit can play discs with photo les.
1. Select the DVD/CD or USB function by pressing
FUNCTION.
2. Press
WS
to select a folder, and then press
ENTER.
A list of les in the folder appears.
If you are in a le list and want to return to the
previous folder list, use the
WS
buttons on the
remote to highlight and press ENTER.
3. If you want to view a particular le, press
WS
to highlight a le and press ENTER or PLAY.
While viewing a le, you can press STOP to move
to the previous menu (JPEG menu).
Viewing photo files as a slide
show
i
1. Use
WSAD
to highlight ( ) icon then
press ENTER to start slide Show.
2. You can change slide show speed using
AD
when ( ) icon is highlighted.
About help menu for slide show
Menu Buttons Operation
w/s
/
W/S
Rotating the
a
/
d
Prev./ Next
A/D
Moving to
another le
x
Hide
RETURN
Hiding the help
menu
Z
STOP
Closing the slide
show
Listening to music during slide
show
i
You can listen to music during slide show, if the
disc contain music and photo les together. Use
WSAD
to highlight (
~
) icon then press
ENTER to start slide show.
This function is available only in disc.
,
Note
Sleep Timer Setting
Press SLEEP one or more times to select delay time
between 10 and 180 minutes, after the unit will
turn o.
To check the remaining time, press SLEEP.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
You can check the remaining time before the
unit turns o.
,
Note
Dimmer
Press SLEEP once. The display window will be
darken by half. To cancel it, press SLEEP repeatedly
until dimmer gets o.
Turn off the sound temporarily
Press MUTE to mute your unit.
You can mute your unit, for example, to answer
the telephone, the “MUTE” displayed in the display
window.
DH3120S-D0_BGBRLLK_ENG_6163.indd 23 2012-02-13 �� 12:22:22
Operating24
Operating
4
Screen Saver
The screen saver appears when you leave the unit
in stop mode for about ve minutes.
System Select - Optional
You must select the appropriate system mode for
your TV system. If “NO DISC” appears in the display
window, press and hold PAUSE/STEP (
M
) for more
than ve seconds to select a system.
Displaying file information
(ID3 TAG )
While playing an MP3 le containing le
information, you can display the information by
pressing DISPLAY.
Radio Operations
Be sure that both FM aerials are connected. (Refer
to the page 15)
Listening to the Radio
1. Press FUNCTION until FM appears in the display
window.
The last received station is tuned in.
2. Press and hold TUN.(-/+) for about two seconds
until the frequency indication starts to change,
then release. Scanning stops when the unit
tunes in a station.
or
Press TUN.(-/+) repeatedly.
3. Adjust the volume by rotating VOL. on the front
panel or by pressing VOL + or - on the remote
control repeatedly.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure that you have turned
down the volume.
1. Press FUNCTION until FM appears in the display
window.
2. Select the desired frequency by using TUN.
(-/+).
3. Press PROG./MEMO. a preset number will ash
in the display window.
4. Press PRESET (
WS
) to select the preset
number you want.
5. Press PROG./MEMO.
The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Deleting all the saved stations
1. Press and hold PROG./MEMO. for two seconds.
“ERASE ALL” will ash up on the unit display.
2. Press PROG./MEMO. to erase all of the saved
radio stations.
Improving poor FM reception
Press PLAY (
d
) (MO./ST.) on the remote control.
This will change the tuner from stereo to mono and
usually improve the reception.
Seeing information about a
radio station
The FM tuner is supplied with the RDS (Radio Data
System) facility. This shows information about
the radio station being listened to. Press RDS
repeatedly to cycle through the various data types.
PS (Programme Service Name)
The name of the channel will appear in the
display.
PTY (Programme Type Recognition)
The programme type (e.g. Jazz or News) will
appear in the display.
RT (Radio Text)
A text message contains special information
from the broadcast station. This text may
scroll across the display.
CT (Time controlled by the channel)
This shows the time and date as broadcast by
the station.
You can search the radio stations by programme
type by pressing RDS. The display will show the last
PTY in use. Press PTY one or more times to select
your preferred programme type. Press and hold
AD
. The tuner will search automatically. When a
station is found the search will stop.
DH3120S-D0_BGBRLLK_ENG_6163.indd 24 2012-02-13 �� 12:22:22
Operating 25
Operating
4
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound elds. You can select a desired sound mode
by using EQ/ LG EQ. You can change the EQ/ LG
EQ using
AD
arrow key while the EQ/ LG EQ
information is displayed on.
The displayed items for the Equalizer may be
dierent depending on sound sources and eects
On Display Description
NAT PLUS
You can enjoy the natural
sound eect same as a
5.1-channel.
Local
Specialization
equalizer
Regionally optimized sound
eect. (DANGDUT/ ARABIC/
PERSIAN/ INDIA/ REGUETON/
MERENGUE/ SALSA/ SAMBA/
CUMBIA/ AFRO) (Optional)
AUTO EQ
Realizes the sound equalizer
that is the most similar to the
genre of which is included in
the MP3 ID3 tag of song les.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock pop, jazz or classic
concert.
MP3 OPT
This function is optimized
for compressible MP3 le. It
improves the treble sound.
BASS
During playback, Reinforces
the treble, bass and surround
sound eect.
BYPASS
You can enjoy the sound
without equalizer eect.
y
In some of surround modes, on some
speakers, there’s no sound or low sound. it,
depends on the mode of surround and the
source of audio, it is not defective.
y
You may need to reset the surround mode,
after switching the input, sometimes even
after the sound track changed.
,
Note
DH3120S-D0_BGBRLLK_ENG_6163.indd 25 2012-02-13 �� 12:22:22
5 Troubleshooting
26
Operating
4
Operating
Advanced Operations
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external devices.
1. Connect the portable player to the
P. IN(PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX
connector of the unit.
Or
Connect the external device to the SCART
connector of the unit.
2. Turn the power on by pressing POWER.
3. Select the PORTABLE or AUX function by
pressing FUNCTION.
4. Turn the portable player or external device and
start it playing.
Recording to USB
1. Connect the USB device to the unit.
2. Select a DVD/ CD function by pressing
FUNCTION.
One track recording - You can record to USB after
playing the le you want.
All tracks recording - You can record to USB after
stop.
Program list recording - After showing the
programmed list, you can record it to USB.
3. Start the recording by pressing
X
REC.
4. To stop recording, press
Z
STOP.
y
You can check the recording percentage
rate for the USB record on the screen
during the recording.
y
When you stop recording during playback,
the le that has been recorded at that time
will be stored.
y
Do not remove the USB device or turn
o the unit during USB recording. If not,
an incomplete le may be made and not
deleted on PC.
y
If USB recording does not work, the
message like “NO USB”, “ERROR”, “USB FULL”
or “NO REC” is displayed on the display
window.
y
On CD-G disc, USB recording is not
supported.
y
You may not store more than 999 les.
y
It’ll be stored as TRK_001 on CD FOLDER.
y
Recording is supported only in Audio CDs.
,
Note
The making of unauthorized copies of copy-
protected material, including computer programs,
les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a
criminal oense. This equipment should not be
used for such purposes.
Be responsible
Respect copyrights
DH3120S-D0_BGBRLLK_ENG_6163.indd 26 2012-02-13 �� 12:22:22
Troubleshooting 27
Troubleshooting
5
Troubleshooting
PROBLEM CORRECTION
No power Plug the power cord into the wall outlet securely.
No picture
Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
Connect the video cables securely to both the TV and unit.
There is little or no sound
Select the correct input mode of the unit so you can hear the sound
from the unit.
Connect the audio cables into the connection terminals correctly.
Replace with a new audio cable.
The DVD picture quality is poor
Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play
Insert a disc.
Insert a playable disc (check the disc type, colour system and
regional code).
Place the disc with the label or printed side facing upwards.
Enter your password or change the rating level.
Humming noise heard while a DVD
or CD is playing
Clean the disc using a soft cloth with outward strokes.
Move unit and audio components further away from your TV.
Radio stations can’t be tuned in
properly.
Check the antenna connection and adjust its position.
Attach an external aerial if necessary.
Tune to the station manually.
Preset some radio stations, see page 24 for details.
The remote control doesn’t work
well / at all
The remote is not pointed directly at the unit.
Point the remote directly at the unit.
The remote is too far from the unit.
Use the remote within 23 feet (7m) of the unit.
There is an obstacle in the path between the remote control and
the unit.
Remove the obstacle.
The battery in the remote control are at.
Replace the battery with new ones.
DH3120S-D0_BGBRLLK_ENG_6163.indd 27 2012-02-13 �� 12:22:22
6 Appendix
Appendix28
Appendix
6
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
y
Do not use volatile liquids such as insecticide
spray near the unit.
y
Wiping with strong pressure may damage the
surface.
y
Do not leave rubber or plastic products in
contact with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that ngerprints do not
get on the surface. Never stick paper or tape on the
disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for older vinyl records.
DH3120S-D0_BGBRLLK_ENG_6163.indd 28 2012-02-13 �� 12:22:22
Appendix 29
Appendix
6
Area Code List
Choose an area code from this list.
Area Code Area Code Area Code Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian
Federation RU
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
DH3120S-D0_BGBRLLK_ENG_6163.indd 29 2012-02-13 �� 12:22:22
Appendix30
Appendix
6
Language Code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Language Code Language Code Language Code Language Code
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Chinese 9072
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance 8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Singhalese 8373
Slovak 8375
Slovenian 8376
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Telugu 8469
Thai 8472
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
DH3120S-D0_BGBRLLK_ENG_6163.indd 30 2012-02-13 �� 12:22:22
Appendix 31
Appendix
6
Trademarks and
Licenses
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
DivX®, DivX Certied® and associated logos
are trademarks of Rovi Corporation or its
subsidiaries and are used under license.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
Copyrights
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent
copyrighted material without permission. This
product features the copy protection function
developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and
playing the pictures of these discs picture noise
will appear. This product incorporates copyright
protection technology that is protected by U.S.
patents and other intellectual property rights. Use
of this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p UNIT, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.
DH3120S-D0_BGBRLLK_ENG_6163.indd 31 2012-02-13 �� 12:22:23
Appendix32
Appendix
6
Specifications
General
Power requirements 200 - 240 V , 50/ 60 Hz
Power consumption 45 W
Dimensions (W x H x D) Approx. 360 x 65 x 320 mm without foot
Net Weight (Approx.) 2.5 kg
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 5 % to 90 %
Outputs
VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
COMPONENT VIDEO OUT
(Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
PORT. IN 0.5Vrms (3.5 mm stereo jack)
System
Laser Semiconductor laser, wavelength: 650 nm
Signal system Standard NTSC/ PAL color TV system
Frequency response 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)
Signal-to-noise ratio More than 80 dB
Harmonic distortion 0.05 % at 1 W
Dynamic range More than 85 dB
Bus Power Supply (USB) DC 5 V
0
500 mA
Amplicador
Stereo mode 45 W + 45 W (4 Ω at 1 kHz)
Surround mode
Front 45 W + 45 W (THD 1 %)
Center 45 W
Surround 45 W + 45 W (4 Ω at 1 kHz)
Subwoofer 75 W (8 Ω at 60 Hz)
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
DH3120S-D0_BGBRLLK_ENG_6163.indd 32 2012-02-13 �� 12:22:23
Appendix 33
Appendix
6
Front Speaker
Type 1 Way 1 Speaker
Impedance Rated 4 Ω
Input Power 45 W
Max. Input Power 90 W
Net Dimensions (W x H x D) 103 x 111 x 94 mm
Net Weight 0.39 kg
Rear Speaker
Type 1 Way 1 Speaker
Impedance Rated 4 Ω
Input Power 45 W
Max. Input Power 90 W
Net Dimensions (W x H x D) 103 x 111 x 94 mm
Net Weight 0.39 kg
Centre Speaker
Type 1 Way 1 Speaker
Impedance Rated 4 Ω
Input Power 45 W
Max. Input Power 90 W
Net Dimensions (W x H x D) 103 x 111 x 94 mm
Net Weight 0.39 kg
Subwoofer
Type 1 Way 1 Speaker
Impedance Rated 8 Ω
Input Power 75 W
Max. Input Power 150 W
Net Dimensions (W x H x D) 156 x 325 x 320 mm
Net Weight 3.6 kg
Design and specications are subject to change without notice.
DH3120S-D0_BGBRLLK_ENG_6163.indd 33 2012-02-13 �� 12:22:23
Warranty34
Warranty
7
Technology with the human touch
GUARANTEE
• LG Electronics U.K. Ltd. will provide the following services in order toexpedite this Guarantee.
1. All faulty components which fail due to defective manufacture will be replaced free of charge for a period
of 12 months from the original date of purchase.
2. The dealer (or his service agent) who sold the product will be
reimbursed for any labour provided in the repair of this LG equipment, for a period of 12 months from the
original date of purchase. These claims must be made in accordance with the published scale of
service charges and relevant claims procedure.
PLEASE NOTE:
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if unauthorized modications are made to
the apparatus, or if non standard components are used or if the serial number of the apparatus is removed,
defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from whom the equipment was
originally purchased. The dealer may, before carrying out service under guarantee, require a receipted
account as evidence of the date of purchase.
D. We respectfully point out that your dealer is not obligated to replace batteries if they become exhausted
or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by this guarantee.
This guarantee does not aect your statutory rights.
• REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE SURRENDERED
AT THE TIME GUARANTEE SERVICE IS PROVED.
• Product Registration Card :
It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This
will enable LG to assist you in the future should you lose your receipt, your units be stolen, or should
modications be necessary.
• To obtain information or assistance: Call 0870 873 5454 Monday-Friday 9.00am-4.30pm
MODEL NO.* SERIAL NO.* DATE OF PURCHASE.*
In all cases of diculty - consult your LG dealer from whom the product was purchased
LGEUK Website : www.lge.co.uk
( service website : www.lgelectronics.co.uk )
7 Warranty
Warranty
DH3120S-D0_BGBRLLK_ENG_6163.indd 34 2012-02-13 �� 12:22:23
DH3120S-D0_BGBRLLK_ENG_6163.indd 35 2012-02-13 �� 12:22:23
