3
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Please take note of the safety instructions to prevent any potential accident or misuse
of the projector.
Safety precautions are given in two forms, i.e. WARNING and CAUTION as detailed
below.
WARNING Failure to follow the instructions may cause serious injury and even death.
CAUTION Failure to follow the instructions may cause injury to persons or damage to
the product.
Read the owner's manual carefully and keep it on hand.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufcient magnitude to
constitute a risk of electric shock to
persons.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT
EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
4
SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Indoor Installation
WARNING
Do not use the projector outside and
do not expose the product to any
humidity or water.
- Since the product is not waterproof,
this may result in a fire or electric
shock.
Do not place the projector in direct
sunlight or near heat sources such as
radiators, fires, stoves, etc
.
- This may result in fire.
Do not place flammable materials
such as aerosols near the projector.
- This may result in fire.
Do not allow children to cling to or
climb up to the projector.
- This may cause the projector to fall,
causing injury or death.
Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in
a closet) or on a carpet or cushion.
- This may result in fire due to the
increase in internal temperature.
Do not place the product close to
sources of steam, oil or oil mist, such
as humidifiers and kitchen counters.
- Failure to do so may result in fire,
electric shock, or corrosion.
Do not install the product onto a wall
or ceiling that is close to sources of
oil or oil mist.
- The product may be damaged and
fall, resulting in serious injury.
Do not place the projector where it
might be exposed to dust.
- This may result in fire.
Do not use the projector in a damp
place such as a bathroom where it is
likely to get wet.
- This may result in fire or electric
shock.
Do not allow a tablecloth or curtain to
block the air vent.
- This may result in fire due to the
increase in the internal temperature.
Ensure good ventilation around the
projector. The distance between the
projector and the wall should be
at
least 30 cm
.
- This will prevent fire due to the
increase in the internal temperature.
CAUTION
When placing the projector on a table
or shelf, be careful not to put it near
the edge.
- The projector could fall due to
balance problems, which may
cause personal injury or damage to
the product. Make sure to use the
projector cabinet or stand that fits the
projector.
When moving the projector
, make
sure to switch it off
and remove the
power plug and cords.
- The power cord may be damaged,
resulting in fire or electric shock.
Do not place the projector on an
unstable or vibrating surface such as
a wobbly shelf or a slope.
- It may fall and cause injury.
5
SAFETY INSTRUCTIONS
Be careful not to tip the projector over
when connecting external devices to
the projector.
- This may cause personal injury or
damage to the projector.
Power
WARNING
The appliance coupler is used as the
disconnect device.
- Please make sure the device is
installed near the wall outlet to which
it is connected and that the outlet is
easily accessible.
The grounding wire should be
connected.
- Ensure that you connect the
grounding cable to avoid electric
shock.
If it is not possible to ground the unit,
have a qualied electrician install a
separate circuit breaker.
Do not try to ground the projector
by connecting it to telephone wires,
lightning rods, or gas pipes.
The power plug should be inserted
fully into the power outlet.
- An unstable connection may cause
a fire.
Do not place heavy objects on the
power cord.
- This may result in fire or electric
shock.
Never touch the power plug with wet
hands.
- This may result in electric shock.
Do not plug too many devices into
one multi-power outlet.
- This may result in fire due to the
power outlet overheating.
Keep the AC adapter, power plug,
and the used power outlet clean from
dust or foreign materials building up.
- This may result in fire.
If there is any smoke or a burning
smell from the projector or AC
adapter, stop using the product
immediately. Disconnect the power
cord from the power outlet, and then
contact the customer service center.
- This may result in fire.
To turn off the main power, remove
the power plug, which should be
positioned so it is easy to access for
operation.
CAUTION
Always grab the plug to remove the
AC adapter or power cord.
- Otherwise, this may result in a fire
or may damage the product.
Refrain from constantly bending the
power cord of the AC adapter.
- If the power cord is bent excessively
for a long period of time, the cord
may break inside. This may result in
a fire or electric shock.
Ensure the power cord and plug are
not damaged, modified, severely
bent, twisted, pulled, sandwiched
or hot. Do not use the product if the
power outlet is loose.
- This may result in fire or electric shock.
Keep the power cord away from heating
devices.
-
The wire's sheath may melt, which
may result in fire or electric shock
.
Place the projector where people will
not trip over or step on the power
cord to protect the power cord and
plug from any damage.
- This may result in fire or electric shock.
6
SAFETY INSTRUCTIONS
Do not turn the projector on or off
by plugging in the power plug or
unplugging it from the power outlet.
(Do not use the power plug as a switch.)
- This may result in electric shock or
damage to the product.
Do not insert a conductor into the other
side of the wall outlet while the power
plug is inserted into the wall outlet.
In addition, do not touch the power
plug immediately after it is disconnected
from the wall outlet.
- This may result in electric shock.
Only use the official power cord
provided by LG Electronics. Do not
use other power cords.
- This may result in fire or electric
shock.
If any water or foreign materials have
gone into the AC adapter, power cord,
or the interior of the projector, turn off
the projector by pressing the power
button. Remove all the cables, and
then contact the customer service
center.
- This may result in fire or electric
shock.
The surface of the AC adapter is
hot. Keep the AC adapter out of the
reach of children and avoid touching
it during use.
Never disassemble the power supply
devices (AC adapter/power cord,
etc.).
- This may damage the power cord
and result in a fire or electric shock.
Connect the AC adapter and the
power cord firmly.
- Not doing so may result in a product
failure or fire.
Do not place heavy objects or put
pressure on the power cord and AC
adapter and avoid damage.
- This may result in a fire or may
damage the product.
Always use the AC adapter provided
or any AC adapters approved and
certified by LG Electronics.
- Any other AC adapter connected
may result in the screen flickering.
When in Use
WARNING
Do not place anything containing
liquid on top of the projector such as
a vase, flower pot, cup, cosmetics,
medicine, or ornaments, candles, etc.
- This may result in fire or electric
shock, or cause injury due to falling.
In the event that there is a heavy
impact or the cabinet is damaged,
switch it off, unplug it from the power
outlet and contact an authorized
service
center
.
- This may result in electric shock.
Do not insert pieces of metal such as
coins, hairpins, or metal debris, nor
flammable materials such as paper or
matches into the projector.
- This is to prevent electric shock or fire.
Make sure that a child does not
swallow the batteries when you
replace the old remote control
batteries with new ones. Keep
batteries out of reach of children.
- If a child swallows a battery, consult
a doctor immediately.
7
SAFETY INSTRUCTIONS
Never open any cover on the
projector.
- There is a high risk of electric shock.
Do not look directly into the lens when
the projector is in use.
- The bright light may damage your
eyes.
When the lamp is on or has just been
turned off, avoid touching the air vent
or lamp, because these will be very
hot.
If there is a gas leak in the room with
the projector, do not touch the projector
or power outlet. Open the windows
for ventilation.
- Sparks may cause fire or burns.
Unplug the power cord from
the outlet
during a lightning storm.
- This will prevent shock or damage
to the projector.
Do not use the projector near
electronic devices that generate a
strong magnetic field.
Keep the plastic film used for
packaging the projector out of the
reach of children.
- If not handled safely, it can cause
suffocation.
Do not keep your hand on the projector
for a long time when it is running.
When you play a game by connecting
a game console to a projector, it is
recommended that you maintain
a
distance of more than four times the
diagonal length of the screen.
- Make sure that the connecting cable is
long enough.
Otherwise, the product
may fall causing
personal injury or
damage to the product.
Do not place the projector or its
remote control with battery in
an extremely high temperature
environment.
- This may result in fire.
Do not use 3D glasses if you do not
watch 3D.
CAUTION
Do not place heavy objects on the
projector.
- It may fall down and cause personal
injury.
Be careful not to allow any impact to
the lens during transport.
Do not touch the lens of the projector.
- The lens may be damaged.
Do not use any sharp tools on the
projector such as a knife or hammer,
because this may damage the casing.
In the event that no image appears
on the screen or no sound is heard,
stop using the projector. Switch off
the projector, unplug it from the power
outlet, and contact our service center.
- This may result in fire or electric
shock.
Do not drop anything onto the
projector or allow anything to bang
into the projector.
- This may cause damage to the
projector or personal injury.
It is recommended that you maintain
a distance of more than 5 to 7 times
the diagonal length of the screen.
- If you watch the screen at a close
distance for a long time, your eye
sight may become worse.
8
SAFETY INSTRUCTIONS
Do not block the light beam emitted
from the projector using a book or
other object.
- Lengthy exposure to the projector
beam may result in fire. In addition,
the lens may be overheated and
damaged by the reflected heat.
Do not start the projector with the
volume turned up high.
- High volume may damage hearing.
Do not use high voltage electrical
equipment near the projector, (e.g.,
a bug zapper). This may result in
product malfunction.
Cleaning
WARNING
Do not spray the projector with
water
when cleaning. Make sure water does
not flow into the projector
.
- This may result in fire or electric
shock.
When there is smoke or a strange
smell coming out from the projector or
a foreign object falls into the pro jector,
switch it off and unplug it from the
power outlet and contact our service
center.
-
Otherwise, this may result in fire or
electric shock.
Use air spray, a soft cloth, or a cotton
swab moistened with a
lens cleaning
chemical
or alcohol to remove dust or
stains on the front projection lens.
CAUTION
Contact your seller or our service
center once a year to clean the
internal parts of the projector.
- If you do not clean the projector
for a long period of time, dust will
accumulate, which may result in fire
or damage to the projector.
When cleaning plastic parts such
as the projector case,
unplug the
power first and wipe with a soft cloth.
Do not spray with water or wipe with a
wet
cloth. Never use glass cleaner,
automobile or industrial polish,
abrasives, wax, benzene, or alcohol
as these can damage the projector.
- This can result in fire, electric
shock,
or cause damage to the product
(deformation and corrosion).
Remove the plug from the outlet
before cleaning the product.
- Otherwise, this may result in electric
shock.
9
SAFETY INSTRUCTIONS
Others
WARNING
Some users may experience a
seizure or other abnormal symptoms
when they are exposed to a flashing
light or particular patterns from a
video game.
When you go out, place the projector
out of reach of animals, and remove
the power plug from the wall outlet.
- Using a damaged power cord may
result in short circuit or fire.
Do not use the projector near high-
precision electronic devices or those
that transmit weak radio signal.
- This may affect the operation of the
product, causing an accident.
Only a qualified technician can
disassemble or modify the projector.
For diagnosis, adjustment, or repair,
contact your seller or our service
center.
- This may result in fire or electric
shock.
Proper ventilation required, do not
block airflow around unit. Doing
so can cause injury and internal
overheating.
To prevent damage to lamp, unit must
remain plugged in for approximately
3 minutes after power down to allow
for proper cool down (not applicable
on LED models).
Do not touch the lens; doing so can
result in burns or damage to lens.
Lens and unit may be HOT during
and immediately after use. Use
caution when handling unit, allowing
for proper cool down.
Only use a grounded electrical outlet.
Do not insert anything into or cover
up the exhaust vents.
- This may result in fire or electric
shock.
Follow all maintenance guidelines
for optimal use; service only at an
authorized service center.
Lamp contains mercury and as such
must be disposed of according to
local, state, and federal laws (not
applicable on LED models).
Keep the batteries and remote out of
reach of children.
- This will prevent personal injury or
damage to the product.
10
SAFETY INSTRUCTIONS
CAUTION
Do not use or store the projector
outdoors for long periods of time.
Do not mix new batteries with old
ones.
- Burst or leaking batteries may result
in damage or injury.
Be sure to unplug if the projector is not
to be used for a long
period
.
- Accumulated dust may result in fire
or electric shock
due to overheating,
ignition, or poor insulation.
Only use the specified type of battery.
- Burst or leaking batteries may result in
damage or injury.
Make sure you use the same type of
battery when replacing.
- In the case of a battery contact failure,
the battery may drain quickly or the
remote control may not work properly.
Dispose of used batteries properly.
- This may result in explosion or fire.
The correct method of disposal may
vary depending on your country or
region. Dispose of the battery pack as
instructed.
Do not throw or disassemble the battery.
- This may result in fire or explosion
due to damage to the battery.
Store batteries away from metallic
objects, such as keys and paper clips.
- Excess current may cause a rapid
increase in temperature, resulting in
fire or burns.
Do not store the batteries near any
heat source, such as a heater.
- This may result in fire or damage to
the product.
Do not store batteries at temperatures
higher than 60 °C or in high humidity.
- This may result in explosion or fire.
Make sure that the battery is installed
correctly.
- This prevent explosion or fire.
Incorrect battery replacement may
cause fire.
Risk Group 2
CAUTION Possibly hazardous optical
radiation emitted from this product. Do
not
stare at operating lamp. May be
harmful to
the eye.
11
SAFETY INSTRUCTIONS
ANTENNA
Outdoor Antenna Grounding
If an outdoor antenna is installed,
follow the precautions below. An
outdoor antenna system should not
be located in the vicinity of overhead
power lines or other electric light or
power circuits, or where it can come
in contact with such power lines or
circuits as death or serious injury
can occur. Be sure the antenna
system is grounded to provide
some protection against voltage
surges and built-up static charges.
Section 810 of the National Electrical
Code (NEC) in the U.S.A. provides
information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-
in wire to an antenna discharge
unit, size of grounding conductors,
location of antenna discharge unit,
connection to grounding electrodes
and requirements for the grounding
electrode.
Antenna grounding according to
the National Electrical Code, ANSI/
NFPA 70
Antenna Lead in Wire
Grounding Conductor
(NEC Section 810-21)
Antenna Discharge Unit
(NEC Section 810-20)
Power Service
GroundingElectrode
System (NEC Art 250,
Part H)
NEC: National Electrical Code
Ground Clamp
Electric Service
Equipment
Ground Clamp
For USA
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the
CATV system installer’s attention to
Article 820 - 40 of the National Electric
Code (U.S.A.). The code provides
guidelines for proper grounding and,
in particular, species that the cable
ground shall be connected to the
grounding system of the building, as
close to the point of the cable entry as
practical.
12
CONTENTS
ENTERTAINMENT 34
Using SCREEN SHARE 34
MY MEDIA 35
Before Using 35
- Connecting a USB Device 35
- Removing a USB Device 35
To Use My Media 37
- Watching the Videos 40
- Viewing the Photos 45
- Listening to Music 48
- Viewing Files 50
3D FUNCTION 52
While Watching 3D 52
Requirements for Watching 3D Images 55
- To Use DLP-LINK (DLP-Ready) Type
Glasses 57
Watching 3D Images 57
CUSTOMIZING SETTINGS 58
SETTINGS 58
PICTURE Settings 59
AUDIO Settings 64
CHANNEL Settings 65
TIME Settings 66
WIRELESS Settings 67
LOCK Settings 68
OPTION 1 Settings 71
OPTION 2 Settings 73
CONNECTING DEVICES 75
Connecting to HD Receiver, DVD, VCR
Player, or External Devices 76
- HDMI Connection 76
LICENSE 2
SAFETY INSTRUCTIONS 3
PREPARATION 14
Accessories 14
Optional Extras 15

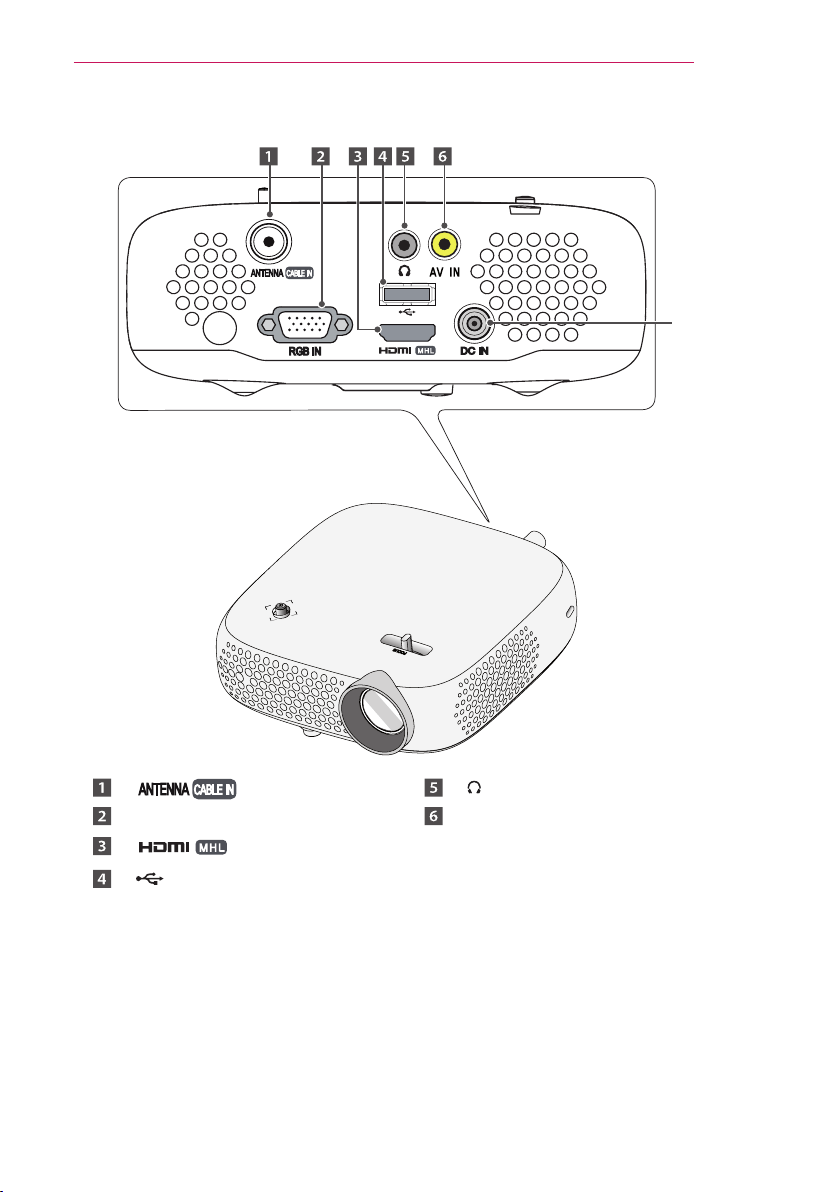

Parts and Components 16
Using the Joystick Button 18
- Basic Functions 18
- Adjusting the Menu 18
Projector Status Indicators 19
Installation 20
- Installation Precautions 20
- Projection Distance per Screen Size 21
- How to Install the Projector On a Tripod 22
- Kensington Security System 22
- Caution when Using Pouch 23
REMOTE CONTROL 24
USING THE PROJECTOR 26
Connecting to an Antenna or Cable 26
Watching Projector 27
- Turning on the Projector 27
- Focus of the Screen Image 28
- Watching Projector 28
To Set Channel 29
- Memorizing the Available Channels 29
Additional Options 31
- Adjusting Aspect Ratio 31
- Using the Keystone Function 31
- Changing Input Device 32
- Blank Function 33
Using the Quick Menu 33
CONTENTS
13
CONTENTS
- HDMI to DVI Connection 76

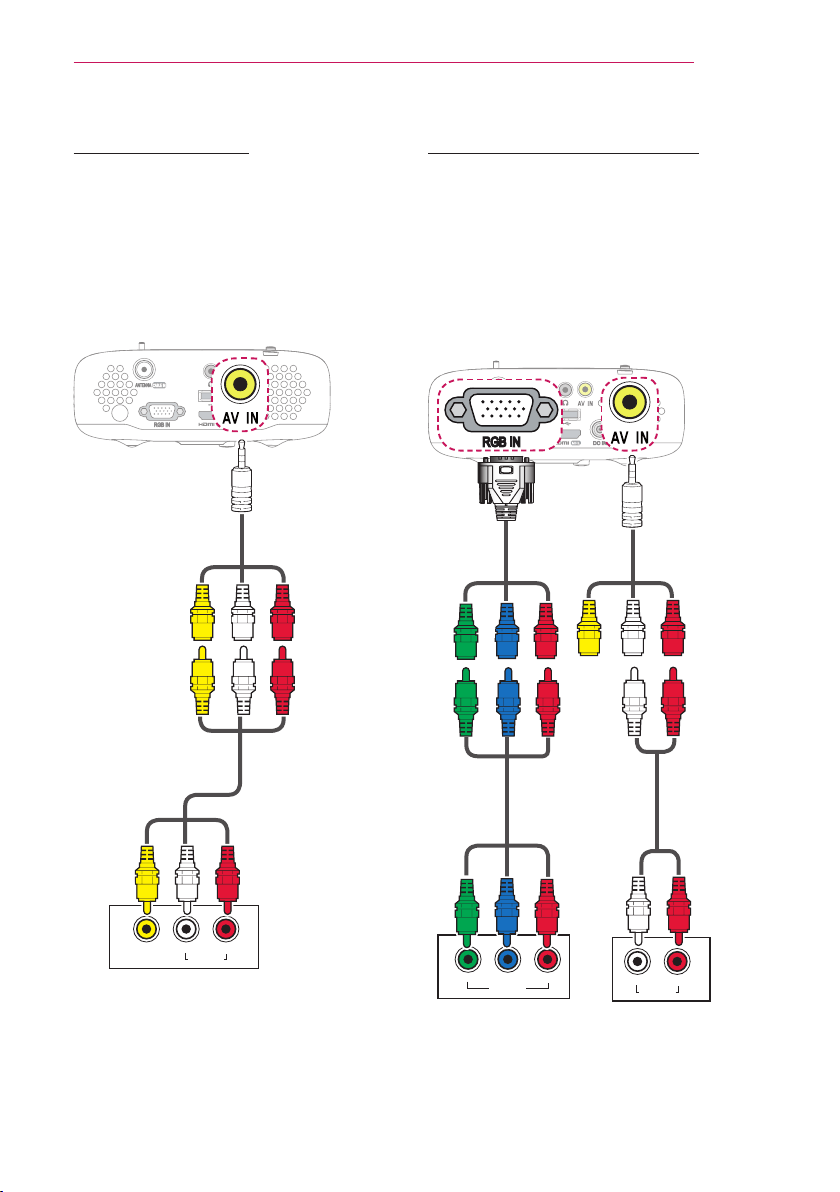

- AV Connection 77
- Component Connection 77
Connecting a PC 78

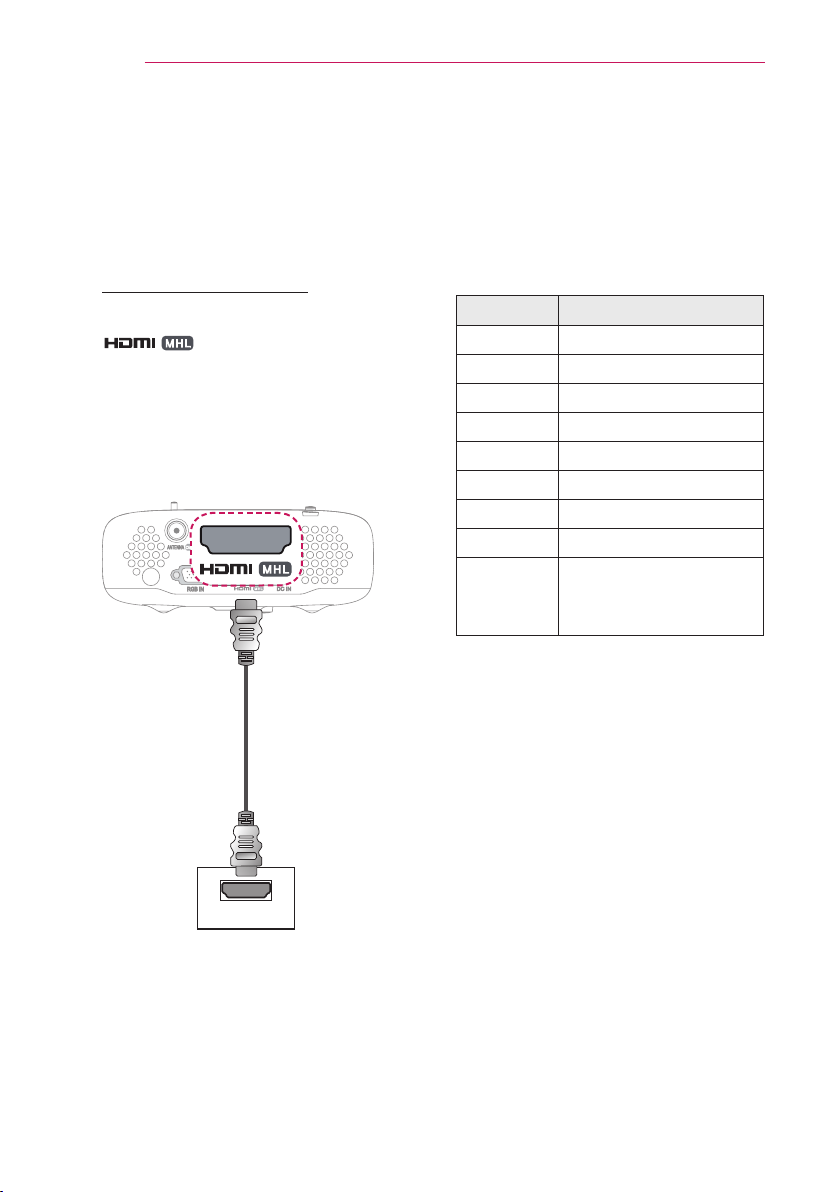

- HDMI Connection 78
- HDMI to DVI Connection 78
- RGB Connection 79
Connecting a Laptop 80
- HDMI Connection 80
Connecting to Headphones 81

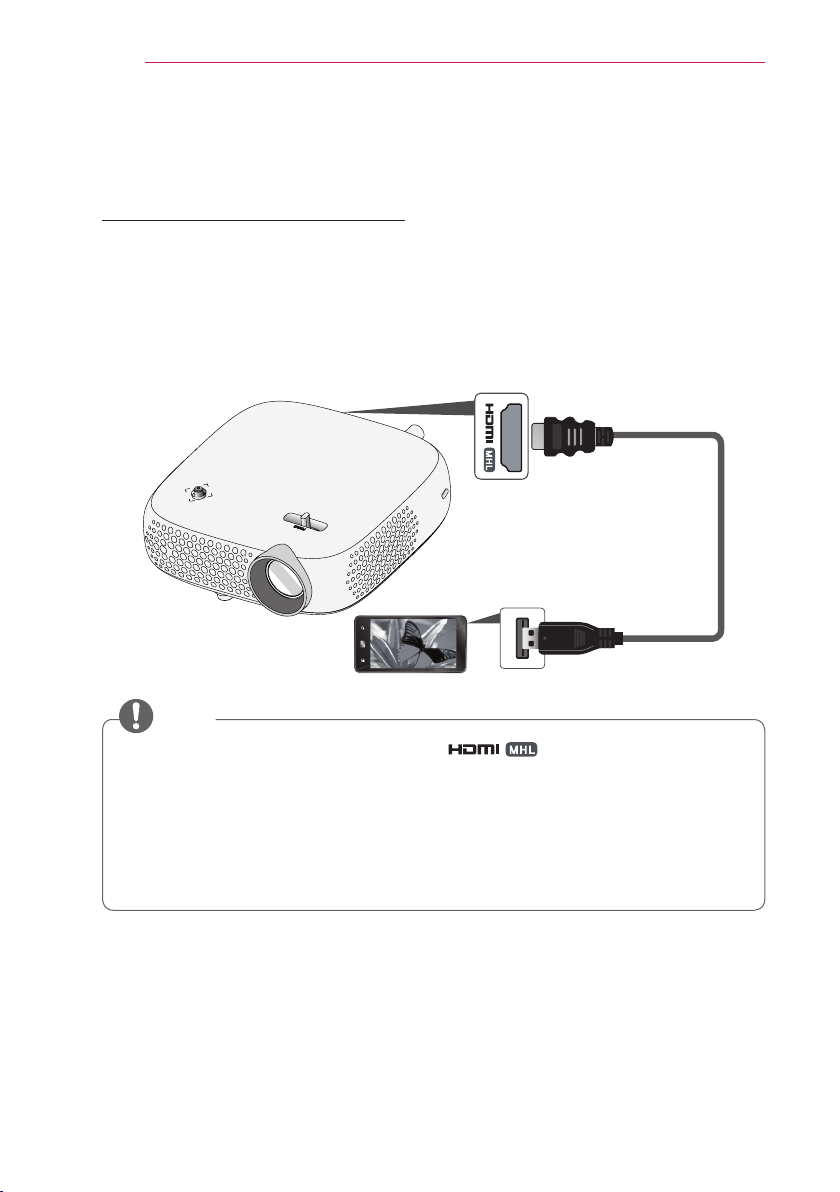

Using the Mirroring Function of a Mobile
Phone 82
- MHL/Slimport Connection 82
MAINTENANCE 83
Cleaning 83
- Cleaning the Lens 83
- Cleaning the Projector Case 83
SPECIFICATIONS 84
14
PREPARATION
PREPARATION
Accessories
Accessories included with the projector are show below.
The pictures may differ slightly from the actual product.
Accessories are subject to change without prior notice.
New accessories may be added or old ones removed.
#-"/, 3"5*0
Remote Control
Two AAA Batteries
Owner's Manual Power Cord
AC-DC Adaptor Composite Gender Pouch
When connecting an HDMI or USB cable, or
connecting a USB flash drive to the HDMI or USB
port, use a product that has a width of 18 mm or
less and a height of 10 mm or less. If the USB cable
or USB flash drive does not fit the USB ports of the
projector, use an extension cable that supports USB 2.0.
Use a certified cable with the HDMI logo attached.
If you do not use a certified HDMI cable, the screen may not display or a connection
error may occur. (Recommended HDMI cable types)
- High-Speed HDMI
®
/™ Cable
- High-Speed HDMI
®
/™ Cable with Ethernet
15
PREPARATION
Optional Extras
To purchase optional accessories, visit an electronics store or online shopping site or
contact the retail store where you purchased the product. Optional accessories are
subject to change without prior notice.
Projection Screen Tripod HDMI Cable
Video Cable Audio Cable
3D glasses
(DLP-LINK or DLP-
Ready Type)
RGB to Component cable Component Cable MHL or Slimport cable
Computer Cable RF Cable
16
PREPARATION
Parts and Components
The projector is manufactured using high-precision technology. You may, however, see
tiny black dots and/or bright colored dots (red, blue, or green) that continuously appear
on the projector screen. This is a normal result of the manufacturing process and does
not indicate a malfunction.
Joystick Button
Lens
2)
Vent
1)
Focus ring
Vent
1)
Speakers
1) Due to the high temperature of the vent area, do not get close to the vent area.
2) Do not touch the lens when using the projector. The lens may be damaged.
17
PREPARATION
7
Port
(Headphone Port)
RGB IN Port AV IN Port
Port
7
DC IN Port
(USB Port)
18
PREPARATION
Using the Joystick Button
You can operate the projector by pressing the button or moving the joystick left, right,
up, or down.
Basic Functions
Power On
When the projector is turned off, place your nger on
the joystick button, press it once, and release it.
Power Off
When the projector is turned on, place your nger on
the joystick button, press it once for a few seconds,
and release it. (However, if the Menu button is on the
screen, pressing and holding the joystick button will
let you exit the Menu.)
Volume
Control
If you place your nger over the joystick button and
move it left or right, you can adjust the volume level.
Channels
Control
If you place your nger over the joystick button and
move it up or down, you can scroll through the saved
channels.
NOTE
When your finger over the joystick button and move it up, down, left, or right, be
careful not to press the joystick button. If you press the joystick button first, you may
not be able to adjust the volume level and/or scroll through saved channels.
Adjusting the Menu
When the projector is turned on, press the joystick button one time.
You can adjust the menu items ( , , , ) moving the joystick button left, right,
up, or down. Move to the desired menu item, and then press the joystick button once to
select it.
$MPTF
Projector off Turns the power off.
Input List Changes the input source.
Close
Clears on-screen displays and
returns to projector viewing.
Settings Displays the Settings menu.
19
PREPARATION

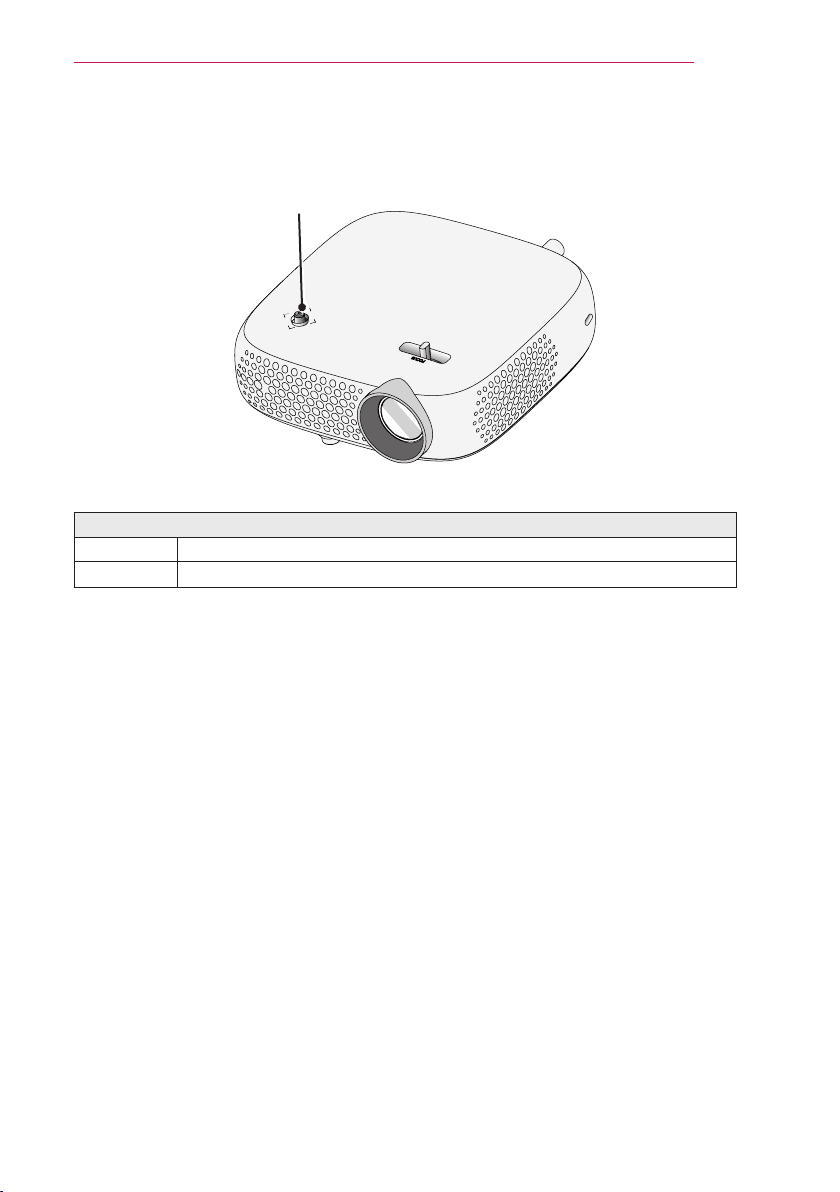

Projector Status Indicators
LED Power Indicator
LED Power Indicator
Red Power standby state
Off The projector is operating with the power on.
20
PREPARATION
Installation
Installation Precautions
Place the projector in a well-ventilated
environment.
- To prevent internal heat build-up,
install the projector in a well-
ventilated place.
Do not place anything near the
projector as this may block its air
vents. If the air vents are blocked,
the internal temperature will
increase.
- Do not place the projector on a
carpet or rug. If the vent is on the
bottom, use the projector on a solid
level surface
and ensure the vent
is
not blocked.
- Be sure to prevent foreign objects
such as paper debris from entering
the projector.
- Leave enough distance (30 cm or
more) around the projector.
Do not place the projector in a hot
or humid environment.
- Do not place the projector in a hot,
cold, or humid environment.
Do not place the projector in a place
where it will easily attract dust.
- This may result in fire.
Never open any cover on the
projector. There is a high risk of
electric shock.
The projector is manufactured using
high-precision technology. You may,
however, see tiny black dots and/
or bright colored dots (red, blue, or
green) that continuously appear on
the projector screen. This is a normal
result of the manufacturing process
and does not indicate a malfunction.
The remote control may not work
in an environment where a lamp
equipped with electronic ballasts or
a three-wavelength fluorescent lamp
is installed. Replace the lamp with an
international standard lamp for the
remote control to work normally.
21
PREPARATION
Projection Distance per Screen Size
1 Place the projector on a sturdy, level surface, together with the PC or audio/video
source.
2 Place the projector an appropriate distance away from the screen. The distance
between the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is at a right angle to the screen. If the
projector is not at a right angle, the projected image will look distorted. To correct the
distortion, use the keystone function. (See page 31.)
4 Connect the power cord of the projector and the connected device to the wall outlet.
Ratio of upward projection: 100 %
Screen Width (Y)
Y/2
Y/2
Projection distance (D)
Projection distance (D)
Screen
Screen Height (X)
X/2
X/2
Screen
30 mm
16:10 Ratio
Screen Size
(mm)
Screen Width
(Y) (mm)
Screen Height
(X) (mm)
Projection Distance
(D) (mm)
635 538 337 803
762 646 404 966
889 754 471 1130
1016 861 539 1293
1143 969 606 1456
1270 1077 673 1619
1397 1185 741 1783
1524 1292 808 1946
1651 1400 875 2109
1778 1508 943 2272
1905 1615 1010 2436
2032 1723 1077 2599
2159 1831 1145 2762
2286 1938 1212 2925
2413 2046 1279 3089
2540 2154 1347 3252
22
PREPARATION
How to Install the Projector On a Tripod
You can install this projector using a camera tripod.
As shown below, you can mount the projector instead of a camera on the tripod.
When stabilizing the tripod, we recommend using a locking bolt of standard size
4.5 mm or less. The maximum size allowed for the locking bolt is 5.5 mm.
(If it is longer than the maximum allowed size, it may damage the projector.)
+
The projector is
connected to this part.
Tripod
Bolt used to
attach the
projector
Bottom side of the projector
CAUTION
If you are using a tripod, be careful not to apply external force to the tripod. Doing
so may damage the projector.
Do not place the tripod on an unstable surface.
Be sure to use a tripod with a maximum load capacity of 3 kg or more.
To use the projector safely, position the tripod legs so that they are as wide and
stable as possible and be sure to securely attach the projector to the tripod.
Kensington Security System
This projector has a Kensington Security Standard connector. Connect a Kensington
Security System cable as shown below.
For more information on installation and use of the Kensington Security System,
refer to the user’s guide provided with the Kensington Security System.
The Kensington Security System is an optional accessory.
What is Kensington? Kensington is a company that provides security systems for
laptops and other electronic devices. Website: http://www.kensington.com
23
PREPARATION
Caution when Using Pouch
The purpose of the pouch provided is to protect the exterior of the product.
Please insert the back of the product rst into the pouch as illustrated.
NOTE
When using the product with the pouch on for a long period of time, the parts
exposed to direct sunlight may change colors.
When using the product with the pouch on, the built-in speakers may sound low in
volume.
24
REMOTE CONTROL
#-"/,
3"5*0
REMOTE CONTROL
Open the lid at the back of the remote control and
insert the batteries as described in the instructions.
Use new batteries and do not mix regular or
rechargeable batteries. (1.5 V AAA)
CAUTION
Do not mix new batteries with old ones.
POWER
Turns the projector on or off.
USB/MY MEDIA
Accesses USB mode.
BLANK
Blanks the screen.
RATIO
Changes the aspect ratio of the screen
per pressing of the button.
ENERGY SAVING
Reduces power consumption by adjusting peak
screen brightness.
INPUT
Changes the input source.
Number buttons
Enters a number.
- (dash)
Enters a channel number, such as 2-1 or 2-2.
LIST
Displays the channel list.
FLASHBK
Displays the channel you were watching
previously.
VOL +, -
Adjusts the volume level.
FAV
Shows favorite channels.
3D
Shows 3D images.
MUTE
Mutes the sound of the projector.
CH ,
Changes the TV channel.
25
REMOTE CONTROL
NOTE
When using the remote control, the optimal operation range is
6 meters or less (left/right) and within a 30 degree arc of the
remote control IR receiver.
If a cable is connected to the back port, the optimal operating
range is 3 meters or less (left/right) and within a 30 degree
arc of the remote control IR receiver.
For seamless operation, do not block the IR receiver.
When you carry the remote control in the portable bag, make sure that the
buttons on the remote control are not pressed by the projector, cables,
documents or any other accessories in the bag. Otherwise, it may significantly
reduce the battery life.
L/R
Switches left and right in 3D mode.
INFO
Displays the information of a program or
screen.
STILL
Freezes the moving image.
(Available in any mode other than USB mode.)
SETTINGS
Displays or closes the Settings menu.
Q.MENU
Allows you to change the settings easily.
Up/Down/Left/Right buttons
Sets the function or moves the cursor.
OK
Shows the current mode and saves changes to
the settings.
Returns to the previous screen.
EXIT
Exits the menu.
#-"/,
3"5*0
#-"/, 3"5*0
30° 30°
Key's ▲, ▼
Adjusts the Keystone function.
Playback control buttons
Controls playback of MY MEDIA.
Color buttons
Sets detailed settings or gesture for each menu.
26
USING THE PROJECTOR
USING THE
PROJECTOR
Connecting to an
Antenna or Cable
To watch TV using an indoor/outdoor
antenna, connect a wall terminal and the
antenna port of the Projector using an
RF cable (75 Ω).
You can watch terrestrial or cable
(analog or digital) TV.
(The RF cable is sold separately.)
NOTE
Make sure not to bend the copper
wire of the RF cable (75 Ω). Turn
the input jack to the right to fasten it.
Copper wire
Ensure you use a standard coaxial
cable (75 Ω, sold separately) when
connecting to the projector input.
For better image quality in
locations where signal strength is
low, purchase and install a signal
amplifier (booster).
A signal splitter is required if you
want to use two or more projectors
through one antenna.
If you have any problems when
installing the antenna, please
consult a suitable retailer or the
store where you purchased the
antenna.
27
USING THE PROJECTOR
Watching Projector
Turning on the Projector
The menu screen display in this owner's
manual is an example to help users
understand how to operate the product
and may look different from the actual
screen.
1 Connect the power cord correctly.
2 After waiting for a moment, press the
POWER button on the remote control
or the joystick button.
3 In the Language Selection screen,
select a language.
English
Español
Français
한국어
Next
4 In the Time Zone screen, select Time
Zone region and Daylight Saving
option.
Conrm
Previous
5 Select an input signal by using the
INPUT button on the remote control.
28
USING THE PROJECTOR
Focus of the Screen Image
When an image appears on the screen, check if it is in focus and ts the screen
properly.
Adjust the focus of the image by rotating the Focus Ring to the left or right.
Make sure the product does not move when adjusting the focus.
Focus Ring
Watching Projector
1 In standby mode, press the POWER button to turn the projector on.
2 Press the INPUT button and select the input signal you want.
3 Control the projector using the following buttons while watching projector.
Button Description
CH , Changes the TV channel.
LIST Displays the channel list.
Number buttons Enters a number.
VOL +, - Adjusts the volume level.
MUTE Mutes all sounds.
Q.MENU Accesses the quick menu. (See page 33.)
FLASHBK Displays the channel you were watching previously.
4 To turn the projector off, press the POWER button.
29
USING THE PROJECTOR
To Set Channel
Image shown may differ from your
projector.
Memorizing the Available
Channels
Using the Auto Tuning function
Saves a channel which is currently
broadcasting. Be sure to activate Auto
Tuning when you move to a new home
or change the position of your projector.
When you activate this function, make
sure that the antenna is connected and
there are channels broadcasting signals.
1
Press the SETTINGS button.
2
Press the , , , or button to
select CHANNEL and press the OK
button.
3
Press the , button to select
Auto Tuning and press the OK
button.
4
Select Start to start automatic
tuning. The projector scans
and saves available channels
automatically.
5
When you are nished, press EXIT.
Memorizing or Deleting Channels
Manually
1
Press the SETTINGS button.
2
Press the , , , or button to
select CHANNEL and press the OK
button.
3
Press the or button to select
Manual Tuning and press the OK
button.
4
Scroll through the channel types,
and then add or delete channels.
5
When you are nished, press EXIT.
NOTE
If Lock System is turned on, a pop-
up window will appear asking for
password.
You can store up to 1000 Channels.
The number of channels that you
can store differs depending on the
broadcasting signal environment.
Auto Tuning memorizes the
Channels that are currently being
broadcast.
The channels are stored in the order
of DTV, TV, Cable DTV, and Cable
TV.
30
USING THE PROJECTOR
Editing Your Channel List
1
Press the SETTINGS button.
2
Press the , , , or button to
select CHANNEL and press the OK
button.
3
Press the or button to select
Channel Edit and press the OK
button.
4
Edit channels using the following
buttons.
Button Description
Red
Adds or deletes a
channel.
Green
Block or unblock a
channel.
FAV
Adds a favorite channel.
5
When you are nished, press EXIT.
Favorite Channel Setup
1
Press the SETTINGS button.
2
Press the , , , or button to
select CHANNEL and press the OK
button.
3
Press the or button to select
Channel Edit and press the OK
button.
4
Move to your desired
channel
.
5
Press FAV to access the Set as
Favorite.
6
Press the or buttons to scrolls
through channel group.
7
Press the OK button.
Set as Favorite
Select a favorite channel group.
Multiple selection is available.
Group A
Group B
Group C
Group D
31
USING THE PROJECTOR
Menu Description
Cinema
Zoom 1
Formats an image to the
cinemascope ratio, 2.35:1. It
ranges from 1 to 16.
Press the
or
button to
zoom in or out of the image.
Press the
or
button to
move the image.
If you enlarge or reduce
an image, the image may
be distorted.
Using the Keystone
Function
To prevent the screen image from
becoming trapezoidal, Keystone adjusts
the top and bottom width of the image
if the projector is not set up at a right
angle to the screen.
Because the Keystone function may
cause inferior screen image quality, use
this function only when it is not possible
to set up the projector at an optimal
angle.
OK
1 Press the Key's or Key's
button to adjust the picture.
Keystone can be adjusted from -40
to 40.
2 Press the OK button when done.
Additional Options
Adjusting Aspect Ratio
Resize an image to view at its optimal
size by pressing RATIO while you are
using the projector.
NOTE
Available picture size may differ
depending on the input signal.
You can also use the Q.MENU or
SETTINGS button.
Menu Description
16:9 Resizes images to the 16:9
ratio.
Full Changes to the full screen
regardless of the aspect
ratio.
Just
Scan
Displays video images in
the original size without
removing parts of the edge
of the image.
If you select Just Scan,
you may see image
noises at the edge or
edges of the screen.
Set By
Program
Displays images in the
same aspect ratio as the
original image.
4:3 Resizes images to the
previous standard 4:3.
Zoom Resizes the image to t the
screen width. The top and
bottom parts of the image
may be cut off.
Press the or button to
zoom in or out of the image.
Press the or button to
move the image.
32
USING THE PROJECTOR
Changing Input Device
To select an external input
Selects external input.
Press the INPUT button on the
remote control to display the input
selection screen.
- Connected inputs are displayed
first. However, TV / AV / Component
/ SCREEN SHARE input is always
activated.
Select an input signal using the
remote control's INPUT button to
connect the projector to the desired
input. You can use the , , , or
button to switch between all the input
modes.
Selecting an Input Label
Displays which devices are connected to
which input ports.
1 Press the INPUT button on the
remote control to display the input
selection screen.
2 Press the red button.
3 Use the or button to scroll to
one of the input sources.
4 Use the or button to select one
of the input labels.
33
USING THE PROJECTOR
Blank Function
Using the Blank Function
This function may be effective when you
need to draw attention during a meeting
or training.
1 Press the BLANK button, and the
screen is covered by the background
color.
You can change the background color
by referring to Selecting a Blank
Image.
2 Press any button to clear the blank
function.
To cover the screen temporarily,
press the BLANK button on the
remote control.
Do not block the lens with any object
while the projector is running.
It may become overheated and
deformed or even cause a re.
Selecting a Blank Image
1 Press the SETTINGS button.
2 Press the , , , or button to
select OPTION 2 and press the OK
button.
3 Press the , button to select
Blank Image and press the OK
button.
4 Use the or button to move to the
setting or option you want and press
the OK button.
Using the Quick Menu
You can customize frequently used menus.
1 Press the Q.MENU button.
2 Press the or button to select a
menu and press OK.
Menu Description
Aspect
Ratio
Resizes the picture.
PJT
Mode
Turns the projected image
upside down or ips it
horizontally.
Mode
Changes the picture mode.
Multi
Audio
Sets MONO or STEREO,
or a language for a bilingual
broadcast (Digital signal).
SAP Changes the MTS sound
(Analog signal).
Sleep
Timer
Sets the projector to be
turned off at the specied
time.
Clear
Voice II
Makes the voice from the
projector crisp and clear.
Del/Add Can delete or add
channels.
USB
Device
Allows you to remove a
connected USB device in a
safe manner.
(The menu is displayed
only when the USB device
is connected.)
3 Press the or button to scroll
through the following menus.
34
ENTERTAINMENT
ENTERTAINMENT
Using SCREEN SHARE
1 Set the external input of the projector to SCREEN SHARE.
2 Enable related SCREEN SHARE function on the device you wish to connect.
3 Connect the Projector from the search list on the device you wish to connect.
(When you connect the projector to your laptop, input the PIN code shown on your
display. The request for a PIN will be shown only at the initial connection.)
4 If the desired device accepts the request, SCREEN SHARE will be started.
CAUTION
Windows 7 / 8 / 8.1 are compatible with SCREEN SHARE. However, other versions
of Windows, and some other operating systems, may not be compatible with
SCREEN SHARE.
Ice Cream Sandwich, Jellybean, and KitKat versions of LG’s Android devices are
guaranteed to be compatible.
When connecting via SCREEN SHARE, place the device close to the projector.
The response rate and image quality may vary depending upon the user’s
environment.
For more information on the device you want to connect to, refer to its owner’s
manual.
Certain Windows 8.1 laptops may have difficulty in reconnecting when initializing
the device information during a wireless connection. In this case, it is recommended
that you remove the registered device and reconnect.
35
MY MEDIA
MY MEDIA
Before Using
Connecting a USB Device
Connect a USB device (external HDD,
USB memory) to the USB port of
projector to enjoy the content les stored
in the USB device with your projector.
You cannot write or delete data in the
USB device. Connect a USB ash drive
as shown below.
USB Flash Drive
Removing a USB Device
1 Click the Q.MENU button.
2 Use the or button to move
to USB Device and press the OK
button.
3 Select a USB to remove. Wait for
conrmation that the USB device has
stopped before removing the USB.
NOTE
If detached early, an error may
occur on the projector or the USB
storage device.
Once a USB device has been
selected for removal, it can no longer
be read. Remove the USB storage
device and then re-connect it.
36
MY MEDIA
Tips for Using a USB Device
If the USB storage device has a built-
in auto recognition program or uses
its own driver, it may not work.
Some USB storage devices may not
work or may work incorrectly.
If you use a USB extension cable, the
USB device may not be recognized or
may not work properly.
Use only USB storage devices
formatted with the Windows FAT32 or
NTFS file system.
For external USB HDDs, it is
recommended that you use devices
with a rated voltage of less than 5 V
and a rated current of less than
500 mA.
It is recommended to use a Hard
Disk Drive with its own power supply.
(If the power being supplied is not
sufficient, the USB storage device
may not be detected correctly.) Note,
a USB Hub is not supported.
It is recommended that you use USB
flash drives of 32 GB or less and USB
HDDs of 1 TB or less.
If a USB HDD with power-saving
function does not work properly,
turn the power off and on. For more
information, refer to the user manual
of the USB HDD.
Data in USB storage device can
be damaged so be sure to back
up important files to other devices.
Data maintenance is the user's
responsibility and the manufacturer is
not responsible for data loss.
37
MY MEDIA
To Use My Media
1 Press the SETTINGS button on the
remote control.
2 Select MY MEDIA.
Select desired le from the list. Watch
the chosen le.
Sets play related settings by checking
option during disk playback.
My Media supporting file
Maximum data transfer rate: 20 Mbps
(Mega bit per second)
External supported subtitle formats:
*.smi, *.srt, *.sub (MicroDVD,
SubViewer 1.0/2.0), *.ass, *.ssa, *.txt
(TMPlayer), *.psb (PowerDivX)
Internal supported subtitle formats:
SRT/ASS/SSA (Supports internal
subtitles generated from DivX6)
38
MY MEDIA
Video Supported Codec
Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)
Extension Codec
.asf,
.wmv
Video VC-1 Advanced Prole, VC-1 Simple and Main Proles
Audio WMA Standard, WMA 9 Professional
.divx,
.avi
Video DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC
Audio MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital
.mp4,
.m4v,
.mov
Video H.264/AVC, MPEG-4 Part 2
Audio AAC
.mkv
Video H.264/AVC
Audio HE-AAC, Dolby Digital
.ts,
.trp,
.tp,
.mts,
.m2ts
Video H.264/AVC, MPEG-2, VC-1
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby
Digital, Dolby Digital Plus, AAC
.vob
Video MPEG-1, MPEG-2
Audio Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
.mpg
Video MPEG-1
Audio MPEG-1 Layer I, II
39
MY MEDIA
Audio File
File type Item Info
MP3
Bit rate 32 kbps to 320 kbps
Sampling rate 32 kHz to 48 kHz
AC3
Bit rate 32 kbps to 640 kbps
Sampling rate 32 kHz, 44.1 kHz, 48 kHz
MPEG
Bit rate 32 kbps to 448 kbps
Sampling rate 32 kHz to 48 kHz
AAC,
HEAAC
Bit rate 24 kbps to 3844 kbps
Sampling rate 8 kHz to 96 kHz
CDDA
Bit rate 1.44 kbps
Sampling rate 44.1 kHz
LPCM
Bit rate 1.41 Mbps to 9.6 Mbps
Sampling rate
Multi-channel : 44.1 kHz, 88.2 kHz /
48 kHz, 96 kHz
Stereo : 176.4 kHz, 192 kHz
40
MY MEDIA
Watching the Videos
In the Movie List, you can watch movies
stored on the connected USB device.
Controls playback and sets options while
viewing videos.
Tips for Playing Video Files
Some subtitles created by users may
not work properly.
The video and subtitle files should
be placed in the same folder. For
subtitles to display correctly, the video
and subtitle files must have the same
name.
We do not support any stream
that contains GMC (Global Motion
Compensation) or Qpel (Quarterpel
Motion Estimation).
Only H.264/AVC profile level 4.1 and
lower is supported.
Video files that exceed 50 GB
(gigabyte) are not supported
for playback. The file size limit
is dependent on the encoding
environment.
DTS audio codec is not supported.
41
MY MEDIA
Browsing Movie List
Play a video le stored in the connected
device.
1 Connect a USB storage device.
2 Press the USB button.
3 Use the or button to select
Movie List and press the OK button.
4 Use the , , , or button to
select the le you want and press the
OK button.
Description
Thumbnails
Abnormal le
File not supported
File List
Moves to the upper level folder.
Current page/Total no. of folder
pages
Current page/Total no. of le
pages
Moves to the top level folder.
Moves to the upper level folder.
Exit Movie List.
5 Control playback by using the
following buttons.
Q.MENU
Option Hide Exit
Setting Description
Shows the current playing
position. Use or
buttons to move forward or
backward.
Stops playing and returns to
Movie List.
Returns to normal playback.
Pauses the media player.
If no button is pressed on the
remote control for 10 minutes
after pausing, the playback is
restarted.
Displays in slow motion.
Whenever this button is
pressed, the playback speed
is changed.
x2, x4, x8, x16, x32
Reduces power consumption
by adjusting peak screen
brightness.
Option A pop-up window will appear.
Hide Hides the playback bar.
Press the OK button to make
it appear.
Exit Returns to the Movie List
screen.
42
MY MEDIA
Options for Movie List
1 Press the Q.MENU button.
2 Use the or button to move to
a desired option and press the OK
button.
3 Use the , , , or button to set
up each item.
Set Video Play.
Setting Description
Size
Selects the size of a
playback screen.
Full : Files are played
in full screen mode
according to the aspect
ratio of video.
Original : Displays the
video in the original size.
Audio
Lan-
guage
Allows you to select the
language you want for
the le with multiple audio
tracks. This option is not
available if the le has only
one audio track.
Setting Description
Subtitle
Lan-
guage
The subtitle can be turned
on or off.
Language : One of any of
the available languages
can be selected.
Code Page : A character
set used for a subtitle
can be selected.
By default, the subtitle is
displayed in a language
configured in OPTION 1
Language.
-
Sync : If a subtitle
is not synchronized
with its video, you can
adjust its speed at 0.5
seconds unit.
-
Position : Moves the
location of a subtitle.
-
Size : Changes the
subtitle font size.
Repeat Turns the repeat function
On or Off.
When it is set to off, the
next le can be played
sequentially if the le name
is similar.
43
MY MEDIA
Subtitle Language
Subtitle
Lan-
guage
Language
Latin1 English, Spanish, French,
German, Italian, Swedish,
Finnish, Dutch, Portuguese,
Danish, Romanian,
Norwegian, Albanian,
Gaelic, Welsh, Irish,
Catalan, Valencian
Latin2 Bosnian, Polish, Croatian,
Czech, Slovak, Slovenian,
Serbian, Hungarian
Latin4 Estonian, Latvian,
Lithuanian
Cyrillic Bulgarian, Macedonian,
Russian, Ukranian, Kazakh
Greek Greek
Turkish Turkish
Hebrew Modern Hebrew
Chinese Simplied Chinese
Korean Korean
Arabic Arabic
Set Video.
You can change video settings.
(Refer to PICTURE Settings on page 59.)
Set Audio.
You can change audio settings.
(Refer to AUDIO Settings on page 64.)
44
MY MEDIA
Registering the DivX code
Checks DivX Reg. Code for replaying
DivX protected videos. Register at
http://vod.divx.com.
Use Reg. Code to rent or purchase
movies at www.divx.com/vod.
1 In the
Settings
menu, move to
OPTION 1 and press DivX(R) VOD.
2 Press the or button to move
to Registration and press the OK
button.
3 Check the DivX Registration code.
NOTE
Rented/purchased DivX files cannot
be played if the DivX Registration
Code of a different device is used.
Use only the DivX Registration Code
granted to this specific device.
Converted files not conforming to the
DivX Codec Standard may not play or
may produce abnormal sound.
To deregister the DivX code
Use the DivX deregistration code to
deactivate the DivX DRM function.
1 In the
Settings
menu, move to
OPTION 1 and press DivX(R) VOD.
2 Use the or button to go to
Deregistration and press the OK
button.
3 Select Yes.
NOTE
What is DRM
[Digital Rights Management]?
This is a technology and service that
prevents the illegal use of digital
contents to protect the benefits and
rights of the copyright owner. Files can
be played after the license is verified
through an online method, etc.
45
MY MEDIA
Viewing the Photos
You can view photos stored on a
connected device.
Supported Photo Files
PHOTO (*.JPEG)
Baseline: 64-pixel (width) x 64-pixel
(height) - 15360-pixel (width) x
8640-pixel (height)
Progressive: 64-pixel (width) x 64-pixel
(height) - 1920-pixel (width) x 1440-pixel
(height)
Only JPEG files are supported.
Non-supported files are displayed in
the form of an icon.
An error message is displayed for
corrupted files or file formats that
cannot be played.
Corrupted files may not be displayed
properly.
It may take some time to view high-
resolution images in full screen.
Browsing Photo List
1 Connect a USB storage device.
2 Press the USB button.
3 Use the or button to select
Photo List and press the OK button.
4 Use the , , , or button to
select the le you want and press the
OK button.
❹
❶
❺
❷
❻
❼
❽
❸
Description
Thumbnails
Abnormal le
File not supported
File List
Moves to the upper level folder.
Current page/Total no. of folder
pages
Current page/Total no. of le
pages
Moves to the top level folder.
Moves to the upper level folder.
❽
Exit
46
MY MEDIA
5 Control playback by using the
following buttons.
Q.MENU
ꔦ
Slideshow BGM Option Hide Exit
Setting Description
Selects the previous or next
photo.
Slide-
show
All photos are displayed
during slide show.
Set Slide Speed in the
Option → Set Photo
View. menu.
BGM You can listen to music while
viewing photos in full size.
Set BGM in the Option →
Set Photo View. menu.
Rotates photos.
Rotates a photo 90°, 180°,
270°, or 360° clockwise.
Photos cannot be rotated
if their width is greater
than the height of the max.
supported resolution.
Views the photo in full mode
or original mode.
Press the blue button to
enlarge the image.
Reduces power consumption
by adjusting peak screen
brightness.
Option A pop-up window will appear.
Setting Description
Hide Hides the menu on the full
size screen.
To see the menu, press
the OK button on the
remote control.
Exit Exit from full screen photo
view.
47
MY MEDIA
Options for Photo List
1 Press the Q.MENU button.
2 Use the or button to move to
a desired option and press the OK
button.
3 Use , , , or button to set up
each item.
Set Photo View.
Setting Description
Slide
Speed
Selects a slideshow speed.
BGM Selects a music folder for
the background music.
You cannot change the
music folder while the
background music is
playing.
For background music,
only the folder from the
same device can be
selected.
- Repeat : Selects repeat
play.
- Random : Selects
random play.
Set Video.
You can change video settings.
(Refer to PICTURE Settings on page 59.)
Set Audio.
You can change audio settings.
(Refer to AUDIO Settings on page 64.)
48
MY MEDIA
Listening to Music
You can play audio les stored on the
connected device.
Supported Music Files
*.MP3
Bit rate range 32 Kbps to 320 Kbps
Sampling rate MPEG1 Layer3:
32 kHz, 44.1 kHz, 48 kHz
Sampling rate MPEG2 Layer3:
16 kHz, 22.05 kHz, 24 kHz
Browsing Music List
1 Connect a USB storage device.
2 Press the USB button.
3 Use the or button to select
Music List and press the OK button.
4 Use the , , , or button to
select the le you want and press the
OK button.
❹
❶
❺
❷
❻
❼
❽
❸
Description
Thumbnails
Abnormal le
File not supported
File List
Moves to the upper level folder.
Current page/Total no. of folder
pages
Current page/Total no. of le
pages
Moves to the top level folder.
Moves to the upper level folder.
❽
Exit
49
MY MEDIA
5 Control playback by using the
following buttons.
Q.MENU
Option Hide Exit
Setting Description
Changes the playing position.
Stops playing.
Returns to normal playback.
Pauses the media player.
Plays the previous/next le.
Reduces power consumption
by adjusting peak screen
brightness.
Option Sets up the options of Music
List.
Hide Hides the playback bar.
Press the OK button to
make the playback bar
appear.
Exit Returns to the Music List
screen.
Options for Music List
1 Press the Q.MENU button.
2 Use the or button to move to
a desired option and press the OK
button.
3 Use , , , or button to set up
each item.
Set Audio Play.
Setting Description
Repeat Selects repeat play.
Random Selects random play.
Set Audio.
You can change audio settings.
(Refer to AUDIO Settings on page 64.)
50
MY MEDIA
Viewing Files
You can see document les stored on a
connected device.
Supported File Formats
XLS, XLSX, DOC, DOCX, PPT, PPTX,
TXT, PDF, HWP
Microsoft Ofce
97/2000/2002/2003/2007 version
Adobe PDF 1.0/1.1/1.2/1.3/1.4 version
Hangul: 97/2000/2002/2005/2007 Version
File Viewer realigns a document,
so it may look different from what is
displayed on a PC.
For documents that include images,
the resolution may look lower during
the realigning process.
If the document is large or has many
pages, it may take longer to load.
Unsupported fonts may be replaced
by other fonts.
The file viewer may not open for
Office documents that contain many
high resolution images. In that case,
reduce the image file size, save it on
a USB storage device and run the
file viewer again or connect your PC
to the projector and open the file on
your PC.
Browsing File List
1 Connect a USB storage device.
2 Press the USB button.
3 Use the or button to select File
List and press the OK button.
4 Use the , , , or button to
select the le you want and press the
OK button.
❸
❹
❶
❺
❻
❼
❷
DOC
HWP PDF
PPT TXT XLS
Description
File List
Moves to the upper level folder.
Current page/Total no. of folder
pages
Current page/Total no. of le
pages
Moves to the top level folder.
Moves to the upper level folder.
❼
Exit
51
MY MEDIA
5 Control playback by using the
following buttons.
Click Go Page then the pop-up
window for selecting the number
of page appears. Input the page to
move to the page you want.
Press the VOL +, - button to zoom in
or zoom out.
Press the OK button and then use the
Up/Down/Left/Right buttons to move to
Go Page or Zoom.
Q.MENU
ꔦ
Go Page Zoom Option Hide Exit
Setting Description
Go
Page
Moves to the page you want.
Use the Up/Down/Left/Right
buttons to select a page and
press the OK button.
Zoom Enlarges or reduces the
document.
Option Sets up the options of File
Viewer.
Hide Hides the menu.
Press the OK button to
make it appear.
Exit Returns to the File Viewer
screen.
Options for File List
1 Press the Q.MENU button.
2 Use , , , or button to set up
each item.
Set FileViewer Option
Setting Description
Single
Page
Loading
On Loads and displays
pages one by one.
The initial loading time
is short but a content
heavy page may be
displayed slowly.
Off Loads all pages of a
le to memory before it
starts to display them.
The initial loading
time is long but you
can navigate pages
quickly after loading is
complete.
If a le is too large, it
may fail to load all the
pages.
Quality
You can set the quality of
the image included in the
document. The following
three options are available
for the image quality: High,
Medium, Low. Higher the
image quality, lower the
display time.
Docu-
ment
Align
Selects initial document
align method.
File View settings are default, so close
the currently opened document to apply
changes to the new document, if any.
52
3D FUNCTION
3D FUNCTION
3D technology uses different video frames for each eye to add depth to the video.
While Watching 3D
WARNING
If you view 3D video or images too
closely for a long period of time, your
eyesight may become worse.
If you watch the projector or game
screen for a long time with 3D glasses
on, you may experience dizziness or
eye fatigue.
People with chronic diseases
(epilepsy, cardiovascular disease,
blood pressure-related diseases,
etc.), pregnant women, and people
with serious motion sickness should
avoid watching 3D video.
People with stereo blindness, or with
stereopsis problems, should also
avoid watching 3D video content. It
may cause double vision or visual
discomfort.
People with strabismus, amblyopia,
or astigmatism may have difficulty
perceiving video depth and may be
fatigued easily due to double vision
or other ailments. It is recommended
to rest more frequently than other
viewers.
Because 3D can be recognized as
real, some viewers may get surprised
or overexcited.
Do not watch 3D images near fragile
objects or any objects that can be
knocked over easily.
Take care not to injure yourself as
you may subconsciously try to move
away from the life-like 3D images.
53
3D FUNCTION
Warning about photosensitivity
seizures
- Some users may experience a
seizure or other abnormal symptoms
when they are exposed to a flashing
light or particular patterns from a
video game. If anyone in your family
has a history of epilepsy or has ever
experienced any kind of seizure,
please consult your doctor before
viewing 3D images.
If you experience one of the following
symptoms while watching a 3D
video, stop watching the 3D video
immediately and take a rest.
- Dizziness, switched eyesight,
twitching of the eye or facial
muscles, involuntary movements,
cramp, loss of consciousness,
confusion, loss of sense of direction,
or nausea. If the symptom does
not disappear, please consult your
doctor.
You can reduce the risk of
photosensitive seizures by taking the
following preventive measures.
- Take a rest of 5 to 15 mins. for every
1 hour of viewing.
- If vision varies between each eye,
correct the variation before beginning
to watch a 3D video.
- Ensure that the 3D video is directly in
front of you, at eye level.
- You should stop watching if you
experience a headache, fatigue or
dizziness.
- Do not view 3D images for a long
period of time when you are tired or ill.
CAUTION
Extra special care is required for
children watching a 3D video.
When Watching 3D Video
Prevent children of 5 years or
younger from watching a 3D video. It
may impair the development of their
eyes.
Children 10 years old or younger are
still developing their eyesight and may
have an excessive tendency to touch
or jump at the screen. Adult guidance
and supervision is recommended.
Since the distance between the eyes
is narrower for children than in adults,
children tend to notice a greater
difference in the images seen by each
eye. Therefore, even while watching
the same 3D video, children may
have a greater depth perception than
adults.
Young people of 19 years old or
younger may respond with sensitivity
to the light stimuli of 3D content.
Excessive viewing when fatigued is
not recommended.
Elderly viewers may have a reduced
depth perception than younger
viewers. Avoid watching video nearer
than the recommended distance.
Watch 3D images within the optimum
viewing angle and distance.
If you are outside the viewing angle
or distance, you may not be able to
see 3D images. You cannot view 3D
images when you are lying down.
54
3D FUNCTION
You may see left and right images
overlapped during projector
initialization after it is powered on. It
may take some time for optimization.
It may take some time for the 3D
image to look normal after you turn
your eyes away from the screen and
look back at the 3D image.
It may flicker slightly while watching
3D images under a 3 wavelength
lamp fluorescent light (50 Hz to
60 Hz) or near windows. If so, it is
recommended to block the sun light
with a curtain and to dim the lights.
The 3D glasses must be DLP-LINK
(DLP Ready) type.
You may not be able to watch 3D
properly if there is an obstacle
between the projector and 3D
glasses.
Install the 3D projector as far as
possible from other devices.
If a future 3D broadcasting format
that is not supported by this projector
becomes the standard, an additional
device such as a set-top box may be
required.
Please check the following when
using 3D glasses.
Do not use 3D glasses as ordinary
glasses, sunglasses or protective
goggles.
- If you do so, this may cause injury.
Do not store 3D glasses in very hot
or very cold conditions. If you do, this
may cause them to become distorted.
Do not use distorted glasses.
Do not drop 3D glasses or allow
them to come into contact with other
objects.
- This may cause product malfunction.
The lenses of 3D glasses are easily
scratched. Use a soft clean cloth
when cleaning them.
Foreign particles on the cloth may
cause scratches.
Do not scratch the surface of the 3D
glasses' lenses with sharp objects
or wipe them with chemicals. If the
lenses get scratched, images may not
look normal when viewing 3D.
55
3D FUNCTION
Requirements for Watching 3D Images
* Optimum viewing angle: Top/Bottom/Left/Right 9°
Recommended viewing distance: 3 m to 5 m
Recommended screen size: 101 cm
* Watching 3D videos should be done in dark room environments only.
NOTE
The pairing with the DLP-LINK glasses is affected by the intensity of light reflected
from the screen.
Therefore, the pairing with DLP-LINK glasses may not work properly if the light
reflected from the screen is not bright enough, such as when the surrounding area
is bright, the screen is big, or the maximum energy saving mode is enabled.
Some menus may not work while playing a 3D video.
You can only watch a 3D video properly when the 3D video format option has been
selected on the projector.
56
3D FUNCTION
1 Please check the minimum system requirements for your computer. Minimum
requirements are as follows:
Microsoft
®
Windows
®
XP, Vista 32/64 bit ,Windows 7 32/64 bit
Intel
®
Core 2 Duo or AMD Athlon™ X2 CPU or higher
More than 1 GB of system memory (2 GB recommended)
Free space of 100 MB or more
DirectX 9 or higher
Video card should support 120 vertical frequency (Hz).
Recommended video card requirements
- Graphic Processor speed 700 MHz higher
- Memory 512 MB higher
A laptop equipped with the chipsets above can be used but it may not work properly.
2 Set the video output to XGA 120 Hz and play a video le using a video player that
supports 3D output.
The following video players support 3D output: Stereoscopic Player, nVidia 3D
Vision, and TriDef 3D.
For more information on the players above, please visit their websites at:
www.3dtv.at
www.nvidia.com
www.tridef.com
57
3D FUNCTION
To Use DLP-LINK (DLP-Ready) Type Glasses
1 While watching 3D images from the projector, press buttons on the glasses.
2 When you press the button, the glasses icker to be synchronized with the 3D
images.
(The ickering is a unique operation method of DLP-LINK type glasses. It may be
different depending on the glasses type.)
3 If the glasses icker or problems occur while watching 3D, rst turn the lights off to
make the room darker. Contact your projector seller for queries about the glasses.
Supported 3D input formats
Input Signal Resolution
Vertical
Frequency
(Hz)
Supported 3D Formats
HDMI XGA 1024 x 768 120 Frame Sequential / Frame Alternative
RGB-PC XGA 1024 x 768 120 Frame Sequential / Frame Alternative
The resolution supporting 3D mode is 1024 x 768 for HDMI and RGB input.
Some menus may not work in 120 Hz input.
Watching 3D Images
1 Play supported 3D video titles.
2 In order to watch 3D images in RGB-PC mode, you must go to SETTINGS →
PICTURE → Screen (RGB-PC) and run Auto Config..
3 Press the 3D button.
4 While watching 3D images from the projector, press buttons on the glasses.
5 Press the L/R button to switch the playing direction of an image. Select a screen
with better 3D display quality.
If you press the 3D button during viewing, it returns to 2D.
58
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
SETTINGS
1 Press the SETTINGS button.
2 Use the , , , or button to select the desired item and press the OK button.
3 Use the , , , or button to set up the desired item and press the OK button.
4 Press the EXIT button when completed.
Menu Description
PICTURE Adjusts the image quality for optimal viewing.
AUDIO Adjusts the sound quality and volume level.
CHANNEL Sets up and edits a channel.
TIME Sets the time and time-related features.
WIRELESS Wireless-related features.
LOCK Locks or unlocks a channels or a programs.
OPTION 1 Customizes the general settings.
OPTION 2 Customizes the settings related the projector.
INPUT Selects the desired input source.
MY MEDIA Accesses photo, music, movie, and document les.
59
CUSTOMIZING SETTINGS
PICTURE Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select
PICTURE and press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4 Press the EXIT button when completed.
The available picture settings are described as follows.
Item Description
Energy
Saving
Reduces power consumption by adjusting peak screen brightness.
Mode
Minimum/
Medium/
Maximum
Applies the pre-set Energy Saving mode.
Mode
Selects the picture mode optimized for the viewing environment or the
program.
You can also customize advanced options for each mode.
Mode
Vivid Maximizes the visual effect of video.
Heightens contrast, brightness and sharpness to display
vivid images.
Standard Displays images in standard levels of contrast,
brightness and sharpness.
Cinema Optimizes the image for a movie.
Sport Optimizes the image for sports by emphasizing primary
colors and dynamic actions.
Game Optimizes the image for playing games on fast-moving
screens.
Expert1/2 Menu for adjusting picture quality that allows experts
and amateurs to enjoy the best Projector viewing.
- Expert mode is for picture tuning professionals to
control and ne-tune using a specic image. For
normal images, the effects may not be dramatic.
Contrast Adjusts the difference between bright and dark regions of the screen.
60
CUSTOMIZING SETTINGS
Item Description
Brightness Adjusts the overall screen brightness.
Sharpness Adjusts the sharpness of the borders between bright and dark.
Horizontal and Vertical Sharpness are available only in Expert1/2.
Color Adjusts the intensity of all colors.
Tint Adjusts the balance between red and green levels.
Advanced
Control
Customizes the advanced settings.
Option
Sets optional settings.
Reset
Resets values customized by the user.
Each picture mode is reset. Select the picture mode you wish to reset.
Aspect
Ratio
Resizes the picture.
Screen
(RGB-PC)
Adjusts the picture quality of RGB-PC input.
Option
Resolution Available resolutions are 768 resolution (1024 x 768/
1280 x 768/ 1360 x 768, 60 Hz) and 1050 resolution
(1400 x 1050/ 1680 x 1050, 60 Hz).
Auto Cong. Provides optimized picture quality by automatically
calibrating the mismatch of horizontal width and picture
shake caused by clashes between the internal settings
of the projector and various PC graphic signals.
Position Moves the image up/down/left/right.
Size Changes the screen size.
Phase
Makes the picture look clear by removing horizontal
noise.
Reset Restores all the settings to the factory default.
61
CUSTOMIZING SETTINGS
Advanced Control
Item Description
Dynamic
Contrast
Adjusts contrast and color to the optimal level according to the
screen’s brightness.
Dynamic
Color
Adjusts colors for more natural-looking colors.
Color Gamut Selects the range of colors that can be expressed.
Standard: Displays the original colors of an input signal regardless
of the display features.
Wide: Makes use of the display's rich colors.
Skin Color Skin color spectrum can be separately set to implement the skin color
as dened by the user.
Sky Color Sky color is set separately.
Grass Color Natural color spectrum (meadows, hills, etc.) can be separately set.
Gamma Sets the gradation curve according to the output of the picture signal in
relation to the input signal.
* Depending on input signal or other picture settings, the range of detailed items for
adjustment may differ.
Expert Control
Item Description
Dynamic
Contrast
Adjusts contrast and color to the optimal level according to the
screen’s brightness.
Color Gamut Selects the range of colors that can be expressed.
Standard: Displays the original colors of an input signal regardless
of the display features.
Wide: Makes use of the display's rich colors.
Edge
Enhancer
Shows clearer and distinctive yet natural edges of the video.
Expert
Pattern
Patterns used for expert adjustment.
Color Filter Filters a specic color spectrum in RGB colors to ne-tune color
saturation and hue accurately.
62
CUSTOMIZING SETTINGS
Item Description
Color
Temperature
In Expert mode, you can customize the options of each mode.
Gamma:
Select
1.9, 2.2,
or
2.4.
a. Method
:
2 Points
-
Pattern
:
Inner
,
Outer
-
Points
:
Low
,
High
-
Red/Green/Blue
: Adjustable range
-50
to
+50
.
-
Apply to all inputs
:
The values of the Color Temperature is
applied to all the input modes.
b. Method
:
20 Point IRE
-
Pattern
:
Inner
,
Outer
-
IRE
(Institute of Radio Engineers) is th
e unit indicating the size
of a video signal and can be set to 0, 5, 10, 15, ... 100. You can
ne-tune for each setting as shown below.
- Luminance: The adjustment range is 50 to 500.
- Red/Green/Blue: The adjustment range is -50 to +50.
- Apply to all inputs: The values of the Color Temperature is
applied to all the input modes.
Color
Management
System
Adjusts Red/Green/Blue/Cyan/Magenta/Yellow colors. Allows an
expert to adjust the tint using a test pattern. Six colors (Red/Green/
Blue/Cyan/Magenta/Yellow) can be selectively adjusted without
affecting other colors. You may not see colors change on a normal
picture even after adjustment.
- Saturation Red/Green/Blue/Yellow/Cyan/Magenta,
Tint Red/Green/Blue/Yellow/Cyan/Magenta,
Luminance Red/Green/Blue/Yellow/Cyan/Magenta:
The adjustment range is -30 to +30 each.
* Depending on input signal or other picture settings, the range of detailed items for
adjustment may differ.
63
CUSTOMIZING SETTINGS
Picture Option
Item Description
Noise
Reduction
Reduces screen noise in the video.
MPEG Noise
Reduction
Eliminates noise generated while creating digital picture signals.
Black Level
Adjusts the brightness or darkness of the screen to suit the black level of
the picture input using the degree of darkness (black level) of the screen.
Real Cinema Optimizes the screen for movie viewing.
Color
Temperature
Adjusts the overall color of the screen to suit your preference.
Select Warm, Cool, Medium
,
or Natural.
64
CUSTOMIZING SETTINGS
AUDIO Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select AUDIO
and press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4 Press the EXIT button when completed.
The available sound settings are described as follows.
Item Description
Sound Mode Sets the sound mode.
Mode
Standard Suitable for all types of video.
News/ Music/
Cinema/ Sport/
Game
Sets audio optimized for a specic genre.
Sound Effect The user can select various sound effects.
Mode
Clear Voice II Makes the voice from the projector crisp and clear.
Virtual
Surround
LG’s proprietary audio processing technology
allows 5 channel-like surround sound from two
speakers.
When Clear Voice II is set to on, Virtual
Surround cannot be selected.
Equalizer Adjusts the volume to a level of your choice using
the Equalizer.
Audio-band (100 Hz/ 300 Hz/ 1 kHz/ 3 kHz/
10 kHz) can be adjusted from - 10 to 10.
Reset: Resets voice options that the user has
changed.
Balance Adjusts the balance of the left and right speakers.
Reset Initialize the applied effect under the Sound
Effect menu.
Auto Volume Automatically adjusts the volume level.
65
CUSTOMIZING SETTINGS
CHANNEL Settings
1
Press the SETTINGS button.
2
Use the , , , or button to select
CHANNEL and press the OK button.
3
Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4
Press the EXIT button when completed.
The available channel settings are described as follows.
Item Description
Auto
Tuning
Remembers a channel which is currently broadcasting. You should use
this function when you move to another house or move the Projector to
other place. It must be used while the antenna is connected and there
are channel broadcasting signals.
Channels are not registered properly unless the antenna/cable is
connected correctly.
Auto Tuning only finds programs that are currently broadcasting.
If Lock System is turned On, a pop-up window will appear asking
for password.
Manual
Tuning
Adjusts channels manually and saves the results.
For digital broadcasting, signal strength, etc. can be checked.
Channel
Edit
Edits the saved channels.
Set as favorite channel, block/unblock channel, delete channel etc. of
the selected channel.
66
CUSTOMIZING SETTINGS
TIME Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select TIME
and press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4 Press the EXIT button when completed.
The available time settings are described as follows.
Item Description
Clock Checks or changes the time while watching projector.
Mode
Auto Synchronizes the projector clock to the digital time
information sent by the TV station.
Manual Sets the time and date manually if the auto setup does not
correspond to the current time.
Off Time
/On Time
Sets the time to turn on or off the projector automatically. To use this
feature, you should set the current time and date in advance.
To use this feature, set the time correctly.
If you do not want to set Off Time
/
On Time, select Off in Repeat.
NOTE
If you set both Off time and On time features to the same time,
the Off time feature overrides the On time feature.
If you do not press any button within two hours after the projector
is turned on by the On Time feature, the projector enters standby
mode automatically.
Sleep Timer Turns off the Projector after a preset number of minutes.
To cancel the Sleep Timer, select Off.
Auto Off If there is no input signal or button press, the projector automatically
turns off after the preset time has elapsed.
Automatic
Standby
Turns off the projector automatically after a set period of time if there is
no button input on the projector.
67
CUSTOMIZING SETTINGS
WIRELESS Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select
WIRELESS and press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4 Press the EXIT button when completed.
The available wireless settings are described as follows.
Item Description
SCREEN
SHARE
The SCREEN SHARE displays the screen of the connected device.
You can check the SCREEN SHARE's ID.
Mode
Group This is the Group setting for each device supporting the
SCREEN SHARE feature. When the wireless connection
is weak or unstable, adjust the Group setting to correct
the problem.
Channel You can change the channel used for wireless
connections.
Search Channels: Select channel searching methods.
- Auto: The projector searches for available channels
and automatically selects the least used channel.
- Manual: You can select a channel manually.
Channel: This is shown when Search Channels is set
to Manual. It allows you to specify a channel number
to use.
68
CUSTOMIZING SETTINGS
LOCK Settings
1
Press the SETTINGS button.
2
Use the , , , or button to select LOCK
and press the OK button.
- To enter the LOCK menu, enter the preset
4-digit password. The initial password is set
as 0000.
3
Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4
Press the EXIT button when completed.
The available lock settings are described as follows.
Item Description
Set Password Sets or changes projector password.
The initial password is set as 0000.
Lock System Locks the selected channel or external input.
First set Lock System to On.
Item
Block
Channel
Blocks the programs that contain inappropriate
contents for children. The programs can be selected
but the screen is blank and the audio is muted. To
watch a locked program, enter the password.
Movie
Rating
Blocks the movies that are only broadcasted on the
TV and contain inappropriate contents, based on the
Motion Picture Association of America (MPAA) rating.
G : General audiences
All ages admitted
PG : Parental guidance suggested
Some material may not be suitable for children
PG-13 : Parents strongly cautioned
Some material may be inappropriate for children
under 13
R : Restricted Under 17 requires accompanying
parent or adult guardian
NC-17 : No one 17 and under admitted
X : Adult only
69
CUSTOMIZING SETTINGS
Item Description
Lock System Item
TV
Rating-
Children
Blocks the children’s TV programs that parents do
not want their children to watch. To block other TV
programs, you should set the TV Rating-General
feature.
Age TV-Y (All children, including children from
ages 2-6), TV-Y7 (Directed to older children,
suitable for children age 6 and above)
Fantasy Violence TY-Y7 (Directed to older
children - Fantasy violence, suitable for children
age 6 and above, containing more intense or
combative fantasy violence)
TV
Rating-
General
Blocks the TV programs that you want based on
the ratings by using the Parental Control Function
(V-Chip).
The V-Chip electronically reads TV program ratings
and allows parents to block program that are
unsuitable for children.
Age TV-G (General audience, suitable for all ages)
TV-PG (Parental guidance suggested, containing
material that are unsuitable for younger children)
TV-14 (Parents strongly cautioned, containing
material that are unsuitable for children age 14 and
under)
TV-MA (Mature audience only, unsuitable for
children age)
Dialogue (suggestive dialogue) TV-PG or TV-14
Language (coarse language)TV-PG, TV-14, or TV-MA
Sex (sexual situation) TV-PG, TV-14, or TV-MA
Violence TV-PG, TV-14, or TV-MA
Down-
loadable
Rating
This function operates only when TV has received
Region5 Rating data. The name of the rating option
may differ.
Input
Block
Block the input sources.
70
CUSTOMIZING SETTINGS
Item Description
Key Lock Locks control buttons on projector.
Key Lock function remains intact even in case of power outage
or when the power cord is removed from the wall socket.
Key Lock function can only be set by remote control, and not
by the button on the projector.
If you select On: You can turn the projector on only with the
Power button if you have turned the projector off using the
remote control. If you press a button on the joystick button
while watching video, the message Key Lock is displayed.
71
CUSTOMIZING SETTINGS
OPTION 1 Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select
OPTION 1 and press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4 Press the EXIT button when completed.
The available option 1 settings are described as follows.
Item Description
Language Selects a desired Menu Language.
Caption View subtitles when the TV station provides subtitled programing.
Program subtitles work only on digital/analog broadcasts.
Change Caption to On and select caption setting.
Mode CC 1-4 (Closed Captioning) / Text 1-4
Displays the audio portion of a TV program as text
on the TV screen. CC 1 is the most common mode in
use.
Field 1 data channels: two Captions (CC 1, CC 2), two
Text (Text 1, Text 2).
Field 2 data channels: two Captions (CC 3, CC 4), two
Text (Text 3, Text 4).
Service1-6
This is only available for the digital broadcasting
system.
72
CUSTOMIZING SETTINGS
Item Description
Caption Digital
Option
Set up the size and color of the subtitles on Digital
Option. Please select Set by Program or Custom.
Select Custom to adjust minute options such as the
subtitles’ size and color.
Item
Size Selects the wordsize.
Font Selects a typeface for the text.
Text
Color
Selects a color for the text.
Text
Opacity
Adjusts the opacity for the text color.
Bg Color Selects a color for the background color.
Bg
Opacity
Adjusts the opacity for the background
color.
Edge
Type
Selects an edge type.
Edge
Color
Selects a color for the edges.
3D Mode Selects 3D mode.
Auto Input
Search
Automatically searches for and displays the input signal type
when it is received. It is available only with external inputs
(RGB-PC, HDMI, AV, and Component).
DivX(R) VOD Sets DivX related settings.
Initial Setting Deletes all optional settings and returns to initial default mode.
Once initialization is complete, the projector will turn off and on by
itself.
When Lock System is in place, a pop-up window appears and
asks for password.
Do not turn off the power during initialization.
73
CUSTOMIZING SETTINGS
OPTION 2 Settings
1 Press the SETTINGS button.
2 Use the , , , or button to select
OPTION 2 and press the OK button.
3 Use the , , , or button to set up the
desired item and press the OK button.
- To return to the previous menu, press the
button.
4 Press the EXIT button when completed.
The available option 2 settings are described as follows.
Item Description
Keystone To prevent the screen image from becoming trapezoidal,
Keystone adjusts the top and bottom width of the image if the
projector is not set at a right angle to the screen.
Auto Keystone Auto Keystone provides a rectangular screen image by
automatically adjusting the Keystone number when there is a
trapezoidal screen image caused by tilting of the projector.
Item
On
Automatically adjusts the Keystone number.
Off
Manually adjusts the Keystone number.
PJT Mode
This function turns the projected image upside down or ips horizontal.
Select Rear when projecting from the back of the transparent
screen purchased separately.
Select Front Ceiling when installing the product on the ceiling.
When PJT Mode is Rear/ Front Ceiling, the left/right of the
speaker changes automatically.
High Altitude If the projector is used at an altitude higher than 1200 meters,
turn this on.
Otherwise, the projector may overheat or its protection function
may be activated. If this happens, turn the projector off and then
on again after waiting for several minutes.
Blank Image Selects a background for blank Image.
74
CUSTOMIZING SETTINGS
Item Description
Auto Power Makes the projector turn on automatically when the adaptor plug
is inserted.
Item
On
When the AC/DC plug is connected to the
projector, it turns on automatically.
Off
When the AC/DC plug is connected to the
projector, it goes into standby mode.
Self Diagnosis Troubleshoots functional problems that can arise while using the
product.
75
CONNECTING DEVICES
CONNECTING DEVICES
You can connect various external devices to the projector.
HDMI - page 76
Component - page 77
Composite (AV) - page 77
RGB - page 79
USB Device - page 35
Headphone - page 81
Mobile Phone (MHL/Slimport) - page 82
Computer/Notebook VideoDVD
Digital Device
USB
Headphones
Game Console
Mobile Phone
76
CONNECTING DEVICES
Connecting to HD
Receiver, DVD, VCR
Player, or External
Devices
Connect an HD receiver, DVD, VCR
player, or External Devices to the
projector and select an appropriate input
mode.
HDMI Connection
With an HDMI cable, you can enjoy high
quality picture and sound.
Using a HDMI cable, connect the
port of the projector to
the HDMI output port of the device
to connect. Both video and audio are
output at the same time.
Press the INPUT button on the remote
control to select HDMI.
+'0,
* Optional
Extras
HDMI to DVI Connection
Using an HDMI to DVI cable, connect
the projector's port to the
DVI OUT port.
To output audio, use an audio cable for
connection.
Press the INPUT button on the remote
control to select HDMI.
DVI OUT
AUDIO OUT
* Not
provided
* Optional
Extras
77
CONNECTING DEVICES
AV Connection
Connect the output ports of an external
device and the AV IN ports of the
projector using an AV cable. Press the
INPUT button on the remote control to
select AV.
Check whether cables of the same color
are connected properly.
9,'(2287
/HIW 5LJKW
$8',2287
YELLOW
YELLOW
YELLOW
WHITE WHITE
WHITE
RED RED
RED
Component Connection
You can enjoy a video by connecting the
Component port of an external device to
the RGB IN port of the projector. Press
the INPUT button on the remote control
to select Component.
Check whether cables of the same color
are connected properly.
9,'(2287
/HIW
<3% 35
5LJKW
$8',2287
RED
RED RED
BLUE BLUE
BLUE
GREEN
GREEN
GREEN
WHITE
RED
9,'(2287
/HIW 5LJKW
$8',2287
WHITE
WHITE
RED
RED
YELLOW
* Optional
Extras
(Video)
* Not
provided
* Accessories
* Accessories
(Audio)
* Optional
Extras
(Video)
* Not
provided
(Audio)
78
CONNECTING DEVICES
Connecting a PC
The projector supports Plug & Play. Your
PC will automatically detect the projector
and requires no driver installation.
HDMI Connection
Using an HDMI cable, connect the
port of the projector to the
HDMI output port of your PC. Both video
and audio are output at the same time.
Press the INPUT button on the remote
control to select HDMI.
+'0,
* Optional
Extras
HDMI to DVI Connection
Using an HDMI to DVI cable, connect
the projector's port to the
DVI OUT port.
To output audio, use an audio cable for
connection.
Press the INPUT button on the remote
control to select HDMI.
DVI OUT
AUDIO OUT
* Not
provided
* Optional
Extras
79
CONNECTING DEVICES
RGB Connection
Connect the PC output and the PC video
input port of the projector with the RGB
cable.
For audio signal, connect the PC and
the projector with an optional audio
cable.
Press the INPUT button on the remote
control to select RGB-PC.
YELLOW
WHITE
RED
WHITE
RED
$8',22875*%2873&
$8',22875*%2873&
You can connect the audio cable
without using a gender as shown in the
illustration above.
* Not
provided
* Optional
Extras
* Optional
Extras
* Optional
Extras
* Accessories
80
CONNECTING DEVICES
The table below shows examples
of switching the output. For more
information, refer to the External
Output, Connecting to an External
Monitor, or similar sections of the
owner's manual of your computer.
Brand Switching Output
NEC Fn + F3
Panasonic Fn + F3
Toshiba Fn + F5
IBM Fn + F7
Sony Fn + F7
Fujitsu Fn + F10
LG Fn + F7
Samsung Fn + F4
Macintosh Adjust the control panel
to enable mirroring after
start-up.
Connecting a Laptop
You can connect the projector to a
laptop to use various functions.
HDMI Connection
Using an HDMI cable, connect the
port of the projector to the
HDMI output port of your laptop. Both
video and audio are output at the same
time.
Press the INPUT button on the remote
control to select HDMI.
+'0,
* Optional
Extras
81
CONNECTING DEVICES
Connecting to
Headphones
You can listen to the audio through a
headphone.
* Not
provided
82
CONNECTING DEVICES
Using the Mirroring Function of a Mobile Phone
MHL/Slimport Connection
You must use a HDMI adapter to connect your cell phone to the projector and to
output images and sound from your cell phone to the projector.
The compatible HDMI adapters are different, depending upon your cell phone type.
Therefore, purchase an appropriate MHL or Slimport adapter.
(To nd out whether your device is MHL/Slimport-certied, please contact your device
manufacturer.)
* Optional Extras
NOTE
When you connect a mobile phone to the port, you can see the mobile
phone screen through a projector.
- This only applies to mobile phones that support MHL/Slimport.
- You can use the remote control for some applications.
Disconnect the MHL/Slimport cable from the projector when:
- The MHL/Slimport function is disabled.
- Your mobile device is fully charged in standby mode.
83
MAINTENANCE
MAINTENANCE
Clean your projector to keep it in optimal
condition.
Cleaning
Cleaning the Lens
If there is any dust or staining on the
lens surface, you must clean the lens.
Use an air spray or a cleaning cloth to
clean the lens.
To remove dust or stains, use an
air spray or apply a small amount of
cleaning agent onto a swab or soft cloth
to lightly rub the lens.
Please be aware that liquid may ow
into the lens if the product is sprayed
directly onto the lens.
Cleaning the Projector
Case
To clean the projector case, rst unplug
the power cord.
To remove dust or stains, use only a dry,
lint-free, nonabrasive cloth to polish the
lens.
Do not use alcohol, benzene, thinners,
or other chemicals, which may damage
the case.
84
SPECIFICATIONS
SPECIFICATIONS
MODELS PW800 (PW800-NA)
Resolution (Pixel) 1280 (Horizontal) × 800 (Vertical)
Aspect ratio 16:10 (Horizontal:Vertical)
Panel size (mm) 11.623
Projection distance
(Video size)
0.80 m to 3.25 m (63.5 cm to 254.0 cm)
Ratio of upward
projection
100 %
Working range of
the remote control
6 m
Video input
NTSC M / PAL-B, D, G, H, I / PAL M / PAL N / PAL 60 /
SECAM
AC-DC Adaptor
19.0 V , 3.42 A
(Adaptor Input 100-240 V @ 50/60 Hz)
Audio Output 1 W + 1 W
Reception type DTV-ATSC / TV-NTSC
Reception channels VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
External Antenna
Impedance
75 Ω (VHF/ UHF)
Height (mm) 50 (without foot), 53 (with foot)
Width (mm) 139
Depth (mm) 139
Weight ( ) 600
USB Device 5 V, 0.5 A (Max.)
Power AC 100 - 240 V~, 50 Hz/60 Hz
Operation
environment
Temperature
Operation 0 °C to 40 °C
Storage -20 °C to 60 °C
Relative Humidity
Operation 0 % to 80 %
Storage 0 % to 85 %
* Use only power supplies listed in the user instructions.
* Contents in this manual may be changed without prior notice due to upgrade of
product functions.
85
SPECIFICATIONS
Supported HDMI/DVI-DTV Mode
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
480p
31.47
31.47
31.50
60
59.94
60
576p 31.25 50
720p
45.00
44.96
37.5
60.00
59.94
50
1080i
33.75
33.72
28.125
60.00
59.94
50
1080p
67.500
67.432
27.000
26.97
33.75
33.71
56.25
60
59.939
24.000
23.976
30.000
29.97
50
To provide the best picture quality,
a 1280 x 720 (720p) resolution is
recommended.
Component port connecting
information
Signal
Component
480i
o
480p o
720p / 1080i o
1080p
o
(60 Hz only)
Supported RGB-PC/HDMI(PC) Mode
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
640 x 350 31.468 70.09
720 x 400 31.469 70.08
640 x 480 31.469 59.94
800 x 600 37.879 60.31
1024 x 768
48.363
97.551
60.00
120
1152 x 864 54.348 60.053
1280 x 800 49.68 60
1360 x 768 47.712 60.015
1280 x 1024
63.981 60.020
1400 x 1050
65.317 59.979
1680 x 1050
65.3 60
If an invalid signal is input into the
projector, it will not be displayed
properly on the screen or a message
such as No Signal or Invalid Format
will be displayed.
The projector supports the DDC1/2B
type as the Plug & Play function
(Auto-recognition of PC monitor).
PC synchronization signal
types supported: Separate type
synchronization.
In PC mode, 1280 x 800 is
recommended for the best picture
quality.
86
SPECIFICATIONS
Open Source Software Notice
Information
To obtain the source code under GPL,
LGPL, MPL, and other open source
licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all
referred license terms, warranty
disclaimers and copyright notices are
available for download.
LG Electronics will also provide open
source code to you on CD-ROM for a
charge covering the cost of performing
such distribution (such as the cost of
media, shipping, and handling) upon
email request to [email protected].
This offer is valid for three (3) years from
the date on which you purchased the
product.
