INSTALLATiON INSTRUCTION Electric Cooktop for Kenmore 41209

Contents

• IMPORTANT INSTALLATION-IN FORMATION

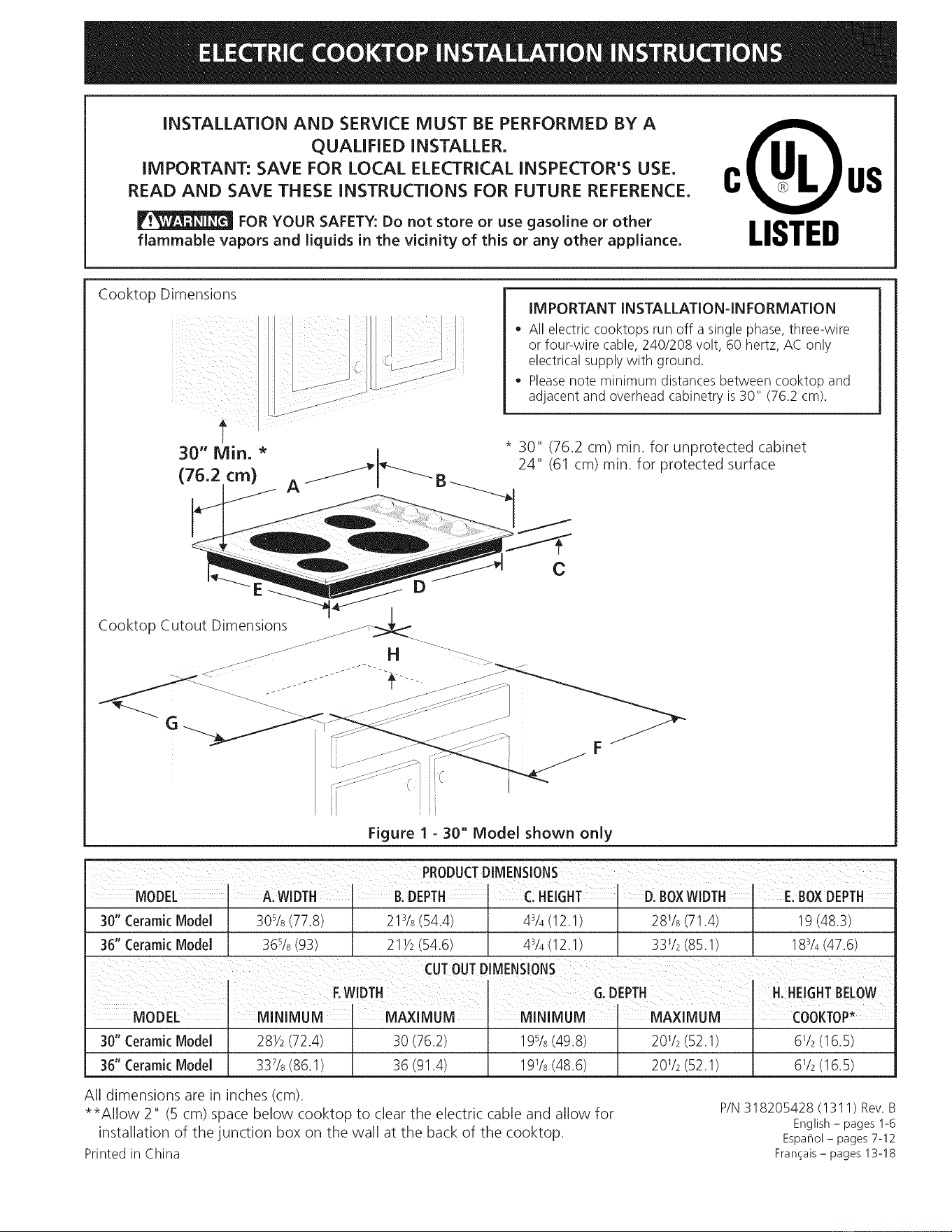

• Cooktop Dimensions

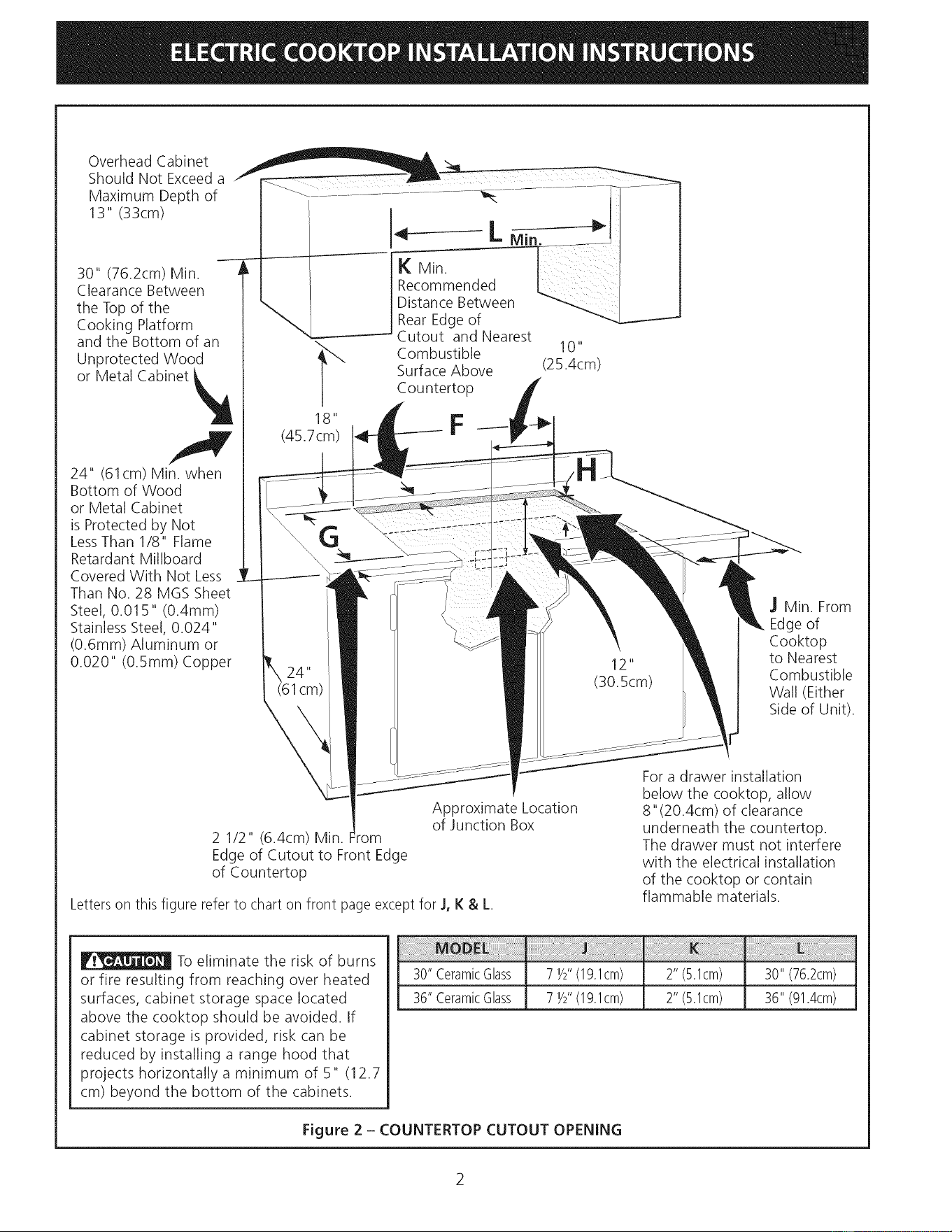

• Cooktop Cutout Dimensions
• Important Notes to the Installer
• Important Note to the Consumer
• Provide Electrical Connection
• Electrical Requirements
• Unpacking Instructions
• Model and Serial Number Location

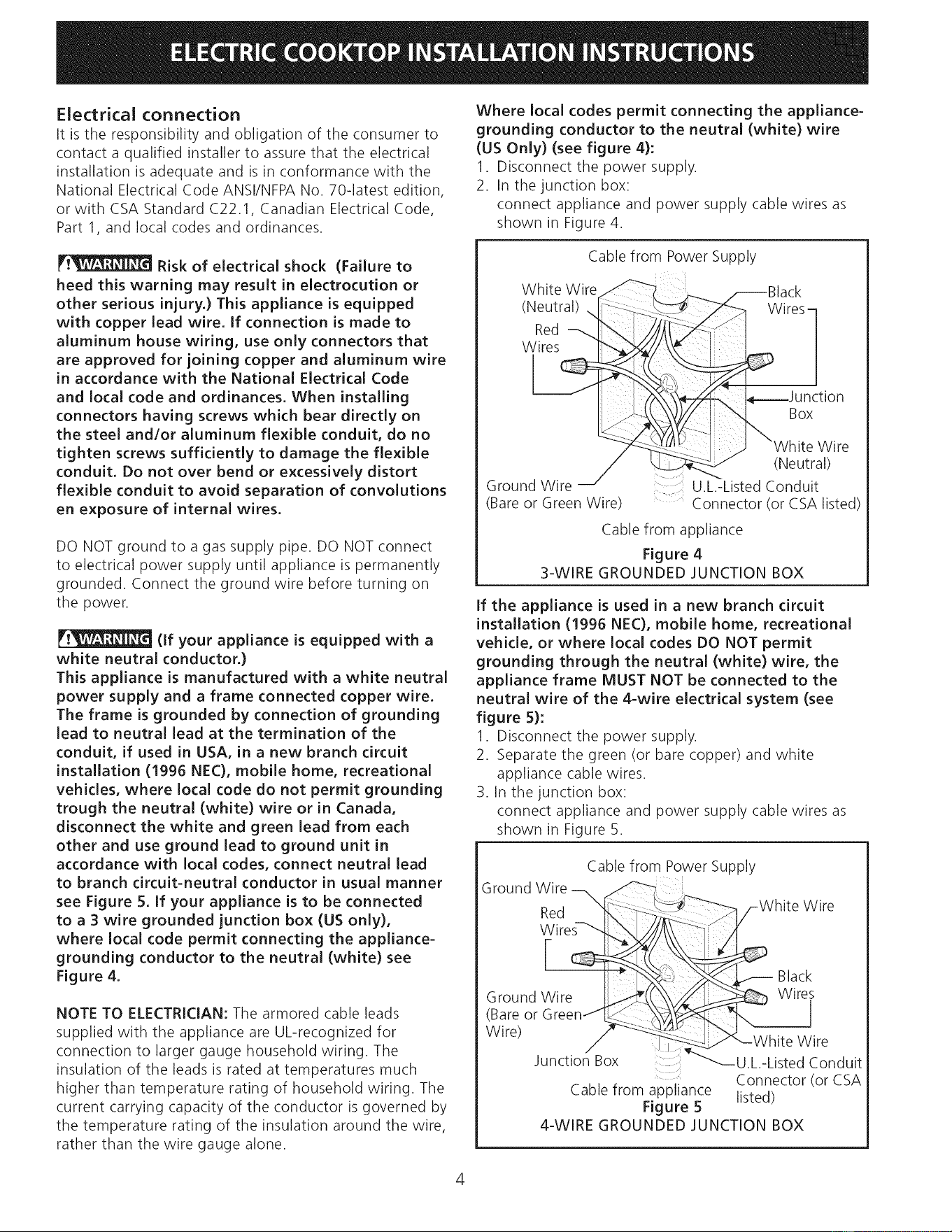

• Electrical connection

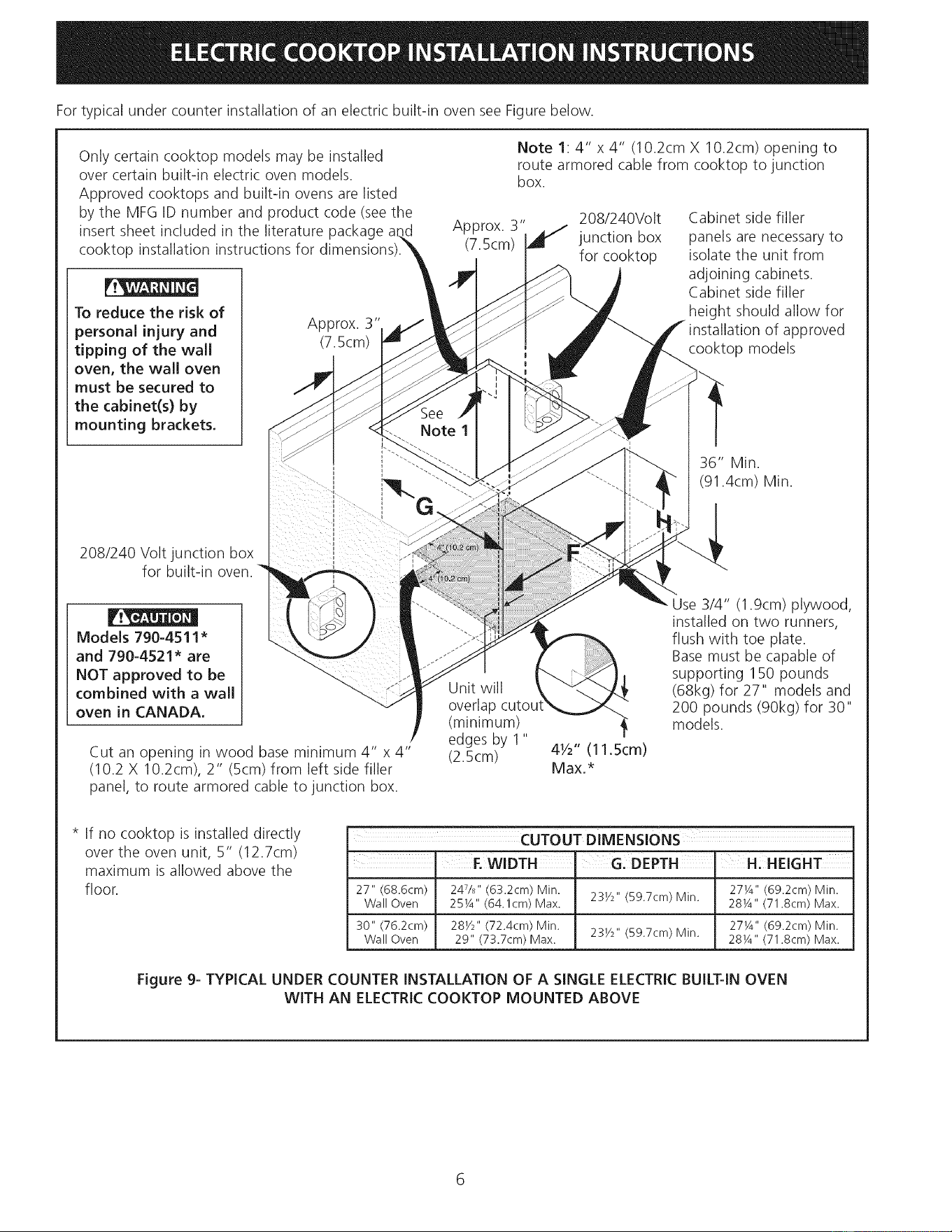

• Cooktop Installation
• Granite countertop Installation Kit
• Checking Operation

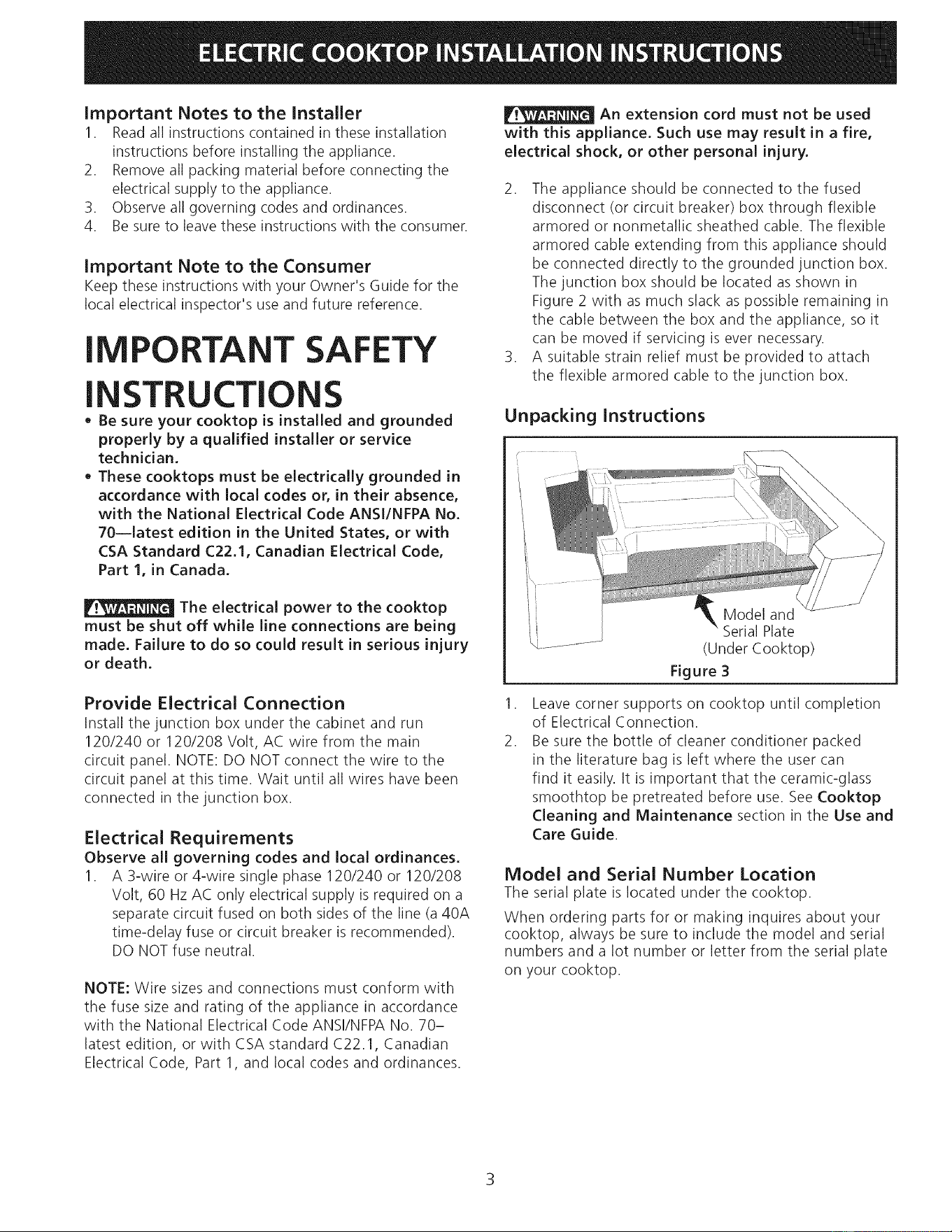

Electrical Requirements

Observe all governing codes and local ordinances

1. A 3-wire or 4-wire single phase 120/240 or 120/208 Volt, 60 Hz AC only electrical supply is required on a separate circuit fused on both sides of the line (a 40A time-delay fuse or circuit breaker is recommended). DO NOT fuse neutral. NOTE: Wire sizes and connections must conform with the fuse size and rating of the appliance in accordance with the National Electrical Code ANSI/NFPA No. 70- latest edition, or with CSA standard C22.1, Canadian Electrical Code, Part 1, and local codes and ordinances. Warning: An extension cord must not be used with this appliance. Such use may result in a fire, electrical shock, or other personal injury.
2. The appliance should be connected to the fused disconnect (or circuit breaker) box through flexible armored or nonmetallic sheathed cable. The flexible armored cable extending from this appliance should be connected directly to the grounded junction box. The junction box should be located as shown in Figure 2 with as much slack as possible remaining in the cable between the box and the appliance, so it can be moved if servicing is ever necessary.
3. A suitable strain relief must be provided to attach the flexible armored cable to the junction box.

Unpacking Instructions

1. Leave corner supports on cooktop until completion of Electrical Connection.
2. Be sure the bottle of cleaner conditioner packed in the literature bag is left where the user can find it easily. It is important that the ceramic-glass smoothtop be pretreated before use. See Cooktop Cleaning and Maintenance section in the Use and Care Guide.

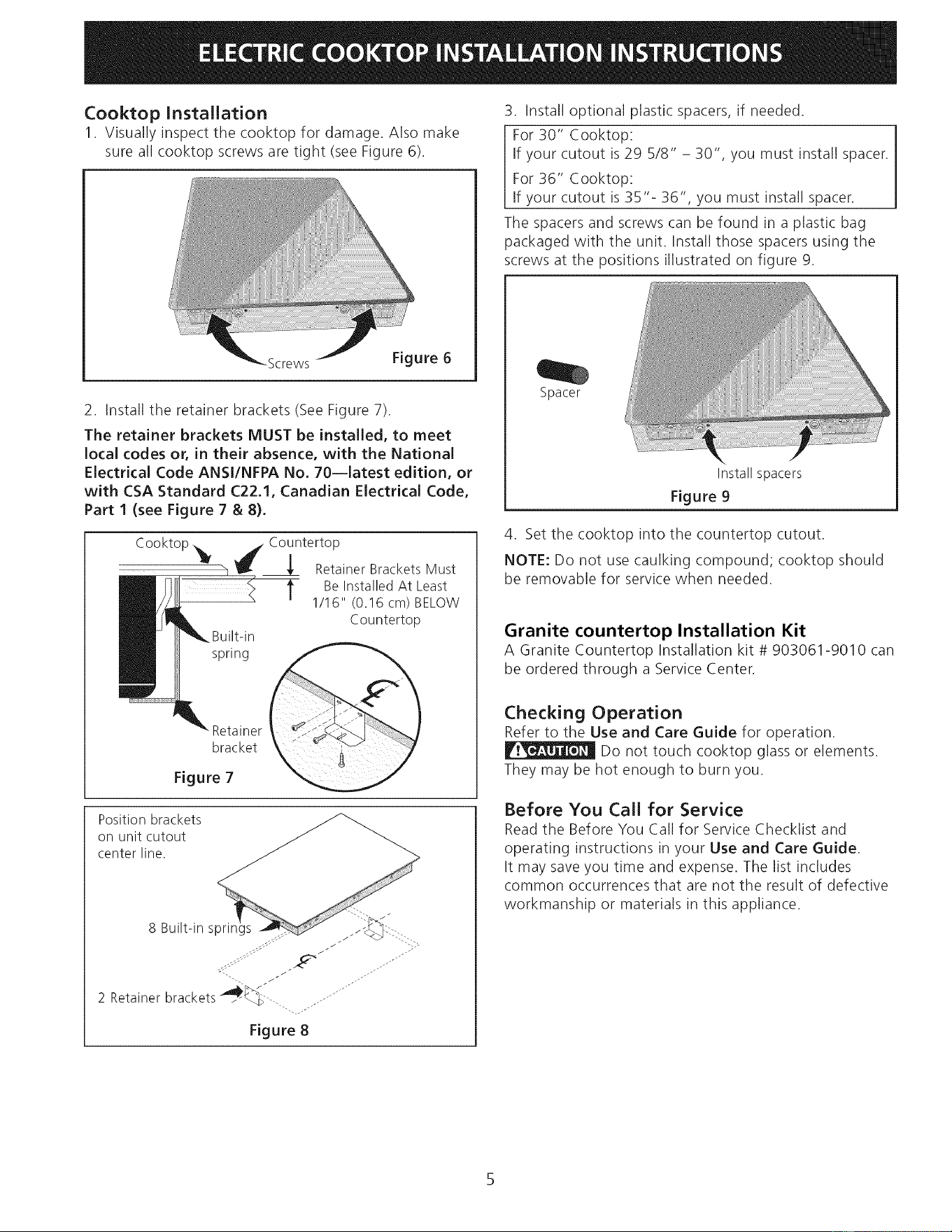

Cooktop Installation

1. Visuallyinspecthecooktopfor damage.Alsomake sureallcooktopscrewsaretight
2. Install the retainer brackets : The retainer brackets MUST be installed, to meet local codes or, in their absence, with the National Electrical Code ANSI/NFPA No, 70--latest edition, or with CSA Standard C22,1, Canadian Electrical Code
3. Install optional plastic spacers, if needed. The spacers and screws can be found in a plastic bag packaged with the unit. Install those spacers using the screws at the positions illustrated
4. Set the cooktop into the countertop cutout. NOTE: Do not use caulking compound; cooktop should be removable for service when needed.
