PMS 419
Read this manual carefully. It contains important safety information.
This is an adult vehicle only.
Operation is prohibited for those under 16 years of age.
Owner's Manual for Maintenance and Safety
Sportsman 850
Sportsman 850 SP
Sportsman XP 1000
A card containing important ATV safety information should be
attached to the owner's manual on the next page.
If you cannot locate this card, or if it has been removed,
please call 1-800-342-3764 for assistance.
WARNING
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects
or other reproductive harm.
For videos and more information
about a safe riding experience with
your Polaris vehicle, scan this QR
code with your smartphone.
1
2017 Owner’s Manual
Sportsman® 850
Sportsman® 850 SP
Sportsman® XP 1000
2
POLARIS®, SPORTSMAN® and SPORTSMAN XP® are trademarks of POLARIS
Industries Inc.
Copyright 2016 POLARIS Industries Inc. All information contained within this
publication is based on the latest product information at the time of publication. Due to
constant improvements in the design and quality of production components, some minor
discrepancies may result between the actual vehicle and the information presented in
this publication. Depictions and/or procedures in this publication are intended for
reference use only. No liability can be accepted for omissions or inaccuracies. Any
reprinting or reuse of the depictions and/or procedures contained within, whether whole
or in part, is expressly prohibited.
The original instructions for this vehicle are in English. Other languages are provided as
translations of the original instructions.
Printed in U.S.A.
P/N 9927254
3
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Features and Controls. . . . . . . . . . . . . . . . . . . 28
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Winch Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Emission Control Systems . . . . . . . . . . . . . . . 85
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 129
POLARIS Products. . . . . . . . . . . . . . . . . . . . . 133
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 134
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 146
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
4
INTRODUCTION
Thank you for purchasing a POLARIS vehicle, and welcome to our
world-wide family of POLARIS enthusiasts. Be sure to visit us online at
www.polaris.com for the latest news, new product introductions,
upcoming events, career opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and
recreational products.
We believe POLARIS sets a standard of excellence for all utility and
recreational vehicles manufactured in the world today. Many years of
experience have gone into the engineering, design, and development of
your POLARIS vehicle, making it the finest machine we’ve ever
produced.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual.
Your manual contains instructions for minor maintenance, but
information about major repairs is outlined in the POLARIS Service
Manual and can be performed by a factory certified Master Service
Dealer® (MSD) Technician.
Your POLARIS dealer knows your vehicle best and is interested in your
total satisfaction. Your POLARIS dealership can provide for all of your
service needs during, and after, the warranty period.
• Snowmobiles • RZR® sport vehicles
• All-terrain vehicles (ATVs) • GEM® electric vehicles
• Low emission vehicles (LEVs) • VICTORY® motorcycles
• RANGER® utility vehicles • INDIAN® motorcycles
•BRUTUS® work vehicles • POLARIS POWER® generators
• SLINGSHOT® three wheel
motorcycles
• POLARIS DEFENSE® combat
vehicles
5
INTRODUCTION
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and
symbols are used. Become familiar with their meanings before reading
the manual.
The safety alert symbol indicates a potential personal injury hazard.
DANGER
A DANGER indicates a hazardous situation that, if not avoided, will result in
death or serious injury.
WARNING
A WARNING indicates a hazardous situation that, if not avoided, could result in
death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation that, if not avoided, could result in
minor or moderate injury.
NOTICE
A NOTICE indicates a situation that could result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.
6
INTRODUCTION
Failure to heed the warnings and safety precautions contained in this manual
can result in severe injury or death. A POLARIS ATV is not a toy and can be
hazardous to operate. This vehicle handles differently than other vehicles, such
as motorcycles and cars. A collision or rollover can occur quickly, even during
routine maneuvers like turning, or driving on hills or over obstacles, if you fail to
take proper precautions.
• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating a POLARIS ATV. Keep this manual
with the ATV.
• Never operate an ATV without proper instruction. Take a training course.
• This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone
under 16 years of age.
• Never permit a guest to operate the ATV unless the guest has read this
manual and all product labels and has completed a certified safety training
course.
WARNING
7
INTRODUCTION
European Vibration and Noise
The driver-perceived noise and hand/arm and whole body vibration
levels of this machinery is measured per prEN 15997.
The operating conditions of the machinery during testing:
The vehicles were in like-new condition. The environment was
controlled as indicated by the test procedure(s).
The uncertainty of vibration exposure measurement is dependent on
many factors, including:
• Instrument and calibration uncertainty
• Variations in the machine such as wear of components
• Variation of machine operators such as experience or physique
• Ability of the worker to reproduce typical work during measurements
• Environmental factors such as ambient noise or temperature
8
INTRODUCTION
Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a POLARIS key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
The manufacturer’s label is located on the front right side of the vehicle
behind the radiator.
Vehicle Model Number: ___________________________________________________
Frame VIN: ____________________________________________________________
Engine Serial Number: ___________________________________________________
Key Number: ___________________________________________________________
####
VIN
Engine Serial
Number
Key
Number
Manufacturer’s Label
9
SAFETY
Safety Training
ATV safety training is a top priority for POLARIS. POLARIS strongly
encourages you and any family members who will be riding the ATV to
take a training course.
If you purchased a new POLARIS ATV in the United States, your dealer
provided information about the authorized ATV RiderCourse
sm
that is
available to you and your eligible family members. This training is
included in the purchase price of your ATV. You were also provided
with printed materials that explain safe operating procedures. You
should review this information on a regular basis.
If you purchased a used POLARIS ATV in the United States, you can
enroll in the ATV RiderCourse
sm
for a fee. Call ATV Enrollment Express
at (800) 887-2887 or visit www.atvsafety.org.
If you purchased a POLARIS ATV outside the United States, please
contact your dealer or local law enforcement agencies for information
about safety training.
A POLARIS ATV is an off-road vehicle. Familiarize yourself with all
laws and regulations concerning the operation of this vehicle in your
area.
We strongly advise you to strictly follow the recommended maintenance
program outlined in your owner's manual. This preventive maintenance
program is designed to ensure that all critical components on your
vehicle are thoroughly inspected at specific intervals.
FOR MORE INFORMATION ABOUT ATV SAFETY in the United
States, call the Consumer Product Safety Commission at 1-800-
638-2772, or visit www.cpsc.gov, visit www.atvsafety.org, or call
POLARIS at 1-800-342-3764.
10
SAFETY
Safe Riding Gear
Always wear appropriate clothing when riding an ATV. Wear protective
clothing for comfort and to reduce the chance of injury.
Helmet
Wearing a helmet can prevent a severe head injury. Whenever riding a
POLARIS vehicle, always wear a helmet that meets or exceeds
established safety standards.
Approved helmets in the USA and Canada bear a
U.S. Department of Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial number will also be
displayed on the label.
E
4
051039
0006.31
Helmet
Eye Protection
Gloves
Over-the-Ankle
Boots
Long Pants
Long
Sleeves
11
SAFETY
Safe Riding Gear
Eye Protection
Do not depend on eyeglasses or sunglasses for eye protection.
Whenever riding a POLARIS vehicle, always wear shatterproof goggles
or use a shatterproof helmet face shield. POLARIS recommends
wearing approved Personal Protective Equipment (PPE) bearing
markings such as VESC 8, V-8, Z87.1, or CE. Make sure protective eye
wear is kept clean.
Gloves
Off-road style gloves with knuckle pads are the best for comfort and
protection.
Boots
The best footwear is a pair of sturdy over-the-calf boots with low heels.
Clothing
Always wear long sleeves and long pants to protect arms and legs.
Riding pants with kneepads and a jersey with shoulder pads provide the
best protection.
Equipment Modifications
We strongly recommend that consumers do not install on a POLARIS
ATV any equipment that may increase the speed or power of the vehicle,
or make any other modifications to the vehicle for these purposes.
The POLARIS limited warranty on your POLARIS vehicle will be
terminated if any non-POLARIS approved equipment and/or
modifications have been added to the vehicle that increase speed or
power.
The addition of certain accessories, including (but not limited to)
mowers, blades, tires, sprayers, or large racks, may change the handling
characteristics of the vehicle. Use only POLARIS-approved accessories,
and familiarize yourself with their function and effect on the vehicle.
12
SAFETY
Safety Warnings
Failure to operate the ATV properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Heed all safety
warnings outlined in this section of the owner’s manual. See the OPERATION
section of the owner’s manual for proper operating procedures.
Operating Without Instruction
Operating this ATV without proper instruction
increases the risk of an accident. The operator
must understand how to operate the ATV properly
in different situations and on different types of
terrain.
Beginning and inexperienced operators should
complete the recommended safety training before
operating this vehicle. See page 9.
Never permit a guest to operate the ATV unless the
guest has read this manual and all product labels
and has completed a certified safety training
course.
Age Restrictions
This vehicle is an ADULT VEHICLE ONLY.
Operation is prohibited for anyone under 16 years
of age.
Even though a child may be within the
recommended age group for operating some ATVs,
he/she may not have the skills, abilities, or
judgment needed to operate or ride on this ATV
safely and could be susceptible to accident or
injury.
WARNING
13
SAFETY
Safety Warnings
Handling Gasoline
Gasoline is highly flammable and explosive under certain conditions.
• Always exercise extreme caution whenever handling gasoline.
• Always refuel with the engine stopped, and outdoors or in a well ventilated
area.
• Do not smoke or allow open flames or sparks in or near the area where
refueling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
Exposure to Exhaust
Engine exhaust fumes are poisonous and can cause loss of consciousness or
death in a short time. Never start the engine or let it run in an enclosed area.
The engine exhaust from this product contains chemicals known to cause
cancer, birth defects or other reproductive harm. Operate this vehicle only
outdoors or in well-ventilated areas.
Failure to Inspect Before Operating
Failure to inspect and verify that the ATV is in safe
operating condition before operating increases the
risk of an accident.
Always inspect the ATV before each use to make
sure it's in safe operating condition.
Always follow all inspection and maintenance
procedures and schedules described in the
owner's manual.
14
SAFETY
Safety Warnings
Protective Apparel
Riding in this vehicle without wearing an
approved helmet and protective eye wear
increases the risk of serious injuries in the
event of an accident.
Operator must always wear an approved
helmet that fits properly and eye protection
(goggles or face shield).
Using Alcohol or Drugs
Operating the ATV after consuming alcohol
or drugs could adversely affect operator
judgment, reaction time, balance and
perception.
Never consume alcohol or drugs before or
while operating an ATV.
15
SAFETY
Safety Warnings
Operating on Pavement
Operating an ATV on paved surfaces
(including sidewalks, paths, parking lots and
driveways) may adversely affect the
handling of the ATV and could result in loss
of control and accident or overturn.
Avoid operating the ATV on pavement. ATV
tires are designed for off-road use. If it's
unavoidable, travel slowly and avoid sudden
turns or stops.
Operating on Public Roads
Operating this vehicle on public streets,
roads or highways could result in a
collision with another vehicle. Never
operate this vehicle on any public street,
road or highway, including dirt and gravel
roads (unless designated for off-highway
use).
Operating at Excessive
Speeds
Operating the ATV at excessive
speeds increases the operator's risk
of losing control.
Never operate at excessive speeds.
Travel at speeds appropriate for
your skills, and operating conditions.
16
SAFETY
Safety Warnings
Physical Control of the ATV
Removing even one hand or foot can reduce
ability to control the vehicle or could cause loss
of balance and ejection from the ATV.
If a person's feet are not firmly planted on the
footrests, they could come into contact with the
wheels or other moving parts and lead to
accident or injury.

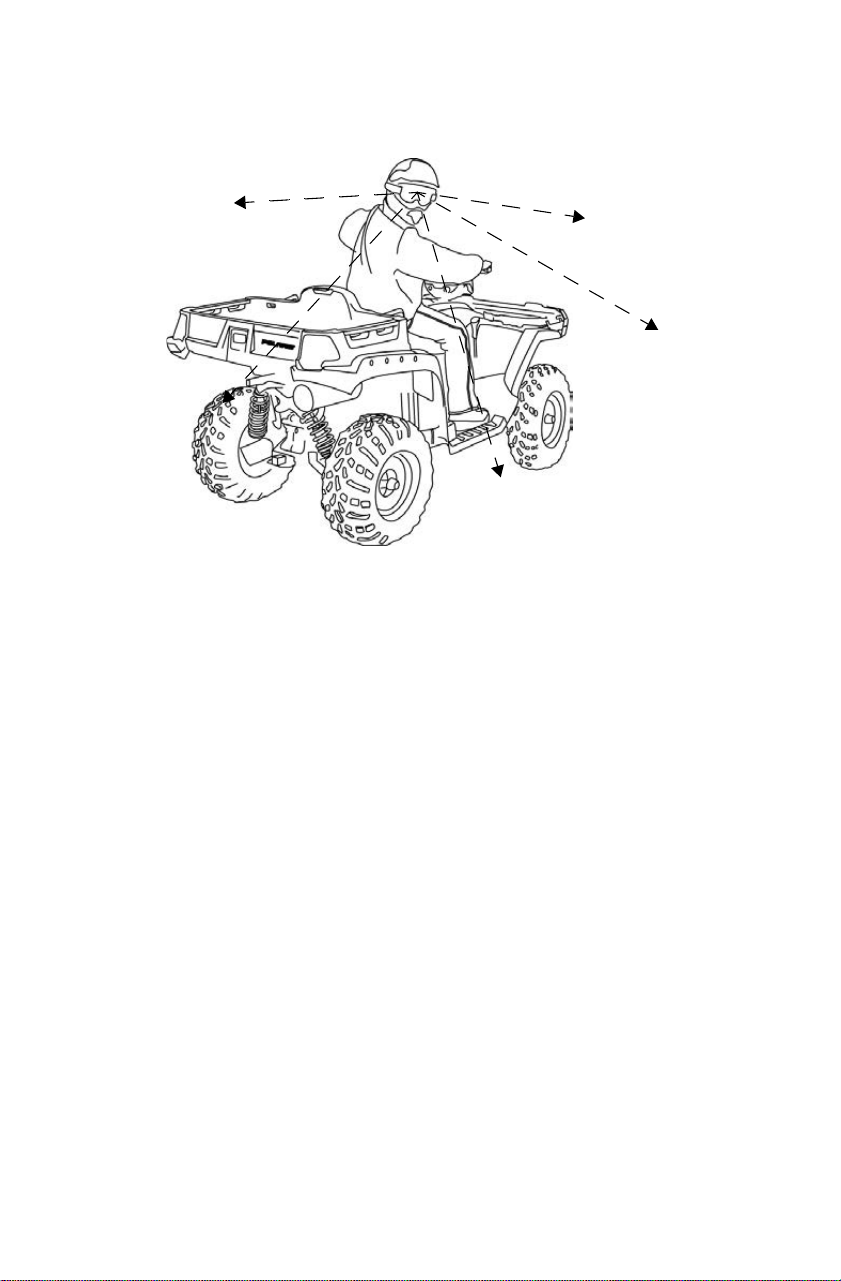

Always keep both hands on the
handlebars and both feet on the footrests
of the ATV during operation. Turning
Improperly
Turning improperly could cause loss of
traction, loss of control, accident or
overturn.
Always follow proper procedures for
turning as described in the owner's
manual.
Practice turning at slow speeds before
attempting to turn at faster speeds.
Never turn at excessive speed.
Jumps and Stunts
Attempting wheelies, jumps and other
stunts increases the risk of an accident or
overturn.
Never attempt wheelies, jumps, or other
stunts. Avoid exhibition driving.
17
SAFETY
Safety Warnings
Improper Hill Climbing
Improper hill climbing could cause loss of control
or overturn. Always follow proper procedures for
climbing hills as described in the owner's manual.
See page 61. Always move the 4X4 switch to
ADC 4X4 before ascending or descending a hill.
Descending Hills Improperly
Improperly descending a hill could cause loss of
control or overturn.
• Always follow proper procedures for traveling
down hills as described in the owner's manual. See page 63.
• Always descend a hill with the transmission in
forward gear. Do not descend a hill with the
transmission in neutral. Always move the 4X4
switch to ADC 4X4 before ascending or
descending a hill. See page 39.
• Always check the terrain carefully before
descending a hill.
• Shift your weight rearward.
• Never travel down a hill at high speed.
• Avoid traveling down a hill at an angle, which
would cause the vehicle to lean sharply to one
side. Travel straight down the hill when
possible.
Crossing Hillsides
Driving on a sidehill is not recommended.
Improper procedure could cause loss of control
or overturn. Avoid crossing the side of any hill
unless absolutely necessary.
If crossing a hillside is unavoidable, always
follow proper procedures as described in the
owner's manual. See page 62.
Never attempt to turn the ATV around on any
hill until you've mastered the turning technique
(on level ground) as described in the owner's
manual. See page 64.
18
SAFETY
Safety Warnings
Stalling While Climbing a Hill
Stalling, rolling backwards or improperly
dismounting while climbing a hill could cause
an overturn.
• Always maintain a steady speed when
climbing a hill.
• Always move the 4X4 switch to ADC 4X4
before ascending or descending a hill. See
page 39.
If all forward speed is lost:
• Lean forward to keep body weight uphill.
• Apply the single lever brakes.
• Lock the parking brake when fully stopped.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill.
• Turn the ATV around and remount, following the procedure described in the
owner's manual. See page 64.
If the ATV begins rolling backwards:
• Keep operator body weight uphill.
• Never apply engine power.
• Never apply the rear brake while rolling backwards.
• Apply the single-lever brake gradually.
• When fully stopped, apply the foot brake as well, and then lock the parking
brake.
• Dismount on the uphill side of the vehicle, or on the left if the vehicle is
pointing straight uphill.
• Turn the ATV around and remount, following the procedure described in the
owner's manual. See page 64.
Operating on Steep Hills
Operating on excessively steep hills could cause an overturn.
Never operate on hills too steep for the ATV or for your abilities.
• Never operate a 1-up ATV on hills steeper than 25 degrees.
19
SAFETY
Safety Warnings
Operating on Slippery Terrain
Failure to use extra caution when operating
on excessively rough, slippery or loose terrain
could cause loss of traction, loss of control,
accident or overturn.
Do not operate on excessively rough, slippery
or loose terrain until you've learned and
practiced the skills necessary to control the
ATV on such terrain.
Always use extra caution on rough, slippery
or loose terrain.
Operating in Unfamiliar Terrain
Failure to use extra caution when operating
on unfamiliar terrain could result in an
accident or overturn.
Unfamiliar terrain may contain hidden rocks,
bumps, or holes that could cause loss of
control or overturn.
Travel slowly and use extra caution when
operating on unfamiliar terrain. Always be
alert to changing terrain conditions.
Operating Improperly in Reverse
Improperly operating in reverse could result in
a collision with an obstacle or person. Always
follow proper operating procedures as outlined
in this manual. See page 68.
Before shifting into reverse gear, always check
for obstacles or people behind the ATV. When
it's safe to proceed, back slowly.
20
SAFETY
Safety Warnings
Improper Tire Maintenance
Operating this ATV with improper tires or
with improper or uneven tire pressure could
cause loss of control or accident.
Always use the size and type of tires
specified for your ATV.
Always maintain proper tire pressure as
described in the owner's manual and on
safety labels.
Operating Over Obstacles
Improperly operating over obstacles could
cause loss of control or overturn.
Before operating in a new area, check for
obstacles. Avoid operating over large
obstacles such as rocks and fallen trees. If
unavoidable, use extreme caution and
always follow proper operating procedures
as outlined in this manual. See page 67.
Skidding or Sliding
Skidding or sliding can cause loss of control
or overturn (if tires regain traction
unexpectedly).
On slippery surfaces such as ice or loose
gravel, travel slowly and use extra caution
to reduce the chance of skidding or sliding.
Do not operate on excessively slippery
surfaces.
Operating a Damaged ATV
Operating a damaged ATV can result in an
accident. After any overturn or accident,
have a qualified service dealer inspect the
entire machine for possible damage,
including (but not limited to) brakes, throttle
and steering systems.
21
SAFETY
Safety Warnings
Operating Through Deep Water
Operating the ATV through deep or fast-
flowing water could cause the tires to float,
causing loss of control or overturn.
Avoid operating the ATV through deep or
fast-flowing water. If it's unavoidable to
enter water that exceeds the
recommended maximum depth (see page
66):
• Travel slowly.
• Balance your weight carefully.
• Avoid sudden movements.
• Maintain a slow and steady forward motion. Do not make sudden turns or
stops, and do not make sudden throttle changes.
Wet brakes may have reduced stopping ability. After leaving water, test the
brakes. Apply them lightly several times while driving. The friction will help dry
out the pads.
Improper Cargo Loading
Overloading the ATV or carrying/towing
cargo improperly may cause changes in
handling, which could cause loss of control
or an accident.
• Never exceed the stated load capacity for
this ATV.
• Cargo should be properly distributed and
securely attached.
• Reduce speed when carrying cargo or
pulling a trailer. Allow a greater distance
for braking.
• Always follow the instructions in the owner's manual for carrying cargo or
pulling a trailer. See pages 70-72.
22
SAFETY
Safety Warnings
Operating on Frozen Bodies of
Water
Operating on frozen bodies of water may
result in serious injury or death if the ATV
and/or riders fall through the ice.
Never operate the ATV on a frozen body of
water unless you have independently
verified that the ice is sufficiently thick to
support the weight and moving force of the
ATV, you and your cargo, together with any
other vehicles in your party. Variances in
snow depth and/or water currents may result
in uneven ice thickness. Always check with
local authorities and residents to confirm ice
conditions and thickness over your entire
route. ATV operators assume all risk
associated with ice conditions on frozen
bodies of water.
Poor Visibility
Operating the ATV in darkness or inclement weather could result in a collision or
accident, especially if operating on a road or street. This ATV is not equipped
with highway-approved lights. Operate this vehicle off-road only. Use caution
and drive at reduced speeds in conditions of reduced visibility such as fog, rain
and darkness. Clean headlights frequently and replace burned out head lamps
promptly.
Physical Skills
Safe operation of this rider-active vehicle requires good judgement and physical
skills. Persons with cognitive or physical disabilities who operate this vehicle
have an increased risk of overturn and loss of control.
Hot Exhaust Systems
Exhaust system components are very hot during and after use of the vehicle.
Hot components can cause burns and fire. Do not touch hot exhaust system
components. Always keep combustible materials away from the exhaust
system. Use caution when traveling through tall grass, especially dry grass.
Unauthorized Use of the ATV
Leaving the keys in the ignition can lead to unauthorized use of the vehicle,
which could result in an accident or overturn. Always remove the ignition key
when the vehicle is not in use.
23
SAFETY
Safety Labels and Locations
Warning labels have been placed on the vehicle for your protection.
Read and follow the instructions on each label carefully. If any of the
labels shown in this manual differ from the labels on your vehicle,
always read and follow the instructions of the labels on the vehicle.
If an informational or graphic label becomes illegible or comes off,
contact your POLARIS dealer to purchase a replacement. Replacement
safety labels are provided by POLARIS at no charge. The part number is
printed on the label.
“No Passenger” Warning
WARNING
NEVER ride as a passenger.
Passengers can cause a loss of
control, resulting in SEVERE INJURY
or DEATH.
7175378
“No Passenger” Warning
24
SAFETY
Safety Labels and Locations
Reverse Override Warning/AWD Caution
WARNING
Improper use of override button can lead to loss of control resulting in severe
injury or death. Do not activate override while throttle is engaged. Always apply
throttle gradually while in reverse.
CAUTION
Do not push switch to engage 4x4 (AWD) if the rear wheels are spinning. This
may cause severe drive shaft and clutch damage.
Age 16 Warning
WARNING
Operating this ATV if you are under the age of 16 increases the chances of
severe injury or death to operator.
NEVER operate this ATV if you are under age 16.
Discretionary Warning
WARNING
• Never operate this ATV on HILLS steeper than 25 degrees 25°. To
prevent overturn on hilly terrain, use throttle and brakes gradually, and shift
weight uphill.
• REVERSE operation can be dangerous even at low speeds. Steering
becomes difficult. To prevent loss of control, avoid sudden braking or sharp
turns.
25
SAFETY
Safety Labels and Locations
General Warning
WARNING
Improper ATV use can result in SEVERE INJURY or DEATH
ALWAYS USE AN APPROVED HELMET AND PROTECTIVE GEAR
NEVER USE ON PUBLIC ROADS
NEVER CARRY PASSENGERS
NEVER USE WITH DRUGS OR ALCOHOL
NEVER operate:
• without proper training or instruction
• at speeds too fast for your skills or the conditions
• on public roads - a collision can occur with another vehicle
• with a passenger - passengers affect balance and steering and increase risk
of losing control
ALWAYS:
• use proper riding techniques to avoid vehicle overturns on hills and rough
terrain and in turns
• avoid paved surfaces - pavement may seriously affect handling and control
LOCATE AND READ OWNER’S MANUAL.
FOLLOW ALL INSTRUCTIONS AND WARNINGS.
General
Warning
26
SAFETY
Safety Labels and Locations
Tire Pressure/Load Warning
WARNING
Improper tire pressure or overloading can cause loss of control.
Loss of control can result in severe injury or death.
• Cold tire pressure:
Front: 7.0 psi (48.3 kPa)
Rear: 7.0 psi (48.3 kPa)
• Maximum weight capacity: 575 lbs. (261 kg)
• Lug nut torque values: 75 ft-lbs. (102 Nm)
NEVER exceed 50 MPH (80 km/h) when rear cargo loads are above 50 lbs. (22
kg) and/or front cargo loads are above 25 lbs. (11 kg).
NEVER exceed 10 MPH (16 km/h) when rear cargo loads are above 200 lbs.
(91 kg) and/or front cargo loads are above 100 lbs. (45 kg).
27
SAFETY
Safety Labels and Locations
Rack/Box Warning
WARNING
• DO NOT TOW FROM RACK OR BUMPER. Vehicle damage or tipover may
result causing severe injury or death. Tow only from tow hooks or hitch.
• Maximum Rack Loads: Front 120 lbs. (54 kg) Rear 240 lbs. (109 kg)
Clutch Cover Warning
WARNING
• Moving parts hazard under belt-clutch guard. To prevent serious injury, do not
operate vehicle with guard removed.
• Do not modify engine or clutch. Doing so can cause part failure, possible
imbalance, and excessive engine RPM, which can result in serious injury or
death.
Hitch Capacity Label
TRAILER MAX WEIGHT:
1500 LBS. (682 KG) ON LEVEL GROUND
850 LBS. (386 KG) UP TO 15° GRADE
HITCH MAX. VERTICAL WEIGHT: 150 LBS. (68 KG)
Clutch Cover
Warning
(under seat)
Rack/Box
Warning
Rack/Box
Warning
Hitch
Capacity
Label
Tire Pressure/Load
Warning
28
FEATURES AND CONTROLS
Switches
Mode/Reverse Override Switch
This vehicle is equipped with a reverse speed limiter system. To gain
additional wheel speed while backing, release the throttle and depress
the override button.
WARNING! Pressing the override button while the throttle is open can cause
loss of control, which may result in serious injury or death. Always release the
throttle before pressing the override button.
The reverse override button also acts as a MODE button when held
down for approximately one half second. See the instrument cluster
information beginning on page 40.
Tip: The override button will not function as a MODE button if the transmission
is in reverse.
4X4 Switch
Use the 4X4 switch to engage ADC 4X4, 4X4 or 2X4. See page 39. The
vehicle automatically engages 4X4 when operating in reverse if the
switch is set to either 4X4 position.
2x4
Mode/Reverse
Override
Switch
Main Key
Switch
Engine
Stop Switch
Headlight
Switch
4X4
Switch
29
FEATURES AND CONTROLS
Switches
Engine Stop Switch
Move the stop switch either
left or right to the OFF position
to stop the engine quickly.
Move the stop switch to the
RUN position before
attempting to start the engine.
The engine will not start or run
when the switch is off.
Both the main switch and the engine stop switch will shut off all
electrical power to the vehicle, including lights.
Main Key Switch
Use the main key switch to start the engine. See page 57.
Headlight Switch
Use the headlight switch to turn the lights on and off and to change the
lights from high beam to low beam. The key must be in the ON position
and the engine stop switch must be in the RUN position.
OFF OFFRUN
30
FEATURES AND CONTROLS
Throttle Lever
Operating an ATV with sticking or improperly operating throttle controls could
cause an accident. Never start or operate an ATV that has a sticking or
improperly operating throttle. Immediately contact your POLARIS dealer or
other qualified person for service if throttle problems arise.
Failure to check or maintain proper operation of the throttle system can result in
an accident if the throttle lever sticks during operation. Always check the lever
for free movement and return before starting the engine. Also check
occasionally during operation.
Modifications to the electronic throttle control could result in failure to perform as
designed, which could result in an accident. Do not attempt to modify the throttle
control system or replace it with any after market throttle mechanisms.
Engine speed and vehicle movement are controlled by pressing the
throttle lever. The throttle lever is spring loaded. Engine speed returns to
idle when the lever is released.
This ATV is equipped with a
throttle release switch, which is
designed to reduce the risk of a
frozen or stuck throttle.
WARNING
31
FEATURES AND CONTROLS
Brake Lever
Operating the ATV with a spongy brake lever can result in loss of braking, which
could cause an accident. Never operate the ATV with a spongy-feeling brake
lever. Always contact your dealer for service before operating the vehicle.
Squeeze the brake lever toward the
handlebar to apply the front and
rear brakes. These brakes are
hydraulically activated disc type
brakes that are activated by only
one lever.
Always test brake lever travel and
master cylinder fluid level before
riding. When squeezed, the lever
should feel firm. Any sponginess
would indicate a possible fluid leak or low master cylinder fluid level,
which must be corrected before riding. Contact your POLARIS dealer
or other qualified service facility for proper diagnosis and repairs.
WARNING
32
FEATURES AND CONTROLS
Master Cylinder/Brake Fluid
An over-full master cylinder may cause brake drag or brake lock-up, which could
result in an accident. Maintain brake fluid at the recommended level. Do not
overfill.
Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic,
meaning it rapidly absorbs moisture from the air. The moisture causes the
boiling temperature of the brake fluid to drop, which can lead to early brake fade
and the possibility of brake failure, which could result in an accident. After
opening a bottle of brake fluid, always discard any unused portion.
Check the brake fluid in the master
cylinder before each ride.
1. Position the ATV on a level
surface.
2. Position the handlebars so the
master cylinder is level.
3. View the brake fluid level
through the indicator window
on the top of the master
cylinder. The eye will appear
dark when the fluid level is
full. When fluid is low, the
eye will be clear.
4. If the fluid level is low, remove the cover screws and add fluid to the
fill line. Do not overfill. Use DOT 4 brake fluid only.
5. Reinstall the cover. Torque screws to 7 in-lbs (.8 Nm).
WARNING
Master Cylinder
Indicator
Window
33
FEATURES AND CONTROLS
Parking Brake
Locking the Parking Brake
1. Place the transmission in
PARK.
2. Squeeze and release the brake
lever two or three times, then
squeeze and hold.
3. Push the parking brake lock
forward to engage the lock.
4. Release the brake lever.
5. To release the parking brake lock, squeeze and release the brake
lever. It will return to its unlocked position.
WARNING! Operating the ATV while the parking brake is engaged could result
in an accident or fire. Always check to be sure the parking brake is disengaged
before operating.
The parking brake may relax if left on for a long period of time. Always
block the wheels to prevent rolling. Always block the wheels on the
downhill side of the ATV if leaving it parked on a hill. Another option is
to park the ATV in a sidehill position. Never depend on the parking
brake alone if the ATV is parked on a hill. Always block the wheels to
prevent rolling.
Fuel Tank
Always refuel with the engine stopped,
and outdoors or in a well ventilated area.
Refuel on a level surface.
Remove the fuel tank cap and add fuel.
Use either leaded or unleaded gasoline
with a minimum pump octane number of
87=(R+ M)/2 octane. Do not use fuel
with ethanol content greater than 10%,
such as E-85 fuel.
The fuel tank is designed to allow for the
normal expansion of fuel. Do not
overfill. Do not fill the tank neck.
Fuel Tank
Cap
34
FEATURES AND CONTROLS
Auxiliary Foot Brake
Never back down a hill. Applying the auxiliary brake when backing down a hill
may cause rear tipover, which could result in serious injury or death.
Use caution when applying the auxiliary brake. Do not aggressively apply the
auxiliary brake when going forward. The rear wheels may skid and slide
sideways, causing loss of control and serious injury or death.
The auxiliary brake system is
intended to be used as a backup for
the main brake system. Should the
main system fail, use the auxiliary
foot brake.
The auxiliary foot brake is located
on the inside of the right footrest.
Operate this brake with your right
foot.
If the rear wheels slide while using
the auxiliary brake, reduce brake
pedal pressure to brake the rear
wheels without skidding.
Brake Fluid Level
Check the brake fluid level
frequently for the auxiliary brake
system. The reservoir is located
under the front storage box. See
page 36.
Maintain the fluid level between
the maximum and minimum marks.
Use DOT 4 brake fluid only.
WARNING
Auxiliary
Foot Brake
Brake Fluid
Reservoir
35
FEATURES AND CONTROLS
Automatic Transmission Gear Selector
The transmission gear
selector is located on the
right side of the vehicle.
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
P: Park
To shift gears, brake to a
complete stop. When the
engine is idling, move
the lever to the desired
gear.
NOTICE: Shifting gears with the engine speed above idle or while the vehicle is
moving could cause transmission damage.
Whenever the ATV is left unattended, always place the transmission in
PARK and lock the parking brake.
Belt Life
To extend belt life, use low forward gear when pulling a heavy load at
less than seven miles per hour for extended periods and when operating
uphill at a slow speed.
Gear
Selector
36
FEATURES AND CONTROLS
Front Compartment
Front Rack
If your model is equipped
with front compartment
storage, unlock both latches
on each side and remove the
cover to gain access.
Brake Fluid Reservoir
(auxiliary foot brake)
Radiator
Cap
Coolant
Bottle Cap
Electrical/Fuse/Relay
Battery
Latches
37
FEATURES AND CONTROLS
Electronic Power Steering (EPS)
Electronic power steering engages when the ignition key is turned to the
ON position. EPS remains engaged whether the vehicle is moving or
idle. See page 42 for EPS Warning Indicator information.
Extreme Use Battery
An optional extreme use battery may be available for your model. If the
performance of the factory-installed battery is inadequate due to
operation in extreme cold or due to extended use of multiple electrical
accessories, your POLARIS dealer can assist. Your dealer can provide
any installation procedures that may differ for an extreme use battery.
38
FEATURES AND CONTROLS
All Wheel Drive System
The All Wheel Drive system is
controlled by the 4X4 switch.
ADC 4X4 Mode
When the switch is on ADC 4X4,
the ADC system allows engine
braking to all four wheels when
the vehicle descends a hill or
incline. Always move the 4X4
switch to ADC 4X4 before
ascending or descending a hill.
See page 39.
4X4 Mode
When the switch is on 4X4, the
ATV is in 4X4, and the 4X4
indicator icon in the instrument
cluster display will be visible.
When in 4X4, the demand drive
unit will automatically engage
any time the rear wheels lose
traction. When the rear wheels
regain traction, the demand drive
unit will automatically disengage.
There is no limit to the length of time the vehicle may remain in 4X4.
The vehicle automatically engages 4X4 when operating in reverse if the
switch is set to either 4X4 position.
2X4 Mode
When the switch is on 2X4, the ATV is in two-wheel drive at all times.
4X4
Switch
ADC 4X4
39
FEATURES AND CONTROLS
All Wheel Drive System
Engaging 4X4
The 4X4 switch may be turned on or off while the vehicle is moving.
Initially, the vehicle's electronic system will not enable 4X4 until the
engine RPM is below 3000. Once enabled, 4X4 remains enabled until
the 4X4 switch is turned off. If the switch is turned off while the demand
drive unit is moving, it will not disengage until the rear wheels regain
traction.
Engage the 4X4 switch before getting into conditions where front wheel
drive may be needed. If the rear wheels are spinning, release the throttle
before switching to 4X4.
NOTICE: Switching to 4X4 or ADC 4X4 while the rear wheels are spinning may
cause severe drive shaft and gearcase damage. Always switch to
4X4 or ADC 4X4 while the rear wheels have traction or are at rest.
Active Descent Control (ADC) System
The ADC system allows engine braking to all four wheels when the
vehicle descends a hill or incline. Always move the 4X4 switch to ADC
4X4 before ascending or descending a hill.
Engaging Active Descent Control
The ADC system will automatically engage when all four of the
following conditions occur:
• The 4X4 switch must be in the ADC 4X4 position
• The throttle must be closed (throttle lever released)
• The transmission must be in gear (high, low or reverse)
Disengaging Active Descent Control
The ADC system will automatically disengage if at least one of the
following conditions occur:
• The 4X4 switch is moved out of the ADC 4X4 position
• The throttle is open (throttle is applied)
• The transmission is shifted to neutral or park
40
FEATURES AND CONTROLS
Instrument Cluster
Digital Gauge
The instrument cluster displays critical vehicle information to the user.
Reference the following page for display functions and descriptions.
NOTE: Some features are not applicable to all models.The use of a high pres-
sure washer may damage the instrument cluster. Wash the vehicle by
hand or with a garden hose using mild soap. Certain products, includ-
ing insect repellents and chemicals, will damage the instrument cluster
lens. Do not use alcohol to clean the instrument cluster. Do not allow
insect sprays to contact the lens. Immediately clean off any gasoline
that splashes on the instrument cluster.
41
FEATURES AND CONTROLS
Instrument Cluster
Digital Gauge
1. Gear Display - This area displays gear shifter position:
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
-- = Gear Signal Error (or shifter between gears)
2. Display Area 2 - This area displays odometer, trip meter, trip meter
2, voltage, engine temperature, engine hour meter, programmable
service hour interval, ground speed, or engine RPM.
3. Display Area 1 - This area displays engine RPM, ground speed, or
coolant temperature.
4. Fuel Gauge - The segments of the fuel gauge show the level of fuel
in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments including the fuel icon will flash. Refuel
immediately.
5. Service Indicator - A flashing wrench symbol alerts the operator
that the preset service interval has been reached. Your POLARIS
dealer can provide scheduled maintenance. See page 86 for more
information.
6. Clock - The clock displays time in a 12-hour or 24-hour format. See
page 45 for more information.
7. AWD Indicator - Segments of the indicator illuminate based on
drive mode engaged.
42
FEATURES AND CONTROLS
Instrument Cluster
Indicator Lamps
Lamp Indicates Condition
1 Check Engine This indicator appears if an EFI related fault occurs.
Do not operate the vehicle if this warning appears.
Serious engine damage could result. Your autho-
rized POLARIS dealer can assist.
2EPS Warning
(if equipped)
This indicator illuminates when a fault has occurred
in the EPS system. Your authorized POLARIS
dealer can assist. EPS operation is possible with
key on/engine off for up to 5 minutes.
3 Engine Hot This lamp illuminates to indicate an overheated
engine. If the indicator flashes, a severe overheating
condition exists.
4 Neutral This lamp when the transmission is in neutral and
the ignition key is on the ON position.
5 Helmet/Seat Belt This lamp flashes for several seconds when the key
is turned to the ON position. The lamp is a reminder
to wear helmet and seat belt before operating.
6 High Beam This lamp illuminates when the headlamp switch is
set to high beam.
7 Chassis Fault Not applicable.
8 Performance
Limited
Not applicable.
43
FEATURES AND CONTROLS
Instrument Cluster
Display Area 1 & 2
Pressing the MODE button will change the information displayed in
Area 1.
Display Area 1 options:
•Speed
•RPM
• Engine Temperature
Toggle the UP/DOWN buttons to change the information displayed in
Area 2.
Display Area 2 options:
•Odometer
• T1 (Trip 1)
• T2 (Trip 2)
• Volt Meter
•Engine Hours
•Service Hours
• Engine Temperature
•RPM
• Ground Speed (MPH/KPH)
44
FEATURES AND CONTROLS
Instrument Cluster
Options Menu
Press and hold the MODE button to enter the Options Menu.
Options Menu Notes
Diagnostic Codes Only displays if fault codes are present or stored
Units - Distance Select MPH or KPH
Units - Temp
Select between
°F and °C
Clock Select between 12H or 24H, and set time
Backlight Color Select between Blue or Red
Backlight Level Set backlight brightness level
Service Hours View/Set Service hours
Exit Menu Exit
45
FEATURES AND CONTROLS
Instrument Cluster
Digital Gauge
Rider Information Center
Clock Mode
Tip: The clock must be reset any time the battery has been disconnected or
discharged.
1. Turn the key to the ON position.
2. Press and hold the MODE button to enter the Options Menu.
3. Press the UP or DOWN arrows to toggle to the “CLOCK” menu
option, then press MODE.
4. Use the UP or Down arrows to cycle through the different digit or
setting options (12HR vs. 24HR, for example). Once the desired
digit or setting is found, press the MODE button to set.
5. Continue the process outlined in Step 4 until the options have cycled
back to the “CLOCK” menu. Use the UP or DOWN arrows to
choose other Options Menu items, or press MODE to cycle through
clock settings again.
6. To exit the OPTIONS Menu, hold the MODE button momentarily
or press no buttons for 10 seconds.
Odometer Mode
The odometer records and displays the distance traveled by the ATV.
Trip Meter Mode
The trip meter records the distance traveled by the ATV if reset before
each trip. To reset, select the trip meter mode. Press and hold the Up or
Down arrow to initiate the reset.
Hour Meter Mode
This mode logs the total hours the engine has been in operation.
46
FEATURES AND CONTROLS
Instrument Cluster
Digital Gauge
Rider Information Center
Programmable Service Interval
When the hours of engine operation equal the programmed service
interval setting, the wrench icon will flash for 5 seconds each time the
engine is started. When this feature is enabled, it provides a convenient
reminder to perform routine maintenance. The service interval is
programmed at 25 hours at the factory. Use the following procedure to
change the service interval.
1. Press the MODE button until remaining service hours display.
2. Press and hold the MODE button.
3. When the service hours flash, press and release the MODE button to
advance the hours to the desired setting (including OFF). Press and
hold the MODE button to set the new service hour interval.
Diagnostic Display Mode
The EFI diagnostic display mode is for informational purposes only.
Your POLARIS dealer can provide for all major repairs.
The diagnostic mode is accessible only when the check engine warning
indicator activates after the key has been turned on. Leave the key on if
you want to view the active code (failure code).
The diagnostic mode becomes inaccessible if the key is turned off and
on and the warning indicator is no longer active. This allows the
determination of persistent as well as intermittent faults.
Inactive codes are stored in the history of the unit.
47
FEATURES AND CONTROLS
Instrument Cluster
Digital Gauge
Rider Information Center
Engine Error Codes
The error screen displays
only when the CHECK
ENGINE light is on or when
it goes on and off during one
ignition cycle. Error codes
are not stored in the gauge
when the key is turned off.
The code and message is
lost, but will reappear if the
fault reoccurs after
restarting the engine.
If the CHECK ENGINE
light illuminates, retrieve
the error codes from the
display.
1. Press and hold the MODE button to enter the OPTIONS menu and
use the UP or DOWN arrows to access the DIAGCODE option.
2. Use the UP or DOWN arrows to display active and historic fault
codes.
3. See pages 48-51 for code definitions and failure descriptions. Your
authorized POLARIS dealer can provide code details and diagnosis.
NOTE: Stored fault codes are cleared from the gauge during a power cycle.
Fault codes must be retrieved from the gauge before turning key to the
OFF position. The codes will be cleared from memory if this happens.
Suspect Parameter
Number (SPN)
Count Display
Failure Mode
Indicator (FMI)
48
FEATURES AND CONTROLS
Instrument Cluster
Diagnostic Display Code Definitions
Open Load: There is a break in the wires that lead to the item listed in
the chart (injector, fuel pump, etc.), or the item has failed.
Short-to-Ground:
The wire is shorted to ground between the electronic
control unit and the item listed in the chart.
Shorted Load:
The wires leading to the item listed in the chart are
shorted together, or the item has shorted internally.
Short-to-Battery:
The wire leading from the item listed in the chart to
the electronic control unit is shorted to a wire at battery voltage.
Diagnostic Codes
Component Condition SPN FMI
Throttle Position Sensor Voltage Too High 51 3
Voltage Too Low 51 4
Engine Temperature Sensor Voltage Too High 110 3
Voltage Too Low 110 4
Temperature Too High 110 16
Engine Overheat Shutdown 110 0
Intake Air Temperature Sensor Voltage Too High 105 3
Voltage Too Low 105 4
Manifold Absolute Pressure Sensor Voltage Too High 102 3
Voltage Too Low 102 4
Signal Out of Range 102 2
Crankshaft Position Sensor Circuit Fault 636 8
Plausibility Fault 636 2
Vehicle Speed Signal Speed Too High 84 8
Plausibility Fault 84 2
Gear Sensor Signal Voltage Too Low 523 4
Voltage too high 523 3
Signal fault 523 2
Injector 1 (MAG) (SDI Part Load) Driver Circuit Open/Grounded 651 5
Driver Circuit Short to B+ 651 3
Driver Circuit Grounded 651 4
Injector 2 (PTO) (SDI Part Load) Driver Circuit Open/Grounded 652 5
Driver Circuit Short to B+ 652 3
Driver Circuit Grounded 652 4
49
FEATURES AND CONTROLS
Instrument Cluster
Diagnostic Display Code Definitions
Diagnostic Codes
Component Condition SPN FMI
Ignition Coil Primary Driver 1 (MAG) Driver Circuit Short to B+ 1268 3
Ignition Coil Primary Driver 2 (PTO) Driver Circuit Short to B+ 1269 3
Fuel Pump Driver Circuit Driver Circuit Open/Grounded 1347 5
Driver Circuit Short to B+ 1347 3
Driver Circuit Grounded 1347 4
Fan Relay Driver Circuit Driver Circuit Open/Grounded 1071 5
Driver Circuit Short to B+ 1071 3
Driver Circuit Grounded 1071 4
Idle Air Control Driver Circuit Open/Grounded 634 5
Driver Circuit Short to B+ 634 3
Driver Circuit Grounded 634 4
Position Out of Range 634 7
Starter Enable Circuit Driver Circuit Open/Grounded 1321 5
Driver Circuit Short to B+ 1321 3
Driver Circuit Grounded 1321 4
Chassis Relay Driver Circuit Open/Grounded 520208 5
Driver Circuit Short to B+ 520208 3
Driver Circuit Grounded 520208 4
All Wheel Drive Control Driver Circuit Open/Grounded 520207 5
Driver Circuit Short to B+ 520207 3
Driver Circuit Grounded 520207 4
System Power Voltage Too High 168 3
Voltage Too low 168 4
Throttle Safety Signal Voltage Too High 520194 3
Voltage Too Low 520194 4
Signal Out of Range 520194 2
Throttle Stuck 520194 7
Active Descent Control System Driver Circuit Open/Grounded 520203 5
Driver Circuit Short to B+ 520203 3
Driver Circuit Grounded 520203 4
Idle Speed Speed Too High 520211 3
Speed Too Low 520211 4
50
FEATURES AND CONTROLS
Instrument Cluster
Diagnostic Display Code Definitions
Diagnostic Codes
Component Condition SPN FMI
EPS Models Only
Vehicle Speed Sensor Data Valid But Above Normal
Operational Range - Most
Severe Level
84 0
Data Erratic, Intermittent Or
Incorrect
84 2
Abnormal Rate Of Change 84 10
Received Network Data In Error 84 19
System Power Data Valid But Above Normal
Operational Range - Most
Severe Level
168 0
Voltage Above Normal, Or
Shorted To High Source
168 3
Voltage Below Normal, Or
Shorted To Low Source
168 4
Engine Speed Data Valid But Above Normal
Operational Range - Most
Severe Level
190 0
Data Erratic, Intermittent Or
Incorrect
190 2
Received Network Data In Error 190 19
ECU Memory Bad Intelligent Device Or
Component
628 12
Out Of Calibration 628 13
Calibration Out Of Calibration 630 13
Steering Over Current Shut Down Current Above Normal Or
Grounded Circuit
520221 6
Steering Excessive Current Error Current Above Normal Or
Grounded Circuit
520222 6
Steering Torque Partial Failure Condition Exists 520223 31
Steering Torque Full Failure Condition Exists 520224 31
51
FEATURES AND CONTROLS
Instrument Cluster
Diagnostic Display Code Definitions
Diagnostic Codes
Component Condition SPN FMI
EPS Models Only
EPAS Inverter Temperature Data Valid But Above Normal
Operational Range - Most
Severe Level
520225 0
Data Valid But Above Normal
Operating Range - Moderately
Severe Level
520225 16
EPAS Communications Receive
Data Error
Data Erratic, Intermittent Or
Incorrect
520226 2
Condition Exists 520226 31
Position Encoder Error Root Cause Not Known 520228 11
Bad Intelligent Device Or
Component
520228 12
Condition Exists 520228 31
EPAS Software Error Bad Intelligent Device Or
Component
520229 12
Condition Exists 520229 31
EPAS Power Save Condition Condition Exists 520231 31
EPS SEPIC Voltage Error Voltage Above Normal, Or
Shorted To High Source
524086 3
Voltage Below Normal, Or
Shorted To Low Source
524086 4
52
OPERATION
Failure to operate the ATV properly can result in a collision, loss of control,
accident or overturn, which may result in serious injury or death. Read and
understand all safety warnings outlined in the safety section of this owner’s
manual.
Break-In Period
The break-in period for your new POLARIS ATV is the first 20 hours of
operation. No single action on your part is as important as following the
procedures for a proper break-in. Careful treatment of a new engine and
drive components will result in more efficient performance and longer
life for these components.
NOTICE: Excessive heat build-up during the first three hours of operation will
damage close-fitted engine parts and drive components. Do not
operate at full throttle or high speeds during the first three hours of
use.
WARNING
53
OPERATION
Break-In Period
Engine and Drivetrain Break-in
1. Fill the fuel tank with gasoline. See page 33. Always exercise
extreme caution whenever handling gasoline.
2. Check the engine oil level on the dipstick. See page 91. Add oil if
necessary to maintain the level between the safe and add marks.
3. Drive slowly at first. Select an open area that allows room to
familiarize yourself with vehicle operation and handling.
4. Vary the throttle positions. Do not operate at sustained idle.
5. Perform regular checks on fluid levels, controls and areas outlined
on the daily pre-ride inspection checklist. See page 54.
6. Pull only light loads.
7. Check fluid levels of transmission and all gearcases after the first 25
hours of operation and every 100 hours thereafter.
8. Change both the oil and the filter at 25 hours.
PVT Break-in (Clutches/Belt)
A proper break-in of the clutches and drive belt will ensure a longer life
and better performance. Break in the clutches and belt by operating at
slower speeds during the break-in period as recommended. Pull only
light loads. Avoid aggressive acceleration and high speed operation
during the break-in period.
If a belt fails, always clean away all debris when replacing the belt.
54
OPERATION
Pre-Ride Checklist
Failure to inspect and verify that the ATV is in safe operating condition
before operating increases the risk of an accident. Always inspect the
ATV before each use to make sure it's in safe operating condition.
Item Remarks Page
Brake system/lever travel Ensure proper operation 31
100
Brake fluid Ensure proper level 32
Auxiliary brake Ensure proper operation 34
Front suspension Inspect, lubricate if necessary 90
Rear suspension Inspect, lubricate if necessary 90
Steering Ensure free operation -
Tires Inspect condition and pressure 103
Wheels/fasteners Inspect, ensure fastener tightness 104
Frame nuts, bolts, fasteners Inspect, ensure tightness -
Fuel and oil Ensure proper levels 33
91
Coolant level Ensure proper level 98
99
Coolant hoses Inspect for leaks -
Throttle Ensure proper operation 30
Indicator lights/switches Ensure operation 28
Engine stop switch Ensure proper operation 29
Air filter, pre-filter Inspect, clean 105
Headlamp Check operation 29
107
Brake light/taillight Check operation 112
Riding gear Wear approved helmet, goggles, and
protective clothing
10
Winch (if equipped) Inspect cable and switch 73-84
55
OPERATION
Safe Operation Practices
1. Complete the recommended safety training before operating this
vehicle. See page 9.
2. Do not allow anyone under 16 years of age to operate this vehicle.
Do not allow anyone with cognitive or physical disabilities to
operate this vehicle.
3. Never carry a passenger on a 1-up ATV.
4. Engine exhaust fumes are poisonous. Never start the engine or let it
run in an enclosed area.
5. Before operating, learn how to use the auxiliary brake for
emergency situations (if service brakes become inoperable).
6. Operate this vehicle off-road only. Never operate the vehicle on
pavement or on any public street, road or highway, including dirt
and gravel roads.
7. Use caution and drive at reduced speeds in conditions of reduced
visibility such as fog, rain and darkness. Clean headlights
frequently and replace burned out headlamps promptly.
8. Drive in a manner appropriate for your skills and operating
conditions. Never operate at excessive speeds. Never attempt
wheelies, jumps, or other stunts. Never remove your hands from the
handlebars while operating, and always keep both feet on the
footrests.
9. Never consume alcohol or drugs before or while operating an ATV.
10. Always use the size and type of tires specified for your vehicle.
Always maintain proper tire pressure.
11. Never operate a damaged ATV. After any overturn or accident, have
a qualified service dealer inspect the entire machine for possible
damage.
12. Never operate the ATV on a frozen body of water unless you have
independently verified that the ice is sufficiently thick to support the
weight and moving force of the ATV, you and your cargo, together
with any other vehicles in your party.
13. Do not touch hot exhaust system components. Always keep
combustible materials away from the exhaust system.
14. Always remove the ignition key when the vehicle is not in use to
prevent unauthorized use.
56
OPERATION
Know Your Riding Area/Tread Lightly
Familiarize yourself with all laws and regulations concerning the
operation of this off-road vehicle in your area. Respect the environment
in which you ride. Find out where the designated riding areas are by
contacting your POLARIS dealer, a local riding club or local officials.
Help keep our trails open for recreational vehicle use. As an off-road
enthusiast, you represent the sport and can set a good example (or a poor
example) for others to follow. Tread lightly. Operate with respect for the
terrain, avoid littering, and always stay on the designated trails.
Trail Etiquette
Always practice good etiquette when riding. Allow a safe distance
between your vehicle and other vehicles operating in the same area.
Communicate to oncoming operators by signaling the number of
vehicles in your group. When stopping, move your vehicle to the edge
of the trail as far as possible to allow others to pass safely.
57
OPERATION
Starting the Engine
1. Position the vehicle on a level surface outdoors or in a well-
ventilated area.
2. Place the transmission in PARK.
3. Lock the parking brake.
Tip: The starter interlock will prevent the engine from starting if the transmission
is in gear and the brake is not engaged.
4. Sit on the vehicle and move the engine stop switch to RUN.
Tip: Do not press the throttle while starting the engine.
5. Turn the ignition key past the ON position to engage the starter.
Activate the starter for a maximum of five seconds, releasing the
key when the engine starts.
6. If the engine does not start, return the key to the OFF position and
wait five seconds before attempting to start again. Activate the
starter for another five seconds if necessary. Repeat this procedure
until the engine starts.
NOTICE: Operating the vehicle immediately after starting could cause engine
damage. Allow the engine to warm up for several minutes before
operating the vehicle.
Cold Weather Operation
If the ATV is used year-round, check the oil level frequently. A rising oil
level could indicate the accumulation of contaminates such as water or
excess fuel in the bottom of the crankcase. Water in the bottom of the
crankcase can lead to engine damage and must be drained. Water
accumulation increases as outside temperature decreases.
If a belt fails, always clean away all debris when replacing the belt.
58
OPERATION
Driving Procedures
1. Wear protective riding gear. See page 10.
2. Perform the pre-ride inspection. See page 54.
3. Place the transmission in PARK.
4. Lock the parking brake.
5. Mount the vehicle from the left side.
6. Sit upright with both feet on the footrests and both hands on the
handlebars.
7. Start the engine and allow it to warm up.
8. Shift the transmission into gear.
9. Check your surroundings and determine your path of travel.
10. Release the parking brake.
11. Slowly depress the throttle with your right thumb and begin driving.
12. Drive slowly. Practice maneuvering and using the throttle and
brakes on level surfaces.
59
OPERATION
Turning the Vehicle
Both rear wheels drive
equally at all times. This
means that the outside wheel
must travel a greater distance
than the inside wheel when
turning, and the inside tire
must slip traction slightly.
1. Slow down.
2. Never turn quickly when
carrying cargo.
3. Steer in the direction of
the turn.
4. Keep both feet on the
footrests.
5. Lean your upper body to the inside of the turn while supporting your
weight on the outer footrest. This technique alters the balance of
traction between the rear wheels, allowing the turn to be made
smoothly. The same leaning technique should be used for turning in
reverse.
6. Practice making turns at slow speeds before attempting to turn at
faster speeds.
WARNING! Turning improperly can result in vehicle overturn. Never turn
abruptly or at sharp angles. Never turn at high speeds.
60
OPERATION
Driving on Slippery Surfaces
Whenever riding on slippery surfaces such as wet trails or loose gravel,
or during freezing weather, follow these precautions:
1. Do not operate on excessively rough, slippery or loose terrain.
2. Slow down when entering slippery areas.
3. Engage 4X4 before wheels begin to lose traction.
NOTICE: Severe damage to drive train may occur if the 4X4 is engaged while
the wheels are spinning. Allow the rear wheels to stop spinning
before engaging 4X4, or engage 4X4 before wheels begin to lose
traction.
4. Maintain a high level of alertness, reading the trail and avoiding
quick, sharp turns, which can cause skids.
5. Never apply the brakes during a skid. Correct a skid by turning the
handlebars in the direction of the skid and shifting your body
weight forward.
Sideways
skid
Turn in
direction of
skid
61
OPERATION
Driving Uphill
Braking and handling are greatly affected when operating in hilly
terrain. Improper procedure could cause loss of control or overturn.
Whenever traveling uphill, follow these precautions:
1. Always move the 4X4 switch to ADC 4X4 before ascending or
descending a hill. See page 39.
2. Drive straight uphill.
3. Avoid steep hills. Maximum
incline is:
• 25°
4. Always check the terrain
carefully before ascending
any hill.
5. Never climb hills with
excessively slippery or loose
surfaces.
6. Keep both feet on the
footrests.
7. Shift body weight uphill.
8. Proceed at a steady rate of speed and throttle opening. Opening the
throttle suddenly could cause the ATV to flip over backwards.
9. Never go over the top of any hill at high speed. An obstacle, a sharp
drop, or another vehicle or person could be on the other side of the
hill.
10. Remain alert and be prepared to take emergency action. This may
include quick dismounting of the vehicle.
25° Maximum
62
OPERATION
Driving on a Sidehill (Sidehilling)
Driving on a sidehill is not recommended. Improper procedure could
cause loss of control or overturn. Avoid crossing the side of any hill
unless absolutely necessary.
If crossing a sidehill is unavoidable, follow these precautions:
1. Slow down.
2. Avoid crossing the side of a steep hill.
3. Lean into the hill, transferring your upper body weight toward the
hill while keeping your feet on the footrests.
4. If the vehicle begins to tip, quickly turn the front wheel downhill, if
possible, or dismount on the uphill side immediately!
63
OPERATION
Driving Downhill
When driving downhill, follow these precautions:
1. Always check the terrain
carefully before descending
a hill.
2. Always move the 4X4
switch to ADC 4X4 before
ascending or descending a
hill. See page 39.
3. Avoid steep hills. Maximum
incline is:
• 25°
4. Always descend a hill with
the transmission in forward
gear. Do not descend a hill
with the transmission in
neutral.
5. Slow down. Never travel
down a hill at high speed.
6. Drive straight downhill. Avoid traveling down a hill at an angle,
which would cause the vehicle to lean sharply to one side.
7. Shift body weight uphill.
8. Apply the brakes slightly to aid in slowing. Applying the brakes too
firmly may cause the rear wheels to lock, which could result in loss
of control.
25° Maximum
64
OPERATION
Turning Around on a Hill (K-Turn)
If the vehicle stalls while climbing a hill, never back it down the hill!
Use the K-turn to turn around.
8 ft. (2.4 m)
65
OPERATION
Turning Around on a Hill (K-Turn)
1. Stop and lock the parking brake while keeping body weight uphill.
2. Always move the 4X4 switch to ADC 4X4 before ascending or
descending a hill. See page 39.
3. Leave the transmission in forward and shut off the engine.
4. Dismount on the uphill side of the vehicle, or on the left if the
vehicle is pointing straight uphill.
5. Staying uphill of the vehicle, turn the handlebars full left.
6. While holding the brake lever, release the parking brake lock and
slowly allow the vehicle to roll around to your right until it's
pointing across the hill or slightly downward.
7. Lock the parking brake. Remount the vehicle from the uphill side,
keeping body weight uphill. Start the engine with the transmission
still in forward.
8. Release the parking brake and proceed slowly, controlling speed
with the brake lever, until the vehicle is on more level ground.
66
OPERATION
Driving Through Water
Your ATV can operate
through water with a
maximum recommended
depth equal to the bottom
of the footrests. Follow
these procedures when
operating through water:
1. Determine water
depths and current
before entering water.
2. Choose a crossing
where both banks have
gradual inclines.
3. Avoid operating
through deep or fast-flowing water.
NOTICE: Major engine damage can result if the vehicle is not thoroughly
inspected after operation in water. Perform the services outlined in
the maintenance chart. See page 86. The following areas need
special attention: engine oil, transmission oil, demand drive fluid and
all grease fittings
.
If the vehicle tips or overturns in water, or if the engine stops during or
after operating in water, service is required before starting the engine.
Your POLARIS dealer can provide this service. If it's impossible to
bring the vehicle in before starting the engine, perform the service
outlined on page 114, and take the vehicle in for service at the first
opportunity.
4. After leaving water, test the brakes. Apply them lightly several
times while driving slowly. The friction will help dry out the pads.
If it’s unavoidable to enter water deeper than the footrest level:
• Proceed slowly. Avoid rocks and obstacles.
• Balance your weight carefully. Avoid sudden movements.
• Maintain a steady rate of speed. Do not make sudden turns or stops.
Do not make sudden throttle changes.
Maximum Depth
67
OPERATION
Driving Over Obstacles
Follow these precautions when operating over obstacles:
1. Always check for obstacles before operating in a new area.
2. Look ahead and learn to read the terrain. Be constantly alert for
hazards such as logs, rocks and low hanging branches.
3. Travel slowly and use extra caution when operating on unfamiliar
terrain. Not all obstacles are immediately visible.
4. Never attempt to operate over large obstacles, such as rocks or
fallen trees.
68
OPERATION
Driving in Reverse
Follow these precautions when operating in reverse:
1. Always check for obstacles or people behind the vehicle.
2. Always avoid backing downhill.
3. Back slowly.
4. Apply the brakes lightly for stopping.
5. Avoid turning at sharp angles.
6. Never open the throttle suddenly.
7. Do not use the override switch unless additional wheel speed is
required for vehicle movement. Use the override with caution as
rearward vehicle speed is greatly increased. Do not operate at wide
open throttle. Operate the throttle just enough to maintain a desired
speed.
NOTICE: Excessive throttle operation while in the speed limit mode may cause
fuel to build in the exhaust, resulting in engine popping and/or engine
damage.
69
OPERATION
Parking on an Incline
Avoid parking on an incline if possible. If it's unavoidable, follow these
precautions:
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Always block the rear wheels on the downhill side.
70
OPERATION
Hauling Cargo
Overloading the vehicle or carrying or towing cargo improperly can alter vehicle
handling and may cause loss of control or brake instability, which can result in
serious injury or death. Always follow these precautions when hauling cargo:
REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING
WHEN HAULING CARGO.
NEVER EXCEED THE MAXIMUM WEIGHT CAPACITY of the vehicle. When
determining the weight you are adding to the vehicle, include the weight of the
operator, accessories, loads in the rack or box and the load on the trailer tongue.
The combined weight of these items must not exceed the maximum weight
capacity.
CARGO WEIGHT DISTRIBUTION should be 1/3 on the front rack and 2/3 on
the rear rack. When operating over rough or hilly terrain, reduce speed and
cargo to maintain stable driving conditions. Carrying loads on only one rack
increases the possibility of vehicle overturn.
CARRY LOADS AS LOW ON THE RACKS AS POSSIBLE. Carrying loads high
on the racks raises the center of gravity of the vehicle and creates a less stable
operating condition.
SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create
unstable operating conditions, which could result in loss of control of the vehicle.
OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When
handling off-centered loads that cannot be centered, securely fasten the load
and operate with extra caution. Always attach the tow load to the hitch point
designated for your vehicle.
HEAVY LOADS CAN CAUSE BRAKING AND CONTROL PROBLEMS. Use
extreme caution when applying brakes with a loaded vehicle. Avoid terrain or
situations that may require backing downhill.
USE EXTREME CAUTION when operating with loads that extend over the rack
sides. Stability and maneuverability may be adversely affected, causing the
vehicle to overturn.
DO NOT BLOCK THE FRONT HEADLIGHT BEAM when carrying loads on the
front rack.
DO NOT TRAVEL FASTER THAN THE RECOMMENDED SPEEDS.
The vehicle should never exceed 10 mph (16 kph) while towing a load on a level
surface. Vehicle speed should never exceed 5 mph (8 kph) when towing loads in
rough terrain, while cornering, or while ascending or descending a hill.
WARNING
71
OPERATION
Hauling Cargo
1. Never exceed the weight
capacities specified for your
ATV on warning labels and in
the specifications section of
this manual.
2. Cargo weight should be
evenly distributed (1/3 on the
front rack and 2/3 on the rear
rack) and mounted as low as
possible.
3. When operating over rough or
hilly terrain, reduce speed and
cargo weight to maintain
stable driving conditions.
4. NEVER exceed 50 MPH (80 km/h) when rear cargo loads are above
75 lbs. (34 kg) and/or front cargo loads are above 37 lbs. (17 kg).
NEVER exceed 10 MPH (16 km/h) when rear cargo loads are above
200 lbs. (91 kg) and/or front cargo loads are above 100 lbs. (45 kg).
5. Do not obstruct the headlight beam with cargo.
6. Slow down.
7. Use low forward gear when hauling or towing heavy cargo to
extend belt life.
8. Always operate the vehicle with extreme caution whenever hauling
or towing loads. Balance, handling and control may be affected.
2/3
1/3
72
OPERATION
Hauling Cargo
Towing Loads
Always attach a towed load to the hitch point. Remove the hitch from
the ATV when not towing a trailer. If towing a load, reduce rear rack
cargo weight by the amount of tongue weight.
• The combination of rear rack cargo weight and tongue weight must
not exceed the rear rack capacity.
• The total load (operator, accessories, cargo and weight on hitch) must
not exceed the maximum weight capacity of the vehicle.
NOTICE: Using an improper hitch or exceeding
the maximum tongue weight capacity
can result in serious damage to the
vehicle and will void your ATV
warranty. Never install a hitch longer
than 4" (10 cm). Never install
automotive accessories on your
POLARIS ATV. Always install
POLARIS-approved (or equivalent)
accessories designed for ATV use.
Maximum Towing Capacities
Do not exceed maximum towing capacities. Avoid towing on inclines.
850 / 850 SP XP 1000
Maximum Towed Load (Level Ground) 1500 lbs. (680 kg) 1500 lbs. (680 kg)
Maximum Vertical Hitch Weight 150 lbs. (68 kg) 150 lbs. (68 kg)
Maximum
4" (10 cm)
73
WINCH GUIDE
These safety warnings and instructions apply if your vehicle came
equipped with a winch or if you choose to add an accessory winch to
your vehicle.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Your winch may have a cable made of either wire rope or specially
designed synthetic rope. The term “winch cable” will be used for either
unless noted otherwise.
Winch Safety Precautions
1. Read all sections of this manual.
2. Never use alcohol or drugs before or while operating the winch.
3. Never allow children under 16 years of age to operate the winch.
4. Always wear eye protection and heavy gloves when operating the
winch.
5. Always keep body, hair, clothing and jewelry clear of the winch
cable, fairlead and hook when operating winch.
6. Never attempt to “jerk” a load attached to the winch with a moving
vehicle. See the Shock Loading section on page 82.
7. Always keep the area around the vehicle, winch, winch cable and
load clear of people (especially children) and distractions while
operating the winch.
8. Always turn the vehicle ignition power OFF when it and the winch
are not being used.
9. Always be sure that at least five (5) full turns of winch cable are
wrapped around the winch drum at all times. The friction provided
by this wrapped cable allows the drum to pull on the winch cable
and move the load.
10. Always apply your vehicle’s park brake and/or park mechanism to
hold the vehicle in place during winching. Use wheel chocks if
needed.
WARNING
74
WINCH GUIDE
Winch Safety Precautions
11. Always align the vehicle and winch with the load directly in front of
the vehicle as much as possible. Avoid winching with the winch
cable at an angle to the winching vehicle’s centerline whenever
possible.
12. If winching at an angle is unavoidable, follow these precautions:
A. Look at the winch drum occasionally. Never let the winch cable “stack”
or accumulate at one end of the winch drum. Too much winch cable at
one end of the winch drum can damage the winch and the winch cable.
B. If stacking occurs, stop winching. Follow step 15 on page 80 to feed
and rewind the cable evenly before continuing the winch operation.
13. Never winch up or down at sharp angles. This can destabilize the
winching vehicle and possibly cause it to move without warning.
14. Never attempt to winch loads that weigh more than the winch’s
rated capacity.
15. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.
16. Never touch, push, pull or straddle the
winch cable while winching a load.
17. Never let the winch cable run through
your hands, even if wearing heavy
gloves.
18. Never release the clutch on the winch
when the winch cable is under load.
19. Never use the winch for lifting or
transporting people.
75
WINCH GUIDE
Winch Safety Precautions
20. Never use the winch to hoist or suspend a vertical load.
21. Never immerse or submerse your winch in water. Your dealer can
provide service on your winch if this occurs.
22. Always inspect your winch and winch cable before each use.
23. Never winch the hook fully into the winch. This can cause damage
to winch components.
24. Unplug the remote control from the vehicle when the winch is not in
use to prevent inadvertent activation and use by unauthorized
persons.
25. Never grease or oil the winch cable. This will cause the winch cable
to collect debris that will shorten the life of the cable.
76
WINCH GUIDE
Winch Operation
Read the Winch Safety Precautions in the preceding pages before using
your winch.
Tip: Consider practicing the operation and use of your winch before you actually
need to use it in the field.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Each winching situation is unique.
• Take your time to think through the winching you are about to do.
• Proceed slowly and deliberately.
• Never hurry or rush during winching.
• Always pay attention to your surroundings.
• You may need to change your winching strategy if it is not working.
• Always remember that your winch is very powerful.
• There are simply some situations that you and your winch will not be able
to deal with. Do not be afraid to ask others to help when this happens.
1. Always inspect the vehicle, winch, winch cable and winch controls
for any signs of damage or parts in need of repair or replacement
before each use. Pay particular attention to the first 3 feet (1 meter)
of winch cable if the winch is being used (or has been used) for lift-
ing an accessory plow assembly. Promptly replace any worn or
damaged cable.
2. Never operate a winch or a vehicle in need of repair or service.
3. Always apply your vehicle’s
park brake and/or park
mechanism to hold the vehicle
in place during winching. Use
wheel chocks if needed.
WARNING
Hook Strap
77
WINCH GUIDE
Winch Operation
4. Always use the hook strap when
handling the hook.
WARNING! Never put your fingers into
the hook. This could lead to SEVERE
INJURY.
A. Attach the hook itself onto the
load or use a tow strap or chain
to secure the load to the winch
cable.
Tip: A “tow strap” is NOT intended to stretch. A “recovery strap” is designed to
stretch.
WARNING! Never use a recovery strap when winching due to the excessive
energy that can be released if the winch cable breaks. This can result in
SEVERE INJURY or DEATH. See the Shock Loading section on page 82.
B. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
WARNING! Replace the winch cable at the first sign of damage to prevent
SEVERE INJURY or DEATH in the event of failure. For your safety, always
replace POLARIS winch parts (including the cable) with genuine POLARIS
replacement parts available at your authorized POLARIS dealer.
C. If possible, keep the winch cable aligned with the centerline of the
winching vehicle. This will help the spooling of the winch cable and
reduce the load on the fairlead.
D. If freeing a stuck vehicle by attaching to a tree, use an item such as a
tow strap to avoid damaging the tree during winch operation. Sharp
cables and chains can damage and even kill trees. Please remember
to TreadLightly® (treadlightly.org).
E. Before operating the winch, be sure
that the safety latch on the winch
cable hook is fully seated when the
load is attached.
F. Never operate your winch with a
damaged hook or latch. Always
replace damaged parts before using
the winch.
NO YES
NO
YES
78
WINCH GUIDE
Winch Operation
5. Never remove the hook strap from the hook.
6. Release the winch clutch and pull out the winch cable.
7. Pulling out as much cable as possible maximizes the winch’s pulling
capacity. Always be sure that at least five (5) full turns of winch
cable are wrapped around the winch drum at all times. The friction
provided by this wrapped cable allows the drum to pull on the
winch cable and move the load.
8. Read and adhere to the following information for winch damping to
ensure safe winch use.
A. In order to absorb energy that could be released by a winch cable
failure, always place a “damper” on the winch cable. A damper can be
a heavy jacket, tarp, or other soft, dense object. A damper can absorb
much of the energy released if a winch cable breaks when winching.
Even a tree limb can help as a damper if no other items are available to
you.
B. Lay the damper on top of the mid-point of the winch cable length that is
spooled out.
C. On a long pull, it may be necessary to stop winching so that the
damper can be repositioned to the new mid-point of the winch cable.
Always release the tension on the winch cable before repositioning the
damper.
D. Avoid being directly in line with the winch cable whenever possible.
Also, never permit others to stand near or in line with the winch cable
during winch operation.
9. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
10. Never use straps, chains or other rigging items that are damaged or
worn.
79
WINCH GUIDE
Winch Operation
11. The ONLY time a winch-equipped vehicle should be moving when
using the winch is when that vehicle itself is stuck. The winch-
equipped vehicle should NEVER be in motion to “shock” load the
winch cable in an attempt to move a second stuck vehicle. See the
Shock Loading section on page 82. For your safety, always follow
these guidelines when winching a vehicle free:
A. Release the winch clutch and spool out the necessary length of winch
cable.
B. Align the winch cable as close as possible to the winching vehicle’s
centerline.
C. Attach the winch cable hook to the anchor point or the stuck vehicle’s
frame following instructions in this manual.
D. Re-engage the clutch on the winch.
E. Slowly winch in the slack in the winch cable.
F. Select the proper vehicle gear to propel the stuck vehicle in the
direction of winching.
G. Shift to the lowest gear available on the stuck vehicle.
H. Slowly and carefully apply vehicle throttle and winch together to free
the vehicle.
I. Stop winching as soon as the stuck vehicle is able to propel itself
without the help of the winch.
J. Detach the winch cable hook.
K. Rewind the winch cable evenly back onto the winch drum following the
instructions in this manual.
12. Never attempt to winch another stuck vehicle by attaching the
winch cable to a suspension component, brush guard, bumper or
cargo rack. Vehicle damage may result. Instead, attach the winch to
a strong portion of the vehicle frame or hitch.
80
WINCH GUIDE
Winch Operation
13. Extensive winching will run down the battery on the winching
vehicle. Let the winching vehicle’s engine run while operating the
winch to prevent the battery from running low if winching for long
periods.
14. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.
15. After winching is complete, especially if winching at an angle, it
may be necessary to re-distribute the winch cable across the winch
drum. You will need an assistant to perform this task.
A. Release the clutch on the winch.
B. Feed out the winch cable that is unevenly bunched up in one area.
C. Re-engage the winch clutch.
D. Have an assistant pull the winch cable tightly with about 100 lbs. (45
kg) of tension using the hook strap.
E. Slowly winch the cable in while your assistant moves the end of the
winch cable back and forth horizontally to evenly distribute the winch
cable on the drum.
F. Doing this reduces the chances of the winch cable “wedging” itself
between lower layers of winch cable.
81
WINCH GUIDE
Winch Cable Care
For your safety, always replace POLARIS winch parts (including the
cable) with genuine POLARIS replacement parts available at your
authorized POLARIS dealer.
WARNING! Use of worn or damaged cable could lead to sudden failure and
SEVERE INJURY.
1. Always inspect your winch before each use. Inspect for worn or
loose parts including mounting hardware. Never use the winch if
any part needs repair or replacement.
2. Always inspect your winch cable before each use. Inspect for worn
or kinked winch cable.
A. A kinked winch cable made of
wire rope is shown at right. Even
after being “straightened out,”
this cable has already been
permanently and severely
damaged. Promptly discontinue
use of a winch cable in this
condition.
B. A kinked winch cable made of
wire rope that has been
“straightened out” is shown at
right. Even though it may look
usable, the cable has been
permanently and severely damaged. It can no longer transmit the load
that it could prior to kinking. Promptly discontinue use of a winch cable
in this condition.
C. A winch cable made of
synthetic rope should be
inspected for signs of fraying.
Replace the cable if fraying is
observed (shown at right).
Promptly discontinue use of a
winch cable in this condition.
D. Also replace the winch cable if there are fused or melted fibers. Such
an area of the synthetic rope will be stiff and appear smooth or glazed.
Promptly discontinue use of a winch cable in this condition.
A
B
C
82
WINCH GUIDE
Shock Loading
WARNING! Your winch cable is very strong but it is NOT designed for dynamic,
or “shock” loading. Shock loading may tension a winch cable beyond its strength
and cause the cable to break. The end of a broken winch cable under such high
loading can cause SEVERE INJURY or DEATH to you and other bystanders.
Winch cables are designed to NOT absorb energy. This is true of both
wire-rope and synthetic-rope winch cables.
1. Never attempt to “jerk” a load with the winch. For example, never
take up slack in the winch cable by moving the winching vehicle in
an attempt to move an object. This is a dangerous practice. It gener-
ates high winch cable loads that may exceed the strength of the
cable. Even a slowly moving vehicle can create large shock loads in
a winch cable.
WARNING! SEVERE INJURY or DEATH can result from a broken winch cable.
2. Never quickly turn the winch ON and OFF repeatedly (“jogging”).
This puts extra load on the winch, winch cable, and generates
excessive heat from the motor. This is a form of shock loading.
3. Never tow a vehicle or other object with your winch. Towing an
object with a winch produces shock loading of the cable even when
towing at slow speeds. Towing from a winch also positions the
towing force high on the vehicle. This can cause instability of the
vehicle and possibly lead to an accident.
83
WINCH GUIDE
Shock Loading
4. Never use recovery straps with your winch. Recovery straps are
designed to stretch and can store energy. This stored energy in the
recovery strap is released if a winch cable fails making the event
even more hazardous. Similarly, never use elastic “bungie” cords
for winching.
5. Never use the winch to tie down a vehicle to a trailer or other
transportation vehicle. This type of use also causes shock loading
that can cause damage to the winch, winch cable, or vehicles used.
Your winch cable is designed and tested to withstand the loads
produced by the winch motor when operated from a stationary
vehicle. Always remember that the winch and winch cable are NOT
designed for shock loading.
84
WINCH GUIDE
Winch Maintenance and Service Safety
WARNING! Improper or lack of winch maintenance and service could lead to
SEVERE INJURY or DEATH. Always follow all winch instructions and warnings
in this manual.
1. Always inspect your winch before each use. Inspect for worn or
kinked winch cable. Also inspect for worn or loose parts including
mounting hardware.
2. Permit your winch motor to cool down prior to servicing your
winch.
3. Never work on your winch without first disconnecting the battery
connections to prevent accidental activation of the winch.
4. For your safety, always replace POLARIS winch parts (including
the cable) with genuine POLARIS replacement parts available at
your authorized POLARIS dealer.
5. Some winch models use wire rope as the winch cable. Other
winches use a specially designed synthetic rope as the winch cable.
6. Never replace a synthetic-rope winch cable with a consumer-grade
polymer rope such as can be purchased in a hardware store.
Although they may look similar, they are NOT alike. A polymer
rope not designed for winch use will stretch and store excessive
energy when winching.
WARNING! Failure of a stretched rope under winching conditions will release
all of the stored energy. This will increase the chances of SEVERE INJURY or
DEATH.
85
EMISSION CONTROL SYSTEMS
Noise Emission Control System
Do not modify the engine, intake or exhaust components, as doing so
may affect compliance with U.S.A. EPA noise control requirements (40
CFR 205) and local noise level requirements.
Operation on Public Lands in the U.S.A.
Your POLARIS vehicle has a spark arrester that was tested and qualified
to be in accordance with the USFS standard 5100-1d. Federal law
requires that this spark arrester be installed and functional when the
vehicle is operated on public lands.
Operation of off-road vehicles on public lands in the U.S.A. is regulated
by 43 CFR 420. Violations are subject to monetary penalties. Federal
regulations can be viewed online at www.gpoaccess.gov/ecfr/.
Crankcase Emission Control System
This engine is equipped with a closed crankcase system. Blow-by gases
are forced back to the combustion chamber by the intake system. All
exhaust gases exit through the exhaust system.
Exhaust Emission Control System
Exhaust emissions are controlled by engine design. An electronic fuel
injection (EFI) system controls fuel delivery. The engine and EFI
components are set at the factory for optimal performance and are not
adjustable.
The emissions label is located on the right front frame of the vehicle.
Electromagnetic Interference
This spark ignition system complies with Canadian standard ICES-002.
This vehicle complies with the EMC requirements of European
directives 97/24/EC and 2004/108/EC.
Non-ionizing Radiation: This vehicle emits some electromagnetic
energy. People with active or non-active implantable medical devices
(such as heart monitoring or controlling devices) should review the
limitations of their device and the applicable electromagnetic standards
and directives that apply to this vehicle.
86
MAINTENANCE
Periodic Maintenance Chart
Any qualified repair shop or person may maintain, replace or repair the
emission control devices or systems on your vehicle. An authorized
POLARIS dealer can perform any service that may be necessary for
your vehicle. POLARIS also recommends POLARIS parts for
emissions-related service, however equivalent parts can be used.
It is a potential violation of the Clean Air Act if a part supplied by an
aftermarket parts manufacturer reduces the effectiveness of the vehicle’s
emission controls. Tampering with emission controls is prohibited by
federal law.
Owners are responsible for performing the scheduled maintenance
identified in this owner’s manual.
Careful periodic maintenance will help keep your vehicle in safe,
reliable condition. Inspect, clean, lubricate, adjust and replace parts as
necessary. When inspection reveals the need for replacement parts,
genuine POLARIS parts are available from your POLARIS dealer.
Equivalent parts may be used for emissions-related service.
Record maintenance and service in the Maintenance Log beginning on
page 146.
Service and adjustments are important for proper vehicle operation. If
you're not familiar with safe service and adjustment procedures, a
qualified dealer can perform these operations.
Maintenance intervals in the following chart are based upon average
riding conditions and an average vehicle speed of approximately 10
miles per hour. Vehicles subjected to severe use must be inspected and
serviced more frequently.
Severe Use Definition
• Frequent immersion in mud, water or sand
• Racing or race-style high RPM use
• Prolonged low speed, heavy load operation
• Extended idle
• Short trip cold weather operation
Pay special attention to the oil level. A rise in oil level during cold
weather can indicate contaminants collecting in the oil sump or
crankcase. Change oil immediately if the oil level begins to rise.
Monitor the oil level, and if it continues to rise, discontinue use and
determine the cause. Your POLARIS dealer can assist.
87
MAINTENANCE
Periodic Maintenance Chart
Maintenance Chart Key
WARNING! Improperly performing the procedures marked with a “D” could
result in component failure and lead to serious injury or death. Have an
authorized POLARIS dealer or other qualified person perform these services.
Perform all services at whichever maintenance interval is reached first.
Symbol Description
► Perform these operations more often for vehicles subjected to severe use.
D Have an authorized POLARIS dealer or other qualified person perform
these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
Steering -
Pre-Ride
-
Make adjustments as
needed. See Pre-Ride
Checklist on page 54.
Front suspension - -
Rear suspension - -
Tires - -
Brake fluid level - -
Brake lever travel - -
Brake system - -
Wheels/fasteners - -
Frame fasteners - -
Engine oil level - -
Winch (if
equipped)
- - See pages 73-84
► Air filter, pre-filter - Daily - Inspect; clean often; replace
as needed
Coolant - Daily - Check level
► Power steering unit - Daily - Inspect daily; clean often
Headlight/taillight - Daily - Check operation
88
MAINTENANCE
Periodic Maintenance Chart
► Perform these procedures more often for vehicles subjected to severe use.
D Have an authorized POLARIS dealer or other qualified person perform these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
► Air filter,
main element
- Weekly - Inspect; replace as needed
►
D
Brake pad wear 10 H Monthly 100 (160) Inspect periodically
Battery 20 H Monthly 200 (320) Check terminals; clean; test
Fuel System 20 H Monthly - Inspect; cycle key to
pressurize fuel pump; check
lines and fittings for leaks and
abrasion
► Engine oil change 25 H 1 M - Break-in oil and filter change
(see page 52)
► Demand drive fluid
(extreme use)
25 H 1 M 250 (400) Change fluid every 25 hours
if ADC is subjected to
extreme use. See page 95.
► Demand drive fluid 25 H 1 M 250 (400) Break-in oil level check
► Rear gearcase oil 25 H 1 M 250 (400) Break-in oil level check
► Transmission oil 25 H 1 M 250 (400) Break-in oil level check
► General lubrication 50 H 3 M 500 (800) Lubricate all fittings, pivots,
cables, etc.
Shift linkage 50 H 6 M 500 (800) Inspect, lubricate
D Steering 50 H 6 M 500 (800) Lubricate
► Front suspension 50 H 6 M 500 (800) Lubricate
► Rear suspension 50 H 6 M 500 (800) Lubricate
D Throttle Release
Switch
50 H 6 M 500 (800) Inspect; adjust; lubricate;
replace if necessary
Throttle Body
Intake Duct
50 H 6 M 500 (800) Inspect duct for proper
sealing/air leaks
Drive belt 50 H 6 M 500 (800) Inspect; adjust; replace as
needed
Cooling system 50 H 6 M 1000 (1600) Inspect coolant strength
seasonally; pressure test
system yearly
► Radiator 50 H 6 M 1000 (1600) Inspect; clean external
surfaces
► Cooling hoses 50 H 6 M 1000 (1600) Inspect for leaks
89
MAINTENANCE
Periodic Maintenance Chart
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles
(Km)
► Oil lines and
fasteners
100 H 6 M 1000 (1600) Inspect for leaks and loose
fittings
► Engine oil change 100 H 6 M 1000 (1600) Change the oil and filter
► Demand drive fluid
(normal use)
100 H 12 M 1000 (1600) Change fluid
► Rear gearcase oil 100 H 12 M 1000 (1600) Change fluid
► Transmission oil 100 H 12 M 1000 (1600) Change fluid
D Fuel system 100 H 12 M 1000 (1600) Cycle key to pressurize fuel
pump; check for leaks at fill
cap, fuel lines/rail and fuel
pump; replace lines every
two years
► Engine mounts 100 H 12 M 1000 (1600) Inspect
Exhaust muffler/
pipe
100 H 12 M 1000 (1600) Inspect
D Spark plug 100 H 12 M 1000 (1600) Inspect; replace as needed
► Wiring 100 H 12 M 1000 (1600) Inspect for wear, routing,
security; apply dielectric
grease to connectors
subjected to water, mud, etc.
D Clutches (drive
and driven)
100 H 12 M 1000 (1600) Inspect; clean; replace worn
parts
D Front wheel
bearings
100 H 12 M 1000 (1600) Inspect; replace as needed
D Brake fluid 200 H 24 M 2000 (3200) Change every two years
Suspension
bushings
250 H 24 M 2000 (3200) Inspect; replace if necessary
Spark arrester 300 H 36 M 3000 (4800) Clean out
► Coolant - 60 M - Replace coolant
D Valve clearance 1000 H - 10000
(16000)
Inspect; adjust
D Toe adjustment - Inspect periodically; adjust
when parts are replaced
Headlight aim - Adjust as needed
90
MAINTENANCE
Lubrication Guide
Check and lubricate all components at the intervals outlined in the
Periodic Maintenance Chart beginning on page 86. Items not listed in
the chart should be lubricated at the General Lubrication interval.
The a-arms and upper control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
Item Recommended
Lubricant
Capacity
at Fluid
Change
Fill Plug
Torque
Drain Plug
Torque
See Page
Engine Oil PS-4 5W-50
4-Cycle Oil
2 qt.
(1.9 l)
--- 12 ft-lbs
(16 Nm)
91
Transmission
Oil
AGL Gearcase
Lubricant &
Transmission
Fluid
37 oz.
(1100 ml)
10-14 ft-lbs
(14-19 Nm)
10-14 ft-lbs
(14-19 Nm)
94
Demand Drive
Fluid (Front
Gearcase)
Demand Drive
Fluid
9.3 oz.
(275 ml)
8-10 ft-lbs
(11-14 Nm)
11 ft-lbs
(15 Nm)
95
Rear
Gearcase Oil
ATV Angle Drive
Fluid (or GL5 80-
90 weight gear
lube)
7.1 oz.
(210 ml)
10-14 ft-lbs
(14-19 Nm)
10-14 ft-lbs
(14-19 Nm)
96
Brake Fluid DOT 4 Brake
Fluid
--- --- --- 32
Front Prop
Shaft Yoke
U-Joint Grease Grease fittings (3 pumps maximum) every 500 miles,
before long periods of storage, or after pressure
washing or submerging.
A-Arms, Front
and Rear
POLARIS All-
Season Grease
Grease fittings after extreme use or if suspension
becomes squeaky.
Front Prop Shaft
Yoke
Front
91
MAINTENANCE
Engine Oil
Oil Recommendations
POLARIS recommends the use of POLARIS PS-4 Full Synthetic 5W-
50 4-cycle oil or a similar oil for this engine. Oil may need to be
changed more frequently if POLARIS oil is not used. Always use 5W-
50 oil. Follow the manufacturer's recommendations for ambient
temperature operation. See page 133 for the part numbers of POLARIS
products.
See the table on page 90 for fluid recommendations, capacities and plug
torques.
NOTICE: Mixing brands or using a non-recommended oil may cause serious
engine damage. Always use the recommended oil. Never substitute
or mix oil brands.
Oil Level
Check the oil level when the
engine is cold. Never check the
oil with the engine running.
1. Position the vehicle on a
level surface.
2. Access the oil dipstick and
fill tube from the left side of
the ATV. Remove the
dipstick. Wipe it dry with a
clean cloth.
3. Reinstall and tighten the
dipstick.
4. Remove the dipstick and
check the oil level.
5. Add the recommended fluid
as needed. Maintain the oil
level in the safe range
between the FULL and ADD
marks. Do not overfill.
6. Reinstall and tighten the
dipstick.
Dipstick
Full
Add
92
MAINTENANCE
Engine Oil
Oil and Filter Change
See the table on page 90 for fluid recommendations, capacities and plug
torques. Always change the oil and filter at the intervals outlined in the
Periodic Maintenance Chart beginning on page 86. Always change the
oil filter whenever changing oil.
1. Position the vehicle on a level surface.
2. Start the engine. Allow it to warm up at idle for two to three
minutes.
3. Stop the engine.
4. Clean the area around the drain plug.
5. Place a drain pan under the crankcase.
6. Remove the drain plug. Allow the oil to drain completely.
CAUTION! Hot oil can cause burns to skin. Do not allow hot oil to contact skin.
7. Install a new sealing washer on the drain plug. The sealing surfaces
on drain plug and crankcase should be clean and free of burrs, nicks
or scratches.
8. Reinstall the drain plug. Torque to specification.
9. Remove the oil filter cover plate by loosening the three screws
holding into place.
to front
Drain Plug
Filter Access
93
MAINTENANCE
Engine Oil
Oil and Filter Change
10. Place shop towels beneath the oil
filter. Using an oil filter wrench
(available from your POLARIS
dealer), turn the filter counter-
clockwise to remove it.
11. Using a clean dry cloth, clean the
filter sealing surface on the
crankcase.
12. Lubricate the o-ring on the new
filter with a film of fresh engine
oil. Check to make sure the o-ring
is in good condition.
13. Install the new filter and rotate it
clockwise by hand until the filter
gasket contacts the sealing
surface, then turn it an additional
3/4 turn.
14. Remove the dipstick. Add the proper amount of the recommended
oil. Do not overfill.
15. Reinstall the dipstick.
16. Place the transmission in PARK.
17. Lock the parking brake.
18. Start the engine. Allow it to idle for one to two minutes.
19. Stop the engine.
20. Check for leaks.
21. Check the oil level. Add oil as needed to bring the level to the upper
mark on the dipstick.
22. Dispose of used filter and oil properly.
Oil Filter
94
MAINTENANCE
Transmission Oil
Always check and change the transmission oil at the intervals outlined
in the Periodic Maintenance Chart beginning on page 86. See the table
on page 90 for fluid recommendations, capacities and plug torques. See
page 133 for the part numbers of POLARIS products.
Maintain the oil level at the
bottom of the fill plug hole. The
fill plug is located on the right side
of the ATV behind the footwell.
The drain plug is located on the
bottom rear side of the gearcase.
Oil Check
1. Remove the fill plug. Check
the oil level.
2. Add the recommended fluid
as needed to bring the level to
the bottom of the fill hole
threads.
3. Reinstall the fill plug. Torque
to specification.
4. Reinstall the footwell.
Oil Change
1. Place a drain pan under the gearcase. Remove the drain plug. Allow
the oil to drain completely.
2. Clean and reinstall the drain plug. Torque to specification.
3. Remove the fill plug. Add the proper amount of the recommended
oil.
4. Reinstall the fill plug. Torque to specification.
5. Check for leaks.
6. Reinstall the footwell.
7. Dispose of used oil properly.
Drain Plug
Fill Plug
Fill
Level
95
MAINTENANCE
Front Gearcase (Demand Drive) Fluid
Always check and change the demand drive fluid at the intervals
outlined in the Periodic Maintenance Chart beginning on page 86. See
the table on page 90 for fluid recommendations, capacities and plug
torques. See page 133 for the part numbers of POLARIS products.
Change the front gearcase fluid every 25 hours if the ADC unit is
exposed to extreme use. Extreme use includes any of the following:
• operation in ADC mode for prolonged periods
• constant ADC operation on hilly or mountainous terrain
• ADC is the primary mode of all-wheel-drive operation
Tip: If the front gearcase is makes excessive noise during ADC operation,
change the demand drive fluid. If the noise continues, please see your
POLARIS dealer or other qualified service facility for service.
Use the recommended fluid. Use of other fluids may result in improper
operation of components. Maintain the fluid level at the bottom of the
fill hole threads. The fill plug is located on the right side of the demand
drive unit. The drain plug is located on the bottom right side of the unit.
Fluid Check
1. Position the vehicle on a level
surface. Remove the fill plug.
Check the fluid level.
2. Add the recommended fluid as
needed to bring the level to the
bottom of the fill hole threads.
3. Reinstall the fill plug. Torque to
specification.
Fluid Change
1. Position the vehicle on a level
surface. Remove the fill plug.
2. Place a drain pan under the demand drive unit. Remove the drain
plug. Allow the fluid to drain completely.
3. Clean and reinstall the drain plug. Torque to specification.
4. Add the proper amount of the recommended fluid.
5. Reinstall the fill plug. Torque to specification.
6. Check for leaks. Dispose of used fluid properly.
Drain Plug
Fill
Plug
Fill
Level
96
MAINTENANCE
Rear Gearcase Oil
Always check and change the rear gearcase oil at the intervals outlined
in the Periodic Maintenance Chart beginning on page 86. See the table
on page 90 for fluid recommendations, capacities and plug torques. See
page 133 for the part numbers of POLARIS products.
The fill plug is located on the
rear of the gearcase. The drain
plug is located on the bottom
of the gearcase.
Maintain the fluid level at the
bottom of the fill hole threads.
Do not overfill.
Oil Check
1. Position the vehicle on a
level surface.
2. Remove the fill plug.
Check the oil level.
3. Add the recommended oil
as needed to bring the
level to the bottom of the
fill hole threads. Do not overfill.
4. Reinstall the fill plug. Torque to specification.
Oil Change
1. Position the vehicle on a level surface.
2. Place a drain pan under the drain hole.
3. Remove the drain plug. Allow the oil to drain completely.
4. Clean and reinstall the drain plug with a new sealing washer. Torque
to specification.
5. Remove the fill plug. Add the proper amount of the recommended
oil. Do not overfill.
6. Reinstall the fill plug. Torque to specification.
7. Check for leaks.
8. Dispose of used oil properly.
Drain Plug
Fill Plug
Fill
Level
97
MAINTENANCE
Power Steering Unit
If your model is equipped with
power steering, frequently clean
the areas around and on the
power steering unit to allow
proper cooling. Clean these areas
thoroughly.
Steering Assembly
The steering assembly of the ATV should be checked periodically for
loose nuts and bolts. If loose nuts and bolts are found, see your
POLARIS dealer or other qualified service facility before operating the
vehicle.
Cooling System
The engine coolant level is controlled, or maintained, by the recovery
system. The recovery system components are the recovery bottle, the
radiator filler neck, the radiator pressure cap and the connecting hose.
As coolant operating temperature increases, the expanding (heated)
excess coolant is forced out of the engine, past the pressure cap, and into
the recovery bottle. As engine coolant temperature decreases the
contracting (cooled) coolant is drawn back up from the bottle, past the
pressure cap, and into the radiator.
Some coolant level drop on new vehicles is normal as the system is
purging itself of trapped air. Check the coolant level and maintain as
recommended by adding coolant to the recovery bottle.
POLARIS recommends the use of POLARIS Antifreeze 50/50 Premix.
This antifreeze is already premixed and ready to use. Do not dilute with
water. See page 133 for the part numbers of POLARIS products.
Clean
Often
98
MAINTENANCE
Cooling System
Recovery Bottle Coolant
The recovery bottle fluid level can be viewed from inside the front right
wheel well. Access the recovery bottle cap under the front box. See page
36.
1. View the fluid level in the bottle.
2. If the level is low, remove the bottle cap and add coolant as needed.
Maintain the coolant level between the minimum and maximum
marks on the bottle (when the fluid is cool).
3. Reinstall the cap.
4. Close and secure the front box and cover.
Maximum
Mark
Minimum
Mark
Recovery
Bottle Cap
99
MAINTENANCE
Cooling System
Radiator Coolant
To ensure that the coolant maintains its ability to protect the engine, we
recommend that the system be completely drained every five (5) years
and fresh Antifreeze 50/50 Premix added.
Any time the cooling system has been drained for maintenance or repair,
replace the coolant with fresh Antifreeze 50/50 Premix. If the recovery
bottle has run dry, check the level in the radiator. Add coolant as needed.
CAUTION! Escaping steam can cause burns. Never remove the pressure cap
while the engine is warm or hot. Always allow the engine to cool before
removing the pressure cap.
1. Access the pressure cap under
the front box. See page 36.
2. Remove the pressure cap.
3. Using a funnel, slowly add
coolant through the radiator
filler neck.
4. Reinstall the pressure cap. Use
of a non-standard pressure cap
will not allow the recovery
system to function properly.
Your POLARIS dealer can
provide the correct replacement
part.
5. Close and secure the front box
and cover.
Radiator
Cap
100
MAINTENANCE
Brakes
Hand Brake
The front and rear brakes are hydraulic disc brakes, activated by moving
the single brake lever toward the handlebar. These brakes are self-
adjusting.
Under normal operation, the diaphragm extends into the reservoir as
fluid level drops. If the fluid level is low and the diaphragm is not
extended, a leak is likely and the diaphragm should be replaced. To
ensure proper diaphragm operation, always fill the reservoir as needed
whenever the cover is loosened or removed. Do not overfill.
WARNING! An over-full master cylinder may cause brake drag or brake lock-
up, which could result in serious injury or death. Maintain brake fluid at the
recommended level. Do not overfill.
The following checks are recommended to keep the brake system in
good operating condition. Check more often if brakes are used heavily
under normal operation.
1. Always keep brake fluid at an adequate
level. See page 32.
2. Check the brake system for fluid leaks.
3. Check the brakes for excessive travel or
spongy feel.
4. Check the friction pads for wear, damage
and looseness. Replace brake pads when
they are worn to .030” (0.762 mm).
5. Check the security and surface condition
of the disc. Clean any grease using a
recommended brake cleaner or alcohol. Do not use spray lubricants
or other petroleum-based products. If you discover any damage
(cracks, excessive corrosion, warping) see your dealer for service
before operating.
Auxiliary Foot Brake
The hydraulic auxiliary brake system requires no adjustment. Check the
brake fluid level frequently for the auxiliary brake system. See page 34.
.030” (0.762 mm)
101
MAINTENANCE
Toe Alignment
Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 1/4-1/2 inch (6-12 mm).
WARNING! Severe injury or death can result from improper toe alignment and
adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments
should be performed by an authorized POLARIS dealer or other qualified
service facility.
1. Position the vehicle on a
level surface.
2. Place the handlebars in a
straight-ahead position.
3. Tie a length of string
between two stands as
shown in the illustration.
Position the stands so
that the string is flush
with the side of the rear
tire. If available, you
may use a long straight-
edge instead of string.
4. Measure the distance
from the string to the
rim at the front (1) and
rear (2) of the front rim.
The rear measurement
should be 1/8-1/4 inch (3-6 mm) more than the front measurement
on each side of the vehicle to obtain the recommended 1/4-1/2 inch
(6-12 mm) toe out alignment.
5. Repeat the measurement procedure on the other side of the vehicle.
6. If you discover improper alignment, see your POLARIS dealer for
service.
String
Stand
2
1
102
MAINTENANCE
Seat Removal
1. Locate the seat removal
latch in the center of the
seat’s rear.
2. Pull on the latch handle to
disengage the seat from
the vehicle’s frame.
3. Remove the seat.
103
MAINTENANCE
Tires
Operating your ATV with worn tires, improperly inflated tires, non-standard tires
or improperly installed tires will affect vehicle handling and could cause an
accident resulting in serious injury or death. Always follow all tire maintenance
procedures as outlined in this manual and on the labels on the vehicle. Always
use original equipment size and type when replacing tires.
Refer to the specifications section beginning on page 134 for
recommended tire type, size and pressure.
Tire Tread Depth
Always replace tires
when tread depth is
worn to 1/8” (3 mm)
or less.
Front Wheel Hub Tightening
Front wheel bearing tightness and spindle nut retention are critical
component operations. All service must be performed by your
authorized POLARIS dealer or other qualified service facility.
Wheel Removal
1. Stop the engine.
2. Place the transmission in PARK.
3. Lock the parking brake.
4. Loosen the wheel nuts slightly.
WARNING! Do not service axle nuts that have a cotter pin installed. Your
POLARIS dealer can assist.
5. Elevate the side of the vehicle by placing a suitable stand under the
footrest frame.
6. Remove the wheel nuts.
7. Remove the wheel.
WARNING
1/8” (3 mm)
104
MAINTENANCE
Tires
Wheel Installation
1. Place the transmission in PARK.
2. Lock the parking brake.
3. Place the wheel on the hub with the valve stem toward the outside
and rotation arrows on the tire pointing toward forward rotation.
4. Install the wheel nuts and finger-tighten them.
5. Lower the vehicle to the ground.
6. Torque the wheel nuts to specification.
WARNING! Loose nuts could cause a tire to come off during operation, which
could result in an accident or overturn. Always ensure that all nuts are torqued to
specification.
Wheel Nut Torque Specifications
Check the wheel nut torques occasionally and when they've been
loosened for service.
Wheel Type Nut Torque
All 75 ft-lbs (102 Nm)
105
MAINTENANCE
Air Filter
Installation
1. Remove the seat.
2. Remove the air box cover
strap, and remove the air box
cover.
3. Remove the filter.
4. Remove the fabric type pre-
filter from the main filter.
Wash the pre-filter in soapy
water, then rinse and let dry.
5. Reinstall the pre-filter over
the main filter. Install a new
main filter if needed.
6. Reinstall the filter into the air
box.
7. Reinstall the air box cover
and the seat.
Main
Filter
Pre-Filter
Strap
106
MAINTENANCE
Fuse Replacement
If the engine stops or will not start, or if you experience other electrical
failures, a fuse may need replacement. Locate and correct any short
circuits that may have caused the blown fuse, then replace the fuse.
Spare fuses are provided in the fuse box.
1. Access the fuses under the front box. See page 36.
2. Remove the fuse box cover.
3. Remove the suspect fuse from the fuse panel. If the fuse is blown,
install a new fuse with the same amperage rating.
4. Reinstall the fuse box cover.
5. Close and secure the front box and cover.
Fuse Box
107
MAINTENANCE
Lights
Poor lighting can result in reduced visibility when driving. Headlight
and taillight lenses become dirty during normal operation. Clean
headlights frequently and replace burned out headlamps promptly.
Always make sure lights are adjusted properly for best visibility.
Headlight Lamp Replacement
When servicing a halogen lamp, avoid touching the lamp with bare
fingers. Oil from your skin leaves a residue, causing a hot spot that will
shorten the life of the lamp. If fingers do touch a lamp, clean it with
denatured alcohol.
1. Remove the four (4) headlight pod screws. Pull the pod cover
forward.
CAUTION! Hot components can cause burns to skin. Allow lamps to cool
before servicing.
2. Unplug the headlamp from the wiring harness. Be sure to pull on the
connector, not on the wiring.
3. Turn the lamp counter-clockwise to remove it.
4. Install the new lamp. Make sure the tab on the lamp locates properly
in the housing.
5. Reassemble the pod.
108
MAINTENANCE
Lights
High Beam Adjustment
The headlight beam can be adjusted slightly upward or downward. Use
the following procedure to make the adjustment.
1. Position the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall. Place the transmission in
PARK.
2. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height.
3. Start the engine.Turn the headlight switch to high beam.
4. Observe the headlight aim on the wall. The most intense part of the
headlight beam should be two inches (5 cm) below the mark on the
wall. Include rider weight on the seat when measuring.
5. The adjustment screw is located on
the left side of the headlight pod. To
adjust the beam, loosen the screw.
Adjust the headlamp to the desired
position, then tighten the screw.
2" (5 cm)
Lamp Center Height
25 ft. (7.6 m)
Adjustment
Screw
109
MAINTENANCE
Lights
Low Beam Adjustment
The low beam can be adjusted
slightly upward or downward
by rotating the adjustment
screw, located on either side of
the vehicle.
Low Beam
Adjustment Screw
110
MAINTENANCE
Lights
Headlight Housing Replacement
1. Remove the four (4)
headlight pod screws.
2. Pull the pod cover
forward.
3. Unplug the headlamp
from the wiring
harness.
4. Use a small
screwdriver to remove
the o-rings from the
headlight mounting
tabs.
5. Pull the headlight housing up from the bracket for removal.
6. Reverse the steps to install the new housing and reassemble the pod.
Lower Headlamp Replacement
1. Turn the back of the headlight
harness counter-clockwise and
pull the harness assembly away
from the headlight assembly.
2. Remove the headlamp and install
the new headlamp.
3. Reinstall the harness assembly
into the headlight assembly.
4. Turn the headlight harness
clockwise to secure the
headlamp.
Headlight
Housing
Harness
111
MAINTENANCE
Lights
Taillights/Brake lights Replacement
To replace left taillight:
1. Remove the harness connector from the back of the light assembly.
2. Remove the 3 fasteners securing the light assembly and remove the
light assembly.
3. Install the new light assembly and tighten the 3 fasteners to secure
the light assembly.
4. Reinstall the harness connector.
5. Test the light for proper operation.
To replace right taillight:
1. Remove the heat shield covering the light assembly.
2. Remove the harness connector from the back of the light assembly.
3. Remove the 3 fasteners securing the light assembly, and then
remove the assembly.
4. Install the new light assembly, then re-affix and tighten the 3
fasteners.
5. Reinstall the harness connector.
6. Reinstall the heat shield.
7. Test the light for proper operation.
To replace center taillight:
1. Remove the rear rack and rear storage box.
2. Remove the harness connector from the back of the light assembly.
3. Remove the 4 fasteners securing the light assembly, and then
remove the assembly.
4. Install the new light assembly, then re-affix and tighten the 4
fasteners.
5. Reinstall the harness connector.
6. Reinstall the rear rack and rear storage box.
7. Test the light for proper operation.
112
MAINTENANCE
Spark Plugs
Spark Plug Recommendations
Refer to the specifications section beginning on page 134 for the
recommended spark plug type and gap for your vehicle. Torque spark
plugs to specification.
NOTICE: Using non-recommended spark plugs can result in serious engine
damage. Always use POLARIS-recommended spark plugs or their
equivalent.
Spark Plug Inspection
Spark plug condition is indicative of engine operation. Check the spark
plug firing end condition after the engine has been warmed up and the
vehicle has been driven at higher speeds. Immediately check the spark
plug for correct color. See page 113.
CAUTION! A hot exhaust system and engine can cause burns. Wear
protective gloves when removing a spark plug for inspection.
1. Rotate the spark plug cap 1/4 turn and pull it off the spark plug.
2. Rotate the spark plug counter-clockwise to remove it.
3. Reverse the procedure for spark plug installation. Torque to
specification.
Plug Condition Torque Specification
New Spark Plug 18-20 ft-lbs
(24-27 Nm)
Previously Installed
Spark Plug
18-20 ft-lbs
(24-27 Nm)
113
MAINTENANCE
Spark Plugs
Spark Plug Inspection
Normal Spark Plug
The normal insulator tip is gray, tan or light brown. There will be few
combustion deposits. The electrodes are not burned or eroded. This
indicates the proper type and heat range for the engine and the service.
The tip should not be flaky and white. A white insulator tip indicates
overheating, caused by use of an improper spark plug or incorrect fuel.
Wet Fouled Spark Plug
The wet fouled insulator tip is black. A damp oil film covers the firing
end. There may be a carbon layer over the entire nose. Generally, the
electrodes are not worn. General causes of fouling are excessive oil, use
of non-recommended oil or incorrect throttle body adjustments.
114
MAINTENANCE
Vehicle Immersion
If your vehicle becomes immersed, major engine damage can result if
the machine is not thoroughly inspected. Take the vehicle in for service
before starting the engine. Your POLARIS dealer can provide this
service.
If it's impossible to take your ATV to a dealer before starting it, follow
the steps outlined below.
1. Move the ATV to dry land or at the very least, to water below the
footrests.
2. Check the air box. If water is
present, dry the air box and replace
the filter with a new filter. If
equipped, remove the air box drain
plug to drain water. Reinstall the
drain plug. Make sure the E-ring is
on the drain plug and reinstall the
drain plug.
NOTICE: Serious damage could occur if
the air box drain plug is not
reinstalled and tightened
properly
.
3. Remove the spark plugs.
4. Turn the engine over several times
using the electric start.
5. Dry the spark plugs. Reinstall the plugs or install new plugs.
6. Attempt to start the engine. If necessary, repeat the drying
procedure.
NOTICE: Serious damage can occur after immersion if fluids are not changed
promptly. Your POLARIS dealer can assist.
7. Take the vehicle in for service as soon as possible, whether you
succeed in starting it or not. Your POLARIS dealer can provide the
required service.
8. If water has been ingested into the PVT, follow the procedure on
page 118 for drying out the PVT.
Drain Plug
115
MAINTENANCE
Spark Arrester
Failure to heed the following warnings while servicing the spark arrester could
result in serious injury or death.
• Never run the engine in an enclosed area. Exhaust contains poisonous
carbon monoxide gas that can cause loss of consciousness or death in a very
short time.
• Wear eye protection and leather work gloves.
• Do not perform clean-out immediately after the engine has been run, as the
exhaust system becomes very hot. Serious burns could result from contact
with the exhaust components. Allow components to cool sufficiently before
proceeding.
• Never operate without the spark arrester.
Periodically clean the spark arrester to remove accumulated carbon.
1. Place the transmission in
PARK.
2. Remove the arrester
retaining bolt and nut.
3. Remove the arrester from
the end of the muffler.
4. Use non-synthetic brush to
clean the arrester screen. A
synthetic brush may melt if
the components are warm.
If necessary, blow debris
from the screen with
compressed air.
5. Inspect the screen for wear
and damage. Replace a
worn or damaged screen.
6. Reinstall the arrester.
7. Torque the bolt to
9-11 ft. lbs. (12-15 Nm).
WARNING
Screen
Bolt
Nut
Muffler
116
MAINTENANCE
PVT System
Failure to comply with the instructions in this warning can result in severe injury
or death.
Do not modify any component of the PVT system. Doing so may reduce its
strength so that a failure may occur at a high speed. The PVT system has been
precision balanced. Any modification will cause the system to be out of balance,
creating vibration and additional loads on components.
The PVT system rotates at high speeds, creating large amounts of force on
clutch components. Extensive engineering and testing has been conducted to
ensure the safety of this product. However, as the owner, you have the following
responsibilities to make sure this system remains safe:
• Always follow all recommended maintenance procedures. Always look for
and remove debris inside and around the clutch and vent system when
replacing the belt.
• See your POLARIS dealer, or other qualified person, for service and repair
assistance.
• This PVT system is intended for use on POLARIS products only. Do not
install it in any other product.
• Always make sure the PVT housing is securely in place during operation.
WARNING
117
MAINTENANCE
PVT System
The basic operation of the POLARIS PVT system is dependent on
engine speed and vehicle torque requirements. As engine speed
increases, the force exerted on the movable drive sheave by the
flyweights also increases. This, in turn, increases the amount of pinch
applied to the drive belt. Similarly, if the engine speed decreases, the
amount of centrifugal force decreases, reducing the amount of belt
pinch.
On POLARIS ATVs, the approximate gear ratio difference between
high and low range is 1:2.25. This difference in gearing affects the
operation of the PVT, especially at speeds less than 7 MPH (11 km/h),
due to the system's dependence on engine speed.
For example, when operating at a ground speed of 3 MPH (5 km/h) in
low range, the engine speed would be around 3000 RPM. This is well
above the engagement speed of 1600 - 1800 RPM. However, in high
range at 3 MPH (5 km/h), the engine would be running at only 1500
RPM. Whenever operating this close to the engagement speed, the
engine may be running at a speed too low to provide the pinch needed to
prevent belt slip. Belt slip is responsible for creating the excessive heat
that destroys belts, wears clutch components and causes outer clutch
covers to fail.
The air temperature in the clutch cover is substantially reduced by using
low range while operating at low ground speeds. Reducing the
temperature inside the clutch cover greatly extends the life of the PVT
components (belt, cover, etc.).
118
MAINTENANCE
PVT System
When To Use Low Range and High Range
PVT Drying
There may be some instances when water is accidently ingested into the
PVT system. Use the following instructions to dry it out before
operating.
1. Position the vehicle on a level surface.
2. Remove the drain plug. Allow the water to drain completely.
Reinstall the drain plug.
3. Start the engine. Place the transmission in PARK.
4. Apply varying throttle for 10-15 seconds to expel the moisture and
air-dry the belt and clutches. Do not hold the throttle wide open for
more than 5 seconds.
5. Allow the engine RPM to settle to idle speed, then shift the
transmission to low range.
6. Test for belt slippage. If the belt slips, repeat the process.
7. Your vehicle requires service as soon as possible, which your
POLARIS dealer can provide.
Condition Range to Use
Operating at speeds less than 7 MPH (11 km/h) Low
Towing heavy loads Low
Operating in rough terrain (swamps, mountains, etc.) Low
Operating at speeds greater than 7 MPH (11 km/h) High
119
