BUGG BBQ NATURAL GAS
CONVERSION KIT
Kit Model 95140 includes:
2 x 1.50mm injectors (Part No. 040261)
2 x 1.83mm injectors (Part No. C090015NG Bigg Bugg Only)
2 x Aeration shutters (Part No. A04722501 Bigg Bugg Only)
1 x Natural Gas Label (020404)
1 x Hose and Regulator assembly (Part No. 95162)
1 x Restraining Cable (95111)
1 x Instructions 020686

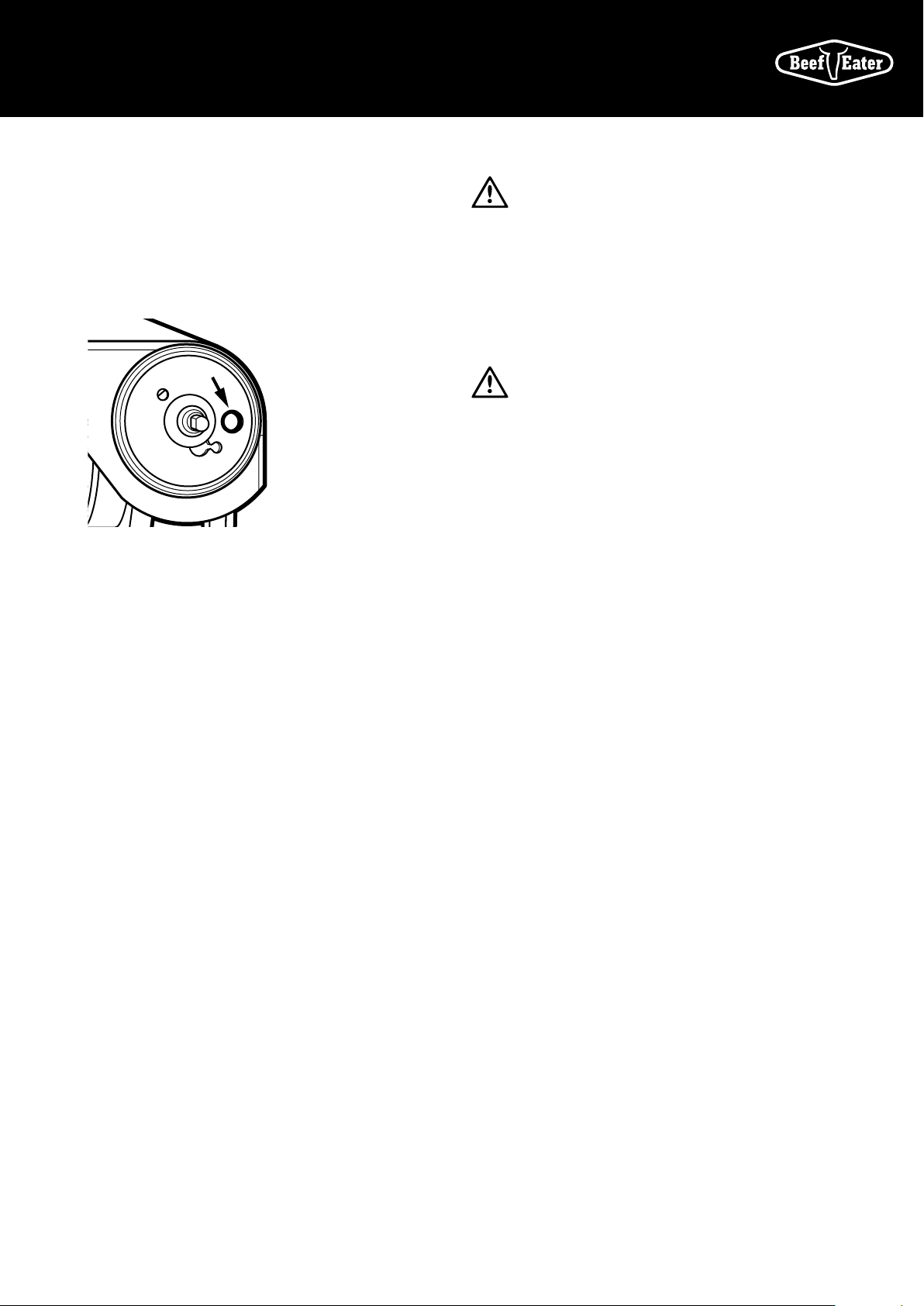

Look here for
identification reference
Please read the user manual carefully and store in a handy
place for later reference.
Important Safety Instructions
WARNING
WARNING
All service to the appliance must be undertaken by a
qualified gas service agent.
Do not smoke or use a naked flame within the vicinity of the
appliance or gas line when performing gas conversion or
service of any kind.
Always carry out a gas leak test after any work has been
carried out on the appliance.
If your barbecue is fitted with an optional side burner, gas
conversion must be carried out at the same time.
Always use the correct size socket spanner / wrench to
remove or replace the gas injectors. Do not use pliers or
any other type of tool that may squeeze the head of the gas
injector. This may cause the gas orifice to change shape
thereby adversely affecting the gas flow to each burner.
Gas injectors are made of brass and have a fine thread which
must be treated with care when being handled. Remove and
replace injectors with care.
WARNING
WARNING
The manufacturer accepts no responsibility for any
consequential damage, malfunction or loss due to incorrect
conversion of installation.
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL VOID
THE APPLIANCE WARRANTY.
WARNING
BIGG BUGG
INSTRUCTIONS FOR BIGG BUGG NATURAL GAS
CONVERSION ARE DETAILED IN THE BIGG BUGG
MANUAL SUPPLIED WITH THIS BBQ. FAILURE TO
FOLLOW THOSE INSTRUCTIONS WILL VOID THE
APPLIANCE WARRANTY
Remove and Replace Gas Injectors (Jets)
1. Turn off the gas supply valve on the gas cylinder. Ensure
that all gas controls are in the OFF position.
2. Disconnect the hose and regulator from the gas cylinder
and disconnect the gas hose from the barbecue gas inlet
using a 19mm open-ended spanner / wrench.
3. Open hood and remove the cooking plate and grill from
the BBQ.
4. Remove each burner by unscrewing the 3 screws
holding it to the body.
5. The gas injectors (Jets) for each burner are located
within deep pockets at the rear of the BBQ.
6. Remove each gas injector from the end of each jet
holder, turning gently in a counter clockwise direction.
Ensure the jet holder is firm and won’t turn while
unscrewing the nozzle.
7. Check the identification mark stamped on the Hex Head
of the injector to confirm that it is the correct size –
1.50mm. Screw correct Jets back into place.
8. When fitting the NG gas injectors to the end of the jet
holder be sure to seat the injector correctly on the
thread before turning it in a clockwise direction until it is
seated firmly in place. Do not over-tighten.
NATURAL GAS CONVERSION INSTRUCTIONS
