PRIUS c_U (OM52G95U)
Pictorial index
Search by illustration
1
For safety
and security
Make sure to read through them
2
Instrument
cluster
How to read the gauges and meters, the variety of
warning lights and indicators, etc.
3
Operation of
each
component
Opening and closing the doors and windows,
adjustment before driving, etc.
4
Driving
Operations and advice which are necessary for
driving
5
Audio system
Operating the audio system
6
Interior features
Usage of the interior features, etc.
7
Maintenance
and care
Caring for your vehicle and maintenance
procedures
8
When trouble
arises
What to do in case of malfunction or emergency
9
Vehicle
specifications
Vehicle specifications, customizable features, etc.
10
For owners
Reporting safety defects for U.S. owners, and seat
belt and SRS airbag instructions for Canadian
owners
Index
Search by symptom
Search alphabetically
TABLE OF CONTENTS
2
PRIUS c_U (OM52G95U)
For your information....................... 8
Reading this manual.................... 14
How to search.............................. 15
Pictorial index .............................. 16
1-1. For safe use
Before driving...................... 26
For safe driving ................... 28
Seat belts ............................ 30
SRS airbags........................ 39
Front passenger occupant
classification system ......... 52
Safety information for
children ............................. 57
Child restraint systems........ 58
Installing child restraints...... 62
Exhaust gas precautions..... 73
1-2. Hybrid system
Hybrid system features ....... 74
Hybrid system
precautions ....................... 79
1-3. Theft deterrent system
Immobilizer system ............. 86
Theft prevention labels........ 89
2. Instrument cluster
Warning lights and
indicators ...........................92
Gauges and meters.............97
Multi-information
display .............................101
Energy monitor/
consumption screen ........110
3-1. Key information
Keys...................................118
3-2. Opening, closing and
locking the doors
Side doors .........................125
Back door ..........................134
Smart key system..............139
3-3. Adjusting the seats
Front seats.........................148
Rear seats .........................149
Head restraints ..................153
3-4. Adjusting the steering
wheel and mirrors
Steering wheel...................156
Inside rear view mirror.......158
Outside rear view
mirrors .............................159
3-5. Opening and closing
the windows
Power windows..................161
Moon roof ..........................165
1
For safety and security
2
Instrument cluster
3
Operation of each
component
3
1
9
8
6
5
4
3
2
PRIUS c_U (OM52G95U)
10
7
4-1. Before driving
Driving the vehicle............. 170
Cargo and luggage............ 179
Vehicle load limits ............. 183
Trailer towing..................... 184
Dinghy towing.................... 185
4-2. Driving procedures
Power (ignition) switch
(vehicles without a
smart key system)........... 186
Power (ignition) switch
(vehicles with a smart
key system)..................... 190
EV drive mode................... 197
Hybrid transmission........... 200
Turn signal lever................ 204
Parking brake.................... 205
4-3. Operating the lights
and wipers
Headlight switch................ 206
Fog light switch ................. 210
Windshield wipers and
washer ............................ 212
Rear window wiper and
washer ............................ 216
4-4. Refueling
Opening the fuel
tank cap...........................219
4-5. Toyota Safety Sense C
Toyota Safety Sense C......223
PCS

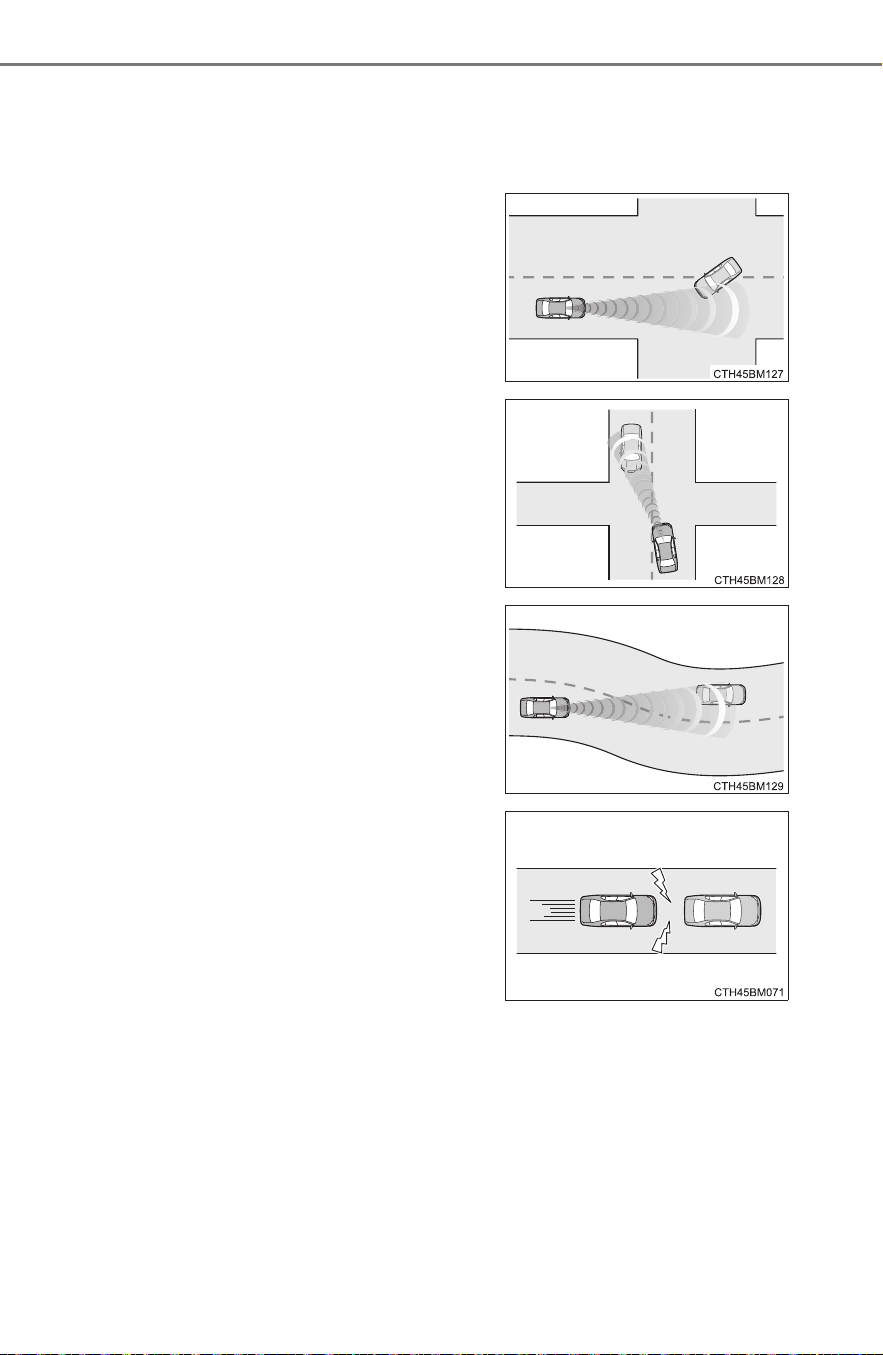

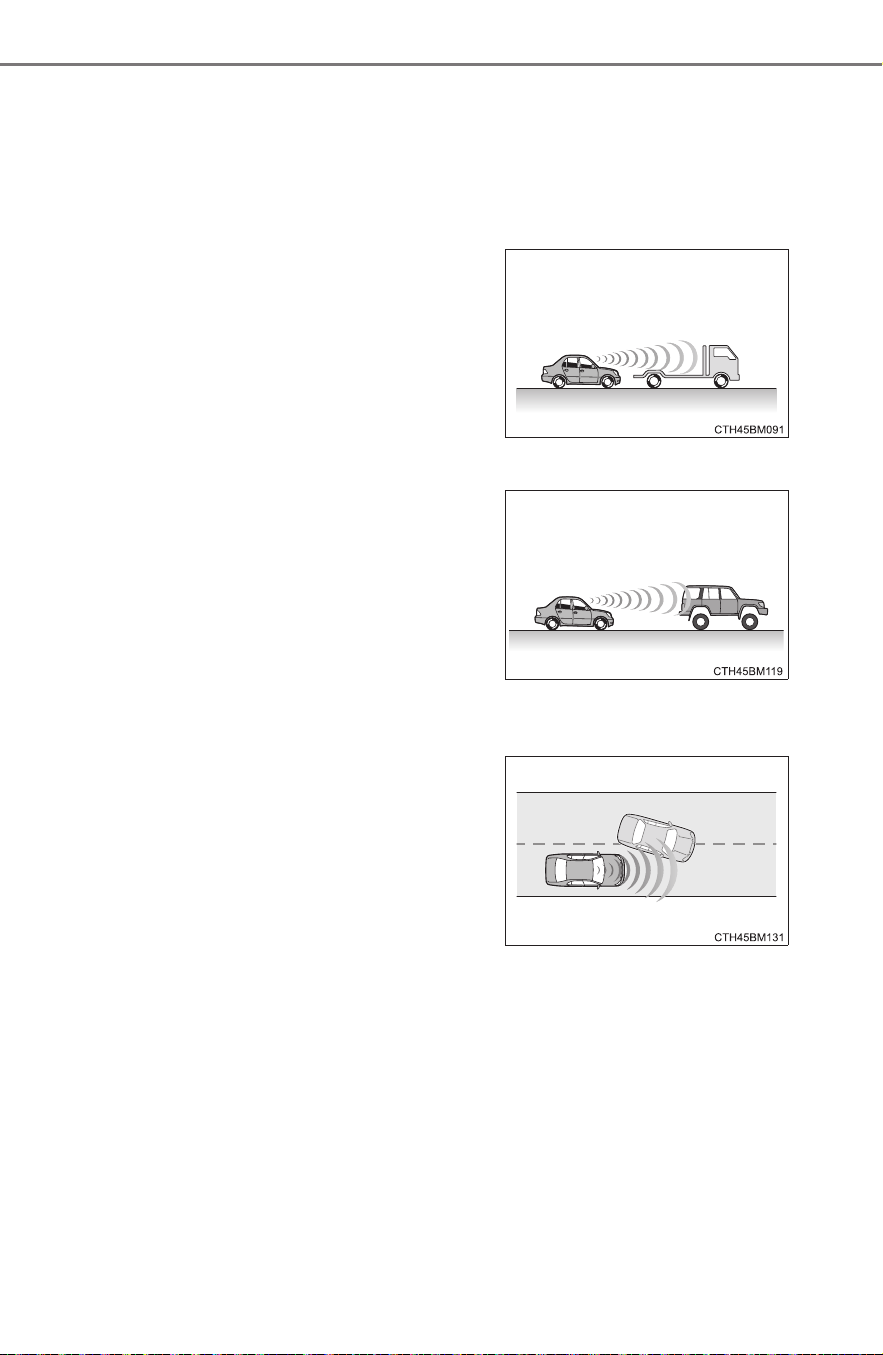

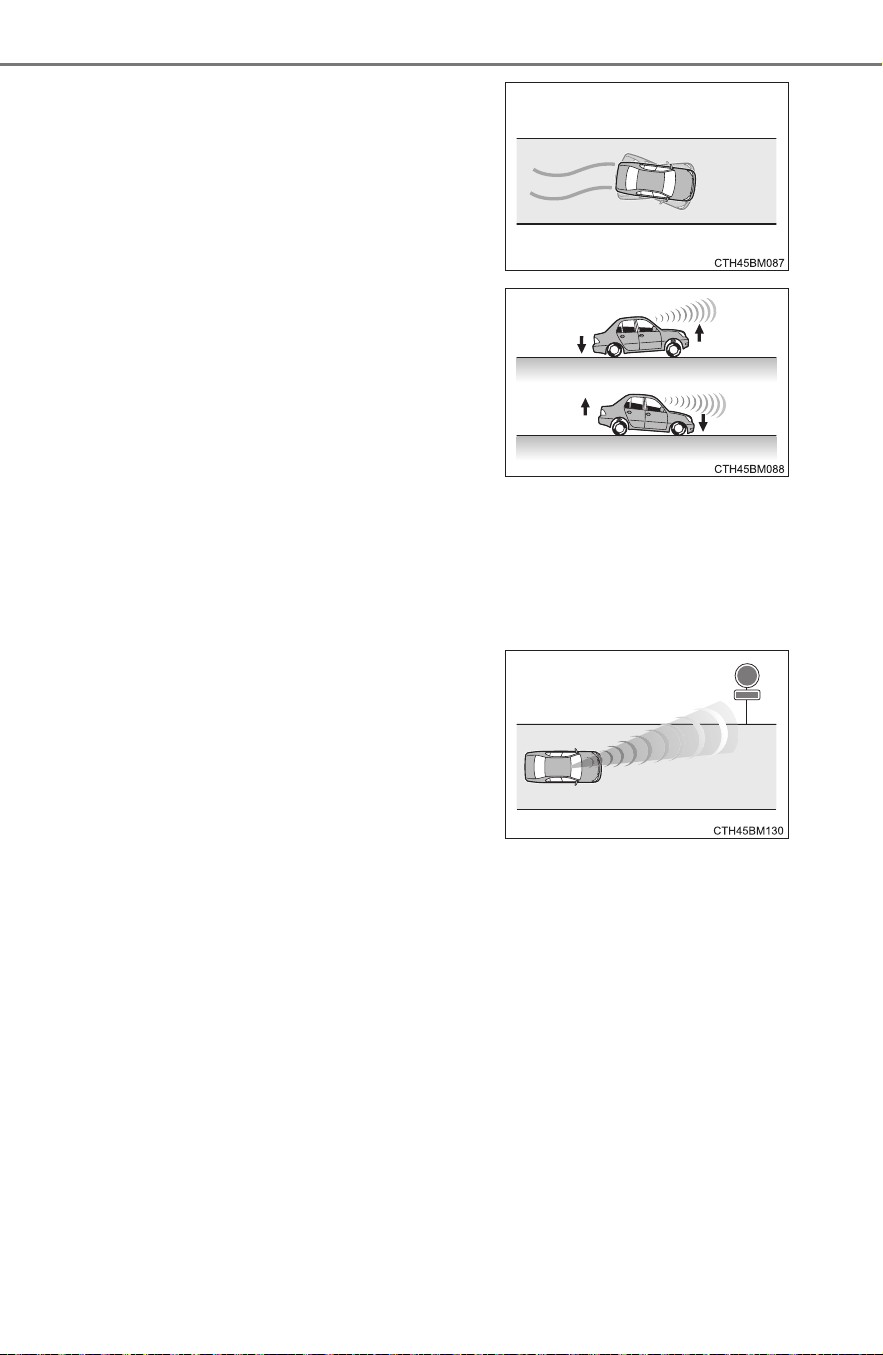

(Pre-Collision System).....229
LDA
(Lane Departure Alert).....242
Automatic High Beam........247
4-6. Using the driving
support systems
Cruise control ....................252

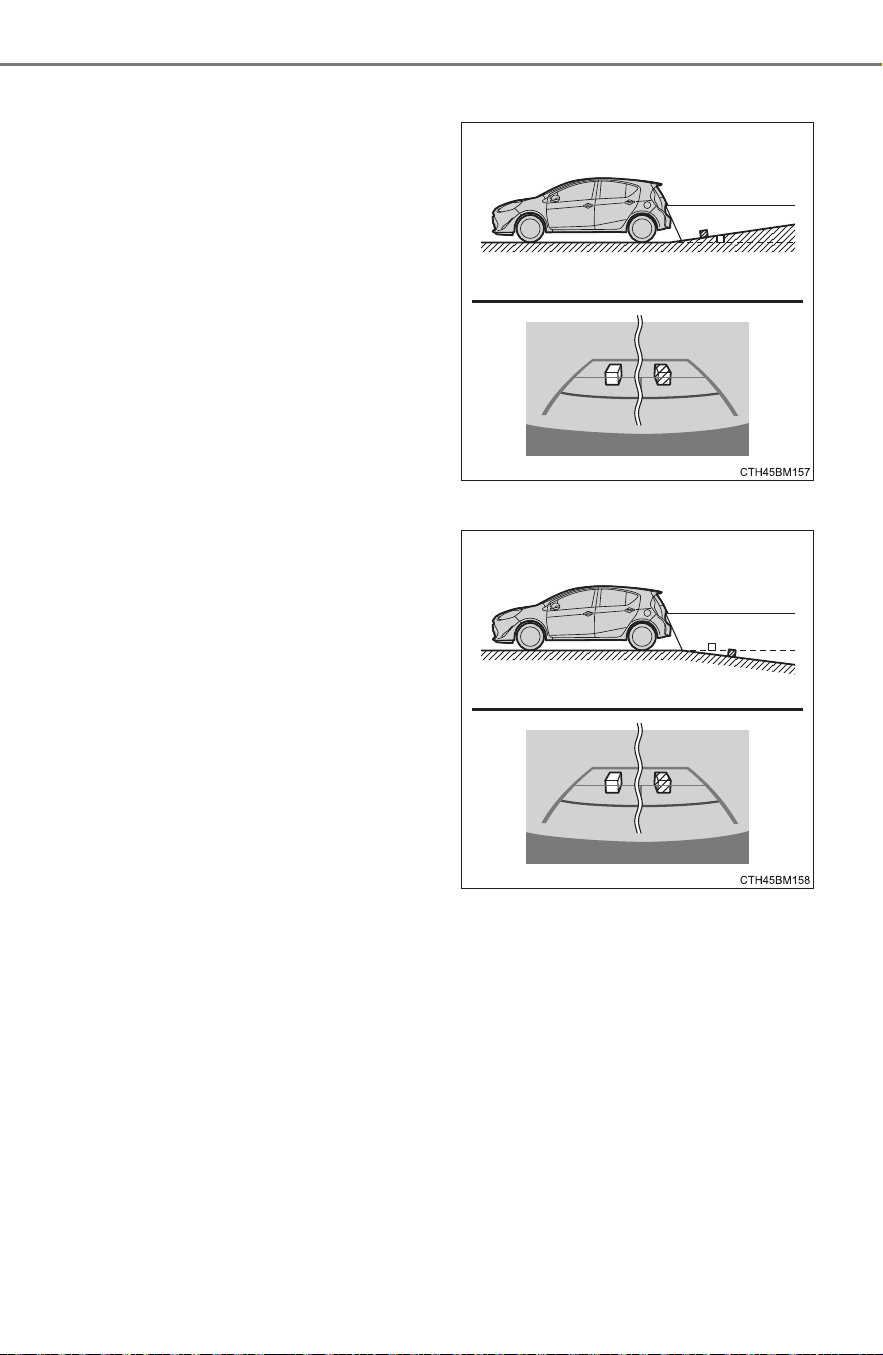

Rear view monitor
system .............................256
Driving assist systems.......266
4-7. Driving tips
Hybrid vehicle
driving tips .......................272
Winter driving tips..............275
4
Driving
TABLE OF CONTENTS
4
PRIUS c_U (OM52G95U)
5-1. Using the audio system
Audio system types........... 282
5-2. Basic Operations
(Multimedia system)
Multimedia system ............ 283
Steering wheel audio
switches .......................... 285
USB port/AUX port............ 286
Basic audio operations...... 288
5-3. Setup
(Multimedia system)
Setup menu....................... 290
General settings................ 291
Audio settings.................... 293
Display settings................. 294
Voice settings.................... 295
5-4. Using the Multimedia
system
Selecting the audio
source ............................. 296
List screen operation......... 297
Optimal use of the
multimedia system .......... 299
5-5. Using the radio
(Multimedia system)
Radio operation................. 300
5-6. Playing an audio CD and
MP3/WMA/AAC discs
(Multimedia system)
CD player operation...........302
5-7. Using an external device
(Multimedia system)
Listening to an iPod...........308
Listening to a USB
memory device ................313
Using the AUX port............318
5-8. Connecting Bluetooth
®
(Multimedia system)
Preparations to use
wireless
communication ................319
Registering a Bluetooth
®
audio player for the
first time...........................324
Registering a Bluetooth
®
phone for the first time.....325
Registering a Bluetooth
®
device ..............................326
Connecting a Bluetooth
®
device ..............................328
Displaying a Bluetooth
®
device details...................330
Detailed Bluetooth
®
system settings................331
5
Audio system
5
1
9
8
6
5
4
3
2
PRIUS c_U (OM52G95U)
10
7
5-9. Bluetooth
®
Audio
(Multimedia system)
Listening to Bluetooth
®
Audio............................... 332
5-10. Bluetooth
®
phone
(Multimedia system)
Using a Bluetooth
®
Phone.............................. 334
Making a call ..................... 337
Receiving a call................. 340
Speaking on the phone ..... 341
Bluetooth
®
phone
message function............ 345
Using the steering wheel
switches .......................... 350
Bluetooth
®
phone
settings............................ 351
Contact/
Call History Settings........ 353
What to do if...
(Troubleshooting)............ 363
5-11. Bluetooth
®
(Multimedia system)
Bluetooth
®
......................... 367
5-12. Using the voice
command system
(Multimedia system)
Voice command system.... 372
6-1. Using the air
conditioning system
and defogger
Automatic air conditioning
system .............................378
Seat heaters ......................386
6-2. Using the interior lights
Interior lights list.................387
• Interior lights..................388
• Personal lights...............388
6-3. Using the storage
features
List of storage features......390
• Glove box ......................391
• Console box ..................391
• Auxiliary boxes ..............392
• Cup holders...................393
• Bottle holders ................394
6-4. Other interior features
Other interior features........395
• Sun visors .....................395
• Vanity mirrors ................395
• Power outlet ..................396
• Coat hooks ....................397
• Assist grips....................398
• Luggage cover ..............399
6
Interior features
TABLE OF CONTENTS
6
PRIUS c_U (OM52G95U)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior.......... 402
Cleaning and protecting
the vehicle interior........... 405
7-2. Maintenance
Maintenance
requirements ................... 411
General maintenance........ 414
Emission inspection and
maintenance (I/M)
programs......................... 417
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 418
Hood.................................. 421
Positioning a floor jack ...... 423
Engine compartment......... 424
12-volt battery ................... 433
Tires .................................. 437
Tire inflation pressure........ 446
Wheels .............................. 449
Air conditioning filter.......... 451
Wireless remote control/
electronic key battery ...... 453
Checking and replacing
fuses ............................... 456
Light bulbs......................... 460
8-1. Essential information
Emergency flashers...........470
If your vehicle has to
be stopped in an
emergency.......................471
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed......................473
If you think something is
wrong...............................480
If a warning light turns
on or a warning buzzer
sounds.............................481
If a warning message is
displayed .........................490
If you have a flat tire ..........507
If the hybrid system will
not start ...........................520
If the electronic key does
not operate properly ........522
If the vehicle 12-volt
battery is discharged .......524
If your vehicle
overheats.........................531
If the vehicle becomes
stuck ................................535
7
Maintenance and care
8
When trouble arises
7
1
9
8
6
5
4
3
2
PRIUS c_U (OM52G95U)
10
7
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 538
Fuel information ................ 547
Tire information ................. 550
9-2. Customization
Customizable features ...... 562
Items to initialize................ 567
Reporting safety defects for
U.S. owners ............................. 570
Seat belt instructions for
Canadian owners
(in French) ............................... 571
SRS airbag instructions for
Canadian owners
(in French) ............................... 573
What to do if...
(Troubleshooting).....................584
Alphabetical index......................589
9
Vehicle specifications
10
For owners
Index
For vehicles with a navigation system, refer to the “NAVIGATION
SYSTEM OWNER’S MANUAL” for information regarding the navi-
gation system.
8
PRIUS c_U (OM52G95U)
Please note that this manual applies to all models and all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Approximately five hours after the hybrid system is turned off, you may hear
sound coming from under the vehicle for several minutes. This is the sound of
a fuel evaporation leakage check and, it does not indicate a malfunction.
A wide variety of non-genuine spare parts and accessories for Toyota vehi-
cles are currently available on the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products. Modi-
fication with non-genuine Toyota products could affect its performance, safety
or durability, and may even violate governmental regulations. In addition,
damage or performance problems resulting from the modification may not be
covered under warranty.
For your information
Main Owner’s Manual
Noise from under vehicle after turning off the hybrid system
Accessories, spare parts and modification of your Toyota
9
PRIUS c_U (OM52G95U)
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Toyota Safety Sense C
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.
High voltage parts and cables on the hybrid vehicles emit approximately the
same amount of electromagnetic waves as the conventional gasoline pow-
ered vehicles or home electronic appliances despite of their electromagnetic
shielding.
Unwanted noise may occur in the reception of the mobile two-way radio.
Installation of a mobile two-way radio system
10
PRIUS c_U (OM52G95U)
Your Toyota is equipped with several sophisticated computers that will record
certain data, such as:
• Engine speed
• Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Shift position
• Hybrid battery (traction battery) status
The recorded data varies according to the vehicle grade level and options
with which it is equipped. These computers do not record conversations or
sounds, and only record images outside of the vehicle in certain situations.
●
Data Transmission
Your vehicle may transmit the data recorded in these computers to Toyota
without notification to you.
●
Data usage
Toyota may use the data recorded in these computers to diagnose malfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if
the vehicle is leased
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
●
To learn more about the vehicle data collected, used and shared by
Toyota, please visit www.toyota.com/privacyvts/
.
Vehicle data recordings
11
PRIUS c_U (OM52G95U)
This vehicle is equipped with an event data recorder (EDR). The main pur-
pose of an EDR is to record, in certain crash or near crash-like situations,
such as an air bag deployment or hitting a road obstacle, data that will assist
in understanding how a vehicle’s systems performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fas-
tened;
• How far (if at all) the driver was depressing the accelerator and/or brake
pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situ-
ation occurs; no data are recorded by the EDR under normal driving condi-
tions and no personal data (e.g., name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine
the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have the special equipment, can
read the information if they have access to the vehicle or the EDR.
●
Disclosure of the EDR data
Toyota will not disclose the data recorded in an EDR to a third party except
when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehi-
cle) is obtained
• In response to an official request by the police, a court of law or a govern-
ment agency
• For use by Toyota in a lawsuit
However, if necessary, Toyota may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing
information about the specific vehicle or vehicle owner
Event data recorder
12
PRIUS c_U (OM52G95U)
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, the moon roof, or other features of the
vehicle. In addition, heat build-up or extremely cold temperatures inside the
vehicle can be fatal to children.
13
PRIUS c_U (OM52G95U)
14
PRIUS c_U (OM52G95U)
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
Reading this manual
1
2
3
15
PRIUS c_U (OM52G95U)
■
Searching by name
• Alphabetical index.......P. 589
■
Searching by installation
position
• Pictorial index................P. 16
■
Searching by symptom or
sound
• What to do if...
(Troubleshooting) ........P. 584
■
Searching by title
• Table of contents.............P. 2
How to search
16
PRIUS c_U (OM52G95U)
Pictorial index
Pictorial index
■
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 161
Locking/unlocking by using the mechanical key
*
. . . . . . . . . . P. 522
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 159
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 159
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 159
Defogging the mirrors
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
1
2
3
17
Pictorial index
PRIUS c_U (OM52G95U)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 275
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 540
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 437
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 545
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
Checking/rotation/tire pressure warning system . . . . . . . . . P. 437
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 421
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 421
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Headlights/daytime running lights. . . . . . . . . . . . . . . . . . . . P. 206
Parking lights/front turn signal lights . . . . . . . . . . . . . P. 204, 206
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Front fog lights
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Stop lights/tail lights/rear side marker lights/
rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204, 206
Back-up lights
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 460, Watts: P. 546)
*
: If equipped
8
9
10
11
12
13
14
15
18
Pictorial index
PRIUS c_U (OM52G95U)
■
Instrument panel
Power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186, 190
Starting the hybrid system/changing the modes . . . . . . . P. 186, 190
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . P. 471
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . P. 520
Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 490
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
When the shift lever does not move . . . . . . . . . . . . . . . . . . . . P. 202
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 97
Reading the meters/adjusting the meter light . . . . . . . . . . . . . . P. 97
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 92
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 481
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
When the warning messages are displayed . . . . . . . . . . . . . . P. 490
1
2
3
19
Pictorial index
PRIUS c_U (OM52G95U)
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Headlights/parking lights/tail lights/daytime running lights. . . . P. 206
Front fog lights
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 212
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Fuel filler door opener. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 421
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 156
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Multimedia system
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Navigation system
*
1, 2
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
*
1
: If equipped
*
2
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
20
Pictorial index
PRIUS c_U (OM52G95U)
■
Switches
Automatic High Beam switch . . . . . . . . . . . . . . . . . . . . . . . . P. 247
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 159
Instrument panel light control dial. . . . . . . . . . . . . . . . . . . . . P. 99
PCS (Pre-Collision system) switch . . . . . . . . . . . . . . . . . . . P. 229
LDA (Lane Departure Alert) switch. . . . . . . . . . . . . . . . . . . . P. 242
Window lock switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 128
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
USB port/AUX port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 286
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 438
1
2
3
4
5
6
7
8
9
10
21
Pictorial index
PRIUS c_U (OM52G95U)
Audio remote control switches
*
1
. . . . . . . . . . . . . . . . . . . . . P. 285
Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102
Cruise control switch
*
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 252
Telephone switches
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Talk switch
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 372
*
1
:For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER'S MANUAL”.
*
2
: If equipped
1
2
3
4
5
22
Pictorial index
PRIUS c_U (OM52G95U)
Seat heater switches
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 386
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 267
Eco drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
*
: If equipped
1
2
3
4
23
Pictorial index
PRIUS c_U (OM52G95U)
■
Interior
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 148
Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 153
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30
Console box
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 391
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 128
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
Rear seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149
Luggage cover
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 399
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 276
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . P. 482, 494
*
: If equipped
1
2
3
4
5
6
7
8
9
10
11
24
Pictorial index
PRIUS c_U (OM52G95U)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 158
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 395
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 395
Interior lights/personal lights . . . . . . . . . . . . . . . . . . . . . . . . P. 388
Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 335
Moon roof switches
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
*
: If equipped
1
2
3
4
5
6
7
25
For safety and security
1
PRIUS c_U (OM52G95U)
1-1. For safe use
Before driving...................... 26
For safe driving ................... 28
Seat belts ............................ 30
SRS airbags........................ 39
Front passenger occupant
classification system ......... 52
Safety information for
children ............................. 57
Child restraint systems........ 58
Installing child restraints...... 62
Exhaust gas
precautions ....................... 73
1-2. Hybrid system
Hybrid system features ....... 74
Hybrid system
precautions ....................... 79
1-3. Theft deterrent system
Immobilizer system ............. 86
Theft prevention labels........ 89
26
PRIUS c_U (OM52G95U)
1-1. For safe use
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*
: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Before driving
Floor mat
1
*
2
27
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■ When installing the driver's floor mat
● Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver's seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.
28
1-1. For safe use
PRIUS c_U (OM52G95U)
Adjust the angle of the
seatback so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 148)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 148)
Vehicles with adjustable type head restraints: Lock the head
restraint in place with the center of the head restraint closest to the
top of your ears. (P. 153)
Wear the seat belt correctly. (P. 3 0)
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 3 0)
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 58)
For safe driving
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
3
4
29
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 158, 159)
Adjusting the mirrors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.
● Always observe the legal speed limit when driving on public roads.
● When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
30
1-1. For safe use
PRIUS c_U (OM52G95U)
● Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with the neck or slide off the
shoulder.
● Position the lap belt as low as
possible over the hips.
● Adjust the position of the
seatback. Sit up straight and
well back in the seat.
● Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press
the release button.
Seat belts
Make sure that all occupants are wearing their seat belts before
driving the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
31
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■
Fastening the seat belt
The rear center seat belt is a 3-point type restraint with 2 buckles.
Both seat belt buckles must be correctly located and securely
latched for proper operation.
Push the tabs back all the
way into the cover and then
remove the tabs.
Push tab “B” into the buckle
until a click sound is heard.
Push tab “A” into the buckle
until a click sound is heard.
Rear center seat belt
B
A
1
B
2
A
3
32
1-1. For safe use
PRIUS c_U (OM52G95U)
■
Releasing the seat belt
Release the rear center seat belt only when necessary, such as
when folding down the rear seat. For safety, always store the plate
in the designated place after releasing it.
To release tab “A”, press the
release button.
To release tab “B”, insert the
key (P. 118) or tab “A” into
the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.
A
1
A
B
B
2
33
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
Holding tab “A” and “B”
together, insert both tabs all
the way into the cover on the
roof.
With tab “B” inserted all the
way into the cover, move tab
“A” slightly back toward the
cover’s inlet, so that it blocks
the inlet.
B
A
3
B
A
4
34
1-1. For safe use
PRIUS c_U (OM52G95U)
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision or a vehicle rollover.
The pretensioners do not activate
in the event of a minor frontal
impact, a minor side impact or a
rear impact.
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. (P. 62)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
● Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle’s seat belt. (P. 58)
● When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions on P. 30 regarding seat belt usage.
Seat belt pretensioners (front seats)
35
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■ Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.
■ Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Toyota
dealer free of charge.
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
● Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
36
1-1. For safe use
PRIUS c_U (OM52G95U)
WARNING
■ Pregnant women
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 30)
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ Seat belt pretensioners
● Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.
● If the pretensioner has activated, the SRS warning light will come on. In
that case, the seat belt cannot be used again and must be replaced at
your Toyota dealer.
Obtain medical advice and wear the seat
belt in the proper way. (P. 30)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants. Extend the shoulder belt
completely over the shoulder and posi-
tion the belt across the chest. Avoid belt
contact over the rounding of the abdomi-
nal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
37
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
● Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there’s no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly, resulting in death or serious injury.
■ When using or storing the rear center seat belt
● For vehicles with split rear seats, do not allow anyone sit on the rear center
seat if the rear right seat is folded down, as the seat belt buckle for the rear
center seat belt is then concealed under the folded seat and cannot be
used.
● When storing the rear center seat belt, ensure that the tabs are securely
inserted into the cover on the roof. If the tabs are not stowed properly, they
may drop from the cover while driving, resulting in serious injury.
● Do not use the rear center seat belt with
either buckle released.
Fastening only one of the buckles may
result in death or serious injury in case
of sudden braking or a collision.
38
1-1. For safe use
PRIUS c_U (OM52G95U)
WARNING
■ Using a seat belt extender
● Do not wear the seat belt extender if you can fasten the seat belt without
the extender.
● Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increas-
ing the risk of death or serious injury in the event of an accident.
● The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.
NOTICE
■ When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
39
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
◆
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front pas-
senger from impact with interior components.
SRS driver knee airbag
Can help provide driver protection.
SRS seat cushion airbags
Can help restrain the driver and front passenger.
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.
1
2
3
40
1-1. For safe use
PRIUS c_U (OM52G95U)
◆
SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants.
SRS curtain shield airbags
● Can help protect primarily the head of occupants in the outer
seats
● Can help prevent the occupants from being thrown from the
vehicle in the event of vehicle rollover
4
5
41
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
SRS airbag system components
Curtain shield airbags
SRS warning light and “AIR
BAG ON” and “AIR BAG OFF”
indicator lights
Front side airbags
Side impact sensors (rear)
Front passenger’s seat cush-
ion airbag
Front passenger’s seat belt
buckle switch
Driver airbag
Driver’s seat belt buckle
switch
Driver’s seat cushion airbag
Side impact sensors (front)
Seat belt pretensioners and
force limiters
Side impact sensors (front
door)
Driver’s knee airbag
Front passenger occupant
classification system (ECU
and sensors)
Airbag sensor assembly
Front impact sensors
Front passenger airbag
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
42
1-1. For safe use
PRIUS c_U (OM52G95U)
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag
sensor assembly (ECU) controls airbag deployment based on infor-
mation obtained from the sensors etc. shown in the system compo-
nents diagram above. This information includes crash severity and
occupant information. As the airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.
WARNING
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than 10
in. (250 mm) away now, you can change your driving position in several
ways:
• Move your seat to the rear as far as you can while still reaching the ped-
als comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary,
many drivers can achieve the 10 in. (250 mm) distance, even with the
driver seat all the way forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes it hard to see the
road, raise yourself by using a firm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the
airbag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your view
of the instrument panel controls.
43
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
■ SRS airbag precautions
● The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the
airbag as possible with the seatback adjusted, so the front passenger sits
upright.
● Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (P. 58)
● If the seat belt extender has been con-
nected to the front seat belt buckles but
the seat belt extender has not also been
fastened to the latch plate of the seat
belt, the SRS front airbags will judge
that the driver and front passenger are
wearing the seat belt even though the
seat belt has not been connected. In
this case, the SRS front airbags may
not activate correctly in a collision,
resulting in death or serious injury in the
event of a collision. Be sure to wear the
seat belt with the seat belt extender.
● Do not sit on the edge of the seat or
lean against the dashboard.
44
1-1. For safe use
PRIUS c_U (OM52G95U)
WARNING
■ SRS airbag precautions
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
● Do not attach anything to or lean any-
thing against areas such as the dash-
board, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and driver knee airbags deploy.
45
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
■ SRS airbag precautions
● Do not hang coat hangers or other hard objects on the coat hooks. All of
these items could become projectiles and may cause death or serious
injury, should the SRS curtain shield airbags deploy.
● If a vinyl cover is put on the area where the SRS driver knee airbag will
deploy, be sure to remove it.
● Do not use seat accessories which cover the parts where the SRS side
airbags and SRS seat cushion airbags inflate as they may interfere with
inflation of the SRS airbags. Such accessories may prevent the side
airbags and seat cushion airbags from activating correctly, disable the sys-
tem or cause the side airbags and seat cushion airbags to inflate acciden-
tally, resulting in death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS
airbag components.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS
airbags have deployed (inflated) as they may be hot.
● Do not attach anything to areas such as
a door, windshield glass, side door
glass, front or rear pillar, roof side rail
and assist grip.
● Vehicles without a smart key system:
Do not attach any heavy, sharp or hard
objects such as keys and accessories
to the key. The objects may restrict the
SRS driver knee airbag inflation or be
thrust into the driver’s seat area by the
force of the deploying airbag, thus caus-
ing a danger.
46
1-1. For safe use
PRIUS c_U (OM52G95U)
WARNING
■ SRS airbag precautions
● If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes, are damaged or cracked, have
them replaced by your Toyota dealer.
● Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collision.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags.
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails.
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment.
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows,
winches, or roof luggage carrier.
● Modifications to the vehicle’s suspension system.
● Installation of electronic devices such as mobile two-way radios and CD
players.
● Modifications to your vehicle for a person with a physical disability.
47
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars, and roof side rails,
may be hot for several minutes. The airbag itself may also be hot.
● The windshield may crack.
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the
set threshold level (the level of force corresponding to an approximately 12 -
18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or
deform).
However, this threshold velocity will be considerably higher in the following
situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole,
which can move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a
truck
● Depending on the type of collision, it is possible that only the seat belt
pretensioners will activate.
● The SRS front airbags for the front passenger will not activate if there is no
passenger sitting in the front passenger seat. However, the SRS front
airbags for the front passenger may deploy if luggage is put in the seat,
even if the seat is unoccupied.
● The SRS seat cushion airbag on the front passenger seat will not operate if
the occupant is not wearing a seat belt.
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).
● Both SRS curtain shield airbags will deploy in the event of vehicle rollover.
● Both SRS curtain shield airbags will deploy in the event of a severe frontal
collision.
48
1-1. For safe use
PRIUS c_U (OM52G95U)
■ Conditions under which the SRS airbags may deploy (inflate), other than
a collision
The SRS front airbags and SRS curtain shield airbags may also deploy if a
serious impact occurs to the underside of your vehicle. Some examples are
shown in the illustration.
The SRS curtain shield airbags may also deploy under the situations shown
in the illustration.
■ Types of collisions that may not deploy the SRS airbags (SRS front
airbags)
The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision. But, whenever a collision of any type causes sufficient forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.
● Hitting a curb, edge of pavement or
hard surface
● Falling into or jumping over a deep hole
● Landing hard or falling
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
● Collision from the side
● Collision from the rear
● Vehicle rollover
49
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■ Types of collisions that may not deploy the SRS airbags (SRS side and
curtain shield airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.
The SRS side airbags do not generally inflate if the vehicle is involved in a
frontal or rear collision, if it rolls over, or if it is involved in a low-speed side
collision.
The SRS curtain shield airbags do not generally inflate if the vehicle is
involved in a rear collision, if it pitches end over end, or if it is involved in a
low-speed side or low-speed frontal collision.
● Collision from the side to the vehicle
body other than the passenger compart-
ment
● Collision from the side at an angle
● Collision from the front
● Collision from the rear
● Vehicle rollover
● Collision from the rear
● Pitching end over end
50
1-1. For safe use
PRIUS c_U (OM52G95U)
■ When to contact your Toyota dealer
In the following cases, the vehicle will require inspection and/or repair. Con-
tact your Toyota dealer as soon as possible.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an acci-
dent that was not severe enough to
cause the SRS front airbags to inflate.
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the
SRS side and curtain shield airbags to
inflate.
● The pad section of the steering wheel,
dashboard near the front passenger
airbag or lower portion of the instrument
panel is scratched, cracked, or other-
wise damaged.
● The seat cushion surface is scratched,
cracked, or otherwise damaged.
● The surface of the seats with the SRS
side airbag is scratched, cracked or oth-
erwise damaged.
51
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
● The portion of the front pillars, rear pil-
lars or roof side rail garnishes (padding)
containing the SRS curtain shield
airbags inside is scratched, cracked, or
otherwise damaged.
52
1-1. For safe use
PRIUS c_U (OM52G95U)
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Seat belt reminder light
Front passenger occupant classification
system
Your vehicle is equipped with a front passenger occupant classi-
fication system. This system detects the conditions of the front
passenger seat and activates or deactivates the front passenger
airbag and seat cushion airbag in the front passenger side.
U.S.A. Canada
1
2
3
4
53
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■
Adult
*
1
■
Child
*
4
Condition and operation in the front passenger occupant classi-
fication system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG ON”
SRS warning light Off
Seat belt reminder light
Off
*
2
or
flashing
*
3
Devices
Front passenger airbag Activated
Seat cushion airbag in the front
passenger side
Activated
*
2
or
deactivated
*
3
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG OFF”
or
“AIR BAG ON”
*
4
SRS warning light Off
Seat belt reminder light
Off
*
2
or
flashing
*
3
Devices
Front passenger airbag
Deactivated or
activated
*
4
Seat cushion airbag in the front
passenger side
Deactivated
or
activated
*
4, 2
54
1-1. For safe use
PRIUS c_U (OM52G95U)
■
Child restraint system with infant
*
5
■
Unoccupied
■
There is a malfunction in the system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG
OFF”
*
6
SRS warning light Off
Seat belt reminder light
Off
*
2
or
flashing
*
3
Devices
Front passenger airbag
Deactivated
Seat cushion airbag in the front
passenger side
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG OFF”
SRS warning light
Off
Seat belt reminder light
Devices
Front passenger airbag
Deactivated
Seat cushion airbag in the front
passenger side
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG OFF”
SRS warning light
On
Seat belt reminder light
Devices
Front passenger airbag
Deactivated
Seat cushion airbag in the front
passenger side
55
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
*
1
: The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may not recognize him/
her as an adult depending on his/her physique and posture.
*
2
: In the event the front passenger is wearing a seat belt.
*
3
: In the event the front passenger does not wear a seat belt.
*
4
: For some children, child in seat, child in booster seat or child in convertible
seat, the system may not recognize him/her as a child. Factors which may
affect this can be the physique or posture.
*
5
: Never install a rear-facing child restraint system on the front passenger
seat. A forward-facing child restraint system should only be installed on the
front passenger seat when it is unavoidable. (P. 58)
*
6
: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. (P. 62)
WARNING
■ Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.
● Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the “AIR BAG OFF”
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, and reconnect the seat belt. Reconnect the seat belt extender
after making sure the “AIR BAG ON” indicator light is illuminated. If you
use the seat belt extender while the “AIR BAG OFF” indicator light is illumi-
nated, the SRS airbags for the passenger may not activate correctly,
which could cause death or serious injury in the event of a collision.
● Do not apply a heavy load to the front passenger seat or equipment. (e.g.
seatback pocket)
● Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.
● Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front passenger seat.
56
1-1. For safe use
PRIUS c_U (OM52G95U)
WARNING
■ Front passenger occupant classification system precautions
● Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the “AIR BAG OFF” indicator light to be illuminated,
which indicates that the passenger’s airbags will not deploy in the event of
a severe accident. If the seatback touches the rear seat, return the
seatback to a position where it does not touch the rear seat. Keep the front
passenger seatback as upright as possible when the vehicle is moving.
Reclining the seatback excessively may lessen the effectiveness of the
seat belt system.
● If an adult sits in the front passenger seat, the “AIR BAG ON” indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with the seat belt worn correctly. If the “AIR BAG OFF” indicator still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.
● When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. (P. 62)
● Do not modify or remove the front seats.
● Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
detection system. In this case, contact your Toyota dealer immediately.
● Child restraint systems installed on the rear seat should not contact the
front seatbacks.
● Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.
● Do not modify or replace the upholstery of the front seat.
57
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
● It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally.
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats etc.
Safety information for children
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.
58
1-1. For safe use
PRIUS c_U (OM52G95U)
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.
● Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(P. 62)
Child restraint systems
A child restraint system for a small child or baby must itself be
properly restrained on the seat with the LATCH anchors or the
lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require
the use of child restraint systems.
Points to remember
59
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
Child restraint systems are classified into the following 3 types
according to the age and size of the child:
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
● If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (P. 30)
Types of child restraints
Rear facing — Infant seat/con-
vertible seat
Forward facing — Convertible
seat
Booster seat
60
1-1. For safe use
PRIUS c_U (OM52G95U)
WARNING
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event
of an accident, the force of the rapid inflation of the front passenger airbag
and seat cushion airbag in the front passenger side can cause death or
serious injury to the child if the rear-facing child restraint system is
installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illumi-
nated, because the front passenger airbag and seat cushion airbag in the
front passenger side could inflate with considerable speed and force. Oth-
erwise, the child may be killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of a sudden stop,
sudden swerve or an accident.
61
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
■ Child restraint precautions
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of sudden stop, sudden swerve or an
accident.
62
1-1. For safe use
PRIUS c_U (OM52G95U)
Child restraint LATCH anchors
LATCH anchors are provided for
the outside rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (P. 34)
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.
Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the rear seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.
63
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
Remove the head restraint (P. 153)
Widen the gap in the seat cushion slightly.
Flip up and fold the cover, and
fix it with the hook-and-loop fas-
tener.
Type A
Latch the hooks of the lower
straps onto the LATCH
anchors. If the child restraint
has a top tether strap, the top
tether strap should be latched
onto the top tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Installation with LATCH system
1
2
3
Canada
only
4
64
1-1. For safe use
PRIUS c_U (OM52G95U)
Type B
Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence
of a lower connector system.
Canada
only
4
65
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■
Rear facing Infant seat/convertible seat
Place the child restraint sys-
tem on the rear seat facing
the rear of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Installing child restraints using a seat belt (child restraint lock
function belt)
1
2
66
1-1. For safe use
PRIUS c_U (OM52G95U)
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
While pushing the child
restraint system down into
the rear seat, allow the
shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
3
4
67
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■
Forward facing Convertible seat
Rear center seat: Adjust the head restraint to the upmost posi-
tion. (
P. 153)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.
1
2
3
4
68
1-1. For safe use
PRIUS c_U (OM52G95U)
While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (P. 70)
5
6
69
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
■
Booster seat
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (P. 30)
1
2
70
1-1. For safe use
PRIUS c_U (OM52G95U)
Push the buckle release button
and fully retract the seat belt.
Remove the luggage cover (if equipped). (P. 399)
Remove the head restraint (P. 153)
Secure the child restraint system using the LATCH anchors or a
seat belt.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Reinstall the luggage cover (if equipped) and the head restraint.
■ Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.
Removing a child restraint installed with a seat belt
Child restraint systems with a top tether strap
1
2
3
4
5
71
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
■ When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (P. 34)
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint system on the front pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator light is illuminated. Failure to
do so may result in death or serious
injury if the airbags deploy (inflate).
72
1-1. For safe use
PRIUS c_U (OM52G95U)
WARNING
■ When installing a child restraint system
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
● When a child restraint system with a top tether strap is installed, do not
install the head restraint. The head restraint may interfere with the top
tether strap preventing secure installation of the child restraint system.
● Make sure to properly store the removed head restraint in a secure place
when you use the child restraint system on the rear seat.
● When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injury.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of sud-
den braking, sudden swerving or an accident.
■ To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it
may cause death or serious injury to the child or other passengers in the
event of sudden braking, sudden swerving or an accident.
73
1-1. For safe use
1
For safety and security
PRIUS c_U (OM52G95U)
Exhaust gas precautions
Harmful substance to the human body is included in exhaust
gases if inhaled.
WARNING
Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is
closed, open the windows and have the vehicle inspected at your Toyota
dealer as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the hybrid system.
● Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.
● Do not leave the hybrid system operating in an area with snow build-up, or
where it is snowing. If snowbanks build up around the vehicle while the
hybrid system is operating, exhaust gases may collect and enter the vehi-
cle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.
74
PRIUS c_U (OM52G95U)
1-2. Hybrid system
The illustration is an example for explanation and may differ from the
actual item.
Hybrid system features
Your vehicle is a hybrid vehicle. It has characteristics different
from conventional vehicles. Be sure you are closely familiar with
the characteristics of your vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and
an electric motor (traction motor) according to driving condi-
tions, improving fuel efficiency and reducing exhaust emis-
sions.
Gasoline engine Electric motor (Traction motor)
1 2
75
1-2. Hybrid system
1
For safety and security
PRIUS c_U (OM52G95U)
◆
When stopped/during start off
The gasoline engine stops
*
when the vehicle is stopped. During
start-off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine is
stopped
*
and the motor is used.
When the shift lever is in N, the hybrid battery (traction battery) is
not being charged.
*
: When the hybrid battery (traction battery) requires charging or the engine
is warming up, etc., the gasoline engine will not automatically stop.
(P. 76)
◆
During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.
◆
When accelerating sharply
The power of the hybrid battery (traction battery) is added to that of
the gasoline engine via the electric motor (traction motor).
◆
When braking (regenerative braking)
The wheels operate the electric motor (traction motor) as a power
generator, and the hybrid battery (traction battery) is charged.
When the gasoline engine is off while driving, a sound is produced to
warn pedestrians, people riding bicycles or other people and vehicles
in the surrounding area that the vehicle is approaching. The pitch of
the sound adjusts according to vehicle speed. When vehicle speed is
approximately 16 mph (25 km/h) or more, the warning system turns
off.
Vehicle Proximity Notification System
76
1-2. Hybrid system
PRIUS c_U (OM52G95U)
■ Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
● The accelerator pedal is released with the shift lever in D or B.
● The brake pedal is depressed with the shift lever in D or B.
■ EV drive indicator lamp
■ Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
● During gasoline engine warm-up
● During hybrid battery (traction battery) charging
● When the temperature of the hybrid battery (traction battery) is high or low
● When the heater is switched on
The EV drive indicator lamp comes on
when the vehicle is driven using only the
electric motor (traction motor) or the gas-
oline engine is stopped.
This indicator lamp will also be dis-
played when “ECO Score” or “ECO
Savings” is selected. (P. 103)
77
1-2. Hybrid system
1
For safety and security
PRIUS c_U (OM52G95U)
■ Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the bat-
tery does not need to be charged from an outside source. However, if the
vehicle is left parked for a long time the hybrid battery (traction battery) will
slowly discharge. For this reason, be sure to drive the vehicle at least once
every few months for at least 30 minutes or 10 miles (16 km). If the hybrid
battery (traction battery) becomes fully discharged and you are unable to start
the hybrid system, contact your Toyota dealer.
■ Charging the 12-volt battery
P. 527
■ After the 12-volt battery has discharged or when the terminal has been
removed and installed during exchange, etc.
The gasoline engine may not stop even if the vehicle is being driven by the
hybrid battery (traction battery). If this continues for a few days, contact your
Toyota dealer.
78
1-2. Hybrid system
PRIUS c_U (OM52G95U)
■ Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration even though the vehicle is able to
move with the “READY” indicator is illuminated. For safety, apply the parking
brake and make sure to shift the shift lever to P when parked.
The following sounds or vibrations may occur when the hybrid system is
operating and are not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) under the
rear seats when the hybrid system starts or stops.
● Relay operating sounds such as a snap or soft clank will be emitted from the
hybrid battery (traction battery), under the rear seats, when the hybrid sys-
tem is started or stopped.
● Sounds from the hybrid system may be heard when the back door is open.
● Sounds may be heard from the transmission when the gasoline engine
starts or stops, when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is
depressed or as the accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vent on the side of the
lower part of the rear left seat.
■ Vehicle Proximity Notification System
In the following cases, the Vehicle Proximity Notification System sound may
be difficult for pedestrians, people riding bicycles or other people and vehicles
in the surrounding area to hear:
● When there is a lot of noise in the vicinity
● When it is raining or during strong winds
● When in the area surrounding the rear of the vehicle, rather than in front of
the vehicle
■ Maintenance, repair, recycling, and disposal
Contact your Toyota dealer regarding maintenance, repair, recycling and dis-
posal. Do not dispose of the vehicle yourself.
■ Customization that can be configured at Toyota dealer
Settings (e.g. the volume of Vehicle Proximity Notification System sound) can
be changed. (Customizable features: P. 562)
79
1-2. Hybrid system
1
For safety and security
PRIUS c_U (OM52G95U)
The illustration is an example for explanation and may differ from the
actual item.
Hybrid system precautions
Take care when handling the hybrid system, as it is a high volt-
age system (about 520 V at maximum) as well as contains parts
that become extremely hot when the hybrid system is operating.
Obey the warning labels attached to the vehicle.
Warning label
Service plug
Air conditioning compressor
Electric motor (traction motor)
Power control unit with DC/DC
converter
Hybrid battery (traction bat-
tery)
High voltage cables (orange)
1
2
3
4
5
6
7
80
1-2. Hybrid system
PRIUS c_U (OM52G95U)
There is an air intake vent on the
side of the lower part of the rear
left seat for the purpose of cooling
the hybrid battery (traction bat-
tery). When the air intake vent is
blocked, the battery operations
will be restricted and cause a
decline in fuel consumption.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If
the emergency shut off system activates, your vehicle will not restart.
To restart the hybrid system, contact your Toyota dealer.
A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. (P. 490)
Hybrid battery (traction battery) air intake vent
Emergency shut off system
Hybrid warning message
81
1-2. Hybrid system
1
For safety and security
PRIUS c_U (OM52G95U)
■ If a warning light comes on, a warning message is displayed, or the 12-
volt battery has been disconnected
The hybrid system may not start. In this case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel level
warning light (P. 483) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The standard amount of fuel is about
1.3 gal. [5.0 L, 1.1 Imp. gal.] when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is
inclined.)
■ Electromagnetic waves
● High voltage parts and cables on hybrid vehicles incorporate electromag-
netic shielding, and therefore emit approximately the same amount of elec-
tromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.
82
1-2. Hybrid system
PRIUS c_U (OM52G95U)
WARNING
■ High voltage and high temperature precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt sys-
tem. DC and AC high voltage is very dangerous and can cause severe
burns and electric shock that may result in death or serious injury.
● Never touch, disassemble, remove or replace the high voltage parts,
cables or their connectors.
● The hybrid system will become hot after starting as the system uses high
voltage. Be careful of both the high voltage and the high temperature, and
always obey the warning labels attached to the vehicle.
● Never try to open the service plug
access hole located under the rear seat.
The service plug is used only when the
vehicle is serviced and is subject to high
voltage.
83
1-2. Hybrid system
1
For safety and security
PRIUS c_U (OM52G95U)
WARNING
■ Road accident cautions
Observe the following precautions to reduce the risk of death or serious
injury:
● Pull your vehicle off the road, apply the parking brake, shift the shift lever
to P, and turn the hybrid system off.
● Do not touch the high voltage parts, cables or connectors.
● If electric wires are exposed inside or outside your vehicle, an electric
shock may occur. Never touch exposed electric wires.
● If a fluid leak occurs, do not touch the fluid as it may be strong alkaline
electrolyte from the hybrid battery (traction battery). If it comes into contact
with your skin or eyes, wash it off immediately with a large amount of water
or, if possible, boric acid solution. Seek immediate medical attention.
● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.
Never use a fire extinguisher that is not meant for electric fires. Using even
a small amount of water may be dangerous.
● If your vehicle needs to be towed, do so with the front wheels raised. If the
wheels connected to the electric motor (traction motor) are on the ground
when towing, the motor may continue to generate electricity. This may
cause a fire. (P. 473)
● Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave
the vehicle as soon as possible.
84
1-2. Hybrid system
PRIUS c_U (OM52G95U)
WARNING
■ Hybrid battery (traction battery)
● Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through Toyota dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-
ardous to the environment or someone may touch a high voltage part,
resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified
in any way, accidents such as electric shock, heat generation, smoke
generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
● If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by your
Toyota dealer or a qualified service shop. If the hybrid battery is not dis-
posed of properly, it may cause electric shock that can result in death or
serious injury.
85
1-2. Hybrid system
1
For safety and security
PRIUS c_U (OM52G95U)
NOTICE
■ Hybrid battery (traction battery) air intake vent
● Do not place objects that will block the air intake vent. When the air intake
vent is blocked, the battery operations will be restricted and cause a
decline in fuel consumption.
● Clean the air intake vent regularly to prevent the hybrid battery (traction
battery) from overheating.
● Do not get water or foreign materials in the air intake vent as this may
cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the battery
may be damaged. Have the vehicle inspected by your Toyota dealer.
● There is a filter installed to the air intake vent. When the filter remains
noticeably dirty even after cleaning the air intake vent, filter cleaning or
replacement is recommended. For information regarding filter cleaning or
replacement, contact your Toyota dealer.
● If “MAINTENANCE REQUIRED FOR TRACTION BATTERY COOLING
PARTS SEE OWNER’S MANUAL” is shown on the multi-information dis-
play, the air intake vent and filter may be clogged. Refer to P. 406 for infor-
mation on how to clean the air intake vent.
86
PRIUS c_U (OM52G95U)
1-3. Theft deterrent system
Vehicles without a smart key sys-
tem: The indicator light flashes
after the key has been removed
from the power switch to indicate
that the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the power switch to
indicate that the system has been
canceled.
Vehicles with a smart key system: The indicator light flashes after the
power switch has been turned off to indicate that the system is operat-
ing.
The indicator light stops flashing after the power switch has been turned to
ACCESSORY or ON mode to indicate that the system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions affecting operation
Depending on the surrounding environment and conditions, the immobilizer
system may not operate properly. This may prevent the hybrid system from
starting. (P. 141)
Immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previously
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.
: If equipped
87
1-3. Theft deterrent system
1
For safety and security
PRIUS c_U (OM52G95U)
■ Certifications for the immobilizer system
For vehicles sold in the U.S.A. and Puerto Rico
88
1-3. Theft deterrent system
PRIUS c_U (OM52G95U)
For vehicles sold in Canada
WARNING
■ Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
89
1-3. Theft deterrent system
1
For safety and security
PRIUS c_U (OM52G95U)
These labels are attached to the
vehicle to reduce vehicle theft by
facilitating the tracing and recov-
ery of parts from stolen vehicles.
Do not remove under penalty of
law.
Theft prevention labels
90
1-3. Theft deterrent system
PRIUS c_U (OM52G95U)
91
Instrument cluster
2
PRIUS c_U (OM52G95U)
2. Instrument cluster
Warning lights and
indicators .......................... 92
Gauges and meters ............ 97
Multi-information
display............................. 101
Energy monitor/
consumption screen........ 110
92
PRIUS c_U (OM52G95U)
2. Instrument cluster
The units used on the meter and some indicators may differ depend-
ing on the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.
93
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
Warning lights inform the driver of malfunctions in any of the vehicle's
systems.
Warning lights
*
1
(U.S.A.)
Brake system warning
light (P. 481)
*
1
Slip indicator (P. 483)
*
1
(Canada)
Brake system warning
light (P. 481)
Low fuel level warning
light (P. 483)
*
1
(Yellow)
Brake system warning
light (P. 481)
Seat belt reminder light
(P. 483)
*
1
(U.S.A.)
Malfunction indicator
lamp (P. 482)
*
1
Master warning light
(P. 483)
*
1
(Canada)
Malfunction indicator
lamp (P. 482)
*
1
Tire pressure warning
light (P. 484)
*
1
SRS warning light
(P. 482)
*
1, 2
PCS warning light
(P. 484)
*
1
(U.S.A.)
ABS warning light
(P. 482)
(U.S.A)
Parking brake warning
light (P. 205)
*
1
(Canada)
ABS warning light
(P. 482)
(Canada)
Parking brake warning
light (P. 205)
*
1
Electric power steering
system warning light
(P. 482)
94
2. Instrument cluster
PRIUS c_U (OM52G95U)
*
1
: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart key system) or the power switch is turned to ON
mode (vehicles with a smart key system) to indicate that a system check is
being performed. They will turn off after the hybrid system is on, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or turn off. Have the vehicle inspected by your Toyota dealer.
*
2
: The light flashes to indicate a malfunction.
95
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 204)
EV drive mode indicator
(P. 197)
Headlight high beam
indicator (P. 206)
Shift position indicator
(P. 201)
(U.S.A.)
Headlight indicator
(P. 206)
“ECO MODE” indicator
(P. 201)
(Canada)
Tail light indicator
(P. 206)
EV drive indicator lamp
(P. 76)
(if equipped)
Front fog light indicator
(P. 210)
(if equipped)
Cruise control indicator
(P. 252)
*
1
Automatic High Beam
indicator (P. 247)
(if equipped)
Cruise control set indica-
tor (P. 252)
(if equipped)
Immobilizer system indi-
cator (P. 86)
*
1, 2
Slip indicator (P. 267)
*
1
VSC OFF indicator
(P. 268)
LDA indicator
(P. 242)
“READY” indicator
(P. 186, 190)
*
1, 3
PCS warning light
(P. 229)
“AIR BAG
ON/OFF” indi-
cator
(P. 52)
*
1
“AIR BAG
ON/OFF” indi-
cator
(P. 52)
*
1
(U.S.A.)
(Canada)
96
2. Instrument cluster
PRIUS c_U (OM52G95U)
*
1
: These lights turn on when the power switch is turned to the “ON” position
(vehicles without a smart key system) or the power switch is turned to ON
mode (vehicles with a smart key system) to indicate that a system check is
being performed. They will turn off after the hybrid system is on, or after a
few seconds. There may be a malfunction in a system if a light does not
come on, or turn off. Have the vehicle inspected by your Toyota dealer.
*
2
: The light flashes to indicate that the system is operating.
*
3
: This light turns on when the system is disabled, including when it is dis-
abled due to a dirty sensor or system malfunction.
*
4
: When the outside temperature is approximately 37°F (3°C) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
*
4
Low outside tempera-
ture indicator (P. 97)
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS or SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
97
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
The units used on the meters may differ depending on the target
region.
Speedometer
Displays the vehicle speed.
Shift position display
Displays the selected shift position. (P. 200)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Clock
Change the time on the settings screen. (P. 106)
Multi-information display
Presents the driver with a variety of driving-related data. (P. 101)
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter
P. 9 8
Average fuel consumption
Depending on whether the odometer or trip meter is displayed, the
displayed contents differ. Use the displayed average fuel consump-
tion as a reference.
● When the odometer is displayed: the average fuel consumption
since the hybrid system was started is displayed.
Gauges and meters
1
2
3
4
5
6
7
8
98
2. Instrument cluster
PRIUS c_U (OM52G95U)
● When the trip meter is displayed: the average fuel consumption
since the trip meter was reset is displayed. The average fuel con-
sumption for trip meter A and trip meter B is displayed separately.
When the trip meter is reset, average fuel consumption is also reset.
(P. 98)
◆
Changing the display
Items in this area are operated using the “TRIP” switch.
Press: Change displayed item
Each time the switch is pressed,
the displayed item will be
changed.
Press and hold: Reset
Display the desired trip meter
and press and hold the switch to
reset the trip meter.
◆
Display items
■
Odometer
Displays the total distance the vehicle has been driven.
■
Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
Odometer/trip meter
99
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
The brightness of the instrument panel lights can be adjusted by turn-
ing the dial.
Brighter
Darker
■ The meters and multi-information display illuminate when
Vehicles without a smart key system
The power switch is in the “ON” position.
Vehicles with a smart key system
The power switch is in ON mode.
■ The brightness of the instrument panel lights
When the tail lights are turned on, the brightness will be reduced slightly
unless the control dial is turned up fully.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help
improve fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even
when vehicle operation and driving conditions are the same.
■ Unit of measure of the speedometer (on some models)
P. 106
Instrument panel light control
1
2
100
2. Instrument cluster
PRIUS c_U (OM52G95U)
NOTICE
■ To prevent damage to the engine and its components
This vehicle is not installed with an engine coolant temperature gauge.
Instead, is shown on the multi-information display. The engine may
be overheating if is shown on the multi-information display. In this
case, immediately stop the vehicle in a safe place. (P. 531)
101
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
The multi-information display presents the driver with a variety of driv-
ing-related data including the current outside air temperature.
● Drive information
Displays information such as the
hybrid system operating condi-
tions and fuel consumption.
● Settings and screen off
Perform operations such as chang-
ing the date/time and screen set-
tings.
● Warning messages (P. 490)
Automatically displayed if a malfunction occurs in one of the vehicle’s sys-
tems.
● Menu icons
Select a menu icon to display its content.
Drive information (P. 102)
Select to display various drive data.
ECO (P. 102)
Displays the fuel consumption information.
LDA (Lane Departure Alert) operational status (P. 242)
Select to display the operational status of the LDA.
Settings display (P. 106)
Select to change the meter display settings and other settings.
Multi-information display
Display contents
102
2. Instrument cluster
PRIUS c_U (OM52G95U)
◆
Operating the meter control switches
The multi-information display is operated using the meter control
switches.
: Select menu icons
: Change displayed
item, scroll up/down
the screen and
move the cursor up/
down
Enter switch
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
◆
Drive Information
Depending on whether the odometer or trip meter is displayed, the
displayed contents of average speed, driving time, and EV driving
rate/EV driven distance differ.
● When the odometer is displayed: the record since the hybrid sys-
tem was started is displayed.
● When the trip meter is displayed: the record since the trip meter
was reset is displayed. The record for trip meter A and trip meter
B is displayed separately.
When the trip meter is reset, the record is also reset. (P. 98)
■
(average speed)
Average speed will be displayed.
■
(driving time)
Driving time will be displayed.
■
(EV driving rate/EV driven distance)
EV driving rate and driven distance (percentage and distance
driven using just the electric motor [traction motor] only) will be dis-
played.
1
2
Driving information
3
AVG
103
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
■
(Cruising range)
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consump-
tion. As a result, the actual distance that can be driven may differ
from that displayed.
• When only a small amount of fuel is added to the tank, the dis-
play may not be updated.
When refueling, turn the power switch off. If the vehicle is
refueled without turning the power switch off, the display may not
be updated.
◆
Energy monitor
P. 11 0
◆
Simple Screen
Displays the enlarged items (clock, outside temperature and fuel
gauge)
◆
ECO Score
Hybrid battery (traction bat-
tery) charge level display
EV drive indicator lamp
Illuminates when only the elec-
tric motor is used to drive the
vehicle
Hybrid System Indicator
Hybrid System Indicator rep-
resents the hybrid system power
output and regenerative
charging. (P. 108)
Eco driving conditions display
Driving conditions are displayed in 5 stages and divided into 3 catego-
ries: start, cruise and stop. Every time the vehicle is stopped, the score
is displayed. (Every time the vehicle is accelerated the score that was
last displayed is reset. Accumulative scores are not calculated.)
ECO
1
2
3
4
104
2. Instrument cluster
PRIUS c_U (OM52G95U)
◆
ECO Savings
Displays the cost of the con-
sumed fuel or the fuel economy,
depending on the data entered
for eco savings.
Savings and fuel cost
If the fuel consumption comparison is input (P. 106), the possi-
ble savings are displayed. If the fuel consumption comparison
has not been input, your vehicle's actual fuel cost will be dis-
played.
Depending on whether the odometer or trip meter is displayed,
the displayed contents differ.
● When the odometer is displayed: the savings or fuel cost since
the hybrid system was started is displayed.
● When the trip meter is displayed: the savings or fuel cost since
the trip meter was reset is displayed. The savings or fuel cost
for trip meter A or trip meter B is displayed separately.
When the trip meter is reset, savings or fuel cost is also reset.
(P. 98)
“Fuel Cons. Comparison”
On the settings screen, input the fuel consumption comparison.
(P. 106)
◆
ECO Savings Record
If the fuel consumption comparison is input in “ECO Savings”, the
savings history will be displayed. If the fuel consumption compari-
son is not input, fuel cost history will be displayed.
Fuel costs for the current month, the last 3 months and the same
month last year are displayed, enabling a comparison to be made.
If the dollar amount will be displayed on the graph.
1
2
105
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
◆
Past Record
Displays average fuel consumption by the month.
The current month, the last 3 months and the same month last year are
displayed, enabling a comparison to be made.
Press and hold the enter switch to reset. (P. 102)
◆
Personal Best
Displays the best 3 fuel consumption records and the current fuel
consumption ranking.
Depending on whether the odometer or trip meter is displayed, the
displayed contents differ.
● When the odometer is displayed: the record since the hybrid sys-
tem was started is displayed.
● When the trip meter is displayed: the record since the trip meter
was reset is displayed. The record for trip meter A and trip meter
B is displayed separately.
The top 100 rankings are displayed. Records that are outside the top
100 are not displayed as a ranking.
Fuel consumption data for trips of less than 0.1 miles are not recorded.
◆
5 min./1 min. fuel consumption display
Select to display the fuel consumption history since the hybrid sys-
tem was started in intervals of 5 minutes or 1 minute. Current fuel
consumption will also be displayed, enabling it to be compared to
the fuel consumption of up to the last 30 minutes (in 5 min. inter-
vals) or 6 minutes (in 1 min. intervals).
To change the interval, press and hold the enter switch. (P. 102)
106
2. Instrument cluster
PRIUS c_U (OM52G95U)
■
LDA (Lane Departure Alert) warning sensitivity
LDA warning sensitivity can be set to 2 different levels.
■
EV Indicator
Select to set the EV indicator on/off.
■
ECO savings settings
The gasoline price and fuel consumption comparison settings can
be set and changed.
■
Date (clock)
The date, time, and clock mode (12 or 24 hour) settings can be
changed.
■
Units
Select to change the units of measure displayed on the multi-infor-
mation display.
■
Language
Select to change the language displayed.
■
Operation guide
Select to display/not display the menu icons.
■
Trip summary
Select to display/not display the trip summary display when the
hybrid system is turned off.
■
Initialize Display
Select to reset the meter display settings.
Screen settings
107
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
■ The clock is displayed when
Vehicles without a smart key system
The power switch is in the “ON” position.
Vehicles with a smart key system
The power switch is in ON mode.
■ Eco score
● As the accelerator pedal is not depressed, the driven distance using cruise
control (if equipped) is not included in the eco score.
● As the eco score evaluation differs according to driving conditions and envi-
ronmental factors, in some cases it may not be linked to fuel consumption.
■ Eco savings
● Fuel cost and savings should be used as a guide only.
● Depending on refueling methods, driving conditions and environmental fac-
tors, the actual and displayed fuel costs may differ.
● In some cases, fuel cost and savings may not be linked to the eco score
evaluation.
■ When disconnecting and reconnecting 12-volt battery terminals
The following information data will be reset:
● Clock
● Past record (aside from the top 3 results)
● 5 min./1 min. fuel consumption display
● Cruising range
● Average vehicle speed
● Driving time
● EV driving rate/EV driven distance
Additionally, some displays may return to their default settings.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
108
2. Instrument cluster
PRIUS c_U (OM52G95U)
■ Hybrid System Indicator
Hybrid Eco area
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various condi-
tions.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
Shows that the driving power is more than the upper limit of Eco driving.
(during full power driving etc.)
Keeping the indicator within Eco area can help Eco-friendly driving.
■ Trip summary display
Charge area
Shows energy regeneration
*
status.
Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).
*
: When used in this manual, “regenera-
tion” refers to the conversion of energy
created by the movement of the vehicle
into electrical energy.
1
2
3
4
When the hybrid system is turned off,
drive information data since the system
was started is displayed after the ending
animation.
When the doors are locked, the screen
turns off.
109
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
WARNING
■ Eco score
Eco score should be used as a guide only. Always drive safely in accor-
dance with road and traffic conditions.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be running during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■ During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.
110
2. Instrument cluster
PRIUS c_U (OM52G95U)
Audio system
Multi-information display
Multimedia system
Press the “CAR” button.
If the “Trip Information” or “Past Record” screen is displayed, touch
“Energy”.
Navigation system
Press the “APPS” button.
Touch “Eco” on the “Apps” screen.
If the “Trip Information” or “Past Record” screen is displayed, touch
“Energy”.
Multi-information display
Press the “<” or “>” of the meter control switches and select ,
and then press the “”or “”to select the energy monitor display.
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-infor-
mation display and audio system.
1
2
Energy monitor
1
2
111
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
Audio system
Multi-information
display
When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by the gasoline engine
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is charging the hybrid battery (traction battery)
112
2. Instrument cluster
PRIUS c_U (OM52G95U)
These images are examples only, and may vary slightly from actual
conditions.
When there is no energy flow
Hybrid battery (traction battery) status
Low
Full
Low Full
Audio system
Multi-information
display
113
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
■
Trip information
Multimedia system
Press the “CAR” button. (P. 110)
If the “Energy Monitor” or “Past Record” screen is displayed, touch “Trip
Information”.
Navigation system
Press the “APPS” button. (P. 110 )
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Past Record” screen is displayed, touch “Trip
Information”.
Resetting the consumption
data
Fuel consumption in the
past 15 minutes
Regenerated energy in the
past 15 minutes
Displays the average vehi-
cle speed since the hybrid
system was started
Displays the elapsed time since the hybrid system was started
Cruising range
One symbol indicates 50 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual condi-
tions.
Fuel consumption screen (audio system)
1
2
1
2
3
4
5
6
114
2. Instrument cluster
PRIUS c_U (OM52G95U)
■
Past record
Multimedia system
Press the “CAR” button. (P. 110)
If the “Energy Monitor” or “Trip Information” screen is displayed, touch
“Past Record”.
Navigation system
Press the “APPS” button. (P. 110 )
Touch “Eco” on the “Apps” screen.
If the “Energy Monitor” or “Trip Information” screen is displayed, touch
“Past Record”.
Resetting the past record
data
Best past fuel consump-
tion
Average fuel consumption
Previous fuel consump-
tion record
Updating the average fuel
consumption data
Displays a maximum of five past record of the average fuel consump-
tion.
The image is example only, and may vary slightly from actual condi-
tions.
1
2
1
2
3
4
5
115
2. Instrument cluster
2
Instrument cluster
PRIUS c_U (OM52G95U)
P. 1 03
■ Remaining hybrid battery (traction battery) charge display
The charge amount of the hybrid battery (traction battery) is automatically
controlled by the hybrid system. For this reason, even if electricity is recov-
ered via the regenerative braking, or electricity is generated via the gasoline
engine, the displayed hybrid battery (traction battery) charge amount may not
reach the highest level (level 8). However, this does not indicate a malfunc-
tion.
■ Resetting the consumption data (audio system)
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “Past Record” screen will reset the past records and best past fuel con-
sumption. Selecting “Yes” on the following screen will confirm resetting of all
the data.
■ Updating the past record data (audio system)
Selecting “Update” on the “Past Record” screen will update the past record
data.
Fuel consumption screen (Multi-information display)
116
2. Instrument cluster
PRIUS c_U (OM52G95U)
117
3
Operation of
each component
PRIUS c_U (OM52G95U)
3-1. Key information
Keys .................................. 118
3-2. Opening, closing and
locking the doors
Side doors......................... 125
Back door.......................... 134
Smart key system ............. 139
3-3. Adjusting the seats
Front seats ........................ 148
Rear seats......................... 149
Head restraints.................. 153
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 156
Inside rear view mirror ...... 158
Outside rear view
mirrors............................. 159
3-5. Opening and closing
the windows
Power windows ................. 161
Moon roof.......................... 165
118
PRIUS c_U (OM52G95U)
3-1. Key information
The following keys are provided with the vehicle.
Master keys
Operating the wireless remote control function
Valet key
Electronic keys
• Operating the smart key system
• Operating the wireless remote control function
Mechanical keys
Key number plate
Keys
The keys
Type A
Type B
Type C
1
2
3
4
5
119
3-1. Key information
3
Operation of each component
PRIUS c_U (OM52G95U)
Locks all the doors (P. 126)
Unlocks all the doors (P. 126)
Sounds the alarm (press and hold) (P. 120)
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key.
(P. 522)
Wireless remote control (if equipped)
Vehicles without a smart key
system
Vehicles with a smart key sys-
tem
Using the mechanical key (vehicles with a smart key system)
1
2
3
120
3-1. Key information
PRIUS c_U (OM52G95U)
■ Panic mode
Vehicles without a smart key system
Vehicles with a smart key system
■ If you lose your keys
New genuine keys can be made by your Toyota dealer using the other keys
(including mechanical key) and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the electronic key.
121
3-1. Key information
3
Operation of each component
PRIUS c_U (OM52G95U)
■ Key battery depletion
Vehicles without a smart key system
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 453)
Vehicles with a smart key system
● The standard battery life is 1 to 2 years.
● If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops. (P. 505)
● As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 453)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■ Replacing the battery
P. 453
■ Confirmation of the registered key number (vehicles with a smart key
system)
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ If a wrong key is used (vehicles with a smart key system)
The key cylinder rotates freely to isolate inside mechanism.
■ Customization that can be configured at Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: P. 562)
122
3-1. Key information
PRIUS c_U (OM52G95U)
■ Certification for wireless remote control
For vehicles sold in the U.S.A. and Puerto Rico
123
3-1. Key information
3
Operation of each component
PRIUS c_U (OM52G95U)
For vehicles sold in Canada
124
3-1. Key information
PRIUS c_U (OM52G95U)
NOTICE
■ To prevent key damage
Observe the following:
● Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for long periods of time.
● Do not get the keys wet or wash them in an ultrasonic washer etc.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Do not place the keys near objects that produce magnetic fields, such as
TVs, audio systems and induction cookers.
● Do not place the keys near medical electrical equipment (such as micro-
wave therapy equipment and low-frequency therapy equipment) or carry
them on your person when receiving medical treatment.
■ Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■ When a vehicle key is lost (vehicles with a smart key system)
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your Toyota dealer immediately with all remaining electronic keys that was
provided with your vehicle.
125
3
Operation of each component
PRIUS c_U (OM52G95U)
3-2. Opening, closing and locking the doors
◆
Entry function (if equipped)
Carry the electronic key to enable this function.
Grip the driver's door handle
to unlock the door.
*
(Grip the
passenger's door handle to
unlock all the doors.)
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*
: The door unlock settings can be changed. (P. 132)
Touch the lock sensor (the indentation on the side of the door
handle) to lock the doors.
Check that the door is securely locked.
Side doors
Unlocking and locking the doors from the outside
1
2
126
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
◆
Wireless remote control
Locks all the doors
Check that the door is securely locked.
Unlocks all the doors
Pressing the button unlocks the driver’s door. Pressing the button again
within 3 seconds unlocks the other doors.
◆
Key
Turning the key operates the doors as follows:
Vehicles without a smart key system
Locks all the doors
Unlocks all the doors
Driver’s side only: Turning the
key unlocks the driver’s door.
Turning the key again within 5
seconds unlocks the other
doors.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical
key. (P. 522)
Vehicles without a smart key
system
Vehicles with a smart key sys-
tem
1
2
1
2
127
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
■ Operation signals
Vehicles without a smart key system
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
Vehicles with a smart key system
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■ Security feature
Vehicles without a smart key system
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Vehicles with a smart key system
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, vehicle may be unlocked.)
■ When the door cannot be locked by the lock sensor on the surface of the
door handle (vehicles with a smart key system)
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■ If the smart key system or the wireless remote control does not operate
properly
Vehicles with a smart key system: Use the mechanical key to lock and unlock
the doors. (P. 522)
Replace the key battery with a new one if it is depleted. (P. 453)
Use your palm to touch the lock sensor.
128
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
◆
Door lock switch
Locks all the doors
Unlocks all the doors
◆
Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside door lock button to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if either of the front doors is open and the
key is in the power switch.
Vehicles with a smart key system
The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2
129
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
Rear door child-protector lock
1
2
130
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
The following functions can be set or canceled:
■
Setting and canceling the functions
To switch between setting and canceling, follow the procedure
below:
Vehicles without a smart key system: Close all the doors and turn
the power switch to the “ON” position. (Perform within 20 sec-
onds.)
Vehicles with a smart key system: Close all the doors and switch
the power switch to ON mode. (Perform within 20 seconds.)
Automatic door locking and unlocking systems
Function Operation
Shift position linked door
locking function
Shifting the shift lever out of P locks all doors.
Shift position linked door
unlocking function
Shifting the shift lever to P unlocks all doors.
Speed linked door locking
function (vehicles with a
smart key system)
All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking function (vehi-
cles without a smart key
system)
All doors are unlocked when the driver’s door
is opened within 45 seconds after turning the
power switch to “ACC” or “LOCK”.
Driver’s door linked door
unlocking function (vehi-
cles with a smart key sys-
tem)
All doors are unlocked when the driver’s door
is opened within 45 seconds after turning the
power switch off.
1
2
2
131
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
Shift the shift lever to P or N,
and press and hold the door
lock switch (
or
) for
about 5 seconds then
release.
The shift position corresponding
to the desired function to be set
are shown as follows.
Use the same procedure to can-
cel the function.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
2
1 2
Function Shift position
Door lock switch
position
Shift position linked door locking
function
P
Shift position linked door unlock-
ing function
Speed linked door locking function
N
Driver’s door linked door unlocking
function
1
2
1
2
132
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
■ Switching the door unlock function (vehicles with a smart key system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the power switch off.
When the indicator light on the key surface is not on, press and hold
or for about 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step 2.)
■ Conditions affecting the operation of the smart key system or wireless
remote control
Vehicles without a smart key system
The wireless remote control function may not operate normally in the follow-
ing situations:
● When the wireless key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone or other wireless communi-
cation device
● When the wireless key is in contact with, or is covered by a metallic object
● When other wireless keys (that emits radio waves) are being used nearby
● If window tint with a metallic content or metallic objects are attached to the
rear window
Vehicles with a smart key system
P. 141
■ Customization that can be configured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 562)
1
2
Unlocking doors Beep
Holding the driver's door handle
unlocks only the driver's door.
Exterior: Beeps 3 times
Interior: Beeps once
Holding the front passenger’s door
handle unlocks all the doors.
Holding either front door handle
unlocks all the doors.
Exterior: Beeps twice
Interior: Beeps once
133
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
WARNING
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all the doors are properly closed.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.
134
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
■
Door lock switches
P. 1 28
■
Entry function (if equipped)
Press the switch to unlock
the back door.
The door cannot be unlocked for
3 seconds after the door is
locked.
Press the switch to lock the
back door.
Check that the door is securely
locked.
■
Wireless remote control
P. 1 26
Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
Back door
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Locking and unlocking the back door
1
2
Opening the back door from outside the vehicle
135
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
■ Luggage compartment light (if equipped)
The luggage compartment light turns on when the back door is opened.
When closing the back door
WARNING
■ Caution while driving
● Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the back door before driving.
● Before driving the vehicle, make sure that the back door is fully closed. If
the back door is not fully closed, it may open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
136
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
WARNING
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
● Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
137
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
WARNING
● Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
● If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
● The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
● When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
● When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
138
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
NOTICE
■ Back door damper stays
The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.
● Do not place your hand on the damper stay or apply lateral forces to it.
● Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Toyota parts to the back
door.
139
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
● Unlocks and locks the side doors (P. 125)
● Unlocks and locks the back door (P. 134)
● Starts the hybrid system (P. 190)
■ Antenna location
■ Effective range (areas within which the electronic key is detected)
When starting the hybrid system or changing power switch modes
The system can be operated when the electronic key is inside the vehi-
cle.
Smart key system
: If equipped
The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.
Antennas inside the cabin
Antennas outside the cabin
Antenna outside the luggage compart-
ment
When locking or unlocking the doors
The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of an outside door handle.
(Only the doors detecting the key
can be operated.)
1
2
3
140
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
■ Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display is used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
(P. 491)
The following table describes circumstances and correction procedures when
only alarms are sounded.
■ Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the 12-volt battery from being discharged while the vehicle is
not in operation for a long time.
● In the following situations, the smart key system may take some time to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of
the outside of the vehicle for 10 minutes or longer.
• The smart key system has not been used for 5 days or longer.
● If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any of the doors except the driver’s door. In this case,
take hold of the driver’s door handle, or use the wireless remote control or
the mechanical key, to unlock the doors.
■ Electronic key battery-saving function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
Alarm Situation Correction procedure
Exterior alarm
sounds once for 5
seconds
An attempt was made to
lock the vehicle while a door
was open.
Close all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ously
The power switch was
turned to ACCESSORY
mode while the driver's door
was open (or the driver's
door was opened when the
power switch was in
ACCESSORY mode.)
Turn the power switch
off and close the
driver’s door.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart key system cannot be used. To
cancel the function, press any of the
electronic key buttons.
141
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and immobilizer
system from operating properly. (Ways of coping: P. 522)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• A portable radio, cellular phone, cordless phone or other wireless com-
munication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
142
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
■ Notes for the entry function
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, luggage cover or floor, in
the door pockets or glove box when the hybrid system is started or power
switch modes are changed.
● Do not exit the vehicle with the electronic key placed on the instrument
panel or near the door pockets. Depending on the radio wave reception con-
ditions, it may be detected by the antenna outside the cabin and the door
will become lockable from the outside, possibly trapping the electronic key
inside the vehicle.
● As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
● Whether or not the electronic key is inside the vehicle, the hybrid system
could be started if the electronic key is near the window.
● The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
60 seconds if the doors are not opened and closed.)
● The lock and unlock sensors may not work properly if they come into con-
tact with ice, snow, mud, etc. Clean the sensors and attempt to operate
them again.
● If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Using the wireless remote control to unlock
the doors may resume the function.)
● If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In that case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the
vehicle. (Take care to ensure that the key is not stolen.)
• Set the electronic key to battery-saving mode to disable the smart key
system. (P. 140)
143
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
■ Notes for locking the doors
● Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
● When the lock operation is performed using the lock sensor, recognition sig-
nals will be shown up to two consecutive times. After this, no recognition
signals will be given.
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
■ Notes for the unlocking function
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.
● Gripping the door handle when wearing a glove may not unlock the door.
Remove the gloves and touch the sensor on the back of the handle again.
● If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.
■ When the vehicle is not driven for extended periods
● To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.
● The smart key system can be deactivated in advance. Ask your Toyota
dealer for details.
■ To operate the smart key system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)
■ If the smart key system does not operate properly
● Locking and unlocking the doors: Use the mechanical key. (P. 522)
● Starting the hybrid system:P. 522
■ If the smart key system has been deactivated in a customized setting
● Locking and unlocking the doors: Use the wireless remote control or
mechanical key. (P. 126, 522)
● Starting the hybrid system and changing power switch modes:
P. 522
● Stopping the hybrid system: P. 191
■ Customization
Settings (e.g. operation signals) can be changed.
(Customizable features: P. 562)
144
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
■ Certification for the smart key system
For vehicles sold in the U.S.A. and Puerto Rico
145
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
For vehicles sold in Canada
146
3-2. Opening, closing and locking the doors
PRIUS c_U (OM52G95U)
For vehicles sold in the U.S.A. and Puerto Rico
For vehicles sold in Canada
147
3-2. Opening, closing and locking the doors
3
Operation of each component
PRIUS c_U (OM52G95U)
WARNING
■ Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas. (P. 139)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entry function.
● User of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask your Toyota dealer for details for disabling the entry function.
148
PRIUS c_U (OM52G95U)
3-3. Adjusting the seats
Seat position adjustment lever
Seatback angle adjustment
lever
Vertical height adjustment lever
(if equipped)
Front seats
1
2
3
WARNING
■ When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
● Make sure to leave enough space around the feet so they do not get stuck.
■ Seat adjustment
● Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
149
3-3. Adjusting the seats
3
Operation of each component
PRIUS c_U (OM52G95U)
■
Before folding down the rear seatbacks
Stow the rear seat belt buck-
les as shown.
Stow the seat belts.
Center
P. 3 2
Outside
Use the seat belt hangers to
prevent the belts from being
tangled.
Remove the outside head restraints. (P. 153)
Lower the center head restraint to the lowest position. (P. 153)
Rear seats
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
2
3
4
150
3-3. Adjusting the seats
PRIUS c_U (OM52G95U)
■
Folding down rear seatbacks
Vehicles with a split rear seats
Pull the seatback lock release
knob and fold the seatback
down.
Each seatback may be folded
separately.
Vehicles with a non-split rear seat
Pull both seatback lock release
knobs at the same time and fold
the seatback down.
151
3-3. Adjusting the seats
3
Operation of each component
PRIUS c_U (OM52G95U)
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● For vehicles with split rear seats, do not allow anyone sit on the rear center
seat if the rear right seat is folded down, as the seat belt buckle for the rear
center seat belt is then concealed under the folded seat and cannot be
used.
● Be careful not to catch your hand when folding the rear seatbacks.
● If it is necessary to detach the head restraints, remove it from the vehicle
or store it securely in the luggage compartment. This will prevent it from
injuring passengers in the event of sudden braking, sudden swerving or an
accident.
● Adjust the position of the front seat before folding down the rear seatbacks
so that the front seat does not interfere with the rear seatbacks when fold-
ing down the rear seatbacks.
152
3-3. Adjusting the seats
PRIUS c_U (OM52G95U)
WARNING
■ After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■ Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
● Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release knob. Make sure
that the red marking is not visible.
153
3-3. Adjusting the seats
3
Operation of each component
PRIUS c_U (OM52G95U)
Vehicles with adjustable type head restraints
Up
Pull the head restraint up.
Down
Push the head restraint down while
pushing the lock release button.
■ Removing the head restraints
Front adjustable and rear center head restraints
Rear outside head restraints
Head restraints
Head restraints are provided for all seats.
Lock release
button
1
2
Pull the head restraint up while pushing
the lock release button.
Lock
release
button
Pull the seatback lock release knob
and fold down the seatback until it
reaches the position where the head
restraints can be removed.
1
154
3-3. Adjusting the seats
PRIUS c_U (OM52G95U)
■ Installing the head restraints
Front adjustable and rear center head restraints
Rear outside head restraints
Pull the head restraint up while press-
ing the lock release button.
2
Lock release buttons
Align the head restraint with installation
holes and push it down to the lock posi-
tion.
Press and hold the lock release button
when lowering the head restraint.
Lock
release
button
Pull the lock release knob and fold
down the seatback until it reaches the
position where the head restraints can
be installed.
Align the head restraint with installation
holes and push it down to the lock posi-
tion.
Press and hold the lock release button
when lowering the head restraint.
1
2
Lock release buttons
155
3-3. Adjusting the seats
3
Operation of each component
PRIUS c_U (OM52G95U)
■ Adjusting the height of the head restraints (vehicles with adjustable type
head restraints)
■ Adjusting the rear center seat head restraints
Always raise the head restraint one level from the stowed position when
using.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
WARNING
■ Head restraint precautions (vehicles with adjustable type head
restraints)
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
156
PRIUS c_U (OM52G95U)
3-4. Adjusting the steering wheel and mirrors
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
1
2
Horn
157
3-4. Adjusting the steering wheel and mirrors
3
Operation of each component
PRIUS c_U (OM52G95U)
WARNING
■ Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
158
3-4. Adjusting the steering wheel and mirrors
PRIUS c_U (OM52G95U)
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view mirror by moving it up and down.
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
Inside rear view mirror
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Type A
Type B
Anti-glare function
1
2
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.
159
3-4. Adjusting the steering wheel and mirrors
3
Operation of each component
PRIUS c_U (OM52G95U)
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Push the mirror back in the direc-
tion of the vehicle’s rear.
Outside rear view mirrors
Adjustment procedure
1
1
2
2
1
2
3
4
Folding the mirrors
160
3-4. Adjusting the steering wheel and mirrors
PRIUS c_U (OM52G95U)
■ Mirror angle can be adjusted when
Vehicles without a smart key system
The power switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The power switch is in ACCESSORY or ON mode.
■ When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (P. 380)
WARNING
■ When driving the vehicle
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (vehicles with an outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
161
3
Operation of each component
PRIUS c_U (OM52G95U)
3-5. Opening and closing the windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing (driver’s win-
dow only)
*
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Power windows
: If equipped
Opening and closing procedures
1
2
3
4
Window lock switch
162
3-5. Opening and closing the windows
PRIUS c_U (OM52G95U)
■ The power windows can be operated when
Vehicles without a smart key system
The power switch is in the “ON” position.
Vehicles with a smart key system
The power switch is in ON mode.
■ Operating the power windows after turning the hybrid system off
(driver’s window only)
Vehicles without a smart key system
The power windows can be operated for approximately 45 seconds even
after the power switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.
Vehicles with a smart key system
The power windows can be operated for approximately 45 seconds even
after the power switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.
■ Jam protection function (driver’s window only)
If an object becomes jammed between the window and the window frame
while the window is closing, window movement is stopped and the window is
opened slightly.
■ Catch protection function (driver’s window only)
If an object becomes caught between the door and window while the window
is opening, window movement is stopped.
163
3-5. Opening and closing the windows
3
Operation of each component
PRIUS c_U (OM52G95U)
■ When the window cannot be opened or closed (driver’s window only)
When the jam protection function or catch protection function operates
unusually and the door window cannot be opened or closed, perform the fol-
lowing operations with the power window switch on the driver’s door.
● Stop the vehicle. With the power switch in the “ON” position
*
1
or ON
mode
*
2
, within 4 seconds of the jam protection function or catch protection
function activating, continuously operate the power window switch in the
one-touch closing direction or one-touch opening direction so that the door
window can be opened and closed.
● If the door window cannot be opened and closed even when performing the
above operations, perform the following procedure for function initialization.
Turn the power switch to the “ON” position
*
1
or ON mode
*
2
.
Pull and hold the power window switch in the one-touch closing direction
and completely close the door window.
Release the power window switch for a moment, resume pulling the
switch in the one-touch closing direction, and hold it there for approxi-
mately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direc-
tion. After the door window is completely opened, continue holding the
switch for an additional 1 second or more.
Release the power window switch for a moment, resume pushing the
switch in the one-touch opening direction, and hold it there for approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction
again. After the door window is completely closed, continue holding the
switch for a further 1 second or more.
If you release the switch while the window is moving, start again from the
beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle
inspected by your Toyota dealer.
*
1
: Vehicles without a smart key system
*
2
: Vehicles with a smart key system
1
2
3
4
5
6
164
3-5. Opening and closing the windows
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ Closing the windows
● The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. (
P. 161)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When exiting the vehicle, turn the power switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function (driver’s window only)
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets jammed just
before the window is fully closed. Be careful not to get any part of your
body jammed in the window.
■ Catch protection function (driver’s window only)
● Never use any part of your body or clothing to intentionally activate the
catch protection function.
● The catch protection function may not work if something gets caught just
before the window is fully opened. Be careful not to get any part of your
body or clothing caught in the window.
165
3-5. Opening and closing the windows
3
Operation of each component
PRIUS c_U (OM52G95U)
Opens
the moon roof
*
The moon roof stops slightly before
the fully open position to reduce
wind noise.
Press the switch again to fully open
the moon roof.
Closes
the moon roof
*
*
: Lightly press either of the moon
roof switches to stop the moon roof
partway.
Tilts the moon roof up
*
Tilts the moon roof down
*
*
: Lightly press either of the moon
roof switches to stop the moon roof
partway.
■ The moon roof can be operated when
The power switch is in ON mode.
■ Operating the moon roof after turning the hybrid system off
The moon roof can be operated for approximately 45 seconds after the power
switch is turned to ACCESSORY mode or turned off. It cannot, however, be
operated once either front door is opened.
■ Jam protection function
If an object is detected between the moon roof and the frame while the moon
roof is closing or tilting down, travel is stopped and the moon roof opens
slightly.
Moon roof
: If equipped
Use the overhead switches to open and close the moon roof and
tilt it up and down.
Opening and closing
1
2
Tilting up and down
1
2
166
3-5. Opening and closing the windows
PRIUS c_U (OM52G95U)
■ Sunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.
■ When the moon roof does not close normally
Perform the following procedure:
● If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.
*
1
The moon roof will close, re-open and pause for approximately 10 sec-
onds.
*
2
Then it will close again, tilt up and pause for approximately 1 sec-
ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
● If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “TILT” switch
*
1
until the moon roof moves into the tilt up
position and stops.
Release the “TILT” switch once and then press and hold the “TILT” switch
again.
*
1
The moon roof will pause for approximately 10 seconds in the tilt up posi-
tion.
*
2
Then it will adjust slightly and pause for approximately 1 second.
Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then
release the switch.
*
1
: If the switch is released at the incorrect time, the procedure will have to be
performed again from the beginning.
*
2
: If the switch is released after the above mentioned 10 second pause, auto-
matic operation will be disabled. In that case, press and hold the “CLOSE”
or “TILT” switch, and the moon roof will tilt up and pause for approximately
1 second. Then it will tilt down, open and close. Check to make sure that
the moon roof is completely closed and then release the switch.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by your Toyota dealer.
■ Moon roof open reminder function
The buzzer sounds and a message is shown on the multi-information display
in the instrument cluster when the power switch is turned off and the driver's
door is opened with the moon roof open.
1
2
3
1
2
3
4
167
3-5. Opening and closing the windows
3
Operation of each component
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
■ Opening the moon roof
● Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.
● Do not sit on top of the moon roof.
■ Closing the moon roof
● The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the moon roof. It is possible for children and other passen-
gers to have body parts caught in the moon roof.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when the moon roof is being oper-
ated.
● Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury. The
driver is responsible for instructing children not to operate the moon roof.
● When exiting the vehicle, turn the power switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function
● Never use any part of your body to intentionally activate the jam protection
function.
● The jam protection function may not work if something gets caught just
before the moon roof fully closes.
168
3-5. Opening and closing the windows
PRIUS c_U (OM52G95U)
169
4
Driving
PRIUS c_U (OM52G95U)
4-1. Before driving
Driving the vehicle............. 170
Cargo and luggage ........... 179
Vehicle load limits ............. 183
Trailer towing..................... 184
Dinghy towing ................... 185
4-2. Driving procedures
Power (ignition) switch
(vehicles without a
smart key system)........... 186
Power (ignition) switch
(vehicles with a
smart key system)........... 190
EV drive mode .................. 197
Hybrid transmission........... 200
Turn signal lever................ 204
Parking brake.................... 205
4-3. Operating the lights
and wipers
Headlight switch................ 206
Fog light switch ................. 210
Windshield wipers and
washer ............................ 212
Rear window wiper and
washer ............................ 216
4-4. Refueling
Opening the fuel
tank cap .......................... 219
4-5. Toyota Safety Sense C
Toyota Safety Sense C..... 223
PCS
(Pre-Collision System) .... 229
LDA
(Lane Departure Alert) .... 242
Automatic High Beam ....... 247
4-6. Using the driving
support systems
Cruise control.................... 252
Rear view monitor
system ............................ 256
Driving assist systems ...... 266
4-7. Driving tips
Hybrid vehicle
driving tips....................... 272
Winter driving tips ............. 275
170
PRIUS c_U (OM52G95U)
4-1. Before driving
P. 186, 190
With the brake pedal depressed, shift the shift lever to D.
(P. 200)
Release the parking brake. (P. 205)
Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P. (P. 200)
With the shift lever in D, depress the brake pedal.
Set the parking brake (P. 205), and shift the shift lever to P (P.
200).
Vehicles without a smart key system: Turn the power switch to the
“LOCK” position to stop the hybrid system.
Vehicles with a smart key system: Press the power switch to stop
the hybrid system.
Lock the door, making sure that you have the key on your person.
If parking on a hill, block the wheels as needed.
Driving the vehicle
The following procedures should be observed to ensure safe
driving:
Starting the hybrid system
Driving
Stopping
Parking the vehicle
1
2
3
1
2
1
2
3
4
171
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
■ When starting off on a uphill
The hill-start assist control will activate. (P. 266)
■ For fuel-efficient driving
Keep in mind that hybrid vehicles are similar to conventional vehicles, and it
is necessary to refrain from activities such as sudden acceleration. (P. 272)
■ Driving in the rain
● Drive carefully when it is raining, because visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-
face, preventing the steering and brakes from operating properly.
■ Restraining the hybrid system output (Brake Override System)
● When the accelerator and brake pedals are depressed at the same time, the
hybrid system output may be restrained.
● A warning message is displayed on the multi-information display while the
system is operating. (P. 499)
■ Restraining sudden start (Drive-Start Control)
● When the following unusual operation is performed, the hybrid system out-
put may be restrained.
• When the shift lever is shifted (from R to D, D to R, N to R, P to D, or P to
R) with the accelerator pedal depressed, a warning message appears on
the multi-information display. (D includes B position) (P. 499)
• When the accelerator pedal is depressed too much while the vehicle is in
reverse.
● While Drive-Start Control is being activated, your vehicle may have trouble
escaping from the mud or fresh snow. In such a case, deactivate TRAC
(P. 267) to cancel Drive-Start Control so that the vehicle may become able
to escape from the mud or fresh snow.
Starting off on a steep uphill
1
2
3
172
4-1. Before driving
PRIUS c_U (OM52G95U)
■ Breaking in your new Toyota
To extend the life of the vehicle, observing the following precautions is recom-
mended:
● For the first 200 miles (300 km):
Avoid sudden stops.
● For the first 1000 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (P. 540)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When starting the vehicle
Always keep your foot on the brake pedal while stopped with the “READY”
indicator is illuminated. This prevents the vehicle from creeping.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a diffi-
culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the
vehicle only slightly. This allows you to depress the brake and accelera-
tor pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake
pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● The driver should pay extra attention to pedestrians when the vehicle is
powered only by the electric motor (traction motor). As there is no engine
noise, the pedestrians may misjudge the vehicle’s movement.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot
parts may cause a fire if there is any flammable material nearby.
173
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving the vehicle
● During normal driving, do not turn off the hybrid system. Turning the hybrid
system off while driving will not cause loss of steering or braking control,
however, power assist to the steering will be lost. This will make it more
difficult to steer smoothly, so you should pull over and stop the vehicle as
soon as it is safe to do so.
In the event of an emergency, such as if it becomes impossible to stop the
vehicle in the normal way: P. 471
● Use engine braking (shift position B) to maintain a safe speed when driv-
ing down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. (P. 200)
● Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
● Always check that all passengers' arms, heads or other parts of their body
are not outside the vehicle.
● Do not drive in excess of the speed limit. Even if the legal speed limit per-
mits it, do not drive over 85 mph (140 km/h) unless your vehicle has high-
speed capability tires. Driving over 85 mph (140 km/h) may result in tire
failure, loss of control and possible injury. Be sure to consult a tire dealer
to determine whether the tires on your vehicle are high-speed capability
tires or not before driving at such speeds.
174
4-1. Before driving
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When driving on slippery road surfaces
● Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle.
● Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
● After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected.
■ When shifting the shift lever
● Do not let the vehicle roll backward while the shift lever is in a driving posi-
tion, or roll forward while the shift lever is in R.
Doing so may result in an accident or damage to the vehicle.
● Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Do not shift the shift lever to a driving position while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
● Shifting the shift lever to N while the vehicle is moving will disengage the
hybrid system. Engine braking is not available when N is selected.
● Be careful not to shift the shift lever with the accelerator pedal depressed.
Shifting the shift lever to any position other than P or N may lead to unex-
pected rapid acceleration of the vehicle that may cause an accident and
result in death or serious injury.
■ If you hear a squealing or scraping noise (brake pad wear limit indica-
tors)
Have the brake pads checked and replaced by your Toyota dealer as soon
as possible.
Rotor damage may result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or those of the brake discs are exceeded.
175
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When the vehicle is stopped
● Do not depress the accelerator pedal unnecessarily.
If the shift lever is in any position other than P or N, the vehicle may accel-
erate suddenly and unexpectedly, causing an accident.
● Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
● In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while stopped with the “READY” indicator is
illuminated, and apply the parking brake as necessary.
● If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or backward, always depress the brake pedal
and securely apply the parking brake as needed.
● Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
176
4-1. Before driving
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
• The temperature inside the vehicle may cause the plastic lenses and
plastic material of glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehicle's
electrical components.
● Do not leave cigarette lighters in the vehicle. If a cigarette lighter is in a
place such as the glove box or on the floor, it may be lit accidentally when
luggage is loaded or the seat is adjusted, causing a fire.
● Do not attach adhesive discs to the windshield or windows. Do not place
containers such as air fresheners on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehi-
cle.
● Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one. Reflected sunlight may cause
the glass to act as a lens, causing a fire.
● Always apply the parking brake, shift the shift lever to P, stop the hybrid
system and lock the vehicle.
Do not leave the vehicle unattended while the “READY” indicator is illumi-
nated.
Sound or shuddering may not be noticed even when the hybrid vehicle is
ready to drive (when the “READY” indicator is illuminated).
If the vehicle is parked with the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
● Do not touch the exhaust pipes while the “READY” indicator is illuminated
or immediately after turning the hybrid system off.
Doing so may cause burns.
177
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When taking a nap in the vehicle
Always turn the hybrid system off. Otherwise, if you accidentally move the
shift lever or depress the accelerator pedal, this could cause an accident or
fire due to hybrid system overheating. Additionally, if the vehicle is parked in
a poorly ventilated area, exhaust gases may collect and enter the vehicle,
leading to death or a serious health hazard.
■ When braking
● When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause
one side of the vehicle to brake differently than the other side. Also, the
parking brake may not securely hold the vehicle.
● If the electronically controlled brake system does not operate, do not fol-
low other vehicles closely and avoid hills or sharp turns that require brak-
ing.
In this case, braking is still possible, but the brake pedal should be
depressed more firmly than usual. Also, the braking distance will increase.
Have your brakes fixed immediately.
● The brake system consists of 2 or more individual hydraulic systems; if
one of the systems fails, the other(s) will still operate. In this case, the
brake pedal should be depressed more firmly than usual and the braking
distance will increase. Have your brakes fixed immediately.
NOTICE
■ When driving the vehicle
● Do not depress the accelerator and brake pedals at the same time during
driving, as this may restrain the hybrid system output.
● Do not use the accelerator pedal or depress the accelerator and brake
pedals at the same time to hold the vehicle on a hill.
■ When parking the vehicle
Always set the parking brake, and shift the shift lever to P. Failure to do so
may cause the vehicle to move or the vehicle may accelerate suddenly if
the accelerator pedal is accidentally depressed.
178
4-1. Before driving
PRIUS c_U (OM52G95U)
NOTICE
■ Avoiding damage to vehicle parts
● Do not turn the steering wheel fully in either direction and hold it there for
an extended period of time.
Doing so may damage the power steering motor.
● When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
■ If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehi-
cle.
● It may be difficult to control your vehicle.
● The vehicle will make abnormal sounds or vibrations.
● The vehicle will lean abnormally.
Information on what to do in case of a flat tire (P. 507)
■ When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
● Brake function
● Changes in quantity and quality of oil and fluid used for the engine, hybrid
transmission, etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble), and the function of all joints, bearings, etc.
179
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
Cargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capacity) — (Total weight of occupants)
Steps for Determining Correct Load Limit —
(1) Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s
placard.
(2) Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from
XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and lug-
gage load capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will be
five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 750 (5150) =
650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded
on the vehicle. That weight may not safely exceed the available
cargo and luggage load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult this manual to determine how
this reduces the available cargo and luggage load capacity of your
vehicle.
(P. 183)
Toyota does not recommend towing a trailer with your vehicle. Your
vehicle is not designed for trailer towing.
Cargo and luggage
Take notice of the following information about storage precau-
tions, cargo capacity and load:
Capacity and distribution
180
4-1. Before driving
PRIUS c_U (OM52G95U)
Cargo capacity
Total load capacity (vehicle
capacity weight) (P. 538)
When 2 people with the combined weight of A lb. (kg) are riding in
your vehicle, which has a total load capacity (vehicle capacity weight)
of B lb. (kg), the available amount of cargo and luggage load capacity
will be C lb. (kg) as follows:
B
*
2
lb. (kg) - A
*
1
lb. (kg) = C
*
3
lb. (kg)
*
1
: A =Weight of people
*
2
: B =Total load capacity
*
3
: C =Available cargo and luggage load
In this condition, if 3 more passengers with the combined weight of D
lb. (kg) get on, the available cargo and luggage load will be reduced E
lb. (kg) as follows:
C lb. (kg) - D
*
4
lb. (kg) = E
*
5
lb. (kg)
*
4
: D =Additional weight of people
*
5
: E =Available cargo and luggage load
Calculation formula for your vehicle
1
2
181
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
As shown in the example above, if the number of occupants
increases, the cargo and luggage load will be reduced by an amount
that equals the increased weight due to the additional occupants. In
other words, if an increase in the number of occupants causes an
excess of the total load capacity (combined weight of occupants plus
cargo and luggage load), you must reduce the cargo and luggage on
your vehicle.
WARNING
■
Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compart-
ment:
●
Receptacles containing gasoline
●
Aerosol cans
■
Storage precautions
Observe the following precautions.
Failure to do so may prevent the pedals from being depressed properly,
may block the driver’s vision, or may result in items hitting the driver or
passengers, possibly causing an accident.
●
Stow cargo and luggage in the luggage compartment whenever possi-
ble.
●
Do not stack cargo and luggage in the luggage compartment higher
than the seatbacks.
●
Do not place cargo or luggage in or on the following locations.
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the luggage cover (if equipped)
• On the instrument panel
• On the dashboard
●
Secure all items in the occupant compartment.
●
When you fold down the rear seats, long items should not be placed
directly behind the front seats.
●
Never allow anyone to ride in the luggage compartment. It is not
designed for passengers. They should ride in their seats with their seat
belts properly fastened.
182
4-1. Before driving
PRIUS c_U (OM52G95U)
WARNING
■
Capacity and distribution
●
Do not exceed the maximum axle weight rating or the total vehicle
weight rating.
●
Even if the total load of occupant's weight and the cargo load is less
than the total load capacity, do not apply the load unevenly. Improper
loading may cause deterioration of steering or braking control which
may cause death or serious injury.
■
Roof molding (if equipped)
Do not install a luggage rack to the roof
molding as the luggage rack may
become disengaged while driving, pos-
sibly leading to an accident.
183
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
◆
Total load capacity (vehicle capacity weight): (P. 538)
Total load capacity means the combined weight of occupants, cargo
and luggage.
◆
Seating capacity: 5 occupants (Front 2, Rear 3)
Seating capacity means the maximum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.
◆
Towing capacity
Toyota does not recommend towing a trailer with your vehicle.
◆
Cargo capacity
Cargo capacity may increase or decrease depending on the weight
and the number of occupants.
■
Total load capacity and seating capacity
These details are also described on the tire and loading information label.
(P. 446)
Vehicle load limits
Vehicle load limits include total load capacity, seating capacity,
towing capacity and cargo capacity.
WARNING
■
Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering
and braking ability, resulting in an accident.
184
4-1. Before driving
PRIUS c_U (OM52G95U)
Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch
or the use of a tow hitch carrier for a wheelchair, scooter, bicy-
cle, etc. Your vehicle is not designed for trailer towing or for the
use of tow hitch mounted carriers.
185
4-1. Before driving
4
Driving
PRIUS c_U (OM52G95U)
Dinghy towing
Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.
NOTICE
■ To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.
186
PRIUS c_U (OM52G95U)
4-2. Driving procedures
Check that the parking brake is set.
Check that the shift lever is in P.
Firmly depress the brake pedal.
Turn the power switch to the
“START” position to start the
hybrid system.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
Check that the “READY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a solid light and a
beep sound, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the engine
is stopped. (The engine starts or stops automatically in accordance with
the state of the vehicle.)
Power (ignition) switch (vehicles without a
smart key system)
Starting the hybrid system
1
2
3
4
5
187
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
“LOCK”
The steering wheel is locked and
the key can be removed. (The key
can be removed only when the
shift lever is in P.)
“ACC”
Some electrical components such
as the power outlet can be used.
“ON”
All electrical components can be used.
“START”
For starting the hybrid system.
■ Turning the key from “ACC” to “LOCK”
Shift the shift lever to P.
■ Sounds and vibrations specific to a hybrid vehicle
P. 78
■ When the ambient temperature is low, such as during winter driving con-
ditions
When starting the hybrid system, the flashing time of the “READY” indicator
may be long. Leave the vehicle as it is until the “READY” indicator is steady
on, as steady means the vehicle is able to move.
Changing the power switch positions
1
2
3
4
1
Push in the key and turn it to the
“LOCK” position.
2
188
4-2. Driving procedures
PRIUS c_U (OM52G95U)
■ If the hybrid system does not start (vehicles with immobilizer system)
The immobilizer system may not have been deactivated. (P. 86)
Contact your Toyota dealer.
■ When the steering lock cannot be released
■ If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after perform-
ing the proper procedures for starting the vehicle, contact your Toyota dealer
immediately.
■ If the hybrid system is malfunctioning
P. 491
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the power switch is in the
“LOCK” or “ACC” position to remind you to remove the key.
When starting the hybrid system, the
power switch may seem stuck in the
“LOCK” position. To free it, turn the key
while turning the steering wheel slightly
left and right.
WARNING
■ When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not
depress the accelerator pedal while starting the hybrid system under any
circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the power switch to the “LOCK” position while driving. If, in an
emergency, you must turn the hybrid system off while the vehicle is moving,
turn the power switch only to the “ACC” position to stop the hybrid system.
An accident may result if the hybrid system is stopped while driving.
(P. 471)
189
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the power switch in the “ACC” or “ON” position for long periods
of time without the hybrid system on.
■ When starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by
your Toyota dealer immediately.
190
4-2. Driving procedures
PRIUS c_U (OM52G95U)
Check that the parking brake is set.
Check that the shift lever is in P.
If the shift lever is not set in P, the hybrid system may not be started.
(P. 200)
Firmly depress the brake pedal.
will be displayed on the multi-information display.
If it is not displayed, the hybrid system cannot be started.
Press the power switch shortly
and firmly.
When operating the power switch,
one short, firm press is enough.
It is not necessary to press and
hold the switch.
If the “READY” indicator turns on,
the hybrid system will operate nor-
mally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
The hybrid system can be started
from any power switch mode.
Power (ignition) switch (vehicles with a
smart key system)
Performing the following operations when carrying the elec-
tronic key on your person starts the hybrid system or changes
power switch modes.
Starting the hybrid system
1
2
3
4
191
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
Check that the “READY” indicator is illuminated.
If the “READY” indicator changes from a flashing light to a solid light and a
beep sound, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the engine
is stopped. (The engine starts or stops automatically in accordance with
the state of the vehicle.)
Stop the vehicle completely.
Set the parking brake (P. 205), and shift the shift lever to P.
Press the power switch.
Release the brake pedal and check that on the multi-infor-
mation display is off.
Modes can be changed by pressing the power switch with brake pedal
released. (The mode changes each time the switch is pressed.)
Off
*
The emergency flashers can be
used.
ACCESSORY mode
Some electrical components such
as the power outlet can be used.
will be displayed on the
multi-information display.
ON mode
All electrical components can be
used.
will be displayed on the
multi-information display.
*
: If the shift lever is in a position other than P when turning off the hybrid sys-
tem, the power switch will be turned to ACCESSORY mode, not to off.
Stopping the hybrid system
Changing power switch modes
5
1
2
3
4
1
2
3
192
4-2. Driving procedures
PRIUS c_U (OM52G95U)
If the hybrid system is stopped with the shift lever in a position other
than P, the power switch will not be turned off but instead be turned to
ACCESSORY mode. Perform the following procedure to turn the
switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that is displayed on the multi-information display and
then press the power switch once.
Check that on the multi-information display is off.
■ Auto power off function
When the shift lever is in P, if the vehicle is left in ACCESSORY or ON mode
with the hybrid system not operating for more than 20 minutes (ACCESSORY
mode) or one hour (ON mode), the power switch will automatically turn off.
However, this function cannot entirely prevent 12-volt battery discharge. Do
not leave the vehicle with the power switch in ACCESSORY or ON mode for
long periods of time when the hybrid system is not operating.
■ Sounds and vibrations specific to a hybrid vehicle
P. 78
■ Electronic key battery depletion
P. 121
■ When the ambient temperature is low, such as during winter driving con-
ditions
When starting the hybrid system, the flashing time of the “READY” indicator
may be long. Leave the vehicle as it is until the “READY” indicator is steady
on, as steady means the vehicle is able to move.
■ Conditions affecting operation
P. 141
When stopping the hybrid system with the shift lever in a posi-
tion other than P
1
2
3
4
193
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
■ Notes for the entry function
P. 142
■ If the hybrid system does not start
● The immobilizer system may not have been deactivated. (P. 86)
Contact your Toyota dealer.
■ Steering lock
After turning the power switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
power switch again automatically cancels the steering lock.
■ When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the hybrid system is turned on and off repeatedly in a short period
of time. In this case, refrain from operating the hybrid system. After about 10
seconds, the steering lock motor will resume functioning.
● Check that the shift lever is securely set
in P. The hybrid system may not start if
the shift lever is not securely in the P
position. “SHIFT INTO P POSITION TO
START” will be displayed on the multi-
information display.
“STEERING LOCK ACTIVE” will be dis-
played on the multi-information display.
Check that the shift lever is set in P.
Press the power switch while turning the
steering wheel left and right.
194
4-2. Driving procedures
PRIUS c_U (OM52G95U)
■ If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after perform-
ing the proper procedures for starting the vehicle, contact your Toyota dealer
immediately.
■ If the hybrid system is malfunctioning
P. 491
■ If the electronic key battery is depleted
P. 453
■ Operation of the power switch
● If the switch is not pressed shortly and firmly, the power switch mode may
not change or the hybrid system may not start.
● If attempting to restart the hybrid system immediately after turning the power
switch off, the hybrid system may not start in some cases. After turning the
power switch off, please wait a few seconds before restarting the hybrid sys-
tem.
■ If the smart key system has been deactivated in a customized setting
P. 522
195
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
WARNING
■ When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not
depress the accelerator pedal while starting the hybrid system under any
circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If a hybrid system failure occurs while the vehicle is moving, do not lock or
open the doors until the vehicle reaches a safe and complete stop. Doing so
may cause activation of the steering lock which may lead to an accident,
resulting in death or serious injury.
■ When “CHECK SMART KEY SYSTEM” is displayed on the multi-infor-
mation display
The system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer immediately. Failure to do so may lead to the system operat-
ing abnormally and possibly cause an accident or damage to the vehicle.
■ Stopping the hybrid system in an emergency
If you want to stop the hybrid system in an emergency while driving the
vehicle, press and hold the power switch for more than 2 seconds, or press
it briefly 3 times or more in succession. (P. 471)
However, do not touch the power switch while driving except in an emer-
gency. Turning the hybrid system off while driving will not cause loss of
steering or braking control, however, power assist to the steering will be
lost. This will make it more difficult to steer smoothly, so you should pull over
and stop the vehicle as soon as it is safe to do so.
196
4-2. Driving procedures
PRIUS c_U (OM52G95U)
NOTICE
■ To prevent 12-volt battery discharge
● Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods of time without the hybrid system on.
● If is displayed on the multi-information display, the power switch is
not off. Exit the vehicle after turning the power switch off.
● Do not stop the hybrid system when the shift lever is in a position other
than P. If the hybrid system is stopped in another shift lever position, the
power switch will not be turned off but instead be turned to ACCESSORY
mode. If the vehicle is left in ACCESSORY mode, 12-volt battery dis-
charge may occur.
■ When starting the hybrid system
● Do not depress the accelerator pedal unnecessarily.
● If the hybrid system becomes difficult to start, have your vehicle checked
by your Toyota dealer immediately.
■ Symptoms indicating a malfunction with the power switch
If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
your Toyota dealer immediately.
197
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
Turns EV drive mode on/off
When EV drive mode is turned on,
the EV drive mode indicator will
come on.
Pressing the switch when in EV
drive mode will return the vehicle to
normal driving (using the gasoline
engine and electric motor [traction
motor]).
EV drive mode
In EV drive mode, electric power is supplied by the hybrid bat-
tery (traction battery), and only the electric motor (traction
motor) is used to drive the vehicle.
This mode allows you to drive in residential areas early in the
morning and late at night, or in indoor parking lots etc. without
concern for noises and exhaust gas emissions.
However, when the Vehicle Proximity Notification System is
active, the vehicle may produce sound.
198
4-2. Driving procedures
PRIUS c_U (OM52G95U)
■ Situations in which EV drive mode cannot be turned on
It may not be possible to turn EV drive mode on in the following situations. If it
cannot be turned on, a buzzer will sound and a message will be shown on the
multi-information display.
● The temperature of the hybrid system is high.
The vehicle has been left in the sun, driven on a hill, driven at high speeds,
etc.
● The temperature of the hybrid system is low.
The vehicle has been left in temperatures lower than about 68
F (20
C) for
a long period of time etc.
● The gasoline engine is warming up.
● The hybrid battery (traction battery) is low.
The remaining battery level indicated in the energy monitor display is low.
(P. 110)
● Vehicle speed is high.
● The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
● The windshield defogger is in use.
■ Switching to EV drive mode when the gasoline engine is cold
If the hybrid system is started while the gasoline engine is cold, the gasoline
engine will start automatically after a short period of time in order to warm up.
In this case, you will become unable to switch to EV drive mode.
After the hybrid system has started and the “READY” indicator has illumi-
nated, press the EV drive mode switch before the gasoline engine starts to
switch to EV drive mode.
199
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
■ Automatic cancelation of EV drive mode
When driving in EV drive mode, the gasoline engine may automatically restart
in the following situations. When EV drive mode is canceled, a buzzer will
sound and the EV drive mode indicator will flash and go off.
● The hybrid battery (traction battery) becomes low.
The remaining battery level indicated in the energy monitor display is low.
(P. 110)
● Vehicle speed is high.
● The accelerator pedal is depressed firmly or the vehicle is on a hill etc.
■ Possible driving distance when driving in EV drive mode
EV drive mode’s possible driving distance ranges from a few hundred meters
to approximately 1.3 miles (2 km). However, depending on vehicle conditions,
there are situations when EV drive mode cannot be used.
(The distance that is possible depends on the hybrid battery [traction battery]
level and driving conditions.)
■ Fuel economy
The hybrid system is designed to achieve the best possible fuel economy
during normal driving (using the gasoline engine and electric motor [traction
motor]). Driving in EV drive mode more than necessary may lower fuel econ-
omy.
WARNING
■ Caution while driving
When driving in EV drive mode no engine noise is made. As such, pedestri-
ans, people riding bicycles or other people and vehicles in the surrounding
area may not be aware of the vehicle starting off or approaching them.
Therefore, take extra care while driving even if the Vehicle Proximity Notifi-
cation System is active.
200
4-2. Driving procedures
PRIUS c_U (OM52G95U)
Vehicles without a smart key system: While the power switch
is in the “ON” position, move the shift lever with the brake
pedal depressed.
Vehicles with a smart key system: While the power switch is in
ON mode, move the shift lever with the brake pedal
depressed.
When shifting from P to another position; from D to R or P; or from R
to P, D or B; ensure that the brake pedal is being depressed and the
vehicle is stationary.
Hybrid transmission
Shifting the shift lever
201
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
*
: To improve fuel efficiency and reduce noises, set the shift lever in the D
position for normal driving.
Suitable for enhancing the fuel economy, because the torque corre-
sponding to the accelerator pedal depression amount can be gener-
ated more smoothly than it is in normal conditions and the operation
of the air conditioning system (heating/cooling) will be minimized.
Eco drive mode
When Eco drive mode is turned on,
the “ECO MODE” indicator will
come on.
Pressing the Eco drive mode
switch again turns Eco drive mode
off.
■ Operation of the air conditioning system in Eco drive mode
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency. (P. 378) To improve air
conditioning performance, adjust the temperature setting or fan speed, or turn
off Eco drive mode.
■ When the accelerator pedal is depressed while the shift position is in N
A buzzer will sound to inform the driver that the shift position is in N.
Shift position purpose
Shift position Function
P Parking the vehicle/starting the hybrid system
R Reversing
N Neutral
D Normal driving
*
B Position for engine braking
Selecting Eco drive mode
202
4-2. Driving procedures
PRIUS c_U (OM52G95U)
■ Restraining sudden start (Drive-Start Control)
P. 171
■ Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the power switch is in the
“ON” position (vehicles without a smart key system) or the power switch is in
ON mode (vehicles with a smart key system) and the brake pedal is being
depressed.
■ If the shift lever cannot be shifted from P
First, check whether the brake pedal is being depressed.
If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by your
Toyota dealer immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Releasing the shift lock:
Set the parking brake.
Vehicles without a smart key system:
Turn the power switch to the “LOCK” position.
Vehicles with a smart key system:
Turn the power switch off.
Depress the brake pedal.
Pry the cover up with a flathead screw-
driver or equivalent tool.
To prevent damaging the cover, wrap
the tip of the flathead screwdriver with a
tape.
Press the shift lock override button.
The shift lever can be shifted while the
button is pressed.
1
2
3
4
5
203
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
WARNING
■ When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.
■ To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
NOTICE
■ Hybrid battery (traction battery) charge
If the shift lever is in N, the hybrid battery (traction battery) will not be
charged even when the engine is running. Therefore, if the vehicle is left
with the shift lever in N for a long period of time, the hybrid battery (traction
battery) will discharge, and this may result in the vehicle not being able to
start.
204
4-2. Driving procedures
PRIUS c_U (OM52G95U)
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■ Turn signals can be operated when
Vehicles without a smart key system
The power switch is in the “ON” position.
Vehicles with a smart key system
The power switch is in ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Turn signal lever
Operating instructions
1
2
3
4
205
4-2. Driving procedures
4
Driving
PRIUS c_U (OM52G95U)
To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
■ Parking the vehicle
P. 170
■ Parking brake engaged warning buzzer
A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph
(5 km/h) or more with the parking brake engaged. (P. 482, 494)
■ Usage in winter time
P. 275
Parking brake
Operating instructions
U.S.A. Canada
1
2
NOTICE
■ Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
206
PRIUS c_U (OM52G95U)
4-3. Operating the lights and wipers
Turning the end of the lever turns on the lights as follows:
Type A
The daytime running
lights turn on. (P. 208)
The side marker, park-
ing, tail, license plate,
instrument panel lights,
and daytime running
lights (P. 208) turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The daytime running
lights turn off. (P. 208)
Headlight switch
The headlights can be operated manually.
Operating instructions
1
2
3
4
207
4-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52G95U)
Type B
The daytime running
lights turn on. (P. 208)
The side marker, park-
ing, tail, license plate,
instrument panel lights,
and daytime running
lights (P. 208) turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
1
2
3
Turning on the high beam headlights
1
2
208
4-3. Operating the lights and wipers
PRIUS c_U (OM52G95U)
■ Daytime running light system
● The daytime running lights illuminate using the same lights as the headlights
and illuminate darker than the headlights.
● Type A: To make your vehicle more visible to other drivers during daytime
driving, the daytime running lights turn on automatically when all of the fol-
lowing conditions are met. (The daytime running lights are not designed for
use at night.)
• The hybrid system is started
• The parking brake is released
• The headlight switch is in the or position
The daytime running lights remain on after they illuminate, even if the parking
brake is set again.
● Type B: To make your vehicle more visible to other drivers during daytime
driving, the daytime running lights turn on automatically when all of the fol-
lowing conditions are met. (The daytime running lights are not designed for
use at night.)
• The hybrid system is started
• The parking brake is released
• The headlight switch is in the or position
The daytime running lights remain on after they illuminate, even if the parking
brake is set again.
● For the U.S.A.: Daytime running lights can be turned off by operating the
switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Automatic light off system
Vehicles without a smart key system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after the power switch is turned to the “ACC” or “LOCK” position and a
door is opened and closed. (Vehicles with a wireless remote control: The
lights turn off immediately if on the key is pressed after all the doors
are locked.)
● When only the tail lights are on: The tail lights turn off automatically if the
power switch is turned to the “ACC” or “LOCK” position and the driver’s door
is opened.
To turn the lights on again, turn the power switch to “ON” position, or turn the
light switch off once and then back to or .
If any of the doors or trunk lid is kept open, the lights automatically turn off
after 20 minutes.
209
4-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52G95U)
Vehicles with a smart key system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after the power switch is turned to ACCESSORY mode or turned off
and a door is opened and closed. (The lights turn off immediately if on
the key is pressed after all the doors are locked.)
● When only the tail lights are on: The tail lights turn off automatically if the
power switch is turned to ACCESSORY mode or turned off and the driver’s
door is opened.
To turn the lights on again, turn the power switch to ON mode, or turn the light
switch off once and then back to or .
If any of the doors or trunk lid is kept open, the lights automatically turn off
after 20 minutes.
■ Light reminder buzzer
Vehicles without a smart key system
A buzzer sounds when the power switch is turned to the “LOCK” or “ACC”
position and the driver's door is opened while the lights are turned on.
Vehicles with a smart key system
A buzzer sounds when the power switch is turned off or turned to ACCES-
SORY mode and the driver's door is opened while the lights are turned on.
■ 12-volt battery-saving function
In the following conditions, the remaining lights will go off automatically after
20 minutes in order to prevent the vehicle battery from being discharged:
● The headlights and/or tail lights are on.
● The power switch is turned to the “ACC” or “LOCK” position (vehicles with-
out a smart key system) or the power switch is turned to ACCESSORY
mode or turned off (vehicles with a smart key system).
This function will be canceled in any of the following situations:
● When the power switch is turned to the “ON” position (vehicles without a
smart key system) or the power switch is turned to ON mode (vehicles with
a smart key system).
● When the light switch is operated.
● When the door is opened or closed.
■ Customization that can be configured at Toyota dealer
Setting (e.g. daytime running light system) can be changed.
(Customizable features: P. 562)
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.
210
4-3. Operating the lights and wipers
PRIUS c_U (OM52G95U)
Type A
Turns the front fog lights
off
Turns the front fog lights
on
Fog light switch
: If equipped
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
1
2
211
4-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52G95U)
Type B
Turns the front fog lights
off
Turns the front fog lights
on
■ Fog lights can be used when
The headlights are on in low beam.
1
2
212
4-3. Operating the lights and wipers
PRIUS c_U (OM52G95U)
The wiper operation is selected by moving the lever as follows:
Type A
Intermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent wind-
shield wiper frequency
*
Decreases the intermittent
windshield wiper frequency
*
*
: The interval adjuster may not be
equipped depending on vehicle
grade.
Windshield wipers and washer
Operating the wiper lever
1
2
3
4
5
6
213
4-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52G95U)
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Type B
Intermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent wind-
shield wiper frequency
*
Decreases the intermittent
windshield wiper frequency
*
*
: The interval adjuster may not be
equipped depending on vehicle
grade.
7
1
2
3
4
5
6
214
4-3. Operating the lights and wipers
PRIUS c_U (OM52G95U)
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
■ The windshield wipers and washer can be operated when
Vehicles without a smart key system
The power switch is in the “ON” position.
Vehicles with a smart key system
The power switch is in ON mode.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
WARNING
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
215
4-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52G95U)
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
216
4-3. Operating the lights and wipers
PRIUS c_U (OM52G95U)
The wiper operation is selected by moving the lever as follows:
Type A
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual oper-
ation
Washer/wiper dual oper-
ation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Rear window wiper and washer
: If equipped
Operating the wiper lever
1
2
3
4
217
4-3. Operating the lights and wipers
4
Driving
PRIUS c_U (OM52G95U)
Type B
Intermittent window
wiper operation
Normal window wiper
operation
Washer/wiper dual oper-
ation
Washer/wiper dual oper-
ation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
■ The rear window wiper and washer can be operated when
Vehicles without a smart key system
The power switch is in the “ON” position.
Vehicles with a smart key system
The power switch is in ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.
1
2
3
4
218
4-3. Operating the lights and wipers
PRIUS c_U (OM52G95U)
NOTICE
■ When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact your Toyota dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
219
4
Driving
PRIUS c_U (OM52G95U)
4-4. Refueling
● Vehicles without a smart key system:
Turn the power switch to the “LOCK” poison and ensure that all the
doors and windows are closed.
Vehicles with a smart key system:
Turn the power switch off and ensure that all the doors and win-
dows are closed.
● Confirm the type of fuel.
■ Fuel types
P. 547
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
Before refueling the vehicle
220
4-4. Refueling
PRIUS c_U (OM52G95U)
WARNING
■ When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■ When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
● Securely insert the fuel nozzle into the fuel filler neck.
● Stop filling the tank after the fuel nozzle automatically clicks off.
● Do not top off the fuel tank.
NOTICE
■ Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle's painted surface.
221
4-4. Refueling
4
Driving
PRIUS c_U (OM52G95U)
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly to
remove it and hang it on the
back of the fuel filler door.
After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Opening the fuel tank cap
1
2
Closing the fuel tank cap
222
4-4. Refueling
PRIUS c_U (OM52G95U)
WARNING
■ When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
223
4
Driving
PRIUS c_U (OM52G95U)
4-5. Toyota Safety Sense C
◆
PCS (Pre-Collision System)
P. 2 29
◆
LDA (Lane Departure Alert)
P. 2 42
◆
Automatic High Beam
P. 2 47
Toyota Safety Sense C
The Toyota Safety Sense C consists of the following drive assist
systems and contributes to a safe and comfortable driving expe-
rience:
WARNING
■ Toyota Safety Sense C
The Toyota Safety Sense C is designed to operate under the assumption
that the driver will drive safely, and is designed to help reduce the impact to
the occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle's
surroundings and driving safely.
224
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
The pre-collision system is equipped with a sophisticated computer
that will record certain data, such as:
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the pre-collision system functions
• Information (such as the distance and relative speed between your
vehicle and the vehicle ahead or other objects)
• Images from the front sensor (available only when the pre-collision
braking function is operating)
The pre-collision system does not record conversations, sounds or
images of the inside of the vehicle.
● Data usage
Toyota may use the data recorded in this computer to diagnose
malfunctions, conduct research and development, and improve
quality.
Toyota will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the
lessee if the vehicle is leased
• In response to an official request by the police, a court of law or a
government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific
vehicle or vehicle owner
● Recorded images can be erased using a specialized device.
The image recording function can be disabled. However, if the func-
tion is disabled, data from when the pre-collision system operates
will not be available.
Vehicle data recording
225
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
The front sensor is located on the
upper side of the windshield. It
consists of 2 types of sensors,
each of which detects information
necessary to operate the drive
assist systems.
Laser sensors
Monocular camera sensor
Front sensor
1
2
226
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
WARNING
■ Front sensor
The front sensor uses lasers to detect vehicles ahead of your vehicle. The
front sensor is classified as class 1M laser product according to the IEC
60825-1 standard. Under normal usage conditions, these lasers are not
harmful to the naked eye. However, it is necessary to observe the following
precautions.
Failure to do so may result in the loss of eyesight or severe visual impair-
ment.
● To avoid hazardous laser radiation exposure, never attempt to disassem-
ble the front sensor (e.g. remove the lenses). When disassembled, the
front sensor is classified as a class 3B laser product according to the IEC
60825-1 standard. Class 3B lasers are hazardous and pose a risk of eye
injury under direct exposure.
● Do not attempt to look into the front sensor with a magnifying glass, micro-
scope or other optical instrument within a distance of less than 3.9 in.
(100 mm).
Laser classification label
Laser explanatory label
Laser emission data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wave length: 905 nm
Divergence (horizontal x vertical): 28° x 12°
227
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
WARNING
■ To avoid malfunction of the front sensor
Observe the following precautions.
Otherwise, the front sensor may not operate properly, possibly leading to an
accident resulting in death or serious injury.
● Keep the windshield clean at all times. If the windshield is dirty or covered
with an oily film, water droplets, snow, etc., clear the windshield. If the
inner side of the windshield in front of the front sensor is dirty, contact your
Toyota dealer.
● If there is a large difference in temperature between the inside and outside
of the vehicle, such as in winter, the windshield is likely to fog up easily. If
the part of the windshield in front of the front sensor is fogged up or cov-
ered with condensation or ice, the PCS warning light may illuminate and
the system may be temporarily disabled. In this case, use the windshield
defogger to remove the fog, etc. (P. 380)
● If the area of the windshield in front of the front sensor is covered with
water droplets, use the windshield wipers to remove them.
If the water droplets are not sufficiently removed, the performance of the
front sensor may be reduced.
● Do not attach objects, such as stickers,
transparent stickers, etc., and so forth,
to the outer side of the windshield in
front of the front sensor (shaded area in
the illustration).
A: From the top of the windshield to
approximately 4.0 in. (10 cm) below the
bottom of the front sensor
B: Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. (10 cm) to the
right and left from the center of the front
sensor)
● Do not install or attach anything to the
inner side of the windshield under the
front sensor (shaded area in the illustra-
tion).
A: Approximately 4.0 in. (10 cm) (Start-
ing from the bottom of the front sensor)
B: Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. (10 cm) to the
right and left from the center of the front
sensor)
228
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
WARNING
● If water droplets cannot be properly removed from the area of the wind-
shield in front of the front sensor by the windshield wipers, replace the
wiper insert or wiper blade.
If the wiper inserts or wiper blades need to be replaced, contact your
Toyota dealer.
● Do not attach window tinting to the windshield.
● Replace the windshield if it is damaged or cracked.
If the windshield needs to be replaced, contact your Toyota dealer.
● Do not install an antenna in front of the sensor.
● Do not get the front sensor wet.
● Do not allow bright lights to shine into the front sensor.
● Do not dirty or damage the front sensor.
When cleaning the inside of the windshield, do not allow glass cleaner to
contact the lens. Also, do not touch the lens.
If the lens is dirty or damaged, contact your Toyota dealer.
● Do not subject the front sensor to a strong impact.
● Do not change the installation position or direction of the front sensor or
remove it.
● Do not disassemble the front sensor.
● Do not install an electronic device or device that emits strong electric
waves near the front sensor.
● Do not modify any components of the vehicle around the front sensor
(inside rear view mirror, sun visors, etc.) or ceiling.
● Do not attach any accessories that may obstruct the front sensor to the
hood, front grille or front bumper. Contact your Toyota dealer for details.
● If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the front sensor.
● Do not modify the headlights or other lights.
● Do not attach anything to or place anything on the dashboard.
■ Installation area of front sensor on windshield
When the windshield is fogging up easily, the glass around the front sensor
may be hot due to the heater running. If the glass is touched, it may result in
burns.
229
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
◆
Pre-collision warning
When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.
◆
Pre-collision brake assist
When the system determines that the possibility of a frontal colli-
sion with a vehicle is high, the system applies greater braking force
in relation to how strongly the brake pedal is depressed.
◆
Pre-collision braking
When the system determines that the possibility of a frontal colli-
sion with a vehicle is high, the system warns the driver. If the sys-
tem determines that the possibility of a collision is extremely high,
the brakes are automatically applied to help avoid the collision or
reduce the collision speed.
PCS (Pre-Collision System)
The pre-collision system uses the front sensor to detect vehi-
cles in front of your vehicle. When the system determines that
the possibility of a frontal collision with a vehicle is high, a warn-
ing operates to urge the driver to take evasive action and the
potential brake pressure is increased to help the driver avoid the
collision. If the system determines that the possibility of a fron-
tal collision with a vehicle is extremely high, the brakes are auto-
matically applied to help avoid the collision or help reduce the
impact of the collision.
The pre-collision system can be disabled/enabled and the warning
timing can be changed. (P. 232)
230
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
WARNING
■ Limitations of the pre-collision system
● The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
Do not use the pre-collision system instead of normal braking operations
under any circumstances. This system will not prevent collisions or lessen
collision damage or injury in every situation. Do not overly rely on this sys-
tem. Failure to do so may lead to an accident, resulting in death or serious
injury.
● Although this system is designed to help avoid and reduce the impact of a
collision, its effectiveness may change according to various conditions,
therefore the system may not always be able to achieve the same level of
performance.
Read the following conditions carefully. Do not overly rely on this system
and always drive carefully.
• Conditions under which the system may operate even if there is no pos-
sibility of a collision: P. 234
• Conditions under which the system may not operate properly: P. 238
● Do not attempt to test the operation of the pre-collision system yourself, as
the system may not operate properly, possibly leading to an accident.
■ Pre-collision braking
● The pre-collision braking function may not operate if certain operations are
performed by the driver. If the accelerator pedal is being depressed
strongly or the steering wheel is being turned, the system may determine
that the driver is taking evasive action and possibly prevent the pre-colli-
sion braking function from operating.
● In some situations, while the pre-collision braking function is operating,
operation of the function may be canceled if the accelerator pedal is
depressed strongly or the steering wheel is turned and the system deter-
mines that the driver is taking evasive action.
● A large amount of braking force is applied while the pre-collision braking
function is operating. Additionally, as the operation of the pre-collision
braking function will be canceled after the vehicle has been stopped for
approximately 2 seconds if it is stopped by the operation of the pre-colli-
sion braking function, the driver should depress the brake pedal as neces-
sary.
● If the brake pedal is being depressed, the system may determine that the
driver is taking evasive action and possibly delay the operation timing of
the pre-collision braking function.
231
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
WARNING
● While driving, such as when driving through a railway crossing, the system
may determine that the possibility of a collision with an object, such as rail-
way crossing barrier, is high and operate the pre-collision braking function.
To move the vehicle in an emergency, such as if the system operates in a
railway crossing, perform the following operations and then take the nec-
essary measures to ensure your safety.
• If the vehicle has been stopped, depress the accelerator pedal.
• If the vehicle is decelerating, fully depress the accelerator pedal.
(P. 233)
• Disable the pre-collision system. (P. 232)
■ When to disable the pre-collision system
In the following situations, disable the system, as it may not operate prop-
erly, possibly leading to an accident resulting in death or serious injury:
● When the vehicle is being towed
● When your vehicle is towing another vehicle
● When transporting the vehicle via truck, boat, train or similar means of
transportation
● When the vehicle is raised on a lift with the hybrid system on and the tires
are allowed to rotate freely
● When inspecting the vehicle using a drum tester such as a chassis dyna-
mometer or speedometer tester, or when using an on vehicle wheel bal-
ancer
● If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning
● When the vehicle is driven in a sporty manner or off-road
● When the condition of the tires is poor and they do not perform well
(P. 437, 448)
● When tires of a size other than specified are installed
● When tire chains are installed
● When a compact spare tire or an emergency tire puncture repair kit is used
232
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
■
Enabling/disabling the pre-collision system
Press the PCS switch for 3 sec-
onds or more.
The PCS warning light will turn
on and a message will be dis-
played in the multi-information
display, when the system is
turned off.
To enable the system, press the
PCS switch again.
The pre-collision system is
enabled each time the hybrid
system is started.
■
Changing the pre-collision warning timing
Press the PCS switch to display the current warning timing in the
multi-information display. Each time the PCS switch is pressed in
the displayed state, the timing for the warning changes as follows:
If the operation timing setting has been changed, the setting will be
retained the next time the hybrid system is started.
Far
The warning will begin to oper-
ate earlier than with the default
timing.
Middle
This is the default setting.
Near
The warning will begin to oper-
ate later than with the default
timing.
Changing settings of the pre-collision system
1
2
3
233
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
■ Operational conditions
The pre-collision system is enabled and determines that the possibility of a
frontal collision with a vehicle is high.
Each function is operational at the following speeds:
● Pre-collision warning:
• Vehicle speed is approximately 10 to 85 mph (15 to 140 km/h).
• The relative speed between your vehicle and a preceding vehicle is
approximately 10 mph (15 km/h) or more.
● Pre-collision brake assist:
• Vehicle speed is approximately 20 to 50 mph (30 to 80 km/h).
• The relative speed between your vehicle and a preceding vehicle is
approximately 20 mph (30 km/h) or more.
● Pre-collision braking:
• Vehicle speed is approximately 7 to 50 mph (10 to 80 km/h).
• The relative speed between your vehicle and a preceding vehicle is
approximately 7 mph (10 km/h) or more.
The system may not operate in the following situations:
● If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time
● If the shift lever is in R
● If VSC is disabled (only the pre-collision warning function will be opera-
tional)
■ Cancelation of the pre-collision braking
● If either of the following occur while the pre-collision braking function is
operating, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.
● If the vehicle is stopped by the operation of the pre-collision braking func-
tion, the operation of the pre-collision braking function will be canceled after
the vehicle has been stopped for approximately 2 seconds.
234
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
■ Conditions under which the system may operate even if there is no pos-
sibility of a collision
● In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.
• When passing a vehicle in an oncom-
ing lane that is stopped to make a
right/left turn
• When passing an oncoming vehicle
while making a left or right turn
• When driving on a road where relative
location to vehicle ahead in an adja-
cent lane may change, such as on a
winding road
• When rapidly closing on a preceding
vehicle
235
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
• If the front of the vehicle is raised or lowered, such as when the road sur-
face is uneven or undulating
• When driving on a narrow path surrounded by a structure, such as in a
tunnel or on an iron bridge
• When passing extremely close to a
vehicle or structural object
• When there is a vehicle or object by
the roadside at the entrance of a
curve
• When there is a reflective object
(manhole cover, steel plate, etc.),
steps, dip, or a protrusion on the road
surface or roadside
• When passing through a place with a
low structure above the road (low ceil-
ing, traffic sign, etc.)
• When there is a structural object
(overpass, traffic sign, billboard,
street light, etc.) at the top of an uphill
road
236
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
• When using an automatic car wash
• When there are patterns or paint on the road or a wall that may be mis-
taken for a vehicle
• When rapidly closing on an electric
toll gate barrier, parking area barrier,
or other barrier that opens and closes
• When approaching a low hanging
object that may contact the vehicle,
such as a banner, tree branches or
thick grass
• When the vehicle is hit by water,
snow, dust, etc. from a vehicle ahead
• When driving through steam or
smoke
• When the front part of the vehicle is
raised or lowered
237
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
• When the sensor is misaligned due to
a strong impact being applied to the
sensor, etc.
• When the vehicle is being parked in a
place where there is a low hanging
object at the height of the front sensor
• When the windshield is covered with
raindrops, etc.
238
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
■ Situations in which the system may not operate properly
● In some situations such as the following, a vehicle may not be detected by
the front sensor, preventing the system from operating properly:
• If an oncoming vehicle is approaching your vehicle
• When approaching the side or front of a vehicle
• If a preceding vehicle has a small rear end, such as an unloaded truck
• If a vehicle ahead is carrying a load which protrudes past its rear bumper
• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,
acceleration or deceleration)
• When suddenly cutting behind a preceding vehicle
• If a preceding vehicle has a low rear
end, such as a low bed trailer
• If a vehicle ahead has extremely high
ground clearance
• If a vehicle cuts in front of your vehicle
or emerges from beside a vehicle
239
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke that may obscure vehicles ahead
• When driving in a place where the surrounding brightness changes sud-
denly, such as at the entrance or exit of a tunnel
• While driving on a curve and for a certain amount of time after driving on
a curve
• When a vehicle ahead is not directly
in front of your vehicle
• When driving in inclement weather
such as heavy rain, fog, snow or a
sand storm
• When a very bright light, such as the
sun or the headlights of oncoming
traffic, shines directly into the front
sensor
• When the surrounding area is dim,
such as at dawn or dusk, or while at
night or in a tunnel
240
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
• If the wheels are misaligned
• If a wiper blade is blocking the front sensor
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on roads with sharp bends or uneven surfaces
• When a preceding vehicle is a poor reflector of laser
● In some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as when
the brake parts are extremely cold, extremely hot, or wet
• If the vehicle is not properly maintained (brakes or tires are excessively
worn, improper tire inflation pressure, etc.)
• When the vehicle is being driven on a gravel road or other slippery sur-
face
• If your vehicle is skidding
• When the front part of the vehicle is
raised or lowered
• When the sensor is misaligned due to
a strong impact being applied to the
sensor, etc.
241
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
■ If the PCS warning light flashes or illuminates and a warning message is
displayed on the multi-information display
The pre-collision system may be temporarily unavailable or there may be a
malfunction in the system.
● In the following situations, the warning light will turn off, the message will
disappear and the system will become operational when normal operating
conditions return:
• When the area around the front sensor is hot, such as in the sun
• When the windshield is fogged up or covered with condensation or ice
(P. 380)
• When the front sensor or the area around either sensor is cold, such as in
an extremely cold environment
• If the area in front of the front sensor is obstructed, such as when the
hood is open
● If the PCS warning light continues to flash or illuminate or the warning mes-
sage does not disappear, the system may be malfunctioning. Have the vehi-
cle inspected by your Toyota dealer immediately.
■ If VSC is disabled
● If TRAC and VSC are disabled (P. 268), the pre-collision brake assist and
pre-collision braking functions are also disabled. However, the pre-collision
warning function will still operate.
● The PCS warning light illuminates and “VSC TURNED OFF PRE-COLLI-
SION BRAKE SYSTEM UNAVAILABLE” is displayed on the multi-informa-
tion display.
242
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
When driving on roads with white (yellow) lines, this function alerts the
driver when the vehicle might depart from its lane.
The LDA system recognizes visi-
ble white (yellow) lines with the
front sensor on the upper portion
of the front windshield.
When the system determines that
the vehicle might depart from its
lane, a warning is displayed on
the multi-information display and
the warning buzzer sounds to
alert the driver.
When the warning buzzer sounds,
check the surrounding road situa-
tion and carefully operate the
steering wheel to move the vehicle
back to the center within the white
(yellow) lines.
LDA (Lane Departure Alert)
Summary of function
Lane departure alert function
243
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
WARNING
■ Before using the LDA system
Do not rely solely upon the LDA system. LDA is not a system which auto-
matically drives the vehicle or reduces the amount of attention that must be
paid to the area in front of the vehicle. The driver must always assume full
responsibility for driving safely by always paying careful attention to the sur-
rounding conditions and operate the steering wheel to correct the path of
the vehicle. Also, make sure to take adequate breaks when fatigued, such
as from driving for a long period of time.
Failure to perform appropriate driving operations and pay careful attention
may lead to an accident, resulting in death or serious injury.
■ To avoid operating the LDA by mistake
When not using the LDA system, use the LDA switch to turn the system off.
■ Preventing LDA system malfunctions and operations performed by
mistake
● Do not modify the headlights or place stickers, etc., on the surface of the
lights.
● Do not modify the suspension etc. If the suspension etc. needs to be
replaced, contact your Toyota dealer.
● Do not install or place anything on the hood or grille. Also, do not install a
grille guard (bull bars, kangaroo bar, etc.).
244
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
Press the LDA switch to turn the
LDA system on.
The LDA indicator illuminates on
the meter.
Press the LDA switch again to turn
the LDA system off.
When the LDA system is turned on
or off, operation of the LDA system
continues in the same condition
the next time the hybrid system is
started
Turning the LDA system on
Indication on the multi-information display
Inside of displayed white lines
is white
Inside of displayed white lines
is black
Indicates that the system is recog-
nizing white (yellow) lines. When
the vehicle departs from its lane,
the white line displayed on the
side the vehicle departs from
flashes orange.
Indicates that the system is not
able to recognize white (yellow)
lines or is temporarily canceled.
245
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
■ Operation conditions
This function operates when all of the following conditions are met.
● LDA is turned on.
● Vehicle speed is approximately 32 mph (50 km/h) or more.
● System recognizes white (yellow) lines.
● Width of traffic lane is approximately 9.8 ft. (3 m) or more.
● Turn signal lever is not operated.
● Vehicle is driven on a straight road or around a gentle curve with a radius of
more than approximately 492 ft. (150 m).
● No system malfunctions are detected. (P. 481)
■ Temporary cancellation of functions
When operation conditions are no longer met, a function may be temporarily
canceled. However, when the operation conditions are met again, operation
of the function is automatically restored.
■ Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.
■ White (yellow) lines are only on one side of road
The LDA system will not operate for the side on which white (yellow) lines
could not be recognized.
■ After the vehicle has been parked in the sun
The LDA system may not be available and a warning message may be dis-
played for a while after starting off. When the temperature in the cabin
decreases and the temperature around the front sensor (P. 225) becomes
suitable for its operation, the system will begin to operate.
246
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
■ Conditions in which functions may not operate properly
In the following situations, the front sensor may not detect white (yellow) lines
and various functions may not operate normally.
● There are shadows on the road that run parallel with, or cover, the white
(yellow) lines.
● The vehicle is driven in an area without white (yellow) lines, such as in front
of a tollgate or checkpoint, or at an intersection, etc.
● The white (yellow) lines are cracked, “Botts’ dots”, “Raised pavement
marker” or stones are present.
● The white (yellow) lines cannot be seen or are difficult to see due to sand,
etc.
● The vehicle is driven on a road surface that is wet due to rain, puddles, etc.
● The traffic lines are yellow (which may be more difficult to recognize than
lines that are white).
● The white (yellow) lines cross over a curb, etc.
● The vehicle is driven on a bright surface, such as concrete.
● The vehicle is driven on a surface that is bright due to reflected light, etc.
● The vehicle is driven in an area where the brightness changes suddenly,
such as at the entrances and exits of tunnels, etc.
● Light from the headlights of an oncoming vehicle, the sun, etc., enters the
camera.
● The vehicle is driven where the road diverges, merges, etc.
● The vehicle is driven on a slope.
● The vehicle is driven on a road which tilts left or right, or a winding road.
● The vehicle is driven on an unpaved or rough road.
● The vehicle is driven around a sharp curve.
● The traffic lane is excessively narrow or wide.
● The vehicle is extremely tilted due to carrying heavy luggage or having
improper tire pressure.
● The distance to the preceding vehicle is extremely short.
● The vehicle is moving up and down a large amount due to road conditions
during driving (poor roads or road seams).
● The headlight lenses are dirty and emit a faint amount of light at night, or the
beam axis has deviated.
● The vehicle has just changed lanes or crossed an intersection.
■ Warning messages
Warning messages are used to indicate a system malfunction or to inform the
driver of the need for caution while driving. (P. 490)
■ Customization
P. 106
247
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
Push the lever away from you
with the headlight switch in the
position.
Press the Automatic High
Beam switch.
The Automatic High Beam indica-
tor will come on when the head-
lights are turned on automatically
to indicate that the system is
active.
Automatic High Beam
The Automatic High Beam uses an in-vehicle front sensor to
assess the brightness of streetlights, the lights of vehicles
ahead etc., and automatically turns the high beam on or off as
necessary.
WARNING
■ Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to
observe your surroundings and turning the high beam on or off manually if
necessary.
■ To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.
Activating the Automatic High Beam system
1
2
248
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
■
Switching to low beam
Pull the lever to the original
position.
The Automatic High Beam indi-
cator will turn off.
Push the lever away from you to
activate the Automatic High
Beam system again.
■
Switching to high beam
Press the Automatic High
Beam switch.
The Automatic High Beam indi-
cator will turn off and the high
beam indicator will turn on.
Press the switch to activate the
Automatic High Beam system
again.
Turning the high beam on/off manually
249
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
■ High beam automatic turning on or off conditions
● When all of the following conditions are fulfilled, the high beam will be auto-
matically turned on (after approximately 1 second):
• Vehicle speed is approximately 21 mph (33 km/h) or more.
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights turned on.
• There are few streetlights on the road ahead.
● If any of the following conditions is met, the high beams will turn off automat-
ically:
• Vehicle speed is below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have their headlights or tail lights turned on.
• There are many streetlights on the road ahead.
■ Front sensor detection information
● The high beam may not be automatically turned off in the following situa-
tions:
• When vehicles ahead suddenly appear from a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road
dividers or roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights
● The high beam may be turned off if a vehicle ahead that is using fog lights
without using the headlights is detected.
● House lights, street lights, traffic signals, and illuminated billboards or signs
may cause the high beam to switch to the low beams, or the low beams to
remain on.
● The following factors may affect the amount of time taken to turn the high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of vehicles ahead
• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface,
etc.)
• The number of passengers and amount of luggage
● The high beam may be turned on or off when the driver does not expect it.
● Bicycles or similar objects may not be detected.
250
4-5. Toyota Safety Sense C
PRIUS c_U (OM52G95U)
● In the situations shown below, the system may not be able to accurately
detect surrounding brightness levels. This may cause the low beams to
remain on or the high beams to cause problems for pedestrians, vehicles
ahead or other parties. In these cases, manually switch between the high
and low beams.
• In bad weather (rain, snow, fog, sandstorms, etc.)
• The windshield is obscured by fog, mist, ice, dirt, etc.
• The windshield is cracked or damaged.
• The front sensor is deformed or dirty.
• The front sensor temperature is extremely high.
• Surrounding brightness levels are equal to those of headlights, tail lights
or fog lights.
• Vehicles ahead have headlights or tail lights that are either switched off,
dirty, are changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending roads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks, etc.).
• When frequently and repeatedly taking curves or driving on a winding
road.
• There is a highly reflective object ahead of the vehicle, such as a sign or
a mirror.
• The back of a vehicle ahead is highly reflective, such as a container on a
truck.
• The vehicle’s headlights are damaged or dirty, or are not aimed properly.
• The vehicle is listing or titling due to a flat tire, a trailer being towed, etc.
• The high beam and low beam are repeatedly being switched between in
an abnormal manner.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.
251
4-5. Toyota Safety Sense C
4
Driving
PRIUS c_U (OM52G95U)
■ Temporarily lowering sensor sensitivity
The sensitivity of the sensor can be temporarily lowered.
Vehicles without a smart key system: Turn the power switch off while the
following conditions are met.
Vehicles with a smart key system: Turn the power switch off while the fol-
lowing conditions are met
• The headlight switch is in .
• The headlight switch lever is in high beam position.
• Automatic High Beam switch is on.
Vehicles without a smart key system: Turn the power switch to the “ON”
position.
Vehicles with a smart key system: Turn the power switch to ON mode.
Within 60 seconds after , repeat pulling the headlight switch lever to the
original position then pushing it to the high beam position quickly 10 times,
then leave the lever in high beam position.
If the sensitivity is changed, the Automatic High Beam indicator is turn on
and off 3 times.
Automatic High Beam (headlights) may turn on even the vehicle is stopped.
1
2
3 2
4
252
PRIUS c_U (OM52G95U)
4-6. Using the driving support systems
Use the cruise control to maintain a set speed without depressing the
accelerator pedal.
Indicators
Cruise control switch
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the moment
the lever is released becomes the
set speed.
Cruise control
: If equipped
Summary of functions
1
2
Setting the vehicle speed
1
2
253
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired direc-
tion.
Large adjustment: Hold the lever in
the desired direction.
The set speed will be increased or decreased as follows:
Fine adjustment: By approximately 1 mph (1.6 km/h) each time the lever is
operated.
Large adjustment: The set speed can be increased or decreased continu-
ally until the lever is released.
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brakes are applied.
Pushing the lever up resumes
the constant speed control.
Resuming is available when the
vehicle speed is more than approx-
imately 25 mph (40 km/h).
Adjusting the set speed
1
2
Canceling and resuming the constant speed control
1
2
254
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
■ Cruise control can be set when
● The shift lever is in D.
● Vehicle speed is above approximately 25 mph (40 km/h).
■ Accelerating after setting the vehicle speed
● The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
● Actual vehicle speed falls more than approximately 10 mph (16 km/h) below
the preset vehicle speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● VSC is activated.
● TRAC is activated for a period of time.
● When the VSC or TRAC system is turned off.
■ If the warning message for the cruise control is shown on the multi-
information display
P. 492
255
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
WARNING
■ To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● During emergency towing
256
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
Vehicles without a smart key sys-
tem: The rear view image is dis-
played when the shift position is in
R and the power switch is in the
“ON” position.
Vehicles with a smart key system:
The rear view image is displayed
when the shift position is in R and
the power switch is in ON mode.
The rear view monitor system will
be deactivated when the shift lever
is in any position other than R.
Rear view monitor system
The rear view monitor system assists the driver by displaying
fixed guide line and an image of the view behind the vehicle
while backing up, for example while parking.
For vehicles with a navigation system, refer to the “NAVIGATION
SYSTEM OWNER’S MANUAL”.
The screen illustrations used in this text are intended as examples,
and may differ from the image that is actually displayed on the
screen.
257
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
■
Screen description
Vehicle width guide lines
The line indicates a guide path when the vehicle is being backed
straight up.
The displayed width is wider than the actual vehicle width.
Vehicle center guide line
This line indicates the estimated vehicle center on the ground.
Distance guide line
The line shows distance behind the vehicle, a point approximately 1.5 ft.
(0.5 m) (red) from the edge of the bumper.
Distance guide line
The line shows distance behind the vehicle, a point approximately 3 ft.
(1 m) (blue) from the edge of the bumper.
Using the rear view monitor system
1
2
3
4
258
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
■
Area displayed on screen
The rear view monitor system
displays an image of the view
from the bumper of the rear
area of the vehicle.
To adjust the image on the rear
view monitor system screen.
(P. 294)
• The area displayed on the
screen may vary according to
vehicle orientation conditions.
• Objects which are close to either
corner of the bumper or under
the bumper cannot be seen on
the screen.
• The camera uses a special lens.
The distance of the image that
appears on the screen differs
from the actual distance.
• Items which are located higher than the camera may not be displayed
by the monitor.
Rear view monitor system precautions
Corners of bumper
259
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
■
Rear view monitor system camera
The camera for the rear view
monitor system is located
above the license plate.
● Using the camera
If dirt or foreign matter (such as water droplets, snow, mud etc.) is
adhering to the camera, it cannot transmit a clear image. In this
case, flush it with a large quantity of water and wipe the camera
lens clean with a soft and wet cloth.
■
Differences between the screen and the actual road
The distance guide lines and the vehicle width guide lines may not
actually be parallel with the dividing lines of the parking space, even
when they appear to be so. Be sure to check visually.
The distances between the vehicle width guide lines and the left
and right dividing lines of the parking space may not be equal, even
when they appear to be so. Be sure to check visually.
The distance guide lines give a distance guide for flat road sur-
faces. In any of the following situations, there is a margin of error
between the fixed guide lines on the screen and the actual dis-
tance/course on the road.
260
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
● When the ground behind the vehicle slopes up sharply
The distance guide lines will
appear to be closer to the vehi-
cle than the actual distance.
Because of this, objects will
appear to be farther away than
they actually are. In the same
way, there will be a margin of
error between the guidelines
and the actual distance/course
on the road.
● When the ground behind the vehicle slopes down sharply
The distance guide lines will
appear to be farther from the
vehicle than the actual dis-
tance. Because of this, objects
will appear to be closer than
they actually are. In the same
way, there will be a margin of
error between the guidelines
and the actual distance/course
on the road.
261
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
● When any part of the vehicle sags
When any part of the vehicle
sags due to the number of pas-
sengers or the distribution of
the load, there is a margin of
error between the fixed guide
lines on the screen and the
actual distance/course on the
road.
■
When approaching three-dimensional objects
The distance guide lines are displayed according to flat surfaced
objects (such as the road). It is not possible to determine the posi-
tion of three-dimensional objects (such as vehicles) using the dis-
tance guide lines. When approaching a three-dimensional object
that extends outward (such as the flatbed of a truck), be careful of
the following.
● Distance guidelines
Visually check the surroundings
and the area behind the vehi-
cle. On the screen, it appears
that a truck is parked at point
. However, in reality if you
back up to point , you will hit
the truck. On the screen, it
appears that is closest and
is farthest away. However,
in reality, the distance to
and is the same, and is
farther than and .
A margin of error
2
1
1
3
1
3 2
1 3
262
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
■
Vehicle width guide lines
Visually check the surroundings and the area behind the vehicle. In
the case shown below, the truck appears to be outside of the vehi-
cle width guide lines and the vehicle does not look as if it hits the
truck. However, the rear body of the truck may actually cross over
the vehicle width guide lines. In reality if you back up as guided by
the vehicle width guide lines, the vehicle may hit the truck.
Vehicle width guide lines
263
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
■
If you notice any symptoms
If you notice any of the following symptoms, refer to the likely cause
and the solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.
Things you should know
Likely cause Solution
The image is difficult to see
• The vehicle is in a dark area
• The temperature around the lens
is either high or low
• The outside temperature is low
• There are water droplets on the
camera
• It is raining or humid
• Foreign matter (mud etc.) is
adhering to the camera
• Sunlight or headlights are shining
directly into the camera
• The vehicle is under fluorescent
lights, sodium lights, mercury
lights etc.
If this happens due to these causes,
it does not indicate a malfunction.
Back up while visually checking the
vehicle’s surroundings. (Use the
monitor again once conditions have
been improved.)
To adjust the image on the rear view
monitor system screen. (P. 294)
The image is blurry
Dirt or foreign matter (such as water
droplets, snow, mud etc.) is adher-
ing to the camera.
Flush the camera with a large quan-
tity of water and wipe the camera
lens clean with a soft and wet cloth.
The image is out of alignment
The camera or surrounding area has
received a strong impact.
Have the vehicle inspected by your
Toyota dealer.
The fixed guide lines are very far out of alignment
• The vehicle is tilted (there is a
heavy load on the vehicle, tire
pressure is low due to a tire punc-
ture, etc.)
• The vehicle is used on an incline.
If this happens due to these causes,
it does not indicate a malfunction.
Back up while visually checking the
vehicle's surroundings.
The camera position is out of align-
ment.
Have the vehicle inspected by your
Toyota dealer.
264
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
WARNING
■ When using the rear view monitor system
The rear view monitor system is a supplemental device intended to assist
the driver when backing up. When backing up, be sure to visually check all
around the vehicle both directly and using the mirrors before proceeding. If
you do not, you may hit another vehicle, and could possibly cause an acci-
dent.
Pay attention to the following precautions when using the rear view monitor
system.
● Never depend on the rear view monitor system entirely when backing up.
The image and the position of the guide lines displayed on the screen may
differ from the actual state.
Use caution, just as you would when backing up any vehicle.
● Be sure to back up slowly, depressing the brake pedal to control vehicle
speed.
● The instructions given are only guidelines.
When and how much to turn the steering wheel will vary according to traf-
fic conditions, road surface conditions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of this before using the rear view
monitor system.
● When parking, be sure to check that the parking space will accommodate
your vehicle before maneuvering into it.
● Do not use the rear view monitor system in the following cases:
• On icy or slick road surfaces, or in snow
• When using tire chains or the compact spare tire
• When the back door is not closed completely
• On roads that are not flat or straight, such as curves or slopes.
● In low temperatures, the screen may darken or the image may become
faint. The image could distort when the vehicle is moving, or you may
become unable to see the image on the screen. Be sure to visually check
all around the vehicle both directly and using the mirrors before proceed-
ing.
● If the tire sizes are changed, the position of the fixed guide lines displayed
on the screen may change.
● The camera uses a special lens. The distances between objects and
pedestrians that appear in the image displayed on the screen will differ
from the actual distances. (P. 259)
265
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
NOTICE
■ How to use the camera
● The rear view monitor system may not operate properly in the following
cases.
• If the back of the vehicle is hit, the position and mounting angle of the
camera may change.
• As the camera has a water proof construction, do not detach, disassem-
ble or modify it. This may cause incorrect operation.
• When cleaning the camera lens, flush the camera with a large quantity
of water and wipe it with a soft and wet cloth. Strongly rubbing the cam-
era lens may cause the camera lens to be scratched and unable to
transmit a clear image.
• Do not allow organic solvent, car wax, window cleaner or glass coating
to adhere to the camera. If this happens, wipe it off as soon as possible.
• If the temperature changes rapidly, such as when hot water is poured
on the vehicle in cold weather, the system may not operate normally.
• When washing the vehicle, do not apply intensive bursts of water to the
camera or camera area. Doing so may result in the camera malfunc-
tioning.
● Do not expose the camera to strong impact as this could cause a malfunc-
tion. If this happens, have the vehicle inspected by your Toyota dealer as
soon as possible.
266
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
◆
ECB (Electronically Controlled Brake System)
The electronically controlled system generates braking force corre-
sponding to the brake operation
◆
ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly,
or if the brakes are applied while driving on a slippery road surface
◆
Brake assist
Generates an increased level of braking force after the brake pedal
is depressed when the system detects a panic stop situation
◆
VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or
turning on slippery road surfaces
◆
TRAC (Traction Control)
Helps to maintain drive power and prevent the drive wheels from
spinning when starting the vehicle or accelerating on slippery roads
◆
Hill-start assist control
Helps to reduce the backward movement of the vehicle when start-
ing on an uphill
◆
EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to
turn the steering wheel
Driving assist systems
To keep driving safety and performance, the following systems
operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehi-
cle.
267
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
The slip indicator light will flash
while the TRAC/VSC/ABS sys-
tems are operating.
If the vehicle gets stuck in mud, dirt or snow, the TRAC system may
reduce power from the hybrid system to the wheels. Pressing to
turn the system off may make it easier for you to rock the vehicle in
order to free it.
To turn the TRAC system off,
quickly press and release .
The “TRAC OFF” will be shown on
the multi-information display.
Press again to turn the system
back on.
When the TRAC/VSC/ABS systems are operating
Disabling the TRAC system
268
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
■ Turning off both TRAC and VSC systems
To turn the TRAC and VSC systems off, press and hold for more than 3
seconds while the vehicle is stopped.
The VSC OFF indicator light will come on and the “TRAC OFF” will be shown
on the multi-information display.
*
Press again to turn the system back on.
*
: When the TRAC and VSC systems are turned off, pre-collision brake assist
and pre-collision braking will be disabled and the PCS warning light will illu-
minate. (P. 241)
■ When the message is displayed on the multi-information display show-
ing that TRAC has been disabled even if has not been pressed
TRAC cannot be operated. Contact your Toyota dealer.
■ Operating conditions of hill-start assist control
When the following four conditions are met, the hill-start assist control will
operate:
● The shift lever is in a position other than P or N (when starting off forward/
backward on an upward incline)
● The vehicle is stopped
● The accelerator pedal is not depressed
● The parking brake is not engaged
■ Automatic system cancelation of hill-start assist control
The hill-start assist control will turn off in any of the following situations:
● The shift lever is shifted to P or N
● The accelerator pedal is depressed
● The parking brake is engaged
● 2 seconds at maximum elapsed after the brake pedal is released
■ Sounds and vibrations caused by the ABS, brake assist, VSC, TRAC and
hill-start assist control systems
● A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the hybrid system is started or just after the
vehicle begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
● Any of the following conditions may occur when the above systems are
operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard also after the vehicle comes to a stop.
269
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
■ ECB operating sound
ECB operating sound may be heard in the following cases, but it does not
indicate that a malfunction has occurred.
● Operating sound heard from the engine compartment when the brake pedal
is operated.
● Motor sound of the brake system heard from the front part of the vehicle
when the driver’s door is opened.
● Operating sound heard from the engine compartment when one or two min-
utes passed after the stop of the hybrid system.
■ EPS operation sound
When the steering wheel is operated, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction.
■ Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel may feel heavy as a result. Should this occur, refrain
from excessive steering input or stop the vehicle and turn the hybrid system
off. The EPS system should return to normal within 10 minutes.
■ Electric power steering system warning light (warning buzzer)
P. 486
■ Automatic reactivation of TRAC and VSC systems
After turning the TRAC and VSC systems off, the systems will be automati-
cally re-enabled in the following situations:
● When the power switch is turned to the “LOCK” position (vehicles without a
smart key system) or the power switch is turned off (vehicles with a smart
key system)
● If only the TRAC system is turned off, the TRAC will turn on when vehicle
speed increases
If both the TRAC and VSC systems are turned off, automatic re-enabling will
not occur when vehicle speed increases.
270
4-6. Using the driving support systems
PRIUS c_U (OM52G95U)
WARNING
■ The ABS does not operate effectively when
● The limits of tire gripping performance have been exceeded (such as
excessively worn tires on a snow covered road).
● The vehicle hydroplanes while driving at high speed on wet or slick roads.
■ Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten the vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the
following situations:
● When driving on dirt, gravel or snow-covered roads
● When driving with tire chains
● When driving over bumps in the road
● When driving over roads with potholes or uneven surfaces
■ TRAC/VSC may not operate effectively when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRAC/VSC system is operating.
Drive the vehicle carefully in conditions where stability and power may be
lost.
■ Hill-start assist control does not operate effectively when
● Do not overly rely on hill-start assist control. Hill-start assist control may
not operate effectively on steep inclines and roads covered with ice.
● Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.
■ When the TRAC/ABS/VSC are activated
The slip indicator light flashes. Always drive carefully. Reckless driving may
cause an accident. Exercise particular care when the indicator light flashes.
■ When the TRAC/VSC systems are turned off
Be especially careful and drive at a speed appropriate to the road condi-
tions. As these are the systems to help ensure vehicle stability and driving
force, do not turn the TRAC/VSC systems off unless necessary.
271
4-6. Using the driving support systems
4
Driving
PRIUS c_U (OM52G95U)
WARNING
■ Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern and
total load capacity. In addition, make sure that the tires are inflated to the
recommended tire inflation pressure level.
The ABS, TRAC and VSC systems will not function correctly if different tires
are installed on the vehicle.
Contact your Toyota dealer for further information when replacing tires or
wheels.
■ Handling of tires and the suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause a system to malfunction.
272
PRIUS c_U (OM52G95U)
4-7. Driving tips
◆
Using Eco drive mode
When using Eco drive mode, the torque corresponding to the accel-
erator pedal depression amount can be generated more smoothly
than it is in normal conditions. In addition, the operation of the air
conditioning system (heating/cooling) will be minimized, improving
the fuel economy. (P. 201)
◆
Use of Hybrid System Indicator
The Eco-friendly driving is possible by keeping the needle of Hybrid
System Indicator within Eco area. (P. 108)
◆
Shift lever operation
Shift the shift lever to D when stopped at a traffic light, or driving in
heavy traffic etc. Shift the shift lever to P when parking. When using
the N, there is no positive effect on fuel consumption. In the N, the
gasoline engine operates but electricity cannot be generated. Also,
when using the air conditioning system, etc., the hybrid battery
(traction battery) power is consumed.
◆
Accelerator pedal/brake pedal operation
● Drive your vehicle smoothly. Avoid abrupt acceleration and
deceleration. Gradual acceleration and deceleration will make
more effective use of the electric motor (traction motor) without
having to use gasoline engine power.
● Avoid repeated acceleration. Repeated acceleration consumes
hybrid battery (traction battery) power, resulting in poor fuel con-
sumption. Battery power can be restored by driving with the
accelerator pedal slightly released.
◆
When braking
Make sure to operate the brakes gently and in a timely manner. A
greater amount of electrical energy can be regenerated when slow-
ing down.
Hybrid vehicle driving tips
For economical and ecological driving, pay attention to the fol-
lowing points:
273
4-7. Driving tips
4
Driving
PRIUS c_U (OM52G95U)
◆
Delays
Repeated acceleration and deceleration, as well as long waits at
traffic lights, will lead to bad fuel economy. Check traffic reports
before leaving and avoid delays as much as possible. When driving
in a traffic jam, gently release the brake pedal to allow the vehicle to
move forward slightly while avoiding overuse of the accelerator
pedal. Doing so can help control excessive gasoline consumption.
◆
Highway driving
Control and maintain the vehicle at a constant speed. Before stop-
ping at a toll booth or similar, allow plenty of time to release the
accelerator and gently apply the brakes. A greater amount of elec-
trical energy can be regenerated when slowing down.
◆
Air conditioning
Use the air conditioning only when necessary. Doing so can help
reduce excessive gasoline consumption.
In summer: When the ambient temperature is high, use the recircu-
lated air mode. Doing so will help to reduce the burden on the air
conditioning system and reduce fuel consumption as well.
In winter: Because the gasoline engine will not automatically cut out
until it and the interior of the vehicle are warm, it will consume fuel.
Also, fuel consumption can be improved by avoiding overuse of the
heater.
◆
Checking tire inflation pressure
Make sure to check the tire inflation pressure frequently. Improper
tire inflation pressure can cause poor fuel economy.
Also, as snow tires can cause large amounts of friction, their use on
dry roads can lead to poor fuel economy. Use tires that are appro-
priate for the season.
◆
Luggage
Carrying heavy luggage will lead to poor fuel economy. Avoid carry-
ing unnecessary luggage. Installing a large roof rack will also cause
poor fuel economy.
274
4-7. Driving tips
PRIUS c_U (OM52G95U)
◆
Warming up before driving
Since the gasoline engine starts up and cuts out automatically
when cold, warming up the engine is unnecessary. Moreover, fre-
quently driving short distances will cause the engine to repeatedly
warm up, which can lead to excess fuel consumption.
275
4-7. Driving tips
4
Driving
PRIUS c_U (OM52G95U)
● Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/power control unit coolant
• Washer fluid
● Have a service technician inspect the condition of the 12-volt bat-
tery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle's roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
Winter driving tips
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Pre-winter preparations
Before driving the vehicle
When driving the vehicle
276
4-7. Driving tips
PRIUS c_U (OM52G95U)
● Park the vehicle and move the shift lever to P without setting the
parking brake. The parking brake may freeze up, preventing it from
being released. If the vehicle is parked without setting the parking
brake, make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.
● If the vehicle is parked without setting the parking brake, confirm
that the shift lever cannot be moved out of P
*
.
*
: The shift lever will be locked if it is attempted to be shifted from P to any
other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by your Toyota dealer immediately.
Use the correct tire chain size when mounting the tire chains. Chain
size is regulated for each tire size.
Side chain
(0.12 in. [3.0 mm] in diameter)
Cross chain
(0.16 in. [4.0 mm] in diameter)
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.
When parking the vehicle
Selecting tire chains
1
2
Regulations on the use of tire chains
277
4-7. Driving tips
4
Driving
PRIUS c_U (OM52G95U)
■
Tire chain installation
Observe the following precautions when installing and removing chains:
●
Install and remove tire chains in a safe location.
●
Install tire chains on the front tires only. Do not install tire chains on the
rear tires.
●
Install tire chains on front tires as tightly as possible. Retighten chains
after driving 1/4 1/2 mile (0.5 1.0 km).
●
Install tire chains following the instructions provided with the tire chains.
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
● Use tires of the size specified.
● Maintain the recommended level of air pressure.
● Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
● Do not use LDA (Lane Departure Alert) system.
278
4-7. Driving tips
PRIUS c_U (OM52G95U)
NOTICE
■ Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
279
4-7. Driving tips
4
Driving
PRIUS c_U (OM52G95U)
280
PRIUS c_U (OM52G95U)
5-1. Using the audio system
Audio system types........... 282
5-2. Basic Operations
(Multimedia system)
Multimedia system ............ 283
Steering wheel audio
switches .......................... 285
USB port/AUX port............ 286
Basic audio operations...... 288
5-3. Setup
(Multimedia system)
Setup menu....................... 290
General settings................ 291
Audio settings ................... 293
Display settings................. 294
Voice settings.................... 295
5-4. Using the Multimedia
system
Selecting the audio
source ............................. 296
List screen operation......... 297
Optimal use of the
multimedia system .......... 299
5-5. Using the radio
(Multimedia system)
Radio operation................. 300
281
5
Audio system
PRIUS c_U (OM52G95U)
5-6. Playing an audio CD and
MP3/WMA/AAC discs
(Multimedia system)
CD player operation .......... 302
5-7. Using an external device
(Multimedia system)
Listening to an iPod .......... 308
Listening to a USB
memory device................ 313
Using the AUX port ........... 318
5-8. Connecting Bluetooth
®
(Multimedia system)
Preparations to use
wireless
communication................ 319
Registering a Bluetooth
®
audio player for the
first time .......................... 324
Registering a Bluetooth
®
phone for the
first time .......................... 325
Registering a Bluetooth
®
device.............................. 326
Connecting a Bluetooth
®
device.............................. 328
Displaying a Bluetooth
®
device details .................. 330
Detailed Bluetooth
®
system settings ............... 331
5-9. Bluetooth
®
Audio
(Multimedia system)
Listening to Bluetooth
®
Audio............................... 332
5-10. Bluetooth
®
phone
(Multimedia system)
Using a Bluetooth
®
Phone ............................. 334
Making a call ..................... 337
Receiving a call................. 340
Speaking on the phone..... 341
Bluetooth
®
phone
message function............ 345
Using the steering
wheel switches................ 350
Bluetooth
®
phone
settings ........................... 351
Contact/
Call History Settings ....... 353
What to do if...
(Troubleshooting)............ 363
5-11. Bluetooth
®
(Multimedia system)
Bluetooth
®
......................... 367
5-12. Using the voice
command system
(Multimedia system)
Voice command
system ............................ 372
282
PRIUS c_U (OM52G95U)
5-1. Using the audio system
With Multimedia system
P. 2 83
With navigation system
Owners of models equipped with a navigation system should refer to
the “NAVIGATION SYSTEM OWNER’S MANUAL”.
Audio system types
283
5
Audio system
PRIUS c_U (OM52G95U)
5-2. Basic Operations (Multimedia system)
Multimedia system
: If equipped
Operations such as listening to audio, using the hands-free
phone and changing multimedia system settings are started by
using the following buttons.
Multimedia system operation buttons
“AUDIO” button
Display the “Select Audio Source”
screen or audio top screen.
(P. 296)
button
Press this button to access the Bluetooth
®
hands-free system.
(P. 334)
“CAR” button
Press this button to access the energy monitor/
consumption screen. (P. 110)
“SETUP” button
Press this button to customize
the function settings. (P. 290)
284
5-2. Basic Operations (Multimedia system)
PRIUS c_U (OM52G95U)
By touching the screen with your finger, you can control the multime-
dia system, etc.
■
Drag
*
Touch the screen with your finger, and move the screen to the
desired position.
● Scrolling the lists
■
Flick
*
Touch the screen with your finger and quickly move the screen by
flicking your finger.
● Scrolling the main screen page
*
: The above operations may not be performed on all screens.
■ When using the touch screen
● If the screen is cold, the display may be dark, or the system may seem to be
operating slightly slower than normal.
● The screen may seem dark and hard to see when viewed through sun-
glasses. Change your angle of viewing, adjust the display on the “Display
Settings” screen (P. 294) or remove your sunglasses.
● Flick operations may not be performed smoothly in high altitudes.
Operating the touch screen
NOTICE
■ To avoid damaging the touch screen
● To prevent damaging the screen, lightly touch the screen buttons with your
finger.
● Do not use objects other than your finger to touch the screen.
● Wipe off fingerprints using a glass cleaning cloth. Do not use chemical
cleaners to clean the screen, as they may damage the touch screen.
285
5-2. Basic Operations (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Volume switch
• Increases/decreases volume
• Press and hold: Continuously
increases/decreases volume
Cursor switch
• Selects (radio stations/radio
presets/tracks/files/songs)
• Moves cursor
• Press and hold: Seek up/down (radio stations)
• Fast up/down (tracks/files)
“MODE” switch
• Changes audio source
• Press and hold this switch to mute or pause the current operation
To cancel the mute or pause, press and hold.
Steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or
navigation system. For details, refer to the manual provided with
the audio system or navigation system.
Operating the multimedia system using the steering wheel
switches
1
1
2
3
WARNING
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
286
5-2. Basic Operations (Multimedia system)
PRIUS c_U (OM52G95U)
■
iPod
Open the cover and connect an
iPod using an iPod cable.
Turn on the power of the iPod if
it is not turned on.
■
USB memory
Open the cover and connect the USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■
Portable audio player
Open the cover and connect the portable audio player.
Turn on the power of the portable audio player if it is not turned on.
■
Cord hook
A cord can be secured as
shown in the illustration.
Cords with a diameter of
approximately 0.2 in. (5 mm)
can be secured.
USB port/AUX port
Connect an iPod, USB memory device or portable audio player
to the USB/AUX port as indicated below. Select “iPod”, “USB” or
“AUX” on the audio source selection screen and the device can
be operated via multimedia system.
Connecting using the USB/AUX port
287
5-2. Basic Operations (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
WARNING
■ While driving
Do not connect a device or operate the device controls.
NOTICE
■ Cord hook
Do not secure items other than cords on the cord hook. Doing so may dam-
age the cord hook.
288
5-2. Basic Operations (Multimedia system)
PRIUS c_U (OM52G95U)
Basic audio operations
Basic audio operations and functions common to each mode are
explained in this section.
Operating the multimedia system
Press the “” or “” button to seek up or down for a radio station,
or to access a desired track or file.
Press this knob to turn the multimedia system on and off,
and turn it to adjust the volume.
Press this button
to eject a disc
Press to pause or resume
playing music.
Insert a disc into
the disc slot
: Select to pause music.
Turn this knob to select radio
station bands, tracks and files.
Also the knob can be used to
select items in the list display.
: Select to resume playing music.
289
5-2. Basic Operations (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Select to change on/off.
Select to change on/off.
■ Using cellular phones
Interference may be heard through the multimedia system's speakers if a cel-
lular phone is being used inside or close to the vehicle while the multimedia
system is operating.
■ Certification (caution)
Laser product
This product is a class 1 laser product.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so that
its rays remain inside the cabinet. Therefore, never try to disassemble the
player or alter any of its parts since you may be exposed to laser rays and
dangerous voltages.
• This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL
INCREASE EYE HAZARD.
Random playback
Repeat play
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the multimedia system on longer than necessary when the
hybrid system is off.
■ To avoid damaging the multimedia system
Take care not to spill drinks or other fluids on the multimedia system.
290
PRIUS c_U (OM52G95U)
5-3. Setup (Multimedia system)
Press the “SETUP” button to display the “Setup” screen.
Select to adjust the settings for
operation sounds, screen ani-
mation, etc. (P. 291)
Select to set the voice settings.
(P. 295)
Select to adjust the settings for
contrast and brightness of the
screen. (P. 294)
Select to adjust the settings for registering, removing, connecting
and disconnecting Bluetooth
®
devices. (P. 331)
Select to adjust the settings for phone sound, contact, etc.
(P. 353)
Select to set audio settings. (P. 293)
Select to turn the screen off.
Select to set the vehicle custmization. (P. 562)
Setup menu
You can adjust the multimedia system to your desired settings.
Display “Setup” screen
1
2
3
4
5
6
7
8
291
5-3. Setup (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Press the “SETUP” button.
Select “General” on the “Setup”
screen.
“English”, “Français” or
“Español” can be selected.
Select to change the unit of
measure for distance.
On/off can be selected to
sound beeps.
Select to change the screen
color.
Select to change the key-
board layout.
The animation effect for the screen can be set to on/off.
Select to delete personal data (P. 292)
Select to update program versions. For details, contact your
Toyota dealer.
Select to display the software information. Notices related to third
party software used in this product are enlisted. (This includes
instructions for obtaining such software, where applicable.)
■ To return to the default volume settings
Select “Default”, and then “Yes”.
General settings
Settings are available for adjusting the operation sounds,
screen animation, etc.
Screen for general settings
1
2
1
2
3
4
5
6
7
8
9
292
5-3. Setup (Multimedia system)
PRIUS c_U (OM52G95U)
Select “Delete Personal Data” on the “General Settings” screen.
Select “Delete”.
Check carefully beforehand, as data cannot be retrieved once deleted.
A confirmation screen will be displayed. Select “Yes”.
The following personal data will be deleted or changed to its default
settings.
• General settings
• Audio settings
• Phone settings
Delete personal data
1
2
3
293
5-3. Setup (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Press the “SETUP” button.
Select “Audio” on the “Setup” screen.
Number of Radio Presets
Select the number of radio
preset stations.
Display Cover Art on/off
Automatic Sound Levelizer
Select “Automatic Sound Levelizer”.
Select “High”, “Mid”, “Low” or “Off”.
■ About Automatic Sound Leveliser (ASL)
ASL automatically adjusts the volume and tone quality according to the vehi-
cle speed.
Audio settings
Settings are available for adjusting the radio operation, cover
art, etc.
Screen for audio settings
1
2
1
2
3
Automatic Sound Leveliser (ASL)
1
2
294
5-3. Setup (Multimedia system)
PRIUS c_U (OM52G95U)
Press the “SETUP” button.
Select “Display” on the “Setup” screen.
Adjust screen contrast/bright-
ness
Adjust screen contrast/bright-
ness of the rear view monitor
camera
Changes to day mode.
Select “General” on the “Display Settings” screen.
Adjust the display as desired by selecting “+” or “-”.
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day
Mode”.
The screen will stay in day mode when the headlights are turned on until
“Day Mode” is selected again.
Display settings
Settings are available for adjusting the contrast and brightness
of the screen.
Screen for display settings
1
2
1
2
3
Adjusting the screen contrast/brightness
Day mode
1
2
295
5-3. Setup (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Adjust the voice guidance vol-
ume setting.
Set the voice recognition
prompts “High”, “Low” or “Off”.
Set the train voice recognition.
Set the voice prompt interrupt
on/off.
Set the voice recognition tuto-
rial.
■ To return to the default volume settings
Select “Default”, and then “Yes”.
Voice settings
This screen is used for guidance for voice command systems
setting.
1
2
3
4
5
296
PRIUS c_U (OM52G95U)
5-4. Using the Multimedia system
Press the “AUDIO” button to display the audio source selection
screen.
If the audio source selection screen is not displayed, press the “AUDIO”
button again.
Select the desired audio
source.
Select the desired audio
source then or to
reorder.
The audio source changes as follows each time the “MODE” switch is
pressed.
Selecting the audio source
Switching between audio sources such as radio and CD are
explained in this section.
Changing audio source
1
2
1
Using the steering wheel switches to change audio source
297
5-4. Using the Multimedia system
5
Audio system
PRIUS c_U (OM52G95U)
: Select to scroll to the next
or previous page.
: If appears to the right of
titles, the complete titles are
too long for the display. Select
this button to scroll the title.
Turn the “TUNE
·
SCROLL” knob
to move the cursor box to select a
desired item from the list, and
press the “TUNE
·
SCROLL” knob
to play it. The track that is being
played is highlighted.
To return to the top screen, select “Now Playing” on the list screen.
List screen operation
When a list screen is displayed, use the appropriate buttons to
scroll through the list.
How to scroll
298
5-4. Using the Multimedia system
PRIUS c_U (OM52G95U)
■
Selecting a track/file/song
Press the “” or “” button on “SEEK/TRACK” or turn the
“TUNE·SCROLL” knob to select the desired track/file/song number.
To fast-forward or reverse, press and hold the “” or “” button on
“SEEK/TRACK”.
■
Selecting a track/file/song from the track/file/song list
Select “Browse” or cover art.
Select the desired track/file/
song.
When an MP3/WMA/AAC disc is being used, the folder can be
selected. When a Bluetooth
®
device, USB memory device or iPod is
being used, the album can be selected.
According to the audio device, the following is displayed.
Selecting, fast-forwarding and reversing tracks/files/songs
1
2
Audio source List name
Audio CD Track
MP3/WMA/AAC disc Folder, File
Bluetooth
®
Album, Track
USB
Artists, Albums, Songs, Genres,
Composers
iPod
Artists, Albums, Songs, Genres,
Composers, Audiobooks, Videos
299
5-4. Using the Multimedia system
5
Audio system
PRIUS c_U (OM52G95U)
Select “-” or “+” to adjust
the treble, mid or bass to
a level between -5 and 5.
Select “Front” or “Rear” to
adjust the front/rear audio
balance.
Select “L” or “R” to adjust the
left/right audio balance.
■ The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for each audio mode sepa-
rately.
Optimal use of the multimedia system
On the “Sound Settings” screen, sound quality (Treble/Mid/
Bass), volume balance can be adjusted.
How to adjust the sound settings and sound quality
1 2 3
4 5
6 7
300
PRIUS c_U (OM52G95U)
5-5. Using the radio (Multimedia system)
Pressing the “AUDIO” button displays the audio control screen from
any screens of the selected source.
Audio source selection screen
appears
Preset stations
Select to display RBDS text
messages
*
Scanning for receivable station
Select to display a list of receiv-
able stations
Setting the sound (P. 299)
*
:FM only
Tune in to the desired station using one of the following methods.
■
Seek tuning
Press the “” or “” button on “SEEK/TRACK”.
The radio will begin seeking up or down for a station of the nearest
frequency and will stop when a station is found.
■
Manual tuning
Turn the “TUNE·SCROLL” knob.
■
Preset stations
Select the desired preset station.
Radio operation
Select “AM” or “FM” on the audio source selection screen to
begin listening to the radio.
Audio control screen
1
2
3
4
5
Selecting a station
6
301
5-5. Using the radio (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Search for desired stations by turning the “TUNE·SCROLL” knob or
pressing the “” or “” button on “SEEK/TRACK”.
Select “(add new)”.
To change the preset station to a different one, select and hold the preset
station.
Select “Yes”.
Select “OK” after setting the new preset station.
■
Refreshing the station list
Select “Refresh” on the “Station List” screen.
To cancel the refresh, select “Cancel Refresh”.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the continu-
ally changing position of the antenna, differences in signal strength and sur-
rounding objects, such as trains, transmitters, etc.
● The radio antenna is mounted on the rear roof.
Setting station presets
1
2
3
4
1
302
PRIUS c_U (OM52G95U)
5-6. Playing an audio CD and MP3/WMA/AAC discs (Multimedia system)
Pressing the “AUDIO” button displays the audio control screen from
any screens of the selected source.
Audio source selection screen
appears
Displaying the track/file list
Random playback (
P. 289)
Repeat play (
P. 289)
Pause
Select to resume play
Setting the sound (
P. 299)
CD player operation
Insert disc or select “CD” on the audio source selection screen
with a disc inserted to begin listening to a CD.
Audio control screen
1
2
3
4
5
6
303
5-6. Playing an audio CD and MP3/WMA/AAC discs (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
■ Displaying the title and artist name
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed.
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to your
Toyota dealer.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
■ If a disc is left inside the CD player or in the ejected position for
extended periods
Disc may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
Message Cause Correction procedures
“Check DISC”
• The disc is dirty or
damaged.
• The disc is inserted
upside down.
• The disc is not play-
able with the player.
• Clean the disc.
• Insert the disc cor-
rectly.
• Confirm the disc is
playable with the
player.
“Disc Error”
There is a malfunction
within the system.
Eject the disc.
“No music files found.”
No playable data is
included on the disc.
Eject the disc.
304
5-6. Playing an audio CD and MP3/WMA/AAC discs (Multimedia system)
PRIUS c_U (OM52G95U)
■ MP3, WMA and AAC files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 for-
mat.
AAC is short for Advanced Audio Coding and refers to an audio compression
technology standard used with MPEG2 and MPEG4.
MP3, WMA and AAC file and media/formats compatibility are limited.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32-320 (kbps)
MPEG2 LSF LAYER3: 8-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
● WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48-192 (kbps)
Ver. 9: CBR 48-320 (kbps)
305
5-6. Playing an audio CD and MP3/WMA/AAC discs (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
● AAC file compatibility
• Compatible standards
MPEG4/AAC-LC
• Compatible sampling frequencies
11.025/12/16/22.05/24/32/44.1/48 (kHz)
• Compatible bit rates
16-320 (kbps)
Compatible channel modes: 1ch and 2ch
● Compatible media
Media that can be used for MP3, WMA and AAC playback are CD-Rs and
CD-RWs.
Playback in some instances may not be possible if the CD-R or CD-RW is
not finalized. Playback may not be possible or the audio may jump if the
disc is scratched or marked with fingerprints.
● Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
UDF (2.01 or lower)
MP3, WMA and AAC files written in any format other than those listed
above may not play correctly, and their file names and folder names may
not be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels (including the root)
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
● File names
The only files that can be recognized as MP3/WMA/AAC and played are
those with the extension .mp3, .wma or .m4a.
● Discs containing multi-session recordings
As the multimedia system is compatible with multi session discs, it is possi-
ble to play discs that contain MP3, WMA and AAC files. However, only the
first session can be played.
306
5-6. Playing an audio CD and MP3/WMA/AAC discs (Multimedia system)
PRIUS c_U (OM52G95U)
● ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track
title and artist name in the same way as with ID3 tags.
● MP3, WMA and AAC playback
When a disc containing MP3, WMA or AAC files is inserted, all files on the
disc are first checked. Once the file check is finished, the first MP3, WMA or
AAC file is played. To make the file check finish more quickly, we recom-
mend you do not write any files to the disc other than MP3, WMA or AAC
files or create any unnecessary folders.
Discs that contain a mixture of music data and MP3, WMA or AAC format
data cannot be played.
● Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than
MP3, WMA and AAC files, they may be mistakenly recognized and played
as MP3, WMA and AAC files. This may result in large amounts of interfer-
ence and damage to the speakers.
● Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances,
depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3,
WMA and AAC files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.
• When files other than MP3, WMA or AAC files are recorded on a disc, it
may take more time to recognize the disc and in some cases, playback
may not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S.A. and other countries.
307
5-6. Playing an audio CD and MP3/WMA/AAC discs (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
NOTICE
■ Discs and adapters that cannot be used
Do not use the following types of CDs.
Also, do not use 3 in. (8 cm) CD adapters, Dual Discs or printable discs.
Doing so may damage the CD player and/or the CD insert/eject function.
● Discs that have a diameter that is not 4.7 in. (12 cm).
● Low-quality or deformed discs.
● Discs with a transparent or translucent recording area.
● Discs that have tape, stickers or CD-R labels attached to them, or that
have had the label peeled off.
■ Player precautions
Failure to follow the precautions below may result in damage to the discs or
the player itself.
● Do not insert anything other than discs into the disc slot.
● Do not apply oil to the player.
● Store discs away from direct sunlight.
● Never try to disassemble any part of the player.
308
PRIUS c_U (OM52G95U)
5-7. Using an external device (Multimedia system)
P. 2 86
Pressing the “AUDIO” button displays the audio control screen from
any screens of the selected source.
Audio source selection screen
appears
Displays cover art
Selecting the play mode
(P. 309)
Shuffle play (P. 309)
Repeat play (P. 309)
Pause
Select to resume playback
Setting the sound (P. 299)
Listening to an iPod
Connecting an iPod enables you to enjoy music from the vehicle
speakers.
Select “iPod” on the audio source selection screen.
When the iPod connected to the system includes iPod video, the
system can only output the sound by selecting the browse
screen.
Connecting an iPod
Audio control screen
1
2
3
4
5
6
7
309
5-7. Using an external device (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Select “Browse” on the screen.
Select the desired play mode. Then select a song to begin using
the selected play mode.
Select to change on/off.
Select to change on/off.
Selecting a play mode
Shuffle play
Repeat play
1
2
310
5-7. Using an external device (Multimedia system)
PRIUS c_U (OM52G95U)
■ Cord hook
P. 286
■ About iPod
● “Made for iPod” and “Made for iPhone” mean that an electronic accessory
has been designed to connect specifically to iPod or iPhone, respectively,
and has been certified by the developer to meet Apple performance stan-
dards.
● Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this acces-
sory with iPod or iPhone may affect wireless performance.
● iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries. Lightning is a trade-
mark of Apple Inc.
■ iPod cover art
● Depending on the iPod and songs in the iPod, iPod cover art may be dis-
played.
● This function can be changed to on/off. (P. 293)
● It may take time to display iPod cover art, and the iPod may not be operated
while the cover art display is in process.
● Only iPod cover art that is saved in JPEG format can be displayed.
311
5-7. Using an external device (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
■ iPod functions
● When an iPod is connected and the audio source is changed to iPod mode,
the iPod will resume play from the same point in which it was last used.
● Depending on the iPod that is connected to the system, certain functions
may not be available. If a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and recon-
necting it may resolve the problem.
● While connected to the system, the iPod cannot be operated with its own
controls. It is necessary to use the controls of the vehicle's multimedia sys-
tem instead.
● When the battery level of an iPod is very low, the iPod may not operate. If
so, charge the iPod before use.
● Compatible models (P. 312)
■ iPod problems
To resolve most problems encountered when using your iPod, disconnect
your iPod from the vehicle iPod connection and reset it. For instructions on
how to reset your iPod, refer to your iPod Owner's Manual.
■ Error messages
Message Cause/Correction procedures
“Connection error. Please
consult your Owner’s Man-
ual for instructions on how
to connect the iPod.”
This indicates a problem in the iPod or its con-
nection.
“No music files found.”
This indicates that there is no music data in
the iPod.
“No videos found.”
This indicates that no video files are included
in the iPod.
“There are no songs avail-
able for playback. Please
add compatible files to
your iPod.”
This indicates that songs are not found in a
selected playlist.
“iPod authorization unsuc-
cessful.”
This indicates that the display multimedia sys-
tem failed to authorize the iPod.
Please check your iPod.
312
5-7. Using an external device (Multimedia system)
PRIUS c_U (OM52G95U)
■ Compatible models
The following iPod
®
, iPod nano
®
, iPod classic
®
, iPod touch
®
and iPhone
®
devices can be used with this system.
● Made for
• iPod touch (5th generation)
• iPod touch (4th generation)
• iPod touch (3rd generation)
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (7th generation)
• iPod nano (6th generation)
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone 5S
• iPhone 5C
• iPhone 5
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
Depending on differences between models or software versions etc., some
models might be incompatible with this system.
WARNING
■ While driving
Do not connect an iPod or operate the controls.
NOTICE
■ Cord hook (P. 287)
■ To prevent damage to the iPod or its terminals
● Do not leave the iPod in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the iPod.
● Do not push down on or apply unnecessary pressure to the iPod while it is
connected.
● Do not insert foreign objects into the port.
313
5-7. Using an external device (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
P. 2 86
Pressing the “AUDIO” button displays the audio control screen from
any screens of the selected source.
Audio source selection screen
appears
Displaying the folder list
Random playback (P. 289)
Repeat play (P. 289)
Pause
Select to resume playback
Setting the sound (P. 299)
Select “Browse” on the screen.
Select the desired play mode. Then select a song to begin using
the selected play mode.
■
Displaying the now playing list
Touch the cover art display.
Listening to a USB memory device
Connecting a USB memory device enables you to enjoy music
from the vehicle speakers.
Touch “USB” on the audio source selection screen.
Connecting a USB memory device
Audio control screen
1
2
3
4
5
6
Selecting a play mode
1
2
314
5-7. Using an external device (Multimedia system)
PRIUS c_U (OM52G95U)
■ Cord hook
P. 286
■ USB memory functions
● Depending on the USB memory device that is connected to the system, the
device itself may not be operable and certain functions may not be avail-
able. If the device is inoperable or a function is unavailable due to a mal-
function (as opposed to a system specification), disconnecting the device
and reconnecting it may resolve the problem.
● If the USB memory device still does not begin operation after being discon-
nected and reconnected, format the memory.
■ Error messages for USB memory
■ USB memory
● Compatible devices
USB memory device that can be used for MP3, WMA and AAC playback.
● Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 HS (Mbps) and FS (12 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3, WMA and AAC files written to a device with any format other than
those listed above may not play correctly, and their file names and folder
names may not be displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum number of folders in a device: 3000 (including the root)
• Maximum number of files in a device: 9999
• Maximum number of files per folder: 255
Message Cause/Correction procedures
“Connection error. Please
consult your Owner’s Man-
ual for instructions on how
to connect the USB device.”
This indicates a problem with the USB mem-
ory device or its connection.
“No music files found.”
This indicates that no MP3/WMA/AAC files
are included on the USB memory device.
315
5-7. Using an external device (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
● MP3, WMA and AAC files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format. This
format compresses audio data to a size smaller than that of the MP3 format.
AAC is short for Advanced Audio Coding and refers to an audio compression
technology standard used with MPEG2 and MPEG4.
MP3, WMA and AAC file and media/formats compatibility are limited.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III)
• Compatible sampling frequencies
MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz)
MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 AUDIO LAYERII, III: 32-320 (kbps)
MPEG2 AUDIO LAYERII, III: 8-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
● WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
HIGH PROFILE 32, 44.1, 48 (kHz)
• Compatible bit rates
HIGH PROFILE 48-320 (kbps, VBR)
● AAC file compatibility
• Compatible standards
MPEG4/AAC-LC
• Compatible sampling frequencies
11.025/12/16/22.05/24/32/44.1/48 (kHz)
• Compatible bit rates
16-320 (kbps)
• Compatible channel modes: 1 ch and 2 ch
● File names
The only files that can be recognized as MP3/WMA/AAC and played are
those with the extension .mp3, .wma or .m4a.
316
5-7. Using an external device (Multimedia system)
PRIUS c_U (OM52G95U)
● ID3, WMA and AAC tags
ID3 tags can be added to MP3 files, making it possible to record the track
title, artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
AAC tags can be added to AAC files, making it possible to record the track
title and artist name in the same way as with ID3 tags.
● MP3, WMA and AAC playback
• When a device containing MP3, WMA and AAC files is connected, all
files in the USB memory device are checked. Once the file check is fin-
ished, the first MP3, WMA and AAC file is played. To make the file check
finish more quickly, we recommend that you do not include any files other
than MP3, WMA and AAC files or create any unnecessary folders.
• When a USB memory device is connected and the audio source is
changed to USB memory mode, the USB memory device will start play-
ing the first file in the first folder. If the same device is removed and
reconnected (and the con- tents have not been changed), the USB mem-
ory device will resume play from the same point in which it was last used.
● Extensions
If the file extensions .mp3, .wma and .m4a are used for files other than
MP3, WMA and AAC files, they will be skipped (not played).
● Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3,
WMA and AAC files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks
of Microsoft Corporation in the U.S.A. and other countries.
WARNING
■ While driving
Do not connect a USB memory device or operate the device controls.
317
5-7. Using an external device (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
NOTICE
■ Cord hook
P. 287
■ To prevent damage to the USB memory device or its terminals
● Do not leave the USB memory device in the vehicle. The temperature
inside the vehicle may become high, resulting in damage to the USB
memory device.
● Do not push down on or apply unnecessary pressure to the USB memory
device while it is connected.
● Do not insert foreign objects into the port.
318
5-7. Using an external device (Multimedia system)
PRIUS c_U (OM52G95U)
P. 2 86
■ Operating portable audio players connected to the multimedia system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio player itself.
■ When using a portable audio player connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio player.
Using the AUX port
To use the AUX port, connect a portable player, press the
“AUDIO” button, then select “AUX” to display the audio control
screen.
Connecting a portable audio player
WARNING
■ While driving
Do not connect a portable audio player or operate the device controls.
319
5
Audio system
PRIUS c_U (OM52G95U)
5-8. Connecting Bluetooth
®
(Multimedia system)
■ About Bluetooth
®
Preparations to use wireless communica-
tion
The following can be performed using Bluetooth
®
wireless com-
munication:
■
A portable audio player can be operated and listened to via
multimedia system
■
Hands-free phone calls can be made via a cellular phone
In order to use wireless communication, register and connect a
Bluetooth
®
device by performing the following procedures.
The Bluetooth
®
word mark and logos are
registered trademarks owned Bluetooth
SIG, Inc. and any use of such marks by
Fujitsu Ten Limited is under license.
Other trademarks and trade names are
those of their respective owners.
320
5-8. Connecting Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
■ Certifications for the Bluetooth
321
5-8. Connecting Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
322
5-8. Connecting Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
Device registration/connection flow
1. Register the Bluetooth
®
device to be used with multimedia
system (P. 324, 325, 326)
2. Connect the Bluetooth
®
device to be used
(P. 328)
To be used for audio To be used for hands-free
phone
3. Start Bluetooth
®
connec-
tion (P. 328)
3. Start Bluetooth
®
connec-
tion (P. 328)
4. Check connection status
(P. 332)
4. Check connection status
(P. 335)
5. Use Bluetooth
®
audio
(P. 332)
5. Use Bluetooth
®
phone
(P. 334)
323
5-8. Connecting Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
To display the screen shown below, press the “SETUP” button and
select “Bluetooth
*
” on the “Setup” screen.
Select to connect the device to
be used with multimedia sys-
tem. (P. 328)
Select to register a Bluetooth
®
device to be used with multime-
dia system. (P. 326)
Select to set detailed
Bluetooth
®
system settings.
(P. 331)
Select to delete registered devices. (P. 327)
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Registering and connecting from the “Bluetooth
*
Setup” screen
1
2
3
4
324
5-8. Connecting Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
Turn the Bluetooth
®
connection setting of your audio player on.
Press the “AUDIO” button.
Select “ Audio”.
Select “Select Device”.
Follow the steps in “How to register a Bluetooth
®
device” from
“STEP 2”. (P. 326)
Registering a Bluetooth
®
audio player for
the first time
To use the Bluetooth
®
Audio, it is necessary to register an audio
player with the system.
Once the player has been registered, it is possible to use the
Bluetooth
®
Audio.
For details about registering a Bluetooth
®
device (P. 326)
1
2
3
4
5
325
5-8. Connecting Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Turn the Bluetooth
®
connection setting of your cellular phone on.
Press the “ ” button.
Select “OK” to register a phone.
Follow the steps in “How to register a Bluetooth
®
device” from
“STEP 3”. (P. 326)
Registering a Bluetooth
®
phone for the first
time
To use the hands-free system, it is necessary to register a
Bluetooth
®
phone with the system.
Once the phone has been registered, it is possible to use the
hands-free system.
For details about registering a Bluetooth
®
device (P. 326)
1
2
3
4
326
5-8. Connecting Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
Display the “Bluetooth
*
Setup” screen. (P. 323)
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select “Add”.
When this screen is displayed,
search for the device name dis-
played on this screen on the
screen of your Bluetooth
®
device.
For details about operating the
Bluetooth
®
device, see the manual
that comes with it.
To cancel the registration, select
“Cancel”.
Register the Bluetooth
®
device using your Bluetooth
®
device.
A PIN-code is not required for SSP (Secure Simple Pairing) compatible
Bluetooth
®
devices. Depending on the type of Bluetooth
®
device being
connected, a message confirming registration may be displayed on the
Bluetooth
®
device’s screen. Respond and operate the Bluetooth
®
device
according to the confirmation message.
Registering a Bluetooth
®
device
Bluetooth
®
compatible phones (HFP) and portable audio players
(AVP) can be registered simultaneously. You can register up to 5
Bluetooth
®
devices.
How to register a Bluetooth
®
device
1
2
3
4
327
5-8. Connecting Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Check that this screen is dis-
played when registration is
complete.
Select “OK” when the connection status changes from “Connect-
ing...” to “Connected”.
If an error message is displayed, follow the guidance on the screen to try
again.
Registration can be performed from screens other than the
“Bluetooth
*
Setup” screen.
■
When registering from the “Bluetooth
*
Audio” screen
Display the “Bluetooth
*
Audio” screen. (P. 296)
Select “Select Device”.
Follow the steps in “How to register a Bluetooth
®
device” from
“STEP 2”. (P. 326)
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Display the “Bluetooth
*
Setup” screen. (P. 323)
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select “Remove”.
Select the desired device.
A confirmation message will be displayed, select “Yes” to delete the
device.
Check that a confirmation screen is displayed when the operation is
complete.
5
Deleting a Bluetooth
®
device
6
1
2
3
1
2
3
4
5
328
5-8. Connecting Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
Press the “SETUP” button.
Select “Bluetooth
*
”.
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select the device to be con-
nected.
Supported profile icons will be dis-
played.
Phone
Audio player
Supported profile icons for cur-
rently connected devices will illumi-
nate.
Dimmed icons can be selected to connect to the function directly.
Connecting a Bluetooth
®
device
Up to 5 Bluetooth
®
devices (Phones [HFP] and audio players
[AVP]) can be registered.
If more than 1 Bluetooth
®
device has been registered, select
which device to connect to.
1
2
3
1
2
329
5-8. Connecting Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
To turn auto connection mode on, set “Bluetooth
*
Power” to on.
(P. 331)
When you register a phone, auto connection will be activated. Always
set it to this mode and leave the Bluetooth
®
phone in a place where a
connection can be established.
When the power switch is turned to the “ACC” or “ON” position (vehicles
without a smart key system) or the power switch is turned to ACCESSORY
or ON mode (vehicles with a smart key system), the system will search for
a nearby cellular phone you have registered.
Next, the system automatically connects with the most recent of the
phones connected to in the past. Then, the connection result is displayed.
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
When auto connection has failed or “Bluetooth
*
Power” is turned off,
you must connect the Bluetooth
®
device manually.
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Follow the steps in “Connecting a Bluetooth
®
device” from “STEP
1”. (P. 328)
Registering an additional device
Select “Select Device” on the Bluetooth
®
audio control screen.
For more information: P. 3 26
Selecting a registered device
Select “Select Device” on the Bluetooth
®
audio control screen.
For more information: P. 3 28
■ Reconnecting a Bluetooth
®
phone
If the system cannot connect due to poor signal strength with the power
switch is turned to the “ACC” or “ON” position (vehicles without a smart key
system) or the power switch is turned to ACCESSORY or ON mode (vehicles
with a smart key system), the system will automatically attempt to reconnect.
If the system is attempting to connect to a Bluetooth
®
phone and the
Bluetooth
®
phone is turned off and then back on, the system will attempt to
reconnect.
Auto connection
Manual connection
Connecting a Bluetooth
®
audio player
1
1
2
1
2
330
5-8. Connecting Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
Display the “Bluetooth
*
Setup” screen. (P. 323)
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select the device.
Select “Device Info”.
Following screen is displayed:
Device Name
Change connection method
Bluetooth
®
Address
Display your telephone num-
ber
The number may not be dis-
played depending on the
model of phone.
Compatibility profile of the
device
Restore default settings
Select “Connect Audio Player from”.
Select “Vehicle” or “Device”.
“Vehicle”: Connect the multimedia system to the portable audio player.
“Device”: Connect the portable audio player to the multimedia system.
Displaying a Bluetooth
®
device details
You can confirm and change the registered device details.
Bluetooth
®
device registration status
1
2
3
4
1
2
3
4
5
6
Changing connection method
1
2
331
5-8. Connecting Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Display the “Bluetooth
*
Setup” screen. (P. 323)
Select “System Settings”.
The following screen is displayed:
Bluetooth
®
Power on/off
You can change Bluetooth
®
function
on/off
Bluetooth
®
Name
Change PIN-code
Bluetooth
®
Address
Display Phone Status
You can set the system to show
the status confirmation display
when connecting a telephone
Display Audio Player Status
You can set the system to show
the status confirmation display
when connecting an audio
player
Compatibility profile of the system
Restore default settings
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
You can change the PIN-code that is used to register your Bluetooth
®
devices in the system.
Select “Bluetooth
*
PIN”.
Input a PIN-code, and select “OK”.
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Detailed Bluetooth
®
system settings
You can confirm and change the detailed Bluetooth
®
settings.
How to check and change detailed Bluetooth
®
settings
1
2
3
1
2
3
4
5
6
Editing the Bluetooth
*
PIN
7
8
1
2
332
PRIUS c_U (OM52G95U)
5-9. Bluetooth
®
Audio (Multimedia system)
You can check such indicators as signal strength and battery charge
on the screen.
Connection status
Battery charge
Listening to Bluetooth
®
Audio
The Bluetooth
®
audio system enables the user to enjoy music
played on a portable player from the vehicle speakers via wire-
less communication.
When a Bluetooth
®
device cannot be connected, check the connec-
tion status on the “Bluetooth
*
Audio” screen. If the device is not con-
nected, either register or reconnect the device. (P. 328)
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Status display
1
2
Indicators Conditions
Connection status
Good Not connected
Battery charge
Full Empty
333
5-9. Bluetooth
®
Audio (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Select or to Play/Pause.
For details on “Bluetooth
*
Audio” screen operation methods, refer to
Basic Audio Operations. (P. 288)
For details on how to select a track or album, refer to selecting, fast-
forwarding and reversing tracks/files/songs. (P. 298)
*
: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Playing Bluetooth
®
audio
334
PRIUS c_U (OM52G95U)
5-10. Bluetooth
®
phone (Multimedia system)
To display the screen shown below, press the switch on the
steering wheel or the button.
Several functions are available to operate on each screen that is dis-
played by selecting the 4 tabs.
Device name
Bluetooth
®
connection status
Using a Bluetooth
®
Phone
The hands-free system is a function that allows you to use your
cellular phone without touching it.
This system supports Bluetooth
®
. Bluetooth
®
is a wireless data
system that allows the cellular phone to wirelessly connect to
the hands-free system and make/receive calls.
Before making a phone call, check the connection status, battery
charge, call area and signal strength. (P. 335)
If a Bluetooth
®
device cannot be connected, check the connection
status on the phone screen. If the device is not connected, either
register or reconnect it. (P. 328)
Phone screen
1
2
335
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
■
Telephone switch (P. 350)
■
Microphone
The vehicle’s built in microphone is used when talking on the
phone.
The person you are speaking to can be heard from the front speak-
ers.
To use the hands-free system, you must register your Bluetooth
®
phone in the system. (P. 326)
You can check indicators such as signal strength and battery charge
on the phone screen.
Connection status
Signal strength
Battery charge
Vehicles without moon roof
Vehicles with moon roof
Status display
1
2
3
336
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
Indicators Conditions
Connection status
Good Not connected
Battery charge
Full Empty
Call area
“Rm”: Roaming area
Signal strength
Excellent Poor
337
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Display the phone screen. (P. 334)
Select the “Dial Pad” tab and enter a phone number.
To delete the input phone number, select .
For the first digit, you can enter “+” by selecting “” for a while.
Press the switch on the steering wheel or select .
You can dial a number from the contact data imported from your cellu-
lar phone. The system has one contact for each registered phone. Up
to 2500 contacts may be stored in each contact.
Display the phone screen. (P. 334)
Select “Contacts” tab.
Choose the desired contact to call from the list.
Choose the number and then press the switch on the steering
wheel or select .
You can transfer the phone numbers in a Bluetooth
®
phone to the sys-
tem.
Operation methods differ between PBAP (Phone Book Access Profile)
compatible and PBAP incompatible Bluetooth
®
phones. If the cellular
phone does not support either PBAP or OPP (Object Push Profile)
service, you cannot transfer contacts.
Making a call
Once a Bluetooth
®
phone is registered, you can make a call
using the following procedure:
Dialing
Dialing from the contacts list
When the contact is empty
1
2
3
1
2
3
4
338
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
Press the switch on the steering wheel.
If the phonebook is empty, a message will be displayed.
For a PBAP compatible Bluetooth
®
phone and “Automatic Contact/
History Transfer” is off
Select the desired item.
Select to transfer new con-
tacts from a cellular phone,
select “Always” and then
enable “Automatic Contact/
History Transfer”.
Select to transfer all the con-
tacts from a connected cellu-
lar phone only once.
Select to cancel transferring.
For PBAP incompatible but OPP compatible Bluetooth
®
phones
Select the desired item.
Select to transfer the con-
tacts from the connected cel-
lular phone.
Select to add a new contact
manually.
Select to cancel transferring.
When “Transfer” is selected
Follow the steps in “Update contacts from phone” from “STEP2”.
(P. 354)
When “Add” is selected
Follow the steps in “Registering a new contact to the contact list”
from “STEP2”. (P. 356)
1
2
1
2
3
2
1
2
3
3
3
339
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
You can make a call using numbers registered in the contact.
Display the phone screen. (P. 334)
Select “Favorites” tab.
Select the desired number to make a call.
You can make a call using the call history, which has the 3 functions
below.
: calls which you missed
: calls which you received
: calls which you made
Display the phone screen. (P. 334)
Select “Call History” tab.
Select or the desired entry from the list.
When is selected
Check that the “Call” screen is displayed.
When the desired contact is selected
Select the desired number.
Check that the “Call” screen is displayed.
■ Call history list
● If you make a call to or receive a call from a number registered in the con-
tact, the name is displayed in the call history.
● If you make multiple calls to the same number, only the last call made is dis-
played in the call history.
■ International calls
You may not be able to make international calls, depending on the mobile
phone in use.
Calling using favorites list
Dialing from call history
1
2
3
1
2
3
4
4
5
340
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
Press the switch on the
steering wheel or select .
Press the switch on the steering wheel or select .
Turn the “PWR·VOL” knob. You can also adjust the volume using the
steering switches.
■ International calls
Received international calls may not be displayed correctly depending on the
cellular phone in use.
Receiving a call
When a call is received, the following screen is displayed
together with a sound.
To answer the phone
To refuse a call
To adjust the incoming call volume
341
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Select “-” or “+”. You can also adjust the volume using the steering
switches or the volume knob.
Select “Mute”.
When using phone services such as an answering service or a bank,
you can store phone numbers and code numbers in the contact.
Select “0-9”.
Input the number.
■
Release Tones
“Release Tones” appear when a continuous tone signal(s) contain-
ing a (w) is registered in the contact list.
Select “Release Tones”.
Speaking on the phone
The following screen is displayed when speaking on the phone.
To adjust the call volume
To prevent the other party from hearing your voice
Inputting tones
1
2
1
342
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
■ Release Tones
● A continuous tone signal is a character string that consists of numbers and
the characters p or w. (e.g.056133w0123p#1)
● When the “p” pause tone is used, the tone data up until the next pause tone
will be automatically sent after 2 seconds have elapsed. When the “w”
pause tone is used, the tone data up until the next pause tone will be auto-
matically sent after a user operation is performed.
● Release tones can be used when automated operation of a phone based
service such as an answering machine or bank phone service is desired. A
phone number with continuous tone signals can be registered in the contact
list.
● Tone data after a “w” pause tone can be operated on voice command during
a call.
343
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Select “Handset Mode” to on from a hands-free call to a cellular
phone call.
Select “Handset Mode” to off from a cellular phone call to a hands-free
call.
Select “Transmit Volume”.
Select the desired level for the transmit volume.
Select “OK”.
Press the switch on the steering wheel or select .
When a call is interrupted by a third party while talking, an incoming
call message will be displayed.
To talk with the other party:
• Press the switch on the
steering wheel.
• Select .
To refuse the call:
• Press the switch on the
steering wheel.
• Select .
Every time you press the switch on the steering wheel or select
during call waiting, you will be switched to the other party.
To transfer a call
Transmit volume setting
To hang up
Call waiting
1
2
3
344
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
■ Transferring calls
● If you transfer from the cellular phone to hands-free, the hands-free screen
will be displayed, and you can operate the system using the screen.
● Transfer method and operation may vary according to the cellular phone
used.
● For operation of the cellular phone in use, see the phone's manual.
■ Call waiting operation
Call waiting operation may differ depending on your phone company and cel-
lular phone.
345
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Press the “ ” button.
Select .
When an e-mail/SMS/MMS is received, the incoming message screen
pops up with sound and is ready to be operated on the screen.
Select to check the message.
Select to refuse the message.
Select to call the message
sender.
Bluetooth
®
phone message function
Received messages can be forwarded from the connected
Bluetooth
®
phone, enabling checking and replying using the
multimedia system.
Depending on the type of Bluetooth
®
phone connected, received
messages may not be transferred to the message inbox.
If the phone does not support the message function, this func-
tion cannot be used.
Displaying message inbox screen
Receiving a message
1
2
1
2
3
346
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
■ Receiving a message
● Depending on the cellular phone used for receiving messages, or its regis-
tration status with the navigation system, some information may not be dis-
played.
● The pop up screen is separately available for incoming e-mail and SMS/
MMS messages under the following conditions:
E-mail:
• “Incoming E-mail Display” is set to “Full Screen”. (P. 361)
• “E-mail Notification Popup” is set to on. (P. 361)
SMS/MMS:
• “Incoming SMS/MMS Display” is set to “Full screen”. (P. 361)
• “SMS/MMS Notification Popup” is set to on. (P. 361)
347
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Display the message inbox screen. (P. 345)
Select the desired message from the list.
Check that the message is displayed.
E-mails: Select “Mark
Unread” or “Mark Read” to
mark mail unread or read on
the message inbox screen.
This function is available when
“Update Message Read Status
on Phone” is set to on (P. 361)
Select to make a call to the
sender.
Select to have messages read out. To cancel this function, select
“Stop”.
Select to display the previous or next message.
Select to reply the message.
Checking the messages
1
2
3
1
2
3
4
5
348
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
■ Check the messages
● Depending on the type of Bluetooth
®
phone being connected, it may be nec-
essary to perform additional steps on the phone.
● Messages are displayed in the appropriate connected Bluetooth
®
phone’s
registered mail address folder.
Select the tab of the desired folder to be displayed.
● Only received messages on the connected Bluetooth
®
phone can be dis-
played.
● The text of the message is not displayed while driving.
● When “Automatic Message Readout” is set to on, messages will be auto-
matically read out. (P. 361)
● Turn the “PWR·VOL” knob, or use the volume switch on the steering wheel
to adjust the message read out volume.
● The message read out function is available even while driving.
Display the message inbox screen. (P. 345)
Select the desired message from the list.
Select “Quick Message”.
Select the desired message.
Select “Send”.
■
Editing quick reply message
Select “Quick Message”.
Select corresponding to the desired message to edit.
Select “OK” when editing is completed.
Replying to a message
1
2
3
4
5
1
2
3
349
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Calls can be made to an e-mail/SMS/MMS message sender's phone
number.
Display the message inbox screen. (P. 345)
Select the desired message.
Select .
Check that the “Call” screen is displayed.
■
Calling from a number within a message
Calls can be made to a number identified in a message's text area.
Display the message inbox screen. (P. 345)
Select the desired message.
Select the text area.
Select corresponding to the desired number.
Check that the “Call” screen is displayed.
■
Calling from the incoming message screen
P. 3 43
Calling the message sender
1
2
3
4
1
2
3
4
5
350
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
Volume switch
• Increase/decrease the vol-
ume
• Press and hold:
Continuously increase/
decrease the volume
On hook switch
• End a call
• Refuse a call
Off hook switch
• Make a call
• Receive a call
• Display “Phone” screen
Using the steering wheel switches
The steering wheel switches can be used to operate a connected
cellular phone.
Operating a telephone using the steering wheel switches
1
2
3
351
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
To display the screen shown below, press the “SETUP” button, and
select “Phone” on the “Setup” screen.
Set the phone connection
(P. 326)
Setting the sound (P. 352)
Contact/Call History Settings
(P. 353)
Set the message settings
(P. 361)
Set the phone display
(P. 362)
Bluetooth
®
phone settings
You can adjust the hands-free system to your desired settings.
“Phone/Message Settings” screen
1
2
13
14
5
352
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
Display the “Phone/Message Settings” screen. (P. 351)
Select “Sound Settings” on the “Phone/Message Settings” screen.
Set the desired ringtone.
Adjust the ringtone volume.
Adjust the message readout
volume.
Set the desired incoming
SMS/MMS tone.
Adjust the incoming SMS/
MMS tone volume.
Set the incoming e-mail tone.
Adjust the incoming e-mail
tone volume.
Adjust the default volume of the other party's voice.
■ To return to the default volume settings
Select “Default”, and then “Yes”.
Sound setting
1
2
1
2
13
4
5
6
7
8
353
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
The contact can be transferred from a Bluetooth
®
phone to the sys-
tem. The contact also can be added, edited and deleted.
The call history can be deleted and contact and favorites can be
changed.
Display the “Phone/Message Settings” screen. (P. 351)
Select “Contact/Call History Settings”.
Select the desired item to be set.
For PBAP compatible
Bluetooth
®
phones, select to
set “Automatic Transfer” on/
off. When set to on, the
phone’s contact data and his-
tory are automatically trans-
ferred.
Select to update contacts
from the connected phone.
(P. 354)
Select to sort contacts by the
first name or last name field.
Select to add contacts to the favorites list. (P. 358)
Select to delete contacts from the favorites list. (P. 360)
Select to display contact images.
Select to clear contacts from the call history.
*
Select to add new contacts to the contact list.
*
(P. 356)
Select to edit contacts in the contact list.
*
(P. 357)
Select to delete contacts from the contact list.
*
(P. 358)
Select to reset all setup items.
*
: For PBAP compatible Bluetooth
®
phones only, this function is available
when “Automatic Contact/History Transfer” is set to off.
Contact/Call History Settings
1
2
3
1
2
3
4
5
6
7
8
9
10
11
354
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
Operation methods differ between PBAP compatible and PBAP
incompatible but OPP compatible Bluetooth
®
phones.
If your cellular phone is neither PBAP nor OPP compatible, the con-
tacts cannot be transferred.
■
For PBAP Compatible Bluetooth
®
Phones
Select “Update Contacts from Phone”.
Check that a confirmation screen is displayed when the opera-
tion is complete.
This operation may be unnecessary depending on the type of cellular
phone.
Depending on the type of cellular phone, OBEX authentication may be
required when transferring contact data. Enter “1234” into the
Bluetooth
®
phone.
If another Bluetooth
®
device is connected when transferring contact
data, depending on the phone, the connected Bluetooth
®
device may
need to be disconnected.
Depending on the type of Bluetooth
®
phone being connected, it may be
necessary to perform additional steps on the phone.
Update contacts from phone
1
2
355
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
■
For PBAP Incompatible but OPP compatible Bluetooth
®
Phones
Select “Update Contacts from Phone”.
Transfer the contact data to the system using a Bluetooth
®
phone.
This operation may be unnecessary depending on the type of cellular
phone.
Depending on the type of cellular phone, OBEX authentication may be
required when transferring contact data. Enter “1234” into the
Bluetooth
®
phone.
To cancel this function, select “Cancel”.
Select “Done” when it appears on the screen.
Check that a confirmation screen is displayed when the opera-
tion is complete.
■
Updating the contacts in a different way (From the “Call His-
tory” screen)
For PBAP compatible Bluetooth
®
phones, this function is available
when “Automatic Contact/History Transfer” is set to off. (P. 353)
Display the phone screen. (P. 334)
Select the “Call History” tab and select a contact not yet regis-
tered in the contact list.
Select “Update Contact”.
Select the desired contact.
Select a phone type for the phone number.
1
2
3
4
1
2
3
4
5
356
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
New contact data can be registered. Up to 4 numbers per person can
be registered. For PBAP compatible Bluetooth
®
phones, this function
is available when “Automatic Contact/History Transfer” is set to off.
(P. 353)
Select “New Contact”.
Enter the name and select “OK”.
Enter the phone number and select “OK”.
Select the phone type for the phone number.
To add another number to this contact, select “Yes”.
■
Registering a new contact in a different way (From the “Call
History” screen)
Display the phone screen. (P. 334)
Select the “Call History” tab and select a contact not yet regis-
tered in the contact list.
Select “Add to Contacts”.
Follow the steps in “Registering a new contact to the contact list”
from “STEP 3”.
Registering a new contact to the contact list
1
2
3
4
5
1
2
3
4
357
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
For PBAP compatible Bluetooth
®
phones, this function is available
when “Automatic Contact/History Transfer” is set to off. (P. 353)
Select “Edit Contact”.
Select the desired contact.
Select corresponding to the desired name or number.
For editing the name
Follow the steps in “Registering a new contact to the contact list”
from “STEP 3”. (P. 356)
For editing the number
Follow the steps in “Registering a new contact to the contact list”
from “STEP 4”. (P. 356)
■
Editing the contacts in a different way (From the “Contact
Details” screen)
Display the phone screen. (P. 334)
Select the “Contacts”, “Call History” tab or the “Favorites” tab and
select the desired contact.
Select “Edit Contact”.
“E-mail Addresses”: Select to display all registered e-mail addresses for
the contact.
Follow the steps in “Editing the contact data” from “STEP 4”.
Editing the contact data
1
2
3
4
4
1
2
3
4
358
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
For PBAP compatible Bluetooth
®
phones, this function is available
when “Automatic Contact/History Transfer” is set to off. (P. 353)
Select “Delete Contacts”.
Select the desired contact and select “Delete”.
Select “Yes” when the confirmation screen appears.
■
Deleting the contact in a different way (From the “Contact
Details” screen)
Display the phone screen. (P. 334)
Select the “Contacts”, “Call History” tab or the “Favorites” tab and
select the desired contact.
Select “Edit Contact”.
Select “Yes” when the confirmation screen appears.
Up to 15 contacts (maximum of 4 numbers per contact) can be regis-
tered in the favorites list.
■
Registering the contacts in the favorites list
Select “Add Favorite”.
Select the desired contact to add to the favorites list.
Dimmed contacts are already stored as a favorite.
Check that a confirmation screen is displayed when the opera-
tion is complete.
Deleting the contact data
Favorites list setting
1
2
13
1
2
3
4
1
2
3
359
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
When 15 contacts have already been registered to the favorites
list
When 15 contacts have already been registered to the favorites
list, a registered contact needs to be replaced.
Select “Yes” when the confirmation screen appears to replace a
contact.
Select the contact to be replaced.
Check that a confirmation screen is displayed when the opera-
tion is complete.
Registering contacts in the favorites list in a different way (from
the “Contacts” screen)
Display the phone screen. (P. 334)
Select the “Contacts” tab.
Select at the beginning of the desired contact list name to be
registered in the favorites list.
When selected, is changed to , and the contact is registered in
the favorites list.
Registering contacts in the favorites list in a different way (from
the “Contact Details” screen)
Display the phone screen. (P. 334)
Select the “Contacts” tab or the “Call History” tab and select the
desired contact.
Select “Add Favorite”.
Check that a confirmation screen is displayed when the opera-
tion is complete.
1
2
3
1
2
3
1
2
3
4
360
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
■
Deleting the contacts in the favorites list
Select “Remove Favorite”.
Select the desired contacts and select “Remove”.
Select “Yes” when the confirmation screen appears.
Check that a confirmation screen is displayed when the opera-
tion is complete.
Deleting contacts in the favorites list in a different way (from the
“Contacts” screen)
Display the phone screen. (P. 334)
Select the “Contacts” tab.
Select at the beginning of the contact list name to be deleted
from the favorites. list.
When selected, is changed to , and the data is deleted from the
list.
Deleting contacts in the favorites list in a different way (from the
“Contact Details” screen)
Display the phone screen. (P. 334)
Select the “Contacts”, “Call History” tab or the “Favorites” tab and
select the desired contact to delete.
Select “Remove Favorite”.
Select “Yes” when the confirmation screen appears.
Check that a confirmation screen is displayed when the opera-
tion is complete.
1
2
3
4
1
2
3
1
2
3
4
5
361
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
Display the “Phone/Message Settings” screen. (P. 351)
Select “Messaging Settings”.
Select the desired item to be set.
Set automatic message
transfer on/off.
Set automatic message
readout on/off.
Set the SMS/MMS notifica-
tion popup on/off.
Set the e-mail notification
popup on/off.
Set adding the vehicle signa-
ture to outgoing messages
on/off.
Set updating message read status on phone on/off.
Change the incoming SMS/MMS display.
“Full Screen”: When an SMS/MMS message is received, the incoming
SMS/MMS display screen is displayed and can be operated on the
screen.
“Drop-Down”: When an SMS/MMS message is received, a message is
displayed on the upper side of the screen.
Change the incoming e-mail display.
“Full Screen”: When an e-mail is received, the incoming e-mail display
screen is the displayed and can be operated on the screen.
“Drop-Down”: When an e-mail is received, a message is displayed on
the upper side of the screen.
Set display of messaging account names on the inbox tab on/off.
When set to on, messaging account names used on the cellular phone
will be displayed.
■ To return to the default volume settings
Select “Default”, and then “Yes”.
Message Settings
1
2
3
1
2
3
4
5
6
7
8
9
362
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
■
Displaying the “Messaging Settings” screen in a different way
Display the phone screen. (P. 334)
Select .
Select “Settings”.
Display the “Phone/Message Settings” screen. (P. 351)
Select “Phone Display Settings”.
Select the desired item to be set.
Change the incoming call
display.
“Full Screen”: When a call is
received, the hands-free screen
is displayed and can be oper-
ated on the screen.
“Drop-Down”: A message is dis-
played on the upper side of the
screen.
Set display of the contact/ history transfer completion message
on/off.
Phone Display Settings
1
2
3
1
2
3
1
2
363
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
If there is a problem with the hands-free system or a Bluetooth
®
device, first check the table below.
When using the hands-free system with a Bluetooth
®
device
What to do if... (Troubleshooting)
The hands-free system or Bluetooth
®
device does not work.
The connected device may not be a compatible Bluetooth
®
cellular phone.
For a list of specific devices which operation has been confirmed
on this system, check with your Toyota dealer or the following
website: http://www.toyota.com/entune.html
The Bluetooth version of the connected cellular phone may be older than
the specified version.
Use a cellular phone with Bluetooth version 2.0 or higher (recom-
mended: Ver. 3.0 with EDR or higher). (P. 367)
364
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
When registering/connecting a cellular phone
When making/receiving a call
A cellular phone cannot be registered.
An incorrect passcode was entered on the cellular phone.
Enter the correct passcode on the cellular phone.
The registration operation has not been completed on the cellular phone
side.
Complete the registration operation on the cellular phone (approve
registration on the phone).
Old registration information remains on either this system or the cellular
phone.
Delete the existing registration information from both this system
and the cellular phone, then register the cellular phone you wish to
connect to this system. (P. 327)
A Bluetooth
®
connection cannot be made.
Another Bluetooth
®
device is already connected.
Manually connect the cellular phone you wish to use to this sys-
tem. (P. 329)
Bluetooth
®
function is not enabled on the cellular phone.
Enable the Bluetooth
®
function on the cellular phone.
“Please check your device settings.” message is displayed.
Bluetooth
®
function is not enabled on the cellular phone.
Enable the Bluetooth
®
function on the cellular phone.
Old registration information remains on either this system or the cellular
phone.
Delete the existing registration information from both this system
and the cellular phone, then register the cellular phone you wish to
connect to this system. (P. 327)
A call cannot be made/received.
Your vehicle is in a “Out of cellular service area. Please try again later.”
area.
Move to where “Out of cellular service area. Please try again later.”
no longer appears on the display.
365
5-10. Bluetooth
®
phone (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
When using the phonebook
When using the Bluetooth
®
message function
Phonebook data cannot be transferred manually/automatically.
The profile version of the connected cellular phone may not be compatible
with transferring phonebook data.
For a list of specific devices which operation has been confirmed
on this system, check with your Toyota dealer or the following
website: http://www.toyota.com/entune.html
Automatic phonebook transfer function on this system is set to off.
Set automatic phonebook transfer function on this system to on.
(P. 353)
Passcode has not been entered on the cellular phone.
Enter the passcode on the cellular phone if requested (default
passcode: 1234).
Transfer operation on the cellular phone has not completed.
Complete transfer operation on the cellular phone (approve trans-
fer operation on the phone).
Phonebook data cannot be edited.
Automatic phonebook transfer function on this system is set to on.
Set automatic phonebook transfer function on this system to off.
(P. 353)
Messages cannot be viewed.
Message transfer is not enabled on the cellular phone.
Enable message transfer on the cellular phone (approve message
transfer on the phone).
Automatic transfer function on this system is set to off.
Set automatic transfer function on this system to on. (P. 361)
New message notifications are not displayed.
Notification of SMS/MMS/E-mail reception on this system is set to off.
Set notification of SMS/MMS/E-mail reception on this system to on.
(P. 361)
Automatic message transfer function is not enabled on the cellular phone.
Enable automatic transfer function on the cellular phone.
366
5-10. Bluetooth
®
phone (Multimedia system)
PRIUS c_U (OM52G95U)
In other situations
Even though all conceivable measures have been taken, the symptom sta-
tus does not change.
The cellular phone is not close enough to this system.
Bring the cellular phone closer to this system.
The cellular phone is the most likely cause of the symptom.
Turn the cellular phone off, remove and reinstall the battery pack,
and then restart the cellular phone.
Enable the cellular phone’s Bluetooth
®
connection.
Stop the cellular phone’s security software and close all applica-
tions.
Before using an application installed on the cellular phone, care-
fully check its source and how its operation might affect this sys-
tem.
367
5
Audio system
PRIUS c_U (OM52G95U)
5-11. Bluetooth
®
(Multimedia system)
■ When using the Bluetooth
®
audio system
● In the following conditions, the system may not function.
• If the portable audio player is turned off
• If the portable audio player is not connected
• If the portable audio player’s battery is low
● There may be a delay if a cellular phone connection is made during
Bluetooth
®
audio play.
● Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■ When using the hands-free system
● The multimedia system is muted when making a call.
● If both parties speak at the same time, it may be difficult to hear.
● If the received call volume is overly loud, an echo may be heard.
If the Bluetooth
®
phone is too close to the system, quality of the sound may
deteriorate and connection status may deteriorate.
● In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• If a roof or window is open
• If the air conditioning is blowing directly on the microphone
• If there is interference from the network of the cellular phone
■ Conditions under which the system will not operate
● If using a cellular phone that does not support Bluetooth
®
● If the cellular phone is turned off
● If you are outside of cellular phone service coverage
● If the cellular phone is not connected
● If the cellular phone’s battery is low
● When outgoing calls are controlled, due to heavy traffic on telephone lines,
etc.
● When the cellular phone itself cannot be used
● When transferring contact data from the cellular phone
Bluetooth
®
368
5-11. Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
■ Bluetooth
®
antenna
The antenna is built into the display.
If the portable audio player is behind the seat or in the glove box or console
box, or is touching or covered by metal objects, the connection status may
deteriorate.
If the cellular phone is behind the seat or in the console box, or touching or
covered by metal objects, the connection status may deteriorate.
■ Battery charge/signal status
● This display may not correspond exactly with the portable audio player or
cellular phone itself.
● This system does not have a charging function.
● The portable audio player or cellular phone battery will be depleted quickly
when the device is connected to Bluetooth
®
.
■ When using the Bluetooth
®
audio and hands-free system at the same
time
The following problems may occur.
● The Bluetooth
®
audio connection may be interrupted.
● Noise may be heard during Bluetooth
®
audio playback.
■ About the contact in this system
The following data is stored for every registered cellular phone. When
another phone is connecting, you cannot read the registered data.
● Contact data
● Call history
● Favorite
● Message
When removing a Bluetooth
®
phone from the system, the above-mentioned
data is also deleted.
369
5-11. Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
■ Compatible models
The Bluetooth
®
audio system supports portable audio players with the follow-
ing specifications
● Bluetooth
®
specifications:
Ver. 2.0, or higher (Recommended: Ver. 3.0+EDR or higher)
● Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher
(Recommended: Ver. 1.2 or higher)
This is a profile to transmit stereo audio or high quality sound to the multi-
media system.
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Recommended: Ver. 1.4 or higher)
This is a profile to allow remote control the A/V equipment.
However, please note that some functions may be limited depending on the
type of portable audio player connected.
The hands-free system supports cellular phones with the following specifica-
tions.
● Bluetooth
®
specification:
Ver. 2.0 or higher (Recommended: Ver. 3.0+EDR or higher)
● Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.6 or
higher)
This is a profile to allow hands-free phone calls using a cellular phone or
head set. It has outgoing and incoming call functions.
• OPP (Object Push Profile) Ver. 1.1 or higher (Recommended: Ver. 1.2)
This is a profile to transfer contact data. When a Bluetooth
®
compatible
cellular phone has both PBAP and OPP, OPP cannot be used.
• PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Recommended:
Ver. 1.1)
This is a profile to transfer contact data.
• MAP (Message Access Profile) Ver.1.0 or higher
This is a profile to using phone message.
If the cellular phone does not support HFP, you cannot register it with the
hands-free system. OPP, PBAP or MAP services must be selected individu-
ally.
370
5-11. Bluetooth
®
(Multimedia system)
PRIUS c_U (OM52G95U)
■ Reconnecting the portable audio player
If the portable audio player is disconnected due to poor reception when the
power switch is turned to the “ACC” or “ON” position (vehicles without a smart
key system) or the power switch is turned to ACCESSORY or ON mode
(vehicles with a smart key system), the system automatically reconnects the
portable audio player.
If you have switched off the portable audio player yourself, follow the instruc-
tions below to reconnect:
● Select the portable audio player again
● Enter the portable audio player
■ When you sell your car
Be sure to delete your personal data. (P. 292)
371
5-11. Bluetooth
®
(Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
WARNING
■ While driving
Do not use the portable audio player, cellular phone or connect a device to
the Bluetooth
®
system.
■ Caution regarding interference with electronic devices
● Your audio unit is fitted with Bluetooth
®
antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
®
antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth
®
devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.
372
PRIUS c_U (OM52G95U)
5-12. Using the voice command system (Multimedia system)
Press the talk switch.
Select to train voice recogni-
tion.
Select to start the voice rec-
ognition tutorial.
Select “OK” and say the desired command.
On the list screen, you can select the desired command.
To cancel the voice command system, press and hold the talk switch.
Voice command system
The voice command system enables the hands-free system to
be operated using voice commands.
Operations of the voice command system can be performed by
selecting the menu corresponding to each function on the
screen. Even if any menu is selected, commands displayed on
all menus can be operated.
Using the voice command system
1
1
2
2
373
5-12. Using the voice command system (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
■ Microphone
P. 335
■ When using the microphone
● It is unnecessary to speak directly into the microphone when giving a com-
mand.
● When “Voice Prompt Interrupt” set to on, it is not necessary to wait for the
confirmation beep before speaking a command. (P. 295)
● Voice commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while voice commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
● In the following conditions, the system may not recognize the command
properly and using voice commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or
speech patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise.
Due to natural language speech recognition technology, this system
enables recognition of a command when spoken naturally. However,
the system cannot recognize every variation of each command.
In some situations, it is possible to omit the command for the proce-
dure and directly state the desired operation.
Not all voice commands are displayed in the short cut menu.
This function is available in English, Spanish and French.
■
Expression examples for each function
Casual speech recognization
Command Expression examples
“Call (name)
(type)”
Get me (Robert Brown).
I need to call (Robert Brown) at (Work) right away.
“Dial (number)”
Please dial the number (3334445555).
Ring (3334445555).
374
5-12. Using the voice command system (Multimedia system)
PRIUS c_U (OM52G95U)
Some recognizable voice commands and their actions are shown
below as examples.
Basic
Phone
Command list
Command Action
“Help”
Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back” Returns to the previous screen
Command Action
“Redial”
Places a call to the phone number of the latest outgo-
ing call
“Call Back”
Places a call to the phone number of latest incoming
call
“Show Recent
Calls”
Displays the call history screen
“Dial (phone num-
ber)”
Places a call to the said phone number
“Call (contacts)
(phone types)”
Place a call to the said phone type of the contact from
the phone book
375
5-12. Using the voice command system (Multimedia system)
5
Audio system
PRIUS c_U (OM52G95U)
The Mobile Assistant feature will activate Apple’s Siri
®
Eyes Free
mode via the steering wheel switches. To operate the Mobile Assis-
tant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®
. (P. 319)
Press and hold the until
you hear the beeps.
The Mobile Assistant can be
used only when the following
screen is displayed.
To cancel the Mobile Assistant,
select “Cancel”, or press and hold
the on the steering wheel.
To restart the Mobile Assistant for
additional commands, press the
on the steering wheel.
• Mobile Assistant can only be restarted after the system responds to a
voice command.
• After some phone and music commands, the Mobile Assistant feature will
automatically end to complete the requested action.
■
Adjusting the Mobile Assistant volume
The volume of the Mobile Assistant can be adjusted using the
“PWR/VOL” knob or steering wheel volume switches. The Mobile
Assistant and phone call volumes are synchronized.
Mobile Assistant
1
2
376
5-12. Using the voice command system (Multimedia system)
PRIUS c_U (OM52G95U)
■ Notes about Mobile Assistant
● The available features and functions may vary based on the iOS version
installed on the connected device.
● Some Siri features are limited in Eyes Free mode. If you attempt to use an
unavailable function, Siri will inform you that the function is not available.
● If Siri is not enabled on the cellular phone connected via Bluetooth
®
, an
error message will be displayed on the screen.
● While a phone call is active, the Mobile Assistant cannot be used.
● If using the navigation feature of the cellular phone, ensure the active audio
source is Bluetooth
®
audio or iPod in order to hear turn by turn direction
prompts.
377
6
Interior features
PRIUS c_U (OM52G95U)
6-1. Using the air
conditioning system
and defogger
Automatic air conditioning
system ............................ 378
Seat heaters...................... 386
6-2. Using the interior lights
Interior lights list ................ 387
• Interior lights ................. 388
• Personal lights .............. 388
6-3. Using the storage
features
List of storage features ..... 390
• Glove box...................... 391
• Console box.................. 391
• Auxiliary boxes.............. 392
• Cup holders .................. 393
• Bottle holders................ 394
6-4. Other interior features
Other interior features ....... 395
• Sun visors..................... 395
• Vanity mirrors................ 395
• Power outlet.................. 396
• Coat hooks.................... 397
• Assist grips ................... 398
• Luggage cover.............. 399
378
PRIUS c_U (OM52G95U)
6-1. Using the air conditioning system and defogger
■
Adjusting the temperature setting
To adjust the temperature setting, turn clockwise to
increase the temperature and turn counterclockwise to
decrease the temperature.
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls
379
6-1. Using the air conditioning system and defogger
6
Interior features
PRIUS c_U (OM52G95U)
■
Fan speed setting
To adjust the fan speed, press on to increase the fan
speed and to decrease the fan speed.
Press to turn the fan off.
■
Changing airflow modes
To change the airflow mode,
press .
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Adjust the temperature setting.
To stop the operation, press .
■
Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
1
2
3
4
Using automatic mode
1
2
3
380
6-1. Using the air conditioning system and defogger
PRIUS c_U (OM52G95U)
■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (the indicator is off) and
recirculated air mode (the indicator is on) each time the button is
pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the wind-
shield is defogged.
■
Defogging the rear window and outside rear view mirrors (if
equipped)
Defogger(s) are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors (if
equipped).
Press .
The defogger(s) will automatically turn off after a period of time.
Other functions
381
6-1. Using the air conditioning system and defogger
6
Interior features
PRIUS c_U (OM52G95U)
■
Location of air outlets
The air outlets and air volume
change according to the
selected airflow mode.
: Some models
■
Adjusting the position of and opening and closing the air out-
lets
Center outlets
Direct air flow to the left or right,
up or down.
Right and left side outlets (type A)
Direct air flow to the left or right,
up or down.
Air outlets
382
6-1. Using the air conditioning system and defogger
PRIUS c_U (OM52G95U)
Open the vent
Close the vent
Right and left side outlets (type B)
Direct air flow to the left or right,
up or down.
Open the vent
Close the vent
1
2
1
2
383
6-1. Using the air conditioning system and defogger
6
Interior features
PRIUS c_U (OM52G95U)
■ Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to pri-
oritize fuel efficiency:
● Engine speed and compressor operation controlled to restrict heating/cool-
ing capacity
● Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
● Adjust the fan speed
● Turn off Eco drive mode
■ Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
■ Fogging up of the windows
● The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the wind-
shield effectively.
● If you turn off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
384
6-1. Using the air conditioning system and defogger
PRIUS c_U (OM52G95U)
■ Outside/recirculated air mode
● When driving on dusty roads such as tunnels or in heavy traffic, set the out-
side/recirculated air mode button to the recirculated air mode. This is effec-
tive in preventing outside air from entering the vehicle interior. During
cooling operation, setting the recirculated air mode will also cool the vehicle
interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.
■ When the outside temperature exceeds 75F (24C) and the air condition-
ing system is on
● In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically. This may also
reduce fuel consumption.
● Recirculated air mode is selected as a default mode when the power switch
is turned to the “ON” position (vehicles without a smart key system) or the
power switch is turned to ON mode (vehicles with a smart key system).
● It is possible to switch to outside air mode at any time by pressing .
■ When the outside temperature falls to nearly 32F (0C)
The dehumidification function may not operate even when is pressed.
■ Ventilation and air conditioning odors
● To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■ Air conditioning filter
P. 451
■ Customization
Settings (e.g. A/C auto switch operation) can be changed.
(Customizable features: P. 563)
385
6-1. Using the air conditioning system and defogger
6
Interior features
PRIUS c_U (OM52G95U)
WARNING
■ To prevent the windshield from fogging up
● Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ When the outside rear view mirror defoggers are on (if equipped)
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the
hybrid system is off.
● Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
386
6-1. Using the air conditioning system and defogger
PRIUS c_U (OM52G95U)
Turns on the front left seat
heater
Turns on the front right seat
heater
The indicator light comes on.
Push the switch once again to turn
off the seat heater.
■ The seat heaters can be used when
The power switch is in ON mode.
■ When not in use
Turn the seat heater off. The indicator light goes off.
Seat heaters
: If equipped
WARNING
● Care should be taken to prevent injury if anyone in the following categories
comes in contact with the seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Observe the following precautions to prevent the minor burns or overheat-
ing
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent 12-volt battery discharge, do not use the functions when the
hybrid system is off.
1
2
387
6
Interior features
PRIUS c_U (OM52G95U)
6-2. Using the interior lights
Interior lights/personal lights (P. 388)
Luggage compartment light (if equipped) (P. 135)
Interior lights list
1
2
388
6-2. Using the interior lights
PRIUS c_U (OM52G95U)
Turns the lights off
Turns the lights on/off linked to
door positions
Turns the lights on
Turns the lights on
Turns the lights off
Interior lights
1
2
3
Personal lights
1
2
389
6-2. Using the interior lights
6
Interior features
PRIUS c_U (OM52G95U)
■ Illuminated entry system
Vehicles without a smart key system
When the interior lights switch is in the door position, the interior lights auto-
matically turn on/off according to the power switch position, whether the
doors are locked/unlocked, and whether the doors are open/closed.
Vehicles with a smart key system
When the interior lights switch is in the door position, the interior lights auto-
matically turn on/off according to power switch mode, the presence of the
electronic key, whether the doors are locked/unlocked, and whether the doors
are open/closed.
■ To prevent 12-volt battery discharge
Vehicles without a smart key system
If the interior lights, personal lights or luggage compartment light remain on
when the power switch is “LOCK” position, the lights will go off automatically
after 20 minutes.
Vehicles with a smart key system
If the interior lights, personal lights or luggage compartment light remain on
when the power switch is off, the lights will go off automatically after 20 min-
utes.
■ Customization that can be configured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 562)
NOTICE
■ To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.
390
PRIUS c_U (OM52G95U)
6-3. Using the storage features
List of storage features
Bottle holders (P. 394)
Auxiliary boxes (if equipped)
(P. 392)
Glove box (P. 391)
Cup holders (P. 393)
Console box (if equipped)
(P. 391)
1
2
3
4
5
WARNING
● Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the storage compartments are not in use, keep the
lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
391
6-3. Using the storage features
6
Interior features
PRIUS c_U (OM52G95U)
Pull up the lever to open the glove
box.
Lift the lid while pulling up the
knob to release the lock.
Remove the lid at the bottom of
the console box.
Small items can be stored in this
space.
■ When using the console box lid as an armrest
Glove box
Console box (if equipped)
The lid can be slid forward or backwards.
392
6-3. Using the storage features
PRIUS c_U (OM52G95U)
Auxiliary boxes
Type A
Type B
Type C
Type D
Type E (if equipped)
WARNING
Do not place items that easily roll over or extend past the box’s rim. The
items may be thrown out of the tray, causing an accident.
393
6-3. Using the storage features
6
Interior features
PRIUS c_U (OM52G95U)
■
Front
■
Rear
Cup holders
Type A
Type B
Pull down the cup holder lid.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Items in the cup holders may be thrown out of the holders in the event of an
accident or sudden braking, causing injury. If possible, cover hot drinks to
prevent burns.
394
6-3. Using the storage features
PRIUS c_U (OM52G95U)
■ When using the bottle holder
● When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
WARNING
Do not place anything other than a bottle in the bottle holders.
Items in the bottle holders may be thrown out of the holders in the event of
an accident or sudden braking and cause injury.
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
395
6
Interior features
PRIUS c_U (OM52G95U)
6-4. Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
Other interior features
Sun visors
1
2
Vanity mirrors
396
6-4. Other interior features
PRIUS c_U (OM52G95U)
Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.
■ The power outlet can be used when
Vehicles without a smart key system
The power switch is in the “ACC” or “ON” position.
Vehicles with a smart key system
The power switch is in ACCESSORY or ON mode.
Power outlet
NOTICE
● To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power
outlet may cause a short circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.
397
6-4. Other interior features
6
Interior features
PRIUS c_U (OM52G95U)
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.
398
6-4. Other interior features
PRIUS c_U (OM52G95U)
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
Do not hang any heavy object or put a heavy load on the assist grip.
399
6-4. Other interior features
6
Interior features
PRIUS c_U (OM52G95U)
■
Removing the luggage cover
Unhook the cords.
Pull the luggage cover back-
ward to disengage the
anchors.
Remove the luggage cover.
Luggage cover (if equipped)
1
2
3
400
6-4. Other interior features
PRIUS c_U (OM52G95U)
■
Installing the luggage cover
Place the luggage cover on
the anchors.
Push the luggage cover until
a click sound is heard.
Hook the cords.
1
2
3
401
7
Maintenance and care
PRIUS c_U (OM52G95U)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior.......... 402
Cleaning and protecting
the vehicle interior........... 405
7-2. Maintenance
Maintenance
requirements................... 411
General maintenance........ 414
Emission inspection and
maintenance (I/M)
programs......................... 417
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ..................... 418
Hood ................................. 421
Positioning a floor jack ...... 423
Engine compartment......... 424
12-volt battery ................... 433
Tires .................................. 437
Tire inflation pressure ....... 446
Wheels .............................. 449
Air conditioning filter.......... 451
Wireless remote control/
electronic key battery...... 453
Checking and replacing
fuses ............................... 456
Light bulbs......................... 460
402
PRIUS c_U (OM52G95U)
7-1. Maintenance and care
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■ Automatic car washes
● Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle's paint.
● In certain automatic car washes, the rear spoiler may interfere with machine
operation. This may prevent the vehicle from being cleaned properly or
result in damage to the rear spoiler.
■ High pressure car washes
● Do not allow the nozzles of the car wash to come within close proximity of
the windows.
● Before using the car wash, check that the fuel filler door on your vehicle is
closed properly.
■ When using a car wash (vehicles with a smart key system)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. In that case, follow the fol-
lowing correction procedures to wash the vehicle:
● Place the electronic key in a location 6 ft. (2 m) or more away from the vehi-
cle. (Take care to ensure that the key is not stolen.)
● Set the electronic key to battery-saving mode to disable the smart key sys-
tem. (P. 140)
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in
prime condition:
403
7-1. Maintenance and care
7
Maintenance and care
PRIUS c_U (OM52G95U)
■ Aluminum wheels (if equipped)
● Remove any dirt immediately by using a neutral detergent.
● Wash detergent off with water immediately after use.
● To protect the paint from damage, make sure to observe the following pre-
cautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-
ing or parking in hot weather
■ Bumpers
Do not scrub with abrasive cleaners.
WARNING
■ When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
■ When cleaning the windshield
Installation area of front sensor on windshield: P. 228
■ Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has
cooled sufficiently, as touching a hot exhaust pipe can cause burns.
NOTICE
■ To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
404
7-1. Maintenance and care
PRIUS c_U (OM52G95U)
NOTICE
■ Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■ When using a high pressure car wash
● When washing the vehicle, do not spray the camera or its surrounding
area directly with a high pressure washer. Shock applied from high pres-
sure water may cause the device to not operate normally.
● Do not bring the nozzle tip close to boots (rubber or resin manufactured
cover), connectors or the following parts. The parts may be damaged if
they come into contact with high-pressure water.
Do not pull, push, or hold onto either roof molding or attach anything to
them, as the roof molding may be partially removed and water may leak
into the vehicle.
■ Roof molding (if equipped)
Do not hold or pull a roof molding when climbing onto the vehicle or shaking
the vehicle as the roof molding may become disengaged and water may
leak into the vehicle.
• Traction related parts
• Steering parts
• Suspension parts
• Brake parts
405
7-1. Maintenance and care
7
Maintenance and care
PRIUS c_U (OM52G95U)
● Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
● If dirt cannot be removed, wipe it off with a soft cloth dampened with
neutral detergent diluted to approximately 1%.
Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
● Remove dirt and dust using a vacuum cleaner.
● Wipe it off with a soft cloth dampened with neutral detergent diluted
to approximately 1%.
● Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water.
Cleaning and protecting the vehicle
interior
The following procedures will help protect your vehicle's interior
and keep it in top condition:
Protecting the vehicle interior
Cleaning the synthetic leather areas
406
7-1. Maintenance and care
PRIUS c_U (OM52G95U)
To prevent the hybrid battery (traction battery) air intake vent from
becoming clogged, clean it periodically.
■
Cleaning the air intake vent
Remove any dust and clogs
from the air intake vent with a
vacuum cleaner, etc.
The air intake vent has a filter
behind the air intake vent cover.
If “MAINTENANCE REQUIRED FOR TRACTION BATTERY
COOLING PARTS SEE OWNER’S MANUAL” is displayed on the
multi-information display, the filter may be clogged. Remove the air
intake vent cover and clean the filter.
■
Cleaning the air intake vent filter
The air intake vent filter is
located below the rear seat
cushion on the left side.
Remove the 2 clips
Push in the center part of
the clips
Remove the clips
Cleaning the hybrid battery (traction battery) air intake vent
1
1
2
407
7-1. Maintenance and care
7
Maintenance and care
PRIUS c_U (OM52G95U)
Disengage the 3 clips and 3
guides on the back of the
cover and remove the air
intake vent cover.
Guides
Clips
Remove any dust and clogs
from the filter using a vac-
uum cleaner, etc.
Make sure to also remove dust
and clogs from the inner side of
the air intake vent cover.
If the filter is damaged, have it
replaced by your Toyota dealer.
Install the air intake vent
cover.
Guides
Clips
Check if the clips and guides
on the back of the cover are
engaging properly if the cover
cannot be installed.
Install the 2 clips.
Push out the center part of
the clips
Insert the clips
Push in the center part of
the clips
2
1
2
3
4
1
2
5
1
2
3
408
7-1. Maintenance and care
PRIUS c_U (OM52G95U)
Start the hybrid system and check that “MAINTENANCE
REQUIRED FOR TRACTION BATTERY COOLING PARTS SEE
OWNER’S MANUAL” is no longer displayed on the multi-infor-
mation display.
It may take approximately 20 minutes for the warning message to
disappear after the hybrid system is started. If the warning mes-
sage does not disappear even though the filter has been cleaned,
have the vehicle inspected by your Toyota dealer.
■ Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle's interior.
■ Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.
■ Air intake vent maintenance
● If the vehicle is driven with the air intake vent clogged, the hybrid battery
(traction battery) may overheat and the fuel consumption may increase.
● Depending on the conditions under which the vehicle is used, the air intake
vent may need to be cleaned more regularly.
■ Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
■ Cleaning the air intake vent filter
● Improper handling of the air intake vent cover and filter may result in dam-
age to them. If you have any concerns about cleaning the filter, contact your
Toyota dealer.
● If the vehicle is driven with the air intake vent filter clogged, the hybrid bat-
tery (traction battery) may overheat and the fuel consumption may increase.
● Depending on the conditions under which the vehicle is used, the air intake
vent filter may need to be cleaned more regularly.
6
409
7-1. Maintenance and care
7
Maintenance and care
PRIUS c_U (OM52G95U)
■ If “MAINTENANCE REQUIRED FOR TRACTION BATTERY COOLING
PARTS SEE OWNER’S MANUAL” is displayed on the multi-information
display
● It is possible the air intake vent or filter is clogged due to accumulated dust.
Clean the air intake vent and filter, referring to the cleaning method.
● When continuously driven in this state, the hybrid battery (traction battery)
may overheat, which may lead to the driving distance by the electric motor
getting shorter, the fuel consumption worsening, and causing damage.
Clean the air intake vent periodically to prevent dust, etc., from collecting in
the air intake vent or filter.
● If the massage in the multi-information display does not turn off, even if the
air intake vent is cleaned, have the vehicle inspected at your Toyota dealer.
WARNING
■ Water in the vehicle
● Do not splash or spill liquid in the vehicle, such as on the floor, in the
hybrid battery (traction battery) air vents, and in the luggage compartment.
Doing so may cause the hybrid battery, electrical components, etc. to mal-
function or catch fire.
● Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 4 1)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
■ Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver's view and leading to an accident,
resulting in death or serious injury.
■ When cleaning the hybrid battery (traction battery) air intake vent/filter
● Do not use water or other liquids to clean the air intake vent/filter. If water
is applied to the hybrid battery (traction battery) or other components, a
malfunction or fire may occur.
● When the air intake vent cover, located below the rear seat cushion on the
left side is to be removed, make sure to turn the power switch off to stop
the hybrid system.
410
7-1. Maintenance and care
PRIUS c_U (OM52G95U)
NOTICE
■ Cleaning detergents
● Do not use the following types of detergent, as they may discolor the vehi-
cle interior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline,
alkaline or acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alco-
hol
● Do not use polish wax or polish cleaner. The instrument panel's or other
interior part's painted surface may be damaged.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
● Remove any dust or dirt from leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or containing wax on the uphol-
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components such as the audio system above or
under the floor of the vehicle. Water may also cause the body to rust.
■ Cleaning the inside of the rear window
● Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
● Be careful not to scratch or damage the heater wires.
411
7
Maintenance and care
PRIUS c_U (OM52G95U)
7-2. Maintenance
General maintenance should be performed on a daily basis. This can
be done by yourself or by a Toyota dealer.
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For details about maintenance items and schedules, refer to the “Sched-
uled Maintenance Guide” or “Owner's Manual Supplement”.
You can perform some maintenance procedures by yourself.
Please be aware that do-it-yourself maintenance may affect warranty
coverage.
The use of Toyota Repair Manuals is recommended.
For details about warranty coverage, see the separate “Owner's Warranty
Information Booklet” or “Owner's Manual Supplement”.
Maintenance requirements
To ensure safe and economical driving, day-to-day care and reg-
ular maintenance are essential. It is the owner's responsibility to
perform regular checks. Toyota recommends the following main-
tenance:
General maintenance
Scheduled maintenance
Do-it-yourself maintenance
412
7-2. Maintenance
PRIUS c_U (OM52G95U)
■ Repair and replacement
It is recommended that genuine Toyota parts be used for repairs to ensure
performance of each system. If non-Toyota parts are used in replacement or if
a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.
■ Resetting the message indicating maintenance is required (U.S.A. only)
After the required maintenance is performed according to the maintenance
schedule, please reset the message.
To reset the message, follow the procedures described below:
Vehicles without a smart key system: Turn the power switch to the “LOCK”
position with the trip meter A reading shown.
Vehicles with a smart key system: Turn the power switch off with the trip
meter A reading shown.
Vehicles without a smart key system: While pressing the “trip” switch (P.
98), turn the power switch to the “ON” position (do not start the hybrid sys-
tem, reset mode will be canceled).
Vehicles with a smart key system: While pressing the trip meter reset but-
ton (P. 98), turn the power switch to the ON mode (do not start the hybrid
system, otherwise the reset mode will be canceled).
Continue to press and hold the button until the trip meter displays “000000”.
■ Allow inspection and repairs to be performed by a Toyota dealer
● Toyota technicians are well-trained specialists and are kept up to date with
the latest service information. They are well informed about the operations
of all systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
1
2
3
413
7-2. Maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
WARNING
■ If your vehicle is not properly maintained
Improper maintenance could result in serious damage to the vehicle and
possible serious injury or death.
■ Handling of the 12-volt battery
● Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
● Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor-
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
● 12-volt battery posts, terminals and related accessories contain lead and
lead compounds which are known to cause brain damage. Wash your
hands after handling. (P. 433)
414
7-2. Maintenance
PRIUS c_U (OM52G95U)
General maintenance
Listed below are the general maintenance items that should be
performed at the intervals specified in the “Owner's Warranty
Information Booklet” or “Owner's Manual Supplement/Sched-
uled Maintenance Guide”. It is recommended that any problem
you notice should be brought to the attention of your Toyota
dealer or qualified service shop for advice.
Engine compartment
Items Check points
Brake fluid
Is the brake fluid at the correct level?
( P. 430)
Coolant
Is the engine/power control unit coolant at the
correct level? (P. 428)
Engine oil Is the engine oil at the correct level? (P. 425)
Exhaust system
There should not be any fumes or strange
sounds.
Radiator/condenser
The radiator and condenser should be free from
foreign objects. (P. 430)
Washer fluid Is there sufficient washer fluid? (P. 432)
Vehicle interior
Items Check points
12-volt battery Check the connections. (P. 433)
Accelerator pedal
• The accelerator pedal should move smoothly
(without uneven pedal effort or catching).
Brake pedal
• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clear-
ance from the floor? (P. 544)
Does the brake pedal have the correct amount
of free play? (P. 544)
415
7-2. Maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Brakes
• The vehicle should not pull to one side when
the brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to
the floor when the brakes are applied.
Head restraints
(Adjustable type)
• Do the head restraints move smoothly and
lock securely?
Hybrid transmission
“Park” mechanism
• When parked on a slope and the parking
brake is on, is the vehicle securely stopped?
Indicators/buzzers
• Do the indicators and buzzers function prop-
erly?
Lights • Do all the lights come on?
Parking brake
• Does the parking brake lever operate nor-
mally?
• When parked on a slope and the parking
brake is on, is the vehicle securely stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be damaged.
Seats • Do the seat controls operate properly?
Steering wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct
amount of free play?
• There should not be any strange sounds com-
ing from the steering wheel.
Items Check points
416
7-2. Maintenance
PRIUS c_U (OM52G95U)
Vehicle exterior
Items Check points
Doors • Do the doors operate smoothly?
Engine hood
• Does the engine hood lock system work prop-
erly?
Fluid leaks
• There should not be any signs of fluid leakage
after the vehicle has been parked.
Tires
• Is the tire inflation pressure correct?
• The tires should not be damaged or exces-
sively worn.
• Have the tires been rotated according to the
maintenance schedule?
• The wheel nuts should not be loose.
Windshield wipers/rear
window wiper (if
equipped)
• The wiper blades should not show any signs
of cracking, splitting, wear, contamination or
deformation.
• The wiper blades should clear the windshield/
rear window without streaking or skipping.
WARNING
■ If the hybrid system is operating
Turn the hybrid system off and ensure that there is adequate ventilation
before performing maintenance checks.
417
7-2. Maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and
may need to be repaired. Contact your Toyota dealer to service the
vehicle.
● When the 12-volt battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary
malfunction and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehi-
cle is driven 40 or more times.
Contact your Toyota dealer to prepare the vehicle for re-testing.
Emission inspection and maintenance (I/M)
programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system
monitors the operation of the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp still remains on after sev-
eral driving trips
If your vehicle does not pass the I/M test
418
PRIUS c_U (OM52G95U)
7-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
Items Check points
12-volt battery condition
(P. 433)
• Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level
(P. 430)
• FMVSS No.116 DOT 3 or SAE J1703 brake
fluid
• Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine/power control
unit coolant level
(P. 428)
• “Toyota Super Long Life Coolant” or a similar
high quality ethylene glycol based non-sili-
cate, non-amine, non-nitrite and non-borate
coolant with long-life hybrid organic acid tech-
nology
For the U.S.A.:
“Toyota Super Long Life Coolant” is pre-mixed
with 50% coolant and 50% deionized water.
For Canada:
“Toyota Super Long Life Coolant” is pre-mixed
with 55% coolant and 45% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(P. 425)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 456) • Fuse with same amperage rating as original
Light bulbs (P. 460)
• Bulb with same number and wattage rating as
original
• Phillips-head screwdriver
• Flathead screwdriver
• Wrench
Radiator and condenser
(P. 430)
Tire inflation pressure
(P. 446)
• Tire pressure gauge
• Compressed air source
419
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Washer fluid (P. 432)
• Water or washer fluid containing antifreeze
(for winter use)
• Funnel (used only for adding water or washer
fluid)
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions:
■ When working on the engine compartment
● Vehicles without a smart key system: Make sure that the power switch is in
the “LOCK” position and the “READY” indicator is off.
Vehicles with a smart key system: Make sure that the indicator on the
power switch and the “READY” indicator are both off.
● Keep hands, clothing and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as they may be hot. Oil and other fluids
may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes
are flammable.
■ When working near the electric cooling fan or radiator grille
Vehicles without a smart key system: The electric cooling fan may keep
rotating for about 3 minutes even after the power switch is turned to the
“LOCK” position.
With the power switch in the “ON” position, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. Be sure the power switch is in the “LOCK” position when
working near the electric cooling fan or radiator grille.
Vehicles with a smart key system: The electric cooling fan may keep rotat-
ing for about 3 minutes even after the power switch is off.
With the power switch in ON mode, the electric cooling fan may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. Be sure the power switch is off when working near the electric cool-
ing fan or radiator grille.
Items Check points
420
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
WARNING
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
NOTICE
■ If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
421
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Pull the hood lock release lever.
The hood will pop up slightly.
Pull up the auxiliary catch lever
and lift the hood.
Hold the hood open by inserting
the supporting rod into the slot.
Hood
Release the lock from the inside of the vehicle to open the hood.
1
2
3
422
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
WARNING
■ Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.
423
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
◆
Front
◆
Rear
Positioning a floor jack
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.
424
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Engine compartment
Fuse boxes (P. 456)
Engine oil filler cap
(P. 426)
Engine coolant radiator cap
Power control unit
coolant reservoir (P. 428)
Brake fluid reservoir
(P. 430)
Engine coolant reservoir
(P. 428)
Engine/power control unit
coolant radiator (P. 430)
Electric cooling fan
Condenser (P. 430)
Engine oil level dipstick
(P. 425)
Washer fluid tank (P. 432)
1
2
3
4
5
6
7
8
9
10
11
425
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■
Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick
may differ depending on the
type of vehicle or engine.
Wipe the dipstick and reinsert it fully.
Engine oil
1
2
3
4
5
1
2
3
6
426
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
■
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
Engine oil selection P. 541
Oil quantity
(Low Full)
1.6 qt. (1.5 L, 1.3 Imp. qt.)
Item Clean funnel
1
2
3
427
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
WARNING
■ Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■ To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
428
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Engine coolant reservoir
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (P. 531)
Power control unit coolant reservoir
The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the hybrid system is cold.
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F” line.
(P. 531)
Coolant
1
2
3
1
2
3
429
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50%
deionized water. (Minimum temperature: -31F [-35C])
Canada:
“Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45%
deionized water. (Minimum temperature: -44F [-42C])
For more details about coolant, contact your Toyota dealer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reser-
voir caps, drain cock and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling systems.
WARNING
■ When the hybrid system is hot
Do not remove the engine coolant radiator cap and power control unit cool-
ant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
430
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by your Toyota dealer.
■
Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
■
Adding fluid
Make sure to check the fluid type and prepare the necessary item.
Slide and lift up the rubber
strip and clips to partly
remove it as shown.
Radiator and condenser
WARNING
■ When the hybrid system is hot
Do not touch the radiators or condenser as they may be hot and cause seri-
ous injuries, such as burns.
Brake fluid
Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Item Clean funnel
1
431
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Disconnect the claws and
remove the service cover.
Remove the reservoir cap.
Add brake fluid slowly while checking the fluid level.
■ Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.
2
3
WARNING
■ When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.
NOTICE
■ If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.
4
432
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
If the amount of washer fluid is
insufficient, add washer fluid.
Washer fluid
WARNING
■ When adding washer fluid
Add washer fluid after the hybrid system has been stopped and cooled
down sufficiently. Washer fluid contains alcohol and may catch fire if spilled
inside a hot engine compartment.
NOTICE
■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle's painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.
433
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■
Location
The 12-volt battery is located
under the rear right seat.
■
Removing the 12-volt battery cover
Remove the 2 clips
Push in the center part of
the clips
Remove the clips
Disengage the 3 clips and 3
guides on the back of the
cover and remove the 12-volt
battery cover.
Guides
Clips
12-volt battery
1
1
2
2
1
2
434
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
■
Exterior
Make sure that the 12-volt battery terminals are not corroded and
that there are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
■
Installing the 12-volt battery cover
Install the 12-volt battery
cover.
Guides
Clips
Check if the clips and guides
on the back of the cover are
engaging properly if the cover
cannot be installed.
Install the 2 clips.
Push out the center part of
the clips
Insert the clips
Push in the center part of
the clips
■ Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:
● If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.
● Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.
1
2
1
1
2
2
1
2
3
435
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■ After recharging/reconnecting the 12-volt battery (vehicles with a smart
key system)
● Unlocking the doors using the smart key system may not be possible imme-
diately after reconnecting the 12-volt battery. If this happens, use the wire-
less remote control or the mechanical key to lock/unlock the doors.
● Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. However, the
hybrid system will operate normally from the second attempt.
● The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to the status it
was in before the 12-volt battery was disconnected. Make sure to turn off
the power before disconnect the 12-volt battery. Take extra care when con-
necting the 12-volt battery if the power switch mode prior to discharge is
unknown.
If the system will not start even after multiple attempts, contact your Toyota
dealer.
WARNING
■ Chemicals in the 12-volt battery
The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:
● Do not cause sparks by touching the 12-volt battery terminals with tools.
● Do not smoke or light a match near the 12-volt battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the 12-volt battery.
● Keep children away from the 12-volt battery.
■ Where to safely charge the 12-volt battery
Always charge the 12-volt battery in an open area. Do not charge the 12-
volt battery in a garage or closed room where there is insufficient ventila-
tion.
436
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
WARNING
■ How to recharge the 12-volt battery
Slow charge (5 A or less). Quick charge 15 A MAX.
■ Emergency measures regarding electrolyte
● If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
● If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.
■ When disconnecting the 12-volt battery
Do not disconnect the negative (-) terminal on the body side. The discon-
nected negative (-) terminal may touch the positive (+) terminal, which may
cause a short and result in death or serious injury.
■ When replacing the 12-volt battery
Use a 12-volt battery designed for this vehicle. Failure to do so may cause
gas (hydrogen) to enter the passenger compartment, causing a fire or
explosion.
For replacement of the 12-volt battery, contact your Toyota dealer.
NOTICE
■ When recharging the 12-volt battery
Never recharge the 12-volt battery while the hybrid system is operating.
Also, be sure all accessories are turned off.
437
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.
New tread
Worn tread
Treadwear indicator
The location of treadwear indicators is shown by a “TWI” or “” mark,
etc., molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.
Rotate the tires in the order
shown.
To equalize tire wear and extend
tire life, Toyota recommends that
tire rotation is carried out at the
same interval as tire inspection.
Do not fail to initialize the tire
pressure warning system after
tire rotation.
Tires
Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.
Checking tires
Tire rotation
1
2
3
Front
438
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise.
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (P. 484)
◆
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new ID codes must be registered in the tire pressure
warning computer and the tire pressure warning system must be
initialized. Have tire pressure warning valve and transmitter ID
codes registered by your Toyota dealer. (P. 439)
◆
Initializing the tire pressure warning system
■
The tire pressure warning system must be initialized in the fol-
lowing circumstances:
● When rotating front and rear tires which have different tire infla-
tion pressures
● When changing the tire size
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
■
How to initialize the tire pressure warning system
Park the vehicle in a safe place and turn the power switch (vehi-
cles without a smart key system) or the power switch (vehicles
with a smart key system) off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. (P. 545)
Make sure to adjust the tire pressure to the specified cold tire infla-
tion pressure level. The tire pressure warning system will operate
based on this pressure level.
Tire pressure warning system
1
2
439
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Turn the power switch to the “ON” position (vehicles without a
smart key system) or power switch to ON mode (vehicles with a
smart key system).
Press and hold the tire pres-
sure warning reset switch
until the tire pressure warn-
ing light blinks slowly 3 times.
Vehicles without a smart key system: Wait for a few minutes with
the power switch in the “ON” position and then turn the power
switch to the “ACC” or “LOCK” position.
Vehicles with a smart key system: Wait for a few minutes with the
power switch in ON mode and then turn the power switch off.
◆
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by your Toyota dealer.
3
4
5
440
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
■
When to replace your vehicle's tires
Tires should be replaced if:
●
The treadwear indicators are showing on a tire.
●
You have tire damage such as cuts, splits, cracks deep enough to
expose the fabric, and bulges indicating internal damage
●
A tire goes flat repeatedly or cannot be properly repaired due to the size
or location of a cut or other damage
If you are not sure, consult with your Toyota dealer.
■
Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not reg-
istered, the tire pressure warning system will not work properly. After driv-
ing for about 20 minutes, the tire pressure warning light blinks for 1
minute and stays on to indicate a system malfunction.
■
Tire life
Any tire over 6 years old must be checked by a qualified technician even
if it has seldom or never been used or damage is not obvious.
■
Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation
pressure checks. Make sure to check tire inflation pressure as part of
your routine of daily vehicle checks.
■
Low profile tires (vehicles with P195/50R16 tires)
Generally, low profile tires will wear more rapidly and tire grip perfor-
mance will be reduced on snowy and/or icy roads when compared to
standard tires. Be sure to use snow tires or tire chains on snowy and/or
icy roads and drive carefully at a speed appropriate for road and weather
conditions.
441
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■
Maximum load of tire
Check that the maximum load of the replacement tire is greater than 1/2
of the Gross Axle Weight Ratings (GAWR) of either the front axle or the
rear axle, whichever is greater.
■
Tire types
●
Summer tires
Summer tires are high-speed performance tires best suited to highway
driving under dry conditions. Since summer tires do not have the same
traction performance as snow tires, summer tires are inadequate for
driving on snow-covered or icy roads. For driving on snow-covered
roads or icy roads, the use of snow tires is recommended. When install-
ing snow tires, be sure to replace all four tires.
●
All season tires
All season tires are designed to provide better traction in snow and to
be adequate for driving in most winter conditions as well as for use
year-round. All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose snow. Also, all
season tires fall short in acceleration and handling performance com-
pared with summer tires in highway driving.
●
Snow tires
For driving on snow-covered roads or icy roads, we recommend using
snow tires. If you need snow tires, select tires of the same size, con-
struction and load capacity as the originally installed tires. Since your
vehicle has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires without
first checking local regulations for possible restrictions. Snow tires
should be installed on all wheels. (P. 275)
■
If the tread on snow tires wears down below 0.16 in. (4 mm)
The effectiveness of the tires as snow tires is lost.
For the GAWR, see the Certification
Label. For the maximum load of the tire,
see the load limit at maximum cold tire
inflation pressure mentioned on the
sidewall of the tire. (P. 550)
442
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
■
If the tire pressure warning system is not functioning
The tire pressure warning system will be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●
If tires not equipped with tire pressure warning valves and transmitters
are used
●
If the ID code on the tire pressure warning valves and transmitters is not
registered in the tire pressure warning computer
●
If the tire inflation pressure is 70 psi (480 kPa, 4.9 kgf/cm
2
or bar) or
higher
The tire pressure warning system may be disabled in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●
If electronic devices or facilities using similar radio wave frequencies are
nearby
●
If a radio set at a similar frequency is in use in the vehicle
●
If a window tint that affects the radio wave signals is installed
●
If there is a lot of snow or ice on the vehicle, particularly around the
wheels or wheel housings
●
If non-genuine Toyota wheels are used (Even if you use Toyota wheels,
the tire pressure warning system may not work properly with some types
of tires.)
●
If tire chains are used
■
The initialization operation
●
Make sure to carry out initialization after adjusting the tire inflation pres-
sure.
Also, make sure the tires are cold before carrying out initialization or tire
inflation pressure adjustment.
●
If you have accidentally turned the power switch to off during initializa-
tion, it is not necessary to press the reset switch again as initialization
will restart automatically when the power switch has been turned to the
ON mode for the next time.
●
If you accidentally press the reset switch when initialization is not neces-
sary, adjust the tire inflation pressure to the specified level when the
tires are cold, and conduct initialization again.
443
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■
When the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following
cases, the settings have not been recorded and the system will not oper-
ate properly. If repeated attempts to record tire inflation pressure settings
are unsuccessful, have the vehicle inspected by your Toyota dealer.
●
When operating the tire pressure warning reset switch, the tire pressure
warning light does not blink 3 times.
●
After driving for a certain period of time since the initialization has been
completed, the warning light comes on after blinking for 1 minute.
■
Tire pressure warning system certification
For vehicles sold in the U.S.A. and Puerto Rico
For vehicles sold in Canada
444
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
WARNING
■
When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as
dangerous handling characteristics, which may lead to an accident
resulting in death or serious injury.
●
Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●
Do not use tire sizes other than those recommended by Toyota.
●
Do not mix differently constructed tires (radial, bias-belted or bias-ply
tires).
●
Do not mix summer, all season and snow tires.
●
Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
●
Do not tow if your vehicle has a compact spare tire installed.
■
When initializing the tire pressure warning system
Do not operate the tire pressure warning reset switch without first
adjusting the tire inflation pressure to the specified level. Otherwise, the
tire pressure warning light may not come on even if the tire inflation
pressure is low, or it may come on when the tire inflation pressure is
actually normal.
445
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
NOTICE
■
Repairing or replacing tires, wheels, tire pressure warning valves,
transmitters and tire valve caps
●
When removing or fitting the wheels, tires or the tire pressure warning
valves and transmitters, contact your Toyota dealer as the tire pres-
sure warning valves and transmitters may be damaged if not handled
correctly.
●
When replacing tire valve caps, do not use tire valve caps other than
those specified. The cap may become stuck.
■
To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (P. 438)
■
Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot-
holes.
These conditions may cause losses in tire inflation pressure, reducing
the cushioning ability of the tires. In addition, driving on rough roads
may cause damage to the tires themselves, as well as the vehicle’s
wheels and body.
■
Low profile tires (vehicles with P195/50R16 tires)
Low profile tires may cause greater damage than usual to the tire wheel
when sustaining impact from the road surface. Therefore, pay attention
to the following:
●
Be sure to use proper tire inflation pressure. If tires are under-inflated,
they may be damaged more severely.
●
Avoid potholes, uneven pavement, curbs and other road hazards. Fail-
ure to do so may lead to severe tire and wheel damage.
■
If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.
446
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
The recommended cold tire infla-
tion pressure and tire size are dis-
played on the tire and loading
information label. (P. 545)
Tire valve
Tire pressure gauge
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the gauge gradations.
If the tire inflation pressure is not at the recommended level, adjust
the pressure.
If you add too much air, press the center of the valve to deflate.
Tire inflation pressure
Tire inflation pressure
Inspection and adjustment procedure
1
2
1
2
3
4
447
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leakage.
Put the tire valve cap back on.
■
Tire inflation pressure check interval
You should check tire inflation pressure every two weeks, or at least once
a month.
Do not forget to check the spare.
■
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
●
Reduced fuel economy
●
Reduced driving comfort and poor handling
●
Reduced tire life due to wear
●
Reduced safety
●
Damage to the drive train
If a tire needs frequent inflating, have it checked by your Toyota dealer.
■
Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
●
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours or has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold tire
inflation pressure reading.
●
Always use a tire pressure gauge.
It is difficult to judge if a tire is properly inflated based only on its appear-
ance.
●
It is normal for the tire inflation pressure to be higher after driving as
heat is generated in the tire. Do not reduce tire inflation pressure after
driving.
●
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is
balanced.
5
6
448
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
WARNING
■
Proper inflation is critical to save tire performance
Keep your tires properly inflated.
If the tires are not properly inflated, the following conditions may occur
which could lead to an accident resulting in death or serious injury:
●
Excessive wear
●
Uneven wear
●
Poor handling
●
Possibility of blowouts resulting from overheated tires
●
Air leaking from between tire and wheel
●
Wheel deformation and/or tire damage
●
Greater possibility of tire damage while driving (due to road hazards,
expansion joints, sharp edges in the road, etc.)
NOTICE
■
When inspecting and adjusting tire inflation pressure
Be sure to put the tire valve caps back on.
If a valve cap is not installed, dirt or moisture may get into the valve and
cause an air leak, resulting in decreased tire inflation pressure.
449
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
When replacing wheels, care should be taken to ensure that they are
equivalent to those removed in load capacity, diameter, rim width and
inset
*
.
Replacement wheels are available at your Toyota dealer.
*
: Conventionally referred to as “offset”.
Toyota does not recommend using the following:
● Wheels of different sizes or types
● Used wheels
● Bent wheels that have been straightened
● Use only Toyota wheel nuts and wrenches designed for use with
your aluminum wheels.
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Toyota genuine balance weights or equivalent and use a
plastic or rubber hammer when balancing your wheels.
■
When replacing wheels
The wheels of your vehicle are equipped with tire pressure warning
valves and transmitters that allow the tire pressure warning system to
provide advance warning in the event of a loss in tire inflation pressure.
Whenever wheels are replaced, tire pressure warning valves and trans-
mitters must be installed. (P. 438)
Wheels
If a wheel is bent, cracked or heavily corroded, it should be
replaced. Otherwise, the tire may separate from the wheel or
cause a loss of handling control.
Wheel selection
Aluminum wheel precautions (if equipped)
450
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
WARNING
■
When replacing wheels
●
Do not use wheels that are a different size from those recommended in
the Owner's Manual, as this may result in a loss of handling control.
●
Never use an inner tube in a leaking wheel which is designed for a
tubeless tire. Doing so may result in an accident, causing death or seri-
ous injury.
■
When installing the wheel nuts
●
Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an
accident and resulting in death or serious injury. Remove any oil or
grease from the wheel bolts or wheel nuts.
NOTICE
■
Replacing tire pressure warning valves and transmitters
●
Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.
●
Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.
●
Be sure to install the wheel nuts with
the tapered ends facing inward.
Installing the nuts with the tapered
ends facing outward can cause the
wheel to break and eventually cause
the wheel to come off while driving,
which could lead to an accident
resulting in death or serious injury.
Tapered
portion
451
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Vehicles without a smart key system: Turn the power switch to the
“LOCK” position.
Vehicles with a smart key system: Turn the power switch off.
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the upper
claws.
Pull out the glove box and dis-
connect the lower claws.
Air conditioning filter
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Replacement method
1
2
3
4
452
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Remove the filter cover.
Unlock the filter cover.
Move the filter cover in the
direction of the arrow, and
then pull it out of the claws.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “UP” mark shown on the filter
should be pointing up.
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, more frequent clean-
ing or early replacement may be required. (For scheduled maintenance infor-
mation, please refer to the “Scheduled Maintenance Guide” or “Owner's
Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
5
1
2
6
NOTICE
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
453
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
● Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2016 (vehicles without a smart key system), or
CR2032 (vehicles with a smart key system)
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
To prevent the buttons from being
disassembled, face the button sur-
face downward.
Remove the module.
Open the case cover using a
coin protected with tape etc.
and remove the depleted bat-
tery using a small flathead
screwdriver.
Insert a new battery with the “+”
terminal facing up.
Wireless remote control/electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery (vehicles without a smart key system)
1
2
3
454
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery
using a small flathead screw-
driver.
When removing the cover, the
electronic module may stick to the
cover and the battery may not be
visible. In this case, remove the
electronic module in order to
remove the battery.
Insert a new battery with the “+”
terminal facing up.
Replacing the battery (vehicles with a smart key system)
1
2
3
455
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■ Use a CR2016 (vehicles without a smart key system) or CR2032 (vehicles
with a smart key system) lithium battery
● Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the key battery is depleted
The following symptoms may occur:
● The smart key system (if equipped) and wireless remote control will not
function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.
456
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Vehicles without a smart key system: Turn the power switch to the
“LOCK” poison.
Vehicles with a smart key system: Turn the power switch off.
Engine compartment
Push the tab in and lift the cover off.
Under the instrument panel
Remove the cover.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Type A fuse box
Type B fuse box
2
457
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
3
458
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Check if the fuse is blown.
4
Type A
Type B
Type C
Type D
Type E
Normal fuse
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact your Toyota dealer.
1
2
459
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 460)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
■ Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring
near the fuse box.
Doing so may cause electric shock, resulting in death or serious injury.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
460
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Check the wattage of the light bulb to be replaced. (P. 546)
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by your Toyota dealer.
Preparing for light bulb replacement
461
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■
Front
Front turn signal light/parking light
■
Rear
Bulb locations
1
Rear turn signal light
Back-up light
License plate lights
1
2
3
462
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
■
Front turn signal lights/parking lights
Turn the bulb base
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
463
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■
Rear turn signal lights and back-up lights
Open the back door and
remove the bolts. Pull the
lamp assembly straight back
to disengage the clip and 2
pins.
Guide (where the clip
attaches)
Pin
Turn the bulb base
counterclockwise.
Rear turn signal light
Back-up light
Remove the light bulb.
Rear turn signal light
Back-up light
1
1
2
2
1
2
3
1
2
464
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
When installing the light bulb, install by conducting and
with the directions reversed.
Install the lamp assembly
and then install the 2 bolts.
When installing the lamp assem-
bly, align the guide (where the
clip attaches) and pins of
the lamp assembly with the con-
necting parts on the vehicle
body.
4 3 2
5
1 2
465
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■
License plate lights
Remove the lens.
Insert a properly sized
screwdriver into the hole of
the lens.
Push the screwdriver side-
ways in the direction of the
arrow shown in the illustra-
tion, disengage the hook,
and then remove the lens.
To prevent damaging the
vehicle, wrap the screwdriver
with a tape.
Remove the light bulb.
Install a new light bulb.
Lens
1
1
Hook
2
2
3
466
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
Install the lens.
Fit the lens into either the
right or left hooks.
Push the lens into place.
After installation, confirm that
the lens is properly installed
by gently pulling it.
■
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights/daytime running lights
● Front fog lights (if equipped)
● Side marker lights
● Side turn signal lights
● Stop/tail lights
● High mounted stoplight
Hooks
4
1
2
467
7-3. Do-it-yourself maintenance
7
Maintenance and care
PRIUS c_U (OM52G95U)
■ LED light bulbs
The headlights/daytime running lights, front fog lights (if equipped), side
marker lights, stop/tail lights and high mounted stoplight consist of a number
of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer
to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
468
7-3. Do-it-yourself maintenance
PRIUS c_U (OM52G95U)
469
8
When trouble arises
PRIUS c_U (OM52G95U)
8-1. Essential information
Emergency flashers .......... 470
If your vehicle has to be
stopped in an
emergency ...................... 471
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ..................... 473
If you think something is
wrong .............................. 480
If a warning light turns
on or a warning buzzer
sounds ............................ 481
If a warning message is
displayed......................... 490
If you have a flat tire.......... 507
If the hybrid system will
not start........................... 520
If the electronic key does
not operate properly........ 522
If the vehicle 12-volt
battery is discharged....... 524
If your vehicle
overheats ........................ 531
If the vehicle becomes
stuck ............................... 535
470
PRIUS c_U (OM52G95U)
8-1. Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hybrid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt bat-
tery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
471
8-1. Essential information
8
When trouble arises
PRIUS c_U (OM52G95U)
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart key
system: Stop the hybrid system
by turning the power switch to
the “ACC” position.
Vehicles with a smart key sys-
tem: To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or
more
4
5
472
8-1. Essential information
PRIUS c_U (OM52G95U)
WARNING
■ If the hybrid system has to be turned off while driving
● Power assist for the steering wheel will be lost, making the steering wheel
heavier to turn. Decelerate as much as possible before turning off the
hybrid system.
● Vehicles without a smart key system: Never attempt to remove the key, as
doing so will lock the steering wheel.
473
8
When trouble arises
PRIUS c_U (OM52G95U)
8-2. Steps to take in an emergency
The following may indicate a problem with your transmission. Contact
your Toyota dealer or commercial towing service before towing.
● A warning message for the hybrid system is shown on the multi-
information display and the vehicle does not move.
● The vehicle makes an abnormal sound.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle
towed by your Toyota dealer or commercial towing service,
using a wheel-lift type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Situations when it is necessary to contact dealers before towing
474
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Do not tow with a sling-type truck
to prevent body damage.
Towing with a sling-type truck
Towing with a wheel-lift type truck
From the front
From the rear
Release the parking brake. Use a towing dolly under the
front wheels.
475
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
If your vehicle is transported by a
flatbed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be dam-
aged.
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for short distance at under 18 mph (30 km/h).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Using a flatbed truck
Emergency towing
476
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Take out the towing eyelet. (P. 507)
Remove the eyelet cover using a flathead screwdriver.
To protect the bodywork, place a rag between the screwdriver and the
vehicle body as shown in the illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
Emergency towing procedure
1
2
Type A
Type B
3
4
477
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Vehicles without a smart key system: Enter the vehicle being towed
and start the hybrid system.
If the hybrid system does not start, turn the power switch to the “ON” posi-
tion.
Vehicles with a smart key system: Enter the vehicle being towed
and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: P. 202
■ While towing
If the hybrid system is off, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
■ Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. (P. 508)
5
6
7
478
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■ When towing the vehicle
■ While towing
● When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The towing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple, and cause serious damage.
● Do not turn the power switch to the “LOCK” position (vehicles without a
smart key system) or the power switch off (vehicles with a smart key sys-
tem).
There is a possibility that the steering wheel is locked and cannot be oper-
ated.
■ Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting
the ground, the drivetrain and related
parts may be damaged or electricity gen-
erated by the operation of the motor may
cause a fire to occur depending on the
nature of the damage or malfunction.
479
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
NOTICE
■ To prevent damage to the vehicle when towing using a wheel-lift type
truck
● Vehicles without a smart key system: Do not tow the vehicle from the rear
when the power switch is in the “LOCK” position or the key is removed.
The steering lock mechanism is not strong enough to hold the front wheels
straight.
● Vehicles with a smart key system: Do not tow the vehicle from the rear
when the power switch off. The steering lock mechanism is not strong
enough to hold the front wheels straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
480
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● is shown on the multi-information display
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
If you think something is wrong
If you notice any of the following symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms
481
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
If a warning light turns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Warning light and warning buzzer list
Warning light Warning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light in red (warning buzzer)
*
1
• Low brake fluid
• Malfunction in the brake system
Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.
Brake system warning light in yellow
Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
Have the vehicle inspected by your Toyota dealer
immediately.
482
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Warning light Warning light/Details/Actions
(U.S.A.)
(Canada)
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system; or
• The electronic throttle control system
Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system
Have the vehicle inspected by your Toyota dealer
immediately.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
Have the vehicle inspected by your Toyota dealer
immediately.
(U.S.A.)
(Canada)
Parking brake warning light (warning buzzer)
*
2
Indicates that the parking brake is engaged
Release the parking brake.
483
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Slip indicator light
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRAC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC, the TRAC or the ABS
system is operating.
Have the vehicle inspected by your Toyota dealer
immediately.
Low fuel level warning light
Remaining fuel is low
When the remaining fuel is approximately 1.3 gal. (5.0 L,
1.1 Imp. gal.) or less, a buzzer sounds and comes on
Refuel the vehicle.
Seat belt reminder light (warning buzzer)
*
3
Warns the driver and/or front passenger to fasten their
seat belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front
passenger’s seat belt also needs to be fastened to
make the reminder light (warning buzzer) go off.
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
P. 490
Warning light Warning light/Details/Actions
484
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
*
1
: Brake system warning buzzer:
When there is a possible problem that could affect braking performance,
the warning light will come on and a warning buzzer will sound.
*
2
: Parking brake engaged warning buzzer
P. 205, 494
PCS warning light
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Collision system)
Have the vehicle inspected by your Toyota dealer
immediately.
When the warning light illuminates:
Indicates that the PCS (Pre-Collision system) is temporar-
ily unavailable, possibly due to either of the following:
• The part of the windshield around the front sensor being
dirty, fogged up or covered with condensation, ice, stick-
ers, etc.
Clear the dirt, fog, condensation, ice, stickers, etc.
(P. 227)
• Front sensor temperature being outside of its opera-
tional range
Wait for a while until the area around the front sensor
has cooled down sufficiently.
• Either the VSC system or PCS (Pre-Collision system) is
disabled or both are disabled.
To enable the PCS, enable both the VSC system and
PCS. (P. 232, 268)
Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (P. 486)
• Flat tire (P. 507)
Adjust the tire inflation pressure to the specified
level.
The light will turn off after a few minutes. In case
the light does not turn off even if the tire inflation
pressure is adjusted, have the system checked by
your Toyota dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
(P. 487)
Have the system checked by your Toyota dealer.
Warning light Warning light/Details/Actions
485
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
*
3
: Driver’s seat belt buzzer:
Vehicles without a smart key system: The driver’s seat belt buzzer sounds
to alert the driver that his or her seat belt is not fastened. Once the power
switch is turned to the “ON” position, the buzzer sounds for 6 seconds. If
the vehicle reaches a speed of 12 mph (20 km/h), the buzzer sounds once.
If the seat belt is still unfastened after 24 seconds, the buzzer will sound
intermittently for 10 seconds. Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 20 more seconds.
Vehicles with a smart key system: The driver’s seat belt buzzer sounds to
alert the driver that his or her seat belt is not fastened. Once the power
switch is turned to ON mode, the buzzer sounds for 6 seconds. If the vehi-
cle reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If the
seat belt is still unfastened after 24 seconds, the buzzer will sound intermit-
tently for 10 seconds. Then, if the seat belt is still unfastened, the buzzer
will sound in a different tone for 20 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger
that his or her seat belt is not fastened. The buzzer sounds once if the
vehicle reaches a speed of 12 mph (20 km/h). If the seat belt is still unfas-
tened after 24 seconds, the buzzer will sound intermittently for 10 seconds.
Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 20 more seconds.
486
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
■ SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front door), side impact sensors (front), side
impact sensors (rear), driver’s seat belt buckle switch, front passenger occu-
pant classification system, “AIR BAG ON” indicator light, “AIR BAG OFF” indi-
cator light, front passenger’s seat belt buckle switch, seat belt pretensioners
(front), airbags, interconnecting wiring and power sources. (P. 41)
■ Front passenger detection sensor, passenger seat belt reminder and
warning buzzer
● If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.
■ If the malfunction indicator lamp comes on while driving
First check the following:
● Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
■
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Push-
ing the tire pressure warning reset switch will not turn off the tire pressure
warning light.
■
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such
as natural air leaks and tire inflation pressure changes caused by tem-
perature. In this case, adjusting the tire inflation pressure will turn off the
warning light (after a few minutes).
■
When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
Replace the spare tire with the repaired tire and adjust the tire inflation
pressure. The tire pressure warning light will go off after a few minutes.
487
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
■
If the tire pressure warning system is not functioning
P. 442
■
If the tire pressure warning light frequently comes on after blinking
for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1
minute when the power switch is turned to the “ON” position (vehicles
without a smart key system) or the power switch is turned to ON mode
(vehicles with a smart key system), have it checked by your Toyota
dealer.
■ Customization that can be configured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features: P. 562) However, Toyota recommends that the
seat belt reminder buzzer be operational to alert the driver and front passen-
ger when seat belts are not fastened.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
WARNING
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
When steering wheel operations are heavier than usual, grip the steering
wheel firmly and operate it using more force than usual.
■
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●
Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●
If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, change it with the spare tire and have the flat tire
repaired by the nearest Toyota dealer.
●
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■
If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
488
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
WARNING
■
Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-tire pressure warning system) that
illuminates a low tire pressure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the low tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
489
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
NOTICE
■
To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire
pressure warning system may not operate properly.
490
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Multi-information display
Warning message details and/or
correction procedures are shown
on the multi-information display.
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.
If a warning message is displayed
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
491
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Warning message and warning buzzer list
Warning message Details/Actions
Indicates a malfunction in the hybrid system
A buzzer sounds in accordance with the warn-
ing message that is displayed.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates that the high engine coolant tempera-
ture is too high
A buzzer also sounds.
Immediately stop the vehicle in a safe
place. (P. 531)
Indicates abnormal engine oil pressure
The warning message is shown if the engine oil
pressure is too low.
A buzzer also sounds.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) system
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the PCS (Pre-Collision
System)
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
(Flashes)
492
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Indicates a malfunction in:
• The Automatic High Beam system
• The LED headlight system
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
Indicates that:
• There is a high possibility of a frontal collision;
or
• The pre-collision braking function is operating
A buzzer also sounds.
Check the vehicle's surroundings and take
evasive action if necessary.
(If equipped)
• Indicates a malfunction in the smart key system
• Indicates a malfunction in the steering lock sys-
tem
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the cruise control sys-
tem
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the Brake Override
System
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer immediately.
Warning message Details/Actions
(Flashes)
493
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Indicates a malfunction in the Drive-Start Control
A buzzer also sounds.
Have the vehicle inspected by your Toyota
dealer immediately.
Alerts the driver that the vehicle has deviated
from the lane (while the LDA [Lane Departure
Alert] system is operating)
The lane line on the side the vehicle has devi-
ated from flashes in yellow.
The warning buzzer sounds continuously.
Check around the vehicle and back to
inside of the lane lines.
Indicates that one or more of the side doors is not
fully closed
The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds
to indicate that the door(s) are not yet fully
closed.
Make sure that all the side doors are
closed.
Indicates that the back door is not fully closed
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds
to indicate that the back door is not yet fully
closed.
Close the back door.
Warning message Details/Actions
494
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
(If equipped)
Indicates that the moon roof is not fully closed
(with the power switch off and the driver’s door is
open)
A buzzer also sounds.
Close the moon roof.
Indicates that the parking brake is still engaged
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the parking brake is still engaged.
Release the parking brake.
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule
*
1
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule
*
1
.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the
message has been reset.)
Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. (P. 412)
Indicates that the hybrid system has overheated
This message may be displayed when driving
under severe operating conditions. (For exam-
ple, when driving up a long steep hill.)
A buzzer also sounds.
Stop and check. (P. 531)
Warning message Details/Actions
(Flashes)
(U.S.A.) (Canada)
495
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
Turn the high beam on.
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
braking and pre-collision brake assist are dis-
abled (The pre-collision warning function will be
operational)
Turn the VSC on. (P. 241, 268)
Indicates that the pre-collision system is disabled.
Have the vehicle inspected by your Toyota
dealer.
Indicates that the hybrid battery (traction battery)
is low
A buzzer also sounds.
When stopping the vehicle for a long
period of time, shift the shift lever to P. The
hybrid battery (traction battery) cannot be
charged with the shift position in N.
Indicates that the hybrid battery (traction battery)
power has dropped because a long period of time
has elapsed after shifting the shift lever to N
A buzzer also sounds.
Shift the shift lever to P and restart the
hybrid system when starting the vehicle.
Warning message Details/Actions
(Flashes)
(Flashes)
496
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Indicates that the driver’s door was opened with
the shift position in N, D or B
A buzzer also sounds.
Shift the shift lever to P.
Indicates that the accelerator pedal is depressed
while the shift position is in N
A buzzer also sounds.
Release the accelerator pedal and shift the
shift lever to D, B or R.
Indicates that the power switch is turned to the
“ACC” or “LOCK” position (vehicles without a
smart key system) or the power switch is turned
to ACCESSORY mode or turned off (vehicles
with a smart key system) and the driver’s door is
opened while the lights are turned on
A buzzer also sounds.
Turn the lights off.
Warning message Details/Actions
(Flashes)
(Flashes)
(Flashes)
497
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Indicates that the EV drive mode is not avail-
able
*
2
The reason the EV drive mode is not available
(the vehicle is idling, battery charge is low,
speed is higher than the EV drive mode operat-
ing speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
Use the EV drive mode when it becomes
available.
Warning message Details/Actions
498
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Indicates that the EV drive mode has been auto-
matically canceled
*
2
The reason the EV drive mode is not available
(the battery charge is low, speed is higher than
the EV drive mode speed range, accelerator
pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
Drive the vehicle for a while.
Indicates a malfunction in the vehicle’s charging
system
A buzzer also sounds.
Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates that the TRAC (Traction Control) sys-
tem has been deactivated
Turn the TRAC on. (P. 267)
Warning message Details/Actions
(Flashes 3
times)
499
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Indicates that the accelerator and brake pedals
are being depressed simultaneously, and the
Brake Override System is operating. (P. 171)
Release the accelerator pedal and depress
the brake pedal.
Indicates that, as the shift lever was shifted while
the accelerator pedal was depressed, Drive-Start
Control was activated. (P. 171)
A buzzer also sounds.
Release the accelerator pedal immediately.
Indicates that the accelerator pedal is depressed
with the shift lever in P
Release the accelerator pedal.
The system is temporarily canceled because the
operating conditions of the front sensor (tempera-
ture, etc.) are not met.
The following systems may be suspended:
• PCS (Pre-Collision system)
• LDA (Lane Departure Alert)
• Automatic High Beam
The system can be operated when the
operating conditions of the front sensor
(temperature, etc.) are met. Turn the system
off, wait for a while, and then turn the sys-
tem back on.
The area of the windshield in front of the front
sensor is fogged up or covered with dirt, rain, ice,
snow, etc.
The following systems may be suspended:
• PCS (Pre-Collision system)
• LDA (Lane Departure Alert)
• Automatic High Beam
Turn the system off, clear the windshield of
dirt, fog, ice, etc. then turn the system back
on. (P. 227)
Warning message Details/Actions
(Flashes)
(Flashes)
500
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
*
1
: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle.
*
2
: For the EV drive mode operating conditions:
P. 198
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 32 mph (50
km/h)
Drive the vehicle at 32 mph (50 km/h) or
higher.
Indicates that the LDA (Lane Departure Alert)
system is suspended (The vehicle speed is too
high for the system to operate.)
Reduce the vehicle speed.
Warning message Details/Actions
501
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Carrying out the corresponding action turns the message off.
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Other displayed message
Displayed message Details/Actions
Maintenance of the hybrid battery (traction battery)
cooling component is required
The filter may be clogged, the air intake vent
may be blocked or there may be a gap in the
duct.
If the air intake vent is dirty, refer to P. 406
for cleaning the air intake vent.
If the message is being displayed and the air
intake vent is not dirty, have the vehicle
inspected at your Toyota dealer.
Have the malfunction repaired immediately. (vehicles with a
smart key system)
Interior
buzzer
Exterior
buzzer
Warning message Details/Actions
Once
The electronic key is not
detected when an attempt is
made to start the hybrid sys-
tem.
Start the hybrid system
with the electronic key
present.
(Flashes)
502
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Once 3 times
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while the shift lever was
in P without turning off the
power switch.
Turn the power switch off
or bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver's door was
opened and closed while the
power switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
Once
Contin-
uous
(For 5
sec-
onds)
An attempt was made to lock
the doors using the entry func-
tion after the electronic key was
carried outside the vehicle with-
out turning off the power switch.
Turn the power switch off
and lock the doors again.
Interior
buzzer
Exterior
buzzer
Warning message Details/Actions
(Flashes)
(Displayed alternately)
(Flashes)
503
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
9 times
An attempt was made to start
the hybrid system without the
electronic key being present, or
the electronic key was not func-
tioning normally.
An attempt was made to drive
when the regular key was not
inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Contin-
uous
The driver’s door was opened
while a shift lever position other
than P was selected without
turning off the power switch.
Shift the shift lever to P.
Contin-
uous
Contin-
uous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while a shift lever posi-
tion other than P was selected
without turning off the power
switch.
Shift the shift lever to P.
Bring the electronic key
back into the vehicle.
Interior
buzzer
Exterior
buzzer
Warning message Details/Actions
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)
504
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Contin-
uous
(5 sec-
onds)
An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
Contin-
uous
(5 sec-
onds)
An attempt was made to lock
either front door by opening a
door and putting the inside door
lock button into the lock posi-
tion, and then closing the door
while pulling on the outside
door handle with the electronic
key still inside the vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
• The electronic key could not
be detected when the power
switch was pressed after the
doors were unlocked with the
mechanical key.
• The electronic key could not
be detected two consecutive
times when the power switch
was pressed.
Touch the electronic key to
the power switch while
depressing the brake
pedal.
Once
An attempt was made to start
the hybrid system with the shift
lever in a position other than P.
Shift the shift lever to P
and start the hybrid sys-
tem.
Interior
buzzer
Exterior
buzzer
Warning message Details/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)
505
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Power was turned off due to the
automatic power off function.
Next time when starting
the hybrid system,
increase the engine speed
slightly and maintain that
level for approximately 5
minutes to recharge the
12-volt-battery.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. (P. 453)
Once
The driver’s door was opened
and closed with the power
switch turned off and then the
power switch was put in
ACCESSORY mode twice with-
out the hybrid system being
started.
Press the power switch
while depressing the brake
pedal.
During a hybrid system starting
procedure in the event that the
electronic key was not function-
ing properly (P. 522), the
power switch was touched with
the electronic key.
Press the power switch
within 10 seconds of the
buzzer sounding.
Interior
buzzer
Exterior
buzzer
Warning message Details/Actions
(Flashes)
506
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Once
The steering lock could not be
released within 3 seconds of
the power switch being
pressed.
Press the power switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Once
The power switch has been
turned off with the shift lever in
a position other than P.
Shift the shift lever to P.
Once
After the power switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
Turn the power switch off.
Interior
buzzer
Exterior
buzzer
Warning message Details/Actions
(Flashes)
(Flashes)
(Flashes)
507
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
● Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. (P. 470)
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 437
WARNING
■
If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
508
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
*
: Jack handle, wheel nut wrench and towing eyelet
Location of the spare tire, jack and tools
Luggage floor cover
Jack
Spare wheel cushions
Tool bag
*
Spare tire
1
2
3
4
5
509
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
WARNING
■
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●
Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●
Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●
Put the jack properly in its jack point.
●
Do not put any part of your body under the vehicle while it is supported
by the jack.
●
Do not start or run the hybrid system while your vehicle is supported by
the jack.
●
Do not raise the vehicle while someone is inside.
●
When raising the vehicle, do not put an object on or under the jack.
●
Do not raise the vehicle to a height greater than that required to
replace the tire.
●
Use a jack stand if it is necessary to get under the vehicle.
●
When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
510
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Remove the luggage floor
cover by lifting up the points
indicated by the arrows.
Remove the jack after removing
the hook.
Taking out the jack
1
2
511
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Remove the luggage floor
cover by lifting up the points
indicated by the arrows.
Remove the spare wheel cush-
ions, then loosen the center
fastener that secures the spare
tire.
Taking out the compact spare tire
1
2
WARNING
■
When storing the compact spare tire
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
512
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Chock the tires.
For vehicles with steel wheels,
remove the wheel cover using
the wrench.
To protect the wheel cover, place
a rag between the wrench and
the wheel cover.
Slightly loosen the wheel nuts
(one turn).
Vehicles with steel wheels: Make
sure to remove the wheel cover
before loosening the wheel nuts.
Replacing a flat tire
1
Flat tire Wheel chock positions
Front
Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear
Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
2
3
513
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
6
514
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
WARNING
■
Replacing a flat tire
●
Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●
Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifi-
cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. (P. 450)
515
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
When replacing a steel wheel
with a compact spare tire,
tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
When replacing an aluminum
wheel with a compact spare
tire, tighten the wheel nuts until
the tapered portion comes into
loose contact with the disc
wheel seat.
Installing the compact spare tire
1
2
Tapered portion
Disc
wheel
seat
Tapered portion
Disc
wheel
seat
516
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire in the luggage
compartment as shown in the
illustration.
Stow all the tools.
Stow the spare wheel cushions, tire jack and luggage floor cover in
the luggage compartment.
3
4
5
6
7
517
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
■
The compact spare tire
●
The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●
Make sure to check the tire inflation pressure of the compact spare tire.
(P. 545)
■
After completing the tire change
The tire pressure warning system must be reset. (P. 438)
■
When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you replace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
■
If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle.
Perform the following steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-
cle.
Fit tire chains to the front tires.
1
2
3
518
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
WARNING
■
When using the compact spare tire
●
Remember that the compact spare tire provided is specifically
designed for use with your vehicle. Do not use your compact spare tire
on another vehicle.
●
Do not use more than one compact spare tire simultaneously.
●
Replace the compact spare tire with a standard tire as soon as possi-
ble.
●
Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
■
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
■
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-
ure to observe this precaution may lead to an accident causing death or
serious injury.
■
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the possibility of personal injury during a
collision or sudden braking.
• ABS & Brake assist
• VSC
•TRAC
• Cruise control (if equipped)
• PCS (Pre-collision system)
• LDA (Lane Departure Alert)
• Automatic High Beam
• EPS
• Rear view monitor system
• Navigation system (if equipped)
519
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
NOTICE
■
Be careful when driving over bumps with the compact spare tire
installed on the vehicle.
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■
When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■
To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire. (P. 438)
520
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
One of the following may be the cause of the problem:
● Vehicles with a smart key system: The electronic key may not be
functioning properly. (P. 522)
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. (P. 219)
● Vehicles with immobilizer system: There may be a malfunction in
the immobilizer system. (P. 86 )
● There may be a malfunction in the steering lock system.
● Vehicles with a smart key system: The hybrid system may be mal-
functioning due to an electrical problem such as an open circuit or a
blown fuse. However, depending on the type of malfunction, an
interim measure is available to start the hybrid system. (P. 521)
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. (P. 524)
● The 12-volt battery terminal connections may be loose or corroded.
(P. 433)
If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on
the situation. Check the following and perform the appropriate
procedure:
The hybrid system will not start even though the correct starting
procedure is being followed. (P. 186, 190)
The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
521
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
One of the following may be the cause of the problem:
● The 12-volt battery may be discharged. (P. 524)
● One or both of the 12-volt battery terminals may be disconnected.
(P. 433)
Contact your Toyota dealer if the problem cannot be repaired, or if repair
procedures are unknown.
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the power
switch is functioning normally.
Do not use this starting procedure except in case of emergency.
Set the parking brake.
Shift the shift lever to P.
Turn the power switch to ACCESSORY mode.
Press and hold the power switch for about 15 seconds.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer.
The interior lights and headlights do not turn on, or the horn
does not sound.
Emergency start function (vehicles with a smart key system)
1
2
3
4
522
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Use the mechanical key (P. 119)
in order to perform the following
operations (driver’s door only):
Unlocks the doors
Locks all the doors
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
power switch.
When the electronic key is
detected, a buzzer sounds and the
power switch will turn to ON mode.
When the smart key system is
deactivated in customization set-
ting, the power switch will turn to
ACCESSORY mode.
If the electronic key does not operate prop-
erly (vehicles with a smart key system)
If communication between the electronic key and vehicle is
interrupted (P. 141) or the electronic key cannot be used
because the battery is depleted, the smart key system and wire-
less remote control cannot be used. In such cases, the doors
can be opened and the hybrid system can be started by follow-
ing the procedure below.
Locking and unlocking the doors
1
2
Starting the hybrid system
1
2
523
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Firmly depress the brake pedal and check that is displayed
on the multi-information display.
Press the power switch shortly and firmly.
In the event that the power switch still cannot be operated, contact
your Toyota dealer.
■ Stopping the hybrid system
Shift the shift lever to P and press the power switch as you normally do when
stopping the hybrid system.
■ Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 453)
■ Changing power switch modes
Release the brake pedal and press the power switch in above.
The hybrid system does not start and modes will be changed each time the
switch is pressed. (P. 191)
■ If the doors cannot be locked or unlocked by the smart key system
Lock and unlock the doors by the mechanical key or wireless remote control.
■ When the electronic key does not work properly
● Make sure that the smart key system has not been deactivated in the
customization setting. If it is off, turn the function on.
(Customizable features: P. 562)
● Check if battery-saving mode is set. If it is set, cancel the function.
(P. 140)
3
4
3
524
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Open the hood and remove the
fuse box cover.
Push the tab in and lift the cover
off.
Open the exclusive jump start-
ing terminal cover.
Push the tab in and open the cover.
If the vehicle 12-volt battery is discharged
The following procedures may be used to start the hybrid sys-
tem if the 12-volt battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.
1
2
525
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Connect the jumper cables according to the following procedure:
Connect a positive jumper cable clamp to the exclusive jump
starting terminal on your vehicle.
Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.
Connect the clamp at the other end of the negative cable to a
solid, stationary, unpainted metallic point away from the exclusive
jump starting terminal and any moving parts, as shown in the
illustration.
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Vehicles with a smart key system only: Open and close any of the
doors of your vehicle with the power switch off.
3
1
2
3
4
4
5
526
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
Vehicles without a smart key system:
Maintain the engine speed of the second vehicle and start the
hybrid system of your vehicle by turning the power switch to the
“ON” position.
Vehicles with a smart key system:
Maintain the engine speed of the second vehicle and start the
hybrid system of your vehicle by turning the power switch to ON
mode.
Make sure the “READY” indicator comes on. If the indicator does
not come on, contact your Toyota dealer.
Once the hybrid system has started, remove the jumper cables in
the exact reverse order from which they were connected.
Close the exclusive jump starting terminal cover, and reinstall the
fuse box cover to its original position.
When installing, first hook the fuse box cover onto the two rear tabs.
Once the hybrid system starts, have the vehicle inspected at your
Toyota dealer as soon as possible.
6
7
8
9
527
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
■ Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■ To prevent 12-volt battery discharge
● Turn off the headlights and the audio system while the hybrid system is off.
● Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.
■ Precautions when the 12-volt battery is discharged (vehicles with a
smart key system)
● In some cases, it may not be possible to unlock the doors using the smart
key system immediately after the 12-volt battery has been disconnected and
reconnected. Use the wireless remote control or the mechanical key to lock
or unlock the doors.
● The hybrid system may not start on the first attempt after the 12-volt battery
has recharged but will start normally after the second attempt. This is not a
malfunction.
● The power switch mode is memorized by the vehicle. When the 12-volt bat-
tery is reconnected, the system will return to the mode it was in before the
12-volt battery was discharged. Before disconnecting the 12-volt battery,
turn the power switch off.
If the power switch was in ACCESSORY or ON mode before the 12-volt bat-
tery was discharged, the audio system and/or air conditioning system may
operate when the 12-volt battery is reconnected.
■ When the 12-volt battery is removed or discharged
● Information stored in the ECU is cleared. When the 12-volt battery is
depleted, have the vehicle inspected at your Toyota dealer.
● Some systems may require initialization. (→P. 567)
■ When removing the 12-volt battery terminals
When the 12-volt battery terminals are removed, the information stored in the
ECU is cleared. Before removing the 12-volt battery terminals, contact your
Toyota dealer.
■ Charging the 12-volt battery
The electricity stored in the 12-volt battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of
certain electrical appliances. If the vehicle is left for a long time, the 12-volt
battery may discharge, and the hybrid system may be unable to start. (The
12-volt battery recharges automatically while the hybrid system is operating.)
528
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
■ When replacing the 12-volt battery
● Use a Central Degassing type 12-volt battery (European regulations).
● Use a 12-volt battery that the case size is same as the previous one (LN0),
20 hour rate capacity (20HR) is equivalent (35Ah) or greater, and perfor-
mance rating (CCA) is equivalent (240A) or greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehi-
cle is not used is a short time, the 12-volt battery may discharge and the
hybrid system may not be able to start.
● Use a 12-volt battery with a handle. If a 12-volt battery without a handle is
used, removal is more difficult.
For details, consult your Toyota dealer.
● After replacing, firmly attach the follow-
ing items to the exhaust hole of the 12-
volt battery.
Use the exhaust hose that was
attached to the 12-volt battery before
replacing and confirm that it is firmly
connected to the hole section of the
vehicle.
Exhaust hole
Exhaust hose
Hole section of the vehicle
1
2
3
529
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
WARNING
■ When removing the 12-volt battery terminals
Always remove the negative (-) terminal first. If the positive (+) terminal con-
tacts any metal in the surrounding area when the positive (+) terminal is
removed, a spark may occur, leading to a fire in addition to electrical shocks
and death or serious injury.
■ Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam-
mable gas that may be emitted from the 12-volt battery:
● Make sure each jumper cable is connected to the correct terminal and that
it is not unintentionally in contact with any other than the intended terminal.
● Do not allow the other end of the jumper cable connected to the “+” termi-
nal to come into contact with any other parts or metal surfaces in the area,
such as brackets or unpainted metal.
● Do not allow the + and - clamps of the jumper cables to come into contact
with each other.
● Do not smoke, use matches, cigarette lighters or allow open flame near
the 12-volt battery.
■ After recharging the 12-volt battery
Have the 12-volt battery inspected at your Toyota dealer as soon as possi-
ble.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt
battery to emit a malodorous gas, which may be detrimental to the health of
passengers.
530
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
WARNING
■ 12-volt battery precautions
The 12-volt battery contains poisonous and corrosive acidic electrolyte,
while related parts contain lead and lead compounds. Observe the following
precautions when handling the 12-volt battery:
● When working with the 12-volt battery, always wear safety glasses and
take care not to allow any battery fluids (acid) to come into contact with
skin, clothing or the vehicle body.
● Do not lean over the 12-volt battery.
● In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
● Always wash your hands after handling the 12-volt battery support, termi-
nals, and other 12-volt battery-related parts.
● Do not allow children near the 12-volt battery.
■ When replacing the 12-volt battery
After replacing, securely attach the exhaust hose and exhaust hole plug to
the exhaust hole of the exchanged 12-volt battery. If not properly installed,
gases (hydrogen) may leak into the vehicle interior, and there is a possible
danger of the gas igniting and exploding.
NOTICE
■ When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or belt.
■ To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-volt
battery from another vehicle in an emergency. It cannot be used to jump
start another vehicle.
531
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
● (P. 491) is shown on the multi-information display.
● The hybrid system overheat warning message (P. 494) is shown
on the multi-information display.
● Steam comes out from under the hood.
■
If is shown on the multi-information display
Stop the vehicle in a safe place and turn off the air conditioning
system, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has
cooled down sufficiently,
inspect the hoses and radia-
tor core (radiator) for any
leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact
your Toyota dealer.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2
532
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fan operates and to check for
coolant leaks from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the
fan sound and air flow. If it is difficult to check these, turn the air condi-
tioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the hybrid system immediately and contact your Toyota
dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Toyota dealer.
4
1
2
3
5
6
7
533
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
■
If the hybrid system overheat warning message is shown on
the multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the
hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact
your Toyota dealer.
The coolant level is satisfac-
tory if it is between the “F”
and “L” lines on the reservoir.
Reservoir
“F” line
“L” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and check for the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and contact your Toyota dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Toyota dealer.
1
2
3
1
2
4
1
2
3
5
6
534
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
● After the hybrid system has been turned off, check that on the multi-
information display and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
● Do not loosen the radiator cap while the hybrid system and radiator are
hot.
Serious injuries, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
■ When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.
535
8-2. Steps to take in an emergency
8
When trouble arises
PRIUS c_U (OM52G95U)
Shift the shift lever to P and set the parking brake. Stop the hybrid
system.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help
provide traction.
Restart the hybrid system.
Shift the shift lever to the D or R position and carefully apply the
accelerator to free the vehicle.
■ When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC.
WARNING
■ When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
1
2
3
4
5
536
8-2. Steps to take in an emergency
PRIUS c_U (OM52G95U)
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
537
9
Vehicle specifications
PRIUS c_U (OM52G95U)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 538
Fuel information ................ 547
Tire information ................. 550
9-2. Customization
Customizable features ...... 562
Items to initialize ............... 567
538
PRIUS c_U (OM52G95U)
9-1.Specifications
*
1
: Unladen vehicles
*
2
: Without roof molding
*
3
: With roof molding
*
4
: P175/65R15 tires
*
5
: P195/50R16 tires
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length
159.4 in. (4050 mm)
*
2
159.8 in. (4060 mm)
*
3
Overall width
66.7 in. (1695 mm)
*
2
67.5 in. (1715 mm)
*
3
Overall height
*
1
57.3 in. (1455 mm)
*
2
58.7 in. (1490 mm)
*
3
Wheelbase 100.4 in. (2550 mm)
Tread
Front
58.5 in. (1485 mm)
*
4
57.5 in. (1460 mm)
*
5
Rear
58.1 in. (1475 mm)
*
4
57.1 in. (1450 mm)
*
5
Vehicle capacity weight
(Occupants + luggage)
845 lb. (380 kg)
539
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front passenger’s seat.
This number is stamped on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
Vehicle identification
540
9-1. Specifications
PRIUS c_U (OM52G95U)
■
Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model 1NZ-FXE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke 2.95 3.33 in. (75.0 84.7 mm)
Displacement 91.3 cu. in. (1496 cm
3
)
Valve clearance
(engine cold)
Intake: 0.006 0.010 in. (0.15 0.25 mm)
Exhaust: 0.010 0.014 in. (0.25 0.35 mm)
Fuel
Fuel type Unleaded gasoline only
Octane rating 87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)
9.5 gal. (36 L, 7.9 Imp. gal.)
Electric motor (traction motor)
Type Permanent magnet synchronous motor
Maximum output 45 kW
Maximum torque 125 ft•lbf (169 N•m, 17.2 kgf•m)
541
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
*
: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Hybrid battery (traction battery)
Type Nickel-metal hydride battery
Voltage 7.2 V/module
Capacity 6.5 Ah (3HR)
Quantity 20 modules
Overall voltage 144 V
Lubrication system
Oil capacity (Drain and
refill reference
*
)
With filter
Without filter
3.9 qt. (3.7 L, 3.3 Imp. qt.)
3.6 qt. (3.4 L, 3.0 Imp. qt.)
Outside temperature
542
9-1. Specifications
PRIUS c_U (OM52G95U)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Cooling system
Capacity
Gasoline engine
Power control unit
5.6 qt. (5.3 L, 4.7 Imp. qt.)
1.7 qt. (1.6 L, 1.4 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
543
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
Ignition system
Spark plug
Make
Gap
DENSO FK16R-A8
0.03 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
12-volt battery
Open voltage
at
68F (20C):
12.0 V or higher
If the voltage is lower than the standard value,
charge the battery.
(Voltage checked 20 minutes after the hybrid sys-
tem and all the lights are turned off)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
544
9-1. Specifications
PRIUS c_U (OM52G95U)
*
: The fluid capacity is a reference quantity. If replacement is necessary, con-
tact your Toyota dealer.
*
1
: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30
kgf) while the hybrid system is operating
*
2
: Parking brake lever travel when pulled up with a force of 45 lbf (200 N, 20
kgf)
Hybrid transmission
Fluid capacity
*
3.5 qt. (3.3 L, 2.9 Imp. qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may ulti-
mately damage the hybrid transmission of your vehicle.
Brakes
Pedal clearance
*
1
2.8 in. (70 mm) Min.
Pedal free play 0.04 0.24 in. (1.0 6.0 mm)
Brake pad wear limit
0.04 in. (1.0 mm)
Brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel
*
2
8 11 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Steering
Free play Less than 1.2 in. (30 mm)
545
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
15-inch tires
16-inch tires
Tires and wheels
Tire size
P175/65R15 84H, T125/70D16 96M
(spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front:
38 psi (260 kPa, 2.6 kgf/cm
2
or bar)
Rear:
33 psi (230 kPa, 2.3 kgf/cm
2
or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2
or bar)
Never exceed the maximum cold tire infla-
tion pressure indicated on the tire sidewall.
Wheel size 15 5J, 16 4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size
P195/50R16 83V, T125/70D16 96M
(spare)
Front and rear tire inflation
pressure
(Recommended cold tire
inflation pressure)
Front:
32 psi (220 kPa, 2.2 kgf/cm
2
or bar)
Rear:
29 psi (200 kPa, 2.0 kgf/cm
2
or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2
or bar)
Never exceed the maximum cold tire infla-
tion pressure indicated on the tire sidewall.
Wheel size 16 6J, 16 4T (spare)
Wheel nut torque 76 ft•lbf (103 N•m, 10.5 kgf•m)
546
9-1. Specifications
PRIUS c_U (OM52G95U)
*
1
: If equipped
*
2
: Side turn signal lights should be replaced as an assembly.
Light bulbs
Light bulbs Bulb No. W Type
Exterior
Front turn signal lights/
parking lights
28/8 B
License plate lights 5A
Back-up lights 16 A
Side turn signal lights 5B
*
2
Rear turn signal lights 21 B
Interior
Interior lights/personal
lights
5A
Luggage compartment
light
*
1
5A
A: Wedge base bulbs (clear) B: Wedge base bulbs (amber)
547
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
● Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality called the World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emission
levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■ Recommendation of the use of gasoline containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
Fuel information
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..
548
9-1. Specifications
PRIUS c_U (OM52G95U)
■ Non-recommendation of the use of blended gasoline
● If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.
■ If your engine knocks
● Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
● Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline contain-
ing more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
549
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
NOTICE
■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.
550
9-1. Specifications
PRIUS c_U (OM52G95U)
Full-size tire
Compact spare tire
Tire information
Typical tire symbols
551
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
Tire size (P. 553)
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.
Radial tires or bias-ply tires
A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.
Summer tires or all season tires (P. 441)
An all season tire has “M+S” on the sidewall. A tire not marked “M+S”
is a summer tire.
Location of treadwear indicators (P. 437)
DOT and Tire Identification Number (TIN) (P. 552)
Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Load limit at maximum cold tire inflation pressure (P. 557)
Maximum cold tire inflation pressure (P. 557)
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
“TEMPORARY USE ONLY” (P. 517)
A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded on its sidewall. This tire is designed for temporary
emergency use only.
1
2
3
4
5
6
7
8
9
10
11
552
9-1. Specifications
PRIUS c_U (OM52G95U)
DOT symbol
*
Tire Identification Number (TIN)
Tire manufacturer’s identification mark
Tire size code
Manufacturer’s optional tire type code (3 or 4 letters)
Manufacturing week
Manufacturing year
Manufacturer’s code
*
: The DOT symbol certifies that the tire conforms to applicable Federal
Motor Vehicle Safety Standards.
Typical DOT and Tire Identification Number (TIN)
Type A
Type B
1
2
3
4
5
6
7
8
553
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
■
Typical tire size information
The illustration indicates typical tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol (alphabet with one letter)
■
Tire dimensions
Section width
Tire height
Wheel diameter
Tire size
1
2
3
4
5
6
7
1
2
3
554
9-1. Specifications
PRIUS c_U (OM52G95U)
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Tire section names
1
2
3
4
5
6
7
8
9
10
11
555
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answer any questions you may have as
you read this information.
■
DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.
For example: Treadwear 200 Traction AA Temperature A
■
Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.
■
Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire's ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
Uniform Tire Quality Grading
556
9-1. Specifications
PRIUS c_U (OM52G95U)
■
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety Stan-
dard No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire
failure.
557
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
Glossary of tire terminology
Tire related term Meaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure
The maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall of
the tire
Recommended infla-
tion pressure
Cold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of hybrid
transmission, power steering, power brakes,
power windows, power seats, radio and
heater, to the extent that these items are avail-
able as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight
150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that
follows
Occupant distribution
Distribution of occupants in a vehicle as speci-
fied in the third column of Table 1
*
below
Production options
weight
The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim
558
9-1. Specifications
PRIUS c_U (OM52G95U)
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Rim diameter
(Wheel diameter)
Nominal diameter of the bead seat
Rim size designation Rim diameter and width
Rim type designation
The industry manufacturer's designation for a
rim by style or code
Rim width Nominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)
The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle's designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1
*
below), and dividing by two
Weather side
The surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separation
A breakdown of the bond between compo-
nents in the bead
Bias ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate
angles substantially less than 90 degrees to
the centerline of the tread
Carcass
The tire structure, except tread and sidewall
rubber which, when inflated, bears the load
Chunking
The breaking away of pieces of the tread or
sidewall
Cord The strands forming the plies in the tire
Tire related term Meaning
559
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
Cord separation
The parting of cords from adjacent rubber
compounds
Cracking
Any parting within the tread, sidewall, or
innerliner of the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and
the tire is designed to fit on the underside of
the rim in a manner that encloses the rim
flanges inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Groove The space between two adjacent tread ribs
Innerliner
The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire
Innerliner separation
The parting of the innerliner from cord material
in the carcass
Intended outboard
sidewall
(a) The sidewall that contains a whitewall,
bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire,
or
(b) The outward facing sidewall of an asym-
metrical tire that has a particular side that
must always face outward when mounted
on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks or
multipurpose passenger vehicles
Load rating
The maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load rating
The load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressure
The maximum cold inflation pressure to which
a tire may be inflated
Tire related term Meaning
560
9-1. Specifications
PRIUS c_U (OM52G95U)
Measuring rim
The rim on which a tire is fitted for physical
dimension requirements
Open splice
Any parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameter The overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.
Ply A layer of rubber-coated parallel cords
Ply separation
A parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
Sidewall
That portion of a tire between the tread and
bead
Sidewall separation
The parting of the rubber compound from the
cord material in the sidewall
Tire related term Meaning
561
9-1. Specifications
9
Vehicle specifications
PRIUS c_U (OM52G95U)
*
: Table 1 Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
Tread
That portion of a tire that comes into contact
with the road
Tread rib
A tread section running circumferentially
around a tire
Tread separation Pulling away of the tread from the tire carcass
Treadwear indicators
(TWI)
The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixture
The fixture used to hold the wheel and tire
assembly securely during testing
Tire related term Meaning
Designated seating
capacity, Number of
occupants
Vehicle normal load,
Number of occupants
Occupant distribution
in a normally loaded
vehicle
2 through 4 2 2 in front
5 through 10 3
2 in front, 1 in second
seat
11 through 15 5
2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 20 7
2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat
562
PRIUS c_U (OM52G95U)
9-2. Customization
■
Changing by using the multimedia system
Press the “SETUP” button.
Select “Vehicle” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
■
Changing by using the navigation system
Press the “APPS” button.
Select “Setup” on the “Apps” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by your Toyota dealer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizing vehicle features (audio system)
1
2
1
2
563
9-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52G95U)
Settings that can be changed using the audio system
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
■
Vehicle Proximity Notification System (
P. 7 5 )
■
Smart key system
*
1
and wireless remote control (
P. 125, 134)
*
1
: If equipped
*
2
: Vehicles with a smart key system
Customizable Features
1
2
Function Default setting
Customized
setting
The volume of Vehicle
Proximity Notification Sys-
tem sound
Level 1
Level 2
— O
Level 3
1 2
Function Default setting
Customized
setting
Operation signal
(Emergency flashers)
On Off O O
Operation signal
(Buzzer)
*
2
On Off — O
Operation buzzer vol-
ume
*
2
Level 5 Off to level 7 O O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
Off
OO
30 seconds
120 seconds
Open door warning
buzzer
*
2
On Off — O
1 2
564
9-2. Customization
PRIUS c_U (OM52G95U)
■
Smart key system
*
(
P. 125, 134, 139)
*
: If equipped
■
Wireless remote control (
P. 118, 125, 134)
Function Default setting
Customized
setting
Smart key system On Off — O
Smart door unlocking Driver’s door All the doors O O
Number of permissible
times of continuous smart
lock
Twice Unlimited — O
1 2
Function Default setting
Customized
setting
Wireless remote control On Off — O
Unlocking operation
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors unlocked
in one step.
OO
Panic function On Off — O
1 2
565
9-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52G95U)
■
Door lock (
P. 125, 134, 522)
*
: Vehicles with a smart key system
■
Automatic light control system (P. 208)
■
Lights (
P. 206)
Function Default setting
Customized
setting
Unlocking using a key
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors unlocked
in one step.
—O
Speed-detecting auto-
matic door lock function
*
Off On O O
Opening driver's door
unlocks all doors
Off On O O
Shifting gears to P unlocks
all doors.
On Off O O
Shifting gears to position
other than P locks all
doors.
On Off O O
1 2
Function Default setting
Customized set-
ting
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
O O60 seconds
90 seconds
1 2
Function Default setting
Customized
setting
Daytime running light sys-
tem (except Canada)
On Off O O
1 2
566
9-2. Customization
PRIUS c_U (OM52G95U)
■
Illumination (
P. 387)
*
1
: Vehicles without a smart key system
*
2
: Vehicles with a smart key system
■
Seat belt reminder (
P. 483)
■
Automatic air conditioning system (
P. 378)
Function Default setting
Customized
setting
Time elapsed before lights
turn off
15 seconds
Off
O O7.5 seconds
30 seconds
Operation when the doors
are unlocked
On Off — O
Operation after the power
switch is turned to the
“LOCK” position
*
1
On Off — O
Operation after the power
switch is turned off
*
2
On Off — O
Operation when you
approach the vehicle with
the electronic key on your
person
*
2
On Off — O
1 2
Function Default setting
Customized
setting
Vehicle speed linked seat
belt reminder buzzer
On Off — O
1 2
Function Default setting
Customized
setting
A/C auto switch operation On Off O O
1 2
567
9-2. Customization
9
Vehicle specifications
PRIUS c_U (OM52G95U)
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
Item When to initialize Reference
Message indicating
maintenance is required
(except Canada)
After the maintenance is performed P. 412
Tire pressure warning
system
• When rotating the tires on vehi-
cles with differing front and rear
tire inflation pressures
• When changing the tire size
P. 438
568
9-2. Customization
PRIUS c_U (OM52G95U)
10
569
For owners
PRIUS c_U (OM52G95U)
Reporting safety defects for
U.S. owners............................. 570
Seat belt instructions for
Canadian owners
(in French) ............................... 571
SRS airbag instructions for
Canadian owners
(in French) ............................... 573
570
PRIUS c_U (OM52G95U)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.
571
10
For owners
PRIUS c_U (OM52G95U)
● Déroulez la sangle diagonale
de telle sorte qu'elle passe bien
sur l'épaule, sans pour autant
être en contact avec le cou ou
glisser de l'épaule.
● Placez la sangle abdominale le
plus bas possible sur les
hanches.
● Réglez la position du dossier de siège. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
● Ne vrillez pas la ceinture de sécurité.
■
Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humidifiés avec de l'eau
savonneuse tiède. Vérifiez régulièrement que les ceintures ne sont
pas usées, effilochées ou entaillées excessivement.
Seat belt instructions for Canadian owners
(in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
Entretien et soin
572
PRIUS c_U (OM52G95U)
AVERTISSEMENT
■ Détérioration et usure des ceintures de sécurité
Inspectez le système de ceintures de sécurité régulièrement. Contrôlez
l'absence de coupures, d'effilochages et de pièces desserrées. N'utilisez
pas une ceinture de sécurité endommagée avant qu'elle ne soit remplacée.
Une ceinture de sécurité endommagée ne permet pas de protéger un occu-
pant de blessures graves ou mortelles.
573
10
For owners
PRIUS c_U (OM52G95U)
◆
Coussins gonflables frontaux SRS
Coussin gonflable conducteur/coussin gonflable du passager
avant SRS
Participe à la protection de la tête et du thorax du conducteur et
du passager avant contre les chocs contre les éléments de
l'habitacle.
Coussin gonflable de genoux du conducteur SRS
Participent à la protection du conducteur.
Coussins gonflables de coussin de siège SRS
Contribuent à retenir le conducteur et le passager avant.
SRS airbag instructions for Canadian
owners (in French)
The following is a French explanation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instruc-
tions in English.
1
2
3
574
PRIUS c_U (OM52G95U)
◆
Coussins gonflables latéraux et rideaux SRS
Coussins gonflables latéraux avant SRS
Participent à la protection du torse des occupants de siège
avant.
Coussins gonflables rideaux SRS
● Participent principalement à la protection de la tête des occu-
pants des sièges latéraux
● Peut contribuer à empêcher les occupants d’être éjectés du
véhicule en cas de tonneau
4
5
575
10
For owners
PRIUS c_U (OM52G95U)
Compositions du système de coussin gonflable SRS
Coussins gonflables rideaux
Témoin d'avertissement SRS
et témoins indicateurs “AIR
BAG ON” et “AIR BAG OFF”
Coussins gonflables latéraux
avant
Capteurs d'impact latéral
(arrière)
Coussin gonflable de coussin
de siège du passager avant
Contact de boucle de ceinture
de sécurité du passager avant
Coussin gonflable conducteur
Contact de boucle de ceinture
de sécurité conducteur
Coussin gonflable de coussin
de siège conducteur
Capteurs d'impact latéral
(avant)
Prétensionneurs de ceintures
de sécurité et limiteurs de
force
Capteurs d'impact latéral
(porte avant)
Coussin gonflable de genoux
du conducteur
Système de classification de
l'occupant du siège passager
avant (ECU et capteurs)
Ensemble de capteurs de
coussins gonflables
Capteurs d'impact avant
Coussin gonflable passager
avant
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
576
PRIUS c_U (OM52G95U)
Votre véhicule est équipé de COUSSINS GONFLABLES INTELLI-
GENTS conçus selon les normes de sécurité américaines applicables
aux véhicules à moteur (FMVSS208). L'ensemble de capteurs de
coussins gonflables (ECU) régule le déploiement des coussins gon-
flables sur la base des informations qu'il reçoit des capteurs, etc., indi-
qués ci-dessus dans le schéma illustrant les composants du système.
Parmi ces informations figurent la gravité du choc et l'occupation du
véhicule par les passagers. Le déploiement rapide des coussins gon-
flables est obtenu au moyen d'une réaction chimique dans les disposi-
tifs pyrotechniques, qui produit un gaz inoffensif permettant d'amortir
le mouvement des occupants.
577
10
For owners
PRIUS c_U (OM52G95U)
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
Respectez les précautions suivantes concernant les coussins gonflables
SRS. Le non-respect de ces précautions peut occasionner des blessures
graves, voire mortelles.
● Le conducteur et tous les passagers du véhicule doivent porter correcte-
ment leur ceinture de sécurité.
Les coussins gonflables SRS sont des dispositifs supplémentaires à utili-
ser avec les ceintures de sécurité.
● Le coussin gonflable conducteur SRS se déploie avec une force considé-
rable, pouvant occasionner des blessures graves, voire mortelles, si le
conducteur se trouve très près du coussin gonflable. L'autorité fédérale
chargée de la sécurité routière aux États-Unis (NHTSA) conseille:
La zone à risque du coussin gonflable conducteur se situant dans les pre-
miers 2 à 3 in. (50 à 75 mm) de déploiement, vous placer à 10 in. (250
mm) de votre coussin gonflable conducteur vous garantit une marge de
sécurité suffisante. Cette distance est à mesurer entre le centre du volant
et le sternum. Si vous êtes assis à moins de 10 in. (250 mm), vous pou-
vez changer votre position de conduite de plusieurs façons:
• Reculez votre siège le plus possible, de manière à pouvoir encore
atteindre confortablement les pédales.
• Inclinez légèrement le dossier du siège. Bien que les véhicules aient
une conception différente, un grand nombre de conducteurs peuvent
s'asseoir à une distance de 10 in. (250 mm), même avec le siège
conducteur complètement avancé, simplement en inclinant un peu le
dossier de siège. Si vous avez des difficultés à voir la route après avoir
incliné le dossier de votre siège, utilisez un coussin ferme et antidéra-
pant pour vous rehausser ou remontez le siège si votre véhicule est
équipé de cette fonction.
• Si votre volant est réglable, inclinez-le vers le bas. Cela a pour effet
d'orienter le coussin gonflable en direction de votre poitrine plutôt que
de votre tête et de votre cou.
Réglez votre siège selon les recommandations de la NHTSA ci-dessus,
tout en conservant le contrôle des pédales, du volant et la vue des com-
mandes du tableau de bord.
578
PRIUS c_U (OM52G95U)
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● Le coussin gonflable passager avant SRS se déploie également avec une
force considérable, pouvant occasionner des blessures graves, voire mor-
telles, si le passager avant se trouve très près du coussin gonflable. Le
siège du passager avant doit être éloigné le plus possible du coussin gon-
flable en réglant le dossier de siège de façon à ce que le passager avant
soit assis bien droit dans le siège.
● Les nourrissons et les enfants qui ne sont pas correctement assis et/ou
attachés peuvent être grièvement blessés ou tués par le déploiement d'un
coussin gonflable. Un nourrisson ou un enfant trop petit pour utiliser une
ceinture de sécurité doit être correctement attaché au moyen d'un siège
de sécurité enfant. Toyota recommande vivement d'installer tous les nour-
rissons et enfants sur les sièges arrière du véhicule et de prévoir pour eux
des systèmes de retenue adaptés. Les sièges arrière sont plus sûrs pour
les nourrissons et les enfants que le siège du passager avant.
● Si vous attachez une rallonge de cein-
ture de sécurité aux boucles de ceinture
de sécurité avant, sans l'attacher au
pêne de la ceinture de sécurité, les
coussins gonflables frontaux SRS
déterminent que le conducteur et le
passager avant ont attaché leur cein-
ture de sécurité, bien que la ceinture de
sécurité ne soit pas attachée. Dans ce
cas, les coussins gonflables frontaux
SRS peuvent ne pas se déployer cor-
rectement en cas de collision, pouvant
occasionner des blessures graves,
voire mortelles. Veillez à porter la cein-
ture de sécurité avec la rallonge de
ceinture de sécurité.
● Ne vous asseyez pas sur le bord du
siège et ne vous appuyez pas contre la
planche de bord.
579
10
For owners
PRIUS c_U (OM52G95U)
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● Ne laissez pas un enfant rester debout
devant le coussin gonflable passager
avant SRS ou s'asseoir sur les genoux
du passager avant.
● Ne laissez pas les occupants des
sièges avant voyager avec un objet sur
les genoux.
● Ne vous appuyez pas contre la porte, le
rail latéral de toit ou les montants avant,
latéraux et arrière.
● Ne laissez personne s'agenouiller sur le
siège passager en appui contre la porte
ou sortir la tête ou les mains à l'exté-
rieur du véhicule.
● Ne fixez rien et ne posez rien sur des
emplacements tels que la planche de
bord, la garniture du volant et la partie
inférieure du tableau de bord.
Au déploiement des coussins gon-
flables conducteur, passager avant et
genoux du conducteur SRS, ces objets
risquent de se transformer en projec-
tiles.
580
PRIUS c_U (OM52G95U)
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● Ne suspendez aucun cintre ou objet dur aux crochets à vêtements. Tous
ces objets pourraient se transformer en projectiles et causer des blessures
graves, voire mortelles en cas de déploiement des coussins gonflables
rideaux SRS.
● Si un cache en vinyle est placé sur la zone où le coussin gonflable de
genoux du conducteur SRS se déploie, assurez-vous de le retirer.
● N'utilisez aucun accessoire de siège recouvrant les zones de déploiement
des coussins gonflables latéraux SRS et des coussins gonflables de cous-
sin de siège SRS, car il risque de gêner le déploiement des coussins gon-
flables SRS. De tels accessoires peuvent empêcher les coussins
gonflables latéraux et les coussins gonflables de coussin de siège de
s'activer correctement, désactiver le système ou entraîner le déploiement
accidentel des coussins gonflables latéraux et des coussins gonflables de
coussin de siège, occasionnant des blessures graves, voire mortelles.
● Ne fixez rien aux portes, à la vitre du
pare-brise, aux vitres latérales, aux
montants avant et arrière, au rail latéral
de toit et à la poignée de maintien.
● Véhicules sans système d'accès et de
démarrage mains libres: Ne fixez pas
d'objets lourds, pointus ou très durs,
tels que des clés et des accessoires
aux clés. Ces objets risquent d'entraver
le déploiement du coussin gonflable de
genoux du conducteur SRS ou d'être
projetés vers le siège conducteur par la
force de déploiement du coussin gon-
flable, constituant ainsi un danger
potentiel.
581
10
For owners
PRIUS c_U (OM52G95U)
AVERTISSEMENT
■ Précautions relatives aux coussins gonflables SRS
● Évitez de faire subir des chocs ou des pressions excessives aux parties
renfermant les composants de coussins gonflables SRS.
En effet, cela pourrait entraîner un dysfonctionnement des coussins gon-
flables SRS.
● Ne touchez aucun composant immédiatement après le déploiement (gon-
flage) des coussins gonflables SRS, car ils peuvent être chauds.
● Si vous avez des difficultés à respirer après le déploiement des coussins
gonflables SRS, ouvrez une porte ou une vitre pour faire entrer de l'air
frais, ou bien descendez du véhicule si cela ne présente pas de danger.
Essuyez tout résidu dès que possible afin d'éviter d'éventuelles irritations
de la peau.
● Si les parties renfermant les coussins gonflables SRS, comme les garni-
tures du volant et des montants avant et arrière, sont endommagées ou
craquelées, faites-les remplacer par votre concessionnaire Toyota.
● Ne placez rien sur le siège du passager avant, comme un coussin par
exemple. Cela a pour conséquence de répartir le poids du passager sur
toute la surface du siège, ce qui empêche le capteur de détecter correcte-
ment le poids du passager. En conséquence, les coussins gonflables fron-
taux SRS du passager avant risquent de ne pas se déployer en cas de
collision.
582
PRIUS c_U (OM52G95U)
AVERTISSEMENT
■ Modification et mise au rebut des composants du système de coussins
gonflables SRS
Ne mettez pas votre véhicule au rebut et ne procédez à aucune des modifi-
cations suivantes sans consulter votre concessionnaire Toyota. Les cous-
sins gonflables SRS peuvent ne pas fonctionner correctement ou se
déployer (se gonfler) accidentellement, provoquant la mort ou de graves
blessures.
● Installation, dépose, démontage et réparation des coussins gonflables
SRS.
● Réparations, modifications, démontage ou remplacement du volant, du
tableau de bord, de la planche de bord, des sièges ou de leur garnissage,
des montants avant, latéraux et arrière ou des rails latéraux de toit.
● Réparations ou modifications des ailes avant, du pare-chocs avant ou des
flancs de l'habitacle.
● Installation d'un protège-calandre (pare-buffle, pare-kangourou, etc.), de
chasse-neige, de treuils, ou d'un porte-bagages de toit.
● Modifications du système de suspension du véhicule.
● Installation d'appareils électroniques tels que les émetteurs/récepteurs
radios mobiles et les lecteurs CD.
● Modifications de votre véhicule pour une personne atteinte d'un handicap
physique.
583
Index
PRIUS c_U (OM52G95U)
What to do if...
(Troubleshooting) .................... 584
Alphabetical index ..................... 589
For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER’S MANUAL” for
information regarding the navigation system.
584
PRIUS c_U (OM52G95U)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●
If you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by your Toyota dealer. (P. 120)
●
If you lose your keys or electronic keys, the risk of vehicle theft increases
significantly. Contact your Toyota dealer immediately. (P. 124)
●
Is the key battery weak or depleted? (P. 453)
●
Vehicles with a smart key system:
Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P. 191)
●
Vehicles with a smart key system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●
The function may not operate properly due to the condition of the radio
wave. (P. 141)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
585
What to do if... (Troubleshooting)
PRIUS c_U (OM52G95U)
●
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 129)
●
Is the shift lever in P? (P. 186)
●
Is the steering wheel unlocked? (P. 188)
●
Is the 12-volt battery discharged? (P. 524)
●
Did you press the power switch while firmly depressing the brake pedal?
(P. 190)
●
Is the shift lever in P? (P. 193)
●
Is the electronic key anywhere detectable inside the vehicle?
(P. 139)
●
Is the steering wheel unlocked? (P. 193)
●
Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way.
(P. 522)
●
Is the 12-volt battery discharged? (P. 524)
The rear door cannot be opened
If you think something is wrong
The hybrid system does not start
(vehicles without a smart key system)
The hybrid system does not start
(vehicles with a smart key system)
586
What to do if... (Troubleshooting)
PRIUS c_U (OM52G95U)
●
Vehicles without a smart key system:
Is the power switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in the “ON” position. (P. 202)
●
Vehicles with a smart key system:
Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in ON mode. (P. 202)
●
Vehicles without a smart key system:
It is locked to prevent theft of the vehicle if the key is pulled from the power
switch. (P. 188)
●
Vehicles with a smart key system:
It is locked automatically to prevent theft of the vehicle. (P. 193)
●
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. (P. 161)
The shift lever cannot be shifted from P even if you depress
the brake pedal
The steering wheel cannot be turned after the hybrid system
is stopped
The windows do not open or close by operating the power
window switches
587
What to do if... (Troubleshooting)
PRIUS c_U (OM52G95U)
●
The auto power off function will be operated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not running) for a period of time.
(P. 192)
●
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P. 483)
●
The parking brake warning light is on
Is the parking brake released? (P. 205)
Depending on the situation, other types of warning buzzer may also sound.
(P. 481, 490)
●
Is the electronic key left inside the vehicle?
Check the message on the multi-information display. (P. 490)
●
When a warning light turns on or a warning message or indicator is dis-
played, refer to P. 481, 490.
The power switch is turned off automatically
(vehicles with a smart key system)
A warning buzzer sounds during driving
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart key system)
A warning light turns on or a warning message or indicator
is displayed
588
What to do if... (Troubleshooting)
PRIUS c_U (OM52G95U)
●
Stop the vehicle in a safe place and replace the flat tire with the spare
tire. (P. 507)
●
Try the procedure for when the vehicle becomes stuck in mud, dirt, or
snow. (P. 535)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
589
PRIUS c_U (OM52G95U)
Alphabetical index
Alphabetical index
A/C ............................................ 378
ABS ........................................... 266
Air conditioning filter .............. 451
Air conditioning system
Air conditioning filter ............. 451
Automatic air conditioning
system................................ 378
Airbags
Airbag operating
conditions ............................. 47
Airbag precautions for
your child.............................. 42
Airbag warning light .............. 482
Curtain shield airbag
operating conditions ............. 47
Curtain shield airbag
precautions........................... 45
Front passenger occupant
classification system.............52
General airbag
precautions........................... 42
Indicators ................................ 52
Knee airbag precautions......... 42
Locations of airbags................ 39
Modification and
disposal of airbags ............... 46
Proper driving
posture ........................... 28, 42
Seat cushion airbag
precautions........................... 42
Side airbag operating
conditions ............................. 47
Side airbag precautions.......... 42
SRS airbags............................ 39
Antenna .................................... 301
Anti-lock brake system........... 266
Assist grips.............................. 398
Audio input .............................. 286
Audio system
*
Antenna ................................ 368
Audio input............................ 286
AUX port ............................... 286
CD player.............................. 302
Cord hook ............................. 286
iPod ...................................... 308
MP3/WMA disc ..................... 302
Optimal use .......................... 299
Portable music
player ................................. 286
Radio .................................... 300
Steering wheel audio
switch ................................. 285
Type...................................... 282
USB memory ........................ 313
USB port ............................... 286
Automatic air conditioning
system
Air conditioning filter ............. 451
Automatic air conditioning
system................................ 378
Automatic High Beam ............. 247
AUX port................................... 286
Auxiliary boxes........................ 392
A
*
: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER'S MANUAL”.
590
Alphabetical index
PRIUS c_U (OM52G95U)
Back door ................................. 134
Back-up lights
Replacing light bulbs............. 463
Wattage ................................ 546
Battery
Checking............................... 433
Hybrid battery
(traction battery) ................... 79
If the vehicle 12-volt
battery is discharged .......... 524
Preparing and checking
before winter....................... 275
Bluetooth
®
audio
Bluetooth
®
audio................... 332
Portable player...................... 319
Set up ................................... 324
Using the Bluetooth
®
audio................................... 332
Bluetooth
®
phone
Making a phone call.............. 337
Set up ................................... 325
Bottle holders .......................... 394
Brake
Fluid...................................... 544
Parking brake........................ 205
Brake assist ............................. 266
Break-in tips............................. 172
Care
Exterior ................................. 402
Interior .................................. 405
Seat belts.............................. 408
Cargo capacity......................... 183
CD player.................................. 302
Chains ...................................... 276
Child-protectors ...................... 129
Child restraint system
Booster seats, definition ......... 59
Booster seats, installation....... 69
Convertible seats,
definition............................... 59
Convertible seats,
installation ............................ 67
Front passenger occupant
classification system ............ 52
Infant seat, definition .............. 59
Infant seats, installation .......... 65
Installing CRS with
LATCH system..................... 63
Installing CRS with
seat belts.............................. 65
Installing CRS with
top tether straps ................... 70
B
C
591
Alphabetical index
PRIUS c_U (OM52G95U)
Child safety
Airbag precautions.................. 42
Child-protectors .................... 129
Child restraint system ............. 58
How your child should
wear the seat belt................. 34
Installing child restraints ......... 62
Moon roof precautions.......... 167
Power window lock switch .... 161
Power window precautions... 164
Removed key battery
precautions......................... 455
Seat belt extender
precautions........................... 38
Seat belt precautions.............. 36
Seat heater precautions........ 386
12-volt battery
precautions................. 435, 530
Cleaning
Exterior ................................. 402
Interior................................... 405
Seat belts.............................. 408
Clock......................................... 106
Coat hooks ............................... 397
Condenser................................ 430
Console box ............................. 391
Cooling system
Hybrid system overheating ...531
Cord hook................................. 286
Cruise control .......................... 252
Cup holders.............................. 393
Curtain shield airbags............... 40
Customizable features ............ 562
Daytime running light
system.................................... 208
Defogger
Rear window......................... 380
Side mirrors .......................... 380
Dimension ................................ 538
Dinghy towing.......................... 185
Display
Energy flow........................... 110
Multi-information display....... 101
Trip information..................... 101
Warning message................. 490
Do-it-yourself maintenance.... 418
Doors
Back door ............................. 134
Door lock .............................. 128
Door windows....................... 161
Rear door child protector...... 129
Side doors ............................ 125
Side mirrors .......................... 159
Driver’s seat belt reminder
light ........................................ 483
Driving
Break-in tips.......................... 172
Correct posture....................... 28
Procedures ........................... 170
Winter driving tips ................. 275
D
592
Alphabetical index
PRIUS c_U (OM52G95U)
Eco drive mode........................ 201
Electric power steering ........... 266
Electronic key
If the electronic key does
not operate properly ........... 522
Emergency flashers
Switch ................................... 470
Emergency, in case of
If a warning buzzer
sounds........................ 481, 490
If a warning light
turns on .............................. 481
If a warning message is
displayed ............................ 490
If the electronic key does
not operate properly ........... 522
If the hybrid system will
not start .............................. 520
If the vehicle becomes
stuck................................... 535
If the vehicle 12-volt
battery is discharged .......... 524
If you have a flat tire ............ 507
If you lose your keys ............. 120
If you think something is
wrong.................................. 480
If your vehicle has to
be stopped in an
emergency.......................... 471
If your vehicle needs to
be towed............................. 473
If your vehicle overheats....... 531
Engine
Compartment........................ 424
Hood..................................... 421
How to start the hybrid
system........................ 186, 190
Identification number ............ 539
If the hybrid system will
not start .............................. 520
Ignition switch ............... 186, 190
Overheating .......................... 531
Power switch ................ 186, 190
Engine coolant
Capacity................................ 542
Checking............................... 428
Preparing and checking
before winter ...................... 275
Engine oil
Capacity................................ 541
Checking............................... 425
Preparing and checking
before winter ...................... 275
Engine/power control unit
coolant
Capacity................................ 542
Checking............................... 428
Preparing and checking
before winter ...................... 275
EPS ........................................... 266
EV drive mode ......................... 197
Event data recorder................... 11
Exclusive jump
starting terminal.................... 524
E
593
Alphabetical index
PRIUS c_U (OM52G95U)
Floor mat .................................... 26
Fluid
Brake .................................... 544
Washer ................................. 432
Fog lights
Replacing light bulbs............. 466
Switch ................................... 210
Front fog lights
Replacing light bulbs............. 466
Switch ................................... 210
Front passenger occupant
classification system.............. 52
Front passenger’s seat
belt reminder light................. 483
Front seats
Adjustment............................ 148
Front sensor............................. 225
Automatic High Beam........... 225
LDA
(Lane Departure Alert)........ 225
PCS
(Pre-Collision System)........ 225
Precautions........................... 226
Front side marker lights
Replacing light bulbs............. 467
Switch ................................... 206
Wattage ................................ 546
Front turn signal lights
Replacing light bulbs............. 462
Switch ................................... 204
Wattage ................................ 546
Fuel
Capacity................................ 540
Fuel gauge.............................. 97
Information............................ 547
Refueling............................... 219
Type...................................... 540
Fuel door .................................. 219
Fuel filler door.......................... 219
Fuses ........................................ 456
Gauges ....................................... 97
Glove box ................................. 391
Hazard lights
Switch................................... 470
Head restraints
Adjusting .............................. 153
Headlights
Replacing light bulbs ............ 466
Switch................................... 206
Heaters
Seat heaters ......................... 386
Side mirrors .......................... 380
Hill-start assist control ........... 266
Hood ......................................... 421
Horn .......................................... 156
Hybrid system
Emergency shut off system .... 80
Energy monitor/
consumption screen........... 110
High voltage components....... 79
Hybrid system indicator ........ 108
Power switch ........................ 190
Vehicle Proximity
Notification System .............. 75
F
G
H
594
Alphabetical index
PRIUS c_U (OM52G95U)
I/M test ...................................... 417
Identification
Engine................................... 540
Tire........................................ 550
Vehicle.................................. 539
Ignition switch ................. 186, 190
Illuminated entry system ........ 389
Immobilizer system ................... 86
Indicator lights........................... 92
Initialization
Items to initialize ................... 567
Inside rear view mirror ............ 158
Interior lights
Switch ................................... 388
Wattage ................................ 546
iPod........................................... 308
Jack
Positioning a floor jack.......... 423
Vehicle-equipped jack........... 508
Jack handle.............................. 508
Keyless entry ................... 125, 134
Keys
Electronic key ....................... 118
If the electronic key does
not operate properly ........... 522
If you lose your keys ............. 120
Ignition switch ............... 186, 190
Key battery............................ 453
Key number .......................... 118
Keyless entry ........................ 119
Keys...................................... 118
Mechanical key..................... 119
Power switch................. 186, 190
Wireless remote control
key...................................... 119
Knee airbag ................................ 39
Lane Departure Alert (LDA) .... 242
Language (multi-information
display) .................................. 106
LDA (Lane Departure Alert) .... 242
License plate lights
Replacing light bulbs ............ 465
Wattage ................................ 546
Light bulbs
Replacing.............................. 460
Wattage ................................ 546
Lights
Automatic High Beam
system................................ 247
Emergency flasher switch..... 470
Fog light switch..................... 210
Hazard light switch ............... 470
Headlight switch ................... 206
Instrument panel light
switch ................................. 206
Interior lights switch.............. 388
Parking light switch............... 206
Personal light switch............. 388
Replacing light bulbs ............ 460
Side marker light switch........ 206
Tail light switch ..................... 206
Turn signal lever................... 204
Wattage ................................ 546
Load capacity .......................... 183
Lock steering column ..... 188, 193
Luggage compartment light
Wattage ................................ 546
Luggage cover......................... 399
I
J
K
L
595
Alphabetical index
PRIUS c_U (OM52G95U)
Maintenance
Do-it-yourself
maintenance....................... 418
Emission inspection and
maintenance (I/M)
programs ............................ 417
General maintenance ........... 414
Maintenance data ................. 538
Maintenance requirements ...411
Meter
Instrument panel light
control................................... 99
Meters..................................... 97
Microphone .............................. 335
Mirrors
Inside rear view mirror .......... 158
Outside rear view mirror
defogger ............................. 380
Outside rear view mirrors...... 159
Vanity mirrors........................ 395
Moon roof ................................. 165
MP3 disc ................................... 302
Multi-information display........ 101
Navigation system
*
Noise from under vehicle............ 8
Odometer ................................... 98
Oil
Engine oil.............................. 541
Opener
Back door ............................. 134
Fuel filler door....................... 219
Hood..................................... 421
Outside rear view mirrors
Adjusting and folding ............ 159
Defogger............................... 380
Outside temperature
display...................................... 99
Overheating, Hybrid
system.................................... 531
Parking brake........................... 205
Parking lights
Replacing light bulbs ............ 462
Switch................................... 206
Wattage ................................ 546
PCS (Pre-Collision system).... 229
PCS (Pre-Collision
system) switch.................... 232
Warning light......................... 484
Personal lights
Switch................................... 388
Wattage ................................ 546
Power outlet............................. 396
Power switch ................... 186, 190
Power windows ....................... 161
Pre-Collision system (PCS) .... 229
PCS (Pre-Collision
system) switch.................... 232
Warning light......................... 484
M
N
O
P
*
: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER'S MANUAL”.
596
Alphabetical index
PRIUS c_U (OM52G95U)
Radiator .................................... 430
Radio......................................... 300
Rear seat
Folding down ........................ 149
Rear turn signal lights
Replacing light bulbs............. 463
Wattage ................................ 546
Rear view monitor
system
*
.................................. 256
Rear window defogger ............ 380
Rear window wiper .................. 216
Resetting the message
indicating maintenance
is required.............................. 412
Replacing
Fuses.................................... 456
Key battery............................ 453
Light bulbs ............................ 460
Tires...................................... 507
Reporting safety defects
for U.S. owners...................... 570
Seat belts
Adjusting the seat belt ............ 30
Automatic Locking
Retractor (ALR).................... 34
Child restraint system
installation ............................ 65
Cleaning and maintaining
the seat belts...................... 408
Emergency Locking
Retractor (ELR)................... 34
How to wear your seat belt..... 28
How your child should
wear the seat belt................. 34
Pregnant women,
proper seat belt use ............. 36
Reminder light ...................... 483
Seat belt extenders................. 35
Seat belt pretensioners........... 34
Seat cushion airbag .................. 39
Seat heaters ............................. 386
Seating capacity ...................... 183
Seats
Adjustment............................ 148
Adjustment precautions........ 148
Child seats/child
restraint system
installation ............................ 62
Cleaning ............................... 405
Front seat adjustment........... 148
Front seat adjustment
precautions......................... 148
Head restraint....................... 153
Properly sitting in the seat ...... 28
Seat heaters ......................... 386
Service reminder
indicators................................. 92
R
S
597
Alphabetical index
PRIUS c_U (OM52G95U)
Sensor
Automatic High Beam
system................................ 225
Front sensor.......................... 225
Laser sensor ......................... 225
LDA
(Lane Departure Alert)........ 225
Monocular camera sensor .... 225
PCS
(Pre-Collision system) ........ 225
Shift lever
If the shift lever cannot
be shifted from P ................ 202
Transmission ........................ 200
Shift lock system ..................... 202
Side airbags ............................... 40
Side marker lights
Replacing light bulbs............. 467
Wattage ................................ 546
Side mirror
Adjusting and folding ............ 159
Defogger ............................... 380
Smart key system
Entry function........................ 139
Starting the hybrid
system........................ 186, 190
Spare tire
Inflation pressure .................. 545
Storage location.................... 508
Spark plug ................................ 543
Specifications .......................... 538
Speedometer.............................. 97
Steering
Column lock release ..... 188, 193
Steering wheel
Adjustment............................ 156
Audio switches...................... 285
Stop lights
Replacing light bulbs ............ 466
Storage feature ........................ 390
Storage precautions................ 181
Stuck
If the vehicle becomes
stuck................................... 535
Sun visors ................................ 395
Switch
Automatic High Beam
switch ................................. 247
Cruise control ....................... 252
Eco drive mode switch.......... 201
Emergency flasher switch..... 470
EV drive mode switch........... 197
Fog light switch..................... 210
Hazard light switch ............... 470
Headlight switch ................... 206
Ignition switch ............... 186, 190
LDA (Lane Departure Alert)
switch ................................. 244
Light switches ....................... 206
Power door lock switch......... 128
PCS (Pre-Collision
system) switch.................... 232
Power switch ................ 186, 190
Power window switch ........... 161
Rear window wiper and
washer switch..................... 216
Steering wheel audio
switches ............................. 285
VSC OFF switch ................... 267
Window lock switch .............. 161
Wiper and washer......... 212, 216
*
: For vehicles with a navigation system, refer to the
“NAVIGATION SYSTEM OWNER'S MANUAL”.
598
Alphabetical index
PRIUS c_U (OM52G95U)
Tail lights
Replacing light bulbs............. 466
Switch ................................... 206
Theft deterrent system
Immobilizer system................. 86
Theft prevention labels ........... 89
Theft prevention labels ............. 89
Tire inflation pressure............. 446
Tire information
Glossary................................ 557
Size....................................... 553
Tire identification number ..... 552
Uniform tire quality
grading ............................... 555
Tires
Chains................................... 276
Checking............................... 437
If you have a flat tire ............. 507
Inflation pressure .................. 545
Inflation pressure sensor ...... 438
Information............................ 550
Replacing.............................. 507
Rotating tires......................... 437
Size....................................... 545
Snow tires ............................. 277
Spare tire .............................. 507
Tire pressure warning
system........................ 438, 484
Tools ......................................... 508
Total load capacity .................. 183
Towing
Dinghy towing ....................... 185
Emergency towing ................ 473
Trailer towing ........................ 184
Toyota Safety Sense C............ 223
Automatic High Beam........... 247
Front sensor ......................... 225
LDA (Lane Departure
Alert)................................... 242
PCS
(Pre-Collision system)........ 229
TRAC ........................................ 266
Traction control ....................... 266
Transmission
Hybrid transmission .............. 200
If the shift lever cannot
be shifted from P................ 202
Trip information....................... 101
Trip meter................................... 97
Turn signal lights
Replacing light bulbs ............ 460
Switch................................... 204
Wattage ................................ 546
USB memory.................... 286, 313
Vanity mirrors .......................... 395
Vehicle data recordings............ 10
Vehicle identification
number................................... 539
Vehicle Proximity Notification
System ................................... 75
Vehicle stability control.......... 266
VSC ........................................... 266
VSC OFF switch....................... 267
T
U
V
599
Alphabetical index
PRIUS c_U (OM52G95U)
Warning buzzers
Brake system........................ 481
Electric power steering
system................................ 482
Key reminder ........................ 501
LDA
(Lane Departure Alert)........ 242
Master warning ..................... 483
Pre-Collision warning............ 484
Seat belt reminder ................ 483
Warning lights
Anti-lock brake system.......... 482
Brake assist system.............. 482
Brake system........................ 481
Electric power steering
system................................ 482
Front passenger occupant
classification system........... 482
Low brake fluid...................... 481
Low fuel level ........................ 483
Low tire inflation pressure..... 484
Malfunction indicator lamp.... 482
Master warning light.............. 483
Parking brake........................ 482
PCS warning light ................. 484
Pretensioners........................ 482
Seat belt reminder light......... 483
Slip indicator light.................. 483
SRS airbag system............... 482
Tire pressure......................... 484
Tire pressure warning
system................................ 484
Warning messages.................. 490
Washer
Checking............................... 432
Preparing and checking
before winter ...................... 275
Switch........................... 212, 216
Washing and waxing............... 402
Weight
Cargo capacity...................... 183
Load limits ............................ 183
Weight .................................. 538
Wheels...................................... 449
Window lock switch ................ 161
Windows
Power windows..................... 161
Rear window defogger.......... 380
Washer ......................... 212, 216
Windshield wipers................... 212
Wireless remote control key
Replacing the key battery..... 453
Wireless remote control........ 119
WMA disc ................................. 302
W
600
PRIUS c_U (OM52G95U)
GAS STATION INFORMATION
Auxiliary catch lever Fuel filler door
P. 421 P. 219
Hood lock release
lever
Fuel filler
door opener
Tire inflation
pressure
P. 421 P. 219
P. 545
Fuel tank capacity
(Reference)
9.5 gal. (36 L, 7.9 Imp. gal.)
Fuel type P. 540
Cold tire inflation
pressure
P. 5 45
Engine oil capacity
(Drain and refill —
reference)
P. 541
Engine oil type
“Toyota Genuine Motor Oil” or equivalent
P. 541
