USER’S GUIDE
®
MFC-210C
MFC-420CN
Version B
If you need to call Customer Service
Please complete the following information for future
reference:
Model Number: MFC-210C and MFC-420CN
(Circle your model number)
Serial Number:*
Date of Purchase:
Place of Purchase:
* The serial number is on the back of the unit. Retain this
User’s Guide with your sales receipt as a permanent
record of your purchase, in the event of theft, fire or
warranty service.
Register your product on-line at
By registering your product with Brother International
Corporation, you will be recorded as the original owner of the
product. Your registration with Brother:
■
may serve as confirmation of the purchase date of your
product should you lose your receipt;
■
may support an insurance claim by you in the event of
product loss covered by insurance; and,
■
will help us notify you of enhancements to your product and
special offers.
The most convenient and efficient way to register your new
product is on-line at http://www.brother.com/registration
http://www.brother.com/registration
©1996-2004 Brother Industries, Ltd.
i
Brother numbers
Register your product
By registering your product with Brother International Corporation, you will be
recorded as the original owner of the product. Your registration with Brother:
■
may serve as confirmation of the purchase date of your product
should you lose your receipt;
■
may support an insurance claim by you in the event of product
loss covered by insurance; and,
■
will help us notify you of enhancements to your product and special offers.
Please complete and fax the Brother Warranty Registration And Test Sheet
or, for your convenience and most efficient way to register your new
product, register on-line at
Frequently asked questions (FAQs)
The Brother Solutions Center is our one-stop resource for all your Fax
Machine/Multi-Function Center needs. You can download the latest
software and utilities, read FAQs and troubleshooting tips to learn how to
get the most from your Brother product.
For Customer Service
Service Center Locator (USA only)
For the location of a Brother authorized service center, call 1-800-284-4357.
Service Center Locations (Canada only)
For the location of a Brother authorized service center, call 1-877-BROTHER.
IMPORTANT
For technical help, you must call the country where you bought the MFC.
Calls must be made from within that country.
You can check here for Brother driver updates.
In USA: 1-800-284-4329 (voice)
1-901-379-1215 (fax)
1-800-284-3238 (TTY service for the hearing-impaired)
In Canada: 1-877-BROTHER (voice)
(514) 685-4898 (fax)
http://www.brother.com/registration
http://solutions.brother.com
ii
Brother fax back system (USA only)
Brother has installed an easy-to-use fax back system, so you can get
instant answers to common technical questions and product information for
all Brother products. This system is available 24 hours a day, 7 days a
week. You can use the system to receive faxed instructions and an Index of
fax back subjects.
Ordering accessories and supplies
For best quality results use only genuine Brother accessories, which are
available at most Brother retailers. If you cannot find the accessory you
need and you have a Visa, MasterCard, Discover, or American Express
credit card, you can order accessories directly from Brother. (In the USA,
you can visit us online for a complete selection of the Brother accessories
and supplies that are available for purchase.)
In USA only: 1-800-521-2846
In USA: 1-888-879-3232 (voice)
1-800-947-1445 (fax)
In Canada: 1-877-BROTHER (voice)
Description Item
Ink Cartridge<black> LC41BK (Prints up to 500 pages)
Ink Cartridge<cyan>(blue) LC41C (Prints up to 400 pages)
Ink Cartridge<magenta>(red) LC41M (Prints up to 400 pages)
Ink Cartridge<yellow> LC41Y (Prints up to 400 pages)
Premium Glossy Photo Paper
(Letter size / 20 sheets)
BP60 GLL
Matte Inkjet Paper
(Letter size / 25 sheets)
BP60 ML
Inkjet Plain Paper
(Letter size / 250 sheets)
BP60 PL
Telephone Line Cord LG3077001
Power Protector for A/C Power
Telephone Line Surges and
Voltage Spikes (2 outlets)
QPD120
Power Protector for A/C Power
Telephone Line Surges and
Voltage Spikes (8 outlets)
FX120
User's Guide LF5070001 (English for USA and Canada)
LF5447001 (French For Canada)
http://www.brothermall.com
iii
Notice - Disclaimer of Warranties
(USA and Canada)
BROTHER’S LICENSOR(S), AND THEIR DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS (COLLECTIVELY BROTHER’S
LICENSOR) MAKE NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
REGARDING THE SOFTWARE. BROTHER’S LICENSOR(S) DOES
NOT WARRANT, GUARANTEE OR MAKE ANY REPRESENTATIONS
REGARDING THE USE OR THE RESULTS OF THE USE OF THE
SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY,
RELIABILITY, CURRENTNESS OR OTHERWISE. THE ENTIRE RISK
AS TO THE RESULTS AND PERFORMANCE OF THE SOFTWARE IS
ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS
NOT PERMITTED BY SOME STATES IN THE USA AND SOME
PROVINCES IN CANADA. THE ABOVE EXCLUSION MAY NOT
APPLY TO YOU.
IN NO EVENT WILL BROTHER’S LICENSOR(S) BE LIABLE TO YOU
FOR ANY CONSEQUENTIAL, INCIDENTAL OR INDIRECT DAMAGES
(INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION,
AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE
THE SOFTWARE EVEN IF BROTHER’S LICENSOR HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE
SOME STATES IN THE USA AND SOME PROVINCES IN CANADA
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY
FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU. IN ANY EVENT
BROTHER’S LICENSOR’S LIABILITY TO YOU FOR ACTUAL
DAMAGES FROM ANY CAUSE WHATSOEVER, AND REGARDLESS
OF THE FORM OF THE ACTION (WHETHER IN CONTRACT, TORT
(INCLUDING NEGLIGENCE), PRODUCT LIABILITY OR
OTHERWISE), WILL BE LIMITED TO $50.
Compilation and Publication Notice
Under the supervision of Brother Industries Ltd., this manual has been
compiled and published, covering the latest product descriptions and
specifications.
The contents of this manual and the specifications of this product are
subject to change without notice.
Brother reserves the right to make changes without notice in the
specifications and materials contained herein and shall not be
responsible for any damages (including consequential) caused by
reliance on the materials presented, including but not limited to
typographical and other errors relating to the publication.
iv
Brother
®
One Year Limited Warranty and Replacement Service
(USA only)
Who is covered:
• This limited warranty ("warranty") is given
only to the original end-use/retail
purchaser (referred to in this warranty as
"Original Purchaser") of the accompanying
product, consumables and accessories
(collectively referred to in this warranty as
"this Product").
• If you purchased a product from someone
other than an authorized Brother reseller in
the United States or if the product was
used (including but not limited to floor
models or refurbished product), prior to
your purchase you are not the Original
Purchaser and the product that you
purchased is not covered by this warranty.
What is covered:
• This Product includes a Machine and
Consumable and Accessory Items.
Consumable and Accessory Items include
but are not limited to print heads, toner,
drums, ink cartridges, print cartridges, refill
ribbons, therma PLUS paper and thermal
paper.
• Except as otherwise provided herein,
Brother warrants that the Machine and the
accompanying Consumable and
Accessory Items will be free from defects in
materials and workmanship, when used
under normal conditions.
• This warranty applies only to products
purchased and used in the United States.
For products purchased in, but used
outside, the United States, this warranty
covers only warranty service within the
United States (and does not include
shipping outside the United States).
What is the length of the Warranty Periods:
• Machines: one year from the original
purchase date.
• Accompanying Consumable and
Accessory Items: 90 days from the original
purchase date or the rated life of
consumable, whichever comes first.
What is NOT covered:
This warranty does not cover
:
(1) Physical damage to this Product;
(2) Damage caused by improper installation,
improper or abnormal use, misuse,
neglect or accident (including but not
limited to transporting this Product
without the proper preparation and/or
packaging);
(3) Damage caused by another device or
software used with this Product (including
but not limited to damage resulting from
use of non Brother®-brand parts and
Consumable and Accessory Items);
(4) Consumable and Accessory Items that
expired in accordance with a rated life;
and,
(5) Problems arising from other than defects
in materials or workmanship.
(6) Normal Periodic Maintenance Items,
such as Paper Feeding Kit, Fuser and
Laser Units.
This limited warranty is VOID if this Product
has been altered or modified in any way
(including but not limited to attempted
warranty repair without authorization from
Brother and/or alteration/removal of the
serial number).
What to do if you think your Product is
eligible for warranty service:
Report your issue to either our Customer
Service Hotline at 1-800-284-4329
for Fax,
MFC and DCP and 1-800-276-7746
for
Printers, or to a Brother Authorized Service
Center within the applicable warranty
period. Supply Brother or the Brother
Authorized Service Center with a copy of
your dated bill of sale showing that this
Product was purchased within the U.S. For
the name of local Brother Authorized Service
Center(s), call 1-800-521-2846.
What Brother will ask you to do:
After contacting Brother or a Brother
Authorized Service Center, you may be
required to deliver (by hand if you prefer) or
send the Product properly packaged, freight
prepaid, to the Authorized Service Center
together with a photocopy of your bill of sale.
You are responsible for the cost of
shipping, packing product, and
insurance (if you desire). You are also
responsible for loss or damage to this
Product in shipping.
What Brother will do:
If the problem reported concerning your
Machine and/or accompanying Consumable
and Accessory Items is covered by this
warranty and
if you first reported the problem
to Brother or an Authorized Service Center
within the applicable warranty period,
Brother or its Authorized Service Center will
repair or replace the Machine and/or
accompanying Consumable and Accessory
Items at no charge to you for parts or labor.
The decision as to whether to repair or
replace the Machine and/or accompanying
Consumable and Accessory Items is made
v
Brother
®
One Year Limited Warranty and Replacement Service
(USA only)
by Brother in its sole discretion. Brother
reserves the right to supply a refurbished or
remanufactured replacement Machine
and/or accompanying Consumable and
Accessory Items and use refurbished parts
provided such replacement products
conform to the manufacturer's specifications
for new product/parts. The repaired or
replacement Machine and/or accompanying
Consumable and Accessory Items will be
returned to you freight prepaid or made
available for you to pick up at a conveniently
located Authorized Service Center.
If the Machine and/or accompanying
Consumable and Accessory Items are not
covered by this warranty (either stage), you
will be charged for shipping the Machine
and/or accompanying Consumable and
Accessory Items back to you and charged
for any service and/or replacement
parts/products at Brother's then current
published rates.
The foregoing are your sole (i.e., only) and
exclusive remedies under this warranty.
What happens when Brother elects to
replace your Machine:
When a replacement Machine is authorized
by Brother, and you have delivered the
Machine to an Authorized Service Center, the
Authorized Service Center will provide you
with a replacement Machine after receiving
one from Brother. If you are dealing directly
with Brother, Brother will send to you a
replacement Machine with the understanding
that you will, after receipt of the replacement
Machine, supply the required proof of
purchase information, together with the
Machine that Brother agreed to replace. You
are then expected to pack the Machine that
Brother agreed to replace in the package from
the replacement Machine and return it to
Brother using the pre-paid freight bill supplied
by Brother in accordance with the instructions
provided by Brother. Since you will be in
possession of two machines, Brother will
require that you provide a valid major credit
card number. Brother will issue a hold
against the credit card account number that
you provide until Brother receives your
original Product and determines that your
original Product is entitled to warranty
coverage. Your credit card will be charged up
to the cost of a new Product only if: (i) you do
not return your original Product to Brother
within five (5) business days; (ii) the problems
with your original Product are not covered by
the limited warranty; (iii) the proper packaging
instructions are not followed and has caused
damage to the product; or (iv) the warranty
period on your original Product has expired or
has not been sufficiently validated with a copy
of the proof of purchase (bill of sale). The
replacement Machine you receive (even if
refurbished or remanufactured) will be
covered by the balance of the limited warranty
period remaining on the original Product, plus
an additional thirty (30) days. You will keep
the replacement Machine that is sent to you
and your original Machine shall become the
property of Brother. Retain your original
Accessory Items and a copy of the return
freight bill, signed by the courier.
Limitations:
Brother is not responsible for damage to or
loss of any equipment, media, programs or
data related to the use of this Product.
Except for that repair or replacement as
described above, Brother shall not be liable
for any direct, indirect, incidental or
consequential damages or specific relief.
Because some states do not allow the
exclusion or limitation of consequential or
incidental damages, the above limitation
may not apply to you.
THIS WARRANTY IS GIVEN IN LIEU OF
ALL OTHER WARRANTIES, WRITTEN OR
ORAL, WHETHER EXPRESSED BY
AFFIRMATION, PROMISE, DESCRIPTION,
DRAWING, MODEL OR SAMPLE. ANY
AND ALL WARRANTIES OTHER THAN
THIS ONE, WHETHER EXPRESS OR
IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE, ARE HEREBY DISCLAIMED.
• This Limited Warranty is the only warranty
that Brother is giving for this Product. It is
the final expression and the exclusive and
only statement of Brother's obligations to
you. It replaces all other agreements and
understandings that you may have with
Brother or its representatives.
• This warranty gives you certain rights and
you may also have other rights that may
vary from state to state.
• This Limited Warranty (and Brother's
obligation to you) may not be changed in
any way unless you and Brother sign the
same piece of paper in which we (1) refer
to this Product and your bill of sale date, (2)
describe the change to this warranty and
(3) agree to make that change.
Important: We recommend that you keep all
original packing materials, in the event that
you ship this Product.
© 2003 Brother International Corporation
vi
BROTHER MULTIFUNCTION CENTER/FACSIMILE MACHINE
LIMITED WARRANTY
(Canada only)
Pursuant to this limited warranty of 1 year from the date of purchase for labour and parts,
Brother International Corporation (Canada) Ltd. (“Brother”), or its Authorized Service
Centers, will repair this MFC/Facsimile machine free of charge if defective in material or
workmanship. This Limited Warranty does not include cleaning, consumables
(including, without limitation, print cartridges, print head, toner and drum) or damage
caused by accident, neglect, misuse or improper installation or operation, any damage
caused from service, maintenance, modifications, or tampering by anyone other than a
Brother Authorized Service Representative, or from the use of supplies or consumable
items that are non-Brother products. Operation of the MFC/Facsimile machine in excess
of the specifications or with the Serial Number or Rating Label removed shall be deemed
abuse and all repairs thereafter shall be the sole liability of the end-user/purchaser. In
order to obtain warranty service, the MFC/Facsimile machine must be delivered or
shipped freight prepaid by the end user/purchaser to a “Brother” Authorized Service
Center, together with your Proof of Purchase in the form of a Sales Receipt.
For laser products: Failure to remove the Toner Cartridge (and Toner Drum Unit on
applicable models) during shipping will cause severe damage to the MFC/Facsimile and
will VOID the Warranty. (Refer to your User’s Guide for proper packaging.)
For ink-jet products: Do not remove the ink cartridges during shipping. Damage to your
print head resulting from packing without the ink cartridges will VOID your warranty.
(Refer to your User’s Guide for proper packaging.)
BROTHER DISCLAIMS ALL OTHER WARRANTIES EXPRESSED OR IMPLIED
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, EXCEPT TO
THE EXTENT THAT ANY WARRANTIES IMPLIED BY LAW CANNOT BE VALIDLY
WAIVED.
No oral or written information, advice or representation provided by Brother, its
Authorized Service Centers, Distributors, Dealers, Agents or employees, shall create
another warranty or modify this warranty. This warranty states Brother’s entire liability
and your exclusive remedy against Brother for any failure of the MFC/Facsimile machine
to operate properly.
Neither Brother nor anyone else involved in the development, production, or delivery of
this MFC/Facsimile machine shall be liable for any indirect, incidental, special,
consequential, exemplary, or punitive damages, including lost profits, arising from the
use of or inability to use the product, even if advised by the end user/purchaser of the
possibility of such damages. Since some Provinces do not allow the above limitation of
liability, such limitation may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights
which vary from Providence to Providence.
Warranty Service is available at Brother Authorized Service Centers throughout
Canada. For Technical Support or for the name and location of your nearest Authorized
Service Center call 1-877-BROTHER.
Internet support: support@brother.ca or browse
Brother’s Web Site: www.brother.com
Brother International Corporation (Canada) Ltd.
1 Rue Hôtel de Ville
Dollard-Des-Ormeaux, QC H9B 3H6
vii

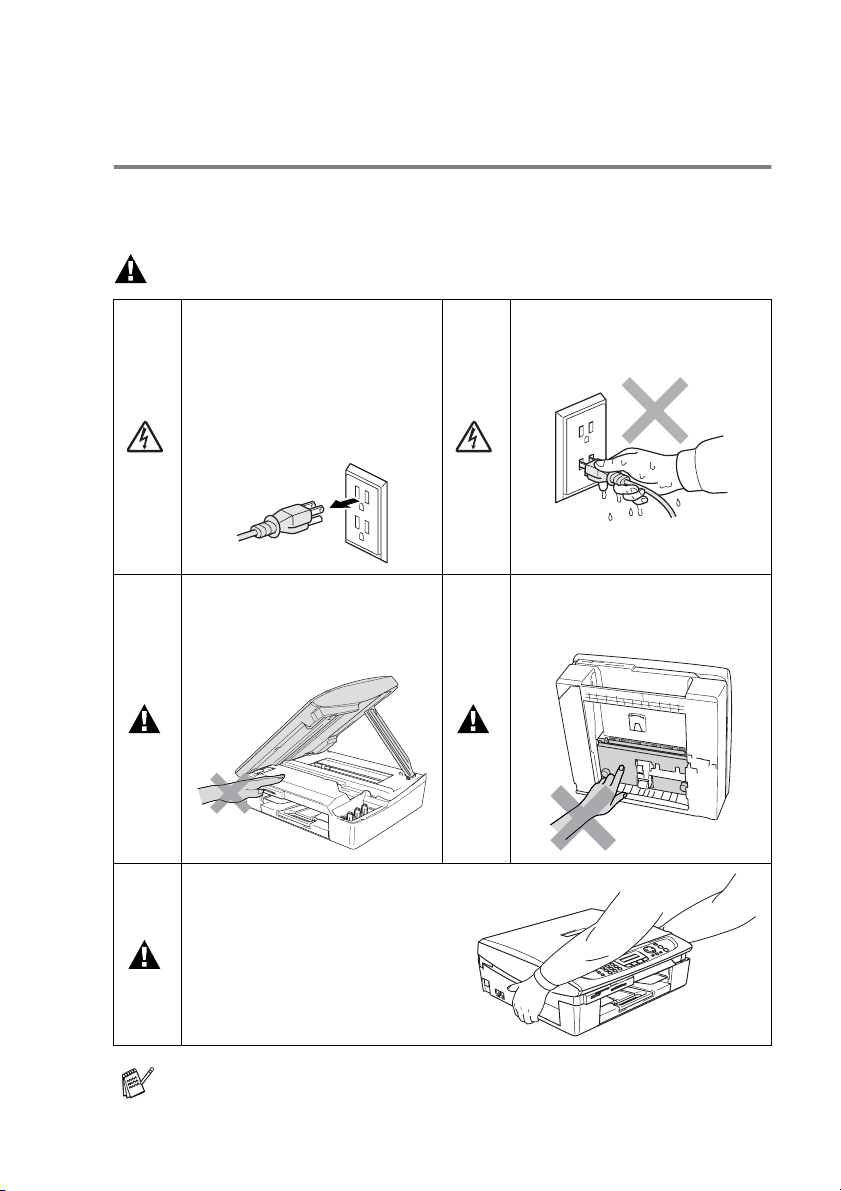

Safety precautions
To use the MFC safely
Please refer to these instructions for later reference and before
attempting any maintenance.
WARNI NG
There are high voltage
electrodes inside the MFC.

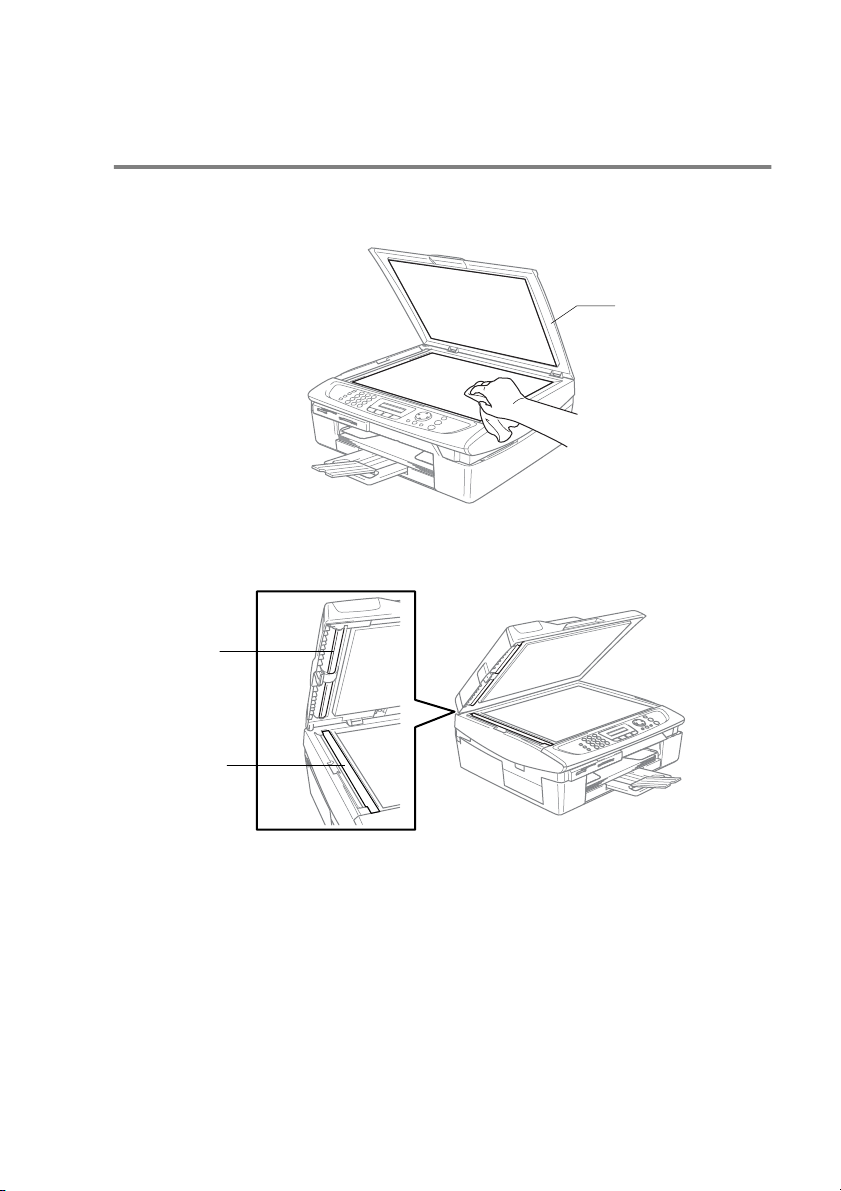

Before you clean the MFC,
make sure you have
unplugged the telephone line
cord first and then the power
cord from the AC power outlet.
Do not handle the plug with wet
hands. Doing this might cause
an electrical shock.
To prevent injuries, be careful
not to put your hands on the
edge of the MFC under the
scanner cover.
To prevent injuries, be careful
not to touch the area shaded in
the illustration.
When you move the MFC,
place a hand at each side of the
unit so you are supporting the
base when you lift it. (See the
illustration on the right.) Do not
carry the MFC by holding the
scanner cover.
Most of the illustrations in this User’s Guide show the
MFC-210C.
viii
WARNI NG
■
Use caution when installing or modifying telephone lines. Never
touch telephone wires or terminals that are not insulated unless
the telephone line has been disconnected at the walljack. Never
install telephone wiring during a lightning storm. Never install a
telephone wall jack in a wet location.
■
This product must be installed near an AC power outlet that is
easily accessible. In case of emergencies, you must disconnect
the power cord from the AC power outlet in order to shut off
power completely.
■
To reduce the risk of shock or fire, use only a No. 26 AWG or
larger telecommunication line cord.
Caution
■
Lightning and power surges can damage this product! We
recommend that you use a quality surge protection device on the
AC power line and on the telephone line, or unplug the cords
during a lightning storm.
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety
precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the
following:
1. Do not use this product near water, for example, near a
bath tub, wash bowl, kitchen sink or washing machine, in a
wet basement or near a swimming pool.
2. Avoid using this product during an electrical storm. There
may be a remote risk of electric shock from lightning.
3. Do not use this product to report a gas leak in the vicinity
of the leak.
4. Use only the power cord provided with the MFC.
SAVE THESE INSTRUCTIONS
ix

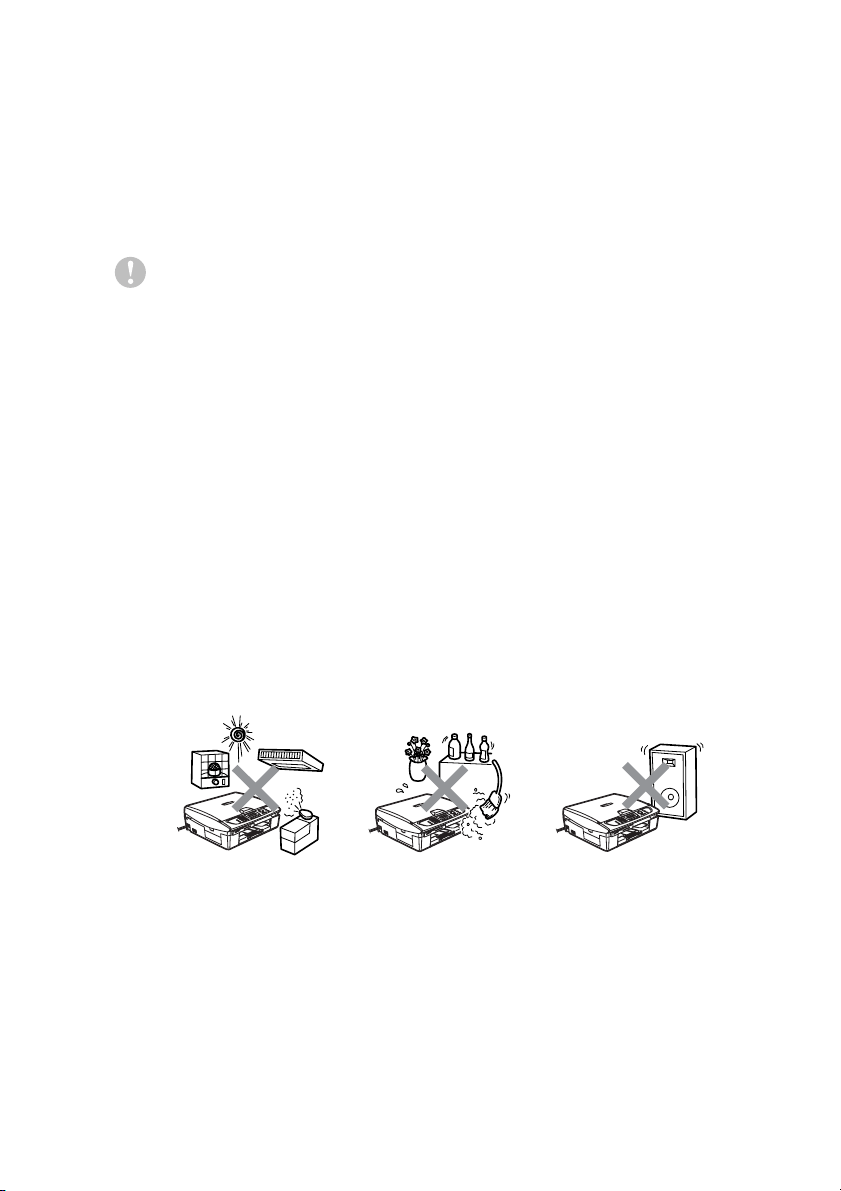

Choosing a location
Place your MFC on a flat, stable surface that is free of vibration and
shocks, such as a desk. Put the MFC near a telephone wall jack and
a standard, grounded AC power outlet. Choose a location where the
temperature remains between 50°F and 95°F (10°-35°C).
Caution
■
Avoid placing your MFC in a high-traffic area.
■
Avoid placing your MFC on the carpet.
■
Do not place near heaters, air conditioners, water, chemicals, or
refrigerators.
■
Do not expose the MFC to direct sunlight, excessive heat,
moisture, or dust.
■
Do not connect your MFC to electrical outlets controlled by wall
switches or automatic timers.
■
Disruption of power can wipe out information in the MFC’s
memory.
■
Do not connect your MFC to electrical outlets on the same circuit
as large appliances or other equipment that might disrupt the
power supply.
■
Avoid interference sources, such as speakers or the base units
of cordless phones.
x
Quick Reference Guide
Sending Black & White
Faxes
Automatic Transmission
Sending a fax
1

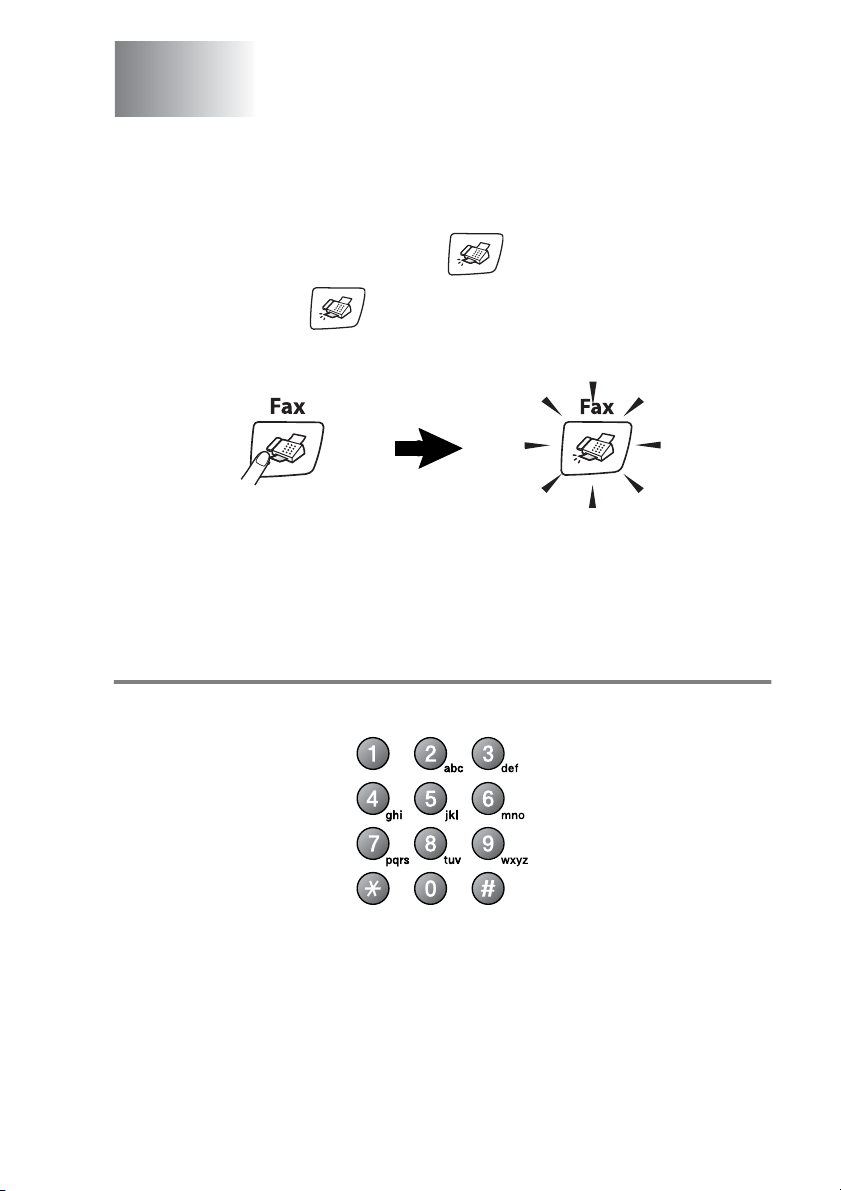

If it is not illuminated in
green, press (
Fax
).
2

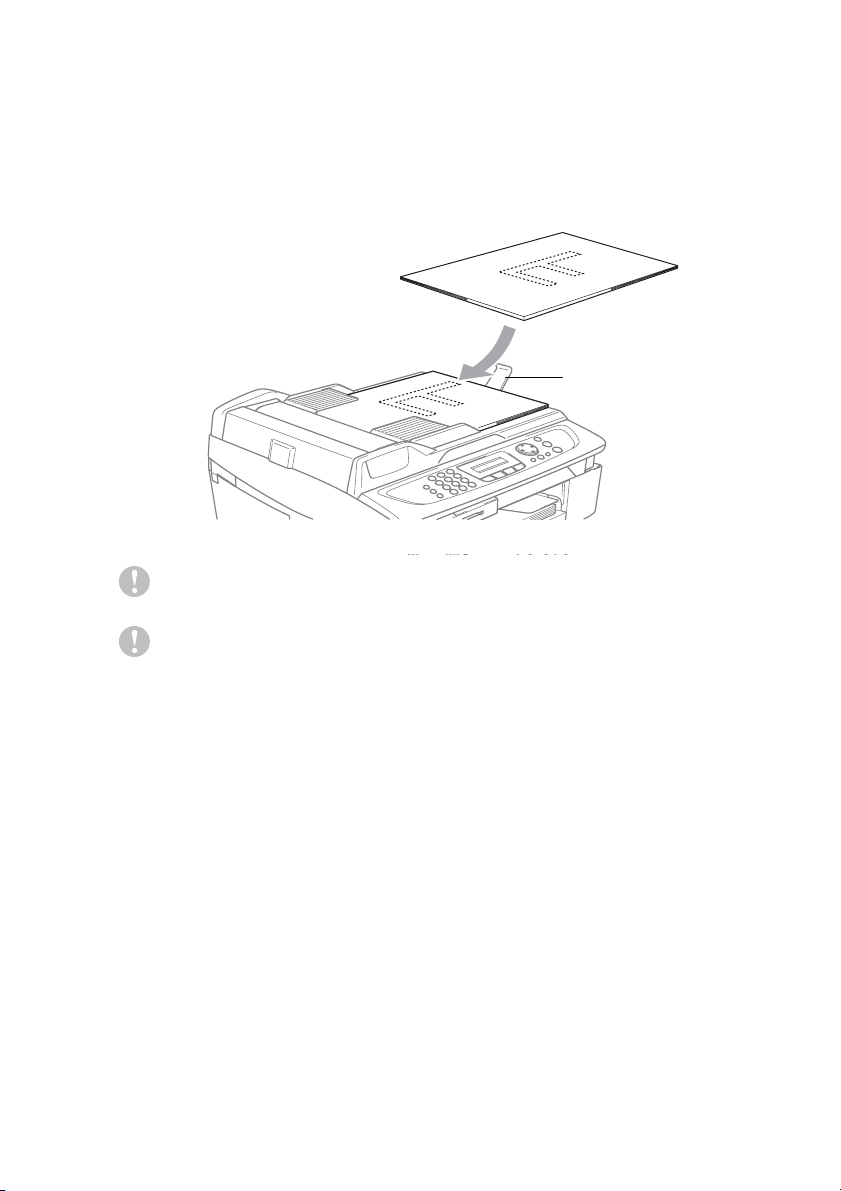

Load your document.
3
Enter the fax number using
Speed-Dial, Search or the
dial pad.
4
Press
Black Start
.
The MFC starts scanning
the first page.
5
Press
2
to begin dialing.
6
Press
Stop/Exit
to cancel.
Sending more than one page
1
If it is not illuminated in
green, press (
Fax
).
2
Load your document.
3
Enter the fax number using
Speed-Dial, Search or the
dial pad.
4
Press
Black Start
or
Color Start
.
The MFC starts scanning
the first page.
5
Press
1
.
6
Place the next page on the
scanner glass.
Press
Menu/Set
.
The MFC starts scanning.
(Repeat step 5 and 6 for
each additional page.)
7
Press
2
to begin dialing.
8
Press
Stop/Exit
to cancel.
Storing numbers
Storing Speed-Dial numbers
1
Press
Menu/Set
,
2
,
3
,
1
.
2
Using the dial pad, enter a
two-digit Speed-Dial
location number, and then
press
Menu/Set
.
3
Enter a number (up to 20
digits), and then press
Menu/Set
.
4
Enter a name up to 15
characters (or leave it
blank), and then press
Menu/Set
.
5
Press
Stop/Exit
.
Next Page?
1.Yes 2.No(Dial)
Next Page?
1.Yes 2.No(Dial)
xi
Dialing operations
Speed-Dialing
1
If it is not illuminated in
green, press (
Fax
).
2
Load your document.
3
Press
Search/Speed Dial
,
press #, and then press the
two-digit Speed-Dial
number.
4
Press
Black Start
or
Color Start
.
Using Search
1
If it is not illuminated in
green, press (
Fax
).
2
Load your document.
3
Press
Search/Speed Dial
,
and then enter the first letter
of the name you’re looking
for.
4
Press or to search the
memory.
5
Press
Black Start
or
Color Start
.
Making copies
1
Press (
Copy
) to
illuminate it in green.
2
Load your document.
3
Press
Black Start
or
Color Start
.
▲
▲
xii
Table of Contents
1
Introduction ..........................................................................1-1
Using this Guide ............................................................... 1-1
Finding information..................................................... 1-1
Symbols used in this Guide........................................1-1

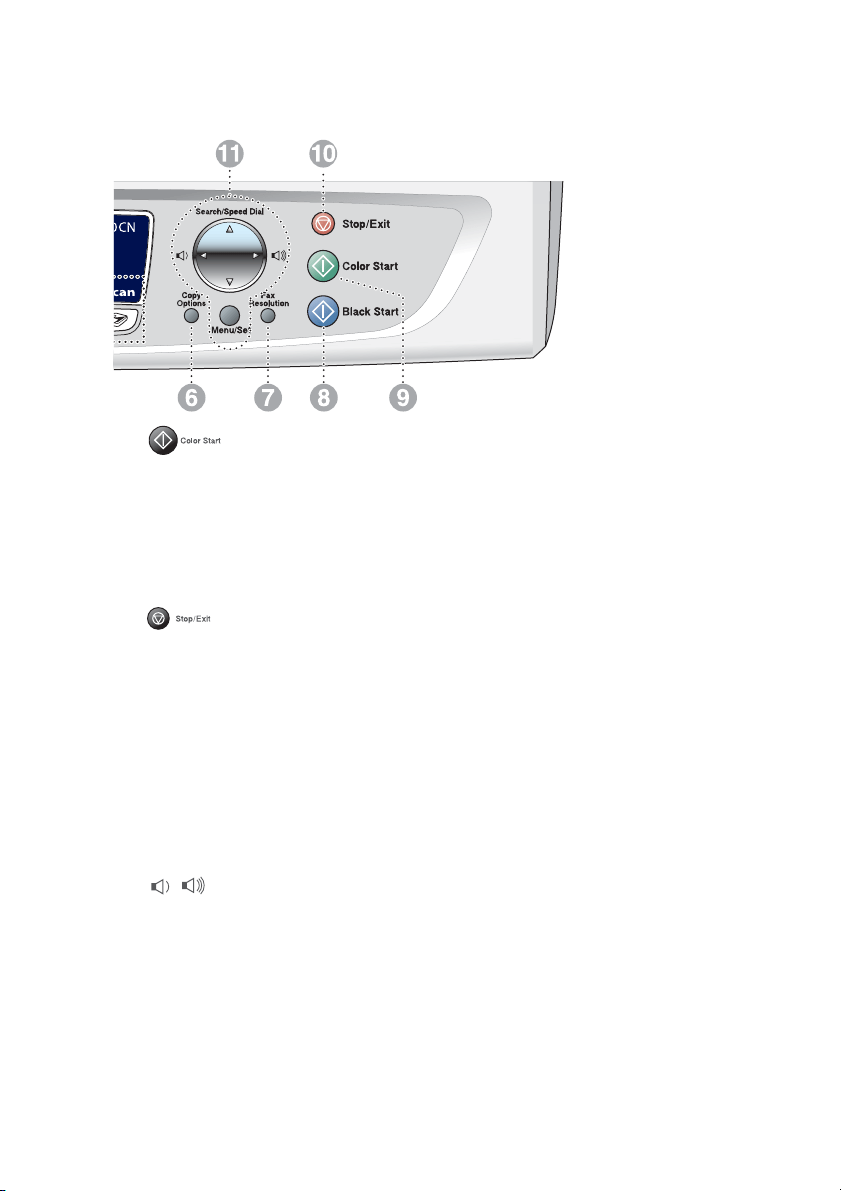

Control panel overview ..................................................... 1-2
Turning the MFC on and off........................................ 1-4
On/Off Setting.............................................................1-4
Load documents ............................................................... 1-6
Using the automatic document feeder (ADF)
(Not available for MFC-210C) ................................ 1-6
Using the scanner glass ............................................. 1-8
About paper ...................................................................... 1-9
Recommended Paper................................................. 1-9
Handling and using special paper ............................ 1-10
Paper type and size for each operation................ 1-11
Paper weight, thickness and capacity .................. 1-12
Paper capacity of the output paper tray ..............1-12
Printable area....................................................... 1-13

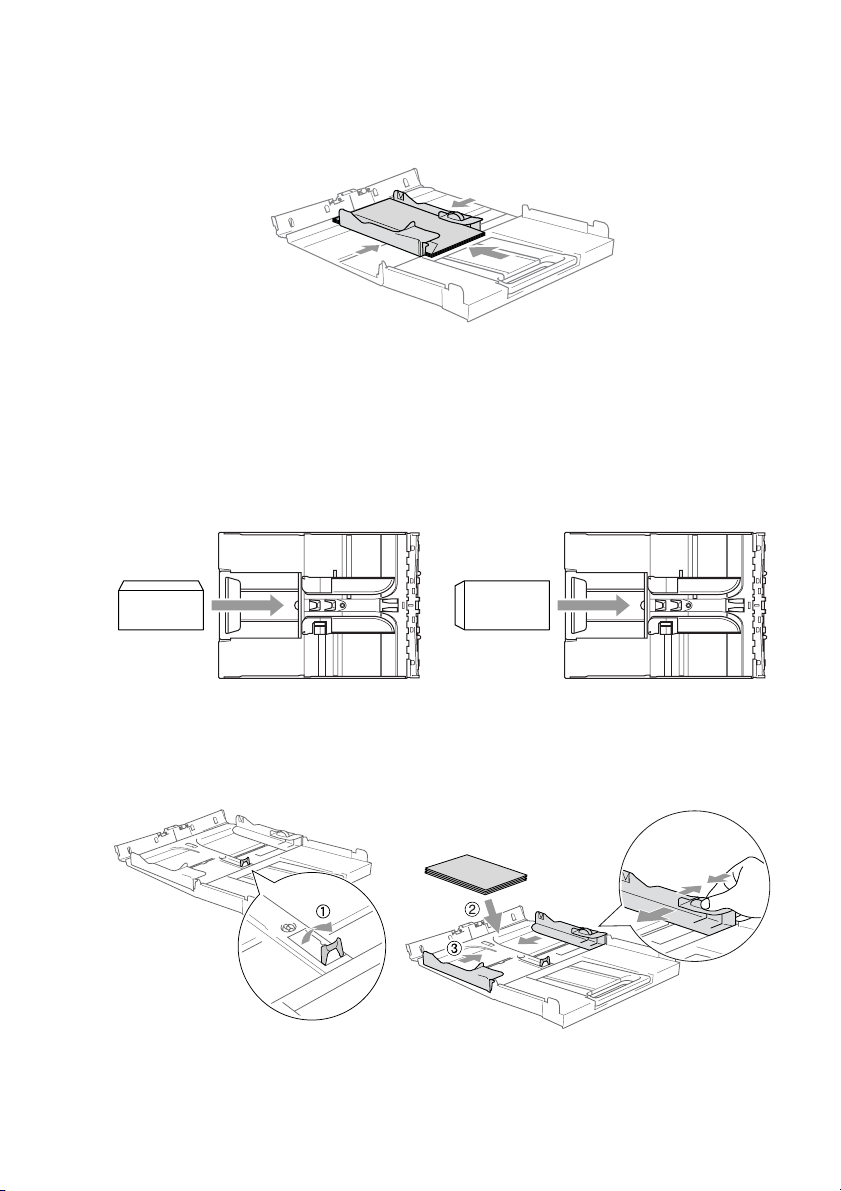

How to load paper, envelopes and post cards ......... 1-14
To load paper or other media ............................... 1-14
To load envelopes ................................................ 1-16
To load post cards................................................ 1-17
About fax machines ........................................................ 1-18
Custom features .......................................................1-18
Do you have Voice Mail on the phone line? ......... 1-18
Why should there be problems?........................... 1-18
How can you avoid possible problems? ............... 1-18
Fax tones and handshake ........................................1-19
ECM (Error Correction Mode)................................... 1-20
2
Getting started ..................................................................... 2-1
Initial Setup....................................................................... 2-1
Setting the Date and Time.......................................... 2-1
Setting Tone and Pulse dialing mode......................... 2-1
Setting the Station ID..................................................2-2
General Setup ..................................................................2-3
Setting the Mode Timer ..............................................2-3
Setting the Paper Type ..............................................2-3
Setting the Paper Size ...............................................2-4
Setting the Ring Volume.............................................2-4
Setting the Beeper Volume.........................................2-5
xiii
Setting the Speaker Volume .......................................2-5
Turning on Automatic Daylight Savings Time.............2-6
Setting the LCD Contrast............................................2-6
3
Setup Send ........................................................................... 3-1
How to enter Fax mode .................................................... 3-1
How to dial ........................................................................3-1
Manual dialing............................................................. 3-1
Speed-Dialing .............................................................3-2
Search ........................................................................3-2
Fax Redial................................................................... 3-2
How to Fax (B&W and Color) ........................................... 3-3
Color fax transmission ................................................ 3-3
Faxing from the ADF (MFC-420CN only) ...................3-3
Faxing from the scanner glass....................................3-4
Automatic transmission............................................... 3-5
Manual transmission ..................................................3-5
Out of Memory message ............................................ 3-5
Basic sending operations..................................................3-6
Sending faxes using multiple settings.........................3-6
Contrast ...................................................................... 3-6
Fax Resolution............................................................3-7
Dual Access (Not available for color faxes)................3-8
Real Time Transmission .............................................3-9
Checking job status ..................................................3-10
Canceling a fax in progress ......................................3-10
Canceling a scheduled job........................................3-10
Advanced sending operations ........................................3-11
Broadcasting (Not available for color faxes).............3-11
Overseas Mode ........................................................3-12
Delayed Fax (Not available for color faxes)
(MFC-420CN only) ...............................................3-13
Setting up Polled Transmit
(Not available for color faxes) (MFC-420CN only) ... 3-13
Delayed Batch Transmission
(Not available for color faxes) (MFC-420CN only) ... 3-14
Faxing A4 size documents from the scanner glass ...3-14
4
Setup Receive ......................................................................4-1
Basic receiving operations ............................................... 4-1
Choosing the Receive Mode ......................................4-1
To select or change your Receive Mode ................4-2
Setting the Ring Delay ...............................................4-2
Setting the F/T Ring Time (Fax/Tel mode only).......... 4-3
xiv
Easy Receive .............................................................4-4
Printing a reduced incoming fax (Auto Reduction) ..... 4-5
Printing a fax from the memory (MFC-420CN only) ... 4-5
Polling (MFC-420CN only).......................................... 4-6
Setting up Polling Receive .....................................4-6
Setting up Sequential Polling Receive ................... 4-6
5
Quick-Dial numbers and dialing options ........................... 5-1
Storing numbers for easy dialing...................................... 5-1
Storing Speed-Dial numbers ...................................... 5-1
Changing Speed-Dial numbers .................................. 5-2
Setting up Groups for Broadcasting ........................... 5-3
Dialing options..................................................................5-5
Access codes and credit card numbers......................5-5
Pause .........................................................................5-5
Tone or Pulse .............................................................5-6
6
Remote Fax Options (MFC-420CN only)
(Not available for color faxes) ............................................ 6-1
Setting up Fax Forwarding .........................................6-1
Programming your pager number............................... 6-2
Setting Fax Storage....................................................6-3
Setting PC Fax Rx......................................................6-3
Turning off Remote Fax Options ................................6-4
Setting your Remote Access Code.............................6-4
Remote Retrieval.............................................................. 6-5
Using your Remote Access Code...............................6-5
Remote commands .................................................... 6-6
Retrieving fax messages............................................ 6-7
Changing your Fax Forwarding number .....................6-7
7
Printing reports .................................................................... 7-1
Fax settings and activity ................................................... 7-1
Customizing the Transmission Verification Report..... 7-1
Setting the Journal Period.......................................... 7-2
Printing reports ...........................................................7-3
How to print a report...............................................7-3
8
Making copies ..................................................................... 8-1
Using the MFC as a copier ...............................................8-1
Enter Copy mode........................................................8-1
Making a single copy..................................................8-2
Making multiple copies ...............................................8-2
Stop copying............................................................... 8-2
xv
Using the Copy Options key (Temporary settings) ...........8-3
Changing the temporary copy settings .......................8-4
Increasing copy speed or quality............................8-5
Enlarging or reducing the image copied................. 8-6
Setting paper type ..................................................8-7
Setting paper size...................................................8-8
Adjusting brightness ...............................................8-8
Sorting copies using the ADF (MFC-420CN only)... 8-9
Making N in 1 copies or a poster (Page Layout)
(MFC-420CN only) ...........................................8-10
Changing the default copy settings.................................8-13
Increasing copy speed or quality ..............................8-13
Adjusting brightness .................................................8-13
Adjusting contrast .....................................................8-13
Adjusting color saturation .........................................8-14
Out of Memory message ..........................................8-14
Legal limitations..............................................................8-15
9
Walk-Up PhotoCapture Center
™
.........................................9-1
Introduction.......................................................................9-1
PhotoCapture Center
™
requirements ..................... 9-2
Getting started ..................................................................9-3
Printing the Index (Thumbnails)........................................9-5
Printing images .................................................................9-6
Number of Copies...................................................9-7
DPOF printing.............................................................9-8
Changing the default settings .....................................9-9
Increasing print speed or quality.............................9-9
Setting the paper & size .........................................9-9
Adjusting brightness .............................................9-10
Adjusting contrast.................................................9-10
Color enhancement (True2Life
®
)
(MFC-420CN only) ...........................................9-10
Cropping...............................................................9-12
Borderless ............................................................9-12
Understanding the Error Messages ..........................9-13
Using PhotoCapture Center
™
from your PC...................9-14
Using PhotoCapture Center
™
for scanning documents...9-14
10
Important information ........................................................10-1
Standard telephone and FCC Notices
These notices are in effect on models sold and
used in the United States only..............................10-1
xvi
Federal Communications Commission (FCC)
Declaration of Conformity (USA only) .................. 10-3
Important .............................................................. 10-4
Industry Canada Compliance Statement
(Canada only)....................................................... 10-4
For your safety.......................................................... 10-4
LAN connection (MFC-420CN only)......................... 10-4
Important safety instructions..................................... 10-5
Trademarks .............................................................. 10-8
11
Troubleshooting and routine maintenance ..................... 11-1
Troubleshooting ............................................................. 11-1
Error messages ........................................................ 11-1
Document jams (MFC-420CN only) ......................... 11-5
Document is jammed in the top of the ADF unit..... 11-5
Document is jammed inside the ADF unit. ........... 11-5
Printer jam or paper jam ........................................... 11-6
Paper is jammed inside the paper tray ................. 11-6

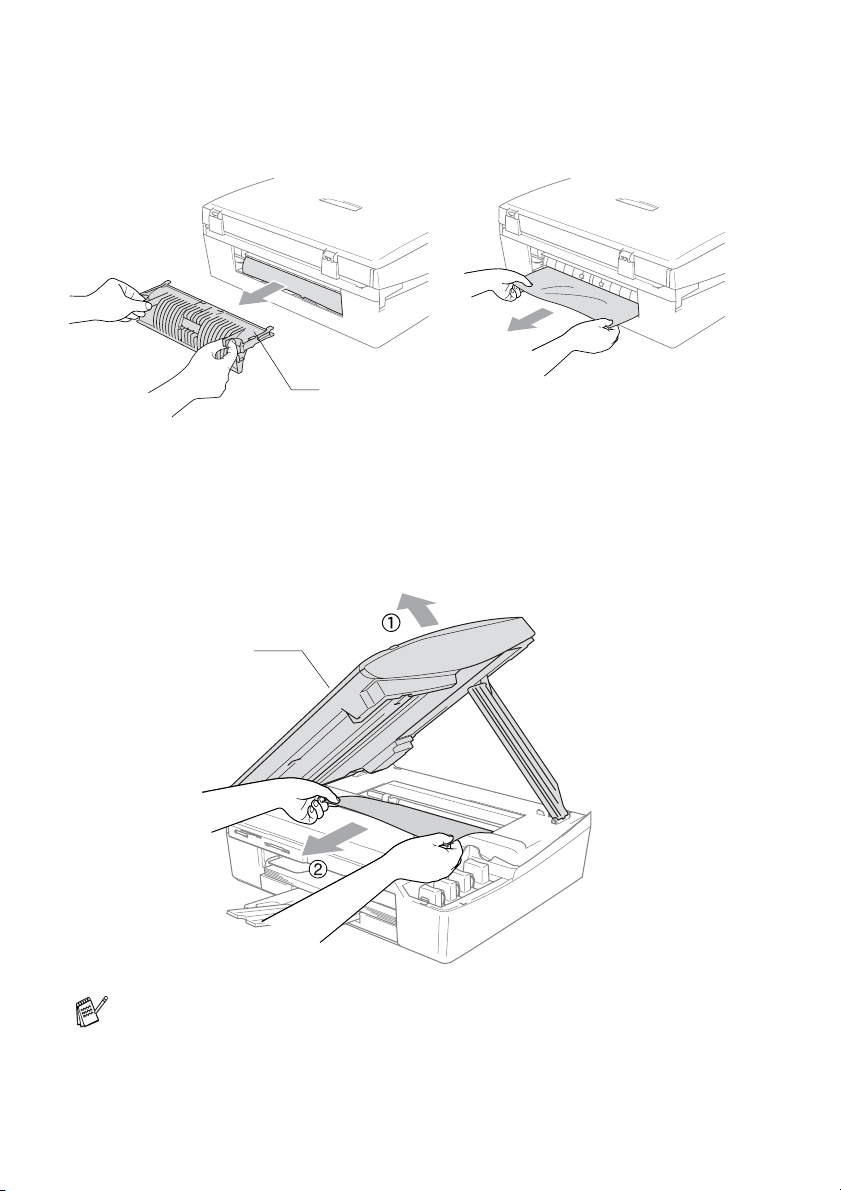

Paper is jammed inside the MFC ......................... 11-7
If you are having difficulty with your MFC................. 11-9
Compatibility........................................................... 11-13
How to improve print quality ......................................... 11-14
Cleaning the print head .......................................... 11-14
Checking the print quality ....................................... 11-15
Checking the printing alignment .............................11-17
Checking the ink volume .............................................. 11-18

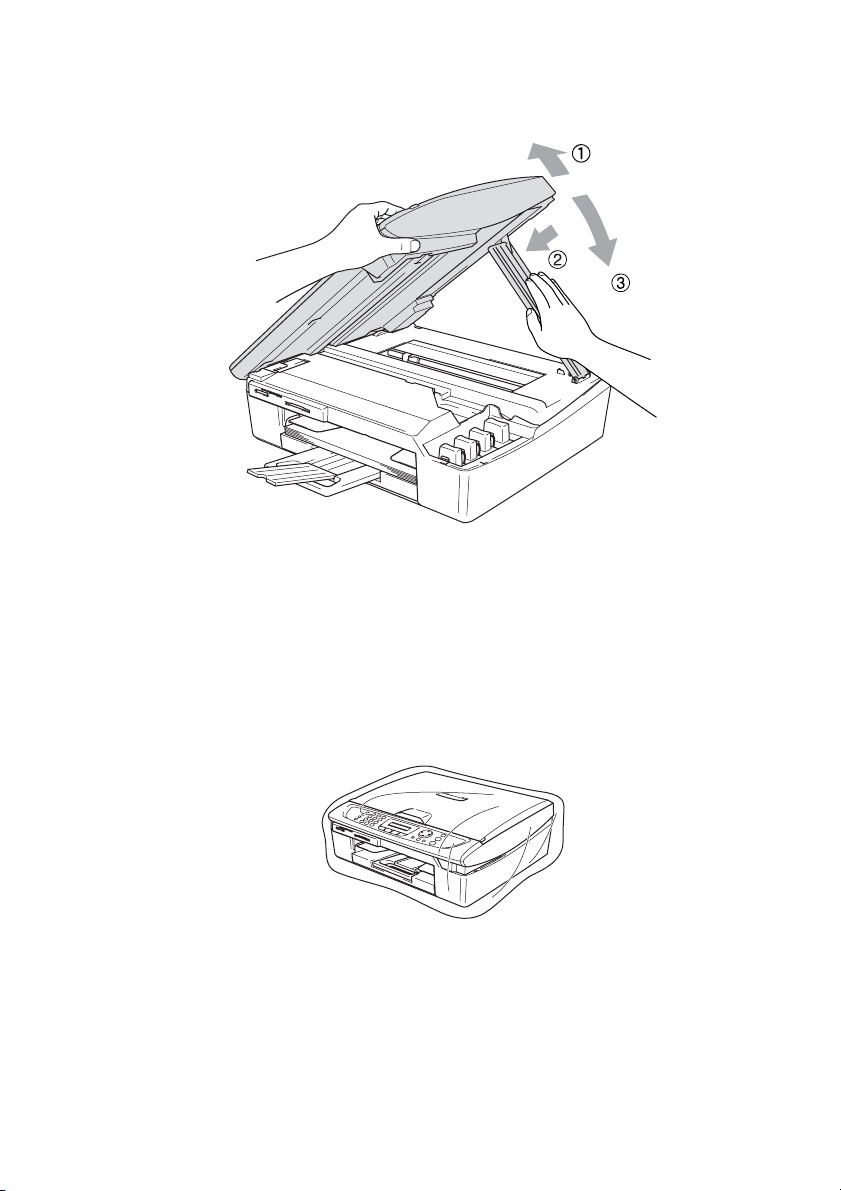

Packing and shipping the MFC...............................11-19
Routine maintenance.................................................... 11-22
Cleaning the scanner.............................................. 11-22

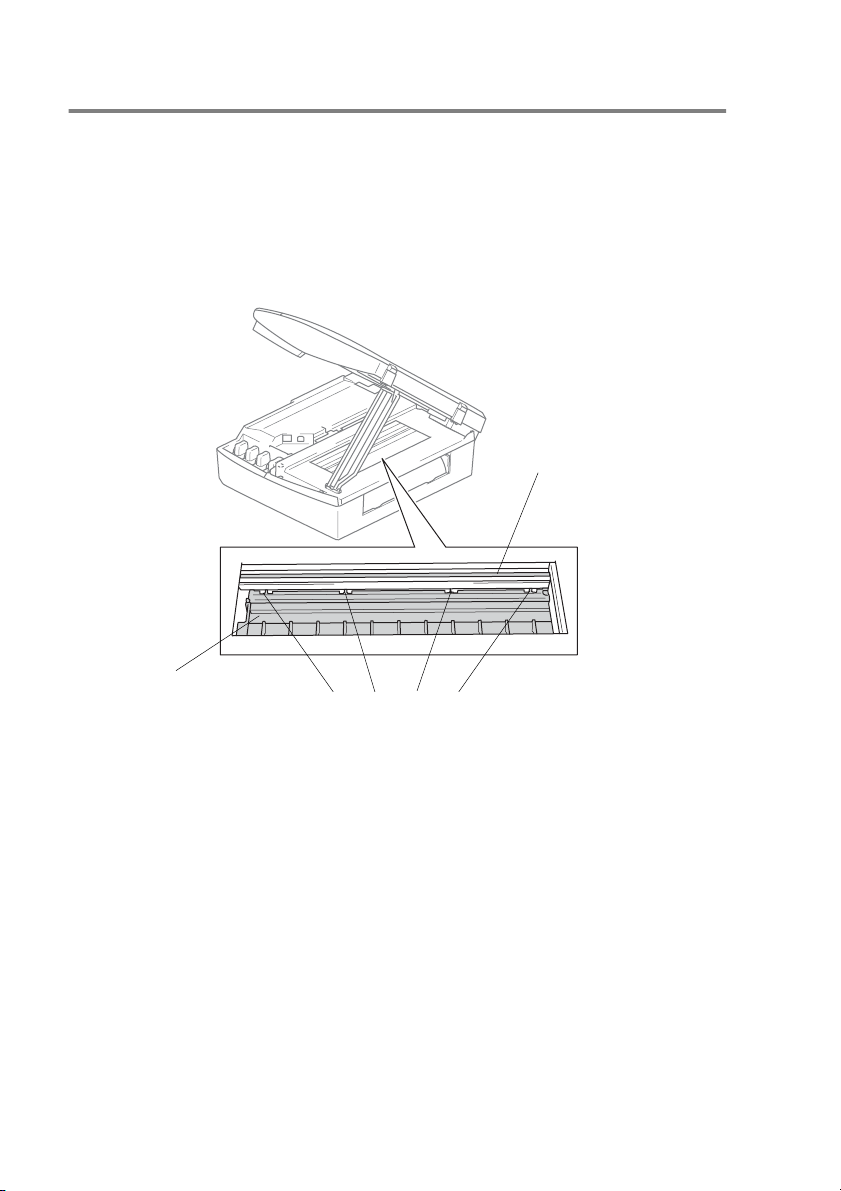

Cleaning the MFC printer platen............................. 11-23

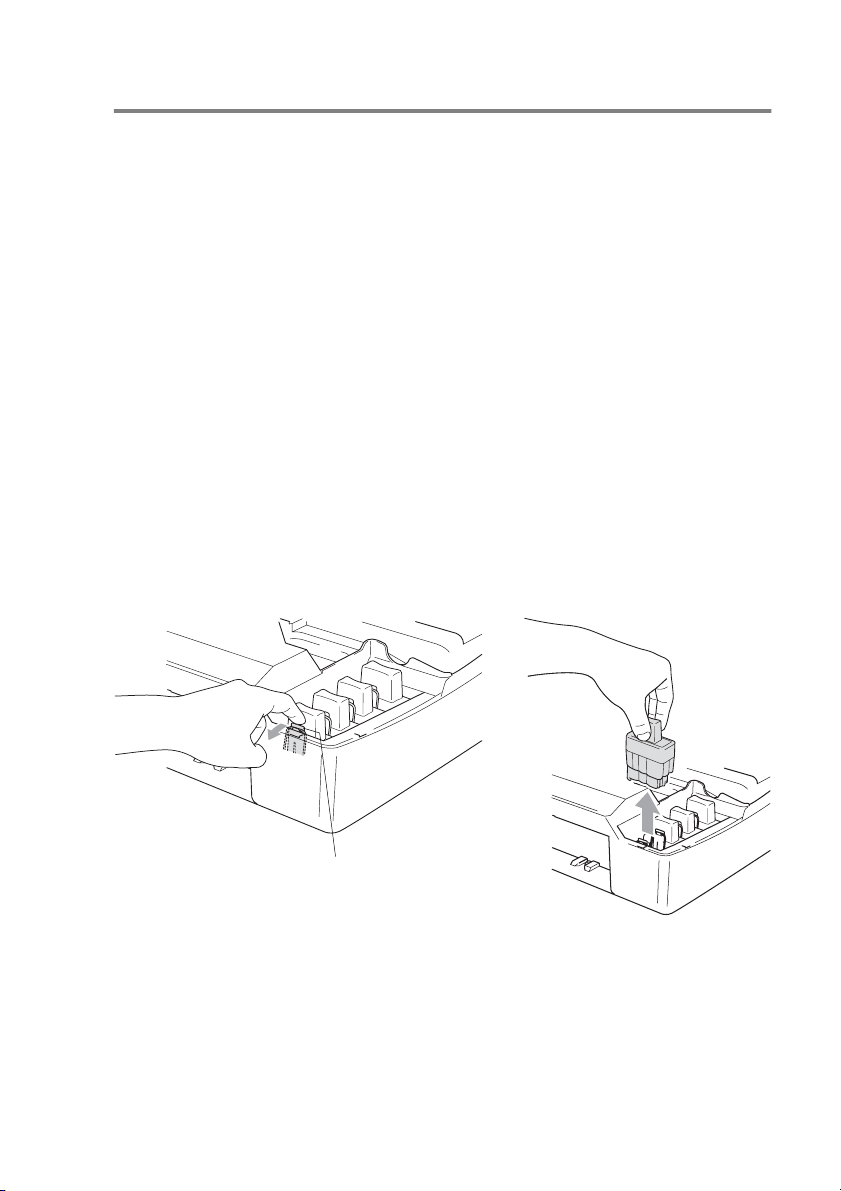

Replacing the ink cartridges ................................... 11-24
A
Appendix A .......................................................................... A-1
Setting up telephone services ..........................................A-1
Distinctive Ring...........................................................A-1
What does your telephone company’s
‘Distinctive Ring’ do?..........................................A-1
What does Brother’s ‘Distinctive Ring’ do? ............A-2
Do you have Voice Mail?........................................A-2
Before you choose the ring pattern to register .......A-3
Registering the Distinctive Ring pattern .....................A-4
Turning off the Distinctive Ring ..............................A-4
xvii
Caller ID........................................................................... A-5
Viewing Caller ID List................................................. A-6
Printing Caller ID List................................................. A-6
Advanced receiving operations........................................ A-7
Operation from extension telephones........................ A-7
Fax/Tel mode when power key is On ........................ A-7
Fax/Tel mode when power key is Off ........................ A-7
Using a cordless external handset............................. A-8
Changing the remote codes....................................... A-8
Connecting an external device to your MFC.................... A-9

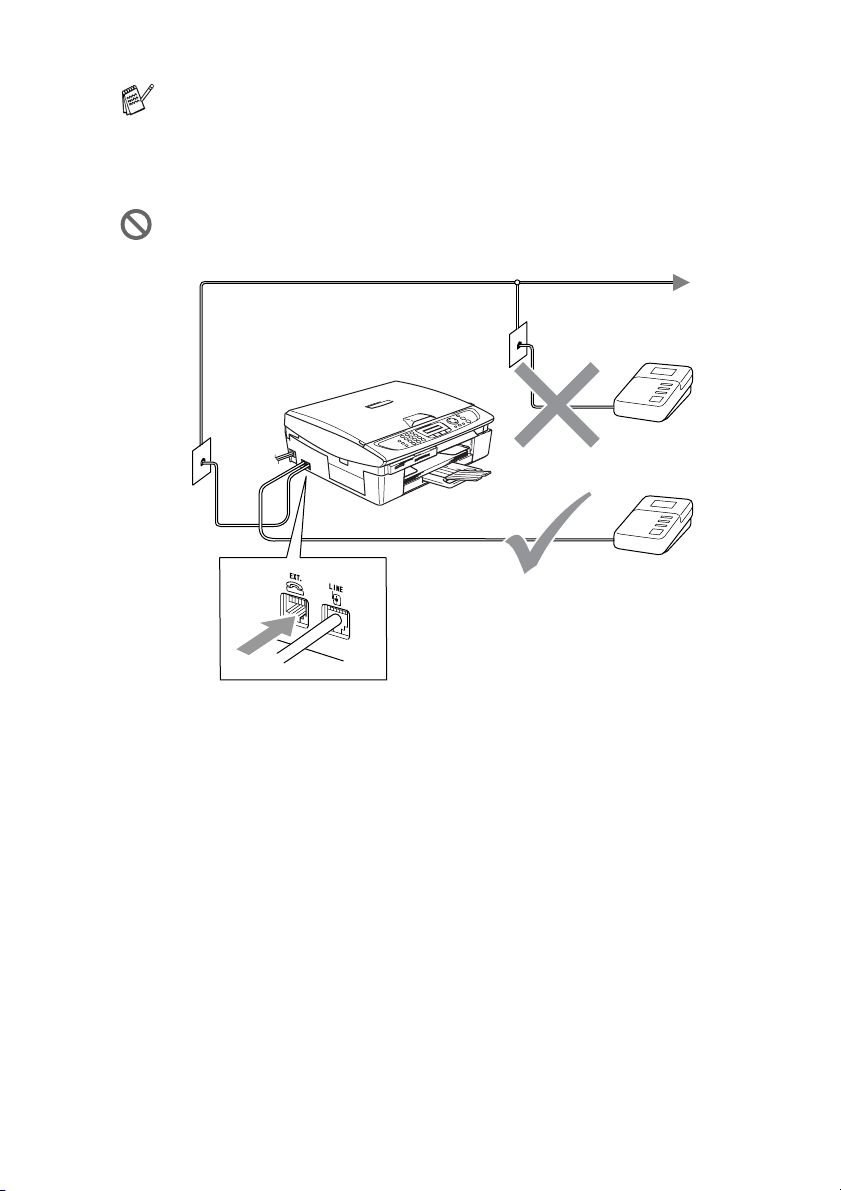

Connecting an external telephone............................. A-9
Connecting an external telephone answering
device (TAD)........................................................ A-10
Sequence ............................................................ A-10
Connections......................................................... A-12
Recording outgoing message (OGM) on
an external TAD............................................... A-12
Special line considerations...................................... A-13
Roll over phone lines ........................................... A-13
Two-line phone system........................................ A-13
Converting telephone wall outlets........................ A-14
Installing MFC, external two-line TAD and
two-line telephone ........................................... A-15
Multi-line connections (PBX).................................... A-16
If you are installing the MFC to work
with a PBX....................................................... A-16
Custom features on your phone line........................ A-16
B
Appendix B .......................................................................... B-1
On-screen programming.................................................. B-1
Menu table................................................................. B-1
Memory storage......................................................... B-1
Navigation keys ............................................................... B-2
Entering Text ........................................................... B-11
Inserting spaces .................................................. B-11
Making corrections .............................................. B-11
Repeating letters ................................................. B-11
Special characters and symbols ......................... B-12
G
Glossary ............................................................................... G-1
S
Specifications ...................................................................... S-1
Product description.......................................................... S-1
General ............................................................................ S-1
xviii
Print media .......................................................................S-2
Copy .................................................................................S-3
PhotoCapture Center........................................................S-4
Fax....................................................................................S-5
Scanner ............................................................................S-6
Printer...............................................................................S-7
Interfaces .........................................................................S-7
Computer requirements....................................................S-8
Consumable items............................................................S-9
Network (LAN) (MFC-420CN only).................................S-10
Optional External Wireless Print/Scan Server
(NC-2200w) .................................................................S-11
I
Index ...................................................................................... I-1
R
Remote Retrieval Access card (MFC-420CN only) .......... R-1
INTRODUCTION 1 - 1
1
Using this Guide
Thank you for buying a Brother Multi-Function Center (MFC). Your
MFC is simple to use, with LCD screen instructions to guide you
through programming it. You can make the most of your MFC by
reading through this Guide.
Finding information
All the chapter headings and subheadings are listed in the Table of
Contents. You will be able to find information about a specific feature
or operation by checking the Index at the back of this Guide.
Symbols used in this Guide
Throughout this Guide you will see special symbols alerting you to
important warnings, notes and actions. To make things clearer and
to help you press the correct keys, we used special fonts and added
some of the messages that will appear in the LCD.
Introduction
Bold Bold typeface identifies specific keys on the MFC
control panel.
Italics Italicized typeface emphasizes an important point
or refers you to a related topic.
Courier New
Courier New type face identifies the messages on
the LCD of the MFC.
Warnings inform you what to do to avoid possible personal
injury.
Cautions specify procedures you must follow or avoid to
prevent possible damage to the MFC.
Notes tell you how you should respond to a situation that may
arise or give tips about how the current operation works with
other features.
Improper Setup alerts you to devices and operations that are not
compatible with the MFC.
1 - 2 INTRODUCTION
Control panel overview
1
Redial/Pause
Redials the last number you called.
It also inserts a pause in quick dial
numbers.
2
Hook
Press before dialing if you want to
make sure a fax machine will
answer, and then press Black Start
or Color Start.
3
Ink
Lets you clean the print head, check
the print quality, and check the
available ink volume.
4
Dial Pad
Use these keys to dial telephone or
fax numbers and as a keyboard for
entering information into the MFC.
The # key lets you temporarily
switch the dialing mode during a
telephone call from Pulse to Tone.
5
Mode keys:
PhotoCapture
Lets you access the PhotoCapture
Center
™
mode.
Copy
Lets you access Copy mode.
Fax
Lets you access Fax mode.
Scan
Lets you access Scan mode.
6
Copy Options
You can quickly and easily select
temporary settings for copying.
7
Fax Resolution
Sets the resolution when you send a
fax.
8
Black Start
Lets you start sending faxes or
making copies in black and white.
Also lets you start a scanning
operation (in color or mono,
depending on the scanning setting
on your PC).
INTRODUCTION 1 - 3
9
Color Start
Lets you start sending faxes or
making copies in full color.
Also lets you start a scanning
operation (in color or mono,
depending on the scanning setting
on your PC).
<
Stop/Exit
Stops an operation or exits from the
menu.
A
Navigation keys:
Menu/Set
The same key is used for Menu and
Set operations.
Lets you access the Menu to
program and store your settings in
the MFC.
When using the speaker or during
ringing in fax mode, you can press
these keys to adjust the volume.
▲
Search/Speed Dial
Lets you look up numbers that are
stored in the dialing memory. It also
lets you dial stored numbers by
pressing # and a two-digit number.
Press to scroll backward to a menu
selection.
▲
or
▼
Press to scroll through the menus
and options.
B
Liquid Crystal Display (LCD)
Displays messages on the screen to
help you set up and use your MFC.
The LCD examples in this guide are
for models with a two-line display.
There may be slight differences
between the examples provided
and models with a one-line display.
C
On/Off
You can turn the MFC on or off.
Also, you can set the On/Off Setting
so the MFC can still receive faxes
when it is turned off.
▲
1 - 4 INTRODUCTION
Turning the MFC on and off
When the machine is idle, you can turn it on and off by pressing the
On/Off
key. In Off mode, no MFC operations will be available. Even
if you turned the MFC off, it will periodically clean the print head to
preserve print quality.
Turning the MFC off
Press and hold down the
On/Off
key
until the LCD shows:
The LCD light will go off.
Turning the MFC on
Press and hold down the
On/Off
key
until the LCD shows:
The LCD will show the date and time (Fax
mode).
On/Off Setting
You can customize the MFC’s
On/Off
key. The default setting is
Fax Receive:Off
. Your MFC will not work when it is switched Off,
but it will purge the ink head periodically. If you turn this setting to
On
,
you can receive faxes or calls even when the MFC is switched
Fax Receive:Off
.
1
Press
Menu/Set
,
1
,
6
.
2
Press
▲
or
▼
to select
On
(or
Off
).
3
Press
Menu/Set
.
4
Press
Stop/Exit
.
Even in Off mode, you can receive fax and telephone calls by
customizing the
On/Off
key as explained below.
If you have connected an external telephone, it is always
available.
Shutting Down
Please Wait
General Setup
6.On/Off Setting
INTRODUCTION 1 - 5
(For MFC-420CN)
(For MFC-210C)
On/Off Setting Receive Mode Available Operations
Fax Receive:Off
(default)
— No machine operations will be
available.
Fax Receive:On Fax Only
External TAD
Fax Receive, Easy Receive, Delayed
Fax, Remote Fax Options, Remote
Retrieval.
■
You cannot receive a fax with
Black Start or Color Start.
■
Delayed Fax and Remote Fax
Options should be set before you
switch off the machine.
Manual
Fax/Tel
*
Delayed Fax, Easy Receive
■
You cannot receive a fax with
Black Start or Color Start.
■
* You cannot receive a fax
automatically even if you have set
the receive mode to
Fax/Tel
.
■
Delayed Fax should be set before
you switch off the MFC.
On/Off Setting Receive Mode Available Operations
Fax Receive:Off
(default)
— No machine operations will be
available.
Fax Receive:On Fax Only
External TAD
Fax Receive and Easy Receive.
■
You cannot receive a fax with
Black Start or Color Start.
Manual
Fax/Tel
*
Easy Receive
■
You cannot receive a fax with
Black Start or Color Start.
■
* You cannot receive a fax
automatically even if you have set
the receive mode to
Fax/Tel
.
The external telephone is always available.
1 - 6 INTRODUCTION
Load documents
You can send a fax, make copies, and scan from the ADF (automatic
document feeder) and from the scanner glass.
Using the automatic document feeder (ADF)
(Not available for MFC-210C)
The ADF can hold up to 10 pages and feeds each sheet individually.
Use standard (20 lb) paper and always fan the pages before putting
them in the ADF.
■
Make sure documents written with ink are completely dry.
■
Documents to be faxed must be from 5.8 to 8.5 inches wide and
5.8 to 14 inches long.
DO NOT use paper that is curled, wrinkled, folded, ripped,
stapled, paper clipped, pasted or taped.
DO NOT use cardboard, newspaper or fabric. (To fax, copy or
scan this kind of document, see Using the scanner glass on
page 1-8.)
INTRODUCTION 1 - 7
1
Fan the pages well. Make sure you put the documents face
down, top edge first in the ADF until you feel them touch the
feed roller.
2
Adjust the paper guides to fit the width of your documents.
3
Unfold the ADF Document Output Support Flap.
DO NOT pull on the document while it is feeding.
To use the ADF, the scanner glass must be empty.
ADF Document
Output Support Flap
1 - 8 INTRODUCTION
Using the scanner glass
You can use the scanner glass to fax pages of a book or one page
at a time. Document
s
can be up to letter size (8.5 inches to 11
inches).
1
Lift the document cover.
2
Using the document guidelines on the left, center the document
face down on the scanner glass.
3
Close the document cover.
To use the scanner glass, the ADF must be empty.
If the document is a book or is thick, do not slam the cover or
press on it.
Place documents Face
Down on the
Scanner Glass
INTRODUCTION 1 - 9
About paper
The print quality can be affected by the kind of paper you use in the
MFC.
To get the best print quality for the settings you’ve chosen, always
set the Paper Type to match the type of paper you load.
You can use plain paper, inkjet paper (coated paper), glossy paper,
transparencies and envelopes.
We recommend testing various paper types before purchasing large
quantities.
For best results, use the recommended paper.
Recommended Paper
To get the best print quality, we suggest using Brother paper.
(See table below.)
We recommend using “3M Transparency Film” when you print on
transparencies.
Brother Paper
■
When you print on inkjet paper (coated paper),
transparencies and glossy paper, be sure to select the
proper media in the “Basic” tab of the printer driver or in the
Paper Type setting of the menu (
Menu/Set
,
1
,
2
).
■
When you print on Brother glossy paper, load the instruction
sheet included with the glossy paper in the paper tray first,
and then place the glossy paper on the instruction sheet.
■
When you use transparencies or glossy paper, remove each
sheet immediately to prevent smudging or paper jams.
■
Avoid touching the printed surface of the paper immediately
after printing; the surface may not be completely dry and
stain your fingers.
Paper Type Item
Letter Plain BP60PL
Letter Glossy BP60GLL
Letter Inkjet (Photo Matte) BP60ML
1 - 10 INTRODUCTION
Handling and using special paper
■
Store paper in its original packaging, and keep it sealed. Keep the
paper flat and away from moisture, direct sunlight and heat.
■
The coated side of glossy paper is shiny. Avoid touching the
shiny (coated) side. Load glossy paper with the shiny side facing
down.
■
Avoid touching either side of transparencies, because they
absorb water and perspiration easily, and this may cause
decreased output quality. Transparencies designed for laser
printers/copiers may stain your next document. Use only
transparencies recommended for inkjet printing.
Do not use paper:
■
that are damaged, curled, wrinkled, or irregularly shaped
■
that are extremely shiny or highly textured
■
that were previously printed by a printer
■
that cannot be arranged uniformly when stacked
■
that are made with a short grain
0.08 in.
or longer
0.08 in.
or longer
INTRODUCTION 1 - 11
Paper type and size for each operation
Paper Type Paper Size Usage
Fax Copy PhotoCapture Printer
Cut Paper Letter 8 1/2" x 11" (216 x 279 mm) Yes Yes Yes Yes
A4 8.3" x 11.7" (210 x 297 mm) Yes Yes Yes Yes
Legal 8 1/2" x 14" (216 x 356 mm) Yes Yes - Yes
Executive 7 1/4" x 10 1/2" (184 x 267 mm) - - - Yes
JIS B5 7.2" x 10.1" (182 x 257 mm) - - - Yes
A5 5.8" x 8.3" (148 x 210 mm) - Yes - Yes
A6 4.1" x 5.8" (105 x 148 mm) - - - Yes
Cards Photo 4" x 6" (102 x 152 mm) - Yes Yes Yes
Photo L 3 1/2" x 5" (89 x 127 mm) - - - Yes
Photo 2L 5" x 7" (127 x 178 mm) - - Yes Yes
Index Card 5" x 8" (127 x 203 mm) - - - Yes
Post Card 1 3.9" x 5.8" (100 x 148 mm) - - - Yes
Post Card 2
(Double)
5.8" x 7.9" (148 x 200 mm) - - - Yes
Envelopes C5 Envelope 6.4" x 9" (162 x 229 mm) - - - Yes
DL Envelope 4.3" x 8.7" (110 x 220 mm) - - - Yes
COM-10 4 1/8" x 9 1/2" (105 x 241 mm) - - - Yes
Monarch 3 7/8" x 7 1/2" (98 x 191 mm) - - - Yes
JE4 Envelope 4.1" x 9.3" (105 x 235 mm) - - - Yes
Transparencies Letter 8 1/2" x 11" (216 x 279 mm) - Yes - Yes
A4 8.3" x 11.7" (210 x 297 mm) - Yes - Yes
1 - 12 INTRODUCTION
Paper weight, thickness and capacity
* Up to 50 sheets for Legal size paper (20 lb).
* Up to 100 sheets of 20 lb.
Paper capacity of the output paper tray
Paper Type Weight Thickness No. of sheets
Cut Paper Plain Paper 17 to 32 lb
(64 to 120 g/m
2
)
0.003" to 0.006"
(0.08 to 0.15 mm)
100*
Inkjet Paper 17 to 53 lb
(64 to 200 g/m
2
)
0.003" to 0.01"
(0.08 to 0.25 mm)
20
Glossy Paper Up to 58 lb
(Up to 220 g/m
2
)
Up to 0.01"
(Up to 0.25 mm)
20
Cards Photo Card Up to 64 lb
(Up to 240 g/m
2
)
Up to 0.01"
(Up to 0.28 mm)
20
Index Card Up to 32 lb
(Up to 120 g/m
2
)
Up to 0.006"
(Up to 0.15 mm)
30
Post Card Up to 53 lb
(Up to 200 g/m
2
)
Up to 0.01"
(Up to 0.23 mm)
30
Envelopes - Up to 0.02"
(Up to 0.52 mm)
10
Transparencies - - 10
Output Paper
Tray
Up to 25 sheets of 20 lb (Letter)
■
Transparencies or glossy paper must be
picked up from the output paper tray one
page at a time to avoid smudging.
■
Legal paper cannot be stacked on the output
paper tray.
INTRODUCTION 1 - 13
Printable area
The printable area depends on the settings in the application you are
using. The figures below show the unprintable areas on cut sheet
paper and envelopes.
,
1
Top
2
Bottom
3
Left
4
Right
Cut Sheet
0.12 in.
(0 in.)*
1
0.12 in.
(0 in.)*
1
0.12 in.
(0 in.)*
1
0.12 in.
(0 in.)*
1
Envelopes 0.47 in. 0.94 in. 0.12 in. 0.12 in.
*1 When you set the Borderless feature to On.
Printable area depends on the Printer driver settings.
The figures above are approximate and the printable area may
vary depending on the type of cut sheet paper you are using.
1
34
2
1
34
2
E
nve
l
opes
C
u
t
Sh
ee
t
P
aper
■ unprintable area
1 - 14 INTRODUCTION
How to load paper, envelopes and post cards
To load paper or other media
1
Pull the paper tray completely out of the MFC and remove the
output paper tray.
2
Press and slide the paper side guide to fit the paper width.
3
Pull out the paper support and unfold the paper support flap.
Use the paper support flap for Letter, Legal and A4.
Paper Side Guide
Paper Support
Paper Support Flap
INTRODUCTION 1 - 15
4
Fan the stack of paper well to avoid paper jams and mis-feeds.
5
Gently insert the paper into the paper tray print side face down
and the leading edge (top of the paper) in first.
Check that the paper is flat in the tray and below the maximum
paper mark.
6
Put the output paper tray back on and push the paper tray firmly
back into the MFC.
■
Make sure the paper side guides touch the sides of the
paper.
■
Be careful that you do not push the paper in too far; it may
lift at the back of the tray and cause feed problems.
Maximum Paper Mark
1 - 16 INTRODUCTION
To load envelopes
■
Use envelopes that weigh from 75-95 g/m
2
.
■
Some envelopes require margin settings in the application. Make
sure you do a test print first.
How to load envelopes
1
Before loading, press the corners and sides of the envelopes to
make them as flat as possible.
To prevent possible damage to the feeding mechanism, do not
use the types of envelopes shown below.
DO NOT USE ENVELOPES:
■
that are of a baggy construction
■
that are embossed (have raised writing on them)
■
that have clasps on them
■
that are not sharply creased
■
that are preprinted on the inside
■
Glue
■
Rounded
flap
■
Double flap
■
Triangular
flap
If the envelopes are ‘double-feeding,’ put one envelope in the
paper tray at a time.
INTRODUCTION 1 - 17
2
Insert the envelopes into the paper tray with the address side
down and the leading edge (top of the envelopes) in first. Slide
the paper side guide to fit the width of the envelopes.
If you have problems when printing on envelopes, try the
following suggestions:
1
Open the envelope flap.
2
Make sure the open flap is either to the side of the envelope or
to the back edge of the envelope when printing.
3
Adjust the size and margin in your application.
To load post cards
1
Raise the paper stop and insert the post cards into the paper
tray. Slide the paper side guide to fit the width of the post cards.
1 - 18 INTRODUCTION
About fax machines
Custom features
Do you have Voice Mail on the phone line?
If you have Voice Mail on the phone line where you will install your
new MFC, there is a strong possibility that Voice Mail and the MFC
may conflict with each other while receiving incoming calls.
Why should there be problems?
Since both the MFC and Voice Mail will pick up the call, after the
number of rings you have set, each of them has the ability to keep
the other from receiving calls.
For example, if your Voice Mail is set to answer after two rings and
your MFC is set to answer after four, your Voice Mail will stop your
MFC from receiving faxes.
If you set Voice Mail and the Brother MFC to answer after the same
number of rings, there is no way of knowing which one will answer
first. It is important to remember that neither Voice Mail nor the MFC
can pass the call back to the other after the call has been answered.
How can you avoid possible problems?
A very good way to avoid problems like the one mentioned, is to get
a second phone number on your present phone line
.
Many people with Voice Mail choose an alternative service, which is
called “Distinctive Ring”, and they are very satisfied with it.
(See
Distinctive Ring
on page A-1.)
Another way to avoid possible problems is to replace your Voice Mail
with an answering machine. Your Brother MFC is designed to work
with an answering machine or TAD (telephone answering device).
(See
Connecting an external telephone answering device (TAD)
on
page A-10.)
INTRODUCTION 1 - 19
Fax tones and handshake
When someone is sending a fax, the MFC sends fax calling tones
(CNG tones). These are quiet, intermittent beeps every 4-seconds.
You’ll hear them after you dial and press
Black Start
or
Color Start
and they will continue for about 60 seconds afterdialing.
During that time, the sending machine must begin the “handshake”,
or connection, with the receiving machine.
Each time you use automatic procedures to send a fax, you are
sending CNG tones over the phone line. You will soon learn to listen
for these quiet beeps each time you answer a phone on your fax line,
so you will know if you are receiving a fax message.
The receiving fax responds with fax receiving tones, which are loud,
chirping sounds. A receiving fax chirps for about 40 seconds over the
phone line, and the LCD shows
Receiving
.
If your MFC is set to the Fax Only mode, it will answer every call
automatically with fax receiving tones. If the other person hangs up,
your MFC will continue to send the “chirps” for about 40 seconds,
and the LCD continues to show
Receiving
. To cancel receiving,
press
Stop/Exit
.
The fax ‘handshake’ is the time in which the sending machine’s CNG
tones and the receiving machine’s “chirps” overlap. This must be for
at least 2 to 4 seconds, so both machines can understand how each
is sending and receiving the fax. The handshake cannot begin until
the call is answered, and the CNG tones only last for about 60
seconds after the number is dialed. So it is important for the receiving
machine to answer the call in as few rings as possible.
When you have an external Telephone Answering Device (TAD)
on your fax line, your TAD will decide the number of rings before
the call is answered.
1 - 20 INTRODUCTION
ECM (Error Correction Mode)
The Error Correction Mode (ECM) is a way for the MFC to check a
fax transmission while it is in progress. If the MFC detects errors
during fax transmission, it resends the pages of the fax that had an
error. ECM transmissions are only possible between fax machines
that both have this feature. If they do, you may send and receive fax
messages that are continuously being checked by the MFC.
Your MFC must have enough memory for this feature to work.
GETTING STARTED 2 - 1
2
Initial Setup
Setting the Date and Time
When the MFC is not in use it will display the date and time. If you
set up the Station ID the date and time displayed by your MFC will
be printed on every fax you send. If there is a power failure, you may
have to reset the date and time. No other settings will be affected.
1
Press
Menu/Set
,
0
,
2
.
2
Enter the last two digits of the year.
Press
Menu/Set
.
3
Enter two digits for the month.
Press
Menu/Set
.
(For example, enter 09 for September, or 10 for October.)
4
Enter two digits for the day.
Press
Menu/Set
.
(For example, enter 06 for 6th.)
5
Enter the time in 24-Hour format.
Press
Menu/Set
.
(For example, enter 15:25 for 3:25 P.M.)
6
Press
Stop/Exit
.
The LCD now shows the date and time whenever the MFC is in
Fax mode.
Setting Tone and Pulse dialing mode
1
Press
Menu/Set
,
0
,
4
.
2
Press
▲
or
▼
to select
Pulse
(or
Tone
).
Press
Menu/Set
.
3
Press
Stop/Exit
.
Getting started
Initial Setup
2.Date/Time
Initial Setup
4.Tone/Pulse
2 - 2 GETTING STARTED
Setting the Station ID
You should store your name or company name and fax number so
they print on all fax pages you send.
1
Press
Menu/Set
,
0
,
3
.
2
Enter your fax number
(up to 20 digits).
Press
Menu/Set
.
3
Use the dial pad to enter your name (up to 20 characters).
(See Entering Text on page B-11).
Press
Menu/Set
.
4
Press
Stop/Exit
.
You cannot enter a hyphen in the fax number. To enter a space
press once between numbers.
If the Station ID has already been programmed, the LCD will ask
you to press
1
to make a change or
2
to exit without changing.
NOTICE (For USA)
The Telephone Consumer Protection Act of 1991 makes it unlawful
for any person to use a computer or electronic device to send any
message via a telephone fax machine unless such messages
clearly contain, in a margin at the top or bottom of each transmitted
page, or on the first page of the transmission, the date and time it
is sent and an identification of the business or other entity or other
individual sending the message and the telephone number of the
sending machines or such business, other entity or individual.
To program this information into your MFC, see
Setting the Date
and Time
on page 2-1 and
Setting the Station ID
on page 2-2.
Initial Setup
3.Station ID
GETTING STARTED 2 - 3
General Setup
Setting the Mode Timer
The MFC has four temporary mode keys on the control panel:
PhotoCapture, Copy, Fax and Scan. You can change the number of
seconds or minutes the MFC takes after the last Copy, Scan or
PhotoCapture operation before it returns to Fax mode. If you select
Off
, the MFC stays in the mode you used last.
1
Press
Menu/Set
,
1
,
1
.
2
Press
▲
or
▼
to select
0 Sec
,
30 Secs
,
1 Min
,
2 Mins
,
5 Mins
or
Off
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Setting the Paper Type
To get the best print quality, set the MFC for the type of paper you
are using.
1
Press
Menu/Set
,
1
,
2
.
2
Press
▲
or
▼
to select
Plain
,
Inkjet
,
Glossy
or
Transparency
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
The MFC ejects paper with printed surfaces face up onto the
paper tray in the front of the machine. When you use
transparencies or glossy paper, remove each sheet immediately
to prevent smudging or paper jams.
General Setup
1.Mode Timer
General Setup
2.Paper Type
2 - 4 GETTING STARTED
Setting the Paper Size
You can use five sizes of paper for printing copies: Letter, Legal, A4,
A5, and 4” x 6” and three sizes for printing faxes: Letter, Legal and
A4. When you change the type of paper you load in the MFC, you will
need to change the setting for Paper Size at the same time so your
MFC can fit an incoming fax on the page.
1
Press
Menu/Set
,
1
,
3
.
2
Press
▲
or
▼
to select
Letter
,
Legal
,
A4
,
A5
or
4"x6"
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Setting the Ring Volume
You can turn the ring
Off
or you can select the ring volume level.
1
Press
Menu/Set
,
1
,
4
,
1
.
2
Press
▲
or
▼
to select
Low
,
Med
,
High
or
Off
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
—OR—
You can adjust the ring volume when your MFC is idle (not being
used). In Fax mode , press or to adjust the volume
level. Every time you press these keys, the MFC will ring so you can
hear the active setting as the LCD shows it. The volume changes
with each key press. The new setting will stay until you change it
again.
General Setup
3.Paper Size
Volume
1.Ring
GETTING STARTED 2 - 5
Setting the Beeper Volume
You can change the beeper volume. The default (factory) setting is
Low
. When the beeper is on, the MFC will beep when you press a
key, make a mistake or you send or receive a fax.
1
Press
Menu/Set
,
1
,
4
,
2
.
2
Press
▲
or
▼
to select your option.
(
Low
,
Med
,
High
or
Off
)
Press
Menu/Set
.
3
Press
Stop/Exit
.
Setting the Speaker Volume
You can adjust the MFC’s one-way speaker volume.
1
Press
Menu/Set
,
1
,
4
,
3
.
2
Press
▲
or
▼
to select
Low
,
Med
,
High
or
Off
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
—OR—
In Fax mode , you can adjust the speaker volume by pressing
Hook
, and then selecting a speaker volume level.
Press or to adjust the volume level. The LCD shows the
setting you are choosing. Each key press changes the volume to the
next setting. The new setting will remain until you change it again.
Volume
2.Beeper
Volume
3.Speaker
2 - 6 GETTING STARTED
Turning on Automatic Daylight Savings Time
You can set the MFC to change automatically for Daylight Savings
Time. It will reset itself forward one hour in the Spring and backward
one hour in the Fall. Make sure you have set the correct day and time
in the
Date/Time
setting.
1
Press
Menu/Set
,
1
,
5
.
2
Press
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
3
Press
Stop/Exit
.
Setting the LCD Contrast
You can adjust the LCD contrast for a sharper and more vivid
display. If you are having difficulty reading the LCD from your
position, try changing the contrast setting for improved viewing.
1
Press
Menu/Set
,
1
,
7
.
2
Press
▲
or
▼
to select
Light
or
Dark
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
General Setup
5.Auto Daylight
General Setup
7.LCD Contrast
SETUP SEND 3 - 1
3
How to enter Fax mode
Before sending faxes, make sure (
Fax
) is illuminated in
green. If not, press (
Fax
) to enter Fax mode. The default
setting is Fax.
How to dial
You can dial in any of the following different ways.
Manual dialing
Press all of the digits of the phone or fax number.
Setup Send
3 - 2 SETUP SEND
Speed-Dialing
Press
Search/Speed Dial
,
#
, and then the two digit Speed-Dial
number. (See
Storing Speed-Dial numbers
on page 5-1.)
Search
You can search for names you have stored in the Speed-Dial
memories. Press
Search/Speed Dial
and the navigation keys to
search. (See
Storing Speed-Dial numbers
on page 5-1.)
* To search alphabetically, you can use the dial pad to enter the first
letter of the name you are looking for.
Fax Redial
If you are sending a fax manually and the line is busy, press
Redial/Pause
, and then press
Black Start
or
Color Start
to try
again. If you want to make a second call to the last number dialed,
you can save time by pressing
Redial/Pause
and
Black Start
or
Color Start
.
Redial/Pause
only works if you dialed from the control panel.
If you are sending a fax automatically
and the line is busy, the MFC
will automatically redial one time after five minutes.
If the LCD shows
Not Registered
when you enter the
Speed-Dial number, a number has not been stored for it.
two-digit number
or
To search alphabetically*
To search numerically
(MFC-420CN only)
SETUP SEND 3 - 3
How to Fax (B&W and Color)
Color fax transmission
Your MFC can send a color fax to machines that support this feature.
However, color faxes cannot be stored in the memory. When you
send a color fax, the MFC will send it in real time (even if
Real Time
TX
is set to
Off
).
Faxing from the ADF (MFC-420CN only)
Put the document face down in the ADF. To cancel, press
Stop/Exit
.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Dial the fax number.
Press
Black Start
or
Color Start
. The MFC starts scanning
the first page.
(MFC-420CN)
Delayed fax and Polling Transmit features are not available in
color.
If the memory is full and you are faxing a single page, it will be
sent in real time.
3 - 4 SETUP SEND
Faxing from the scanner glass
You can use the scanner glass to fax pages of a book or one page
at a time. The documents can be up to letter size. To cancel, press
Stop/Exit
.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document on the scanner glass.
3
Dial the fax number.
Press
Black Start
or
Color Start
.
The MFC starts scanning the first page.
If you press
Color Start
, the MFC starts sending.
4
To send a single page, press
2
(or
press
Black Start
again).
The MFC starts sending the
document.
—OR—
To send more than one page, press
1
and go to Step 5.
5
Place the next page on the scanner
glass.
Press
Menu/Set
.
The MFC starts scanning. (Repeat Steps 4 and 5 for each
additional page.)
■
If the memory is full and you are faxing a single page, it will
be sent in real time.
■
You cannot send multiple pages for color faxes.
Next Page?
1.Yes 2.No(Dial)
Set Next Page
Then Press Set
SETUP SEND 3 - 5
Automatic transmission
This is the easiest way to send a fax.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Enter the fax number using the dial pad, Speed-Dial or Search.
(See How to dial on page 3-1.)
4
Press
Black Start
or
Color Start
.
5
For MFC-210C, go to Step 4 on page 3-4.
Manual transmission
Manual transmission lets you hear the dialing, ringing and
fax-receiving tones while sending a fax.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Pick up the handset of the external phone and listen for a dial
tone.
—OR—
Press
Hook
and listen for a dial tone.
4
Dial the fax number you want to call.
5
When you hear the fax tone, press
Black Start
or
Color Start
.
6
For MFC-210C, go to Step 4 on page 3-4.
Out of Memory message
If you get an
Out of Memory
message while scanning the first page
of a fax, press
Stop/Exit
to cancel the fax. If you get an
Out of
Memory
message while scanning a subsequent page, you will have
the option to press
Black Start
to send the pages scanned so far,
or to press
Stop/Exit
to cancel the operation.
Do not pick up the handset of the external phone or press
Hook
to listen for a dial tone.
If the memory is full and you are faxing a single page, it will be
sent in real time.
3 - 6 SETUP SEND
Basic sending operations
Sending faxes using multiple settings
When you send a fax you can choose any combination of these
settings: contrast, resolution, overseas mode, delayed fax timer
(MFC-420CN only), polling transmission (MFC-420CN only) or real
time transmission.
1
If it is not illuminated in green, press (
Fax
).
After each setting is accepted, the LCD will ask if you want to
enter more settings:
2
Press
1
to select more settings. The
LCD will return to the
Setup Send
menu.
—OR—
Press
2
if you have finished choosing settings and go to the next
step.
Contrast
If your document is very light or very dark, you may want to change
the contrast.
Use
Light
to send a light document.
Use
Dark
to send a dark document.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Press
Menu/Set
,
2
,
2
,
1
.
4
Press
▲
or
▼
to select
Auto
,
Light
or
Dark
.
Press
Menu/Set
.
Other Settings
1.Yes 2.No
Setup Send
1.Contrast
SETUP SEND 3 - 7
Fax Resolution
You can use the
Fax Resolution
key to change the setting
temporarily (for this fax only). In Fax mode , press
Fax
Resolution
and
▲
or
▼
to select the setting you want, and then
press
Menu/Set
.
—OR—
You can change the default setting:
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Press
Menu/Set
,
2
,
2
,
2
.
4
Press
▲
or
▼
to select the resolution
you want.
Press
Menu/Set
.
Standard
Suitable for most typed documents.
Fine
Good for small print and transmits a little
slower than Standard resolution.
S.Fine
Good for small print or artwork and transmits
slower than Fine resolution.
Use when the document has varying shades
of gray or is a photograph. This has the
slowest transmission time.
Setup Send
2.Fax Resolution
3 - 8 SETUP SEND
Dual Access (Not available for color faxes)
You can dial a number, and begin scanning the fax into memory—
even when the MFC is sending from memory or receiving faxes. The
LCD shows the new job number and available memory.
Your MFC normally uses Dual Access. However, to send a color
fax, the MFC will send the document in real time (even if
Real
Time TX
is
Off
).
The number of pages you can scan into the memory will vary
depending on the data that is printed on them.
If you get an
Out of Memory
message while scanning the first
page of a fax, press
Stop/Exit
to cancel scanning. If you get an
Out of Memory
message while scanning a subsequent page,
you can press
Black Start
to send the pages scanned so far,
or press
Stop/Exit
to cancel the operation.
SETUP SEND 3 - 9
Real Time Transmission
When you are sending a fax, the MFC will scan the documents into
the memory before sending. Then, as soon as the phone line is free,
the MFC will start dialing and sending.
If the memory becomes full, the MFC will send the document in real
time (even if
Real Time TX
is set to
Off
).
Sometimes, you may want to send an important document
immediately, without waiting for memory transmission. You can set
Real Time TX
to
On
for all documents or for the next fax only.
If you want to fax multiple pages from the scanner glass, Real Time
Transmission should be set to
Off
.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
For MFC-210C,
press
Menu/Set
,
2
,
2
,
3
.
—OR—
For MFC-420CN,
press
Menu/Set
,
2
,
2
,
5
.
4
To change the default setting, press
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
—OR—
For the next fax transmission only, press
▲
or
▼
to select
Next
Fax Only
.
Press
Menu/Set
.
5
Press
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
In Real Time Transmission, the redial feature does not work.
If you are sending a color Fax, the MFC will send it in real time
(even if
Real Time TX
is set to
Off
).
Setup Send
5.Real Time TX
3 - 10 SETUP SEND
Checking job status
Check which jobs are still waiting in the memory to be sent. (If there
are no jobs, the LCD shows
No Jobs Waiting
.)
1
For MFC-210C,
press
Menu/Set
,
2
,
5
.
For MFC-420CN,
press
Menu/Set
,
2
,
6
.
2
If you have more than one job waiting, press
▲
or
▼
to scroll
through the list.
3
Press
Stop/Exit
.
Canceling a fax in progress
If you want to cancel a fax, while the MFC is scanning, dialing or
sending it, press
Stop/Exit
.
Canceling a scheduled job
You can cancel a fax job that is stored and waiting in the memory.
1
For MFC-210C,
press
Menu/Set
,
2
,
5
.
For MFC-420CN,
press
Menu/Set
,
2
,
6
.
Any jobs that are waiting will appear on the LCD.
2
If you have more than one job waiting, press
▲
or
▼
to select the
job you want to cancel.
Press
Menu/Set
.
—OR—
If you only have one job waiting, go to Step 3.
3
Press
1
to cancel.
To cancel another job go to Step 2.
—OR—
Press
2
to exit without canceling.
4
Press
Stop/Exit
.
Fax
6.Remaining Jobs
Fax
6.Remaining Jobs
SETUP SEND 3 - 11
Advanced sending operations
Broadcasting (Not available for color faxes)
Broadcasting is when the same fax message is automatically sent to
more than one fax number. You can include Groups, Speed-Dial
numbers and up to 50 manually dialed numbers in the same
broadcast.
Press
Menu/Set
between each of the numbers. Use
Search/Speed Dial
to help you choose the numbers easily. (To set
up Group dial numbers, see Setting up Groups for Broadcasting on
page 5-3.)
After the broadcast is finished, a Broadcast Report will be printed to
let you know the results.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Enter a number using Speed-Dial, a Group number, Search or
manual dialing using the dial pad.
(Example: Group number)
4
When the LCD displays the fax number or name of the other
party, press
Menu/Set
.
You will be asked to enter the next number.
5
Enter the next number.
(Example: Speed-Dial number)
6
When the LCD displays the fax number or name of the other
party, press
Menu/Set
.
7
After you have entered all the fax numbers by repeating Step 5
and 6, go to Step 8 to start the broadcast.
8
Press
Black Start
.
3 - 12 SETUP SEND
Overseas Mode
If you are having difficulty sending a fax overseas due to possible
interference on the phone line, we recommend that you turn on the
Overseas Mode. After you send a fax using this feature, the feature
will turn itself off.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
For MFC-210C,
press
Menu/Set
,
2
,
2
,
4
.
For MFC-420CN,
press
Menu/Set
,
2
,
2
,
7
.
4
Press
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
■
If you did not use up any of the numbers for Groups, access
codes or credit card numbers, you can ‘broadcast’ faxes to
as many as 70 (MFC-210C) or 130 (MFC-420CN) different
numbers.
■
The available memory will vary depending on the types of
jobs in the memory and the number of locations used for
broadcasting. If you broadcast to the maximum numbers
available, you will not be able to use Dual Access and
Delayed fax (MFC-420CN only).
■
Enter the long dialing sequence numbers as you would
normally, but remember that each Speed-Dial number
counts as one number, so the number of locations you can
store becomes limited.
■
If the memory is full, press
Stop/Exit
to stop the job or if
more than one page has been scanned, press
Black Start
to send the portion that is in the memory.
Setup Send
7.Overseas Mode
SETUP SEND 3 - 13
Delayed Fax (Not available for color faxes)
(MFC-420CN only)
During the day you can store up to 50 faxes in the memory to be sent
within 24 hours. These faxes will be sent at the time of day you enter
in Step 4.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Press
Menu/Set
,
2
,
2
,
3
.
4
Press
Menu/Set
to accept the
displayed time.
—OR—
Enter the time you want the fax to be sent (in 24-hour format).
Press
Menu/Set
.
(For example, enter 19:45 for 7:45 PM.)
Setting up Polled Transmit
(Not available for color faxes) (MFC-420CN only)
Polled Transmit is when you set up your MFC to wait with a
document so another fax machine can call and retrieve it.
1
If it is not illuminated in green, press (
Fax
).
2
Load your document.
3
Press
Menu/Set
,
2
,
2
,
6
.
4
Press
▲
or
▼
to choose
On
(or
Off
).
Press
Menu/Set
.
The number of pages you can scan into the memory depends
on the amount of data that is printed on each page.
The document will be stored in the MFC’s memory and can be
retrieved from any other fax machine until you delete the fax in
memory by using the Canceling a Job menu setting. (See
Canceling a scheduled job
on page 3-10.)
Setup Send
3.Delayed Fax
Setup Send
6.Polled TX
3 - 14 SETUP SEND
Delayed Batch Transmission
(Not available for color faxes) (MFC-420CN only)
Before sending the delayed faxes, your MFC will help you economize
by sorting all the faxes in the memory by destination and scheduled
time. All delayed faxes that are scheduled to be sent at the same
time to the same fax number will be sent as one fax to save
transmission time.
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
2
,
4
.
3
Press
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
4
Press
Stop/Exit
.
Faxing A4 size documents from the scanner glass
When documents are A4 size, you need to set Scan Glass Size to
A4; if you do not, the bottom portion of the faxes will be missing.
1
Press
Menu/Set
,
2
,
2
,
0
.
2
Press
▲
or
▼
to select
A4
(or
Letter
).
Press
Menu/Set
.
3
Press
Stop/Exit
.
The document will be stored in the MFC’s memory and can be
retrieved from any other fax machine until you delete the fax
from memory by using the Canceling a job menu setting. (See
Canceling a scheduled job on page 3-10.)
Setup Send
4.Batch TX
SETUP RECEIVE 4 - 1
4
Basic receiving operations
Choosing the Receive Mode
There are four different Receive Modes for your MFC. You can
choose the mode that best suits your needs.
Setup Receive
LCD How it works When to use it
Fax Only
(automatic receive)
The MFC automatically
answers every call as a
fax.
For dedicated fax lines.
Fax/Tel
(fax and telephone)
(with an external or
extension telephone)
The MFC controls the
line and automatically
answers every call. If the
call is a fax it will receive
the fax. If the call is not a
fax it will ring
(pseudo/double ring) for
you to pick up the call.
Use this mode if you expect to receive lots of fax
messages and few telephone calls. You cannot
have an answering machine on the same line, even
if it is on a separate wall jack on the same line. You
cannot use the telephone company’s Voice Mail in
this mode.
External TAD
(with an external
answering device only)
The external answering
device (TAD)
automatically answers
every call.
Voice messages are
stored on the external
TAD. Fax messages are
printed.
Use this mode if you have connected an answering
machine to your MFC.
The External TAD setting works only with an
external answering machine. Ring Delay does not
work in this setting.
Manual
(manual receive)
(with an external or
extension telephone or
with Distinctive Ring)
You control the phone
line and must answer
every call yourself.
Use this mode if you do not receive many fax
messages, with Distinctive Ring, or if you are using
a computer on the same line.
If you answer and hear fax tones, wait until the MFC
takes over the call, then hang up.(See Easy
Receive
on page 4-4.)
4 - 2 SETUP RECEIVE
To select or change your Receive Mode
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
0
,
1
.
3
Press
▲
or
▼
to select
Fax Only
,
Fax/Tel
,
External TAD
or
Manual
.
Press
Menu/Set
.
4
Press
Stop/Exit
.
Setting the Ring Delay
The Ring Delay sets the number of times the MFC rings before it
answers in
Fax Only
or
Fax/Tel
mode. If you have extension
phones on the same line as the MFC or subscribe to the telephone
company’s Distinctive Ring service, keep the Ring Delay setting of 4.
(See
Operation from extension telephones
on page A-7 and
Easy
Receive on page 4-4.)
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
1
,
1
.
3
Press
▲
or
▼
to select how many
times the line rings before the MFC
answers (00, 01, 02, 03 or 04).
Press
Menu/Set
.
(If you select 00, the line won’t ring at all.)
4
Press
Stop/Exit
.
Initial Setup
1.Receive Mode
Current Receive Mode
Fax
: Fax Only
F/T
: Fax/Tel
TAD
: External TAD
Mnl
: Manual
Setup Receive
1.Ring Delay
SETUP RECEIVE 4 - 3
Setting the F/T Ring Time (Fax/Tel mode only)
If you set the Receive Mode to Fax/Tel, you’ll need to decide how long
the MFC will signal you with its special pseudo/double-ring when you
have a voice call. (If it’s a fax call, the MFC prints the fax.)
This pseudo/double-ring happens after the initial ringing from the
phone company. Only the MFC rings and no other phones on the
same line will ring with the special pseudo/double-ring. However, you
can still answer the call on any telephone on the same line as the MFC.
(See
Fax/Tel mode when power key is On
on page A-7.)
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
1
,
2
.
3
Press
▲
or
▼
to select how long the
MFC will ring to alert you that you
have a voice call (20, 30, 40 or 70 seconds).
Press
Menu/Set
.
4
Press
Stop/Exit
.
Even if the caller hangs up during the pseudo/double-ringing,
the MFC will continue to ring for the set time.
Setup Receive
2.F/T Ring Time
4 - 4 SETUP RECEIVE
Easy Receive
When you use this feature, you don’t have to press
Black Start
,
Color Start
, or the Fax Receive Code
51
when you answer a fax
call. Selecting
On
allows the MFC to receive fax calls automatically,
even if you lift the handset of an extension or external phone. When
you see
Receiving
on the LCD or when you hear ‘chirps’ through
the handset of an extension phone connected to another telephone
wall jack, just replace the handset and your MFC will do the rest.
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
1
,
3
.
3
Use
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
4
Press
Stop/Exit
.
■
If this feature is set to
On
, but your MFC does not connect a
fax call when you lift an extension or external phone
handset, press the Fax Receive Code
51
.
■
If you send faxes from a computer on the same phone line
and the MFC intercepts them, set Easy Receive to
Off
.
■
Selecting
Off
means you’ll have to activate the MFC
yourself by lifting the handset of an external or extension
phone, and then press
Black Start
or
Color Start
on the
MFC
—OR—
by pressing
51
if you are not at your MFC. (See Operation
from extension telephones on page A-7.)
Setup Receive
3.Easy Receive
SETUP RECEIVE 4 - 5
Printing a reduced incoming fax
(Auto Reduction)
If you choose
On
, the MFC automatically reduces an incoming fax to
fit on one page of Letter, Legal or A4 size paper. The MFC calculates
the reduction ratio by using the page size of the document and your
Paper Size setting (
Menu/Set
,
1
,
3
).
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
1
,
5
.
3
Use
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
4
Press
Stop/Exit
.
Printing a fax from the memory (MFC-420CN only)
If you have selected Fax Forwarding, Paging or Fax Storage
(
Menu/Set
,
2
,
5
,
1
), you can still print a fax from the memory when
you are at your MFC. (See
Setting Fax Storage
on page 6-3.)
1
Press
Menu/Set
,
2
,
5
,
3
.
2
Press
Black Start
.
■
Turn on this setting if you receive faxes that are split onto two
pages. However, if the document is too long the MFC may
still print it on two pages.
■
If left and right margins are cut off, turn on this setting.
Setup Receive
5.Auto Reduction
Remote Fax Opt
3.Print Fax
4 - 6 SETUP RECEIVE
Polling (MFC-420CN only)
Polling is the process of retrieving faxes from another fax machine.
You can use your MFC to ‘poll’ other machines, or you can have
someone poll your MFC.
Everyone who is involved in Polling needs to set up their fax
machines for Polling. When someone polls your MFC to receive a
fax, they pay for the call. If you poll someone’s fax machine to receive
a fax, you pay for the call.
Setting up Polling Receive
Polling Receive is when you call another fax machine to receive a fax
from it.
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
1
,
6
.
3
Enter the fax number you are
polling.
4
Press
Black Start
or
Color Start
.
The LCD shows
Dialing
.
Setting up Sequential Polling Receive
Your MFC can ask for faxes from several fax units in a single
operation (Sequential Polling Receive). Afterwards, a Sequential
Polling Report will be printed.
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
1
,
6
.
3
Enter the fax machines you want to
poll using Speed-Dial, a Group or
the dial pad. You must press
Menu/Set
between each fax
number.
4
Press
Black Start
or
Color Start
. Your MFC will poll each
number or Group number in turn to receive a fax.
Some fax machines do not respond to the Polling feature.
Setup Receive
6.Polling RX
Setup Receive
6.Polling RX
QUICK-DIAL NUMBERS AND DIALING OPTIONS 5 - 1
5
Storing numbers for easy dialing
You can set up your MFC to do two types of easy dialing: Speed-Dial
and Groups for Broadcasting faxes. When you dial a quick-dial
number, the LCD shows the name, if you stored it, or the number.
Storing Speed-Dial numbers
You can store Speed-Dial numbers, so that when you dial you will
only have to press a few keys (
Search/Speed Dial
,
#
, the two-digit
number, and
Black Start
or
Color Start
). The MFC-210C can
store 20 Speed-Dial numbers and the MFC-420CN can store 80
numbers.
1
Press
Menu/Set
,
2
,
3
,
1
.
2
Use the dial pad to enter a two-digit
Speed-Dial location number
(01-20 for MFC-210C, 01-80 for MFC-420CN).
(For example, press
05
.)
Press
Menu/Set
.
3
Enter the phone or fax number (up to 20 digits).
Press
Menu/Set
.
4
Use the dial pad to enter the name (up to 15 characters).
Press
Menu/Set
.
(You can use the
chart on page B-11 to help you enter letters.)
—OR—
Press
Menu/Set
to store the number without a name.
5
Go to Step 2 to store another Speed-Dial number.
—OR—
Press
Stop/Exit
.
Quick-Dial numbers and
dialing options
If you lose electrical power, the quick-dial numbers that are in
the memory will not be lost.
Set Quick-Dial
1.Speed-Dial
5 - 2 QUICK-DIAL NUMBERS AND DIALING OPTIONS
Changing Speed-Dial numbers
If you try to store a Speed-Dial number where a number has already
been stored, the LCD will show the name that has been stored there
(or number) and will ask you to do one of the following:
1
Press
1
to change the stored number.
—OR—
Press
2
to exit without making a change.
How to change the stored number or name:
■
If you want to change a character, use or to position
the cursor under the character you want to change, and then
type over it.
■
If you want to erase the whole number or whole name, press
Stop/Exit
when the cursor is under the first digit or letter.
The characters above and to the right of the cursor will be
deleted.
2
Enter a new number.
Press
Menu/Set
.
3
Follow the directions beginning at Step 4 in Storing Speed-Dial
numbers. (See page 5-1.)
▲
▲
QUICK-DIAL NUMBERS AND DIALING OPTIONS 5 - 3
Setting up Groups for Broadcasting
Groups allow you to send the same fax message to many fax
numbers by pressing only a few keys (
Search/Speed Dial
,
#
, the
two-digit number, and
Black Start
). First, you’ll need to store each
fax number as a Speed-Dial number.
Then, you can combine them into a Group. Each Group uses up a
Speed-Dial number. You can have up to six Groups, or you can
assign up to 19 numbers (MFC-210C) or up to 79 numbers
(MFC-420CN) to one large Group.
(See Storing Speed-Dial numbers on page 5-1 and Broadcasting
(Not available for color faxes) on page 3-11.)
1
Press
Menu/Set
,
2
,
3
,
2
.
2
Use the dial pad to enter the
two-digit Speed-Dial number where
you want to store the Group.
Press
Menu/Set
.
(For example, press
07
and
Menu/Set
.)
3
Use the dial pad to enter the Group
number (1 to 6).
Press
Menu/Set
.
(For example, press
1
for Group 1.)
4
To include Speed-Dial numbers in
the Group, press them as follows:
For example, for Speed-Dial
numbers 05 and 09. Press
Search/Speed Dial
,
05
,
Search/Speed Dial
,
09
. The LCD shows:
#05#09
.
The Group number must be between 1 and 6.
Set Quick-Dial
2.Setup Groups
Setup Groups
Speed-Dial? #
Setup Groups
Setup Group:G01
Setup Groups
G01:#05#09
5 - 4 QUICK-DIAL NUMBERS AND DIALING OPTIONS
5
Press
Menu/Set
to accept the Speed-Dial numbers for this
Group.
6
Use the dial pad and the chart on page B-11 to enter a name for
the Group.
Press
Menu/Set
.
(For example, type NEW CLIENTS).
7
Press
Stop/Exit
.
You can print a list of all the Speed-Dial numbers. Group
numbers will be marked in the GROUP column.
(See Printing reports on page 7-3.)
QUICK-DIAL NUMBERS AND DIALING OPTIONS 5 - 5
Dialing options
Access codes and credit card numbers
Sometimes you may want to choose from several long distance
carriers when you make a call. Rates may vary depending on the time
and destination. To take advantage of low rates, you can store the
access codes or long-distance carriers and credit card numbers as
Speed-Dial numbers. You can store these long dialing sequences by
dividing them and setting them up on separate Speed Dial numbers in
any combination. You can even include manual dialing using the dial
pad. (See
Storing Speed-Dial numbers
on page 5-1.)
For example, perhaps you have stored ‘555’ on Speed-Dial #03 and
‘7000’ on Speed-Dial #02. If you press
Search/Speed Dial
,
#03
,
Search/Speed Dial
,
#02
, and
Black Start
or
Color Start
, you
will dial ‘555-7000’.
To temporarily change a number, you can substitute part of the
number with manual dialing using the dial pad.
For example, to change the number to 555-7001 you could press
Search/Speed Dial
,
#03
and then press
7001
using the dialing
pad.
Pause
Press
Redial/Pause
to insert a 3.5-second pause between
numbers. If you are dialing overseas, you can press
Redial/Pause
as many times as needed to increase the length of the pause.
There are two ways to dial. (See
How to dial
on page 3-1.)
If you must wait for another dial tone or signal at any point in the
dialing sequence, store a pause in the number by pressing
Redial/Pause
. Each key press adds a 3.5-second delay.
5 - 6 QUICK-DIAL NUMBERS AND DIALING OPTIONS
Tone or Pulse
If you have a Pulse dialing service, but need to send Tone signals
(for example, for telephone banking), follow the instructions below. If
you have Touch Tone service, you will not need this feature to send
tone signals.
1
Lift the handset of the external phone.
2
Press
#
on the MFC’s control panel. Any digits dialed after this
will send tone signals.
When you hang up, the MFC will return to the Pulse dialing
service.
REMOTE FAX OPTIONS (MFC-420CN ONLY) 6 - 1
6
Setting up Fax Forwarding
When you select Fax Forward, your MFC stores the received fax in
the memory. The MFC will then dial the fax number you’ve
programmed and forward the fax message.
1
Press
Menu/Set
,
2
,
5
,
1
.
2
Press
▲
or
▼
to select
Fax Forward
.
Press
Menu/Set
.
The LCD will ask you to enter the fax number to which faxes will
be forwarded.
3
Enter the forwarding number (up to 20 digits).
Press
Menu/Set
.
4
Press
▲
or
▼
to select
Backup
Print:On
or
Backup Print:Off
.
Press
Menu/Set
.
5
Press
Stop/Exit
.
Remote Fax Options
(MFC-420CN only)
(Not available for color faxes)
You can only use one remote fax option at a time:
Fax Forwarding—OR—Paging—OR—Fax Storage—OR—
PC FAX Rx—OR—Off.
You can change your selection at any time (
Menu/Set
,
2
,
5
,
1
).
(See Turning off Remote Fax Options on page 6-4.)
If you select
Backup Print:On
, the MFC will also print the fax
at your MFC so you will have a copy if there is a power failure
before it is forwarded.
Remote Fax Opt
1.Fwd/Page/Store
Fax Forward
Backup Print:On
6 - 2 REMOTE FAX OPTIONS (MFC-420CN ONLY)
Programming your pager number
When Paging is selected, your MFC dials the pager number you’ve
programmed, and then dials your Personal Identification Number
(PIN). This activates your pager so you will know that you have a fax
message in the memory.
1
Press
Menu/Set
,
2
,
5
,
1
.
2
Press
▲
or
▼
to select
Paging
.
3
Enter your pager phone number
followed by # # (up to 20 digits).
Press
Menu/Set
.
Do not include the area code if it is the same as that of your MFC.
For example, press
1
8
0
0
5
5
5
1
2
3
4
#
#
.
4
If your pager needs a PIN, enter the PIN, press
#
, press
Redial/Pause
, enter your fax number followed by
##
.
Press
Menu/Set
.
(For example, press
1
2
3
4
5
#
Redial/Pause
1
8
0
0
5
5
5
1
2
1
2
#
#
)
—
OR
—
If you do not need a PIN, press
Redial/Pause
, enter your fax
number followed by
##
.
Press
Menu/Set
.
(For example, press
Redial/Pause
1
8
0
0
5
5
5
1
2
1
2
#
#
)
5
Press
Stop/Exit
.
■
You cannot change a Paging number or PIN remotely.
■
If you have set Paging, a backup copy of the received fax will
automatically be printed at the MFC.
Remote Fax Opt
1.Fwd/Page/Store
REMOTE FAX OPTIONS (MFC-420CN ONLY) 6 - 3
Setting Fax Storage
If you select Fax Storage, your MFC stores the received fax in the
memory. You will be able to retrieve fax messages from another
location using the Remote Retrieval commands.
1
Press
Menu/Set
,
2
,
5
,
1
.
2
Press
▲
or
▼
to select
Fax Storage
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Setting PC Fax Rx
If you select PC Fax Rx, your MFC will temporarily store your
received fax messages in its memory, and then automatically send
the faxes to the PC. You can then use your PC to view and store
these faxes.
1
Press
Menu/Set
,
2
,
5
,
1
.
2
Press
▲
or
▼
to select
PC Fax Receive
.
Press
Menu/Set
.
3
Press
▲
or
▼
to select
Backup
Print:On
or
Backup Print:Off
.
Press
Menu/Set
.
4
Press
Stop/Exit
.
If you have set Fax Storage, a backup copy will automatically be
printed at the MFC.
■
Before you can set up PC Fax Receive you must install the
MFL-Pro Suite software on your PC, Make sure your PC is
connected and turned on. (For details, see
Using Brother
PC-FAX software
on page 5-1 in Software User’s Guide on
the CD-ROM.)
■
If you select
Backup Print:On
, the MFC will also print the
fax at your MFC so you will have a copy if there is a power
failure before it is sent to the PC.
■
If you get an error message and the MFC cannot print the
faxes in memory, you can use this setting to transfer your
faxes to your PC. (For details, see Error messages on page
11-1.)
Remote Fax Opt
1.Fwd/Page/Store
Remote Fax Opt
1.Fwd/Page/Store
PC Fax Receive
Backup Print:On
6 - 4 REMOTE FAX OPTIONS (MFC-420CN ONLY)
Turning off Remote Fax Options
If you set the Remote Fax Options to
Off
and there are faxes in your
MFC’s memory, the LCD will give you two options.
■
If you press
1
, all unprinted faxes will be printed and erased
before the setting turns off. If a backup copy has already been
printed it will not be printed again.
■
If you press
2
, the memory will not be erased and the setting will
be unchanged.
(See Printing a fax from the memory (MFC-420CN only) on page
4-5.)
Setting your Remote Access Code
The remote access code lets you access the Remote Retrieval
features when you are away from your MFC. Before you use the
remote access and retrieval features, you have to set up your own
code. The default code is inactive code (--- ).
1
Press
Menu/Set
,
2
,
5
,
2
.
2
Enter a three-digit code using
numbers
0
-
9
or .
Press
Menu/Set
. (The preset ‘ ’ cannot be changed.)
3
Press
Stop/Exit
.
Do not use the same digits that appear in your Fax Receive
Code (
51
) or Telephone Answer Code (
#51
).
(See Operation from extension telephones on page A-7.)
You can change your code at any time by entering a new one.
If you want to make your code inactive, press
Stop/Exit
in Step
2 to restore the inactive setting (--- ).
Remote Fax Opt
2.Remote Access
REMOTE FAX OPTIONS (MFC-420CN ONLY) 6 - 5
Remote Retrieval
You can call your MFC from any touch tone telephone or fax
machine, then use the Remote Access Code and remote commands
to retrieve fax messages. Be sure to cut out the Remote Retrieval
Access Card on the last page and keep it with you at all times.
Using your Remote Access Code
1
Dial your fax number from a telephone or another fax machine
using touch tone.
2
When your MFC answers, immediately enter your Remote
Access Code (3 digits followed by ).
3
The MFC signals if it has received fax messages:
1 long beep
—
Fax messages
No beeps
—
No messages
4
The MFC gives two short beeps to tell you to enter a command.
The MFC will hang up if you wait longer than 30 seconds to
enter a command. The MFC will beep three times, if you enter
an invalid command.
5
Press
90
to reset the MFC when you’ve finished.
6
Hang up.
If your MFC is set to
Manual
mode and you want to use the
remote retrieval features, you can access your MFC by waiting
about 2 minutes after it starts ringing, and then entering the
Remote Access Code within 30 seconds.
6 - 6 REMOTE FAX OPTIONS (MFC-420CN ONLY)
Remote commands
Follow the commands below to access features when you are away
from the MFC. When you call the MFC and enter your Remote
Access Code (3 digits followed by ), the system will give two short
beeps and you must enter a remote command.
Remote commands Operation details
95 Change the Fax
Forwarding, Paging or Fax
Storage settings
1 OFF You can select
Off
after you have retrieved
or erased all your messages.
2 Fax Forwarding If you hear one long beep, the change has
been accepted. If you hear three short beeps,
you cannot change it because something has
not been set up (for example, perhaps a Fax
Forwarding or Paging number had not been
registered). You can register your Fax
Forwarding number by entering 4. (See
Changing your Fax Forwarding number on
page 6-7.) Once you have registered the
number, Fax Forwarding will work.
You can select
Off
after you have retrieved
or erased all your messages.
3 Paging
4 Fax Forwarding number
6 Fax Storage
96 Retrieve a fax
2 Retrieve all faxes Enter the number of a remote fax machine to
receive stored fax message(s). (See page
6-7.)
3 Erase faxes from the
memory
If you hear one long beep, fax messages
have been erased from the memory.
97 Check the receiving status
1 Fax You can check whether your MFC has
received any faxes. If yes, you will hear one
long beep. If no, you will hear three short
beeps.
98 Change the Receive Mode
1 External TAD If you hear one long beep, your change has
been accepted.
2 Fax/Tel
3 Fax Only
90 Exit Press 90 to exit Remote Retrieval. Wait for
the long beep, then replace the handset.
REMOTE FAX OPTIONS (MFC-420CN ONLY) 6 - 7
Retrieving fax messages
You can call your MFC from any touch tone phone and have your fax
messages sent to a fax machine.
1
Dial your fax number.
2
When your MFC answers, immediately enter your Remote
Access Code (3 digits followed by ). If you hear one long
beep, you have messages.
3
As soon as you hear two short beeps, use the dial pad to press
962
.
4
Wait for the long beep, and then use the dial pad to enter the
number of the remote fax machine where you want your fax
messages sent to followed by
##
(up to 20 digits).
5
Hang up after you hear your MFC beep. Your MFC will call the
other machine, which will then print your fax messages.
Changing your Fax Forwarding number
You can change the default setting of your fax forwarding number
from another telephone or fax machine using touch tone.
1
Dial your fax number.
2
When your MFC answers, immediately enter your Remote
Access Code (3 digits followed by ). If you hear one long
beep, you have messages.
3
When you hear two short beeps, use the dial pad to press
954
.
4
Wait for the long beep, and then use the dial pad to enter the
new number of the remote fax machine where you want your fax
messages forwarded followed by
##
(up to 20 digits).
5
Hang up after you hear your MFC beep.
You cannot use and
#
as dial numbers. However, press
#
if
you want to store a pause.
You cannot use and
#
as dial numbers. However, press
#
if
you want to store a pause.
7 - 1 PRINTING REPORTS
7
Fax settings and activity
You need to set up the Transmission Verification Report and Journal
Period in the menu table.
Press
Menu/Set
,
2
,
4
,
1
.
—OR—
Press
Menu/Set
,
2
,
4
,
2
.
Customizing the Transmission Verification
Report
You can use the Transmission Report as proof that you sent a fax.
This report lists the time and date of transmission and whether the
transmission was successful (OK). If you select
On
or
On+Image
, the
report will print for every fax you send.
If you send a lot of faxes to the same place, you may need more than
the job numbers to know which faxes you must send again. Selecting
On+Image
or
Off+Image
will print a section of the fax’s first page
on the report to help you remember.
1
Press
Menu/Set
,
2
,
4
,
1
.
2
Press
▲
or
▼
to select
Off+Image
,
On
,
On+Image
or
Off
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Printing reports
When the Verification Report is turned
Off
or
Off+Image
, the
Report will only print if there is a transmission error, with NG in
the RESULT column.
Report Setting
1.Transmission
Report Setting
2.Journal Period
Report Setting
1.
Transmission
PRINTING REPORTS 7 - 2
Setting the Journal Period
You can set the MFC to print a journal at specific intervals (every 50
faxes, 6, 12 or 24 hours, 2 or 7 days). If you set the interval to
Off
, you
can print the report by following the steps on the next page.
The default setting is
Every 50 Faxes
.
1
Press
Menu/Set
,
2
,
4
,
2
.
2
Press
▲
or
▼
to choose an interval.
Press
Menu/Set
.
(If you choose 7 days, the LCD will ask you to choose a day on
which to begin the 7-day countdown.)
3
Enter the time to begin printing in 24-hour format.
Press
Menu/Set
.
(For example: enter 19:45 for 7:45 PM.)
4
Press
Stop/Exit
.
If you select 6, 12, 24 hours, 2 or 7 days, the MFC will print the
report at the selected time and then erase all jobs from its
memory. If the MFC’s memory becomes full with 200 jobs
before the time you selected has passed, the MFC will print the
Journal early and then erase all jobs from memory. If you want
an extra report before it is due to print, you can print it without
erasing the jobs from memory.
If you select
Every 50 Faxes
, the MFC will print the Journal
when the MFC has stored 50 jobs.
Report Setting
2.Journal Period
7 - 3 PRINTING REPORTS
Printing reports
Following reports are available:
How to print a report
1
For MFC-210C, press
Menu/Set
,
5
.
For MFC-420CN, press
Menu/Set
,
6
.
2
Press
▲
or
▼
to select the report you want.
Press
Menu/Set
.
—OR—
Enter the number of the report you want to print.
For example, press
1
to print the Help List.
3
Press
Black Start
.
1.Help List
Prints the Help List so you can see at-a-glance
how to quickly program your MFC.
2.Quick-Dial
Lists names and numbers stored in the
Speed-Dial memory, in numerical order.
3.Fax Journal
Lists information about the last incoming and
outgoing faxes.
(TX means Transmit.) (RX means Receive.)
4.Transmission
Prints a Transmission Verification Report for your
last transmission.
5.User Settings
(MFC-420CN only)
Lists your settings.
6.Network Config
(MFC-420CN only)
Lists your Network settings.
MAKING COPIES 8 - 1
8
Using the MFC as a copier
You can use your MFC as a copier, making up to 99 copies at a time.
Enter Copy mode
Before making copies, make sure that (
Copy
) is illuminated
in green. If it is not, press (
Copy
) to enter Copy mode. The
default setting is Fax. You can change the number of seconds or
minutes that the MFC stays in Copy mode. (See Setting the Mode
Timer on page 2-3.)
Making copies
Copy Ratio
The LCD shows the default copy setting
Quality No of Copies
8 - 2 MAKING COPIES
Making a single copy
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
(See
Load documents
on page 1-6.)
3
Press
Black Start
or
Color Start
.
Making multiple copies
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(up to 99).
4
Press
Black Start
or
Color Start
.
Stop copying
To stop copying, press
Stop/Exit
.
To stop copying, press
Stop/Exit
.
(MFC-420CN only)
To sort the copies, press the
Copy Options
key. (See
Using the Copy Options key (Temporary settings)
on
page 8-3.)
MAKING COPIES 8 - 3
Using the Copy Options key
(Temporary settings)
When you want to quickly change the copy settings temporarily for
the next copy, use the
Copy Options
key. You can use different
combinations.
These settings are temporary, and the MFC returns to its default
settings 60 seconds after it finishes copying. However if you
have set the Mode Timer to 0 or 30 seconds, the MFC returns
to the default settings after the number of seconds that has been
set for mode timer. (See Setting the Mode Timer on page 2-3.)
You can save the copy settings you use most often by setting
them as default. (See Changing the default copy settings on
page 8-13.)
Copy Options key
8 - 4 MAKING COPIES
Changing the temporary copy settings
Use the
Copy Options
key to quickly set the following copy
settings temporarily for the next copy.
After you choose your settings by pressing
Menu/Set
, the LCD
shows
Set temporarily
.
Press
Black Start
or
Color Start
if you
’
re finished choosing
settings.
—OR—
Press
▲
or
▼
to select more settings.
Press
Copy
Options
Menu Selections Options Factory
Setting
Page
Quality Fast
/
Normal
/
Best Normal
8-5
Enlarge/Reduce 50%
/
69%
/
78%
/
83%
/
93%
/
97%
/
100%
/
104%
/
142%
/
186%
/
198%
/
200%
/
Custom(25-400%)
100%
8-6
Paper Type Plain
/
Inkjet
/
Glossy
/
Transparency
Plain
8-7
Paper Size Letter
/
Legal
/
A4
/
A5
/
4"(W)x 6"(H)
Letter
8-8
Brightness
- + - + 8-8
Stack/Sort
(MFC-420CN only)
Stack
/
Sort Stack
8-9
Page Layout
(MFC-420CN only)
Off(1 in 1)
/
2 in 1 (P)
/
2 in 1 (L)
/
4 in 1 (P)
/
4 in 1 (L)
/
Poster(3 x 3)
Off
(1 in 1)
8-13
No. of Copies No. of Copies:01
(01-99)
01
select select
MAKING COPIES 8 - 5
Increasing copy speed or quality
You can select the copy quality. The default setting is
Normal
.
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(up to 99).
4
Press
Copy Options
.
5
Press
▲
or
▼
to choose the copy quality (
Fast
,
Normal
or
Best
).
Press
Menu/Set
.
6
Press
Black Start
or
Color Start
.
Normal
Recommended mode for ordinary printouts. Good
copy quality with adequate copy speed.
Fast
Fast copy speed and lowest ink consumption. Use
FAST to save time (document to be proof-read, large
documents or many copies).
Best
Use this mode to copy precise images such as
photographs. BEST uses the highest resolution and
slowest speed.
8 - 6 MAKING COPIES
Enlarging or reducing the image copied
You can select the following enlargement or reduction ratios.
Custom(25-400%)
allows you to enter a ratio from 25% to 400%.
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(up to 99).
4
Press
Copy Options
and
▲
or
▼
to select
Enlarge/Reduce
.
Press
Menu/Set
.
Press
Copy Options
and or to select
Enlarge/Reduce
Custom(25-400%)
200%
198% 4"x6"→A4
186% 4"x6"→LTR
142% A5→A4
104% EXE→LTR
100%
97% LTR→A4
93% A4→LTR
83% LGL→A4
78% LGL→LTR
69% A4→A5
50%
MAKING COPIES 8 - 7
5
Press
▲
or
▼
to select the enlargement or reduction ratio you
want.
Press
Menu/Set
.
—OR—
You can select
Custom(25-400%)
and press
Menu/Set
.
Use the dial pad to enter an enlargement or reduction ratio from
25%
to
400%
.
Press
Menu/Set
.
(For example, press
5
3
to enter
53%
.)
6
Press
Black Start
or
Color Start
.
Setting paper type
If you are copying on special paper, be sure to select the type of
paper you are using so you will get the best print quality.
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(up to 99).
4
Press
Copy Options
and
▲
or
▼
to select
Paper Type
.
Press
Menu/Set
.
5
Press
▲
or
▼
to select the type of paper you are using (
Plain
,
Inkjet
,
Glossy
or
Transparency
).
Press
Menu/Set
.
6
Press
Black Start
or
Color Start
.
Special Copy Options 2 in 1 (P), 2 in 1 (L), 4 in 1 (P), 4 in 1 (L)
or Poster are not available with Enlarge/Reduce.
You can change the default Paper Type setting at any time.
(See
Setting the Paper Type
on page 2-3.)
8 - 8 MAKING COPIES
Setting paper size
If copying on paper other than Letter size, you will need to change
the paper size setting.
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(up to 99).
4
Press
Copy Options
and
▲
or
▼
to select
Paper Size
.
Press
Menu/Set
.
5
Press
▲
or
▼
to select the size of paper you are using
(
Letter
,
Legal
,
A4
,
A5
or
4"(W)x 6"(H)
).
Press
Menu/Set
.
6
Press
Black Start
or
Color Start
.
Adjusting brightness
You can adjust the copy brightness to make copies darker or lighter.
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(up to 99).
4
Press
Copy Options
and
▲
or
▼
to select
Brightness
.
Press
Menu/Set
.
5
Press
▲
to make a lighter copy.
—OR—
Press
▼
to make a darker copy.
Press
Menu/Set
.
6
Press
Black Start
or
Color Start
.
You can copy on Letter, Legal, A4, A5 or Photo Card (4"(W) x
6"(H)) paper.
Brightness
- +
MAKING COPIES 8 - 9
Sorting copies using the ADF (MFC-420CN only)
You can sort multiple copies. Pages will be stacked in the order 321,
321, 321, and so on.
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(up to 99).
4
Press
Copy Options
and
▲
or
▼
to select
Stack/Sort
.
Press
Menu/Set
.
5
Press
▲
or
▼
to select
Sort
.
Press
Menu/Set
.
6
Press
Black Start
or
Color Start
.
8 - 10 MAKING COPIES
Making N in 1 copies or a poster (Page Layout)
(MFC-420CN only)
You can reduce the amount of copies by using the N in 1 copy
feature. This allows you to copy two or four pages on one page,
which allows you to save paper. It is also possible to create a poster.
When you use the Poster feature your MFC divides your document
into sections, then enlarges the sections so you can assemble them
into a poster. If you want to print a poster, use the scanner glass.
1
Press (
Copy
) to illuminate it in green.
2
Load your document.
3
Use the dial pad to enter the number of copies you want
(upto99).
4
Press
Copy Options
and
▲
or
▼
to select
Page Layout
.
Press
Menu/Set
.
5
Press
▲
or
▼
to select
2 in 1 (P)
,
2 in 1 (L)
,
4 in 1 (P)
,
4 in 1 (L)
,
Poster(3 x 3)
or
Off(1 in 1)
.
Press
Menu/Set
.
6
Press
Black Start
or
Color Start
to scan the document.
7
If you are making a poster or placed the document in the ADF,
the MFC scans document and starts printing.
■
Please make sure Paper Size is set to
Letter
.
■
You can use N in 1 copy feature with 100% copy size only.
■
(
P
) means Portrait and (
L
) means Landscape.
MAKING COPIES 8 - 11
If you are using the scanner glass:
8
After the MFC scans the page,
the LCD shows:
Press
1
to scan the next page.
9
Put the next document on the
scanner glass.
Press
Menu/Set
.
Repeat Steps 8 and 9 for each page of the layout.
10
After all the pages of the document have been scanned,
press
2
to end.
If
Glossy
has been selected in the Paper Type setting for N in
1 copies, the MFC will print the images as if Plain paper had
been selected.
■
If you are producing multiple color copies, N in 1 copies are
not available.
■
For Poster copies, you cannot make more than one copy.
Next Page?
1.Yes 2.No
Set Next Page
Then Press Set
8 - 12 MAKING COPIES
Place document face down in the direction shown below.
2 in 1 (P)
4 in 1 (P)
Poster (3X3)
You can make a poster
size copy of a
photograph.
2 in 1 (L)
4 in 1 (L)
MAKING COPIES 8 - 13
Changing the default copy settings
You can save the copy settings you use most often by setting them
as default. These settings will remain until you change them again.
Increasing copy speed or quality
1
Press
Menu/Set
,
3
,
1
.
2
Press
▲
or
▼
to select
Normal
,
Best
or
Fast
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Adjusting brightness
1
Press
Menu/Set
,
3
,
2
.
2
Press
▲
to make a lighter copy.
—OR—
Press
▼
to make a darker copy.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Adjusting contrast
You can change the contrast to help an image look sharper and more
vivid.
1
Press
Menu/Set
,
3
,
3
.
2
Press
▲
to increase the contrast.
—OR—
Press
▼
to decrease the contrast.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Copy
1.Quality
Copy
2.Brightness
Copy
3.Contrast
8 - 14 MAKING COPIES
Adjusting color saturation
1
Press
Menu/Set
,
3
,
4
.
2
Press
▲
or
▼
to select
Red
,
Green
or
Blue
.
Press
Menu/Set
.
3
Press
▲
to increase the color saturation.
—OR—
Press
▼
to decrease the color saturation.
Press
Menu/Set
.
4
Return to Step 2 to select the next color.
—OR—
Press
Stop/Exit
.
Out of Memory message
If the memory becomes full while you are making copies, the LCD
message will guide you through the next step.
If the
Out of Memory
message appears, press
Stop/Exit
to
cancel or
Black Start
or
Color Start
to copy the scanned pages.
You will need to clear some jobs from the memory before you can
continue.
When you get an
Out of Memory
message, you may be able
to make copies if you first print incoming faxes in the memory to
restore the memory to 100%.
(MFC-420CN only)
To gain extra memory, you can turn off Fax Storage.
(See
Setting Fax Storage
on page 6-3.)
—OR—
Print the faxes that are in the memory.
(See
Printing a fax from the memory (MFC-420CN only)
on
page 4-5.)
Copy
4.Color Adjust
MAKING COPIES 8 - 15
Legal limitations
Color reproductions of certain documents are illegal and may result
in either criminal or civil liability. This memorandum is intended to be
a guide rather than a complete listing of every possible prohibition. In
case of doubt, we suggest that you check with counsel as to any
particular questionable documents.
The following documents issued by the United States/Canadian
Government or any of its Agencies may not be copied:
■
Money
■
Bonds or other certificates of indebtedness
■
Certificates of Deposit
■
Internal Revenue Stamps (canceled or uncanceled)
■
Selective Service or draft papers
■
Passports
■
United States/Canadian Postage Stamps (canceled or
uncanceled)
■
Food Stamps
■
Immigration Papers
■
Checks or drafts drawn by Governmental agencies
■
Identifying badges or insignias
Copyrighted works cannot be copied. Sections of a copyrighted work
can be copied for ‘fair use.’ Multiple copies would indicate improper
use.
Works of art should be considered the equivalent of copyrighted
works.
Licenses and Certificates of Title to motor vehicles may not be
copied under certain state/provincial laws.
9 - 1 WALK-UP PHOTOCAPTURE CENTER
™
9
Introduction
Even if your MFC is not connected to your computer, you can print
photos directly from the digital camera media. Your Brother MFC
includes five media drives (slots) for use with popular digital camera
media: CompactFlash
®
, SmartMedia
®
, Memory Stick
®
,
SecureDigital
™
, and xD-Picture Card
™
.
The PhotoCapture Center
™
feature lets you print digital photos from
your digital camera at high resolution to get photo quality printing.
Walk-Up PhotoCapture
Center
™
CompactFlash
®
(Type I only)
SmartMedia
®
Memory Stick
®
SecureDigital
™
xD-Picture Card
™
■
miniSD
™
can be used with miniSD
™
adapter.
■
Memory Stick Duo
™
can be used with Memory Stick Duo
™
adapter.
■
Adapters are not included with the MFC. Contact a third
party supplier for adapters.
WALK-UP PHOTOCAPTURE CENTER
™
9 - 2
PhotoCapture Center
™
requirements
To avoid error conditions, please remember:
■
The DPOF file on the media card must be in a valid format.
(See
DPOF printing
on page 9-8.)
■
The image file extension must be .JPG (Other image file
extensions .JPEG, .TIF, .GIF and so on will not be recognized).
■
Walk-up PhotoCapture Center
™
printing must be performed
separately from PhotoCapture Center
™
operations using the PC.
(Simultaneous operation is not available.)
■
IBM Microdrive
™
is not compatible with the MFC.
■
The MFC can read up to 999 files in a media card.
■
Use only Smart media cards with a 3.3v voltage rating.
■
CompactFlash
®
Type II is not supported.
When printing the INDEX or IMAGE, the PhotoCapture Center
™
will print all the valid images, even if one or more images have
been corrupted. A portion of the corrupted image may be printed.
Your MFC is designed to read media cards that have been
formatted by a digital camera.
When a digital camera formats a media card it creates a special
folder into which it copies image data. If you need to modify the
image data stored on a media card with your PC, we
recommend that you do not modify the folder structure created
by the digital camera. When saving new or modified image files
to the media card we also recommend you use the same folder
your digital camera uses. If the data is not saved to the same
folder the MFC may not be able to read the file or print the
image.
9 - 3 WALK-UP PHOTOCAPTURE CENTER
™
Getting started
Firmly insert the card into the appropriate slot.
PhotoCapture
key lights:
■
PhotoCapture
light is ON, the media
card is inserted properly.
■
PhotoCapture
light is OFF, the media
card is not properly inserted.
■
PhotoCapture
light is BLINKING, the
media card is being read or written to.
The MFC can only read one media card at a time so do not insert
more than one card.
Do NOT unplug the power cord or remove the media card from
the media drive (slot) while the MFC is reading or writing to the
card (the
PhotoCapture
key is blinking). You will lose your
data or damage the card.
xD-Picture Card
™
SecureDigital
™
Memory Stick
®
CompactFlash
®
SmartMedia
®
WALK-UP PHOTOCAPTURE CENTER
™
9 - 4
The steps below give a brief outline of the Direct Printing
feature. Please see the remaining pages of this chapter for more
detailed instructions.
1
Insert the media card firmly into the media drive (slot).
When you insert your media card
into the proper slot, the LCD shows.
2
Press
PhotoCapture
.
If your digital camera supports DPOF printing, see
DPOF
printing
on page 9-8.
3
Print the index that shows thumbnail views of images stored on
your media card. Your MFC will assign an image number to
each thumbnail.
Press
▲
or
▼
to select
Print Index
and then press
Menu/Set
.
Press
Color Start
to start printing the index sheet.
(See Printing the Index (Thumbnails) on page 9-5.)
4
To print images, press
▲
or
▼
to select
Print Images
and then
press
Menu/Set
.
Enter the image number and press
Menu/Set
.
Press
Color Start
to start printing.
(See Printing images on page 9-6.)
The media active message will be shown for 60 seconds and
then disappear. Even in that case, you can enter the
PhotoCapture mode by pressing
PhotoCapture
.
You can change the settings for printing images, such as the
Paper Type & Paper Size, Print Size and number of copies.
(See
Printing images
on page 9-6
.)
C.Flash Active
Press PhotoCapture key...
9 - 5 WALK-UP PHOTOCAPTURE CENTER
™
Printing the Index (Thumbnails)
The PhotoCapture Center
™
assigns numbers for images (such as
No.1, No.2, No.3, and so on).
It does not recognize any other numbers or file names that your
digital camera or PC have used to identify the pictures. You can print
a thumbnail page (Index page with 6 or 5 images per line). This will
show all the pictures on the media card.
1
Make sure you have inserted the media card.
Press
PhotoCapture
. (See page 9-3.)
2
Press
▲
or
▼
to select
Print Index
.
Press
Menu/Set
.
3
Press
▲
or
▼
to select
6 Images/Line
or
5 Images/Line
.
Press
Menu/Set
.
4
Press
Color Start
to start printing.
Index Index
5 Images/Line 6 Images/Line
Print time for 5 Images/Line will be slower than 6 Images/Line,
but the quality is better. To print an image, see
Printing images
on page 9-6.
WALK-UP PHOTOCAPTURE CENTER
™
9 - 6
Printing images
Before you can print an individual image, you have to know the
image number.
1
Make sure you have inserted the media card.
Press
PhotoCapture
. (See page 9-3.)
2
Press
▲
or
▼
to choose
Print Images
.
Press
Menu/Set
.
3
Use the dial pad to enter the image
number that you want to print from
the Index page (Thumbnails).
Press
Menu/Set
.
Repeat this step until you have entered all the image numbers
that you want to print.
4
After you have selected all the image numbers,
press
Menu/Set
again, and go to Step 5.
—OR—
If you have finished choosing settings, press
Color Start
.
Print the Index first.
(See
Printing the Index (Thumbnails)
on page 9-5.)
If your media card contains valid DPOF information, the LCD
shows
DPOF Print:Yes
, please go to
DPOF printing
on page
9-8.
You can enter all the numbers at one time by using the key for
a comma or the
#
key for hyphen.
(For example, Enter
136
- to print images No.1, No.3 and
No.6. Enter
1#5
to print images No.1 to No.5).
Enter & Set Key
No.:1,3,6
9 - 7 WALK-UP PHOTOCAPTURE CENTER
™
Paper Type & Paper Size
5
Press
▲
or
▼
to select the type of paper you are using,
Letter Glossy
,
4"x 6" Glossy
,
5"x 7" Glossy
,
A4 Glossy
,
Letter Plain
,
A4 Plain
,
Letter Inkjet
,
A4 Inkjet
or
4"x 6" Inkjet
.
Press
Menu/Set
.
If you selected Letter or A4, go to Step 6.
If you selected another size, go to Step 7.
—OR—
If you have finished choosing settings, press
Color Start
.
Print Size
6
If you selected Letter or A4, press
▲
or
▼
to select the print size
(
4"x 3"
,
5"x 3.5"
,
6"x 4"
,
7"x 5"
,
8"x 6"
or
Max. Size
).
Press
Menu/Set
, and go to Step 7.
—OR—
If you have finished choosing settings, press
Color Start
.
Printed Position for Letter paper
Number of Copies
7
Use the dial pad to enter the number of copies you want.
Press
Menu/Set
.
8
Press
Color Start
to print.
1
4"x 3"
2
5"x 3.5"
3
6"x 4"
4
7"x 5"
5
8"x 6"
6
Max. Size
The Max. Size is available for MFC-420CN only.
The settings that you want to use with the card will be kept until
you take out the media card from the drive (slot), print images or
press
Stop/Exit
.
WALK-UP PHOTOCAPTURE CENTER
™
9 - 8
DPOF printing
DPOF stands for Digital Print Order Format.
Major Digital Camera manufacturers (Canon Inc., Eastman Kodak
Company, Fuji Photo Film Co. Ltd., Matsushita Electric Industrial Co.
Ltd. and Sony Corporation.) created this standard to make it easier
to print images from a digital camera.
If your digital camera supports DPOF printing, you will be able to
select on the Digital Camera display the images and number of
copies you want to print.
When the memory card (CompactFlash
®
, SmartMedia
®
, Memory
Stick
®
, SecureDigital
™
and xD-Picture Card
™
) with DPOF
information is put into your MFC, you can print the selected image
easily.
1
Insert your media card into the
proper drive (slot).
2
Press
PhotoCapture
.
3
Press
▲
or
▼
to select
Print Images
.
Press
Menu/Set
.
4
If there is a DPOF file on the card,
the LCD shows:
5
Press
▲
or
▼
to select
DPOF Print:Yes
.
Press
Menu/Set
.
6
Press
Color Start
to print.
The media active message will be shown for 60 seconds and
then disappear. Even in that case, you can enter the
PhotoCapture mode by pressing
PhotoCapture
.
If you want to choose the images and their print options now,
select
DPOF Print:No
.
C.Flash Active
Press PhotoCapture key...
Select
▲▼
& Set
DPOF Print:Yes
9 - 9 WALK-UP PHOTOCAPTURE CENTER
™
Changing the default settings
You can save the PhotoCapture Center
™
settings you use most often
by setting them as default. These settings will remain until you
change them again.
Increasing print speed or quality
1
Press
Menu/Set
,
4
,
1
.
2
Press
▲
or
▼
to select
Normal
or
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Setting the paper & size
1
Press
Menu/Set
,
4
,
2
.
2
Press
▲
or
▼
to select
Letter Glossy
,
4"x 6" Glossy
,
5"x 7" Glossy
,
A4 Glossy
,
Letter Plain
,
A4 Plain
,
Letter Inkjet
,
A4 Inkjet
or
4"x 6" Inkjet
.
Press
Menu/Set
.
If you selected Letter or A4, press
▲
or
▼
to select the print size
(
4"x 3"
,
5"x 3.5"
,
6"x 4"
,
7"x 5"
,
8"x 6"
or
Max. Size
).
Press
Menu/Set
.
3
Press
Stop/Exit
.
The Max. Size is available for MFC-420CN only.
PhotoCapture
1.Print Quality
PhotoCapture
2.Paper & Size
WALK-UP PHOTOCAPTURE CENTER
™
9 - 10
Adjusting brightness
1
Press
Menu/Set
,
4
,
3
.
2
Press
▲
to make a lighter print.
—OR—
Press
▼
to make a darker print.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Adjusting contrast
You can choose the contrast setting. More contrast will make an
image look sharper and more vivid.
1
Press
Menu/Set
,
4
,
4
.
2
Press
▲
to increase the contrast.
—OR—
Press
▼
to decrease the contrast.
Press
Menu/Set
.
3
Press
Stop/Exit
.
Color enhancement (True2Life
®
) (MFC-420CN only)
You can turn on the color enhancement (True2Life
®
) feature to print
more vivid images. Printing time will be slower.
1
Press
Menu/Set
,
4
,
5
.
2
Press
▲
or
▼
to select
On
.
Press
Menu/Set
.
—OR—
Select
Off
and press
Menu/Set
, then go to Step 5.
If you select
On
, you can customize the White Balance,
Sharpness or Color Density.
PhotoCapture
3.Brightness
PhotoCapture
4.Contrast
PhotoCapture
5.True2Life
9 - 11 WALK-UP PHOTOCAPTURE CENTER
™
3
Press
▲
or
▼
to select
White Balance
,
Sharpness
or
Color Density
.
Press
Menu/Set
.
4
Press
▲
or
▼
to adjust the degree of the setting.
Press
Menu/Set
.
5
Press
Stop/Exit
.
■
White Balance
This setting adjusts the hue of the white areas of an image.
Lighting, camera settings and other influences will effect the
appearance of white. The white areas of a picture may be slightly
pink, yellow or some other color. By using this adjustment you
can correct this effect and bring the white areas back to pure
white.
■
Sharpness
This setting enhances the detail of an image. It is similar to
adjusting the fine focus on a camera. If the image is not in true
focus and you cannot see the fine details of the picture, then
adjust the sharpness.
■
Color Density
This setting adjusts the total amount of color in the image. You
can increase or decrease the amount of color in an image to
improve a washed out or weak picture.
WALK-UP PHOTOCAPTURE CENTER
™
9 - 12
Cropping
If your photo is too long or wide to fit the available space on your
selected layout, part of the image will be automatically cropped.
The default setting is
On
. If you want to print the whole image, turn
this setting to
Off
.
1
For MFC-210C, press
Menu/Set
,
4
,
5
.
For MFC-420CN, press
Menu/Set
,
4
,
6
.
2
Press
▲
or
▼
to select
Off
(or
On
).
Press
Menu/Set
.
3
Press
Stop/Exit
.
Borderless
This feature expands the printable area to the edges of the paper.
Printing time will be slightly slower.
1
For MFC-210C, press
Menu/Set
,
4
,
6
.
For MFC-420CN, press
Menu/Set
,
4
,
7
.
2
Press
▲
or
▼
to select
Off
(or
On
).
Press
Menu/Set
.
3
Press
Stop/Exit
.
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
Cropping:On
Cropping:Off
9 - 13 WALK-UP PHOTOCAPTURE CENTER
™
Understanding the Error Messages
Once you are familiar with the types of errors that can occur while
you’re using the PhotoCapture Center
™
, you can easily identify and
troubleshoot any difficulties.
When an error message appears on the LCD, the MFC will beep to
get your attention.
Media Error
—
This message will appear if you insert a media card
that is either bad or not formatted, or when there is a problem with
the media drive. To clear this error, take out the media card.
No File
—
This message will appear if you try to access a media
card in the drive (slot) that does not contain a .JPG file.
Out of Memory
—
This message will appear if you are working with
images that are too large for the MFC’s memory.
WALK-UP PHOTOCAPTURE CENTER
™
9 - 14
Using PhotoCapture Center
™
from
your PC
You can access the media card that is in the media drive (slot) of the
MFC from your PC.
(See Using the PhotoCapture Center
™
from your PC on page 6-1 in
Software User’s Guide on the CD-ROM or Using the PhotoCapture
Center
™
from a Macintosh
®
(not available for MFC-3240C and
MFC-5440CN) on page 8-47 in the Software User’s Guide on the
CD-ROM.)
Using PhotoCapture Center
™
for
scanning documents
You can scan documents and save them on a media card to quickly
and easily make documents portable. (See Scan to Card (not
available for MFC-3240C, MFC-210C and MFC-5440CN) on page
2-23 in Software User’s Guide on the CD-ROM.)
10 - 1 IMPORTANT INFORMATION
10
Standard telephone and FCC Notices
These notices are in effect on models sold and
used in the United States only.
When programming emergency numbers or making test calls to
emergency numbers:
■
Remain on the line and briefly explain to the dispatcher the
reason for the call before hanging up.
■
Perform these activities in the off-peak hours, such as early
morning or late evening.
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the backside of this
equipment is a label that contains, among other information, a
product identifier in the format US: AAAEQ##TXXXX. If requested,
this number must be provided to the telephone company.
You may safely connect this equipment to the telephone line by
means of a standard modular jack, USOC RJ11C.
A plug and jack used to connect this equipment to the premises
wiring and telephone network must comply with the applicable FCC
Part 68 rules and requirements adopted by the ACTA. A compliant
telephone cord and modular plug is provided with this product. It is
designed to be connected to a compatible modular jack that is also
compliant. See installation instructions for details.
The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line
may result in the devices not ringing in response to an incoming call.
In most but not all areas, the sum of RENs should not exceed five
(5.0). To be certain of the number of devices that may be connected
to a line, as determined by the total RENs, contact the local
telephone company. For products approved after July 23, 2001, the
REN for this product is part of the product identifier that has the
format US:AAAEQ##TXXXX.The digits represented by ## are the
REN without a decimal point (e.g., 06 is a REN of 0.6). For earlier
products, the REN is separately shown on the label.
Important information
IMPORTANT INFORMATION 10 - 2
If this equipment causes harm to the telephone network, the
telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice
isn’t practical, the telephone company will notify the customer as
soon as possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities,
equipment, operations or procedures that could affect the operation
of the equipment. If this happens the telephone company will provide
advance notice in order for you to make necessary modifications to
maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty
information, please contact Brother Customer Service. (See
Brother
numbers on page i.) If the equipment is causing harm to the
telephone network, the telephone company may request that you
disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state tariffs. Contact the
state public utility commission, public service commission or
corporation commission for information.
If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this equipment does not
disable your alarm equipment. If you have questions about what will
disable alarm equipment, call your telephone company or a qualified
installer.
If you are not able to solve a problem with your MFC, call Brother
Customer Service. (See
Brother numbers
on page i.)
WARNI NG
For protection against the risk of electrical shock, always disconnect
all cables from the wall outlet before servicing, modifying or installing
the equipment.
This equipment may not be used on coin service lines provided by
the telephone company or connected to party lines.
Brother cannot accept any financial or other responsibilities that may
be the result of your use of this information, including direct, special
or consequential damages. There are no warranties extended or
granted by this document.
10 - 3 IMPORTANT INFORMATION
WARNI NG
This MFC has been certified to comply with FCC standards, which
are applied to the USA only. A grounded plug should be plugged into
a grounded AC power outlet after checking the rating of the local
power supply for the MFC to operate properly and safely.
Federal Communications Commission (FCC)
Declaration of Conformity (USA only)
declares, that the products
Product Name: MFC-210C, MFC-420CN
comply with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
■
Call the dealer or an experienced radio/TV technician for help.
Responsible Party: Brother International Corporation
100 Somerset Corporate Boulevard
Bridgewater, NJ 08807-0911 USA
TEL: (908) 704-1700
IMPORTANT INFORMATION 10 - 4
Important
Changes or modifications not expressly approved by Brother
Industries, Ltd. could void the user’s authority to operate the
equipment.
Industry Canada Compliance Statement
(Canada only)
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
For your safety
To ensure safe operation the supplied three-pin plug must be
inserted only into a standard three-pin AC power outlet that is
effectively grounded through the normal household wiring.
The fact that the equipment operates satisfactorily does not imply
that the power is grounded and that the installation is completely
safe. For your safety, if in any doubt about the effective grounding of
the power, call a qualified electrician.
LAN connection (MFC-420CN only)
Caution
Do not connect this product to a LAN connection that is subject to
over-voltages.
10 - 5 IMPORTANT INFORMATION
Important safety instructions
1
Read all of these instructions.
2
Save them for later reference.
3
Follow all warnings and instructions marked on the product.
4
Unplug this product from the wall outlet before cleaning. Do not
use liquid or aerosol cleaners. Use a damp cloth for cleaning.
5
Do not use this product near water.
6
Do not place this product on an unstable cart, stand, or table.
The product may fall, causing serious damage to the product.
7
Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the
product and to protect it from overheating, these openings must
not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or
over a radiator or heater. This product should never be placed
in a built-in installation unless proper ventilation is provided.
8
This product should be operated from the type of power source
indicated on the label. If you are not sure of the type of power
available, call your dealer or local power company.
Use only the power cord supplied with this MFC.
9
This product is equipped with a 3-wire grounded plug, a plug
having a third (grounded) pin. This plug will only fit into a
grounded power outlet. This is a safety feature. If you are unable
to insert the plug into the outlet, call your electrician to replace
your obsolete outlet. Do not defeat the purpose of the grounded
plug.
IMPORTANT INFORMATION 10 - 6
10
Do not allow anything to rest on the power cord. Do not place
this product where people can walk on the cord.
11
If an extension cord is used with this product, make sure that the
total ampere ratings on the products plugged into the extension
cord do not exceed the extension cord ampere rating. Also,
make sure that the total of all products plugged into the AC
power outlet does not exceed 15 amperes (USA only).
12
Do not place anything in front of the MFC that will block received
faxes. Do not place anything in the path of received faxes.
13
Wait until pages have exited the MFC before picking them up.
14
Never push objects of any kind into this product through cabinet
slots, since they may touch dangerous voltage points or short
out parts resulting in the risk of fire or electric shock. Never spill
liquid of any kind on the product. Do not attempt to service this
product yourself because opening or removing covers may
expose you to dangerous voltage points and other risks and
may void your warranty. Refer all servicing to a Brother
Authorized Service Center. For the location of your nearest
Brother Authorized Service Center, please call
In USA: 1-800-284-4357 or In Canada: 1-877-BROTHER.
(See Brother numbers on page i.)
10 - 7 IMPORTANT INFORMATION
15
Unplug this product from the AC power outlet and refer servicing
to Authorized Service Personnel under the following conditions:
■ When the power cord is damaged or frayed.
■ If liquid has been spilled into the product.
■ If the product has been exposed to rain or water.
■ If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
covered by the operating instructions. Improper adjustment
of other controls may result in damage and will often require
extensive work by a qualified technician to restore the
product to normal operation.
■ If the product has been dropped or the cabinet has been
damaged.
■ If the product exhibits a distinct change in performance,
indicating a need for service.
16
To protect your product against power surges, we recommend
the use of a power protection device (Surge Protector).
IMPORTANT INFORMATION 10 - 8
Trademarks
The Brother logo is a registered trademark of Brother Industries, Ltd.
Brother is a registered trademark of Brother Industries, Ltd.
Multi-Function Link is a registered trademark of Brother International
Corporation.
© 2004 Brother Industries, Ltd. All rights reserved.
Windows and Microsoft are registered trademarks of Microsoft in the
U.S. and other countries.
Macintosh and TrueType are registered trademarks of Apple
Computer, Inc.
PaperPort and OmniPage OCR are registered trademarks of
ScanSoft, Inc.
Presto! PageManager is a registered trademark of NewSoft
Technology Corporation.
Microdrive is a trademark of International Business Machine
Corporation.
SmartMedia is a registered trademark of Toshiba Corporation.
CompactFlash is a registered trademark of SanDisk Corporation.
Memory Stick is a registered trademark of Sony Corporation.
SecureDigital is a trademark of Matsushita Electric Industrial Co.Ltd.,
SanDisk Corporation and Toshiba Corporation.
SanDisk is a licensee of the SD and miniSD trademarks.
xD-Picture Card is a trademark of Fujifilm Co.Ltd., Toshiba
Corporation and Olympus Optical Co. Ltd.
Memory Stick Duo and MagicGate are trademarks of Sony
Corporation.
Each company whose software title is mentioned in this manual has
a Software License Agreement specific to its proprietary programs.
All other brand and product names mentioned in this User’s
Guide, the Software User’s Guide, and the Network User’s
Guide (MFC-420CN only) are registered trademarks of their
respective companies.
11 - 1 TROUBLESHOOTING AND ROUTINE MAINTENANCE
11
Troubleshooting
Error messages
As with any sophisticated office product, errors may occur. If this
happens, your MFC identifies the problem and displays an error
message. The most common error messages are shown below.
You can correct most problems by yourself. If you need additional
help, the Brother Solutions Center offers latest FAQs and
troubleshooting tips.
Visit us at http://solutions.brother.com
.
Troubleshooting and routine
maintenance
IMPORTANT
For technical help, you must call the country where you bought the
MFC. Calls must be made from within that country.
ERROR MESSAGES
ERROR
MESSAGE
CAUSE ACTION
Comm.Error Poor phone line quality caused a
communication error.
Try the call again. If the problem continues, call
the telephone company and ask them to check
your phone line.
Connection
Fail
You tried to poll a fax machine that
is not in Polled Waiting mode.
Check the other fax machine’s polling setup.
Cover is Open The scanner cover is not closed
completely.
Lift the scanner cover and then close it again.
Data
Remaining
Print data remains in the MFC’s
memory.
Re-start printing from your computer.
Print data remains in the MFC’s
memory. The USB cable was
unplugged while the computer
was sending the data to the MFC.
Press Stop/Exit. The MFC will cancel the job
and eject the page that is being printed.
Disconnected The other person or other person’s
fax machine stopped the call.
Try to send or receive again.
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 2
Document Jam
(MFC-420CN
only)
The document scanned from ADF
was longer than about 35.4
inches.
See Using the automatic document feeder
(ADF) (Not available for MFC-210C) on page
1-6.
The document is jammed in the
MFC.
See Document jams (MFC-420CN only) on
page 11-5.
DR Mode in
Use
The MFC is set to Distinctive Ring
mode. You can not change the
Receive Mode from Manual to
another mode.
Set Distinctive Ring to Off.
(See Turning off the Distinctive Ring on page
A-4.)
High
Temperature
The print head is too warm. Allow the MFC to cool down.
Ink Empty One or more of the ink cartridges
is empty. The MFC will stop all
print operations. While memory is
available, black and white faxes
will be received into memory. If a
sending machine has a color fax,
the MFC’s ‘handshake’ will
request that the fax be sent as
black and white. If the sending
machine has the ability to convert
it, the color fax will be received into
memory as a black and white fax.
Replace the ink cartridges.
(See Replacing the ink cartridges on page
11-24.)
Low
Temperature
The print head is too cold. Allow the MFC to warm up.
Media Error The media card is either
corrupted, improperly formatted,
or there is a problem with the
media card.
Re-insert the card firmly into the slot to make
sure it is in the correct position. If the error
remains, check the media drive by inserting
another media card that you know is working.
Near Empty One or more of the ink cartridges
are running out of ink. If a sending
machine has a color fax, the
MFC’s ‘handshake’ will request
that the fax be sent as black and
white. If the sending machine has
the ability to convert it, the color
fax will be received into memory
as a black and white fax.
Order a new ink cartridge.
(See Ordering accessories and supplies on
page ii.)
No Cartridge An ink cartridge is not properly
installed.
Take out the ink cartridge and put it in again
seating it properly.
(See Replacing the ink cartridges on page
11-24.)
No File The media card in the media drive
does not contain a .JPG file.
Reinsert the correct media card.
ERROR MESSAGES
ERROR
MESSAGE
CAUSE ACTION
11 - 3 TROUBLESHOOTING AND ROUTINE MAINTENANCE
No Paper Fed The MFC is out of paper. Add paper, and then press Black Start or
Color Start.
The paper is jammed in the MFC. See Printer jam or paper jam on page 11-6.
No
Response/Busy
The number you dialed does not
answer or is busy.
Verify the number and try again.
Not
Registered
You tried to access a Speed Dial
number that is not programmed.
Set up the Speed Dial number.
(See Storing Speed-Dial numbers on page
5-1.)
Out of Memory You can’t store data in the
memory.
(Fax sending or copy operation in process)
Press Stop/Exit and wait until the other
operations in progress finish and then try again.
—OR—
(MFC-420CN only) Clear the data in the
memory. To gain extra memory, you can turn
off Fax Storage. (See Setting Fax Storage on
page 6-3.)
—OR—
(MFC-420CN only) Print the faxes that are in
the memory.
(See Printing a fax from the memory
(MFC-420CN only) on page 4-5.)
(Printing operation in process)
Reduce print resolution.
Paper Jam The paper is jammed in the MFC. (See Printer jam or paper jam on page 11-6.)
Wrong Paper
Size
Paper is not the correct size. Reload the correct size of paper (Letter, Legal
or A4), and then press Black Start or
Color Start.
ERROR MESSAGES
ERROR
MESSAGE
CAUSE ACTION
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 4
Unable to Change
Unable to Clean
Unable to Init.
Unable to Print
Unable to Scan
The MFC has a mechanical
problem.
—OR—
A foreign obstacle, such as a clip
or ripped paper, is in the MFC.
Open the scanner cover and remove any
foreign obstacles from inside the MFC. If the
error message continues, please follow the
steps below before disconnecting the MFC so
you will not lose any important messages.
Then, disconnect the MFC from the power
source for several minutes (which will erase all
faxes), and then reconnect it.
Check whether the MFC has faxes in
memory
1. Press Menu/Set, 9, 0, 1.
2. If the MFC has no faxes, disconnect the MFC
from the power source for several minutes
and then reconnect it.
—OR—
If faxes are present, you can transfer them to
another fax machine. Go to Step 3.
—OR—
For MFC-420CN, you can forward the
remaining faxes to your PC. Please see
Transfer faxes to your PC.
Transfer faxes to another fax machine
If you have not set up your Station ID, you
cannot enter fax transfer mode.
3. Enter the fax number to which faxes will be
forwarded.
4. Press Black Start.
5. After faxes are transferred, disconnect the
MFC from the power source for several
minutes and then reconnect it.
You can transfer the Fax Journal report to
another fax machine by pressing Menu/Set, 9,
0, 2 in Step 1.
Transfer faxes to your PC (MFC-420CN only)
You can move the faxes from your MFC’s
memory to your PC.
1. Press Menu/Set, 2, 5, 1.
2. Using
▲
or
▼
, select PC Fax Receive, and
then press Menu/Set.
The LCD will ask if you want to transfer a fax
to your PC.
3. To transfer all faxes to your PC, press 1.
—OR—
To keep all faxes in the MFC’s memory,
press 2.
4. After faxes are transferred, disconnect the
MFC from the power source for several
minutes and then reconnect it.
(For details see Using Brother PC-FAX
software on page 5-1 in Software User’s Guide
on the CD-ROM.)
ERROR MESSAGES
ERROR
MESSAGE
CAUSE ACTION
11 - 5 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Document jams (MFC-420CN only)
If the document is jammed, follow the steps below.
Document is jammed in the top of the ADF unit.
1
Take out any paper from the ADF that is not jammed.
2
Open the ADF cover.
3
Pull the jammed document out to the right or left.
4
Close the ADF cover.
Press Stop/Exit.
Document is jammed inside the ADF unit.
1
Take out any paper from the ADF that is not jammed.
2
Lift the document cover.
3
Pull the jammed document out to the left.
4
Close the document cover.
Press Stop/Exit.
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 6
Printer jam or paper jam
Remove the jammed paper depending on where it is jammed in the MFC.
Paper is jammed inside the paper tray
1
Pull the paper tray out of the MFC.
2
Pull out the jammed paper to remove it.
Paper Tray
Jammed paper
11 - 7 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Paper is jammed inside the MFC
1
Remove the jam clear cover. Pull the jammed paper out of the
MFC.
2
Re-insert the jam clear cover.
3
If you can not pull out the jammed paper, lift the scanner cover
from the right-hand side of the MFC until it locks securely into
the open position.
4
Remove the jammed paper.
If the paper is jammed underneath the print head, disconnect
the MFC from the power source so you can move the print head
to take out the paper.
Jam Clear Cover
Scanner Cover
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 8
5
Lift the scanner cover to release the lock. Gently push the
scanner cover support down and close the scanner cover.
11 - 9 TROUBLESHOOTING AND ROUTINE MAINTENANCE
If you are having difficulty with your MFC
If you think there is a problem with your MFC, check the chart below
and follow the troubleshooting tips.
The Brother Solutions Center offers the latest FAQs and
troubleshooting tips.
Visit us at http://solutions.brother.com
.
DIFFICULTY SUGGESTIONS
Printing
No printout Check the interface cable connection on both the MFC and your
computer.
Check the MFC is plugged in and On/Off key turned On.
One or more ink cartridges are empty. (See Replacing the ink cartridges
on page 11-24.)
Check to see if the LCD is showing an error message. (See Error
messages
on page 11-1.)
Poor quality print. Check the print quality. (See Checking the print quality on page 11-15.)
Make sure the Printer Driver or Paper Type setting in the menu matches
the type of paper you are using. (See
Media Type
on page 1-8 in
Software User’s Guide on the CD-ROM and Setting the Paper Type on
page 2-3.)
Make sure your ink cartridges are fresh. Cartridges remain fresh for up
to two years if kept in their original packaging, after that the ink may
become clogged. Cartridge expiration dates are printed on the package.
Try using the recommended types of paper. (See
About paper
on page
1-9.)
The recommended environment for your MFC is between 68°F to 91°F.
White horizontal lines appear
in text or graphics.
Clean the print head. (See Cleaning the print head on page 11-14.)
Try using the recommended types of paper. (See About paper on page
1-9.)
If horizontal bands appear when using plain paper, use the 'Enhanced
Normal Printing' mode to help avoid banding on some types of plain
paper. In the printer driver 'Basic' tab, click 'Settings', and check
'Enhanced Normal Printing'.
If you continue to have horizontal bands, change the Media Type
selection to 'Slow Drying Paper' in the printer driver 'Basic' tab to help
enhance the print quality.
The MFC prints blank pages. Clean the print head. (See Cleaning the print head on page 11-14.)
Characters and lines are
stacked.
Check the printing alignment. (See Checking the printing alignment on
page 11-17.)
Printed text or images are
skewed.
Make sure the paper is loaded properly in the paper tray and the paper
side guide is adjusted correctly. (See How to load paper, envelopes and
post cards on page 1-14.)
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 10
Printing (Continued)
Smudged stain at the top
center of the printed page.
Make sure the paper is not too thick or not curled. (See About paper on
page 1-9.)
Printing appears dirty or ink
seems to run.
Make sure you are using the proper types of paper. (See About paper
on page 1-9.) Don’t handle the paper until the ink is dry.
Stains appear on the reverse
side or at the bottom of the
page.
Make sure the Printer Platen is not dirty with ink. (See Cleaning the MFC
printer platen on page 11-23.)
Make sure you are using the paper support flap. (See How to load
paper, envelopes and post cards on page 1-14.)
There are some dense lines. Check ‘Reverse Order’ in the Basic tab of the printer driver.
The printouts are wrinkled. In the printer driver ‘Basic’ tab, click the ‘Settings’, and uncheck the
‘Bi-Directional Printing’.
Cannot perform ‘2 in 1 or 4 in 1’
printing.
Check that the paper size setting in the application and in the printer
driver are the same.
Print speed is too slow. Changing the printer driver setting may improve the print speed.
Highest resolution needs longer data processing, transfer and printing
time. Try the other settings of quality in the printer driver ‘Basic’ tab.
Also, click the ‘Settings’ tab, and make sure you uncheck the
True2Life
®
.
Borderless printing is slower than normal printing. If you want to print
more quickly, set the Borderless feature off. (See
Borderless
on page
9-12.)
True2Life
®
is not working
properly.
If the image data is not full color in your application (Such as 256 color),
True2Life
®
will not work. Please use at least 24 bit color data with the
True2Life
®
feature.
MFC feeds multiple pages Make sure the paper is loaded properly in the paper tray. (See How to
load paper, envelopes and post cards on page 1-14.)
Check that more than two types of paper are not loaded in the paper tray
at any one time.
Printed pages are not stacked
neatly.
Make sure you are using the paper support flap. (See How to load
paper, envelopes and post cards
on page 1-14.)
Machine does not print from
Paint Brush.
Try setting the Display setting to ‘256 colors.’
Machine does not print from
Adobe Illustrator.
Try to reduce the print resolution.
Printing Received Faxes
Condensed print and white
streaks across the page or the
top and bottom of sentences
are cut off.
This can be caused by static or interference on the telephone line. You
can make a copy using the Black Start key to see if the same problem
occurs. If the copy looks good then the problem is probably the phone
line and not your machine.
Vertical black lines when
receiving.
The sender’s scanner may be dirty. Ask the sender to make a copy to
see if the problem is with the sending machine. Try receiving from
another fax machine.
DIFFICULTY SUGGESTIONS
11 - 11 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Printing Received Faxes (Continued)
Received color fax prints only
in black and white.
Replace the color ink cartridges that are empty or nearly empty, and
then ask the other person to send the color fax again. (See Replacing
the ink cartridges on page 11-24.) For MFC-420CN, check that Fax
Storage is not turned on. (See
Setting Fax Storage
on page 6-3.)
Left and Right margins are cut
off or a single page is printed
on two pages.
Turn on Auto Reduction. (See
Printing a reduced incoming fax (Auto
Reduction) on page 4-5.)
Phone Line or Connections
Dialing does not work.
(No dial tone)
Check the MFC is plugged in.
Check for a dial tone. If possible, call your MFC to hear it answer. If there
is still no answer, check the telephone line cord connection and make
sure all telephone connections are secured. If there is no ringing when
you call your MFC, ask your telephone company to check the line.
Change Tone/Pulse setting. (See Setting Tone and Pulse dialing mode
on page 2-1.)
Receiving Faxes
Cannot receive a fax Make sure the MFC is in the correct receiving mode for your setup.
(See
Basic receiving operations
on page 4-1.)
If you frequently encounter interference on the phone line, try changing
the menu setting of Compatibility to Basic. (See
Compatibility
on page
11-13.)
Sending Faxes
Cannot send a fax Make sure that the Fax key is illuminated. (See How to enter Fax
mode on page 3-1.)
Ask the other party to check that the receiving machine has paper.
Print the Transmission Verification Report and check for an error.
(See Printing reports on page 7-3.)
Transmission Verification
Report says ‘Result:NG’ or
‘Result:ERROR’.
There is probably temporary noise or static on the line. Try sending the
fax again. If you send a PC FAX message and get ‘Result:NG’ on the
Transmission Verification Report, your MFC may be out of memory.
(MFC-420CN only)
To gain extra memory, you can turn off Fax Storage (see
Setting Fax
Storage on page 6-3), print fax messages in memory (see Printing a fax
from the memory (MFC-420CN only) on page 4-5) or cancel a Delayed
Fax or Polling Job (See Canceling a scheduled job on page 3-10). If the
problem continues, ask the telephone company to check your phone
line.
If you frequently get transmission error with possible interference on the
phone line, try to change the menu setting of Compatibility to Basic.
(See
Compatibility
on page 11-13.)
Poor sending quality. Try changing your resolution to Fine or S.Fine. Make a copy to check
your MFC’s scanner operation.
Vertical black lines when
sending.
If the copy you made shows the same problem, your scanner is dirty.
(See Cleaning the scanner on page 11-22.)
DIFFICULTY SUGGESTIONS
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 12
Handling Incoming Calls
MFC ‘Hears’ Voice as CNG
Tone.
If your MFC is set to Easy Receive On, it is more sensitive to sounds.
Your MFC may mistakenly interpret certain voices or music on the line
as a calling fax machine and respond with fax receiving tones.
Deactivate the fax by pressing Stop/Exit. Try avoiding this problem by
turning Easy Receive to Off. (See Easy Receive on page 4-4.)
Transferring a Fax Call to the
MFC.
If you answered at the MFC, press Black Start and hang up
immediately. If you answered on an extension phone, press your Fax
Receive Code (default setting is ( 51). When your MFC answers,
hang up.
Custom features on a single
line.
If you have Call Waiting, Call Waiting/Caller ID, Ring Master, Voice Mail,
an alarm system or any other custom feature on a single phone line with
your MFC, it may create a problem sending or receiving faxes.
For example: If you are sending or receiving a fax message while a
custom feature signal comes through on the line, the signal can
temporarily interrupt or disrupt the faxes. Brother’s ECM feature should
help overcome this problem. This condition is related to the telephone
system industry and is common to all devices that send and receive data
on a single, shared line with custom features. If avoiding a slight
interruption is crucial to your business, we recommend a separate
phone line with no custom features.
Copying Difficulties
Cannot make a copy Make sure that the Copy key is illuminated. (See Enter Copy mode
on page 8-1.)
Vertical streaks appear in
copies
Sometimes you may see vertical streaks on copies. Clean the scanner.
(See Cleaning the scanner on page 11-22.)
Poor copy results Try using the scanner glass. (See
Using the scanner glass
on page 1-8.)
Scanning Difficulties
TWAIN/WIA errors appear
while scanning.
Make sure the Brother TWAIN/WIA driver is selected as the primary
source. In PaperPort
®
, click Scan in the File menu and select the
Brother TWAIN/WIA driver.
Poor scanning results
(MFC-420CN only)
Try using the scanner glass. (See
Using the scanner glass
on page 1-8.)
Software Difficulties
Cannot install software or print Run the Repair MFL-Pro Suite program on the CD-ROM. This program
will repair and reinstall the software.
‘Device Busy’ Make sure the MFC is not showing an error message on the LCD.
‘Connect Failure’ If the MFC is not connected to your PC and you have loaded the Brother
software, the PC will show 'MFC Connect Failure' each time you restart
Windows
®
. You can ignore this message or you can turn it off as follows.
Double-click "\tool\warnOff.REG" from the supplied CD-ROM.
The Scan key on the MFC's control panel will not work unless you restart
your PC with the MFC connected.
To turn it back on, double-click "\tool\WarnOn.REG" from the supplied
CD-ROM.
DIFFICULTY SUGGESTIONS
11 - 13 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Compatibility
If you are having difficulty sending or receiving a fax due to possible
interference on the phone line, we recommend that you adjust the
Equalization for compatibility. The MFC adjusts the modem speed
for fax operations.
1
Press
Menu/Set
,
2
,
0
,
1
.
2
Press
▲
or
▼
to select
Basic
(or
Normal
).
Press
Menu/Set
.
3
Press
Stop/Exit
.
PhotoCapture Center
™
Difficulties
Removable Disk does not
work properly.
a)Have you installed the Windows
®
2000 update?
If not, do the following:
1. Disconnect the USB cable.
2. Install the Windows
®
2000
update. Please see the Quick Setup
Guide. After the installation the PC will be automatically restarted.
3. Wait about 1 minute after you reboot the PC, and then connect the
USB cable.
b)Take out the media card and put it back in again.
c) If you have tried "Eject" from within Windows
®
, you must take out the
media card before you continue.
d)If an error message appears when you try to eject the media card, it
means the card is being accessed.
Wait a while and then try again.
e)If all of the above do not work, please turn off your PC and MFC, and
then turn them on again.
(You will have to unplug the power cord of the MFC to turn it off.)
Cannot access Removable
Disk from Desktop icon.
(MFC-420CN only)
Make sure you have inserted the media card into the media slot.
Network Difficulties (MFC-420CN only)
I cannot print over the Network Make sure that your MFC is powered on and is On Line and in Ready
mode. Print Network Configuration list. (See
Printing reports
on page
7-1.) Then the current settings of the network are printed. Reconnect the
LAN cable to the hub to verify that the cabling and network connections
are good. If possible, try connecting the MFC to a different port on your
hub using a different cable. If the connections are good, the machine
shows LAN Active for 2 seconds.
■ Basic
reduces the modem speed to 9600 bps. Unless
interference is a chronic problem on your phone line, you
may prefer to use it only when needed.
■ Normal
sets the modem speed at 14400 bps. (Default)
DIFFICULTY SUGGESTIONS
Miscellaneous
1.Compatibility
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 14
How to improve print quality
Cleaning the print head
To ensure good print quality, the MFC will regularly clean the print
head. You can start the cleaning process manually if needed.
Clean the print head and ink cartridges if you get a horizontal line in
the text or graphics on your printed pages. You can clean Black only
or three colors at a time (Cyan/Yellow/Magenta), or all four colors at
once.
Cleaning the print head consumes ink. Cleaning too often uses ink
unnecessarily.
Caution
Do NOT touch the print head. Touching the print head may cause
permanent damage and may void the print head’s warranty.
1
Press
Ink
.
2
Press
▲
or
▼
to select
Cleaning
.
Press
Menu/Set
.
3
Press
▲
or
▼
to select
Black
,
Color
or
All
.
Press
Menu/Set
.
The MFC will clean the print head. When cleaning is finished,
the MFC will go back to standby mode automatically.
If you clean the print head at least five times and the print has
not improved, call Brother Customer Service (see Brother
numbers
on page i).
11 - 15 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Checking the print quality
If faded or streaked colors and text appears on your output, some of
the nozzles may be clogged. You can check this by printing the Print
Quality Check Sheet and looking at the nozzle check pattern.
1
Press
Ink
.
2
Press
▲
or
▼
to select
Test Print
.
Press
Menu/Set
.
3
Press
▲
or
▼
to select
Print Quality
.
Press
Menu/Set
.
4
Press
Color Start
.
The MFC begins printing the Print Quality Check Sheet.
5
Check the sheet to see if the quality is OK by following these
steps:
Color block quality check
The LCD shows:
6
Check the quality of the four color
blocks on the sheet.
7
If all lines are clear and visible, press
1
(
Yes
), and go to Step 10.
—OR—
If you can see missing short lines as shown below, press
2
(
No
).
The LCD will ask you if the print
quality is OK for black and three
colors.
OK Poor
Is Quality OK?
1.Yes 2.No
Black OK?
1.Yes 2.No
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 16
8
Press
2
(
No
) for Black or three colors
with a problem.
The LCD shows:
Press
1
(
Yes
). The MFC will start
cleaning the print head.
9
After cleaning is finished, press
Color Start
. The MFC will start
printing the Print Quality Check Sheet again and then return to
step 5.
10
Press
Stop/Exit
.
If you still see missing ink in this Print Quality Check Sheet, repeat
the cleaning and test print procedures at least five times. If ink is still
missing after the fifth cleaning and test print, replace the ink cartridge
for the clogged color. (Perhaps the ink cartridge was in your MFC
over six months or the expiration date written on the cartridge
package has passed. Or, the ink may not have been stored properly
before use.)
After replacing the ink cartridge, check it by printing another Print
Quality Check Sheet. If the problem still exists, repeat the cleaning
and test print procedures at least five times for the new ink cartridge.
If ink is still missing, call Brother Customer Service (see Brother
numbers
on page i).
Caution
Do NOT touch the print head. Touching the print head may cause
permanent damage and may void the print head’s warranty.
When an print head nozzle
is clogged the printed
sample looks like this.
After the print head nozzle is
cleaned, the horizontal lines
are gone.
Start Cleaning?
1.Yes 2.No
11 - 17 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Checking the printing alignment
You should rarely need to adjust the printing alignment however, if
after transporting the machine your printed text becomes blurred or
images become faded then adjustment may need to be made.
1
Press
Ink
.
2
Press
▲
or
▼
to select
Test Print
.
Press
Menu/Set
.
3
Press
▲
or
▼
to select
Alignment
.
Press
Menu/Set
.
4
Press
Black Start
or
Color Start
.
The MFC begins printing the Alignment Check Sheet.
The LCD shows:
5
Check the 600 dpi and 1200 dpi test prints to see if number 5
most closely matches number 0. If the number 5 sample of both
the 600 dpi and 1200 dpi are the best matches, press
1
(
Yes
) to
finish Alignment Check, and go to Step 8.
—OR—
If another test print number is a better match for either 600 dpi
or 1200 dpi, press
2
(
No
) to select it.
6
For 600 dpi, press the number of the
test print that most closely matches
the number 0 sample (1-8).
7
For 1200 dpi, press the number of
the test print that most closely
matches the number 0 sample (1-8).
8
Press
Stop/Exit
.
Is Alignment OK?
1.Yes 2.No
600dpi Adjust
Select Best # 5
1200dpi Adjust
Select Best # 5
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 18
Checking the ink volume
You can check the ink that is left in the cartridge.
1
Press Ink.
2
Press ▲ or ▼ to select Ink Volume.
Press
Menu/Set.
3
Press ▲ or ▼ to select the color you
want to check.
The LCD shows the ink volume.
4
Press Stop/Exit.
You can check the ink volume from your computer. (See MFC
Remote Setup (not available for DCP-110C and MFC-210C) on
page 4-1 in Software User’s Guide on the CD-ROM or MFC
Remote Setup (Mac OS
®
X 10.2.4 or greater) (not available for
DCP-110C and MFC-210C) on page 8-45 in Software User’s
Guide on the CD-ROM.)
Ink Volume
Bk:- +
11 - 19 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Packing and shipping the MFC
Whenever you transport the MFC, use the packing materials that
came with your MFC. If you do not pack the MFC properly, you could
void your warranty.
Caution
It is important to allow the MFC to ‘park’ the print head after a print
job. Listen carefully to the MFC before disconnecting it from the
power source to ensure that all mechanical noise has stopped. Not
allowing the MFC to complete this parking process may lead to print
problems and possible damage to the print head.
1
Lift the scanner cover from the right-hand side of the MFC until
it locks securely into the open position.
2
Remove all the ink cartridges and attach the protective parts.
(See
Replacing the ink cartridges
on page 11-24.)
Caution
If you are not able to find the protective parts, do NOT remove the ink
cartridges before shipping. It is essential that the MFC be shipped
with either the protective parts or the ink cartridges in position.
Shipping without them will cause damage to your MFC and may void
your warranty.
When attaching the protective parts,
make sure it clips into place as shown in the diagram.
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 20
3
Lift the scanner cover to release the lock. Gently push the
scanner cover support down and close the scanner cover.
4
Unplug the MFC from the telephone wall jack and remove the
telephone line cord from MFC.
5
Unplug the MFC from the AC power outlet.
6
Unplug the USB cable or LAN cable from the MFC, if it is
connected.
7
Wrap the MFC in the bag and place it in the original carton with
the original packing material.
11 - 21 TROUBLESHOOTING AND ROUTINE MAINTENANCE
8
Pack the printed materials in the original carton as shown below.
Do not pack the used ink cartridges in the carton.
9
Close the carton.
If you are returning your machine to Brother as part of the
Exchange Service, pack only the MFC. Keep all separate parts
and printed materials to use with your “Exchange” machine.
(For USA)(For Canada)
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 22
Routine maintenance
Cleaning the scanner
Unplug the MFC and lift the document cover. Clean the scanner
glass with isopropyl alcohol on a soft lint-free cloth.
Clean the white bar and the glass strip under the film with isopropyl
alcohol on a lint-free cloth.
Document
Cover
White Bar
Glass Strip
11 - 23 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Cleaning the MFC printer platen
■
Be careful not to touch the paper feed star wheels or encoder
film.
■
Be sure to unplug the MFC from the AC power outlet before
cleaning the printer platen.
■
If ink is scattered on or around the printer platen be sure to wipe
it off with a soft, dry, lint-free cloth.
Paper Feed Star Wheel
Do NOT Touch!
Encoder Film
Do NOT Touch!
Printer Platen
Clean Here
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 24
Replacing the ink cartridges
Your MFC is equipped with an ink dot counter. The ink dot counter
automatically monitors the level of ink in each of the 4 cartridges.
When the MFC detects an ink cartridge is running out of ink, the MFC
will notify you with a message on the LCD.
The LCD will inform you which ink cartridge is low or needs replacing.
Be sure to follow the LCD prompts to replace the ink cartridges in the
correct order.
Even though the MFC informs you that an ink cartridge is empty,
there will be a small amount of ink remaining in the ink cartridge. It is
necessary to keep some ink in the ink cartridge to prevent air from
drying out and damaging the print head assembly.
1
Lift the scanner cover from the right-hand side of the MFC until
it locks securely into the open position.
If one or more ink cartridges are empty, for example Black, the
LCD shows
Ink Empty Black
and
Cover is Open
.
2
Pull the ink cartridge hook toward you and remove the ink
cartridge for the color shown on the LCD.
3
Open the new ink cartridge bag for the color shown on the LCD,
and then take out the ink cartridge.
Ink Cartridge Hook
11 - 25 TROUBLESHOOTING AND ROUTINE MAINTENANCE
4
Remove the cartridge covers.
5
Each color has its own correct position. Keep the ink cartridge
in an upright position when you insert it into slot. Press down on
the ink cartridge until the hook snaps over it.
6
Lift the scanner cover to release the lock. Gently push the
scanner cover support down and close the scanner cover.
Do not touch the area shown in the illustration above.
If the cartridge cover comes off when you open the bag the
cartridge will not be damaged.
Cartridge Cover
DO NOT TOUCH
New Ink Cartridge
Ink Cartridge Hook
TROUBLESHOOTING AND ROUTINE MAINTENANCE 11 - 26
7
If you replaced an ink cartridge while
Near Empty
was
displayed on the LCD, the LCD may ask you to verify that it was
a brand new one. Example:
Did You Change Blck? 1.Yes
2.No
. For each
new
cartridge you installed, press
1
on the dial
pad to automatically reset the ink dot counter for that color. If the
ink cartridge you installed is not a brand new one, please be
sure to select
2
.
WARNI NG
If ink gets in your eyes, irrigate them with water immediately and call
a doctor if you are concerned.
If you wait until
Ink Empty
message is displayed on the LCD,
the MFC will automatically reset the ink dot counter.
If the
Install
message is on the display after you have
installed ink cartridges, check that the ink cartridges are
installed properly.
11 - 27 TROUBLESHOOTING AND ROUTINE MAINTENANCE
Caution
■
Do not remove ink cartridges if you do not need to replace them.
If you do so, it may reduce the ink quantity and the MFC will not
know the quantity of ink left in the cartridge.
■
Do not touch the cartridge insertion slots. If you do so, the ink
may stain your skin.
■
If ink stains your skin or clothing, wash with soap or detergent
immediately.
■
If you install an ink cartridge in the wrong color position, you must
clean the print head several times before you start printing (after
correcting the cartridge installation) because the colors were
mixed.
■
Once you open an ink cartridge, install it in the MFC and use it up
within six months of installation. Use unopened ink cartridges by
the expiration date written on the cartridge package.
■
Do not dismantle or tamper with the ink cartridge, this can cause
the ink to leak out of the cartridge.
■
Brother strongly recommends that you do not refill the ink
cartridges provided with your machine. We also strongly
recommend that you continue to use only Genuine Brother Brand
replacement ink cartridges. Using or attempting to use potentially
incompatible inks and/or cartridges in your machine may cause
damage to the machine itself and/or it may result in unsatisfactory
print quality. Our warranty coverage does not apply to any
problem that was caused by the use of unauthorized third party
ink and/or cartridges. To protect your investment and guarantee
your print quality please continue to replace consumed ink
cartridges with only Genuine Brother Branded Supplies.
APPENDIX A A - 1
A
Setting up telephone services
Your MFC supports the Distinctive Ring and Caller ID subscriber
telephone services that some telephone companies offer.
Distinctive Ring
Brother uses the term ‘Distinctive Ring’ but different telephone
companies have other names for this service such as SmartRing,
RingMaster, Teen-Ring, Indent-a-Call or Indent-a-Ring.
What does your telephone company’s ‘Distinctive Ring’ do?
Your telephone company’s Distinctive Ring service allows you to
have more than one number on the same phone line. If you need
more than one phone number, it is cheaper than paying for an
extra line. Each phone number has its own distinctive ring pattern,
so you will know which phone number is ringing. This is one way you
can have a separate phone number for your MFC.
Appendix A
If you have Voice Mail, Call Waiting, Call Waiting/Caller ID,
RingMaster, an answering service, an alarm system or other
custom features on your telephone line, it may affect the way
your MFC works. (See Custom features on page 1-18 and
Custom features on a single line. on page 11-12.)
If you have Voice Mail on your phone line, please read the
following carefully.
Please call your telephone company for availability and rates.
A - 2 APPENDIX A
What does Brother’s ‘Distinctive Ring’ do?
The Brother MFC has a Distinctive Ring feature that allows you to
use your MFC to take full advantage of the telephone company’s
Distinctive Ring service. The new phone number on your line can just
receive faxes.
Do you have Voice Mail?
If you have Voice Mail on the phone line that you will install your new
MFC on, there is a strong possibility that Voice Mail and the MFC will
conflict with each other while receiving incoming calls. However, the
Distinctive Ring feature allows you to use more than one
number on your line, so both Voice Mail and the MFC can work
together without any problems. If each one has a separate phone
number, neither will interfere with the other’s operations.
If you decide to get the Distinctive Ring service from the telephone
company, you will need to follow the directions below to ‘register’ the
new Distinctive Ring pattern they give you. This is so your MFC can
recognize its incoming calls.
You must pay for your telephone company’s Distinctive Ring
service before you program the MFC to work with it.
You can change or cancel the Distinctive Ring pattern at any
time. You can switch it off temporarily, and turn it back on later.
When you get a new fax number, make sure you reset this
feature.
APPENDIX A A - 3
Before you choose the ring pattern to register
You can only register one Distinctive Ring pattern with the MFC.
Some ring patterns cannot be registered. The ring patterns below are
supported by your Brother MFC. Register the one your telephone
company gives you.
■
The MFC will only answer calls to its registered number.
■
The first two rings are silent on the MFC. This is because the fax
must «listen» to the ring pattern (to compare it to the pattern that
was ‘registered’). (Other telephones on the same line will ring.)
■
If you program the MFC properly, it will recognize the registered
ring pattern of the ‘fax number’ within 2 ring patterns and then
answer with a fax tone. When the ‘voice number’ is called, the
MFC will not answer.
Ring
Pattern
Rings
1 long-long
2 short-long-short
3 short-short-long
4 very long (normal pattern)
If the ring pattern you received is not on this chart, please call
your telephone company and ask for one that is shown.
A - 4 APPENDIX A
Registering the Distinctive Ring pattern
Very important!
After you have set the Distinctive Ring feature to ON, the receive
mode is set to
Manual
automatically. Unless you have a TAD or
Voice Mail set up on the Distinctive Ring number,
Manual
mode
means you must answer all the calls yourself. You can not change
the receive mode to another mode while the Distinctive Ring is set to
on.
1
Press
Menu/Set
,
2
,
0
,
2
.
2
Press
▲
or
▼
to select
Set
.
Press
Menu/Set
.
3
Press
▲
or
▼
to select the stored ring pattern you want to use.
Press
Menu/Set
.
(You will hear each pattern as you scroll through the four
patterns. Make sure you choose the pattern that the telephone
company gave you.)
4
Press
Stop/Exit
. Distinctive Ring is now set to on.
Turning off the Distinctive Ring
1
Press
Menu/Set
,
2
,
0
,
2
.
2
Press
▲
or
▼
to select
Off
.
Press
Menu/Set
.
3
Press
Stop/Exit
.
If you turn off Distinctive Ring, the MFC will stay in
Manual
receive mode. You will need to set the Receive Mode again.
(See
To select or change your Receive Mode
on page 4-2.)
Miscellaneous
2.Distinctive
Miscellaneous
2.Distinctive
APPENDIX A A - 5
Caller ID
After a few rings, the LCD shows the telephone number of your caller
(and name, if available). Once you pick up the handset, the Caller ID
information disappears from the LCD, but the call information
remains stored in the Caller ID memory.
■
You will see the first 16 characters of the number (or name).
■ Out of Area
display means call originated outside your Caller
ID service area.
■ Private Call
display means the caller has intentionally
blocked transmission of information.
You can print a list of Caller ID information received by your MFC.
(See Printing Caller ID List on page A-6.)
Caller ID service varies with different carriers. Call your local
telephone company to determine the kind of service available in your
area.
The Caller ID feature lets you use the Caller ID subscriber
service offered by many local telephone companies. This
service displays the telephone number, or name if it is available,
of your caller as the line rings.
A - 6 APPENDIX A
Viewing Caller ID List
Caller ID memory stores information for up to thirty calls. When the
thirty-first call comes in, information about the first call is erased. You
can scroll through Caller ID information to review those calls made to
your MFC.
1
Press
Menu/Set
,
2
,
0
,
3
.
2
Press
▲
or
▼
to select
Display#
.
Press
Menu/Set
.
If the name was not received, it will not be displayed.
3
Press
▲
or
▼
to scroll through the Caller ID memory to select the
Caller ID you want to view, and then press
Menu/Set
. The LCD
shows the caller’s name or number and the date and time of the
call.
4
Press to return to the Caller ID listing.
—OR—
Press
Stop/Exit
.
Printing Caller ID List
1
Press
Menu/Set
,
2
,
0
,
3
.
2
Press
▲
or
▼
to select
Print Report
.
Press
Menu/Set
.
3
Press
Black Start
or
Color Start
.
4
After printing has finished, press
Stop/Exit
.
Miscellaneous
3.Caller ID
▲
Miscellaneous
3.Caller ID
APPENDIX A A - 7
Advanced receiving operations
Operation from extension telephones
If you answer a fax call on an extension telephone, or an external
telephone in the EXT. jack of the MFC, you can make your MFC take
the call by using the Fax Receive Code. When you press the Fax
Receive Code
51
, the MFC starts to receive a fax. (See
Easy
Receive
on page 4-4.)
If the MFC answers a voice call and pseudo/double-rings for you to
take over, use the Telephone Answer Code
#51
to take the call at an
extension phone. (See
Setting the F/T Ring Time (Fax/Tel mode
only) on page 4-3.)
If you answer a call and no one is on the line, you should assume that
you’re receiving a manual fax.
■
Press
51
and wait for the chirp or until the MFC’s LCD displays
Receiving
, and then hang up.
Your caller will have to press Start to send the fax.
Fax/Tel mode when power key is On
When the MFC is in Fax/Tel mode, it will use the F/T Ring Time
(pseudo/double-ringing) to alert you to pick up a voice call.
If you are at an extension phone, you’ll need to lift the handset during
the F/T Ring Time and then press
#51
between the pseudo/double
rings. If no one is on the line, or if someone wants to send you a fax,
send the call back to the MFC by pressing
51
.
Fax/Tel mode when power key is Off
Fax/Tel mode does not work when the power button is off. The MFC
will not answer telephone or fax calls and will keep ringing. If you are
at an external or extension phone, lift the handset of the extension
phone and talk. If you hear fax tones, hold the handset until Easy
Receive activates your MFC. If the other party says they want to
send you a fax, activate the MFC by pressing
51
.
A - 8 APPENDIX A
Using a cordless external handset
If your cordless telephone is connected to the EXT. jack on the MFC
and you typically carry the cordless handset elsewhere, it is easier to
answer calls during the Ring Delay. If you let the MFC answer first,
you will have to go to the MFC so you can press
Hook
to transfer the
call to the cordless handset.
Changing the remote codes
Remote Codes might not work with some telephone systems. The
preset Fax Receive Code is
51
. The preset Telephone Answer
Code is
#51
.
1
If it is not illuminated in green, press (
Fax
).
2
Press
Menu/Set
,
2
,
1
,
4
.
3
Press
▲
or
▼
to select
On
(or
Off
).
Press
Menu/Set
.
4
Enter the new Fax Receive Code.
Press
Menu/Set
.
5
Enter the new Telephone Answer Code.
Press
Menu/Set
.
6
Press
Stop/Exit
.
If you are always disconnected when accessing your external
TAD remotely, try changing the Fax Receive Code and
Telephone Answer Code to another three-digit code (such as
###
and
999
).
Setup Receive
4.Remote Code
APPENDIX A A - 9
Connecting an external device to your
MFC
Connecting an external telephone
You can connect a separate telephone (or telephone answering
device) directly to your MFC as shown in the diagram below.
Connect the telephone line cord to the jack labeled EXT. in the left of
the MFC.
When you are using a TAD, the LCD shows
Ext. Tel in Use
.
Extension
Telephone
External
Telephone
A - 10 APPENDIX A
Connecting an external telephone answering
device (TAD)
Sequence
You may choose to connect an additional answering device.
However, when you have an external TAD on the same telephone
line as the MFC, the TAD answers all calls and the MFC “listens” for
fax calling (CNG) tones. If it hears them, the MFC takes over the call
and receives the fax. If it does not hear CNG tones, the MFC lets the
TAD continue playing your outgoing message so your caller can
leave you a voice message.
The TAD must answer within four rings (the recommended setting is
two rings). The MFC cannot hear CNG tones until the TAD has
answered the call, and with four rings there are only 8 to 10 seconds
of CNG tones left for the fax “handshake”. Make sure you carefully
follow the instructions in this guide for recording your outgoing
message. We do not recommend using the toll saver feature on your
external answering machine if it exceeds five rings.
If you do not receive all your faxes, reduce the Ring Delay
setting on your external TAD.
If You Subscribe to your Telephone Company’s Distinctive Ring
Service:
You may connect an external TAD to a separate wall jack only
if you subscribe to your telephone company’s Distinctive Ring
service, have registered the distinctive ring pattern on your
MFC, and use that number as a fax number. The recommended
setting is at least four rings on the external TAD when you have
the telephone company’s Distinctive Ring Service. You cannot
use the Toll Saver setting.
APPENDIX A A - 11
When you are using a TAD, the LCD shows
Telephone
.
If You Do Not Subscribe to Distinctive Ring Service:
You must plug your TAD into the EXT. jack of your MFC. If your
TAD is plugged into a wall jack, both your MFC and the TAD will
try to control the phone line. (See illustration below.)
Unless you are using Distinctive Ring, do not connect a
TAD elsewhere on the same phone line.
TAD
TAD
A - 12 APPENDIX A
Connections
The external TAD must be plugged into the back of the MFC, into the
jack labeled EXT. Your MFC cannot work properly if you plug the
TAD into a wall jack (unless you are using Distinctive Ring).
1
Plug the telephone line cord from the telephone wall jack into the
back of the MFC, in the jack labeled LINE.
2
Plug the telephone line cord from your external TAD into the
back of the MFC, in the jack labeled EXT. (Make sure this cord
is connected to the TAD at the TAD’s telephone line jack, and
not its telephone jack.)
3
Set your external TAD to four rings or less. (The MFC’s Ring
Delay setting does not apply.)
4
Record the outgoing message on your external TAD.
5
Set the TAD to answer calls.
6
Set the Receive Mode to
External TAD
.
(See Choosing the Receive Mode on page 4-1.)
Recording outgoing message (OGM) on an external TAD
Timing is important in recording this message. The message sets up
the ways to handle both manual and automatic fax reception.
1
Record 5 seconds of silence at the beginning of your message.
(This allows your MFC time to listen for the fax CNG tones of
automatic transmissions before they stop.)
2
Limit your speaking to 20 seconds.
3
End your 20-second message by giving your Fax Receive Code
for people sending manual faxes. For example:
“After the beep, leave a message or send a fax by pressing
51 and Start.”
We recommend beginning your OGM with an initial 5-second
silence because the MFC cannot hear fax tones over a resonant
or loud voice. You may try omitting this pause, but if your MFC has
trouble receiving, then you must re-record the OGM to include it.
APPENDIX A A - 13
Special line considerations
Roll over phone lines
A roll over phone system is a group of two or more separate
telephone lines that pass incoming calls to each other if they are
busy. The calls are usually passed down or “rolled over” to the next
available phone line in a preset order.
Your MFC can work in a roll over system as long as it is the last
number in the sequence, so the call cannot roll away. Do not put the
MFC on any of the other numbers; when the other lines are busy and
a second fax call is received, the fax call would be transferred to a
line that does not have a fax machine. Your MFC will work best on
a dedicated line.
Two-line phone system
A two-line phone system is nothing more than two separate phone
numbers on the same wall outlet. The two phone numbers can be on
separate jacks (RJ11) or combined into one jack (RJ14). Your MFC
must be plugged into an RJ11 jack. RJ11 and RJ14 jacks may be
equal in size and appearance and both may contain four wires
(black, red, green, yellow). To test the type of jack, plug in a two-line
phone and see if it can access both lines. If it can, you must separate
the line for your MFC. (See
Easy Receive
on page 4-4.)
A - 14 APPENDIX A
Converting telephone wall outlets
There are three ways to convert to an RJ11 jack. The first two ways
may require assistance from the telephone company. You can
change the wall outlets from one RJ14 jack to two RJ11 jacks. Or,
you can have an RJ11 wall outlet installed and slave or jump one of
the phone numbers to it.
The third way is the easiest: Buy a triplex adapter. You can plug a
triplex adapter into an RJ14 outlet. It separates the wires into two
separate RJ11 jacks (Line 1, Line 2) and a third RJ14 jack (Lines 1
and 2). If your MFC is on Line 1, plug the MFC into L1 of the triplex
adapter. If your MFC is on Line 2, plug it into L2 of the triple adapter.
RJ14
RJ11
Triplex Adapter
RJ14
APPENDIX A A - 15
Installing MFC, external two-line TAD and two-line
telephone
When you are installing an external two-line telephone answering
device (TAD) and a two-line telephone, your MFC must be isolated
on one line at both the wall jack and at the TAD. The most common
connection is to put the MFC on Line 2, which is explained in the
following steps. The back of the two-line TAD must have two
telephone jacks: one labeled L1 or L1/L2, and the other labeled L2.
You will need at least three telephone line cords, the one that came
with your MFC and two for your external two-line TAD. You will need
a fourth line cord if you add a two-line telephone.
1
Place the two-line TAD and the two-line telephone next to your
MFC.
2
Plug one end of the telephone line cord for your MFC into the L2
jack of the triplex adapter. Plug the other end into the LINE jack
on the back of the MFC.
3
Plug one end of the first telephone line cord for your TAD into
the L1 jack of the triplex adapter. Plug the other end into the L1
or L1/L2 jack of the two-line TAD.
4
Plug one end of the second telephone line cord for your TAD
into the L2 jack of the two-line TAD. Plug the other end into the
EXT. jack on the left side of the MFC.
You can keep two-line telephones on other wall outlets as always.
There are two ways to add a two-line telephone to the MFC’s wall
outlet. You can plug the telephone line cord from the two-line
telephone into the L1+L2 jack of the triplex adapter. Or, you can plug
the two-line telephone into the TEL jack of the two-line TAD.
Triplex Adapter
Two Line Phone
External Two Line TAD MFC
A - 16 APPENDIX A
Multi-line connections (PBX)
Most offices use a central telephone system. While it is often
relatively simple to connect the MFC to a key system or a PBX
(Private Branch Exchange), we suggest that you contact the
company that installed your telephone system and ask them to
connect the MFC for you. It is advisable to have a separate line for
the MFC.
If the MFC is to be connected to a multi-line system, ask your installer
to connect the unit to the last line on the system. This prevents the
unit from being activated each time a telephone call is received.
If you are installing the MFC to work with a PBX
1
It is not guaranteed that the unit will operate properly under all
circumstances with a PBX. Any cases of difficulty should be
reported first to the company that handles your PBX.
2
If all incoming calls will be answered by a switchboard operator,
it is recommended that the Receive Mode be set to
Manual
. All
incoming calls should initially be regarded as telephone calls.
Custom features on your phone line
If you have Voice Mail, Call Waiting, Call Waiting/Caller ID,
RingMaster, an answering service, an alarm system or other custom
feature on one phone line it may create a problem with the operation
of your MFC. (See
Custom features
on page 1-18 and
Custom
features on a single line. on page 11-12.)
APPENDIX B B - 1
B
On-screen programming
Your MFC is designed to be easy to use with LCD on-screen
programming using the navigation keys. User-friendly programming
helps you take full advantage of all the menu selections your MFC
has to offer.
Since your programming is done on the LCD, we have created
step-by-step on-screen instructions to help you program your MFC.
All you need to do is follow the instructions as they guide you through
the menu selections and programming options.
Menu table
You can probably program your MFC without the User’s Guide if you
use the Menu table that begins on page B-3. These pages will help
you understand the menu selections and options that are found in the
MFC’s programs.
Memory storage
If there is a power failure, you will not lose your menu settings
because they are stored permanently. Temporary settings (such as
Contrast, Overseas Mode, and so on) will be lost. You may also have
to reset the date and time.
Appendix B
You can program your MFC by pressing
Menu/Set
, followed by
the menu numbers.
For example to set
Fax Resolution
to
Fine
:
Press
Menu/Set
,
2
,
2
,
2
and
▲
or
▼
to select
Fine
.
Press
Menu/Set
.
B - 2 APPENDIX B
Navigation keys
You can access the menu mode by pressing
Menu/Set
.
When you enter the menu, the LCD scrolls.
Press
1
for General Setup menu
—OR—
Press
2
for Fax menu
—OR—
Press
3
for Copy menu
Press
0
for Initial Setup
You can scroll more quickly through each menu level by pressing the
arrow for the direction you want:
▲
or
▼
.
Select an option by pressing
Menu/Set
when that option appears on
the LCD.
The LCD will then show the next menu level.
Press
▲
or
▼
to scroll to your next menu selection.
Press
Menu/Set
.
When you finish setting an option, the LCD shows
Accepted
.
Access the menu
Go to the next menu level
Accept an option
Scroll through the current
menu level
Go back to the previous menu
level
Exit the menu
Select
▲▼
& Set
1.General Setup
Select
▲▼
& Set
2.Fax
Select
▲▼
& Set
3.Copy
....
Select
▲▼
& Set
0.Initial Setup
APPENDIX B B - 3
Main Menu Submenu Menu
Selections
Options Descriptions Page
1.General
Setup
1.Mode Timer — 5 Mins
2 Mins
1 Min
30 Secs
0 Sec
Off
Sets the time to
return to Fax mode.
2-3
2.Paper Type — Plain
Inkjet
Glossy
Transparency
Sets the type of
paper in the paper
tray.
2-3
3.Paper Size — Letter
Legal
A4
A5
4"x6"
Sets the size of the
paper in the paper
tray.
2-4
4.Volume 1.Ring High
Med
Low
Off
Adjusts the ring
volume.
2-4
2.Beeper High
Med
Low
Off
Adjusts the volume
level of the beeper.
2-5
3.Speaker High
Med
Low
Off
Adjusts the speaker
volume.
2-5
5.Auto
Daylight
— On
Off
Changes for Daylight
Savings Time
automatically.
2-6
6.On/Off
Setting
— Fax
Receive:On
Fax
Receive:Off
Customizes the
On/Off key to receive
faxes even in OFF
mode.
1-4
7.LCD
Contrast
— Light
Dark
Adjust the contrast of
LCD.
2-6
The factory settings are shown in Bold.
to
exit
Select & Set Select & Set
to
accept
B - 4 APPENDIX B
2.Fax 1.Setup
Receive
(In Fax mode
only)
1.Ring Delay 04
03
02
01
00
Sets the number of
rings before the MFC
answers in Fax Only
or Fax/Tel mode.
4-2
2.F/T Ring
Time
70 Sec
40 Sec
30 Sec
20 Sec
Sets the
pseudo/double-ring
time in Fax/Tel
mode.
4-3
3.Easy
Receive
On
Off
Receives fax
messages without
pressing the Black
Start or Color Start
key.
4-4
4.Remote
Code
On
( 51, #51)
Off
You can answer all
calls at an extension
or external phone
and use codes to turn
the MFC on or off.
You can personalize
these codes.
A-8
5.Auto
Reduction
On
Off
Reduces the size of
incoming faxes.
4-5
6.Polling RX
(MFC-420CN
only)
— Sets up your MFC to
poll another fax
machine.
4-6
2.Setup Send
(In Fax mode
only)
1.Contrast Auto
Light
Dark
Changes the
lightness or darkness
of faxes you send.
3-6
2.Fax
Resolution
Standard
Fine
S.Fine
Sets the default
resolution for
outgoing faxes.
3-7
3.Delayed
Fax
(MFC-420CN
only)
— Set the time of day in
24 hour format that
the delayed faxes will
be sent.
3-13
4.Batch TX
(MFC-420CN
only)
On
Off
Combines delayed
faxes to the same fax
number at the same
time of day into one
transmission.
3-14
Main Menu Submenu Menu
Selections
Options Descriptions Page
The factory settings are shown in Bold.
APPENDIX B B - 5
2.Fax
(Continued)
2.Setup Send
(In Fax mode
only)
(Continued)
3.Real Time
TX
(MFC-210C
only)
5.Real Time
TX
(MFC-420CN
only)
Off
On
Next Fax Only
You can send a fax
without using the
memory.
3-9
6.Polled TX
(MFC-420CN
only)
On
Off
Sets up your MFC
with an document to
be retrieved by
another fax machine.
3-13
4.Overseas
Mode
(MFC-210C
only)
7.Overseas
Mode
(MFC-420CN
only)
On
Off
If you are having
difficulty sending
faxes overseas, set
this to On.
3-12
0.Scan Size Letter
A4
Adjust the scan area
of the scanner glass
to the size of the
document.
3-14
3.Set
Quick-Dial
1.Speed-Dial — Stores Speed-Dial
numbers, so you can
dial by pressing only
a few keys (and
Start).
5-1
2.Setup
Groups
— Sets up a Group
number for
Broadcasting.
5-3
4.Report
Setting
1.
Transmission
On
On+Image
Off
Off+Image
Initial setup for
Transmission
Verification Report
and Fax Journal
Report.
7-1
2.Journal
Period
Every 7 Days
Every 2 Days
Every 24 Hours
Every 12 Hours
Every 6 Hours
Every 50 Faxes
Off
7-2
Main Menu Submenu Menu
Selections
Options Descriptions Page
The factory settings are shown in Bold.
B - 6 APPENDIX B
2.Fax
(Continued)
5.Remote Fax
Opt
(MFC-420CN
only)
1.Fwd/Page/
Store
Off
Fax Forward
Paging
Fax Storage
PC Fax Receive
Sets the MFC to
forward fax
messages, to call
your pager, to store
incoming faxes in the
memory (so you can
retrieve them while
you are away from
your MFC), or to send
faxes to your PC.
6-1
6-2
2.Remote
Access
--- You must set your
own code for Remote
Retrieval.
6-4
3.Print Fax
(Backup Print)
— Prints incoming faxes
stored in the
memory.
4-5
6-3
5.Remaining
Jobs
(MFC-210C
only)
6.Remaining
Jobs
(MFC-420CN
only)
— — Checks which jobs
are in the memory
and lets you cancel
selected jobs.
3-10
0.
Miscellaneous
1.
Compatibility
Normal
Basic
Adjust the
equalization for
transmission
problems.
11-13
2.
Distinctive
Off
Set (On)
Uses the Telephone
Company’s
Distinctive Ring
subscriber service to
register the ring
pattern with the MFC.
A-1
3.Caller ID Display#
Print Report
View or print a list of
the last 30 Caller IDs
stored in the
memory.
A-5
3.Copy 1.Quality Best
Normal
Fast
Selects the Copy
resolution for your
type of document.
8-13
2.Brightness —- +
- +
- +
- +
- +
Adjusts the
brightness.
8-13
3.Contrast —- +
- +
- +
- +
- +
Adjusts the contrast
for copies.
8-13
Main Menu Submenu Menu
Selections
Options Descriptions Page
The factory settings are shown in Bold.
APPENDIX B B - 7
3.Copy
(Continued)
4.Color
Adjust
1.Red R:- +
R:- +
R:- +
R:- +
R:- +
Adjusts the amount
of Red in copies.
8-14
2.Green G:- +
G:- +
G:- +
G:- +
G:- +
Adjusts the amount
of Green in copies.
3.Blue B:- +
B:- +
B:- +
B:- +
B:- +
Adjusts the amount
of Blue in copies.
4.
PhotoCapture
1.Print
Quality
— Normal
Selects the print
quality.
9-9
2.Paper &
Size
—
Letter Glossy
4"x 6" Glossy
5"x 7" Glossy
A4 Glossy
Letter Plain
A4 Plain
Letter Inkjet
A4 Inkjet
4"x 6" Inkjet
Selects the paper
and print size.
9-9
3.Brightness —- +
- +
- +
- +
- +
Adjusts the
brightness.
9-10
4.Contrast —- +
- +
- +
- +
- +
Adjusts the contrast. 9-10
Main Menu Submenu Menu
Selections
Options Descriptions Page
The factory settings are shown in Bold.
B - 8 APPENDIX B
4.
PhotoCapture
(Continued)
5.True2Life
(MFC-420CN
only)
True2Life:On
True2Life:Off
1.White
Balance
- +
- +
- +
- +
- +
Adjusts the hue of the
white areas.
9-10
2.Sharpness
- +
- +
- +
- +
- +
Enhances the detail
of the image.
3.Color
Density
- +
- +
- +
- +
- +
Adjusts the total
amount of color in the
image.
5.Cropping
(MFC-210C
only)
6.Cropping
(MFC-420CN
only)
— On
Off
Crops the image
around the margin to
fit the paper size or
print size. Turn this
feature Off if you
want to print whole
images or prevent
unwanted cropping.
9-12
6.Borderless
(MFC-210C
only)
7.Borderless
(MFC-420CN
only)
— On
Off
Expands the
printable area to fit
the edges of the
paper
9-12
8.Scan to
Card
(MFC-420CN
only)
1.Quality
B/W 200x100 dpi
B/W 200 dpi
Color 150 dpi
Color 300 dpi
Color 600 dpi
Selects the Scan
resolution for your
type of document.
2-25*
1
2.B/W File
Type
TIFF
PDF
Selects the default
file format for black
and white scanning.
2-26*
1
3.ColorFile
Type
PDF
JPEG
Selects the default
file format for color
scanning.
2-27*
1
Main Menu Submenu Menu
Selections
Options Descriptions Page
The factory settings are shown in Bold.
*
1
See the complete Software User’s Guide on the CD-ROM.
APPENDIX B B - 9
5.LAN
(MFC-420CN
only)
1.Setup
TCP/IP
1.BOOT
Method
Auto
Static
RARP
BOOTP
DHCP
You can choose the
BOOT method that
best suits you needs.
See
Network
User’s
Guide
on the
CD-ROM
2.IP Address [000-255].
[000-255].
[000-255].
[000-255]
Enter the IP address.
3.Subnet
Mask
[000-255].
[000-255].
[000-255].
[000-255]
Enter the Subnet
mask.
4.Gateway [000-255].
[000-255].
[000-255].
[000-255]
Enter the Gateway
address.
5.Host Name BRN_XXXXXX Enter the Host name.
6.WINS
Config
Auto
Static
You can choose the
WINS configuration
mode.
7.WINS
Server
(Primary)
000.000.000.000
Specifies the IP
address of the
primary or secondary
server.
8.DNS Server
(Primary)
000.000.000.000
Specifies the IP
address of the
primary or secondary
server.
9.APIPA On
Off
Automatically
allocates the IP
address from the
link-local address
range.
2.Setup
Misc.
1.Ethernet Auto
100B-FD
100B-HD
10B-FD
10B-HD
Selects Ethernet link
mode.
2.Time Zone GMT-05:00 Sets the time zone
for your country.
0.Factory
Reset
— — Restore all network
settings to factory
default.
Main Menu Submenu Menu
Selections
Options Descriptions Page
The factory settings are shown in Bold.
B - 10 APPENDIX B
5.Print
Reports
(MFC-210C
only)
6.Print
Reports
(MFC-420CN
only)
1.Help List — — You can print these
lists and reports.
7-3
2.Quick-Dial ——
3.Fax
Journal
——
4.
Transmission
——
5.User
Settings
(MFC-420CN
only)
——
6.Network
Config
(MFC-420CN
only)
——
0.Initial
Setup
1.Receive
Mode
— Fax Only
Fax/Tel
External TAD
Manual
You can choose the
receive mode that
best suits your
needs.
4-1
4-2
2.Date/Time — — Puts the date and
time on the LCD and
in headings of faxes
you send.
2-1
3.Station ID — Fax:
Name:
Program your name
and fax number to
appear on each page
you fax.
2-2
4.Tone/Pulse — Tone
Pulse
Selects the dialing
mode.
2-1
0.Local
Language
(Canada only)
— English
French
Allows you to change
the LCD Language
for your country.
See
Quick
Setup
Guide
Main Menu Submenu Menu
Selections
Options Descriptions Page
The factory settings are shown in Bold.
APPENDIX B B - 11
Entering Text
When you are setting certain menu selections, such as the Station
ID, you may need to type text into the MFC. Most number keys have
three or four letters printed above them. The keys for
0
,
#
and do
not have printed letters because they are used for special
characters.
By pressing the appropriate number key repeatedly, you can access
the character you want.
Inserting spaces
To enter a space in the fax number, press once between
numbers. To enter a space in the name, press twice between
characters.
Making corrections
If you entered a letter incorrectly and want to change it, press to
move the cursor under the incorrect character. Then press
Stop/Exit
. All letters above and to the right of the cursor will be
deleted. Re-enter the correct character. You can also back up and
type over incorrect letters.
Repeating letters
If you need to enter a character that is on the same key as the
previous character, press to move the cursor to the right before
you press the key again.
Press Key one time two times three times four times
2 ABC2
3 DEF3
4 GH I 4
5 JKL5
6 MNO6
7 PQRS
8 TUV8
9 WX Y Z
▲
▲
▲
▲
B - 12 APPENDIX B
Special characters and symbols
Press ,
#
or
0
, and then press or to move the cursor under
the special character or symbol you want. Then press
Menu/Set
to
select it.
Press for (space) ! " # $ % & ’ ( ) + , - . /
Press
#
for : ; < = > ? @ [ ] ^ _
Press
0
for É À È Ê Î Ç Ë Ö 0
▲
▲
GLOSSARY G - 1
G
ADF (automatic document feeder) (MFC-420CN only) The
document can be placed in the ADF and scanned one page at a
time automatically.
Auto Reduction Reduces the size of incoming faxes.
Automatic fax transmission Sending a fax without picking up the
handset of an external phone.
Automatic Redial A feature that enables your MFC to redial the last
fax number after five minutes if the fax did not go through because
the line was busy.
Backup Print Your MFC prints a copy of every fax that is received
and stored in memory.
This is a safety feature so you will not lose messages during a
power failure.
Batch Transmission (MFC-420CN only) (Black and white faxes
only) As a cost saving feature, all delayed faxes to the same fax
number will be sent as one transmission.
Beeper Volume Volume setting for the beep when you press a key
or make an error.
Brightness Changing the Brightness makes the whole image
lighter or darker.
Broadcasting The ability to send the same fax message to more
than one location.
Caller ID A service purchased from the telephone company that lets
you see the number (or name) of the party calling you.
Cancel Job Cancels a programmed job, like Delayed Fax or
Polling.
CNG tones The special tones (beeps) sent by fax machines during
automatic transmission to tell the receiving machine that a fax
machine is calling.
Glossary
G - 2 GLOSSARY
Coding method Method of coding the information contained in the
document. All fax machines must use a minimum standard of
Modified Huffman (MH). Your MFC is capable of greater
compression methods, Modified Read (MR), Modified Modified
Read (MMR) and JPEG, if the receiving machine has the same
capability.
Communication error (or Comm. Error) An error during fax
sending or receiving, usually caused by line noise or static.
Compatibility group The ability of one fax unit to communicate
with another. Compatibility is assured between ITU-T Groups.
Contrast Setting to compensate for dark or light documents, by
making faxes or copies of dark documents lighter and light
documents darker.
Delayed Fax (MFC-420CN only) Sends your fax at a specified later
time that day.
Distinctive Ring A subscriber service purchased from the
telephone company that gives you another phone number on an
existing phone line. The Brother MFC uses the new number to
simulate a dedicated fax line.
Dual Access Your MFC can scan outgoing faxes or scheduled jobs
into memory at the same time it is sending a fax or receiving or
printing an incoming fax.
Easy Receive Enables your MFC to respond to CNG tones if you
interrupt a fax call by answering it.
ECM (Error Correction Mode) Detects errors during fax
transmission and resends the pages of the fax that had an error.
Extension phone A telephone on the fax number that is plugged
into a separate wall jack.
External phone A telephone that is plugged into the EXT jack of
your MFC.
F/T Ring Time The length of time that the Brother MFC rings (when
the Receive Mode setting is Fax/Tel) to notify you to pick up a
voice call that it answered.
Fax Forwarding (MFC-420CN only) Sends a fax received into the
memory to another pre-programmed fax number.
GLOSSARY G - 3
Fax Journal Lists information about the last 200 incoming and
outgoing faxes. TX means Transmit. RX means Receive.
Fax Receive Code Press this code (
5
1
) when you answer a fax
call on an extension or external phone.
Fax Storage (MFC-420CN only) You can store faxes in memory.
Fax tones The signals sent by sending and receiving fax machines
while communicating information.
Fax/Tel You can receive faxes and telephone calls. Do not use this
mode if you are using a telephone answering device (TAD).
Fine resolution Resolution is 203 x 196 dpi. It is used for small print
and graphs.
Gray scale The shades of gray available for copying and faxing
photographs.
Group number A combination of Speed-Dial numbers that are
stored in a Speed-Dial location for Broadcasting.
Help list A printout of the complete Menu table that you can use to
program your MFC when you do not have the User’s Guide with
you.
Journal Period The pre-programmed time period between
automatically printed Fax Journal Reports. You can print the Fax
Journal on demand without interrupting the cycle.
LCD (liquid crystal display) The display screen on the MFC that
shows interactive messages during On-Screen Programming and
shows the date and time when the MFC is idle.
Manual fax When you lift the handset of your external telephone or
press
Hook
so you can hear the receiving fax machine answer
before you press
Black Start
or
Color Start
to begin
transmission.
Menu mode Programming mode for changing your MFC’s settings.
OCR (optical character recognition) The bundled ScanSoft
®
OmniPage
®
software application converts an image of text to text
you can edit.
Out of Paper Reception Receives faxes into the MFC’s memory
when the MFC is out of paper.
G - 4 GLOSSARY
Overseas Mode Makes temporary changes to the fax tones to
accommodate noise and static on overseas phone lines.
Paging (MFC-420CN only) This feature enables your MFC to call
your pager when a fax is received into its memory.
Pause Allows you to place a 3.5 second delay in the dialing
sequence stored on Speed-Dial numbers. Press
Redial/Pause
as many times as needed for longer pauses.
PhotoCapture Center
™
Allows you to print digital photos from your
digital camera at high resolution for photo quality printing.
Photo resolution A resolution setting that uses varying shades of
gray for the best representation of photographs.
Polling (MFC-420CN only) The process of a fax machine calling
another fax machine to retrieve waiting fax messages.
Pulse A form of rotary dialing on a telephone line.
Quick Dial List A listing of names and numbers stored in
Speed-Dial memory, in numerical order.
Real Time Transmission When memory is full, you can send faxes
in real time.
Remaining jobs You can check which jobs are waiting in memory
and cancel jobs individually.
Remote Access Code (MFC-420CN only) Your own four-digit
code (--- ) that allows you to call and access your MFC from a
remote location.
Remote Retrieval Access (MFC-420CN only) The ability to
access your MFC remotely from a touch tone phone.
Resolution The number of vertical and horizontal lines per inch.
See: Standard, Fine, Super Fine and Photo.
Ring Delay The number of rings before the MFC answers in
Fax
Only
and
Fax/Tel
mode.
Ring Volume Volume setting for the MFC’s ring.
Scanning The process of sending an electronic image of a paper
document into your computer.
GLOSSARY G - 5
Scan to Card (MFC-420CN) You can scan a black and white or
color document into a Media Card. Black and white images will be
in TIFF or PDF file format and color images may be in PDF or
JPEG file format.
Search An electronic, alphabetical listing of stored Speed-Dial and
Group numbers.
Speed-Dial A pre-programmed number for easy dialing. You must
press the
Search/Speed Dial
,
#
, and the two digit code, and
Black Start
or
Color Start
to start the dialing process.
Standard resolution 203 x 97 dpi. It is used for regular size text
and quickest transmission.
Station ID The stored information that appears on the top of faxed
pages. It includes the sender’s name and fax number.
Super Fine resolution 392 x 203 dpi. Best for very small print and
line art.
TAD (telephone answering device) You can connect an external
device or answering machine to the EXT. of your MFC.
Telephone Answer Code (Fax/Tel mode only) When the MFC
answers a voice call, it pseudo/double-rings. You can pick up at
an extension phone by pressing this code (
# 5 1
).
Temporary settings You can select certain options for each fax
transmission and copy without changing the default settings.
Tone A form of dialing on the telephone line used for Touch Tone
telephones.
Transmission The process of sending faxes over the phone lines
from your MFC to the receiving fax machine.
Transmission Verification Report A listing of each transmission,
that shows its date, time and number.
True2Life
®
(MFC-420CN only) Adjusts the color in the image for
better print quality by improving sharpness, white balance and
color density.
User Settings (MFC-420CN only) A printed report that shows the
current settings of the MFC.
S - 1 SPECIFICATIONS
S
Product description
General
Specifications
Memory Capacity 8 MB (MFC-210C)
16 MB (MFC-420CN)
Automatic Document
Feeder (ADF)
(MFC-420CN only)
Up to 10 pages
Paper Tray 100 Sheets (20 lb)
Printer Type Ink Jet
Print Method Piezo with 74
×
5 nozzles
LCD (Liquid Crystal
Display)
16 characters
×
1 line (MFC-210C)
16 characters
×
2 lines (MFC-420CN)
Power Source 100 - 120V AC 50/60Hz
Power Consumption (MFC-210C)
Off Mode:
Standby:
Operating:
Under 3 watts
7 Wh or less (25
°C
)
20 Wh or less
(MFC-420CN)
Off Mode:
Standby:
Operating:
Under 3.5 watts
9 Wh or less (25
°C
)
23 Wh or less
Dimensions (MFC-210C) (MFC-420CN)
12.7 inch (322 mm)
13.6 inch (345 mm)
14.2 inch (361 mm)
14.7 inch (373 mm)
6.5 inch
(165 mm)
6.9 inch
(174 mm)
14.8 inch (375 mm)
13.7 inch (347 mm)
15.8 inch (402 mm)
12.7 inch (322 mm)
13.6 inch (345 mm)
15.7 inch (400 mm)
14.2 inch (361 mm)
14.7 inch (373 mm)
5.3 inch
(135 mm)
SPECIFICATIONS S - 2
Print media
Weight 11 lb (5 kg) (MFC-210C only)
13.2 lb (6 kg) (MFC-420CN only)
Noise Operating: 42.5 to 51 dB*
* It depends on printing conditions
Temperature Operating:
Best Print
Quality:
50°F - 95°F (10°C - 35°C)
68°F - 91°F (20°C - 33°C)
Humidity Operating:
Best Print
Quality:
20 to 80% (without condensation)
20 to 80% (without condensation)
Paper Input Paper Tray
■
Paper type:
Plain paper, inkjet paper (coated paper), glossy
paper*
2
, transparencies*
1
*
2
and envelopes
■
Paper size:
Letter, Legal*
3
, Executive, A4, A5, A6, JIS_B5,
envelopes (commercial No.10, DL, C5,
Monarch, JE4), Photo card, Index card and
Post card.
For more details, see Paper weight, thickness
and capacity on page 1-12.
■
Maximum paper tray capacity: Approx. 100
sheets of 20 lb plain paper
*
1
Use only transparencies recommended for inkjet printing.
Paper Output Up to 25 sheets of Letter plain paper (Face up print
delivery to the output paper tray)*
2
*
2
For glossy paper or transparencies, we recommend removing
printed pages from the output paper tray immediately after they
exit the machine to avoid smudging.
*
3
Legal paper cannot be stacked on the output paper tray.
S - 3 SPECIFICATIONS
Copy
Color/Black Color/Black
Document Size
(MFC-420CN only)
ADF Width: 5.8" to 8.5"
ADF Height: 5.8" to 14"
Scanner Glass Width: 8.5 in.
Scanner Glass Height: 11.7 in.
Document Size
(MFC-210C only)
Scanner Glass Width: 8.5 in.
Scanner Glass Height: 11.7 in.
Copy Speed Mono
Up to 17 pages/minute (Letter paper)*
Color
Up to 11 pages/minute (Letter paper)*
* Does not include the time it takes to feed the paper.
Based on Brother standard pattern. (Fast mode/Stack Copy)
Copy speeds vary with the complexity of the document.
Multiple Copies Stacks up to 99 pages
Sorts up to 99 pages (MFC-420CN only)
Enlarge/Reduce 25% to 400% (in increments of 1%)
Resolution Up to 600 x 1200 dpi copy resolution for plain,
inkjet or glossy paper and up to 1200 x 1200 dpi
for OHP/transparency
SPECIFICATIONS S - 4
PhotoCapture Center
Available Media CompactFlash
®
(Type I only)
(Microdrive
™
is not compatible)
(Compact I/O card such as Compact LAN card
and Compact Modem card are not supported.)
SmartMedia
®
(3.3V)
(Not available for use with ID)
Memory Stick
®
(Not available for music data with MagicGate
™
)
SecureDigital
™
xD-Picture Card
™
File Extension
(Media Format)
(Image Format)
DPOF, EXIF, DCF
Photo Print: JPEG*
Scan to Card (MFC-420CN only):
JPEG, PDF (Color)
TIFF, PDF (Black)
* Progressive JPEG format is not supported.
Color Enhancement True2Life (MFC-420CN only)
Number of Files Up to 999 files in the media card
Folder File must be in the 3rd folder level of the Media
Card.
Borderless Letter, A4, Photo Card (MFC-420CN)
Photo Card (MFC-210C)
S - 5 SPECIFICATIONS
Fax
Compatibility ITU-T Group 3
Coding System MH/MR/MMR/JPEG
Modem Speed Automatic Fallback
14400 bps
Document Size
(MFC-420CN only)
ADF Width: 5.8" to 8.5"
ADF Height: 5.8" to 14"
Scanner Glass Width: 8.5 in.
Scanner Glass Height: 11.7 in.
Document Size
(MFC-210C only)
Scanner Glass Width: 8.5 in.
Scanner Glass Height: 11.7 in.
Scanning Width 8.2 in.
Printing Width 8.03 in.
Gray Scale 256 levels
Polling Types
(MFC-420CN only)
Standard, Sequential: (Black only)
Contrast Control Automatic/Light/Dark
(manual setting)
Resolution • Horizontal 203 dot/inch (8 dot/mm)
• Vertical Standard -
98 line/inch (Black)
196 line/inch (Color)
Fine - 196 line/inch (Black/Color)
Photo - 196 line/inch (Black)
Superfine - 392 line/inch (Black)
Speed-Dial 20 stations (MFC-210C)
80 stations (MFC-420CN)
Broadcasting 70 stations (MFC-210C)
130 stations (MFC-420CN)
Automatic Redial 1 time after 5 minutes
Auto Answer 0, 1, 2, 3 or 4 rings
SPECIFICATIONS S - 6
Scanner
Communication Source Public switched telephone network.
Memory Transmission Up to 200*
1
/170*
2
pages (MFC-210C)
Up to 480*
1
/400*
2
pages (MFC-420CN only)
Out of Paper Reception Up to 200*
1
/170*
2
pages (MFC-210C)
Up to 480*
1
/400*
2
pages (MFC-420CN only)
*1
“Pages” refers to the “Brother Standard Chart No. 1” (a typical business letter, Standard resolution,
MMR code). Specifications and printed materials are subject to change without prior notice.
*2
“Pages” refers to the “ITU-T Test Chart #1” (a typical business letter, Standard resolution, MMR code).
Specifications and printed materials are subject to change without prior notice.
Color/Monochrome
Color/Monochrome
TWAIN Compliant Yes (Windows
®
98/98SE/Me/2000 Professional/XP)
Mac OS
®
8.6-9.2/Mac OS
®
X 10.2.4 or greater
WIA Compliant Yes (Windows
®
XP)
Color Depth 36 bit color processing (Input)
24 bit color processing (Output)
Resolution Up to 19200
×
19200 dpi (interpolated)*
Up to 600
×
2400 dpi (optical)
* Maximum 1200 x 1200 dpi scanning with Windows
®
XP
(resolution up to 19200 x 19200 dpi can be selected by using the
Brother scanner utility)
Scanning Speed Color: up to 5.58 sec.
Mono: up to 3.54 sec.
Letter size in 100
×
100 dpi)
Document Size
(MFC-420CN only)
ADF Width: 5.8" to 8.5"
ADF Height: 5.8" to 14"
Scanner Glass Width: Max. 8.5"
Scanner Glass Height: Max. 11.7"
Document Size
(MFC-210C only)
Scanner Glass Width: Max. 8.5"
Scanner Glass Height: Max. 11.7"
Scanning Width 8.26 in.
Gray Scale 256 levels
Mac OS
®
X scanning is supported in Mac OS
®
X 10.2.4 or greater.
S - 7 SPECIFICATIONS
Printer
Interfaces
Printer Driver Windows
®
98/98SE/Me/2000 Professional and XP
driver supporting Brother Native Compression
mode and bi-directional capability
Apple
®
Macintosh
®
QuickDraw
®
Driver
For Mac OS
®
8.6-9.2/Mac OS
®
X 10.2.4 or greater
Resolution Up to 1200 x 6000 dots per inch (dpi)*
1200 x 1200 dots per inch (dpi)
600 x 600 dots per inch (dpi)
600 x 150 dots per inch (dpi)
* Output image quality varies based upon many factors including
but not limited to input image resolution and quality and print
media.
Print Speed up to 20 pages/minute (Mono)*
up to 15 pages/minute (Color)*
* Based on Brother standard pattern.
Letter size in draft mode.
Does not include the time it takes to feed the paper.
Printing Width 8.03 inches (8.5 inches)*
* When you set the Borderless feature to On.
Disk-Based Fonts 35 TrueType
Borderless Letter, A4, A6, Photo Card, Index Card, Post Card
USB A Full-Speed USB 2.0 cable that is no longer than
6 feet (2.0 m).*
LAN cable
(MFC-420CN only)
Ethernet UTP cable category 5 or greater.
* Your MFC has a Full-Speed USB 2.0 interface. This interface is
compatible with Hi-Speed USB 2.0; however, the maximum
data transfer rate will be 12 Mbits/s. The MFC can also be
connected to a computer that has a USB 1.1 interface.
SPECIFICATIONS S - 8
Computer requirements
Minimum System Requirements
Computer Platform & Operating
System Version
Processor
Minimum
Speed
Minimum
RAM
Recommended
RAM
Available Hard Disk
Space
for
Drivers
for
Applications
Windows
®
*
1
Operating
System
98, 98SE Pentium II
or
equivalent
32 MB 64 MB 90 MB 130 MB
Me
2000
Professional
64 MB 128 MB
XP*
2
128 MB 256 MB 150 MB 220 MB
Apple
®
Macintosh
®
Operating
System
Mac OS
®
8.6
(Printing and
PC-FAX Send*
4
Only)
All base models meet
minimum
Requirements
64 MB 80 MB 200 MB
Mac OS
®
9.X
(Printing,
Scanning*
3,
PhotoCapture
Center
™
and
PC-FAX Send*
4
Only)
Mac OS
®
X
10.2.4 or greater
128 MB 160 MB
NOTE: All registered trademarks referenced herein are the property of their respective companies.
For the latest drivers, go to the Brother Solutions Center at http://solutions.brother.com/
*
1
Microsoft
®
Internet Explorer 5 or greater.
*
2
Maximum 1200 x 1200 dpi scanning with Windows
®
XP. (Resolutions up to 19200 x 19200 dpi can be
selected using the Brother Utility.)
*
3
Dedicated “Scan” key and direct Network Scanning (MFC-420CN only) supported in Mac
®
Operating
Systems Mac OS
®
X 10.2.4 or greater.
*
4
PC Fax supports black and white faxing only.
S - 9 SPECIFICATIONS
Consumable items
Ink The MFC uses individual Black, Yellow, Cyan and
Magenta ink cartridges that are separate from the
print head assembly.
Service Life of Ink
Cartridge
Black - Approximately 500 pages at 5% coverage
Yellow, Cyan and Magenta - Approximately 400
pages at 5% coverage
The above figures are based upon the following
assumptions:
• Continuous printing at a resolution of 600 x 600
dpi in normal mode after installing new ink
cartridge;
• The printing frequency;
• The number of pages printed;
• Periodic, automatic, print head assembly cleaning
(Your MFC will clean the print head assembly
periodically. This process will use a small amount
of ink); and,
• Ink remaining in cartridge identified as “empty”
(It is necessary to leave a small amount of ink in
the ink cartridge to prevent air from drying out and
damaging the print head assembly).
SPECIFICATIONS S - 10
Network (LAN) (MFC-420CN only)
LAN You can connect your MFC to a network for
Network Printing, Network Scanning and PC Fax
Send. Also included is Brother BRAdmin
Professional Network Management software.
Support for Windows
®
98/98SE/Me/2000/XP
Mac OS
®
8.6 - 9.2, Mac OS
®
X 10.2.4 or greater*
Ethernet 10/100 BASE-TX Auto Negotiation
Protocols TCP/IP
RARP, BOOTP, DHCP, APIPA, NetBIOS, WINS
LPR/LPD, Port9100, mDNS, FTP
* Network Printing and PC-FAX are available for Mac OS
®
8.6-9.2, Mac OS
®
10.2.4 or greater.
*Mac OS
®
8.6-9.2 (Quick Draw over TCP/IP)
*Mac OS
®
X 10.2.4 or greater (mDNS)
* Network Scanning and Remote Setup are available for Mac
OS
®
10.2.4 or greater.
* Media drive is not available for Mac OS
®
8.6.
Included Utilities:
BRAdmin Professional (Windows
®
)
BRAdmin Professional is not supported in Mac OS
®
.
S - 11 SPECIFICATIONS
Optional External Wireless Print/Scan
Server (NC-2200w)
NC-2200w External
Wireless Print/Scan
Server (Optional)
Connecting the optional External Wireless
Print/Scan Server (NC-2200w) to your MFC will
allow you to print and scan over a wireless network.
Network types IEEE 802.11b wireless LAN
Support for Windows
®
98/98SE/Me/2000/XP
Mac OS
®
X 10.2.4 or greater
Protocols TCP/IP
ARP, RARP, BOOTP, DHCP, APIPA (Auto IP),
WINS/NetBIOS, DNS, LPR/LPD, Port9100,
SMB Print, IPP, RawPort, mDNS, TELNET, SNMP,
HTTP
You can assign the scan key to one networked
computer only.
INDEX I - 1
Index
A
Access codes, storing and
dialing ................................5-5
Accessories and supplies .......ii
ADF (automatic document
feeder) ........................1-6, 3-3
ADF cover .........................11-5
Answering machine (TAD)
..A-10
connecting ......................A-12
Automatic
fax receive ........................4-1
Easy Receive ................4-4
fax redial ...........................3-2
transmission .....................3-5
B
Broadcasting .....................3-11
setting up Groups for ........5-3
Brother
accessories and supplies .....ii
Brother numbers .................. i
Customer Service ................. i
fax back system ...................ii
Frequently asked questions
(FAQs) ................................ i
product support .................... i
Warranties ..................iii, iv, vi
C
Caller ID ..............................A-5
print list .............................A-6
view list .............................A-6
Canceling
Fax Forwarding ................6-6
fax jobs in memory .........3-10
jobs awaiting redial .........3-10
Paging ..............................6-6
Cleaning
print head ......................11-14
printer platen .................11-23
scanner .........................11-22
CNG tones .........................1-19
Connecting
external TAD .................. A-10
external telephone ........... A-9
two-line external TAD or
telephone ..................... A-15
Consumable items .............. S-9
Control Center
see Software User’s Guide on
the CD-ROM.........................
Control panel overview
... 1-2, 1-3
Copy
brightness .........................8-8
color adjustment .............8-14
contrast ...........................8-13
default settings ...............8-13
Enlarge/Reduce ........ 8-4, 8-5
enter Copy mode ..............8-1
keys ..................................8-3
multiple .............................8-2
Out of Memory ................8-14
Page Layout ...................8-10
paper ................................8-7
Quality key ........................8-5
quality setting ..................8-13
single ................................8-2
Sort (ADF only) .................8-9
temporary settings ............8-3
using ADF .........................8-2
Copy Options key (copying)
Brightness .........................8-8
Paper Size ........................8-8
Paper Type .......................8-7
Cordless phone .................. A-8
I - 2 INDEX
Credit card numbers ........... 5-5
Custom telephone features
on a single line .....11-12, A-16
D
Date and Time .................... 2-1
Delayed Batch
Transmission .................. 3-14
Dialing
a pause ............................ 5-5
access codes and credit
card numbers ................. 5-5
automatic fax redial ......... 3-2
automatic transmission .... 3-5
Groups ........................... 3-11
manual ............................. 3-1
Speed-Dial ....................... 3-2
Distinctive Ring ................... A-1
setting ring pattern ...........A-4
turning off ......................... A-4
Dual Access ....................... 3-8
E
Easy Receive ..................... 4-4
ECM (Error Correction
Mode) ............................. 1-20
Envelopes ......................... 1-13
Equalization .................... 11-13
Error messages on LCD ... 11-1
Comm. Error .................. 11-1
Ink Empty ....................... 11-2
Near Empty .................... 11-2
No Paper Fed ................ 11-3
Not Registered ................. 3-2
Out of Memory ............... 11-3
while scanning
a document ............... 8-14
Unable to Change .......... 11-4
Unable to Clean ............. 11-4
Unable to Init. ................ 11-4
Unable to Print ...............11-4
Unable to Scan .............. 11-4
Extension telephone,
using .................................A-7
External telephone,
connecting ........................A-9
F
Fax codes
changing ...................6-4, A-8
Fax Receive Code ...........A-7
Remote Access Code ......6-4
Telephone Answer Code ...A-7
Fax Forwarding
changing remotely .....6-6, 6-7
programming a number .... 6-1
Fax Storage ........................ 6-3
printing from memory ....... 4-5
turning on ......................... 6-3
Fax, stand-alone
receiving ........................... 4-1
compatibility .............. 11-13
difficulties .................. 11-10
Fax Forwarding ............. 6-6
from extension phone ....A-7
Paging ........................... 6-2
Polling Receive .............4-6
reducing to fit on paper ... 4-5
retrieving from a remote
site ............................... 6-7
Ring Delay, setting ........ 4-2
Sequential Polling ......... 4-6
sending ............................ 3-1
automatic ....................... 3-5
Broadcasting ...............3-11
canceling from
memory .....................3-10
color fax ......................... 3-3
compatibility .............. 11-13
contrast ......................... 3-6
INDEX I - 3
enter Fax mode .............3-1
from memory
(Dual Access) .......3-2, 3-8
from pc
see Software User’s Guide
on the CD-ROM..............
from scanner glass ........3-4
manual ...........................3-5
overseas ......................3-12
Real Time Transmission
...3-9
resolution .......................3-7
Fax/Tel mode
answering at extension
phones ...........................A-7
double-ringing
(voice calls) ....................4-3
F/T Ring Time ..................4-3
Fax Receive Code ............A-7
receiving faxes .................A-7
Ring Delay ........................4-2
Telephone Answer Code ...A-7
FCC notices ......................10-1
G
Gray scale ...................S-5, S-6
Groups for Broadcasting .....5-3
H
HELP
LCD messages .................B-1
using navigation keys ....B-2
Menu Table ..............B-1, B-3
I
Ink cartridges
checking ink volume .....11-18
replacing .......................11-24
Ink Dot Counter ...............11-24
J
Jacks
convert to RJ11 jack
triplex adapter ............. A-13
EXT
external telephone ...... A-10
TAD (answering
machine) ................... A-10
Jams
document ........................11-5
paper ..............................11-5
L
LCD (liquid crystal
display) ......................B-1, B-2
contrast .............................2-6
Help List ............................7-3
M
Macintosh
®
see Software User’s Guide on
the CD-ROM.........................
Maintenance, routine .......11-22
Manual
dialing ...............................3-1
receive ..............................4-1
transmission .....................3-5
Memory Storage ................. B-1
Menu Selection Table ......... B-1
Mode, entering
Copy .................................8-1
Fax ....................................3-1
Scan .................................1-2
Multi-line connections
(PBX) .............................. A-16
O
Out of Area (Caller ID) ........ A-5
I - 4 INDEX
P
Paging ................................ 6-2
programming your pager
number ........................... 6-1
Paper ...........................1-9, S-2
document size ................. 3-3
Size .................................. 2-4
size of document ............. 1-6
Type ................................. 2-3
PC Fax Receive ................. 6-3
PC Faxing
see Software User’s Guide on
the CD-ROM.........................
Phone line
connections ................... A-12
difficulties ..................... 11-11
multi-line (PBX) .............. A-16
roll over lines ................. A-13
two-line phone system ... A-13
PhotoCapture Center
™
Borderless ..................... 9-12
CompactFlash
®
................ 9-1
Cropping ........................ 9-12
Default Settings ............... 9-9
DPOF printing .................. 9-8
Memory Stick
®
................. 9-1
Printing images ................ 9-6
Printing Index ................... 9-5
Secure Digital
™
................ 9-1
SmartMedia
®
................... 9-1
specifications ...................S-4
xD-Picture Card
™
............ 9-1
Polling ................................. 4-6
Power failure ......................B-1
Print
area ............................... 1-13
difficulties ............ 11-9, 11-10
drivers .............................. S-7
fax from memory .............. 4-5
from pc
see Software User’s Guide
on the CD-ROM.................
improving quality .......... 11-14
paper jams .....................11-6
report ................................ 7-3
resolution .........................S-7
specifications ...................S-7
Programming your
MFC .......................... B-1, B-2
Q
Quality key (copying) .......... 8-3
Quick-Dial
Access codes and credit
card numbers
setting up ....................... 5-5
Broadcasting .................. 3-11
using Groups ...............3-11
Group dial
changing ........................5-2
setting up Groups for
Broadcasting ............... 5-3
Search .............................. 3-2
Speed-Dial
changing ........................5-2
setting up ....................... 5-1
using .............................. 3-2
R
Receive Mode ..................... 4-2
External TAD .................... 4-1
Fax Only ........................... 4-1
Fax/Tel ............................. 4-1
Manual ............................. 4-1
Redial/Pause ...................... 3-2
Reducing
copies ........................8-4, 8-5
incoming faxes ................. 4-5
INDEX I - 5
Remote Retrieval ................6-5
access code ..............6-4, 6-5
commands ........................6-6
getting your faxes .............6-7
Reports ...............................7-1
Caller ID List .....................A-6
Fax Journal ......................7-3
Journal Period ...............7-2
Help List ...........................7-3
how to print ....................... 7-3
Network Configuration ......7-3
Quick-Dial List .................. 7-3
Transmission
Verification ...............7-1, 7-3
User Settings ....................7-3
Resolution
copy ..................................S-3
fax (Standard, Fine,
SuperFine, Photo) ..........S-5
print ..................................S-7
scan ..................................S-6
setting for next fax ............ 3-7
Ring Delay, setting ..............4-2
S
Safety Instructions ...vi, vii, 10-5
Scanning
see Software User’s Guide on
the CD-ROM.........................
Setup
Date and Time .................. 2-1
Station ID (fax header)
entering text ...................2-2
Shipping the machine .....11-19
Speed-Dial
changing ........................... 5-2
dialing ...............................3-2
storing ..............................5-1
T
TAD (telephone answering device),
external
........... 4-1, A-10, A-15
connecting ............A-10, A-12
receive mode ....................4-1
recording OGM .............. A-12
with two-line jack ........... A-15
Temporary copy settings .....8-3
Text, entering ................... B-11
special characters .......... B-12
Troubleshooting .................11-1
checking ink volume .....11-18
document jam .................11-5
error messages on LCD ...11-1
if you are having difficulty
copying ......................11-12
incoming calls ............11-12
Network ......................11-13
phone line ..................11-13
phone line difficulties ...11-11
PhotoCapture
Center
™
....................11-13
printing .........................11-9
printing or receiving
faxes ........................11-10
Printing Receiving
Faxes .......................11-10
receiving faxes ...........11-11
scanning ....................11-12
sending faxes .............11-11
software .....................11-12
paper jam ........................11-6
print quality ...................11-14
True2Life
®
PhotoCapture Center
™
...9-10
Two-line phone system .... A-13
I - 6 INDEX
V
Volume, setting ................... 2-4
beeper ............................. 2-5
ring ................................... 2-4
speaker ............................ 2-5
W
Warranties ............................. iii
Canada ...............................vi
Notice-Disclaimer ............... iii
USA ....................................iv
World Wide Web .....................i
REMOTE RETRIEVAL ACCESS CARD (MFC-420CN ONLY) R - 1
Remote Retrieval Access card (MFC-420CN only)
If you plan to receive fax messages while away from your MFC,
carrying the Remote Retrieval Access Card printed below will serve
as a convenient reminder of the retrieval procedures. Simply cut out
the card and fold it to fit your wallet or organizer. Keeping it handy will
help you derive the full benefit of your MFC’s Paging, Fax
Forwarding, and Remote Retrieval features.
Using Remote Access Code
1
Dial your fax number from a telephone or fax machine using
touch tone.
When your machine answers, immediately enter your
Remote Access Code (3 digits followed by ).
Your machine signals the kinds of messages it received:
1 long beep — Fax messages
No beeps — No messages.
After 2 short beeps, enter a command.
Press
9 0
to reset your machine when you finish.
Hang up.
2
3
4
5
6
1
4
Press
9 7 1
1 long beep — Fax messages
3 short beeps — No messages
C
HANGE
R
ECEIVE
M
ODE
Press
9 8
then for External TAD, press
1
.
Fax Only, press
3
.
Fax/Tel, press
2
.
E
XIT
R
EMOTE
O
PERATION
Press
9 0
.
C
HECK
R
ECEIVING
S
TATUS
R
EMOTE
R
ETRIEVAL
A
CCESS
C
ARD
Fold Fold
R - 2
Press
Menu/Set
,
2
,
5
,
2
.
fax number where you want your fax messages forwarded
followed by .
Program Fax Forwarding Number, press
4
. Enter the new
Turn Fax Storage On, press
6
.
R
ETRIEVE A
F
AX
Press
9 6
then to
Retrieve all faxes, press
2
,
then enter the number of remote fax machine followed by .
After the beep, hang up and wait.
Erase all fax messages, press
3
.
Changing Remote Access Code
1
2
Enter a three-digit number from 000 to 999.
The cannot be changed.
3
Press
Menu/Set
.
4
Press
Stop/Exit
.
Remote Commands
C
HANGE
P
AGING
/F
AX
F
ORWARDING
S
ETTING
Press
9 5
.
then to Turn feature Off, press
1
.
Select Fax Forwarding, press
2
.
Select Paging, press
3
.
3
2
Fold Fold
EQUIPMENT ATTACHMENT LIMITATIONS
(Canada only)
NOTICE
This product meets the applicable Industry Canada technical
specifications.
NOTICE
The Ringer Equivalence Number is an indication of the maximum
number of devices allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of
devices subject only to the requirement that the sum of the RENs of
all the devices does not exceed five.
