LG Electronics 32LG40 32” Class LCD HDTV with Built-In DVD User Manual

Please read this manual carefully before operating

your set and retain it for future reference.

Write the model number and serial number from the

label on the back cabinet on the front or back of

this manual.

LCD TV / DVD Combo

OWNER’S MANUAL

26LG40

32LG40

P/NO : SAC31712401 (0810-REV06)

www.lgusa.com / www.lg.ca

CAUTION - CLASS 1M VISIBLE

AND INVISIBLE LASER RADIATION

WHEN OPEN DO NOT VIEW DIRECTLY

WITH OPTICAL INSTRUMENTS

WARNING / CAUTION

To prevent fire or shock hazards, do not expose

this product to rain or moisture.

FCC NOTICE

Class B digital device

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by one

or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and

receiver.

- Connect the equipment to an outlet on a circuit

different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV

technician for help.

Any changes or modifications not expressly approved

by the party responsible for compliance could void

the user’s authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any way

without written authorization from LG Electronics.

Unauthorized modification could void the user’s

authority to operate this product

The lightning flash with arrowhead

symbol, within an equilateral triangle, is

intended to alert the user to the presence

of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral

triangle is intended to alert the user to

the presence of important operating and

maintenance (servicing) instructions in the litera-

ture accompanying the appliance.

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system

installer’s attention to Article 820-40 of the National

Electric Code (U.S.A.). The code provides guidelines for

proper grounding and, in particular, specifies that the

cable ground shall be connected to the grounding system

of the building, as close to the point of the cable entry

as practical.

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including amplifiers)that produce

heat.

Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has

two blades with one wider than the other. A

grounding type plug has two blades and a

third grounding prong, The wide blade or the

third prong are provided for your safety. If the

provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

Protect the power cord from being walked on

or pinched particularly at plugs, convenience

receptacles, and the point where they exit from

the apparatus.

Only use attachments/accessories specified by

the manufacturer.

Use only with the cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use

caution when moving the cart/apparatus com-

bination to avoid injury from tip-over.

Unplug this apparatus during lighting storms

or when unused for long periods of time.

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has

been damaged in any way, such as power-

supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

SAFETY INSTRUCTIONS

Never touch this apparatus or antenna during

a thunder or lighting storm.

When mounting a TV on the wall, make sure

not to install the TV by the hanging power and

signal cables on the back of the TV.

Do not allow an impact shock or any objects to

fall into the product, and do not drop onto the

screen with something.

CAUTION concerning the Power Cord:

It is recommend that appliances be placed

upon a dedicated circuit; that is, a single

outlet circuit which powers only that appliance

and has no additional outlets or branch

circuits. Check the specification page of this

owner's manual to be certain.

Do not connect too many appliances to the

same AC power outlet as this could result in

fire or electric shock.

Do not overload wall outlets. Overloaded wall

outlets, loose or damaged wall outlets, extension

cords, frayed power cords, or damaged or

cracked wire insulation are dangerous. Any of

these conditions could result in electric shock

or fire. Periodically examine the cord of your

appliance, and if its appearance indicates damage

or deterioration, unplug it, discontinue use of

the appliance, and have the cord replaced with

an exact replacement part by an authorized

servicer. Protect the power cord from physical

or mechanical abuse, such as being twisted,

kinked, pinched, closed in a door, or walked

upon. Pay particular attention to plugs, wall

outlets, and the point where the cord exits the

appliance.

Do not make the TV with the power cord

plugged in. Do not use a damaged or loose

power cord. Be sure do grasp the plug when

unplugging the power cord. Do not pull on the

power cord to unplug the TV.

WARNING - To reduce the risk of fire or electrical

shock, do not expose this product to rain,

moisture or other liquids. Do not touch the TV

with wet hands. Do not install this product

near flammable objects such as gasoline or

candles or expose the TV to direct air

conditioning.

Do not expose to dripping or splashing and do

not place objects filled with liquids, such as

vases, cups, etc. on or over the apparatus (e.g.

on shelves above the unit).

GGRROOUUNNDDIINNGG

Ensure that you connect the earth ground wire

to prevent possible electric shock (i.e. a TV

with a three-prong grounded AC plug must be

connected to a three-prong grounded AC out-

let). If grounding methods are not possible,

have a qualified electrician install a separate

circuit breaker.

Do not try to ground the unit by connecting it

to telephone wires, lightening rods, or gas

pipes.

DDIISSCCOONNNNEECCTTIINNGG DDEEVVIICCEE FFRROOMM MMAAIINNSS

Mains plug is the disconnecting device. The

plug must remain readily operable.

Keep the product away from direct sunlight.

Power

Supply

Short-circuit

Breaker

AANNTTEENNNNAASS

OOuuttddoooorr aanntteennnnaa ggrroouunnddiinngg

If an outdoor antenna is installed, follow the

precautions below. An outdoor antenna system

should not be located in the vicinity of over-

head power lines or other electric light or

power circuits, or where it can come in contact

with such power lines or circuits as death or

serious injury can occur.

Be sure the antenna system is grounded so as

to provide some protection against voltage

surges and built-up static charges.

Section 810 of the National Electrical Code

(NEC) in the U.S.A. provides information with

respect to proper grounding of the mast and

supporting structure, grounding of the lead-in

wire to an antenna discharge unit, size of

grounding conductors, location of antenna dis-

charge unit, connection to grounding elec-

trodes and requirements for the grounding

electrode.

AAnntteennnnaa ggrroouunnddiinngg aaccccoorrddiinngg ttoo tthhee

NNaattiioonnaall EElleeccttrriiccaall CCooddee,, AANNSSII//NNFFPPAA 7700

CClleeaanniinngg

When cleaning, unplug the power cord and

scrub gently with a soft cloth to prevent

scratching. Do not spray water or other liquids

directly on the TV as electric shock may occur.

Do not clean with chemicals such as alcohol,

thinners or benzene.

MMoovviinngg

Make sure the product is turned off,

unplugged and all cables have been removed. It

may take 2 or more people to carry larger TVs.

Do not press against or put stress on the front

panel of the TV.

VVeennttiillaattiioonn

Install your TV where there is proper ventila-

tion. Do not install in a confined space such as

a bookcase. Do not cover the product with

cloth or other materials (e.g.) plastic while

plugged in. Do not install in excessively dusty

places.

If you smell smoke or other odors coming from

the TV or hear strange sounds, unplug the power

cord contact an authorized service center.

Do not press strongly upon the panel with

hand or sharp object such as nail, pencil or

pen, or make a scratch on it.

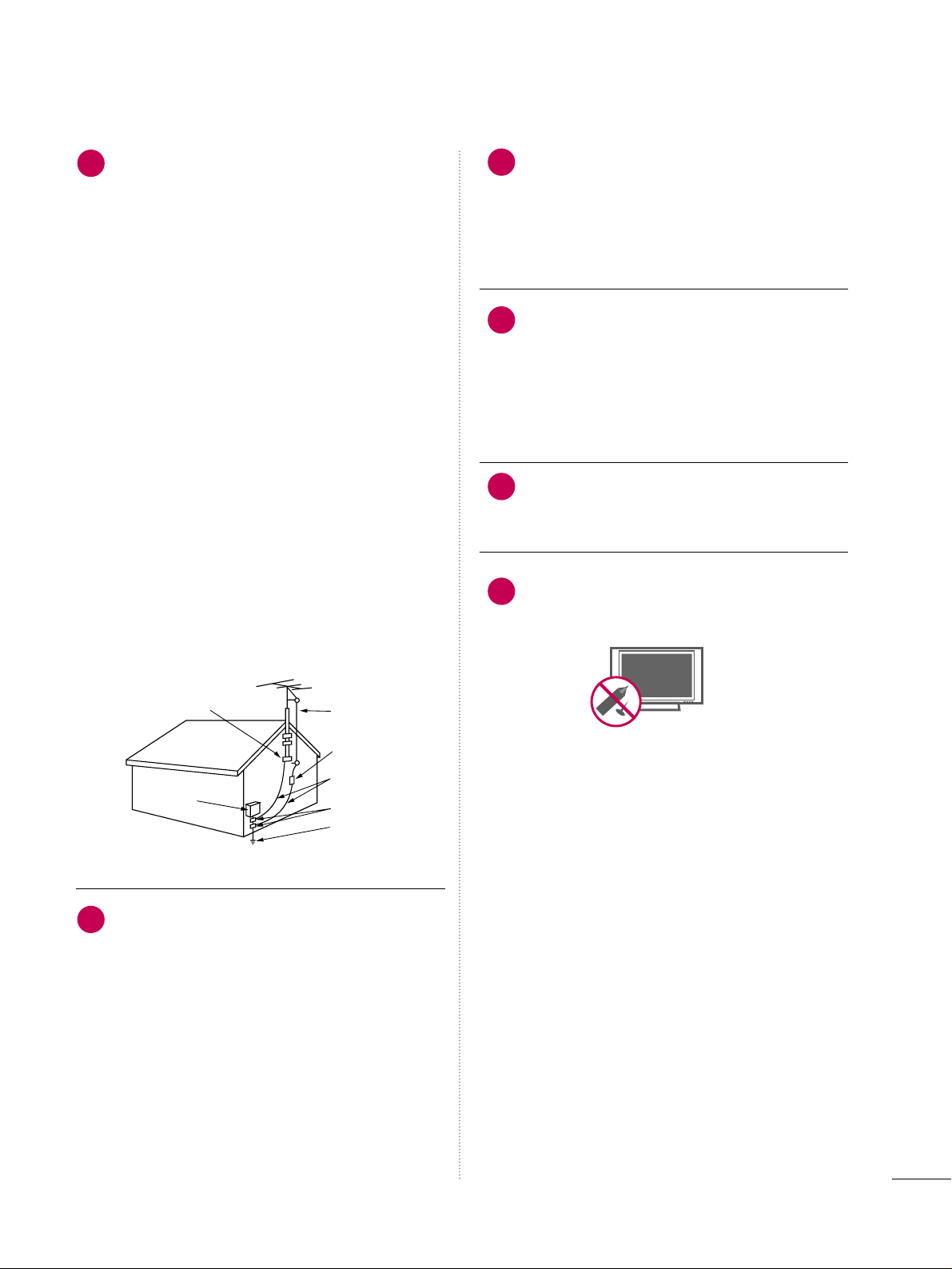

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductor

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

Ground Clamp

Electric Service

Equipment

NEC: National Electrical Code

CONTENTS

WARNING / CAUTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . A

SAFETY INSTRUCTIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

PREPARATION

Accessories

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front Panel Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Back Panel Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stand Instruction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Cable Management

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Desktop Pedestal Installation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Swivel Stand

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Attaching the TV to a Desk

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

VESA Wall Mounting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Securing the TV to the wall to prevent falling when

the TV is used on a stand

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Antenna or Cable Connection

. . . . . . . . . . . . . . . . . . . . . . . . . .

EXTERNAL EQUIPMENT SETUP

HD Receiver Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

VCR Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Other A/V Source Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Audio out Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PC Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WATCHING TV / CHANNEL CONTROL

Remote Control Functions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Turning On TV

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Channel Selection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Volume Adjustment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quick Menu / Favorite Channel Setup

. . . . . . . . . . . . . . 35

Initial Setting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

On-Screen Menus Selection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Channel Setup

- Auto Scan (Auto Tuning)

. . . . . . . . . . . . . . . . . . . . . . . . . . .

- Add / Delete Channel (Manual Tuning)

. . . . . .

- Channel Editing

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Input List

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input Label

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

AV Mode

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

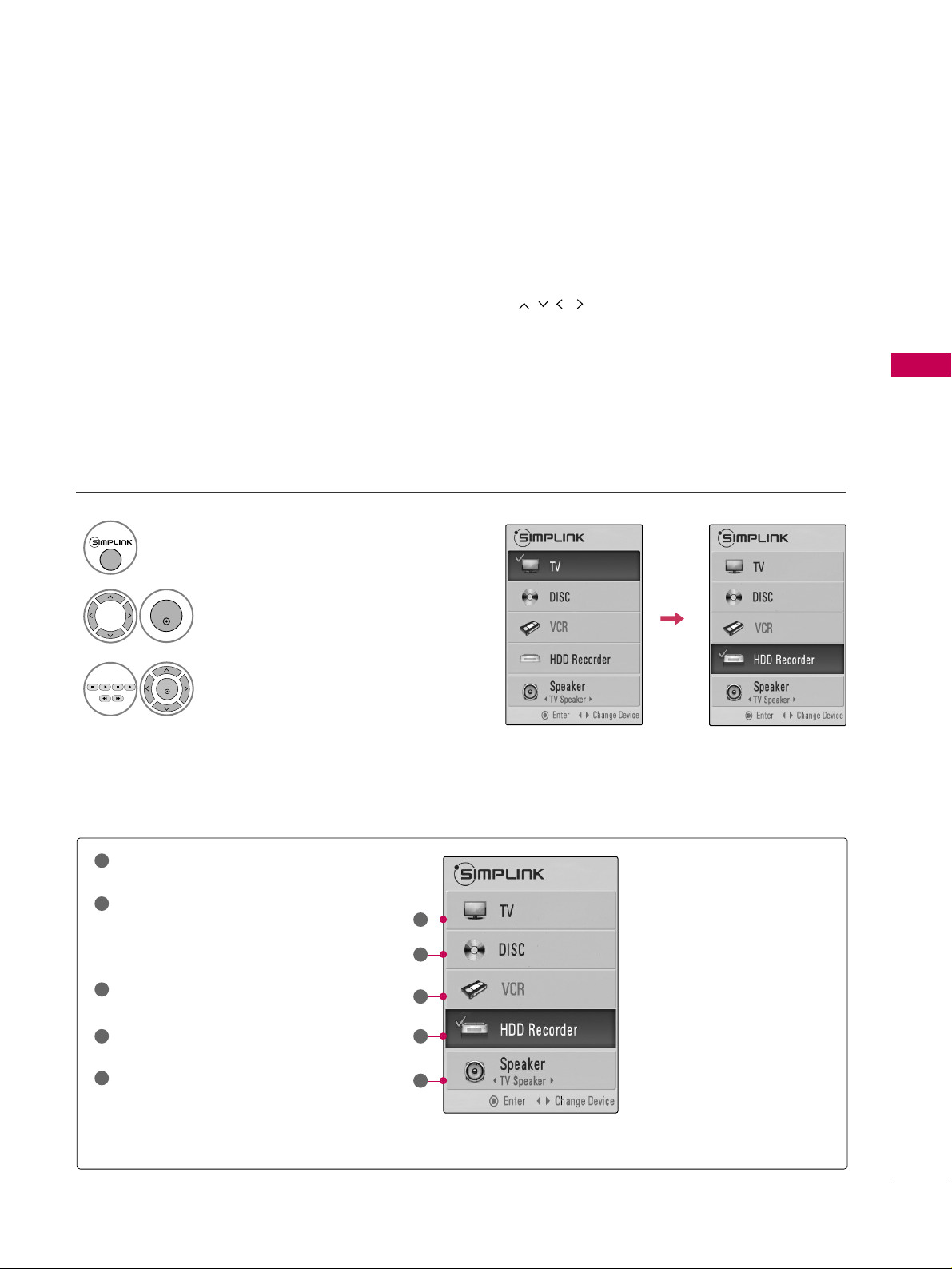

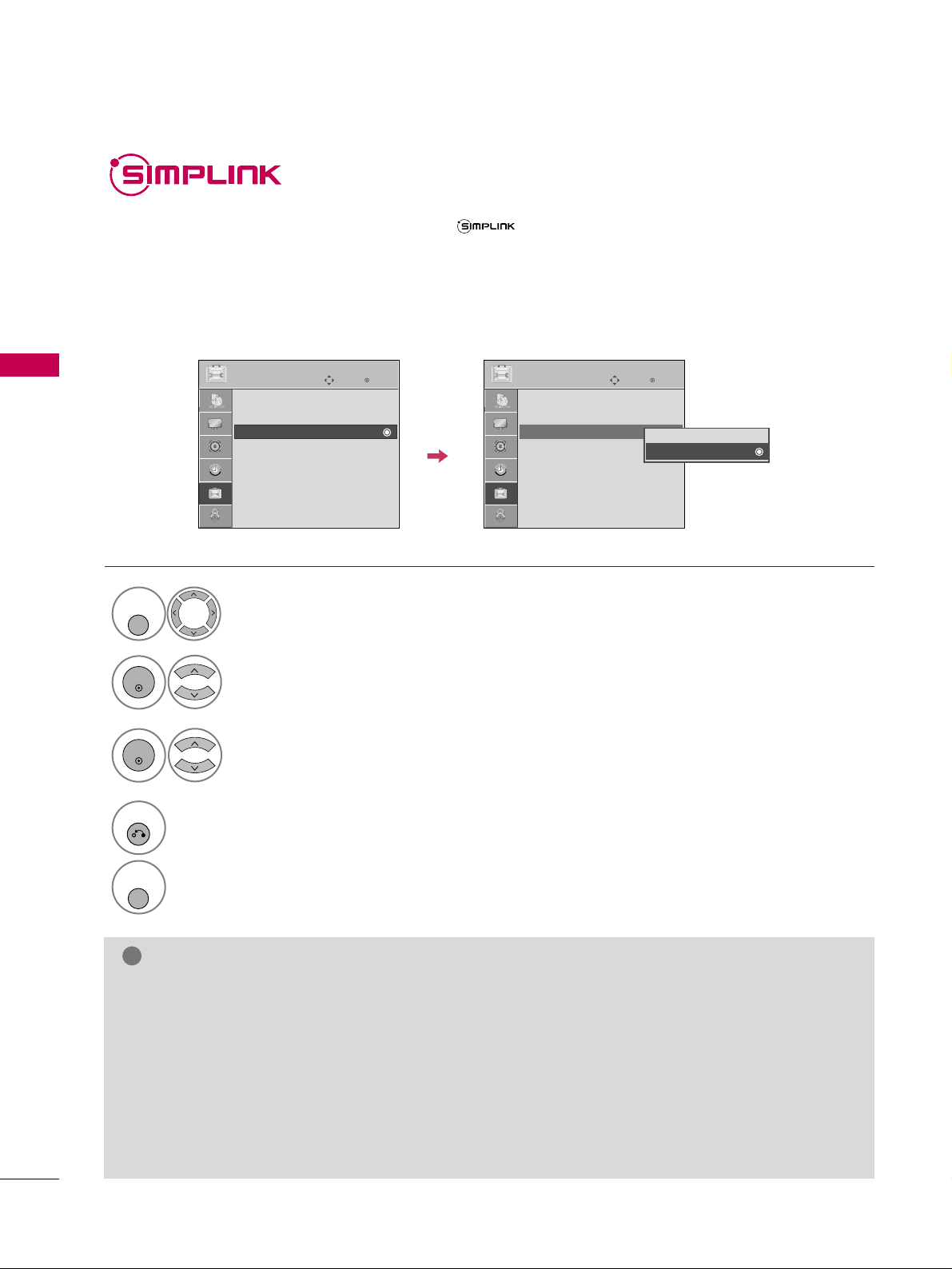

SIMPLINK

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DVD OPERATION

Notes on Discs

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Selecting Language

- Selecting Audio Language

. . . . . . . . . . . . . . . . . . . . . . . . . 48

- Selecting Subtitle Language

. . . . . . . . . . . . . . . . . . . . . . 49

- Selecting Disc OSD Language

. . . . . . . . . . . . . . . . . . .

Parental Control / Ratings

- Parental Control Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

- Changing the password

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Picture Size Control

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Digital Audio Output

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dynamic Range Compression (DRC)

. . . . . . . . . . . . . . . . 55

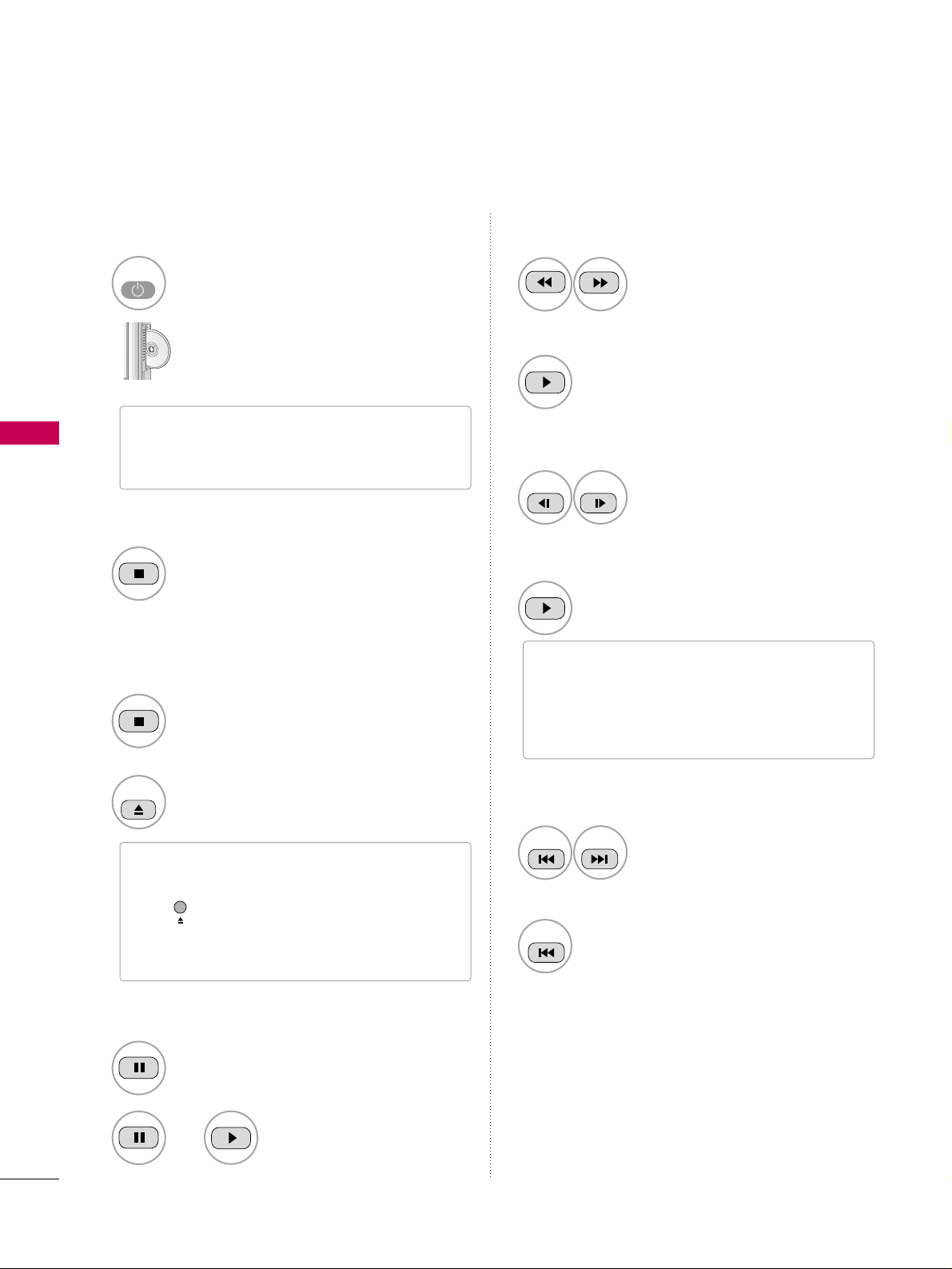

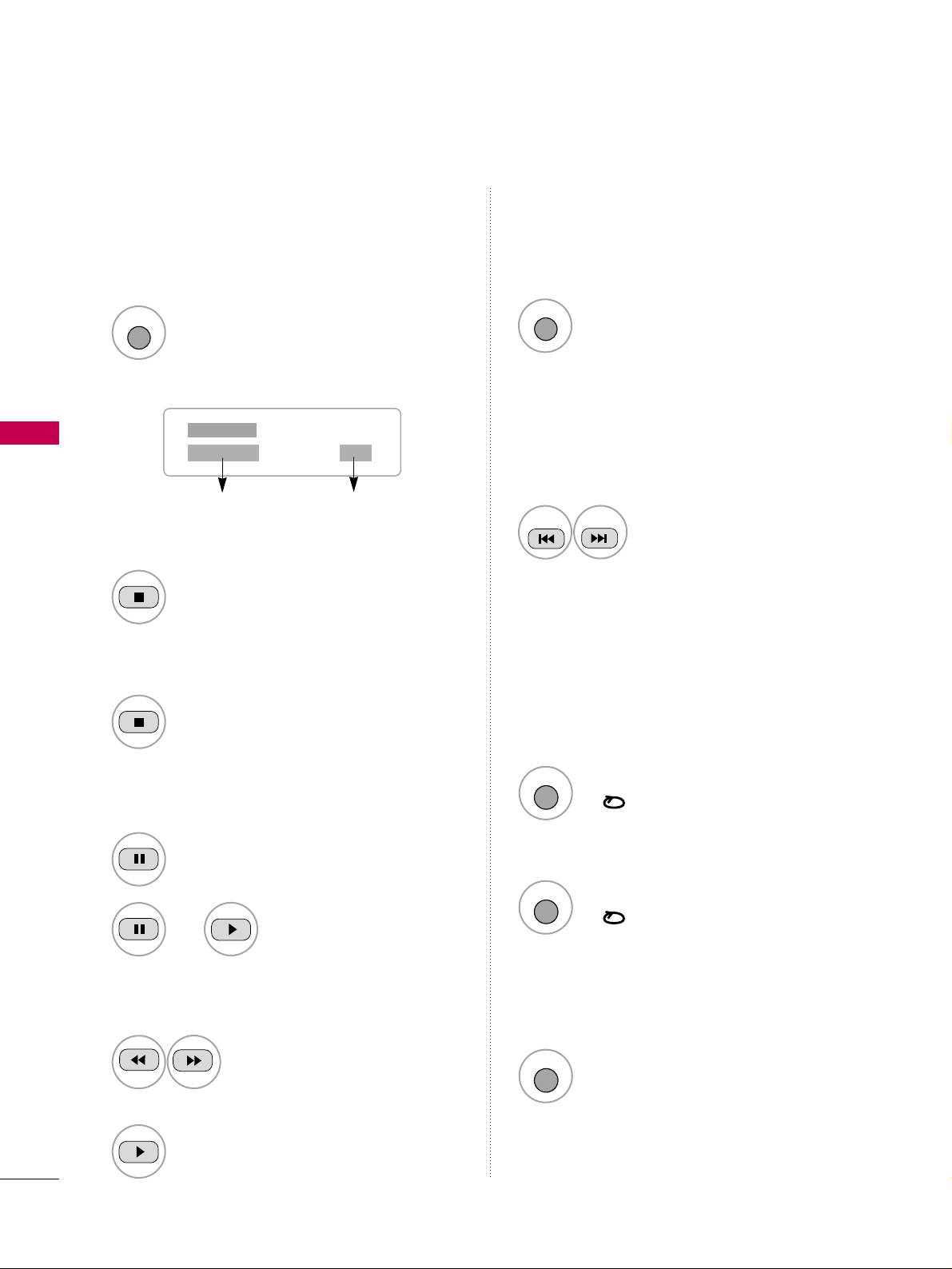

Playing a DVD or Video CD

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

MP3 Operation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Audio CD Operation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

JPG File Viewing Options

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

PICTURE CONTROL

Picture Size (Aspect Ratio) Control

. . . . . . . . . . . . . . . . . .

Preset Picture Settings

- Picture Mode - Preset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

- Color Tone - Preset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manual Picture Adjustment

- Picture Mode - User Mode

. . . . . . . . . . . . . . . . . . . . . . . .

- Picture Mode - Expert Control

. . . . . . . . . . . . . . . . . .

Picture Improvement Technology

. . . . . . . . . . . . . . . . . . . . .

Advanced Control - Black (Darkness) Level

. . . . . . .

Advanced Control - Eye Care

. . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Advanced Control - Real Cinema

. . . . . . . . . . . . . . . . . . . . . . 71

Picture Reset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Power Indicator

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SOUND & LANGUAGE CONTROL

Auto Volume Leveler (Auto Volume) . . . . . . . . . . . . . . . . . 74

Clear Voice

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Preset Sound Setting (Sound Mode)

. . . . . . . . . . . . . . . . 76

Sound Setting Adjustment - User Mode

. . . . . . . . . . . 77

Balance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TV Speakers On/Off Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Audio Reset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Stereo/SAP Broadcasts Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . 81

Audio Language

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

On-Screen Menus Language Selection

. . . . . . . . . . . . . . 83

Caption Mode

- Analog Broadcasting System Captions

. . . . . . .

- Digital Broadcasting System Captions

. . . . . . . .

- Caption Option

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

TIME SETTING

Clock Setting

- Auto Clock Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

- Manual Clock Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Auto On/Off Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sleep Timer Setting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auto Shut-off Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

PARENTAL CONTROL / RATINGS

Set Password & Lock System

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Channel Blocking

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Movie & TV Rating

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Downloadable Rating

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

101

External Input Blocking

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

102

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 3

APPENDIX

Troubleshooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Maintenance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10 7

Programing the Remote Control

. . . . . . . . . . . . . . . . . . . . . 10 8

IR Code

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

111

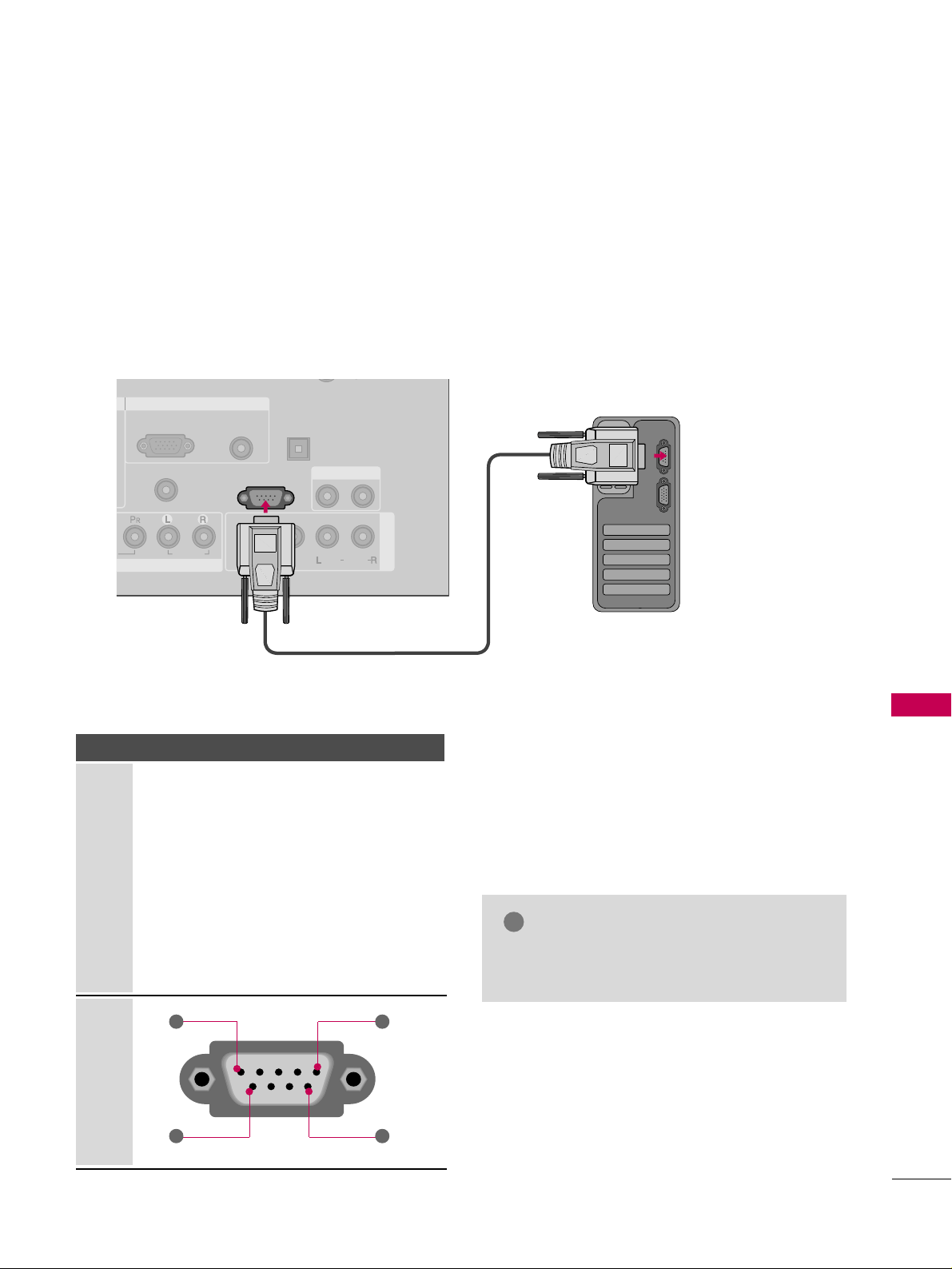

External Control Through RS-232C

. . . . . . . . . . . . . . . . .113

Open Source License

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 0

■

If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is

nothing wrong with TV.

■

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they

have no adverse effect on the monitor's performance.

■

Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce

some temporary distortion effects on the screen.

On Disposal (Only Hg lamp used LCD TV)

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with

general household waste. Disposal of this product must be carried out in accordance to the regulations of your local

authority.

Manufactured under license from Dolby Laboratories. “

Dolby

“and the double-D symbol are trademarks of Dolby Laboratories.

is a trademark of DVD format/Logo Licensing Corporation.

This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,

315,448

and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must

be autho-

rized by Macrovision. Reverse engineering or disassembly is prohibited."

is a trademark of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

PREPARATION

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the

dealer where you purchased the TV.

The accessories included may differ from the images below.

1.5V 1.5V

Owner’s Manual Power Cord

Remote Control,

Batteries

FAV

NTER

123

456

FAV

-I

ENTER

123

456

CD Manual

OOppttiioonn EExxttrraass

* Wipe spots on the exterior only with the

polishing cloth.

* Do not wipe roughly when removing stains.

Excessive pressure may cause scratches or

discoloration.

Polishing Cloth

(This feature is not available

for all models.)

D-sub 15 pin Cable

When using the VGA (D-sub 15 pin cable)

PC connection, the user must use shielded

signal interface cables with ferrite cores to

maintain standards compliance.

Bolts for stand assembly

(Refer to P.10)

Screw for stand fixing

(Refer to P.12)

Protection Cover

x 4 x 4

Cable Management

Clip

PREPARATION

FRONT PANEL INFORMATION

PREPARATION

■

Image shown may differ from your TV.

■

NOTE: If your TV has a protection tape attached, remove the tape.

And then wipe the TV with a cloth (If a polishing cloth is included with your TV, use it).

POWER Button

Power/Standby Indicator

Illuminates red in standby mode.

Illuminates blue when the TV is switched on.

(Can be adjusted. Refer to

PPoowweerr

IInnddiiccaattoorr

in the OPTION menu.

pp..7733

)

INPUT

VOL

ENTER

CHANNEL ( , )

Buttons

VOLUME (+, -)

Buttons

ENTER Button

EJECT Button

PLAY/PAUSE Button

STOP Button

SKIP Button

MENU Button

INPUT Button

DDiisscc SSlloott::

Insert discs with the label facing

towards the front of the TV. Press

the disc partially into the slot and

the loader will pull the disc from

your hand. Do not force the disc

into the slot.

Remote Control Sensor

PREPARATION

BACK PANEL INFORMATION

■

Image shown may differ from your TV.

( )

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

ANTENNA/

CABLE IN

RS-232C IN

(CONTROL & SERVICE)

VIDEO

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

AV IN 1

VIDEO

MONO

( )

AUDIO

S-VIDEO

RGB IN

HDMI/DVI IN

AV IN 2

L/MONO

AUDIO

VIDEO

USB

SERVICE ONLY

HDMI IN 3

( )

HDMI/DVI IN, HDMI IN

Digital Connection. Supports HD video and Digital

audio. Doesn’t support 480i.

Accepts DVI video using an adapter or HDMI to

DVI cable (not included).

COMPONENT IN

Analog Connection. Supports HD.

Uses a red, green, and blue cable for video & red

and white for audio.

RGB (PC)

Analog PC Connection. Uses a D-sub 15 pin cable

(VGA cable).

AUDIO (RGB/DVI)

1/8” headphone jack for analog PC audio input.

REMOTE CONTROL IN PORT

For a wired remote control.

RS-232C IN (CONTROL & SERVICE)

Used by third party devices.

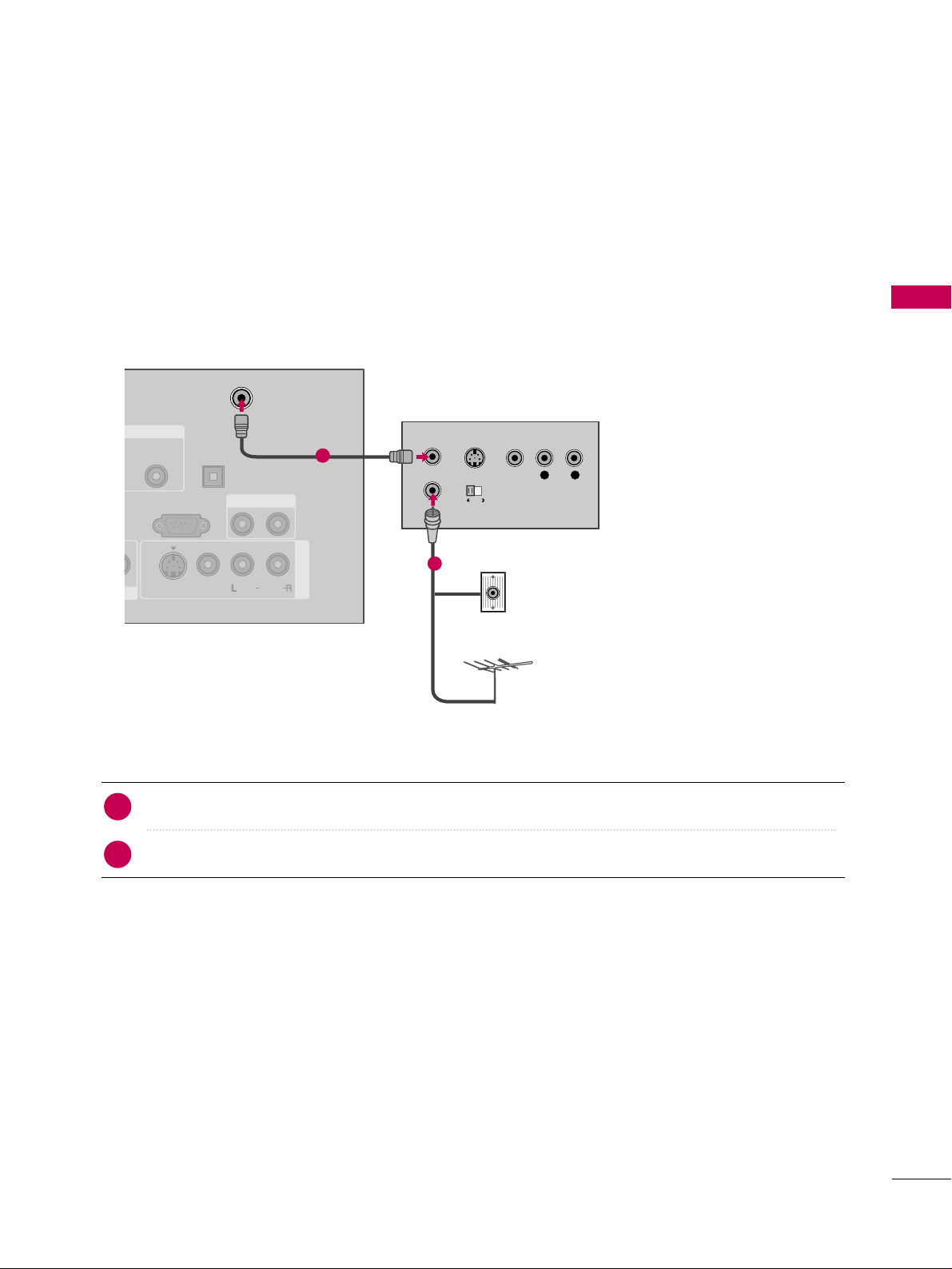

ANTENNA/CABLE IN

Connect over-the air signals to this jack.

Connect cable signals to this jack.

DIGITAL AUDIO OUT OPTICAL

Digital audio output for use with amps and home

theater systems.

Includes an optical connection.

Note: In standby mode, these ports do not work.

AUDIO OUT

Analog audio output for use with amps and home

theater systems.

AV (Audio/Video) IN

Analog composite connection. Supports standard

definition video only (480i).

S-VIDEO

Better quality than standard composition.

Supports standard definition video only (480i).

USB SERVICE ONLY

Used for software updates.

Power Cord Socket

For operation with AC power.

Caution: Never attempt to operate the TV on DC

power.

PREPARATION

STAND INSTRUCTION

■

Image shown may differ from your TV.

Assemble the parts of the

SSTTAANNDD BBOODDYY

with

CCOOVVEERR BBAASSEE

of the TV.

Assemble the TV as shown.

Fix the 4 bolts securely using the holes in the

back of the TV.

SSTTAANNDD BBOODDYY

CCOOVVEERR BBAASSEE

Carefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

INSTALLATION DETACHMENT

Carefully place the TV screen side down on a

cushioned surface to protect the screen from

damage.

Loose the bolts from TV.

Detach the stand from TV.

After removing the stand, install the included

pprrootteeccttiioonn ccoovveerr

over the hole for the stand.

Press the

PPRROOTTEECCTTIIOONN CCOOVVEERR

into the TV

until you hear it click. And push the tab aside.

PROTECTION COVER

When assembling the desk type stand, make sure

the bolt is fully tightened (If not tightened fully,

the TV can tilt forward after the product installa-

tion). Do not over tighten.

NOTE

PREPARATION

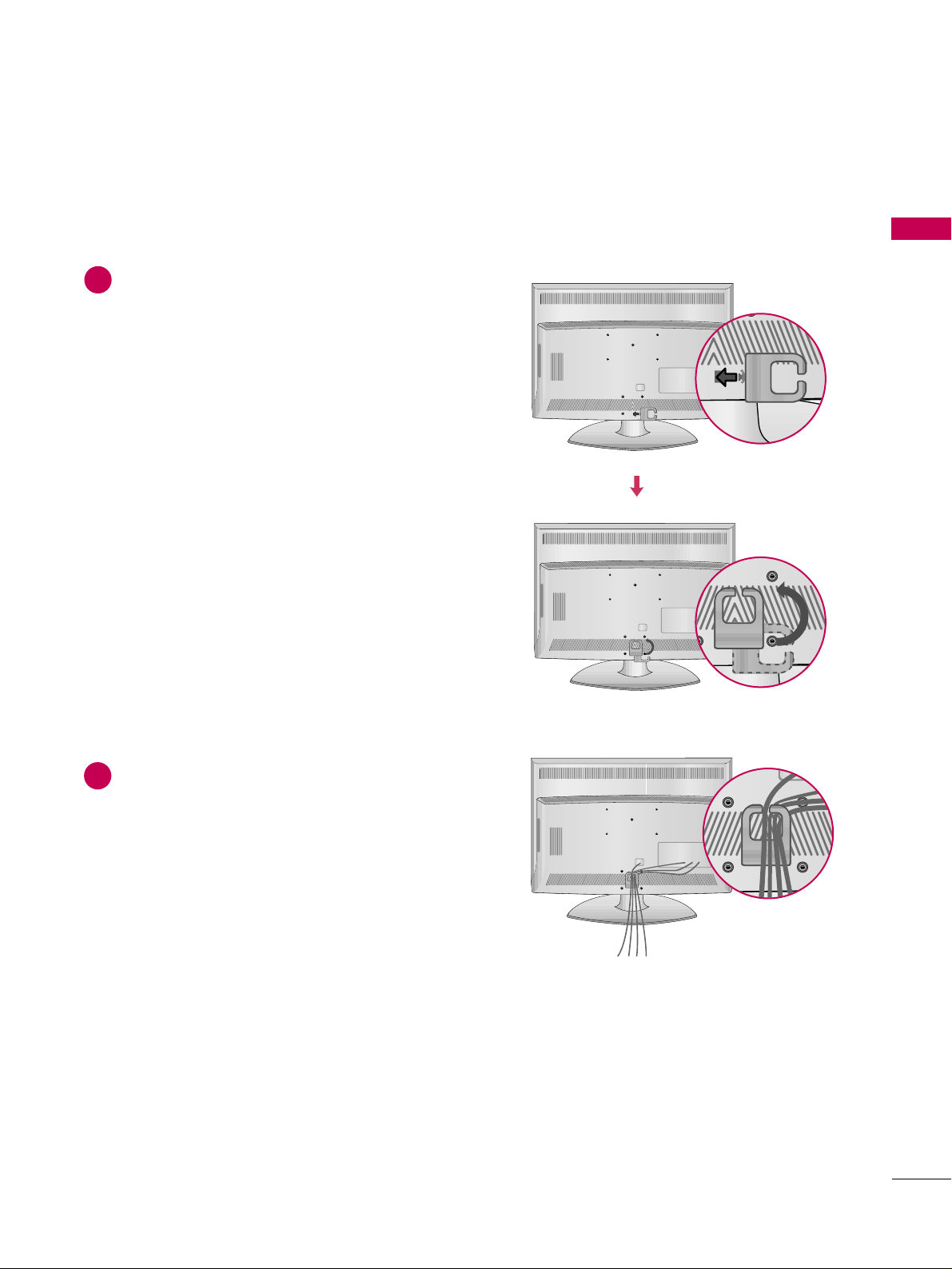

CABLE MANAGEMENT

■

Image shown may differ from your TV.

Align the hole with the tab on the

CCAABBLLEE

MMAANNAAGGEEMMEENNTT CCLLIIPP

Turn the

CCAABBLLEE MMAANNAAGGEEMMEENNTT CCLLIIPP

shown.

Note: This cable management clip can be bro-

ken by excessive pressure.

Connect the cables as necessary.

To connect additional equipment, see the

EXTERNAL EQUIPMENT SETUP section.

PREPARATION

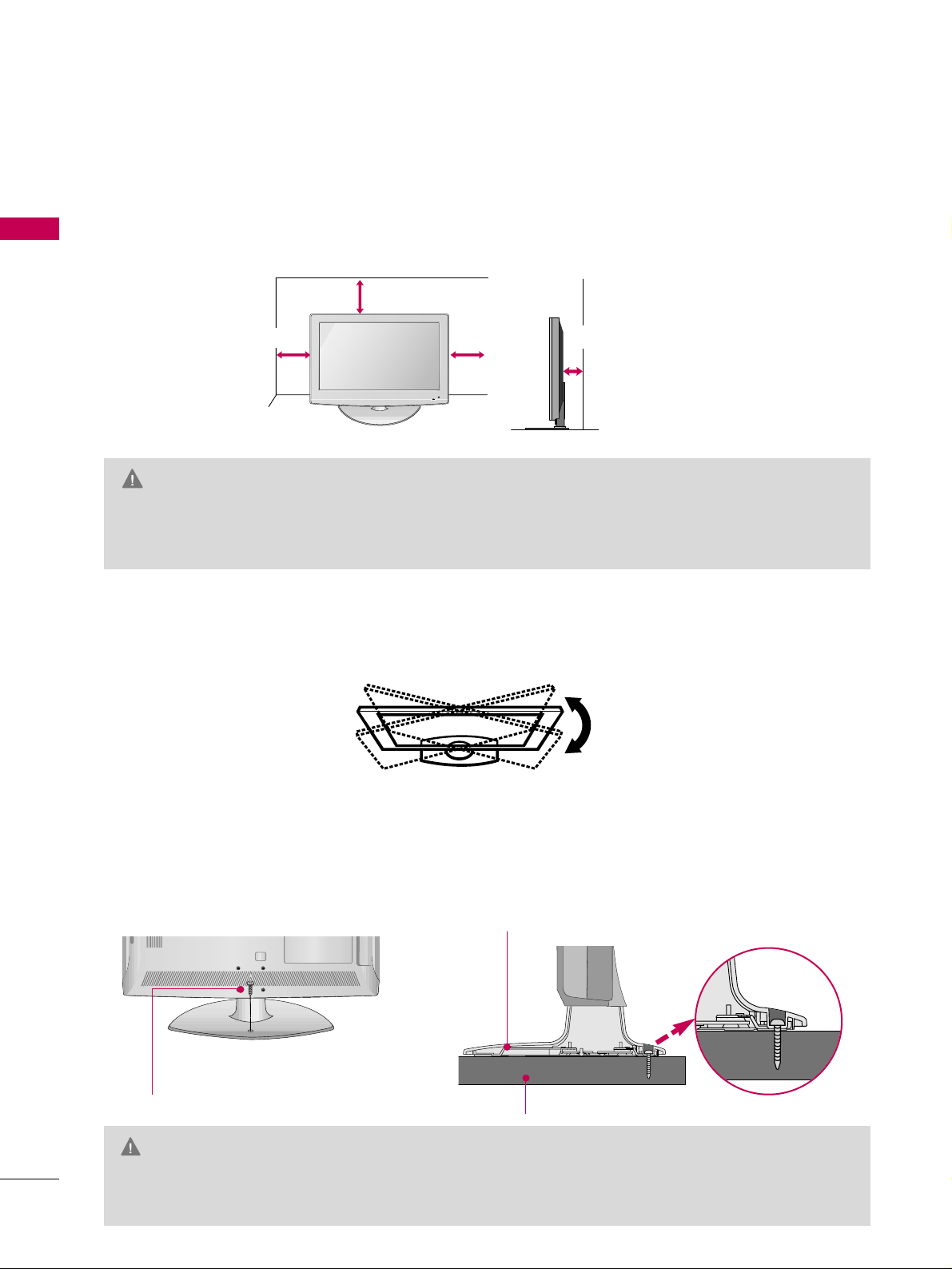

DESKTOP PEDESTAL INSTALLATION

PREPARATION

Ensure adequate ventilation by following the clearance recommendations.

Do not mount near or above any type of heat source.

CAUTION

4 inches

For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.

■

Image shown may differ from your TV.

SWIVEL STAND

ATTACHING THE TV TO A DESK

After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to suit

your viewing position.

The TV should be attached to a desk so it cannot be pulled in a forward/backward direction, potentially caus-

ing injury or damaging the TV.

To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation

instructions. Tipping, shaking, or rocking the machine may cause injury.

WARNING

1-Screw

(provided as parts of the product)

Desk

Stand

PREPARATION

VESA WALL MOUNTING

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please

contact your nearest dealer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

We recommend that you use an LG brand wall mount when mounting the TV to a wall.

LG recommends that wall mounting be performed by a qualified professional installer.

Do not install your wall mount kit while your TV is turned on. It may result in personal injury due to electric

shock.

CAUTION

Screw length needed depends on the wall mount

used. For further information, refer to the instruc-

tions included with the mount.

Standard dimensions for wall mount kits are shown

in the table.

When purchasing our wall mount kit, a detailed

installation manual and all parts necessary for

assembly are provided.

Do not use screws longer then the standard dimen-

sion, as they may cause damage to the inside to

the TV.

For wall mounts that do not comply with the VESA

standard screw specifications, the length of the

screws may differ depending on their specifica-

tions.

Do not use screws that do not comply with the

VESA standard screw specifications.

Do not use fasten the screws too strongly, this may

damage the TV or cause the TV to a fall, leading to

personal injury. LG is not liable for these kinds of

accidents.

LG is not liable for TV damage or personal injury

when a non-VESA or non specified wall mount is

used or the consumer fails to follow the TV installa-

tion instructions.

NOTE

Product Model

VESA

Standard Screw Quantity

26LG40, 32LG40 200

10 0 M 4 4

LCD TV

PREPARATION

SECURING THE TV TO THE WALL TO PREVENT FALLING

WHEN THE TV IS USED ON A STAND

PREPARATION

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,

potentially causing injury or damaging the product.

Caution: Please make sure that children don’t climb on or hang from the TV.

■

Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.

*If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with the bolts (sold separately) to the wall. Match the height of the bracket that is

mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

■

Use a sturdy rope (sold separately) to tie the product. It is safer to tie

the rope so it becomes horizontal between the wall and the product.

■

You should purchase necessary components to prevent TV from falling off of the stand.

■

Image shown may differ from your TV.

Use a platform or cabinet strong enough and large enough to support the size and weight of the TV.

To use the TV safely make sure that the height of the bracket on the wall and the one on the TV are the same.

NOTE

PREPARATION

ANTENNA OR CABLE CONNECTION

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box

Connections.

For optimum picture quality, adjust the antenna direction if needed.

2. Cable

Wall

Antenna

Socket

Outdoor

Antenna

(VHF, UHF)

Cable TV

Wall Jack

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

RF Coaxial Wire (75 ohm)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Be careful not to bend the copper wire

when connecting the antenna.

Copper Wire

■

To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.

■

If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.

■

If the antenna is not installed properly, contact your dealer for assistance.

ANTENNA/

CABLE IN

( )

ANTENNA/

CABLE IN

( )

■

To prevent damage do not connect to the power outlet until all connections are made between the devices.

EXTERNAL EQUIPMENT SETUP

HD RECEIVER SETUP

This TV can receive digital over-the-air or digital cable signals without an external digital set-top box. However, if

you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as

shown below.

Component Connection

1. How to connect

Connect the video outputs

(

Y, P

, PR

)

of the digital set-

top box to the

CCOOMMPPOONNEENNTT IINN VVIIDDEEOO

jacks on

the TV. Match the jack colors (Y = green, P

= blue, and

= red).

Connect the audio output of the digital set-top box to

the

CCOOMMPPOONNEENNTT IINN AAUUDDIIOO

jacks on the TV.

2. How to use

■

Turn on the digital set-top box.

(

Refer to the owner’s manual for the digital set-top box. operation

)

■

Select the

CCoommppoonneenntt

input source on the TV using the

IINNPPUUTT

button on the remote control.

■

To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

RS-232C

(CONTROL & S

( )

S-VIDEO

VIDEO

AUDIO

( )

Y L RPB PR

( )

Y, C

, CR/

Horizontal Vertical

Frequency

(

KHz

)

Frequency

(

)

15.73 59.94

15.73 60.00

31.47 59.94

31.50 60.00

44.96 59.94

45.00 60.00

33.72 59.94

33.75 60.00

26.97 23.94

27.00 24.00

33.71 29.97

33.75 30.00

67.43 59.94

67.50 60.00

Resolution

720x480i

720x480p

1280x720p

1920x1080i

1920x1080p

Signal

480i

480p

720p

108 0 i

108 0 p

Component

Yes

HDMI

Yes

Supported Resolutions

EXTERNAL EQUIPMENT SETUP

Connect the digital set-top box to

HHDDMMII//DDVVII IINN11

, or

jack on the TV.

No separate audio connection is necessary.

HDMI supports both audio and video.

1. How to connect

2. How to use

■

Turn on the digital set-top box.

(

Refer to the owner’s manual for the digital set-top box.

)

■

Select the

HHDDMMII11

HHDDMMII22

, or

HHDDMMII33

input source on the

TV using the

IINNPPUUTT

button on the remote control.

HDMI-DTV

Horizontal Vertical

Frequency

(

KHz

)

Frequency

(

)

31.47 59.94

31.50 60.00

44.96 59.94

45.00 60.00

33.72 59.94

33.75 60.00

26.97 23.976

27.00 24.00

33.71 29.97

33.75 30.00

67.432 59.939

67.50 60.00

Resolution

720x480p

1280x720p

1920x1080i

1920x1080p

HDMI Connection

( )

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

RS-23

(CONTROL

VIDEO

AUDIO

( )

S-VID

RGB IN

HDMI/DVI IN

HDMI-DTV OUTPUT

( )

EXTERNAL EQUIPMENT SETUP

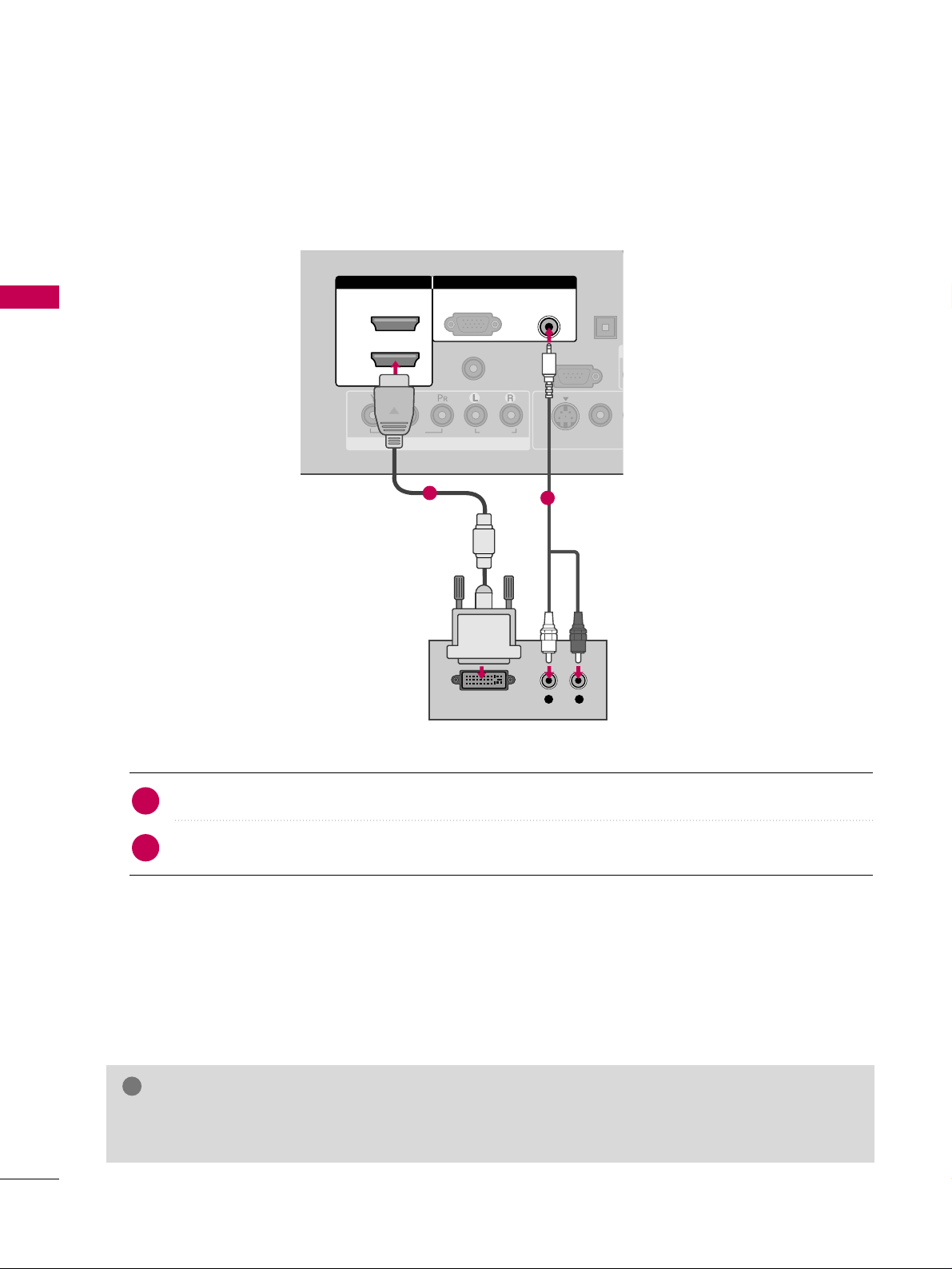

DVI to HDMI Connection

( )

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

VIDEO

AUDIO

DIGITAL

AUDIO OU

OPTICA

VIDEO

( )

S-VIDEO

RGB IN

HDMI/DVI IN

L R

DVI-DTV OUTPUT

Connect the DVI output of the digital set-top box to the

HHDDMMII//DDVVII IINN11

, or

jack on the TV.

Connect the PC audio output to the

AAUUDDIIOO ((RRGGBB//DDVVII))

jack on the TV.

1. How to connect

2. How to use

■

Turn on the digital set-top box.

(

Refer to the owner’s manual for the digital set-top box.

)

■

Select the

HHDDMMII 11

HHDDMMII 22

HHDDMMII 33

input source on the TV using the

IINNPPUUTT

button on the remote

control.

A DVI to HDMI cable or adapter is required for this connection. DVI doesn't support audio, so a separate

audio connection is necessary.

NOTE

EXTERNAL EQUIPMENT SETUP

DVD SETUP

Component Connection

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

Video output ports

on DVD player

B-Y

R-Y

Connect the video outputs

(

Y, P

B, P

)

of the DVD to the

CCOOMMPPOONNEENNTT IINN VVIIDDEEOO

jacks on the TV. Match the

jack colors

(

Y = green, P

B = blue, and P

R = red

)

Connect the audio outputs of the DVD to the

CCOOMMPPOO--

NNEENNTT IINN AAUUDDIIOO

jacks on the TV.

1. How to connect

2. How to use

■

Turn on the DVD player, insert a DVD.

■

Select

CCoommppoonneenntt

input source by using the

IINNPPUUTT

button on the remote control.

■

Refer to the DVD player's manual for operating instructions.

COMPONENT IN

REMOTE

CONTROL IN

RS-23

(CONTROL &

( )

S-VIDE

VIDEO

AUDIO

( )

Y L RPB PR

( )

1 2

EXTERNAL EQUIPMENT SETUP

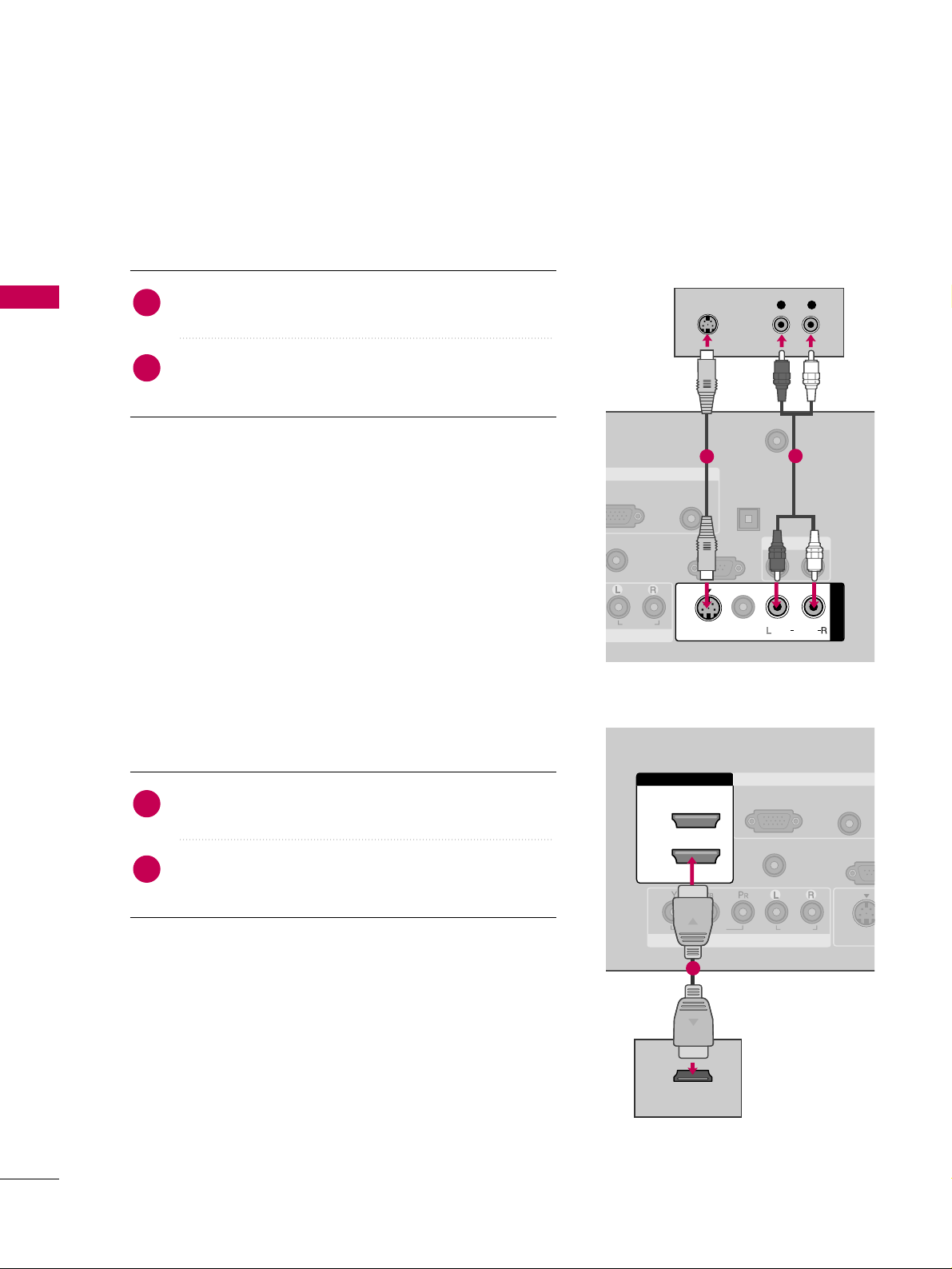

S-Video Connection

( )

T IN

AUDIO

(RGB/DVI)

GB(PC)

REMOTE

CONTROL IN

ANTENNA/

CABLE IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

VIDEO

MONO

( )

AUDIO

S-VIDEO

RGB IN

AV IN 1

S-VIDEO

L R

S-VIDEO

AUDIO

HDMI Connection

( )

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

RS-23

(CONTROL

VIDEO

AUDIO

( )

S-VID

RGB IN

HDMI/DVI IN

HDMI-DVD OUTPUT

( )

1. How to connect

Connect the S-VIDEO output of the DVD to the

SS --

VVIIDDEEOO

input on the TV.

Connect the audio outputs of the DVD to the

AAUUDDIIOO

input jacks on the TV.

2. How to use

■

Turn on the DVD player, insert a DVD.

■

Select the

AAVV 11

input source on the TV using the

IINNPPUUTT

button on the remote control.

■

Refer to the DVD player's manual for operating instructions.

1. How to connect

Connect the HDMI output of the DVD to the

HHDDMMII//DDVVII IINN 11

, or

jack on the TV.

No separated audio connection is necessary.

HDMI supports both audio and video.

2. How to use

■

Select the

HHDDMMII 11

, or

input source on the TV using

the

IINNPPUUTT

button on the remote control.

■

Refer to the DVD player's manual for operating instructions.

EXTERNAL EQUIPMENT SETUP

VCR SETUP

Antenna Connection

■

To avoid picture noise

(

interference

)

, leave an adequate distance between the VCR and TV.

■

If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen.

This phenomenon is common to all TVs and is not covered by warranty.

Connect the RF antenna out socket of the VCR to the

AANNTTEENNNNAA//CCAABBLLEE IINN

socket on the TV.

Connect the antenna cable to the RF antenna in socket of the VCR.

1. How to connect

■

Set VCR output switch to 3 or 4 and then tune TV to the same channel number.

■

Insert a video tape into the VCR and press PLAY on the VCR.

(

Refer to the VCR owner’s manual.

)

2. How to use

AUDIO

(RGB/DVI)

L IN

ANTENNA/

CABLE IN

RS-232C IN

(CONTROL & SERVICE)

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

AV IN 1

VIDEO

MONO

( )

AUDIO

S-VIDEO

L R

S-VIDEO VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

( )

Wall Jack

Antenna

EXTERNAL EQUIPMENT SETUP

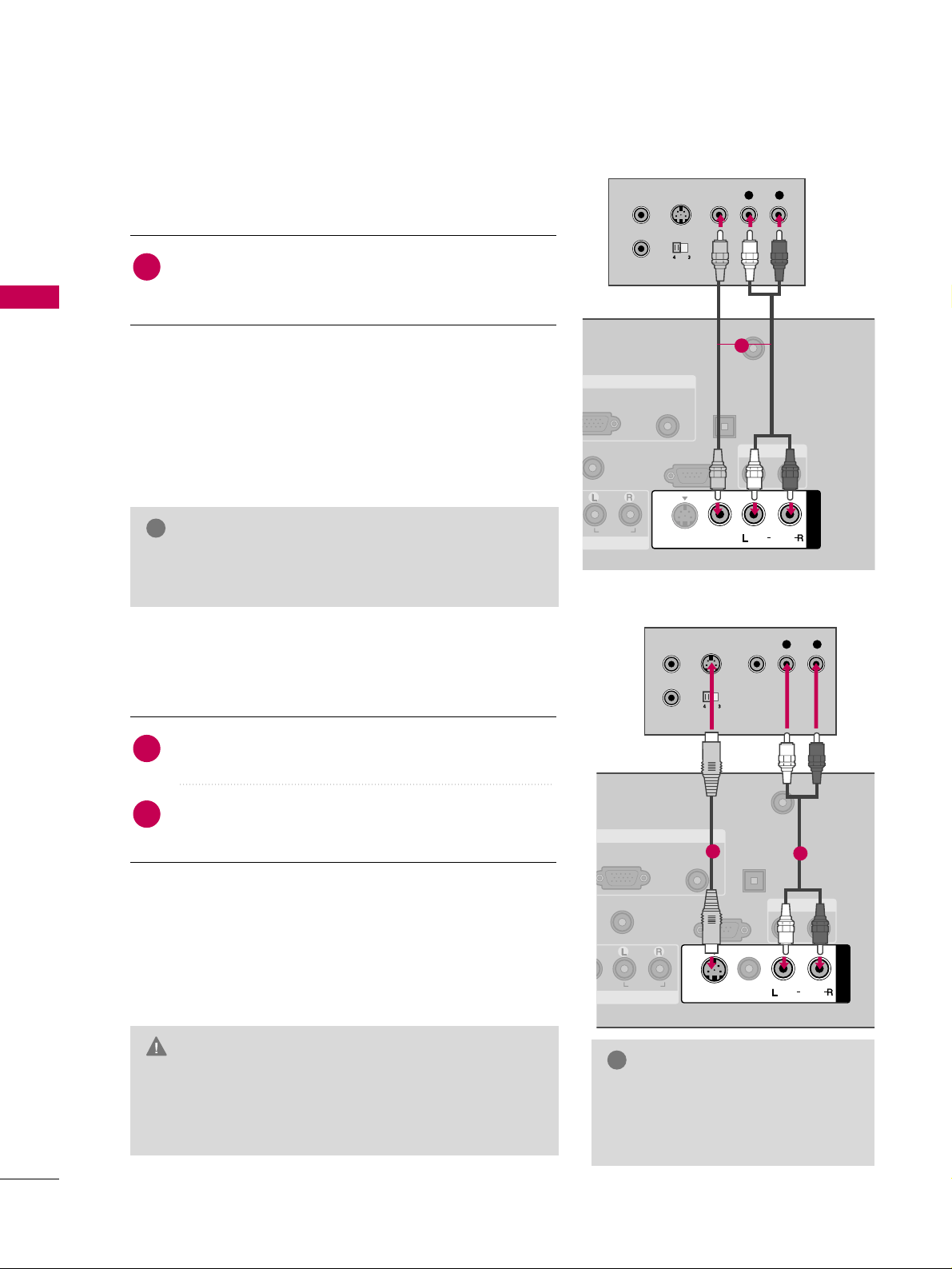

Composite (RCA) Connection

If you have a mono VCR, connect the audio cable from

the VCR to the

AAUUDDIIOO LL//MMOONNOO

jack of the TV.

NOTE

Do not connect to both Video and S-Video at the same

time. In the event that you connect both Video and the

S-Video cables, only the S-Video will work.

CAUTION

The picture quality is improved:

compared to normal composite

(RCA cable) input.

NOTE

( )

T IN

AUDIO

(RGB/DVI)

GB(PC)

REMOTE

CONTROL IN

ANTENNA/

CABLE IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

MONO

( )

AUDIO

S-VIDEO

RGB IN

AV IN 1

VIDEO

L R

S-VIDEO VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

1. How to connect

Connect the

AAUUDDIIOO

VVIIDDEEOO

jacks between TV and

VCR. Match the jack colors (Video = yellow, Audio Left

= white, and Audio Right = red)

2. How to use

■

Insert a video tape into the VCR and press PLAY on the

VCR.

(

Refer to the VCR owner’s manual.

)

■

Select the

AAVV 11

input source on the TV using the

IINNPPUUTT

button on the remote control.

■

If connected to

AAVV IINN22

, select

AAVV22

input source on the TV.

S-Video Connection

( )

ENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

ANTENNA/

CABLE IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

VIDEO

MONO

( )

AUDIO

S-VIDEO

RGB IN

AV IN 1

L R

S-VIDEO VIDEO

OUTPUT

SWITCH

ANT IN

ANT OUT

( )

1. How to connect

Connect the S-VIDEO output of the VCR to the

SS --

VVIIDDEEOO

input on the TV.

Connect the audio outputs of the VCR to the

AAUUDDIIOO

input jacks on the TV.

2. How to use

■

Insert a video tape into the VCR and press PLAY on the

VCR.

(

Refer to the VCR owner’s manual.

)

■

Select the

AAVV 11

input source on the TV using the

IINNPPUUTT

button on the remote control.

EXTERNAL EQUIPMENT SETUP

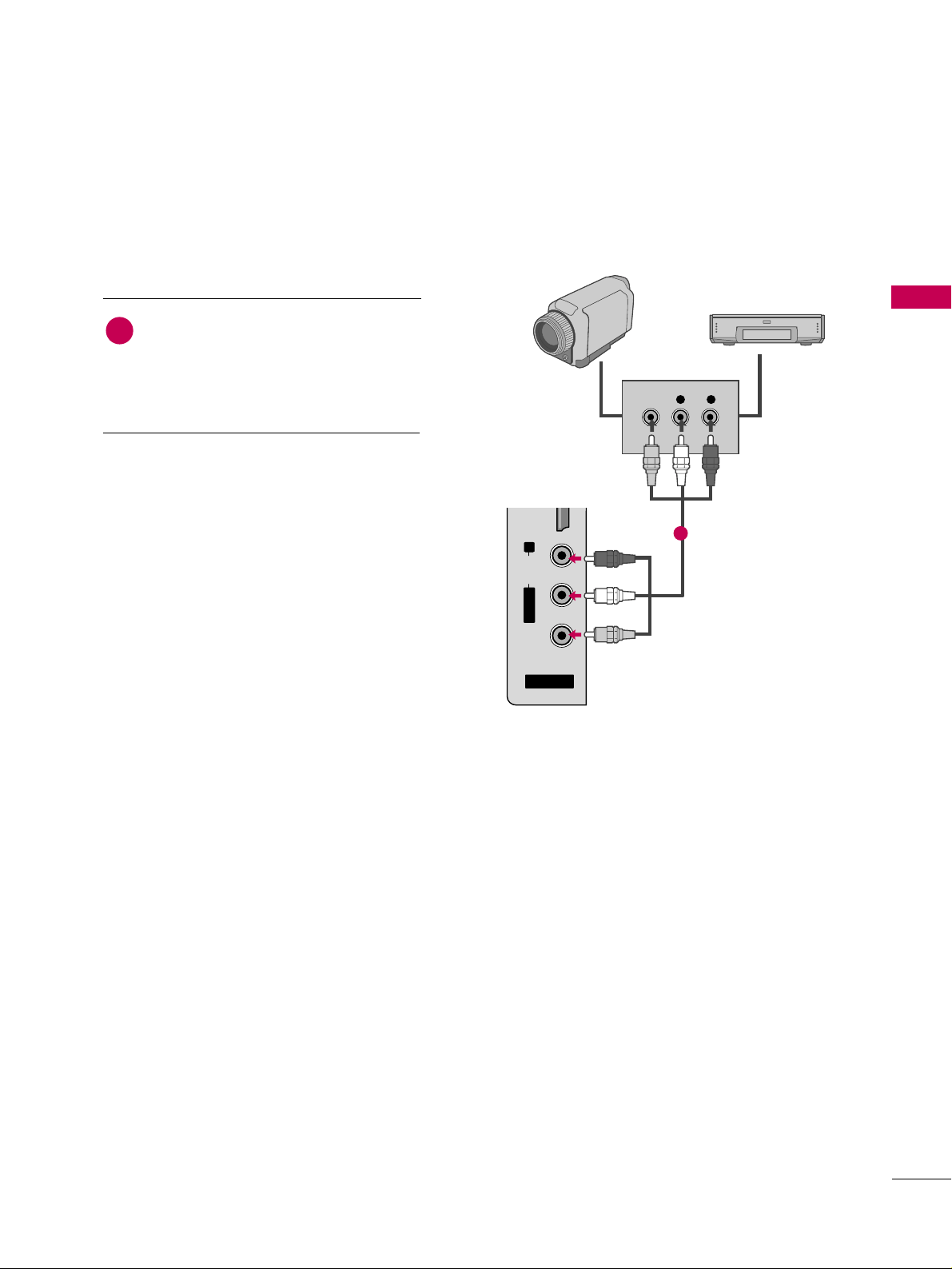

OTHER A/V SOURCE SETUP

AV IN 2

L/MONO

AUDIO

VIDEO

HDMI IN 3 USB IN

L R

VIDEO

Camcorder

Video Game Set

Connect the

AAUUDDIIOO

VVIIDDEEOO

jacks

between TV and external equipment.

Match the jack colors

(

Video = yellow, Audio Left = white, and

Audio Right = red

)

1. How to connect

2. How to use

■

Select the

AAVV 22

input source on the TV using

the

IINNPPUUTT

button on the remote control.

■

If connected to

AAVV IINN11

input, select the

AAVV 11

input source on the TV.

■

Operate the corresponding external equipment.

EXTERNAL EQUIPMENT SETUP

AUDIO OUT CONNECTION

EXTERNAL EQUIPMENT SETUP

Send the TV’s audio to external audio equipment via the Audio Output port.

( )

(RGB/DVI)

(C)

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

OPTICAL

AUDIO OUT

AV IN 1

VIDEO

MONO

( )

AUDIO

S-VIDEO

L R

AUDIO

(RGB/DVI)

REMOTE

CONTROL IN

ANTENNA/

CABLE IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

AV IN 1

VIDEO

MONO

( )

AUDIO

S-VIDEO

GB IN

( )

When connecting with external audio equipments, such as

amplifiers or speakers, you can turn the TV speakers off in

the menu. (

pp..7799

)

NOTE

Do not look into the optical output port. Looking at the

laser beam may damage your vision.

Composite audio out (the red and white jacks) only works

with composite inputs. Use optical audio output for any

type of DTV signal.

CAUTION

Connect one end of the optical cable to the TV’s

OOPPTTII--

CCAALL

port of

DDIIGGIITTAALL AAUUDDIIOO OOUUTT

Connect the other end of the optical cable to the digital

audio input on the audio equipment.

Set the “TV Speaker option - Off” in the AUDIO menu. (

pp..7799

). See the external audio equipment instruction manu-

al for operation.

1. How to connect

Connect audio outputs to the TV’s

AAUUDDIIOO OOUUTT

jacks.

Set the “TV Speaker option - Off” in the AUDIO menu.

(

pp..7799

). See the external audio equipment instruction

manual for operation.

1. How to connect

Analog

Digital

EXTERNAL EQUIPMENT SETUP

PC SETUP

This TV provides Plug and Play capability, no display driver is needed.

VGA (D-Sub 15 pin) Connection

COMPONENT IN

REMOTE

CONTROL IN

VIDEO

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

VIDEO

( )

S-VIDEO

HDMI/DVI IN

( )

RGB IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

(RGB/DVI)

RGB(PC)

RGB OUTPUT

AUDIO

1. How to connect

Connect the VGA output of the PC to the

RRGGBB

((

PP CC

))

jack on the TV.

Connect the PC audio output to the

AAUUDD II OO

((

RRGGBB//DDVVII

))

jack on the TV.

2. How to use

■

Turn on the PC and the TV.

■

Select the

RRGGBB--PPCC

input source on the TV using the

IINNPPUUTT

button on the remote control.

EXTERNAL EQUIPMENT SETUP

1. How to connect

Connect the DVI output of the PC to the

HHDDMMII//DDVVII

IINN11

, or

jack on the TV.

Connect the PC audio output to the

AAUU DDII OO

((RRGGBB//DDVVII))

jack on the TV.

2. How to use

■

Turn on the PC and the TV.

■

Select the

HHDDMMII 11

HHDDMMII 22

HHDDMMII 33

input source on the

TV using the

IINNPPUUTT

button on the remote control.

DVI to HDMI Connection

( )

COMPONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

VIDEO

AUDIO

DIGIT

AUDIO

OPTIC

VIDEO

( )

S-VIDEO

RGB IN

HDMI/DVI IN

DVI-PC OUTPUT

AUDIO

EXTERNAL EQUIPMENT SETUP

To get the the best picture quality, adjust the PC

graphics card to 1360x768.

Depending on the graphics card, DOS mode may

not work if a HDMI to DVI Cable is in use.

In PC mode, there may be noise associated with

the resolution, vertical pattern, contrast or bright-

ness. If noise is present, run Auto Config. in the

Screen (RGB-PC) menu. You may also try changing

the PC output to another resolution, change the

refresh rate to another rate or adjust the bright-

ness and contrast on the PICTURE menu until the

picture is clear.

Avoid keeping a fixed image on the screen for a

long period of time. The fixed image may become

permanently imprinted on the screen.

The synchronization input form for Horizontal and

Vertical frequencies is separate.

NOTES

Supported Display Specifications (RGB-PC, HDMI-PC)

Horizontal Vertical

Frequency

(

KHz

)

Frequency

(

)

31.469 70.08

31.469 59.94

37.879 60.31

48.363 60.00

47.776 59.87

47.720 59.799

47.130 59.65

Resolution

720x400

1360x768

640x350

640x480

800x600

1024x768

1280x768

1366x768

* Only RGB-PC mode

EXTERNAL EQUIPMENT SETUP

Screen Setup for PC mode

Selecting Resolution

You can choose the resolution in RGB-PC mode.

The

PPoossiittiioonn

PPhhaassee

, and

SSiizzee

can also be adjusted.

Select

PPIICCTTUURREE

Select

SSccrreeeenn ((RRGGBB--PPCC))

Select

RReessoolluuttiioonn

Select the desired resolution.

1024 x 768

1280 x 768

1360 x 768

1366 x 768

Auto config.

Resolution

Position

Size

Phase

Reset

SCREEN

Move

Prev.

MENU/

SET UP

ENTER

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

EXTERNAL EQUIPMENT SETUP

Auto Configure

Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still

not correct, try using the manual settings or a different resolution or refresh rate on the PC.

Select

SSccrreeeenn ((RRGGBB--PPCC))

Select

AAuuttoo ccoonnffiigg..

Auto config.

Resolution

Position

Size

Phase

Reset

SCREEN

Move

Prev.

To Set

ENTER

Select

YYeess

ENTER

Start Auto Configuration.

ENTER

Select

PPIICCTTUURREE

MENU/

SET UP

■

If the position of the image is still not

correct, try Auto adjustment again.

■

If picture needs to be adjusted again

after Auto adjustment in RGB-PC, you

can adjust the

PPoossii tt ii oo nn

SS ii zz ee

PPhhaassee

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Yes No

EXTERNAL EQUIPMENT SETUP

Adjustment for screen Position, Size, and Phase

If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture

phase manually.

This feature operates only in RGB-PC mode.

Select

PPoossiittiioonn

SSiizzee

, or

PPhhaassee

Make appropriate adjustments.

Auto config.

Resolution

Position

Size

Phase

Reset

SCREEN

Move

Prev.

ENTER

■

PPoossiittiioonn

: This function is to adjust pic-

ture to left/right and up/down as you

prefer.

■

SSiizzee

: This function is to minimize any

vertical bars or stripes visible on the

screen background. And the horizontal

screen size will also change.

■

PPhhaassee

: This function allows you to

remove any horizontal noise and clear

or sharpen the image of characters.

Select

PPIICCTTUURREE

Select

SSccrreeeenn ((RRGGBB--PPCC))

MENU/

SET UP

ENTER

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

ENTER

EXTERNAL EQUIPMENT SETUP

Screen Reset (Reset to original factory values)

Returns

PPoossiittiioonn

SSiizzee

, and

PPhhaassee

to the default factory settings.

This feature operates only in RGB-PC mode.

Auto config.

Position

Resolution

Size

Phase

Reset

SCREEN

Move

Prev.

To s et

Select

RReesseett

ENTER

Select

PPIICCTTUURREE

Select

SSccrreeeenn ((RRGGBB--PPCC))

MENU/

SET UP

ENTER

Select

YYeess

ENTER

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Yes No

WATCHING TV / CHANNEL CONTROL

REMOTE CONTROL FUNCTIONS

WATCHING TV / CHANNEL CONTROL

When using the remote control, aim it at the remote control sensor on the TV.

INPUT

FAV

MUTE

DISPLAY ZOOM

SUBTITLE

SKIP -

SLOW -

SKIP +

EJECT

SLOW +

AUDIO

ANGLE

PBC RETURN

REPEAT A-B

TITLE MENU

STB

POWER

Q. MENU

BUILT-IN

MENU/

SETUP

AV MODERETURN

ENTER

VOL

123

456

FLASHBK

DVD

VCR

DISC MENU

TV/STB/VCR

/BUILT-IN DVD

POWER

Q.MENU

INPUT

VOLUME UP

/DOWN

FAV

MUTE

CHANNEL

UP/DOWN

PAGE

UP/DOWN

— (DASH)

FLASHBK

Select the remote operating mode: TV, STB, VCR, or BUILT-IN DVD.

Turns your TV or any other programmed equipment on or

off, depending on the mode.

Select the desired quick menu source.

pp..3355

Displays the main menu.

Clear all on-screen displays and return to TV viewing from

any menu.

External input modes rotate in regular sequence.

Increase/decrease the sound level.

Scroll through the programmed Favorite channels.

pp..3355

Switch the sound on or off.

pp..3344

Select available channels.

Move from one full set of screen information to the next one.

Used to enter a program number for multiple

program channels such as 2-1, 2-2, etc.

Tune to the last channel viewed.

Control video cassette recorders.

Control the SIMPLINK compatible devices.

Controls the Built-In DVD Operation.

For further details, see the ‘DVD Operation’ section.

pp..4466--6611

NUMBER button

VCR,

SIMPLINK

Control buttons

DVD Control

buttons

WATCHING TV / CHANNEL CONTROL

Installing Batteries

■

Open the battery compartment cover on the back side and install

the batteries matching correct polarity

(

+with +,-with -

)

■

Install two 1.5V AAA batteries. Don’t mix old or used batteries with

new ones.

■

Close cover.

THUMBSTICK

(Up/Down/Left

Right/ENTER)

RETURN

SIMPLINK

AV MODE

Blue Color

Button

Navigate the on-screen menus and adjust the system settings to your preference.

Allows the user to move return one step in an interactive application or other user interac-

tion function. Also closes menus.

See a list of SIMPLINK compatible devices connected to the TV.

When you press this button, the SIMPLINK menu appears at the screen.

pp..4444--4455

Toggles through preset picture and audio settings.

pp..4433

The recommands printed on the remote in blue are active when in Built-In DVD mode.

For further details, see the ‘DVD Operation’ section.

pp..4466--6611

WATCHING TV / CHANNEL CONTROL

TURNING ON TV

WATCHING TV / CHANNEL CONTROL

NOTE

If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

First, connect power cord correctly.

At this moment, the TV switches to standby mode.

■

In standby mode to turn TV on, press the ,

IINNPPUUTT

CCHH ((

))

button on the TV or press the

PPOOWWEERR

IINNPPUUTT

CCHH((

))

NNuummbbeerr ((00

99 ))

button on the remote control.

Select the viewing source by using the

IINNPPUUTT

button on the remote con-

trol.

■

This TV is programmed to remember which power state it was last set to,

even if the power cord is out.

When finished using the TV, press the

PPOOWWEERR

button on the remote con-

trol. The TV reverts to standby mode.

Press the

CCHH((

))

NNUUMMBBEERR

buttons to select a channel number.

VOLUME ADJUSTMENT

CHANNEL SELECTION

Press the

VVOOLL ((++

--))

button to adjust the volume.

If you want to switch the sound off, press the

MMUUTTEE

button.

You can cancel the Mute function by pressing the

MMUUTTEE

VVOOLL ((++

--))

button.

Adjust the volume to suit your personal preference.

WATCHING TV / CHANNEL CONTROL

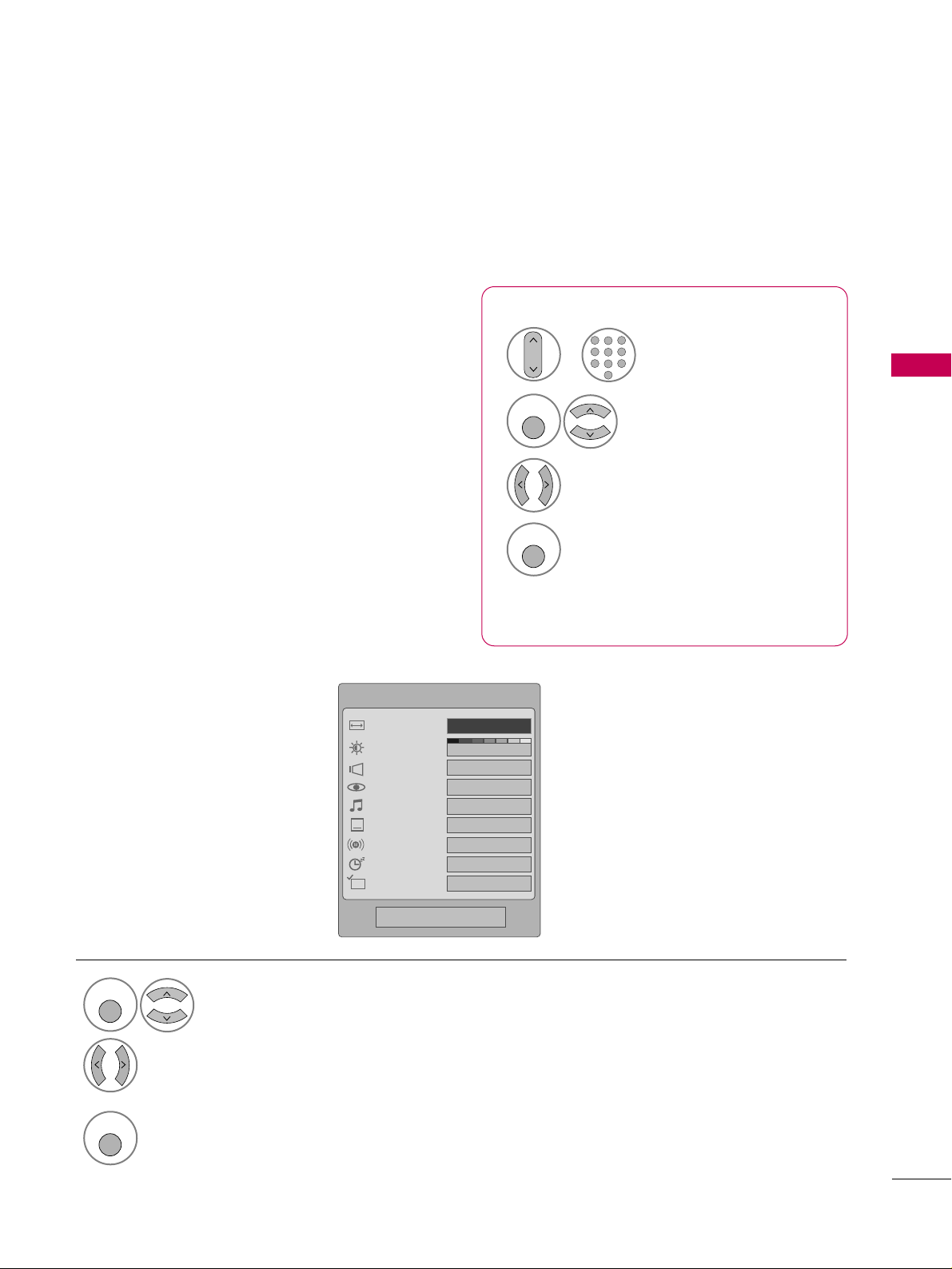

QUICK MENU / FAVORITE CHANNEL SETUP

■

AAssppeecctt RRaattiioo

: Selects your desired picture format.

■

BBaacckklliigghhtt

: Adjust the brightness of LCD panel to

control the brightness of the screen.

■

CClleeaarr VVooiiccee

: By differentiating the human sound

range from others, it helps make human voices

sound better.

■

PPiiccttuurree MMooddee

: Selects the factory preset picture

depend on the viewing environment.

■

SSoouunndd MMooddee

: Selects the factory preset sound for

type of program.

■

CCaappttiioonn

: Select on or off.

■

MMuullttii AAuuddiioo

: Changes the audio language (Digital

signal).

SSAAPP

: Selects MTS sound (Analog signal).

■

SSlleeeepp TTiimmeerr

: Select the amount of time before

your TV turns off automatically.

■

DDeell//AAdddd//FFaavv

: Select channel you want to add/delete

or add the channel to the Favorite List.

Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

Q.Menu (Quick Menu) is a menu of features which users might use frequently.

Q.Menu

16:9

Vivid

Off

Standard

Off

English

Off

Add

Aspect Ratio

Backlight

Clear Voice

Picture Mode

Sound Mode

Caption

Multi Audio

Sleep Timer

Del/Add/Fav

Display each menu.

Make appropriate adjustments.

Q. MENU

Return to TV viewing.

Favorite Channle Setup

Select

DDeell//AAdddd//FFaavv

■

To tune to a favorite channel, press the

FFAA VV

(Favorite) button repeatedly.

Q. MENU

456

Select your desired channel.or

Select

FFaavvoorriittee

Q. MENU

Return to TV viewing.

WATCHING TV / CHANNEL CONTROL

INITIAL SETTING

WATCHING TV / CHANNEL CONTROL

This Function guides the user to easily set the essential items for viewing the TV for the first time when

purchasing the TV. It will be displayed on the screen when turning the TV on for the first time. It can also be

activated from the user menus.

Select

HHoommee

Mode.

ENTER

Select

AAuuttoo

MMaannuuaall

Select desired time option.

ENTER

Year

Current Time Setting

2007

Month

Date

Hour

5 PM

Minute

Time Zone

Eastern

Daylight Saving

Off

Auto

ExitEnter

RETURN

Step2. Time Setting

Selecting the environment.

Choose the setting mode you want.

In Store

Home

ExitEnter

RETURN

Step1. Mode Setting

Step2. Time Setting

■

Default selection is “

HHoommee

”. We recommend setting the TV to “

HHoommee

” mode for the best picture in your

home environment.

■

“

IInn--ssttoorree

” Mode is only intended for use in retail environments. Customers can adjust the “

PPiiccttuurree

PPiiccttuurree mmooddee

” manually while inspecting the TV, but the TV will automatically return to preset in-store

mode after 5 minutes.

Select

OOSSDD LLaanngguuaaggee SSeettttiinngg

AAuuddiioo LLaanngguuaaggee SSeettttiinngg

Start

AAuuttoo TTuunniinngg

Select your desired language.

ENTER

Auto Tuning can change channel map.

Do you want to start Auto Tuning?

Enter

Exit

Enter

RETURN

Step4. Auto Tuning

ExitEnter

RETURN

Step3. Option Setting

1. OSD Language Setting

English

2. Audio Language Setting

French

Step3. Option Setting

Step4. Auto Tuning

■

You can also adjust

IInniittiiaall SSeettttiinngg

in the

OOPPTTIIOONN

NOTE

WATCHING TV / CHANNEL CONTROL

ON-SCREEN MENUS SELECTION

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

Display each menu.

Select a menu item.

Enter to the pop up menu.

MENU/

SET UP

ENTER

Return to TV viewing.

MENU/

SET UP

Enter

Move

Auto Tuning

Manual Tuning

Channel Edit

CHANNEL

TIME


OPTION

AUDIO

LOCK

Enter

Move

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

TIME

Enter

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

LOCK

Enter

Move

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

OPTION

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

For USA For Canada

Enter

Move

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0


Enter

Move

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

AUDIO

Auto Scan (Auto Tuning)

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the

channel list.

Run Auto Tuning again after any Antenna/Cable connection changes.

Select

CCHHAANNNNEELL

Select

AAuuttoo TTuunniinngg

Select

YYeess

Run

AAuuttoo ttuunniinngg

MENU/

SET UP

ENTER

■

A password is required to gain access to

Auto Tuning menu if the Lock System is

turned on.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Enter

Move

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Press ‘Yes’ button to begin

auto tuning.

Yes

WATCHING TV / CHANNEL CONTROL

CHANNEL SETUP

WATCHING TV / CHANNEL CONTROL

Select

CCHHAANNNNEELL

MENU/

SET UP

ENTER

If selecting DTV or CADTV input signal, you can view the on-screen signal strength monitor to see the quality

of the signal being received.

Add/Delete Channel (Manual Tuning)

Select

MMaannuuaall TTuunniinngg

Select

DDTTVV

TT VV

CCAADDTTVV

, or

CCAATTVV

Select channel you want to add

or delete.

ENTER

Select

AAdddd

DDeelleettee

ENTER

■

A password is required to gain access to

Manual Tuning menu if the Lock System

is turned on.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Enter

Move

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Channel

Select channel type and

RF-channel number.

DTV

Delete

DTV 2-1

Bad Normal Good

WATCHING TV / CHANNEL CONTROL

A custom list can be created by toggling each channel on or off with the ENTER button. The channels in the

Custom List are displayed in black and the channels deleted from the Custom List are displayed in gray.

Once a channel is highlighted you can add or delete the channel by referring to the small window at the top-

right corner of the screen.

Channel Editing

Select a channel.

Select channel you want to add or

delete.

ENTER

Select

CCHHAANNNNEELL

MENU/

SET UP

ENTER

Select

CChhaannnneell EEddiitt

RETURN

Return to TV viewing.

Return to the previous menu.

MENU/

SET UP

Enter

Move

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Add/Delete

Move Page

Move

Exit

RETURN

WATCHING TV / CHANNEL CONTROL

INPUT LIST

■

AAnntteennnnaa

: Select it to watch over-the-air broadcasts.

■

CCaabbllee

: Select it to watch cable and digital cable.

■

AA VV

: Select them to watch a VCR or other external

equipment.

■

CCoommppoonneenntt

: Select them to watch DVD or a

Digital set-top box.

■

BBuuiilltt--IInn DDVVDD

: Select it to play DVD.

■

RRGGBB--PPCC

: Select it to view PC input.

■

HHDDMMII

: Select them to watch high definition

devices.

Antenna Cable AV1 AV2 Component

HDMI3 HDMI2 HDMI1 RGB-PC Built-In DVD

Select the desired input source.

INPUT

ENTER

Antenna Cable AV1 AV2 Component

Only these input signals which are connected to a TV can be activated and selected.

Antenna Cable AV1 AV2 Component

Input Label

Q.MENU

Exit

RETURN

Select a desired input source (except

BBuuiilltt--IInn DDVVDD

AAnntteennnnaa

CCaabbllee

Then, you can select your desired Input

Label with using Q.MENU button.

pp..4422

Disconnected inputs are

inactivated (grayed out).

ie)

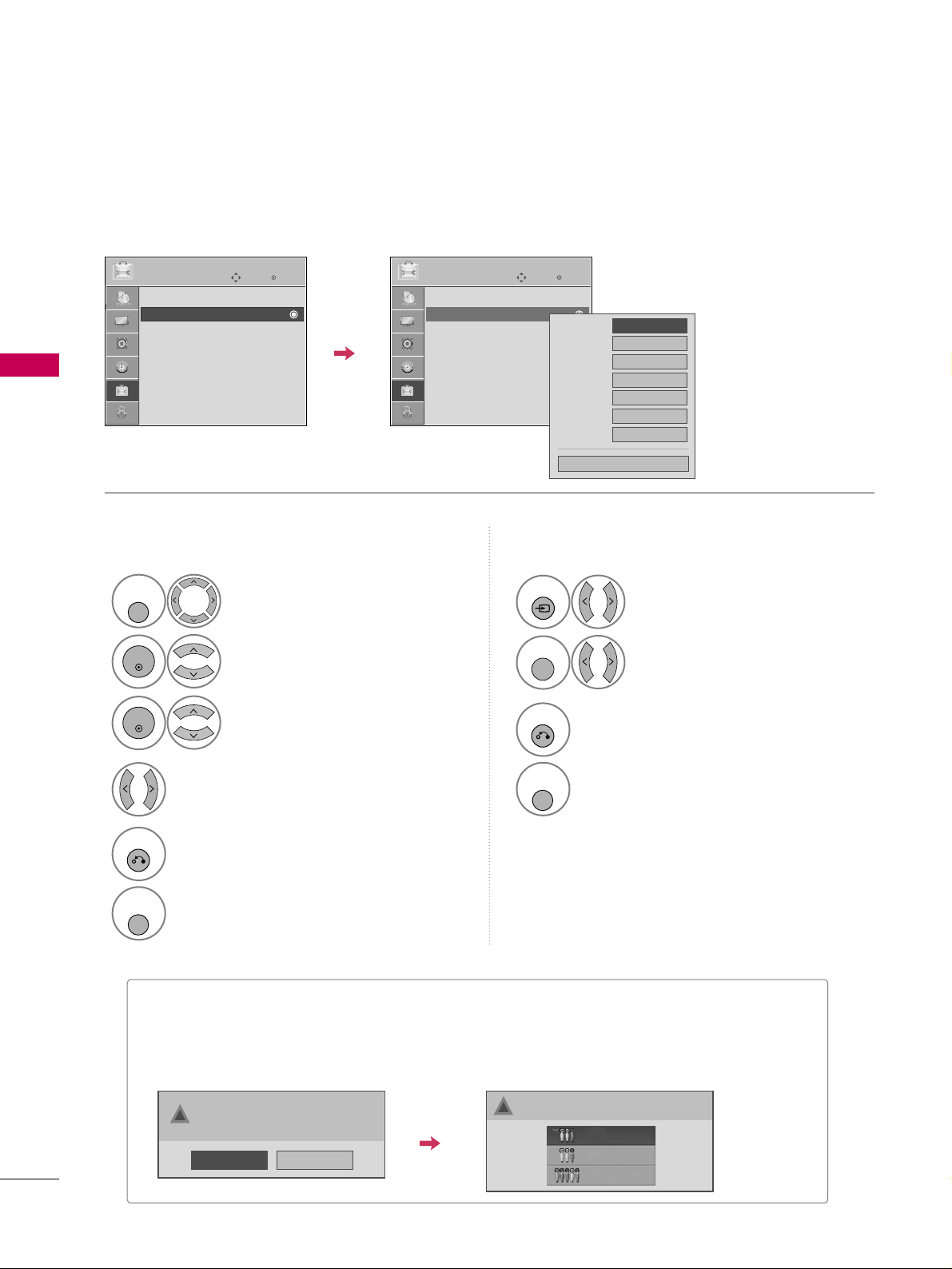

WATCHING TV / CHANNEL CONTROL

INPUT LABEL

WATCHING TV / CHANNEL CONTROL

You can set a label for each input source when it's not in use.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

AV1

AV2

Component

RGB-PC

HDMI1

HDMI2

HDMI3

FF GG

Select

OOPPTTIIOONN

Select

IInnppuutt LLaabbeell

Select the label.

MENU/

SET UP

ENTER

Select the source.

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing

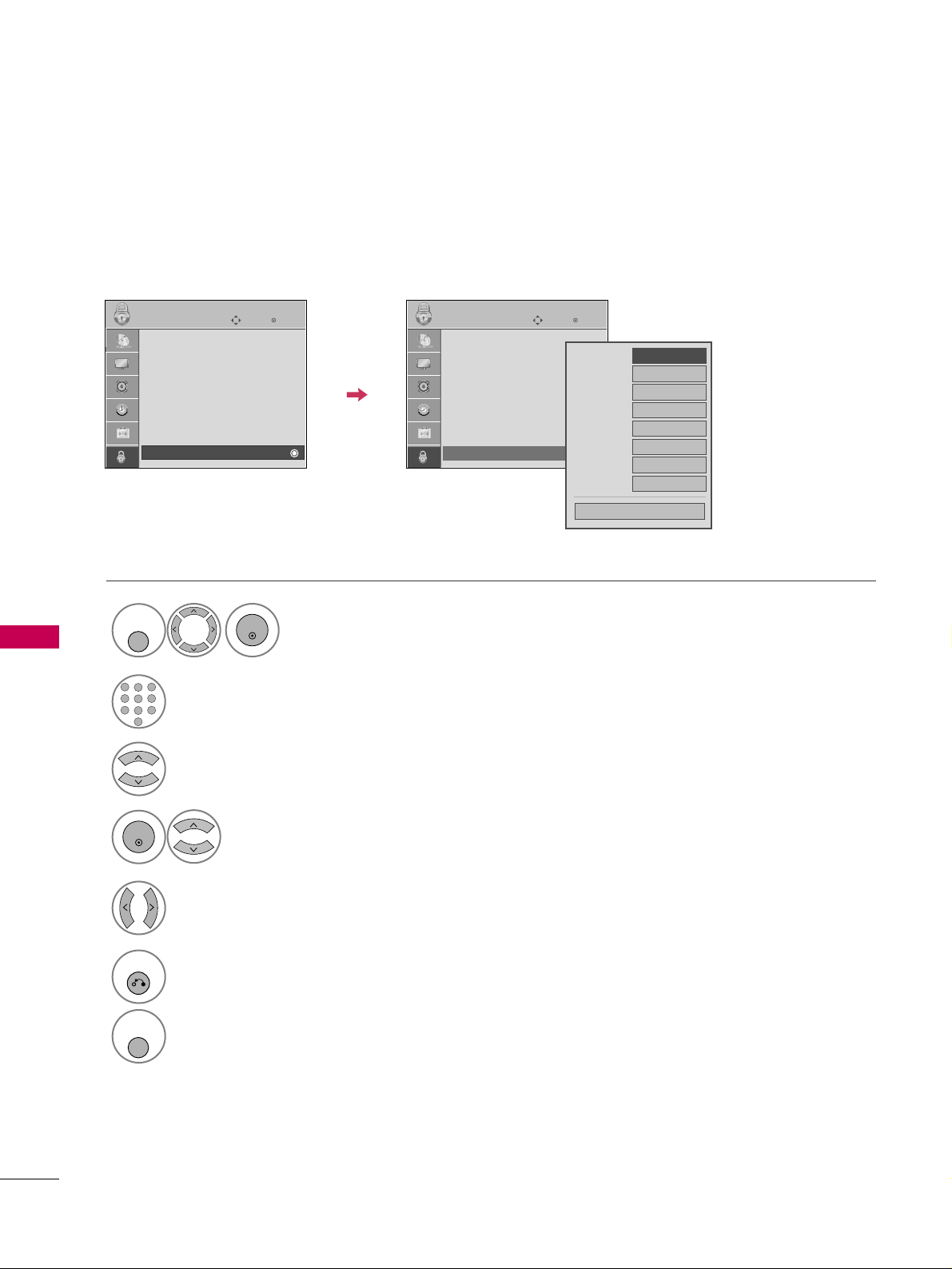

With using OPTION menu

Select the source.

Select the label.

INPUT

Q. MENU

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing

With using INPUT button

■

When new external device is connected, this popup menu is displayed automatically.

If selecting

YYeess

, you can select input source that you want to appreciate.

■

But, when selecting “

SSIIMMPPLLIINNKK

OOnn

”, popup menu for HDMI input will not be displayed.

Yes

New external device is connected.

Do you want to enjoy this?

Select input source that you want to appreciate.

AV1

AV2

Component

WATCHING TV / CHANNEL CONTROL

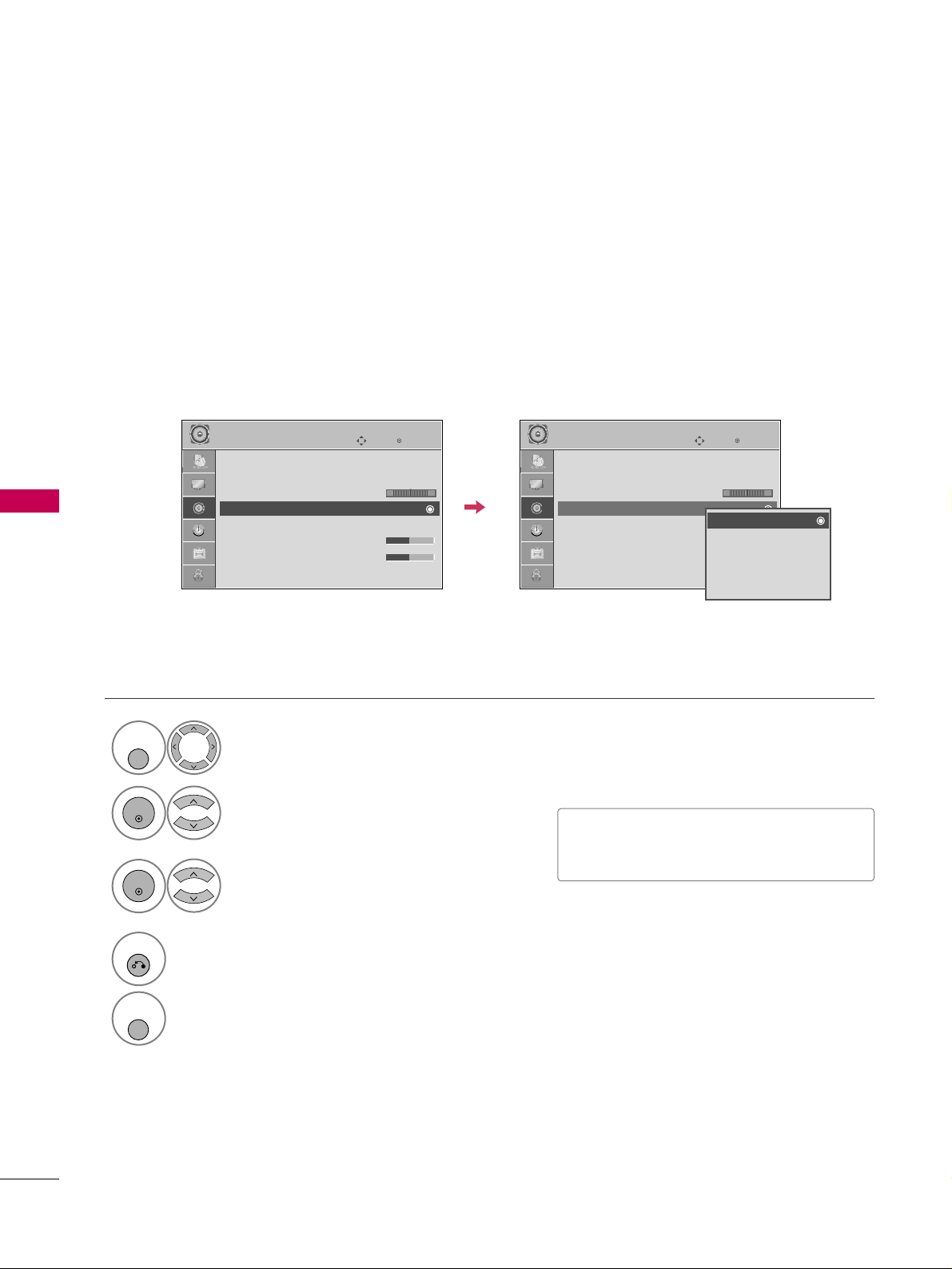

AV MODE

You can select the optimal images and sounds.

AV MODE

Off Cinema

Game Sport

Press the

AAVV MMOODDEE

button repeatedly to select the desired source.

ENTER

■

If you select “

CCiinneemmaa

” in AV mode,

CCiinneemmaa

will be selected both for “PIC-

TURE menu - Picture Mode” and “AUDIO

menu - Sound Mode” respectively.

■

If you select “

OOffff

” in AV mode, the

“

PPiiccttuurree MMooddee

” and “

SSoouunndd MMooddee

”

return to previous selected value.

WATCHING TV / CHANNEL CONTROL

This function operates only with devices with the logo.

The TV might not function properly when using it with other products with HDMI-CEC function.

This allows you to control and play other AV devices connected with HDMI cable without additional cables and

settings.

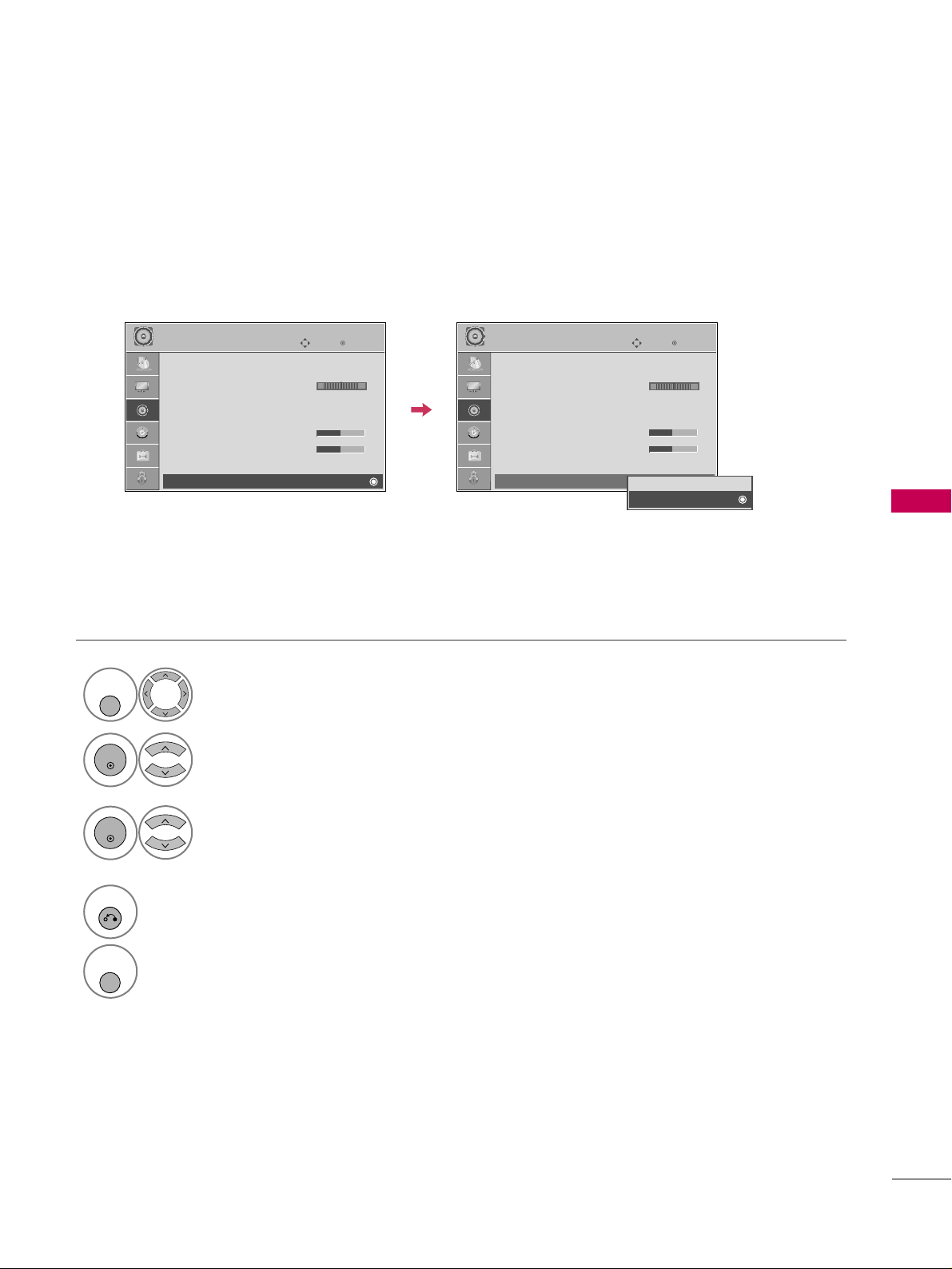

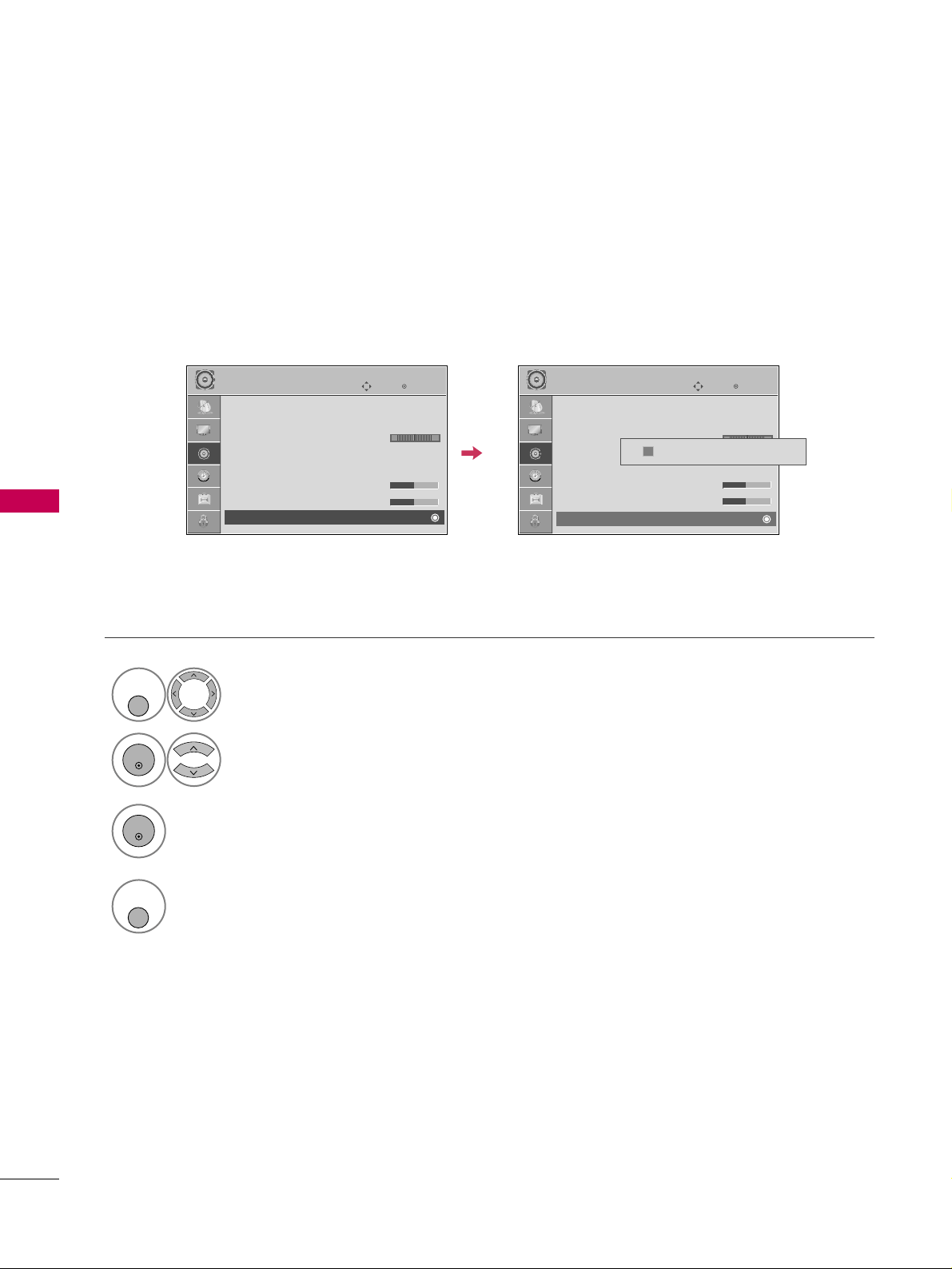

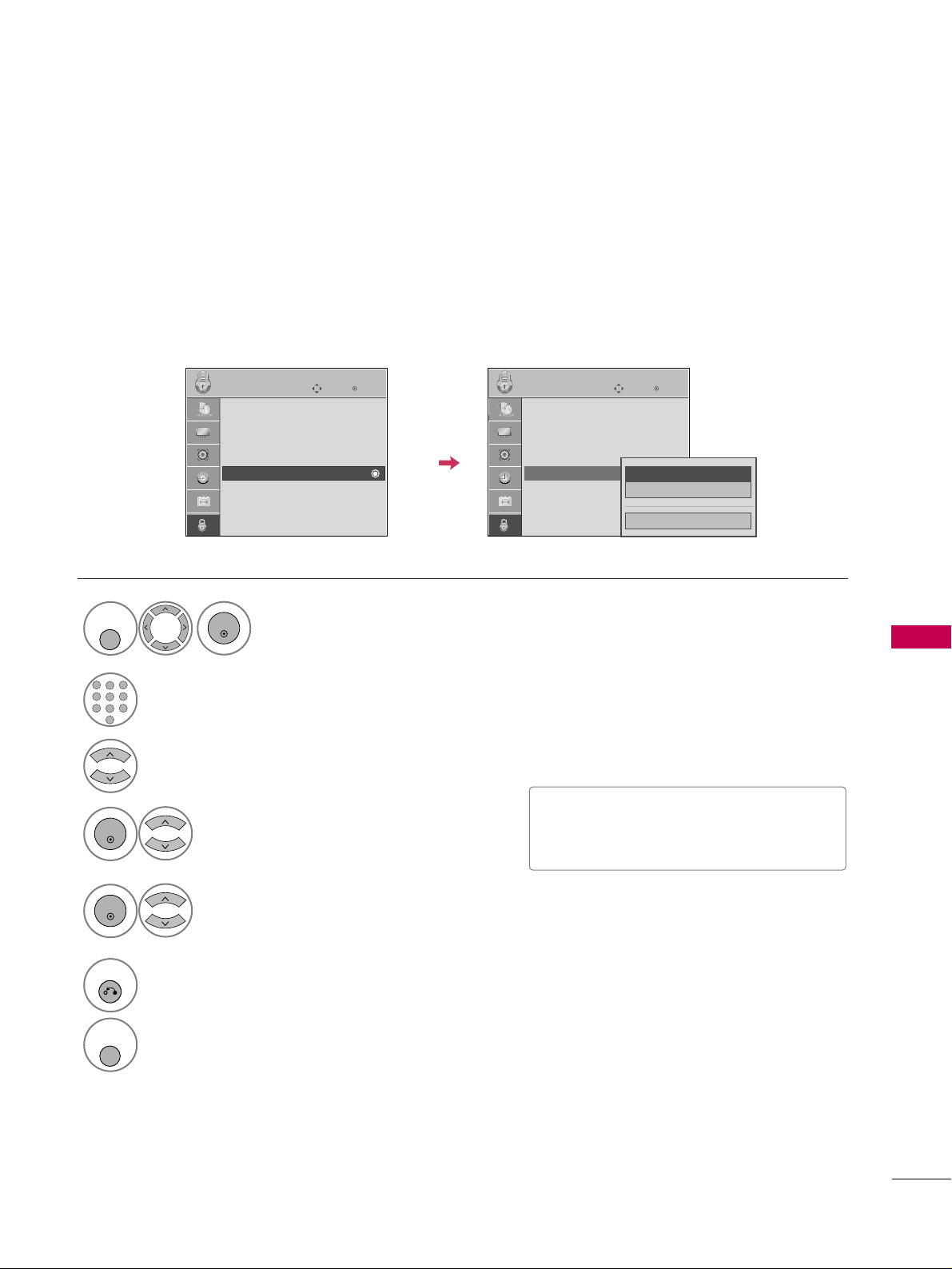

To start using SIMPLINK, turn it on in the user menus.

Select

OOPPTTIIOONN

Select

SSIIMMPPLLIINNKK

Select

OOnn

OOffff

MENU/

SET UP

ENTER

NOTE

Connect the HDMI/DVI IN or HDMI IN terminal of the TV to the rear terminal (HDMI terminal) of the SIM-

PLINK device with the HDMI cable.

When you switch the Input source with the INPUT button on the remote control, the SIMPLINK device will

stop.

When you select a device with home theater functionality, the sound output automatically switches to the

home theater speakers.

If a connected SIMPLINK home theater system doesn't play the audio from the TV, connect the DIGITAL

AUDIO OUT terminal on the back of the TV to the DIGITAL AUDIO IN terminal on the back of the SIM-

PLINK device with an OPTICAL cable.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Off

WATCHING TV / CHANNEL CONTROL

■

DDiirreecctt PPllaayy::

After connecting AV devices to the TV, you can directly control the devices and play media with-

out additional settings.

■

SSeelleecctt AAVV ddeevviiccee::

Enables you to select one of the AV devices connected to TV.

■

DDiisscc ppllaayybbaacckk::

Control connected AV devices by pressing the ,

ENTER,

ll ll

and

buttons.

■

PPoowweerr ooffff aallll ddeevviicceess::

When you power off the TV, all connected devices are turned off.

■

SSwwiittcchh aauuddiioo--oouutt::

Offers an easy way to switch audio-out.

■

SSyynncc PPoowweerr oonn::

When you play the connected AV device, TV will automatically turn on.

(A device, which is connected to the TV through a HDMI cable but does not support SIMPLINK, does not provide

this function)

Note: To operate SIMPLINK, an HDMI cable over Version 1.2 with *CEC function support should be used. (*CEC:

Consumer Electronics Control).

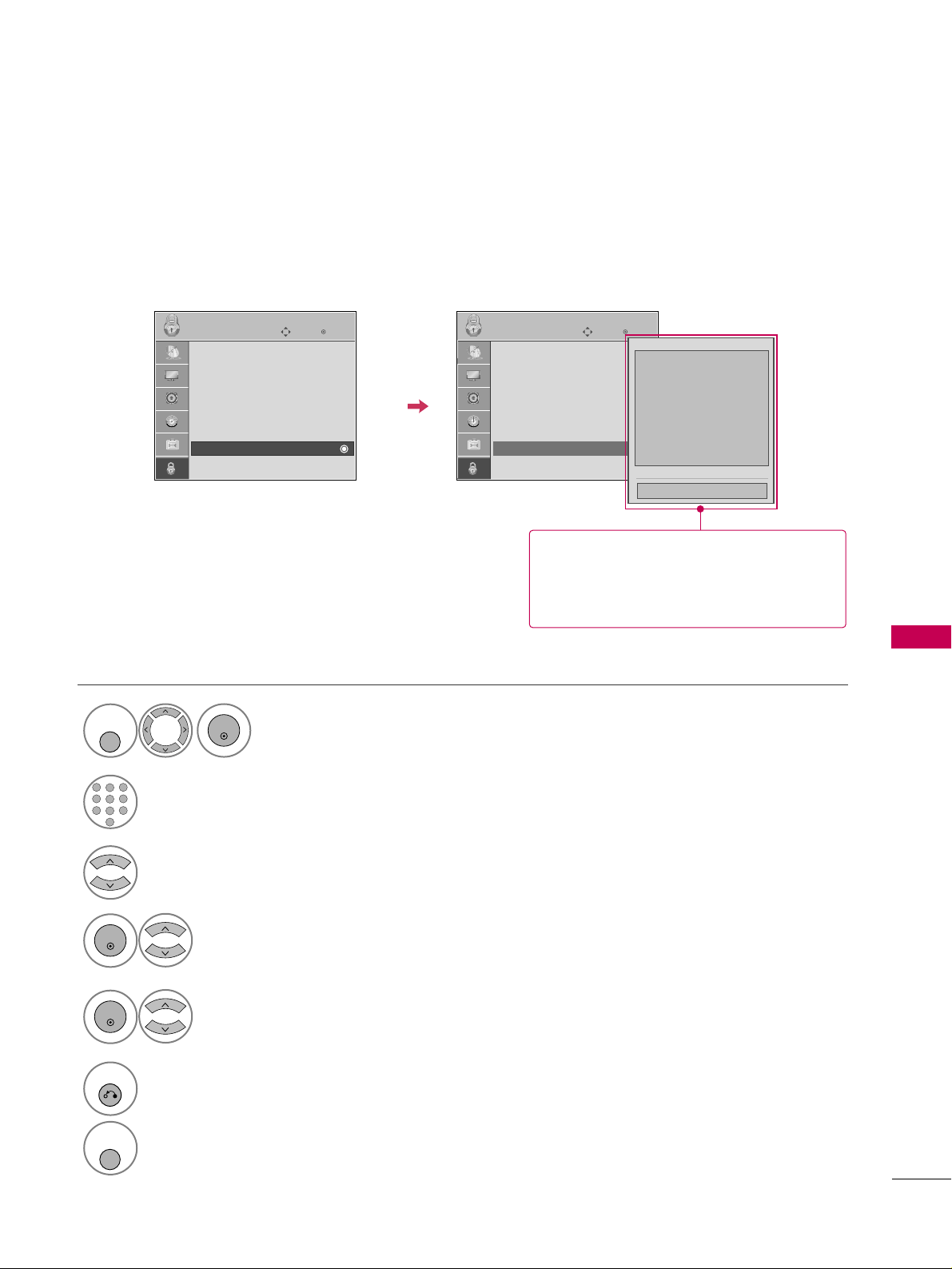

SIMPLINK Functions

Display

SSIIMMPPLLIINNKK

menu.

Select the desired device.

Control connected AV devices.

ENTER

SIMPLINK Menu

TTVV vviieewwiinngg

: Switch to the previous TV

channel regardless of the current mode.

DDIISSCC ppllaayybbaacckk

: Select and play discs.

When multiple discs are available, the titles

of discs are conveniently displayed at the

bottom of the screen.

VVCCRR ppllaayybbaacckk

: Control the connected

VCR.

HHDDDD RReeccoorrddiinnggss ppllaayybbaacckk

: Control

recordings stored in HDD.

AAuuddiioo OOuutt ttoo HHoommee TThheeaatteerr ssppeeaakk--

eerr//AAuuddiioo OOuutt ttoo TTVV

: Select Home

Theater speaker or TV speaker for Audio

Out.

When no device is connected

(displayed in gray)

Selected Device

When a device is connected

(displayed in bright color)

DVD OPERATION

NOTES ON DISCS

Symbol used in this manual

“ ” may appear on the TV screen during operation.

A “ ” means that the operation is not permitted by

the unit or is not available on the disc.

On handling discs

■

Do not touch the playback side of the disc.

■

Do not attach paper or tape to discs.

On cleaning discs

■

Fingerprints and dust on the disc cause picture and

sound deterioration. Wipe the disc from the center

outwards with a soft cloth. Always keep the disc

clean.

■

Do not use any type of solvent such as thinner, benzine,

commercially available cleaners or antistatic spray

for vinyl LPs. It may damage the disc.

On storing discs

■

Do not store discs in a place subject to direct sunlight

or near heat sources.

■

Do not store discs in places subject to moisture and

dust such as a bathroom or near a humidifier.

■

Store discs vertically in a case. Stacking or placing

objects on discs outside of their case may cause

warping.

Structure of disc contents

Normally, DVD video discs are divided into titles, and

the titles are sub-divided into chapters. Video CDs

and Audio CDs are divided into tracks.

DVD video disc

Video CD/Audio CD

Each title, chapter or track is assigned a number, which

is called “title number”, “chapter number” or “track

number” respectively.

There may be discs that do not have these numbers.

TTiittllee::

When two or more movies are recorded on a

disc, the disc is divided into two or more parts. Each

part is called a “TITLE”.

CChhaapptteerr::

The titles can be subdivided into many

sections. Each section is called a “CHAPTER”.

TTrraacckk::

An audio CD can contain several items. These

are assigned to the tracks.

NNoottee

• If an MP3 or JPG file CD is created using an incorrect

method, the player may not be able to recognize it. If

this happens, try reburning another CD after setting

up the disc writing parameters correctly on your PC.

Playback side

Video CD/Audio CD

Track 1 Track 2 Track 3 Track 4 Track 5

DVD video disc

Title 1 Title 2

Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5

DVD OPERATION

Types of Playable Discs

■

DVD (8 cm / 12 cm disc)

■

Video CD (VCD) (8 cm / 12 cm disc)

■

Audio CD (8 cm / 12 cm disc)

In addition, this unit plays DVD -R, DVD +R, DVD -RW,

DVD +RW, Kodak Picture CDs, SVCD, and CD-R / CD-

RW that contains audio titles, MP3, and/or JPG files.

Note: Depending on the conditions of the recording

equipment or the CD-R/RW (or DVD -R, DVD +R,

DVD -RW, DVD +RW) disc itself, some CD-R/RW (or

DVD -R, DVD +R, DVD -RW, DVD +RW) discs cannot

be played on the unit.

Regional code of the DVD player

and DVDs

This DVD player is designed and manufac-

tured for playback of region “

” encoded

DVD software. The region code on the

labels of some DVD discs indicates which

type of player can play those discs. This unit can play

only DVD discs labeled “

” or “

AALLLL

”. If you try to play

any other discs, the message “

WWrroonngg RReeggiioonn

” will

appear on the TV screen. Some DVD discs may not

have a region code label even though their playback is

prohibited by area limits.

CCAAUUTTIIOONN::

This Digital Video Disc Player employs a Laser System.

To ensure proper use of this product, please read this

owner’s manual carefully and retain for future refer-

ence should the unit require maintenance, contact an

authorized service location (see service procedure).

Use of controls, adjustments, or the performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try

to open the enclosure. Visible laser radiation when

open. DO NOT STARE INTO BEAM.

CCAAUUTTIIOONN::

The apparatus should not be exposed to

water (dripping or splashing) and no objects filled

with liquids, such as vases, should be placed on the

apparatus.

Last Scene Memory

This player memorizes last scene from the last disc

that is viewed. The last scene remains in memory even

if you change the input source.

NNoottee::

This player does not memorize the scene of a

disc if you remove the disc from the player or turn off

the TV.

SELECTING LANGUAGE

DVD OPERATION

Original

Korean

English

French

German

Spanish

Italian

Chinese

Polski

Japanese

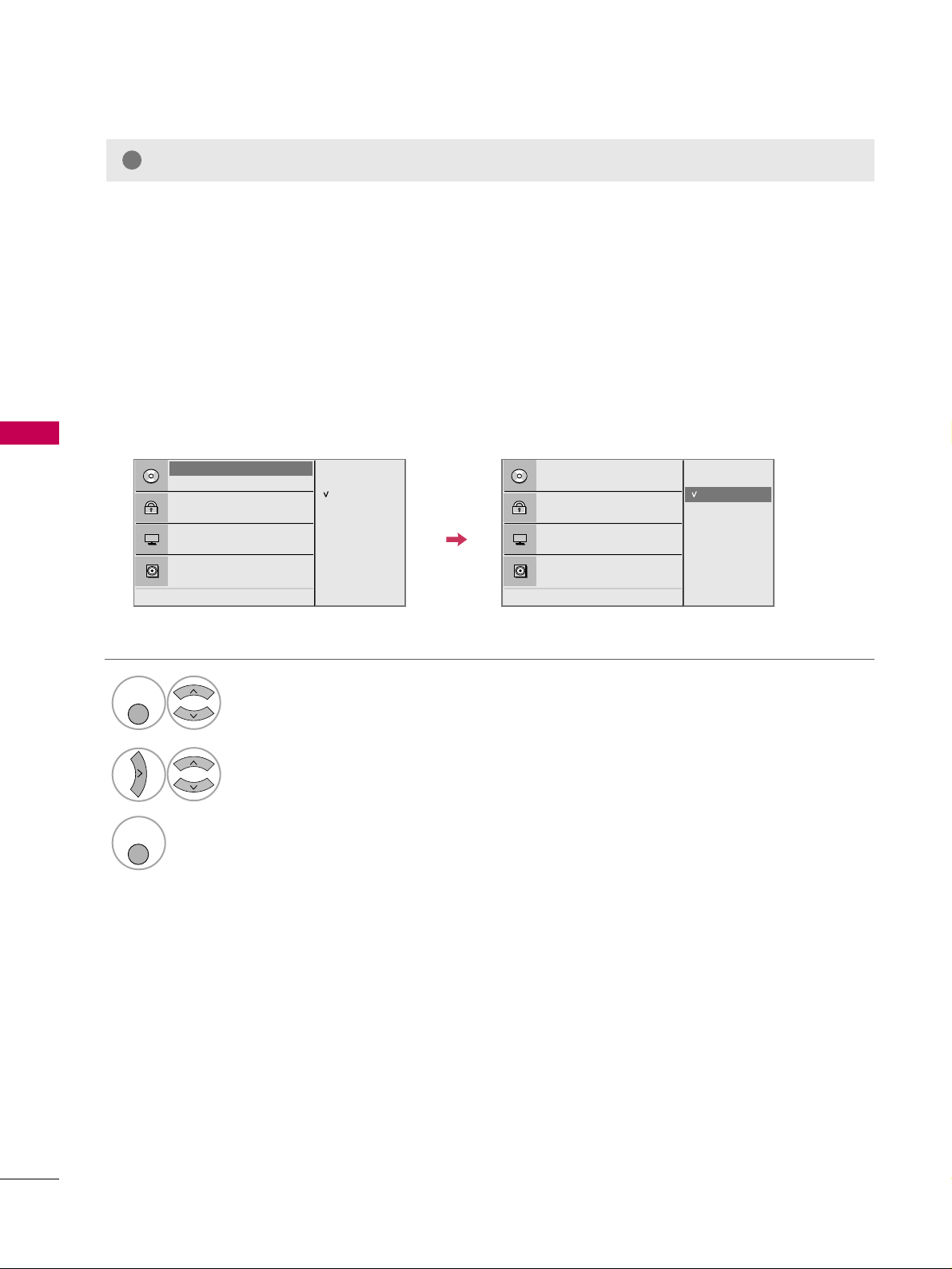

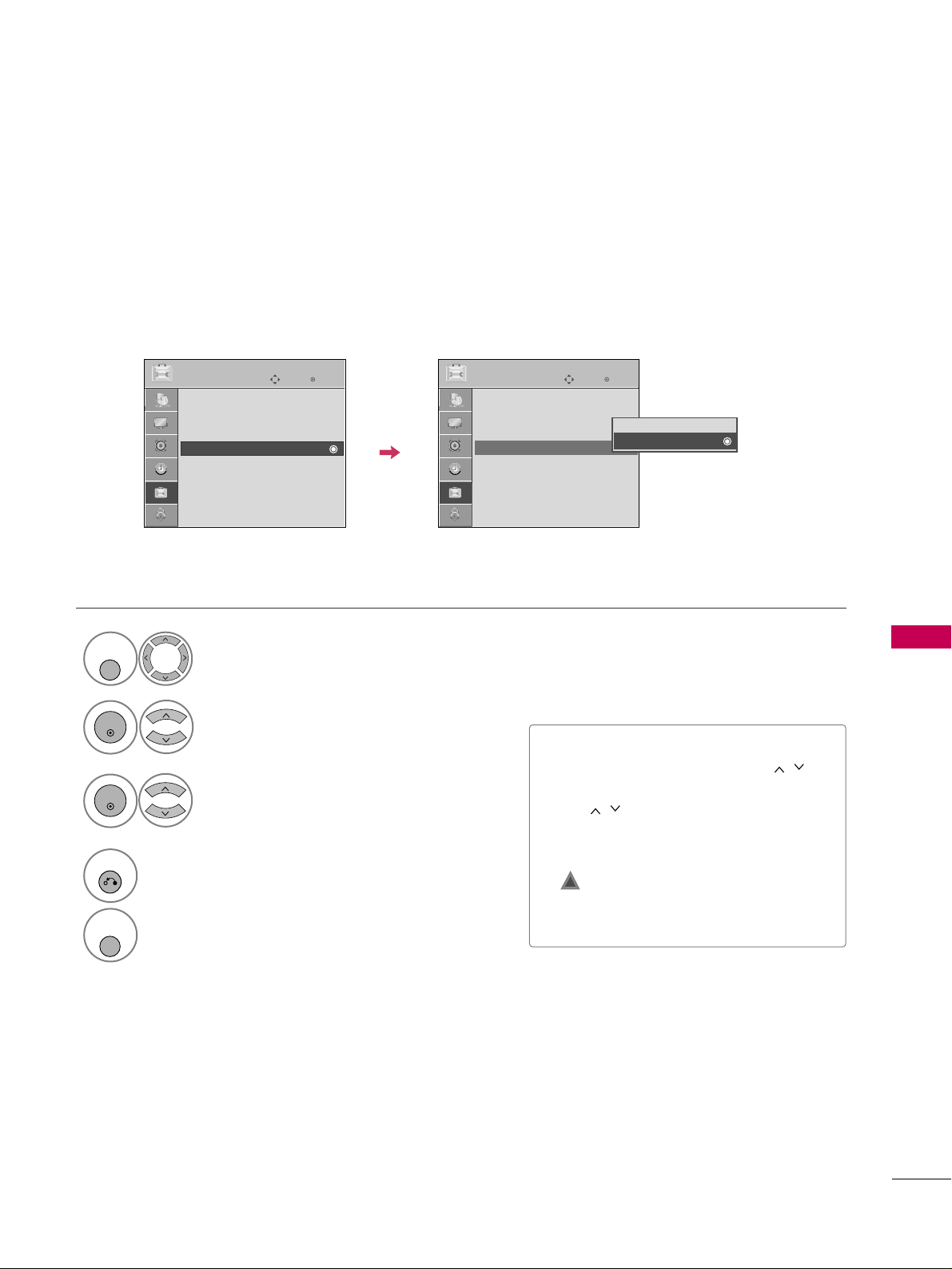

Selecting Audio Language

Select your preferred audio language. If an audio language is selected, the selected audio language is played

whenever you start a new disc playback. (The disc must contain the selected language)

You can also select another available audio language during playback with the

AAUUDDIIOO

button on the remote

control during playback.

Select

AAuuddiioo LLaanngguuaaggee

Select desired language.

MENU/

SET UP

MENU/

SET UP

Return to normal playback.

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

Original

Korean

English

French

German

Spanish

Italian

Chinese

Polski

Japanese

Insert a DVD and press STOP button twice to access this DVD setup menu.

NOTE

DVD OPERATION

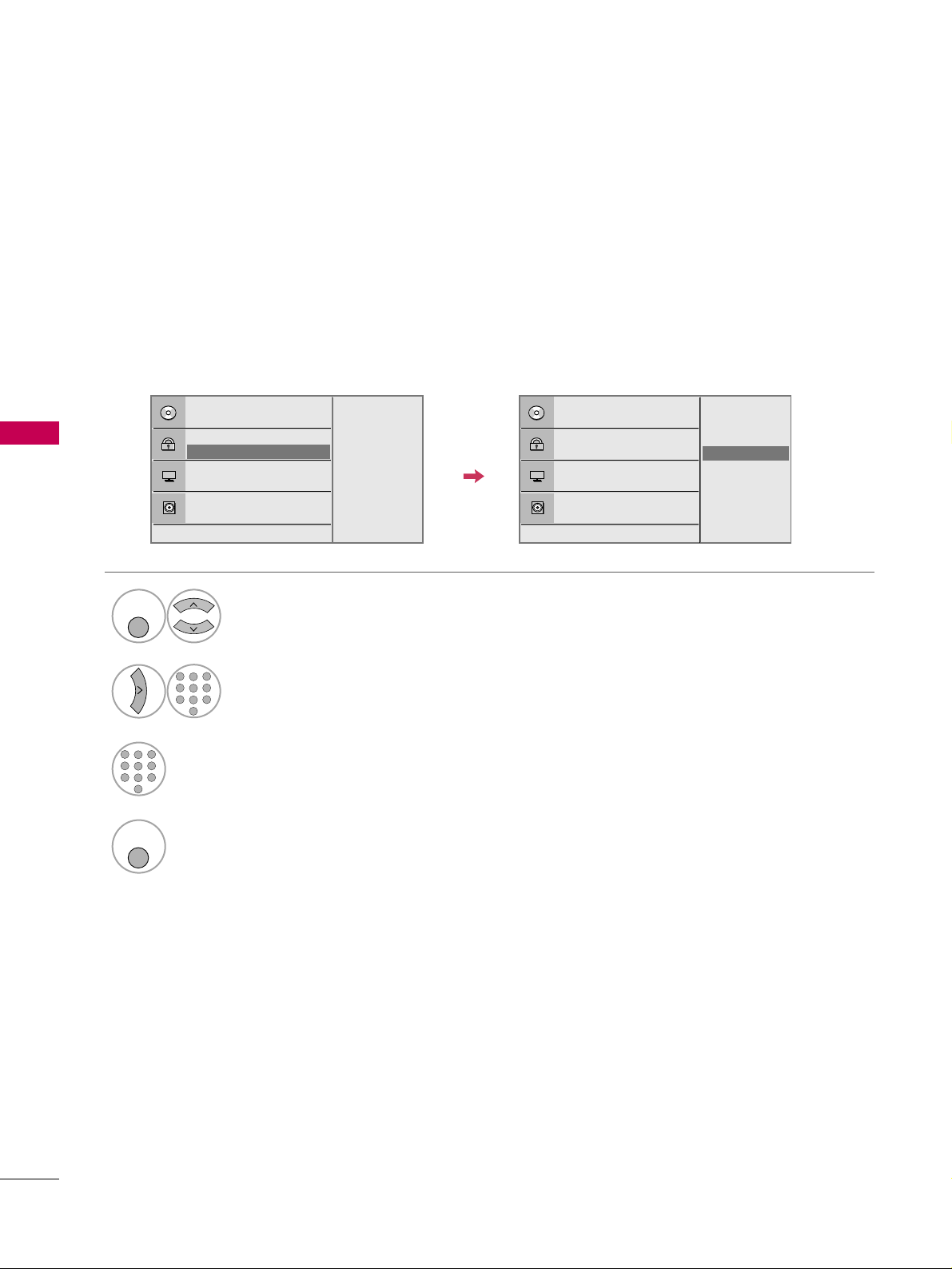

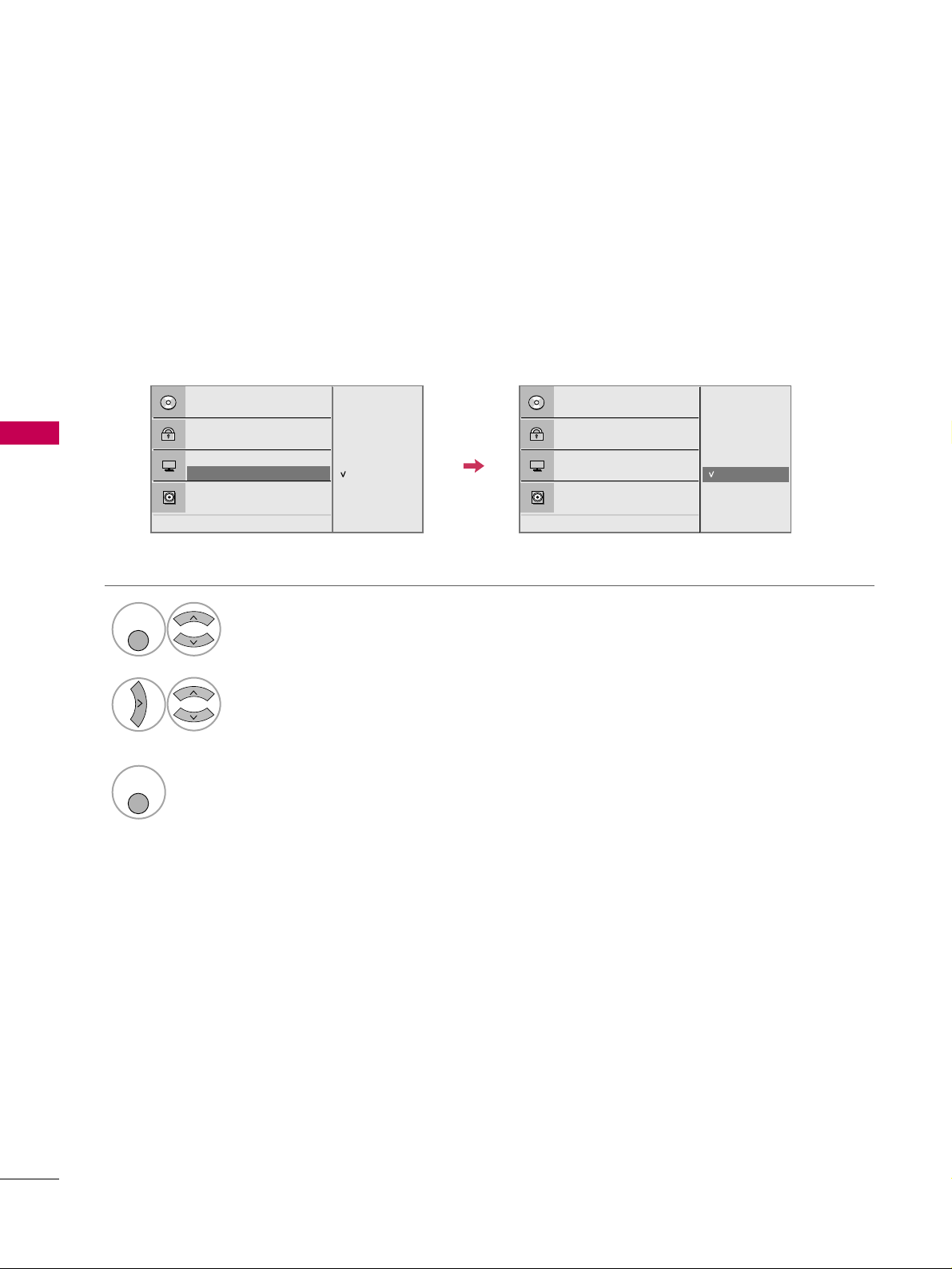

Selecting Subtitle Language

Select your preferred subtitle language. If a subtitle language is selected, the selected subtitle language is

played whenever you start a new disc playback. (The disc must contain the selected language)

You can also select another available subtitle language with the

SSUUBBTTIITTLLEE

button on the remote control

during playback.

Select

SSuubbttiittllee LLaanngguuaaggee

Select desired language.

MENU/

SET UP

MENU/

SET UP

Return to normal playback.

Original

Korean

English

French

German

Spanish

Italian

Chinese

Polski

Japanese

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

Original

Korean

English

French

German

Spanish

Italian

Chinese

Polski

Japanese

DVD OPERATION

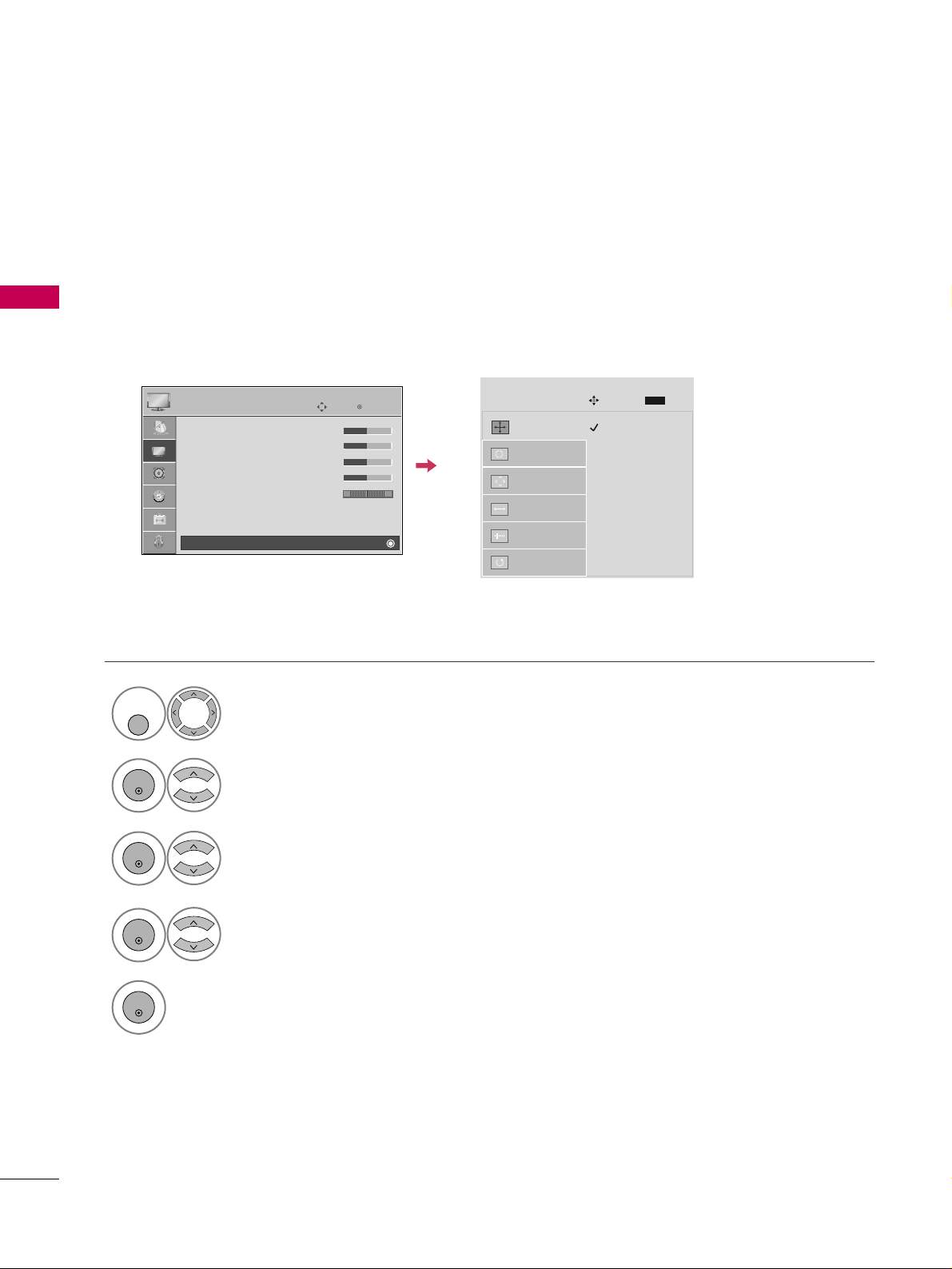

Selecting Disc OSD Language

The OSD (on screen display) can be shown on the screen in your specified language.

Select

MMEENNUU LLaanngguuaaggee

Select desired language.

The menus and on screen displays will

appear in the selected language.

MENU/

SET UP

MENU/

SET UP

Return to normal playback.

English

Spanish

French

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

English

Spanish

French

PARENTAL CONTROL / RATINGS

DVD OPERATION

Parental Control Setup

Some movies contain scenes that may not be suitable for children to view. Many of these discs contain parental

control information that applies to the complete disc or to certain scenes on the disc. Movies and scenes are rated

from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative.

The parental control feature allows you to block access to scenes above the rating you input, thereby preventing

your children from being able to view material you believe is unsuitable.

Select

RRaattiinngg LLeevveell

Input the password.

MENU/

SET UP

456

Set the restriction level from 1 to 8.

Viewing becomes more restricted as

the number increases.

MENU/

SET UP

Return to normal playback.

8 Adult

7 NC - 17

6 R

5 PG - r

4 PG - 13

3 PG

2 G

1 Kids

Unlock

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

8 Adult

7 NC - 17

6 R

5 PG - r

4 PG - 13

3 PG

2 G

1 Kids

Unlock

■

1: Kids

■

2: G (General audience)

■

3: PG (Parental guidance suggested)

■

4: PG-13 (13 years and older)

■

5: PG-r

■

6: R (Restricted)

■

7: NC-17 (18 years and older)

■

8: Adult (Adults only)

Enter the password as requested.

The TV is set up with the initial pass-

word “0-0-0-0”.

If you ever forget your password, key in

‘7’, ‘7’, ‘7’, ‘7’ on the remote control.

■

If you set a rating for the player, all disc

scenes with the same rating or lower are

played. Higher rated scenes are not

played unless an alternate scene is avail-

able on the disc. The alternative must

have the same rating or a lower one. If

no suitable alternative is found, play-

back stops. You must enter the 4-digit

password or change the rating level in

order to play the disc.

DVD OPERATION

Changing the password

Select

NNeeww PPaasssswwoorrdd

Input the password.

MENU/

SET UP

456

Enter it again when requested.

MENU/

SET UP

Return to normal playback.

- - - -

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

- - - -

PICTURE SIZE CONTROL

DVD OPERATION

Select

TTVV SSccrreeeenn

Select

44::33 LLBB

44::33 PPSS

, or

1166::99

MENU/

SET UP

MENU/

SET UP

Return to normal playback.

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

You can watch TV in various picture formats.

4 : 3 LB

4 : 3 PS

16 : 9

■

Depending on the disc, the TV screen

feature may not be available.

■

4:3 LB (Letter Box)

■

4:3 PS (Pan & Scan)

■

16:9

4 : 3 LB

4 : 3 PS

16 : 9

DIGITAL AUDIO OUTPUT

DVD OPERATION

Select

DDiiggiittaall OOuuttppuutt

Select

OOffff

BBiittssttrreeaamm

, or

PPCCMM

MENU/

SET UP

MENU/

SET UP

Return to normal playback.

Off

Bitstream

PCM

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

You can select the output for SPDIF (Sony/Philips Digital Interface).

Each DVD disc has a variety of audio output options.

Set the player’s AUDIO options according to the type of audio system you use.

Off

Bitstream

PCM

■

Bitstream: Select Bitstream if you con-

nect the DVD Player’s DIGITAL OUT

jack to an amplifier or other equipment

with a Dolby Digital, or MPEG decoder.

■

PCM (Pulse Code Modulation): Select

when connected to a two-channel digi-

tal stereo amplifier. DVDs encoded in

Dolby Digital, or MPEG will be automat-

ically downmixed to two-channel PCM

audio.

DYNAMIC RANGE COMPRESSION (DRC)

DVD OPERATION

Select

DDRRCC

Select

OOffff

(Decrease the DRC range) or

OOnn

(Reset the DRC range to original values).

MENU/

SET UP

MENU/

SET UP

Return to normal playback.

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Next

Audio Language

Subtitle Language

Rating Level

New Password

TV Screen

MENU Language

Digital Output

DRC

DD EE

: Move

: Prev

Confines the audio range to prevent excessively loud sound yet allows you to hear the low sounds clearly.

Off

■

With the DVD format, you can hear a

program’s soundtrack in the most accu-

rate and realistic presentation possible,

thanks to digital audio technology.

However, you may wish to compress the

dynamic range of the audio output (the

difference between the loudest sounds

and the quietest ones).

■

This allows you to listen to a movie at a

lower volume without losing clarity of

sound. Set DRC to On for this effect.

PLAYING A DVD OR VIDEO CD

DVD OPERATION

Turn TV on.

Slide your chosen disc into the disc slot

on the side panel. Be sure to face the top

of the disc (with title etc.) toward the

front of the screen. Playback starts.

Remove the disc.

The Disc will come out halfway.

POWER

EJECT

Press this button during playback.

Select the required speed:

X2, X4, X8, X16 or X32 (backward/

forward).

Return to normal playback.

Basic Playback Fast Forward/Backward

Stop playback. At this time, DVD/VCD

player stops playback temporarily and

maintains the current playback position.(At

this time, if you press

ppllaayy

button,

Playback will resume from the location

where you stopped playback.)

Press this button again to stop playback

fully. (At this time, if you press

ppllaayy

button,

disc playback start from the beginning.)

Stop Playback/Ejection

Press this button during playback.

Pause Playback (Still Mode)

Press this button during playback.

Select the required speed:

1/2,

1/4,

1/8,

1/16

(backward), or

1/2,

1/4,

1/8,

1/16 (forward).

Return to normal playback.

SLOW -

SLOW +

Slow Motion

Press it briefly during playback to

select the next chapter/track or to

return to the beginning of the cur-

rent chapter/track.

SKIP -

SKIP +

Press it twice briefly to step back to the

previous chapter/track.

SKIP -

Skip a Chapter/Track

■

There is no sound during fast or slow playback

for DVDs or Video CDs.

■

Slow motion playback in reverse is not possi-

ble with Video CDs.

Use this button again to

return to normal playback.

■

If you have a disc problem during playback,

remove the disc by pressing and holding down

the button on the side panel for 5 seconds.

The Disc will come out completely.

After that, turn the TV off and then on again.

■

If there are scratches on the DVD or CD Disc,

then it may happen the kind of the mechanical

noise a little.

DVD OPERATION

Exit still motion mode.

Press this button during playback.

DISC MENU

Return to normal playback.

RETURN

FLASHBK

Select the desired item.

Press this button during playback.

ENTER

TITLE MENU

Press it repeatedly to change OSD.

Press this button during playback.

Title, Chapter information appears on

screen.

DISPLAY

Still Picture and Frame-by-Frame

Playback

Title Menu (DVD only)

OSD (On-Screen Display)

Press this button during playback.

Press it repeatedly to advance the

picture frame-by-frame.

SKIP -

SKIP +

Use this button during playback.

Press it repeatedly to change the repeat

mode.

DVD: Chapter, Title, ALL,

Repeat Off.

VCD: Track, ALL, Repeat Off.

You can play a specific title, chapter, track, or segment

repeatedly.

You can display the playback status on TV screen as

following; Title, Chapter number, Playing time.

REPEAT

Repeat Playback

Disc Menu (DVD only)

■

On a Video CD with PBC, you must set

PPBBCC

OOffff

using

PP BB CC

button to use the repeat

function.

Select the desired menu option.

ENTER

■

The TV may not be able to select the disc or

title menu depending on a sort of DVD disc.

■

OSD display may different depending on a

sort of DVD disc.

Title Elapsed

TT 01/03 CH 01/09 0:28:22

Title Number

Chapter Number

Playing Time

DDVVDD::

Title Elapsed

→

Title Remain

→

Chapter

Elapsed

→

Chapter Remain

→

Display off.

AAuuddiioo CCDD::

Single Elapsed

→

Single Remain

→

Total Elapsed

→

Total Remain.

DVD OPERATION

Select the start point during back.

“ A” is displayed on TV screen and

the starting point of your selected seg-

ment is set up.

Resume normal playback.

A-B repeat playback allows you to repeat material

between two selected points.

A-B

Select the end point.

“ AB” is displayed on TV screen and

the ending point is set up.

Playback starts at the point that you

selected. Playback stops at the end point,

returns to Point A automatically, then

starts again.

A-B

Press it during playback to see the differ-

ent subtitle languages.

SUBTITLE

A-B Repeat Playback

Press this button during playback.

If the scene was recorded from multiple angles,

you can easily change the camera angle of the

scene you are currently watching.

When enlarging the picture, it may become distorted.

ANGLE

Press it repeatedly to select the desired

angle.

ANGLE

Camera Angle (DVD only)

Subtitles

■

You can only change the angle for DVDs that

provide multiple angles of scenes.

■

The angle function will not work on DVD video

discs that do not contain scenes recorded at

different angles.

■

The number of angles varies from disc to disc.

Press this button during playback.

ZOOM

Press it repeatedly to change the TV

screen in the sequence: 2x, 3x, 4x.

ZOOM

Adjust the main picture position while in

the enlarged picture mode.

Zoom

Set Playback Control (PBC) to On or Off.

Select

OO nn

OOffff

■

On: Video CDs with PBC are played

according to the PBC.

■

Off: Video CDs with PBC are played the

same way as Audio CDs.

PBC

■

Zoom may not work on some DVDs.

MP3 OPERATION

DVD OPERATION

When inserted, the MP3 menu screen appears

automatically depending on the MP3 disc’s folder

(directory) structure.

MP3 Files Playback Options

Select desired folder.

ENTER

Use this button again to

return to normal playback.

ENTER

Select desired file and play the

MP3 file.

02 : 30 03 : 37

001 / 011

PICTURE 2

PICTURE 1

O.S.T. - 3

PICTURE 3

O.S.T. - 4

Resolution 500 x 375

Stop Playback

Pause Playback

Stop playback.

Pause playback.

Press it briefly during playback to

go to the next track or to return to

the beginning of the current track.

SKIP -

SKIP +

Press it twice briefly to go back to the

previous track.

SKIP -

Move to another Track

Use this button during playback.

Press it repeatedly to change the repeat

mode: Shuffle, Random, Repeat One,

Repeat All, Repeat Off.

You can play a specific track repeatedly.

REPEAT

Repeat Playback

Fast Forward/Backward

Press this button during playback.

Select the required speed:

2X, 4X, 8X, 16X or 32X.

Return to normal playback.

Select the start point during playback.

“ A” is displayed on TV screen and

the starting point of your selected seg-

ment is set up.

A-B repeat playback allows you to repeat material

between two selected points.

A-B

A-B Repeat Playback

Resume normal playback.

Select the end point.

“ AB” is displayed on TV screen and

the ending point is set up.

Playback starts at the point that you

selected. Playback stops at the end point,

returns to Point A automatically, then

starts again.

A-B

AUDIO CD OPERATION

DVD OPERATION

Press this button during playback.

Press it repeatedly to change track infor-

mation: Single Elapsed, Single Remain,

Total Elapsed, or Total Remain.

You can display the Track, and Playback time status

on the TV screen.

DISPLAY

On-Screen Display

Single Elapse

Track 01/21 01:00

Track Number

Playing Time

Stop Playback

Pause Playback (Still Mode)

Stop playback.

At this time the CD player stops playback

temporarily and maintains the current

playback position.

Press it repeatedly to stop playback fully.

(At this time if you press the

button,

disc playback starts from the beginning.)

Pause playback.

Fast Forward/Backward

Press this button during playback.

Select the required speed:

2X, 4X, 8X, 16X or 32X.

Return to normal playback.

Use this button during playback.

Press it repeatedly to change the repeat

mode: Track, All, Repeat Off.

You can play a specific track repeatedly.

REPEAT

Repeat Playback

Move to another Track

Select the start point during playback.

“ A” is displayed on TV screen and

the starting point of your selected seg-

ment is set up.

A-B repeat playback allows you to repeat material

between two selected points.

A-B

A-B Repeat Playback

Resume normal playback.

Select the end point.

“ AB” is displayed on TV screen and

the ending point is set up.

Playback starts at the point that you

selected. Playback stops at the end point,

returns to Point A automatically, then

starts again.

A-B

Use this button during playback.

Press it repeatedly to skips to the

next/previous track.

SKIP -

SKIP +

Return to normal playback.or

JPG FILE VIEWING OPTIONS

DVD OPERATION

Select the desired picture. The selected

JPG file appears as shown.

As a JPG file is loaded, the table of contents

appears on the TV screen.

Rotate a JPG file clockwise or counter

clockwise during showing a picture.

Picture Selection

Rotation

■

If you press the

EENNTTEERR

button while playing

an MP3 disc, the slide show starts.

■

If you play play MP3 and JPG slide show simul-

taneously, repeat function is applied to both

MP3 and JPG files.

02 : 30 03 : 37

001 / 011

PICTURE 2

PICTURE 1

O.S.T. - 3

PICTURE 3

O.S.T. - 4

Resolution 500 x 375

Start Slide show mode.

Return to play list.

Use this button during playback.

Press it repeatedly to change the repeat

mode: Shuffle, Random, Repeat One,

Repeat All, Repeat Off.

You can show JPG files repeatedly.

REPEAT

Repeat Playback

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

PICTURE CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

NOTE

If a fixed image is displayed on the screen for very long time, the image could become imprinted on the

screen and remain visible. This phenomenon is common to all manufacturers and is not covered by war-

ranty. Normally it will dissipate after a few minutes.

■

You can also adjust

AAssppeecctt RRaattiioo

the

QQ--MMeennuu

Set By Program

4:3

16:9

Zoom1

Zoom2

Just Scan

Select

PPIICCTTUURREE

Select

AAssppeecctt RRaattiioo

Select the desired picture format.

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


Enter

Move


Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

RG RG

PICTURE CONTROL

Set by program

Selects the proper picture proportion to match

the source’s image.

4:3

Choose 4:3 when you want to view a picture

with an original 4:3 aspect ratio.

16:9

Adjust the picture horizontally, in a linear pro-

portion to fill the entire screen.

Zoom 1

Choose Zoom 1 when you want to view the pic-

ture without any alteration. However, the top and

bottom portions of the picture will be cropped.

Zoom 2

Choose Zoom 2 when you want the picture to be

altered, both vertically extended and cropped.

The picture taking a halfway trade off between

alteration and screen coverage.

Just Scan

Normally the edges of video signals are cropped

1-2%. Just Scan turns off this cropping and

shows the complete video.

Notes: If there is noise on the edges of the original

signal, it will be visible when Just Scan is activated.

JJuusstt SSccaann

operates only in

DTV/CADTV/Component/HDMI-DTV/DVI-DTV

(720p/1080i/1080p) input source.

(4:3 4:3)

(16:9 16:9)

PICTURE CONTROL

PRESET PICTURE SETTINGS

PICTURE CONTROL

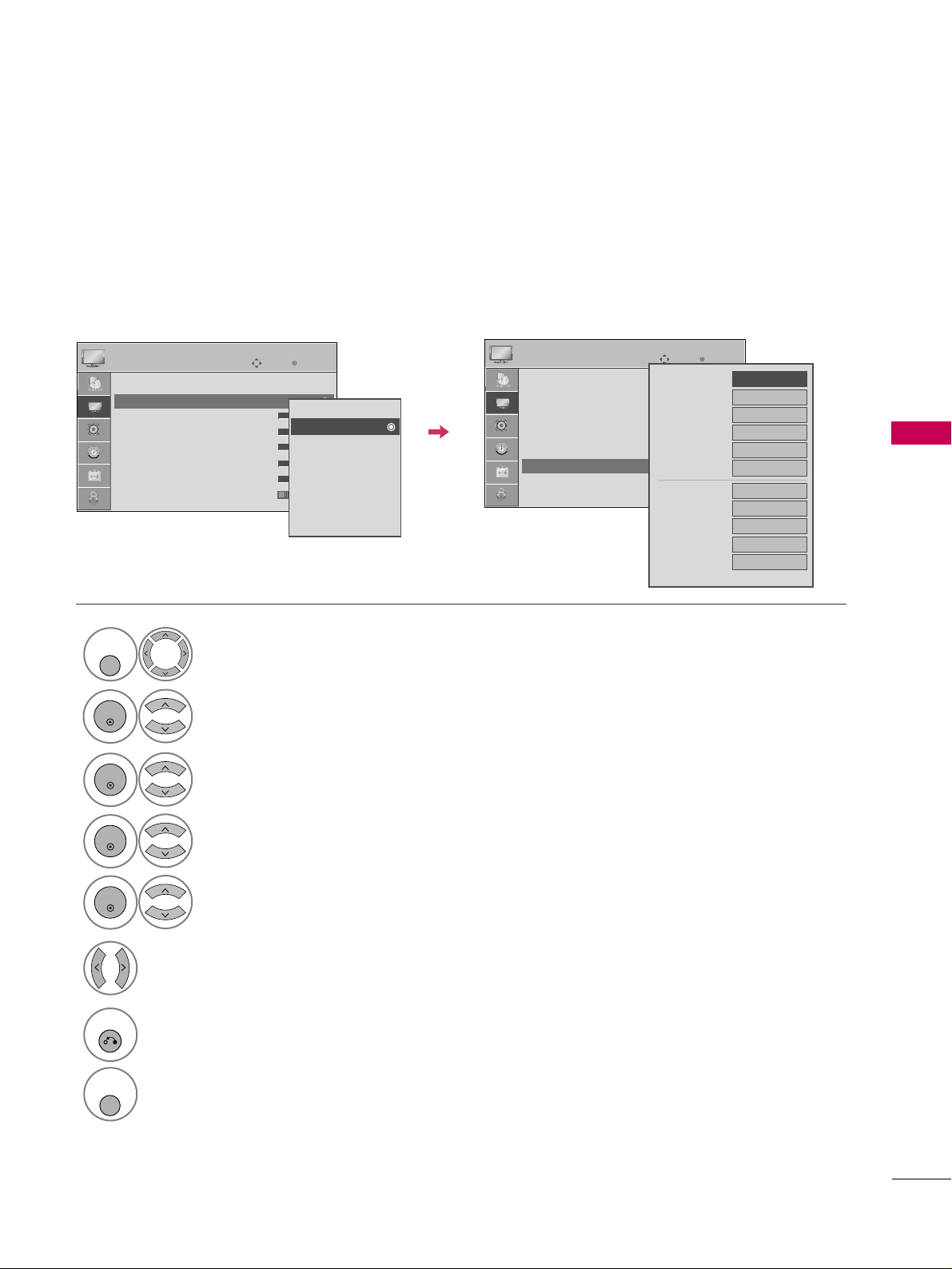

Picture Mode - Preset

There are factory presets for picture settings available in the user menus. You can use a preset, change each

setting manually.

Select

PPIICCTTUURREE

Select

PPiiccttuurree MMooddee

Select

VViivviidd

SSttaannddaarrdd

CCiinneemmaa

SSppoorrtt

, or

GGaammee

■

VViivviidd

SSttaannddaarrdd

CCiinneemmaa

SSppoorrtt

, and

GGaammee

Settings are preset for the opti-

mum picture quality at the factory and

are not adjustable.

■

You can also adjust

PPiiccttuurree MMooddee

the

QQ.. MMeennuu

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

Enter

Move


Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

Vivid

Standard

Cinema

Sport

Game

Expert1

Expert2

PICTURE CONTROL

Color Tone - Preset

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to

cool to see less intense colors with more blue.

Select

PPIICCTTUURREE

Select

CCoolloorr TTeemmppeerraattuurree

MENU/

SET UP

ENTER

Select

CCooooll

MMeeddiiuumm

, or

WWaarrmm

Select

AAddvvaanncceedd CCoonnttrrooll

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

PICTURE CONTROL

MANUAL PICTURE ADJUSTMENT

PICTURE CONTROL

Picture Mode - User Mode

Adjust the picture appearance to suit your preference and viewing situations.

Select

PPIICCTTUURREE

Make appropriate adjustments.

Select

BBaacckklliigghhtt

CCoonnttrraasstt

BBrriigghhttnneessss

SShhaarrppnneessss

CCoolloorr

, or

TTiinntt

MENU/

SET UP

Select

PPiiccttuurree MMooddee

ENTER

Select

VViivviidd

SSttaannddaarrdd

CCiinneemmaa

SSppoorrtt

, or

GGaammee

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

• Backlight 80

Enter

PICTURE CONTROL

Select your desired menu option.

Select

PPIICCTTUURREE

Select

PPiiccttuurree MMooddee

Select

EExxppeerrtt CCoonnttrrooll

Select

EExxppeerrtt11

EExxppeerrtt22

MENU/

SET UP

ENTER

Make appropriate adjustments.

Picture Mode - Expert Control

By segmenting categories,

EExxppeerrtt11

and

EExxppeerrtt22

provide more categories which users can set as they see

fit, offering the optimal picture quality for users.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

• Expert Control

• Reset

Screen (RGB-PC)

Enter

Move


Aspect Ratio : 16:9

Picture Mode : Standard

• Backlight 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color 60

• Tint 0

Vivid

Standard

Cinema

Sport

Game

Expert1

Expert2

Off

Fresh Contrast

Noise Reduction

Off

Gamma

Medium

Black Level

Off

Real Cinema

Color Standard

White Balance

Normal

• Method

2 Points

• Red Contrast

• Green Contrast

• Blue Contrast

PICTURE CONTROL

PICTURE IMPROVEMENT TECHNOLOGY

PICTURE CONTROL

Fresh Contrast: Optimizes the contrast automatically according to the brightness of the reflection.

Fresh Color: Adjusts the color of the reflection automatically to reproduce as close as possible natural colors.

Noise Reduction: Removes interference up to the point where it does not damage the original picture.

Gamma: High gamma values display whitish images and low gamma values display high contrast images.

Select

PPIICCTTUURREE

Select

AAddvvaanncceedd CCoonnttrrooll

Select

FFrreesshh CCoonnttrraasstt

FFrreesshh CCoolloorr

NNooiissee RReedduuccttiioonn

, or

GGaammmmaa

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Select your desired options.

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

PICTURE CONTROL

ADVANCED CONTROL - BLACK (DARKNESS) LEVEL

Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature is disable in DTV and RGB-PC mode.

Select

PPIICCTTUURREE

Select

AAddvvaanncceedd CCoonnttrrooll

Select

BBllaacckk LLeevveell

MENU/

SET UP

ENTER

Select

LLooww

HHiigghh

■

LLooww

: The reflection of the screen gets

darker.

■

HHiigghh

: The reflection of the screen gets

brighter.

■

AAuuttoo

: Realizing the black level of the

screen and set it to High or Low auto-

matically.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

PICTURE CONTROL

ADVANCED CONTROL - EYE CARE

PICTURE CONTROL

Dims extremely bright pictures.

This feature is disabled in “

PPiiccttuurree MMooddee--VViivviidd

CCiinneemmaa

”.

Select

PPIICCTTUURREE

Select

AAddvvaanncceedd CCoonnttrrooll

Select

EEyyee CCaarree

MENU/

SET UP

ENTER

Select

OO nn

OOffff

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

PICTURE CONTROL

ADVANCED CONTROL - REAL CINEMA

Set up the TV for the best picture appearance for viewing movies.

When you operate Real Cinema (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps

video from movies to 30 fps video for display.

This feature operates only in TV (Analog TV/CATV, Digital DTV/CADTV), AV1, AV2, Component 480i/1080i,

and HDMI 1080i mode.

Select

PPIICCTTUURREE

Select

AAddvvaanncceedd CCoonnttrrooll

Select

RReeaall CCiinneemmaa..

MENU/

SET UP

ENTER

Select

OO nn

OOffff

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Color Temperature

Medium

Fresh Contrast

Off

Fresh Color

Off

Noise Reduction

Off

Gamma

Medium

Black Level

Low

Eye Care

Off

Real Cinema

Off

PICTURE CONTROL

PICTURE RESET

PICTURE CONTROL

Settings of the selected picture modes return to the default factory settings.

Select

PPIICCTTUURREE

Select

RReesseett

Initialize the adjusted value.

MENU/

SET UP

ENTER

MENU/

SET UP

Return to TV viewing.

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Enter

Move


• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

• Reset

Screen (RGB-PC)

Resetting video configuration...

PICTURE CONTROL

POWER INDICATOR

Select

OOPPTTIIOONN

Select

PPoowweerr IInnddiiccaattoorr

MENU/

SET UP

ENTER

Select

SSttaannddbbyy LLiigghhtt

PPoowweerr LLiigghhtt

ENTER

Select your desired options.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

■

SSttaannddbbyy LLiigghhtt

: You can set the

brightness of the LED on the front side

of the TV during power standby.

■

PPoowweerr LLiigghhtt

: You can set the the LED

on the front side of the TV to be turned

on or off while watching the TV.

Enter

Move

OPTION

Language : English

Input Label

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Power Light

Standby Light

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER (AUTO VOLUME)

Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a

regular TV program.

Select

AAUUDDIIOO

Select

AAuuttoo VVoolluummee

Select

OO nn

OOffff

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Off

E E

SOUND & LANGUAGE CONTROL

CLEAR VOICE

By differentiating the human sound range from others, it improves the sound quality of voices.

■

If you select “

CClleeaarr VVooiiccee--OOnn

”,

SSRRSS

TTrruu SSuurrrroouunndd XXTT

feature will not

work.

■

You can also adjust

CClleeaarr VVooiiccee

in the

QQ--MMeennuu

Select

AAUUDDIIOO

Select

CClleeaarr VVooiiccee

Select

OO nn

OOffff

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

E E

Off

SOUND & LANGUAGE CONTROL

PRESET SOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment as the TV sets the appropriate

sound options based on the program content.

SSttaannddaarrdd

MMuussiicc

CCiinneemmaa

SSppoorrtt

, and

GGaammee

are preset for optimum sound quality at the factory and are

not adjustable.

Select

AAUUDDIIOO

Select

SSoouunndd MMooddee

Select

SSttaannddaarrdd

MMuussiicc

CCiinneemmaa

SSppoorrtt

, or

GGaammee

MENU/

SET UP

ENTER

■

You can also adjust

SSoouunndd MMooddee

the

QQ.. MMeennuu

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

E E

LRLR

Standard

Music

Cinema

Sport

Game

SOUND & LANGUAGE CONTROL

SOUND SETTING ADJUSTMENT - USER MODE

SRS TRUSURROUND XT

Adjust the sound to suit your taste and room situations.

Select

AAUUDDIIOO

Select

SSoouunndd MMooddee

Select

TTrreebbllee

BBaassss

MENU/

SET UP

ENTER

Select

SSttaannddaarrdd

MMuussiicc

CCiinneemmaa

SSppoorrtt

, or

GGaammee

ENTER

Make appropriate adjustments.

ENTER

Select

AAUUDDIIOO

Select

SSRRSS TTrruuSSuurrrroouunndd XXTT

Select

OO nn

OOffff

MENU/

SET UP

ENTER

■

SSRRSS TTrruuSSuurrrroouunndd XXTT

: Takes advantage of

any multi-channel format without needing to

add extra speakers or equipment. Dialog clarity,

bass enrichment, and the addition of stereo

audio enhancement produces an immersive

sound experience from standard stereo material.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Treble 50

Bass 50

SRS TruSurround XT

Off

E E

SOUND & LANGUAGE CONTROL

BALANCE

Select

AAUUDDIIOO

Select

BBaallaannccee

Make appropriate adjustments.

MENU/

SET UP

ENTER

Adjust the left/right sound of speaker to suit your taste and room situations.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

E E

Balance 0

SOUND & LANGUAGE CONTROL

TV SPEAKERS ON/OFF SETUP

Turn the TV speakers off if using external audio equipment.

Select

AAUUDDIIOO

Select

TTVV SSppeeaakkeerr

Select

OO nn

OOffff

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

AUDIO

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

TV Speaker : On

Enter

Move

AUDIO

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

TV Speaker : On

Off

SOUND & LANGUAGE CONTROL

AUDIO RESET

SOUND & LANGUAGE CONTROL

Settings of the selected Sound Mode return to the default factory settings.

Select

AAUUDDIIOO

Select

RReesseett

MENU/

SET UP

ENTER

Initialize the adjusted value.

ENTER

MENU/

SET UP

Return to TV viewing.

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

Enter

Move

AUDIO

Auto Volume : Off

Clear Voice : On

Balance 0

Sound Mode : Standard

•

SRS TruSurround XT:

Off

• Treble 50

• Bass 50

• Reset

E E

Resetting audio configuration...

SOUND & LANGUAGE CONTROL

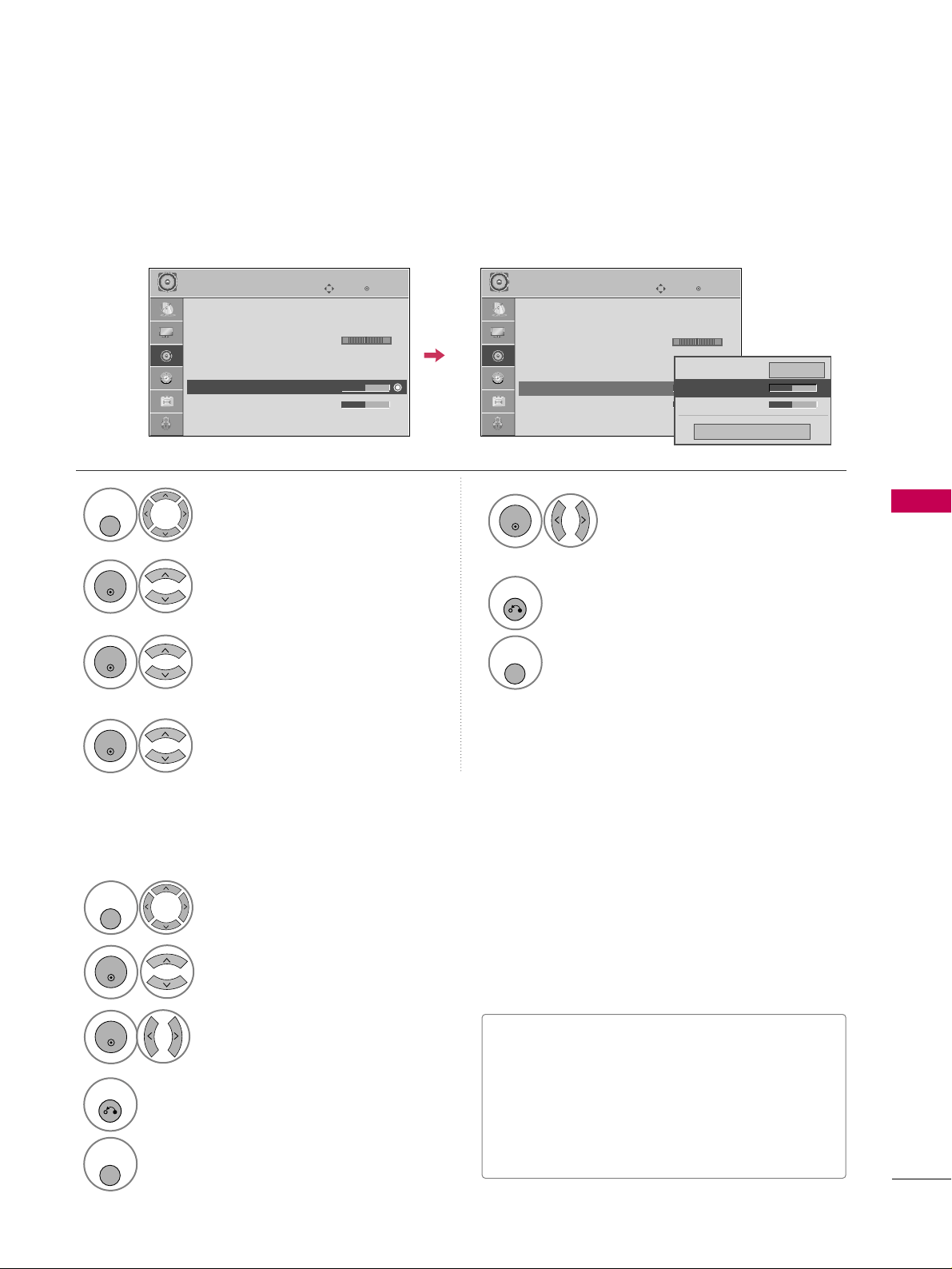

STEREO/SAP BROADCAST SETUP

For Analog only: This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accom-

panies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used

if the broadcast is only in Mono.

Select

SSAAPP

Select

MMoonnoo

SStteerreeoo

, or

SSAAPP

Return to TV viewing.

Q. MENU

Select

MMuullttii AAuuddiioo

Select other languages.

Return to TV viewing.

Q. MENU

Analog TV Digital TV

Q.Menu

16:9

Vivid

Off

Standard

Off

English

Off

Add

Aspect Ratio

Backlight

Clear Voice

Picture Mode

Sound Mode

Caption

Multi Audio

Sleep Timer

Del/Add/Fav

SOUND & LANGUAGE CONTROL

AUDIO LANGUAGE

SOUND & LANGUAGE CONTROL

Other languages may be available if a digital signal is provided by the broadcasting station.

This feature operates only in DTV/CADTV mode.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

English

Audio

English

Select

OOPPTTIIOONN

Select

LLaanngguuaaggee

Select

AAuuddiioo

MENU/

SET UP

ENTER

Select your desired language:

EEnngglliisshh

SSppaanniisshh

, or

FFrreenncchh

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

SOUND & LANGUAGE CONTROL

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

English

Audio

English

Select

OOPPTTIIOONN

Select

LLaanngguuaaggee

Select

MMeennuu

MENU/

SET UP

ENTER

Select your desired language.

From this point on, the on-screen menus

will be shown in the selected language.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

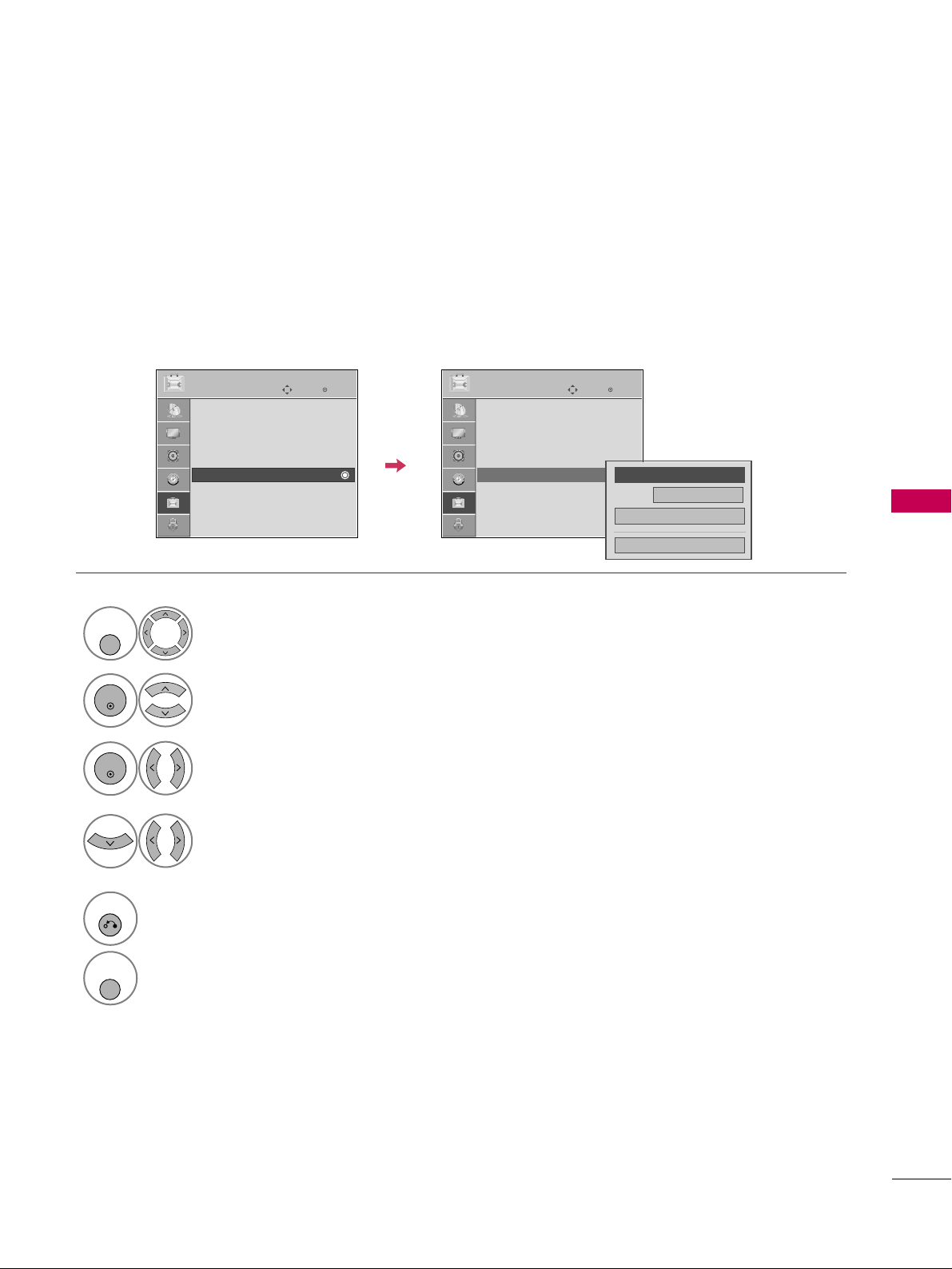

SOUND & LANGUAGE CONTROL

CAPTION MODE

SOUND & LANGUAGE CONTROL

Caption must be provided to help people with hearing loss watch TV. Select a caption mode for displaying cap-

tioning information if provided on a program. Analog caption displays information at any position on the screen

and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would be available for both

digital and analog channels on the Antenna/Cable. This TV is programmed to memorize the caption/text mode

which was last set when you turned the power off. This function is only available when

CCaappttiioonn

Mode is set

OO nn

Select

OOPPTTIIOONN

Select

CCaappttiioonn

Select

OO nn

MENU/

SET UP

ENTER

Select

CCCC11

TTeexxtt11

Analog Broadcasting System Captions

■

When selecting

OOffff

, Sub-menus for

Analog, DTV, and Digital Option

become disabled.

■

CCAAPPTTIIOONN

The term for the words that scroll

across the bottom of the TV screen;

usually the audio portion of the pro-

gram provided for the hearing impaired.

■

TTEEXXTT

The term for the words that appear in a

large black frame and almost cover the

entire screen; usually messages provid-

ed by the broadcaster.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : On

Set ID : 1

Power Indicator

Initial Setting : Home

Mode

CC1

Digital Option

SOUND & LANGUAGE CONTROL

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

This function in only available when Caption Mode is set On.

Select

OOPPTTIIOONN

Select

CCaappttiioonn

Select

OO nn

MENU/

SET UP

ENTER

Select

CCCC11

TTeexxtt11

, or

SSeerrvviiccee11

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : On

Set ID : 1

Power Indicator

Initial Setting : Home

Mode

CC1

Digital Option

SOUND & LANGUAGE CONTROL

Caption Option

Customize the DTV/CADTV captions that appear on your screen.

This function in only available when Caption Mode is set On.

Select

OOPPTTIIOONN

Select

CCaappttiioonn

Select

OO nn

MENU/

SET UP

ENTER

Select

CCuussttoomm

ENTER

Customize the

SSttyyllee

FFoonntt

, etc., to your

preference. A preview icon is provided at

the bottom of the screen, use it to see the

caption language.

Select

DDiiggiittaall OOppttiioonn

■

SSiizzee

: Set the word size.

■

FFoonntt

: Select a typeface for the text.

■

TTeexxtt CCoolloorr

: Choose a color for the

text.

■

TTeexxtt OOppaacciittyy

: Specify the opacity

for the text color.

■

BBgg ((BBaacckkggrroouunndd)) CCoolloorr

: Select a

background color.

■

BBgg ((BBaacckkggrroouunndd)) OOppaacciittyy

: Select

the opacity for the background color.

■

EEddggee TTyyppee

: Select an edge type.

■

EEddggee CCoolloorr

: Select a color for the

edges.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : On

Set ID : 1

Power Indicator

Initial Setting : Home

Mode

Service1

Digital Option

Size

A Standard

Font

Font 1

Text Color

White

Text Opacity

Solid

Edge Type

None

Edge Color

Black

Bg Color

Black

Bg Opacity

Solid

Custom

TIME SETTING

CLOCK SETTING

TIME SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting station.

Set the clock manually if the current time is set incorrectly by the auto clock function.

Select

TTIIMMEE

Select

CClloocckk

Select

AAuuttoo

MENU/

SET UP

ENTER

Select your viewing area time zone.

• U.S.A:

EEaa sstt ee rrnn

CC ee nn ttrr aall

MMoouunnttaa ii nn

PPaacciiffiicc

AAllaasskkaa

, or

HHaawwaaiiii

• Canada:

EEaasstteerrnn

CCeennttrraall

MMoouunnttaaiinn

PPaacciiffiicc

NNeeww FF..llaanndd

, or

AAttllaannttiicc

Select

AAuuttoo

OOnn

, or

OOffff

(depending on

whether or not your viewing area observes

Daylight Saving time).

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008/ 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008/ 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Year

Month

Date

Hour

2 AM

2008

Minute

Time Zone

Eastern

Daylight

Saving

Auto

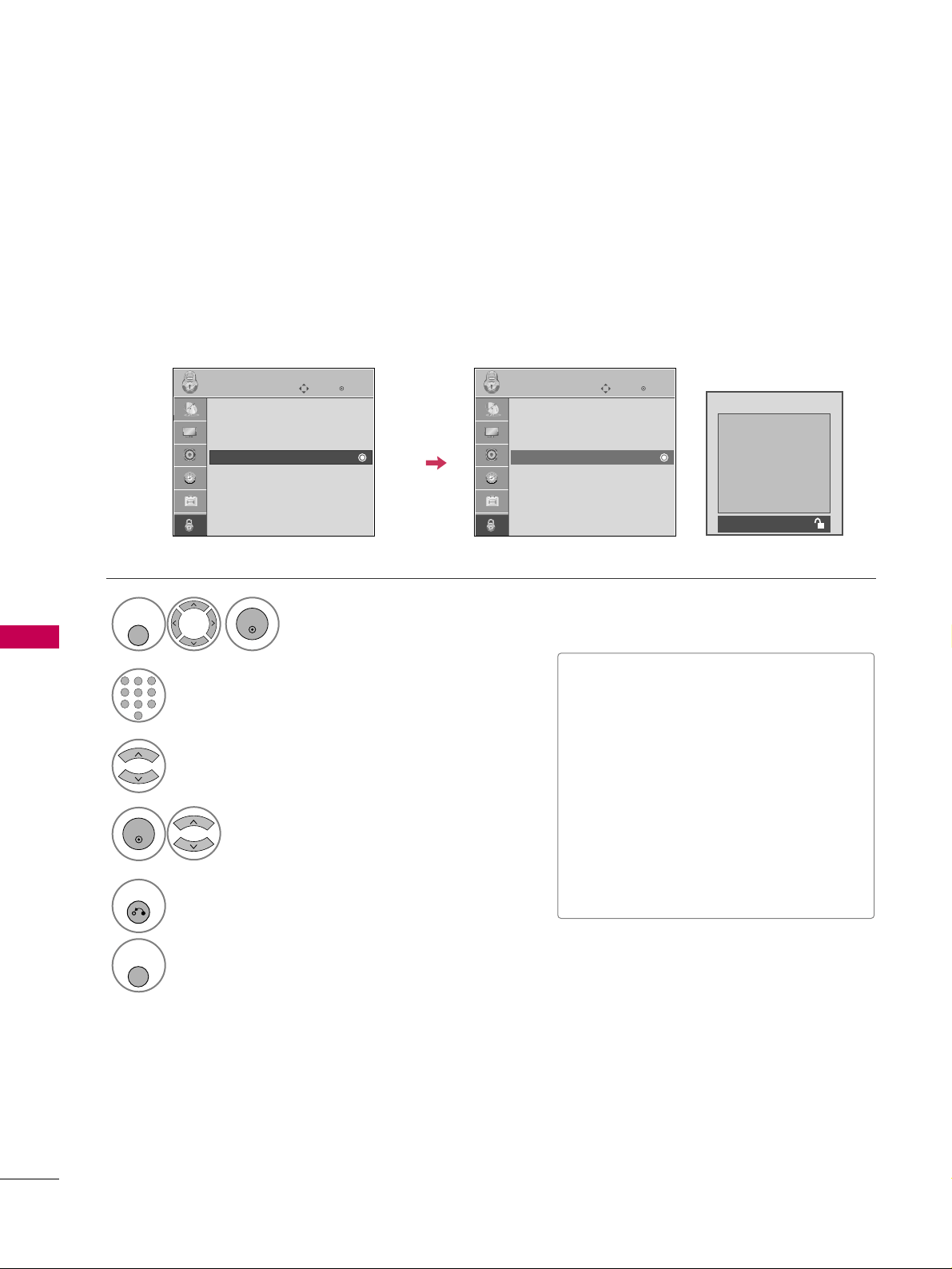

TIME SETTING

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Year

Month

Date

Hour

2 AM

2008

Minute

Time Zone

Eastern

Daylight

Saving

Auto

Manual

Select

TTIIMMEE

Select

CClloocckk

Select

MMaannuuaall

MENU/

SET UP

ENTER

Select the Year, Month, Date, Hour, or Minutes

option.

Set the Year, Month, Date, Hour, or Minutes

option.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

TIME SETTING

AUTO ON/OFF TIME SETTING

This function operates only if the current time has been set.

The

OOffff TTiimmee

function overrides the

OOnn TTiimmee

function if they are both set to the same time.

The TV must be in standby mode for the

OOnn TTiimmee

to work.

If you do not press any button within 2 hours after the TV turns on with the

OOnn TTiimmee

function, the TV will

automatically revert to standby mode.

■

To cancel

OOnn//OOffff TTiimmee

function, select

OOffff

■

Only for On Time function

Select

IInnppuutt

Select

TTVV

AAVV11

AAVV22

CCoommppoonneenntt

BBuuiilltt--IInn DDVVDD

RRGGBB--PPCC

HHDDMMII11

HHDDMMII22

, or

HHDDMMII33

Select

TTIIMMEE

Select

OOffff ttiimmee

OOnn ttiimmee

Select

RReeppeeaatt

MENU/

SET UP

ENTER

Select

OOffff

OOnnccee

EEvveerryyddaayy

MMoonn

FFrr ii

MMoonn

SSaa tt

WWeeeekkeenndd

, or

SSuunnddaayy

Select and set

HHoouurr

MMiinnuuttee

ENTER

When Selecting

TT VV

set the channel at turn-on.

Adjust to sound level at

turn-on.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : 6:30 AM (Once)

Sleep Timer : Off

Auto Sleep : Off

Repeat

Once

Hour

6 AM

Minute

Input

Channel

TV 2-0

Volume

TIME SETTING

SLEEP TIMER SETTING

The Sleep Time turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

■

You can also adjust

SSlleeeepp TTiimmeerr

the

QQ..MMeennuu

Select

TTIIMMEE

Select

SSlleeeepp TTiimmeerr

Select

OOffff

11 00

22 00

33 00

66 00

99 00

112200

118800

, or

224400

minutes.

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Off

TIME SETTING

AUTO SHUT-OFF SETTING

TV will be automatically turned off, in case of no signal for 10 minutes.

Select

TTIIMMEE

Select

AAuuttoo SSlleeeepp

Select

OO nn

OOffff

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Enter

Move

TIME

Clock :

Feb/21/2008 2:10 AM

Off Time : Off

On Time : Off

Sleep Timer : Off

Auto Sleep : On

Off

TV will be automatically turned off,

in case of No Signal for 10 minutes.

PARENTAL CONTROL / RATING

PARENTAL CONTROL / RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broad-

casting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the

type of the program and the categories. It is also possible to block all program viewing for a time period. To use

this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be

blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-

video movies use the Movie Rating System

(

MPAA

)

only.

Ratings for Television programs including made-for-TV movies:

■

TV-G

(

General audience

)

■

TV-PG

(

Parental guidance suggested

)

■

TV-14

(

Parents strongly cautioned

)

■

TV-MA

(

Mature audience only

)

■

TV-Y

(

All children

)

■

TV-Y7

(

Children 7 years older

)

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

Setting up Your Password

For USA For Canada

Enter Password

* * * *

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

■

Enter the password as requested.

■

The TV is set up with the initial password

“0-0-0-0”.

SET PASSWORD & LOCK SYSTEM

Enter

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

LOCK

Enter

Move

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

LOCK

PARENTAL CONTROL / RATING

Enables or disables the blocking scheme you set up previously.

Lock System

Select

LLoocckk SSyysstteemm

Select

OO nn

OOffff

ENTER

■

When you select

OO nn

, the Lock System

is enable.

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : On

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Off

PARENTAL CONTROL / RATING

PARENTAL CONTROL / RATINGS

Change the password by inputting a new password twice.

Set Password

Select

SSeett ppaasssswwoorrdd

Choose any 4 digits for your new password.

As soon as the 4 digits are entered, re-enter

the same 4 digits on the

CCoonnffiirrmm

ENTER

456

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

New

* * * *

Confirm

* * * *

PARENTAL CONTROL / RATING

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

Select

BBlloocckk CChhaannnneell

Select a channel to block or

unblock it.

ENTER

Block or unblock a channel.

ENTER

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

MENU/

SET UP

Return to the previous menu.

RETURN

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Block/Unblock

Move Page

Move

Exit

RETURN

PARENTAL CONTROL / RATING

MOVIE & TV RATING

PARENTAL CONTROL / RATINGS

Movie Rating (MPAA)

Only for USA

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can

set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that

the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

Select

MMoovviiee RRaattiinngg

Select

PP GG

PPGG--1133

NNCC--1177

ENTER

Blocking off : Permits all programs

PG-13

NC-17

Blocking Off

■

G (General audience)

■

PG (Parental guidance suggested)

■

PG-13 (Parents strongly cautioned)

■

R (Restricted)

■

NC-17 (No one 17 and under admitted)

■

X (Adult only)

■

Blocking Off (Permits all programs)

If you set PG-13: G and PG movies will

be available, PG-13, R, NC-17 and X will

be blocked.

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

PARENTAL CONTROL / RATING

Select

TTVV RRaattiinngg--CChhiillddrreenn

Select

AAggee

FFaannttaassyy VViioolleennccee

ENTER

Select block options.

ENTER

■

Age (applies to TV-Y, TV-Y7)

■

Fantasy Violence (applies to TV-Y7)

TV Rating Children

Only for USA

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children

rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audi-

ences in the TV Rating - sub menu, your children can view those programs.

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Age

Fantasy Violence

PARENTAL CONTROL / RATING

PARENTAL CONTROL / RATINGS

TV Rating General

Only for USA

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

Select

TTVV RRaattiinngg--GGeenneerraall

Select

AAggee

DDiiaalloogguuee

LLaanngguuaaggee

SSeexx

VViioolleennccee

ENTER

Select block options.

ENTER

■

Age (applies to TV-G,TV-PG,TV-14,TV-

MA).

■

Dialogue-sexual dialogue (applies to

TV-PG,TV-14).

■

Language-adult language (applies to

TV-PG, TV-14, TV-MA).

■

Sex-sexual situations (applies to TV-PG,

TV-14, TV-MA).

■

Violence (applies to TV-PG, TV-14, TV-

MA).

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Age

Dialogue

Language

Sex

Violence

PARENTAL CONTROL / RATING

TV Rating English

Only for CANADA

Selecting canadian english language rating system.

Select

TTVV RRaattiinngg--EEnngglliisshh

Select

CC 88 ++

PP GG

1144++

1188++

, or

BBlloocckkiinngg OOffff

ENTER

Blocking off : Permits all programs

C8+

14+

18+

Blocking Off

■

E (Exempt)

■

C (Children)

■

C8+ (Children eight years and older)

■

G (General programming, suitable for

all audiences)

■

PG (Parental Guidance)

■

14+ (Viewers 14 years and older)

■

18+ (Adult programming)

■

Blocking Off (Permits all programs)

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

PARENTAL CONTROL / RATING

100

PARENTAL CONTROL / RATINGS

TV Rating French

Only for CANADA

Selecting canadian french language rating system.

Select

TTVV RRaattiinngg--FFrreenncchh

Select

88aannss++

1133aannss++

1166aannss++

1188aannss++

, or

BBlloocckkiinngg ooffff

ENTER

Blocking off : Permits all programs

8ans+

13ans+

16ans+

18ans+

Blocking Off

■

E (Exempt)

■

G (General)

■

8ans+ (General-Not convenient for lit-

tle children)

■

13ans+ (Not convenient for children of

13 years and younger)

■

16ans+ (Not convenient for children of

16 years and younger)

■

18ans+ (This programs is only for

adults)

■

Blocking off (Permits all programs)

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

TV Rating-English

TV Rating-French

Downloadable Rating

Input Block

PARENTAL CONTROL / RATING

101

DOWNLOADABLE RATING

This function may become available in the future and will be available only for digital channel signals.

This function operates only when TV has received Region5 Rating data.

Select

DDoowwnnllooaaddaabbllee RRaattiinngg

Select desired

DDoowwnnllooaaddaabbllee

RRaattiinngg

option.

ENTER

Select desired option and block it.

ENTER

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Humor

Sports

Cruelty

Language

Sadness

Genre

Age

■

Based on rating table, your TV's OSD

(On Screen Display) may differ slightly

from what is shown in this manual.

PARENTAL CONTROL / RATING

102

PARENTAL CONTROL / RATINGS

EXTERNAL INPUT BLOCKING

Enables you to block an input.

Select

IInnppuutt BBlloocckk

Select input source.

Select

OOnn

OOffff

ENTER

Select

LLOOCCKK

MENU/

SET UP

ENTER

Input the password.

456

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Move

LOCK

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

AV1

Off

AV2

Off

Component

Off

HDMI1

Off

RGB-PC

Off

Built-In DVD

Off

HDMI2

Off

HDMI3

Off

PARENTAL CONTROL / RATING

103

KEY LOCK

The TV can be set up so that it can only be used with the remote control.

This feature can be used to prevent unauthorized viewing by locking out the front panel controls.

This TV is programmed to remember which option it was last set to even if you turn the TV off.

Select

OOPPTTIIOONN

Select

KKeeyy LLoocckk

MENU/

SET UP

ENTER

Select

OO nn

OOffff

ENTER

■

KKeeyy LLoocckk

‘

OO nn

’, if the TV is turned

off, press the

/ I, INPUT, CH

button on the TV or POWER, INPUT,

CH or NUMBER buttons on the

remote control.

■

With the

KKeeyy LLoocckk OOnn

, the display

‘

KKeeyy LLoocckk

’ appears on the screen if

any button on the front panel is pressed

while viewing the TV.

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing.

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Off

APPENDIX

104

APPENDIX

TROUBLESHOOTING

TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..

TThhee vviiddeeoo ffuunnccttiioonn ddooeess nnoott wwoorrkk..

No picture &No sound

No or poor color

or poor picture

Poor reception on

some channels

Lines or streaks

in pictures

No picture

when connecting HDMI

Horizontal/vertical bars

or picture shaking

Picture appears slowly

after switching on

The remote control

doesn’t work

Power is suddenly

turned off

■

Check to see if there is any object between the product and the remote control

causing obstruction. Ensure you are pointing the remote control directly at the TV.

■

Ensure that the batteries are installed with correct polarity (+ to +, - to -).

■

Ensure that the correct remote operating mode is set: TV, VCR etc.

■

Install new batteries.

■

Is the sleep timer set?

■

Check the power control settings. Power interrupted.

■

Check whether the product is turned on.

■

Try another channel. The problem may be with the broadcast.

■

Is the power cord inserted into wall power outlet?

■

Check your antenna direction and/or location.

■

Test the wall power outlet, plug another product’s power cord into the outlet

where the product’s power cord was plugged in.

■

This is normal, the image is muted during the product startup process. Please

contact your service center, if the picture has not appeared after a few minutes.

■

Adjust Color in menu option.

■

Try unplugging any others electronics that are near by to see if interference is

causing the problem.

■

Try another channel. The problem may be with the broadcast.

■

Are the video cables installed properly?

■

Activate any function to restore the brightness of the picture.

■

Check for local interference such as an electrical appliance or power tool.

■

Station or cable product experiencing problems, tune to another station.

■

Station signal is weak, reorient antenna.

■

Check for sources of possible interference.

■

Check antenna (Change the direction of the antenna).

■

Check HDMI cable over version 1.3.

If the HDMI cables don’t support HDMI version 1.3, it can cause flickers or no

screen display. In this case use the latest cables that support HDMI version 1.3.

APPENDIX

105

TThheerree iiss aa pprroobblleemm iinn PPCC mmooddee.. ((OOnnllyy PPCC mmooddee aapppplliieedd))

■

Adjust resolution, horizontal frequency, or vertical frequency.

■

Check the input source.

■

Run the Auto configure or adjust clock, phase, or H/V position. (Option)

■

Check the signal cable.

■

Update video card drivers.

The signal is out of range

Screen color is unstable

or single color

Vertical bar or stripe on

background &

Horizontal Noise &

Incorrect position

Picture OK but No sound

Unusual sound from

inside the product

No sound

when connecting HDMI

or USB

No output from one

of the speakers

TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..

■

Press the VOL or VOLUME button.

■

Sound muted? Press MUTE button.

■

Try another channel. The problem may be with the broadcast.

■

Are the audio cables installed properly?

■

Adjust Balance in menu option.

■

A change in ambient humidity or temperature may result in an unusual noise

when the product is turned on or off and does not indicate a fault with the

product.

■

Check HDMI cable over version 1.3.

■

Check USB cable over version 2.0.

*This feature is not available for all models.

APPENDIX

106

APPENDIX

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you enjoy

your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm

water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then

use it to wipe the screen.

Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

■

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

■

Please be sure not to use a wet cloth.

Extended Absence

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug

the power cord to protect against possible damage from lightning or power surges.

CAUTION

APPENDIX

107

PRODUCT SPECIFICATIONS

■

The specifications shown above may be changed without prior notice for quality improvement.

MODELS

AC100-240V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ohm

480i

32 ~ 104°F (0 ~ 40°C)

Less than 80%

-4 ~ 140°F (-20 ~ 60°C)

Less than 85%

Dimensions

(Width x Height

x Depth)

Weight

Power requirement

Television System

Program Coverage

External Antenna Impedance

Built-In DVD Video Format

Environment

condition

With stand

Without stand

With stand

Without stand

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

26LG40

(26LG40-UA)

(26LG40-UG)

32LG40

(32LG40-UA)

(32LG40-UG)

26.2 x 20.6 x 10.5 inches

666.8 x 524.5 x 267.0 mm

26.2 x 18.0 x 4.0 inches

666.8 x 457.8 x 103.0 mm

25.1 pounds / 11.4 kg

21.6 pounds / 9.8 kg

31.8 x 24.8 x 11.7 inches

808.8 x 630.3 x 299.2 mm

31.8 x 21.7 x 4.2 inches

808.8 x 551.6 x 108.0 mm

34.1 pounds / 15.5 kg

29.7 pounds / 13.5 kg

APPENDIX

108

PROGRAMMING THE REMOTE CONTROL

APPENDIX

The provided universal remote control can be programmed to operate most remote-controllable devices.

Note that the remote may not control all models of other brands.

Programming a code into a remote mode

Testing your remote control.

To find out whether your remote control can operate other components without programming, turn on a

component such as a STB and press the corresponding mode button (such as a

SSTTBB

) on the remote con-

trol, while pointing at the component. Test the

PPOOWWEERR

and

CC HH

buttons to see if the component

responds correctly. If the component does not operate correctly, the remote control requires programming

to operate the device.

Turn on the component to be programmed, then press the corresponding mode button (such as

SSTTBB

) on

the remote control. The remote control button of the desired device is illuminated.

Press the

MMEENNUU

and

MMUUTTEE

buttons simultaneously, and the remote control is ready to be programmed with

the code.

Enter a code number using the number buttons on the remote control. Programming code numbers for the

corresponding component can be found on the following pages. If the code is correct, the device will turn

off.

Press the

MMEENNUU

button to store the code.

Test the remote control functions to see if the component responds correctly. If not, repeat from step 2.

APPENDIX

109

Remote Control Code

Brand Codes Brand Codes Brand Codes

AIWA 034

A K A I 016 0 43 0 4 6 124

12 5 14 6

AMPRO 072

ANAM 031 033 103

AUDIO DYNAMICS

012 023 039 043

BROKSONIC 035 037 129

CANON 028 031 033

CAPEHART 108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119

DAYTRON 108

DBX 012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

036 037 046 101

129 131 13 8 153

FISHER 003 008 009 010

FUNAI 034

GE 031 033 063 072

10 7 10 9 14 4 14 7

GO VIDEO 132 136

HARMAN KARDON 012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANTREPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN 043

JVC 012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 12 3

LLOYD 034

LXI 003 009 013 014

017 034 101 106

MAGIN 040

MAGNAVOX 031 033 034 041

067 068

MARANTZ 012 031 033 067

069

MARTA 101

MATSUI 027 030

MEI 031 033

MEMOREX 003 010 014 031

033 034 053 072

101 102 13 4 13 9

MGA 045 046 059

MINOLTA 013 020

MITSUBISHI 013 020 045 046

049 051 059 061

151

MTC 034 040

MULTITECH 024 034

NEC 012 023 039 043

048

NORDMENDE 043

OPTONICA 053 054

PANASONIC 066 070 074 083

13 3 14 0 145

PENTAX 013 020 031 033

063

PHILCO 031 034 067

PHILIPS 031 033 034 054

067 071 101

PILOT 101

PIONEER 013 021 048

PORTLAND 108

PULSAR 072

QUARTZ 011 014

QUASAR 033 066 075 145

RCA 013 020 033 034

040 041 062 063

107 109 140 144

14 5 14 7

REALISTIC 003 008 010 014

031 033 034 040

053 054 101

RICO 058

RUNCO 148

SALORA 014

SAMSUNG 032 040 102 104

10 5 10 7 10 9 112

113 115 120 122

12 5

SANSUI 022 043 048 135

SANYO 003 007 010 014

10 2 13 4

SCOTT 017 037 112 129

131

SEARS 003 008 009 010

013 014 017 020

031 042 073 081

101

SHARP 031 054 149

SHINTOM 024

SONY 003 009 031 052

056 057 058 076

077 078 149

SOUNDESIGN 034

STS 013

SYLVANIA 031 033 034 059

067

SYMPHONIC 034

TA N DY 010 034

TATUNG 039 043

TEAC 034 039 043

TECHNICS 031 033 070

TEKNIKA 019 031 033 034

101

THOMAS 034

TMK 006

TOSHIBA 008 013 042 047

059 082 112 131

TOTEVISION 040 101

UNITECH 040

VECTOR RESEARCH

012

VICTOR 048

VIDEO CONCEPTS

012 034 0 46

VIDEOSONIC 040

WARDS 003 013 017 024

031 033 034 040

053 054 131

YAMAHA 012 034 039 043

ZENITH 034 048 056

058 072 080 101

VCR

APPENDIX

110

APPENDIX

Brand Codes Brand Codes Brand Codes

ALPHASTAR DSR 123

AMPLICA 050

BIRDVIEW 051 126 129

CHANNEL MASTER

013 014 015 018

036 055

CHAPARRAL 008 009 012 077

CITOH 054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA 024 046 056 076

ECHOSTAR 038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS 114

FUJITSU 017 021 022 027

13 3 13 4

GENERAL INSTRUMENT

003 004 016 029

031 059 101

HITACHI 139 140

HOUSTON TRACKER

033 037 039 051

057 104

HUGHES 068

JANIEL 060 147

JERROLD 061

KATHREIN 108

LEGEND 057

LG 001

LUTRON 132

LUXOR 062 144

MACOM 010 059 063 064

065

MEMOREX 057

NEXTWAVE 028 124 125

NORSAT 069 070

PACE SKY SATELLITE

14 3

PANASONIC 060 142

PANSAT 121

PERSONAL CABLE 117

PHILIPS 071

PICO 105

PRESIDENT 019 102

PRIMESTAR 030 110 111

PROSAT 072

RCA 066 106

REALISTIC 043 074

SAMSUNG 123

SATELLITE SERVICE CO

028 035 047 057

085

SCIENTIFIC ATLANTA

032 138

SONY 103

STARCAST 041

SUPER GUIDE 020 124 125

TEECOM 023 026 075 087

088 090 107 130

13 7

TOSHIBA 002 127

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136

VIEWSTAR 115

WINEGARD 128 146

ZENITH 081 082 083 084

091 120

HDSTB

APPENDIX

111

IR CODES

■

Configuration of frame

1st frame

Repeat frame

■

Lead code

■

Repeat code

■

BBiitt ddeessccrriippttiioonn

■

FFrraammee iinntteerrvvaall:: TTff

The waveform is transmitted as long as a key is depressed.

C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Lead code Low custom code High custom code Data code Data code

Repeat code

4.5 ms

9 ms

2.25 ms

9 ms

0.55 ms

0.56 ms

1.12 ms

0.56 ms

2.24 ms

Tf Tf

Tf=108ms @455KHz

Bit ”0” Bit ”1”

1. How to Connect

■

Connect your wired remote control to the Remote Control port on the TV.

2. Remote Control IR Codes

■

Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

Carrier frequency

FCAR = 1/TC = fOSC/12

Duty ratio = T1/TC = 1/3

APPENDIX

112

APPENDIX

Code

Function Note

(Hexa)

Code

Function Note

(Hexa)

08 POWER

Remote control Button (Power On/Off)

45 Q.MENU Remote control Button

43 MENU Remote control Button

0B INPUT Remote control Button

10-19 Number Key 0-9 Remote control Button

4C - (Dash) Remote control Button

1A FLASHBK Remote control Button

09 MUTE Remote control Button

02 VOL + Remote control Button

03 VOL - Remote control Button

00 CH Remote control Button

01 CH Remote control Button

1E FAV Remote control Button

40 Remote control Button

41 Remote control Button

07 Remote control Button

06 Remote control Button

44 ENTER Remote control Button

5B RETURN Remote control Button

7E SIMPLINK Remote control Button

30 AV MODE Remote control Button

B0 PLAY Remote control Button

BA PAUSE Remote control Button

B1 STOP Remote control Button

BD REC Remote control Button

8F REW Remote control Button

8E FF Remote control Button

CA EJECT Remote control Button

6B DISC MENU Remote control Button

B3 SKIP + Remote control Button

B2 SKIP - Remote control Button

3C SLOW + Remote control Button

3D SLOW - Remote control Button

D6 TV Discrete IR Code

(TV Input Selection)

C4 POWER ON Discrete IR Code

(Only Power On)

C5 POWER OFF Discrete IR Code

(Only Power Off)

5A AV1 Discrete IR Code

(AV1 Input Selection)

D0 AV2 Discrete IR Code

(AV2 Input Selection)

BF COMPONENT Discrete IR Code

(Component Input Selection)

D4 Built-In DVD Discrete IR Code

(Built-In DVD Input Selection)

D5 RGB-PC Discrete IR Code

(RGB-PC Input Selection)

CE HDMI1 Discrete IR Code

(HDMI1 Input Selection)

CC HDMI2 Discrete IR Code

(HDMI2 Input Selection)

E9 HDMI3 Discrete IR Code

(HDMI3 Input Selection)

76 Ratio 4:3 Discrete IR Code

(Only 4:3 Mode)

77 Ratio 16:9 Discrete IR Code

(Only 16:9 Mode)

AF Ratio Zoom Discrete IR Code

(Only Zoom1 Mode)

APPENDIX

113

EXTERNAL CONTROL THROUGH RS-232C

RS-232C Setup

The RS-232C port allows you connect the RS-232C input jack to an external control device (such as a computer

or an A/V control system) to control the TV’s functions externally.

■

Note: RS-232C on this unit is intended to be used with third party RS-232C control hardware and software.

The instructions below are provided to help with programming software or to test functionality using telenet

software.

PONENT IN

AUDIO

(RGB/DVI)

RGB(PC)

REMOTE

CONTROL IN

RS-232C IN

(CONTROL & SERVICE)

AUDIO

DIGITAL

AUDIO OUT

OPTICAL

AUDIO OUT

AV IN 1

VIDEO

MONO

( )

AUDIO

S-VIDEO

RGB IN

Type of Connector; D-Sub 9-Pin Male

No. Pin Name

1 No connection

2 RXD

(

Receive data

)

3 TXD

(

Transmit data

)

4 DTR

(

DTE side ready

)

5 GND

6 DSR

(

DCE side ready

)

7 RTS

(

Ready to send

)

8 CTS

(

Clear to send

)

9 No Connection

Communication Parameters

■

Baud rate : 9600 bps

(

UART

)

■

Data length : 8 bits

■

Parity : None

■

Stop bit : 1 bit

■

Communication code : ASCII code

■

Use a crossed (reverse) cable.

NOTE

This TV has command echo back.

APPENDIX

114

RS-232C Configurations

APPENDIX

Use this function to specify a TV ID number.

Refer to ‘Real Data Mapping1’.

pp..111188

Either cable below can be used.

Set ID

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DSR

DSR 6 4 DTR

RTS 7 8 CTS

CTS 8 7 RTS

D-Sub 9 D-Sub 9

PC TV

RXD 2 3 TXD

TXD 3 2 RXD

GND 5 5 GND

DTR 4 6 DTR

DSR 6 4 DSR

RTS 7 7 RTS

CTS 8 8 CTS

D-Sub 9 D-Sub 9

7-Wire Configuration

(

Serial female-female NULL modem cable

)

3-Wire Configurations

(

Not standard

)

Select

OOPPTTIIOONN

Select

SSeett IIDD

Choose the desired TV ID number.

The adjustment range of Set ID is

1~99.

MENU/

SET UP

ENTER

RETURN

Return to the previous menu.

MENU/

SET UP

Return to TV viewing

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

Enter

Move

OPTION

Language : English

Input Label

SIMPLINK : On

Key Lock : Off

Caption : Off

Set ID : 1

Power Indicator

Initial Setting : Home

APPENDIX

115

Command Reference List

CCOOMMMMAANNDD11 CCOOMMMMAANNDD22

19. Channel Tuning

DATA

(Hexadecimal)

CCOOMMMMAANNDD11 CCOOMMMMAANNDD22

DATA

(Hexadecimal)

CCOOMMMMAANNDD11 CCOOMMMMAANNDD22

DATA00

(Hexadecimal)

DATA01

(Hexadecimal)

DATA02

(Hexadecimal)

DATA03

(Hexadecimal)

DATA04

(Hexadecimal)

DATA05

(Hexadecimal)

physical major major low minor high minor low attribute

program high program low

01. Power k a 00 ~ 01

02. Input Select x b (

p.117)

03. Aspect Ratio k c (

p.117)

04. Screen Mute k d 00 ~ 01

05. Volume Mute k e 00 ~ 01

06. Volume Control k f 00 ~ 64

07. Contrast k g 00 ~ 64

08. Brightness k h 00 ~ 64

09. Color k i 00 ~ 64

10. Tint k j 00 ~ 64

11. Sharpness k k 00 ~ 64

12. OSD Select k l 00 ~ 01

13. Remote Control

Lock Mode

14. Treble k r 00 ~ 64

15. Bass k s 00 ~ 64

16. Balance k t 00 ~ 64

17.

Color Temperature

k u 00 ~ 02

18. Auto Configuration j u (

p.118)

20. Channel Add/Del m b 00 ~ 01

21 . K e y m c (

p.119)

22. Backlight m g 00 ~ 64

00 ~ 01

k m

APPENDIX

116

APPENDIX

Transmission / Receiving Protocol

TTrraannssmmiissssiioonn

[Command 1] : First command to control the set.

(j, k, m or x)

[Command 2] : Second command to control the set.

[Set ID] : You can adjust the set ID to choose desired TV ID

number in Setup menu. Adjustment range is 1

~ 99.

When selecting Set ID ‘0’, every connected TV is

controlled. Set ID is indicated as decimal

(

~ 99

)

menu and as Hexa decimal

(

0x0

~ 0x63

)

on transmission

/receiving protocol.

[DATA] : The data command. Responds with an acknowledgement

after transmitting.

[Cr] : Carriage Return

ASCII code ‘0x0D’

[ ] : ASCII code ‘space (0x20)’

* In this model, TV will not send the status during standby mode.

OOKK AAcckknnoowwlleeddggeemmeenntt

The TV transmits ACK (acknowledgement) based on this for-

mat when receiving normal data. At this time, if the data is

data read mode, it indicates present status data. If the data

is data write mode, it returns the data of the PC computer.

* In this model, the TV will not send the status during the

standby mode.

* Data Format

[Command 2] : Use as command.

[Set ID] : Uses lower case, if set ID is 10, it will send the ‘0’, ‘a’.

[DATA] : Uses lower case, if data is 0 x ab, it will send the ‘a’, ‘b’.

[OK] : Uses upper case.

EErrrroorr AAcckknnoowwlleeddggeemmeenntt

The TV transmits ACK (acknowledgement) based on this for-

mat when receiving abnormal data from non-viable functions

or communication errors.

Data1: Illegal Code

Data2: Not supported function

Data3: Wait more time

* In this model, TV will not send the status during the standby mode.

* Data Format

[Command 2] : Use as command.

[Set ID] : Uses lower case, if set ID is 10, it will send the ‘0’, ‘a’.

[DATA] : Uses lower case, if data is 0 x ab, it will send the ‘a’, ‘b’.

[NG] : Uses upper case.

[[CCoommmmaanndd11]][[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[DDaattaa]][[CCrr]]

[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[OOKK]][[DDaattaa]][[xx]]

[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[NNGG]][[DDaattaa]][[xx]]

APPENDIX

117

0011.. PPoowweerr ((CCoommmmaanndd:: kk aa))

To control Power On/Off of the TV.

Transmission [k][a][ ][Set ID][ ][Data][Cr]

Data 00: Power Off Data 01: Power On

Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]

* Note: The TV will send the acknowledgement after

power on processing completion.

There might be a time delay between command and

acknowledgement.

0022.. IInnppuutt SSeelleecctt ((CCoommmmaanndd:: xx bb))

To select an input source for the TV.

Transmission [x][b][ ][Set ID][ ][Data][Cr]

Data 00: DTV (Antenna) Data 01: DTV (Cable)

Data 10: Analog (Antenna) Data 11: Analog (Cable)

Data 20: AV1 Data 21: AV2

Data 40: Component Data 41: Built-In DVD

Data 60: RGB-PC Data 90: HDMI1

Data 91: HDMI2 Data 92: HDMI3

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

0033.. AAssppeecctt RRaattiioo ((CCoommmmaanndd:: kk cc))

To adjust the screen format.

Transmission [k][c][ ][Set ID][ ][Data][Cr]

Data 01: 4:3 05: Zoom 2

02: 16:9 06: Set by program

04: Zoom 1 09: Just scan

Reserved

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

0044.. SSccrreeeenn MMuuttee ((CCoommmmaanndd:: kk dd))

To select screen mute on/off.

Transmission [k][d][ ][Set ID][ ][Data][Cr]

Data 00: Screen mute off (Picture on)

Data 01: Screen mute on (Picture off)

Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]

0055.. VVoolluummee MMuuttee ((CCoommmmaanndd:: kk ee))

To control volume mute on/off.

You can also adjust mute using the MUTE button on

remote control.

Transmission [k][e][ ][Set ID][ ][Data][Cr]

Data 00: Volume mute on (Volume off)

Data 01: Volume mute off (Volume on)

Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]

0066.. VVoolluummee CCoonnttrrooll ((CCoommmmaanndd:: kk ff))

To adjust volume.

You can also adjust volume with the volume buttons on

remote control.

Transmission [k][f][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]

0077.. CCoonnttrraasstt ((CCoommmmaanndd:: kk gg))

To adjust screen contrast.

You can also adjust contrast in the PICTURE menu.

Transmission [k][g][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

0088.. BBrriigghhttnneessss ((CCoommmmaanndd:: kk hh))

To adjust screen brightness.

You can also adjust brightness in the PICTURE menu.

Transmission [k][h][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]

0099.. CCoolloorr ((CCoommmmaanndd:: kk ii))

To adjust screen color.

You can also adjust color in the PICTURE menu.

Transmission [k][i][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]

1100.. TTiinntt ((CCoommmmaanndd:: kk jj))

To adjust screen tint.

You can also adjust tint in the PICTURE menu.

Transmission [k][j][ ][Set ID][ ][Data][Cr]

Data Red: 00 ~ Green: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]

1111.. SShhaarrppnneessss ((CCoommmmaanndd:: kk kk))

To adjust screen sharpness.

You can also adjust sharpness in the PICTURE menu.

Transmission [k][k][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]

APPENDIX

118

APPENDIX

1122.. OOSSDD SSeelleecctt ((CCoommmmaanndd:: kk ll))

To select OSD (On Screen Display) on/off.

Transmission [k][l][ ][Set ID][ ][Data][Cr]

Data 00: OSD off Data 01: OSD on

Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]

1133.. RReemmoottee CCoonnttrrooll LLoocckk MMooddee ((CCoommmmaanndd:: kk mm))

To lock the remote control and the front panel controls

on the set.

Transmission [k][m][ ][Set ID][ ][Data][Cr]

Data 00: Lock off Data 01: Lock on

Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]

If you’re not using the remote control and front panel

controls on the TV, use this mode. When main power is

on/off, remote control lock is released.

1144.. TTrreebbllee ((CCoommmmaanndd:: kk rr))

To adjust treble.

You can also adjust treble in the AUDIO menu.

Transmission [k][r][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’ as shown.

Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]

1155.. BBaassss ((CCoommmmaanndd:: kk ss))

To adjust bass.

You can also adjust bass in the AUDIO menu.

Transmission [k][s][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’ as shown.

Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]

1166.. BBaallaannccee ((CCoommmmaanndd:: kk tt))

To adjust balance.

You can also adjust balance in the AUDIO menu.

Transmission [k][t][ ][Set ID][ ][Data][Cr]

Data Min: 00 ~ Max: 64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’ as shown.

Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]

1177.. CCoolloorr TTeemmppeerraattuurree ((CCoommmmaanndd:: kk uu))

To adjust color temperature.

You can also adjust color temperature in the PICTURE menu.

Transmission [k][u][ ][Set ID][ ][Data][Cr]

Data 00: Medium 01: Cool 02: Warm

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

1188.. AAuuttoo CCoonnffiigguurraattiioonn ((CCoommmmaanndd:: jj uu))

To adjust picture position and minimize image shaking

automatically. Auto configuration only works in RGB-PC

mode.

Transmission [ j ][u][ ][Set ID][ ][Data][Cr]

Data 01: To set

Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]

1199.. CChhaannnneell TTuunniinngg ((CCoommmmaanndd:: mm aa))

To tune channel to following physical/major/minor number.

Transmission [m][a][ ][Set ID][ ][Data00][ ][Data01]

[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]

Digital channels have a Physical, Major, and Minor channel

number. The Physical number is the actual digital channel

number, the Major is the number that the channel should

be mapped to, and the Minor is the sub-channel. Since

the ATSC tuner automatically maps the channel to the

Major number, the Physical number is not required when

sending a command.

Data 00: Physical Channel Number

NTSC air: 02~45, NTSC cable: 01, 0E~7D

ATSC air: 01~45, ATSC cable: 01~87

Data 01 & 02: Major Channel Number

Data 01: High byte Data 02: Low byte

Two bytes are available for the Major and Minor, nor-

mally only the second byte is used.

Data 03 & 04: Minor Channel Number

Not needed for NTSC.

*Real data mapping

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

63 : Step 99 (SET ID 99)

64 : Step 100

APPENDIX

119

Data5:

The table above lists the binary code which must be

converted to Hexadecimal before sending. For example:

The binary code to tune the sub source to an NTSC

cable channel is “1000 0001”, which translates to “81”

in Hex.

* 7th bit : For which source do you want to change the

channel.

* 6th bit: Use a two part or one part channel. Most cases

just use 0 since it’s ignored when using NTSC.

* 5th bit: Use 0 with NTSC since it can only use the phys-

ical channel number. Normally use 1 for ATSC since most

times it doesn’t matter what the physical number is.

* 4th bit: Set to 0.

* 3-0 bits: Choose signal type.

* Tune Command Examples:

1. Tune to the analog (NTSC) cable channel 35.

Data 00 = Physical of 35 = 23

Data 01 & 02 = No Major = 00 00

Data 03 & 04 = No Minor = 00 00

Data 05 = 0000 0001 in binary = 01

Total = ma 00 23 00 00 00 00 01

2. Tune to the digital (ATSC) local channel 30-3.

Data 00 = Don’t know Physical = 00

Data 01 & 02 = Major is 30 = 00 1E

Data 03 & 04 = Minor is 3 = 00 03

Data 05 = 0010 0010 in binary = 22

Total = ma 00 00 00 1E 00 03 22

Acknowledgement[a][ ][Set ID][ ][OK][Data00][Data01]

[Data02][Data03][Data04][x][a][ ][Set ID]

[ ][NG][Data00][x]

2200.. CChhaannnneell AAdddd//DDeell ((CCoommmmaanndd:: mm bb))

To add and delete the channels.

Transmission [m][b][ ][Set ID][ ][Data][Cr]

Data 00: Channel Delete Data 01: Channel Add

Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]

2211.. KKeeyy ((CCoommmmaanndd:: mm cc))

To send IR remote key code.

Transmission [m][c][ ][Set ID][ ][Data][Cr]

Data Key code: Refer to page 112.

Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]

2222.. BBaacckklliigghhtt ((CCoommmmaanndd:: mm gg))

To adjust screen backlight.

Transmission [m][g][ ][Set ID][ ][Data][Cr]

Data Min:00 ~ Max:64 (*transmit by Hexadecimal code)

*Refer to ‘Real data mapping’. See page 118.

Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]

Step

NTSC Air

NTSC Cable

ATSC Air

ATSC Cable_std

ATSC Cable_hrc

ATSC Cable_irc

ATSC cable_auto

Reserved

...

Reserved

Use

No Use

Using Physical

Channel

Two

One

Two/One

Part Channel

Main

Sub

Main/Sub


APPENDIX

120

OPEN SOURCE LICENSE

This feature is not available for all models.

APPENDIX

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of

this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your

freedom to share and change it. By contrast, the GNU General

Public License is intended to guarantee your freedom to share

and change free software - to make sure the software is free for

all its users. This General Public License applies to most of the

Free Software Foundation's software and to any other program

whose authors commit to using it. (Some other free software

foundation software is covered by the GNU Lesser General Public

License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not

price. Our General Public Licenses are designed to make sure that

you have the freedom to distribute copies of free software (and

charge for this service if you wish), that you receive source code

or can get it if you want it, that you can change the software or

use pieces of it in new free programs; and that you know you can

do these things.

To protect your rights, we need to make restrictions that forbid

anyone to deny you these rights or to ask you to surrender the

rights. These restrictions translate to certain responsibilities for

you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether

gratis or for a fee, you must give the recipients all the rights that

you have. You must make sure that they, too, receive or can get

the source code. And you must show them these terms so they

know their rights.

We protect your rights with two steps: (1) copyright the soft-

ware, and (2) offer you this license which gives you legal permis-

sion to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make cer-

tain that everyone understands that there is no warranty for this

free software. If the software is modified by someone else and

passed on, we want its recipients to know that what they have is

not the original, so that any problems introduced by others will

not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software

patents. We wish to avoid the danger that redistributors of a free

program will individually obtain patent licenses, in effect making

the program proprietary. To prevent this, we have made it clear

that any patent must be licensed for everyone's free use or not

licensed at all.

The precise terms and conditions for copying, distribution and

modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

0. This license applies to any program or other work which con-

tains a notice placed by the copyright holder saying it may be

distributed under the terms of this General Public License. The

"Program", below, refers to any such program or work, and a

"work based on the Program" means either the Program or any

derivative work under copyright law: that is to say, a work con-

taining the Program or a portion of it, either verbatim or with

modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in the

term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification

are not covered by this license; they are outside its scope.

The act of running the Program is not restricted, and the out-

put from the program is covered only if its contents constitute

a work based on the program (independent of having been

made by running the program). Whether that is true depends

on what the program does.

1. You may copy and distribute verbatim copies of the program's

source code as you receive it, in any medium, provided that

you conspicuously and appropriately publish on each copy an

appropriate copyright notice and disclaimer of warranty; keep

intact all the notices that refer to this license and to the

absence of any warranty; and give any other recipients of the

program a copy of this license along with the Program.

You may charge a fee for the physical act of transferring a

copy, and you may at your option offer warranty protection in

exchange for a fee.

2. You may modify your copy or copies of the program or any

portion of it, thus forming a work based on the Program, and

copy and distribute such modifications or work under the

terms of section 1 above, provided that you also meet all of

these conditions:

a) You must cause the modified files to carry prominent

notices stating that you changed the files and the date of

any change.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

APPENDIX

121

b) You must cause any work that you distribute or publish,

that in whole or in part contains or is derived from the

Program or any part there of, to be licensed as a whole at

no charge to all third parties under the terms of this

license.

c) If the modified program normally reads commands interac-

tively when run, you must cause it, when started running

for such interactive use in the most ordinary way, to print

or display an announcement including an appropriate

else, saying that you provide a warranty) and that users

may redistribute the program under these conditions, and

telling the user how to view a copy of this license.

(Exception: if the Program itself is interactive but does not

normally print such an announcement, your work based on

the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If

identifiable sections of that work are not derived from the

Program, and can be reasonably considered independent and

separate works in themselves, then this license, and its terms,

do not apply to those sections when you distribute them as

separate works. But when you distribute the same sections as

part of a whole which is a work based on the Program, the dis-

tribution of the whole must be on the terms of this license,

whose permissions for other licensees extend to the entire

whole, and thus to each and every part regardless of who

wrote it.

Thus, it is not the intent of this section to claim rights or con-

test your rights to work written entirely by you; rather, the

intent is to exercise the right to control the distribution of

derivative or collective works based on the program.

In addition, mere aggregation of another work not based on

the program with the Program (or with a work based on the

program) on a volume of a storage or distribution medium

does not bring the other work under the scope of this license.

3. You may copy and distribute the program (or a work based on

it, under section 2) in object code or executable form under

the terms of sections 1 and 2 above provided that you also

do one of the following:

a) Accompany it with the complete corresponding machine-

readable source code, which must be distributed under the

terms of sections 1 and 2 above on a medium customarily

used for software interchange; or,

b) Accompany it with a written offer, valid for at least three

years, to give any third party, for a charge no more than

your cost of physically performing source distribution, a

complete machine-readable copy of the corresponding

source code, to be distributed under the terms of sections

1 and 2 above on a medium customarily used for software

interchange; or,

c) Accompany it with the information you received as to the

offer to distribute corresponding source code. (This alter-

native is allowed only for noncommercial distribution and

only if you received the program in object code or exe-

cutable form with such an offer, in accord with Subsection

b above.)

The source code for a work means the preferred form of the

work for making modifications to it. For an executable work,

complete source code means all the source code for all mod-

ules it contains, plus any associated interface definition files,

plus the scripts used to control compilation and installation

of the executable. However, as a special exception, the source

code distributed need not include anything that is normally

distributed (in either source or binary form) with the major

components (compiler, kernel, and so on) of the operating

system on which the executable runs, unless that component

itself accompanies the executable.

If distribution of executable or object code is made by offer-

ing access to copy from a designated place, then offering

equivalent access to copy the source code from the same

place counts as distribution of the source code, even though

third parties are not compelled to copy the source along with

the object code.

4. You may not copy, modify, sublicense, or distribute the Program

except as expressly provided under this license. Any attempt

otherwise to copy, modify, sublicense or distribute the

Program is void, and will automatically terminate your rights

under this license. However, parties who have received copies,

or rights, from you under this license will not have their licens-

es terminated so long as such parties remain in full compli-

ance.

5. You are not required to accept this license, since you have not

signed it. However, nothing else grants you permission to

modify or distribute the Program or its derivative works.

These actions are prohibited by law if you do not accept this

license. Therefore, by modifying or distributing the program

(or any work based on the program), you indicate your accep-

tance of this license to do so, and all its terms and conditions

for copying, distributing or modifying the program or works

based on it.

6. Each time you redistribute the program (or any work based on

the Program), the recipient automatically receives a license

from the original licensor to copy, distribute or modify the

Program subject to these terms and conditions. You may not

impose any further restrictions on the recipients' exercise of

the rights granted herein. You are not responsible for enforc-

ing compliance by third parties to this license.

APPENDIX

122

APPENDIX

7. If, as a consequence of a court judgment or allegation of

patent infringement or for any other reason (not limited to

patent issues), conditions are imposed on you (whether by

court order, agreement or otherwise) that contradict the con-

ditions of this license, they do not excuse you from the con-

ditions of this license. If you cannot distribute so as to satis-

fy simultaneously your obligations under this license and any

other pertinent obligations, then as a consequence you may

not distribute the program at all. For example, if a patent

license would not permit royalty-free redistribution of the

program by all those who receive copies directly or indirectly

through you, then the only way you could satisfy both it and

this license would be to refrain entirely from distribution of

the program.

If any portion of this section is held invalid or unenforceable

under any particular circumstance, the balance of the section

is intended to apply and the section as a whole is intended to

apply in other circumstances.

It is not the purpose of this section to induce you to infringe

any patents or other property right claims or to contest valid-

ity of any such claims; this section has the sole purpose of

protecting the integrity of the free software distribution sys-

tem, which is implemented by public license practices. Many

people have made generous contributions to the wide range

of software distributed through that system in reliance on

consistent application of that system; it is up to the

author/donor to decide if he or she is willing to distribute

software through any other system and a licensee cannot

impose that choice.

This section is intended to make thoroughly clear what is

believed to be a consequence of the rest of this license.

8. If the distribution and/or use of the program is restricted in

certain countries either by patents or by copyrighted inter-

faces, the original copyright holder who places the program

under this license may add an explicit geographical distribution

limitation excluding those countries, so that distribution is

permitted only in or among countries not thus excluded. In

such case, this license incorporates the limitation as if written

in the body of this license.

9. The Free Software Foundation may publish revised and/or

new versions of the General Public License from time to time.

Such new versions will be similar in spirit to the present ver-

sion, but may differ in detail to address new problems or con-

cerns.

Each version is given a distinguishing version number. If the

program specifies a version number of this license which

applies to it and "any later version", you have the option of

following the terms and conditions either of that version or of

any later version published by the Free Software Foundation.

If the program does not specify a version number of this

license, you may choose any version ever published by the

Free Software Foundation.

10.If you wish to incorporate parts of the program into other free

programs whose distribution conditions are different, write to

the author to ask for permission. For software which is copy-

righted by the Free Software Foundation, write to the Free

Software Foundation; we sometimes make exceptions for this.

Our decision will be guided by the two goals of preserving the

free status of all derivatives of our free software and of pro-

moting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD-

ERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS

IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE

RISK AS TO THE QUALITY AND PERFORMANCE OF THE

PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MAY MODIFY AND/OR

REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE

LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE PRO-

GRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA

OR DATA BEING RENDERED INACCURATE OR LOSSES SUS-

TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE

PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

APPENDIX

123

END OF TERMS AND CONDITIONS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the great-

est possible use to the public, the best way to achieve this is to

make it free software which everyone can redistribute and change

under these terms.

To do so, attach the following notices to the program. It is safest

to attach them to the start of each source file to most effective-

ly convey the exclusion of warranty; and each file should have at

least the "copyright" line and a pointer to where the full notice is

found.

one line to give the program's name and a brief idea of what it

does.

This program is free software; you can redistribute it and/or

modify it under the terms of the GNU General Public License as

published by the Free Software Foundation; either version 2 of

the license, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY; without even the implied warranty

of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR-

POSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public

License along with this program; if not, write to the Free Software

Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA

02110-1301 USA.

Also add information on how to contact you by electronic and

paper mail.

If the program is interactive, make it output a short notice like

this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY; for

details type ‘show w’. This is free software, and you are welcome

to redistribute it under certain conditions; type ‘show c’ for

details.

The hypothetical commands ‘show w’ and ‘show c’ should show

the appropriate parts of the General Public License. Of course,

the commands you use may be called something other than

‘show w’ and ‘show c’; they could even be mouse-clicks or menu

items-whatever suits your program.

You should also get your employer (if you work as a programmer)

or your school, if any, to sign a “copyright disclaimer” for the pro-

gram, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the pro-

gram ‘Gnomovision’ (which makes passes at compilers) written by

James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your

program into proprietary programs. If your program is a subrou-

tine library, you may consider it more useful to permit linking pro-

prietary applications with the library. If this is what you want to

do, use the GNU Lesser General Public License instead of this

license.

APPENDIX

124

APPENDIX

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of

this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also

counts as the successor of the GNU Library Public License, ver-

sion 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your

freedom to share and change it. By contrast, the GNU General

Public Licenses are intended to guarantee your freedom to share

and change free software - to make sure the software is free for

all its users.

This license, the Lesser General Public License, applies to some

specially designated software packages - typically libraries - of

the Free Software Foundation and other authors who decide to

use it. You can use it too, but we suggest you first think careful-

ly about whether this license or the ordinary General Public

License is the better strategy to use in any particular case, based

on the explanations below.

When we speak of free software, we are referring to freedom of

use, not price. Our General Public Licenses are designed to make

sure that you have the freedom to distribute copies of free soft-

ware (and charge for this service if you wish); that you receive

source code or can get it if you want it; that you can change the

software and use pieces of it in new free programs; and that you

are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid

distributors to deny you these rights or to ask you to surrender

these rights. These restrictions translate to certain responsibilities

for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis

or for a fee, you must give the recipients all the rights that we

gave you. You must make sure that they, too, receive or can get

the source code. If you link other code with the library, you must

provide complete object files to the recipients, so that they can

relink them with the library after making changes to the library

and recompiling it. And you must show them these terms so they

know their rights.

We protect your rights with a two-step method: (1) we copyright

the library, and (2) we offer you this license, which gives you legal

permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that

there is no warranty for the free library. Also, if the library is mod-

ified by someone else and passed on, the recipients should know

that what they have is not the original version, so that the origi-

nal author's reputation will not be affected by problems that

might be introduced by others.

Finally, software patents pose a constant threat to the existence

of any free program. We wish to make sure that a company can-

not effectively restrict the users of a free program by obtaining a

restrictive license from a patent holder. Therefore, we insist that

any patent license obtained for a version of the library must be

consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the

ordinary GNU General Public License. This license, the GNU

Lesser General Public License, applies to certain designated

libraries, and is quite different from the ordinary General Public

License. We use this license for certain libraries in order to per-

mit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or

using a shared library, the combination of the two is legally

speaking a combined work, a derivative of the original library. The

ordinary General Public License therefore permits such linking

only if the entire combination fits its criteria of freedom. The

Lesser General Public License permits more lax criteria for linking

other code with the library.

We call this license the "Lesser" General Public License because

it does Less to protect the user's freedom than the ordinary

General Public License. It also provides other free software devel-

opers Less of an advantage over competing non-free programs.

These disadvantages are the reason we use the ordinary General

Public License for many libraries. However, the Lesser license pro-

vides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to

encourage the widest possible use of a certain library, so that it

becomes a de-facto standard. To achieve this, non-free programs

must be allowed to use the library. A more frequent case is that

a free library does the same job as widely used non-free libraries.

In this case, there is little to gain by limiting the free library to free

software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free

programs enables a greater number of people to use a large body

of free software. For example, permission to use the GNU C

Library in non-free programs enables many more people to use

the whole GNU operating system, as well as its variant, the

GNU/Linux operating system.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

APPENDIX

125

Although the Lesser General Public License is Less protective of

the users' freedom, it does ensure that the user of a program that

is linked with the Library has the freedom and the wherewithal to

run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and

modification follow. Pay close attention to the difference between

a "work based on the library" and a "work that uses the library".

The former contains code derived from the library, whereas the

latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

0. This license agreement applies to any software library or other

program which contains a notice placed by the copyright hold-

er or other authorized party saying it may be distributed

under the terms of this Lesser General Public License (also

called “this license”). Each license is addressed as "you".

A “library” means a collection of software functions and/or

data prepared so as to be conveniently linked with application

programs (which use some of those functions and data) to

form executables.

The “Library”, below, refers to any such software library or work

which has been distributed under these terms. A “work based

on the Library” means either the Library or any derivative work

under copyright law: that is to say, a work containing the

library or a portion of it, either verbatim or with modifications

and/or translated straightforwardly into another language.

(Hereinafter, translation is included without limitation in the

term “modification”.)

“Source code” for a work means the preferred form of the

work for making modifications to it. For a library, complete

source code means all the source code for all modules it con-

tains, plus any associated interface definition files, plus the

scripts used to control compilation and installation of the

library.

Activities other than copying, distribution and modification

are not covered by this license; they are outside its scope.

The act of running a program using the Library is not restrict-

ed, and output from such a program is covered only if its con-

tents constitute a work based on the library (independent of

the use of the Library in a tool for writing it). Whether that is

true depends on what the library does and what the program

that uses the library does.

1. You may copy and distribute verbatim copies of the library's

complete source code as you receive it, in any medium, pro-

vided that you conspicuously and appropriately publish on

each copy an appropriate copyright notice and disclaimer of

warranty; keep intact all the notices that refer to this license

and to the absence of any warranty; and distribute a copy of

this license along with the Library.

You may charge a fee for the physical act of transferring a

copy, and you may at your option offer warranty protection in

exchange for a fee.

2. You may modify your copy or copies of the Library or any

portion of it, thus forming a work based on the Library, and

copy and distribute such modifications or work under the

terms of section 1 above, provided that you also meet all of

these conditions:

a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent

notices stating that you changed the files and the date of

any change.

c) You must cause the whole of the work to be licensed at no

charge to all third parties under the terms of this license.

d) If a facility in the modified Library refers to a function or a

table of data to be supplied by an application program that

uses the facility, other than as an argument passed when

the facility is invoked, then you must make a good faith

effort to ensure that, in the event an application does not

supply such function or table, the facility still operates, and

performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots

has a purpose that is entirely well-defined independent of the

application. Therefore, Subsection 2d requires that any appli-

cation-supplied function or table used by this function must be

optional: if the application does not supply it, the square root

function must still compute square roots.)

These requirements apply to the modified work as a whole. If

identifiable sections of that work are not derived from the

library, and can be reasonably considered independent and

separate works in themselves, then this license, and its terms,

do not apply to those sections when you distribute them as

separate works. But when you distribute the same sections as

part of a whole which is a work based on the library, the dis-

tribution of the whole must be on the terms of this license,

whose permissions for other licenses extend to the entire

whole, and thus to each and every part regardless of who

wrote it.

Thus, it is not the intent of this section to claim rights or con-

test your rights to work written entirely by you; rather, the

intent is to exercise the right to control the distribution of

derivative or collective works based on the library.

In addition, mere aggregation of another work not based on

the library with the library (or with a work based on the

library) on a volume of a storage or distribution medium does

not bring the other work under the scope of this license.

APPENDIX

126

APPENDIX

3. You may opt to apply the terms of the ordinary GNU General

Public License instead of this License to a given copy of the

Library. To do this, you must alter all the notices that refer to

this License, so that they refer to the ordinary GNU General

Public License, version 2, instead of to this License. (If a newer

version than version 2 of the ordinary GNU General Public

License has appeared, then you can specify that version

instead if you wish.) Do not make any other change in these

notices.

Once this change is made in a given copy, it is irreversible for

that copy, so the ordinary GNU General Public License applies

to all subsequent copies and derivative works made from that

copy.

This option is useful when you wish to copy part of the code

of the library into a program that is not a library.

4. You may copy and distribute the library (or a portion or deriv-

ative of it, under Section 2) in object code or executable form

under the terms of Sections 1 and 2 above provided that you

accompany it with the complete corresponding machine-

readable source code, which must be distributed under the

terms of sections 1 and 2 above on a medium customarily

used for software interchange.

If distribution of object code is made by offering access to

copy from a designated place, then offering equivalent access

to copy the source code from the same place satisfies the

requirement to distribute the source code, even though third

parties are not compelled to copy the source along with the

object code.

5. A program that contains no derivative of any portion of the

Library, but is designed to work with the Library by being

compiled or linked with it, is called a “work that uses the

Library”. Such a work, in isolation, is not a derivative work of

the Library, and therefore falls outside the scope of this

license.

However, linking a “work that uses the library” with the Library

creates an executable that is a derivative of the Library

(because it contains portions of the library), rather than a

“work that uses the library”. The executable is therefore cov-

ered by this license. Section 6 states terms for distribution of

such executable.

When a “work that uses the library” uses material from a head-

er file that is part of the library, the object code for the work

may be a derivative work of the library even though the source

code is not.

Whether this is true is especially significant if the work can be

linked without the library, or if the work is itself a library. The

threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data

structure layouts and accessories, and small macros and small

inline functions (ten lines or less in length), then the use of

the object file is unrestricted, regardless of whether it is legal-

ly a derivative work. (Executable containing this object code

plus portions of the library will still fall under Section 6.)

Otherwise, if the work is a derivative of the library, you may

distribute the object code for the work under the terms of

Section 6. Any executable containing that work also fall under

Section 6, whether or not they are linked directly with the

library itself.

6. As an exception to the sections above, you may also combine

or link a "work that uses the library" with the library to pro-

duce a work containing portions of the library, and distribute

that work under terms of your choice, provided that the terms

permit modification of the work for the customer's own use

and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work

that the library is used in it and that the Library and its use

are covered by this license. You must supply a copy of this

license. If the work during execution displays copyright

notices, you must include the copyright notice for the library

among them, as well as a reference directing the user to the

copy of this license. Also, you must do one of these things:

a) Accompany the work with the complete corresponding

machine-readable source code for the library including

whatever changes were used in the work (which must be

distributed under Sections 1 and 2 above); and, if the work

is an executable linked with the Library, with the complete

machine-readable “work that uses the Library”, as object

code and/or source code, so that the user can modify the

library and then relink to produce a modified executable

containing the modified library. (It is understood that the

user who changes the contents of definitions files in the

library will not necessarily be able to recompile the appli-

cation to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the

library. A suitable mechanism is one that (1) uses at run time

a copy of the library already present on the user’s computer

system, rather than copying library functions into the exe-

cutable, and (2) will operate properly with a modified version

of the library, if the user installs one, as long as the modified

version is interface-compatible with the version that the

work was made with.

c) Accompany the work with a written offer, valid for at least

three years, to give the same user the materials specified in

Subsection 6, above, for a charge no more than the cost of

performing this distribution.

d) If distribution of the work is made by offering access to

copy from a designated place, offer equivalent access to

copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these

materials or that you have already sent this user a copy.

APPENDIX

127

For an executable, the required form of the "work that uses

the library" must include any data and utility programs need-

ed for reproducing the executable from it. However, as a spe-

cial exception, the materials to be distributed need not

include anything that is normally distributed (in either source

or binary form) with the major components (compiler, kernel,

and so on) of the operating system on which the executable

runs, unless that component itself accompanies the exe-

cutable.

It may happen that this requirement contradicts the license

restrictions of other proprietary libraries that do not normal-

ly accompany the operating system. Such a contradiction

means you cannot use both them and the library together in

an executable that you distribute.

7. You may place library facilities that are a work based on the

library side-by-side in a single library together with other

library facilities not covered by this license, and distribute

such a combined library, provided that the separate distribu-

tion of the work based on the Library and of the other library

facilities is otherwise permitted, and provided that you do

these two things:

a) Accompany the combined library with a copy of the same

work based on the Library, uncombined with any other

library facilities. This must be distributed under the terms

of the sections above.

b) Give prominent notice with the combined library of the

fact that part of it is a work based on the library, and

explaining where to find the accompanying uncombined

form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute

the library except as expressly provided under this license.

Any attempt otherwise to copy, modify, sublicense, link with,

or distribute the library is void, and will automatically termi-

nate your rights under this license. However, parties who have

received copies, or rights, from you under this license will not

have their licenses terminated so long as such parties remain

in full compliance.

9. You are not required to accept this license, since you have not

signed it. However, nothing else grants you permission to mod-

ify or distribute the library or its derivative works. These

actions are prohibited by law if you do not accept this license.

Therefore, by modifying or distributing the library (or any work

based on the library), you indicate your acceptance of this

license to do so, and all its terms and conditions for copying,

distributing or modifying the library or works based on it.

10.Each time you redistribute the library (or any work based on

the Library), the recipient automatically receives a license

from the original licensor to copy, distribute, link with or mod-

ify the library subject to these terms and conditions. You may

not impose any further restrictions on the recipients' exercise

of the rights granted herein.

You are not responsible for enforcing compliance by third

parties with this license.

11. If, as a consequence of a court judgment or allegation of

patent infringement or for any other reason (not limited to

patent issues), conditions are imposed on you (whether by

court order, agreement or otherwise) that contradict the con-

ditions of this license, they do not excuse you from the con-

ditions of this license. If you cannot distribute so as to satis-

fy simultaneously your obligations under this license and any

other pertinent obligations, then as a consequence you may

not distribute the library at all. For example, if a patent license

would not permit royalty-free redistribution of the library by

all those who receive copies directly or indirectly through

you, then the only way you could satisfy both it and this

license would be to refrain entirely from distribution of the

library.

If any portion of this section is held invalid or unenforceable

under any particular circumstance, the balance of the section

is intended to apply, and the section as a whole is intended to

apply in other circumstances.

It is not the purpose of this section to induce you to infringe

any patents or other property right claims or to contest valid-

ity of any such claims; this section has the sole purpose of

protecting the integrity of the free software distribution sys-

tem which is implemented by public license practices. Many

people have made generous contributions to the wide range

of software distributed through that system in reliance on

consistent application of that system; it is up to the

author/donor to decide if he or she is willing to distribute

software through any other system and a license cannot

impose that choice.

This section is intended to make thoroughly clear what is

believed to be a consequence of the rest of this license.

12.If the distribution and/or use of the library is restricted in cer-

tain countries either by patents or by copyrighted interfaces,

the original copyright holder who places the library under this

license may add an explicit geographical distribution limitation

excluding those countries, so that distribution is permitted

only in or among countries not thus excluded. In such case,

this license incorporates the limitation as if written in the body

of this license.

13.The Free Software Foundation may publish revised and/or

new versions of the Lesser General Public License from time to

time. Such new versions will be similar in spirit to the present

version, but may differ in detail to address new problems or

concerns.

Each version is given a distinguishing version number. If the

library specifies a version number of this license which applies

to it and “any later version”, you have the option of following

the terms and conditions either of that version or of any later

version published by the Free Software Foundation.

APPENDIX

128

APPENDIX

If the library does not specify a license version number, you

may choose any version ever published by the Free Software

Foundation.

14.If you wish to incorporate parts of the library into other free

programs whose distribution conditions are incompatible with

these, write to the author to ask for permission. For software

which is copyrighted by the Free Software Foundation, write

to the Free Software Foundation; we sometimes make excep-

tions for this. Our decision will be guided by the two goals of

preserving the free status of all derivatives of our free software

and of promoting the sharing and reuse of software generally.

NO WARRANTY

15.BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE LIBRARY, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD-

ERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS

IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE

RISK AS TO THE QUALITY AND PERFORMANCE OF THE

LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

16.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MAY MODIFY AND/OR

REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE

LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE

LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA

OR DATA BEING RENDERED INACCURATE OR LOSSES SUS-

TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE

LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new libraries

If you develop a new library, and you want it to be of the great-

est possible use to the public, we recommend making it free soft-

ware that everyone can redistribute and change. You can do so

by permitting redistribution under these terms (or, alternatively,

under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library.

It is safest to attach them to the start of each source file to most

effectively convey the exclusion of warranty; and each file should

have at least the “copyright” line and a pointer to where the full

notice is found.

one line to give the library's name and a brief idea of what it does.

This library is free software; you can redistribute it and/or modify

it under the terms of the GNU Lesser General Public License as

published by the Free Software Foundation; either version 2.1 of

the license, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY; without even the implied warranty

of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR-

POSE. See the GNU Lesser General Public License for more

details.

You should have received a copy of the GNU Lesser General

Public License along with this library; if not, write to the Free

Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston,

MA 02110-1301 USA

Also add information on how to contact you by electronic and

paper mail.

You should also get your employer (if you work as a programmer)

or your school, if any, to sign a “copyright disclaimer” for the

library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the

library ‘Frob’ (a library for tweaking knobs) written by James

Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

APPENDIX

129

1.Definitions.

1.0.1. “Commercial use” means distribution or otherwise making

the covered code available to a third party.

1.1. “Contributor” means each entity that creates or con-

tributes to the creation of modifications.

1.2. “Contributor version” means the combination of the orig-

inal code, prior modifications used by a contributor, and

the modifications made by that particular contributor.

1.3. “Covered code” means the original code or modifications

or the combination of the original code and modifications,

in each case including portions thereof.

1.4. “Electronic distribution mechanism” means a mechanism

generally accepted in the software development communi-

ty for the electronic transfer of data.

1.5. “Executable” means covered code in any form other than

source code.

1.6. “Initial developer” means the individual or entity identified

as the initial Developer in the Source Code notice required

by exhibit A.

1.7. “Larger work” means a work which combines covered code

or portions thereof with code not governed by the terms

of this License.

1.8. “License” means this document.

1.8.1. “Licensable” means having the right to grant, to the maxi-

mum extent possible, whether at the time of the initial

grant or subsequently acquired, any and all of the rights

conveyed herein.

1.9. “Modifications” means any addition to or deletion from

the substance or structure of either the original code or

any previous modifications. When covered code is

released as a series of files, a modification is:

A. Any addition to or deletion from the contents of a file

containing original code or previous modifications.

B. Any new file that contains any part of the original code

or previous modifications.

1.10. “Original code” means source code of computer software

code which is described in the source code notice

required by exhibit as original code, and which, at the time

of its release under this license is not already covered

code governed by this license.

1.10.1.

“Patent claims” means any patent claim(s), now owned or

hereafter acquired, including without limitation, method,

process, and apparatus claims, in any patent licensable by

grantor.

1.11. “Source code” means the preferred form of the covered

code for making modifications to it, including all modules

it contains, plus any associated interface definition files,

scripts used to control compilation and installation of an

executable, or source code differential comparisons

against either the original code or another well known,

available covered code of the contributor's choice. The

source code can be in a compressed or archival form, pro-

vided the appropriate decompression or de-archiving soft-

ware is widely available for no charge.

1.12. “You” (or “Your”) means an individual or a legal entity

exercising rights under, and complying with all of the terms

of, this license or a future version of this license issued

under section 6.1.

For legal entities, “You” includes any entity which controls,

is controlled by, or is under common control with You. For

purposes of this definition, “control” means (a) the power,

direct or indirect, to cause the direction or management of

such entity, whether by contract or otherwise, or (b) own-

ership of more than fifty percent (50%) of the outstand-

ing shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The initial developer grant.

The initial developer hereby grants You a world-wide, roy-

alty-free, non-exclusive license, subject to third party intel-

lectual property claims:

a) under intellectual property rights (other than patent or

trademark) licensable by initial developer to use, repro-

duce, modify, display, perform, sublicense and distrib-

ute the original code (or portions thereof) with or with-

out modifications, and/or as part of a larger work; and

(b) under patents claims infringed by the making, using or

selling of original code, to make, have made, use, prac-

tice, sell, and offer for sale, and/or otherwise dispose

of the original code (or portions there of).

MOZILLA PUBLIC LICENSE

Version 1.1

---------------

APPENDIX

130

APPENDIX

effective on the date Initial developer first distributes

original code under the terms of this license.

(d) Notwithstanding section 2.1(b) above, no patent

license is granted: 1) for code that You delete from the

original Code; 2) separate from the original code; or

3) for infringements caused by: i) the modification of

the original code or ii) the combination of the original

code with other software or devices.

2.2. Contributor Grant.

Subject to third party intellectual property claims, each

contributor hereby grants You a world-wide, royalty-free,

non-exclusive license

(a) under intellectual property rights (other than patent

or trademark) licensable by contributor, to use,

reproduce, modify, display, perform, sublicense and

distribute the modifications created by such contribu-

tor (or portions thereof) either on an unmodified

basis, with other modifications, as covered code

and/or as part of a larger work; and

(b) under patent claims infringed by the making, using, or

selling of modifications made by that contributor

either alone and/or in combination with its contributor

version (or portions of such combination), to make,

use, sell, offer for sale, have made, and/or otherwise

dispose of: 1) modifications made by that contributor

(or portions thereof); and 2) the combination of mod-

ifications made by that contributor with its contributor

version (or portions of such combination).

effective on the date contributor first makes commer-

cial use of the covered code.

(d) Notwithstanding section 2.2(b) above, no patent

license is granted: 1) for any code that contributor has

deleted from the contributor version; 2) separate from

the contributor version; 3) for infringements caused

by: i) third party modifications of contributor version

or ii) the combination of modifications made by that

contributor with other software (except as part of the

contributor version) or other devices; or 4) under

patent claims infringed by covered code in the

absence of modifications made by that contributor.

3. Distribution Obligations.

3.1. Application of license.

The modifications which You create or to which you con-

tribute are governed by the terms of this license, including

without limitation section 2.2. The source code version of

covered code may be distributed only under the terms of

this license or a future version of this license released

under section 6.1, and you must include a copy of this

license with every copy of the source code you distribute.

You may not offer or impose any terms on any source code

version that alters or restricts the applicable version of

this license or the recipients' rights hereunder. However,

you may include an additional document offering the

additional rights described in section 3.5.

3.2. Availability of source code.

Any modification which you create or to which you con-

tribute must be made available in source code form under

the terms of this license either on the same media as an

executable version or via an accepted electronic distribu-

tion mechanism to anyone to whom you made an exe-

cutable version available; and if made available via elec-

tronic distribution mechanism, must remain available for at

least twelve (12) months after the date it initially became

available, or at least six (6) months after a subsequent

version of that particular modification has been made

available to such recipients. You are responsible for ensur-

ing that the source code version remains available even if

the electronic distribution mechanism is maintained by a

third party.

3.3. Description of modifications.

You must cause all covered code to which you contribute to

contain a file documenting the changes You made to create

that covered code and the date of any change. You must

include a prominent statement that the modification is

derived, directly or indirectly, from original code provided by

the initial developer and including the name of the initial

developer in (a) the source code, and (b) in any notice in an

executable version or related documentation in which you

describe the origin or ownership of the covered code.

3.4. Intellectual property matters

(a) Third party claims.

If contributor has knowledge that a license under a third

party's intellectual property rights is required to exercise

the rights granted by such contributor under sections 2.1

or 2.2, contributor must include a text file with the source

code distribution titled "LEGAL" which describes the claim

and the party making the claim in sufficient detail that a

recipient will know whom to contact. If contributor obtains

such knowledge after the modification is made available as

described in section 3.2, contributor shall promptly modi-

fy the LEGAL file in all copies contributor makes available

thereafter and shall take other steps (such as notifying

appropriate mailing lists or newsgroups) reasonably calcu-

lated to inform those who received the covered code that

new knowledge has been obtained.

(b) Contributor APIs.

If contributor's modifications include an application

programming interface and contributor has knowledge of

patent licenses which are reasonably necessary to implement

that API, contributor must also include this information in

the LEGAL file.

APPENDIX

131

contributor represents that, except as disclosed pursuant

to section 3.4(a) above, contributor believes that contributor's

modifications are contributor's original creation(s)

and/or contributor has sufficient rights to grant the rights

conveyed by this license.

3.5. Required notices.

You must duplicate the notice in exhibit A in each file of

the source code. If it is not possible to put such notice in

a particular source code file due to its structure, then You

must include such notice in a location (such as a relevant

directory) where a user would be likely to look for such a

notice. If You created one or more modification(s), you

may add your name as a contributor to the notice

described in exhibit A. you must also duplicate this license

in any documentation for the source code where You

describe recipients' rights or ownership rights relating to

covered code. You may choose to offer, and to charge a

fee for, warranty, support, indemnity or liability obligations

to one or more recipients of covered code. However, you

may do so only on your own behalf, and not on behalf of

the Initial developer or any contributor. You must make it

absolutely clear than any such warranty, support, indemni-

ty or liability obligation is offered by you alone, and You

hereby agree to indemnify the Initial developer and every

contributor for any liability incurred by the Initial develop-

er or such contributor as a result of warranty, support,

indemnity or liability terms you offer.

3.6. Distribution of executable versions.

You may distribute covered code in executable form only if

the requirements of section 3.1-3.5 have been met for

that covered code, and if you include a notice stating that

the source code version of the covered code is available

under the terms of this license, including a description of

how and where you have fulfilled the obligations of section

3.2. The notice must be conspicuously included in any

notice in an executable version, related documentation or

collateral in which you describe recipients' rights relating

to the covered code. You may distribute the executable

version of covered code or ownership rights under a

license of your choice, which may contain terms different

from this license, provided that you are in compliance with

the terms of this license and that the license for the exe-

cutable version does not attempt to limit or alter the recip-

ient's rights in the source code version from the rights set

forth in this license. If you distribute the executable ver-

sion under a different license you must make it absolutely

clear that any terms which differ from this license are

offered by you alone, not by the Initial developer or any

contributor. You hereby agree to indemnify the initial

developer and every contributor for any liability incurred

by the initial developer or such contributor as a result of

any such terms You offer.

3.7. Larger works.

You may create a larger work by combining covered code

with other code not governed by the terms of this license

and distribute the larger work as a single product. In such

a case, you must make sure the requirements of this

license are fulfilled for the covered code.

4. Inability to comply due to statute or regulation.

If it is impossible for you to comply with any of the terms

of this license with respect to some or all of the covered

code due to statute, judicial order, or regulation then you

must: (a) comply with the terms of this license to the max-

imum extent possible; and (b) describe the limitations and

the code they affect. Such description must be included in

the LEGAL file described in section 3.4 and must be

included with all distributions of the source code. Except

to the extent prohibited by statute or regulation, such

description must be sufficiently detailed for a recipient of

ordinary skill to be able to understand it.

5. Application of this license.

This license applies to code to which the initial developer has

attached the notice in exhibit A and to related covered code.

6. Versions of the license.

6.1. New versions.

Netscape communications corporation (“Netscape”) may

publish revised and/or new versions of the license from

time to time. Each version will be given a distinguishing

version number.

6.2. Effect of new versions.

Once covered code has been published under a particular

version of the license, you may always continue to use it

under the terms of that version. You may also choose to

use such covered code under the terms of any subsequent

version of the license published by netscape. No one

other than netscape has the right to modify the terms

applicable to covered code created under this license.

6.3. Derivative works.

If You create or use a modified version of this license

(which you may only do in order to apply it to code which

is not already covered code governed by this license), You

must (a) rename Your license so that the phrases

"Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL",

"NPL" or any confusingly similar phrase do not appear in

your license (except to note that your license differs from

this license) and (b) otherwise make it clear that Your

version of the license contains terms which differ from the

Mozilla Public license and netscape Public License. (Filling

in the name of the initial developer, original code or con-

tributor in the notice described in exhibit A shall not of

themselves be deemed to be modifications of this license.)

APPENDIX

132

APPENDIX

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE

ON AN “AS IS” BASIS, WITHOUT WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,

WITHOUT LIMITATION, WARRANTIES THAT THE COV-

ERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT

FOR A PARTICULAR PURPOSE OR NON-INFRINGING.

THE ENTIRE RISK AS TO THE QUALITY AND PERFOR-

MANCE OF THE COVERED CODE IS WITH YOU.

SHOULD ANY COVERED CODE PROVE DEFECTIVE IN

ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR

ANY OTHER CONTRIBUTOR) ASSUME THE COST OF

ANY NECESSARY SERVICING, REPAIR OR CORRECTION.

THIS DISCLAIMER OF WARRANTY CONSTITUTES AN

ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY

COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT

UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1. This license and the rights granted hereunder will terminate

automatically if you fail to comply with terms herein and

fail to cure such breach within 30 days of becoming aware

of the breach. All sublicenses to the covered code which

are properly granted shall survive any termination of this

license. Provisions which, by their nature, must remain in

effect beyond the termination of this license shall survive.

8.2. If you initiate litigation by asserting a patent infringement

claim (excluding declatory judgment actions) against ini-

tial developer or a contributor (the initial developer or

contributor against whom you file such action is referred

to as “Participant”) alleging that:

(a) such participant's contributor version directly or indi-

rectly infringes any patent, then any and all rights

granted by such participant to you under sections 2.1

and/or 2.2 of this license shall, upon 60 days notice

from Participant terminate prospectively, unless if within

60 days after receipt of notice you either: (i) agree in

writing to pay participant a mutually agreeable reasonable

royalty for your past and future use of modifications

made by such participant, or (ii) withdraw your litigation

claim with respect to the contributor version against

such participant. If within 60 days of notice, a reasonable

royalty and payment arrangement are not mutually

agreed upon in writing by the parties or the litigation

claim is not withdrawn, the rights granted by partici-

pant to you under sections 2.1 and/or 2.2 automati-

cally terminate at the expiration of the 60 day notice

period specified above.

(b) any software, hardware, or device, other than such par-

ticipant's contributor Version, directly or indirectly

infringes any patent, then any rights granted to You by

such participant under sections 2.1(b) and 2.2(b) are

revoked effective as of the date you first made, used,

sold, distributed, or had made, modifications made by

that participant.

8.3. If you assert a patent infringement claim against partici-

pant alleging that such participant's contributor version

directly or indirectly infringes any patent where such claim

is resolved (such as by license or settlement) prior to the

initiation of patent infringement litigation, then the rea-

sonable value of the licenses granted by such participant

under sections 2.1 or 2.2 shall be taken into account in

determining the amount or value of any payment or

license.

8.4. In the event of termination under sections 8.1 or 8.2

above, all end user license agreements (excluding distributors

and resellers) which have been validly granted by you or

any distributor hereunder prior to termination shall survive

termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL

THEORY, WHETHER TORT (INCLUDING NEGLIGENCE),

CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL

DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DIS-

TRIBUTOR OF COVERED CODE,OR ANY SUPPLIER OF

ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN-

TIAL DAMAGES OF ANY CHARACTER INCLUDING, WITH-

OUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL,

WORK STOPPAGE, COMPUTER FAILURE OR MALFUNC-

TION, OR ANY AND ALL OTHER COMMERCIAL DAM-

AGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE

BEEN INFORMED OF THE POSSIBILITY OF SUCH DAM-

AGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY

TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULT-

ING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT

APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME

JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAM-

AGES, SO THIS EXCLUSION AND LIMITATION MAY NOT

APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The covered code is a "commercial item," as that term is

defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of

"commercial computer software" and "commercial computer

software documentation," as such terms are used in 48

C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R.

12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4

(June 1995), all U.S. Government end users acquire cov-

ered code with only those rights set forth herein.

APPENDIX

133

11. MISCELLANEOUS.

This license represents the complete agreement concerning

subject matter hereof. If any provision of this license is

held to be unenforceable, such provision shall be reformed

only to the extent necessary to make it enforceable. This

License shall be governed by California law provisions

(except to the extent applicable law, if any, provides oth-

erwise), excluding its conflict-of-law provisions. With

respect to disputes in which at least one party is a citizen

of, or an entity chartered or registered to do business in

the united states of america, any litigation relating to this

License shall be subject to the jurisdiction of the federal

courts of the northern district of california, with venue

lying in santa clara county, california, with the losing party

responsible for costs, including without limitation, court

costs and reasonable attorneys' fees and expenses. The

application of the united nations convention on contracts

for the International sale of goods is expressly excluded.

Any law or regulation which provides that the language of

a contract shall be construed against the drafter shall not

apply to this license.

12. RESPONSIBILITY FOR CLAIMS.

As between initial developer and the contributors, each

party is responsible for claims and damages arising, directly

or indirectly, out of its utilization of rights under this

license and you agree to work with initial developer and

contributors to distribute such responsibility on an equitable

basis. Nothing herein is intended or shall be deemed to

constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial developer may designate portions of the covered

code as "Multiple-Licensed". "Multiple-Licensed" means

that the initial developer permits you to utilize portions of

the covered code under your choice of the NPL or the

alternative licenses, if any, specified by the initial developer

in the file described in exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public License

Version 1.1 (the “license”); you may not use this file except in

compliance with the License. You may obtain a copy of the

license at http://www.mozilla.org/MPL/

Software distributed under the license is distributed on an "AS

IS" basis, WITHOUT WARRANTY OF ANY KIND, either express

or implied. See the license for the specific language governing

rights and limitations under the License.

The Original Code is ______________________________________.

The Initial Developer of the Original Code

is___________________.

Portions created by ______________________ are Copyright (C)

Contributor(s): ______________________________________.

Alternatively, the contents of this file may be used under the

terms of the _____ license (the "[___] License"), in which case

the provisions of [______] license are applicable instead of those

above. If you wish to allow use of your version of this file only

under the terms of the [____] license and not to allow others to

use your version of this file under the MPL, indicate your decision

by deleting the provisions above and replace them with the

notice and other provisions required by the [___] license. If you

do not delete the provisions above, a recipient may use your version

of this file under either the MPL or the [___] license."

NOTE: The text of this exhibit A may differ slightly from the text

of the notices in the source code files of the original code. You

should use the text of this exhibit A rather than the text found in

the original code/source code for Your modifications.
