Hisense RQ560N4WC1 Refrigeration

Product's Documents

Below are documents related to this product, you can read online or download:
User Manual Other Documents
  • RQ560N4WC1 Product Fiche - (English) Download
  • RQ560N4WC1 Energy Label - (English) Download
Main documentSpecificationQuestions and answersRelateds Products
RQ560N4WC1 photo

User Manual

This is the main product document for model RQ560N4WC1. Additionally, the document applies to other Hisense models: RQ560N4WC1, RQ560N4WC1

The file format is pdf, 22 pages, you can download this manual here .

background
RQ560N4WC1
FMN431W20C
background
16
17
18
19
21
background
background
background
background
background
background
background
17
17
18
18
Water tank(with cover and knob)
Can rack
background
background
background
background
The water dispenser located in the fridge
door, is for storing drinking water. With this
appliance you can obtain chilled water
easily without opening the refrigerator. You
should be informed of following tips.
Before using
Before using this appliance for the first time,
you should use it as follows.
1. Hold one bottom side of the water tank
by a hand, lift up the opposite side by the
other hand,when the slot of the water tank
2.
Hold the two sides of the water tank
tightly, lift up and put out of the water tank.
is off from the guide, change hands to
3. Unscrew the head, then clean head ,lids
and the water tank.
Caution!
Drain the water tank befor you take it down!
repeat these steps.
background
Warning!
Don’t touch the other parts of the
appliance when filling water, it may
cause the water leakage.
Dispensing water
1.Make sure the cover of the water tank
is fitted on.
2.Close the fridge door and check the
dispenser.
Before you dispense the water, make
sure the lock device is on the “Unlock”
Warning!
The lock is defined as “child lock”.
Don’t push the dispenser lever forward
strongly, when the dispenser is on “Lock”
Caution!
Fill with water up to 3.5L ( which is
suggested) and not above the level.
Otherwise, it may overflow when the lids
We recommend that you fill the water by
the following ways.
1.Remove the small lid and fill water from
the inlet of the larger lid.
2.Remove the cover of the rank, and then
fill water inside directly.
is closed.
situation.
Assembling
After cleaning, please assemble the parts
including the head, water tank and lids as
follows:
1. Put the seal ring in order first ( the seal
2. Hold the two sides of the water tank
tightly, fit the water tank along the guids
4. When you hear clicks by both sides and
the same time the both sides of the waterat
is closed to the door liner, It means the tank
installation is completed.
3. Push the two sides of the water tank
downward as the picture shows.
seal ring
ring can not turn up), then insert the head
into the hole.
guide
slot
head
on the door.
Filling water
Before you fill the drinking water into the
water tank, ensure that the water tank is
steady and in a correct position.
14
background
appliance, you should dry it by natura
drying or using the dryer. If you have used
the water dispenser for many times, the
water in the receiving tank may drop on the
Cleaning
1.Put the water tank out of the door
carefully and then wash the tank, lid, and
head lightly in water.
2.After you have successfully cleaned the
floor, which may make your floor wet, and
you should clean the tank with dry towel
regularly before overflow.
situation, it may damage the mechanism.

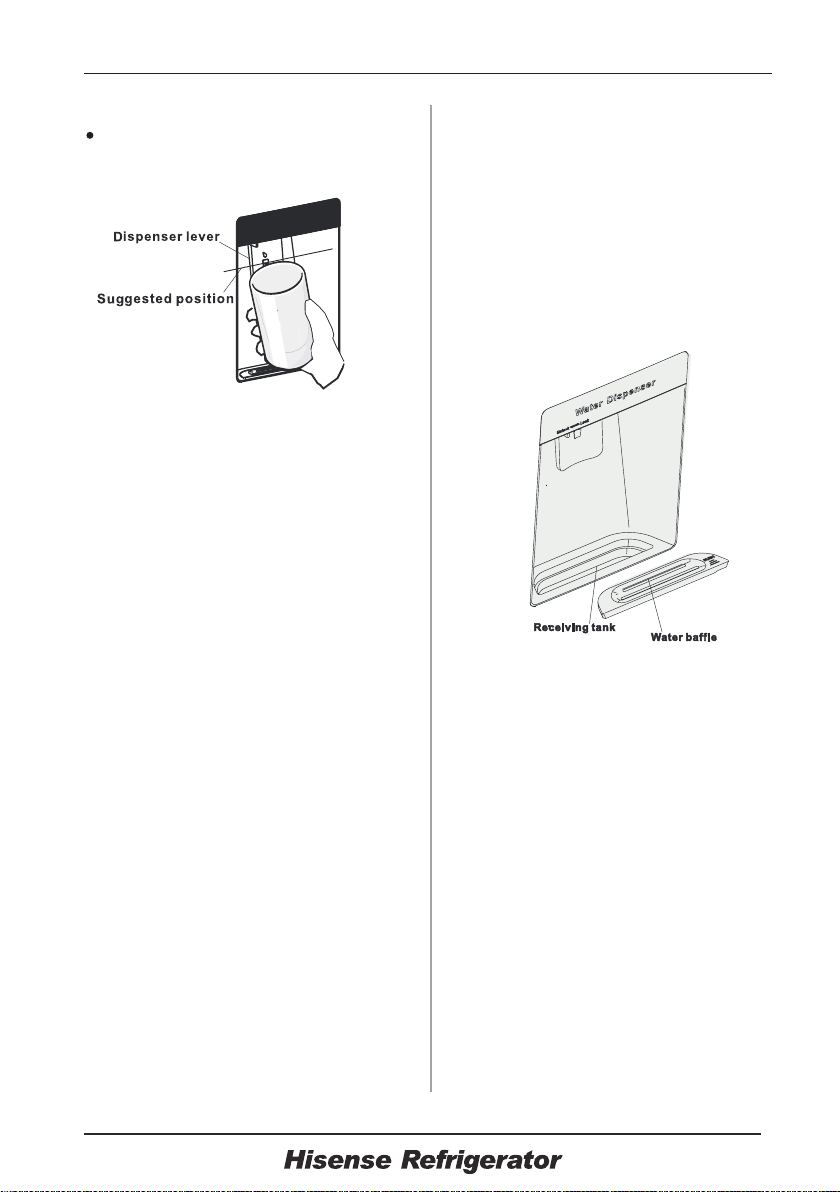

Receiving Water
You should use the correct cups to receive
water underneath the water dispenser.
Warning!
Don’t push the dispenser lever forward
without cup, it may cause the water leakage
from the dispenser.
15
background
16
background
17
background
18
background
19
background
20
background
21
background
4031938

Specifications

Indexed Terms: French Door Refrigerator

Hisense RQ560N4WC1 Questions and Answers

Find answers or ask new question.

#1 Where can I find my serial/model number?

The serial number is a 23 character code made up of
letters and numbers and will be written under a barcode on
a small white sticker, located in one of two places:
- Inside the fridge section on the left hand side wall behind
the crisper drawer
- On the back of the product (outside)
A small number of models will have a 12 character serial
number starting “CNK…” on a product description label
inside the fridge behind the crisper drawer

#2 Do I need to defrost my appliance?

Although our appliances automatically defrost, a layer of
frost may occur on the freezer compartment’s interior walls
if the freezer door is opened frequently or kept open too
long. If the appliance is not frost-free then a regular defrost
is recommended to ensure the appliance is running at
optimum efficiency.

#3 Why is my fridge not cooling enough?

Adjust the temperature to a lower setting, check the door is
sealed properly when closed and make sure there are no warm
food items placed in the fridge.

#4 How do I stop my water dispenser from leaking?

If you have re-installed the water tank after cleaning, check if
the nozzle is correctly connected to the door liner. The water
container in the fridge compartment must be fitted vertically
with two hoses

#5 How long do I need to wait before I can switch it on after
delivery?

If the appliance has been stood upright during transit you can
switch it on immediately. Ask your driver if it has been loaded
on its side, if this is this case, we would suggest waiting 12
hours.

#6 Why is my fridge vibrating / making a noise?

The internal fan and compressor will generate noise. This is
completely normal.

Check if the fridge is level, adjust the feet if not. Be sure
there is enough clearance between the wall / skirting board
and the fridge. The product’s noise level is indicated on the
energy label provided.

#7 Is there anyone I could telephone to help me with my fridge or
freezer query?

Yes, of course, if you’re still experiencing problems with your
product, one of our after-sales support team at JTM would be
more than happy to help.

#8 Why is my fridge not cooling at all?

To lower the fridge temperature, simply adjust the thermostat.
Listen to see if you can hear the sound of the compressor
running, or the sound of the compressor starting and stopping
continuously.

#9 Why does my fridge not come on at all?

There are a few simple checks you can do: see if the light
comes on when you open the fridge door and make sure the
power is connected correctly. Change the plug to another
socket and be sure other electrical devices work when
connected to the same power point.
