Sharp CD-C430H Mini Component System User Manual

CD-C430H,CP-C430H

– 1 –

CONTENTS

Page

SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2

IMPORTANT SERVICE NOTES (FOR UK ONLY) ............................................................................................................ 3

SPECIFICATIONS ............................................................................................................................................................. 3

NAMES OF PARTS ........................................................................................................................................................... 4

OPERATION MANUAL ...................................................................................................................................................... 6

DISASSEMBLY .................................................................................................................................................................. 7

REMOVING AND REINSTALLING THE MAIN PARTS ..................................................................................................... 9

ADJUSTMENT ..................................................................................................................................................................10

NOTES ON SCHEMATIC DIAGRAM ...............................................................................................................................12

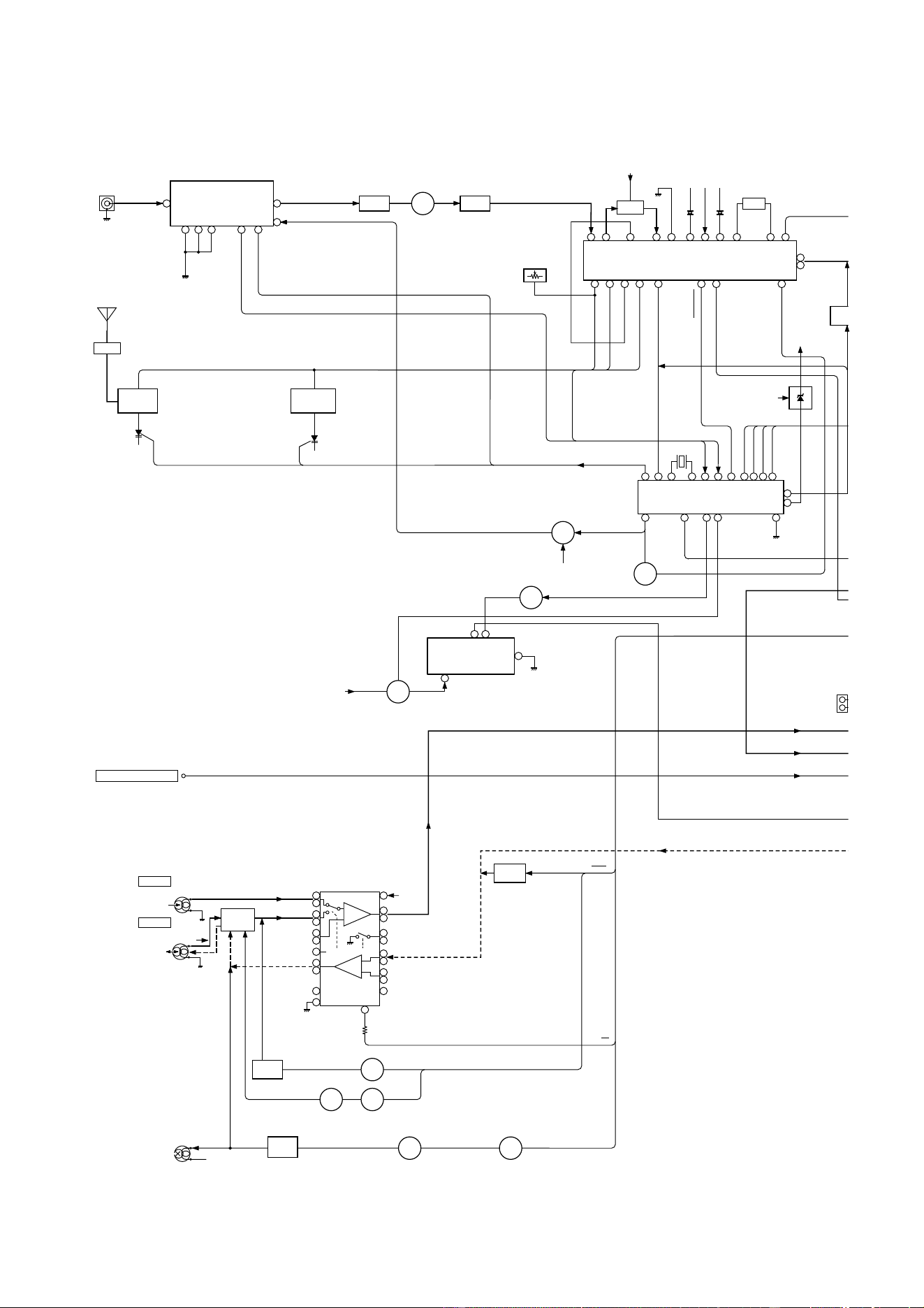

BLOCK DIAGRAM ............................................................................................................................................................13

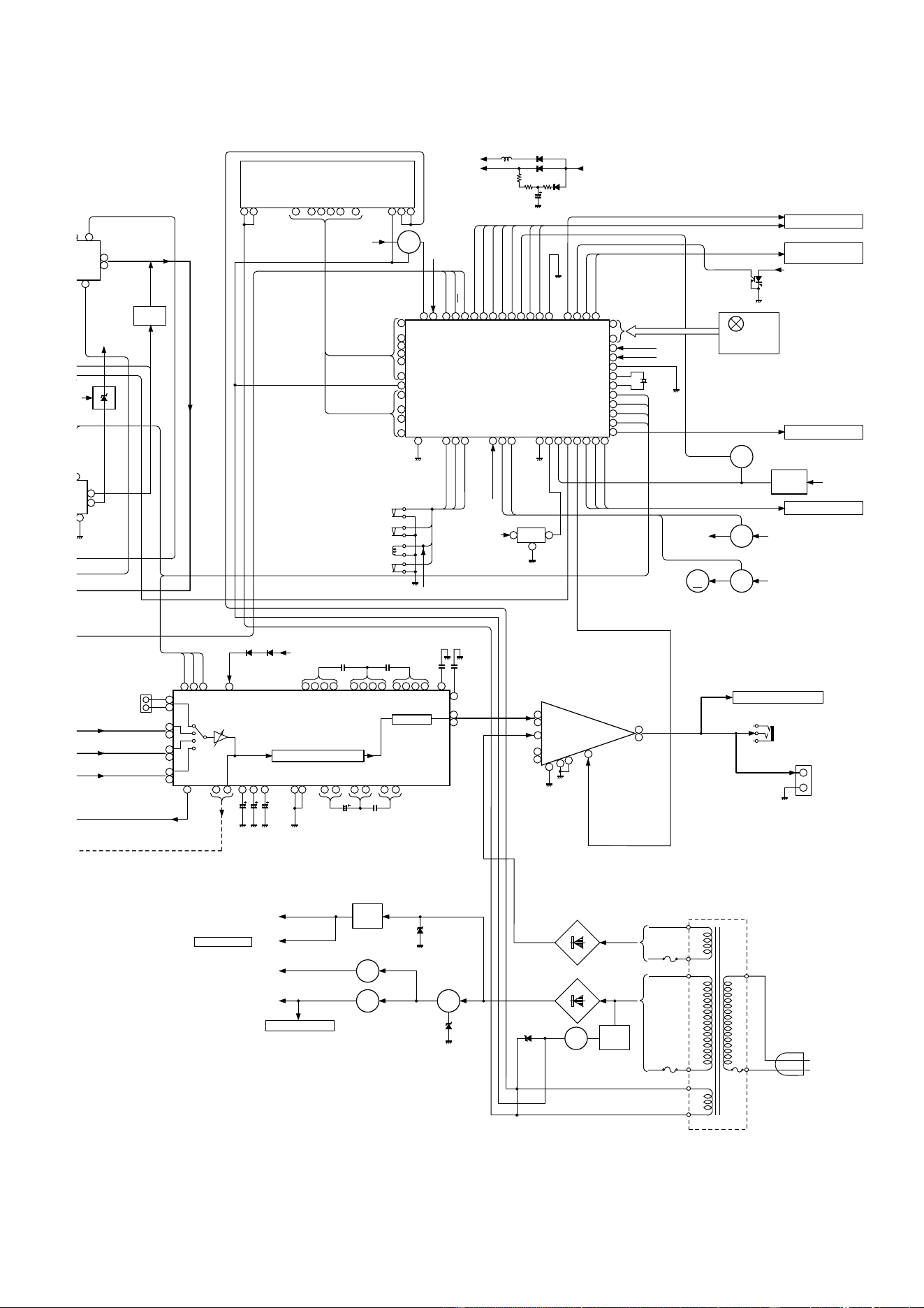

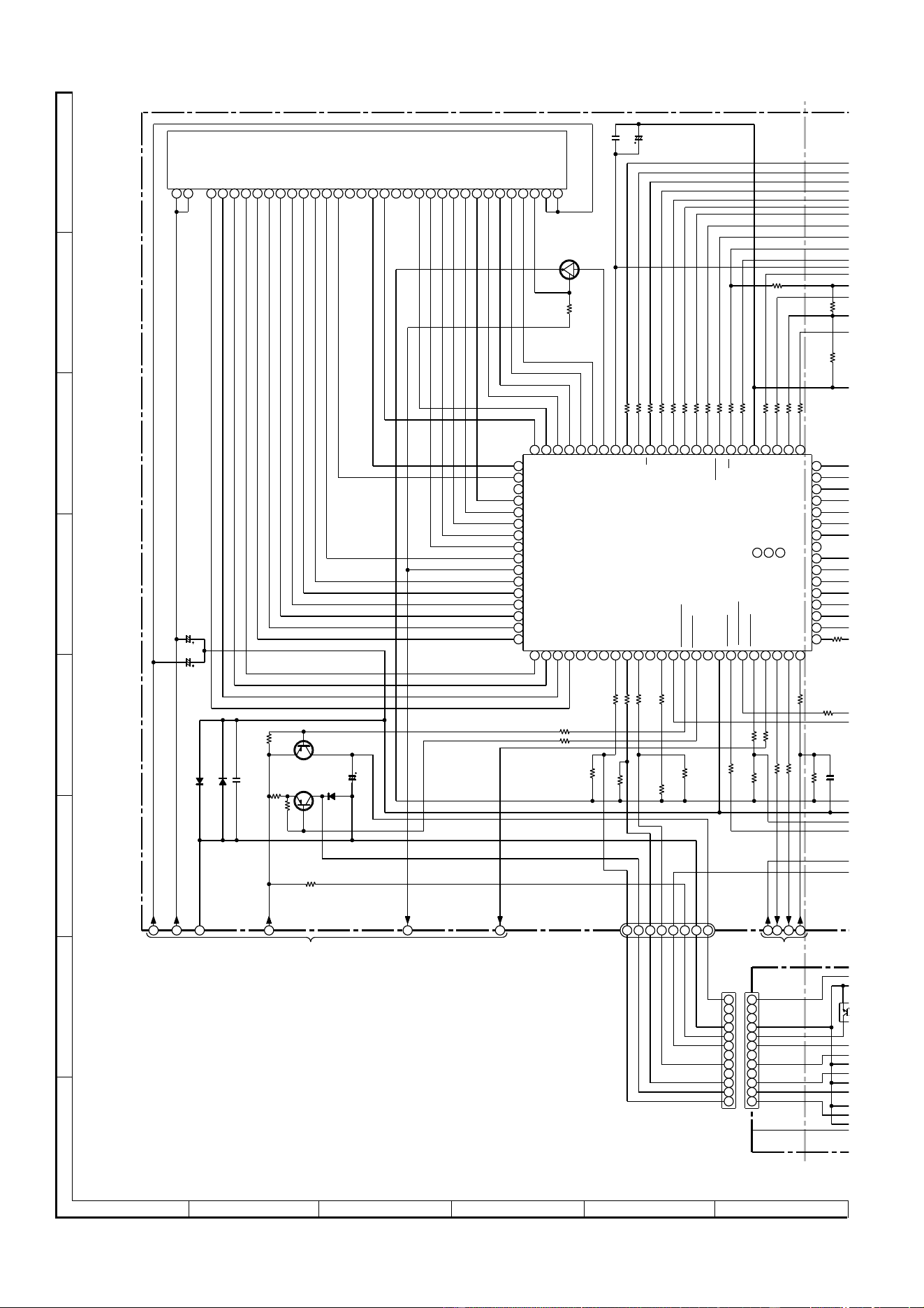

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 16

VOLTAGE ........................................................................................................................................................................ 29

WAVEFORMS OF CD CIRCUIT .......................................................................................................................................30

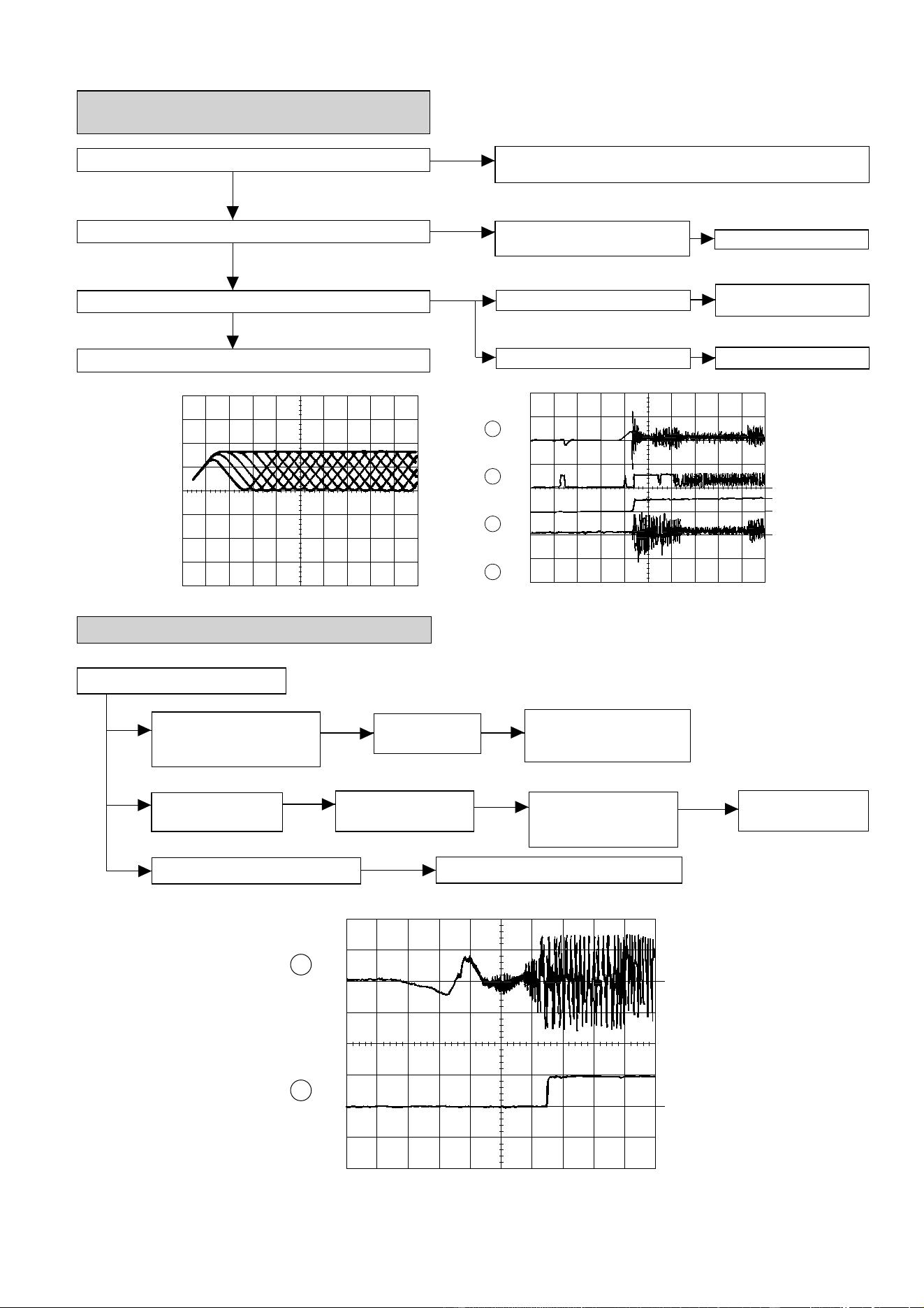

TROUBLESHOOTING (CD CHANGER CONTROL / CD SECTION)...............................................................................31

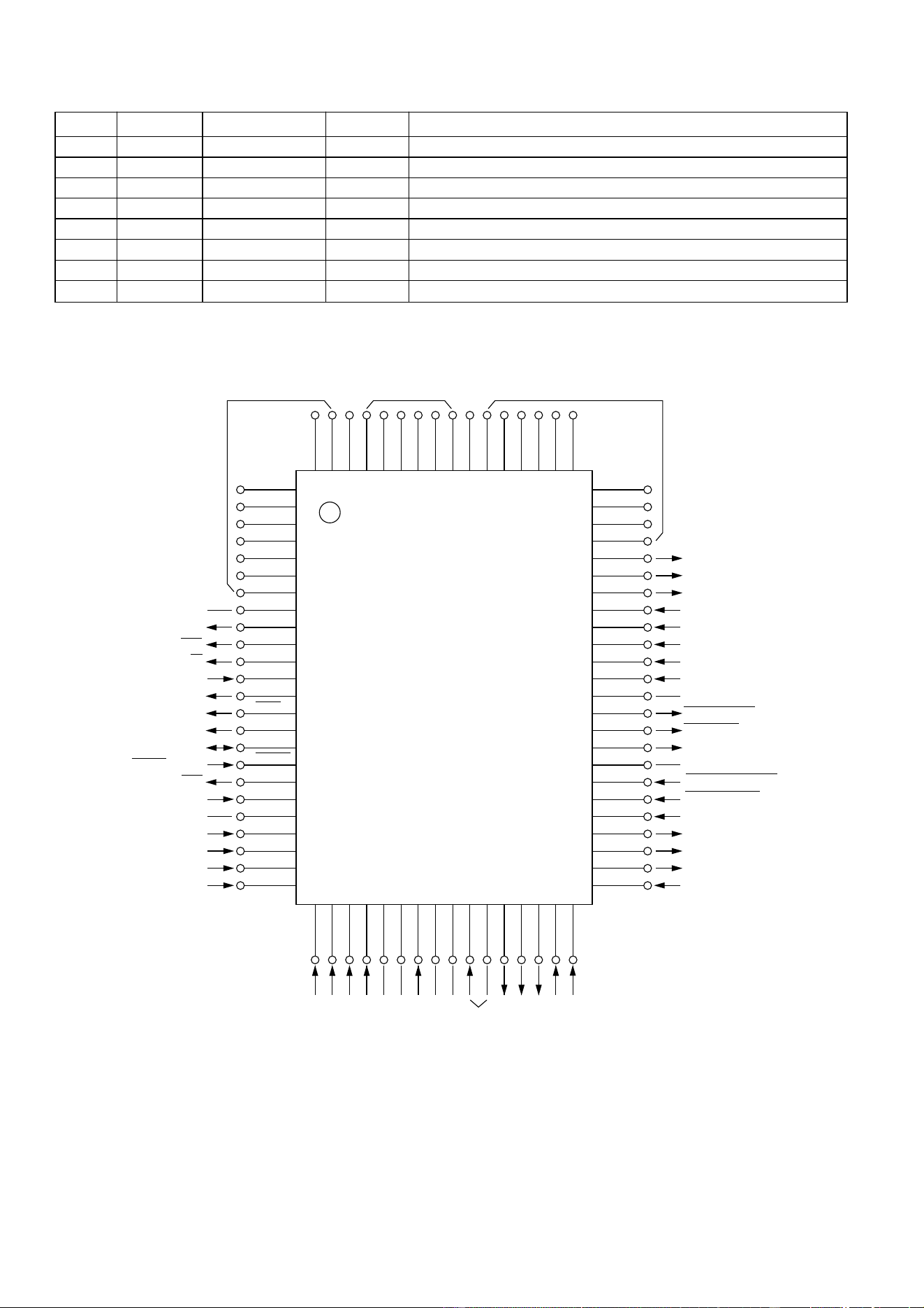

FUNCTION TABLE OF IC................................................................................................................................................ 35

FL DISPLAY ...................................................................................................................................................................... 41

WIRING OF PRIMARILY SUPPLY LEADS (FOR UK ONLY) ......................................................................................... 41

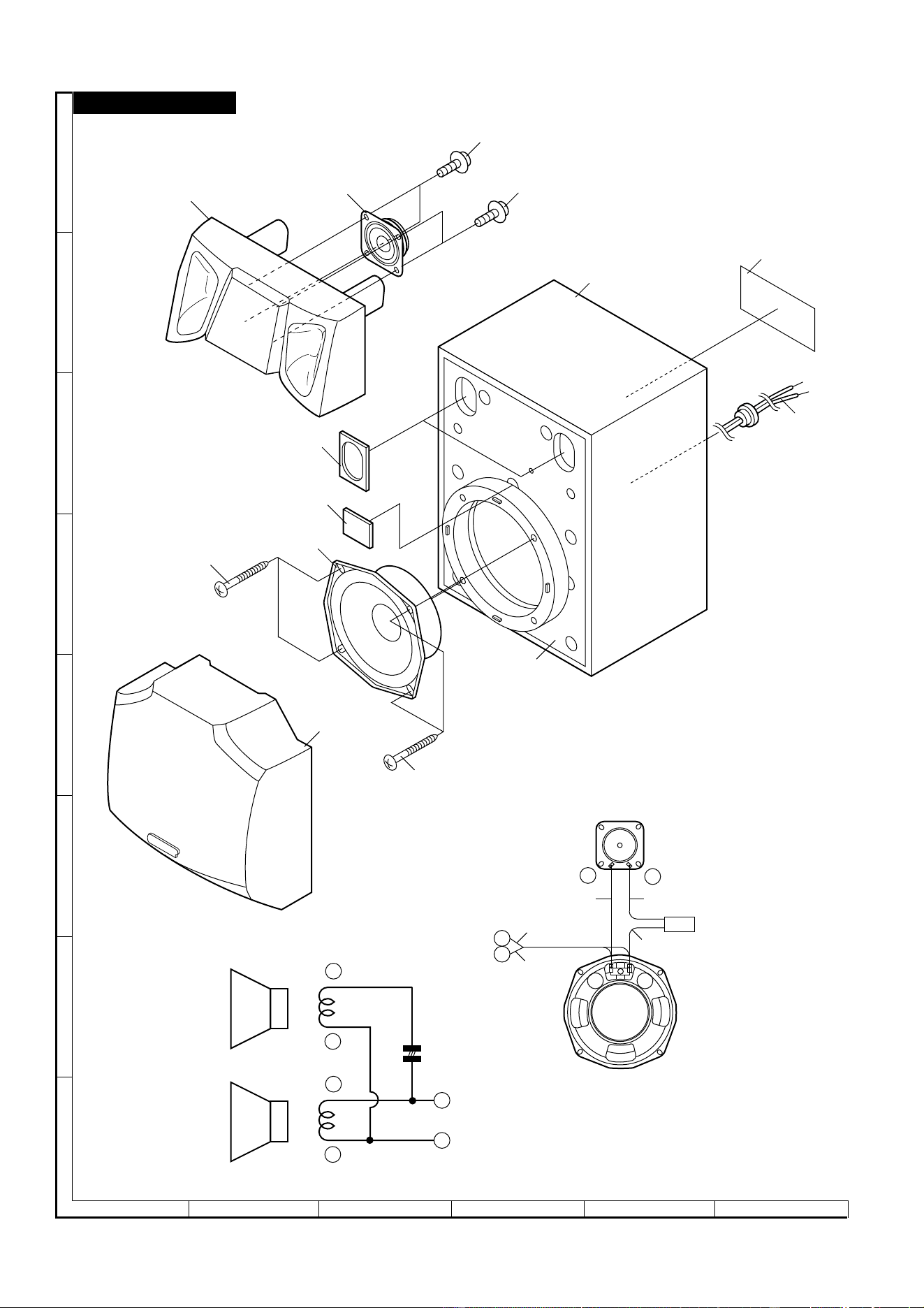

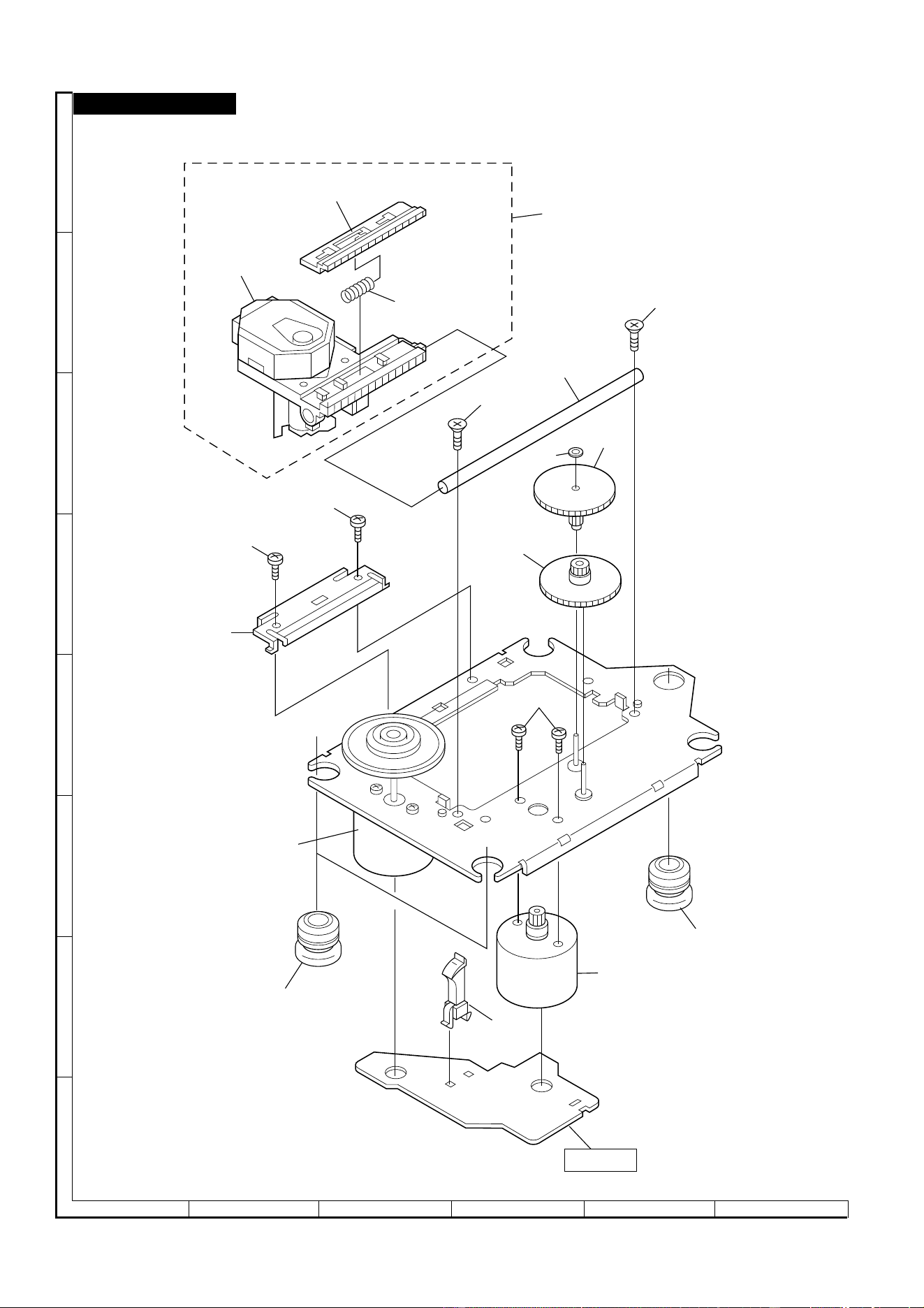

REPLACEMENT PARTS LIST/EXPLODED VIEW

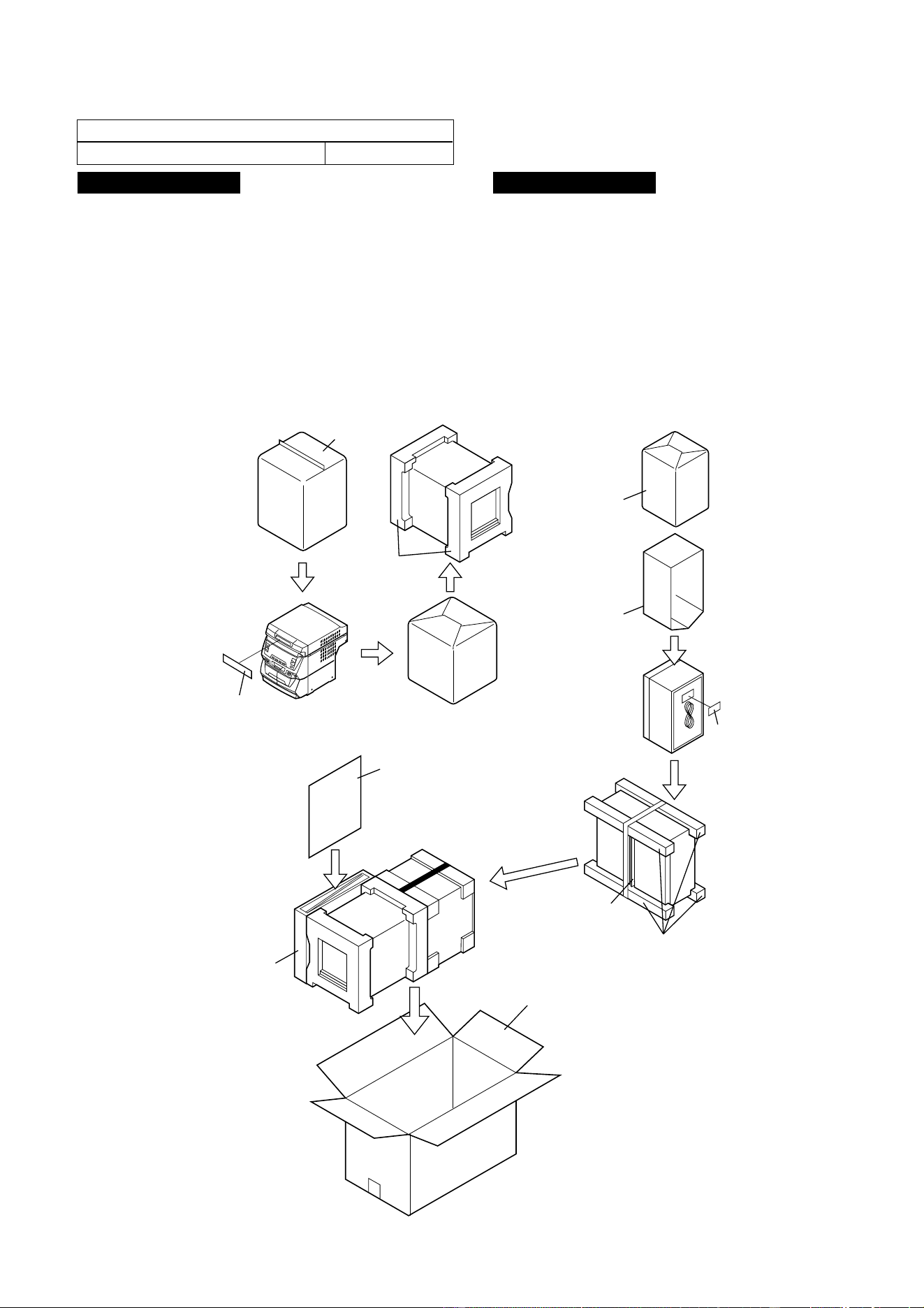

PACKING METHOD (FOR UK ONLY)

SHARP CORPORATION

No. S6739CDC430H/

• In the interests of user-safety the set should be restored to its

original condition and only parts identical to those specified be

used.

CD-C430H and CP-C430H constitute CD-C430H.

• Note for users in UK

Recording and playback of any material may require consent

which SHARP is unable to give. Please refer particularly to the

provisions of Copyright Act 1956, the Dramatic and Musical

Performers Protection Act 1956, the Performers Protection Acts

1963 and 1972 and to any subsequent statutory enactments and

orders.

CD-C430H

CP-C430H

SERVICE MANUAL

• SRS technology Licensed from SRS Labe. SRS technology holds

the follwing patents: U.S. Patent No. 4,748,669, U.S. Patent No.

4,841,572 and U.S. Patent No. 4,866,774.

• SRS the SRS Logo ( ) and the SOUND RETRIEVAL SYSTEM

are registered trademarks of SRS Labs, Inc.

CD-C430H,CP-C430H

– 2 –

SAFETY PRECAUTION FOR

SERVICE MANUAL

Precaution to be taken when replacing and servicing the

Laser Pickup.

The AEL (Accessible Emission Level) of Laser Power Output

for this model is specified to be lower than Class I Requirements.

However, the following precautions must be observed during

servicing to protect your eyes against exposure to the Laser

beam.

(1) When the cabinet has been removed, the power is turned

on without a compact disc, and the Pickup is on a position

outer than the lead-in position, the Laser will light for several

seconds to detect a disc. Do not look into the Pickup Lens.

(2) The Laser Power Output of the Pickup inside the unit and

replacement service parts have already been adjusted prior

to shipping.

(3) No adjustment to the Laser Power should be attempted

when replacing or servicing the Pickup.

(4) Under no circumstances look directly into the Pickup Lens

at any time.

(5) CAUTION - Use of controls or adjustments, or performance

of procedures other than those specified herein may result

in hazardous radiation exposure.

(Except for UK)

Laser Diode Properties

Material: GaAIAs

Wavelength: 780 nm

Emission Duration: continuous

Laser Output: max. 0.6 mW

VARNING-OSYNLIG LASERSTRÅNING NÄR DENNA DEL ÄR

ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN

MED OPTISKA INSTRUMENT.

VARO! AVATTAESSA OLET ALTTIINA NÄKYMÄTÖN

LASERSÄTEILYLLE.

ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN

LAITTEEN LÄPI.

VARNING-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR

ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN

GENOM OPTISKT INSTRUMENT.

(For UK)

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO

BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA

EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I

STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.

ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.

VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.

STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT

INSTRUMENT.

ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE

INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.

CD-C430H,CP-C430H

– 3 –

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER

TO THE OPERATION MANUAL.

Before returning the unit to the customer after completion of a

repair or adjustment it is necessary for the following withstand

voltage test to be applied to ensure the unit is safe for the

customer to use.

Setting of Withstanding Voltage Tester and set.

Set name set value

Withstanding Voltage Tester

Test voltage 4,240 VPEAK

3,000 VRMS

Set time 6 secs

Set current(Cutoff current) 4 mA

Unit

Judgment

OK: The “GOOD” lamp lights.

NG: The “NG” lamp lights and the buzzor sounds.

SHORT-CIRCUIT

AC POWER

SUPPLY CORD

CONNECT THE PROBE

TO GND TERMINAL

OF PHONO TERMINAL

PROBE

UNIT

WITHSTANDING

VOLTAGE TESTER

OUT

OF CHASSIS

SCREW

CHASSIS

SCREW

IMPORTANT SERVICE NOTES (FOR UK ONLY)

General

Power source: AC 230 V, 50 Hz

Power consumption: 90 W

Dimensions: Width; 270 mm (10-5/8")

Height; 300mm (11-13/16")

Depth; 359.5mm (14-3/16")

Weight: 5.3 kg (11.7 lbs.)

Amplifier section

Output power: PMPO; 320 W (total)

(Except for UK) MPO; 60 W (30 W + 30 W)

(10 % T.H.D.)

RMS; 40 W (20 W + 20 W)

(10 % T.H.D.)

Output power: MPO; 60 W (30 W + 30 W) (10 % T.H.D.)

(For UK) RMS; 40 W (40 W + 40 W) (10 % T.H.D.)

Output terminals: Speakers; 4 ohms

Headphones; 16-50 ohms

(recommended; 32 ohms)

Input terminals: Video/Auxiliary (audio signal);

245 mV/47 kohms

Tuner section

Frequency range: FM; 87.5 - 108 MHz

AM; 522 - 1,620 kHz

Compact disc player section

Type: 3-disc multi-play compact disc player

Signal readout: Non-contact, 3-beam semi-conductor

laser pickup

D/A Converter: 1-bit D/A converter

Frequency response: 20 - 20,000 Hz

Dynamic range: 90 dB (1 kHz)

Cassette deck section

Frequency response: 50 - 14,000 Hz (Normal tape)

Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter: 0.15 % (WRMS)

Speaker section

Type: 2-way 130 mm (5-1/8") woofer and 50

mm (2") tweeter type

Rated input power: 20 W

Maximum input power: 40 W

Impedance: 4 ohms

Dimensions: Width; 220 mm (8-11/16")

Height; 300 mm (11-13/16")

Depth; 225 mm (8-13/16")

Weight: 3.0 kg (6.6 lbs.)/each

SPECIFICATIONS

CD-C430H

CP-C430H

Specifications for this model are subject to change without prior

notice.

CD-C430H,CP-C430H

– 4 –

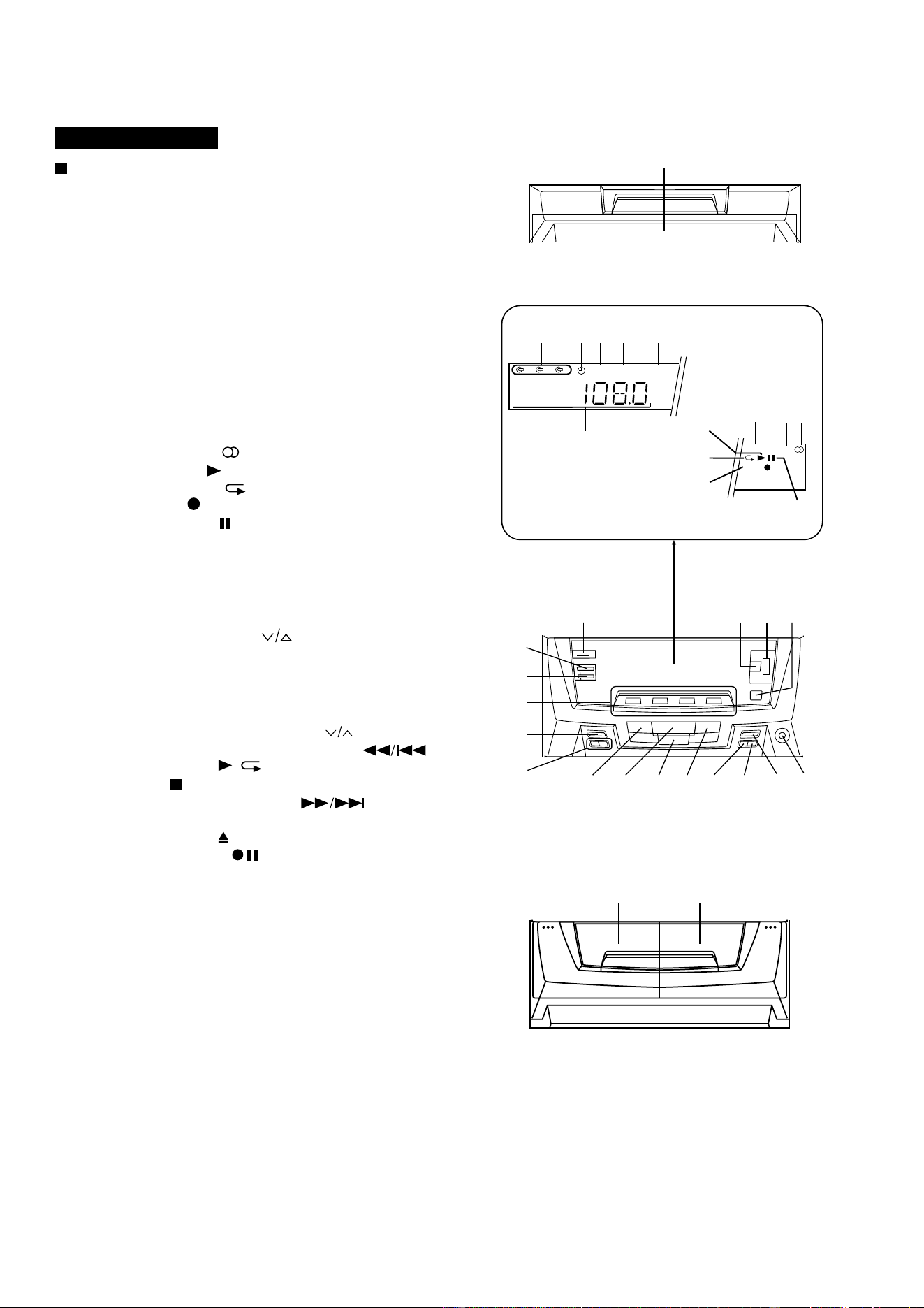

NAMES OF PARTS

Front Panel

1. Disc Tray

2. Disc Number Indicator

3. Timer Indicator

4. Record Indicator

5. Sleep Indicator

6. Extra Bass Indicator: X-BASS

7. Function/CD Track/CD Counter/Frequency/Preset

Channel/Volume/Timer/Sleep Time Indicator

8. Memory Indicator

9. FM Stereo Mode Indicator: ST

10. FM Stereo Indicator:

11. CD Play Indicator:

12. CD Repeat Indicator:

13. SRS Indicator: ( )

14. CD Pause Indicator:

15. On/Stand-by Switch

16. Extra Bass/Equalizer Mode Button

17. Volume Up/Down Buttons:

18. 3D Surround Mode Button

19. Clock Button

20. Timer/Sleep Button

21. Function Selector Buttons

22. Memory/Set Button

23. Tuning and Time Up/Down Buttons:

24. Track Down/Review/Preset Down Button:

25. Play/Repeat Button:

26. Stop Button:

27. Track Up/Cue/Preset Up Button:

28. Disc Skip Button

29. Open/Close Button:

30. Record Pause Button:

31. Headphone Socket

32. (TAPE 1) Cassette Compartment

33. (TAPE 2) Cassette Compartment

CD-C430H

MEMORY ST

kHz

SRS ( )

MHz

1 2 3

REC

SLEEP

X-BASS

27 28 29 30 31

CD-C430H,CP-C430H

– 5 –

CD-C430H

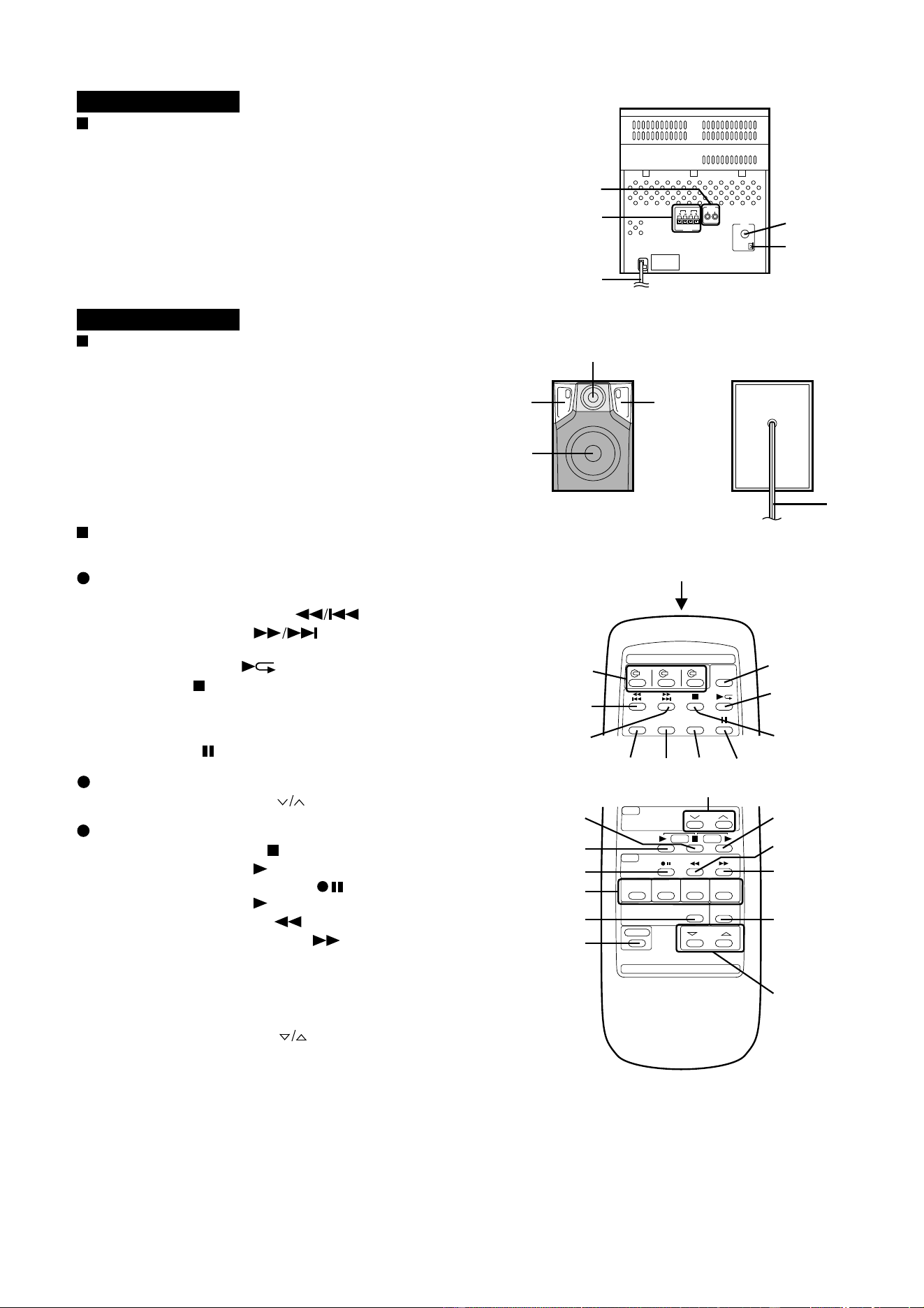

Rear Panel

1. Video/Auxiliary (Audio Signal) Input Sockets

2. Speaker Terminals

3. AC Power Lead

4. FM 75 Ohms Aerial Socket

5. AM Loop Aerial Input Socket

CP-C430H

Speaker Section

6. Tweeter

7. Bass Reflex Duct

8. Woofer

9. Speaker Wire

Remote Control

1. Remote Control Transmitter LED

CD Control section

2. Disc Number Select Buttons

3. Track Down/Review Button:

4. Track Up/Cue Button:

5. Disc Skip Button

6. Play/Repeat Button:

7. Stop Button:

8. Memory Button

9. Clear Button

10. Random Button

11. Pause Button:

Tuner control section

12. Preset Up/Down Buttons:

Tape control section

13. (TAPE 1/2) Stop Button:

14. (TAPE 1) Play Button:

15. (TAPE 2) Record Pause Button:

16. (TAPE 2) Play Button:

17. (TAPE 2) Rewind Button:

18. (TAPE 2) Fast Forward Button:

19. Function Selector Buttons

20. Extra Bass/Equalizer Mode Button

21. 3D Surround Mode Button

22. Power Button

23. Volume Up/Down Buttons:

CD-C430H,CP-C430H

– 6 –

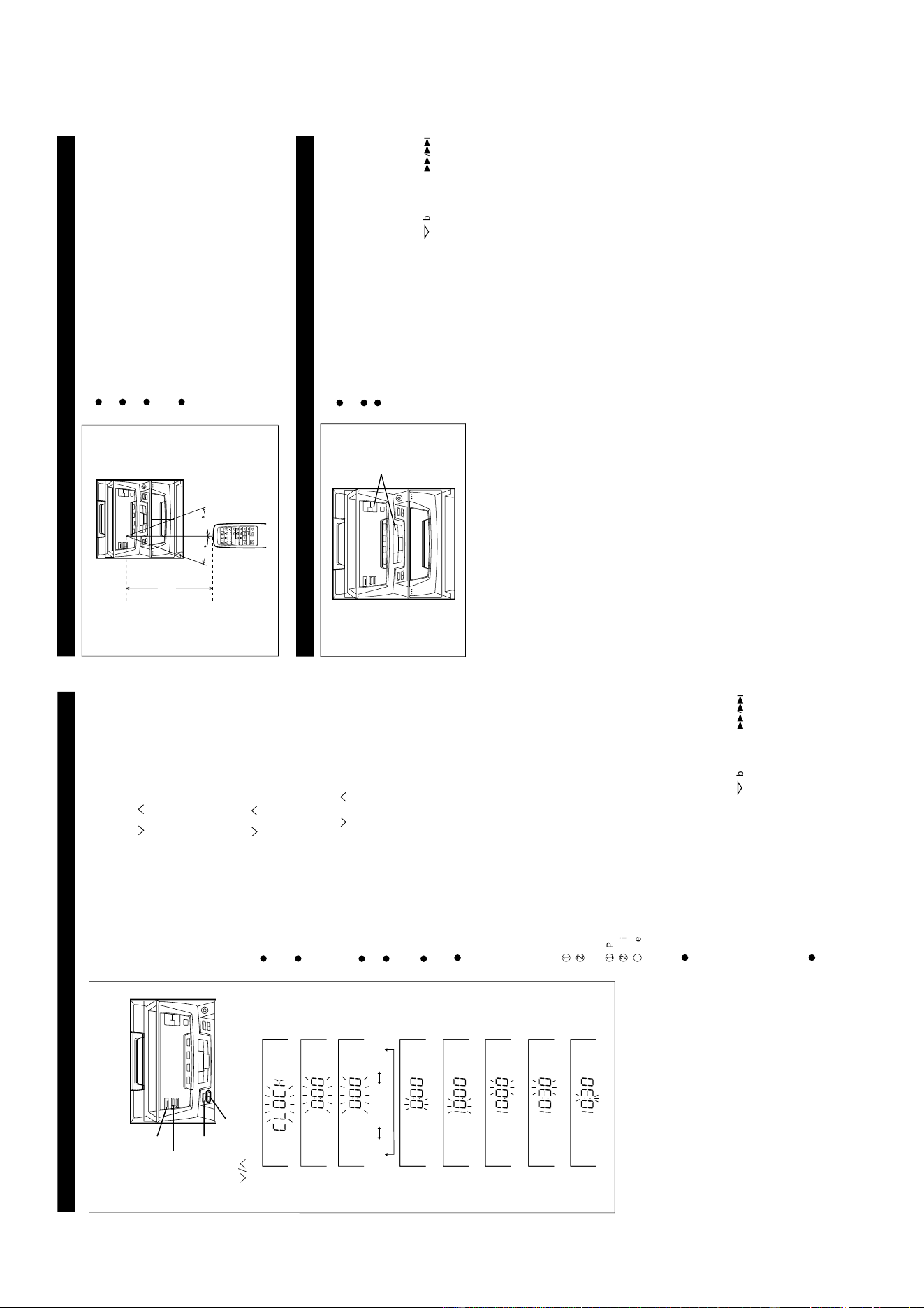

OPERATION MANUAL

ON/

STAND-BY

CLOCK

MEMORY/

SET

TUNING/TIME

( )

AM 12:00AM 0:00

0:00

SETTING THE CLOCK

Press the ON/STAND-BY switch to enter the stand-by mode.

Press the CLOCK button.

Within 3 seconds, press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to select the time

display mode.

"0:00" → The 24-hour display will appear.

(0:00 - 23:59)

"AM 0:00" → The 12-hour display will appear.

(AM 0:00 - PM 11:59)

"AM 12:00" → The 12-hour display will appear.

(AM 12:00 - PM 11:59)

Press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the hour.

Press the TUNING/TIME button once to advance the time by

1 hour. Press for more than 0.5 seconds to advance continu-

ously.

When the 12-hour display is selected, "AM" will change auto-

matically to "PM".

Press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button to adjust the

minutes.

Press the button for at least 0.5 seconds to change the time

in 5-minute intervals.

The hour setting will not advance even if minutes advance

from "59" to "00".

Press the MEMORY/SET button.

The clock starts operating from "0" seconds. (Seconds are

not displayed.)

Note:

In the event of a power failure or when the AC power lead

is disconnected, the clock display will go out.

When the AC power supply is restored, the clock display will

flash on and off to indicate the time when the power failure

occurred or when the AC power lead was disconnected.

If this happens, follow the procedure below to change the

clock time.

To change the clock time:

When the ON/STAND-BY switch is set to STAND-BY.

Press the MEMORY/SET button.

Perform steps 6 - 9 above.

When the ON/STAND-BY switch is set to ON.

Press the CLOCK button.

Within 3 seconds, press the MEMORY/SET button.

Perform steps 6 - 9 above.

To see the time display: (When the power is ON)

Press the CLOCK button.

The time display will appear for about 3 seconds.

To switch the time display mode:

Press the ON/STAND-BY switch to enter the stand-by mode.

Press and hold down the VOLUME button, the

button and the ON/STAND-BY switch all at the same time.

Hold them for at least 2 seconds.

(Refer to RESETTING THE MICROCOMPUTER on page 17.)

Perform steps 1 - 9 above.

Note:

The operation explained above will erase all data stored in

memory, such as clock and timer settings, tuner and CD pres-

ets.

In this example, the clock is set for the 24-hour

(0:00) system.

PREPARATION FOR USE

Notes concerning use:

Replace the batteries if control distance decreases or oper-

ation becomes erratic.

Periodically clean the transmitter LED on the remote control

and the sensor on the main unit with a soft cloth.

Exposing the sensor on the main unit to strong light may in-

terfere with operation. Change the lighting or the direction of

the unit.

Keep the remote control away from moisture, excessive heat,

shock, and vibrations.

0.2 m - 6 m

(8" - 20')

RESETTING THE MICROCOMPUTER

Reset the microcomputer under the following conditions:

To erase all of the stored memory contents (clock and timer

settings, tuner and CD presets).

If the display is not correct.

If the operation is not correct.

Press the ON/STAND-BY (POWER) switch to enter the stand-

by mode.

Press and hold down the VOLUME button, the

button and the ON/STAND-BY (POWER) switch all at the

same time. Hold them for at least 1 second.

1,2

CD-C430H,CP-C430H

– 7 –

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling

the unit and reassembling it, to keep it safe and ensure

excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall

outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need be

removed when disassembling the unit. After servicing

the unit, be sure to rearrange the leads where they were

before disassembling.

4. Take sufficient care on static electricity of integrated

circuits and other circuits when servicing.

Figure 7-1

Figure 7-2

< A >

LOCK

LEVER

Figure 7-3

CP-C430H

CD-C430H

1 Top Cabinet 1. Screw ..................... (A1) x4 7-1

2 Side Panel 1. Screw ..................... (B1) x6 7-1

(Left/right)

3 CD Player Unit/ 1. Turn on the power supply, 7-2

CD Tray Cover open the disc tray, take out

the CD cover, and close.

(Note 1)

2. Hook ....................... (C1) x3

3. Hook ....................... (C2) x2

4. Socket .................... (C3) x4

4 Back Board 1. Screw ..................... (D1) x5 7-2

5 Main PWB/ 1. Screw ..................... (E1) x12 8-1

Display PWB/ 2. Socket .................... (E2) x4

Headphone PWB

6 Front Panel 1. Screw ..................... (F1) x2 8-1

2. Hook ....................... (F2) x2

7 Tape Mechanism 1. Open the cassette holder. 8-2

2. Screw...................... (G1) x6

8 Turntable 1. Screw ..................... (H1) x1 8-3

2. Cover ..................... (H2) x1

9 Disc Tray 1. Screw ..................... (J1) x2 8-3

2. Guide ..................... (J2) x2

10 CD Changer 1. Screw ..................... (K1) x4 8-4

Mechanism

11 CD Mechanism 1. Screw ..................... (L1) x1 8-4

STEP

REMOVAL PROCEDURE

FIGURE

Note 1:

How to open the changer manually. (Fig. 7-3)

1. Insert the tip of fine screwdriver into the hole of CD player

base, and press down the worm wheel < A > .

2. Then, turn fully the lock lever in the arrow direction through

the hole on the loading chassis bottom in this state.

After that, push forward the CD player base.

CP-C430H

STEP REMOVAL

PROCEDURE

FIGURE

1 Speaker 1. Net Frame Ass'y ..... (A1) x1 7-5

2. Duct Front Panel .... (A2) x1

3. Screw ...................... (A3) x4 7-6

4. Screw ...................... (A4) x4

( B1 ) x1

ø3 x10mm

( B1 ) x2

ø3 x12mm

( B1 ) x2

ø3 x12mm

( B1 ) x1

ø3 x10mm

Top Cabinet

Side Panel

(Right)

Side Panel

(Left)

( A1 ) x2

ø3 x12mm

( A1 ) x2

ø3 x12mm

Back Board

CD Tray Cover

CD Player Unit

Hook

( C2 ) x1

Push

Hook

( C2 ) x1

Driver

Push

( D1 ) x6

ø3 x12mm

Hook

( C1) x3

( C3 ) x3

( C3 ) x1

CD-C430H,CP-C430H

– 8 –

Figure 8-3

Care when installing the CD changer mechanism.

Install the CD changer mechanism on the CD player base after

the shift lever has been set in the highest position.

( J1 ) x1

ø3 x10mm

( J1 ) x1

ø3 x10mm

( H1 ) x1

ø3 x10mm

Turntable

Disc Tray

( H2 ) x1

( J2 ) x1

CD Player Unit

Figure 8-4

Figure 8-6

CP-C430H

Figure 8-2

( K1 ) x4

ø3 x12mm

( L1 ) x1

ø2.6 x10mm

CD Changer

Mechanism

CD Mechanism

Shift Lever

CD Player Base

Tape

Mechanism

Open

Cassette

Holder

Power Supply

PWB

Front Panel

( G1 ) x6

ø3 x10mm

( F1 ) x2

ø3 x10mm

Figure 8-1

( E1 ) x1

ø3 x10mm

( E1 ) x1

ø3 x12mm

( E1 ) x9

ø3 x10mm

( E2 ) x1

( E2 ) x2

( E1 ) x1

ø3 x10mm

Front Panel

Tape

Mechanism

( E2 ) x1

Display PWB

Main PWB

Speaker Box

(A2) x4

4 x32mm

(A2) x2

4 x10mm

Woofer

Figure 8-5

SHARP

Front Panel

(A1) x1

Speaker Box

Screw

driver

Driver should be pried

away from speaker Box.

Direction of handle

CD-C430H,CP-C430H

– 9 –

REMOVING AND REINSTALLING THE MAIN PARTS

CD MECHANISM SECTION

Perform steps 1, 2, 3, 10 and 11 of the disassembly method

to remove the CD mechanism.

How to remove the loading motor

(See Fig. 9-1)

1. Remove the screws (A1) x 2 pcs., to remove the loading

motor.

Figure 9-1

( A1 ) x2

ø2 x5mm

Loading Motor

Figure 9-2

How to remove the pickup (See Fig. 9-2)

1. Remove the screws (C1) x 2 pcs., to remove the shaft (C2).

2. Remove the stop washer (C3) x 1 pc., to remove the gear

(C4).

3. Remove the pickup.

( C1 ) x2

2.6 x6mm

( C2 ) x1

( C3 ) x1

( C4 ) x1

CD Mechanism

Pickup

CD-C430H,CP-C430H

– 10 –

MECHANISM SECTION

• Driving Force Check

Torque Meter

Specified Value

Play: TW-2412 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 60 g. cm 30 to 60 g.cm

Fast forward: TW-2231 — 60 to 120 g.cm

Rewind: TW-2231 — 60 to 120 g.cm

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Volume in 3,000 ± Speaker

speed motor. 30 Hz terminal

(Load

resistance:

8 ohms)

Specified Value

Tape 1

• Tape Speed

Figure 10-1 ADJUSTMENT POINTS

ADJUSTMENT

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

*1. Input: Antenna, Output: Speaker Terminal

*2. Input: Input is not connected, Output: TP301

TUNER SECTION

fL: Low-range frequency

fH: High-renge frequency

IF 990 kHz 990 kHz T351 *1

Band — 522 kHz (fL): T302 *2

Coverage 1.1 ± 0.1 V

Tracking 990 kHz 990 kHz T302 *1

Test Stage

Frequency Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

• Setting the Test Mode

Keeping the TUNING (DOWN) button and MEMORY button

pressed, turn on POWER. Then, the frequency is initially set

in the memory as shown in Table. Call it with the PRESET

button to use it for adjustment and check of tuner circuit.

1 87.50 MHz 6 522 kHz

2 108.00 MHz 7 1,620 kHz

3 90.00 MHz 8 603 kHz

4 106.00 MHz 9 1,404 kHz

5 98.00 MHz 10 990 kHz

11 ~ 40

Preset No.

Adjusting

Parts

Instrument

Connection

Frequency

Display

Frequency

98.00 MHz 98.00 MHz VR351 *1 Input: So301

(25 dBµV) Output: Speaker

Terminal

• FM Mute Level

Signal generator: 1 kHz, 40 kHz dev. FM modulated.

*1. Adjust so that an output signal appears

TAPE MECHANISM

MM 1

Motor

Volume in motor

TUNER PWB

AM BAND

COVERAGE fL

ANTENNA

TERMINAL

T351

R331

L311

CNP301

T302

FE301

VR351

FM MUTE

LEVEL

AM IF

TP302

TP301

IC303

AM TRACKING

SO301

CD-C430H,CP-C430H

– 11 –

TEST MODE

200 ms

1V/diV

IC 1 15

200 ms

1V/diV

IC 1 7

TRACKING/

ERROR

BARANCE

ADJUST

Figure 11-2

Figure 11-3

10ms

0.50 V

IC1 20 FE

10ms

0.50 V

IC1 7 TE

Enlarged

View

TRACKING

OFF-SET

ADJUST

Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is not necessary

to readjust it.

Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.

• Automatic adjustment item

1. Focus offset (Fig. 11-2)

2. Tracking offset (Fig. 11-3)

3. E/F balance (tracking error balance) (Fig. 11-4)

4. RF level AGC function (HF level: constant)

5. RF level automatic follow-up of the tracking gain

This automatic adjustment is performed each time a disc is changed. Therefore,

each disc is played back using the optimal settings.

CD SECTION

Figure 11-1

Note:

Only in STOP state it is possible to slide the pickup with the ( ) or ( ) key.

VOL. --- Last memory

BAL. --- CENTER

R.GEQ. --- FLAT

X-BAS --- OFF

Canceling method - POWER OFF

• Setting the test mode

Any one of test mode can be set by pressing several keys as follows.

<REC. PAUSE> + <DISC. SKIP> + <POWER> TEST: CD operation test

• TEST mode

Function — CD test mode

Setting of TEST mode

Indication of CD TST mode (Fig. 11-1)

OPEN/CLOSE operation is manual operation.

The pickup can be moved by using the (

) or ( ) key.

LASER ON

<PLAY> key input Press <STOP> key.

Stop

TOC. IL is performed, and the ordinary PLAY is performed.

If the following key is pressed during PLAY, it is possible

to specify directly any Track No.

<Disc Number 1> key: Track 4

<Disc Number 2> key: Track 9

<Disc Number 3> key: Track 15

Tracking on the spot.

SERVO OFF PLAY

Tracking on the spot.

SERVO ON PLAY

STOP

0.1s

0.50 V

IC1 20 FE

0.1s

0.50 V

IC1 7 TE

FOCUS

OFF-SET

ADJUST

TRACKING

OFF-SET

ADJUST

Figure 11-4

IL is not performed.

<STOP>

1 2 3

CD-C430H,CP-C430H

– 12 –

• The indicated voltage in each section is the one measured

by Digital Multimeter between such a section and the chas-

sis with no signal given.

1. In the tuner section,

( ) indicates AM

< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for

maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and

performance of the set.

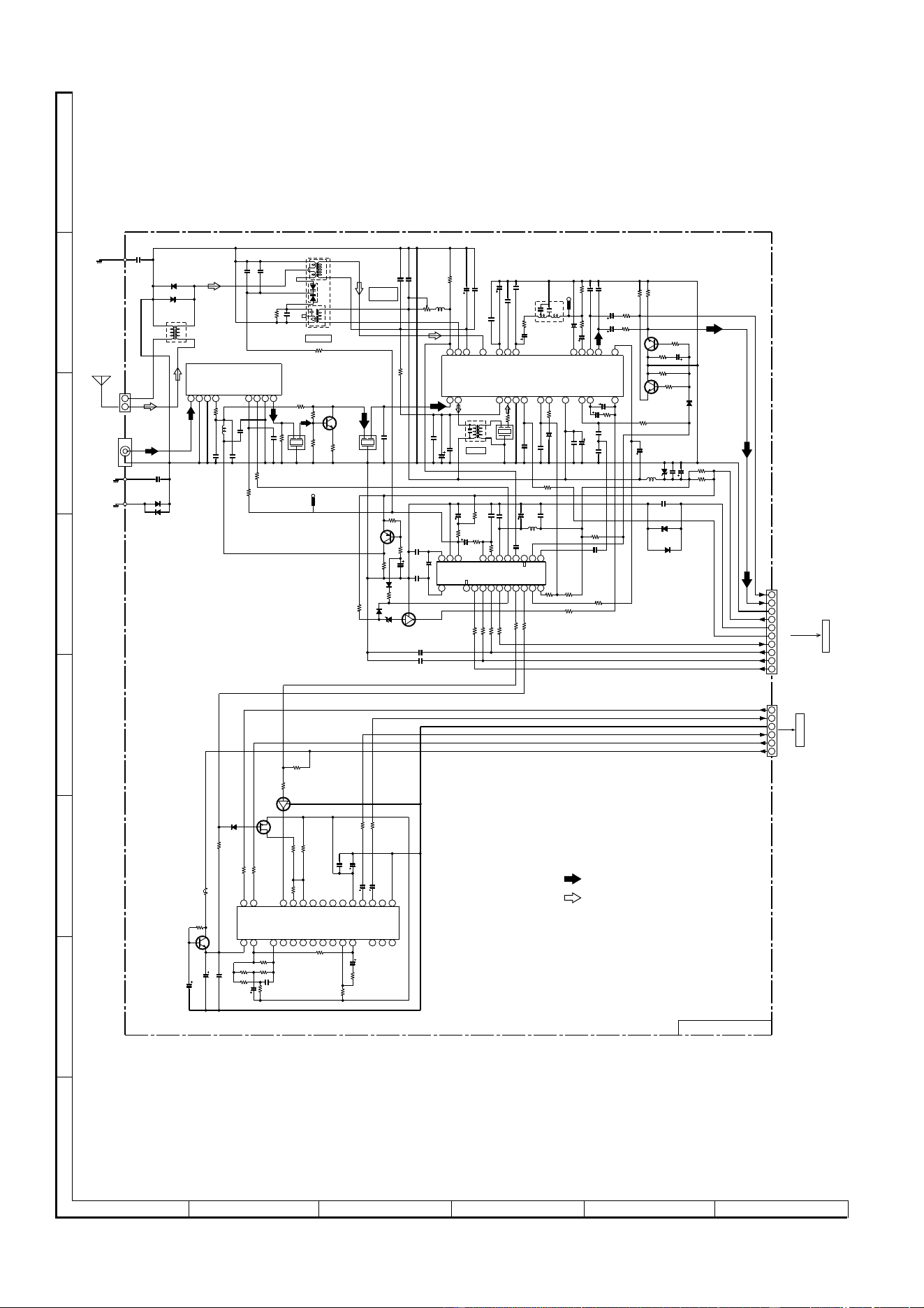

NOTES ON SCHEMATIC DIAGRAM

• Resistor:

To differentiate the units of resistors, such symbol as K and

M are used: the symbol K means 1000 ohm and the symbol

M means 1000 kohm and the resistor without any symbol is

ohm-type resistor. Besides, the one with “Fusible” is a fuse

type.

• Capacitor:

To indicate the unit of capacitor, a symbol P is used: this

symbol P means micro-micro-farad and the unit of the

capacitor without such a symbol is microfarad. As to

electrolytic capacitor, the expression “capacitance/withstand

voltage” is used.

(CH), (TH), (RH), (UJ): Temperature compensation

(ML): Mylar type

(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this

model are subject to change for improvement without prior

notice.

REF. NO DESCRIPTION POSITION

SW1 OPEN/CLOSE ON—OFF

SW2 MECHA UP ON—OFF

SW3 DISC NUMBER ON—OFF

SW4 PICKUP IN ON—OFF

SW701 RANDOM/DEMO ON—OFF

SW702 VOLUME DOWN ON—OFF

SW703 X-BASS ON—OFF

SW704 VOLUME UP ON—OFF

SW705 OPEN/CLOSE ON—OFF

SW706 DISC SKIP ON—OFF

SW709 REC./PAUSE ON—OFF

SW710 UP ON—OFF

SW711 STOP ON—OFF

SW712 PLAY ON—OFF

POSITION

SW713 DOWN ON—OFF

SW714 TUNING UP ON—OFF

SW715 TUNING DOWN ON—OFF

SW717 POWER ON—OFF

SW718 CLOCK ON—OFF

SW719 TIMER/SLEEP ON—OFF

SW721 MEMORY/SET ON—OFF

SW722 CD ON—OFF

SW723 TUNER ON—OFF

SW724 TAPE ON—OFF

SW725 AUX ON—OFF

SWM 3 FOOL PROOF ON—OFF

SWM 4 F.A.S. ON—OFF

SWM 5 CAM ON—OFF

REF. NO DESCRIPTION

Figure 12 TYPES OF TRANSISTOR

ECB

(S)(G)(D)

(1) (2) (3)

FRONT

VIEW

BCE

(D)(G)(S)

(3) (2) (1)

FRONT

VIEW

2SD2012 Y

KDV147BKRC104 M

KRC107 M

KTA1266 GR

KTA1273 Y

KTC3199 GR

KTC3203 Y

2SA1015 GR

2SB561 C

2SC2389 SS

2SC535 C

KRA102 M

KRA109 M

KRC102 M

CD-C430H,CP-C430H

– 13 –

Figure 13 BLOCK DIAGRAM (1/3)

3222

10 11

PU-IN SW

XL1

XIN

LD0

FIN2

JP–

CV+

SLC

SL1

FIN1

SPO

SLD

SL–

SL+

DRF

DAT

VCC1 VCC2

+5V

PICKUP IN

SW4

FOCUS COIL

TRACKING COIL

SPINDLE

MOTOR

SLED

MOTOR

PICKUP UNIT

IC2

LC78623D

SERVO/SIGNAL

CONTROL

+B5

IC5

M56748FP

DRIVER

IC1

LA9241M

SERVO AMP.

+B5

+12V(+B3)

( TO IC401 )

RES. CQCK. COIN

SQOUT. RWC. WRQ

CL, DAT, SELIAL CONTROL/CE

Q93

Q91

SL+. SL–. DRF

GND (D)

MECHA UP

GND (D)

DISK NO.

OPEN/CLOSE

GND (D)

M–

M+

GND (M)

CNP10

+5V

56 45 3623 43

10 10

265853

5352515431302923271615

4144

+5V

Q81 +5V (+B5)

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

SWITCHING

FROM POWER AMP.

SECTION

TO MAIN SECTION

IC91

TA7291

MOTOR

CONTROL

XOUT

EFMO

EFMIN

CLV+

JP–

CONT2

CONT1

RCHO

RVSS

LVSS

LCHO

VVDD

VDD

LVDD

RVDD

XVDD

SW1

OPEN/CLOSE

SW2

MECHA UP

SW3

DISC NUMBER

SOLM1

TO DISPLAY

SECTION

CNS10

+B5

FROM POWER AMP.

SECTION

CD-C430H,CP-C430H

– 14 –

Figure 14 BLOCK DIAGRAM (2/3)

TAPE

TUNER

R-CH

L-CH

PB HEAD

L NF

L (T1)

R (T1)

L (T2)

R (T2)

R NF

H/N

T1/T2

POP REDUCE

L REC

R REC

R NF

REC

L NF

P. B.

REC

L-CH

R-CH

REC/PB

HEAD

ERASE

HEAD

OCS

BIAS

REF

ALC

T1/T2

PLAYBACK&RECORD/

PLAYBACK AMP.

IC101

AN7345K

P. B

Q128

L104

BIAS

Q106

Q103

P.B

REC

AC BIAS

Q107

Q108

Q111

Q109 Q110

T1/T2

MUTING

Q121

Q122

REC

+B4

TAPE 1

TAPE 2

SWITCHING

Q206

Q201

SRS 12V

+B4

VCC

MODE

Q124

Q126

SWITCHING BIAS

FROM CD SECTION

SO401

VIDEO/

AUX.

IC201

SRS5250S

SRS

CIRCUIT

8 9

20 12 22 15 16 11

1021222324

X352

4.5MHz

OSC

STEREO

AM IF

FM IF IN

FM IN

AM IN

+B4

TRACKING

AM BAND

COVERAGE

FE301

FM FRONT END

T351

IC302

LC72131

PLL

SWITCHING

FM IF

CF302

CF301

Q301

VCC

SO301

ANTENNA

TERMINAL

AM LOOP

ANTENNA

L311

BALUN

Q360

+B4

Q361

VR351

FM MUTE LEVEL

FM OSC

IF OUT

AM RF IN

AM OSC IN

AM OSC OUT

AFC

FM/AM

MUTING

+B6

+B4

REGURATER

VOLTAGE

L-CH

R-CH

L354

+B6

MONO/ST

MIX

OUT

REG

DET

X351

CF351

IC303

LA1832

FM IF DET./FM MPX./AM IF

T304

AM AMT.

CD-C430H,CP-C430H

– 15 –

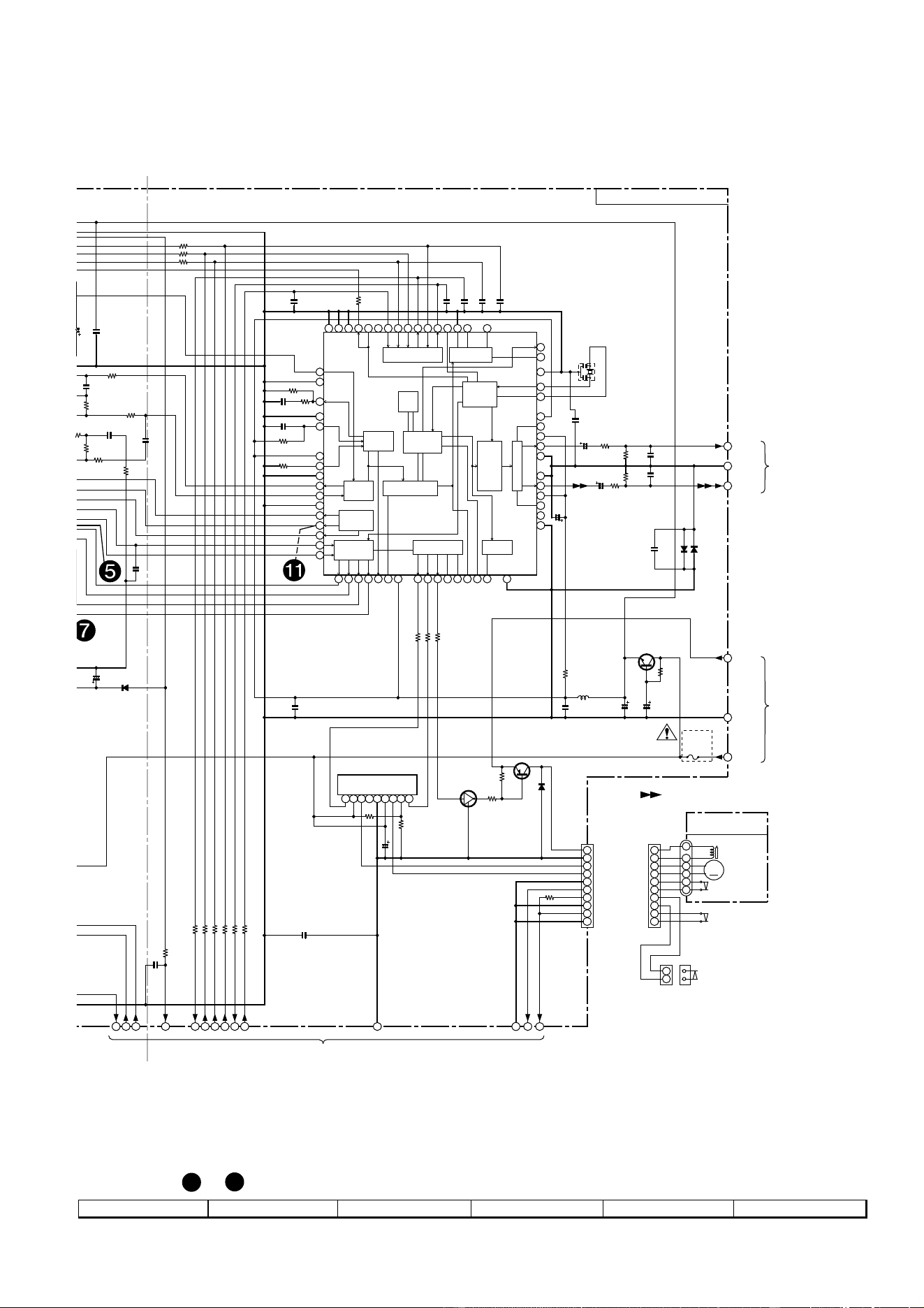

Figure 15 BLOCK DIAGRAM (3/3)

MUTE

L-OUT

R-OUT

L-IN

R-IN

VCC

+12V (ANALOG)

+B4

+12V (MOTOR)

+B3

OUT

IC801

LA4550

POWER AMP.

+B4

PRESET GRAPHIC EQUALIZER

VDD

X-BASS

LVREF

RVREF

VSS

AVSS

GRAPHIC EQUALIZER

VOLUME

TAPE

TUNER

Q942

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

TO CD SECTION

UN-SWITCHED

+B6

–

SO801

SPEAKER

TERMINAL

JK801

HEADPHONES

VREF

OUT_L

TO CD SECTION

+5V

+B5

Q941

Q943

Q952

Q953

IC401

LC75394E

AUDIO PROCESSOR

13 35 56 50 26 27 12 37 11 38 10 3963

24 25 57

414344454647485051525556

2423222120191817

161514131211

RX701

SYSTEM STOP

DRF

RESET

XL701

4.19MHz

AVDD

AVREF

+B7

+B8

KEY

SW701~706

SW709~715

SW717~725

+B3

PHM1

RESET

Q708

Q709

ZD701

MEMORY

BACK UP

+B7

+B8

+B7

+B8

3314

2117 18 ~

30 31 32

Q701

+B7

VSS

+B6

UN-SWITCHED

FL701

DISPLAY

POWER

VOLTAGE

REGULATOR

Q971

D971

D973

D961 ~ D964

+B2

+B1

ZD972

VF2

–VP

VF1

Q707

Q706

IC701

IX0191AW

SYSTEM CONTROL

MICROCOMPUTER

+B3

TO CD SECTION

+B9

+B8

D965 ~ D968

CD PUIN

CD SL+

CD SL–

VDD

TAPE SOL

TAPE MOTOR

TAPE MECHASTOP

TAPE FP

T1 RUN PLSE

SOLM2

SOLENOID

+B9

SWM5

CAM

SWM4

F. A. S

SWM3

FOOL PROOF

L-CH INPUT

R-CH INPUT

T2 RRUN PLSE

CD UP DOWN/DISC NO

CD DSP RES

CD T/T OPEN/CLOSE

RESET

CD DSP SQOUT

CD DSP COIN

CD DSP RWC

CD DSP CQCK

CD DSP WRQ

T1/T2

TAPE REC

TAPE BIAS

SO401

VIDEO/

AUX.

ZD951

ZD941

TO DISPLAY PWB

Q705

MM1

TAPE

MOTOR

CONSTANT

VOLTAGE

+B3

TO CD SECTION

TO POWER AMP.

SECTION

136

ST FM

Q354

FM/AM

MUTING

+B6

ATER

TAGE

L-CH

R-CH

MONO/ST

Q353

M IF

T.F

AC POWER

SUPPLY CORD

AC 230 V,50 Hz

F962

T2.5A L

250V

T961

POWER

TRANSFORMER

F963

T1.6A L

250V

CD-C430H,CP-C430H

– 16 –

23456

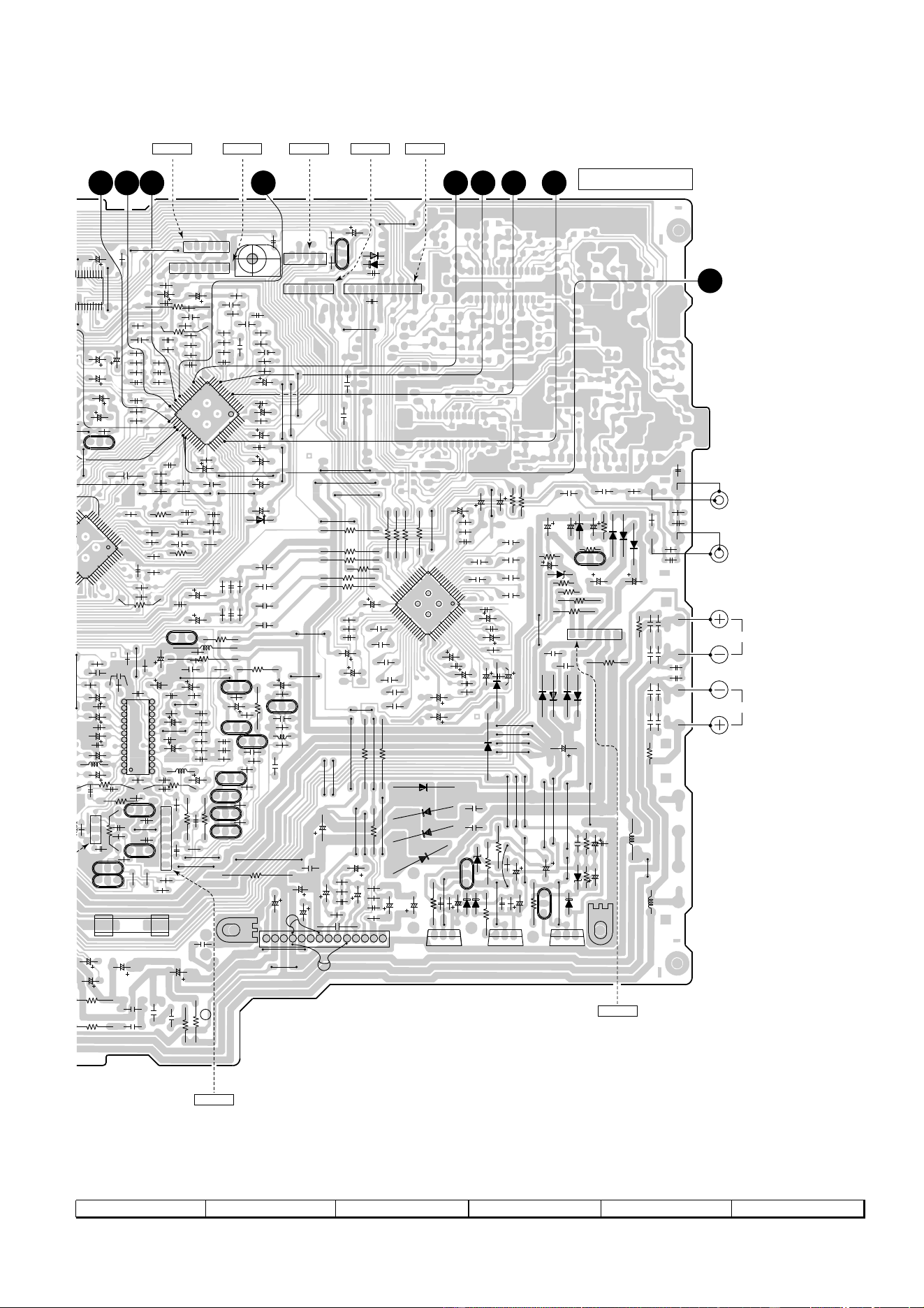

Figure 16 WIRING SIDE OF P.W.BOARD (1/4)

• The numbers 1 to 12 are waveform numbers shown in page 30.

C96

TO TAPE MECHANISM

PWB

CNPM1

CNSM1

P19 7 - H

TO MOTOR PWB

CNS10

P18 2 - H

TO TAPE MECHANISM

CNS101

HEADPHONS PWB-A3DISPLAY PWB-A2

P18 2 - A

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

T500mA L 25

123

BCE

CNP101

XL701

BIM1

R773

R771

R759

C717

R99

R765

R769

R775

R98

R760

R799

R711

R603

C718

R726

R727

R700

R703

R705

R706

R709

R731

R743

R735

R702

R724

R708

R714

R748

R746

R707

R712

R704

R729

R747

R745

C704

C703

C701

R761

C705

R722

R772

R717

R719

R721

R713

R715

R716

R718

R720

R723

R725

R762

R766

C708

R779

R734

R741

R781

R780

R776

R786

R785

R798

R795

R767

R782

R737

R728

R730

R754

R732

R733

R757

R756

R751

R750

R738

R774

R70

R755

R739

R752

R740

R744

R797

R742

R96

R788

R31

C95

R39

R54

R30

R25

R24

R23

R22

R21

C16

R26

R81

R38

R56

R57

C51

C22

R47

R46

C46

C54

C56

C55

C57

R77

R78

R154

R134

R150

R141

C58

R152

R137

R135

C129

R71

R72

R79

R153

C139

R139

R145

C131

R131

C119

R125

C127

R123

R121

R102

C117

C123

C113

C111

R107

C10

R101

C102

R108

C10

C101

R110

R60

R58

R701

Q701

C710

C711

FL701

RX701

Q706

D702

R758

C706

Q705

D709

D708

CNP10

C91

R97

IC91

D91

Q91

R95

Q93

C715

R789

R770

R792

R793

R749

C702

R794

L701

D701

Q707

D703

C707

Q708

Q709

ZD701

C709

D704

D706

D705

R763

R777

R836

R835

C855

R764

R133

R172

R768

R736

R49

R82

R61

C43

R778

R88

R87

R783

C44

C11

C17

C18

C19

C81

C52

Q81

R86

L700

C53

C59

XL1

R45

C135

Q121

C148

C141

C133

IC101

C128

C115

R119

Q107

R109

Q10

Q111

Q110

C453

C809

C454

R811

C812

C843

C844

C811

R809

C813

SW717

POWER

TIMER/SLEEP

SW719

SW718

CLOCK

987654321

SW714

TUN-UP

SW715

TUN-DOWN

SW721

MEMORY/SET

123

BCE

STOP

SW711

PLAY

SW712

SW724

TAPE

SW713

DOWN

TUN

SW723

SW722

IC701

4041

IC701

4041

80 1

SW725

VIDEO/AUX

SW710

SW705

OP/CL

SW706

D-SKIP

SW709

REC/PAUSE

SW703

X-BASS

SW701

RANDOM/DEMO

123

BCE

123

SW704

VOL-UP

SW702

VOL-DOWN

HEADPHONES

JK801

BCE

1617

60 64

IC2

ECB

IC5

51015

35 30 25 20

C121

65411

L107

R117

R753

R753R753

R753

C96

C147

CD-C430H,CP-C430H

– 17 –

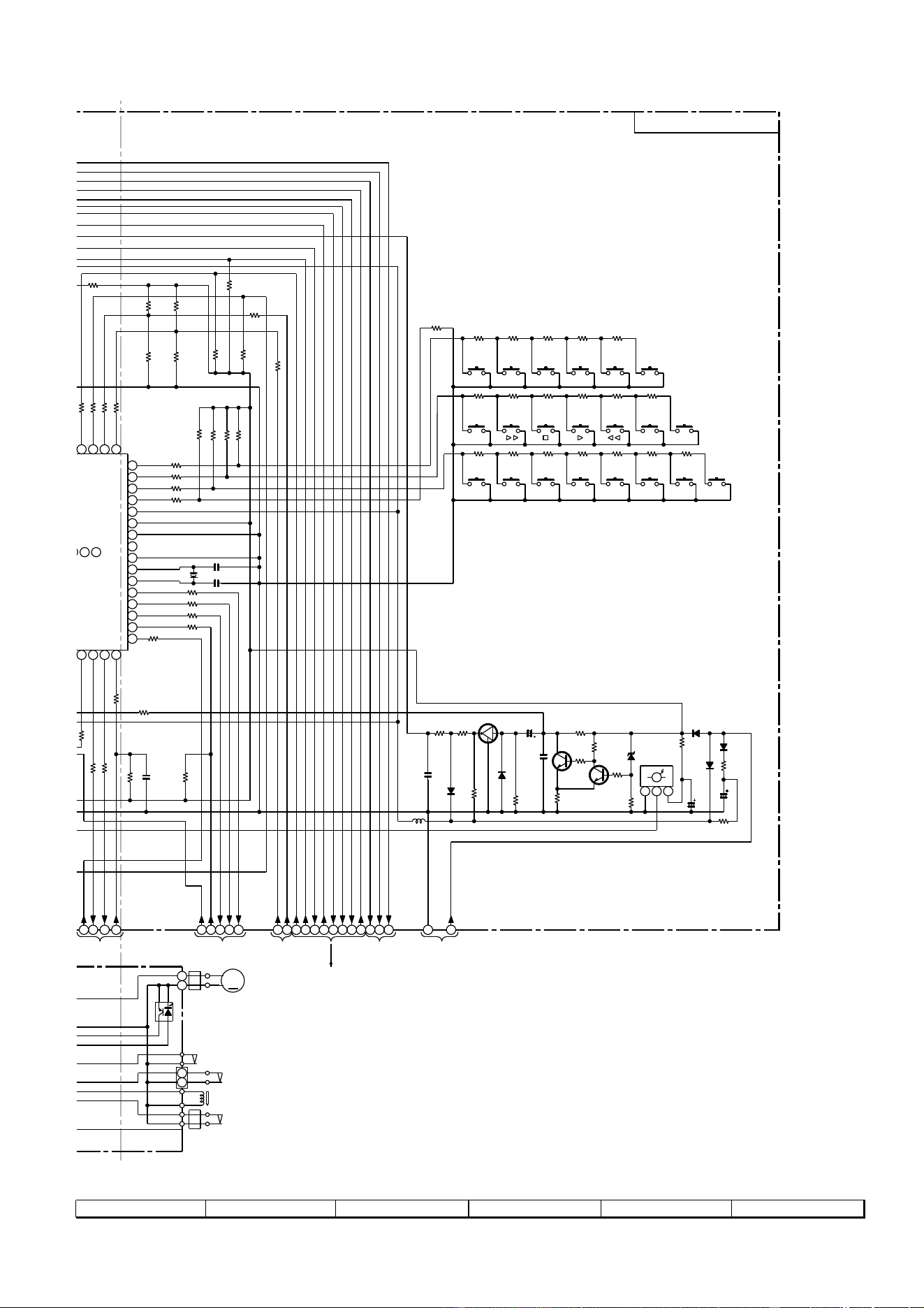

Figure 17 WIRING SIDE OF P.W.BOARD (2/4)

8 9 10 11 12

L-CH

SO401

VIDEO/AUX

R-CH

L-CH

SO801

SPEAKERS

R-CH

P18 6 - H

TO CD MOTOR

PWB

CNS3A

P18 5 - C

TO PICKUP

UNIT

CNS2A

P18 5 - C

TO PICKUP

UNIT

CNS1A

P19 9 - C

TO TUNER

PWB

CNP201

P19 9 - C

TO TUNER

PWB

CNP303

MAIN PWB-A1

P19 10 - B

TO POWER PWB

CNS901

NISM

P18 3 - H

TO TAPE MECHANISM

CNS102

CNP901

T500mA L 250V

ECB

123

BCE

CNP101

R825

CNP102

R31

R39

R24

R23

R22

R21

C16

C20

R26

R27

R81

R38

R56

R57

C22

R47

R46

R134

R150

R141

R152

R137

C139

C131

C127

R102

C113

C111

R107

C107

R101

C102

R108

C108

C101

R110

R114

R115

C106

R106

C105

R104

R118

C112

R103

C114

R105

R113

C120

R122

R124

C118

R166

R126

C124

C132

R132

R168

R138

R164

R140

C130

R162

C140

R146

R167

R142

R136

R74

C70

R76

C92

R73

C69

R75

R60

R58

R36

R37

C33

C31

R32

C32

R34

R33

C30

R41

C38

R20

C15

C14

R19

C10

R16

R17

R15

R11

C12

R14

R12

R13

R42

C25

R43

C456

C446

R413

R411

C413

C433

R414

R412

C437

C414

R479

C438

C445

C434

R480

R945

R808

R807

R804

C945

R948

C941

R803

C804

C803

R806

R805

R949

C957

C871

C872

C408

R407

C407

R406

R408

R405

C455

CNP3

C44

CNP2

C94

R10

C21

R29

C13

R28

C11

C17

C18

C19

C81

C52

Q81

C45

C53

C50

R35

C34

C42

C41

R18

C67

R45

C68

Q122

C146

R158

C136

C135

C145

C148

C142

C141

C133

C134

IC101

C128

C122

C115

C116

R119

R120

Q107

R112

R111

R109

Q108

Q111

Q110

C809

C810

454

811

C812

C811

C820

C814

R812

R810

809

C813

LG902

C831

C802

C801

C830

C829

C808

C806

C823

C824

C828

Q106

R815

C825

Q104

Q103

Q105

C150

C109

R478

R477

Q109

L104

Q126

C151

C153

Q128

R174

Q124

C152

C218

R160

R476

C422

C452

C420

C418

C406

C405

C412

C402

R420

R419

R418

C401

R416

R415

R403

C37

C35

R475

C39

C40

C404

C403

CNP401 CNP402

D403

CNP1

D404

C24

R422

C451

C217

R421

C411

C975

R417

R402

R401

C417

R974

C421

C419

C976

ZD972

C423

C425

R976

C427

C435

C439

C961

C440

C443

C444

C436

D402

C424

D962

D964

D961

C426

C442

C428

C441

D401

C944

D967

C956

D968

C955

D966

R946

ZD941

D965

R947

C943

C942

Q943

C827

C805

R943

C948

D942

D941

C947

R951

Q953

D951

R944

Q942

Q941

Q952

LG901

R952

C952

ZD951

C953

R953

C954

D963

C962

R977

R978

R975

R844

R843

R845

C971

C972

Q971

R973

D971

D973

D972

C974

C973

R972

ZD971

C410

C409

C845

C849

C847

C851

C848

C852

C846

C850

ECB

BCE

123

BCE

12 13

BCE

1617

60 64

IC2

ECB

60 64

IC1

65432

6587432

65432

10 15

25 20

10987654321

5432

123456

ECB

IC401

1617

BCEBCEBCE

123456789

10 11 12 13 14

IC801

123456789

10 11 12 13 14

C121

981126 10

L107

L108

L105

L831

L832

R117

C147

CD-C430H,CP-C430H

– 18 –

Figure 18 WIRING SIDE OF P.W.BOARD (3/4)

23456

CNPM1

CNPM2

FWM1

SWM3

SWM4

F. A. S

F. P.

123456789101112

PHM1

PICKUP IN

654321

SLED MOTOR

SPINDLE MOTOR

CNP3A

SW4

CNSM1

P16 1 - A

TO DISPLAY PWB

TAPE 1

PLAYBACK HEAD(55)

TAPE 2

ERASE HEAD(56)

RECORD/PLAYBACK HEAD(55)

WH BK

GYBRGY

CNS102

CNS101

7654321213

CNP102

P17 8 - H

TO MAIN PWB

P16 6 - H

TO MAIN PWB

CNP101

TAPE MOTOR

MM1

SWM5

SOLM1

SOLENOID

CAM

CNP1

CNS1B

CNS1A

CNS2B

CNS2A

CNS3B

CNS3A

CNP2

CNP3

12345678

123456

12345

12345678

123456

12345

P17 8 - A

TO MAIN PWB

P17 8 - A

TO MAIN PWB

P17 7 - A

TO MAIN PWB

PICKUP UNIT

CD MOTOR PWB-E

TAPE MECHANISM PWB-D

COLOR TABLE

RD(R)

WH(W)

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

CD-C430H,CP-C430H

– 19 –

Figure 19 WIRING SIDE OF P.W.BOARD (4/4)

8 9 10 11 12

C374

C372

C355

C398

C354

C390

R359

R354

C375

D352

R368

R377

R363

R364

C371

R361

R362

R365

R366

C373

C368

R356

R331

C361

C364

C363

C367

R330

C366

C365

C362

C341

C332

C331

D361

D362

C327

D311

D312

C334

R323

R320

X351

IC303

C353

R351

C350

C325

L353

VR351

FM MUTE

LEVEL

C342

C352

C351

R352

C399

R353

R355

C357

C358

C356

L352

C370

R395

C383

C391

R387

D363

R371

R372

C388

L351

R379

C385

R398

C387

C386

R360

D364

R367

C395

ZD351

C396

C397

R391

R392

R385

R386

R382

R383

R375

R384

R376

R374

R373

ZD352

X352

C382

C381

R380

C392

C394

R381

C393

Q301

C320

FE301

R315

C323

R308

L312

C322

C321

Q361

D368

D367

C384

R318

CF301

ECB

R310

L354

R358

R304

R307

R305

Q354

Q353

CF351

123

12 13

BF351

T351

CF302

T302

IC302

CNP303

Q360

R370

2 3 4 5 6 7 8

L311

C210

C200

R206

C219

R210

R212

C202

R202

R233

R209

R218

R234

BCE

D201

R208

R207

R215

R216

C223

R217

C224

C240

C220

R200

R203

C203

R204

R205

R228

CNP201

IC201

R201

1415

R213

Q205

C201

Q201

Q206

R399

TP301

BI901

F962

T2.5A L 250V

F963

T1.6A L 250V

POWER TRANSFOMER

K952

K951

T.F

T961

CNP301

CNS5

CNS10

BIM5

CNP10

P16 4 - B

TO MAIN PWB

SW2

MECHA UP

SW1

OPEN/CLOSE

SELECT MOTOR

SW3

DISC NUMBER

POWER PWB-C3

TUNER PWB-B

SOLM2

SOLENOID

CNP402

P17 9 - A

TO MAIN PWB

CNP401

P17 9 - A

TO MAIN PWB

POWER PWB-C

CNP901

TO MAIN PWB

P17 11 - G

CNS901

AC POWER

SUPPRY CORD

AC 230V,50Hz

CORE

(265)

MOTOR PWB-E

SO301

FM 75 OHMS AM LOOP

ANTENNA

When Servicing, pay attention as the area

enclosed by this line ( ) is directly

connected with AC main voltage.

CD-C430H,CP-C430H

– 20 –

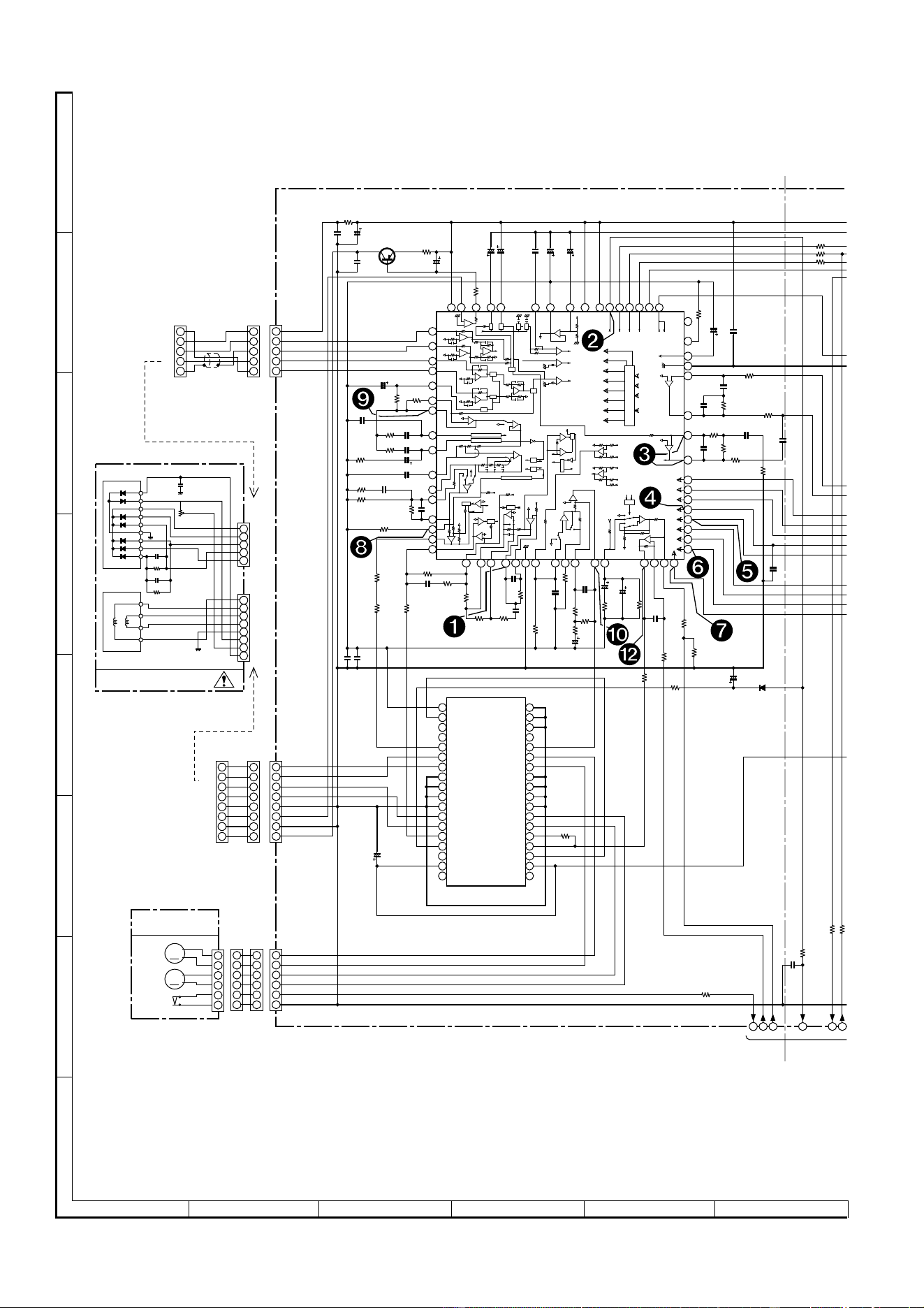

Figure 20 SCHEMATIC DIAGRAM (1/9)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.

654321

32313029282726252423222120191817

64 63

61 60 59 58 57 56 55 54 53 52 51 50 49

3.3V

1.5V

REF

RFSM

RFS–

SLC

REF

FSC

SLI

DGND

TBC

CLK

DEF

DAT

DRF

FSS

REF1

VCC2

LF2

FIN1

REF

VCC1

LDS

LDO

VCR

REF

TD–

GEN

REF

GEN

FOSTA

AGND

FE–

REF

GEN

FE1

REF

JPCLO

SLOF

REF

SLOF

REF

SLD

SL–

SL+

JP–

CV+

CV–

SLOF

HFL

TES

TOFF

TGL

JP+

–

REF

SLEO

SPO

SP–

SPG

SPI

FA–

FD–

REF

–

REF

SCI

TESI

TE–

FIN2

BHI

PHI

REF

–

FE1

TGL1

THDL

THD

VCC

DEF

HFL

DRF

SLOF

FSTA

LATOH

TOSTA

FOSTA

S.Q.R

FSTA

8/12CM

LASER

2FREQ

JP+

JP–

CV+

CV–

REF

–

EFBAL

FSC

SLOF

CD MOTOR

PWB-E

TR_

TR+

FO+

FO_

GND

VREF

SP+

SP_

SL+

SL_

PU-IN

SW4

PICKUP IN

SPINDLE

MOTOR

SLED

MOTOR

–

PUIN

+5V

DRF

SL+

SL–

SQOUT

COIN

CQCK

CNS1B

CNS1A

GND

FO_

TR+

TR_

FO+

CNS2B

CNS2A

PICKUP UNIT

MON

TR+

FO+

FO–

TR–

LD GND

ACTUATOR

LT0H30P1

GND

F–

F+

T–

T+

R61

15K

CNP3A

R30

15K

R26

220K

CNS3B

CNS3A

CNP3

CNP2

0.001

100

IC1

LA9241M

SERVO

AMP.

CNP1

R39

22K

R28

C16

0.001

R20

10K

R21

56K

R22

6.8K

R19

39K

R23

1.2K

C19

47/10

C17

0.47/50

R10

82K

R27

220K

C32

27P

R34

C31

0.0027

R37

47K

R54

R71 1K

R72 1K

R70 1K

0.1/50

C21

1/50

C25

0.01

R43

47/10

KTA1266 GR

0.01

C12

330P

R17

82K

1SS119

C40

0.33/50

C39

0.47/50

C38

0.01

C37

220/6.3

C35

0.1/50

C33

0.001

C30

2.2P

R33

5.6K

C34

0.033

R36

47K

R32

56K

R38

33K

R11

3.3K

27K

12K

C10

180P

0.047

0.068

0.1/50

6.8K

0.033

2.2K

0.033

10K

100K

C15

0.0047

R16

1.5K

R14

10K

R15

47K

R13

33K

C45

4.7/25

C50

0.1

C11

0.1

C14

0.01

C20

0.0033

C18

1/50

R25

1.2K

R24

10K

R42

560

R35

470

R41

4.7K

C53

220P

R45

R46

R47

R49

100K

C46

0.022

R29

C24

1/50

R31

10K

C44

100/10

C13

0.1

R12

15K

C94

0.001

IC5

M56748FP

FOCUS/TRACKING

SPIN/SLIDE DRIVER

CD-C430H,CP-C430H

– 21 –

Figure 21 SCHEMATIC DIAGRAM (2/9)

8 9 10 11 12

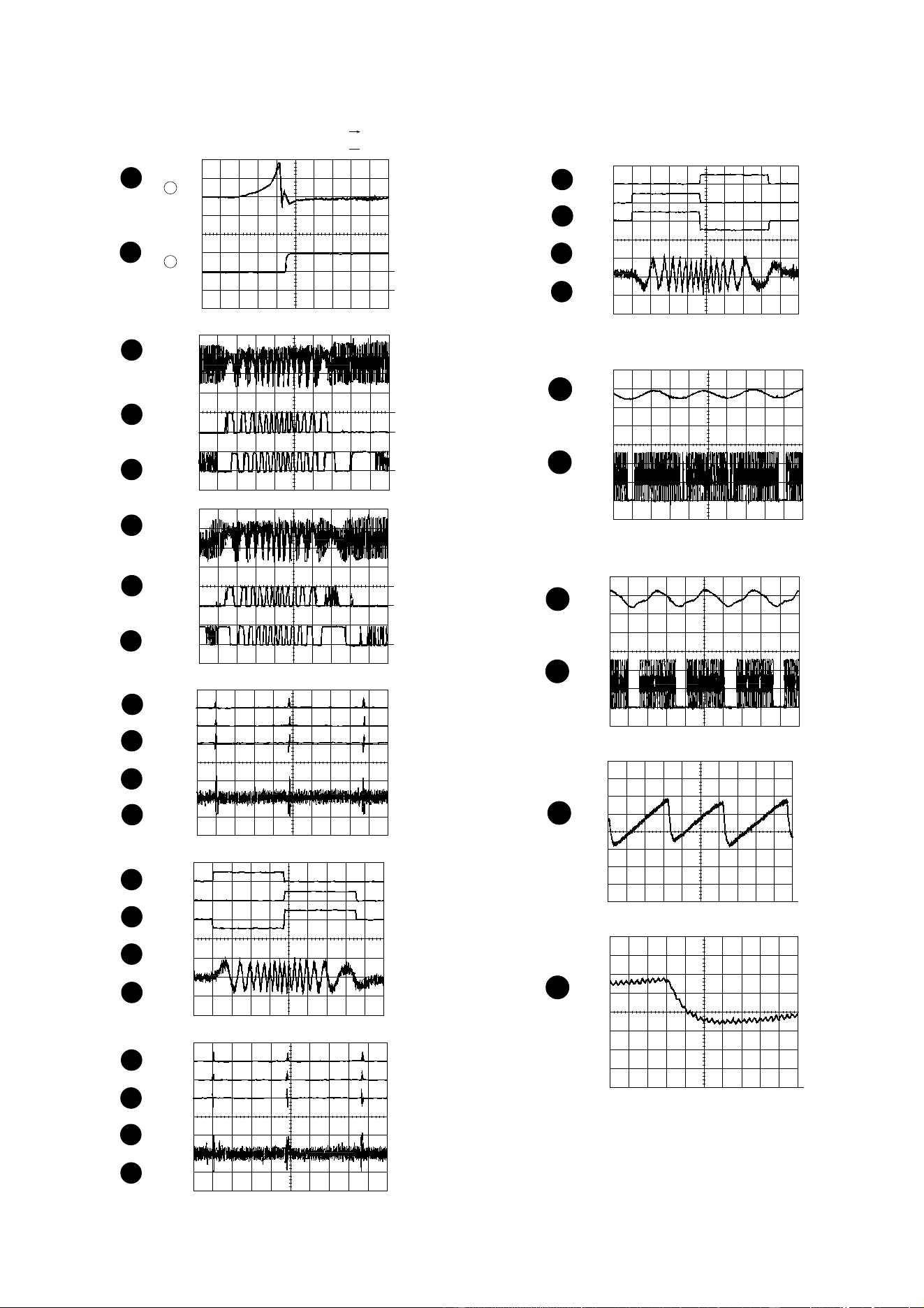

• The numbers 1 to 12 are waveform numbers shown in page 30.

1413121110

987654321

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

323130292827

26252423222120191817

987654321

SURR

S_MUTE

REGULATOR

MOTOR DRIVER

CD-LD M+

4.7V

5.2V

11.8V

CD SIGNAL

SUB-CODE

RWC

WRQ

FSX

SBCK

SFSY

SQOUT

COIN

/CQCK

/RES

TEST5

TEST1

/CS

LVDD

MUTEL

TEST4

MUTER

XVDD

XOUT

XIN

XVSS

SBSY

EFLG

16M

TEST11

X-TAL

GENERATOR

2KX8

RAM

VCO

OSC

CLOCK

CONTROL

ERROR

COERECT

FLAG

CONTROL

SYNC-DETECT

EFM DEMODULATE

SLICE

LEVEL

CONTROL

CLV

DIGITAL

SERVO

COMMAND

EXTERNAL

OUTPUT

DIGITAL

OUT

RVDD

RCHO

RVSS

LCHO

LVSS

1BIT

DAC

4FS

DIGITAL

FILTER

µ-COM

INTERFACE

DOUT

TEST3

C2F

EMPH

CONT5

CONT4

CONT3

CONT2

CONT1

VDD

FSEQ

PCK

JP_

JP+

TGL

TOFF

DEF1

PDO

VVSS

ISET

VVDD

VSS

EFMO

EFMIN

TEST2

CLV+

CLV_

V/P

HLF

TES

TA1

MAIN PWB-A1 (1/3)

CD_R

GND

P26 1 - G,P23 10 - G

TO POWER SECTION,

DISPLAY PWB

CD_L

M+12V

GND

D+5V

–

MOTOR

PWB-F

M_GND

MOTOR GND

GND

P22 6 - G,P23 8 - G,P23 9 - G

TO DISPLAY PWB

D_GND

CD_OPEN/CLOSE

GND

DISC_NO/UP/DOWN

CD-LD M–

PUIN

+4.3V

+5V

D_GND

+12V

D_GND

GND(D)

MECHA UP

GND(D)

DISC NO.

OPEN CLOSE

GND(D)

M–

M+

GND(M)

SOL

+5V

DRF

SL+

RWC

WRQ

SL–

RES

SQOUT

COIN

CQCK

P24 2 - A

TO MAIN SECTION

T500mA

L 250V

IC2

LC78623D

SERVO/SIGNAL

CONTROL

C67

10/16

R73

2.7K

IC91

TA7291S

SW3

DISC NUMBER

CNS5

SW2

MECH UP

BIM5

SW1

OPEN

SELECT

MOTOR

SOLM2

LOCK

CNS10

CNP10

R86 1K

R87 1K

R88 1K

C32

27P

R34

C31

0.0027

R37

47K

R71 1K

R72 1K

R78 1K

R79 1K

R70 1K

R77 1K

C91

47/16

R98

10K

C51

0.022

R81

220

Q81

KTC3203 Y

R82

100

C81

220/10

Q93

KRC102 M

C21

1/50

C22

0.01

1SS119

0.82µH

R60

C30

2.2P

C34

0.033

R36

47K

R32

56K

R38

33K

C45

4.7/25

C50

0.1

XL1

R58

680

C41

0.047

C42

0.047

R57

27K

R56

1.2K

R76

270

R75

270

C70

220P

C69

220P

C43

100/10

R35

470

4.7K

C53

220P

R45

R46

R47

C57

100P

C55

100P

C54

100P

C56

100P

1SS119

C58

0.022

C59

0.022

C52

47/10

R49

100K

C46

0.022

C68

10/16

R74

2.7K

R18

3.3M

D91

1SS119

R96

10K

Q91

2SB561 C

R99

10K

R95

2.2K

R97

2.2K

C96

0.022

C95

0.001

CD-C430H,CP-C430H

– 22 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.

Figure 22 SCHEMATIC DIAGRAM (3/9)

132

2429

17113028

87654321

SYSTEM

MICROCOMPUTER

M-GND

P21 12 - E,P26 1 - G

TO POWER SECTION,CD SECTION

DRF

P21 8 - G,P25 11 - D

TO CD SECTION,MAIN SECTION

FOOL PROOF

CD PUIN

DRF

R-CH INPUT

L-CH INPUT

T2 RUN PLSE

SRS ON/OFF

CD UP/DOWN,DISC NO

AVREF

AVDD

SET UP

KEY-1

KEY-2

KEY-3

AVSS

CD T.T OPEN/CLOSE

TAPE BIAS

TAPE REC

CD DSP WRQ

CD DSP RWC

CD DSP CQCK

CD DSP COIN

CD DSP SQOUT

RESET

CD DSP RES

P17

P18

P19

P12

VLOAD

P10

P11

P14

P15

P16

P13

P20

MECHA STOP

SOLENOIDO

T1 RUN

FOOL PROOF

T2 RUN

GND

MOTOR

TAPE MECHANIS

PWB-D

MECHA STOP

SOLENOIDO

T1 RUNPALS

T2 RUNPALS

MOTOR

GND

RUN PALS

SENSOR

(1/2W)

VDD

REMOCON

SYSTEM STOP

TUNER SD

VDD

S10

S11

S12

S13

S14

S15

CD SL+

CD SL–

T1/T2

TAPE SOL

TAPE MOTOR

MIC

TAPE F.P.

T1 RUN PLSE

TAPE MECHA STOP

POWER

DISC1

DISC2

DISC3

P.B. MUTE

VSS

XT2

SL–

SL+

PUIN

POWER

VF1

VF2

M_12V

P15

P16

P13

P20

P14

P11

P10

P12

P19

P18

P17

–VP

CNP

R714 1K

R712 1K

R708 1K

R707 1K

R704 2.2K

R702 2.2K

R709

R706 10K

R705

10K

R703

R727

R726

10K

R724

CNPM1

CNSM1

PHM1

R734

10K

R79

R74

R73

BIM1

R701

100K

Q701

KRC107 M

FL701

C711

1/50

C710

1/50

R716 1K

R713 1K

R718 1K

R728 1K

R730 1K

R732 10K

R733 10K

R722 1K

R715 1K

R720 1K

R723 1K

R725 1K

4.1

R700

5.6K

R729

R743

10K

R717 1K

R719 1K

R721 1K

R731

10K

C718

0.001

C701

0.022

C702

220/6.3

R711

10K

R759

10K

Q705

KTA1273 Y

Q706

2SB561 C

R758

R760

10K

C717

0.022

D709

1SS119

D708

1SS119

R771

1.2K

C706

47/16

D702

1SS119

R770

10K

R603

10K

IC701

IX0191AW

R751

100K

R750

100K

11.7V

4.4V

-24.8V

CD-C430H,CP-C430H

– 23 –

Figure 23 SCHEMATIC DIAGRAM (4/9)

8 9 10 11 12

321

1512

363837

98765

1013143132

35333441

132

P21 12 - E,P26 1 - G

TO CD SECTION,

POWER SECTION

D+5V

P24 2 - E

TO MAIN

SECTION

P27 9 - B

TO POWER

SECTION

P21 8 - G

TO CD SECTION

P21 8 - G,P25 11 - D

TO CD SECTION,

MAIN SECTION

DRF

8 - G,P25 11 - D

CTION,MAIN SECTION

DISPLAY PWB-A2

DISC_NO/UP/DOWN

CD_OPEN/CLOSE

FOOL PROOF

CD PUIN

DRF

R-CH INPUT

L-CH INPUT

T2 RUN PLSE

SRS ON/OFF

CD UP/DOWN,DISC NO

AVREF

AVDD

SET UP

KEY-1

KEY-2

KEY-3

(CH)

APE MECHANISM

PWB-D

MECHA STOP

SOLENOIDO

T1 RUNPALS

T2 RUNPALS

MOTOR

GND

RUN PALS

SENSOR

CAM

SOLENOID

F.A.S

F.P.

TAPE

MOTOR

–

GND

RANDOM

/SRS

VOLUME

DOWN

X-BASS

/P.G.EQ

VOLUME

OPEN

/CLOSE

DISK

SKIP

TUNING

DOWN

REC

PAUSE

MEMORY

TUNER

/BAND

TAPE AUX

POWER

CLOCK

TIMER

CD SL+

CD SL–

POWER

VSS

XT2

SQOUT

CQCK

COIN

RWC

WRQ

BIAS

SL–

SL+

PUIN

REC

T1_T2

RES

L_CHECK

R_CHECK

CNPM2

R709

R706 10K

R705

10K

R703

R726

10K

D701

1SS119

R766

3.3K

R772

100K

C715

220/6.3

D705

1SS119

PHM1

MM1

FWM1

FWM2

SWM4

SWM5

SOLM1

SWM3

R734

10K

R795

2.2K

C709

100/6.3

R786

C705

0.01

Q708

KTC3199 GR

R776

D703

1SS119

R780

10K

Q709

KTC3199 GR

R785

100

ZD701

MTZJ3.3B

Q707

KRC102 M

C708

0.01

R779

R762

R761

D704

1SS119

R781

10K

D706

1SS119

R798

150

RX701

R799

C707

3.3/50

R736

100

R741

10K

R797 1K

R740 1K

R739 1K

R738 1K

R742

10K

R744 8.2K

R752 8.2K

R755 8.2K

R748 1K

R747 1K

R746 1K

R745 1K

R769

1.2K

R788

5.6K

R783

3.9K

SW712

R778

2.2K

R775

1.8K

R765

R764

SW714SW713SW709 SW715

SW704SW703

SW710

R768

1.2K

R774

1.8K

R767

1.2K

R773

1.8K

R763

R753

3.3K

SW702

R728

R730 1K

R732 10K

R733 10K

XL701

4.19MHz

C703

15P

C704

18P

R729

SW701

SW711

SW717 SW719SW718

R731

10K

C718

0.001

R754

3.3K

R737

10K

L701

2.2µH

R749

100

SW706

R782

3.9K

SW705

R777

2.2K

R794

12K

R793

5.6K

R789

2.2K

SW721 SW722 SW723 SW724 SW725

R792

3.9K

R735

10K

R751

100K

R750

100K

R756

100K

R757

100K

4.4V

0.2V

4.4V

CD-C430H,CP-C430H

– 24 –

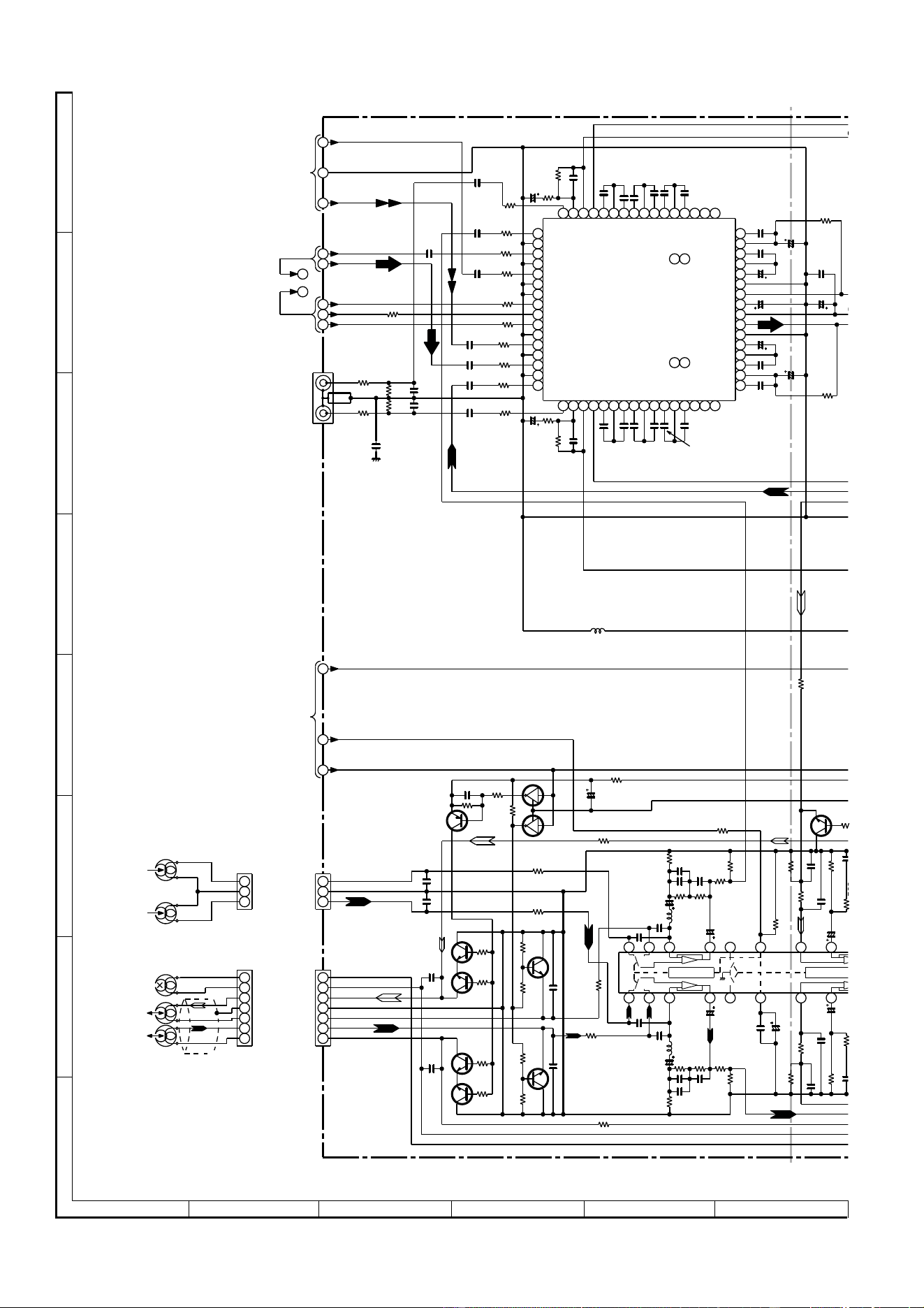

Figure 24 SCHEMATIC DIAGRAM (5/9)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.

(ML)

L-CH

R-CH

P23 9 - G

TO DISPLAY PWB

AUDIO

PROCESSOR

(ML)

–

Hich=T1

112K

–

Hich=CHR

L-CH

TAPE2

RECORD/

PLAYBACK HEAD

R-CH

ERASE HEAD

TAPE1

PLAYBACK HEAD

R-CH

L-CH

TAPE2_L2

TAPE2_L1

TAPE2_R1

A_GND

TAPE2_R2

ERASE

M_GND

TAPE1_L

A_GND

TAPE1_R

TUN_R

TUN_L

RF4C2

RF4C3LF4C3

LF4C2

RINVIN1

RSEL0

RTIN

RF2C2

RF2C3

RF1C3

RF1C2

RF1C1

RF3C3

RF3C2

RF2C1

RF3C1

RF4C1

RVROUT

RTEST

RVRIN

RTOUT

RINVIN2

LVref

RVref

RFS

Vref

VDD

LVROUT

LTEST

LVRIN

LTOUT

LINVIN2

LFS

LF4C1

LTIN

AVSS

VSS

LINVIN1

LF1C2

LF3C3

LF3C2

LF3C1

LF2C3

LF2C2

LF2C1

LF1C3

LSEL0

LF1C1

TO TUNER GND

P21 12 - C

TO CD SECTION

VIDEO/

AUX

CD_L

A_GND

CD_R

BIAS

T1_T2

REC

TAPE_R

REC

OUT_L

GND

REC_R

P25 11 - D

P25 11 - B

C422

0.18(ML)

C111

330P

C113

330P

R117

C112

330P

C116

47/10

C114

330P

L108

2.2µH

CNS101

CNS102

C129

470P

C132

0.001

R138

6.8K

R118

C122

1/50

0.0

R134

68K

R133

22K

C121

1/50

C131

0.001

C115

47/10

L107

2.2µH

C123

0.015

R123

3.9K

C117

0.018

C119

560P

R121

100K

R119

C107

0.001

CNP102

CNP101

R412

22K

C414

100P

C404

0.047

R403

C409

0.047

C405

0.047

C403

0.047

C401

0.047

C413

100P

R411

22K

C455

220P

SO401

C410

0.047

C124

0.015

R120

C153

100/16

R174

150

L105

1.5µH

C402

0.047

C406

0.047

C425

0.033

C426

0.033(ML)

C427

0.0039

R421

R422

C438

100P

C440

10/16

C433

0.0027

C411

22/25

C412

22/25

C434

0.0027

C437

100P

C423

0.18(ML)

C445

0.022

C443

22/16

R402

R414

3.3K

C435

22/16

Q104

2SC1845 F

R110

10K

0.0

Q111

KRC104 M

C109

0.047

R102

R101

R114

10K

R115

10K

Q107

KTC3199 GR

R135

3.3K

Q110

KRC104 M

R109

10K

R125

5.6K

C128

3.3/25

R476

100K

Q105

2SC1845 F

C102

0.001

C118

0.018

Q103

2SC1845 F

Q108

KTC3199 GR

R103

2.2K

R104

2.2K

R107

10K

C108

0.001

Q106

2SC1845 F

R126

5.6K

C130

470P

R113

10K

Q122

KTC3199

R105

3.3K

R131

4.7K

R408

1.5K

R407

1.5K

R406

39K

R405

39K

C408

390P

C407

390P

IC401

LC75394E

R480

100K

C421

0.18(ML)

C417

0.18(ML)

C418

0.18(ML)

R419

R417

R415

R416

R420

R418

R479

100K

R112

10K

R111

10K

Q109

KTA1266 GR

R401

C428

0.0039(ML)

R413

3.3K

C436

22/16

C424

0.18(ML)

C439

10/16

C419

0.068(ML)

R140

560

R137

6.8K

R106

3.3K

R108

10K

R122

100K

R139

560

C106

180P

C120

560P

R124

3.9K

C101

0.001

C105

180P

C127

0.022

R132

4.7K

R136

3.3K

C420

0.068(ML)

9.4V

8.7V

3.6V

0.7V

CD-C430H,CP-C430H

– 25 –

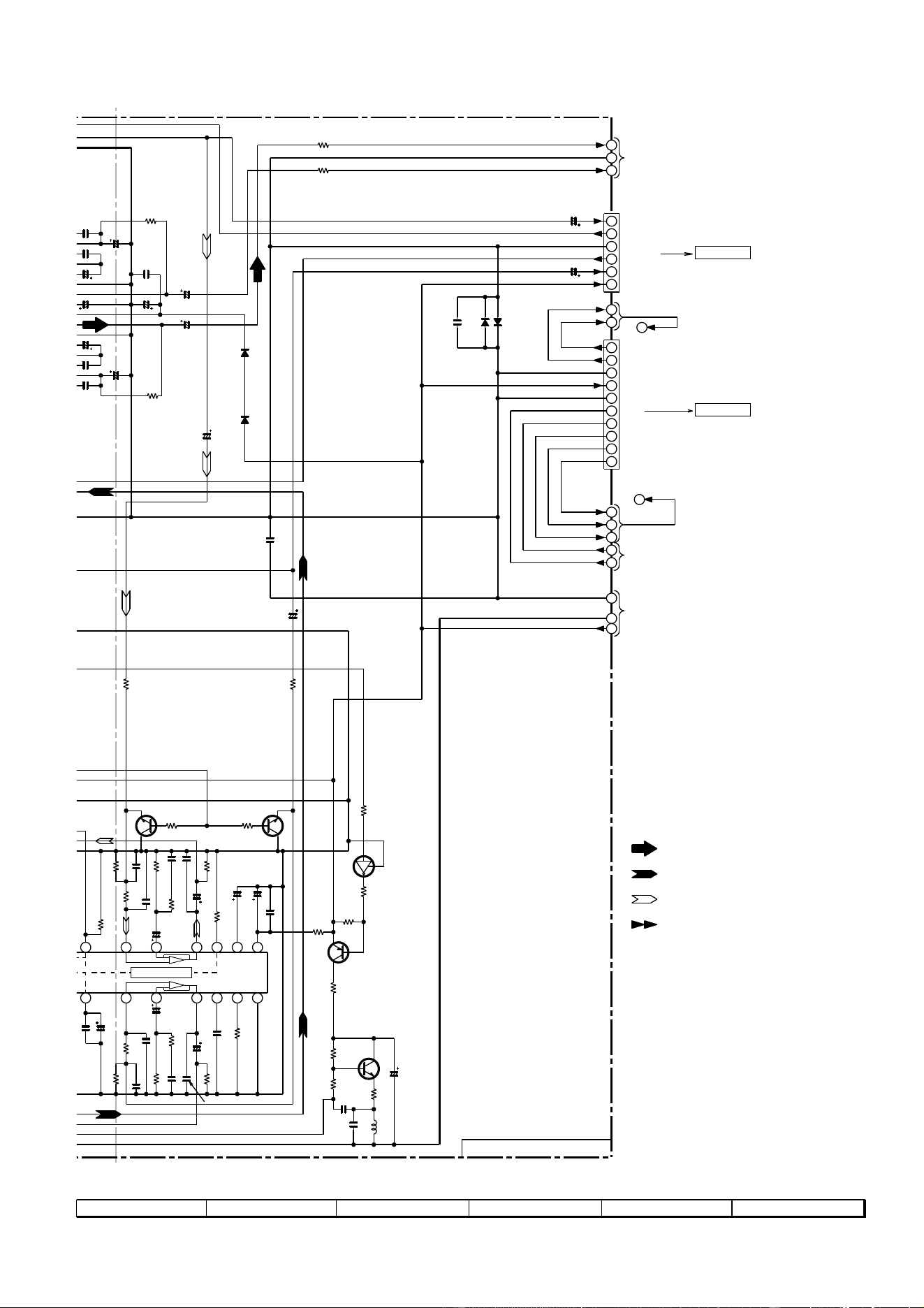

Figure 25 SCHEMATIC DIAGRAM (6/9)

8 9 10 11 12

D_GND

M_GND

A+12V

P26 1 - E

TO POWER SECTION

P22 6 - G,P23 8 - G

TO DISPLAY PWB

A+12V

MAIN_L

A_GND

MAIN_R

CNP201

P28 6 - E

P24 2 - B

P28 6 - D

P24 2 - B

TO TUNER PWB

OUT_L

IN_L

A-GND

IN_R

OUT_R

–

Hich=CHROME

56K

Nor/

CrO

RIPPLE

Vcc

GND

ALC

MAIN PWB-A1(2/3)

(ML)

PLAYBACK AND RECORD/

PLAYBACK AMP.

CD SIGNAL

RECORD SIGNAL

PLAYBACK SIGNAL

FM SIGNAL

P26 1 - C

TO POWER PWB

TO TUNER PWB

CNP303

(1/2W)

TAPE_L

REC

OUT_L

GND

REC_R

OUT_R

TUN_R

TUN_L

A_GND

D_GND

C456

100P

CNP401

C451

2.2/50

C217

2.2/50

C218

2.2/50

C129

470P

C132

0.001

R138

6.8K

C136

0.068

C140

0.0033

R134

68K

C134

22/16

R142

C146

220/10

C145

22/16

C147

0.022

C133

22/16

C131

0.001

R141

D402

1SS119

D401

1SS119

R478

D404

1SS119

D403

1SS119

C438

100P

C440

10/16

433

.0027

434

.0027

C437

100P

C445

0.022

C443

22/16

C435

22/16

L104

330µH

C135

0.068

R164

4.7K

R135

3.3K

C148

0.082

R146

10K

C128

3.3/25

R153

10K

C151

0.027

R476

100K

R172

C150

0.0039

C130

470P

C152

47/10

R154

10K

Q122

KTC3199 GR

C446

0.022

C452

2.2/50

CNP402

C441

1/50

C442

1/50

R480

100K

R477

R479

100K

Q121

KTC3199 GR

IC101

AN7345K

C444

100/16

C436

22/16

C439

10/16

R167

100K

R168

R150

10K

R140

560

C139

0.0033

R137

6.8K

C142

1/50

R145

10K

R139

560

C141

1/50

Q126

KRC104 M

R158

470

Q124

2SA1015 GR

Q128

KTC3203 Y

R162

4.7K

R166

47K

R475

100K

022

R160

150

R136

3.3K

R152

11.6V

11.7V

0.6V

0.7V

CD-C430H,CP-C430H

– 26 –

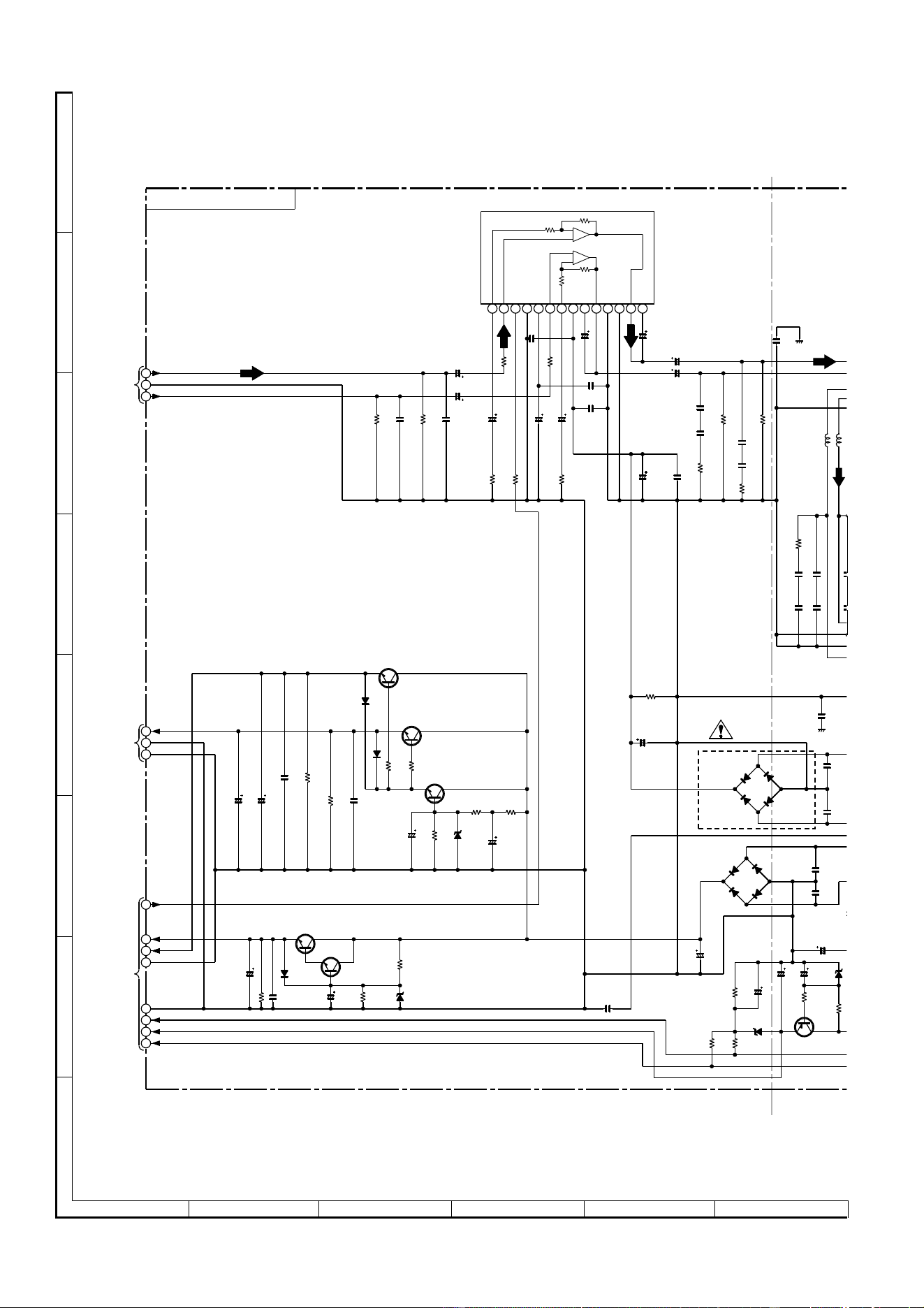

Figure 26 SCHEMATIC DIAGRAM (7/9)

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.

L832

0.29µH

R844

C846

0.022

C848

0.022

C850

0.047

C852

0.047

-28.7V

-28V

-36V

A+12V

M-GND

D-GND

P25 11 - D

TO MAIN SECTION

M+12V

D+5V

P22 2 - G,P21 12 - E

TO DISPLAY PWB,CD SECTION

(ML)

MAIN PWB-A1(3/3)

POWER AMP.

(1/2W)

(ML)

(

(ML)

(ML

)

(ML

)

TO CD GND

–

P25 11 - A

TO MAIN SECTION

MAIN_R

MAIN_L

POWER

VF2

–VP

VF1

D_GND

M_GND

C957

0.022

C823

100/50

C976

100/35

R974

12K

C972

100/50

C973

47/50

C95

0.2

C95

0.2

C855

560P

R811

270

C813

0.1(ML)

R809

4.7

C811

0.1(ML)

C824

0.022

R810

4.7

C814

0.1

C812

0.1

R815

10K

R807

180

R808

180

C943

470/25

R946

100

R947

270

D941

1SS119

R952

33K

ZD951

MTZJ6.2C

R951

1.5K

C953

0.01

R953

10K

C952

47/16

R804

33K

R803

33K

Q953

KTC3199 GR

Q943

KTC3199 GR

Q942

2SD2012 Y

Q941

2SD2012 Y

Q952

2SD2012 Y

Q971

KTA1266

R975

220

R976

220

R973

100

R949

22K

R948

22K

R945

33K

R944

R943

C974

47/50

C975

47/50

C948

10/50

C947

10/50

C942

100/16

C941

0.022

C945

0.022

C804

560P

C803

560P

C962

0.047

C961

0.047

D963

RL104A

D962

RL104A

D961

RL104A

D964

RL104A

ZD971

ZD972

MTZJ6.2A

ZD941

MTZJ13A

C809

2200/25

C810

2200/25

C825

2200/50

C954

10/50

D942

1SS119

D951

1SS119

C805

1/50

C806

1/50

C827

100/50

C828

100/50

C829

47/50

C801

0.1

C802

0.1

C830

47/50

C808

47/50

R805

R806

IC801

LA4450

R812

270(1/2W)

D968

1N5402M

D966

1N5402M

D967

1N5402M

D965

1N5402M

R825

680

C831

0.001

C944

4700/25

C820

11.84V

19.3V

12.42V

11.7V

19.1V

12.37V

12.5V

19.3V

13.1V

5.1V 19.1V

5.7V

19.1V

6.32V

CD-C430H,CP-C430H

– 27 –

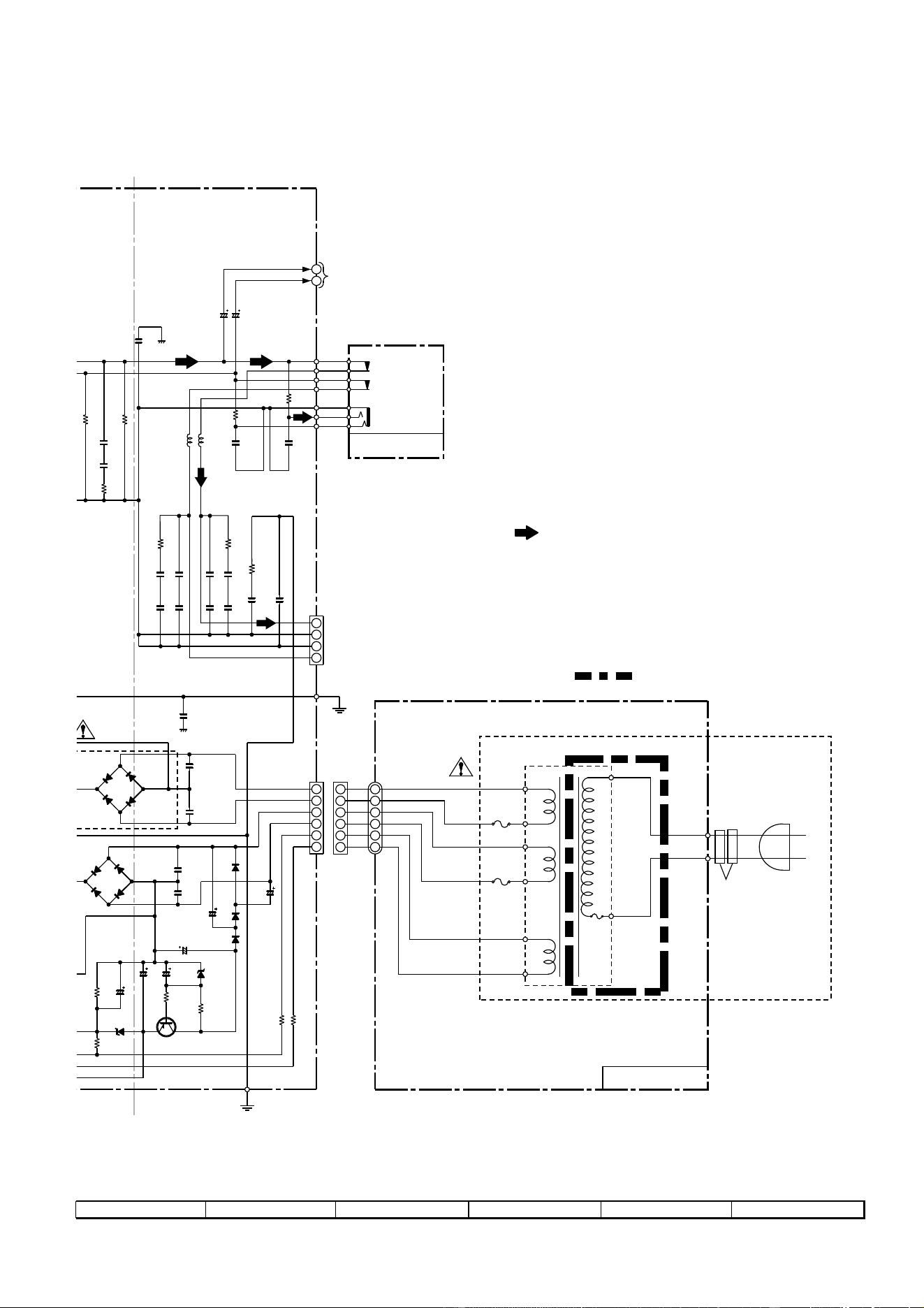

Figure 27 SCHEMATIC DIAGRAM (8/9)

8 9 10 11 12

AC POWER

SUPPLY

CORD(216)

AC 230V 50Hz

CORE

(265)

POWER PWB-C

POWER TRANS FORMER

T961

T. F.

F962

T2.5A

L 250V

F963

T1.6A

L 250V

CNS901

BI901

L832

0.29µH

L831

0.29µH

R843

R845

C849

0.022

C851

0.022

C845

0.047

C847

0.047

R844

C846

0.022

C848

0.022

C850

0.047

C852

0.047

C844

220P

C843

220P

-28.7V

-28V

-36V

When Servicing, pay attention as the area

enclosed by this line ( ) is directly

connected with AC main voltage.

SPEAKER TERMINAL

P23 8 - G

TO DISPLAY PWB

FM SIGNAL

SP_R-CH

SP_R-CH_GND

SP_L-CH_GND

SP_L-CH

(ML)

(1/2W)

(ML)

TO CD GND

HEADPHONES

PWB-A3

L_CHECK

R_CHECK

–

C976

100/35

974

12K

D971

RL104A

C972

100/50

C973

47/50

C955

0.22

C956

0.22

C855

560P

R811

270

C813

0.1(ML)

R809

4.7

C811

0.1(ML)

R836

330

R835

330

JK801

C871

0.001

C872

0.001

SO801

Q971

KTA1266 GR

R977

2.2

R978

2.2

R976

220

R972

3.3K

R973

100

D972

RL104A

D973

RL104A

C971

100/50

C974

47/50

C975

47/50

C962

0.047

C961

0.047

963

D962

RL104A

D961

RL104A

D964

104A

ZD971

MTZJ3B

ZD972

MTZJ6.2A

C453

1/50

C454

1/50

R812

270(1/2W)

CNP901

D968

402M

D966

1N5402M

D967

1N5402M

D965

5402M

4700/25

C820

CD-C430H,CP-C430H

– 28 –

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.

Figure 28 SCHEMATIC DIAGRAM (9/9)

FM SIGNAL

AM SIGNAL

AM IF

24 23 22 21 20 19

1617

15 14 13

456 78 9

10 11 12

BALUN

ANTENNA

TERMINAL

AM LOOP

ANTENNA

765 4321

22 21 20 19 18 17 16 15 14 13 12

1110

987654321

AM OSC OUT

AM OSC IN

FM AFC

AM RF IN

VSM

AM IF IN

FM/AM OUT

AM LOW CUT

R-CH OUT

MPX VCO

MPX IN

L-CH OUT

(ST/MONO//STOP)

FM IF IN

AM MIX OUT

REG

GND

STEREO

FM DET

VCC

IF OUT

PHASE

(FM/AM)

PILOT

TUN_R

TUN_L

TP302

(UJ)

AM ANT.

FM MUTE

LEVEL

(CH)

X OUT

VSS

AOUT

AIN

VDD

FM IN

AM IN

IF IN

IO2

X IN

BO1

BO2

BO3

BO4

IO1

A_GND

D_GND

A_GND

TUN_L

TUN_R

A_12V

CNP402

D_GND

TP301

ANT

GND

VCC

F OUT

IF OUT

(CH)

H:33

N,W,T:56

P25 11 - C

TO MAIN PWB

C350

0.022

C352

CF351

10.7MHz

C354

0.022

C353

0.022

R365

10K

C364

C365

0.022

C366

0.001

R331

470K

C373

0.022

C374

0.022

D311

1SS119

D312

1SS119

C327

0.001

CNP301

SO301

R399

330

R310

4.7K

C323

0.022

C321

0.022

C386

330P

C392

0.001

R371 1K

R372 1K

R373 1K

R374 1K

R360

4.7K

R398

1.2K

C384

0.001

D368

1SS119

L354

C388

C381

12P

C358

R395

5.6K

C383

0.022

C371

R368

33K

C357

2.2

C395

0.022

R307

330

R353

270

C375

3.3

CF301

R385

10K

L311

L312

2.2µH

L352

100µH

R377

C356

0.001

Q301

2SC380O

D352

1SS119

R361

4.7K

R367

R362

4.7K

R330

2.7K

R351

5.6K

R392

390

R318

470

R308

C372

R391

390

L351

100µH

C351

0.022

Q354

KTC3199GR

C368

Q353

KTC3199GR

C399

0.022

R381

10K

C391

R376

R366

10K

C394

R379

2.2K

R380

1.5K

R305

6.8K

R356

C320

0.022

R363

1.8K

C322

0.022

ZD351

MTZJ5.1B

C325

33P

IC303

LA1832

BF351

R304

680

C382

15P

C387

0.022

T351

C363

0.022

Q360

KTA1266GR

C393

IC302

LC72131

C385

0.01

C370

CF302

D362

1SS119

R364

1.8K

C367

R354

3.9K

X351

C398

100

C328

0.001

X352

R359

1.8K

D361

1SS119

C355

22P

R352

R383

5.6K

R386

47K

C396

100

R315

R355

3.3K

D363

1SS119

R387

22K

R384

12K

Q361

KRC107M

ZD352

MTZJ3.9B

D364

1SS119

CNP303

T302

VR351

10K(B)

L353

1mH

C334

6.8P

R320

10K

C341

0.022

R358

8.2K

C362

3.3

C361

0.022

C342

0.022

R323

100K

C332

0.022

C331

0.047

C397

220P

C390

470P

D367

1SS199

FE301

R382

150

14 15

SRS CIRCUIT

A+12V

TUNER PWB-B

CNP401

P25 11 - B

TO MAIN PWB

SRS_L

OUT_L

SRS_GND

IN_R

SRS_R

GND

CR1

CR2

CR3

CR4

R_OUT

L_OUT

Vref

CL1

CL2

CL3

CL4

C_IN

R_IN

L_IN

MODE

C_OUT

VCC

PN_IN

PN_OUT

S_IN

S_OUT

SRS 1/2

SRS_GND

(ML)

SRS_L

SRS_R

C210

100/16

R209

R201

33K

R217

R218

R207

Q205

K246 GR

CNP201

Q201

KTC3203 Y

R213

2.2K

C201

0.022

C202

0.47/50

R210

1.2K

C200

100/16

R234

100

R216

4.7K

C203

0.0047

R203

22K

R206

3.9K

C219

0.33/50

R204

1.5K

R200

10K

R205

47K

IC201

SRS5250S

R215

4.7K

C223

2.2/50

R212

4.7K

R208

R202

100K

C240

0.022

C224

2.2/50

C220

100/16

D201

1SS119

R233

22K

R228

Q206

KRC107 M

R370 1K

R375 1K

9.5V

0.8V

0.2V

11.9V

11.5V

0.3V

4.0V

4.9V

11.0V

10.6V

11.2V

CD-C430H,CP-C430H

– 29 –

VOLTAGE

2.1V

0.3V

3.4V

2.1V

1.8V

2.1V

NO.

VOLTAGE

IC1

1.8V

1.7V

1.8V

1.6V

4.4V

3.8V

1.7V

1.8V

4.4V

NO.

VOLTAGE

IC2

5.2V

2.2V

0.7V

2.2V

NO.

VOLTAGE

IC5

5.1V

0.1V

5.1V

4.2V

NO.

VOLTAGE

IC91

0.6V

1.3V

0.6V

3.7V

0.6V

0.8V

0.6V

NO.

VOLTAGE

IC101

4.9V

9.8V

4.9V

NO.

VOLTAGE

IC201

4.9V

0.2V(3.5V)

0V(0V)

2.4V(2.6V)

0V(0V)

0V(4.3V)

4.5V(4.4V)

4.3V(4V)

10.5V(9.8V)

4V(0V)

4.6V(5.2V)

0V(0V)

0V(2.5V)

4V(0.2V)

0V(0V)

2.3V(0V)

4.3V(5.2V)

0.9V(0.9V)

2.4V(1.1V)

0V(0V)

2.5V(2.8 V)

NO.

VOLTAGE

IC302

4.8V(5.2V)

0V(0V)

2.13V(2.14V)

4.6V(5V)

2.1V(2.1V)

4.5V(4.4V)

2.5V(3.5V)

4.6V(5.1V)

0V(0V)

3.4V(2V)

3.4V(1.2V)

1.3V(1.4V)

3.6V(2.2V) <2V>

1.3V(1.4V)

2.1V(2.1V)

2.5V(0V)

2.4V(1.1V)

0V(2V)

1.5V(1.5V)

2.4V(2.1V)

2.4V(2.0V)

4.6V(5.1V)

3V(5.6 V)

NO.

VOLTAGE

IC303

5.1V

4.7V

5.1V

4.7V

4.4V

4.7V

5.1V

10.2V

5.1V

NO.

VOLTAGE

IC401

0.6V

3.8V

0.12V

4.4V

0.24V

4.4V

–24.7V

4.4V

NO.

VOLTAGE

IC701

4.4V

0.41V

–18V

–21.2V

4.4V

2.7V

11.7V

4.4V

–11.5V

–27.8V

NO.

VOLTAGE

–24.8V

–27.8V

–24.4V

–27.8V

–24.4V

–24.5V

–14.8V

–24.5V

–21.2V

–27.8V

–18V

–28V

–11.5V

–24.4V

14.7V

31.8V

14.05V

24.7V

14.19V

24.8V

1.24V

5.3mV

26.7V

2.25V

5.2mV

1.23V

NO.

VOLTAGE

IC801

CD-C430H,CP-C430H

– 30 –

WAVEFORMS OF CD CIRCUIT

5ms

0.50 V

IC1 20 F.E

5ms

5.0 V

IC1 54 DRF

STOP PLAY

FOCUS SERCH

0.5ms

1.00 V

0.5ms

5.0 V

HFL

0.5ms

5.0 V

TES

CUE

0.5ms

1.00 V

0.5ms

5.0 V

HFL

0.5ms

5.0 V

TES

REVIEW

50ms

10.0 V

JP+

CUE

50ms

10.0 V

JP-

50ms

0.50 V

50ms

1.00 V

0.5ms

10.0 V

JP+

0.5ms

10.0 V

JP-

0.5ms

0.50 V

0.5ms

1.00 V

REVIEW

50ms

10.0 V

JP+

50ms

10.0 V

JP-

50ms

0.50 V

50ms

1.00 V

0.5ms

10.0 V

JP+

0.5ms

10.0 V

JP-

0.5ms

0.50 V

0.5ms

1.00 V

PLAY

20ms

1.00 V

SPO

NORMAL DISC

TN0=01

20ms

2.00 V

CLV+

PLAY

TCD-712 (140mm)

TN0=01

50ms

1.00 V

SPO

50ms

2.00 V

CLV+

PLAY

TCD-712

100mV

SLD

0.5s

100mV

SLD

CD-C430H,CP-C430H

– 31 –

TROUBLESHOOTING (CD SECTION)

When the CD does not function

When the CD section does not operate When the objective lens of the optical pickup is dirty,this section may not operate.Clean

the objective lens,and check the playback operation.When this section does not operate even after the above step is taken,check

the following items.

Remove the cabinet and follow the troubleshooting instructions.

"Track skipping and/or no TOC(Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens.

Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.

Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.

Do not touch the lens with the bare hand.

• When the turntable fails to stop.

Is from 5 V till 2.5V down pulse (approx. 300 ms)

Check the SWM3 and the wiring from the IC701 pin 21 to the

SWM3.

input into the IC701 pin 21 when the turntable is rotating?

2.5V

Yes

Check IC2 pin26 Q91 and Q93 and the periphery.

Check the MECHA UP SW and the wiring from the IC701 pin

21 to the MECHA UP SW.

Yes

Is there following voltage input on the IC701 pin 21 in the

specific state?

When the CD mechanism is moved up: 0V

In other states: 4.3V

Yes

Is there following voltage input on the IC701 pin 21 in the

specific state?

In other states: 4.3V

When the CD mechanism is moved up: 0V

• When turntable fails to move.

Check the MECHA UP SW and the wiring from the IC701 pin

21 to the MECHA UP SW.

Is 4V output from the Q91 emitter during operation stated

above?

Yes

Check the wiring of IC2 pin 26 and Q93 pin 2.

Is L output from the IC2 pin 26 during SEC when the disc skip

switch is pressed?

Yes

Check turntable motor and turntable mechanism.

Check Q91, Q93 and the periphery.

IC701 defective.

IC2 defective.

CD-C430H,CP-C430H

– 32 –

• When the CD tray fails to open or close.

Is there following voltage input in specific state of IC701 pin 19?

Open state: 0V

Close state: 0V

Intermediate state between open state and close state: 4.3V

Is H output to IC2 pin 24 or 25 for 7 seconds when the OPEN/

CLOSE key is pressed?IC91 is defective. Replace it.

Is 4V output between IC91 pins 3 and 7 during operation

stated above?

Check the loading motor (M1) and the loading mechanism.

Yes

IC2 defective.

Check the periphery of IC91.

IC91 defective.

Check the OPEN CLOSE SW and the wiring from the IC701

pin 19 to the OPEN CLOSE SW.

Check the wiring of the IC2 pins 24 and 25, IC91 pins 1 and 3.

• The CD function will not work.

The CD operating keys don't work.

Check the CD, DSP, power supply, and 16.93 MHz clock, and

reset terminal.

Check the waveform of SCK, SO (DATA) and SI (COMM).

Yes

See if the pick-up is in the pick-up in PICKUP IN SW position.

If the items mentioned above are OK, check the main

microcomputer IC701.

Yes

• The CD operating keys work.

Check the Focus - HF system.

Playback can be performed without a disc.

Focus search OK

Does the pick-up move up and down twice?

Does the output waveform of IC1(16)(FD) match that shown in

Fig. 32?

Check the IC1(50)(CLK) line, 4MHz.

Check the microcomputer data on pins (51)(CL), (52)(DAT)

and (53)CE.

Check the area around IC5-CNP2.

Yes

Figure 32

Focus search is

performed two

times when play

operation is done

without disc.

0.5s

0.50 V

IC1 16 FD

0.5s

0.50 V

IC1 7 TE

CD-C430H,CP-C430H

– 33 –

• Playback can only be performed when a disc is

loaded.

Is HF waveform normal (see the Fig.33-1, 2)?

Check the tracking system.

Is the Focus servo active? (Can you hear it working?)

Check the laser diode driver.

Check the area around IC1(16) - (21) (focus servo circuit).

Yes

Does the DRF signal change from "L" to "H"?

Yes

If the disc is not turning, the DRF

should not change to "H".

Level is abnormal.

Yes

Waveform is unstable.

Check the spin system.

Yes

Check the periphery of

IC1 pins 41 and 42.

Check the spin system.

Figure 33-2

Figure 33-1

Waveform in case of

normal play-back

1.0V/DIV

0.5µsec/DIV(DC)

(When playing

back the disc)

0.5s

1.00 V

IC1 16 FD

0.5s

10.0 V

IC2 13 CLV+

0.5s

10.0 V

IC1 54 DRF

0.5s

2.00 V

IC1 7 TE

• Check the tracking system.

Check waveform of IC1 pin 7 (TE).

Play is possible in

TEST mode.

Although IL is possible,

play is impossible.

Check the periphery

of IC 1 pin 14.

Normal jump is impeded,

and the program top

cannot be reached.

Check the periphery of IC 1

pin 8 to pin 15, and IC 5 to

CNP2.

The waveform shown in

Fig.33-3 appears, and no-

disc state appears soon.

Tracking servo is

inoperative.

Yes

Data cannot be read.

Check the VCO-PLL system.

Yes

5ms

1.00 V

IC1 7 TE

5 ms

5.0 V

IC1 54 DRF

Figure 33-3

CD-C430H,CP-C430H

– 34 –

• Checking the spin system.

Yes

Play operation is performed without disc.

The turntable rotates a little.

The turntable fails to rotate or rotates at high speed.

Yes

The spin driver circuit is normal.

Check the periphery of IC1 pins 23 to 27, pin 39, and pin 40, IC2

pin 12 and pin 13, IC5 to CNP3.

Yes

• Checking the VCO-PLL system

Figure 34

Play operation is performed when disc exits.

Yes

Although HF waveform is normal, TOC data cannot be read.

Yes

Check PDO waveform (Fig. 34).

Abnormal

Check the IC1 pins 43 and 44, IC2 pins 3, 5, 7, 10, and 11.

Stop --> Play

As VCO freque-

ncy is locked at

4.32 M Hz, voltage

of PDO rises and

stabili- zes.

0.5s

1.00 V

IC2 3 PDO

0.5s

1.00 V

IC2 16 FD

• Although HF waveform is normal and the time

indication is normal, no sound is emitted.

Check IC 2 pin 48 (EFLG).

Check IC2 pins 37, 40.

Check IC 401 and POWER AMP IC 801.

Abnomal

Yes

Usually, the number of pulses of flawless disc is 100 pulses/sec

or less.

CD-C430H,CP-C430H

– 35 –

1 DEFI Input Input terminal of defect detection signal (DEF). (Connected to OV when not used.)

2 TAI Input For PLL Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

3 PDO Output Output terminal of phase comparison for external VCO control.

4 VVSS — Ground terminal for integrated VCO. Surely connected to 0V.

5 ISET Input Resistance connection terminal for current adjustment of PDO output.

6 VVDD — Power terminal for integrated VCO.

7 FR Input VCO frequency range adjustment.

8 VSS — Ground terminal of digital system. Surely connected to 0V.

9 EFMO Output For slice level control EFM signal output terminal.

10 EFMIN Input EFM signal input terminal.

11 TEST2 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

12 CLV+ Outout Output for disk motor control. 3 values can be output with the commands.

13 CLV- Output Output for disk motor control. 3 values can be output with the commands.

14 V/P Output Monitor output terminal for automatic switch of rough servo/phase control.

"H" for rough servo, and "L" for phase servo.

15 HFL Intput Input terminal of track detection signal. Schmit input.

16 TES Input Input terminal of tracking error signal. Schmit input.

17 TOFF Output Tracking OFF output terminal.

18 TGL Output Output terminal for switch of tracking gain "L" increases the gain.

19 JP+ Output Output for track jump control. 3 values can be output with the commands.

20 JP- Output Output for track jump control. 3 values can be output with the commands.

21* PCK Output Clock monitor terminal for EFM data replay. 4,3218MHz as the phase clock.

22* FSEQ Output Output terminal synchronous signal detection. "H" is output when synchronous signal detected

by EFM signal matches synchronous signal internally generated.

23 VDD — Power terminal of digital system.

24 CONT1 Input/Output General purpose input/output terminal 1

25 CONT2 Input/Output General purpose input/output terminal 2

26 CONT3 Input/Output General purpose input/output terminal 3

27* CONT4 Input/Output General purpose input/output terminal 4

28* CONT5 Input/Output General purpose input/output terminal 5

29* EMPH Output Difference monitor terminal At "H", deemphasis disk is being replayed.

30* C2F Output C2 flag output terminal.

31* DOUT Output Output terminal of digital OUTPUT. (EIAJ format)

32 TEST3 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

33 TEST4 Input Input terminal for test. Pull-down resistor is integrated. Surely connected to 0V.

34* N.C. — Terminal not used. Open during operation.

35* MUTEL Output L channel 1 bit DAC Mute output terminal for L channel.

36 LVDD — Power terminal for L channel.

37 LCHO Output L channel output terminal.

38 LVSS — Ground terminal for L channel Surely connected to 0V.

39 RVSS — R channel 1 bit DAC Ground terminal for R channel Surely connected to 0V.

40 RCH0 Output R channel output terminal.

41 RVDD — Power terminal for R channel.

42* MUTER Output Mute output terminal for R channel.

43 XVDD — Power terminal for quartz oscillation.

44 XOUT Output Ground terminal of 16.9344 MHz quartz oscillator.

45 XIN Input Ground terminal of 16.9344 MHz quartz oscillator.

46 XVSS — Ground terminal for quartz oscillation. Surely connected to 0V.

47* SBSY Output Output terminal of synchronous signal of subcode block.

48* EFLG Output Correction monitor terminal of C1, C2, single and double.

IC2 VHiLC78623D-1:Servo/Signal Control(LC78623D) (1/2)

FUNCTION TABLE OF IC

Pin No.

FunctionTerminal Name

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Controlled with serial data command

from micro computer.

When not used, set it as the input terminal and

open it by connecting to 0V, or set it as the output

terminal and open it.

CD-C430H,CP-C430H

– 36 –

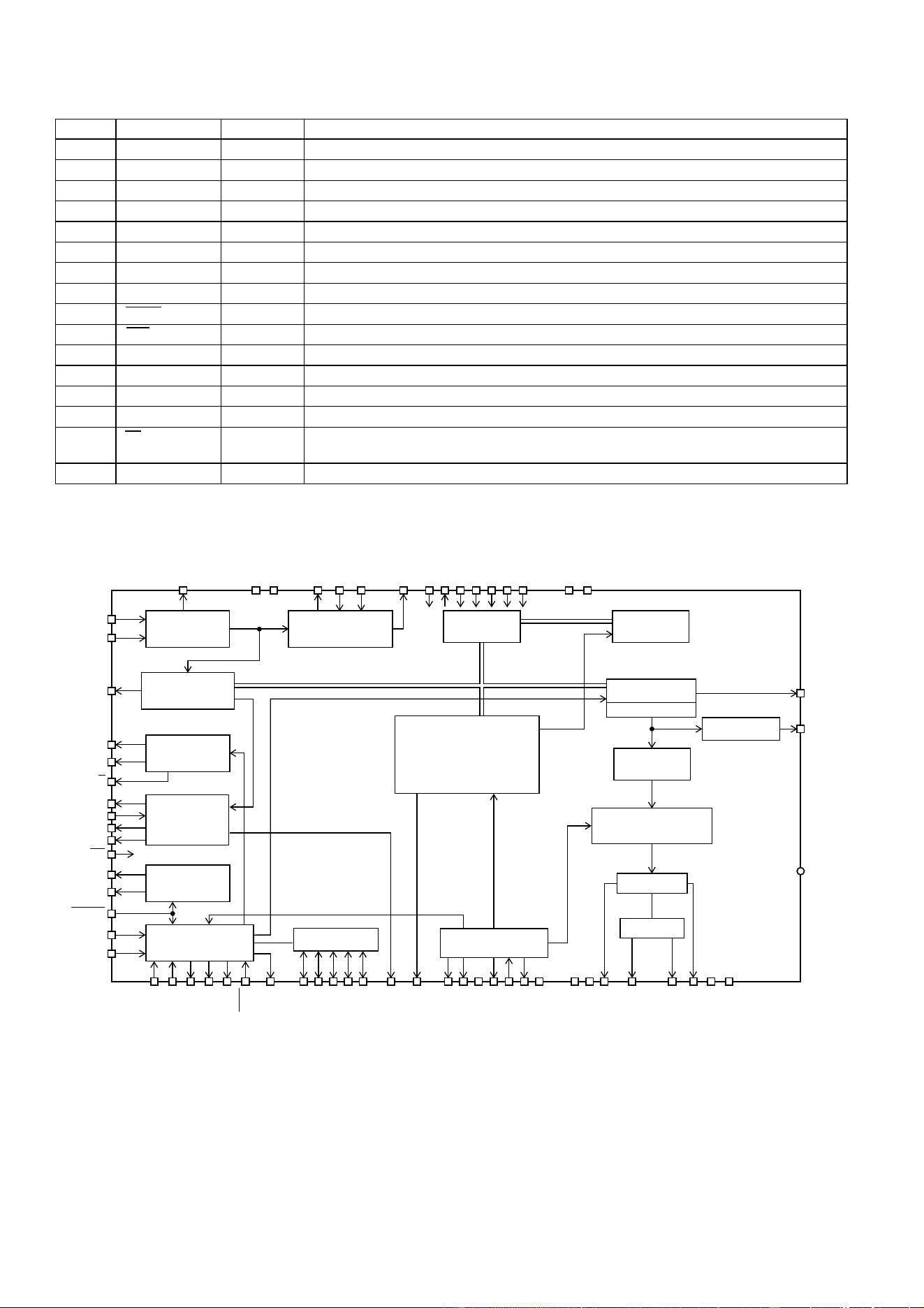

IC2 VHiLC78623D-1:Servo/Signal Control(LC78623D) (2/2)

FunctionTerminal Name

Input/Output

49* PW Output Output terminal of subcodes P, A, R, S, T, U and W.

50* SFSY Output Output terminal of synchronous signal of subcode frame. It drops when subcode stands by.

51 SBCK Input Clock input terminal to read subcode. Schmit input (Connected to 0V when not used.)

52* FSX Output Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.

53 WRQ Output Output terminal to stand by output of subcode Q.

54 RWC Input Input terminal of read/write. Schmit input.

55 SQOUT Output Output terminal of subcode Q.

56 COIN Input Command input terminal from microcomputer.

57 CQCK Input Clock input terminal to fetch command input, or pick up subcode from SQOUT. Schmit input

58 RES Input Reset input terminal of LC78622. When turning on power, set it at "L".

59* TST11 Output Output terminal for test. Used in the open state ("L" output as ordinary).

60* 16M Output Output terminal of 16.9344Hz.

61 4.2M Output Output terminal of 4.2336MHz.

62 TEST5 Input Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.

63 CS Input Chip selection input terminal. Pull-down resistor is integrated.

Connected to 0when not controlled.

64 TEST1 Input Input terminal for test Pull-down resistor is integrated. Surely connected to 0V.

Pin No.

Note: The same potential must be supplied to the power terminals (VDD, VVDD, LVDD, RVDD, XVDD).

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

DEFI

EFMIN

FSEQ

V/P

SBCK

SBSY

SFSY

WRQ

SQOUT

COIN

RWC

CQCK

HFL

TES

TOFF

JP-

JP+

RES

TGL

CONT1

CONT2

CONT3

CONT4

CONT5

EMPH

EFLG

16M

4.2M

XVss

FSX

XIN

XOUT

RVss

MUTER

RCHO

LCHO

MUTEL

LVss

(NC)

DOUT

C2F

EFMO

VVss

PDO

I SET

PCK

TAI

TSTI1

TEST1

TEST2

TEST3

TEST4

TEST5

Vss

CLV+

CLV-

Slice level

control

VCO colck oscillation

clock control

2KÅ~8bit

RAM

RAM address

generator

Interpolation mute

Bilingual

Digital OUT

Digital

attenuator

X4 oversampling

digital filter

1bitDAC

L.P.F

XTAL system timing

generator

General-use port

Servo commander

É COM

Interface

Subcode division

QCRC

CLV

Digital servo

Sync detection

EFM demodulation

Flag processing of C1/C2

error detection and correction

Figure 36 BLOCK DIAGRAM OF IC

CD-C430H,CP-C430H

– 37 –

IC1 VHiLA9241M/-1:Servo Amp.,(LA9241M) (1/2)

1 FIN2 Connection pin for photodiode of pickup.

RF signal is generated through addition with FIN pin, and FE signal is generated through subtraction.

2 FIN1 Connection pin for photodiode of pickup.

3 E Connection pin for photodiode of pickup. TE signal is generated through subtraction with F pin.

4 F Connection pin for photodiode of pickup.

5 TB Pin for input of DC component of TE signal.

6 TE- Pin to connect gain setting resistor of TE signal to TE signal.

7 TE TE signal output pin.

8 TESI TES (Track error sense) comparator input pin. TE signal is band-passed and input.

9 SCI Input pin for shock detection.

10 TH Pin to set time constant of tracking gain.

11* TA TA amplifier output pin.

12 TD- Pin to compose tracking phase compensation constant between TD and VR pins.

13 TD Pin to set tracking phase compensation.

14 JP Pin to set amplitude of tracking jump signal (kick pulse).

15 TO Tracking control signal output pin.

16 FD Focusing control signal output pin.

17 FD- Pin to compose focusing phase compensation constant between FD and FA pins.

18 FA Pin to compose focusing phase compensation constant between FD-/FA-pins.

19 FA- Pin to compose focusing phase compensation constant between FA and FE pins.

20 FE Output pin of FE signal.

21 FE- Pin to connect gain setting resistor of FE signal across TE pin.

22 AGND GND for analog signal.

23 SP Single end output for CV+ and CV- pin input.

24 SPI Spindle amplifier input.

25 SPG Pin to connect gain setting resistor in the 12cm mode of spindle.

26 SP- Pin to connect spindle phase compensation constant together with SPD pin.

27 SPD Spindle control signal output pin.

28 SLEQ Pin to connect thread phase compensation constant.

29 SLD Thread control signal output pin.

30 SL- Input pin of thread feed signal from micro computer.

31 SL+ Input pin of thread feed signal from micro computer.

32 JP- Input pin of tracking jump signal from DSP.

33 JP+ Input pin of tracking jump signal from DSP.

34 TGL Input pin of tracking gain control signal from DSP. TGL = Gain low at "H"

35 TOFF Input pin of tracking off control signal from DSP. TOFF = Off at "H"

36 TES Output pin of TES signal to DSP.

37 HFL (HIGH FREQUENCY LEVEL) is used to judge whether main beam is positioned on the bit or on the mirror.

38 SLOF Thread servo off control input pin.

39 CV- Pin to input CLV error signal from DSP.

40 CV+ Pin to input CLV error signal from DSP.

41 RFSM RF output pin.

42 RFS- Pin to set gain of RF and set 3T compensation constant together with RFSM pin.

43 SLC (SLICE LEVEL CONTROL) is the output pin to control of the level of the data slice with RF waveform DSP.

44 SLI Input pin to control the level of data slice with DSP.

45 DGND GND pin in the digital system.

46 FSC Output pin for focus search smoothening capacitor.

47 TBC (Tracking Balance Control) Pin to set EF balance variable range.

48* NC No connect.

49 DEF Defect detection output pin of disk.

50 CLK Reference clock input pin. 4.23MHz of DSP is input.

Pin No.

Port Name

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-C430H,CP-C430H

– 38 –

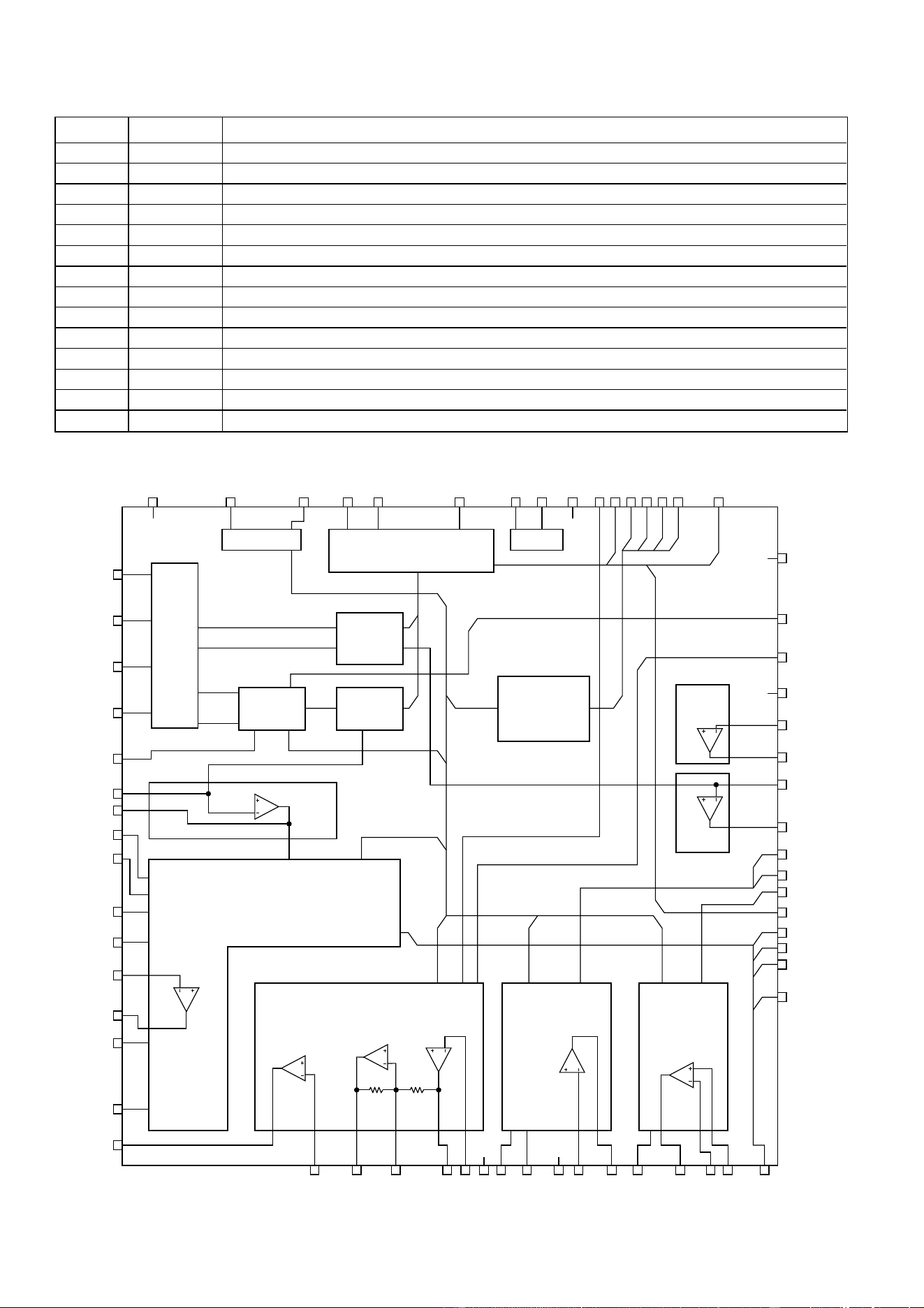

IC1 VHiLA9241M/-1:Servo Amp.,(LA9241M) (2/2)

Pin No.

Port Name

Function

51 CL Micro computer command clock input pin.

52 DAT Micro computer command data input pin.

53 CE Micro computer command chip enable input pin.

54 DRF (DETECT RF) RF level detection output.

55 FSS (Focus Serch Select) Pin to switch focus search mode. (± search/+ search for reference voltage)

56 VCC2 VCC pin for servo system and digital system.

57 REFI Pin to connect pass control for reference voltage.

58 VR Reference voltage output pin.

59 LF2 Pin to set defect detection time constant of disk.

60 PH1 Pin to connect capacitor for peak hold of RF signal.

61 BH1 Pin to connect capacitor for bottom hold of RF signal.

62 LDD APC circuit output pin.

63 LDS APC circuit output pin.

64 VCC1 RF system VCC pin.

Figure 38 BLOCK DIAGRAM OF IC

1FIN2

FIN1

TE-

TESI

SCI

TD-

FD-

FA FA-

FE FE- AGND SP SPI SPG SP- SPD SLEQ SLD SL- SL+ JP-

JP+

TGL

TOFF

TES

HFL

SLOF

CV-

CV+

RFSM

RFS-

SLC

SLI

DGND

FSC

TBC

DEFCLKCLDATCEDRFFSSVCC2REFIVRLP2PH1BH1LDDLDS

SLC

RF AMP

F.SERVO & F.LOGIC SPINDLE SERVO SLED SERVO

VCC1

17 18 19 20 21 2322 25 26 27 28 29 30 31 32

495051525354555657585961 60626364

APC

RF DET

REF

VCA

INTER FACE

BAL

µ-COM

I/V

T.SERVO & T.LOGIC

CD-C430H,CP-C430H

– 39 –

1-7 FIP6-0 FL DRIVER Output Segment Output

8 VDD — Connect with BACK UP VDD

9 P27 TAPE BIAS Output TAPE BIAS ON: H

10 P26 TAPE REC Output TAPE REC. ON:L

11 P25 T1/T2 Output TAPE2 PLAY:L

12 P24 CD DSP WRQ Input CD DSP Write request

13 P23 CD DSP RWC Output CD DSP Read write control

14 SCK1 CD DSP CQCK Output CD DSP Clock

15 SO1 CD DSP COIN Output CD DSP Comand

16 SI1 CD DSP SQOUT Input CD DSP Code Q out

17 RESET RESET Input Reset Input: L

18 P74 CD DSP RES Outout CD DSP RES interface signal

19 P73

CD T/T OPEN/CLOSE

Input CD Turntable open close

20 AVSS — — Connect with GND

21 ANI7 CD UP/DOWN Intput CD mecha up/down CD disc no

CD DISC NO

22 ANI6 T2 RUN PLSE Input TAPE2 Run pulse

23 ANI5 L-CH CHECK Input/Output For TEST mode

24 ANI4 R-CH CHECK Input/Output For TEST mode

25 ANI3 KEY INPUT 3 Input Key input 3

26 ANI2 KEY INPUT 2 Input Key input 2

27 ANI1 KEY INPUT 1 Input Key input 1

28 ANI0 Initial setting input Input Initial setting input

29 AVDD AVDD — Connect with BACK UP VDD

30 AVREF AVREF — Connect with UNBACK UP VDD

31 P04 SRS Input SRS provided/not provided

32* XT2 — Non connect

33 VSS — Connect with GND

34 X1 X1 Input MAIN CLOCK 4.19MHz

35 X2 X2 Output MAIN CLOCK 4.19NHz

36 P37 C

B CL Output C

B Bus clock

37 P36 C

B CE Output C

B Bus chip enable

38 P35 C

B DI Output C

B Bus comand

39 P34 C

B DO Input C

B Bus data

40 P33 CD DRF Input Data read fiug from DSP

41 P32 CD PUIN Input L: Innermost periphery

42 P31 CD SL+ Output CD pickup slide motor control

43 P30 CD SL- Output CD pickup slide motor control

44 P03 POWER Output POWER ON: H

45 P02 TUNER SD Input Tuner SD Signal

46 INPT1 SYSTEM STOP Input System Stop Signal

47 INPT0 REMOCON Input Remote Control Code Input

48 IC INTERNALLY — Connect with GND

CONECTED

49* P72 P.B MUTE Output P.B MUTE ON: H

50 P71 TAPE SOL. Output TAPE SOL. ON: L

51 P70 TAPE MOTOR Output TAPE MOTOR ON: L

52 VDD VDD — Connect with BACK UP VDD

53 P127 MIC MUTE Input MIC MUTE: L

CD STOP, TAPE STOP state: Mute cancel

54* P126 — Output Non connect

55 P125 TAPE F.P. Input TAPE FOOL PROOF REC: L

IC701 RH-iX0191AWZZ:System Microcomputer (IX0191AW) (1/2)

Port Name Terminal NamePin No. Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

CD-C430H,CP-C430H

– 40 –

56 P124

TAPE1 RUN PULSE

Input TAPE1 Run pluse

57 P123

TAPE MECHA STOP

Input Tape mecha up state: L

58*-60* P122-P120 DISC1-DISC3 Output Non connect

61-70 FIP25-16 FL DRIVER Output Segment output

71 VLOAD VLOAD Output Connect with VPP

72-77 FIP15-FIP10 FL DRIVER Output Segment output

78* P97 — Output Non connect

79,80 FIP8,FIP7 FL DRIVER Output Segment output

Port Name Terminal NamePin No. Input/Output

IC701 RH-iX0191AWZZ:System Microcomputer (IX0191AW) (2/2)

Figure 40 BLOCK DIAGRAM OF IC

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

FIP6

FIP5

FIP4

FIP3

FIP2

FIP1

FIP0

P27

P26

P25

P24

P23

SCK1

SO1

SI1

RESET

P74

P73

AVSS

AN17

AN16

AN15

AN14

CONNECT WITH VDD

TAPE BIAS

TAPE REC

T1/T2

CD DSP WRQ

CD DSP RWC

CD DSP CQCK

CD DSP COIN

CD DSP SQOUT

RESET INPUT

CD DSP RES

CD T.T OPEN/CLOSE

CONNECT WITH GND

CD UP/DOWN DISC NO

T2 RUN PLSE

Lch INPUT

Rch INPUT

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

FIP22

FIP23

FIP24

FIP25

P120

P121

P122

P123

P124

P125

P126

P127

P70

P71

P72

INTP0

INTP1

P02

P03

P30

P31

P32

TAPE MECHA STOP

T1 RUN PLSE

TAPE F.P.

VOL.0 MUTE

MIC MUTE

CONNECT WITH VDD

TAPE MOTOR

CONNECT WITH GND

REMOCON INPUT

SYSTEM STOP

TUNER SD

POWER

DISC 1

DISC 2

DISC 3

FIP7

FIP8

P97

FIP10

FIP11

FIP12

FIP13

FIP14

FIP15

LOAD

FIP16

FIP17

FIP18

FIP19

FIP20

FIP21

ANI3

ANI2

ANI1

ANI0

REF

XT1

XT2

Vss

P37

P36

P35

P34

P33

KEY INPUT 3

KEY INPUT 2

KEY INPUT 1

Initial Setting Input

CONNECT WITH VDD

CONNECT WITH UN BACK UP VDD

SRS

GND TERMINAL

MAIN CLOCK

DRF

TAPE SOL.

P.B MUTE

CD SL-

CD SL+

CD PUIN

FL DRIVER

DIGIT

FL DRIVER

SEGMENT

FL DRIVER

SEGMENT

PB CrO2

µPD78045

C B

Function

CD-C430H,CP-C430H

– 41 –

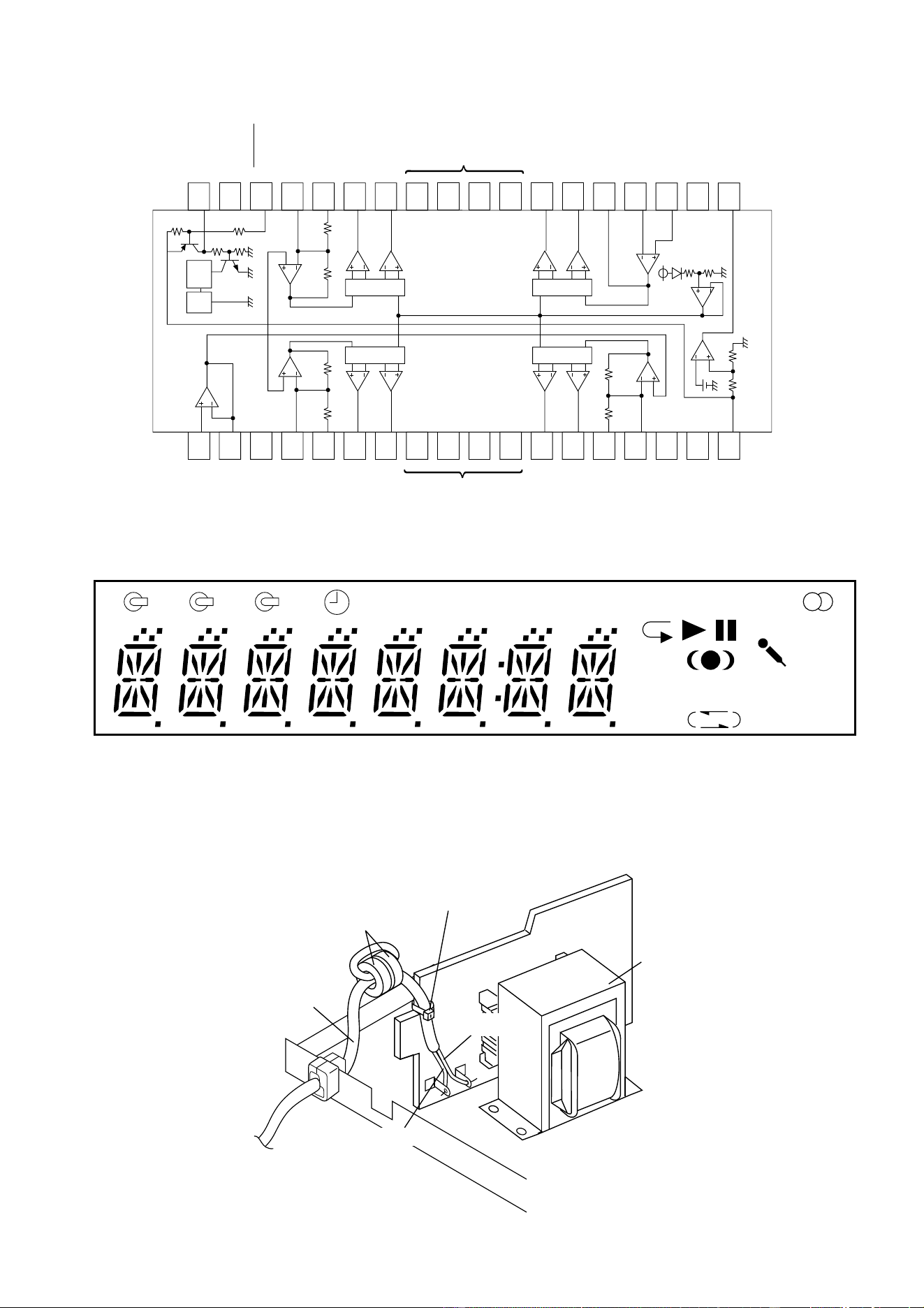

FL701 : VVKFiP9EM7R-1 FL Display

Figure 41-2 FL DISPLAY

1 2 3

REC

X-BASS

SLEEP

MEMORY

WIDE

kHz

MHz

SRS

RDS

DOLBY

WIRING OF PRIMARILY SUPPLY LEADS (FOR UK ONLY)

Figure 41-3

If any one of the bands shown in Fig. 41-3 is removed for some

reason, be sure replace it to the original position and same

appearance as before.

Power

Transformer

Nylon Band 80mm

92LN-BAND 1318A

AC Power

Supply Cord

Brown

Blue

Core

IC5 VHiM5674FP-1:Focus/Tracking/Spin/Slide Driver (M5674FP)

Figure 41-1 BLOCK DIAGRAM OF IC

OP1

15K

25K

23K

TSD

Regbase

Vcc

Vctl3(+)

Vctl3(-)

Vctl3(out)

VM3(-)

VM3(+)

GND

VM4(+)

VM4(-)

Vctl4(-)

Gain4

Standby

SS.GND

Standby

Vrel-in

Vrel-out

N.C

Gain1

Vctl(-)

VM1(-)

VM1(+)

GND

VM2(+)

VM2(-)

Vctl2(-)

Gain2

N.C

Vcc

Reg5V

Stand

OP1 OP1

10K 10K

10K

Vcc

10K

10.8K 3.6K

10K 10K

OP1

CD-C430H,CP-C430H

– 42 –

— M E M O —

CD-C430H,CP-C430H

– 43 –

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.

Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

CD-C430H

CP-C430H

MODEL

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the

following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT ........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,

"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%

carbon-film type.

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,

Please call Toll-Free;

1-800-BE-SHARP

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C430H,CP-C430H

– 1 –

INTEGRATED CIRCUITS

IC1 VHILA9241M/-1 J AS Servo Amp.,LA9241M

IC2 VHILC78623D-1 J AY Servo/Signal Control,LC78623D

IC5 VHIM56748FP-1 J AR Focus/Tracking/Spin/Slide

Driver,M56748FP

IC91 VHITA7291S/-1 J AH Loading Motor Driver, TA7291S

IC101 VHIAN7345K/-1 J AM Record/Playback Amp.,AN7345K

IC201 VHISRS5250S-1 J BL SRS,SRS5250S

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131

IC303 VHILA1832//-1 J AR FM IF Det./FM Mpx./ AM IF,

LA1832

IC401 VHILC75394E-1 J AX Audio Processor,LC75394E

IC701 RH-IX0191AWZZ J AZ System Microcomputer,

IX0191AW

IC801 VHILA4450//-1 J AH Power Amp.,LA4450

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q81 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q91 VS2SB561-C/-1 J AC Silicon,PNP,2SB561 C

Q93 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F

Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR

Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M

Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q201 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

Q205 VS2SK246GR/-1 J AB FET,2SK246 GR

Q206 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O

Q353,354 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

Q361 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q701 VSKRC107M//-1 J AC Digital,NPN,KRC107 M

Q705 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y

Q706 VS2SB561-C/-1 J AC Silicon,PNP,2SB561 C

Q707 VSKRC102M//-1 J AC Digital,NPN,KRC102 M

Q708,709 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q941,942 VS2SD2012Y/-1 J AF Silicon,NPN,2SD2012 Y

Q943 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q952 VS2SD2012Y/-1 J AF Silicon,NPN,2SD2012 Y

Q953 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

Q971 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR

DIODES

D2 VHD1SS119//-1 J AA Silicon,1SS119

D5 VHD1SS119//-1 J AA Silicon,1SS119

D7 VHD1SS119//-1 J AA Silicon,1SS119

D91 VHD1SS119//-1 J AA Silicon,1SS119

D201 VHD1SS119//-1 J AA Silicon,1SS119

D311,312 VHD1SS119//-1 J AA Silicon,1SS119

D352 VHD1SS119//-1 J AA Silicon,1SS119

D361~364 VHD1SS119//-1 J AA Silicon,1SS119

D367,368 VHD1SS119//-1 J AA Silicon,1SS119

D401~404 VHD1SS119//-1 J AA Silicon,1SS119

D701~706 VHD1SS119//-1 J AA Silicon,1SS119

D708,709 VHD1SS119//-1 J AA Silicon,1SS119

D941,942 VHD1SS119//-1 J AA Silicon,1SS119

D951 VHD1SS119//-1 J AA Silicon,1SS119

D961~964 VHDRL104A//-1 J AB Silicon,RL104A

D965~968 VHD1N5402M/-1 J AE Silicon,1N5402M

D971~973 VHDRL104A//-1 J AB Silicon,RL104A

PHM1 VHPI31535CD-1 J AG Phote Interrupter

ZD351 VHEMTZJ5R1B-1 J AC Zener,5.1V,MTZJ5.1B

ZD352 VHEMTZJ3R9B-1 J AC Zener,3.9V,MTZJ3.9B

ZD701 VHEMTZJ3R3B-1 J AA Zener,3.3V,MTZJ3.3B

ZD941 VHEMTZJ130A-1 J AC Zener,13V,MTZJ13A

ZD951 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C

ZD971 VHEMTZJ300B-1 J AB Zener,3V,MTZJ3B

ZD972 VHEMTZJ6R2A-1 J AA Zener,6.2V,MTZJ6.2A

FILTERS

BF351 RFILA0009AWZZ J AE AM IF

CF301,302 RFILF0072AFZZ J AG FM IF

CF351 RFILF0003AWZZ J AK FM IF

TRANSFORMERS

T302 RCILZ0014AWZZ J AL AM Antenna

T351 RCILI0011AWZZ J AD AM IF

! T961 RTRNP0121AWZZ J BD Power

COILS

L1 VP-XHR82K0000 J AC 0.82 µH,Choke

L104 VP-MK331K0000 J AB 330 µH,Choke

L105 VP-DH1R5K0000 J AC 1.5 µH

L107,108 VP-XH2R2K0000 J AB 2.2 µH,Choke

L311 RBLN-0001AWZZ J AD Balun

L312 VP-DH2R2K0000 J AB 2.2 mmH,Peaking

L351,352 VP-DH101K0000 J AB 100 µH,Choke

L353 VP-DH102K0000 J AB 1 mH,Choke

L354 RCILL0001AWZZ J AG 3.9 mH

L700 VP-XH2R2K0000 J AB 2.2 µH,Choke

L701 VP-DH2R2K0000 J AB 2.2 mmH,Peaking

L831,832 RCILZ0137AFZZ J AA 0.29 µH

VARIABLE RESISTOR

VR351 RVR-M0999AFZZ J AB 10 kohm (B),Semi-VR

[FM Mute Level]

VIBRATORS

X351 RCRM-0075AFZZ J AD Crystal,456 kHz

X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz

XL1 RCRM-0008AWZZ J AF Ceramic,16.93 MHz

XL701 RCRSP0003AWZZ J AH Crystal,4.19 MHz

CAPACITORS

C1 VCTYMN1CY103N J AA 0.01 µF,16V

C2 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

C3 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic

C4 VCKYMN1HB102K J AA 0.001 µF,50V

C5,6 VCTYPA1CX333K J AA 0.033 µF,16V

C7 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic

C8 VCTYPA1CX683K J AA 0.068 µF,16V

C9 VCTYPA1CX473K J AA 0.047 µF,16V

C10 VCKYMN1HB181K J AA 180 pF,50V

C11 VCTYPA1CX104K J AB 0.1 µF,16V

C12 VCKYMN1HB331K J AA 330 pF,50V

C13 VCTYPA1CX104K J AB 0.1 µF,16V

C14 VCTYMN1CY103K J AA 0.01 µF,16V

C15 VCTYMN1CX472K J AA 0.0047 µF,16V

C16 VCKYMN1HB102K J AA 0.001 µF,50V

C17 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C18 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C19 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

C20 VCTYMN1CX332K J AA 0.0033 µF,16V

C21 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C22 VCTYMN1CY103N J AA 0.01 µF,16V

C24 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C25 VCTYMN1CY103N J AA 0.01 µF,16V

C30 VCCSMN1HL2R2C J AB 2.2 pF,50V

C31 VCTYMN1CX272K J AA 0.0027 µF,16V

C32 VCCSMN1HL270J J AA 27 pF,50V

C33 VCKYMN1HB102K J AA 0.001 µF,50V

C34 VCTYPA1CX333K J AA 0.033 µF,16V

C35 RC-GZA104AF1H J AB 0.1 µF,50V,Electrolytic

C37 RC-GZA227AF0J J AB 220 µF,6.3V,Electrolytic

C38 VCTYMN1CY103K J AA 0.01 µF,16V

C39 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C40 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic

C41,42 VCTYPA1CX473K J AA 0.047 µF,16V

C43,44 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic

C45 RC-GZA475AF1E J AB 4.7 µF,25V,Electrolytic

C46 VCTYMN0JY223N J AA 0.022 µF,6.3V

C50 VCTYPA1CX104K J AB 0.1 µF,16V

C51 VCTYMN1EF223Z J AA 0.022 µF,25V

C52 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

C53 VCKYBT1HB221K J AA 220 pF,50V

C54~57 VCKYMN1HB101K J AA 100 pF,50V

C58 VCTYMN1EF223Z J AA 0.022 µF,25V

C59 VCTYBT1EF223Z J AA 0.022 µF,25V

CD-C430H

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C430H,CP-C430H

C67,68 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

C69,70 VCKYMN1HB221K J AA 220 pF,50V

C81 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C91 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C92 VCTYMN1EF223Z J AA 0.022 µF,25V

C94,95 VCKYMN1HB102K J AA 0.001 µF,50V

C96 VCKYBT1HB102K J AA 0.001 µF,50V

C101,102 VCKYMN1HB102K J AA 0.001 µF,50V

C105,106 VCKYMN1HB181K J AA 180 pF,50V

C107,108 VCKYMN1HB102K J AA 0.001 µF,50V

C109 VCKZPA1HF473Z J AA 0.047 µF,50V

C111~114 VCKYMN1HB331K J AA 330 pF,50V

C115,116 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

C117,118 VCTYMN0JY183M J AA 0.018 µF,6.3V

C119,120 VCKYMN1HB561K J AA 560 pF,50V

C121,122 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C123,124 VCTYMN0JY153M J AA 0.015 µF,6.3V

C127 VCTYMN1EF223Z J AA 0.022 µF,25V

C128 RC-GZA335AF1E J AB 3.3 µF,25V,Electrolytic

C129,130 VCKYMN1HB471K J AA 470 pF,50V

C131,132 VCKYMN1HB102K J AA 0.001 µF,50V

C133,134 RC-GZA226AF1C J AB 22 µF,16V,Electrolytic

C135,136 VCTYPA1CX683K J AA 0.068 µF,16V

C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V

C141,142 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C145 RC-GZA226AF1C J AB 22 µF,16V,Electrolytic

C146 RC-GZA227AF1A J AB 220 µF,10V,Electrolytic

C147 VCTYMN1EF223Z J AA 0.022 µF,25V

C148 VCTYPA1CX823K J AB 0.082 µF,16V

C150 RC-QZA392AFYJ J AB 0.0039 µF,50V,Mylar

C151 RC-QZA273AFYJ J AB 0.027 µF,50V,Mylar

C152 RC-GZA476AF1A J AB 47 µF,10V,Electrolytic

C153 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C200 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C201 VCTYMN1EF223Z J AA 0.022 µF,25V

C202 RC-GZA474AF1H J AA 0.47 µF,50V,Electrolytic

C203 VCTYMN1CX472K J AA 0.0047 µF,16V

C210 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C217,218 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C219 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic

C220 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C223,224 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C240 VCTYMN1EF223Z J AA 0.022 µF,25V

C320~323 VCTYMN1EF223Z J AA 0.022 µF,25V

C325 VCCSMN1HL330J J AA 33 pF,50V

C327 VCKYMN1HB102K J AA 0.001 µF,50V

C331 VCKZPA1HF473Z J AA 0.047 µF,50V

C332 VCTYMN1EF223Z J AA 0.022 µF,25V

C334 VCCUMN1HJ6R8D J AB 6.8 pF (UJ),50V

C341,342 VCTYMN1EF223Z J AA 0.022 µF,25V

C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V

C352 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V

C355 VCCCPA1HH220J J AA 22 pF (CH),50V

C356 VCKYMN1HB102K J AA 0.001 µF,50V

C357 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C358 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C361 VCTYMN1EF223Z J AA 0.022 µF,25V

C362 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C363 VCTYMN1EF223Z J AA 0.022 µF,25V

C364 RC-GZA226AF1C J AB 22 µF,16V,Electrolytic

C365 VCTYMN1EF223Z J AA 0.022 µF,25V

C366 VCKYMN1HB102K J AA 0.001 µF,50V

C367,368 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C370~372 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C373,374 VCTYMN0JY223M J 0.022 µF,6.3V

C375 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C381 VCCCMN1HH120J J AA 12 pF (CH),50V

C382 VCCCMN1HH150J J AA 15 pF (CH),50V

C383 VCTYMN1EF223Z J AA 0.022 µF,25V

C384 VCKYMN1HB102K J AA 0.001 µF,50V

C385 VCTYMN1CY103K J AA 0.01 µF,16V

C386 VCKYMN1HB331K J AA 330 pF,50V

C387 VCKZPA1HF223Z J AA 0.022 µF,50V

C388 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C390 VCTYMN1HB471K J AA 470 pF,50V

C391 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C392 VCTYMN1CX102K J AA 0.001 µF,16V

C393 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C394 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C395 VCTYMN1EF223Z J AA 0.022 µF,25V

C396 RC-GZA107AF1A J AB 100 µF,10V,Electrolytic

C397 VCKYMN1HB221K J AA 220 pF,50V

C398 RC-GZA107AF0J J AB 100 µF,6.3V,Electrolytic

C399 VCTYMN1EF223Z J AA 0.022 µF,25V

C401~406 RC-QZA473AFYK J AB 0.047 µF,50V,Mylar

C407,408 VCKYMN1HB391K J AA 390 pF,50V

C409,410 RC-QZA473AFYK J AB 0.047 µF,50V,Mylar

C411,412 RC-GZA226AF1E J AB 22 µF,25V,Electrolytic

C413,414 VCKYMN1HB101K J AA 100 pF,50V

C417,418 RC-QZA184AFYJ J AC 0.18 µF,50V,Mylar

C419,420 RC-QZA683AFYJ J AB 0.068 µF,50V,Mylar

C421~424 RC-QZA184AFYJ J AC 0.18 µF,50V,Mylar

C425,426 RC-QZA333AFYJ J AB 0.033 µF,50V,Mylar

C427,428 RC-QZA392AFYJ J AB 0.0039 µF,50V,Mylar

C433,434 VCTYMN1CX272K J AA 0.0027 µF,16V

C435,436 RC-GZA226AF1C J AB 22 µF,16V,Electrolytic

C437,438 VCKYMN1HB101K J AA 100 pF,50V

C439,440 RC-GZA106AF1C J AB 10 µF,16V,Electrolytic

C441,442 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C443 RC-GZA226AF1C J AB 22 µF,16V,Electrolytic

C444 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C445,446 VCTYMN1EF223Z J AA 0.022 µF,25V

C451,452 RC-GZA225AF1H J AB 2.2 µF,50V,Electrolytic

C453,454 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C455 VCKYMN1HB221K J AA 220 pF,50V

C456 VCKYBT1HB101K J AA 100 pF,50V

C701 VCTYMN1EF223Z J AA 0.022 µF,25V

C702 RC-GZA227AF0J J AB 220 µF,6.3V,Electrolytic

C703 VCCCMN1HH150J J AA 15 pF (CH),50V

C704 VCCCMN1HH180J J AA 18 pF (CH),50V

C705 VCTYMN1CY103N J AA 0.01 µF,16V

C706 RC-EZY476AF1C J AB 47 µF,16V,Electrolytic

C707 RC-GZA335AF1H J AB 3.3 µF,50V,Electrolytic

C708 VCTYMN1CY103N J AA 0.01 µF,16V

C709 RC-EZY107AF0J J AB 100 µF,6.3V,Electrolytic

C710,711 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C715 RC-GZA227AF0J J AB 220 µF,6.3V,Electrolytic

C717 VCTYMN1EF223Z J AA 0.022 µF,25V

C718 VCKYMN1HB102K J AA 0.001 µF,50V

C801,802 RC-QZ0026AWZZ J AB 0.1 µF,50V,Mylar

C803,804 VCTYMN1CX152K J AA 0.0015 µF,16V

C805,806 RC-GZA105AF1H J AB 1 µF,50V,Electrolytic

C808 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic

C809,810 RC-GZV228AF1E J AE 2200 µF,25V,Electrolytic

C811~814 RC-QZA104AFYK J AB 0.1 µF,50V,Mylar

C820 VCKYPA1HB102K J AA 0.001 µF,50V

C823 RC-GZA107AF1H J AC 100 µF,50V,Electrolytic

C824 VCKZPA1HF223Z J AA 0.022 µF,50V

C825 RC-GZW228AF1H J AH 2200 µF,50V,Electrolytic

C827,828 RC-GZA107AF1H J AC 100 µF,50V,Electrolytic

C829,830 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic

C831 VCKYBT1HB102K J AA 0.001 µF,50V

C843,844 VCKYPA1HB221K J AA 220 pF,50V

C845 VCKZPA1HF473Z J AA 0.047 µF,50V

C846 VCKZPA1HF223Z J AA 0.022 µF,50V

C847 VCKZPA1HF473Z J AA 0.047 µF,50V

C848,849 VCKZPA1HF223Z J AA 0.022 µF,50V

C850 VCKZPA1HF473Z J AA 0.047 µF,50V

C851 VCKZPA1HF223Z J AA 0.022 µF,50V

C852 VCKZPA1HF473Z J AA 0.047 µF,50V

C855 VCKYBT1HB561K J AA 560 pF,50V

C871,872 VCKYMN1HB102K J AA 0.001 µF,50V

C941 VCTYMN1EF223Z J AA 0.022 µF,25V

C942 RC-GZA107AF1C J AB 100 µF,16V,Electrolytic

C943 RC-GZV477AF1E J AC 470 µF,25V,Electrolytic

C944 RC-GZW478AF1E J AG 4700 µF,25V,Electrolytic

C945 VCTYMN1EF223Z J AA 0.022 µF,25V

C947,948 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C952 RC-GZA476AF1C J AB 47 µF,16V,Electrolytic

C953 VCKZPA1HF103Z J AA 0.01 µF,50V

C954 RC-GZA106AF1H J AB 10 µF,50V,Electrolytic

C955,956 RC-QZA224AFYJ J AB 0.22 µF,50V,Mylar

C957 VCTYMN1EF223Z J AA 0.022 µF,25V

C961,962 RC-QZA473AFYJ J AB 0.047 µF,50V,Mylar

C971,972 RC-GZA107AF1H J AC 100 µF,50V,Electrolytic

C973~975 RC-GZA476AF1H J AB 47 µF,50V,Electrolytic

C976 RC-GZA107AF1V J AB 100 µF,35V,Electrolytic

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

R1 VRD-MN2BD102J J AA 1 kohm,1/8W

R2 VRD-MN2BD104J J AA 100 kohm,1/8W

– 2 –

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C430H,CP-C430H

R3 VRD-MN2BD103J J AA 10 kohm,1/8W

R4 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R5 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R6 VRD-MN2BD101J J AA 100 ohm,1/8W

R7 VRD-MN2BD102J J AA 1 kohm,1/8W

R8 VRD-MN2BD123J J AA 12 kohms,1/8W

R9 VRD-MN2BD273J J AA 27 kohms,1/8W

R10 VRD-MN2BD823J J AA 82 kohms,1/8W

R11 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R12 VRD-MN2BD153J J AA 15 kohms,1/8W

R13 VRD-MN2BD333J J AA 33 kohms,1/8W

R14 VRD-MN2BD103J J AA 10 kohm,1/8W

R15 VRD-MN2BD473J J AA 47 kohms,1/8W

R16 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R17 VRD-MN2BD823J J AA 82 kohms,1/8W

R18 VRD-ST2CD335J J AA 3.3 Mohms,1/6W

R19 VRD-MN2BD393J J AA 39 kohms,1/8W

R20 VRD-MN2BD103J J AA 10 kohm,1/8W

R21 VRD-MN2BD563J J AA 56 kohms,1/8W

R22 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R23 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R24 VRD-MN2BD103J J AA 10 kohm,1/8W

R25 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R26,27 VRD-MN2BD224J J AA 220 kohms,1/8W

R28,29 VRD-ST2CD102J J AA 1 kohm,1/6W

R30 VRD-MN2BD153J J AA 15 kohms,1/8W

R31 VRD-MN2BD103J J AA 10 kohm,1/8W

R32 VRD-MN2BD563J J AA 56 kohms,1/8W

R33 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R34 VRD-MN2BD102J J AA 1 kohm,1/8W

R35 VRD-ST2CD471J J AA 470 ohms,1/6W

R36,37 VRD-MN2BD473J J AA 47 kohms,1/8W

R38 VRD-MN2BD333J J AA 33 kohms,1/8W

R39 VRD-MN2BD223J J AA 22 kohms,1/8W

R41 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R42 VRD-MN2BD561J J AA 560 ohms,1/8W

R43 VRD-MN2BD120J J AA 12 ohms,1/8W

R45 VRD-ST2CD102J J AA 1 kohm,1/6W

R46,47 VRD-MN2BD102J J AA 1 kohm,1/8W

R49 VRD-ST2CD104J J AA 100 kohm,1/6W

R54 VRD-MN2BD102J J AA 1 kohm,1/8W

R56 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R57 VRD-MN2BD273J J AA 27 kohms,1/8W

R58 VRD-MN2BD681J J AA 680 ohms,1/8W

R60 VRD-MN2BD102J J AA 1 kohm,1/8W

R61 VRD-ST2CD153J J AA 15 kohms,1/6W

R70~72 VRD-MN2BD102J J AA 1 kohm,1/8W

R73,74 VRD-MN2BD272J J AA 2.7 kohms,1/8W

R75,76 VRD-MN2BD271J J AA 270 ohms,1/8W

R77~79 VRD-MN2BD102J J AA 1 kohm,1/8W

R81 VRD-MN2BD221J J AA 220 ohms,1/8W

R82 VRD-ST2CD101J J AA 100 ohm,1/6W

R86~88 VRD-ST2CD102J J AA 1 kohm,1/6W

R95 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R96 VRD-MN2BD103J J AA 10 kohm,1/8W

R97 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R98,99 VRD-MN2BD103J J AA 10 kohm,1/8W

R101,102 VRD-MN2BD102J J AA 1 kohm,1/8W

R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R107,108 VRD-MN2BD103J J AA 10 kohm,1/8W

R109 VRD-ST2CD103J J AA 10 kohm,1/6W

R110 VRD-MN2BD103J J AA 10 kohm,1/8W

R111,112 VRD-ST2CD103J J AA 10 kohm,1/6W

R113~115 VRD-MN2BD103J J AA 10 kohm,1/8W

R117 VRD-ST2CD102J J AA 1 kohm,1/6W

R118 VRD-MN2BD102J J AA 1 kohm,1/8W

R119,120 VRD-ST2CD560J J AA 56 ohms,1/6W

R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W

R123,124 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R131,132 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R133 VRD-ST2CD223J J AA 22 kohms,1/6W

R134 VRD-MN2BD683J J AA 68 kohms,1/8W

R135,136 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R137,138 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R139,140 VRD-MN2BD561J J AA 560 ohms,1/8W

R141,142 VRD-MN2BD560J J AA 56 ohms,1/8W

R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W

R150 VRD-MN2BD103J J AA 10 kohm,1/8W

R152 VRD-MN2BD102J J AA 1 kohm,1/8W

R153,154 VRD-MN2BD103J J AA 10 kohm,1/8W

R158 VRD-ST2EE471J J AA 470 ohms,1/4W

R160 VRD-RT2HD151J J AA 150 ohms,1/2W

R162 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R164 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R166 VRD-MN2BD473J J AA 47 kohms,1/8W

R167 VRD-MN2BD104J J AA 100 kohm,1/8W

R168 VRD-MN2BD120J J AA 12 ohms,1/8W

R172 VRD-ST2CD102J J AA 1 kohm,1/6W

R174 VRD-ST2EE151J J AA 150 ohms,1/4W

R200 VRD-ST2CD103J J AA 10 kohm,1/6W

R201 VRD-MN2BD333J J AA 33 kohms,1/8W

R202 VRD-MN2BD104J J AA 100 kohm,1/8W

R203 VRD-MN2BD223J J AA 22 kohms,1/8W

R204 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R205 VRD-MN2BD473J J AA 47 kohms,1/8W

R206 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R207,208 VRD-MN2BD102J J AA 1 kohm,1/8W

R209 VRG-ST2EF100J J AB 10 ohm,1/4W,Fusible

R210 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R212 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R213 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R215,216 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R217,218 VRD-MN2BD102J J AA 1 kohm,1/8W

R228 VRD-MN2BD102J J AA 1 kohm,1/8W

R233 VRD-MN2BD223J J AA 22 kohms,1/8W

R234 VRD-MN2BD101J J AA 100 ohm,1/8W

R304 VRD-MN2BD681J J AA 680 ohms,1/8W

R305 VRD-MN2BD682J J AA 6.8 kohms,1/8W

R307 VRD-MN2BD331J J AA 330 ohms,1/8W

R308 VRD-MN2BD330J J AA 33 ohms,1/8W

R310 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R315 VRD-MN2BD820J J AA 82 ohms,1/8W

R318 VRD-MN2BD471J J AA 470 ohms,1/8W

R320 VRD-ST2CD103J J AA 10 kohm,1/6W

R323 VRD-MN2BD104J J AA 100 kohm,1/8W

R330 VRD-MN2BD272J J AA 2.7 kohms,1/8W

R331 VRD-ST2CD474J J AA 470 kohms,1/6W

R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R352 VRD-MN2BD102J J AA 1 kohm,1/8W

R353 VRD-MN2BD271J J AA 270 ohms,1/8W

R354 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R356 VRD-MN2BD102J J AA 1 kohm,1/8W

R358 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R360~362 VRD-MN2BD472J J AA 4.7 kohms,1/8W

R363,364 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R365,366 VRD-MN2BD103J J AA 10 kohm,1/8W

R367 VRD-MN2BD102J J AA 1 kohm,1/8W

R368 VRD-MN2BD333J J AA 33 kohms,1/8W

R370 VRD-ST2CD102J J AA 1 kohm,1/6W

R371~374 VRD-MN2BD102J J AA 1 kohm,1/8W

R375 VRD-ST2CD102J J AA 1 kohm,1/6W

R376,377 VRD-MN2BD102J J AA 1 kohm,1/8W

R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R381 VRD-MN2BD103J J AA 10 kohm,1/8W

R382 VRD-ST2EE151J J AA 150 ohms,1/4W

R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R384 VRD-MN2BD123J J AA 12 kohms,1/8W

R385 VRD-MN2BD103J J AA 10 kohm,1/8W

R386 VRD-MN2BD473J J AA 47 kohms,1/8W

R387 VRD-MN2BD223J J AA 22 kohms,1/8W

R391,392 VRD-ST2EE391J J AA 390 ohms,1/4W

R395 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R398 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R399 VRD-MN2BD331J J AA 330 ohms,1/8W

R401~403 VRD-ST2CD102J J AA 1 kohm,1/6W

R405,406 VRD-MN2BD393J J AA 39 kohms,1/8W

R407,408 VRD-MN2BD152J J AA 1.5 kohms,1/8W

R411,412 VRD-MN2BD223J J AA 22 kohms,1/8W

R415~422 VRD-ST2CD102J J AA 1 kohm,1/6W

R413,414 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R475,476 VRD-ST2CD104J J AA 100 kohm,1/6W

R477,478 VRD-ST2CD102J J AA 1 kohm,1/6W

R479,480 VRD-MN2BD104J J AA 100 kohm,1/8W

R603 VRD-MN2BD103J J AA 10 kohm,1/8W

R700 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R701 VRD-ST2CD104J J AA 100 kohm,1/6W

R702 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R703 VRD-MN2BD102J J AA 1 kohm,1/8W

R704 VRD-MN2BD222J J AA 2.2 kohms,1/8W

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C430H,CP-C430H

R705 VRD-MN2BD103J J AA 10 kohm,1/8W

R706 VRD-MN2BD102J J AA 1 kohm,1/8W

R707 VRD-MN2BD103J J AA 10 kohm,1/8W

R708,709 VRD-MN2BD102J J AA 1 kohm,1/8W

R711 VRD-MN2BD103J J AA 10 kohm,1/8W

R712~725 VRD-MN2BD102J J AA 1 kohm,1/8W

R726 VRD-MN2BD103J J AA 10 kohm,1/8W

R727~730 VRD-MN2BD102J J AA 1 kohm,1/8W

R731~735 VRD-MN2BD103J J AA 10 kohm,1/8W

R736 VRD-ST2CD101J J AA 100 ohm,1/6W

R737 VRD-MN2BD103J J AA 10 kohm,1/8W

R738~740 VRD-MN2BD102J J AA 1 kohm,1/8W

R741~743 VRD-MN2BD103J J AA 10 kohm,1/8W

R744 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R745~748 VRD-MN2BD102J J AA 1 kohm,1/8W

R749 VRD-ST2CD101J J AA 100 ohm,1/6W

R750,751 VRD-MN2BD104J J AA 100 kohm,1/8W

R752 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R753,754 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R755 VRD-MN2BD822J J AA 8.2 kohms,1/8W

R756,757 VRD-MN2BD104J J AA 100 kohm,1/8W

R758 VRD-RT2HD100J J AA 10 ohm,1/2W

R759,760 VRD-MN2BD103J J AA 10 kohm,1/8W

R761,762 VRD-MN2BD102J J AA 1 kohm,1/8W

R763,764 VRD-ST2CD102J J AA 1 kohm,1/6W

R765 VRD-MN2BD102J J AA 1 kohm,1/8W

R766 VRD-MN2BD332J J AA 3.3 kohms,1/8W

R767 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R768 VRD-ST2CD122J J AA 1.2 kohms,1/6W

R769 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R770 VRD-ST2CD103J J AA 10 kohm,1/6W

R771 VRD-MN2BD122J J AA 1.2 kohms,1/8W

R772 VRD-MN2BD104J J AA 100 kohm,1/8W

R773~775 VRD-MN2BD182J J AA 1.8 kohms,1/8W

R776 VRD-MN2BD820J J AA 82 ohms,1/8W

R777,778 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R779 VRD-MN2BD102J J AA 1 kohm,1/8W

R780,781 VRD-MN2BD103J J AA 10 kohm,1/8W

R782 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R783 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R785 VRD-MN2BD101J J AA 100 ohm,1/8W

R786 VRD-MN2BD102J J AA 1 kohm,1/8W

R788 VRD-MN2BD562J J AA 5.6 kohms,1/8W

R789 VRD-ST2CD222J J AA 2.2 kohms,1/6W

R792 VRD-ST2CD392J J AA 3.9 kohms,1/6W

R793 VRD-ST2CD562J J AA 5.6 kohms,1/6W

R794 VRD-ST2CD123J J AA 12 kohms,1/6W

R795 VRD-MN2BD222J J AA 2.2 kohms,1/8W

R797 VRD-MN2BD102J J AA 1 kohm,1/8W

R798 VRD-MN2BD151J J AA 150 ohms,1/8W

R799 VRD-MN2BD120J J AA 12 ohms,1/8W

R803,804 VRD-MN2BD333J J AA 33 kohms,1/8W

R805,806 VRD-MN2BD102J J AA 1 kohm,1/8W

R807,808 VRD-MN2BD181J J AA 180 ohms,1/8W

R809,810 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W

R811,812 VRD-RT2HD271J J AA 270 ohms,1/2W

R815 VRD-ST2CD103J J AA 10 kohm,1/6W

R825 VRS-VV3LA681J J AC 680 ohms, W

R835,836 VRD-RT2HD331J J AA 330 ohms,1/2W

R843,844 VRD-ST2EE2R2J J AA 2.2 ohms,1/4W

R845 VRD-ST2CD100J J AA 10 ohm,1/6W

R943,944 VRD-ST2EE180J J AA 18 ohms,1/4W

R945 VRD-MN2BD333J J AA 33 kohms,1/8W

R946 VRD-ST2EE101J J AA 100 ohm,1/4W

R947 VRD-ST2EE271J J AA 270 ohms,1/4W

R948,949 VRD-MN2BD223J J AA 22 kohms,1/8W

R951 VRD-ST2EE152J J AA 1.5 kohms,1/4W

R952 VRD-ST2CD333J J AA 33 kohms,1/6W

R953 VRD-ST2CD103J J AA 10 kohm,1/6W

R972 VRD-ST2CD332J J AA 3.3 kohms,1/6W

R973 VRD-ST2CD101J J AA 100 ohm,1/6W

R974 VRD-ST2CD123J J AA 12 kohms,1/6W

R975,976 VRD-ST2CD221J J AA 220 ohms,1/6W

R977,978 VRD-ST2EE2R2J J AA 2.2 ohms,1/4W

OTHER CIRCUITRY PARTS

BI901/CNS901 QCNWN0890AWZZ J AE Connector Ass’y,6-6Pin

BIM1/CNSM1 QCNWN0897AWZZ J AF Connector Ass’y,8-12Pin

BIM5/CNS10/CNS5

QCNWN0894AWZZ J AH Connector Ass’y,6-10-2Pin

CNP1 QCNCM931EAFZZ J AC Plug,5Pin

CNP2 92LCONE8P53253 J AC Plug,8Pin

CNP3 92LCONE6P53253 J AC Plug,6Pin

CNP3A 92LCONE6P53254 J AC Plug,6Pin

CNP10 92LCONEAP53254 J AD Plug,10Pin

CNP101 QCNCM742CAFZZ J AA Plug,3Pin

CNP102 QCNCM588GAFZZ J AB Plug,7Pin

CNP201 QCNCW010FAWZZ J AE Socket,6Pin

CNP301 QCNCM602BAFZZ J AA Plug,2Pin

CNP303 QCNCW010KAWZZ J AD Socket,10Pin

CNP401 QCNCM010FAWZZ J AD Plug,6Pin

CNP402 QCNCM010KAWZZ J AC Plug,10Pin

CNP901 QCNCM742FAFZZ J AB Plug,6Pin

CNPM1 QCNCM932MAFZZ J AE Plug,12Pin

CNPM2 QCNCM030BAWZZ J AB Plug,2Pin

CNS1A/B QCNWN0891AWZZ J AG Connector Ass’y,5-5Pin

CNS2A/B QCNWN0892AWZZ J AF Connector Ass’y,8-8Pin

CNS3A/B QCNWN0893AWZZ J AF Connector Ass’y,6-6Pin

CNS101 QCNWN0895AWZZ J AE Connector Ass’y,3Pin

CNS102 QCNWN0896AWZZ J AG Connector Ass’y,7Pin

! F1 92LFUSE-T501-B J Fuse,T500mA L 250V

! F962 92LFUSE-T402-E J AD Fuse,T4A L 250V

! F963 92LFUSE-T162-E J AD Fuse,T1.6A L 250V

FE301 RTUNS0007AWZZ J AT FM Front End

FL701 VVKFIP9EM7R-1 J AV FL Display

FW701 QCNWN0898AWZZ J AD Flat Cable,6Pin

FWM1 QCNWN0328AWZZ J AC Flat Cable,2Pin

FWM2 QCNWN0338AWZZ J AD Flat Cable,2Pin

JK801 QJAKM0005AWZZ J AD Jack,Headphones

LG901,902 QLUGP0001AWZZ J AC Lug

M1 92LMTR1858CASY J AS Motor with Chassis [Disc]

M2 92LMTR1854BASY J AP Motor with Gear [Slide]

M3 92LMTR2037AS1 J AP Motor Ass’y [Select]

MM1 RMOTV0006AWM1 J AR Motor with Pulley [Tape]

RX701 VHLSPSP440/-1 J AH Remote Sensor,SPSP440

SO301 QTANC0301AWZZ J AH Terminal,Antenna

SO401 QSOCJ0209AWZZ J AD Socket,Video/Aux

SO801 QTANA0404AWZZ J AF Terminal,Speaker

SOLM1 RPLU-0002AWZZ J AH Solenoid

SW1 QSW-P0004AWZZ J AE Switch,Push Type [Open/Close]

SW2 QSW-F0001AWZZ J AD Switch,Leaf Type [Mecha Up]

SW3 QSW-P0005AWZZ J AD Switch,Push Type [Disc Number]

SW4 QSW-F9001AWZZ J AE Switch,Push Type [Pickup In]

SW701 QSW-K0181AFZZ J AB Switch,Key Type

[Random/Demo]

SW702 QSW-K0181AFZZ J AB Switch,Key Type [Volume Down]

SW703 QSW-K0181AFZZ J AB Switch,Key Type [X-BASS]

SW704 QSW-K0181AFZZ J AB Switch,Key Type [Volume Up]

SW705 QSW-K0181AFZZ J AB Switch,Key Type [Open/Close]

SW706 QSW-K0181AFZZ J AB Switch,Key Type [Disc Skip]

SW709 QSW-K0181AFZZ J AB Switch,Key Type [Rec./Pause]

SW710 QSW-K0181AFZZ J AB Switch,Key Type [Up]

SW711 QSW-K0181AFZZ J AB Switch,Key Type [Stop]

SW712 QSW-K0181AFZZ J AB Switch,Key Type [Play]

SW713 QSW-K0181AFZZ J AB Switch,Key Type [Down]

SW714 QSW-K0181AFZZ J AB Switch,Key Type [Tuning Up]

SW715 QSW-K0181AFZZ J AB Switch,Key Type [Tuning Down]

SW717 QSW-K0181AFZZ J AB Switch,Key Type [Power]

SW718 QSW-K0181AFZZ J AB Switch,Key Type [Clock]

SW719 QSW-K0181AFZZ J AB Switch,Key Type [Timer/Sleep]

SW721 QSW-K0181AFZZ J AB Switch,Key Type [Memory/Set]

SW722 QSW-K0181AFZZ J AB Switch,Key Type [CD]

SW723 QSW-K0181AFZZ J AB Switch,Key Type [Tuner]

SW724 QSW-K0181AFZZ J AB Switch,Key Type [Tape]

SW725 QSW-K0181AFZZ J AB Switch,Key Type [Aux]

SWM3 QSW-F9064AFZZ J AC Switch,Leaf Type [Fool Proof]

SWM4 QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]

SWM5 QSW-F0346AFZZ J AB Switch,Leaf Type [CAM]

CASSETTE MECHANISM PARTS

1 LCHSM0014AW01 J AN Main Chassis Ass’y

2 LPLTP0001AWZZ J AD Plate,Head [Tape 1]

3 LPLTP0002AWZZ J AD Plate,Head [Tape 2]

4 NDAIR0004AW01 J AG Take-Up Reel Ass’y [Tape 1]

5 NDAIR0005AW01 J AG Take-Up Reel Ass’y [Tape 2]

6 NGERH0024AWZZ J AB Gear,Supply Reel

7 NROLY0002AWZZ J AF Pinch Roller Ass’y

8 NFLYC0002AWZZ J AG Flywheel Ass’y [Tape 1]

9 NFLYC0003AWZZ J AH Flywheel Ass’y [Tape 2]

10 MLEVP0024AW01 J AH Lever,FF/REW Roller Ass’y

11 NGERH0027AWZZ J AE Gear,Cam

12 NGERH0028AWZZ J AB Gear,Flywheel

13 NGERH0030AWZZ J AE Gear,Play Idler

– 4 –

PRICE

RANK

DESCRIPTIONNO.

PART CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-C430H,CP-C430H

14 NGERH0032AWZZ J AC Gear,FF

15 NPLYB0004AWZZ J AB Sensor,Wing

16 MLEVP0026AWZZ J AC Lever,Trigger

17 MLEVP0027AWZZ J AC Lever,Lock [Tape 1]

18 MLEVP0028AWZZ J AC Lever,Eject Obstruct [Tape 1]

19 MLEVP0069AWZZ J AB Lever,Eject Obstruct [Tape 2]

20 LHLDS1001AW01 J AE Holder,Bearing

21 PGIDM0007AWZZ J AC Guide,Cassette [Tape 2]

22 PGIDM0009AWZZ J AC Guide,Cassette [Tape 1]

23 MLEVF0004AWFW J AB Lever,Over Strok [Tape 1]

24 MLEVF0005AW01 J AE Lever,Over Strok Ass’y [Tape 2]

25 MLEVF0006AW01 J AD Lever,Mode Ass’y

26 MLEVF0007AW01 J AC Lever,Idler Ass’y [Tape 1]

27 MLEVF0008AW01 J AD Lever,Idler Ass’y [Tape 2]

28 LANGT0025AWFW J AD Blacket Motor

29 LANGT0026AWFW J AC Blacket Hold

30 LANGT0033AWFW J AB Blacket,Switch

31 MSPRP0005AWFW J AB Spring,Cassette

32 MSPRC0008AWFJ J AB Spring,Back Tention

33 MSPRD0031AWFJ J AB Spring,Lock Lever [Tape 1]

34 MSPRD0032AWFJ J AB Spring,Mode Lever

35 MSPRD0033AWFJ J AB Spring,Play Idler Lever

36 MSPRD0034AWFJ J AB Spring,Play Roller

37 MSPRD0035AWFJ J AB Spring,Eject Obstruct [Tape 1]

38 MSPRD0036AWFJ J AB Spring,Play Return

39 MSPRD0037AWFJ J AB Spring,Over Strok Lever

40 MSPRD0038AWFJ J AB Spring,Trigger Lever

41 MSPRD0039AWFJ J AB Spring,FR Lever

42 MSPRD0040AWFJ J AB Spring,Eject Obstruct [Tape 2]

43 NBLTK0009AWZZ J AC Belt,Sub

44 NBLTK0011AWZZ J AC Belt,Main [Tape 1]

45 NBLTK0012AWZZ J AB Belt,Main [Tape 2]

52 92LM-LEV1756A J AB Lever,Lock [Tape 2]

53 92LM-TSPR1756C J AB Spring,Lock Lever [Tape 2]

55 92LMRPH1746A J AM Head,Record/Playback

56 92LM-EH1658A J AG Head,Erase

57 92LM-REL1676B J AB Cap,Supply Reel

58 92LM-CSPR1676B J AA Spring,Supply Cap

59 92LN-BAND1318A J AA Nylon Band,80mm

501 92LS2R6S1746A J AA Screw,ø2.6×2.5mm

502 92L2TTS+4BZ J AA Screw,ø2×4mm

503 92L2TTS+5BZ J AA Screw,ø2×5mm

504 92L1R5WC3R8R5P J AA Washer,ø1.5×ø3.8×0.5mm

505 92L2R2TWO J AA Washer,ø2mm

506 LX-BZ0004AWFD J AC Screw,Lock Lever

507 XHPSD20P05000 J AA Screw,ø2×5mm

508 92L2R3W3R4R25P J AA Washer,ø2.3×ø3.4×0.25mm

510 92L1R8WC4-R5P J AA Washer,ø1.8×ø4×0.5mm

MM1 RMOTV0006AWM1 J AR Motor with Pulley [Tape]

SOLM1 RPLU-0002AWZZ J AH Solenoid

SWM3 QSW-F9064AFZZ J AC Switch,Leaf Type [Fool Proof]

SWM4 QSW-F9003AWZZ J AG Switch,Leaf Type [F.A.S.]

SWM5 QSW-F0346AFZZ J AB Switch,Leaf Type [CAM]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle

302 NGERH0012AWZZ J AC Gear,Drive

303 MLEVP0010AWZZ J AC Rail,Guide

304 NSFTM0002AWFW J AE Shaft,Guide

305 92LM-CUSN1524A J AC Cushion

! 306 92LHPC1MASY J BG Pickup Unit Ass’y

306- 1 ———— — Pickup Unit

(Not Replacement Item)

306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack

701 92L2R6S+6CZ J AB Screw,ø2.6×6mm

702 92L2TTS+5BZ J AA Screw,ø2×5mm

703 92L2S+3PZ J AA Screw,ø2×3mm

704 92L1R5WC3R8R25 J AA Washer,ø1.5×ø3.8×0.25mm

M1 92LMTR1858CASY J AS Motor with Chassis [Disc]

M2 92LMTR1854BASY J AP Motor with Gear [Slide]

SW4 QSW-F9001AWZZ J AE Switch,Leaf Type [Pickup In]

CABINET PARTS

201 92LCAB2547AS1 J AX Front Panel Ass’y

201- 1 ———— — Front Panel

(Not Replacement Item)

201- 2 PCUSG0022AWZZ J AB Cushion,Leg

201- 3 HDECQ0224AWSA J AK Panel,Amp.

202 GCAB-1045AWSB J AL Top Cabinet

– 5 –

203 GITAR0219AWSA J AG Back Board [Except for UK/

Thailand]

203 GITAR0220AWSA J AG Back Board [For UK]

203 GITAR0222AWSA J AG Back Board [For Thailand]

204 92LMEC2475CTS1 J AL Cassette Holder Ass’y,Tape 1

204- 1 ———— — Cassette Holder Tape 1

(Not Replacement Item)

204- 2 HDECQ0173AWSA J AD Panel,Cassette,Tape 1

206 92LMEC2475CTS2 J AL Cassette Holder Ass’y,Tape 2

206- 1 ———— — Cassette Holder Tape 2

(Not Replacement Item)

206- 2 HDECQ0174AWSA J AD Panel,Cassette,Tape 2

208 MSPRD0093AWFJ J AB Spring,Cassette,Tape 2

209 92LCAB2475BS1 J AK Side Panel Ass’y,Left

209- 1 ———— — Side Panel,Left

(Not Replacement Item)

209- 2 PCUSG0022AWZZ J AB Cushion,Leg

210 92LCAB2475CS1 J AK Side Panel Ass’y,Right

210- 1 ———— — Side Panel,Right

(Not Replacement Item)

210- 2 PCUSG0022AWZZ J AB Cushion,Leg

211 GCOVA1135AWSB1 J AF Cover,CD Tray

213 MLIFP0003AWZZ J AE Damper

214 MSPRD0092AWFJ J AB Spring,Cassette,Tape 1

215 LCHSM0045AWFW1J AR Main Chassis

! 216 QACCB0003AW00 J BA AC Power Supply Cord [For UK]

! 216 QACCE0008AW00 J AG AC Power Supply Cord

[Except for UK]

217 92LN-BAND1318A J AA Nylon Band,80mm

220 LANGT0045AWFW J AD Bracket,Terminal

221 JKNBZ0335AWSA J AC Knob,Tuning Time,Memory Set

222 JKNBZ0334AWSA J AD Knob,Function

223 JKNBZ0332AWSA J AD Knob,Operation A

224 JKNBZ0333AWSA J AC Knob,Operation B

225 JKNBZ0337AWSB J AD Knob,X-BASS/Volume/3D

Surround

226 JKNBZ0336AWSA J AC Knob,Open/Close,Rec.Pause,

Disc Skip

227 MLEVP0068AWZZ J AB Lever,Change

228 LCHSZ0011AWZZ J AG Chassis,CD Mechanism

229 NGERK0004AWZZ J AB Gear,Bevel

230 MSPRC0021AWFJ J AB Spring,Worm Wheel

231 NGERW0006AWZZ J AC Gear,Worm Wheel

232 NPLYD0001AWZZ J AB Pulley

233 NGERK0005AWZZ J AB Gear,Loading

234 MLEVP0066AWZZ J AE Lever,Shift

235 NGERH0064AWZZ J AD Gear,Cam

236 NGERK0003AWZZ J AC Gear,Drive

237 LHLDZ1141AWZZ J AB Support,Pitch

238 NGERH0065AWZZ J AB Gear,Turntable

239 NBLTK0029AWZZ J AB Belt,Drive

240 MSPRD0044AWFJ J AB Spring,Lock Lever

241 MLEVP0067AWZZ J AC Lever,Lock

242 LCHSZ0010AWZZ J AM Chassis,Loading

243 NROLP0009AWZZ J AB Roller

244 MLEVP0070AWZZ J AB Lever,T/T Lock

245 MSPRC0020AWFJ J AB Spring,T/T Lock Lever

246 GCAB-1044AWSA J AM CD Player Base

247 LHLDZ1139AWSA J AD Support,Stabilizer

248 92LHOLD2037AS1 J AK Stabilizer Ass’y

248- 1 ———— — Stabilizer

(Not Replacement Item)

248- 2 PMAGF0001AWZZ J AF Magnet

248- 3 92LSUPT1749D J AA Bracket,Magnet

249 NTNT-0018AWSA J AK Turntable

250 LHLDZ1140AWZZ J AB Guide

252 PRDAR0070AWFW J AM Main Heat Sink

253 LANGT0042AWFW J AC Bracket

254 PRDAR0078AWFW J AH Sub Heat Sink

255 LBSHC0002AWZZ J AD Bushing,AC Power Supply Cord

256 PCUSG0027AWZZ J AB Worm Wheel Cushion

257 MSPRC0024AWFW J AB Spring,Solenoid

! 260 92LFSHOLD1652T J AB Holder,Fuse

261 TSPC-0438AWZZ J AC Label,Specifications

[For Thailand]

262 TCAUS0019AWZZ J AD Label,Caution

[For Thailand Only]

263 LHLDZ1087AWSA1 J AC Holder,FL Display

! 264 92LLUG1746A J AA Lug,Terminal

265 RCORF0002AWZZ J AE Core

266 92LCAUT1706A1 J AC Label,Class 3A

267 92LCAUT1706B J AA Label,Laser

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PART CODE

PRICE

RANK

DESCRIPTION

CD-C430H,CP-C430H

269 PCUSG0029AWZZ J AC Cushion

270 RPLU-0002AWZZ J AH Solenoid

601 XESSD30P10000 J AA Screw,ø3×10mm

602 LX-JZ0022AFFD J AA Screw,ø3×8mm

603 XEBSD30P10000 J AA Screw,ø3×10mm

605 XJBSD30P06000 J AA Screw,ø3×6mm

606 XJBSF30P10000 J AA Screw,ø3×10mm

608 XEBSF30P12000 J AA Screw,ø3×12mm

610 LX-TZ0019AFZZ J AB Screw,Special

612 XEBSD30P12000 J AA Screw,ø3×12mm

613 LX-EZ0005AWFD J AA Screw,Special

614 XJSSF30P10000 J AA Screw,ø3×10mm

618 XJBSD30P08000 J AA Screw,ø3×8mm

619 LX-JZ0003AWFF J AA Screw,ø3×12mm

620 LX-HZ0082AFZZ J AA Screw,ø4×8mm

621 XBPSD26P05JS0 J AA Screw,ø2.6×5mm

622 XEBSD26P12000 J AA Screw,ø2.6×12mm

623 XJBSD30P10000 J AA Screw,ø3×10mm

625 XJBSF30P08000 J AA Screw,ø3×8mm

ACCESSORIES/PACKING PARTS

1 SPAKA0124AWZZ1 J AH Packing Add.,Left/Right

2 SPAKP0013AWZZ1 J AC Polyethylene Bag,Unit

3 SPAKC0519AWZZ J AP Packing Case

4 92LBAG1460C1 J AB Polyethylene Bag, Accessories

5 TINSE0162AWZZ J AF Operation Manual [For UK]

5 TINST0023AWZZ J Operation Manual [For Thailand]

5 TINSZ0219AWZZ J AS Operation Manual

[Except for UK/Thailand]

6 QANTL0005AWZZ J AG AM Loop Antenna

7 92LF-ANT1535A J AF FM Antenna

8 92LCARD1751A J AB Registration Card [For UK Only]

9 RRMCG0100AWSA J AR Remote Control

9- 1 92LLiD1782A J AQ Battery Lid,Remote Control

10 SPAKZ0265AWZZ J AB Mira Mat

11 92LBAG1770A J AB Polyethylene Bag,AC Power

Supply Cord

12 SPAKZ0264AWZZ J Sheet

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~3 92LPWB2546MANS J — Main/Display/Headphones

(Combined Ass’y)

PWB-B 92LPWB2546TUNS J — Tuner (Combined Ass’y)

PWB-C QPWBF0340AWZZ J AB Power (PWB Only)

PWB-D QPWBF0106AWZZ J AF Tape Mechanism (PWB Only)

PWB-E QPWBF0027AWZZ J AD CD Motor (PWB Only)

PWB-F QPWBF0341AWZZ J AB Motor (PWB Only)

CABINET PARTS

701 92L121-0089 J AX Net Frame Ass’y

702 92L316-0081 J AX Duct Panel Ass’y

703 92L051-0028 J AX Speaker Box Ass’y

704 92L394-0019 J AC Port Cushion

705 92L291-0039 J Cushion,Speaker Cord

706 92L291-0038 J Speaker Cord

707 92L351-0160 J AC Label,Specifications

708 92L372-0087 J AB Screw,ø4×35mm

709 92L372-0078 J Screw,ø3×10mm

710 92L302-0002 J AG Support,Woofer

C1,2 92L293-0002 J 2.7µF,100V,Non-Polar

SP1,2 VSP0050TBH34A J AR Tweeter

SP3,4 VSP0013WB204A J BA Woofer

ACCESSORIES/PACKING PARTS

1 92L411-0075 J AG Polyethylene Bag,Speaker

2 92L414-0011 J AB Mirror Mat

3 92L412-0077 J AN Packing Add.,Speaker

(Top/Bottom)

4 92L416-0030 J AC Center Pad

5 92L353-0053 J AB Feature Label

– 6 –

CP-C430H

CD-C430H,CP-C430H

– 50 –

23456

Figure 7 CD MECHANISM EXPLODED VIEW

– 7 –

306-1

701

304

701

302

301

702

303

703

305x2

SW4

305

PWB-E

306-2

306-3

306

704

CD-C430H

CD-C430H,CP-C430H

– 51 –

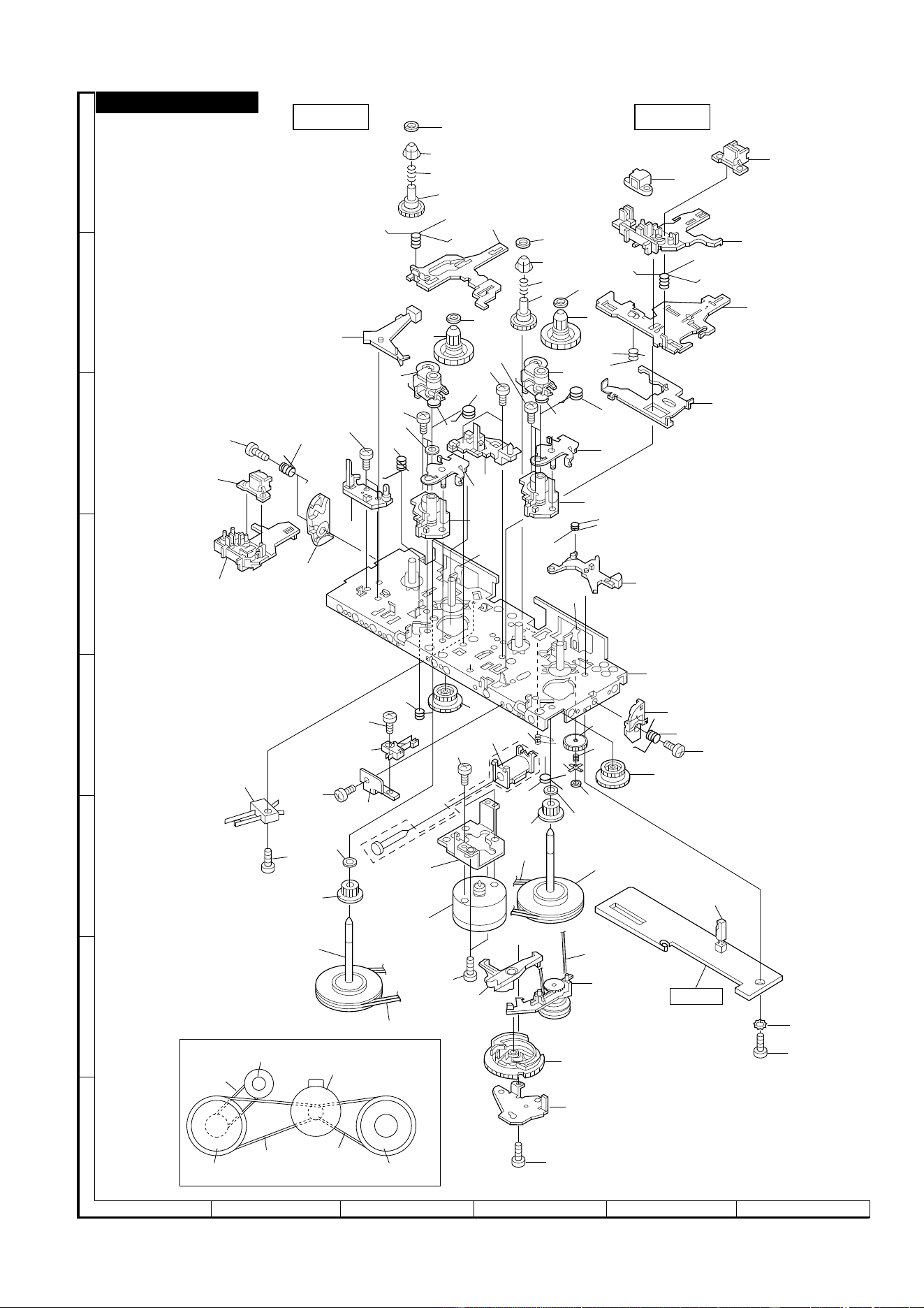

Figure 8 TAPE MECHANISM EXPLODED VIEW

23456

– 8 –

504

506

502

507

SOLM1

506

502x2

501x2

503x2

503x3

503

505

SWM5

MM1

PWB-D

504

TAPE1 TAPE2

502

503x3

SWM3

SWM4

509

503

510

508

MOTOR

BELT CONNECTION

CD-C430H

CD-C430H,CP-C430H

– 52 –

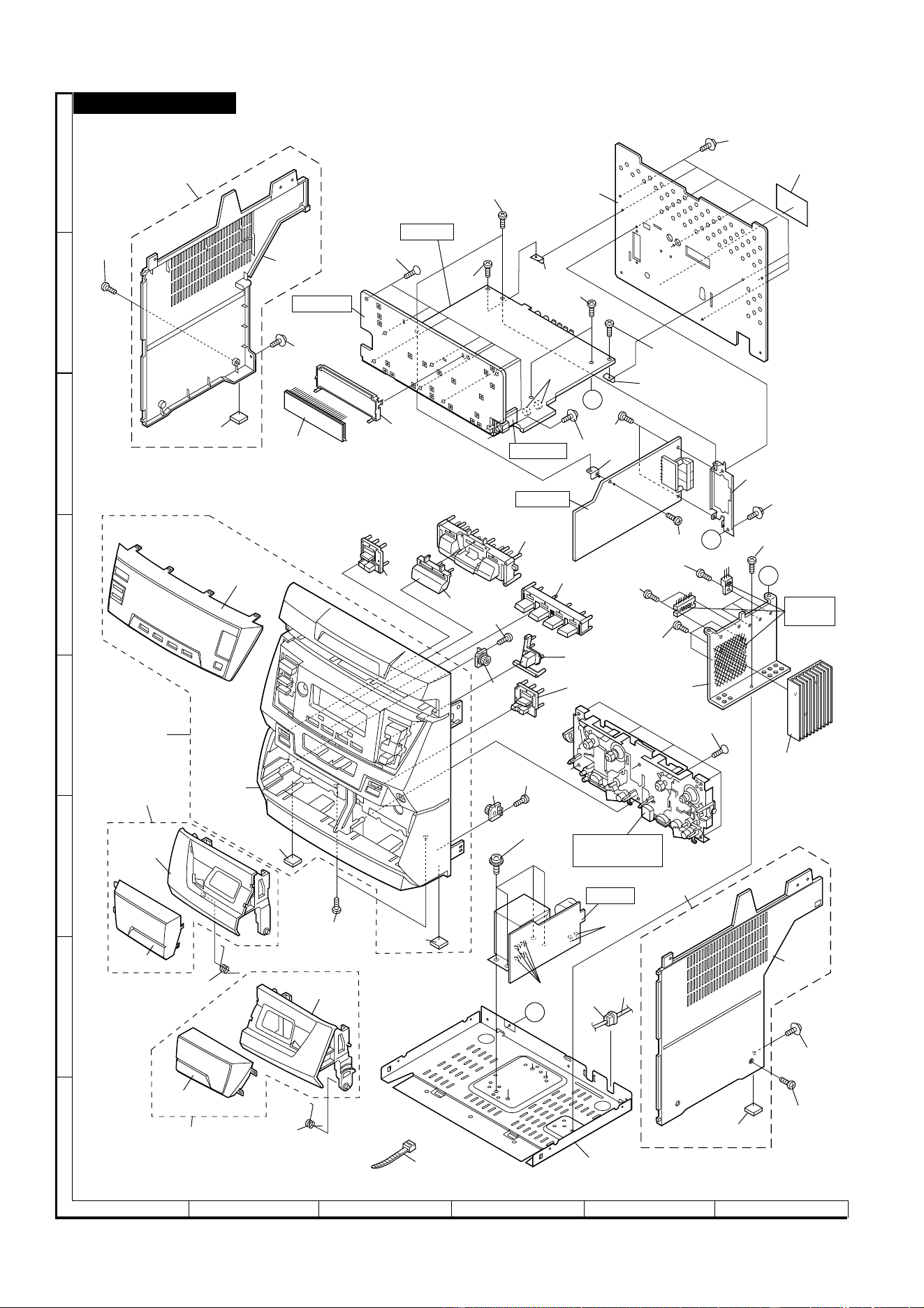

Figure 9 CABINET EXPLODED VIEW (1/2)

23456

– 9 –

CD-C430H

TAPE

MECHANISM

Silicon

Grease

209

623

619

601x9

PWB-A1

263

FL701

209-1

209-2

201-3

201-1

201

223

224

221

222

603

213

603

213

226

225

204-1

204-2

206-1

206-2

214

208

215

201-2

606x2

620x4

216

210

210-2

210-1

619

623

601x6

220

618x2

618

260x2

252

602

253

203

253

618

625x2

623x3

623x2

619x8

206

204

618x2

618

261

619

255

264x2

260x4

217

80 mm

PWB-A2

PWB-A3

PWB-B

PWB-C

253

605

254

CD-C430H,CP-C430H

– 53 –

23456

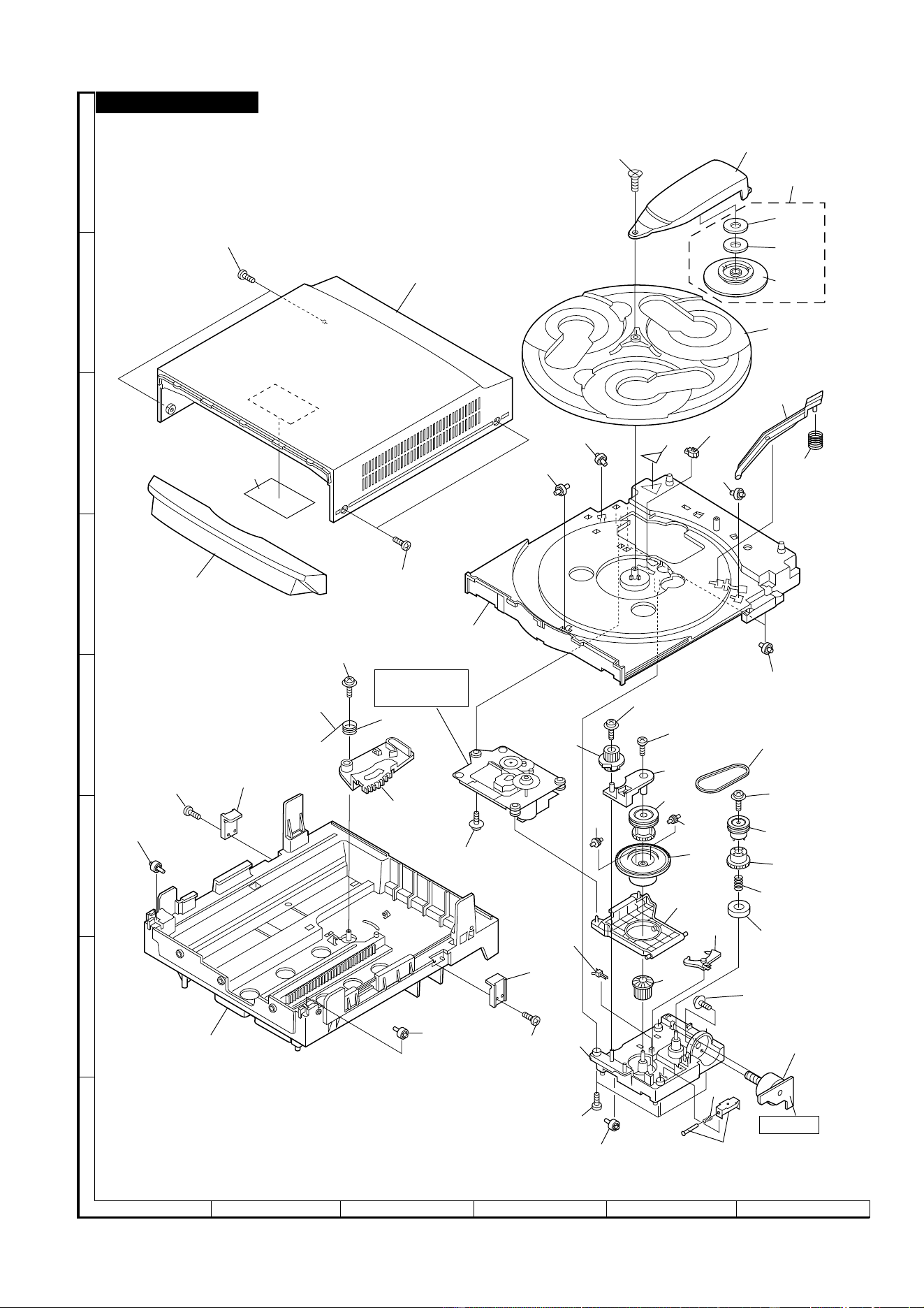

Figure 10 CABINET EXPLODED VIEW (2/2)

– 10 –

CD-C430H

603

243

250

240

241

242

243

603

250

612x4

243

257

228

270

PWB-F

621x2

SW2

227

233

234

235

236

229

237

622

610

238

239

610

232

231

230

243x2

243

SW3

246

602

614

247

248-1

249

608x2

202

211

266

MECHANISM

248-2

248-3

248

267

256

613

245

244

CD-C430H,CP-C430H

– 54 –

Figure 11 SPEAKER EXPLODED VIEW

23456

CP-C430H

– 11 –

SHARP

- +

SP1,2

TWEETER

C1,2

2.7µF/100V

(N.P.)

C1,2

2.7µF/100V

(N.P.)

SP1,2

TWEETER

SP3,4

WOOFER

SP3,4

WOOFER

702

705

701

703

707

706

710

SP3,4

709x2

704x2

708x2

SP1,2

BLACK

RED

CD-C430H,CP-C430H

– 55 –– 12 –

PACKING METHOD (FOR UK ONLY)

Setting position of switches and knobs

Tape Mechanism STOP

CD-C430H

1. Packing Add., Left/Right SPAKA0124AWZZ1

2. Polyathylene Bag, Unit SPAKP0013AWZZ1

3. Packing Case SPAKC0519AWZZ

4. Polyethylene Bag, Accessories 92LBAG1460C1

5. Operation Manual TiNSE0162AWZZ

6. AM Loop Antenna QANTL0005AWZZ

7. FM Antenna 92LF-ANT1535A

8. Registration Card 92LCARD1751A

9. Remote Control RRMCG0100AWSA

10. Mira Mat SPAKZ0265AWZZ

11. Polyethylene Bag,

AC Power Supply Cord 92LBAG1770A

12. Sheet SPAKZ0264AWZZ

CP-C430H

1. Polyathylene Bag, Speaker 92L411-0075

2. Mirror Mat 92L4140011

3. Packing Add.,Speaker (Top/Bottom) 92L412-0077

4. Center Pad 92L416-0030

5. Feature Label 92L353-0053

TOP

FRONT

BOTTOM

BACK

4,5,6,7,8,9

CD-C430H,CP-C430H

– 56 –

Writer and Editor: Quality & Reliability Control Center of Audio-Visual Systems Group, Sharp Corp.

A9706-4728NS•HA•M

Printed in U.K.

SG • SK • STCL

Sharp CD-C430H Mini Component System

Product's Documents

Service Manual

Specifications

Sharp CD-C430H Questions and Answers

Related Products

Sharp CD-PC3500 Mini Component System

Sharp CD-MPS66 Mini Component System

Sharp CD-ES99 Mini Component System

Sharp CD-DH950P Mini Component System

Sharp XL-HP505 Mini Component System

Sharp CD-DK890N MINI COMPONENT SYSTEM
