OWNER’S MANUAL
HOM-BOT
www.lg.com
Before using, carefully read the Safety Precautions pages
to allow for safe operation of the product. After reading
this manual, keep it in an easily accessible location.
VR657*** Ser
VR655*** Ser
MFL67680039
TABLE OF CONTENTS
BEFORE USING
3
4
9
10
12
14
15
16
Features
Safety Precautions

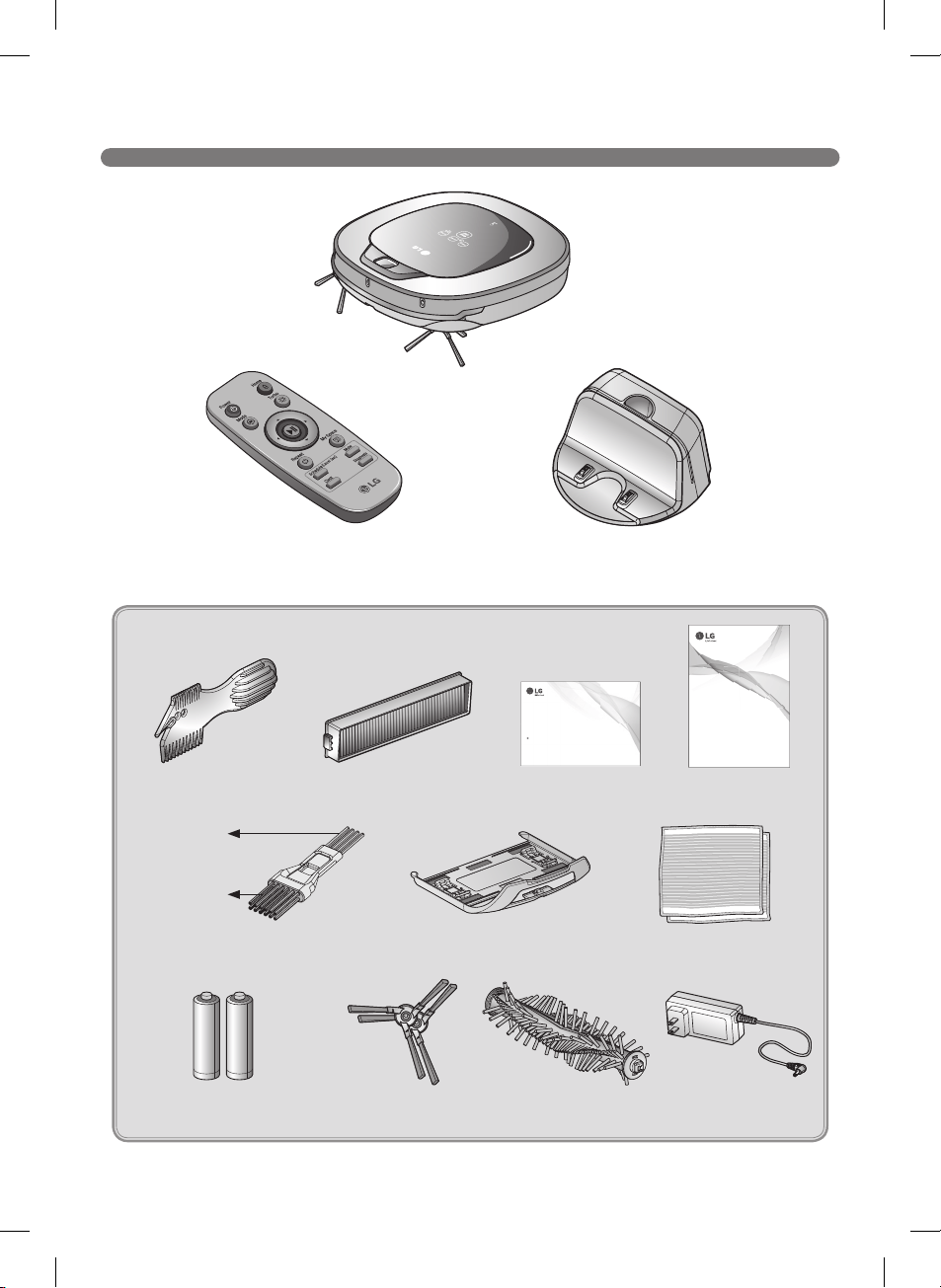

Included with Product

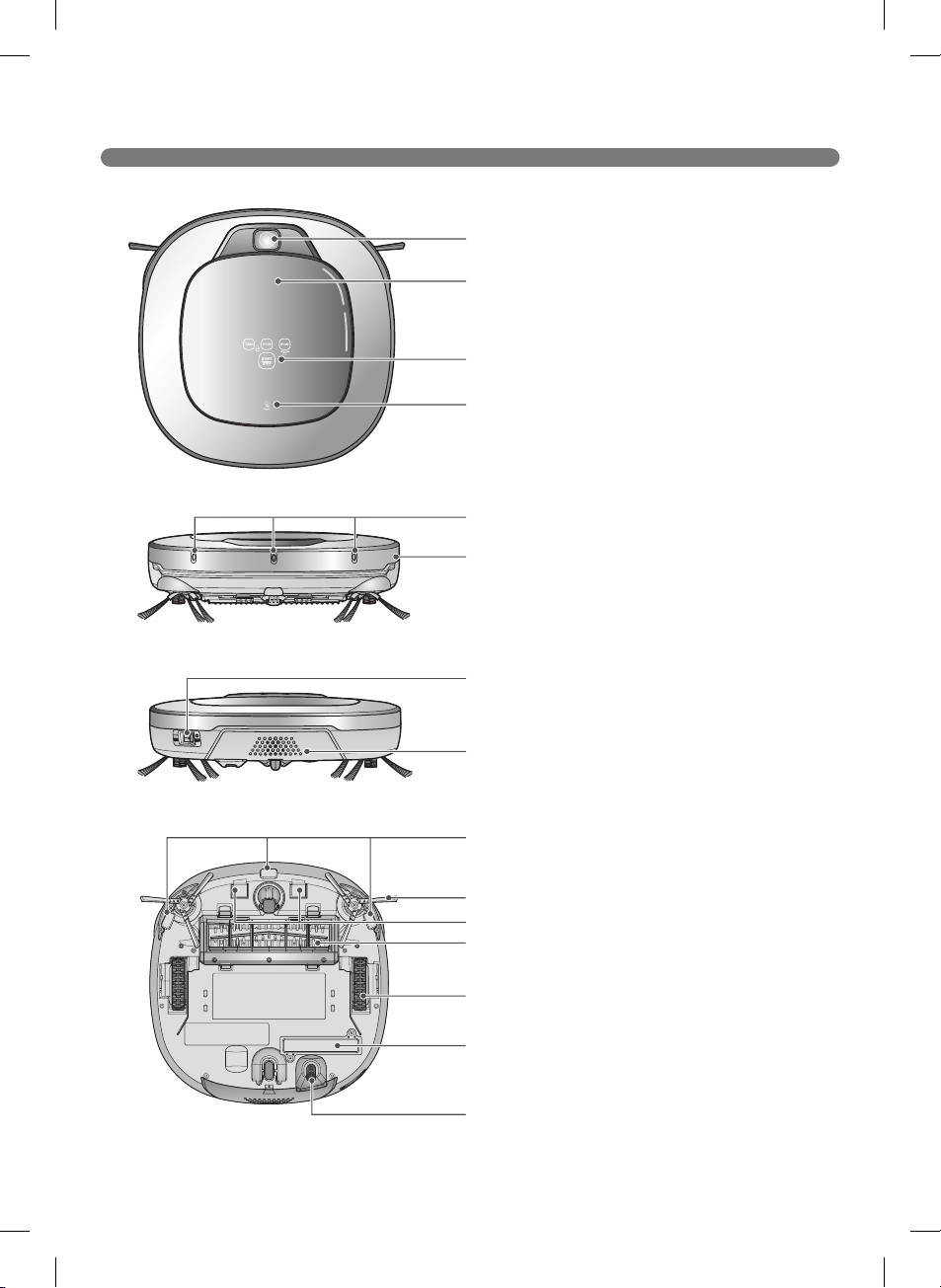

Parts

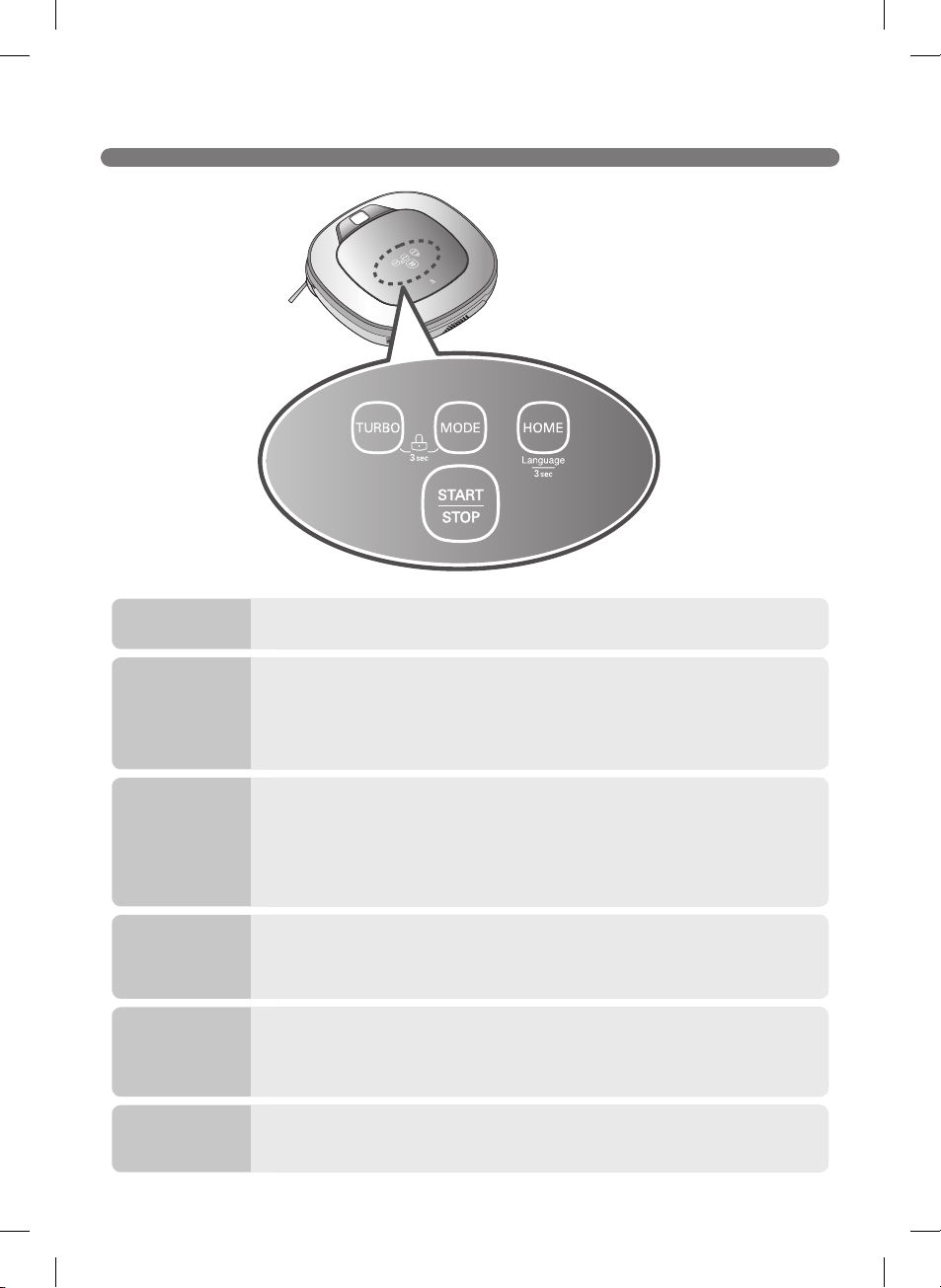

Button Functions

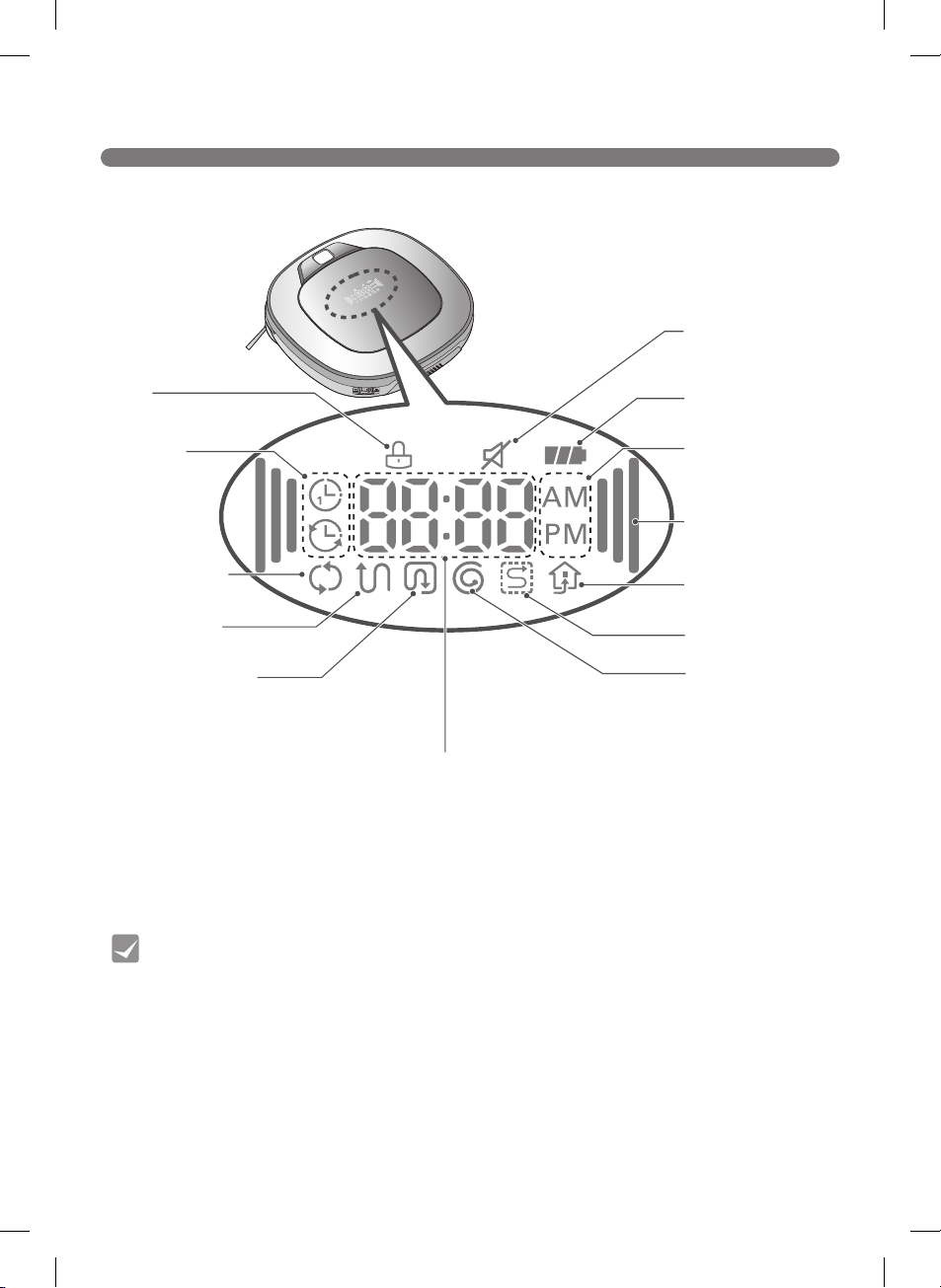

Display Status

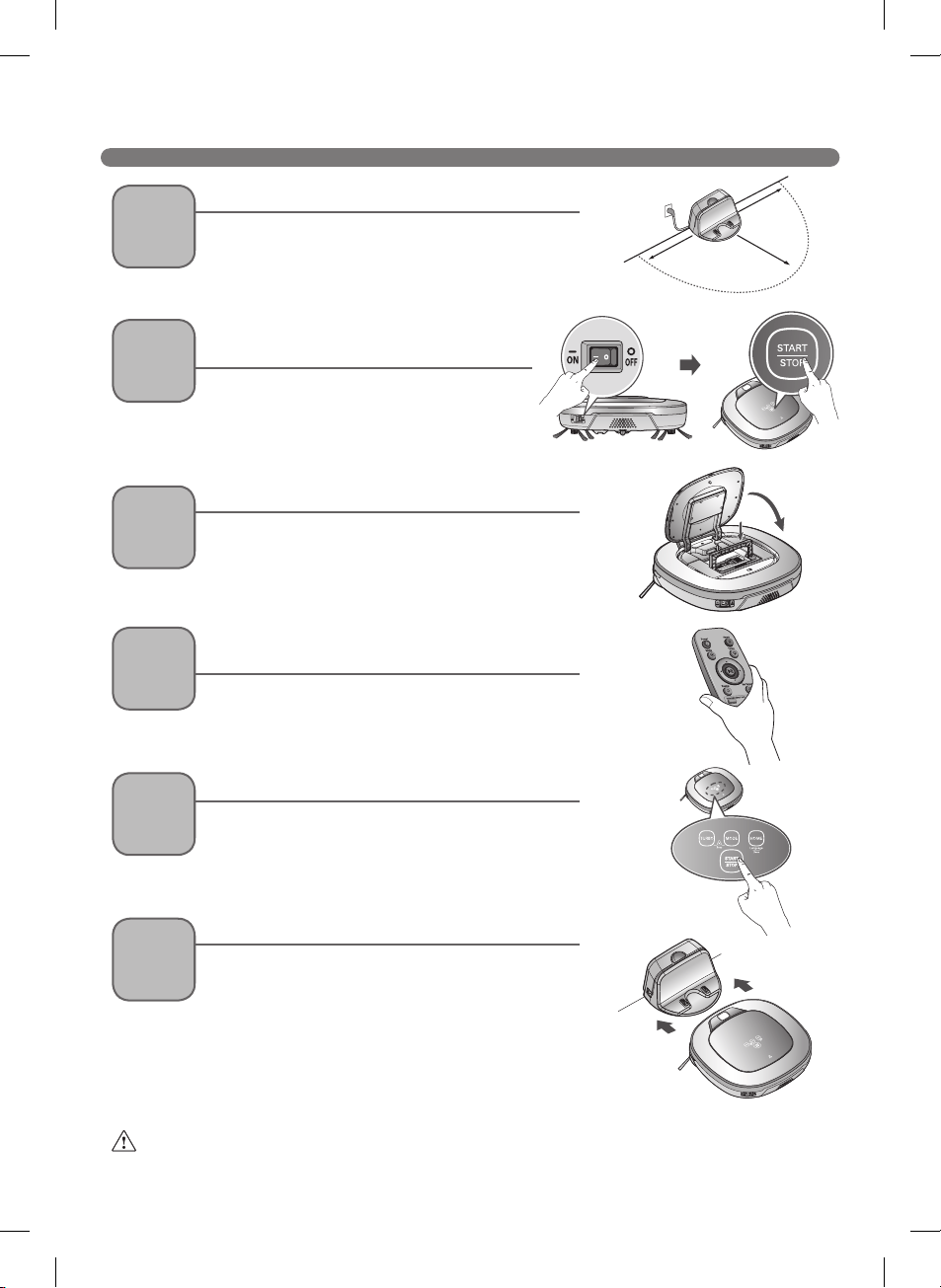

Before Starting
Overview
METHOD OF USE
17
18
19
20
23
25
27
28
29
30
31

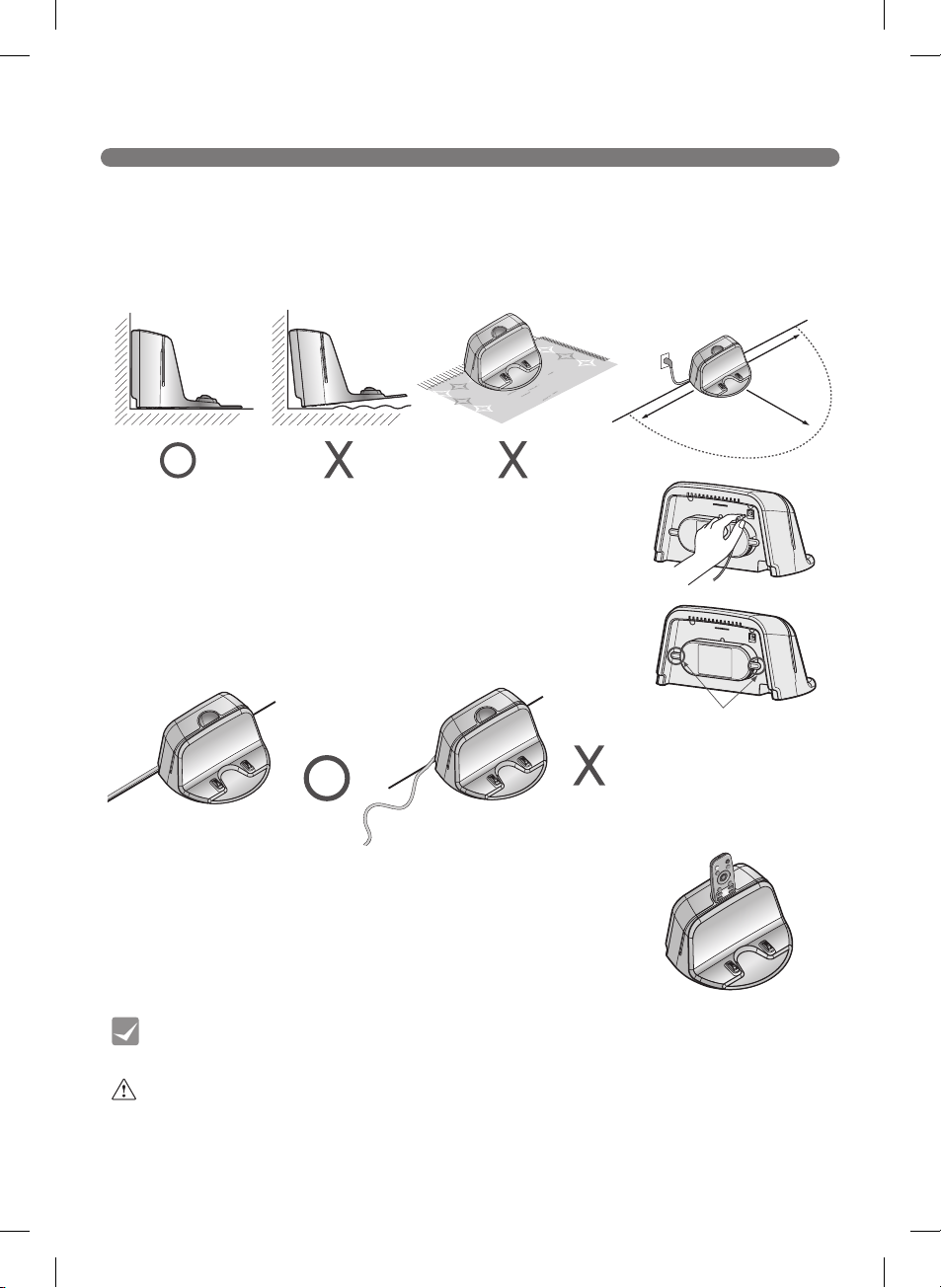

Installing the Home Station

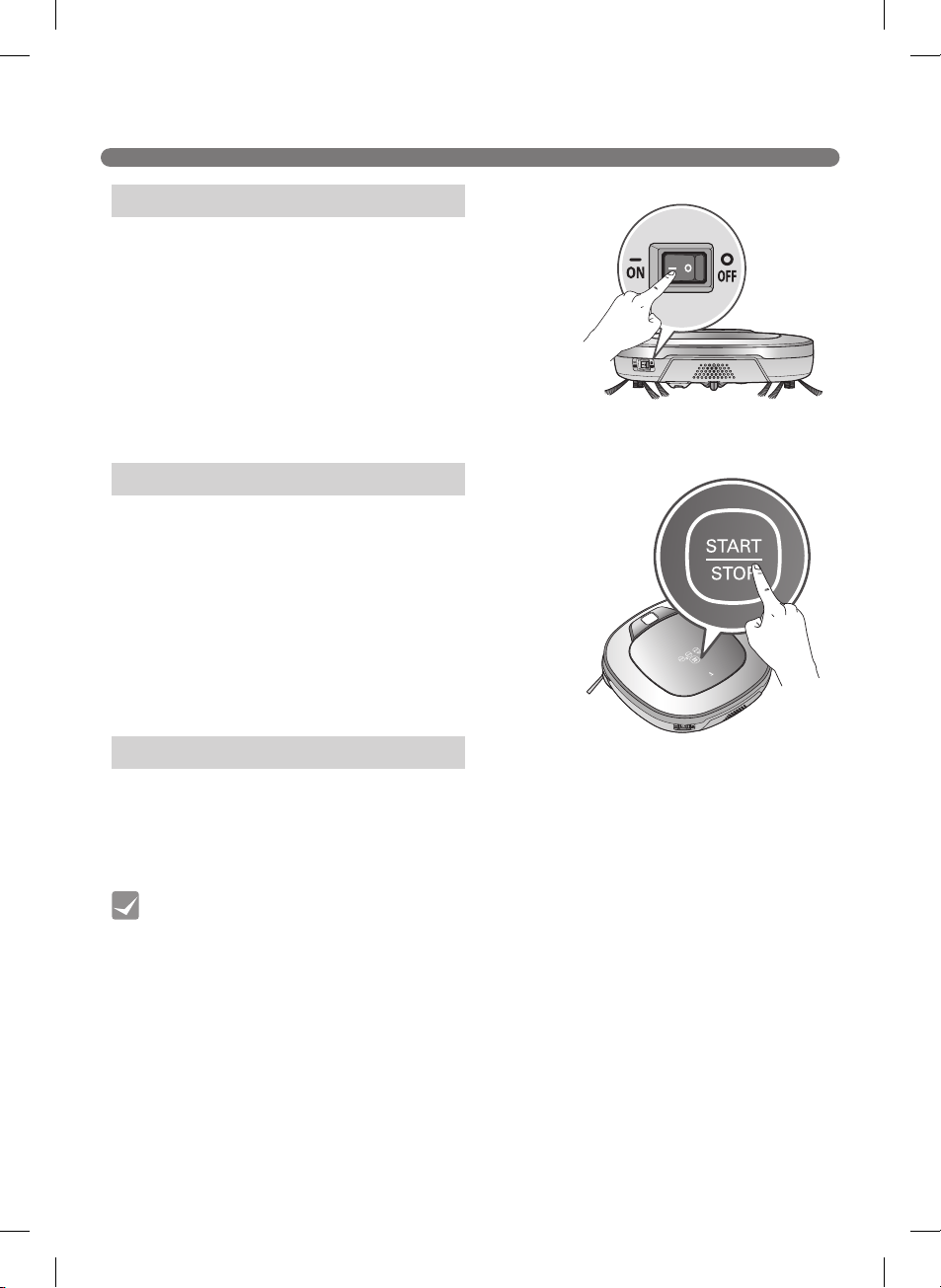

Turning the Robot Cleaner On/Off

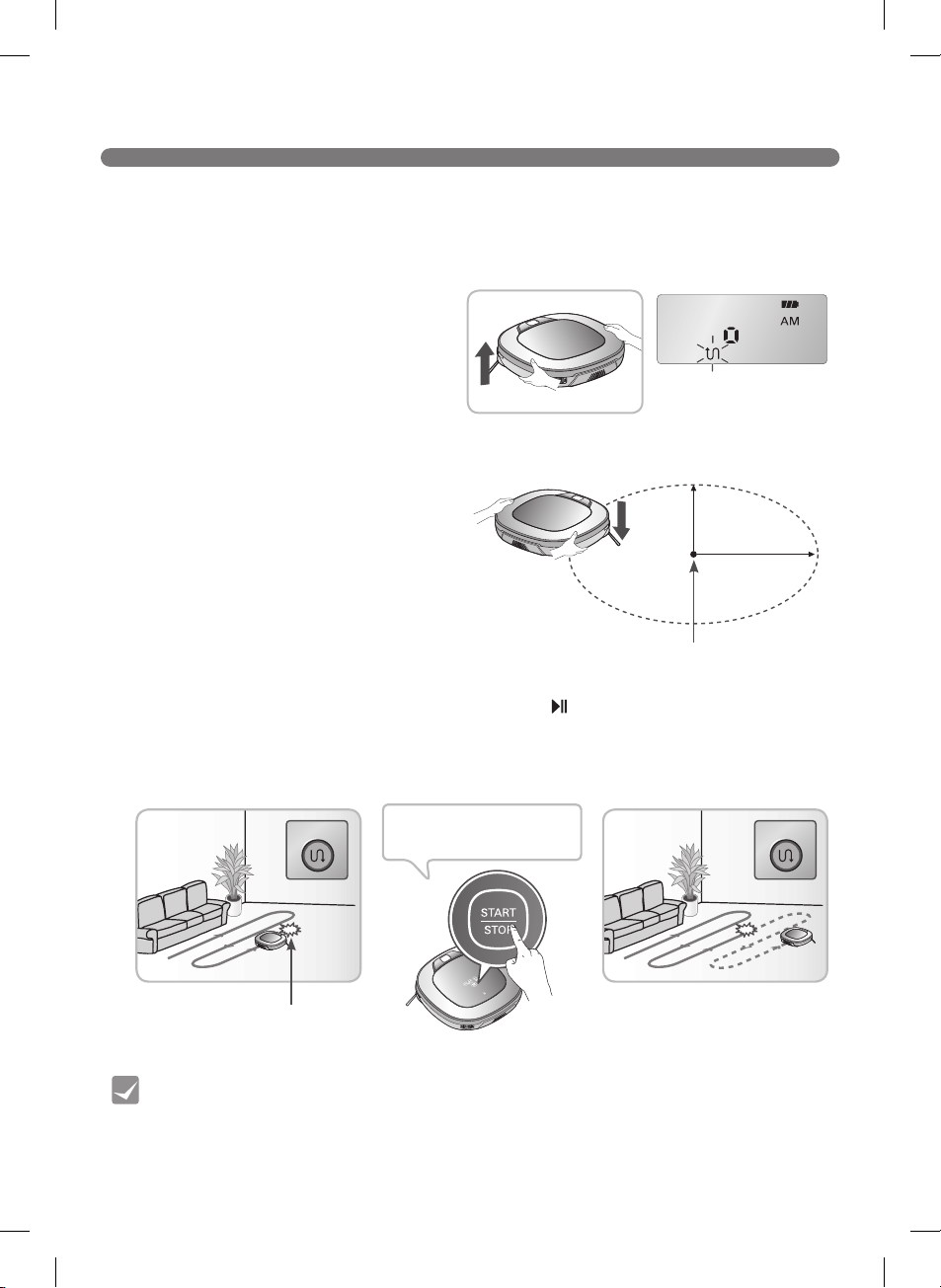

How to Start and Stop Cleaning

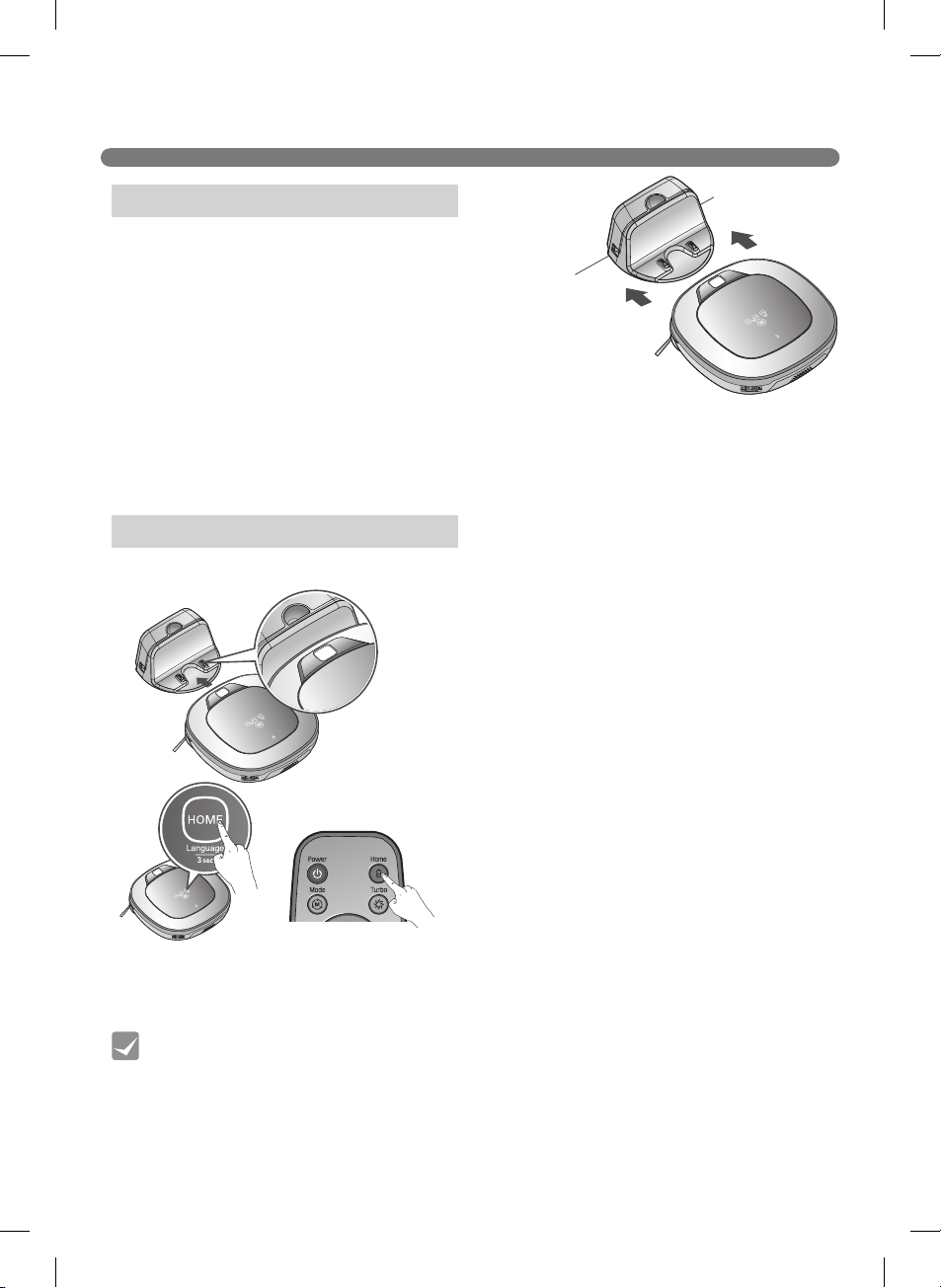

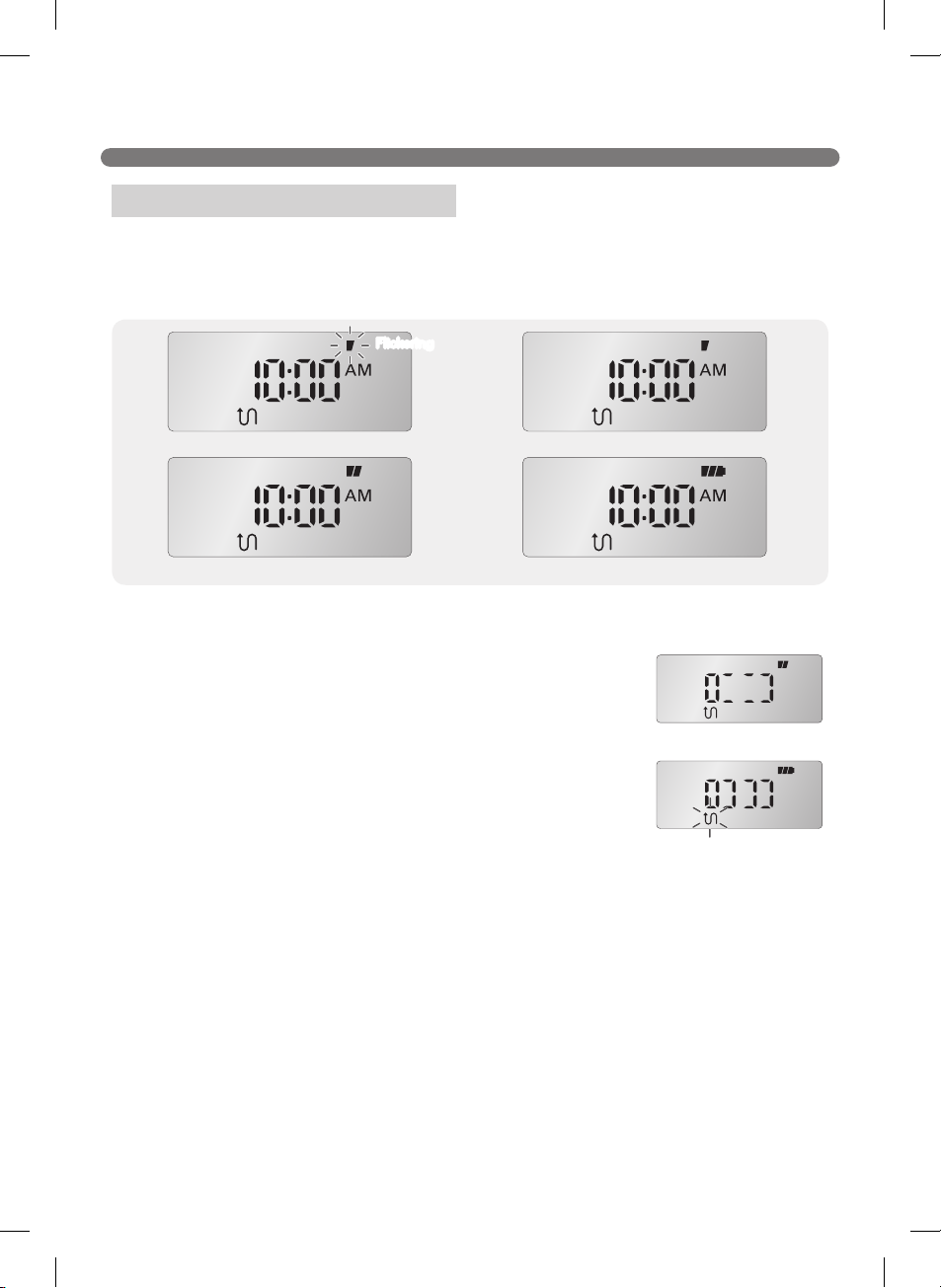

Charging the Battery
Choosing a Cleaning Mode
Auxiliary Cleaning Modes
Setting the Clock
Scheduling Cleaning

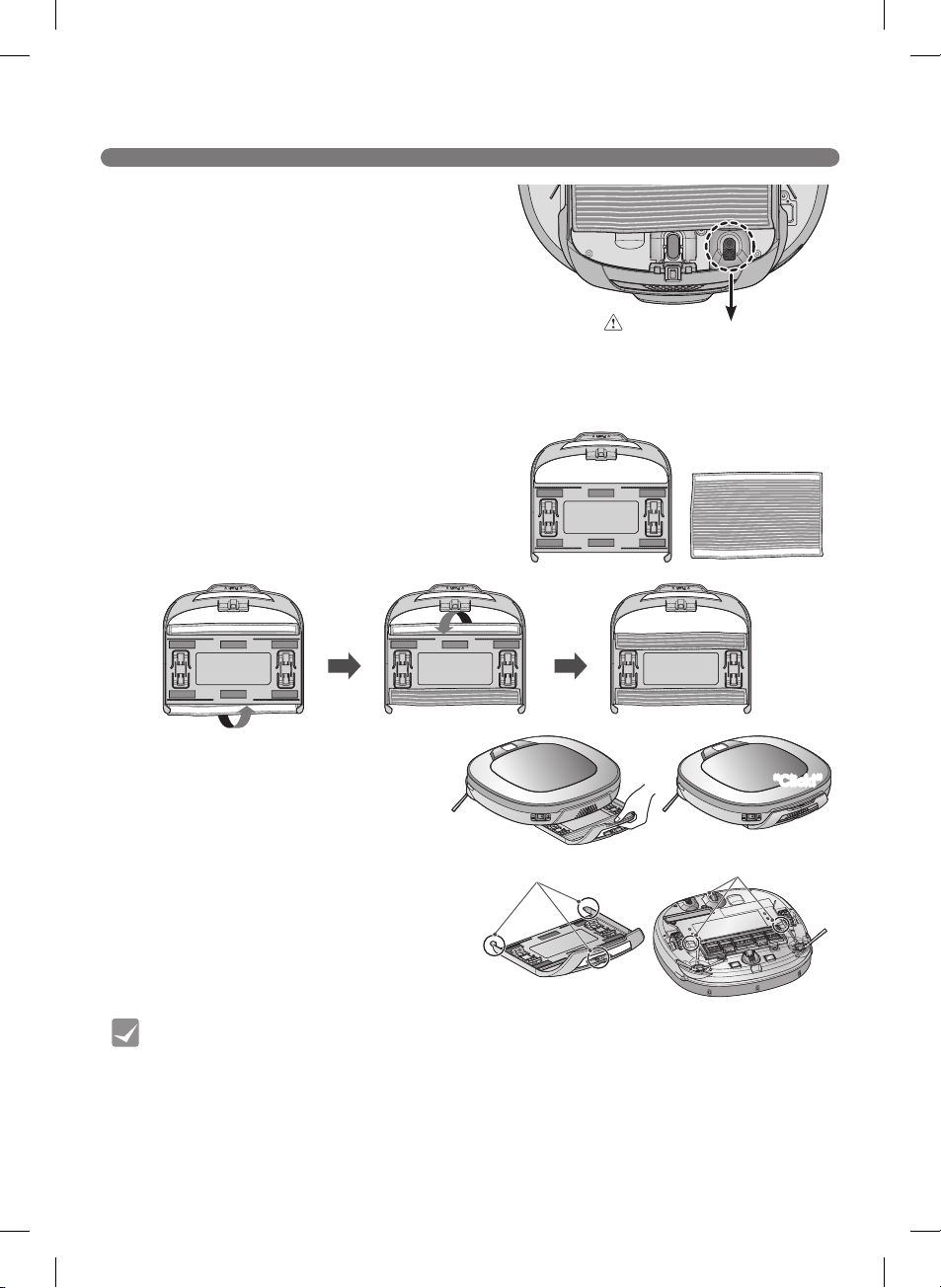

Mop Cleaning (on some models)
Location Search Function
Smart Diagnosis™
MAINTENANCE
33
34
35
36
37
38

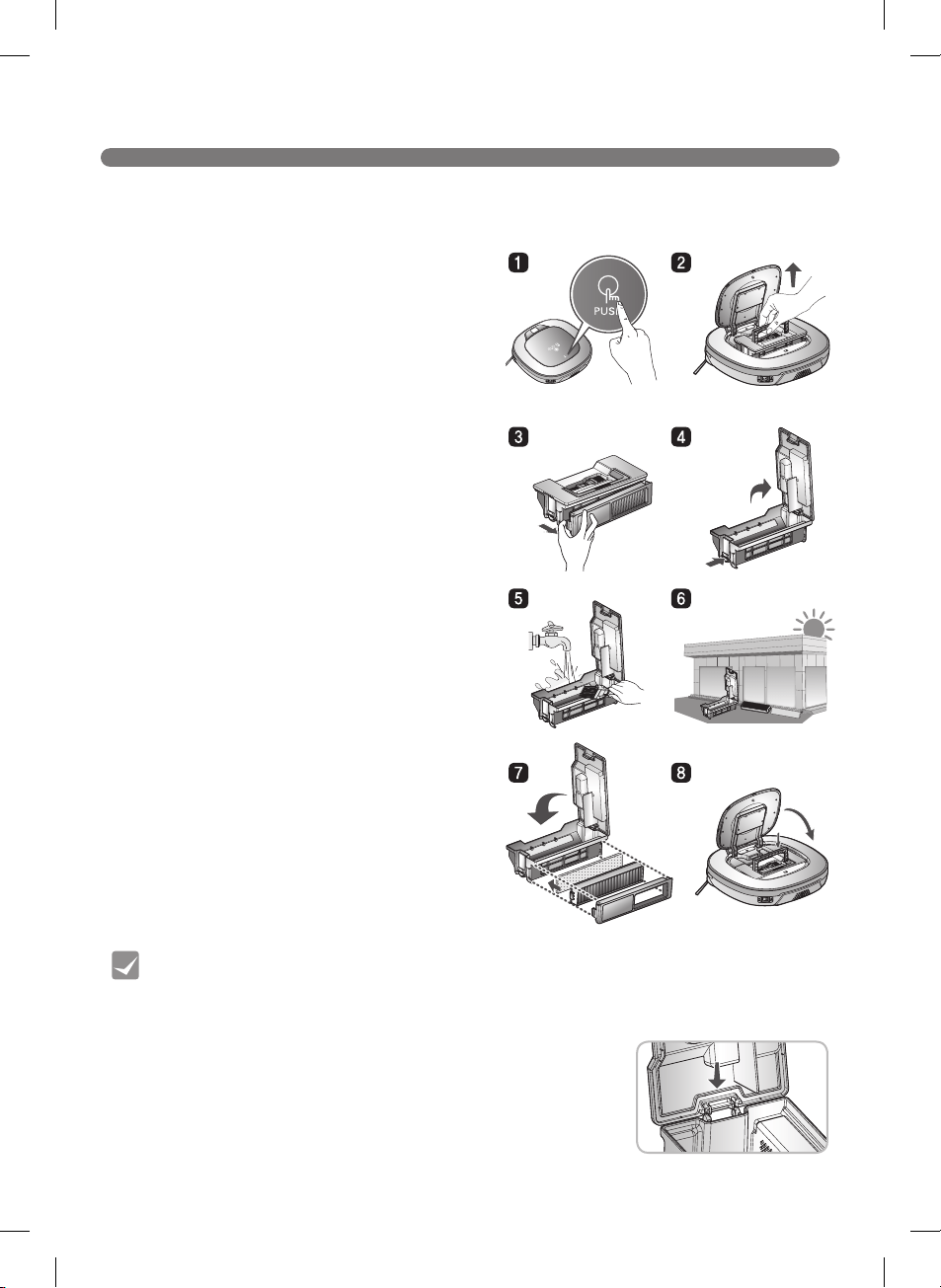

Cleaning the
Dust Bin

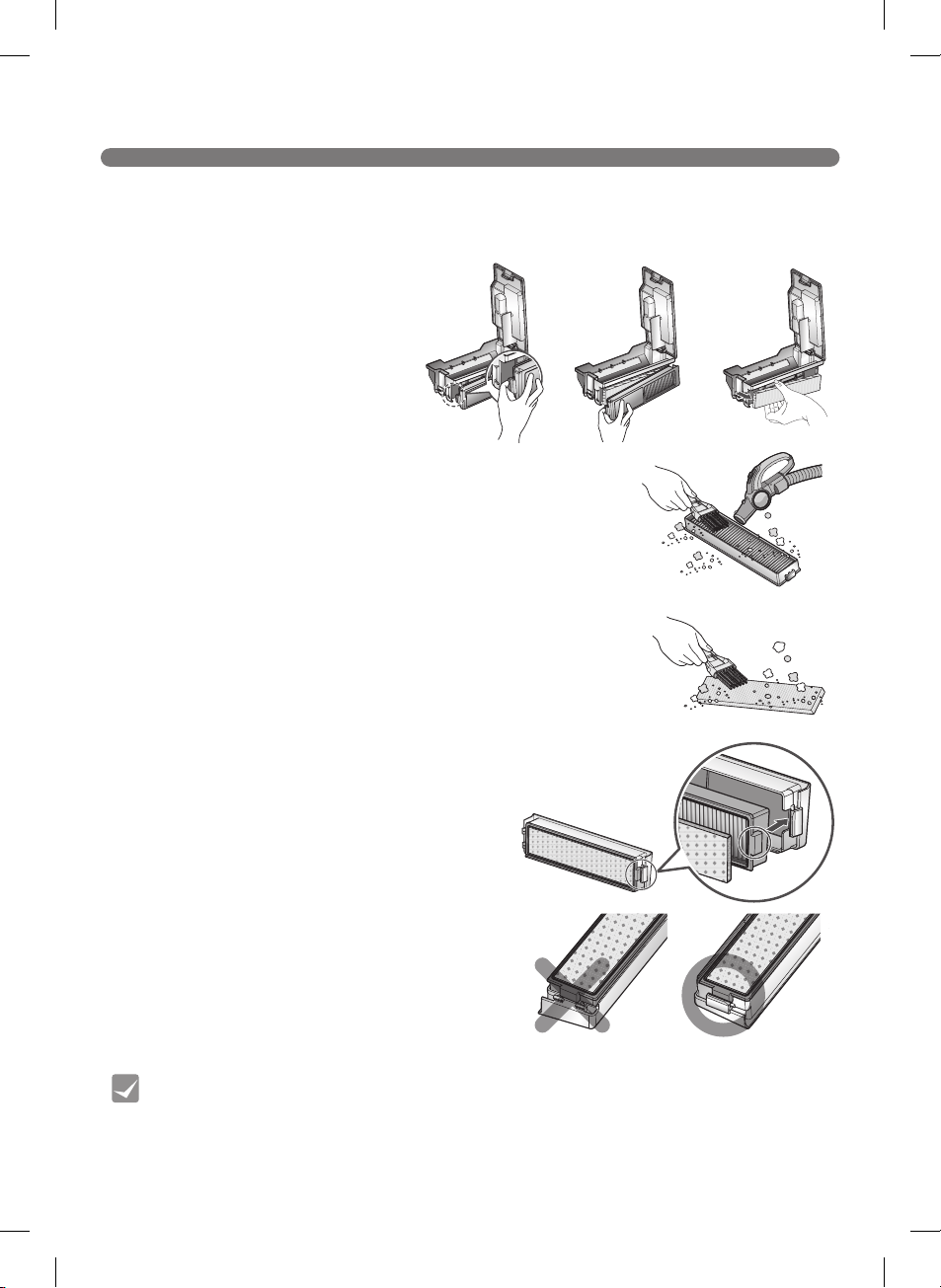

Cleaning the Dust Bin Filter

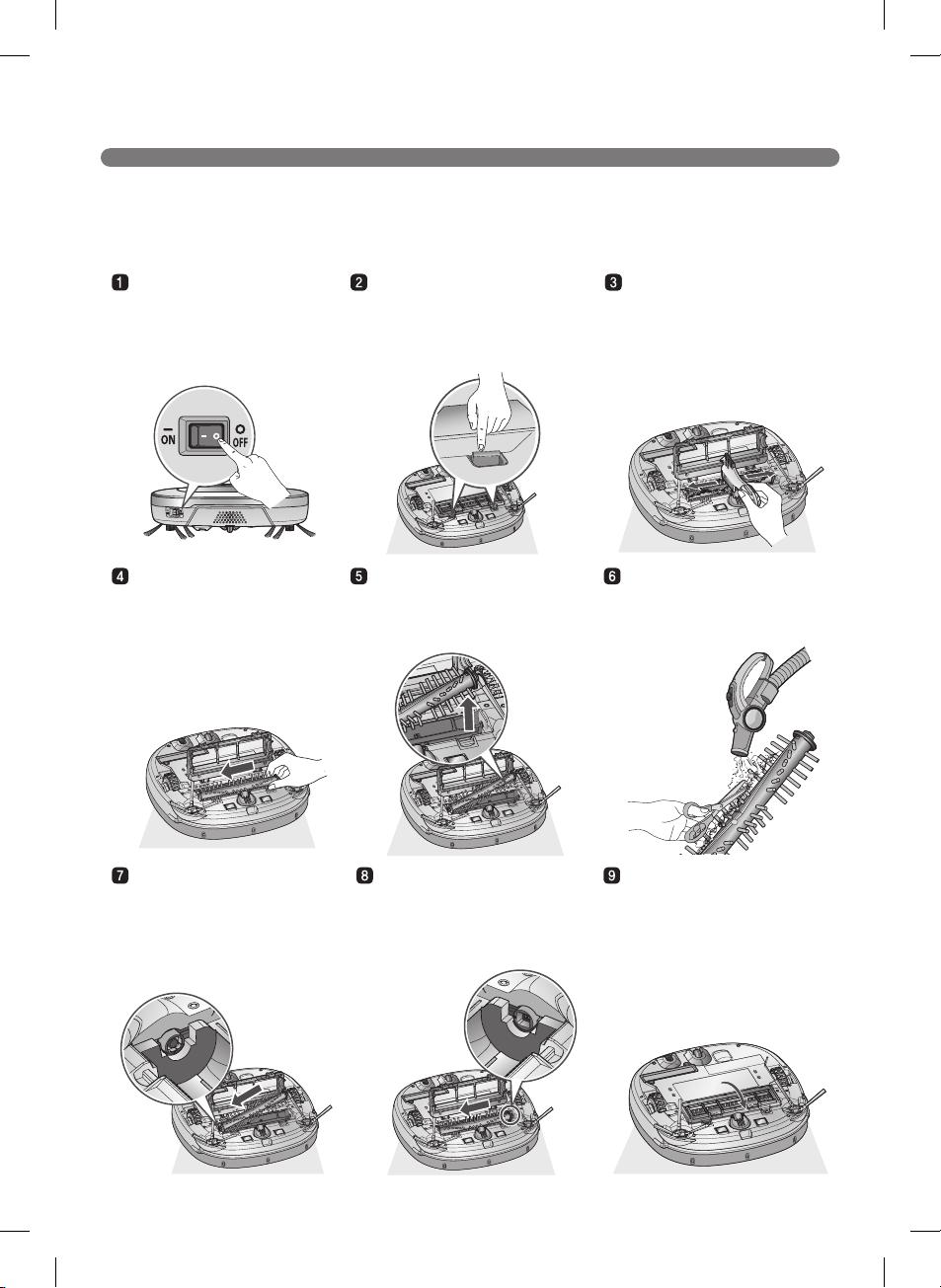

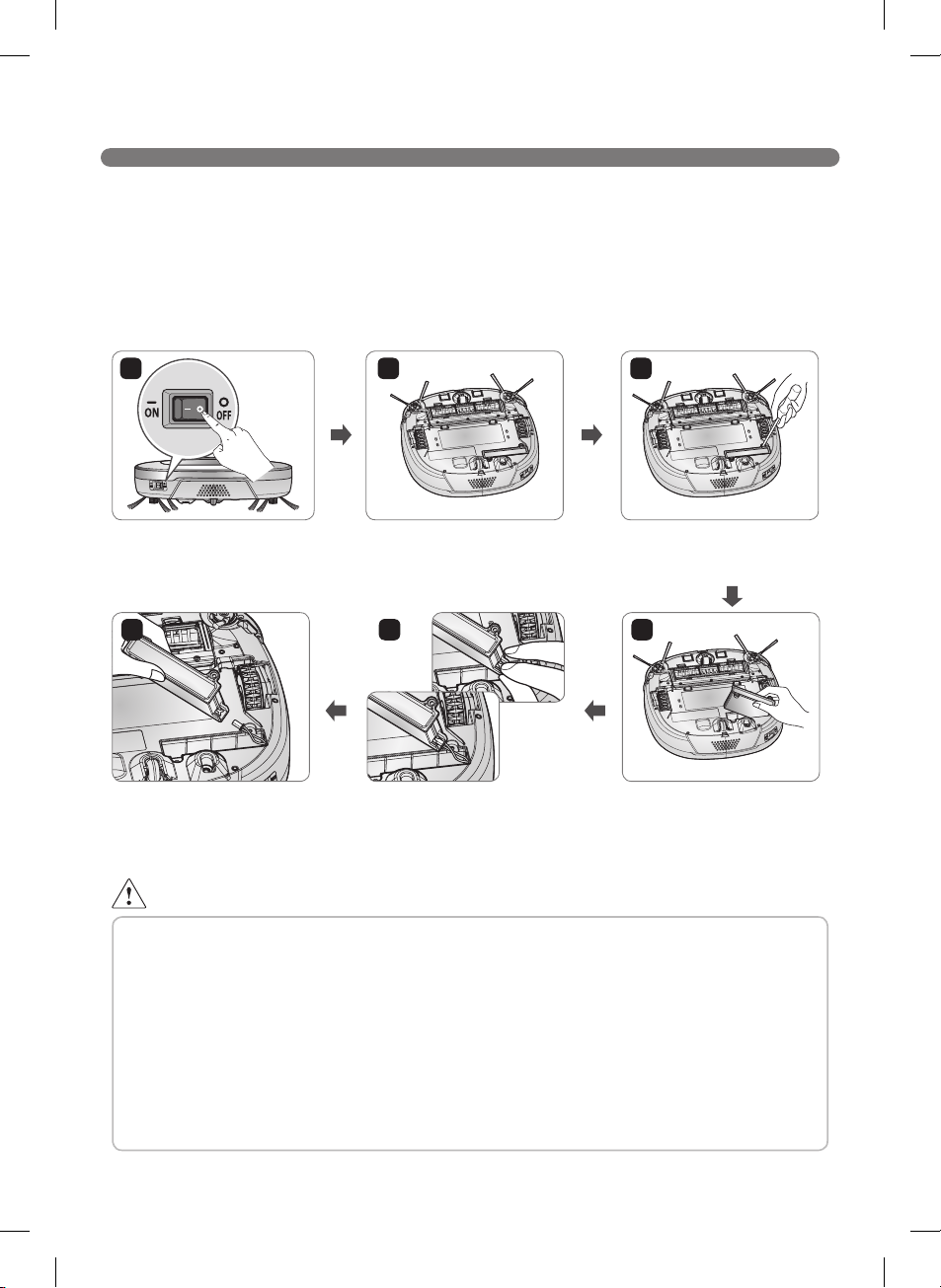

Cleaning the Brush
Cleaning the Sensor/Charging Terminal
Cleaning the Side Brush

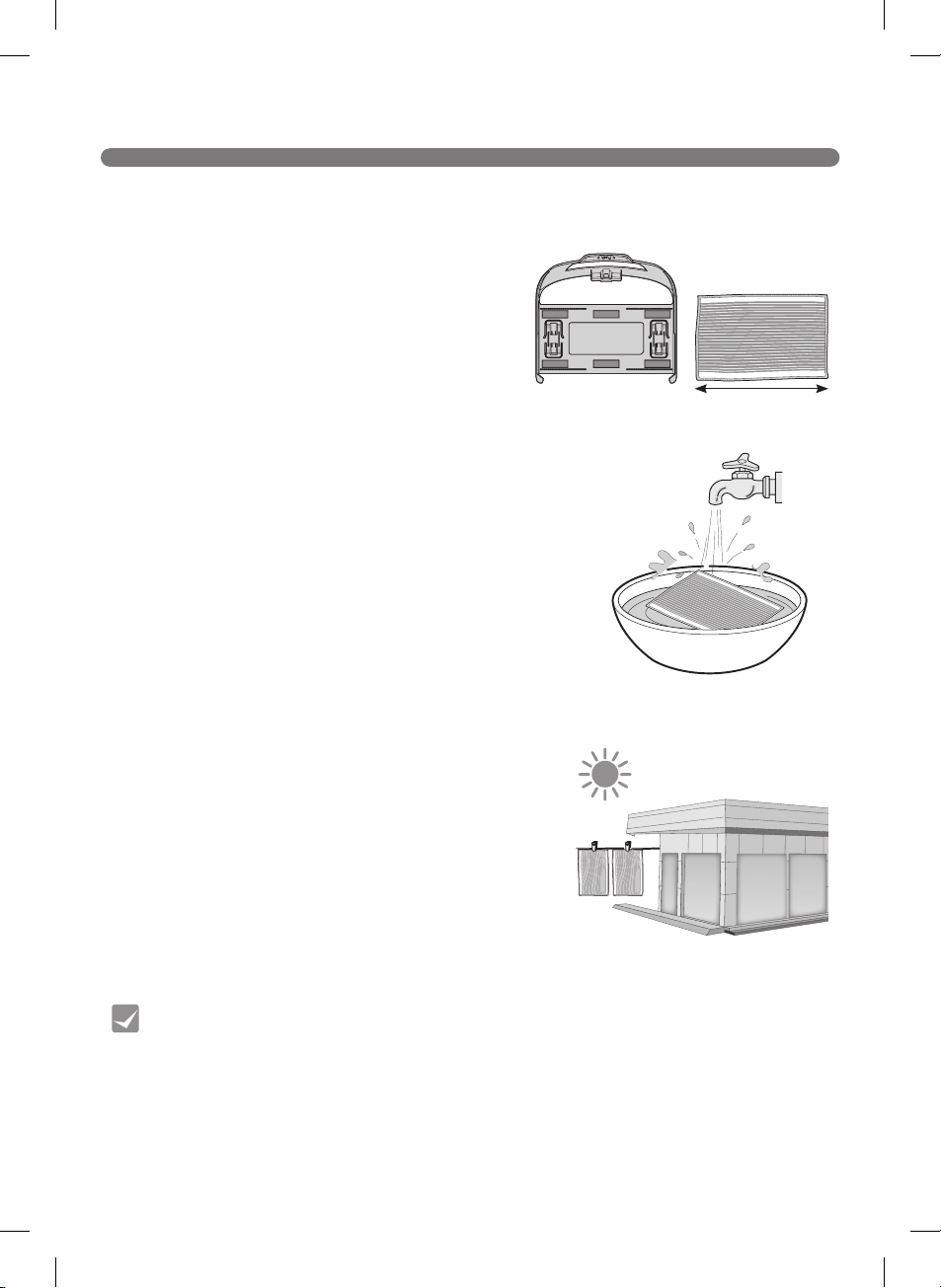

Cleaning the Ultra Microfiber Mop
(on some models)
ADDITIONAL INFORMATION
39
42
Troubleshooting
Before Calling for Service
REFERENCE
43
44
45
Product Specifications
Reference Items
Performance Testing (IEC 62929 Standard)
WARRANTY
46
LG Robot Cleaner WARRANTY
3
FEATURES
Corner Master
The Robot Cleaner's ability to navigate around walls is part of what makes
its cleaning performance so efficient.
Learning Mode
The Robot Cleaner memorizes the cleaning environment for smarter
cleaning via its Smart Operation feature.
Turbo Mode
In the Turbo mode, the Robot Cleaner operates the suction motor and
the brushes at a greater speed giving cleaner results.
When selected, the Turbo mode activates automatically, cleaning carpets
more efficiently.
Drawer Mop Plate (on some models)
Use the optional drawer mop plate to fit and remove the mop without
having to turn the Robot Cleaner over.

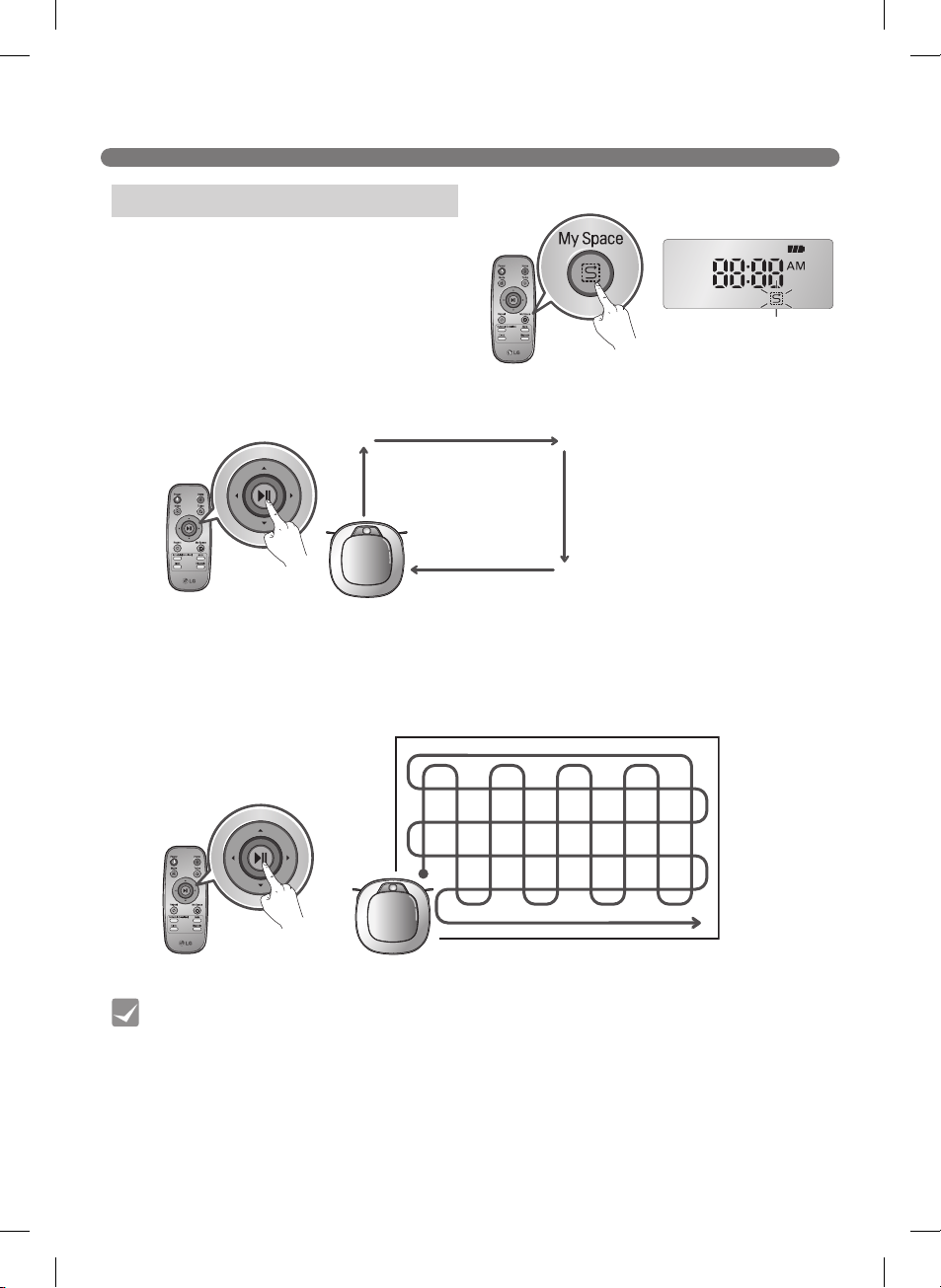

My Space Mode
The Robot Cleaner can be programmed to quickly clean a desired space.
Repeat Cleaning
The Robot Cleaner cleans continuously until the battery runs out.
Location Search Function
If the Robot Cleaner is moved from a spot while operating, the device
will automatically search for the previous location and return to the spot
where it was interrupted.
Zigzag
4
SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
Read all instructions before using.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not
play with the appliance.
3. If the supply cord is damaged, it must be replaced by an
LG Electronics Service Agent in order to avoid a potential
hazard.
4. This appliance can be used by children aged 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance must not be performed by
children without supervision.
Basic Safety Precautions
After reading this manual, please keep it in an easily accessible location.
This is the safety alert symbol. This symbol alerts you to potential hazards that can
result in property damage and/or serious bodily harm or death.
Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
WARNING
CAUTION
5
SAFETY PRECAUTIONS
WARNING
•For your safety, do not remove the battery
from the Robot Cleaner. If you need to
replace the battery of the Robot Cleaner,
take it to the nearest authorized LG
Electronics service center or dealer for
assistance.
Failure to follow this warning can cause re or
product failure.
•Make sure the power cord of the home
station is not crushed under a heavy
object or damaged by contact with sharp
objects.
If the power cord is broken, do not plug it
in. Take the product to an LG Electronics
authorised service repairer.
Failure to follow this warning can cause
electric shock, re or product failure.
•Do not place the home station and/or the
Robot Cleaner near a heating device.
Doing so can cause product deformation, re,
or product failure.
•Do not force the power plug to bend. Do
not use the power plug when it has been
damaged or loosened.
Doing so can cause re or product failure.
•Do not touch the power plug with wet
hands.
Doing so can cause electric shock.
•Have servicing performed by an authorized
service repairer using only identical
replacement parts. This will ensure that
the safety of the product is maintained.
•Never use the Robot Cleaner with a battery
and/or home station from any other
product than the Robot Cleaner.
Doing so can cause re or product failure.
•Do not use the Robot Cleaner when
candles or fragile objects are placed on
theoor.
Doing so can cause re or product failure.
•Always use a dedicated power outlet with
a 10 amp rating.
If multiple appliances are connected to an
outlet simultaneously, they can generate
enough heat to cause a re.
•When pulling out the home station power
plug, always pull it out by grabbing the
plug, not the cord. When pulling out the
power plug, do not touch the prongs with
yourngers.
Doing so can cause an electric shock.
1) Place the cords from other appliances out of the area to be cleaned.
2) Do not operate the vacuum in a room where an infant or child is sleeping.
3) Do not operate the vacuum in an area where there are lit candles or fragile objects
on the oor to be cleaned.
4) Do not operate the vacuum in a room that has lit candles on furniture that the
vacuum may accidentally hit or bump into.
5) Do not allow children to sit on the vacuum.
6) Do not use the vacuum on a wet surface.
6
SAFETY PRECAUTIONS
WARNING
•Do not allow children or pets to play with
or rest upon the Robot Cleaner at any
time. Do not use the Robot Cleaner while
an object is hanging from it.
Doing so can cause injury or product damage.
•Keep gasoline, thinners, or other
ammablematerials,detergents,
shampoos, or other foaming agents,
or drinking water away from the Robot
Cleaner.
Failure to do so can cause re or product
failure.
•Do not insert any part of the body, such as
a hand or foot, below the brush or wheels
of the Robot Cleaner while in use.
Doing so can cause injury or product damage.
•Do not operate the Robot Cleaner on
narrow and high furniture such as a
wardrobe, refrigerator, desk, table, etc.
Doing so can cause injury, product failure or
damage which is not covered by the warranty.
•Donotactivatethedeviceonaoorthat
has more than a 10 degree incline.
The device may not work properly.
•Turn the power supply off immediately
if any abnormal sound, odor or smoke
is generated from the Robot Cleaner.
Remove the Robot Cleaner from the home
station and turn off the main switch on the
rear side of the unit.
Failure to do so can cause re or product
failure.
•Do not operate the Robot Cleaner in a
room where a child is sleeping.
Doing so can cause injury or product damage.
•Do not leave children or pets near the
Robot Cleaner unsupervised.
Doing so can cause injury or product damage.
•Do not repair or replace any parts or
attempt any servicing other than as
described in this manual. We strongly
recommend that any service be performed
byaqualiedtechnician.
•A coin cell battery on the mainboard of
the Robot Cleaner cannot be replaced by
the user. Used cells must be disposed of
properly.
This product is intended for indoor,
domestic use and should not be used in
mobile or commercial locations, such as
workshops, garages, indoor swimming
pools, etc.
•This product contains chemicals known to
the State of California to cause cancer and
birth defects or reproductive harm.
WASH HANDS AFTER HANDLING.
7
SAFETY PRECAUTIONS
CAUTION
•Frequently empty the dust bin and keep it
clean.
The dust collected in the dust bin can trigger
allergies and may contain harmful insects. it
should be cleaned after each use.
•Only use the Robot Cleaner indoors.
Using it outdoors can cause product failure and
irreparable damage to the unit.
•Close the cover of the dust bin on the main
unit before use.
If the cover is not closed, it can cause injury or
product damage.
•DO NOT use the Robot Cleaner around a
banister, staircase or any other dangerous
place.
Doing so could cause injury or damage to the
unit.
•In rare cases, the Robot Cleaner’s brush
can damage carpet. If this happens,
immediately stop the cleaning operation.
When a carpet has long tassels, the tassels
can be damaged.
•Do not let the main unit and charging
terminal of the home station come into
contact with metallic objects.
Doing so can cause product failure.
•Do not put water, detergent, etc. into or
onto the Robot Cleaner.
Doing so can cause product failure. If liquids
get inside of the Robot Cleaner, turn off the
power supply and contact an LG Electronics
sales agent or customer care center.
•Do not drop the Robot Cleaner or subject it
to strong impacts.
Doing so can cause injury or product failure not
covered by the warranty.
•Do not expose the Robot Cleaner to
temperatures lower than 23°F (-5°C) for a
long period of time.
Doing so can cause product failure.
•Removeanycablesorstringfromtheoor
before use.
Cable or string can get tangled in the wheels of
the Robot Cleaner and cause product failure or
cause another appliance to be disconnected.
•Do not place the Robot Cleaner on a table
or other elevated surface while it is on.
Doing so may result in an injury or damage to
the product.
•Do not allow the Robot Cleaner to sweep up
liquids, blades, thumb tacks, sharp objects
or ashes, hot or cold. etc.
These items can cause product failure or
damage.
•Do not put sharp objects into the opening
of the Robot Cleaner’s ultrasonic sensors.
Doing so can cause product failure.
•Do not use the Robot Cleaner when the
dust bin is completely full.
Doing so can cause product failure.
•Iftheooriswetorhaswetspots,wipe
them up before using the Robot Cleaner. Do
not use the Robot Cleaner on a wet surface.
Doing so can cause product failure.
•Attach the mop so that it does not block the
lower camera sensor.
Blocking the bottom camera sensor may
prevent the product from working correctly.
•Turn off the power switch to save energy
when the Robot Cleaner is not in use for
long periods. Turn on the power switch just
prior to resuming use.
• Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to the battery pack, picking up or carrying the
appliance. Carrying the appliance with your
ngerontheswitchorenergizinganappliance
that has the switch on invites accidents.
8
SAFETY PRECAUTIONS
Check the following items before use:
For example, remove expensive ceramics and valuables from the floor.
During cleaning, the Robot Cleaner may enter another room and continue cleaning.
hurt or woken.
by the brush.
in. (20 mm) as they
may cause it to malfunction.
Tip
CAUTION
•Disconnect the battery pack from the
appliance before making any adjustments,
changing accessories, or storing the
appliance. Such preventive safety
measures reduce the risk of starting the
appliance accidentally.
•When the robot cleaner is operating, it may
hit a chair leg, desk leg, table leg or other
narrow pieces of furniture.
For quicker and better cleaning, place dining
chairs on top of the dining table.
•Rechargeonlywiththechargerspeciedby
Robot Cleaner provided by LG Electronics.
A charger that is suitable for one type of
batterypackmaycreateariskofrewhen
used with another battery pack.
•Useappliancesonlywithspecically
designed battery packs for Robot Cleaner
provided by LG Electronics. Use of any
other battery packs may create a risk of
injuryandre.
(
※
DischargingRange:-20~60˚C
ChargingRange:0~60˚C)
•When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
causeburnsorare.
•Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
Ifcontactaccidentallyoccurs,ushwith
water. If liquid contacts eyes, seek medical
help.
Liquid ejected from the battery may cause
irritation or burns.
•Do not use a battery pack or appliance
thatisdamagedormodied.Damaged
ormodiedbatteriesmayexhibit
unpredictablebehaviorresultinginre,
explosion or risk of injury.
•Do not expose a battery pack or appliance
toreorexcessivetemperature.Exposure
toreortemperatureabove265°F(130°C)
may cause explosion.
•NOTE: Very low thresholds will allow the
Robot cleaner to go over them and perhaps
into an undesirable location. Make sure
that all doors to rooms that are not to be
cleaned are closed.
9
INCLUDED WITH PRODUCT
Appearance and accessories may vary depending on model.
*Available on some models.
Dust bin filter* (spare)Cleaning Tool
Cleaning brush
(on dust bin cover)
Mop plate*
for cleaning
sensors
for cleaning
the filter
Ultra microfiber mop*
(2 pieces)
Batteries for remote controller
(2 units of AAA size)
Quick guide Owner's manual
Home station
Robot Cleaner
www.lg.com
Quick Guide
HOM-BOT
This guide briefly describes how to use the robot cleaner.
For more detail, please refer to the user manual.
Please read this manual carefully before installing and operating the product.
OWNER’S MANUAL
HOM-BOT
Before using, please carefully read the Safety Precautions
pages to allow for safe operation of the product. After
reading this manual, please keep it in an easily accessible
location.
www.lg.com
Remote controller
Side brush*
(2 pieces)
Pet Brush* Adapter
10
PARTS - ROBOT CLEANER
Appearance may vary depending on model.
Top view
Front view
Rear view
Bottom view
Upper camera sensor
Dust bin cover
Display and function buttons
Dust bin compartment release button
Ultrasonic sensors
Obstacle detecting sensor window, home
station detecting sensors, remote controller
receiving sensors.
Main Power switch
Ventilation port
Cliff detection sensors
Side brush
Charging terminals
Brush
Wheel
Battery housing
Lower camera sensor
11
PARTS – HOME STATION / DUST BIN
Appearance may vary depending on model.
Home station
Dust bin
Remote holder
Charging terminal
Sponge filter
Dust bin handle
Cleaning brush
Dust bin cover
Suction port flap
Particulate filter
Filter cover
Dust bin lid
opening button
Power cord keeper
12
BUTTON FUNCTIONS – ROBOT CLEANER
Press to activate Turbo Mode.
Press again (while in Turbo Mode) to deactivate Turbo Mode.
Press to change the mode. The mode icon will illuminate on the display when
selected.
The Spot Clean mode is not available if the Robot Cleaner is at the home
station.
The My Space mode can only be selected by remote control (when the
Robot Cleaner is not on the home station).
Press to return the Robot Cleaner back to the home station for charging or
storage.
If cleaning is finished or the battery is low, the Robot Cleaner will
automatically return to the home station to recharge the battery.
Press and hold the Turbo and Mode buttons simultaneously for three
seconds to activate or deactivate the Button Lock function.
If the Button Lock function is activated, "Key lock has already been set" voice
notification will play every time a button is pressed.
Press the Home button for three seconds to change the language for the
voice message.
This function cannot be set using the remote.
start cleaning.
Press to stop cleaning.
Press and hold for two seconds to return to standby mode.
If button is pressed during Smart Diagnosis, the diagnosis will end.
TURBO
MODE
HOME
BUTTON LOCK
On/Off
Language
Change
START/STOP
13

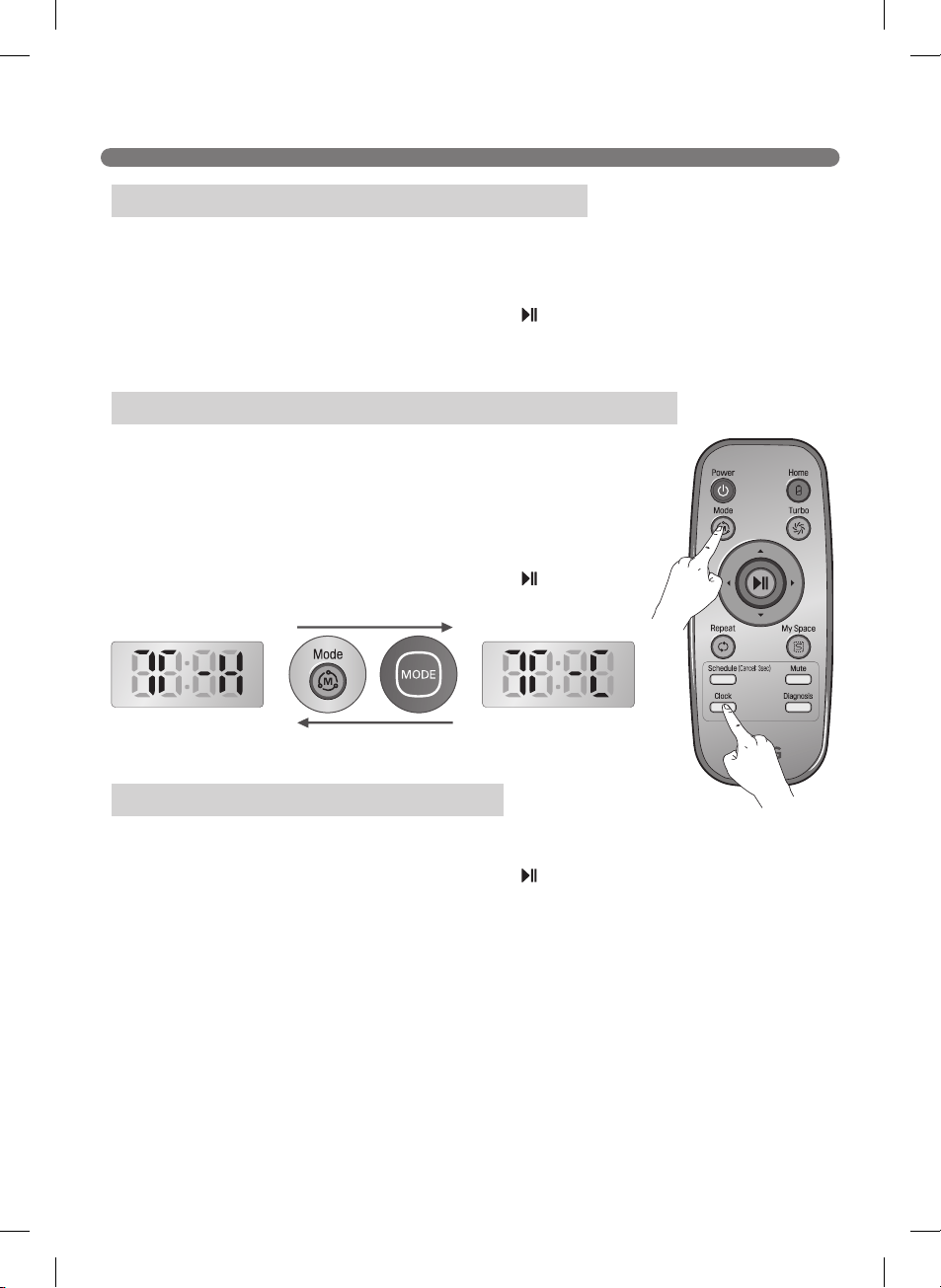

BUTTON FUNCTIONS – REMOTE
Robot Cleaner or the Power button on the remote.
cleaning.
while the Robot Cleaner is recharging.
Tip
Power
Turn power on, return
power to standby
Home
Send the Robot Cleaner to the
Home Station
Turbo
Activate or deactivate Turbo mode
Start/Stop button
cleaning schedule or time setting
My Space
Set the My Space mode
Mute
Activate or deactivate the voice
commands

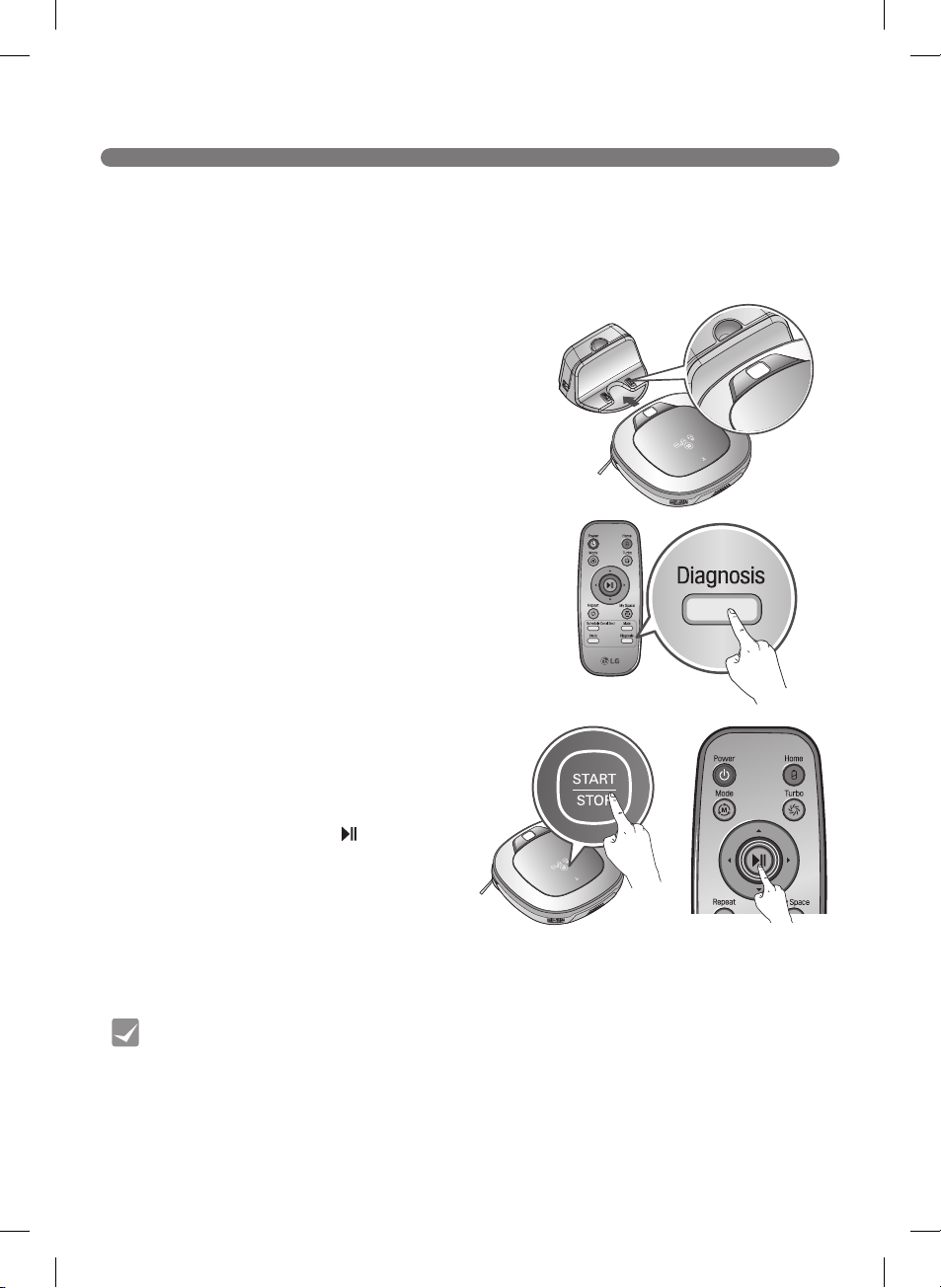

Diagnosis
Run Smart Diagnosis™
Mode
Change cleaning mode
Directional button
or selection of an area in
My Space cleaning mode
Repeat
Activate or deactivate
Repeat Cleaning mode

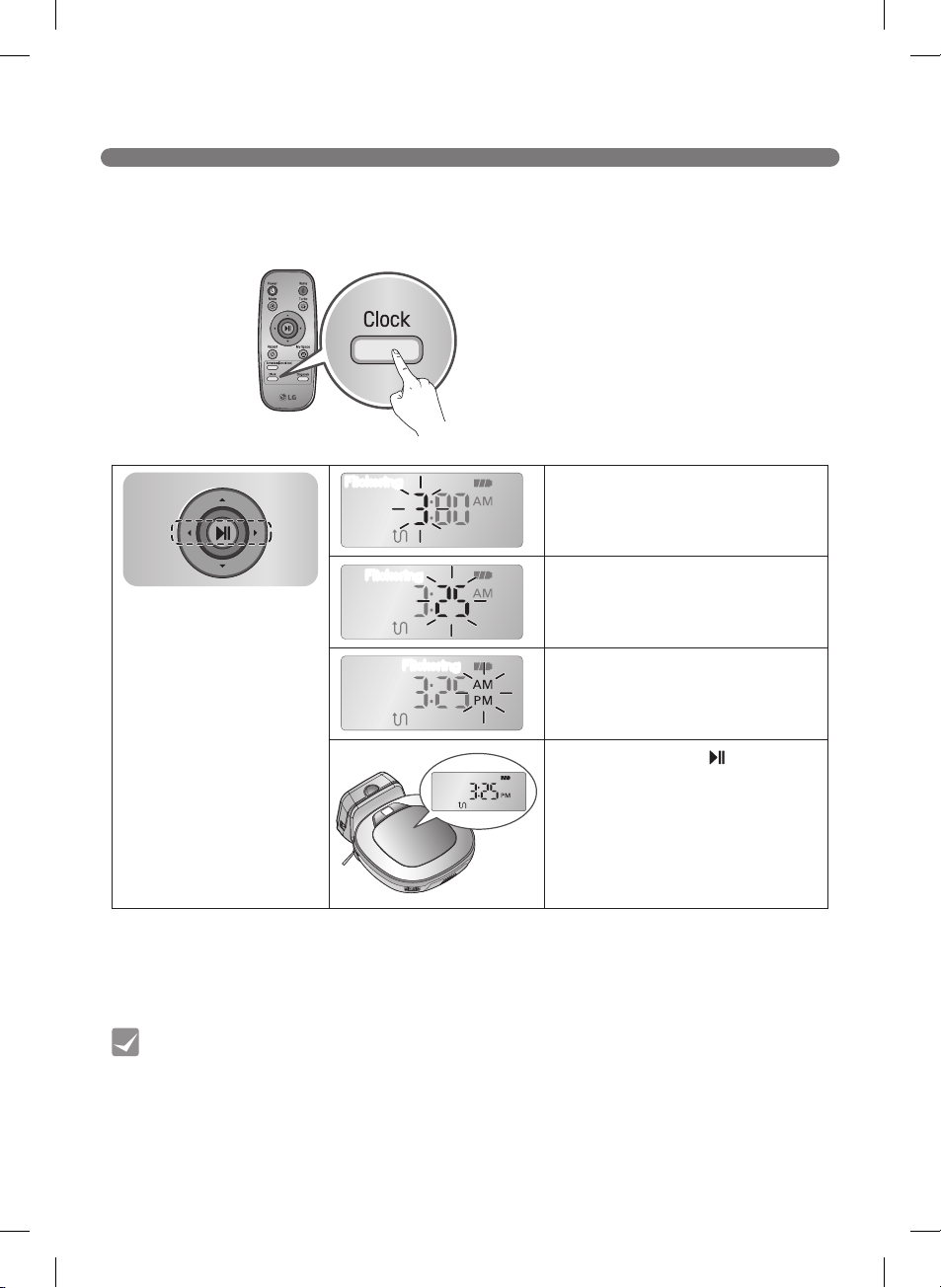

Clock
Set the clock on the
Robot Cleaner

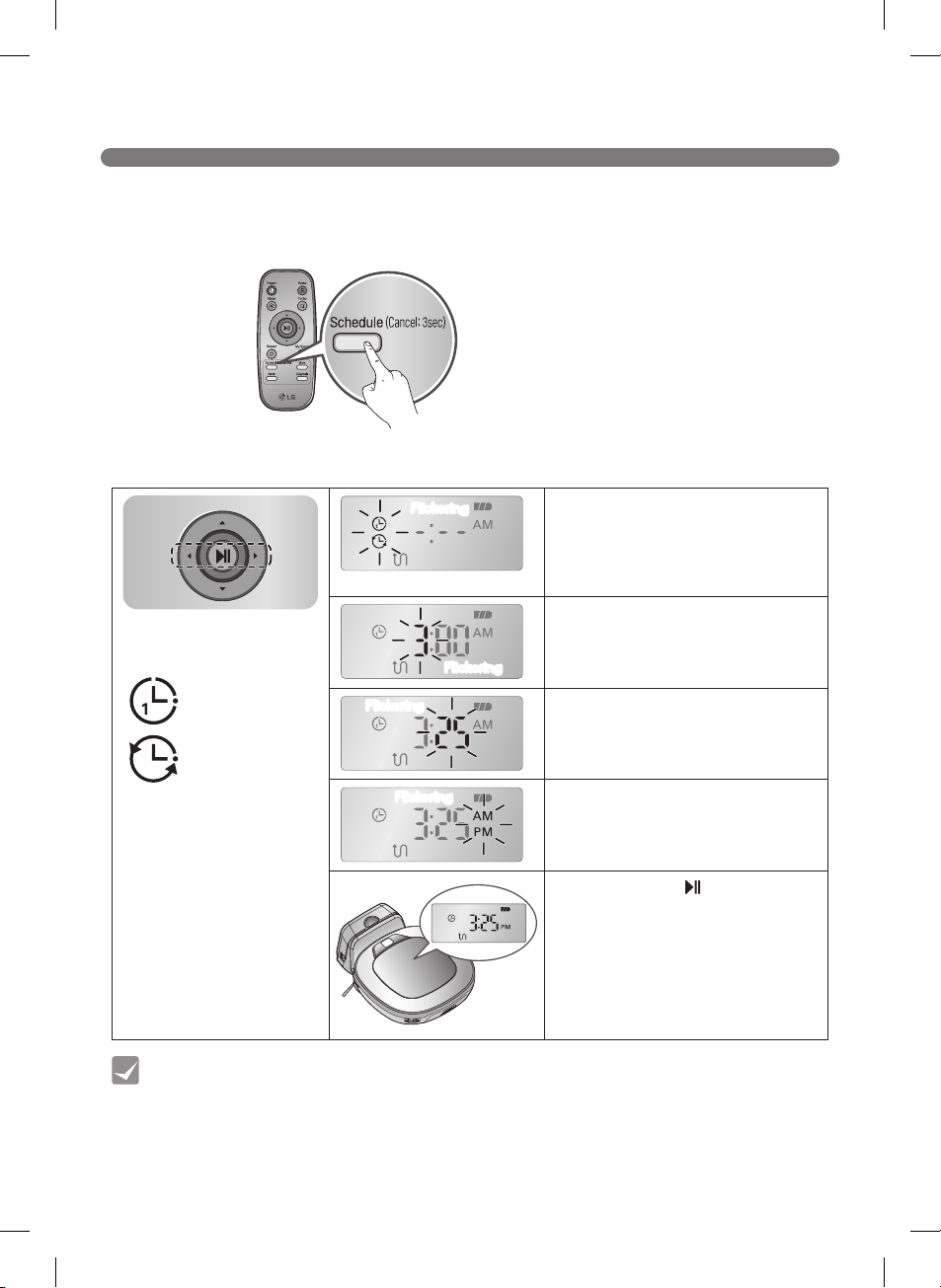

Schedule
Schedule a cleaning time,
or cancel a scheduled
cleaning time
14
DISPLAY STATUS
Tip
Lock.
Mute
Battery level
AM/PM
Turbo
Homing
My Space cleaning
Spot cleaning
Time display
Repeat cleaning
Zigzag cleaning
Cell by Cell cleaning
Schedule
Shows once or
daily icon
15
BEFORE STARTING
and valuables which could fall or break.
the Robot Cleaner may enter another room and continue cleaning.
in.
(5 mm). If you are not planning to use the mop for cleaning, remove the mop before using Robot
Cleaner.
in. (20 mm) as they may cause it
to malfunction.
2. Insert two AAA batteries, checking for +, - nodes while loading.
the remote. Therefore, use it as far away as possible from such lamps.
remote within 9.8 ftm) of the Robot Cleaner if possible.
Before Cleaning

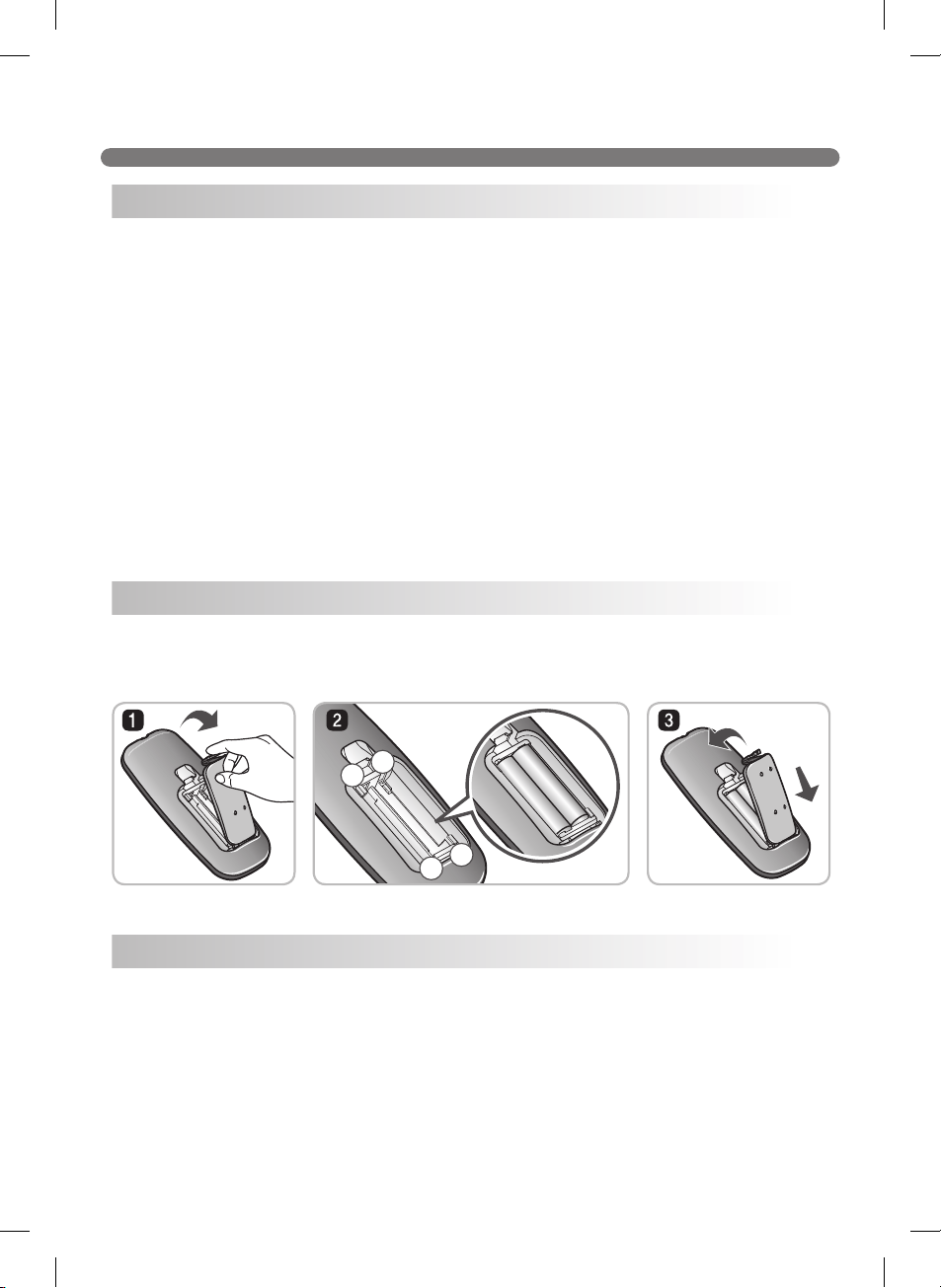

Loading the Remote's Batteries
Precautions while Using the Remote
–
+
+
–
–
+
+
–
–
+
+
–
16
OVERVIEW
Warning If the Robot Cleaner is operated with the dust bin compartment lid left open, it
can cause an injury or serious damage to the product.
1
Install the home station. (p17)
Insert the power cord plug into an outlet and locate
the station against a wall. If power is not supplied to
the home station, the Robot Cleaner will not charge.
2
Turn on the power supply of the Robot
Cleaner. (p18)
Turn on the power switch located on the rear-
Stop button on the Robot Cleaner or the Start
button on the remote.
3
Check the dust bin.
5
Start cleaning. (p19)
or the Start button on the remote. Cleaning begins
once the Robot Cleaner reverses and turns around.
6
Automatic charge. (p20-22)
The Robot Cleaner automatically returns to the home
station to charge. If the Robot Cleaner is in the
middle of cleaning and runs out of battery charge,
it returns to the home station to recharge and then
continues cleaning where it left off once the battery
is fully charged.
It takes approximately three hours for the battery to
fully charge.
4
Select the desired cleaning mode and options.
(p23-29)
Set the cleaning mode and options using the
buttons on the Robot Cleaner or on the remote.
5 ft.m)
5 ft.m)
6
2 ft.(2 m)
17
INSTALLING THE HOME STATION
prevent sliding during docking.
It is not recommended to install the home station on carpet. Doing
so may cause the Robot Cleaner to have difficulty docking.
ft.m) to the right and left side and
within 6
2 ft. (2 m) to the front.
Wrap the remaining power cord around the cord keeper on the
back side of the home station or along the wall surface so that the
travel path of the Robot Cleaner will not be obstructed.
5. When the remote is not in use, store it in the remote holder on the
home station.
power cord keeper
in, the Robot Cleaner will not return to the station to charge automatically.
Warning Do not operate the Robot Cleaner if the home station has a damaged cord
or plug, if it is not working properly, or if it has been damaged or dropped. To
avoid electrical hazards, the cord must be replaced by LG Electronics, Inc. or a
qualified service person.
Tip
5 ft. m)
5 ft. m)
6
2 ft. (2 m)
18
TURNING THE Robot Cleaner ON/OFF
Flip the power switch to the ON position.
※
flipping the power switch. Doing so may delay the operation.
※
Turn off the power switch when the Robot Cleaner is not
used for long periods. The switch must be turned back on
for the Robot Cleaner to charge.
If the Robot Cleaner is in standby mode, press and hold the
Cleaner comes out of standby mode.
※
turned on, it returns to standby mode.
Press the Power button on the remote or press and hold the
to turn off the Robot Cleaner. A melody sounds when the
Robot Cleaner is turned off.
remote.
the Robot Cleaner on the home station and let it charge.
Turning On the Main Power Supply
Turning On from Standby Mode
Turning Off the Power Supply
Tip
19
HOW TO START AND STOP CLEANING
For best results:
the Robot Cleaner.
can rapidly be returned to the home station as the current home position has been
accurately read.
in. (5 mm).
Tip
button on the top of the Robot Cleaner to begin cleaning. A
melody sounds and cleaning begins.
to stop cleaning.
※
To start cleaning when the Robot Cleaner is in standby mode,
to start cleaning.
Press the Power button on the remote to turn on the Robot
Cleaner.
on the remote to start cleaning. A melody sounds and cleaning
begins.
stop cleaning.
※
table legs, or furniture corners. The internal impact detecting sensor reacts by moving the Robot
Cleaner backwards.
※
If the Robot Cleaner is set to start cleaning at a location away from the home station, select a flat
floor clear of obstacles for a starting location to prevent a malfunction of the obstacle detecting
in.cm) from the Robot Cleaner.

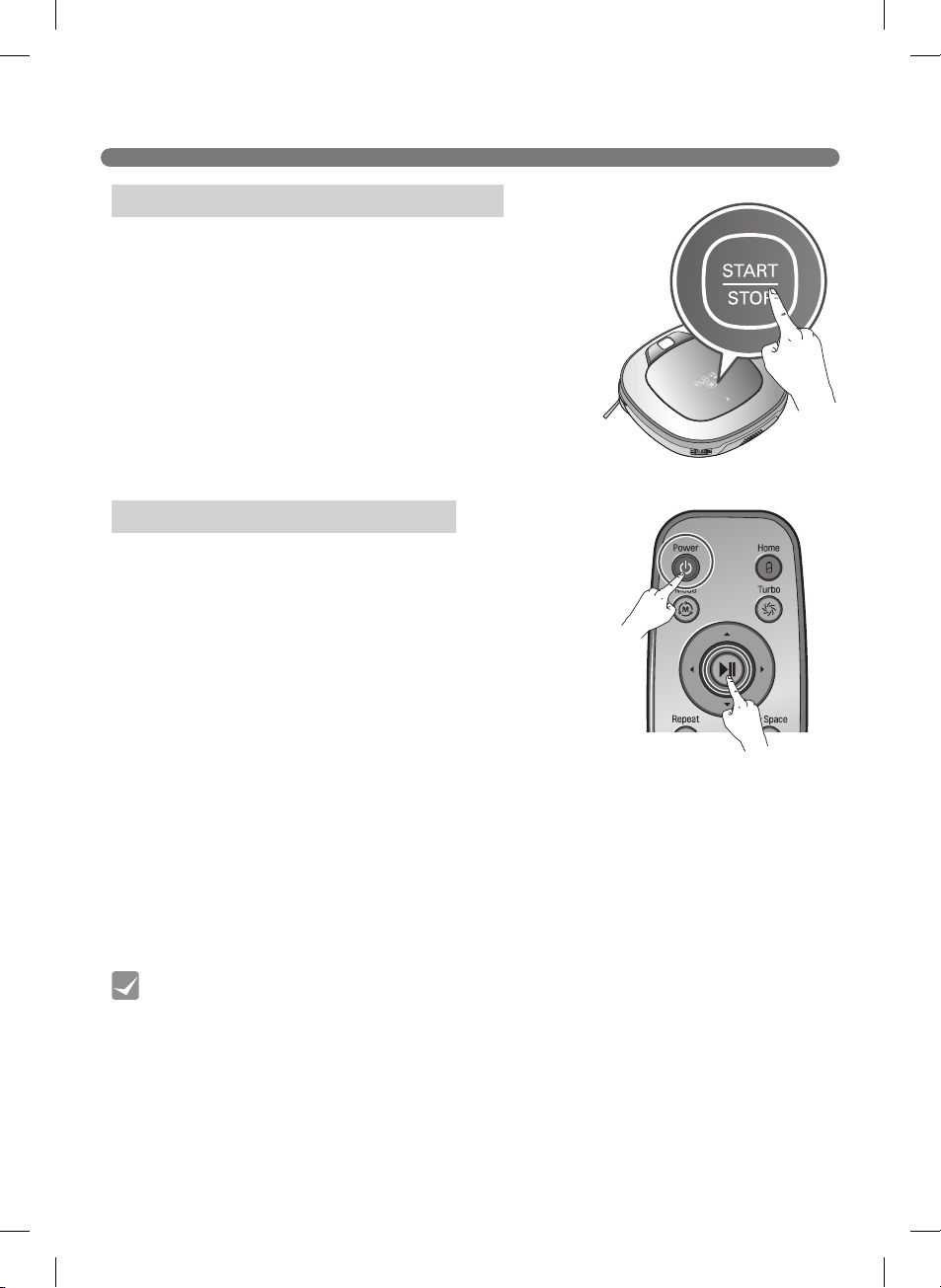

Using the Robot Cleaner's Buttons
Using the Remote
20
CHARGING THE BATTERY
The Robot Cleaner returns to the home station at the end of a
cleaning cycle or when its battery is running low.
※
battery is too low, the Robot Cleaner automatically goes into
standby mode.
※
The power switch has to be in the ON position in order for the
Robot Cleaner to charge at the home station. If the switch is
OFF, an error message sounds.
※
After the battery is fully charged, the Robot Cleaner resumes
※
If the Robot Cleaner is unable to dock to the home station on its first attempt, it will try again until it
docks successfully.
※
When the Robot Cleaner has completed cleaning the area, it will return to the home station even if
the battery level is not low.
Method 1. Attach the Robot Cleaner to the home
station by aligning it to the front side of
the home station. A melody sounds along
with a message to start charging.
※
The main power switch must be in the
ON position in order for the Robot
Cleaner to charge. An error message is
heard if the power switch is in the OFF
position while mounted to the home
station.
Method 2.
Robot Cleaner or the remote to return
the Robot Cleaner to the home station to
charge.
Automatic charging
Manual charging
Take the following precautions when using the home station:
If foreign material is caught on the charging terminal, charging may not be activated. Wipe
Tip
Manually charge the Robot Cleaner before using it for the first time.
※
If the Robot Cleaner did not start cleaning from the home station or if the Robot Cleaner is manually
charged by pressing the Home button, it may take slightly longer to find the home station.
※
in.cm) of the front of the charging terminal while the power is
turned on from Standby, it will automatically be returned to the home station and charging will begin.
21
CHARGING THE BATTERY
The battery level indicator is located on the status display.
The status indicators show the
different pending conditions
during charging mode.
※
If the Robot Cleaner performs an automatic recharge while in a
cleaning cycle, the cleaning mode icon flashes while the Robot Cleaner
is mounted on the home station.
- After an automatic recharge, the Robot Cleaner continues cleaning in
the areas that were not completed.
the Robot Cleaner while the Clean Mode light is flashing will direct the
Robot Cleaner to clean uncovered areas.
Robot Cleaner after charging is complete to start cleaning from the
beginning.
Battery Level Indicator
Flickering
When no area remains to be
cleaned after charging.
When an area remains that
the Robot Cleaner will resume
cleaning after charging.
(flashing Cleaning indicator)
Charging is required
Middle
Low
High
22
CHARGING THE BATTERY

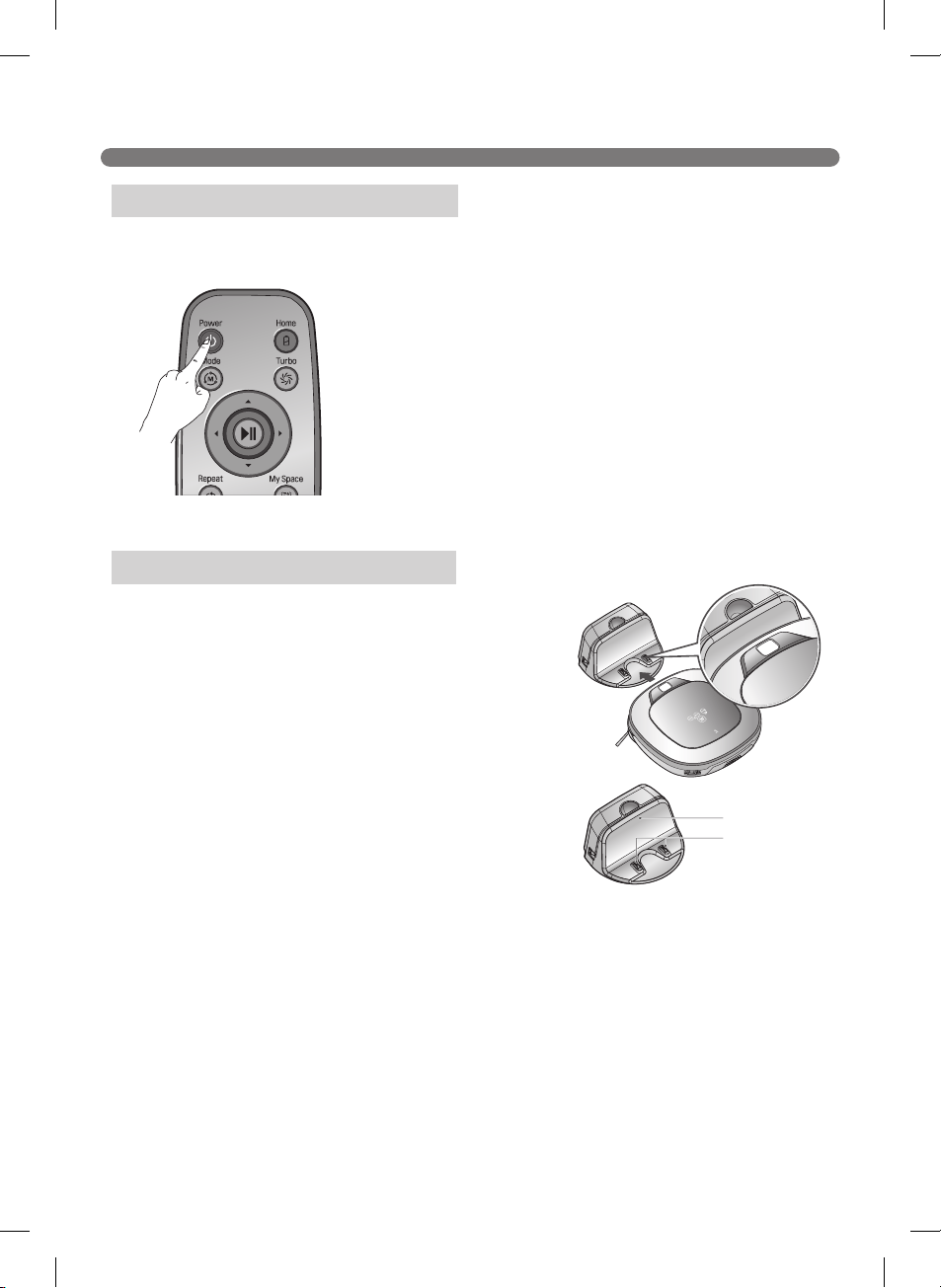

Check 1:
If the Robot Cleaner is not charging while attached to the
home station, try the following.
- Turn the power switch on the rear-left of the Robot
Cleaner off once and then on again.
- Check the power lamp to make sure the home station is
turned on.
- Wipe the terminals on the home station with a dry cloth.
If the Battery is Not Charging
Power lamp
Charge terminal
Step 1.
the Robot Cleaner are turned off except the recharging
mode.
※
After recharging is complete, press the On/Off button
on the remote to use the Robot Cleaner.
Energy Saving Charging Mode
long period of time or overnight.
23
CHOOSING A CLEANING MODE
after being powered off.
remote and select a new cleaning mode. Cleaning starts from the beginning.
Tip
In Zigzag mode, the Robot Cleaner zigzags
through each spot of the cleaning area. Select
the Zigzag mode to quickly clean an area.
Selecting the Zigzag Mode
Press the Mode button continuously, on either
the Robot Cleaner or remote, until the Zigzag
icon illuminates.
※
The default mode on the Robot Cleaner is the
Zigzag mode.
Select the Cell by Cell mode for meticulous
cleaning. In this mode, the Robot Cleaner divides
the area to be cleaned into rectangular spaces.
Selecting the Cell by Cell Mode
Press the Mode button continuously, on either
the Robot Cleaner or remote, until the Cell by
Cell icon illuminates.
Stage One
First, the outline of each space is cleaned. The
size of the outline may vary with the shape of the
overall area to be cleaned, but the maximum size
ft.ft.m
m).
Stage Two
Second, the interior of each space is cleaned in
the Zigzag mode.
These stages repeat until the entire area is clean.
Zigzag Cleaning
Cell by Cell Cleaning
24
CHOOSING A CLEANING MODE
Select the My Space mode to manually set the
cleaning space.
Selecting the My Space Mode
2. Using the arrow buttons on the remote, guide
the Robot Cleaner around the perimeter of the
desired cleaning space.
※
ft.m).
different mode. The cleaning cycle will then start over.
Tip
My Space
until the cleaning area has been correctly specified.
My Space Cleaning
25
AUXILIARY CLEANING MODES
Manual mode moves the Robot Cleaner manually to the front, back and either side using the arrow
buttons on the remote.
While in Manual mode, the Robot Cleaner runs into obstacles placed behind it if the back arrow key
on the remote is held down.
2 ftm) diameter.
Starting Spot Mode
2. Press the Mode button continuously until the Spot mode icon displays in the screen.
※
The Spot mode cannot be selected while the Robot Cleaner is recharging.
Manual Cleaning
Spot Cleaning
It stops at the original position after
completing the cleaning(takes 4~5 min.).
26
AUXILIARY CLEANING MODES
Cleaner memorizes every aspect of the environment it encounters from when it leaves
the home station to start cleaning to the moment it returns.
Tip
Select Turbo Mode for a more intense, powerful
clean. Turbo Mode reduces the battery duration.
Selecting Turbo Mode
Press the Turbo button on the remote or on the
Robot Cleaner to activate the Turbo mode.
Press the Turbo button at any time during the
cleaning operation to cancel the Turbo mode.
※
Turbo Mode (Floor Master Function)
Turbo mode activates automatically on carpets.
Select the Repeat mode to repeat the cleaning in progrss until the
battery runs out, without returning to the home station.
Selecting the Repeat Mode
Press the Repeat button on the remote or on the Robot Cleaner
to activate the Repeat mode.
Press the Repeat button at any time during the cleaning
operation to cancel the Repeat mode.
The Robot Cleaner memorizes the cleaning
environment through the Learning mode.
※
The Learning mode is only available when the
Robot Cleaner starts cleaning from the home
station.
Turbo Mode
Repeat Mode
Learning Mode
27
SETTING THE CLOCK
You can set or change the current time on the Robot Cleaner.
Pressing the Clock button on the remote when the Robot Cleaner is in standby mode
starts the clock setting mode.
clock must be set before scheduled cleaning can be set.
Tip
Select by using
buttons on the remote.
The function can be heard
through the voice guide.
Set the hour by using buttons on
the remote.
Set the minutes using buttons on
the remote.
remote.
Pressing the Clock or button on
the remote will complete the time
setting process.
Flickering
Flickering
Flickering
28
SCHEDULING CLEANING
Cleaning can be scheduled so that the Robot Cleaner starts cleaning at a scheduled time.
Press the Schedule button on the remote while the Robot Cleaner is recharging to set a
scheduled cleaning.
is recharging cancels the set schedule.
canceled.
Tip
Select a setting by using
buttons on the remote.
Schedule Once
Schedule Daily
Select Schedule Once or Schedule
Daily option using the buttons on
the remote.
A voice message confirms the
schedule.
Set the hour using the buttons on
the remote.
Set the minutes using the buttons
on the remote.
on the remote.
Press Schedule or button on the
remote to complete the process.
Flickering
Flickering
Flickering
Flickering
29
MOP CLEANING (on some models)
contaminated with liquids such as coffee or ink.
to clean carpets while the mop plate or mop is attached.
If there is moisture on the floor, it can interfere with the navigation and damage the unit.
Tip
Velcro of the mop plate as shown in the
figure.
2. Firmly slide the mop plate into the
grooves until you hear a click.
※
If the mop plate is not secured
correctly, it may separate during
cleaning.
mop plate align correctly with the fixing
grooves on the underside of the cleaner.
For mop cleaning, mount the mop and mop plate to the Robot Cleaner according to the following
instructions:
Remove dust on hard floors by attaching the ultra
microfiber mop to the Robot Cleaner.
When the mop plate is attached, the Robot
Cleaner will not climb on to carpets or over
thresholds, in order to prevent transferring dirt
from the mop.
Fixing hook
Fixing groove
“Click!”
Caution
Do not cover the bottom camera
sensor with the mop.
30
LOCATION SEARCH FUNCTION
function is canceled.
Location search is more effective when the Robot Cleaner is closer to the location it was
moved from.
Tip
※
The navigational function is activated after
the Robot Cleaner adequately recognizes the
cleaning environment.
Manual Relocation.
near where it was originally moved from.
※
The location search is more effective when
the Robot Cleaner is closer to the location
where it was moved from.
※
If it is moved from its original cleaning
ft.m), it
becomes difficult for the Robot Cleaner to
search for its previous location.
button on the remote.
The Robot Cleaner starts the location search function along with an audio guide.
※
When the location search is successfully completed, the Robot Cleaner continues cleaning from
where it was moved.
If the location search fails, cleaning starts again from the beginning.
The Robot Cleaner remembers its location while cleaning.
If the user moves the Robot Cleaner while it is operating, it will search for the location it
was moved from by using its navigational location search function before continuing to
clean.
Zigzag Zigzag
Zigzag Zigzag
Change location
Location of incident
Location of incident
m
m
When the location search
function is activated, the
cleaning mode of the status
indicator will flash
To find exact location,
please step away from
the Robot Cleaner.
31
SMART DIAGNOSIS™
Diagnosis is complete. If it is accidentally interrupted, turn the main power switch OFF
then ON again to resume the diagnosis.
the problem and try again.
- Robot Cleaner is detached from the home station.
- Battery level is insufficient
- No Dust Bin Filter is fitted.
- Mop Plate is attached
Tip
switch of the Robot Cleaner and the home station are
turned on, and the unit is docked on the home station.
※
Smart Diagnosis is only possible when the Robot
Cleaner is attached to the home station.
2. Press the Diagnosis button on the remote, then the
process will start with a voice message which says
"Robot Cleaner Smart Diagnosis will be started. Please
station."
※
If the Mop Plate is attached, the process will not be
activated.
finished, Robot Cleaner will return back to
the Home Station and inform you of the
result through a voice message. After the
voice message, pressing the Home button on
the remote or main unit will allow the voice
message to be repeated. To terminate the
diagnosing process, press the
button on the
remote or main unit.
※
After the Smart Diagnosis voice message,
the Robot Cleaner will start recharging after
1 minute.
※
If an error is detected with any of the
sensors while in Smart Diagnosis, a voice
message will announce, and the unit will not
return to the home station.
Robot Cleaner uses the Smart Diagnosis feature to run a self-diagnosis.
center.
※
During Smart Diagnosis, the Robot Cleaner moves about within a 1
1
/5 ft. (50 cm) radius. So,
make sure no objects are in the way within a 3
1
/4 ft. (1 m) radius around the home station, before
starting Smart Diagnosis.
32
SMART DIAGNOSIS™
Refer to the following table to resolve error messages encountered during Smart Diagnosis.
Voice message Solution
Robot Cleaner Smart Diagnosis will be started. Please step
away and clear around 1 meter around the home station.
ft.m)radius around Home
Station, and stay back until the diagnosis is complete.
Smart Diagnosis can start when it is being charged. Please
dock Robot Cleaner to the home station to charge.
Move Robot Cleaner to the Home Station to recharge it.
No defect found during diagnosis.
Diagnosis mode cannot be operated due to a low battery.
Please try again after the battery is charged.
Try the Smart Diagnosis again after recharging the
battery.
Please check if the dust bin is installed with the filter. Open the Dust Bin Cover and examine the bin.
Charging cannot be done due to a problem in infrared
sensor.
Run Smart Diagnosis again and, if the same message is
Charging cannot be done due to a problem in ultrasonic
sensor.
Run Smart Diagnosis again and, if the same message is
Charging cannot be done due to a problem in the cliff
detection sensors on the bottom. Please clean the sensors.
Clean the three Cliff Sensors on the bottom at the front
of the unit.
Please wipe the lower camera sensor on the right bottom
of the Robot Cleaner.
Clean the lens of Camera Sensor on the bottom-right.
Please wipe the obstacle detecting sensor window on the
left and right side of the Robot Cleaner.
Clean the lens of the Obstacle Sensors on both the left
and right hand sides.
A problem has been found on the Gyro Sensor. Run Smart Diagnosis again and, if the same message is
Please check for dirt on the left wheel. Check for foreign materials on the left wheel.
Please check for dirt on the right wheel. Check for foreign materials on the right wheel.
A problem has been found on the left wheel sensor. Run Smart Diagnosis again and, if the same message is
A problem has been found on the right wheel sensor. Run Smart Diagnosis again and, if the same message is
Please check the brushes for obstructions. Check for any foreign material stuck in the Brush.
A problem has been found in the suction motor. Run Smart Diagnosis again and, if the same message is
A problem has been found in the acceleration sensor. Run Smart Diagnosis again and, if the same message is
In order to listen to the Smart Diagnosis result again, please
press the charging button. To stop, please press the stop
button.
If you need to repeat the diagnosis result, press the
Home button, or press
button to finish the diagnosis.
Smart Diagnosis mode will be turned off.
Please try Smart Diagnosis again after turning the main
power switch off and on from the back of Robot Cleaner.
If the problem continues, please contact LG Electronics
customer care.
Smart Diagnosis mode cannot be operated with mop plate
being attached. Please try again after removing it.
Run Smart Diagnosis again after removing the Mop
Plate.
Smart Diagnosis has failed to operate. Please try it again
after turning off and on the main power switch on the back
of the Robot Cleaner.
Turn the main power switch OFF and then ON again
to resume the diagnosis. Do NOT touch the robot or
disturb its operation until the diagnosis is complete.
33
CLEANING THE DUST BIN
not covered by the warranty.
If the filters are not installed and the filter cover assembled before cleaning is started, an
error message will sound.
cleaning the dust bin so that it closes easily and accurately.
Tip
pressing the PUSH button on the Robot
Cleaner.
2. Grab the handle of the dust bin and pull it
upward.
the rear of the dust bin to separate the filter
and the sponge.
※
Note that separating the filter may result in
dust dropping.
※
filter.
separation button on the dust bin.
brush or under running water.
6. After cleaning with water, completely dry the
dust bin in a well-ventilated area out of the
direct sunlight.
7. Reassemble the dust bin, putting the sponge
and particulate filter back in and closing the lid.
※
8. Put the dust bin into the Robot Cleaner and
close the dust bin compartment cover.
If the dust bin is full, suction power can be reduced. Clean the dust bin before or after each cleaning
session. Clean the dust bin using the following sequence:
34
CLEANING THE DUST BIN FILTER
The Dust Bin Filter consists of a particulate filter and a sponge filter.
Clean both the particulate filter and sponge filters using the following sequence.
3. Use a cleaning brush to clean the sponge filter.
If using water to clean it, allow it to dry completely
in the shade before refitting.
4. Assemble the particulate filter and sponge
filters back onto the filter housing using the
following sequence.
※
Fit the rectangular locator on the particulate
filter into the locating slot of the filter body.
※
Be careful not to incorrectly assemble the
particulate filter and sponge filter onto the
filter housing.
2. Thoroughly clean out the fine dust particles on the
particulate filter with a vacuum cleaner or cleaning
brush.
※
Do NOT wash the particulate filter with water.
Its suction power will be reduced.
• To preserve the performance of the Robot Cleaner, clean the particulate filter at least
once a week, with a brush or vacuum cleaner.
• The particulate filter and sponge filters must be fitted to the filter housing before
refitting the filter to the dust bin. Operating the Robot Cleaner without the particulate
filter and sponge filters will cause the suction motor to malfunction.
Tip
1. Pull the hook on the left of the particulate
filter module on the rear side of the dust
bin to separate the particulate filter and the
sponge filter.
35
CLEANING THE BRUSH
Fit the fixing hook
(rectangular shape) on
the side of the brush into
the slots, with the colors
matching.
While pushing the brush in
the direction of the arrow, fit
the fixing hook (rectangular
shape) on the opposite side
into the slot.
Press down and close the
cover until the fixing hook
snaps into place on both
sides.
※
Be careful not to trap the
side brush bristles under
the cover when closing it.
Push the brush all the way
into the yellow protrusion.
While pushing the brush, lift
the white protruding part up to
separate it from the main unit.
Carefully clean the brush
with a vacuum cleaner or
scissors.
Turn the main power switch
OFF before starting to clean.
Put the Robot Cleaner upside
down on a soft cloth.
After checking for foreign
materials, press down on the
Fixing Hook and pull it up to
separate the brush cover.
Using the cleaning tool,
clear hairs and other debris
and foreign materials on
the brush and from the two
The rotating brush, located on the bottom of the Robot Cleaner, helps collect dust. Clean the brush
using the following sequence.
※
Before turning over the main unit, lay a soft cloth on the floor and remove the Dust Bin.
Otherwise, the main unit can get scratched and dust will fall from the Dust Bin.
36
CLEANING THE SENSORS/CHARGING TERMINALS
Upper camera
sensor
benzene, or any other liquids.
terminal damage can cause the product to malfunction.
There are sensors on the Robot Cleaner that detect obstacles,
stairways and the home station for charging the battery. In order
to maintain the performance of the Robot Cleaner, regularly clean
the sensors and charging terminals as follows:
the main power is not turned off.
2. Lay a smooth cloth on the floor, turn over the Robot Cleaner
and put it on the cloth.
※
Make sure to remove the dust bin before rotating the main
body. Otherwise, the dust in the dust bin may fall out.
sensors and ultrasonic sensors and the charging terminal as described below.
Charging terminals
Ultrasonic sensors
Obstacle detecting
sensor window
Detecting sensors
of home station and
Receiving sensors
of remote controller
Cliff detection
sensors
Charging terminals
Bottom camera
sensor
Lens
Tip
37
Charging terminals
CLEANING THE SIDE BRUSH
side brush. Remove such materials at least once a week.
If excessive amounts of foreign materials are stuck to the brush,
there is the risk of damage to the brushes.
If the floor is rough or frequently cleaned, the side brushes may bend or become deformed. In this
case, use the following method to straighten the side brush.
deformed brushes.
2. Turn off the power by switching the main
switch off on the rear off the unit.
to make cleaning the side brush easier. Make
sure that the Robot Cleaner is not in danger of
falling.
5. Press down on the side brush for about ten
seconds so that it is completely submerged in
the water.
6. Slowly wipe the side brush by sliding it through
your hand.
each section of the brush.
8. Use the side brush only after it has completely
dried.
and separate the side brush from the main unit.
2. Remove any hair after the separation.
bottom of the Robot Cleaner, with the 'R' and 'L'
marking of the brush matching the counterparts
on Robot Cleaner.
Side Brush Management
38
CLEANING THE ULTRA MICROFIBER MOP (on some models)
2. Carefully clean it with warm water.
※
If the mop is used in a damp or wet state, it will cause
the Robot Cleaner to malfunction.
To avoid odors, dirt and dust should be washed off the mop after it is used for cleaning. Follow these
directions to wash the ultra microfiber mop:
Cleaner.
center.
Tip
mm
39

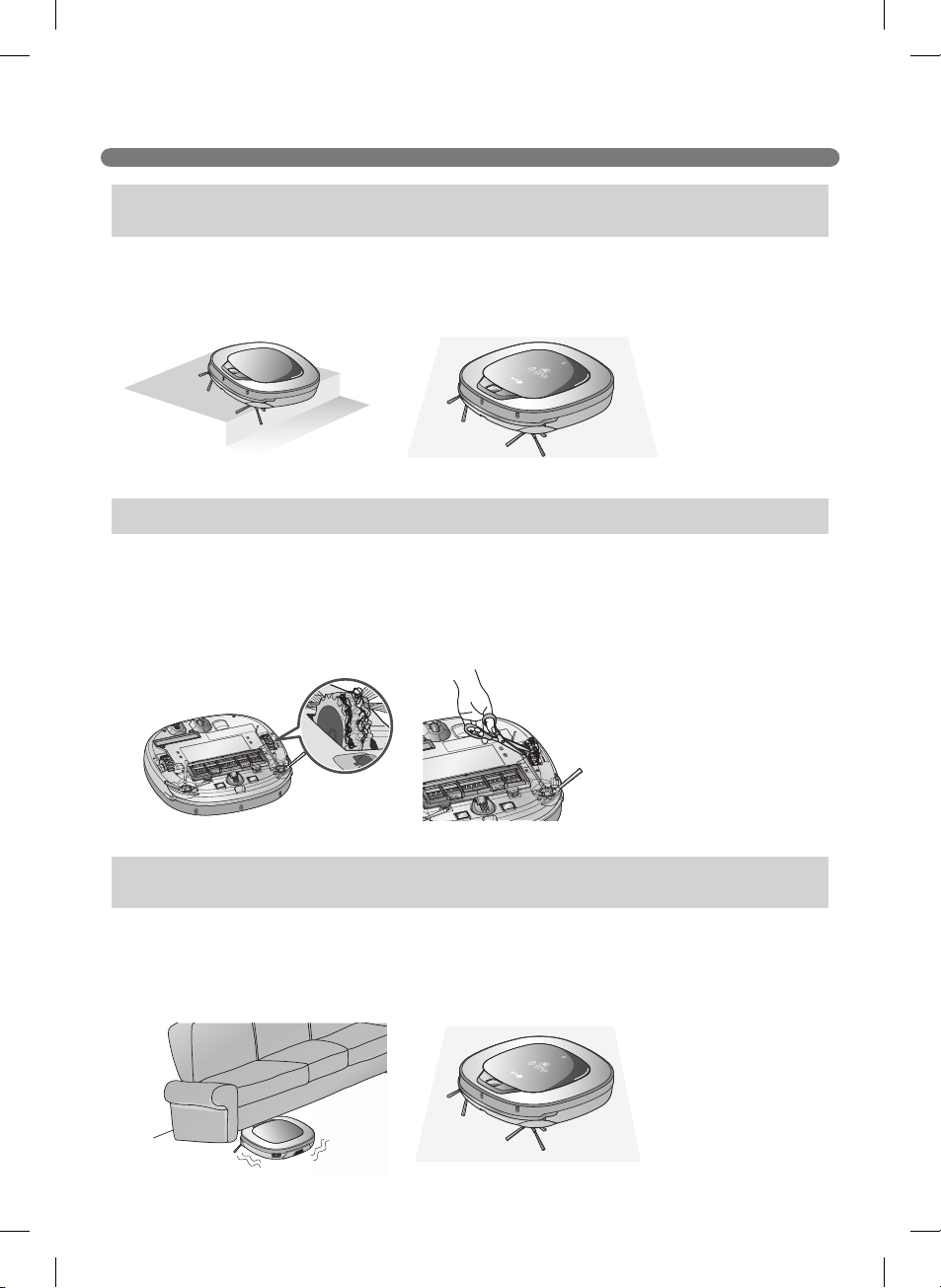

TROUBLESHOOTING
A warning message will be given if a wheel does not contact the floor surface for any reason.
Move the Robot Cleaner on to a flat floor.
Turn off the main power switch on the rear side of the Robot Cleaner. Then lay a soft cloth on the
floor, turn over the Robot Cleaner, and put it on the cloth.
Remove foreign material after observing the wheels.
※
Please make sure to remove the dust bin before turning over the main body.
Otherwise, the dust in the dust bin may fall out.
A warning message will be given if the Robot Cleaner cannot go on cleaning due to any unfavourable
condition.
After removing it from the obstacle, place the Robot Cleaner back onto the flat floor.
"The wheels are not touching the floor. Please move Robot Cleaner
onto flat floor."
"Please remove foreign material on the left/right wheel."
"Robot Cleaner cannot continue cleaning. Please check the area
around Robot Cleaner."
40

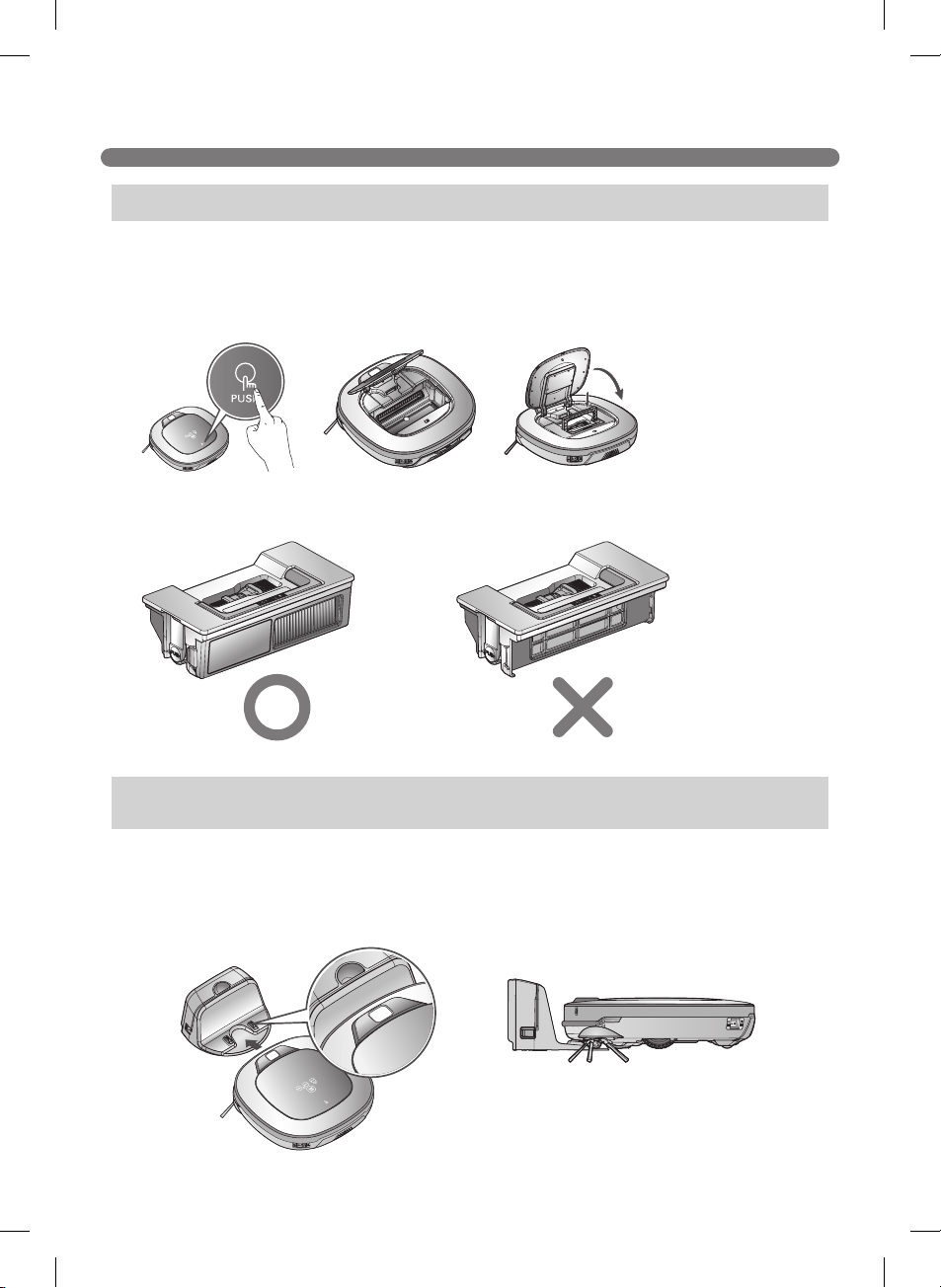

TROUBLESHOOTING
A warning message will be given if there is no dust bin or filter housing fitted.
Open the dust bin compartment cover and check to ensure the dust bin is in place.
Do NOT leave the dust bin cover open.
When the remaining amount of battery power is very low, the voice alert, “Battery is low”, is generated.
When the Robot Cleaner is attached to the docking station successfully, it will start the recharging
with the recharging start melody.
"Please check if the dust bin is installed with the filter."
"Battery is low. Please move Robot Cleaner onto the home station to
charge."
41
TROUBLESHOOTING
※
A warning message will be given if foreign materials restrict the brush's rotation.
Turn off the main power switch on the rear of the Robot Cleaner. Lay a soft cloth on the floor and put
the Robot Cleaner upside down on it.
※
Before turning over the main unit, remove the Dust Bin.
Otherwise, it will cause dust to fall from the Dust Bin.
Confirm the correct assembly of the brush by checking the separation groove of the brush
Remove the lower rotating brush from the Robot Cleaner and remove any foreign material from
the brush.
Remove any foreign materials such as cables, thread or hair caught in the side brushes or the
lower rotating brush.
"Please remove foreign material from the brushes on the bottom."
1 2 3
45
42
BEFORE YOU CALL FOR SERVICE
Check the following before you call for service.
Problem Solutions (Reference page)
The power supply cannot be
turned on.
The power supply
automatically turns off.
This is not a failure. Robot Cleaner has its own power saving
function.
If it is not used for ten minutes after the power supply is turned on,
the power will automatically turn off. (Page 20)
The Robot Cleaner will not
charge.
Check whether the main power switch is turned on.
Confirm that the power supply is connected to the home station.
Wipe the charging terminals with a dry cloth.
Suction power becomes
weak.
Check whether there is foreign material blocking the suction port.
Noise becomes louder. Confirm that the dust bin has been mounted properly.
Confirm that the dust bin filter has been mounted properly.
The Robot Cleaner will not
activate.
The lower brush does not
rotate.
Movements or travel path are
abnormal.
If the ultra microfiber mop is attached, confirm that it is mounted
properly. (Page 29)
Turn the main power switch off and on.
The Robot Cleaner cannot
be activated with the remote
control.
Confirm that the control is within the coverage area of the main
m
43
PRODUCT SPECIFICATIONS
Item/Model LG Robot Cleaner
VR657*** Ser / VR655*** Ser
External Dimensions
13.4 inch x 13.4 inch x 3.5 inch
(340 mm x 340 mm x 89 mm)
Weight
6.6 lb (3 kg)
Power Consumption
58 W
Battery (Fully Charging)
DC 16.8 V
Traveling Velocity
1.38 inch/s (350 mm/s)
(Maximum)
Use Time Approx. 100 minutes
(Based on general wooden floor)
Charging Time 3 hours
Main Functions Turbo Mode
Learning Mode
Obstacle Sensing
Anti-Plunge function
Scheduled Cleaning
Error Displaying
Navigation
Auto/Manual Recharging
Dry Mopping (cleaning) (Option)
Corner Clean
Voice Messaging
Map Drawing
Spot Cleaning
Repeat Cleaning
My Space Cleaning
Cell by Cell cleaning
Zigzag Cleaning
Item/Model Home Station (VR650)
EPS : ADS-30FSA-17 17030EPCU
External Dimensions
9.3 inch x 7.1 inch x 5.0 inch
(236 mm x 181 mm x 128 mm)
Rating
120 V~ 60 Hz
Output Voltage/Current
DC 17.1 V / 1.7 A
Power Consumption
30 W
Item/Model Battery(EAC62218205)
Type Lithium Battery
Rating
DC 14.4 V / 2330 mAh / 4 cells
Charging temperature
Standard charge at 23±5
˚C
Number of Batteries
1 EA
※
This equipment is a Class B digital
device that complies with 47 CFR
Parts 2 and 15 of the FCC Rules.
Operation is subject to the following
two conditions: (1) This device may
not cause harmful interference,
and (2) this device must accept
any interference received, including
interference that may cause
undesired operation.
44
REFERENCE ITEMS
Open source software notice
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
Removing / Refitting the battery pack
1 3
456
Turn off the main power switch
on the back-left side of the
Robot Cleaner.
Refit the battery in the
reverse order.
Place a soft cloth on the floor,
remove the dust bin, and flip
the Robot Cleaner over.
Press the connector release
lug on the connecting plug to
disconnect the battery wiring.
Remove the screws by using
a Phillips head screwdriver.
Remove the battery from the
device.
2
WARNING
Please be careful of fire, explosion, electric shock, or breakdown.
provided with the Robot Cleaner.
contacts.
malfunctioning, bring it and the Robot cleaner and home station to an authorised service center.
45
PERFORMANCE TESTING (IEC 62929 Standard)
2. Push TURBO button on the Robot Cleaner or Turbo button on the remote and Robot Cleaner will
be set to Turbo Mode.
button on the remote and Robot
Cleaner will operate.
access the Test Mode(Straight).
※
button on
the remote and the Robot Cleaner will operate.
2. Push the Repeat button on the remote and Robot Cleaner will be set to Repeat Mode.
button on the remote and the Robot
Cleaner will operate.
※
Use this mode only when organizations test cleaning performance or driving performance according
Dust Removal Test - Box(Hard Floor & Carpet)
Dust Removal Test - Straight Line(Hard Floor & Carpet)
Autonomous navigation/coverage test
[Hard Floor Test mode] [Carpet Test mode]
46
LG Robot Cleaner WARRANTY
LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in
material or workmanship under personal household use, during the warranty period set forth below,
effective from the date of original consumer purchase of the product. This limited warranty is good
only to the original purchaser of the product and effective only when used in U.S.A. and Canada.
* Manufacturing Locations : LG Elecronics. Changwon Factory2 Sungsangu Gongdanro 473 road 33,
Changwon City, Gyeongnam, 641-711 KOREA
WARRANTY PERIOD: HOW SERVICE IS HANDLED:
1 Year
From the date of the
original purchase
Any part of the Robot Cleaner which fails due to a defect in materials
or workmanship. During this full 1 Year warranty, LG will also provide,
free of charge, all labor and shop service to replace the defective part.
Inverter motor : 10 year warranty (Suction motor)
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS
REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD
ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL
DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNECTION
WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
This warranty covers only defects in material and workmanship.
LGE will NOT pay for:
1. Expendable items that can wear out, including, but not limited to, filters and belts.
2. A service technician to instruct the user in correct product assembly, operation or
maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not assembled, operated or maintained according
to all instructions supplied with this product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other
than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or
utensils other than those recommended in all instructions supplied with this product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to
this product.
This warranty is extended to the original purchaser for products purchased for home use within the
U.S.A. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from states to states. To know what your legal rights are, consult your
local or state consumer affairs or your state’s Attorney General.
CUSTOMER ASSISTANCE INFORMATION:
To Prove Warranty Coverage
Retain your Sales Receipt to prove date of purchase.
A copy of your Sales Receipt must be submitted at the time warranty service is
provided.
To Obtain Nearest Authorized
Service Center or Sales Dealer,
or to Obtain Product, Customer,
or Service Assistance
Call 1-800-243-0000 (Phone answered 24 hours - 365 days a year) and choose
the appropriate prompt from the menu; or visit our website at:
http://us.lgservice.com. (In Canada- Call 1-888-542-2623,
website http://ca.lgservice.com)
MEMO
Made in Korea
