Have questions about your dryer?
Check your Use and Care Guide for a toll-free number to call, or call your
dealer. The dealer is listed in the Yellow Pages of your phone directory
under “Appliances — Household — Major — Service and Repair.”
When you call, you will need the dryer model number and serial number.
Both numbers are on the model/serial rating plate located in the door well
behind the dryer door and on front of opening.
Record the numbers here for handy reference:
Model No.
Serial No.
Moving dryer to a new location?
Check with your gas supplier or dealer to confirm that your dryer is
equipped with the correct burner for the particular type of gas in your new
home. Burner information is specified on the model/serial rating plate.
Installation Instructions
IMPORTANT:
Read and save these instructions.
Installer: Leave Installation Instructions with homeowner.
Homeowner: Keep Installation Instructions for future reference.
For best performance, install dryer according to Installation
Instructions. Failure to complete installation as instructed
could void warranty.
Save Installation Instructions for local electrical inspector’s use.
Mobile home installations require:
• Mobile Home Installation Kit, Part Number 346764*
• Metal exhaust system hardware*
Floors sloped greater than 1 inch:
Require Extended Dryer Feet Kit, Part No. 279810*
*
Available for purchase from your dealer.
Parts supplied:
Parts needed:
Venting
Gas
Tools needed:
Before you start:
4 leveling legs
Remove parts package from
dryer drum. Check that all
parts were included.
Check local codes and with gas supplier, and
read electrical, gas and venting requirements
before purchasing parts.
Preferred Acceptable

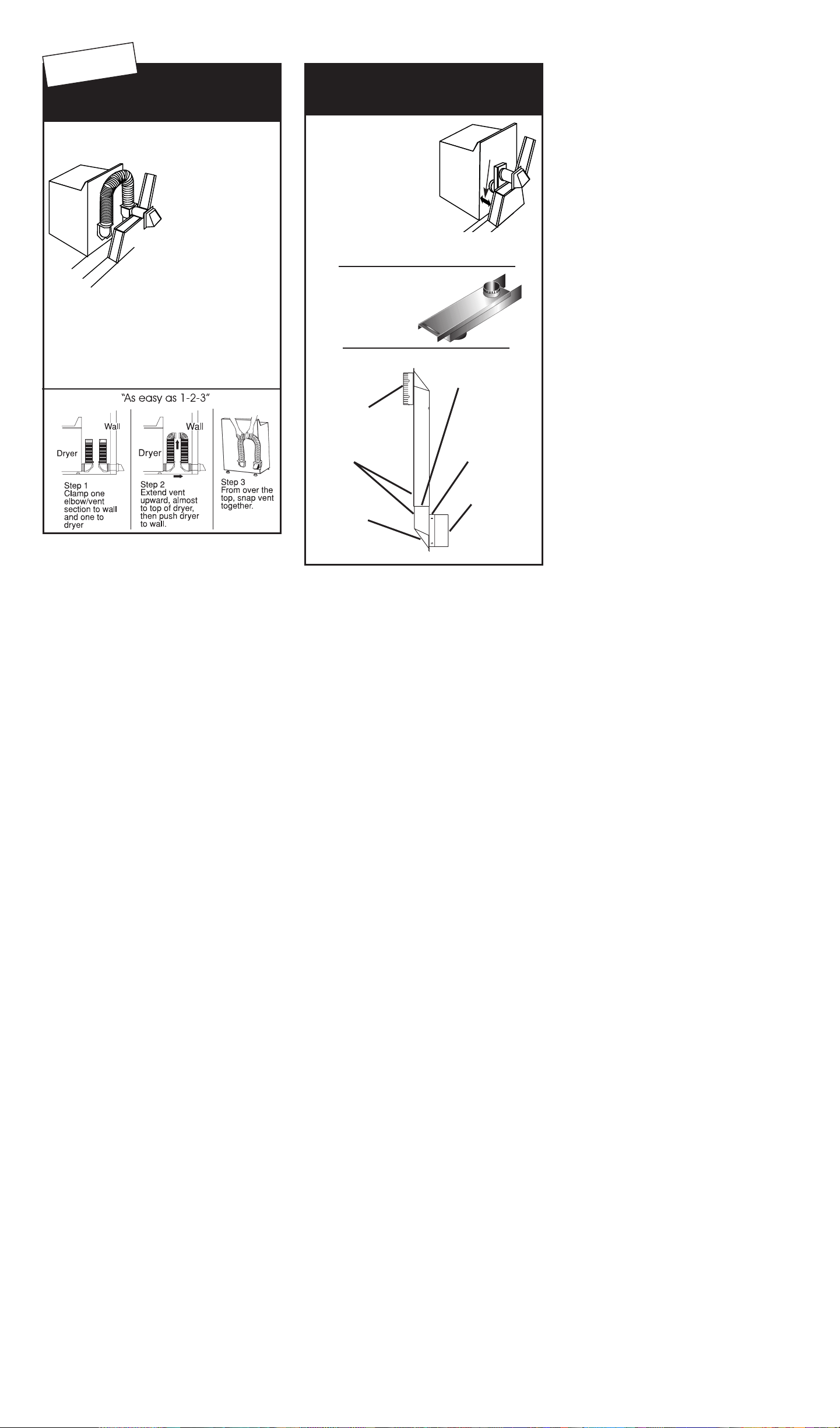

Four-inch heavy metal exhaust vent and clamps
must be used. Dura Safe™ vent products are
recommended.
Dura Safe vent products can be purchased from
your dealer or by calling Whirlpool Parts &
Accessories 1-800-442-9991, Mon-Fri: 8am to
9pm (CST), Sat: 9am to 4:30pm (CST). Visit our
internet site at
http://www.whirlpoolappliances.com/accessories
See Panel G for more information.
Exhaust hood
Do Not use exhaust hoods with magnetic latches.
4"
4"
2-1/2"
Check that you have everything necessary for
correct installation. Proper installation is your
responsibility.
✔
Benton Harbor, Michigan 49022
Gas Dryer
Set to operate on NATURAL GAS.
Part No. 3405338 Rev. D
GAS DRYER

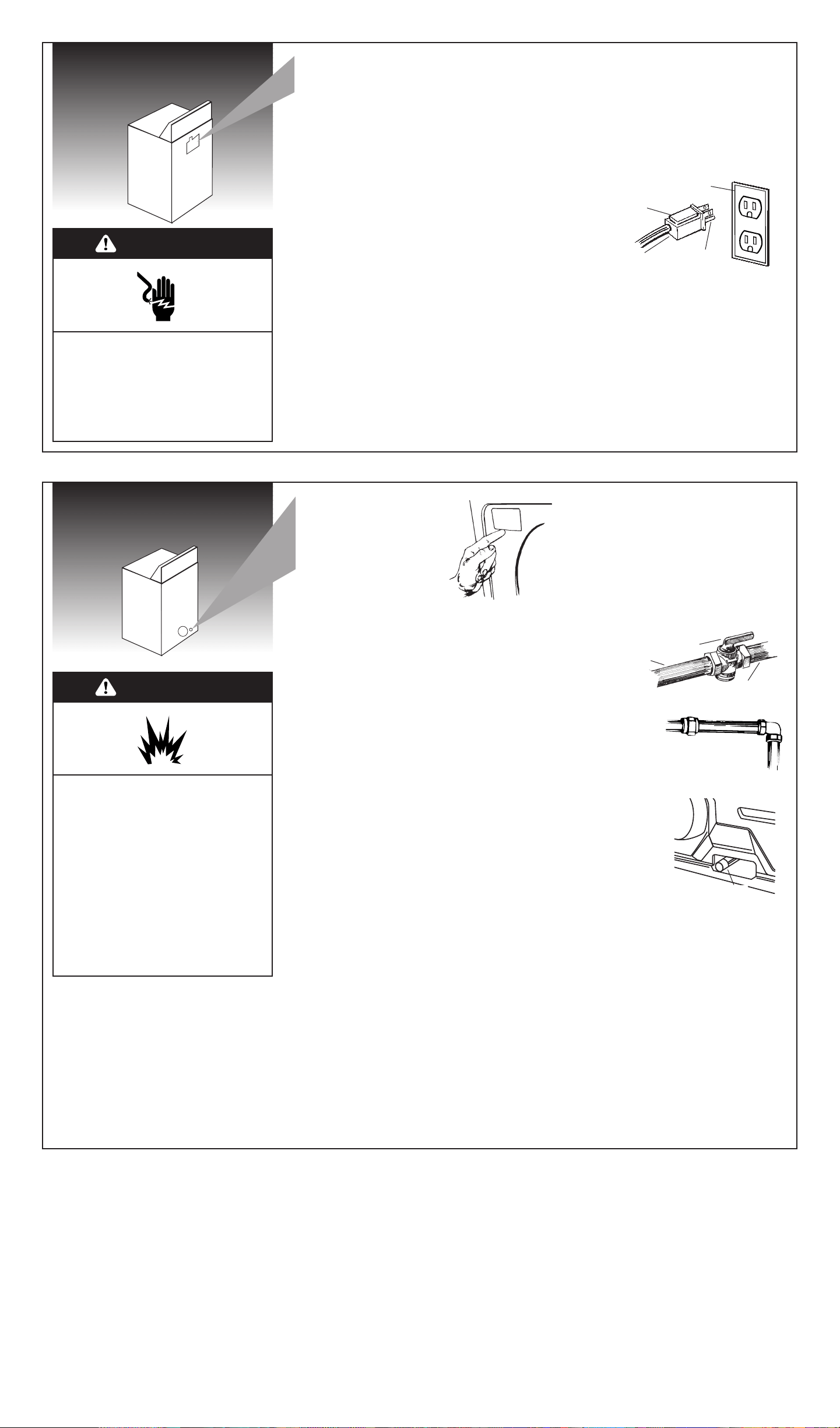

Shut off electrical supply
to dryer. Unplug power
supply cord and tape it
securely to dryer.
Shut off gas supply valve in
the gas supply line.
Disconnect gas fittings from
dryer and cap gas supply
line. Tape end of dryer gas
pipe.
Disconnect bracket from wall and
reinstall in new home. (Not used
on all models.)
Tape lint
collector lid to
cabinet.
Tape top
to cabinet.
Tape door
to front
panel.
Turn leveling
legs all the
way in.
Slide dryer onto cardboard
or hardboard before moving
it across the floor to prevent
damaging floor covering.

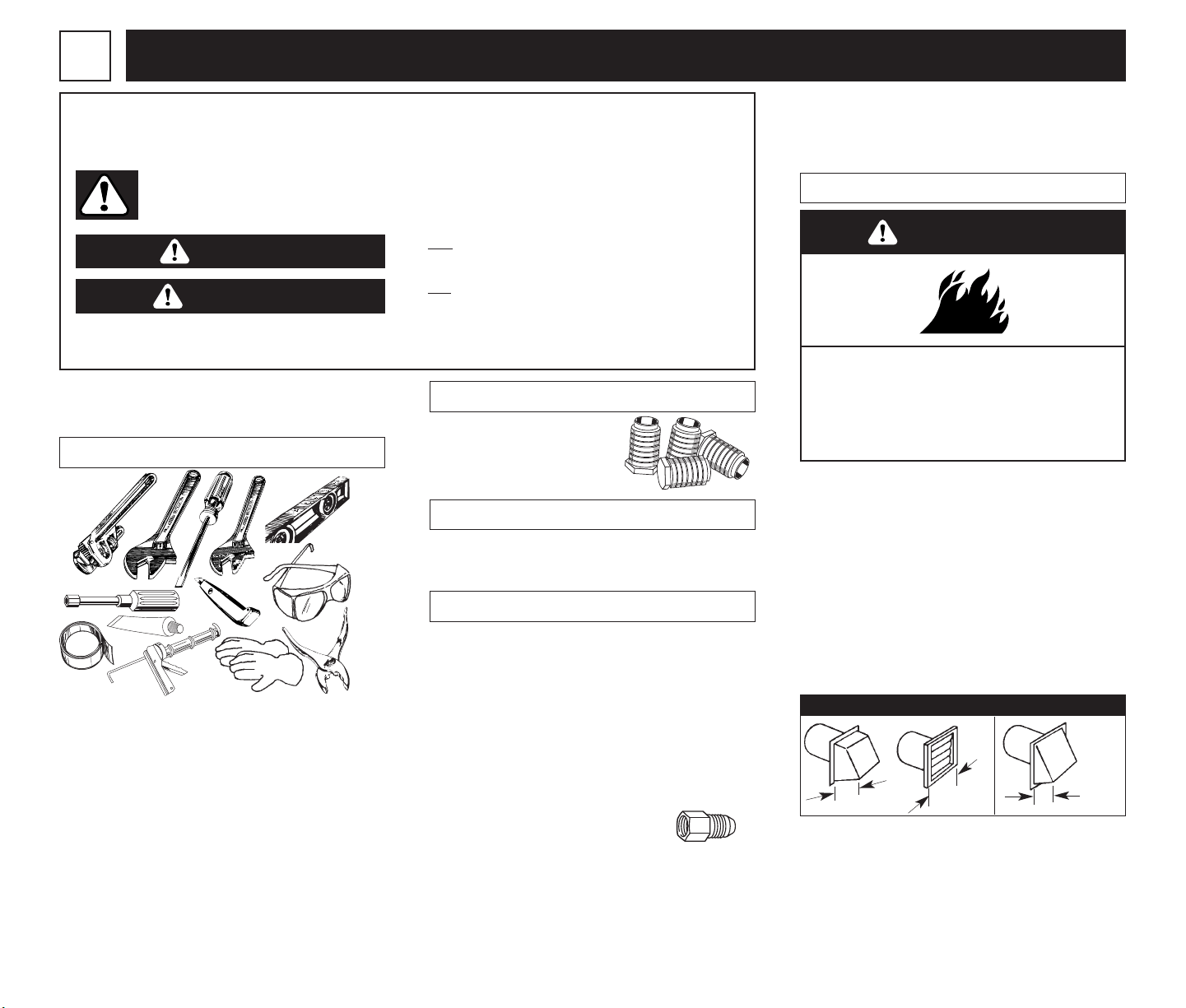

Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
WARNING
DANGER
This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you
and others. All safety messages will be preceded by the safety alert symbol and the word
“DANGER” or “WARNING”. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
You will
be killed or seriously injured if you don’t
follow instructions.
You can
be killed or seriously injured if you don’t
follow instructions.
Tools needed to change door swing:
• Phillips screwdriver • soft cloth or towel
L.P. gas conversion:
In U.S. - Conversion must be made by a qualified
technician. See gas valve burner base for gas
conversion kit part number.
Printed in U.S.A.
Part No. 3405338 Rev. D
© 1999 Whirlpool Corporation
• 8" or 10" pipe wrench
• 8" or 10" adjustable
wrench (for gas
connections)
• flat-blade screwdriver
• adjustable wrench
that opens to 1"
(shown) or 1" hex-
head socket wrench
(for adjusting dryer
feet)
• level
• 1/4" nut driver
(shown) or socket
wrench
• knife
• safety glasses
• duct tape
• pipe-joint compound
resistant to L.P. gas
• caulking gun and
compound (for
installing new exhaust
vent)
• gloves
• pliers
Gas supply line must have:
• 1/8" NPT plugged tapping.
• Shutoff valve within 183 cm (6 ft) of appliance
is recommended.
Rigid gas supply line must be:
• 1/2" IPS pipe used with a combination of pipe
fittings.
• Optional connection to dryer:
— New, flexible metal tubing design-
certified by the American Gas
Association.
— 3/8" flare x 3/8" NPT female.
Tubing gas supply line must be:
• Lengths under 20 feet can use 3/8"
approved tubing (if codes and gas supplier
permit).
• Lengths over 20 feet should use larger
tubing.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to do so can result in death or fire.
WARNING
*from floor with
dryer feet
extended 1 inch
**Most installations will
require at least 5-inch
clearance behind the
dryer for the dryer vent.
Door clearance
Recessed area/closet installation
Location must be large enough to fully open dryer door.
Dryer location
and dimensions
✔Observe all governing
codes and ordinances.
✔Check code requirements:
Some codes limit or do not
permit installation of clothes
dryers in garages, closets,
mobile homes or sleeping
quarters. Contact your local
building inspector.
✔Comply with the installation
specifications and
dimensions.
✔Consider spacing
requirements for companion
appliances.
✔Make sure you have
everything necessary for
proper installation.
✔Properly install dryer.
✔Contact a qualified installer
to insure that the electrical
and gas installations meet all
national and local codes and
ordinances.
✔Exhaust to outdoors: Dryer
must be exhausted outdoors
to prevent exposure to
harmful substances in the gas
fuels.
The location must provide:
✔Protection from weather and water: Do not
store or use dryer where it will be exposed to
water and weather.
✔Room temperature above 45°F: If room
temperature is below 45°F, automatic cycles
may not shut off.
✔Level floor: Maximum slope under entire dryer
should not be more than 1 inch. (If slope is
greater than 1 inch, install Extended Dryer Feet
Kit, Part No. 279810.) Clothes may not tumble
properly and automatic sensor cycles may not
operate correctly if dryer is not level.
✔Sturdy floor to support dryer weight of
175 pounds.
No other fuel burning appliance may be
installed in the same closet or recessed area.
• If codes permit, dryer may be installed in a
recessed area or closet using dimensions
shown.
• Dimensions are in inches and are the
minimum allowable. Detailed space
requirements can also be found on the label
on the back panel of the dryer. These
requirements ensure minimum clearances to
combustible construction, and prevent
blockage of air into the combustion chamber.
• Additional spacing should be considered for
ease of installation and servicing. Companion
appliance spacing should also be considered.
3"
3"
48 sq. in.
****
24 sq. in.****
4"*****
14"
max.
front view
1"
closet
door
**** Minimum top and bottom air openings for
closet door.
*****External exhaust elbow requires additional
space.
Recessed area installation
0"******
0"******
front view
18"
Closet/confined area installation
If a closet door is installed: The minimum
unobstructed air openings are required.
Louvered doors with equivalent air openings
are acceptable.
******
Wall, door and floor molding may require
additional spacing.
29"
28" max.**
14-1/2"
9-1/4"
6"*
2-1/8"
42-3/8"*
side view
It is your responsibility to:
Panel A
gas burner inlet
pipe connection
at rear of dryer
dryer exhaust
vent
Large side-swing
door (reversible)
17-3/4"
22-3/4"
22-3/4"
7"
Extra-large hamper door
Small side-swing door
15-1/4"
15-1/4"
15-1/4"
13-3/4"
13-3/4"
25-5/8"
8-1/4"
8-3/4"
22-3/4"
22-3/4"
19-1/8"
Super-large
side-swing door (reversible)
3-7/8"
This installation must also conform with the
American National Standard, National Fuel
Gas Code ANSI Z223.1 — latest edition***,
and all local codes and ordinances.
Copies of the standards listed may be obtained
from:
***American Gas Association
1515 Wilson Boulevard
Arlington, Virginia 22209
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from dryer.
Place dryer at least 18 inches above the floor for a garage installation.
Failure to do so can result in death, explosion, or fire.
For proper drying performance:
— Do not store or use gasoline,
or other flammable vapors and
liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL
GAS:
• Do not try to light any
appliance.
• Do not touch any electrical
switch; do not use any phone
in your building.
• Clear the room, building or
area of all occupants.
• Immediately call your gas,
supplier from a neighbor’s
phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas
supplier, call the fire
department.
— Installation and service must
be done by a qualified
installer, service agency or
the gas supplier.
WARNING: For your safety the
information in this manual must
be followed to minimize the
risk of fire or explosion or to
prevent property damage,
personal injury or death.
Recessed
Exhausted
Closet
Back
5"/0"
5"/4"
Sides
1"/0"
1"/0"
Top
18"/18"
18"/18"
Front
—
1"/1"
Installation clearances.
Use recommended clearance for easier
installation.
Recommended/Minimum
WARNING
Electrical
requirements
If codes permit and a separate ground wire is
used, it is recommended that a qualified
electrician determine that the ground path is
adequate.
A 120-volt, 60-Hz, AC-only, 15- or 20-ampere
fused electrical supply is required. A time-delay
fuse or circuit breaker is recommended.
It is recommended that a separate circuit serving
only this appliance be provided.
Important: Observe all governing codes and
ordinances.
3-prong ground-type
outlet
3-prong
ground
plug
power
supply cord
ground
prong
Copies of the standards listed above may be
obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
Gas supply
requirements
OBSERVE ALL GOVERNING CODES AND
ORDINANCES.
If local codes permit, it
is recommended that
new flexible metal
tubing, design-
certified by the
American Gas
Association, be
used for connecting
the appliance to the rigid
gas supply line. (The gas
pipe which extends through the lower rear
of the appliance has 3/8-inch male pipe
thread.)
A combination of pipe fittings must be
used to obtain an in-line connection to
the dryer.
Natural Gas:
This dryer is equipped for use with NATURAL
GAS. It is design-certified by American Gas
Association for L.P. (propane or butane) gases
with appropriate conversion.
L.P. Gas:
No attempt shall be made to convert the
appliance from the gas specified on the
model/serial rating plate for use with a different
gas without consulting the serving gas supplier.
Conversion must be done by a qualified
service technician. Gas conversion kit part
numbers are listed on the gas valve burner
base.
Burner input requirements:
Elevations up to 10,000 feet:
The design of this dryer has been certified by
the A.G.A. for use at altitudes up to 10,000 feet
above sea level at the B.T.U. rating indicated on
the model/serial rating plate. Burner input
adjustments are not required when the dryer is
operated up to this elevation.
Elevations above 10,000 feet:
When installed above 10,000 feet, a four
percent (4%) reduction of the burner B.T.U.
rating shown on the model/serial rating plate is
required for each 1,000 foot increase in
elevation. For assistance installing dryer above
10,000 feet elevation, contact your serving gas
supplier.
Supply line requirements:
Provide a rigid gas supply line to the dryer
location. When rigid pipe is used it should be
1/2 inch IPS. When acceptable to the gas
supplier and local codes, 3/8-inch approved
tubing may be used for lengths under 20 feet.
For lengths over 20 feet, larger tubing should
be used. Pipe-joint compounds resistant to
the action of L.P. gas must be used.
Gas requirements:
Check that dryer is
equipped with the correct
burner for the particular
type of gas in the home.
Burner information will be
found on the model/serial
rating plate in door well of
the dryer. If this information
does not agree with the type of gas available,
see your dealer.
to dryer
shutoff valve
“open” position
rigid gas supply line
A 1/8-inch NPT plugged tapping, accessible
for test gauge connection, must be installed
immediately upstream of the gas supply
connection to the dryer.
The dryer and its individual shutoff valve
must be disconnected from the gas supply
piping system during any pressure testing
of that system at test pressures in excess of
1/2 psi.
The dryer must be isolated from the gas
supply piping system by closing its
individual manual shutoff valve during any
pressure testing of the gas supply piping
system at test pressures equal to or less
than 1/2 psi.
red cap
Panel B
Electrical Shock Hazard
Plug into a grounded 3-prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can
result in death, fire, or electrical shock.
Recommended ground
method
GROUNDING INSTRUCTIONS: This appliance
must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of
electric shock by providing a path of least
resistance for electric current.
The power supply cord plug must be plugged
into an appropriate outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
WARNING
WARNING
Explosion Hazard
Use a new AGA approved gas supply
line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified
person make sure gas pressure does
not exceed 13" water column.
Examples of a qualified person
include licensed heating personnel,
authorized gas company personnel,
and authorized service personnel.
Failure to do so can result in death,
explosion, or fire.
WARNING - Improper connection of the
equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt
as to whether the appliance is properly
grounded. Do not modify the plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
Important: Observe all governing codes and
ordinances.
Dryer MUST BE EXHAUSTED to the outside.
Moisture and lint indoors may cause:
• lint to gather around the dryer where it can be
fuel for a fire.
• moisture damage to woodwork, furniture,
paint, wallpaper, carpet, etc.
• housecleaning problems and health problems.
Dura Safe
TM
venting products are
recommended and are available from your
dealer.
Four-inch diameter vent is required.
Use a heavy metal vent. Do Not use plastic or
metal foil vent.
Rigid metal vent is recommended to prevent
crushing and kinking.
Flexible metal vent must be fully extended and
supported when the dryer is in
its final position. Remove excess
flexible vent to avoid sagging
and kinking that may result in
reduced air flow.
An exhaust hood should cap
the exhaust vent to prevent
rodents and insects from
entering the home.
Exhaust outlet hood must be
at least 12 inches from the ground or any object
that may be in the path of the exhaust (such as
flowers, rocks or bushes, etc.).
If using an existing exhaust system, clean lint
from entire length of system and make sure
exhaust hood is not plugged with lint.
Replace any plastic or metal foil vent with rigid
metal or flexible metal vent.
Use clamps to seal all joints. Do Not use duct
tape, screws or other fastening devices that
extend into the interior of the vent to secure
vent.
Service check: Back pressure in any exhaust
system used must not exceed 0.6 inches in
water column measured with an incline
manometer at the point that exhaust vent
connects to dryer.
The exhaust
outlet is located
at the center of
the rear of the
dryer.
better
exhaust air flow
acceptable
Determine vent length
The maximum length of the exhaust system
depends upon:
• the type of vent (rigid or flexible metal).
• the number of elbows used.
1. See the exhaust vent length chart that
matches your type hood for the maximum
vent lengths you can use.
Do not use vent runs longer than
specified in exhaust vent length charts.
Exhaust systems longer than specified will:
— accumulate lint creating a potential fire
hazard.
— shorten the life of the dryer.
— reduce performance, resulting in longer
drying times and increased energy usage.
2. Determine the number of elbows you will
need.
3. In the column listing the type of metal vent
you are using (rigid or flexible), find the
maximum length of metal vent on the same
line as the number of elbows.
Plan the exhaust vent installation
The exhaust vent can be
routed up, down, left,
right or straight out the
back of the dryer. See
“Recessed area/closet
installation” section,
Panel A, for general
space requirements.
Select the route that will provide the
straightest and most direct path outdoors.
Plan the installation to use the fewest number of
elbows and turns.
When using elbows or making turns, allow as
much room as possible. Bend vent gradually to
avoid kinking.
Route the vent
Panel C
The maximum length using a 2" x 6" rectangular
vent with 2 elbows and a 2-1/2" exhaust hood is
8 feet.
For exhaust systems not covered by
exhaust vent length charts (such as multiple
unit hookups, plenums, and power-assist
fans), see Service Manual, Part No. 603197.
(To purchase the Service Manual, see your Use
and Care Guide for a toll-free telephone
number.)
Number of Rigid Flexible
90° elbows (fully extended)
0 58 ft. 28 ft.
1 48 ft. 23 ft.
2 38 ft. 19 ft.
3 29 ft. 17 ft.
4 21 ft. 15 ft.
Maximum length of
4" diameter metal vent
When you have a 2-1/2" hood …
2-1/2"
Acceptable —
Number of Rigid Flexible
90° elbows (fully extended)
0 64 ft. 36 ft.
1 54 ft. 31 ft.
2 44 ft. 27 ft.
3 35 ft. 25 ft.
4 27 ft. 23 ft.
Maximum length of
4" diameter metal vent
When you have a 4" hood …
4"
4"
Preferred —
Exhaust
requirements
skirting
enclosed area
outside
wall
floor
Mobile home installation
requirements
If codes permit, this appliance is suitable for
mobile home installations. The installation of
the dryer must conform to Manufactured
Home Construction and Safety Standard, Title
24 CFR, Part 3280 (formerly the Federal
Standard for Mobile Homes Construction and
Safety, Title 24, HUD Part 280) or latest
edition.
The dryer must be fastened to the floor.
Order Mobile Home Installation Kit, Part No.
346764, from your dealer. Kit includes the
necessary fastening hardware and detailed
installation instructions. Metal exhaust system
is also available through your dealer.
The dryer must be exhausted outside.
12" min.
exhaust
outlet
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to do so can result in death or
fire.
WARNING
• Do Not use non-metal flexible vent or
exhaust hoods with magnetic latches.
• Metal exhaust vent must be four inches
in diameter.
• Do Not exhaust dryer into a chimney,
furnace, cold air vent, attic or crawl space,
or any other vent used for venting.
• Do Not install flexible vent in enclosed
walls, ceilings or floors.
The exhaust vent must be securely fastened to
a non-combustible portion of the mobile
home structure. The exhaust system must not
terminate beneath the mobile home.
A. Install vent
system
(new
installation)
B.
Prepare dryer
1. Put on safety
glasses and gloves.
3. Connect exhaust vent to hood.
(Exhaust vent MUST fit inside hood.)
Secure vent to hood with 4" clamp.
4. Run exhaust vent to dryer location.
Use the straightest path possible. (See Panel
C.) Avoid 90° turns. Use clamps to seal all
joints.
1. Remove tape from dryer cabinet. Open
dryer door and remove tape from dryer drum.
(Not all dryer drums are taped.) Remove drying
rack, if included. Turn dryer drum
counterclockwise to make sure all tape was
removed. Wipe drum with damp cloth to
remove any dust.
2. Take two
cardboard corners from
dryer carton and place
them on floor in back
of dryer. Firmly grasp
body of dryer and
gently lay it on its back
on the cardboard corners.
diamond
marking
3. Start to screw legs into holes by hand.
Use an adjustable wrench or 1" hex-head
socket wrench to finish turning legs until you
reach the ridge with the diamond marking.
4. Stand dryer up on cardboard
or hardboard.
Now start installation
(If installing washer and dryer, install dryer first.)
✔
SLIDE DRYER ONTO
CARDBOARD OR
HARDBOARD BEFORE
MOVING ACROSS FLOOR
TO PREVENT FLOOR
DAMAGE.
See installation steps for details.
B.
Install feet.
D.
Check that
dryer is level.
F.
Connect
vent to
dryer.
E.
Remove red cap.
Connect gas supply to
dryer. Check for leaks.
A.
Install vent system.
G.
Check operation.
C.
Change door
swing.
B.
Remove tape.
2. Install exhaust
hood. Use caulking
compound to seal exterior
wall opening around
exhaust hood.
Panel D
Excessive Weight Hazard
Use two or more people to move and
install dryer.
Failure to do so could result in back or
other injury.
WARNING
C.Change door
swing
Be careful not to scratch or chip paint.
1. Place a large towel or soft cloth (A) on
top of dryer.
2. Open dryer door. Remove bottom
screws from cabinet side of hinges (B). Loosen
(do not remove) top screws from cabinet side
of hinges.
3. Lift door until top screws in cabinet are
in large part of hinge slot. Pull door forward off
screws. Set door (handle side up) on top of
dryer. Remove top screws from cabinet.
Complete door swing change following the
instructions for your type door.
7. Attach door hinge to door so large part
of hinge slot is at bottom of hinge.
8. Carefully remove 4 hinge hole plugs (C)
on left side of cabinet. Insert plugs into hinge
holes (B) on right side of cabinet.
9. Insert screws in bottom holes on left
side of cabinet. Tighten screws halfway.
Position door so large end of door hinge slot is
over screws. Slide door up so screws are in
bottom of slots. Tighten screws. Insert and
tighten top screws in hinges.
10. Remove door strike (D) from
cabinet. Remove door strike plug (E). Insert
door strike in new hole and secure with screw.
Insert door strike plug in original door strike
hole and secure with screw.
11. Slowly close door and check that
door strike aligns with door catch (F). If door
does not close completely, slide door catch left
or right within slot until strike snaps into catch.
6. Remove door strike (D) from cabinet.
Remove door strike plug (E). Insert door strike
in new hole and secure with screw. Insert door
strike plug in original door strike hole and
secure with screw.
7. Slowly close door and check that door
strike aligns with door catch (F). If door does
not close completely, slide door catch left or
right within slot until strike snaps into catch.
Available on Super-wide side-swing and Large
side-swing door models only.
If not reversing door swing, skip ahead to “Level
and exhaust dryer” steps.
Super-wide side swing door
B
A
4. Remove screws attaching hinges to door.
5. Remove screws at top, bottom and side
of door. Holding door over towel on dryer,
grasp sides of outer door and carefully lift to
separate it from inner door. Do NOT pry apart
with putty knife. Do NOT pull on door seal or
plastic door catches.
6. Turn and reattach outer door panel to
inner door panel so handle is on the side where
hinges were just removed. Be careful to keep
cardboard spacer centered between inner and
outer doors.
5. Insert screws in bottom holes on left side
of cabinet. Tighten screws halfway. Position door
so large end of door hinge slot is over screws.
Slide door up so screws are in bottom of slots.
Tighten screws. Insert and tighten top screws in
hinges.
Large side swing door
A
C
4. Carefully remove 4 hinge hole plugs (C)
on left side of cabinet. Insert plugs into hinge
holes (B) on right side of cabinet.
B
Panel E
D
E
C
D
E
Do Not turn
inner door
F
F
D. Level dryer
Dryer must be level to reduce noise and
assure proper performance.
Slide dryer onto cardboard or hardboard
before moving across floor to prevent floor
damage.
1. Move dryer close to its permanent
location. Leave enough room to connect
exhaust vent. Remove cardboard or hardboard
from under dryer.
2. Check levelness of dryer by placing a
level on top of dryer, first side to side, then
front to back. If dryer is not level, adjust dryer
legs up or down.
If legs are not long enough to level dryer,
order Extended Dryer Feet Kit, Part No.
279810 (sold two legs per kit), from your
dealer.
1. Using a 4" clamp, connect exhaust
vent to exhaust outlet in dryer. If connecting
to existing exhaust vent, make sure the vent
is clean. The dryer exhaust vent must fit over
the dryer exhaust outlet and inside the
exhaust hood.
Make sure exhaust vent is secured to exhaust
hood with a 4" clamp.
Panel F
E.
Make gas
connection
1. Remove the
red cap from the
gas pipe. (You may
need to use pliers.)
Move the dryer
into its final
position.
2. Connect gas supply to dryer. Use pipe-
joint compound resistant to the action of L.P.
gas for gas connections. If flexible metal tubing
is used, be certain there are no kinks.
3. Turn the shutoff valve in the gas supply
line to the “open” position.
to dryer
manual
shutoff valve
“open” position
rigid gas supply line
F. Exhaust dryer
4. Use a brush and liquid detergent to
test all external gas connections for leaks.
Bubbles around connections will indicate a
leak. If a leak appears, shut off gas valve
controls and tighten connections. Then check
connections again.
2. Move dryer into final position. Do not
crush or kink exhaust vent. Make sure dryer is
level.
3. Read the Use and Care Guide to fully
understand your new dryer. Select a full heat
cycle (not the air cycle) and start dryer. After
five minutes, open dryer door. You should feel
heat inside dryer.
If the burner did not ignite and you do not
feel heat inside the dryer, shut the dryer off for
5 minutes. Then check that:
✔ controls are set in a running or “On”
position.
✔ start button has been pushed firmly.
✔ gas supply line shutoff valve is open.
Repeat 5-minute test. If dryer still does not
operate properly, check the following:
✔ electrical supply is connected.
✔ house fuse is intact and tight; or circuit
breaker has not tripped.
✔ dryer door is closed.
If dryer makes an unusual noise, check that
dryer is level.
G.
Check operation
1. Check that you:
✔ did not skip any steps.
✔ installed all parts.
✔ properly installed dryer legs.
✔ leveled dryer.
✔ have all the tools you started with.
2. Plug power supply cord into grounded
3-prong outlet.
4" clamp
4" clamp
Panel G
SURE CONNECT
TM
Vent Kit
CRUSH
RESISTANT
Dura Safe
TM
Kits Make Installation Easy
◆Provides 4 1/2"
clearance between
dryer and wall
◆Snap-Lock fittings
◆Total kit length
8 feet
◆Additional vent can
be snapped between
sections for
longer runs
Kit Contains:
2- 4' vent sections with attached close elbows
1- Wall plate for close clearance installations
2- 4" clamps
Part #4396028
Sections separate,
fittings can face
same or opposite
Extra long
band-clamp
for dryer
connection
Swivel collar
Beveled edges
allow corner
installations
Telescoping
sections
Swivel collar
wall connection
◆ Provides 2 1/2" clearance
between dryer and wall
◆ Great for closet
installations
◆ 0"-18", 18"-29" or
29"-50" periscopes
include one male
snap-lock fitting,
one extra long
draw-band collar
and one clamp
2
1/2"
2
1
/
2
"
Periscopes For Offset
Outlets, Tight Installations
◆ Use when vent outlets
overlap or are offset
◆ Excess length can
be trimmed to fit
18"-29" and 29"-50" Periscope
0"-18" Periscope
0"-18" : Part #4396037
18"-29" : Part #4396011
29"-50" : Part #4396014
Part #4396037
18"-29" : Part #4396011 29"-50" : Part #4396014
Dura Safe and Sure Connect are Trademarks of Whirlpool, U.S.A.
For more information,
or to easily place your
order, call
1-800-442-9991
To have your venting
professionally installed,
call
1-800-253-1301
for the nearest
authorized service
provider.
.
Have questions about your dryer?
Check your Use and Care Guide for a toll-free number to call, or call your
dealer. The dealer is listed in the Yellow Pages of your phone directory
under “Appliances — Household — Major — Service and Repair.”
When you call, you will need the dryer model number and serial number.
Both numbers are on the model/serial rating plate located in the door well
behind the dryer door and on front of opening.
Record the numbers here for handy reference:
Model No.
Serial No.
Moving dryer to a new location?
Check with your gas supplier or dealer to confirm that your dryer is
equipped with the correct burner for the particular type of gas in your new
home. Burner information is specified on the model/serial rating plate.
Installation Instructions
IMPORTANT:
Read and save these instructions.
Installer: Leave Installation Instructions with homeowner.
Homeowner: Keep Installation Instructions for future reference.
For best performance, install dryer according to Installation
Instructions. Failure to complete installation as instructed
could void warranty.
Save Installation Instructions for local electrical inspector’s use.
Mobile home installations require:
• Mobile Home Installation Kit, Part Number 346764*
• Metal exhaust system hardware*
Floors sloped greater than 1 inch:
Require Extended Dryer Feet Kit, Part No. 279810*
*
Available for purchase from your dealer.
Parts supplied:
Parts needed:
Venting
Gas
Tools needed:
Before you start:
4 leveling legs
Remove parts package from
dryer drum. Check that all
parts were included.
Check local codes and with gas supplier, and
read electrical, gas and venting requirements
before purchasing parts.
Preferred Acceptable
Four-inch heavy metal exhaust vent and clamps
must be used. Dura Safe™ vent products are
recommended.
Dura Safe vent products can be purchased from
your dealer or by calling Whirlpool Parts &
Accessories 1-800-442-9991, Mon-Fri: 8am to
9pm (CST), Sat: 9am to 4:30pm (CST). Visit our
internet site at
http://www.whirlpoolappliances.com/accessories
See Panel G for more information.
Exhaust hood
Do Not use exhaust hoods with magnetic latches.
4"
4"
2-1/2"
Check that you have everything necessary for
correct installation. Proper installation is your
responsibility.
✔
Benton Harbor, Michigan 49022
Gas Dryer
Set to operate on NATURAL GAS.
Part No. 3405338 Rev. D
GAS DRYER
Shut off electrical supply
to dryer. Unplug power
supply cord and tape it
securely to dryer.
Shut off gas supply valve in
the gas supply line.
Disconnect gas fittings from
dryer and cap gas supply
line. Tape end of dryer gas
pipe.
Disconnect bracket from wall and
reinstall in new home. (Not used
on all models.)
Tape lint
collector lid to
cabinet.
Tape top
to cabinet.
Tape door
to front
panel.
Turn leveling
legs all the
way in.
Slide dryer onto cardboard
or hardboard before moving
it across the floor to prevent
damaging floor covering.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always
read and obey all safety messages.
WARNING
DANGER
This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you
and others. All safety messages will be preceded by the safety alert symbol and the word
“DANGER” or “WARNING”. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
You will
be killed or seriously injured if you don’t
follow instructions.
You can
be killed or seriously injured if you don’t
follow instructions.
Tools needed to change door swing:
• Phillips screwdriver • soft cloth or towel
L.P. gas conversion:
In U.S. - Conversion must be made by a qualified
technician. See gas valve burner base for gas
conversion kit part number.
Printed in U.S.A.
Part No. 3405338 Rev. D
© 1999 Whirlpool Corporation
• 8" or 10" pipe wrench
• 8" or 10" adjustable
wrench (for gas
connections)
• flat-blade screwdriver
• adjustable wrench
that opens to 1"
(shown) or 1" hex-
head socket wrench
(for adjusting dryer
feet)
• level
• 1/4" nut driver
(shown) or socket
wrench
• knife
• safety glasses
• duct tape
• pipe-joint compound
resistant to L.P. gas
• caulking gun and
compound (for
installing new exhaust
vent)
• gloves
• pliers
Gas supply line must have:
• 1/8" NPT plugged tapping.
• Shutoff valve within 183 cm (6 ft) of appliance
is recommended.
Rigid gas supply line must be:
• 1/2" IPS pipe used with a combination of pipe
fittings.
• Optional connection to dryer:
— New, flexible metal tubing design-
certified by the American Gas
Association.
— 3/8" flare x 3/8" NPT female.
Tubing gas supply line must be:
• Lengths under 20 feet can use 3/8"
approved tubing (if codes and gas supplier
permit).
• Lengths over 20 feet should use larger
tubing.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to do so can result in death or fire.
WARNING
