Model: 1-MR08US07 | Color: Pink
Overview
The BEAUTURAL Mini Travel Steam Iron is a compact, dual-voltage appliance designed for travel and home use. It features temperature control, a non-stick soleplate, and a cord storage system. It is suitable for ironing clothes and for detailed craft work such as sewing and quilting.
Features and Specifications
Physical Specifications
- Brand: BEAUTURAL
- Model Name: Mini Iron
- Model Number: 1-MR08US07
- Color: Pink

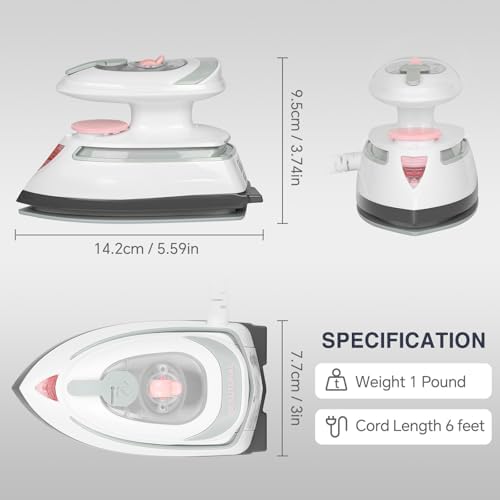

- Product Dimensions: 5.5" L x 3.1" W
- Item Weight: 0.63 kg (1.39 lbs)
- Base Material: Stainless Steel (Non-Stick Soleplate)
Electrical Specifications
- Wattage: 420 Watts
- Voltage: 110 Volts (Dual Voltage: 110V-127V / 220V-240V)
- Power Cord Length: 6 feet
- Heat-up Time: Approximately 40 seconds
Key Features
- Compact & Travel-Friendly: Lightweight and small size for easy packing.
- Dual Voltage: Switchable for use worldwide. Includes a US plug.
- Temperature Control: Three settings for different fabric types (e.g., linen, cotton, silk, wool).

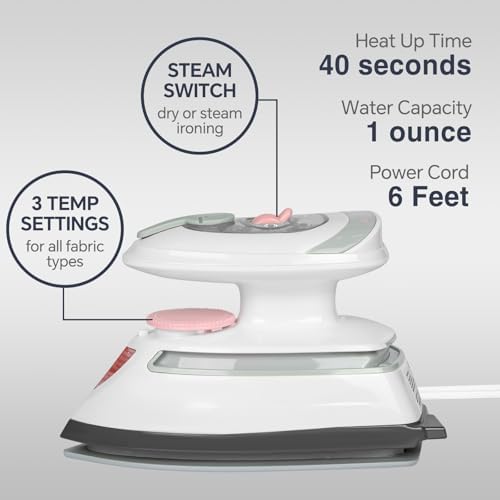

- Steam Function: Switch between dry and steam ironing. Features 5 steam outlets.
- Non-Stick Soleplate: Glides smoothly over fabrics.
- Cord Storage: Integrated system for winding the power cord.
- Versatile Use: Suitable for clothing, quilting, sewing, appliqué, and flower pressing.
Use Guide
Before First Use
- Unwind the power cord completely.
- Inspect the iron for any visible damage.
- Wipe the soleplate with a soft, damp cloth to remove any dust.
- Ensure your hands and the work surface are dry.
Setting the Voltage
Important: Before plugging in, verify the local voltage supply (e.g., 110V in the US, 220V in many other countries). This iron has automatic dual voltage (110V-127V / 220V-240V). No manual switch is required. Use a plug adapter if the outlet type differs from the included US plug.
Filling the Water Tank
- Unplug the iron and ensure it is cool.
- Hold the iron upright.
- Open the water inlet cover.
- Use a small cup or funnel to fill the tank with distilled or tap water. Do not overfill.
- Close the cover securely.
Operating the Iron
- Plug In: Connect the iron to a suitable power outlet.
- Select Temperature: Turn the temperature control dial to the setting appropriate for your fabric.
- Low: For delicate fabrics like silk and wool.
- Medium: For synthetic fabrics.
- High: For sturdy fabrics like cotton and linen.
- Heat Up: Wait approximately 40 seconds for the iron to reach the selected temperature.
- Steam Function: To use steam, flip the steam switch to the "ON" position once the iron is hot. Steam will emit from the 5 holes in the soleplate.
- Ironing: Glide the iron over the fabric using gentle pressure. For vertical steaming, hold the iron slightly away from the fabric.
After Use
- Turn the temperature dial to the "OFF" or minimum position.
- Unplug the iron from the wall outlet.
- Empty any remaining water from the tank by holding the iron over a sink and tilting it.
- Allow the iron to cool completely on a heat-resistant surface.
- Wind the power cord using the integrated storage feature.
- Store the iron in a dry place.
Care and Maintenance
- Cleaning the Soleplate: Wipe with a soft, damp cloth when cool. Do not use abrasive cleaners or scouring pads.
- Descaling: If you use hard water regularly, mineral deposits may build up. Use a commercial iron descaler according to its instructions, or a mixture of equal parts white vinegar and water. Run the steam function over a sink to flush the system, then rinse with clean water.
- Storage: Store in a cool, dry place. Ensure the cord is neatly wound.
- Avoid: Do not immerse the iron in water or any other liquid. Do not use chemical cleaners on the soleplate.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Iron does not heat up. | Not plugged in. Incorrect voltage setting for region. | Check power connection. Verify local voltage is within 110V-127V or 220V-240V range. |
| Little or no steam. | Water tank is empty. Temperature setting too low. Steam switch not on. | Fill water tank. Set temperature to High. Ensure steam switch is flipped to "ON". |
| Water leaks from iron. | Tank overfilled. Iron held at a wrong angle while steaming. | Do not fill past max line. Hold iron horizontally when using steam. |
| Soleplate is sticky or stained. | Fabric residue or starch buildup. | Clean cool soleplate with a damp cloth. For stubborn stains, use a paste of baking soda and water, then wipe clean. |
| Iron emits a burning smell. | New element heating for the first time. Incorrect fabric setting. | This may be normal during initial use. Ensure you are using the correct temperature setting for the fabric. |
Safety Information
- Read all instructions before use.
- Use the iron only for its intended household purposes as described in this manual.
- To protect against electric shock, do not immerse the iron, cord, or plug in water or other liquids.
- The iron is hot when in use. Do not touch the soleplate. Keep away from children.
- Always unplug the iron from the electrical outlet when filling with water, when not in use, and before cleaning.
- Do not operate the iron if it has been dropped, damaged, or is leaking. Contact support.
- Do not leave the iron unattended while it is connected to the power supply.
- Use the iron on a stable, heat-resistant surface.
- The iron must be used and rested on a stable surface.
- When placing the iron on its stand, ensure the surface is stable.
- This product is intended for indoor use only.
Compliance
This appliance complies with relevant safety standards. The included plug is designed for use in North America (110-127V). For use in other regions with 220-240V supply, a plug adapter may be required. The iron itself is compatible with both voltage ranges.
