Model: SZ-PS01 / SZ-PS07
1. Overview
The Seznik Portable Mini Sealing Machine is a handheld, battery-powered device designed to reseal plastic bags to maintain food freshness. It combines a heat sealer and a cutting blade in one compact unit.
Key Characteristics:
- Design: Handheld, portable, and lightweight (100 grams).
- Function: 2-in-1 heat sealer with integrated stainless steel cutter.
- Power: Rechargeable 400 mAh battery via USB Type-C cable.
- Operation: Automatic heating; no preheating required.
- Magnetic Back: Allows for convenient storage on metallic surfaces like refrigerators.

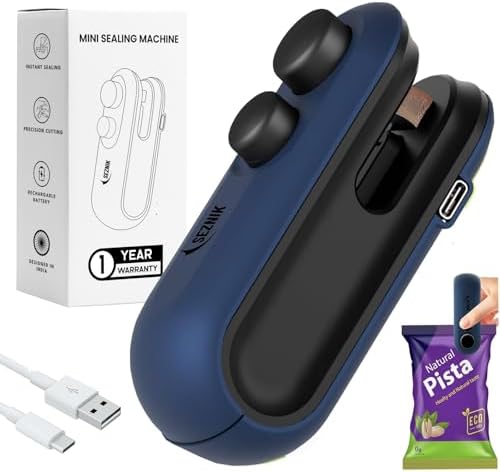

2. Package Contents
- 1 x Portable Rechargeable Sealer
- 1 x Type-C Charging USB Cable
- 1 x User Manual (this document)
3. Features and Specifications
3.1 Physical Specifications
| Material | ABS Plastic |
|---|---|
| Dimensions (L x W x H) | 9.9 x 3.3 x 4.1 cm |
| Weight | 100 grams |
| Colour (as per model) | Dark Blue, Cyan Blue, Dark Green, Dark White, Pink, White |
3.2 Technical Specifications
| Power Source | Built-in Rechargeable Battery |
|---|---|
| Battery Capacity | 400 mAh |
| Charging Port | USB Type-C |
| Charging Time | Approximately 2.5 hours for a full charge |
| Battery Life | Approximately 10-15 days under normal use |
| Operation Mode | Automatic |
3.3 Functional Features
- Dual-Function Head: Contains the heating element for sealing and a built-in stainless steel blade for cutting open packages.
- Fast Sealing: Heats in approximately 1 second; creates a seal within 5 seconds.
- Bag Compatibility: Designed for plastic bags with a thickness of less than 0.3 mm. Works with chip bags, snack bags, vacuum food storage bags, mylar bags, and PVC bags.
- Incompatible Materials: Not suitable for cling wrap, cellophane bags, kraft paper bags, pure aluminium bags, or very thin food storage bags.
4. Use Guide
4.1 Charging the Device
- Connect the provided USB Type-C cable to the charging port on the sealer.
- Connect the other end of the cable to a standard USB power adapter (5V, 1A recommended) or a computer USB port.
- The device does not have a charging indicator light. A full charge takes approximately 2.5 hours.
- Once charged, disconnect the cable. The battery should last for 10-15 days with typical use.
4.2 Sealing a Bag
- Prepare the Bag: Ensure the bag opening is clean, dry, and free of crumbs or grease. Flatten the opening.
- Position the Sealer: Place the flattened bag opening into the sealing slot at the front of the device.
- Activate the Seal: Press and hold the power button (typically an integrated switch on the body). The heating element will activate automatically.
- Sealing Process: Gently pull the bag through the slot while holding the button. The process should take about 5 seconds to create a firm, airtight seal.
- Release and Cool: Release the button and remove the bag. Allow the sealed area a few seconds to cool and set completely.
4.3 Using the Cutter
- The built-in stainless steel blade is located near the sealing slot.
- To open a sealed bag, gently slide the bag's edge against the blade in a controlled motion.
- Exercise caution to avoid cutting yourself or damaging the contents of the bag.
4.4 Power Saving & Storage
- Power off the device immediately after each use to conserve battery.
- Store the device in a cool, dry place.
- Utilize the magnetic back to attach it to a refrigerator or other metal surface for convenient access.
Warnings & Safety Instructions
- Do not use the sealer on bags containing liquids or excessive moisture.
- The heating element will be hot during and immediately after use. Do not touch the metal sealing strip.
- Keep the device away from water and other liquids.
- Do not use on flammable materials or near open flames.
- Keep out of reach of children. The blade is sharp.
- Use only with compatible plastic bags (thickness < 0.3mm). Using incompatible materials may damage the device or create a poor seal.
- Do not attempt to disassemble the device.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on/hear. | Battery is depleted. | Charge the device fully using the Type-C cable. |
| Seal is weak or does not form. | Bag material is incompatible or too thick (>0.3mm). Bag opening is dirty or wet. Insufficient heating time. | Use only compatible plastic bags. Clean and dry the bag opening thoroughly. Ensure you hold the button and pull the bag slowly for the full 5 seconds. |
| Device becomes very hot. | Extended continuous use. | Power off the device and allow it to cool down for a few minutes. |
| Blade does not cut effectively. | Blade may be dulled from use on improper materials. | Use only for cutting plastic film. The blade is not user-replaceable. |
6. Warranty and Support
This product is covered by a 1-Year Limited Warranty from the date of purchase as stated on your proof-of-purchase.
Manufacturer / Customer Care Contact:
- Seznik Lifestyle PVT LTD, PUNE.
- Customer Care: +91 8237869618
- Email: [email protected]
For warranty claims or support, please have your proof of purchase (invoice) ready.
Replacement Policy (via Amazon): A 10-day replacement period is offered for issues including physical damage, defective items, or wrong/missing items from delivery.
