1. Product Overview
The ZENY Electric Ice Crusher is a countertop appliance designed to shave ice cubes into a fine, snow-like consistency for making snow cones, slushies, and other frozen beverages.

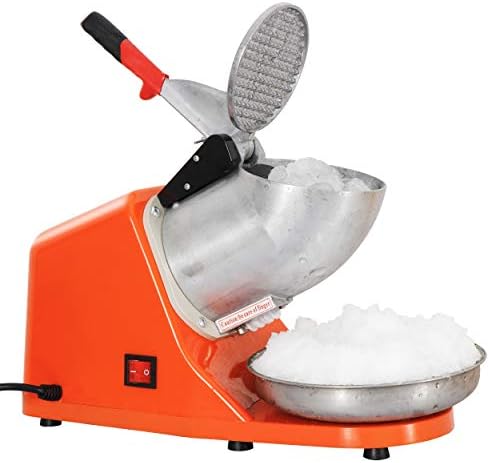

Key components visible in the image include:
- Main Housing: Contains the motor and internal blade assembly.
- Ice Hopper: The top opening where ice cubes are loaded.
- Pusher Handle: A lever used to press ice cubes down onto the spinning blade.
- Stainless Steel Collection Bowl: Catches the shaved ice. It rests in a cradle on the front of the unit.
- On/Off Switch: A water-resistant power switch (location inferred from description).
- Heavy Cast Base: Provides stability during operation.

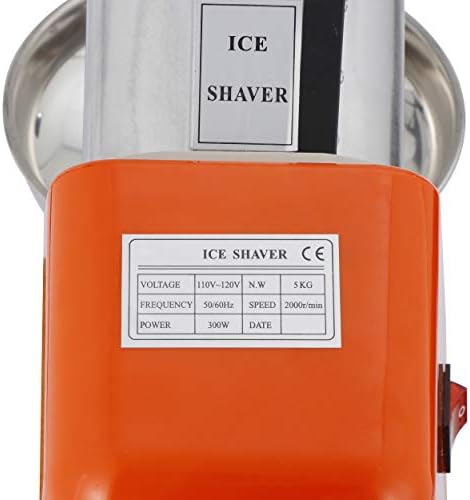

2. Specifications
- Brand: ZENY
- Product Dimensions: 14"D x 6"W x 11"H
- Shaving Capacity: 200 lbs/h (Approx. 85 kg/h)
- Motor Power: 300 watts
- Voltage: 110 Volts (AC)
- Rotation Speed: 2000 runs/min
- Frequency: 50-60Hz
- Primary Material: Stainless Steel (waterproof construction)
- Blade Material: Commercial Grade Stainless Steel
3. Features & Safety
3.1 Construction & Performance
- Stainless Steel Build: Designed to resist rust and be easy to clean.
- High-Efficiency Motor: Produces a large amount of shaved ice in a short time.
- Commercial-Grade Blade: Provides fine, fluffy shaved ice.
- Heavy Cast Base: Minimizes vibration and noise during operation.
3.2 Safety Features
- Automatic Shut-off: The motor automatically cuts off when the hopper handle/cover is in the open position.
- Water-Resistant Switch: The on/off switch is designed to be water-resistant.
- Ergonomic Design: The pusher handle keeps hands away from the internal blade.
3.3 Included Accessories
- 1 x ZENY Ice Shaver Crusher Unit
- 1 x Food-Grade Stainless Steel Serving Bowl
- 1 x User Manual
4. Use Guide
4.1 Before First Use
- Unpack the unit and remove all packaging materials.
- Wipe the exterior, hopper, and stainless steel bowl with a damp cloth. Do not immerse the main unit in water.
- Ensure the collection bowl is securely placed in its cradle.
- Place the machine on a stable, level, and dry countertop.
- Plug the power cord into a standard 110V outlet.
4.2 Operating Instructions
- Prepare Ice: Use standard-sized ice cubes from your freezer or bagged ice. For the fluffiest texture, some users recommend using slightly wet ice or larger ice blocks/pucks that fit the hopper.
- Power On: Press the water-resistant On/Off switch to the "On" (|) position. You will hear the motor running.
- Load Ice: Place a handful of ice cubes into the hopper. Do not overfill.
- Shave Ice: Firmly press down on the pusher handle to feed the ice onto the spinning blade. Hold the handle down until the ice is fully shaved.

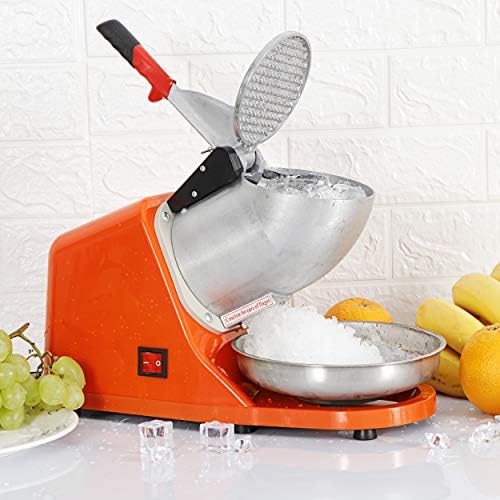

- Collect Ice: Shaved ice will be ejected into the stainless steel collection bowl. You may need to gently guide the ice into the bowl with a scoop or spoon as it can be ejected with some force.
- Serve: Use the provided bowl or a separate cup to serve. Add syrups or flavorings as desired.
- Power Off: When finished, turn the switch to the "Off" (O) position and unplug the unit.
4.3 Tips for Best Results
- For a snow-like consistency, use larger, drier ice cubes or blocks.
- Do not force non-food items or large quantities of ice at once.
- Place a towel under the unit during use to catch any water drips or stray ice shavings.
- If ice is not shaving effectively, ensure the pusher handle is fully depressing the ice onto the blade.
5. Cleaning & Maintenance
5.1 After Each Use
- Unplug the Machine: Always disconnect from power before cleaning.
- Empty and Clean Bowl: Remove the stainless steel collection bowl. Wash it with warm, soapy water. Rinse and dry thoroughly.
- Wipe Exterior: Wipe the main housing, hopper, and pusher handle with a damp cloth. Do not use abrasive cleaners.
- Clear Ice Residue: Allow any remaining ice or water inside the machine to melt and drain. Tipping the unit slightly may help. Wipe the internal chute with a dry cloth if accessible.
5.2 Important Warnings
- NEVER immerse the main motor unit, cord, or plug in water or any other liquid.
- NEVER insert fingers, utensils, or any object into the hopper while the unit is plugged in.
- NEVER operate the machine if the cord or plug is damaged.
- Allow the machine to dry completely before storing.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start. | Unit not plugged in. Switch is off. Pusher handle/hopper lid is open (safety lock engaged). | Plug in unit. Turn switch to "On". Ensure the hopper handle/cover is fully closed. |
| Ice is not shaving or is chunky. | Ice cubes are too small or wet. Pusher not being pressed down firmly enough. | Use larger, drier ice cubes. Apply firm, steady pressure on the pusher handle. |
| Machine is very loud or vibrates excessively. | Normal for this type of appliance. Unit may be on an unstable surface. | This is expected operation. Ensure the machine is on a stable, level countertop. |
| Water leaks from the bottom. | Melting ice from the internal chamber. Normal during/after use. | Place a towel or tray under the unit during operation to catch drips. |
| Shaved ice is not landing in the bowl. | Ice is ejected with force. | This is a known characteristic. Use a spoon or scoop to guide ice into the bowl during shaving. |
