Powools ATJ-6988 Portable Air Compressor

1. Overview

The Powools Portable Air Compressor is a cordless, battery-powered tire inflator designed for emergency and routine inflation of car tires, motorcycle tires, bicycle tires, and other inflatables. It features a compact, portable design with a built-in rechargeable battery, a digital pressure display, and an automatic shut-off function.

Key Characteristics:

• Power Source: Internal rechargeable battery (3 x 2000mAh).
• Portability: Cordless and lightweight (0.56 kg).
• Display: Large LED digital screen showing real-time and preset pressure.
• Operation: Automatic shut-off when the preset pressure is reached.
• Additional Feature: Multi-mode LED light on the top of the unit.

2. Package Contents

Ensure the following items are included in the box:

• Powools Portable Air Compressor (Main Unit).
• Rechargeable 3*2,000mAh batteries (pre-installed).
• Multiple attachments, air hoses, nozzles, and adapters.
• Charging cable (Type not specified in source, assumed to be USB).

Note: The specific types and quantities of attachments are not detailed in the source material. Refer to the physical items received.

3. Features and Components

3.1 Physical Description

• Body: Primarily red plastic construction.
• Weight: 0.56 Kilograms.
• Dimensions: Compact and handheld (specific dimensions not provided).

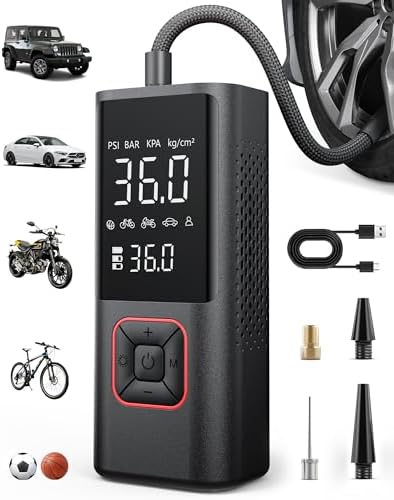

3.2 Control Panel and Display

The main interface is located on the front of the device.

• LED Digital Display: Shows the current (real-time) tire pressure and the target pressure you have set.
• Pressure Unit Selector: Allows you to cycle between four pressure units: PSI, BAR, KPA, and KG/CM².
• Pressure Setting Buttons: Buttons (likely +/-) to increase or decrease the target pressure value.
• Power/Start Button: To initiate the inflation process.
• LED Light Button: Controls the light on the top of the unit.

3.3 Air Hose and Nozzle

A flexible air hose with a standard tire valve connector (Schrader valve) is attached to the unit. Additional nozzles and adapters are included for inflating items like sports balls, air mattresses, or bicycle tires (Presta valve adapter may be included).

3.4 LED Work Light

Located on the top of the compressor. It has three modes:

• Flash Light: Steady illumination.
• Alarm Light: Flashing pattern for warning.
• SOS Light: Distress signal pattern.

This light is intended to provide visibility when inflating or changing tires in low-light conditions.

3.5 Battery and Charging Port

The unit contains three integrated, rechargeable 2000mAh batteries. A charging port (type unspecified) is located on the side or rear of the device.

4. Specifications

• Brand: Powools
• Model: ATJ-6988
• Voltage: 11.1 Volts
• Max Pressure: 150 PSI
• Air Flow: 20 Liters Per Minute (LPM)
• Noise Level: 75 Decibels
• Battery: Rechargeable 3*2,000mAh
• Continuous Run Time: Up to 20 minutes on a full charge
• Charge Time: 3-4 hours for a full charge
• Recommended Use: Tire Inflation
• Special Features: Portable, Auto Shut-Off, LED Light
• Included Components: Multiple attachments, air hoses, nozzles, adapters, rechargeable batteries
• Item Weight: 0.56 Kilograms
• Colour: Red

5. Use Guide

5.1 Initial Setup and Charging

1. Unpack the compressor and all accessories.
2. Connect the provided charging cable to the charging port on the compressor and to a standard USB power adapter or port.
3. Charge the unit fully for 3-4 hours before first use. The battery indicator on the display (if present) will show the charge status.

5.2 Setting the Target Pressure

1. Press the power button to turn on the display.
2. Use the unit button (marked as "Unit" or similar) to select your preferred pressure measurement: PSI, BAR, KPA, or KG/CM².
3. Use the "+" and "-" buttons to set your desired target pressure. The target value will be shown on the display.
4. Reference: Standard car tire pressure is typically between 30-35 PSI. Check your vehicle's placard (usually on the driver's door jamb) for the correct pressure.

5.3 Inflating a Tire

1. Remove the valve cap from the tire's valve stem.
2. Firmly press the inflator nozzle onto the valve stem. You may hear a brief hiss of air; ensure the connection is secure to prevent air leakage.
3. The display will show the current tire pressure.
4. Press and hold the power/start button to begin inflation.
5. The compressor will run and stop automatically when the preset target pressure is reached.
6. Remove the nozzle from the valve stem and replace the valve cap.

5.4 Using the LED Light

Press the LED light button to cycle through the modes: Flash Light -> Alarm Light -> SOS Light -> Off. Hold the button to turn the light off.

5.5 Inflating Other Items

Attach the appropriate nozzle or adapter from the included kit to the end of the air hose for inflating bicycles, balls, or other inflatables. The auto-shutoff function will still operate if the item has an airtight seal with the nozzle.

6. Safety and Maintenance

6.1 Safety Warnings

• Do not use the compressor to inflate persons or animals.
• Do not point the air stream at people or eyes.
• Do not operate the compressor in a wet environment or submerge it in water.
• Keep the compressor away from heat sources and open flame.
• Do not block the air intake or exhaust vents during operation.
• Observe the 10-minute run / 10-minute cool-down cycle to avoid motor damage.
• Check the tire's maximum pressure rating (on the sidewall) and do not exceed it.

6.2 Care and Storage

• Store the compressor and accessories in a cool, dry place.
• Keep the air hose and nozzles clean and free of debris.
• If the battery will not be used for an extended period, charge it to approximately 50% before storage.
• Use only the provided or manufacturer-approved charging cable.

6.3 Troubleshooting

• Compressor won't turn on: Ensure the battery is charged. Connect to the charger.
• Compressor stops quickly: The battery may be low. Recharge the unit.
• Pressure reading is inaccurate or zero: Check that the nozzle is securely connected to the tire valve. There may be a leak in the connection.
• Compressor does not auto-shutoff: Verify the target pressure is set correctly. The seal on the item being inflated may not be airtight.
• Unit becomes very hot: Stop use immediately and allow it to cool down. You may have exceeded the recommended continuous run time.

7. Warranty and Support

No specific warranty details or customer support contact information (phone, email, website) was provided in the source HTML for this product. For support, you may need to contact the seller (e.g., Amazon) or look for documentation included in the physical product packaging.
